BCS 2016 "Intro to Microservices (and the Seven Deadly Sins)"
The document discusses microservices and outlines the 'seven deadly sins' associated with them: lust, gluttony, greed, sloth, wrath, envy, and pride. It emphasizes that while microservices can solve various issues, careful architectural design, operational maturity, and evaluation are crucial for successful implementation. The author also provides insights on communication protocols and the importance of accountability within teams for effectively managing microservices.
More Related Content
Similar to BCS 2016 "Intro to Microservices (and the Seven Deadly Sins)"
BCS 2016 "Intro to Microservices (and the Seven Deadly Sins)"

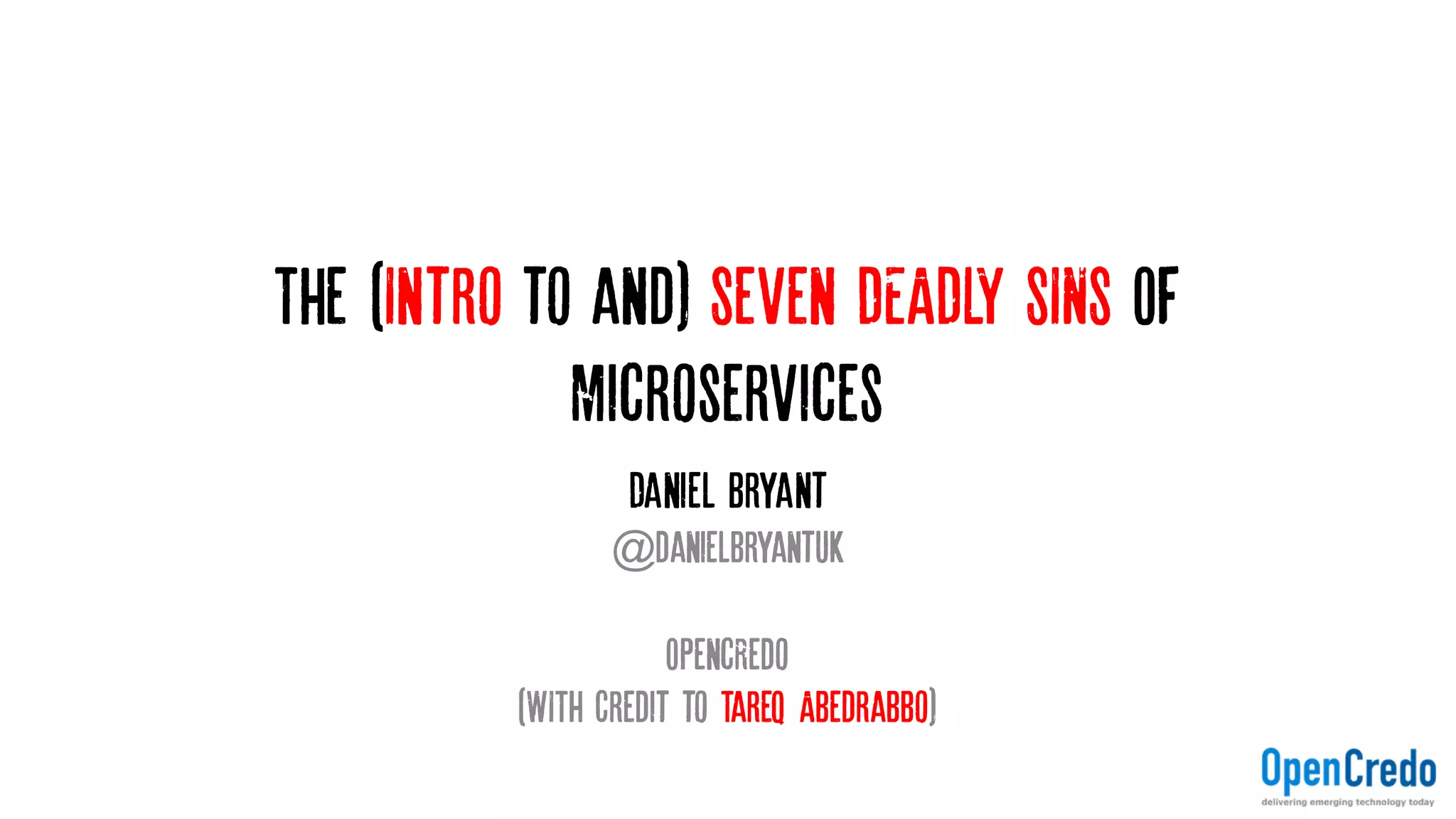

- 1. Introduction to Microservices(And) The Seven DEADLY SINS OF Microservices Daniel Bryant @danielbryantuk OpencRedo (WITH Credit to Tareq Abedrabbo)
- 2. The Seven DeadlySins 1. LUST … 2. GLUTTONY 3. GREED… 4. SLOTH 5. WRATH 6. ENVY 7. PRIDE 07/04/2016 @danielbryantuk

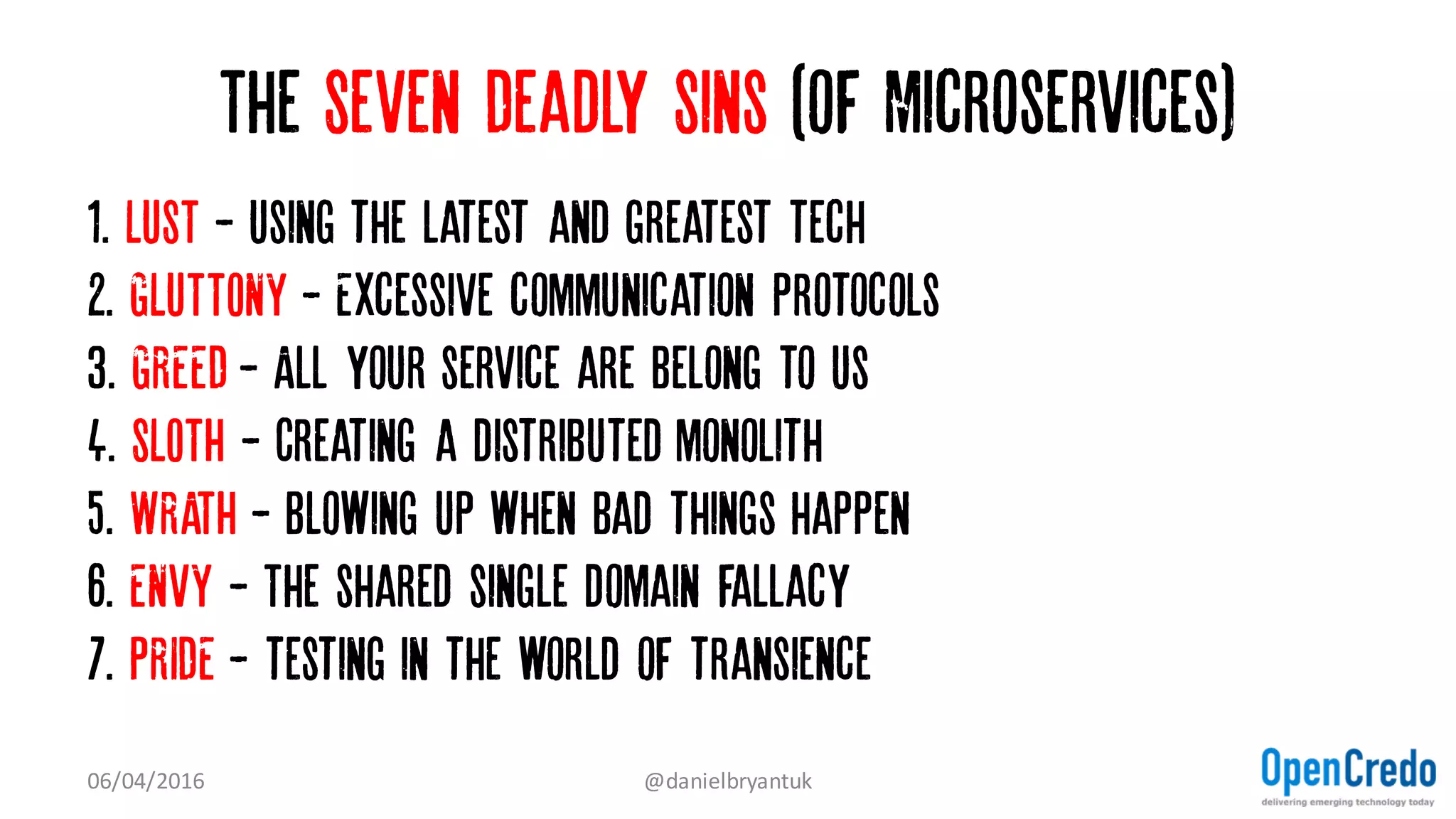

- 3. The Seven DeadlySins (of Microservices) 1. LUST - Using the latest and greatest tech… 2. GLUTTONY - Excessive communication protocols 3. GREED - All your service are belong to us… 4. SLOTH - Creating a distributed monolith 5. WRATH - Blowing up when bad things happen 6. ENVY - The shared single domain fallacy 7. PRIDE - testing in the world of transience 07/04/2016 @danielbryantuk
- 4. Who Am I? •Chief Scientist at OpenCredo ü Agile, Architecture, CI/CD, DevOps ü Microservices, cloud, containers ü Driving change through the application of technology and teams • London Java Community Associate • InfoQ Editor, DZone MVB, VOXXed, O'REILLy • MBCS (10+ Years), Ex-academic (PhD AI/Software) 07/04/2016 @danielbryantuk

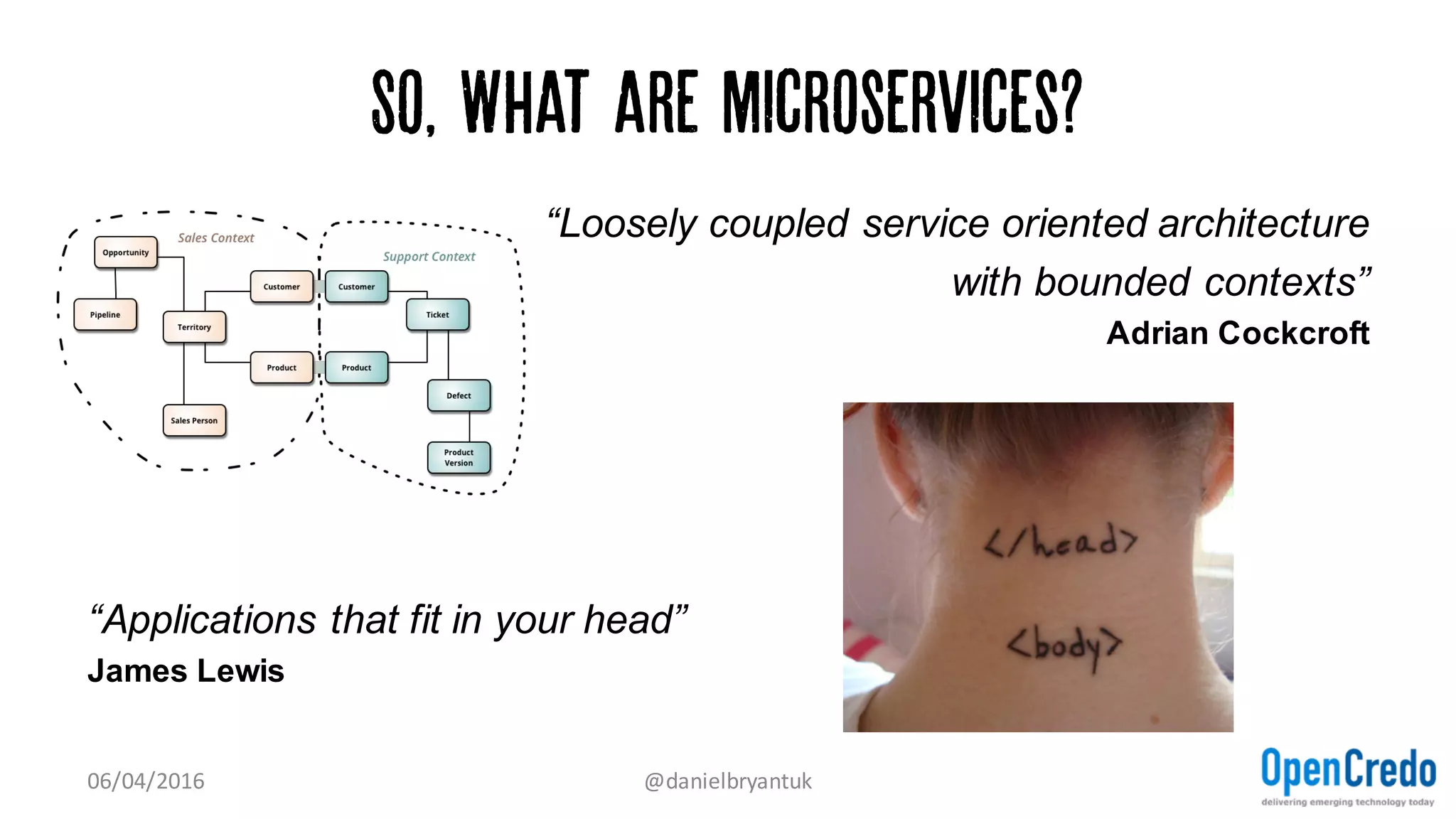

- 5. So, What aremicroservices? “Loosely coupled service oriented architecture with bounded contexts” Adrian Cockcroft “Applications that fit in your head” James Lewis 07/04/2016 @danielbryantuk
- 6. So, What aremicroservices? • Architectural style - build services around biz Capability • single App composed of multiple services • Services Running as individual processes, individually deployable • lightweight external communication (e.g. rest over http) • Potentially polyglot Language and Data stores • Minimum centralised management 07/04/2016 @danielbryantuk

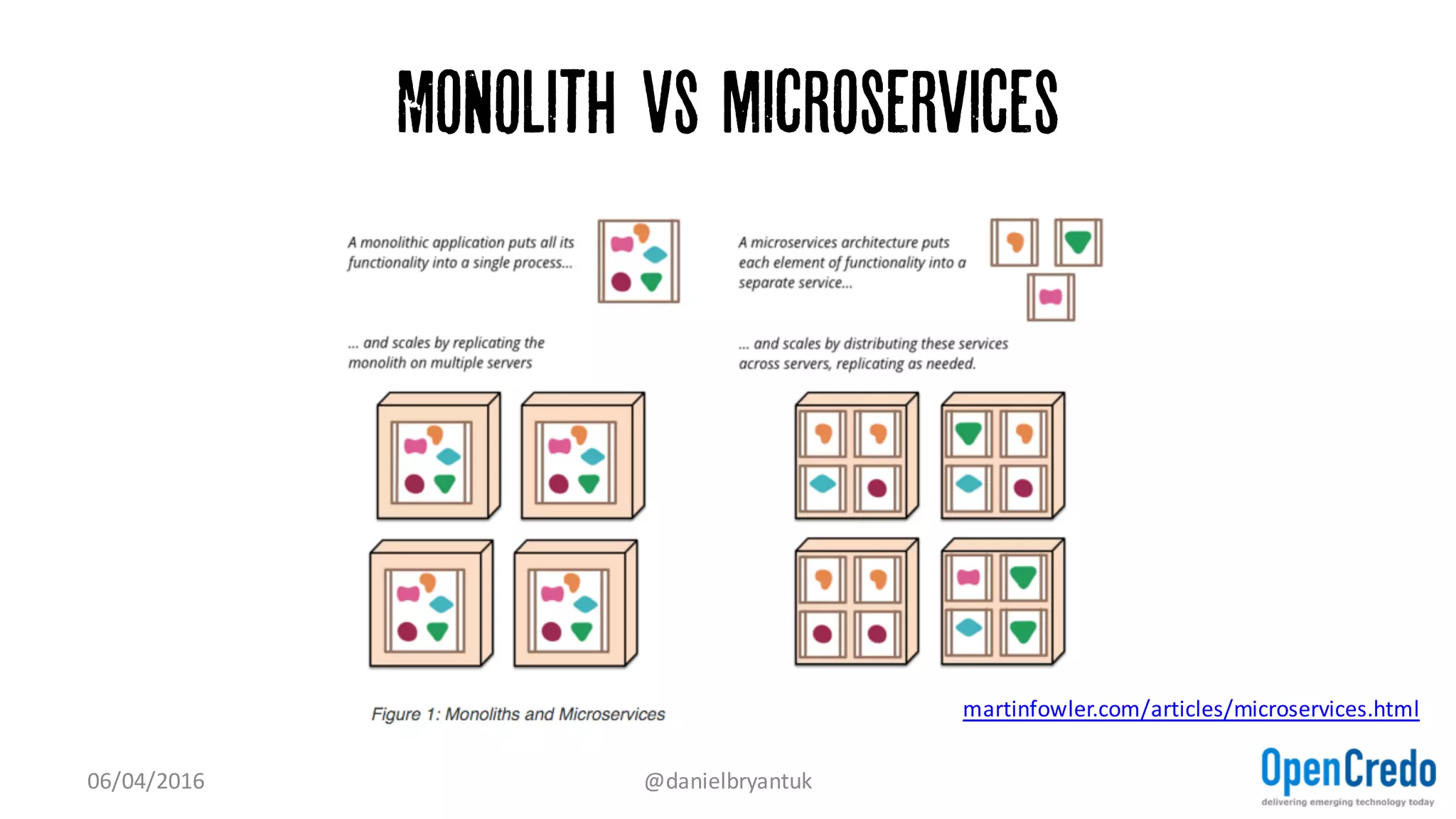

- 7. Monolith vs microservices 07/04/2016@danielbryantuk martinfowler.com/articles/microservices.html

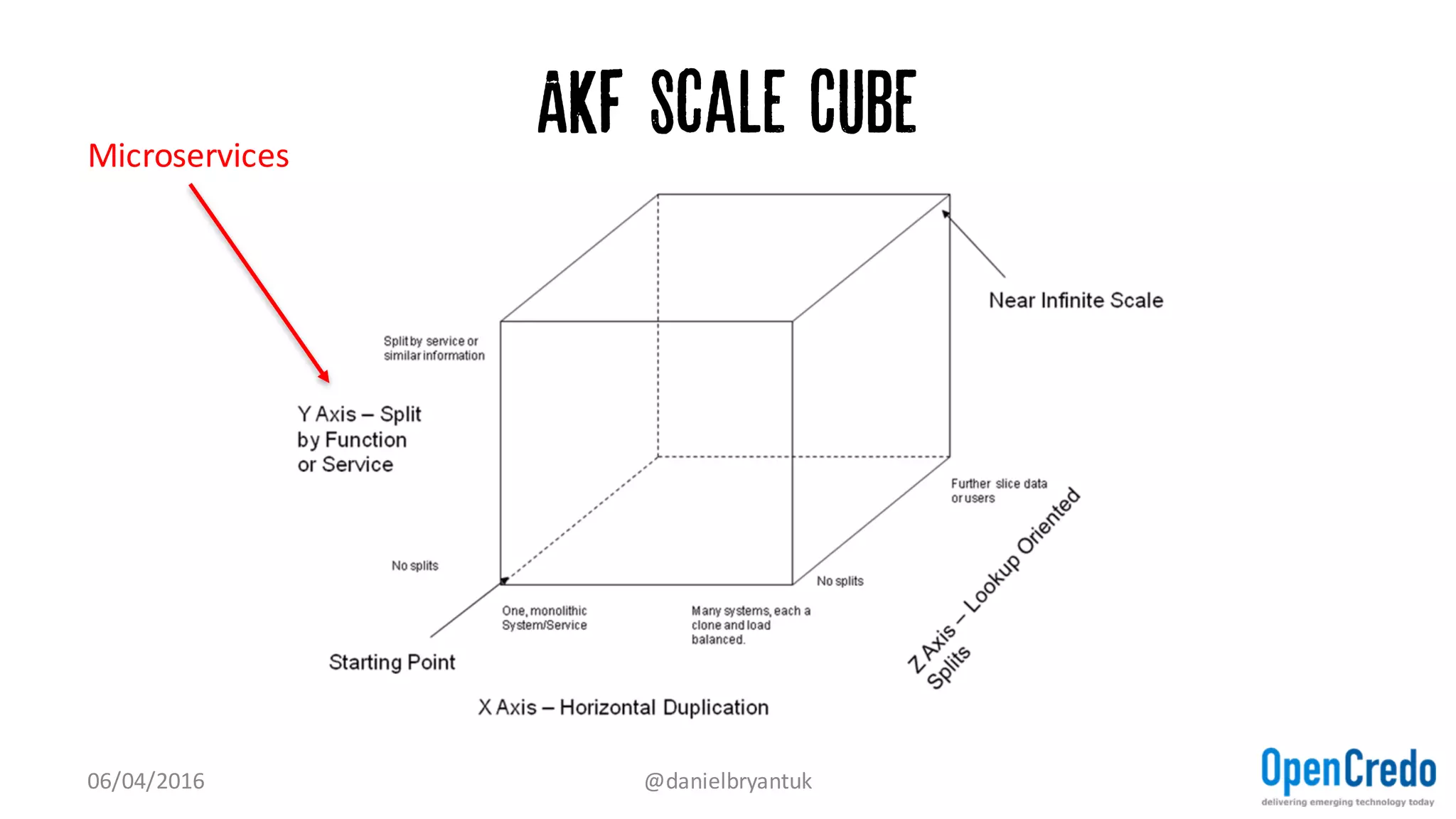

- 8. AKF Scale Cube 07/04/2016@danielbryantuk Microservices

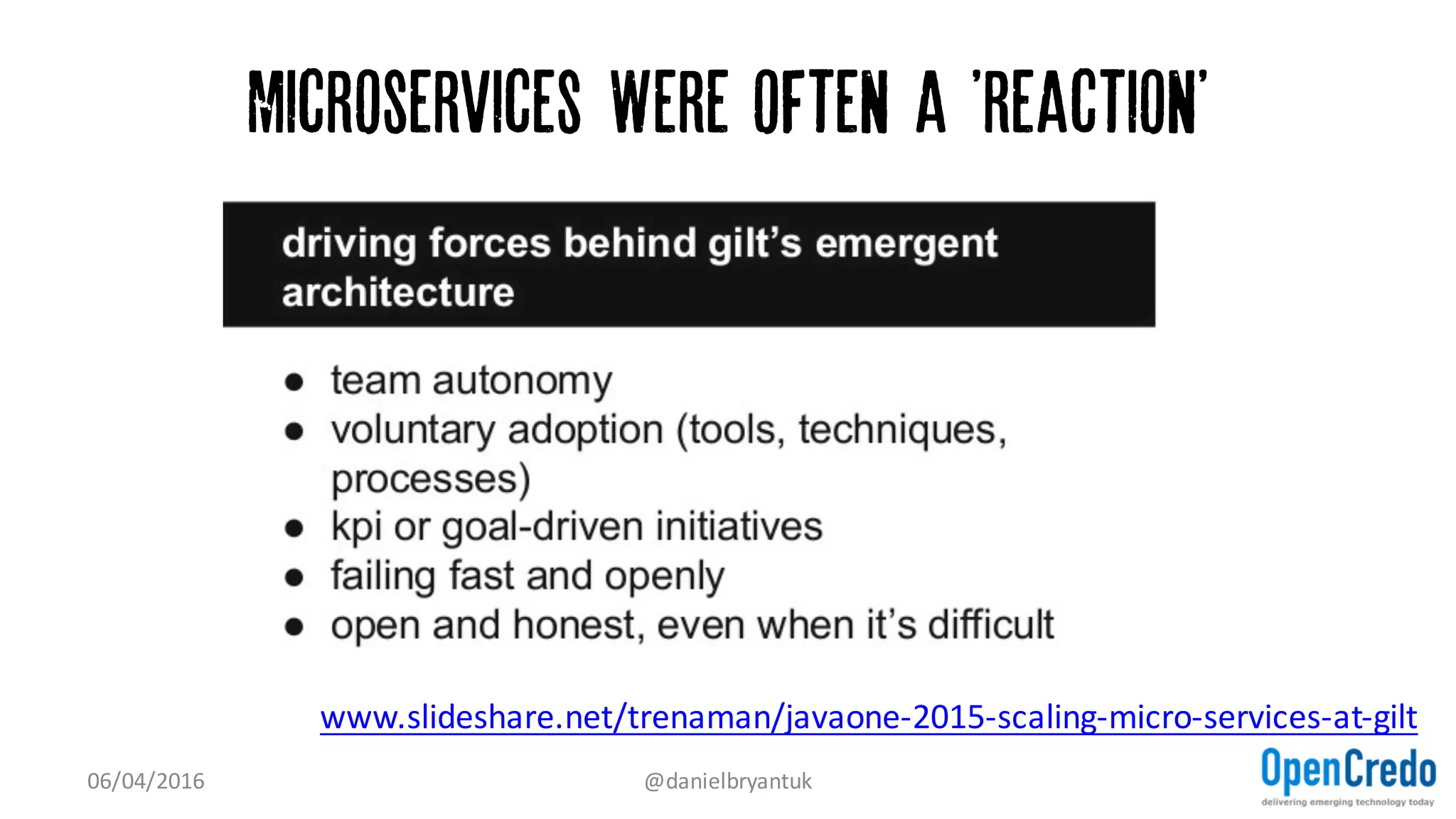

- 9. Microservices Were oftena 'Result' 07/04/2016 @danielbryantuk www.slideshare.net/trenaman/javaone-2015-scaling-micro-services-at-gilt

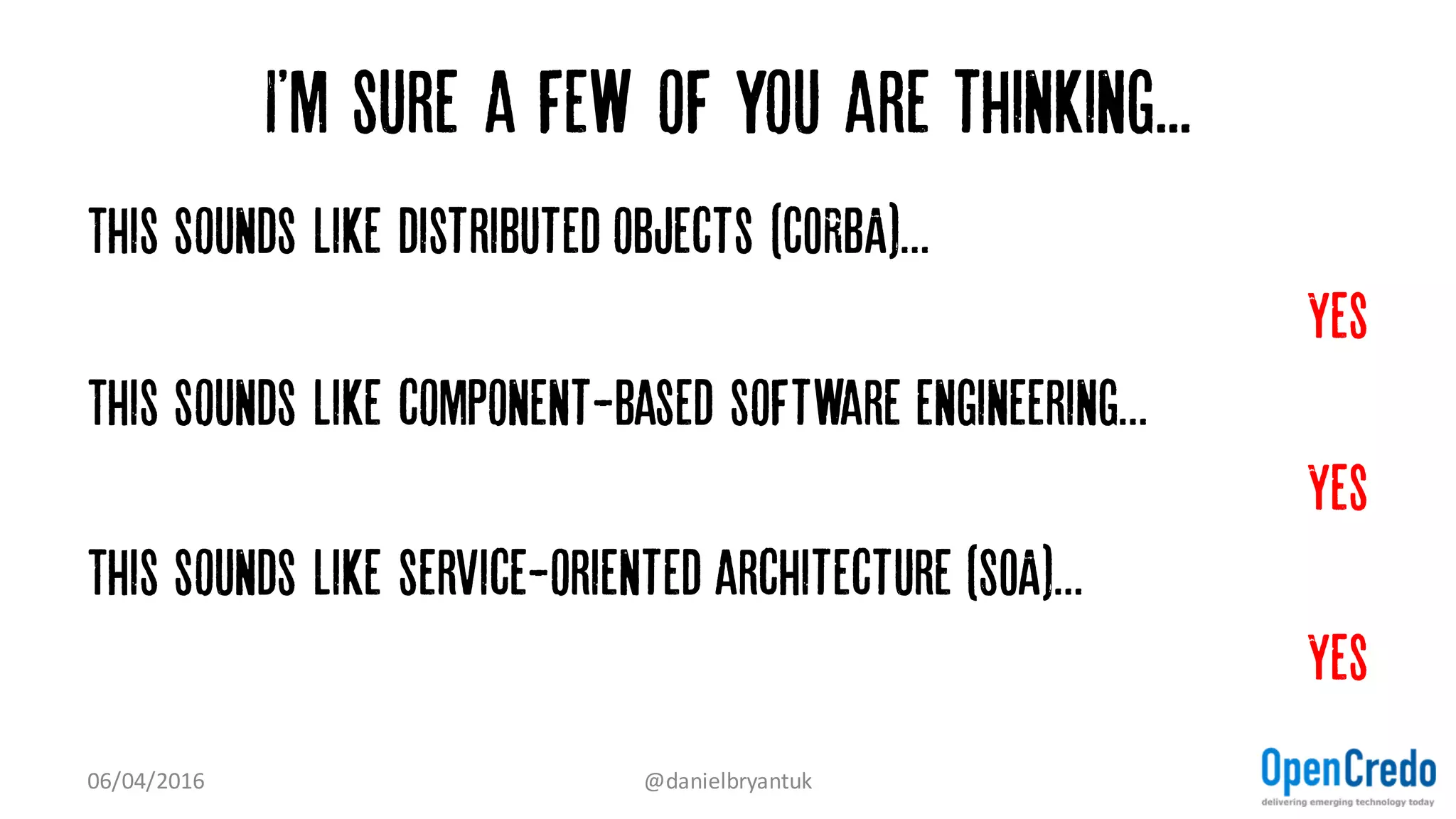

- 10. I'm sure afew of you are thinking... This sounds like distributed objects (CORBA)... Yes This sounds like component-based software engineering... Yes This sounds like service-oriented architecture (SOA)... Yes 07/04/2016 @danielbryantuk
- 11. So, we've donethis before? Oh, Yes... but this time it's Different... maybe... 07/04/2016 @danielbryantuk
- 12. The Perfect Stormin IT? • collaborative Processes (and increasing requirements for speed) – Devops, (Lean and Agile) • Programmable infrastructure – Config management, Cloud and containers • Open source – Download, consume and contribute 07/04/2016 @danielbryantuk

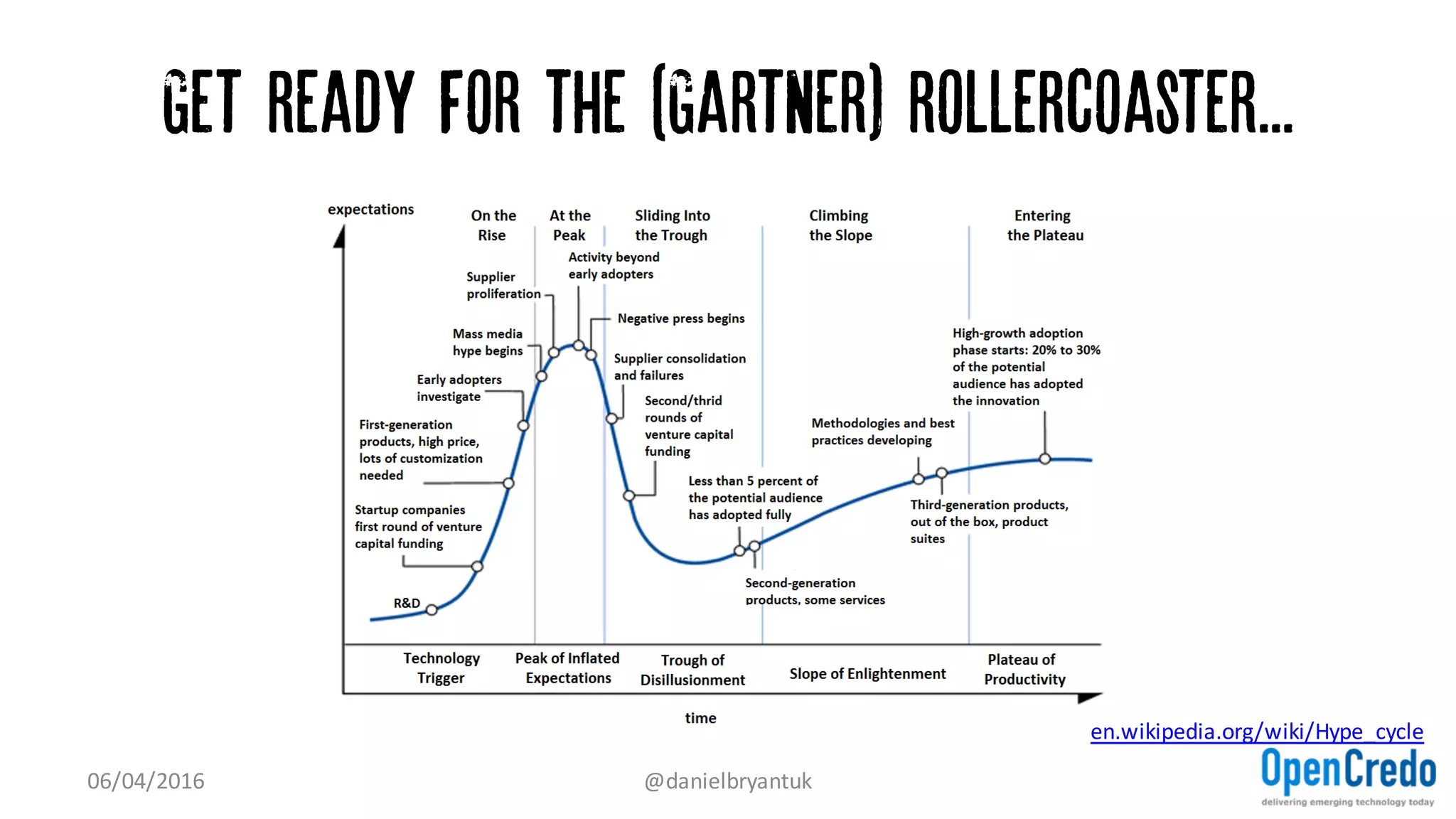

- 13. Get ready forthe (Gartner) rollercoaster... 07/04/2016 @danielbryantuk en.wikipedia.org/wiki/Hype_cycle Microservices
- 14. Opencredo have workedwith microservice early adopters... ...And have learnt many lessons 07/04/2016 @danielbryantuk opencredo.com/casestudies/noths-case-study/ opencredo.com/casestudies/millenoki-iot/ opencredo.com/casestudies/sedex-google-cloud-platform/
- 15. The Seven DeadlySins (of Microservices) 1. LUST - Using the latest and greatest tech… 2. GLUTTONY - Excessive communication protocols 3. GREED - All your service are belong to us… 4. SLOTH - Creating a distributed monolith 5. WRATH - Blowing up when bad things happen 6. ENVY - The shared single domain fallacy 7. PRIDE - testing in the world of transience 07/04/2016 @danielbryantuk
- 16. 1. Lust -Using THE LATEST and Greatest Tech… 07/04/2016 @danielbryantuk
- 17. Microservices... They solve allof our problems, Right? (If you have silver bullets, watch out for the werewolves) 07/04/2016 @danielbryantuk

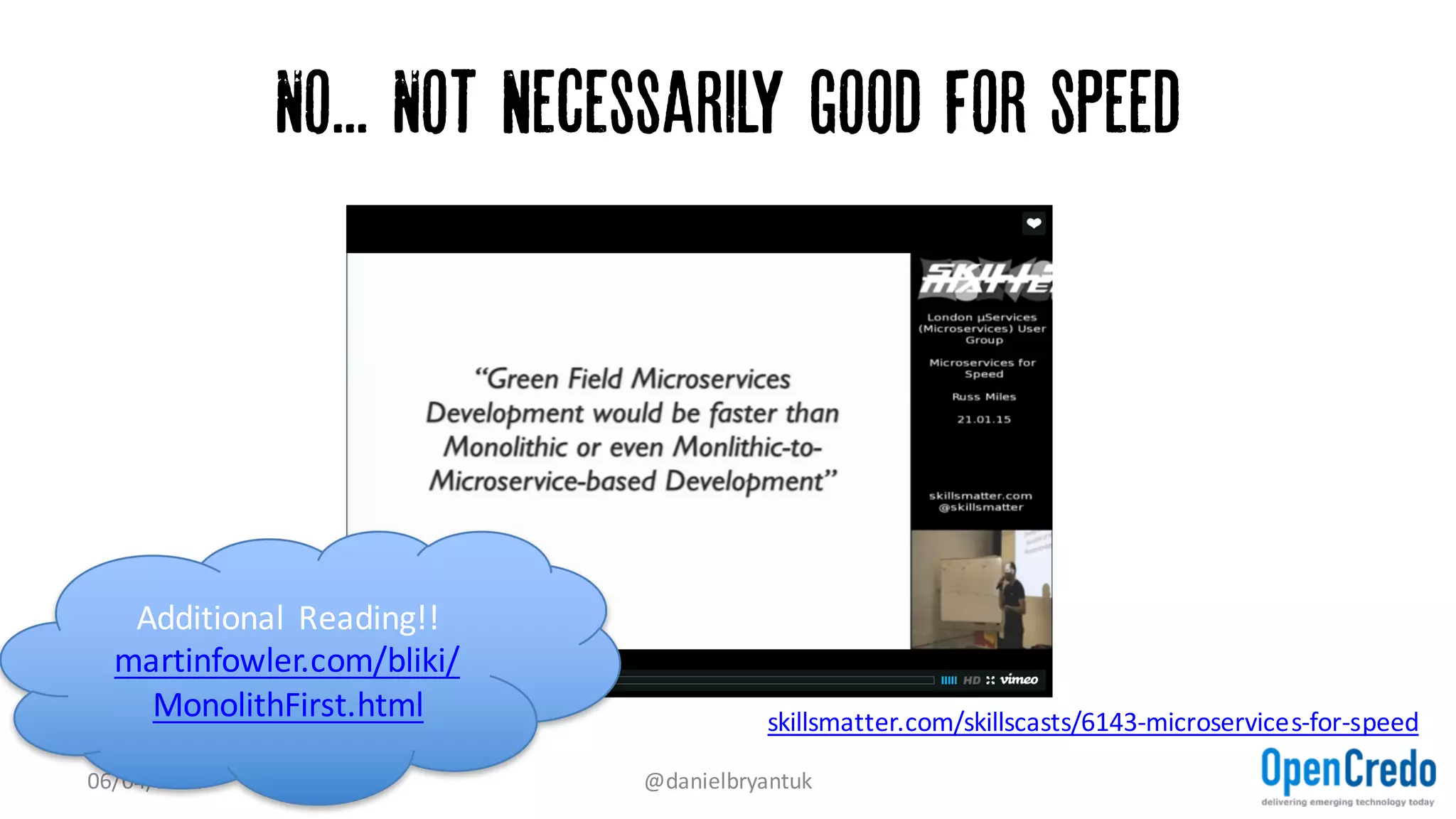

- 18. No... Not necessarilygood for speed 07/04/2016 @danielbryantuk skillsmatter.com/skillscasts/6143-microservices-for-speed Additional Reading!! martinfowler.com/bliki/ MonolithFirst.html

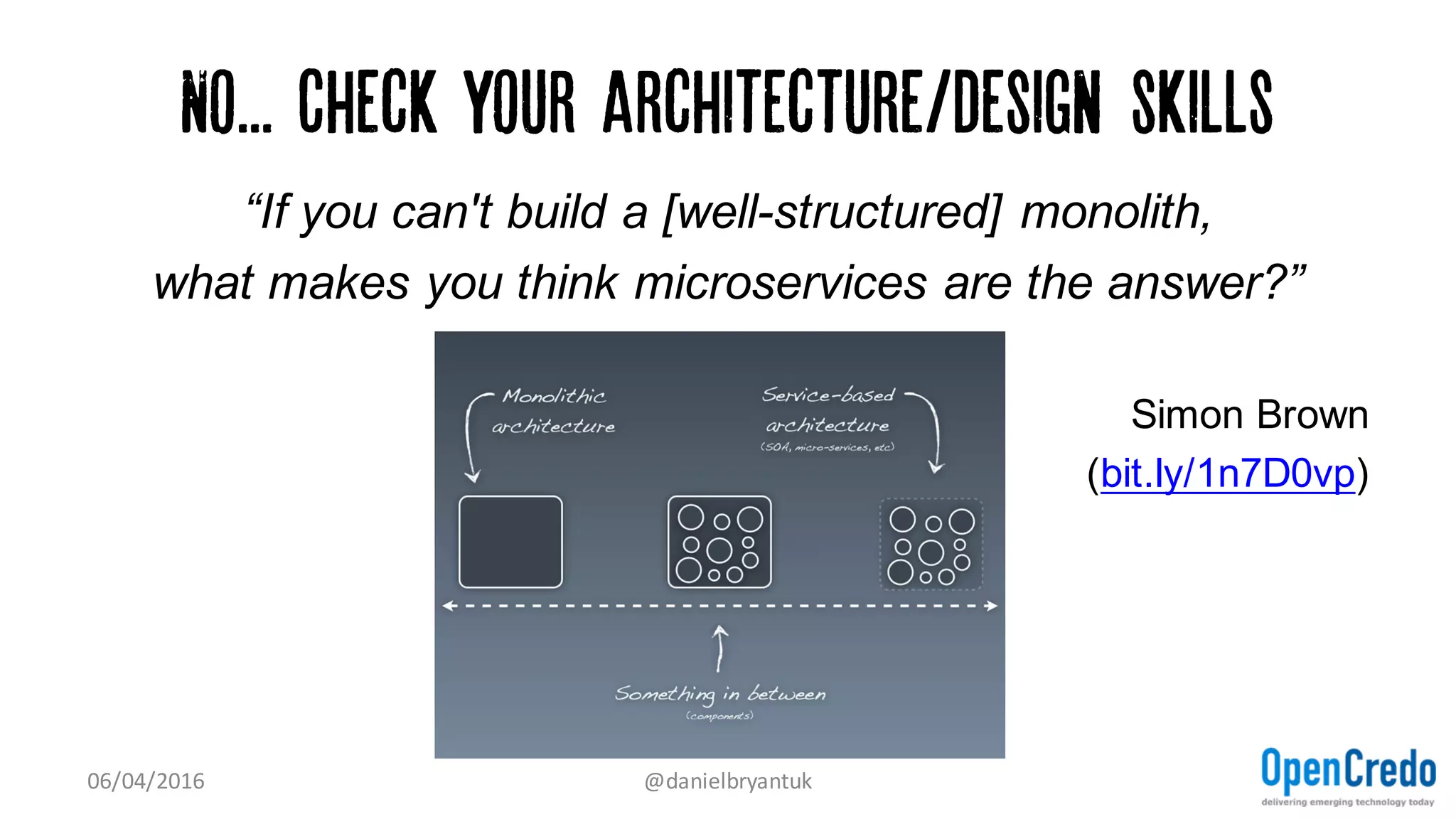

- 19. No... Check yourarchitecture/design skills “If you can't build a [well-structured] monolith, what makes you think microservices are the answer?” Simon Brown (bit.ly/1n7D0vp) 07/04/2016 @danielbryantuk

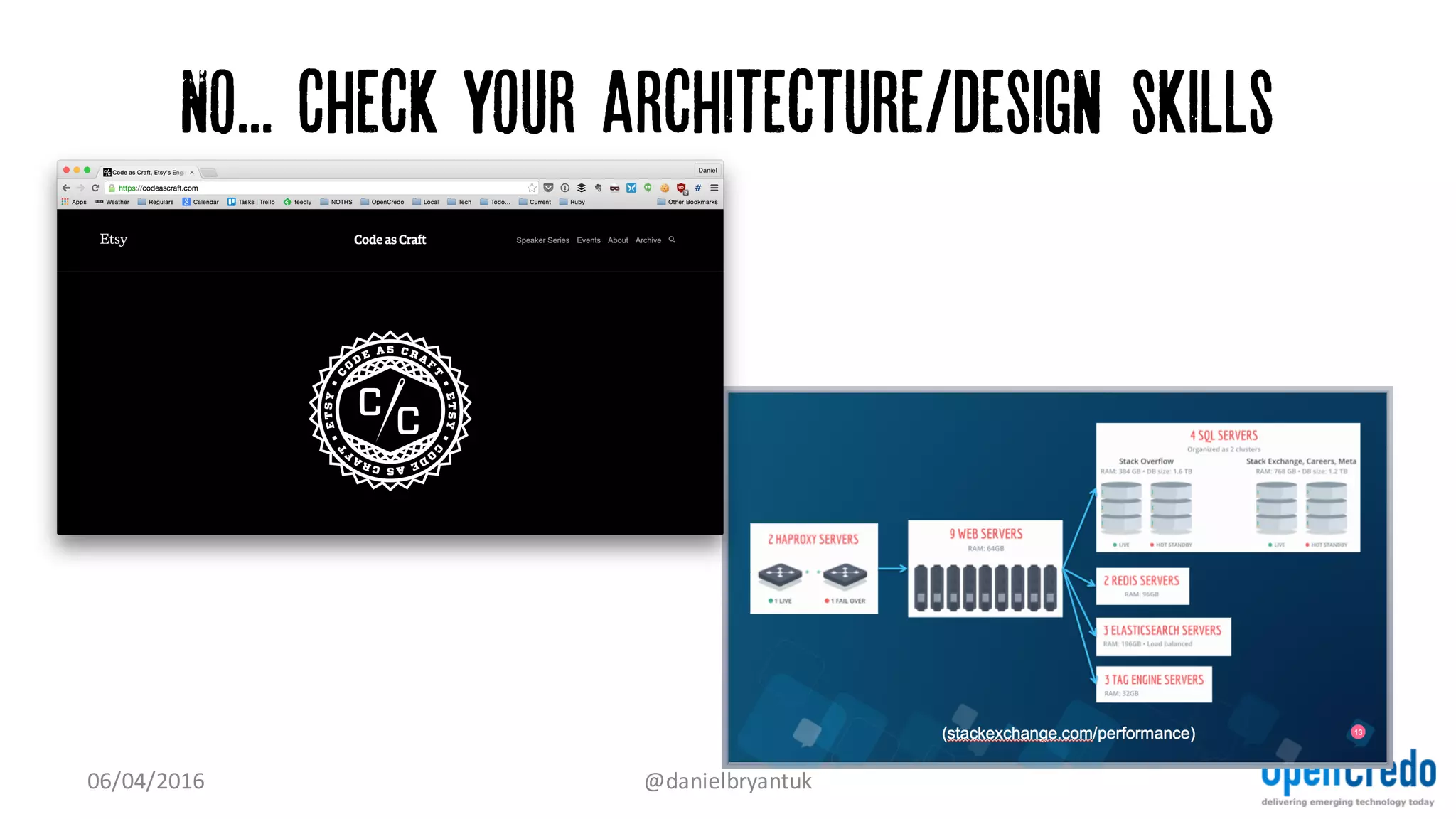

- 20. No... Check yourarchitecture/design skills 07/04/2016 @danielbryantuk
- 21. No... Operational maturityis vital 07/04/2016 @danielbryantuk martinfowler.com/bliki/MicroservicePrerequisites.html

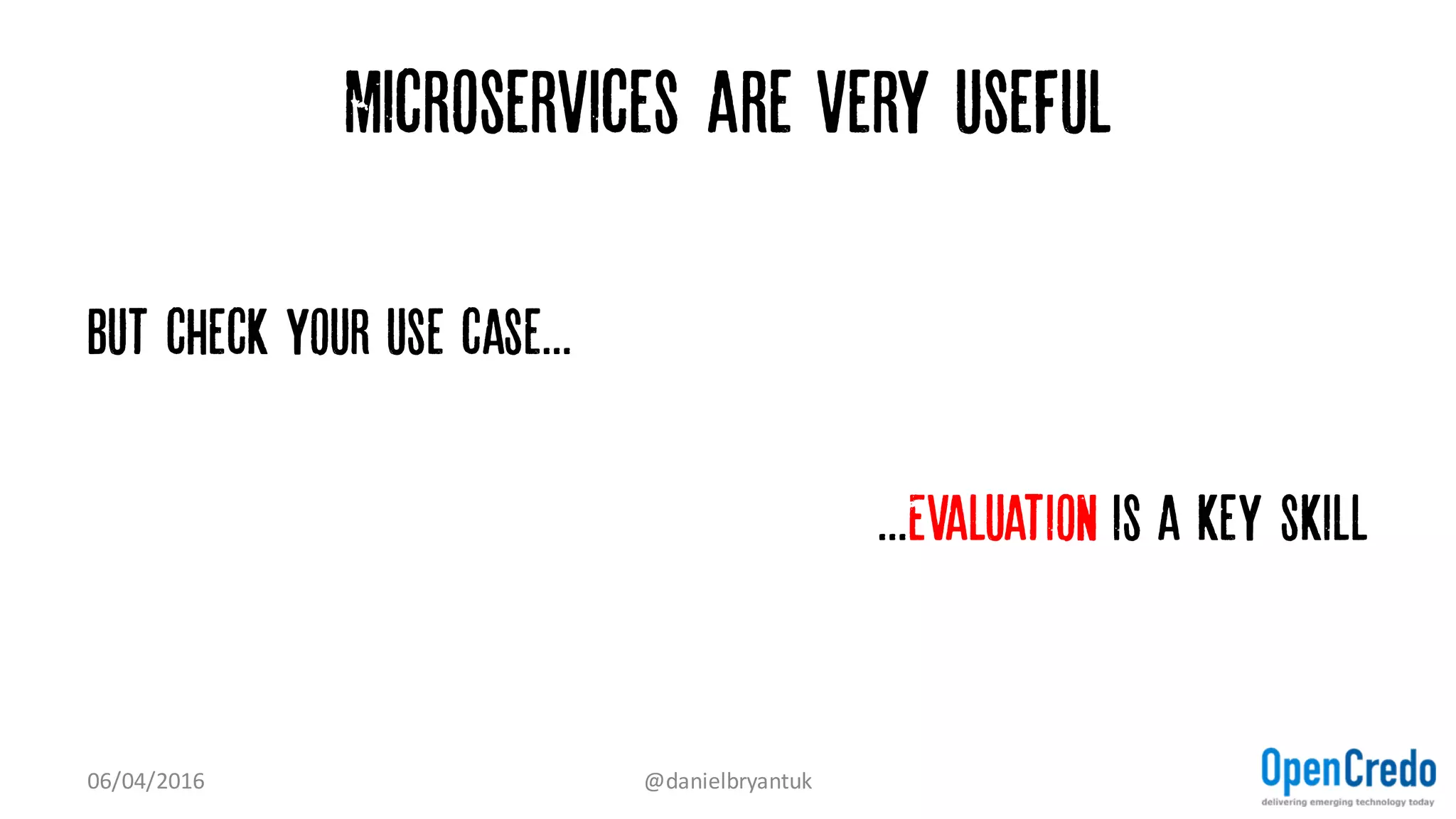

- 22. Microservices are veryuseful But check your use case... ...Evaluation is a key skill 07/04/2016 @danielbryantuk

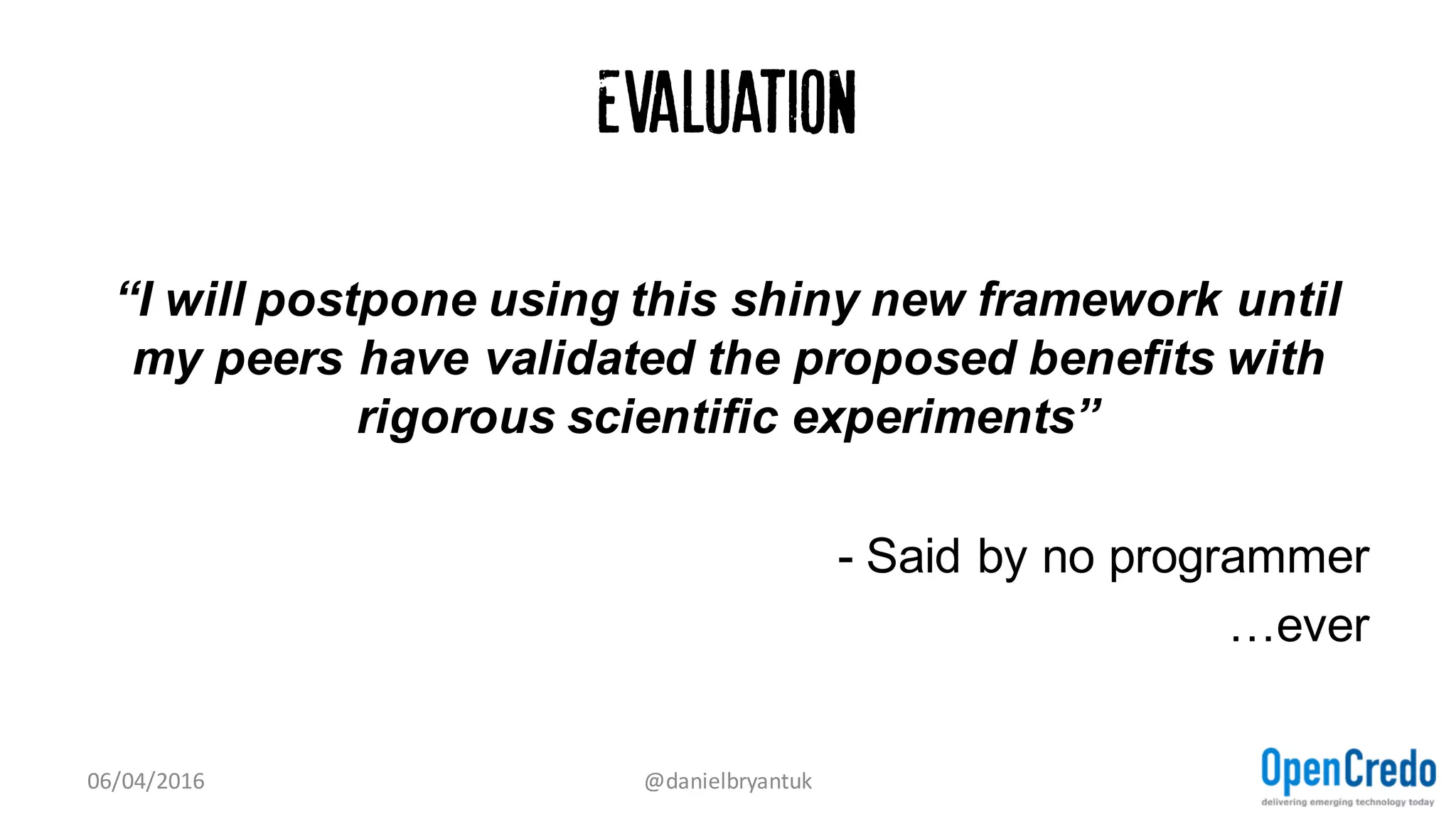

- 23. Evaluation “I will postponeusing this shiny new framework until my peers have validated the proposed benefits with rigorous scientific experiments” - Said by no programmer …ever 07/04/2016 @danielbryantuk

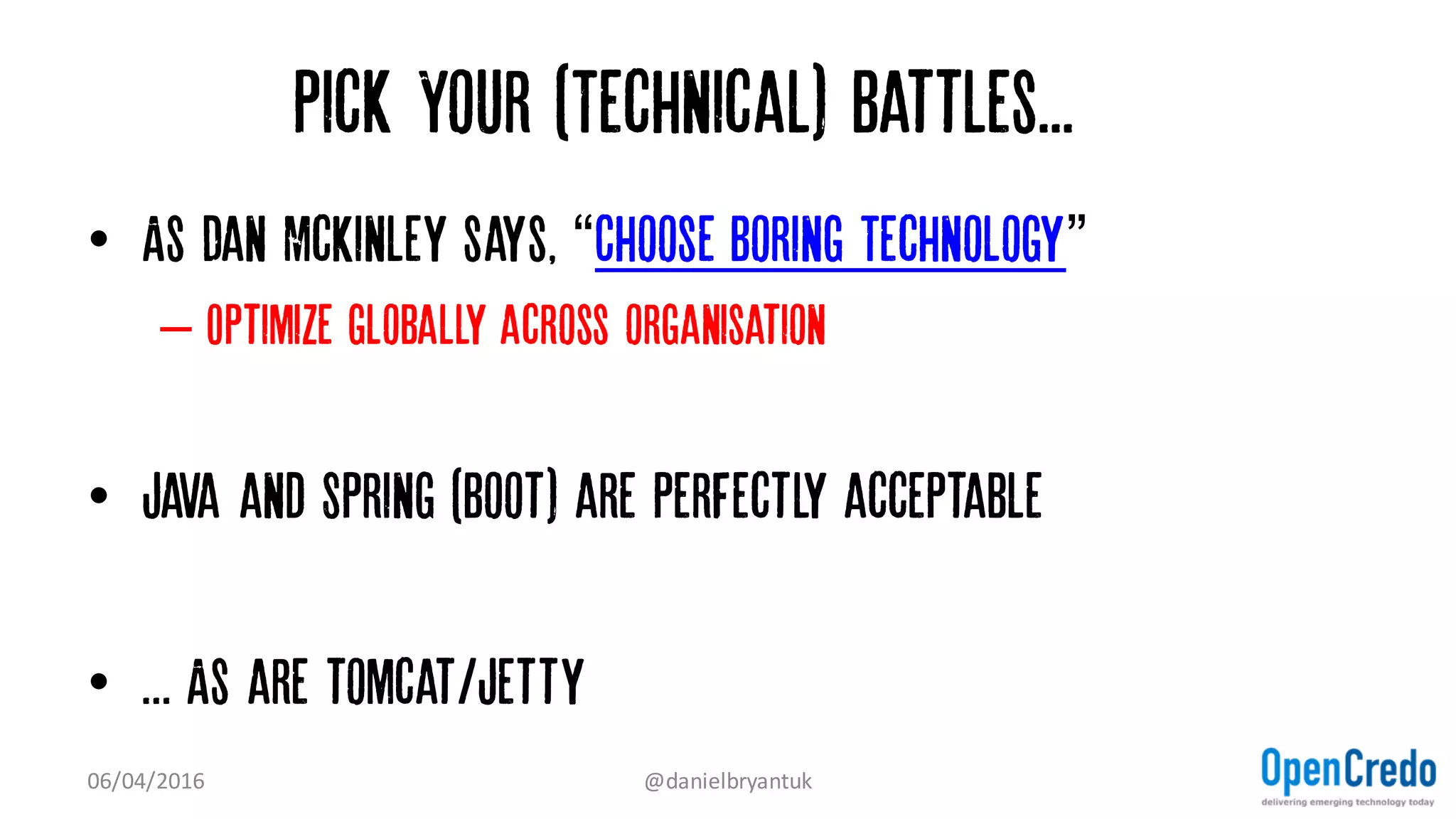

- 24. Pick Your (Technical)Battles...… • As Dan McKinley says, “Choose Boring Technology” – Optimize globally across organisation • Java and Spring (Boot) are perfectly acceptable • Do you really need containers? 07/04/2016 @danielbryantuk

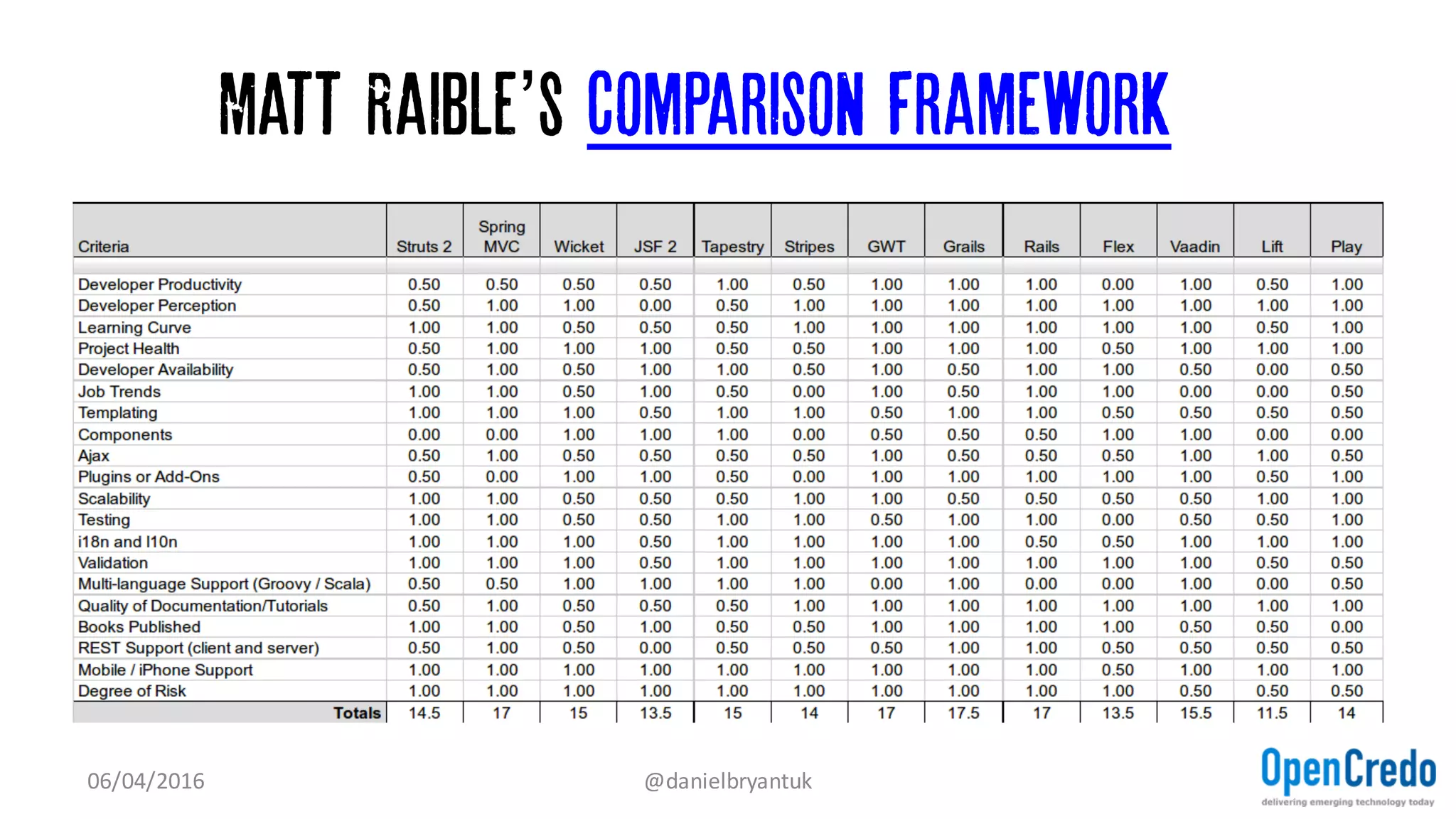

- 25. Matt Raible’s ComparisonFramework 07/04/2016 @danielbryantuk
- 26. 2. GLUTTONY -Excessive Communication PROTOCOLS 07/04/2016 @danielbryantuk

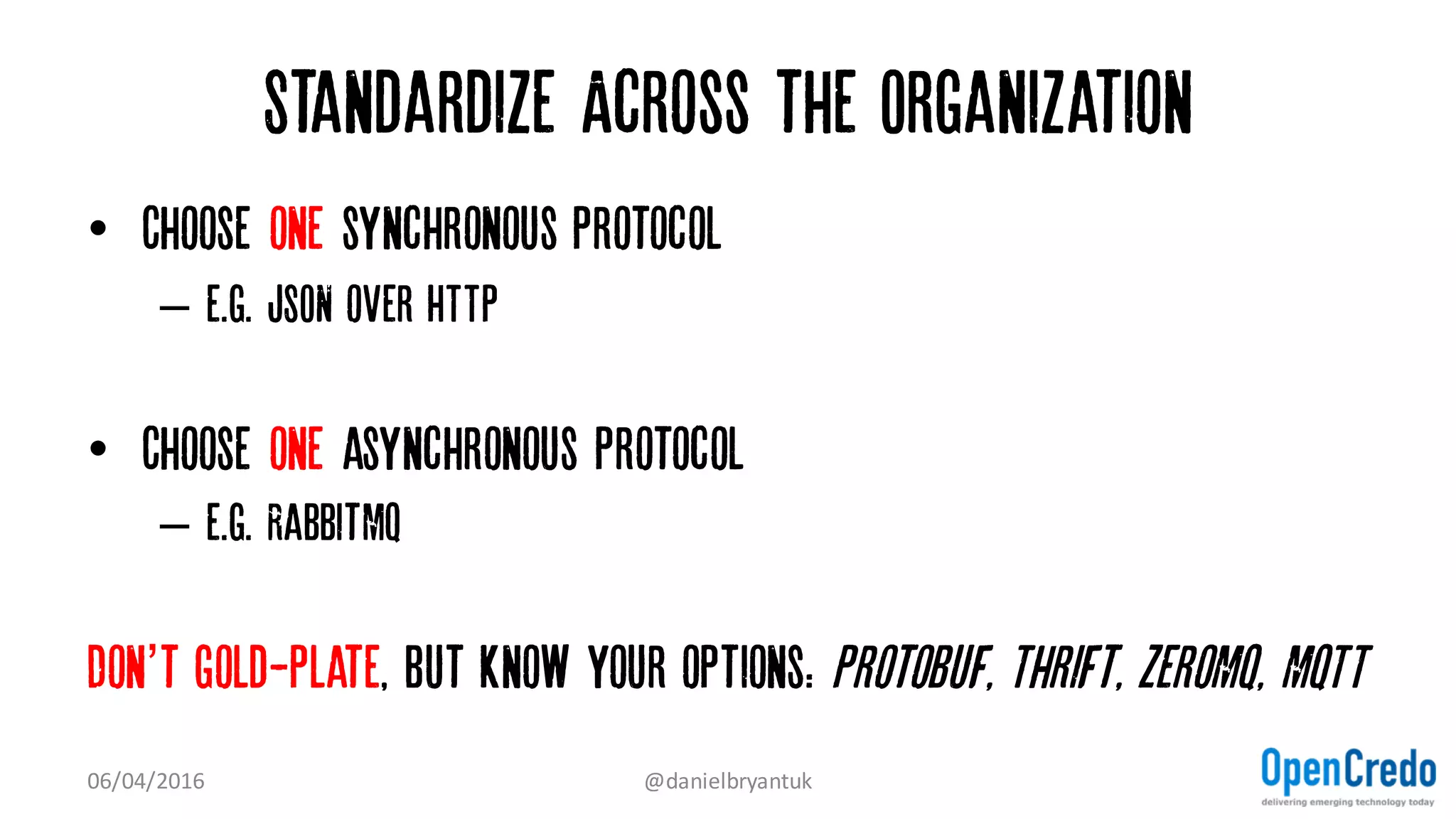

- 27. Standardize Across theOrganization • Choose one synchronous protocol – e.g. JSON over HTTP • Choose one asynchronous protocol – e.g. RabbitMQ Don’t gold-plate, but know your options: ProtoBuf, Thrift, ZeroMQ, MQTT 07/04/2016 @danielbryantuk
- 28. Enterprise communication (Beamme up?) 07/04/2016 @danielbryantuk www.dzone.com/research/guide-to-enterprise-integration
- 29. 3. GREED -All your service are Belong to us… 07/04/2016 @danielbryantuk
- 30. How Do CommitteesInvent? “organizations which design systems ... are constrained to produce designs which are copies of the communication structures of these organizations” - Melvin Conway, 1968 07/04/2016 @danielbryantuk

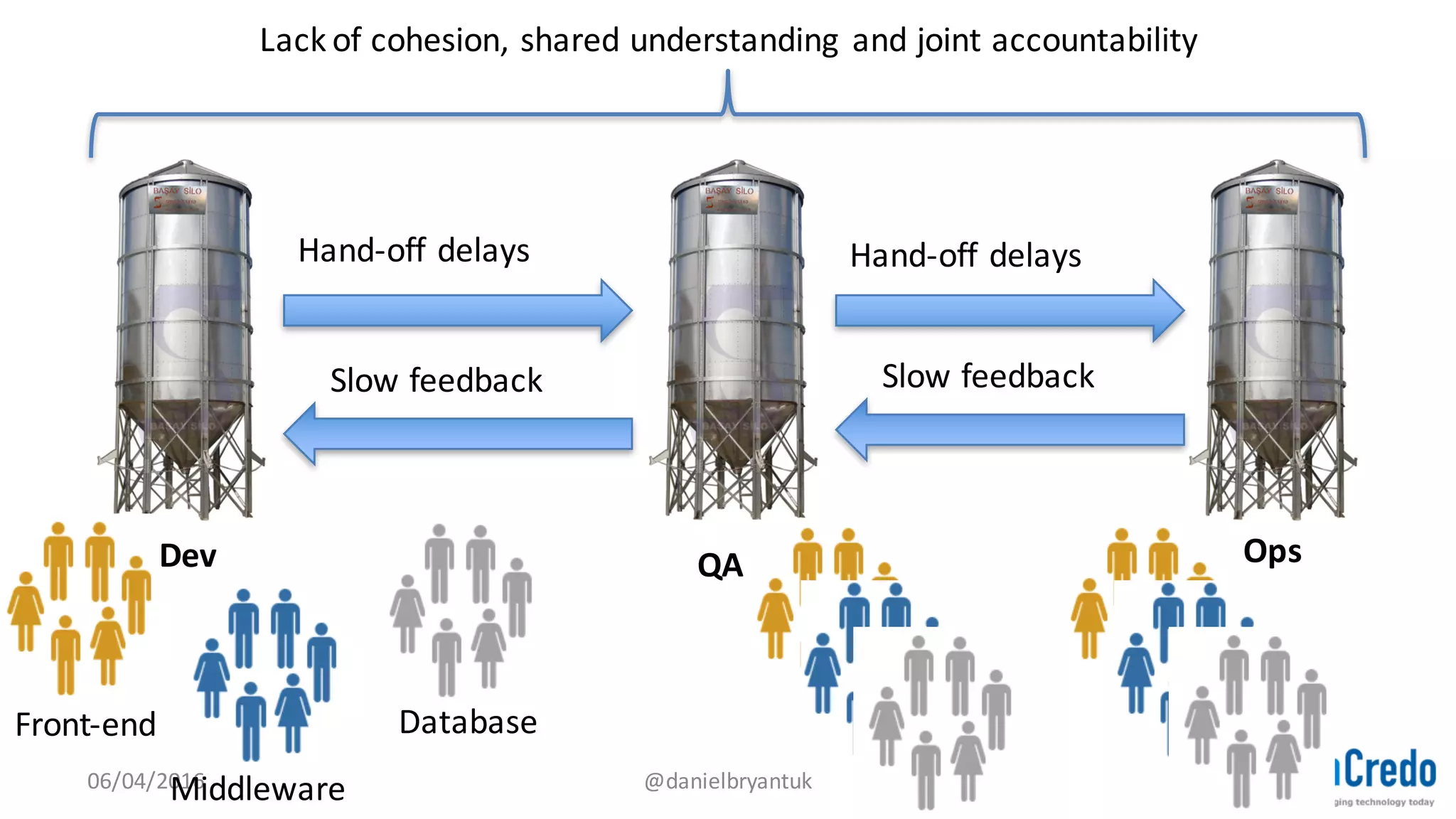

- 31. 07/04/2016 @danielbryantuk Dev QAOps Hand-off delaysHand-off delays Slow feedback Slow feedback Lack of cohesion, shared understanding and joint accountability Front-end Database Middleware
- 32.

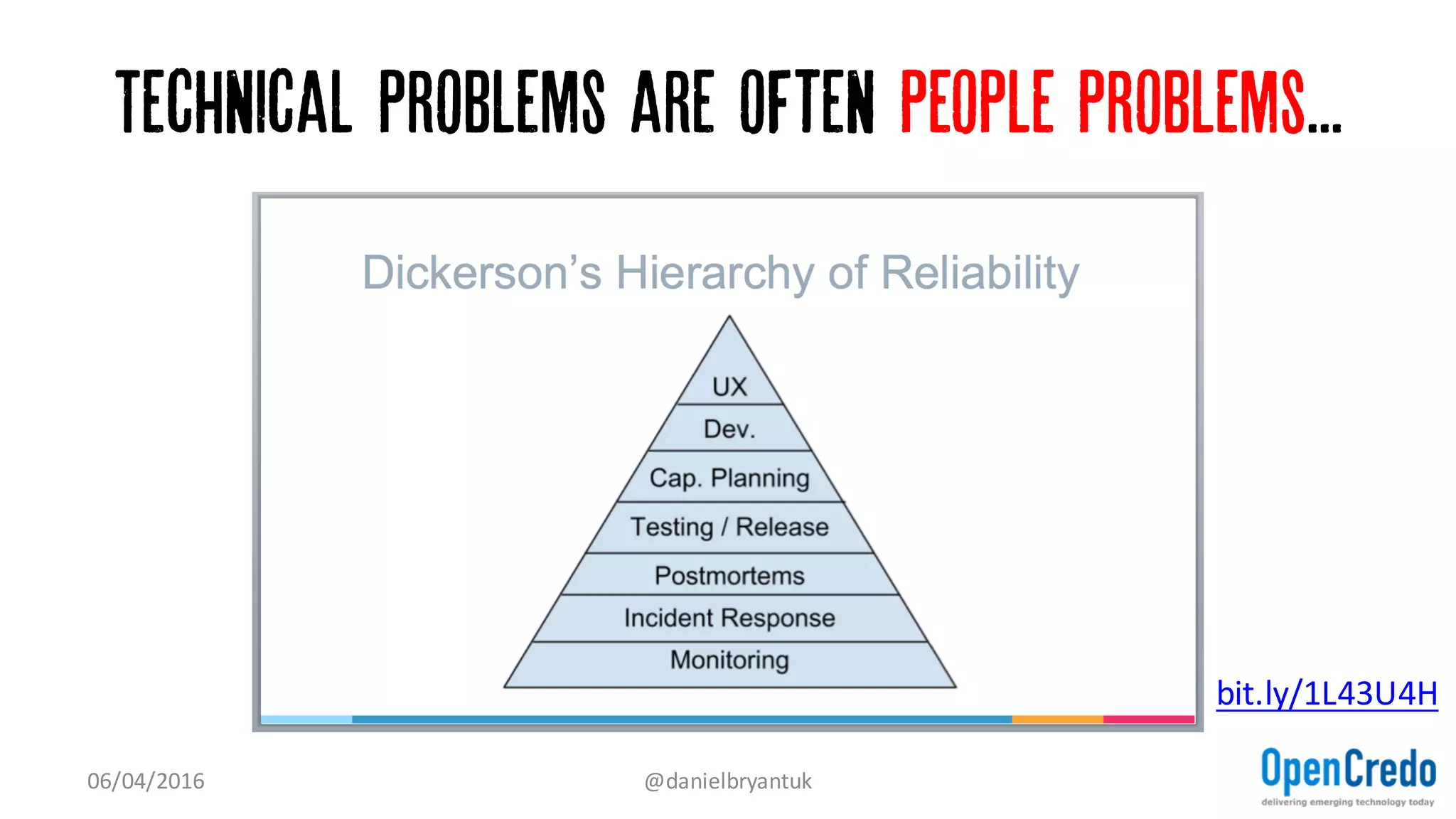

- 33. Technical problems areoften people problems... 07/04/2016 @danielbryantuk bit.ly/1L43U4H

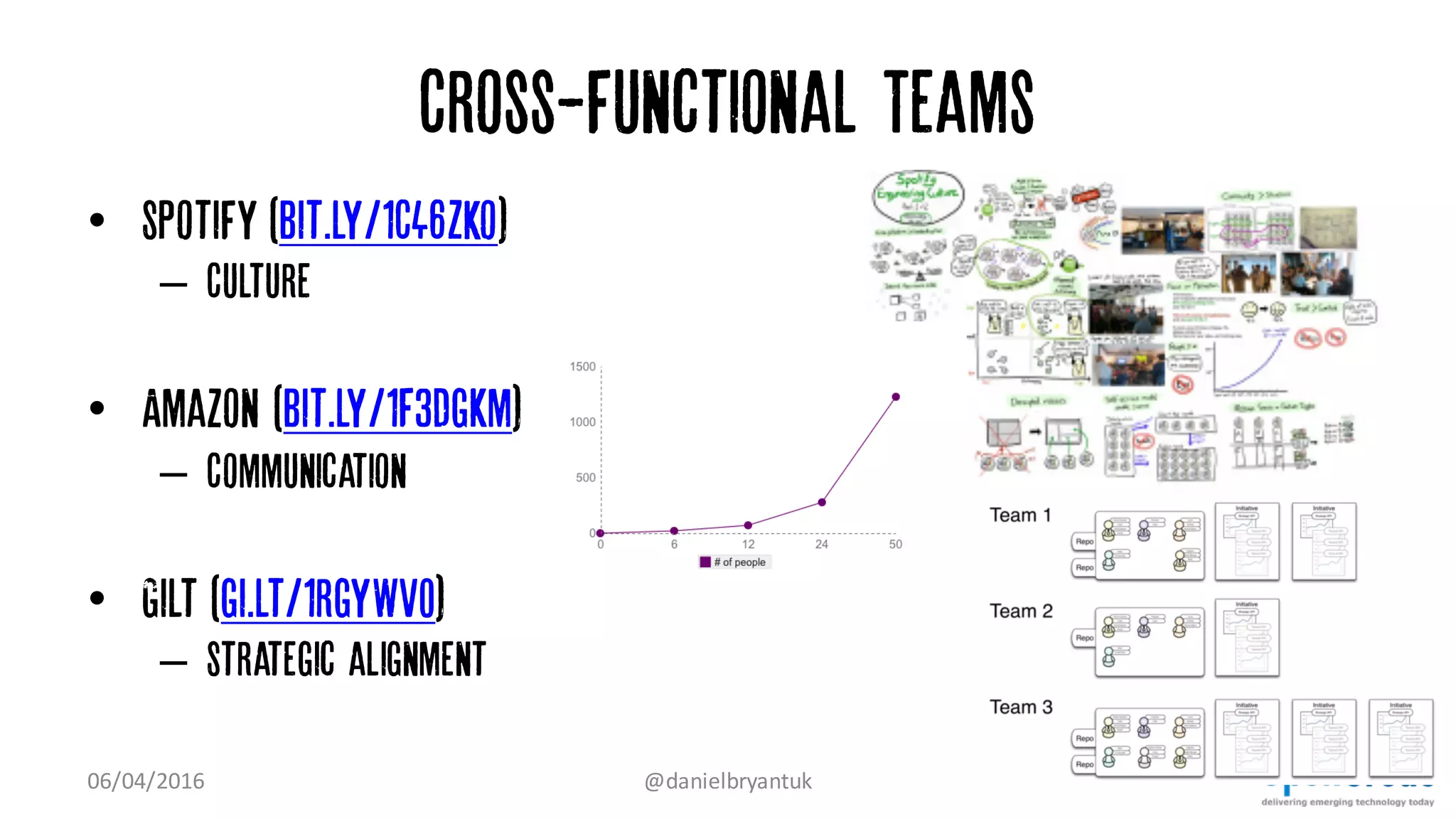

- 34. Cross-functional Teams • Spotify(bit.ly/1C46ZKo) – Culture • Amazon (bit.ly/1F3Dgkm) – Communication • Gilt (gi.lt/1rgyWvO) – Strategic alignment 07/04/2016 @danielbryantuk
- 35. Conway was Tellingthe Truth... Deal with it! 07/04/2016 @danielbryantuk

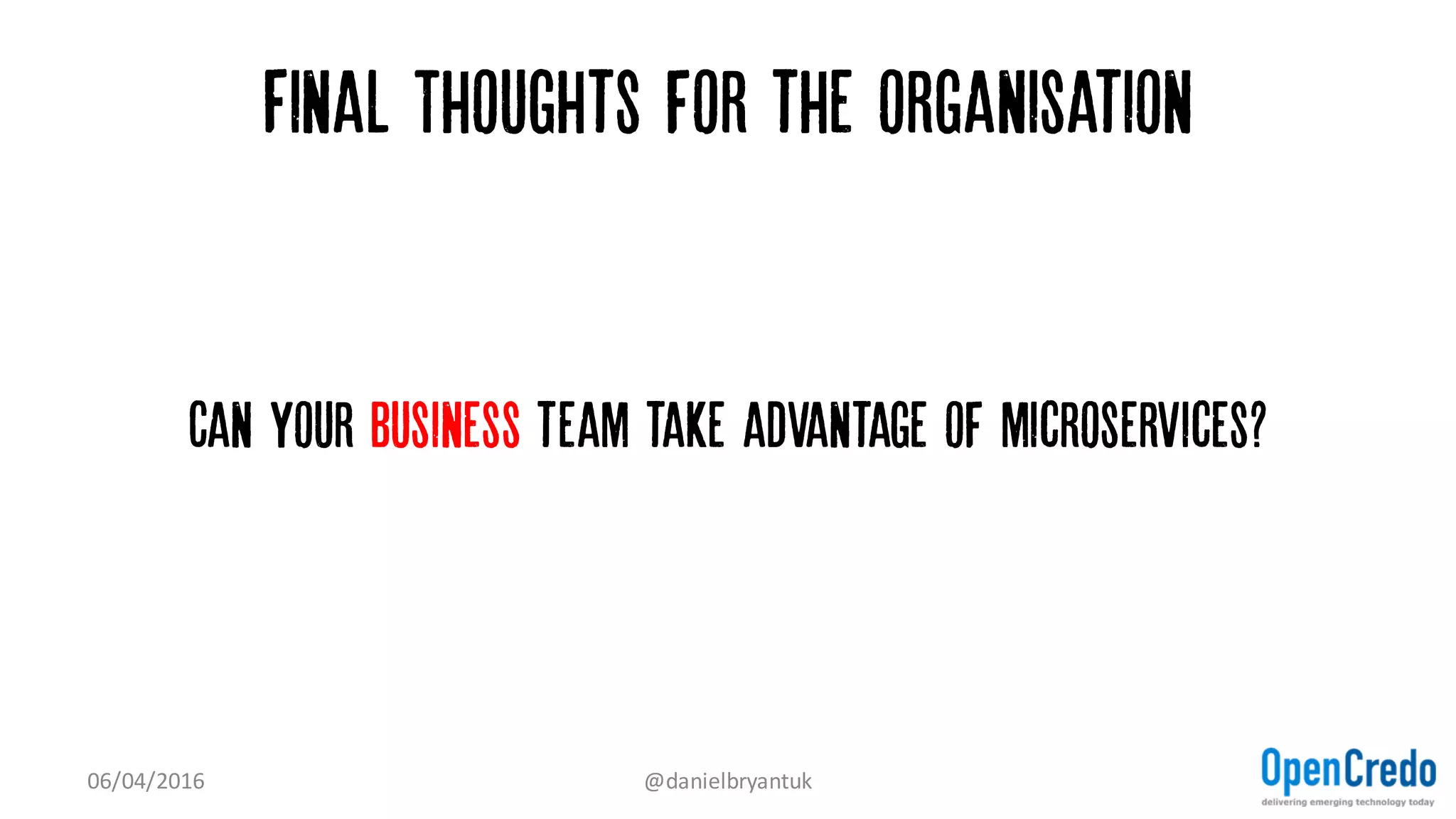

- 36. Final Thoughts forthe organisation Can your business team take advantage of microservices? 07/04/2016 @danielbryantuk
- 37. Inspiration (for thebusiness) 07/04/2016 @danielbryantuk https://opencredo.com/the-business-behind-microservices-redux/
- 38. 4. SLOTH -Creating a distributed monolith 07/04/2016 @danielbryantuk

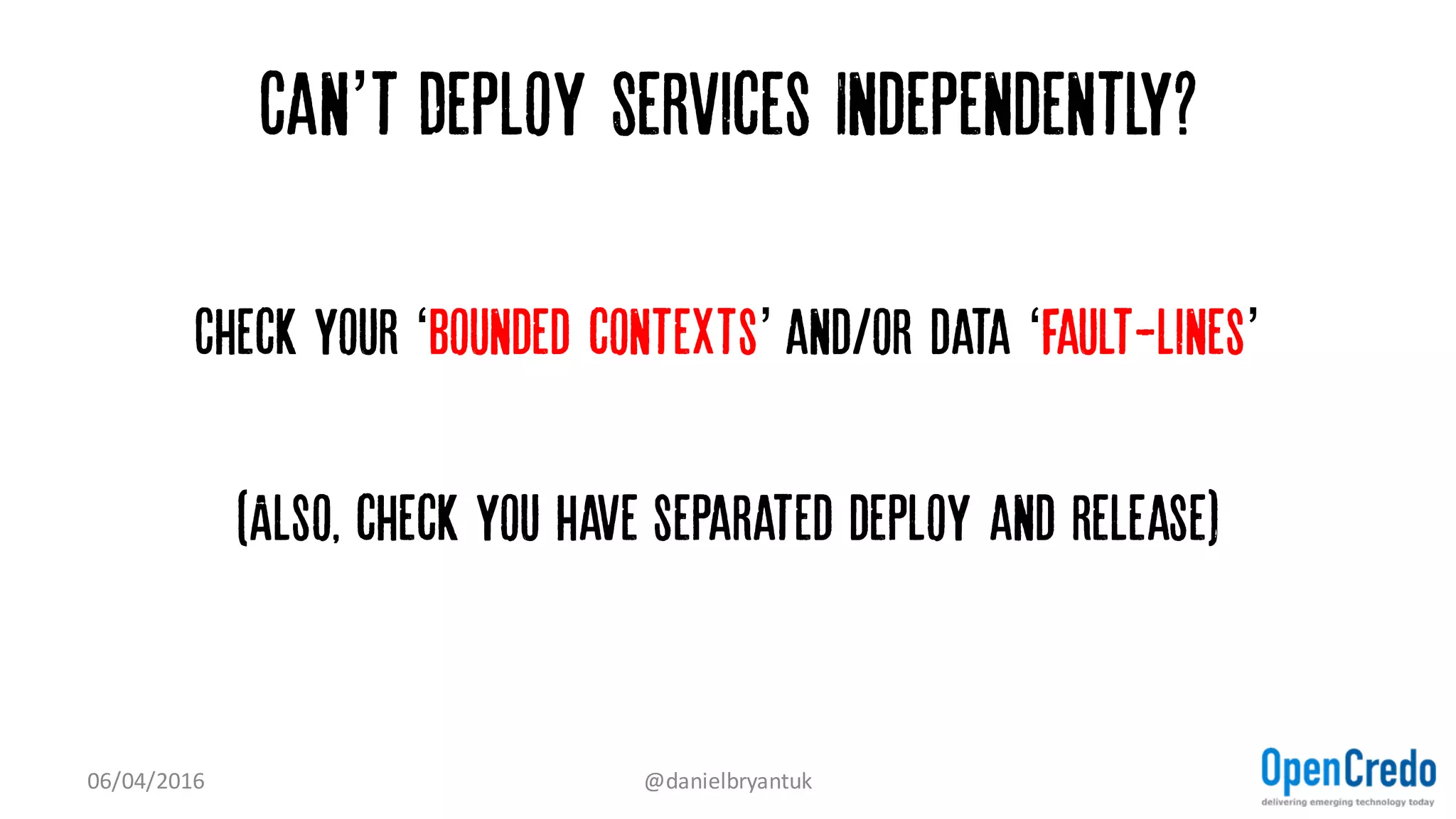

- 39. Can’t Deploy ServicesIndependently? Check your ‘bounded contexts’ and/or data ‘fault-lines’ (Also, check you have separated deploy and release) 07/04/2016 @danielbryantuk

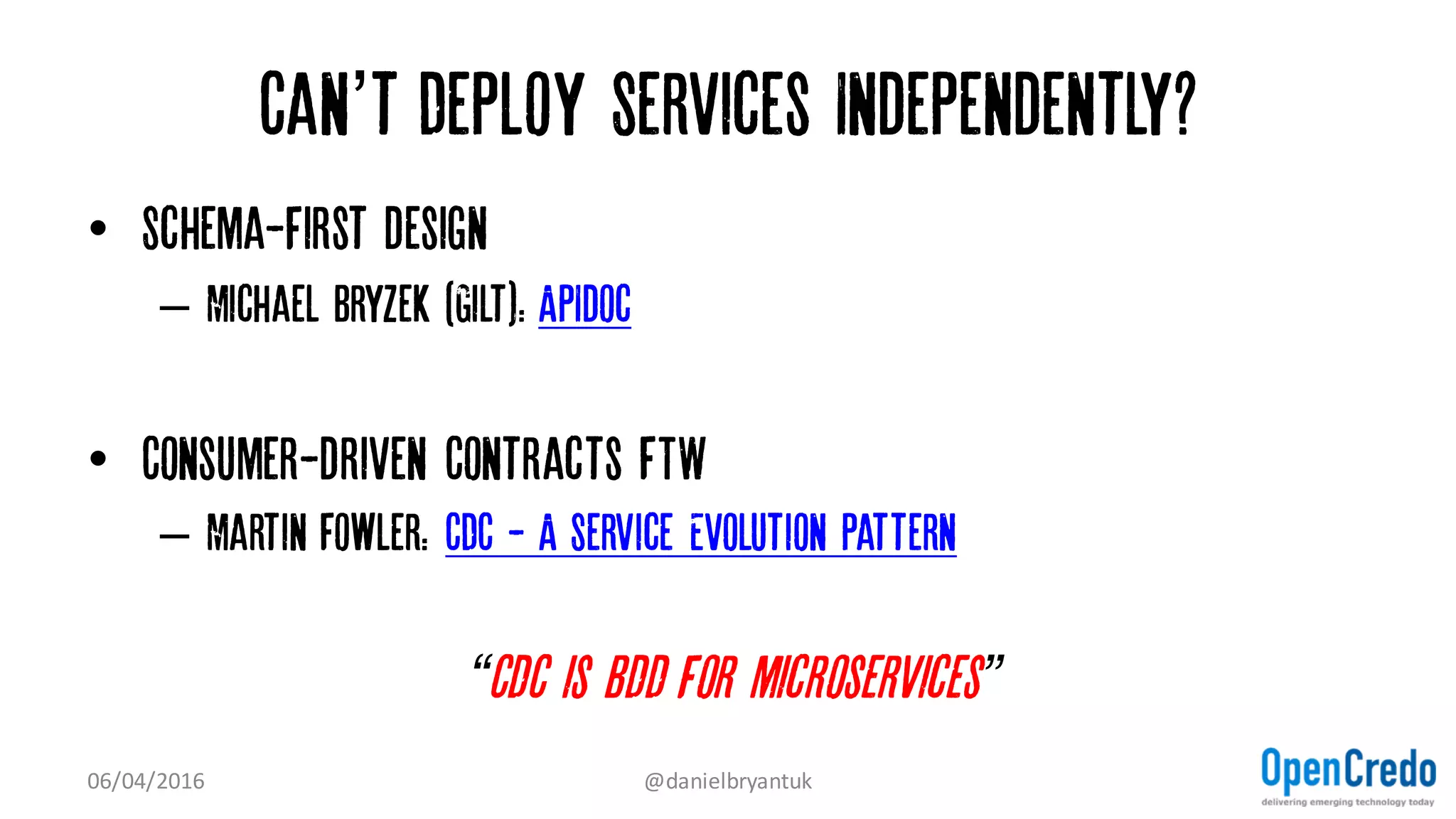

- 40. Can’t Deploy ServicesIndependently? • Schema-first design – Michael Bryzek (Gilt): APIdoc • Consumer-driven Contracts FTW – Martin Fowler: CDC - A Service Evolution Pattern 07/04/2016 @danielbryantuk
- 41. Architecture - nota Dirty Word • Technical leadership (bit.ly/1EUwpLl) • Communication (bit.ly/1Ia3u8o) • Promote shared understanding • ‘Just enough’ up front design 07/04/2016 @danielbryantuk

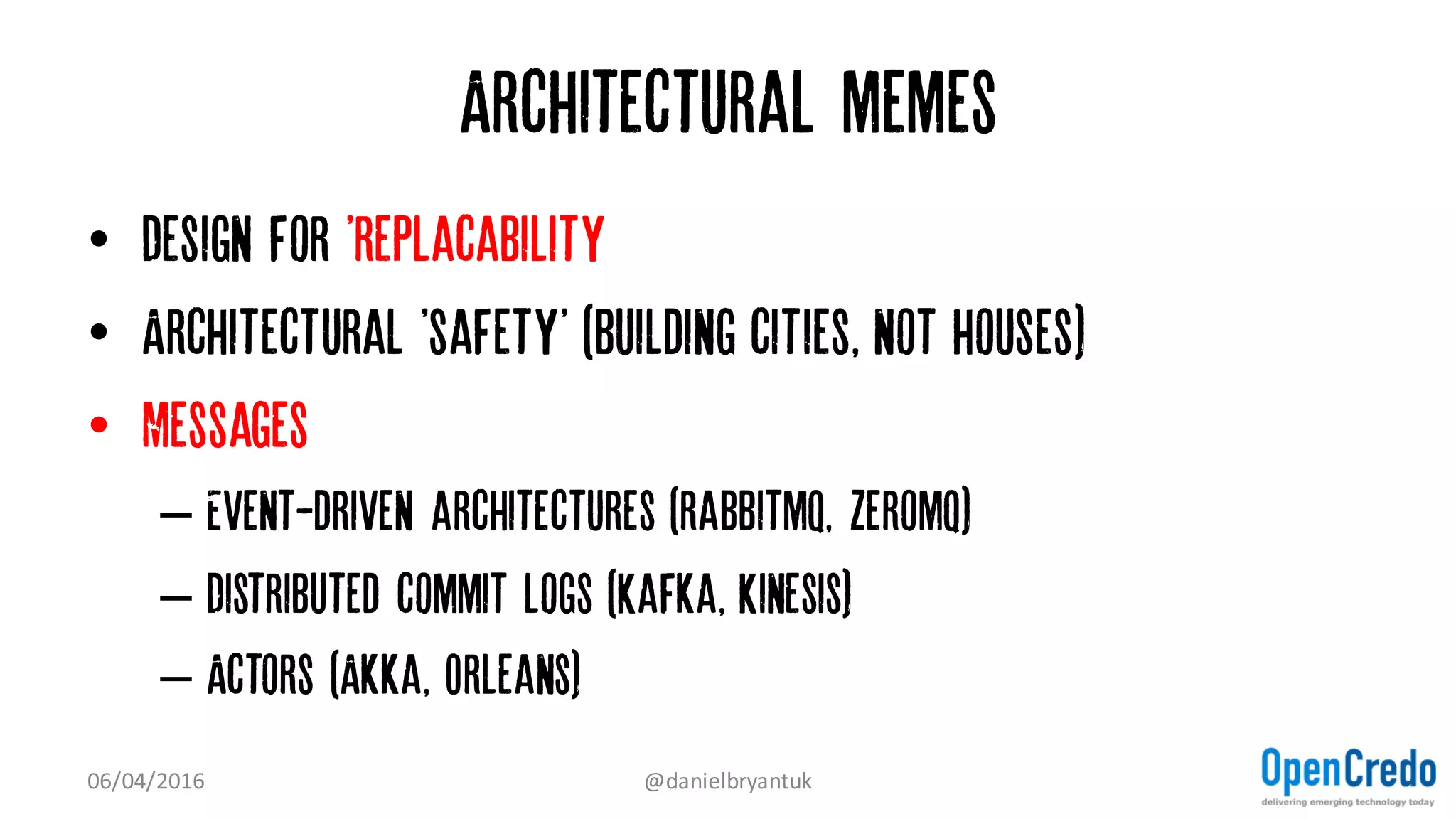

- 42. Architectural memes forMicroservices • Design for 'replacability' • Architectural 'safety' (building cities, not houses) • Messages – Event-driven architectures (Event sourcing, CQRS) – Distributed commit logs (Kafka, Kinesis) – Actors (Akka, Orleans) 07/04/2016 @danielbryantuk
- 43. 5. WRATH -Blowing up when bad things happen 07/04/2016 @danielbryantuk
- 44. Bring in MichaelNygard (Or some monkeys) 07/04/2016 @danielbryantuk

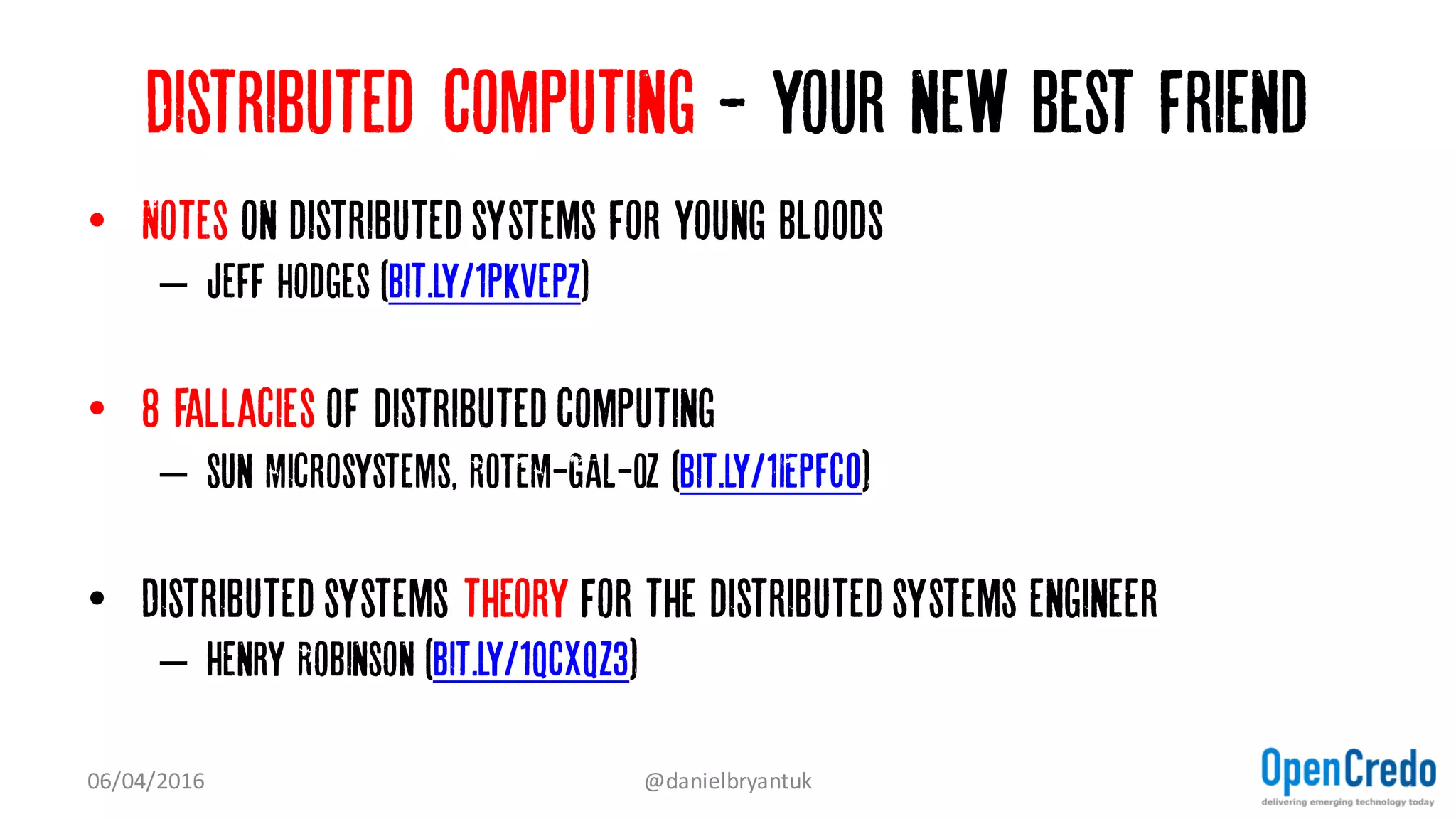

- 45. Distributed computing -your new best friend • Notes on distributed systems for young bloods – Jeff hodges (bit.ly/1pKVepz) • 8 Fallacies of distributed computing – Sun Microsystems, ROTEM-GAL-OZ (bit.ly/1IEpFC0) • Distributed systems theory for the distributed systems engineer – Henry Robinson (bit.ly/1qcxqZ3) 07/04/2016 @danielbryantuk
- 46. OPERATIONAL Concerns: Technical •Continuous delivery is a microservice prerequisite – Rapid provisioning – Basic monitoring – Rapid application deployment • Automate, automate, automate... 07/04/2016 @danielbryantuk

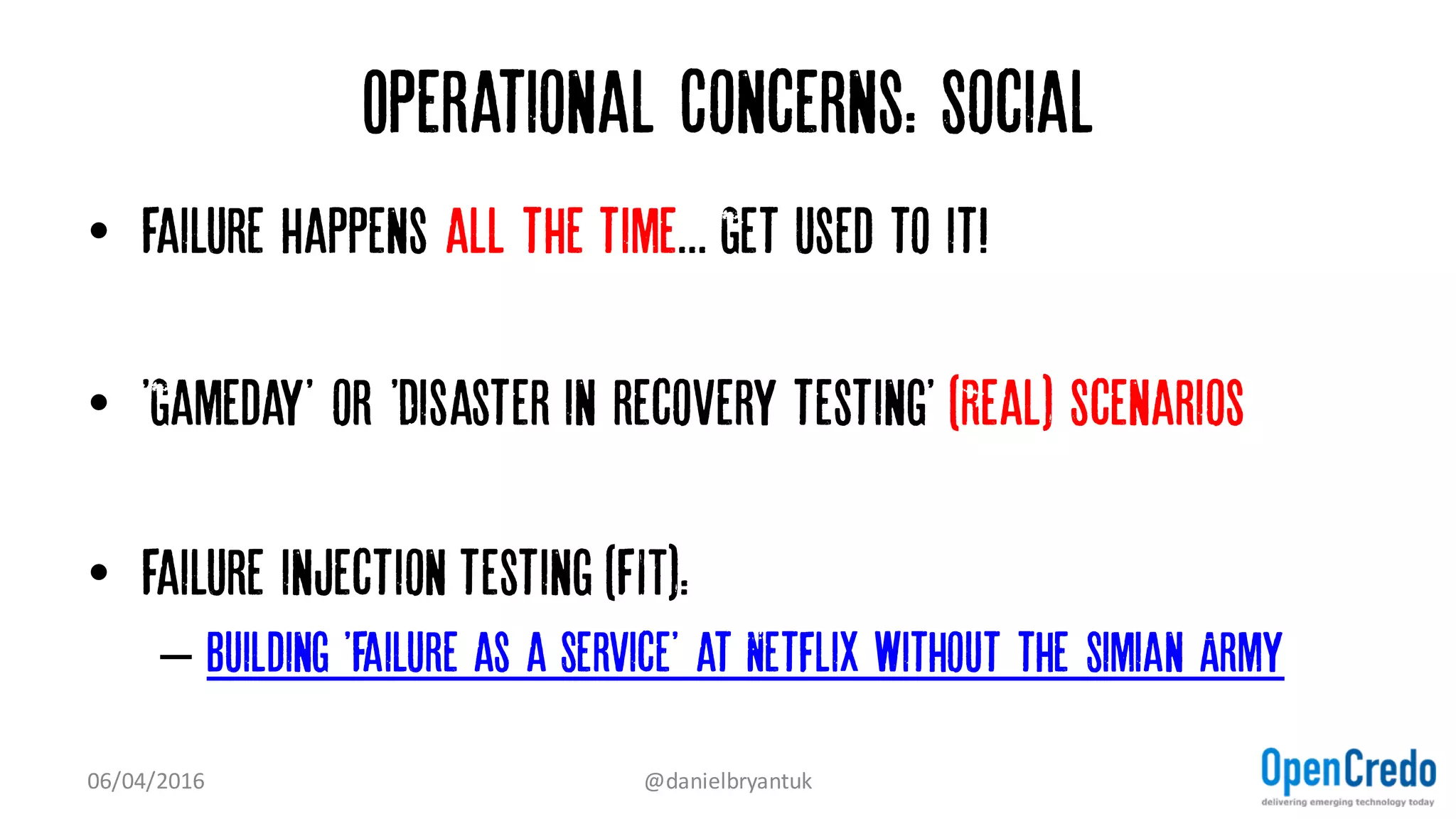

- 47. Operational Concerns: Social •Failure happens all the time... Get used to it! • 'Gameday' or 'Disaster in recovery testing' (Real) Scenarios • Failure injection testing (FIT): – Building 'Failure as a Service' at Netflix without the Simian Army 07/04/2016 @danielbryantuk
- 48. Share the pain... 07/04/2016@danielbryantuk
- 49. “Developer-on-call” An occasional spiketo the head is a good thing... ...metaphorically speaking • You build it, you run it – Accountability – Shared responsibility – Communication 07/04/2016 @danielbryantuk
- 50. 6. ENVY -The shared SINGLE domain fallacy 07/04/2016 @danielbryantuk

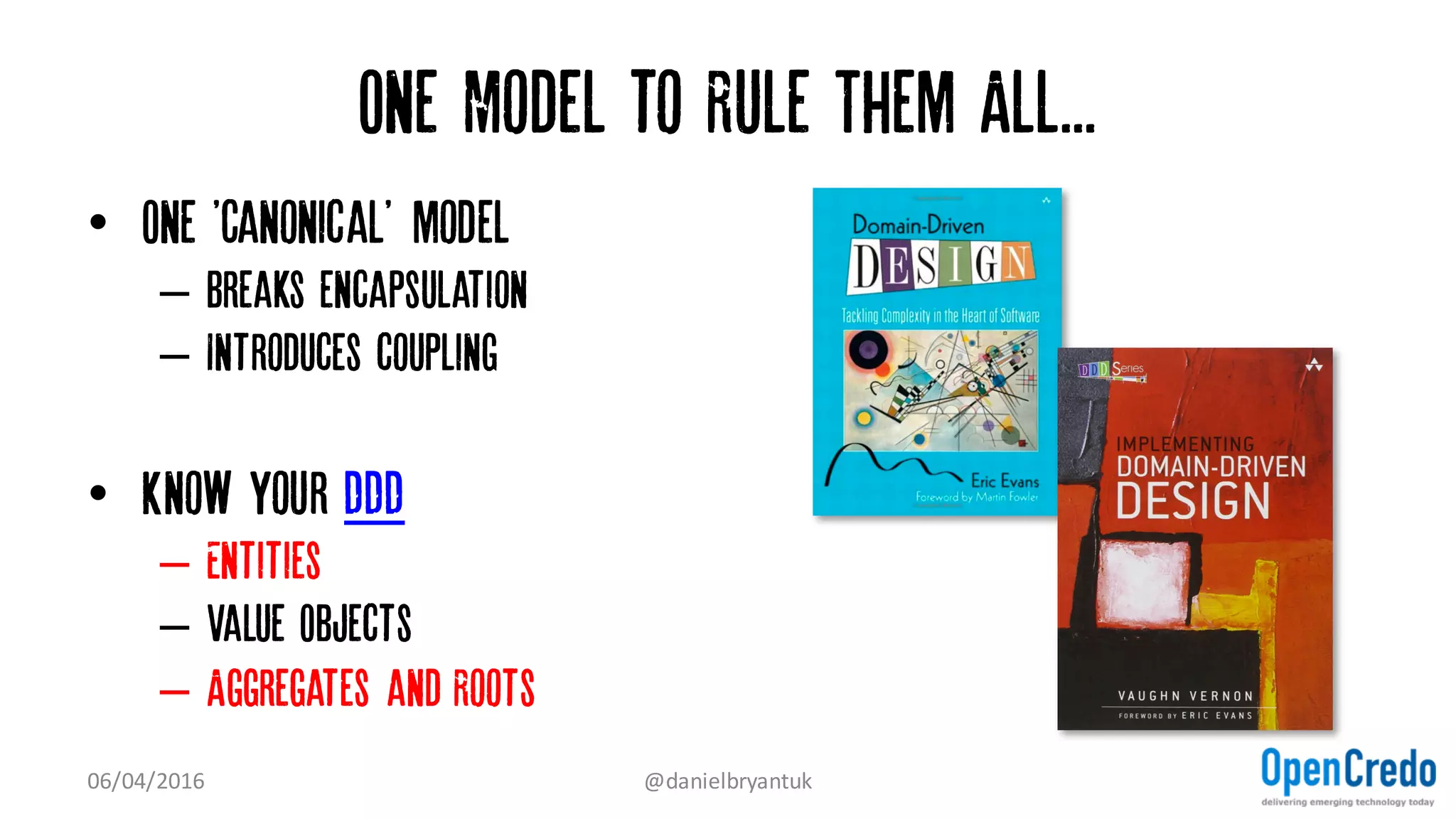

- 51. One Model toRule Them All... • One 'Canonical' model… – Breaks encapsulation – Introduces coupling • Know your DDD – Entities – Value Objects – Aggregates and Roots 07/04/2016 @danielbryantuk

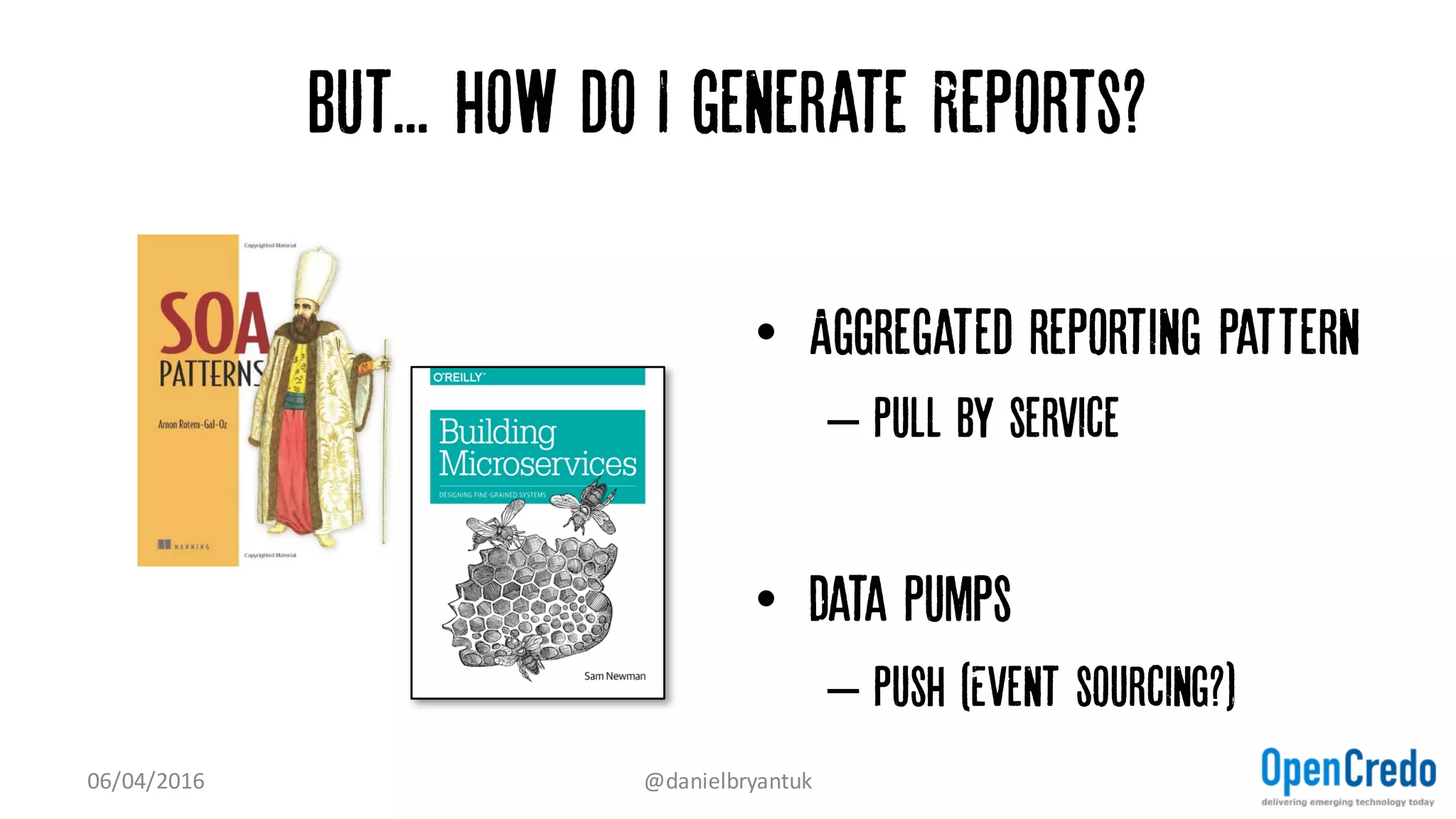

- 52. But... how doI generate Reports? • Aggregated reporting pattern – Pull by service • Data Pumps – Push (Event sourcing?) 07/04/2016 @danielbryantuk
- 53. 7. PRIDE -testing in the world of transience 07/04/2016 @danielbryantuk

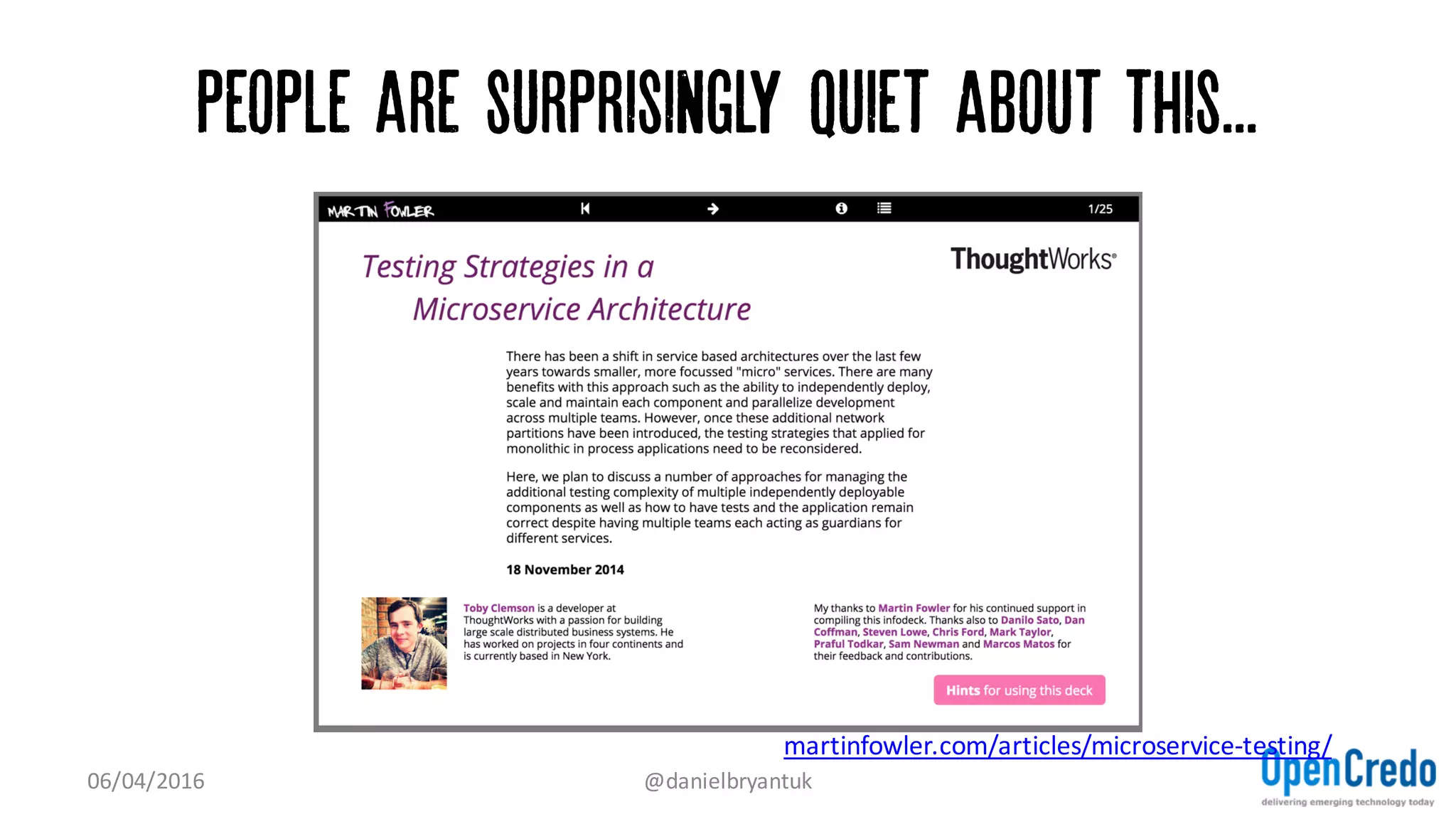

- 54. People are surprisinglyquiet about this... 07/04/2016 @danielbryantuk martinfowler.com/articles/microservice-testing/

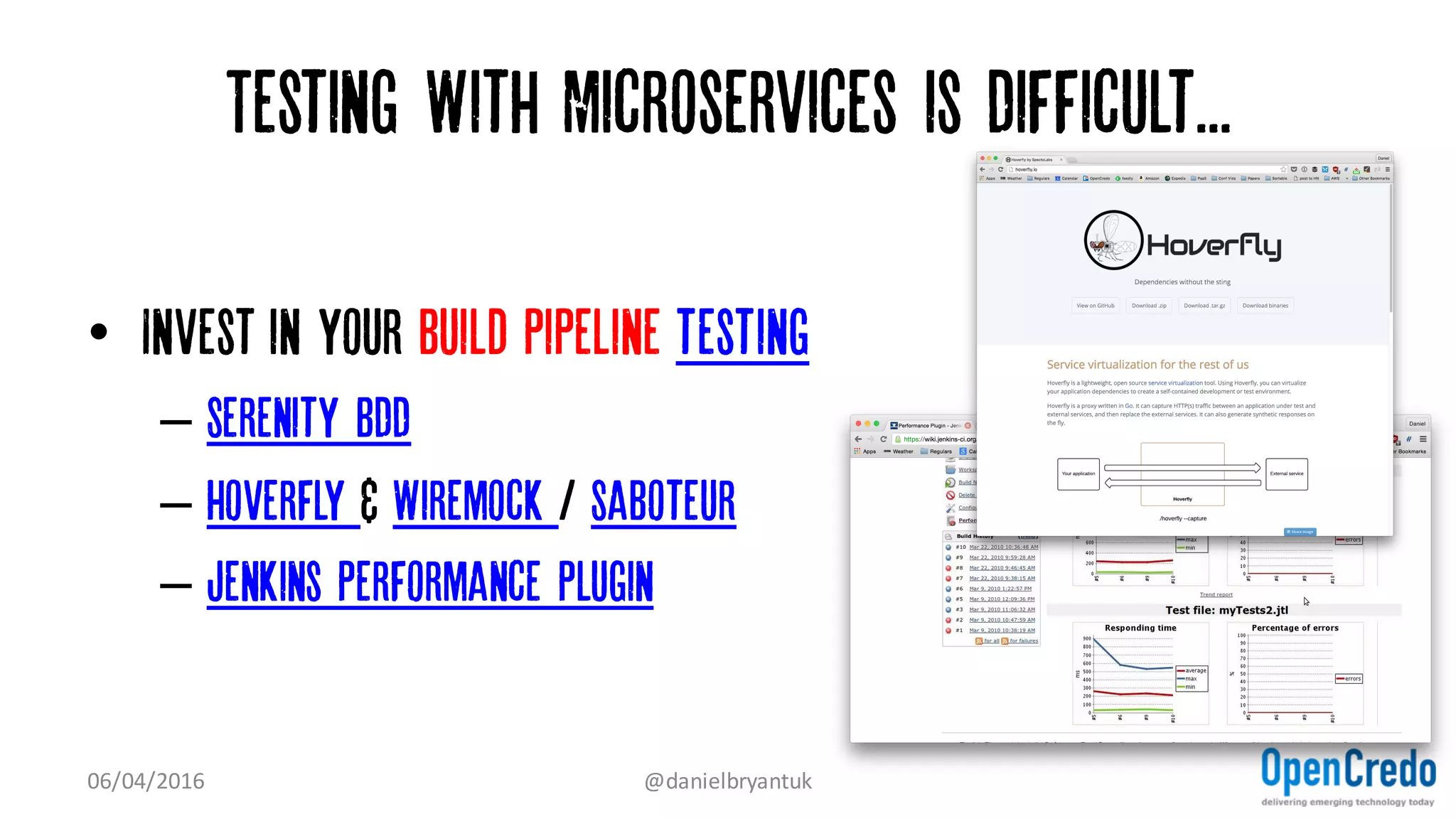

- 55. Testing With Microservicesis Difficult... • Invest in your build pipeline testing – Serenity BDD – Hoverfly & Wiremock / Saboteur – Jenkins Performance plugin 07/04/2016 @danielbryantuk
- 56. Testing With Microservicesis Difficult... • Do it in production(?) – Netflix – Hailo – Gilt • This is an advanced pattern! – Automation is essential! 07/04/2016 @danielbryantuk

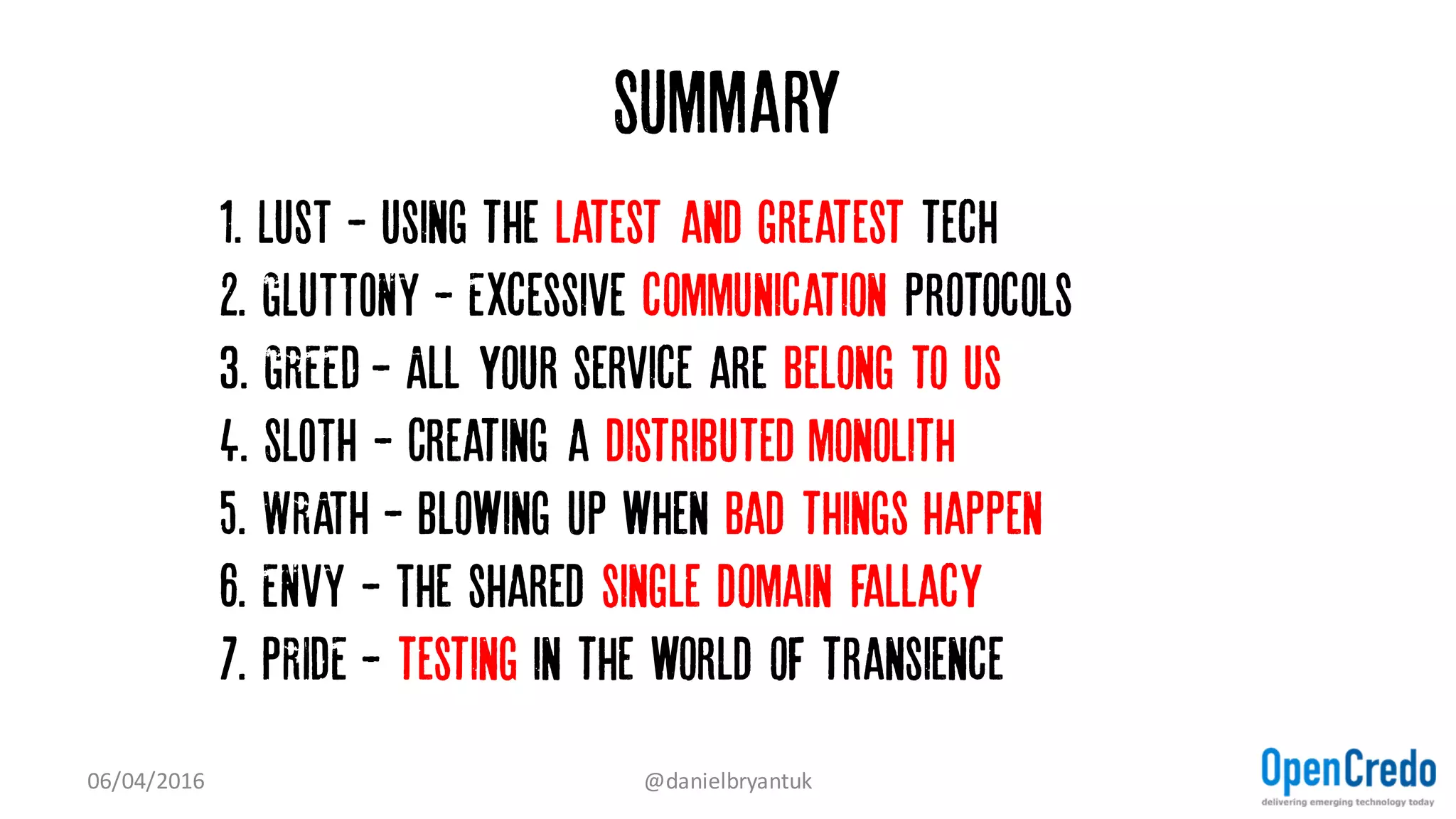

- 57. Summary 1. LUST -Using the latest and greatest tech… 2. GLUTTONY - Excessive communication protocols 3. GREED - All your service are belong to us… 4. SLOTH - Creating a distributed monolith 5. WRATH - Blowing up when bad things happen 6. ENVY - The shared single domain fallacy 7. PRIDE - testing in the world of transience 07/04/2016 @danielbryantuk
- 58.

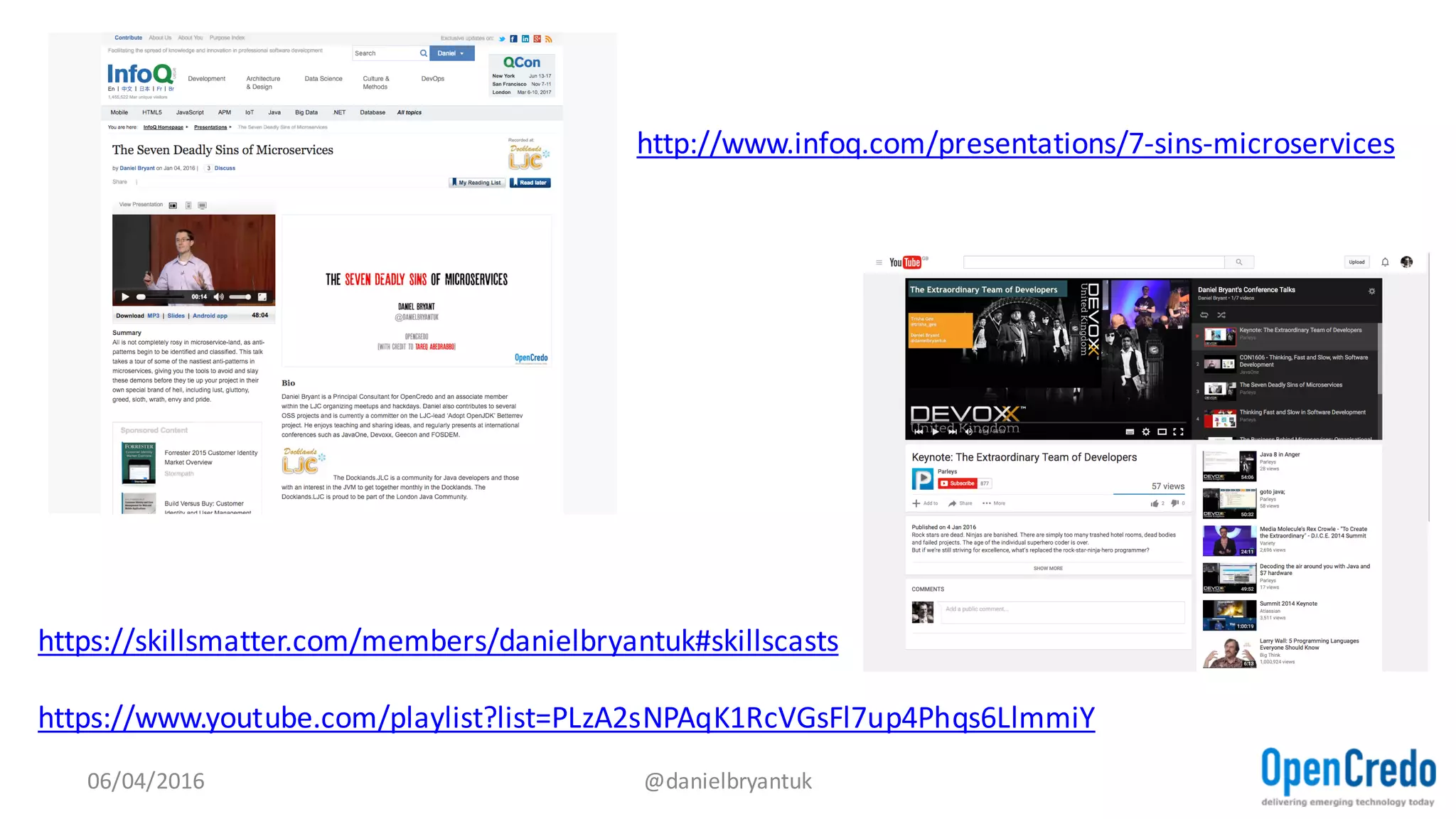

- 59.

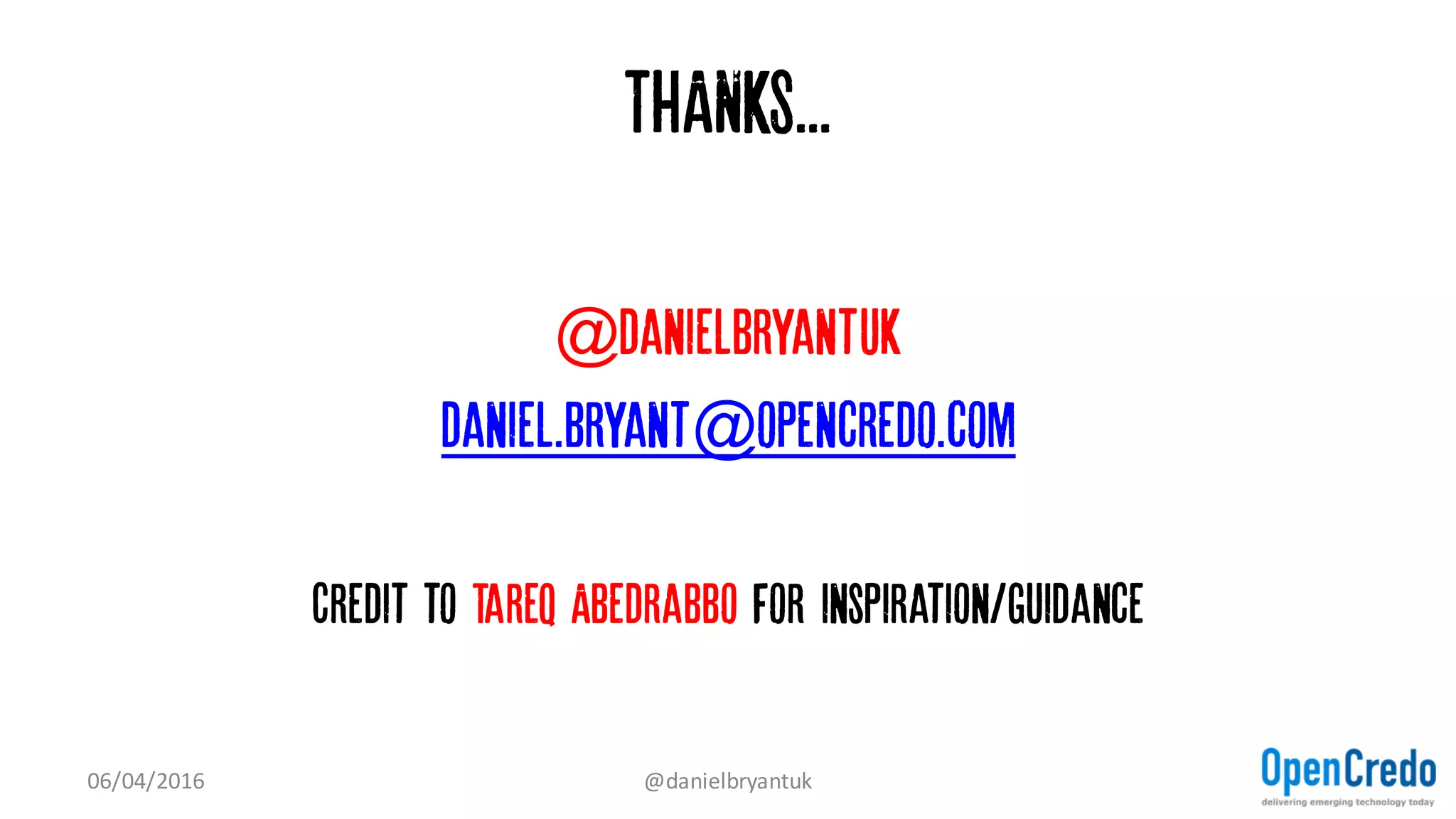

- 60. THANKS... @danielbryantuk daniel.bryant@opencredo.com Credit to TareqAbedrabbo and the OpenCredo Team for inspiration/guidance Big Thanks to our clients: Noths.com, Sedex and Millenoki 07/04/2016 @danielbryantuk
