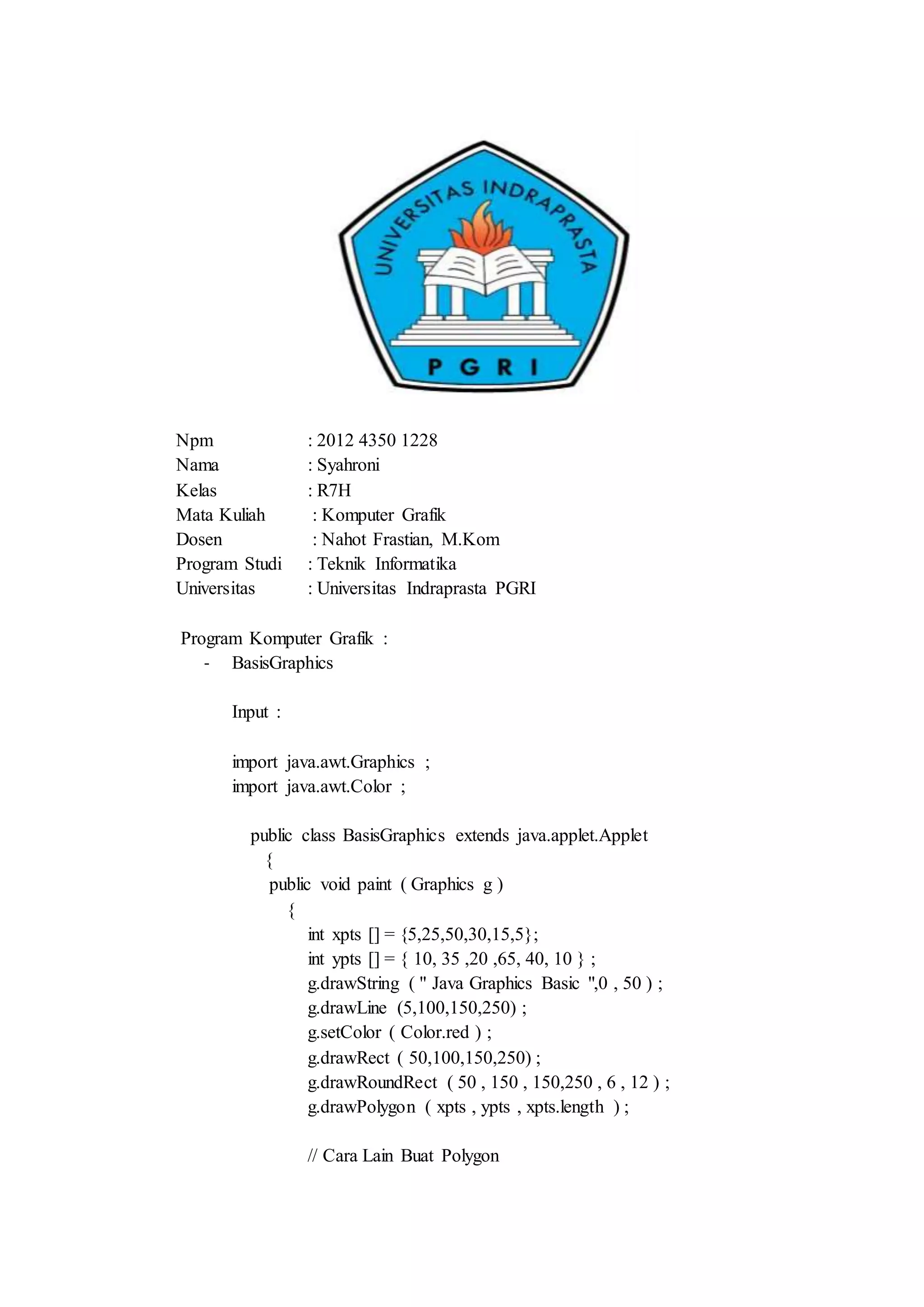

1. Npm : 2012 4350 1228
Nama : Syahroni
Kelas : R7H
Mata Kuliah : Komputer Grafik
Dosen : Nahot Frastian, M.Kom
Program Studi : Teknik Informatika
Universitas : Universitas Indraprasta PGRI
Program Komputer Grafik :
- BasisGraphics
Input :
import java.awt.Graphics ;
import java.awt.Color ;
public class BasisGraphics extends java.applet.Applet
{
public void paint ( Graphics g )
{
int xpts [] = {5,25,50,30,15,5};
int ypts [] = { 10, 35 ,20 ,65, 40, 10 } ;
g.drawString ( " Java Graphics Basic ",0 , 50 ) ;
g.drawLine (5,100,150,250) ;
g.setColor ( Color.red ) ;
g.drawRect ( 50,100,150,250) ;
g.drawRoundRect ( 50 , 150 , 150,250 , 6 , 12 ) ;
g.drawPolygon ( xpts , ypts , xpts.length ) ;
// Cara Lain Buat Polygon

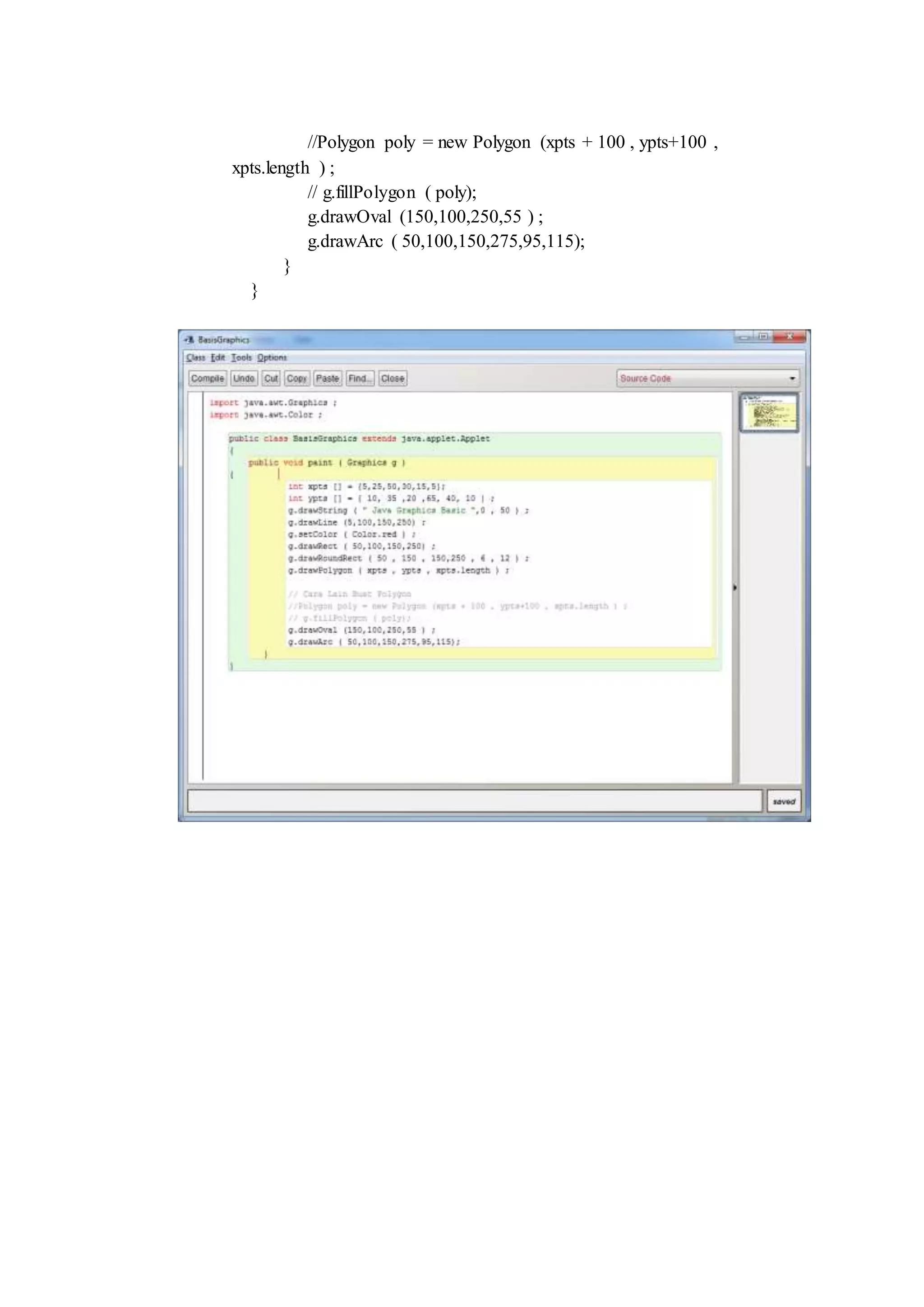

2. //Polygon poly = new Polygon (xpts + 100 , ypts+100 ,
xpts.length ) ;
// g.fillPolygon ( poly);
g.drawOval (150,100,250,55 ) ;
g.drawArc ( 50,100,150,275,95,115);
}
}

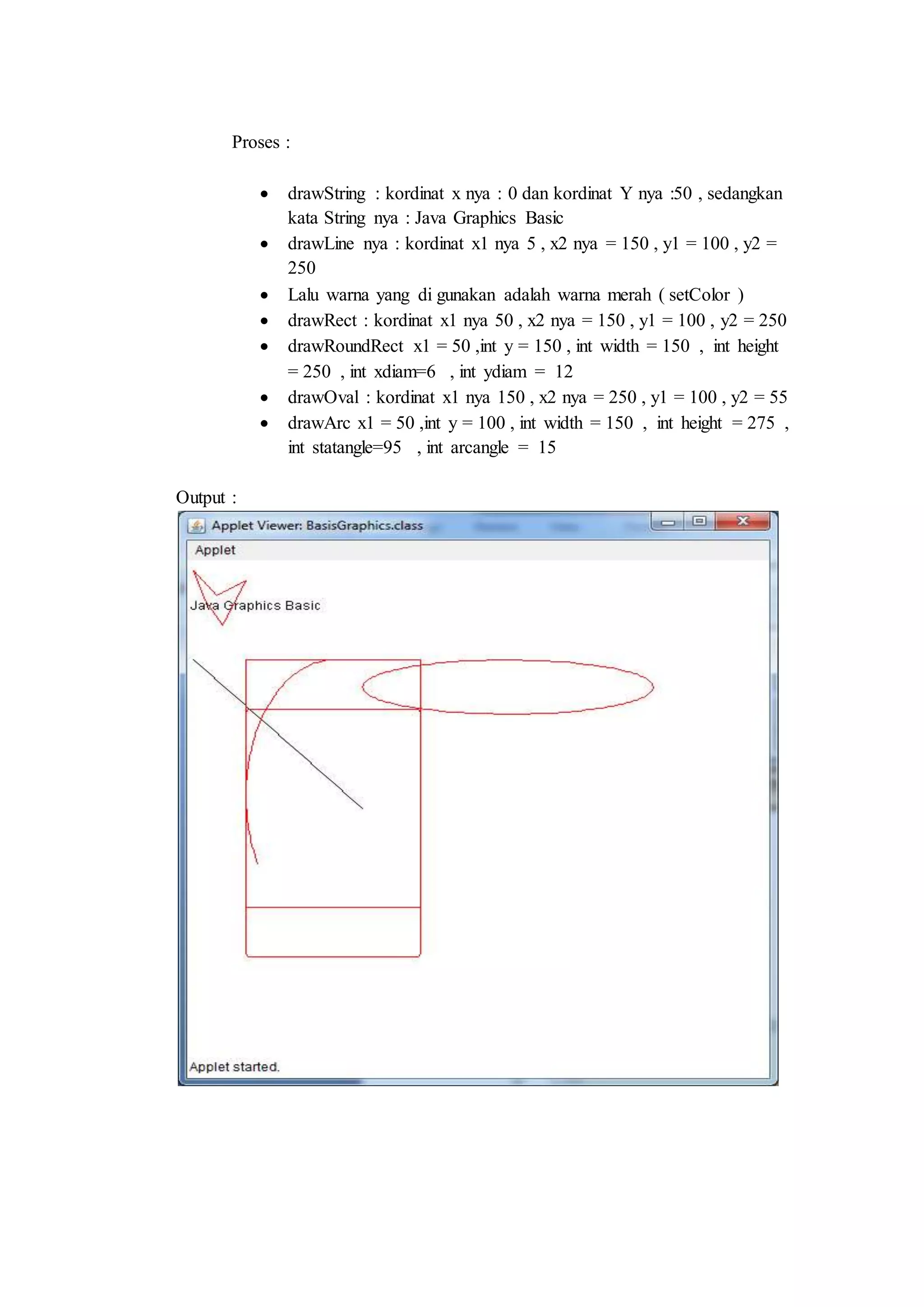

3. Proses :
 drawString : kordinat x nya : 0 dan kordinat Y nya :50 , sedangkan
kata String nya : Java Graphics Basic
 drawLine nya : kordinat x1 nya 5 , x2 nya = 150 , y1 = 100 , y2 =
250
 Lalu warna yang di gunakan adalah warna merah ( setColor )
 drawRect : kordinat x1 nya 50 , x2 nya = 150 , y1 = 100 , y2 = 250
 drawRoundRect x1 = 50 ,int y = 150 , int width = 150 , int height
= 250 , int xdiam=6 , int ydiam = 12
 drawOval : kordinat x1 nya 150 , x2 nya = 250 , y1 = 100 , y2 = 55
 drawArc x1 = 50 ,int y = 100 , int width = 150 , int height = 275 ,
int statangle=95 , int arcangle = 15
Output :
