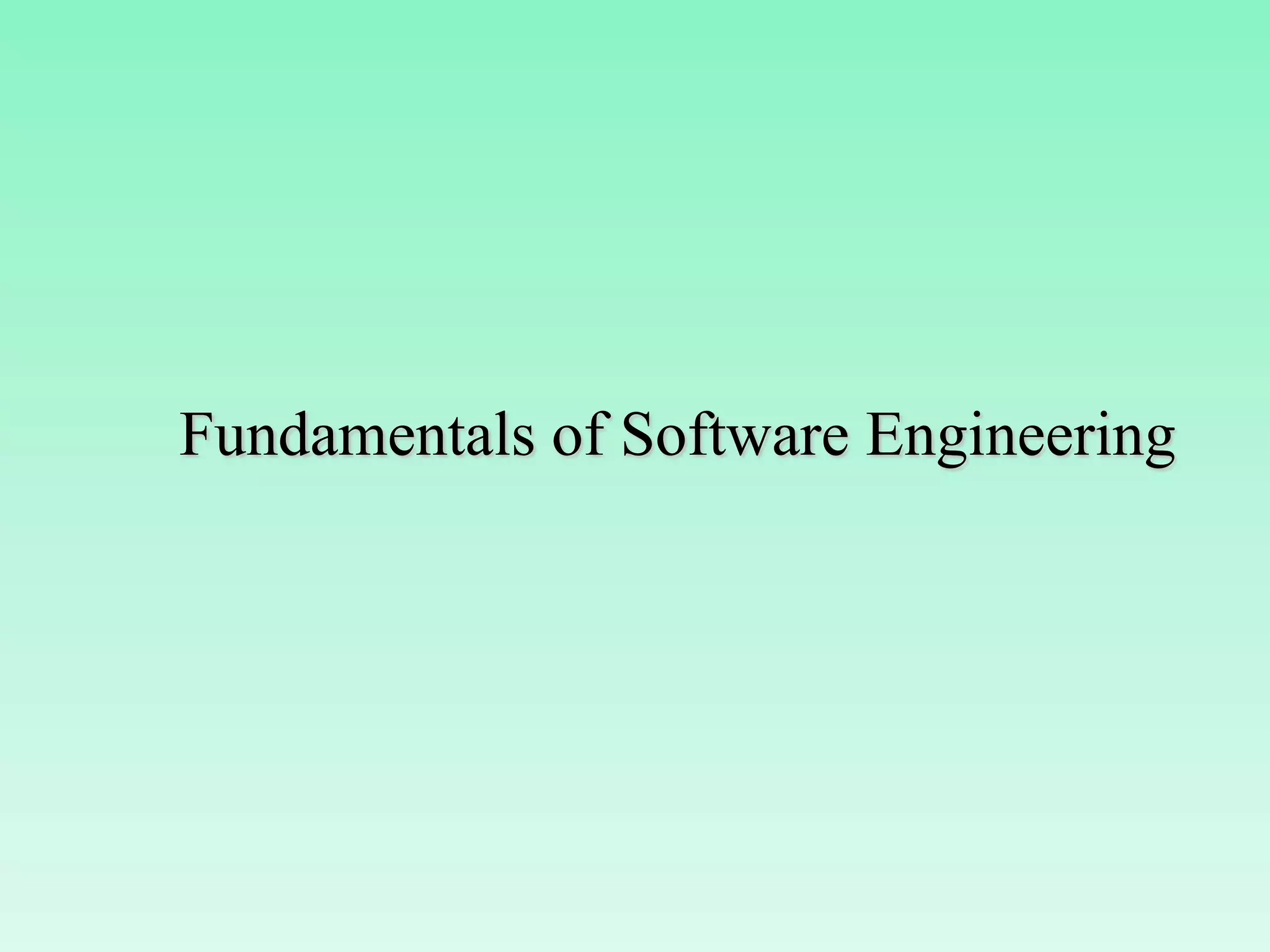

1. Fundamentals of Software Engineering

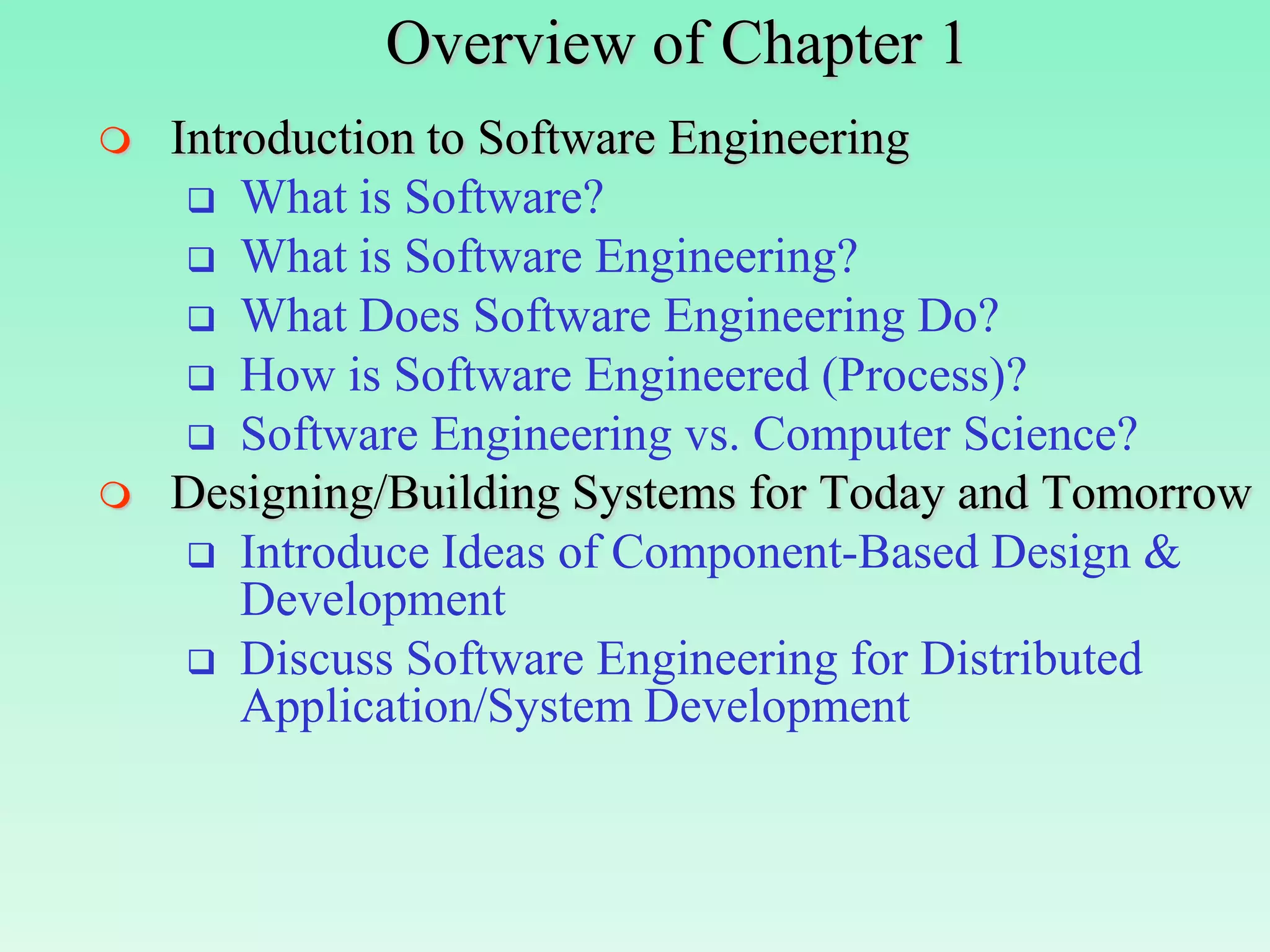

2. Overview of Chapter 1
 Introduction to Software Engineering
 What is Software?
 What is Software Engineering?
 What Does Software Engineering Do?
 How is Software Engineered (Process)?
 Software Engineering vs. Computer Science?
 Designing/Building Systems for Today and Tomorrow
 Introduce Ideas of Component-Based Design &
Development
 Discuss Software Engineering for Distributed
Application/System Development

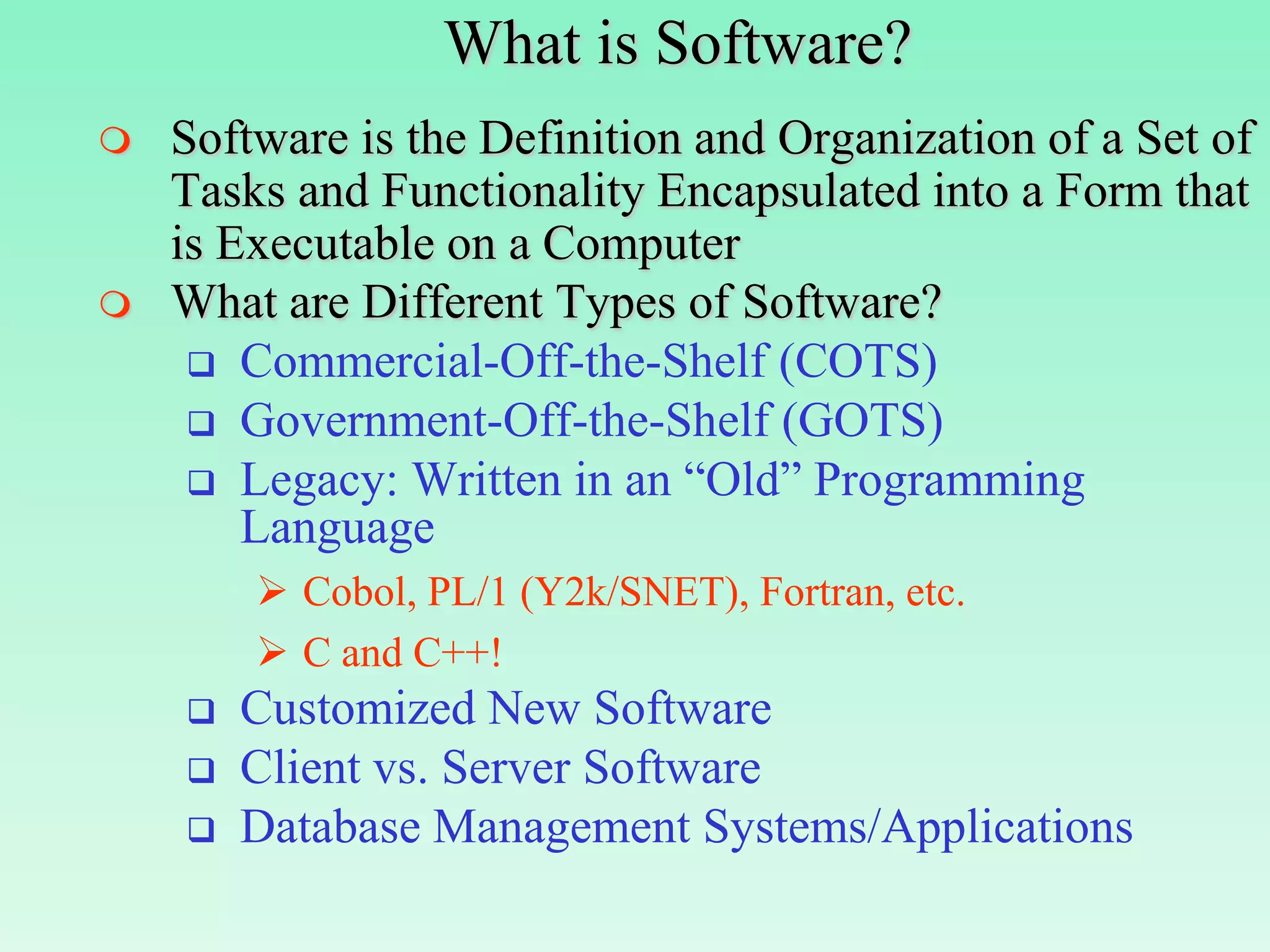

3. What is Software?
 Software is the Definition and Organization of a Set of
Tasks and Functionality Encapsulated into a Form that
is Executable on a Computer
 What are Different Types of Software?
 Commercial-Off-the-Shelf (COTS)
 Government-Off-the-Shelf (GOTS)
 Legacy: Written in an “Old” Programming
Language
 Cobol, PL/1 (Y2k/SNET), Fortran, etc.
 C and C++!
 Customized New Software
 Client vs. Server Software
 Database Management Systems/Applications

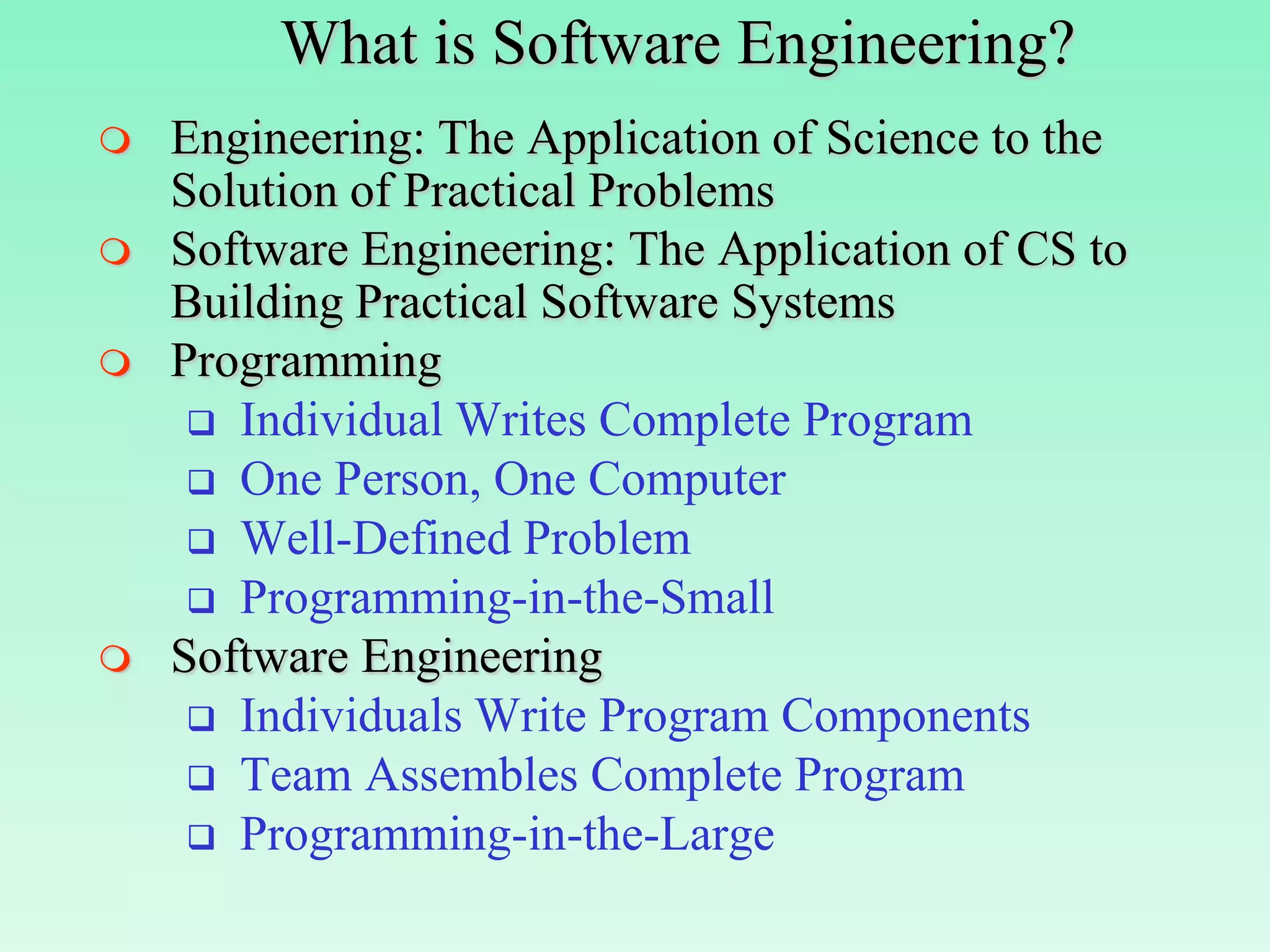

4. What is Software Engineering?
 Engineering: The Application of Science to the
Solution of Practical Problems
 Software Engineering: The Application of CS to
Building Practical Software Systems
 Programming
 Individual Writes Complete Program
 One Person, One Computer
 Well-Defined Problem
 Programming-in-the-Small
 Software Engineering
 Individuals Write Program Components
 Team Assembles Complete Program
 Programming-in-the-Large

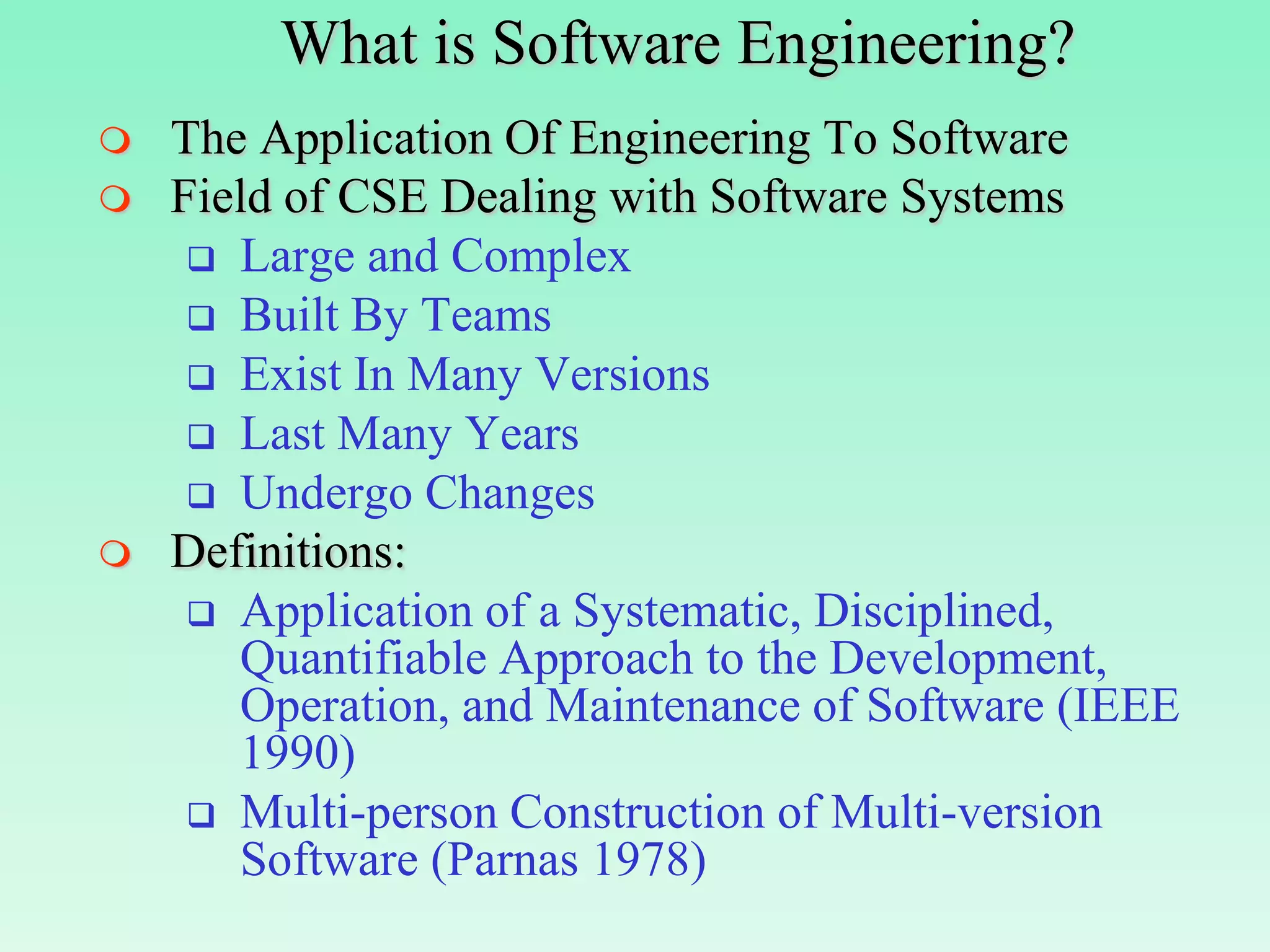

5. What is Software Engineering?
 The Application Of Engineering To Software
 Field of CSE Dealing with Software Systems
 Large and Complex
 Built By Teams
 Exist In Many Versions
 Last Many Years
 Undergo Changes
 Definitions:
 Application of a Systematic, Disciplined,
Quantifiable Approach to the Development,
Operation, and Maintenance of Software (IEEE
1990)
 Multi-person Construction of Multi-version
Software (Parnas 1978)

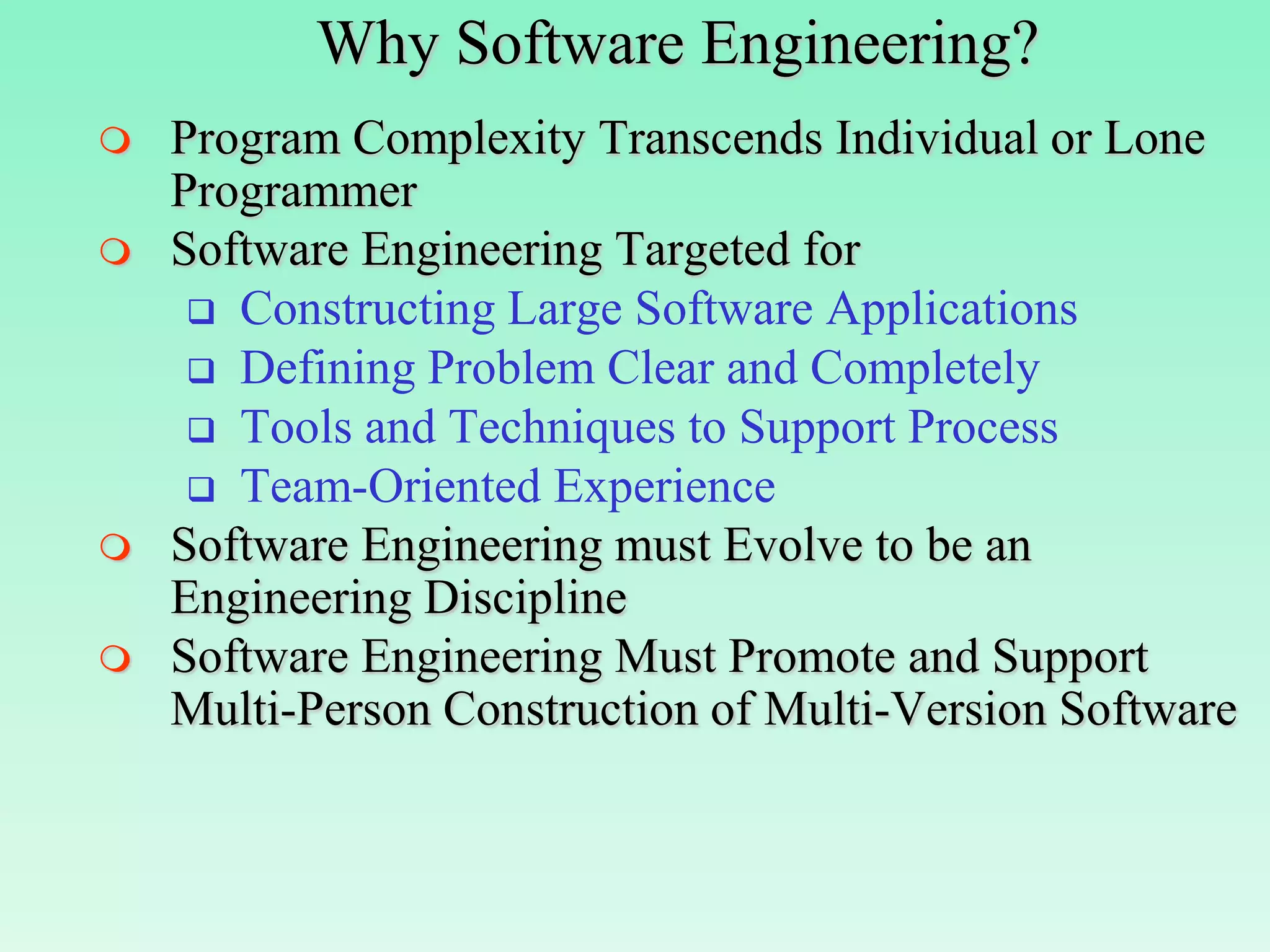

6. Why Software Engineering?
 Program Complexity Transcends Individual or Lone
Programmer
 Software Engineering Targeted for
 Constructing Large Software Applications
 Defining Problem Clear and Completely
 Tools and Techniques to Support Process
 Team-Oriented Experience
 Software Engineering must Evolve to be an
Engineering Discipline
 Software Engineering Must Promote and Support
Multi-Person Construction of Multi-Version Software

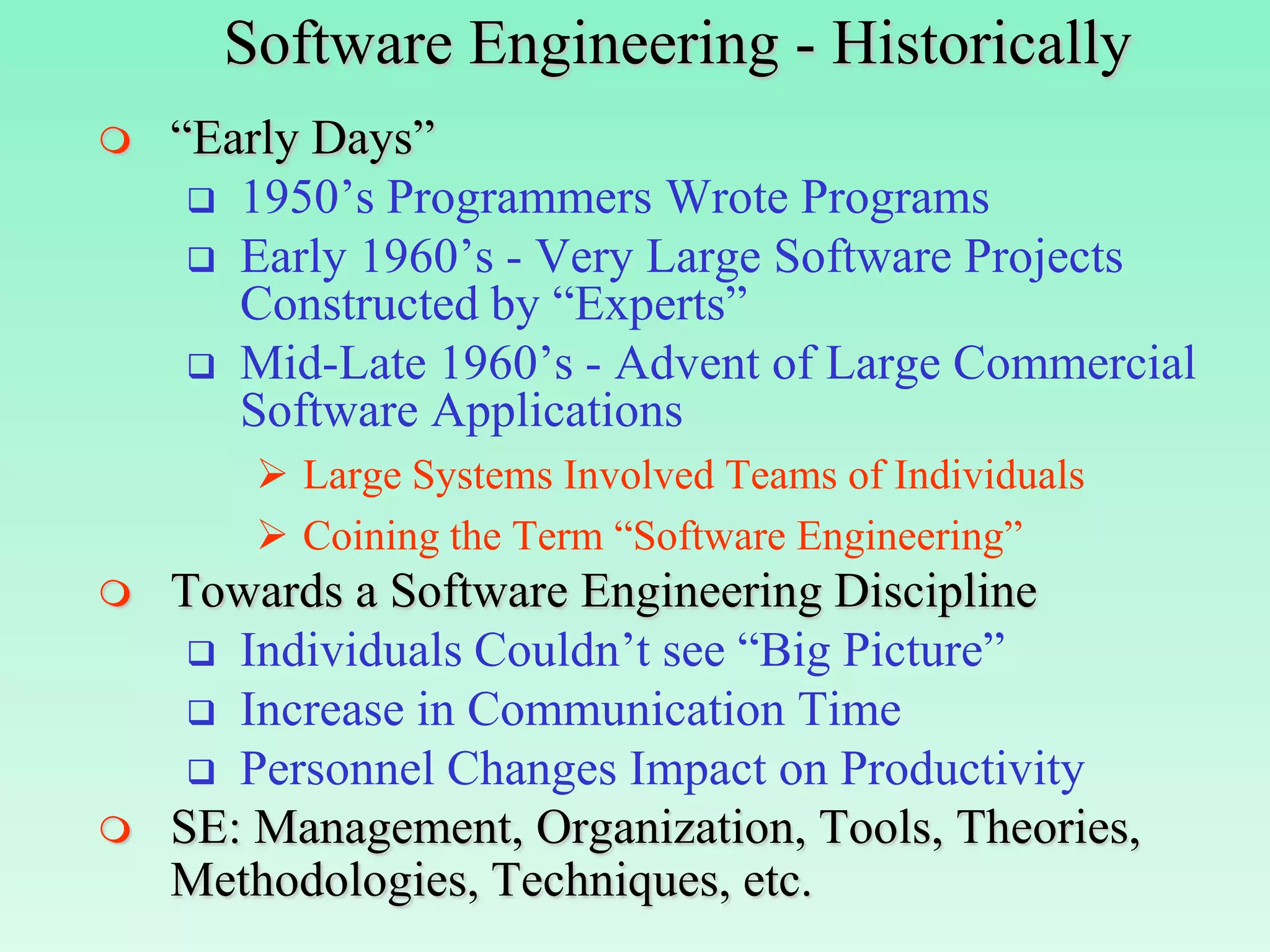

7. Software Engineering - Historically
 “Early Days”
 1950’s Programmers Wrote Programs
 Early 1960’s - Very Large Software Projects
Constructed by “Experts”
 Mid-Late 1960’s - Advent of Large Commercial
Software Applications
 Large Systems Involved Teams of Individuals
 Coining the Term “Software Engineering”
 Towards a Software Engineering Discipline
 Individuals Couldn’t see “Big Picture”
 Increase in Communication Time
 Personnel Changes Impact on Productivity
 SE: Management, Organization, Tools, Theories,
Methodologies, Techniques, etc.

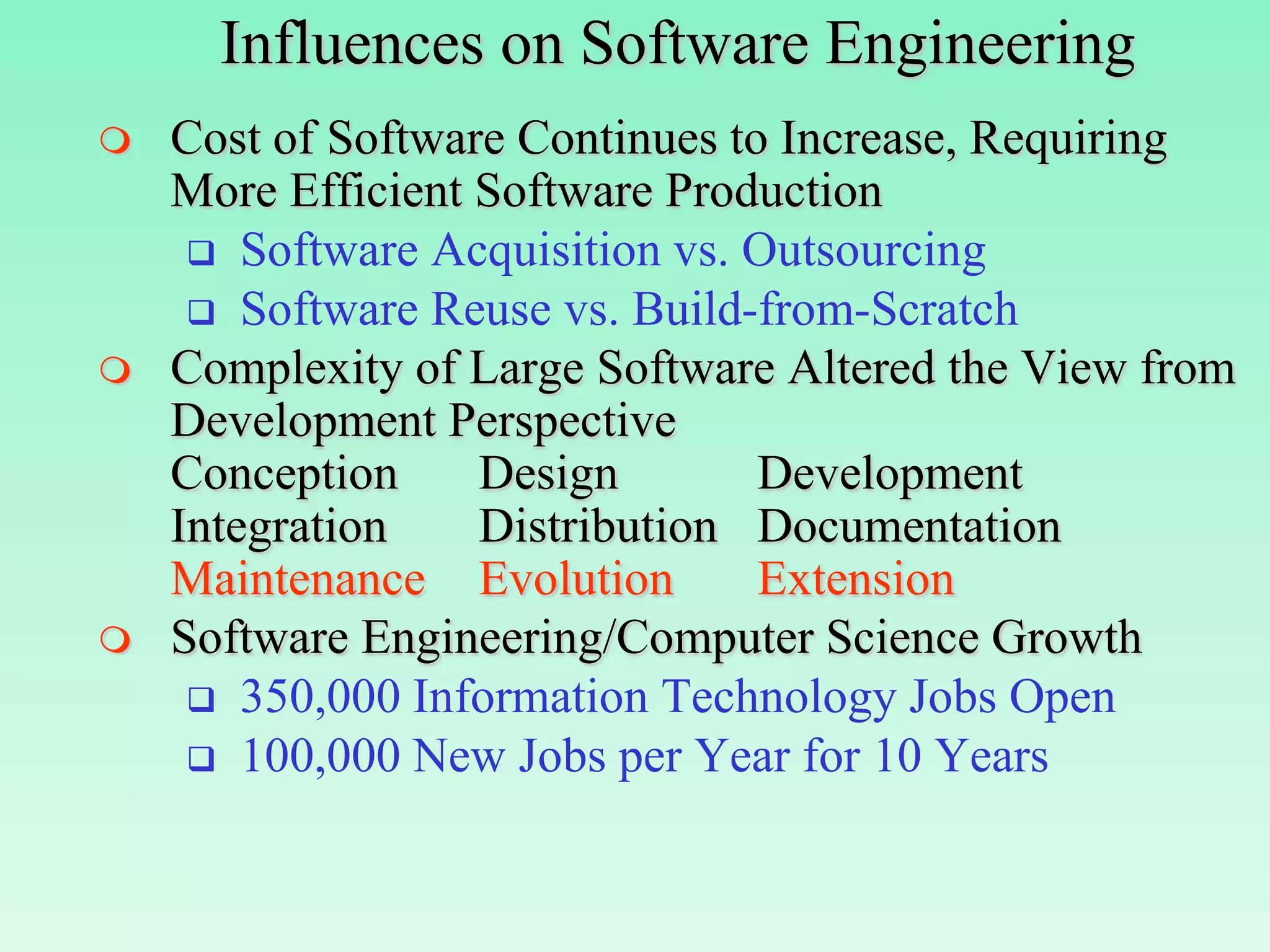

8. Influences on Software Engineering
 Cost of Software Continues to Increase, Requiring
More Efficient Software Production
 Software Acquisition vs. Outsourcing
 Software Reuse vs. Build-from-Scratch
 Complexity of Large Software Altered the View from
Development Perspective
Conception Design Development
Integration Distribution Documentation
Maintenance Evolution Extension
 Software Engineering/Computer Science Growth
 350,000 Information Technology Jobs Open
 100,000 New Jobs per Year for 10 Years

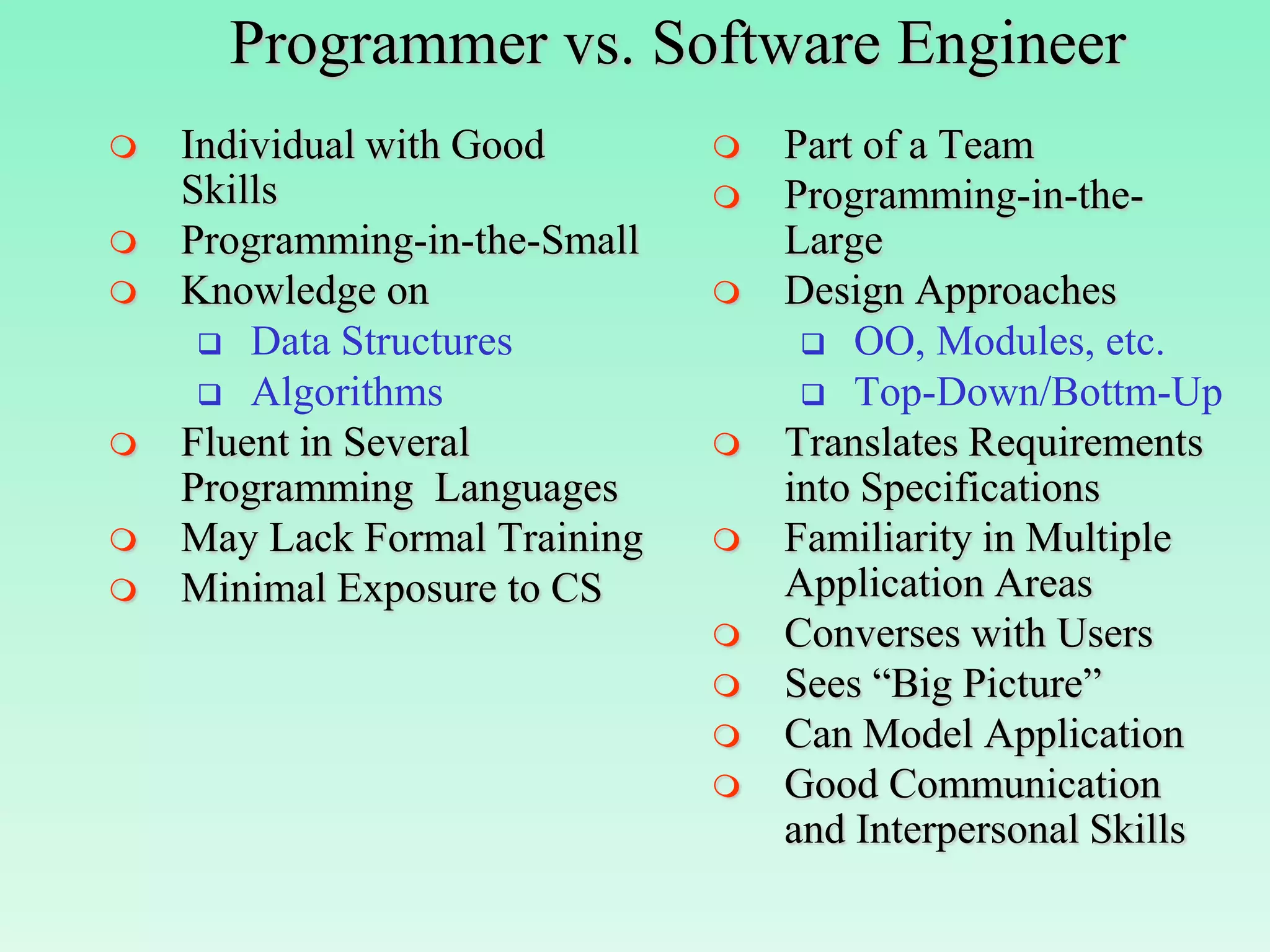

9. Programmer vs. Software Engineer
 Individual with Good  Part of a Team
Skills  Programming-in-the-
 Programming-in-the-Small Large
 Knowledge on  Design Approaches
 Data Structures  OO, Modules, etc.
 Algorithms  Top-Down/Bottm-Up
 Fluent in Several  Translates Requirements
Programming Languages into Specifications
 May Lack Formal Training  Familiarity in Multiple
 Minimal Exposure to CS Application Areas
 Converses with Users
 Sees “Big Picture”
 Can Model Application
 Good Communication
and Interpersonal Skills

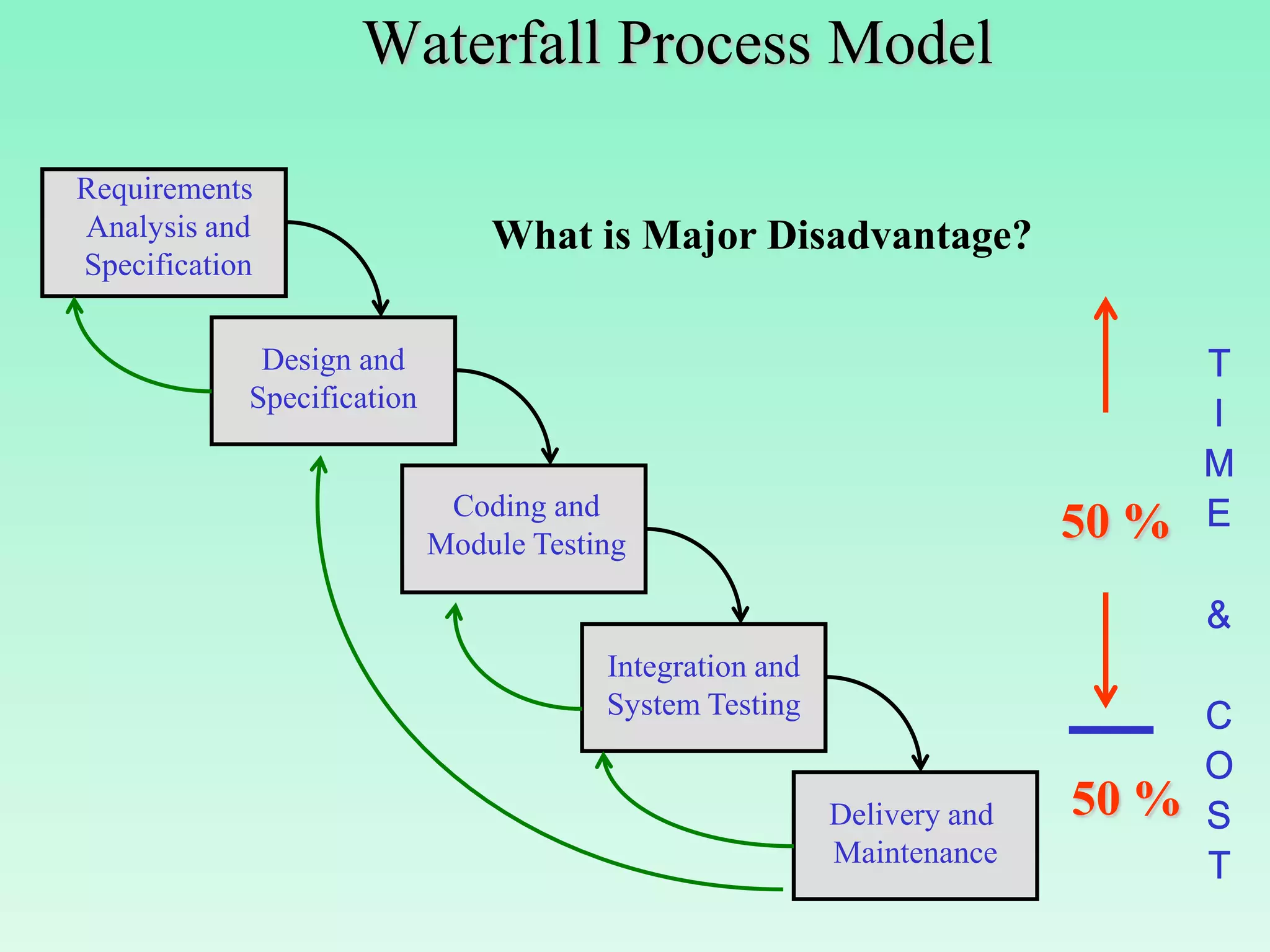

10. Waterfall Process Model
Requirements
Analysis and What is Major Disadvantage?
Specification
Design and
Specification
Coding and
Module Testing
50 %
Integration and
System Testing
Delivery and 50 %
Maintenance

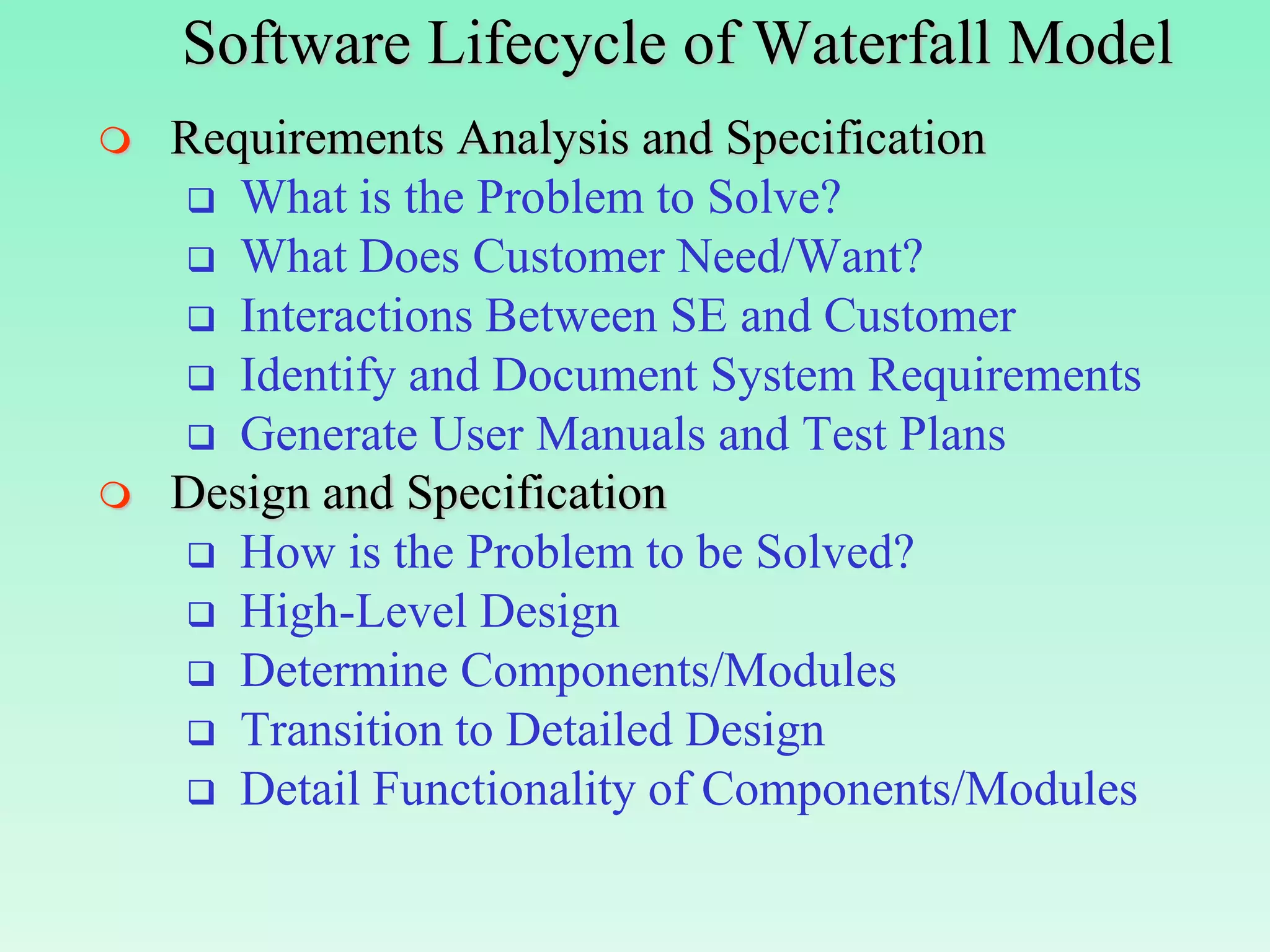

11. Software Lifecycle of Waterfall Model
 Requirements Analysis and Specification
 What is the Problem to Solve?
 What Does Customer Need/Want?
 Interactions Between SE and Customer
 Identify and Document System Requirements
 Generate User Manuals and Test Plans
 Design and Specification
 How is the Problem to be Solved?
 High-Level Design
 Determine Components/Modules
 Transition to Detailed Design
 Detail Functionality of Components/Modules

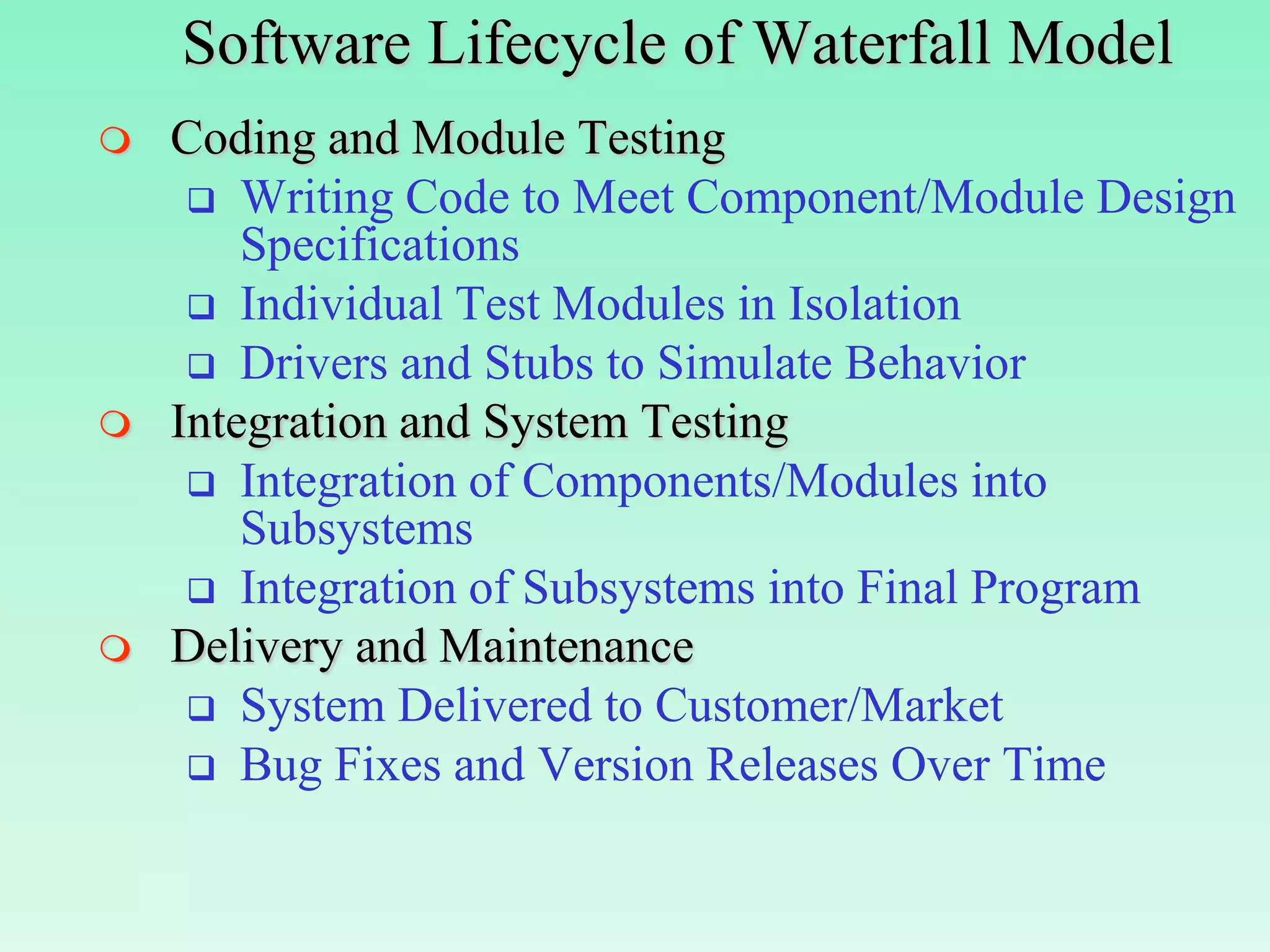

12. Software Lifecycle of Waterfall Model
 Coding and Module Testing
 Writing Code to Meet Component/Module Design
Specifications
 Individual Test Modules in Isolation
 Drivers and Stubs to Simulate Behavior
 Integration and System Testing
 Integration of Components/Modules into
Subsystems
 Integration of Subsystems into Final Program
 Delivery and Maintenance
 System Delivered to Customer/Market
 Bug Fixes and Version Releases Over Time

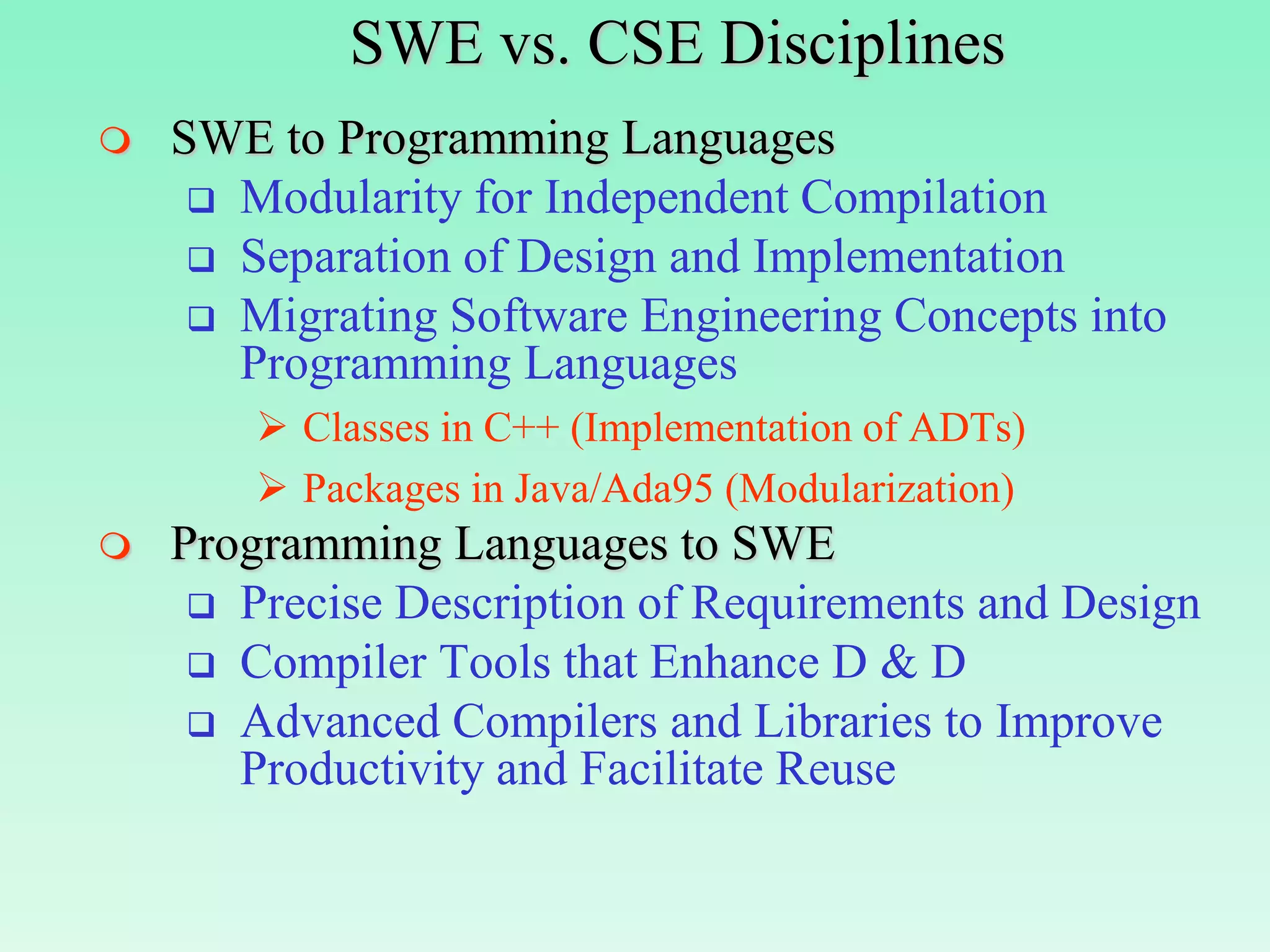

13. SWE vs. CSE Disciplines
 SWE to Programming Languages
 Modularity for Independent Compilation
 Separation of Design and Implementation
 Migrating Software Engineering Concepts into
Programming Languages
 Classes in C++ (Implementation of ADTs)
 Packages in Java/Ada95 (Modularization)
 Programming Languages to SWE
 Precise Description of Requirements and Design
 Compiler Tools that Enhance D & D
 Advanced Compilers and Libraries to Improve
Productivity and Facilitate Reuse

14. SWE vs. CSE Disciplines
 SWE to Operating Systems
 Relationship Between Components and Versions
 Protected/Non-Protected Portions of OS
 Vehicle Through Which Programs Developed
 Operating Systems to SWE
 Virtual Machines - Evolving to Platform
Independence with Java
 Levels of Abstraction Offered by OS
 Device Driver through GUI of OS
 Java Offers Strong OS Interactions
 Separation of Design and Implementation

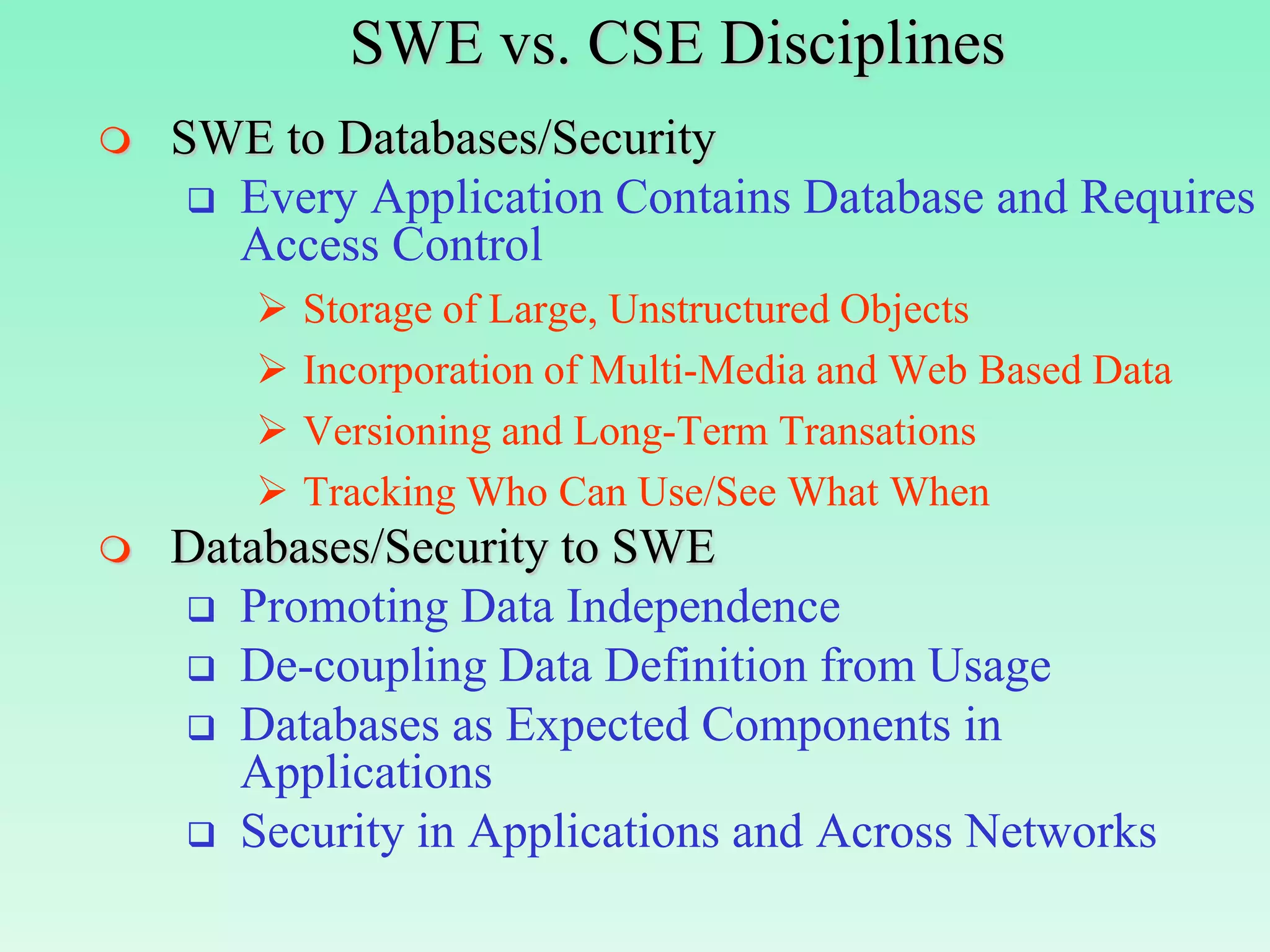

15. SWE vs. CSE Disciplines
 SWE to Databases/Security
 Every Application Contains Database and Requires
Access Control
 Storage of Large, Unstructured Objects
 Incorporation of Multi-Media and Web Based Data
 Versioning and Long-Term Transations
 Tracking Who Can Use/See What When
 Databases/Security to SWE
 Promoting Data Independence
 De-coupling Data Definition from Usage
 Databases as Expected Components in
Applications
 Security in Applications and Across Networks

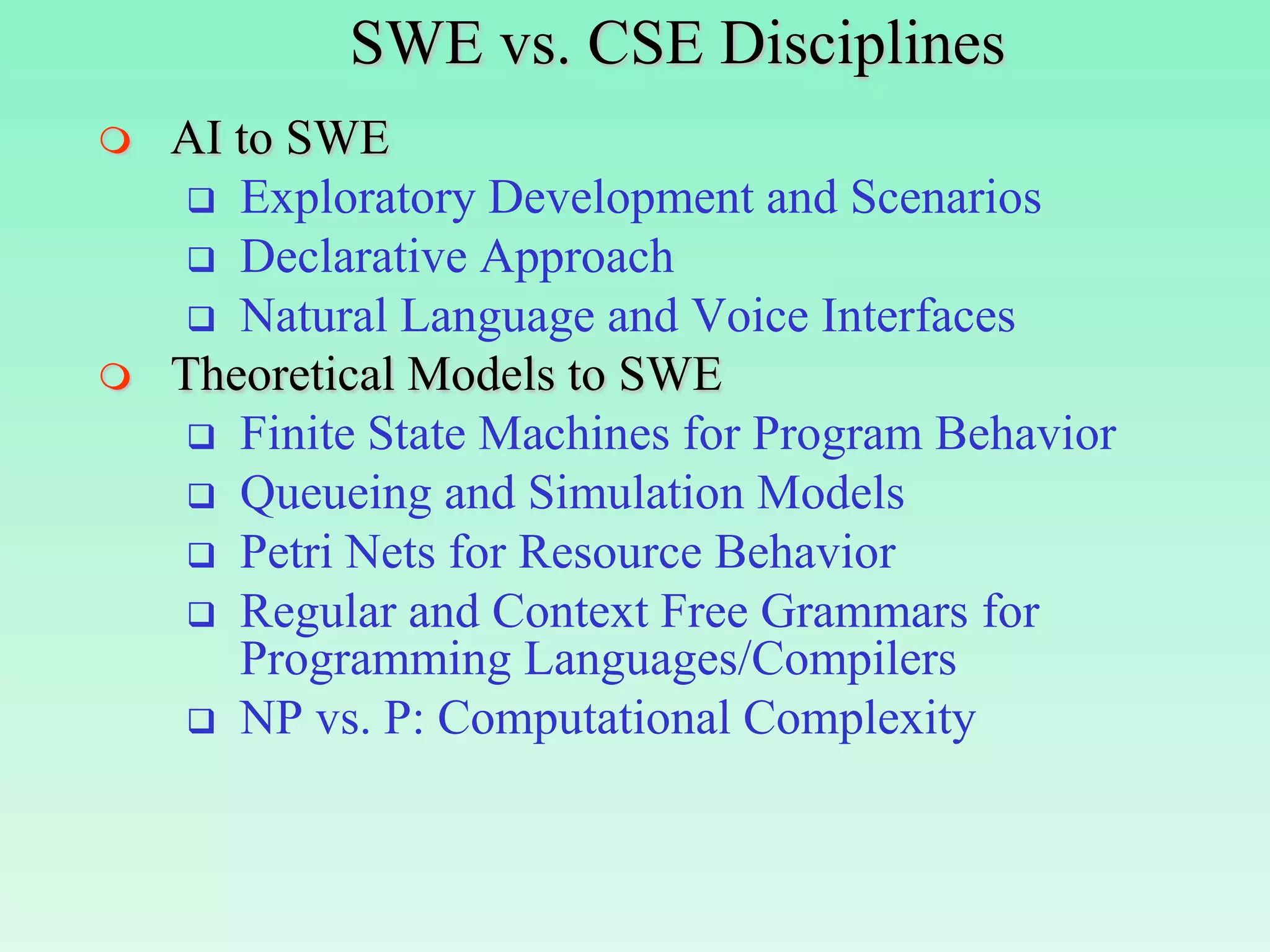

16. SWE vs. CSE Disciplines
 AI to SWE
 Exploratory Development and Scenarios
 Declarative Approach
 Natural Language and Voice Interfaces
 Theoretical Models to SWE
 Finite State Machines for Program Behavior
 Queueing and Simulation Models
 Petri Nets for Resource Behavior
 Regular and Context Free Grammars for
Programming Languages/Compilers
 NP vs. P: Computational Complexity

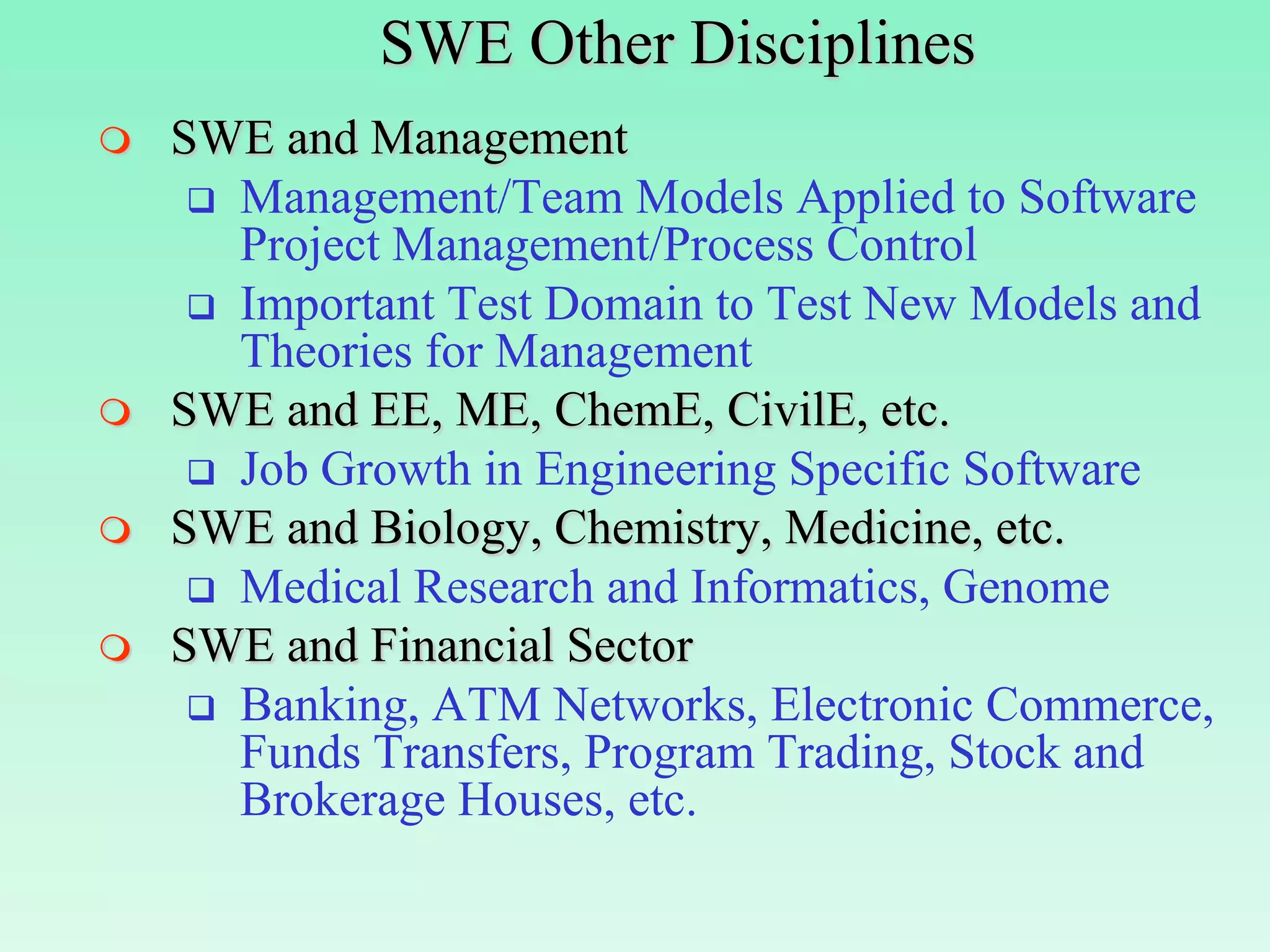

17. SWE Other Disciplines
 SWE and Management
 Management/Team Models Applied to Software
Project Management/Process Control
 Important Test Domain to Test New Models and
Theories for Management
 SWE and EE, ME, ChemE, CivilE, etc.
 Job Growth in Engineering Specific Software
 SWE and Biology, Chemistry, Medicine, etc.
 Medical Research and Informatics, Genome
 SWE and Financial Sector
 Banking, ATM Networks, Electronic Commerce,
Funds Transfers, Program Trading, Stock and
Brokerage Houses, etc.

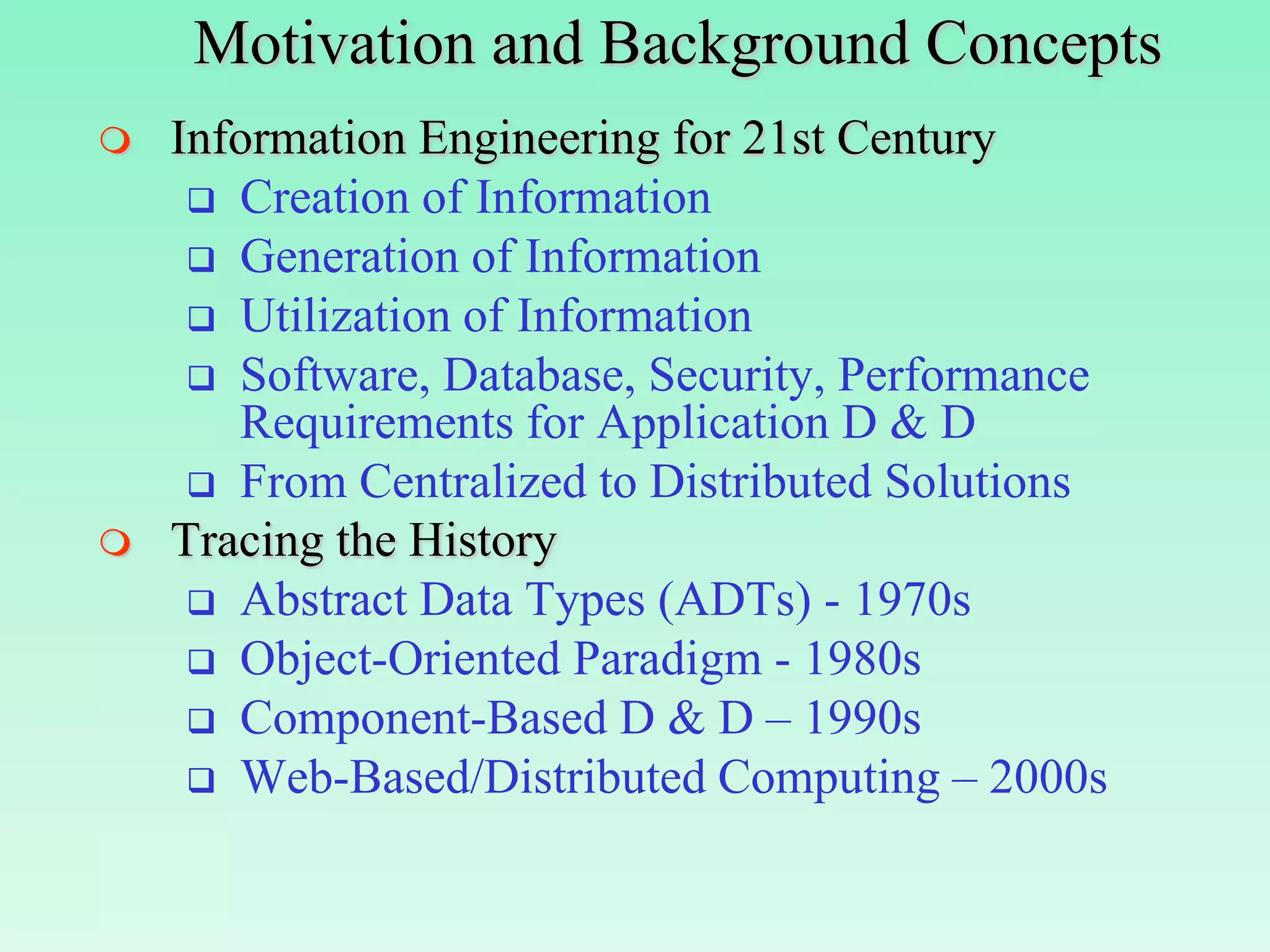

18. Motivation and Background Concepts
 Information Engineering for 21st Century
 Creation of Information
 Generation of Information
 Utilization of Information
 Software, Database, Security, Performance
Requirements for Application D & D
 From Centralized to Distributed Solutions
 Tracing the History
 Abstract Data Types (ADTs) - 1970s
 Object-Oriented Paradigm - 1980s
 Component-Based D & D – 1990s
 Web-Based/Distributed Computing – 2000s

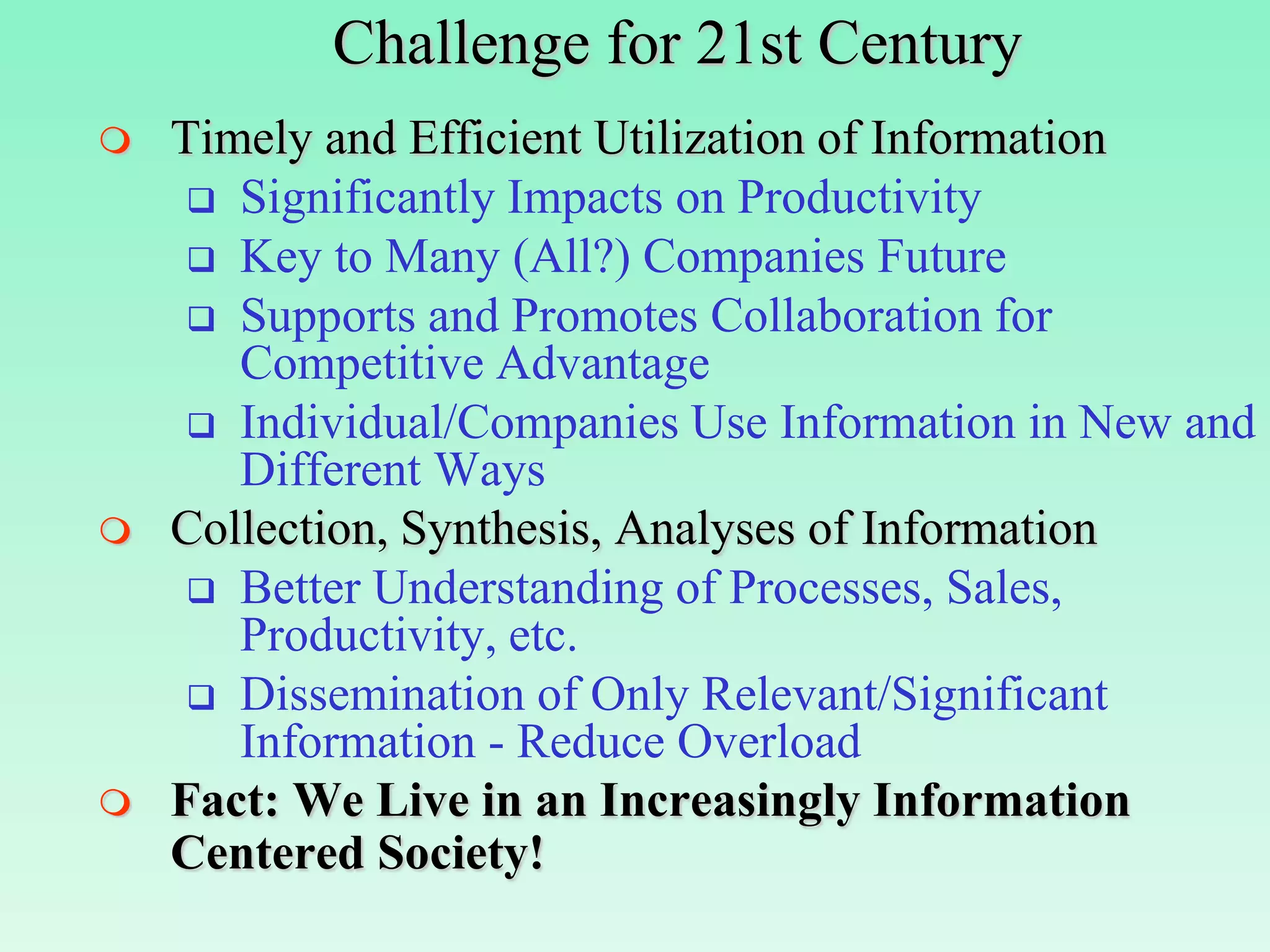

19. Challenge for 21st Century
 Timely and Efficient Utilization of Information
 Significantly Impacts on Productivity
 Key to Many (All?) Companies Future
 Supports and Promotes Collaboration for
Competitive Advantage
 Individual/Companies Use Information in New and
Different Ways
 Collection, Synthesis, Analyses of Information
 Better Understanding of Processes, Sales,
Productivity, etc.
 Dissemination of Only Relevant/Significant
Information - Reduce Overload
 Fact: We Live in an Increasingly Information
Centered Society!

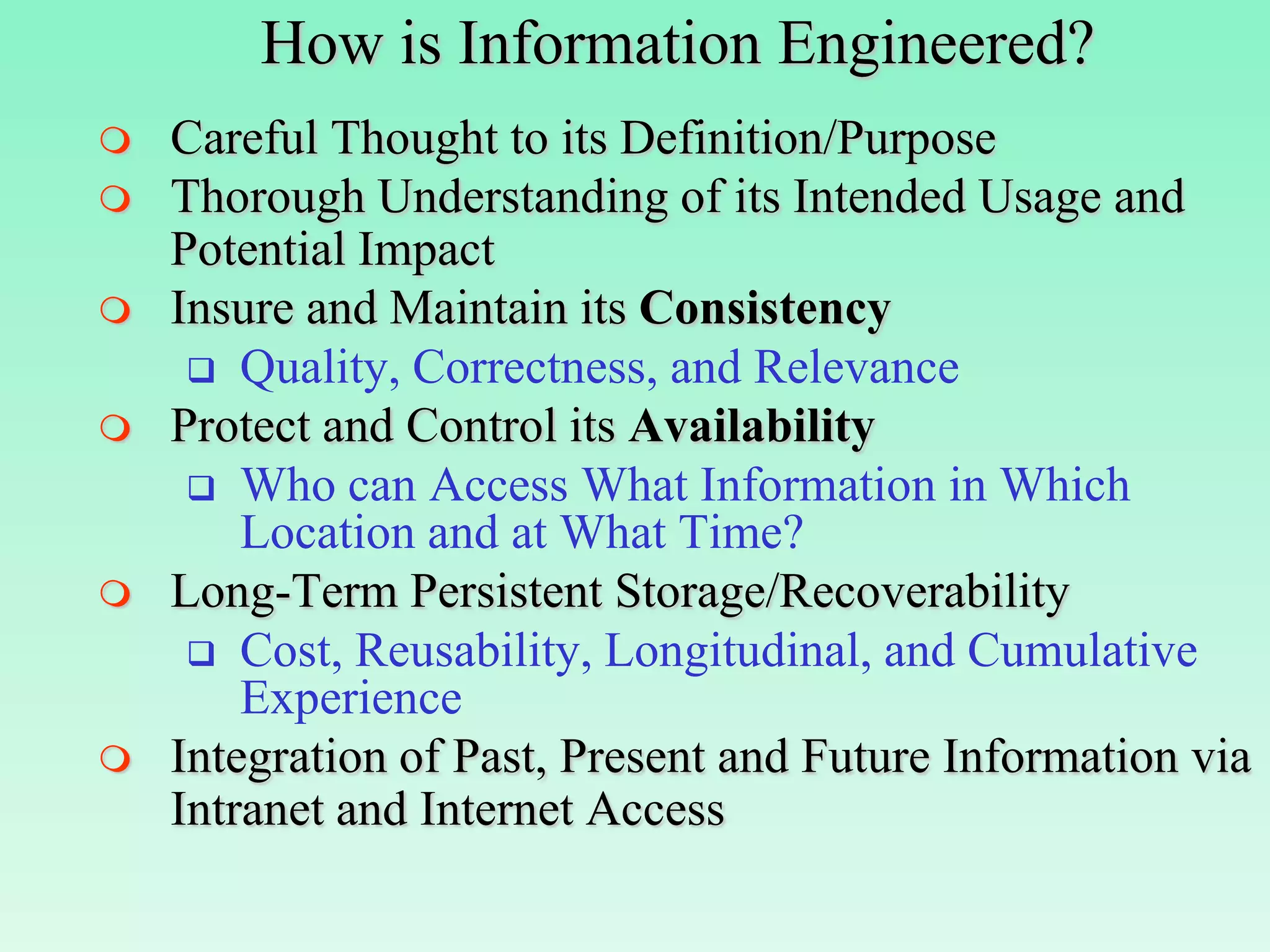

20. How is Information Engineered?
 Careful Thought to its Definition/Purpose
 Thorough Understanding of its Intended Usage and
Potential Impact
 Insure and Maintain its Consistency
 Quality, Correctness, and Relevance
 Protect and Control its Availability
 Who can Access What Information in Which
Location and at What Time?
 Long-Term Persistent Storage/Recoverability
 Cost, Reusability, Longitudinal, and Cumulative
Experience
 Integration of Past, Present and Future Information via
Intranet and Internet Access

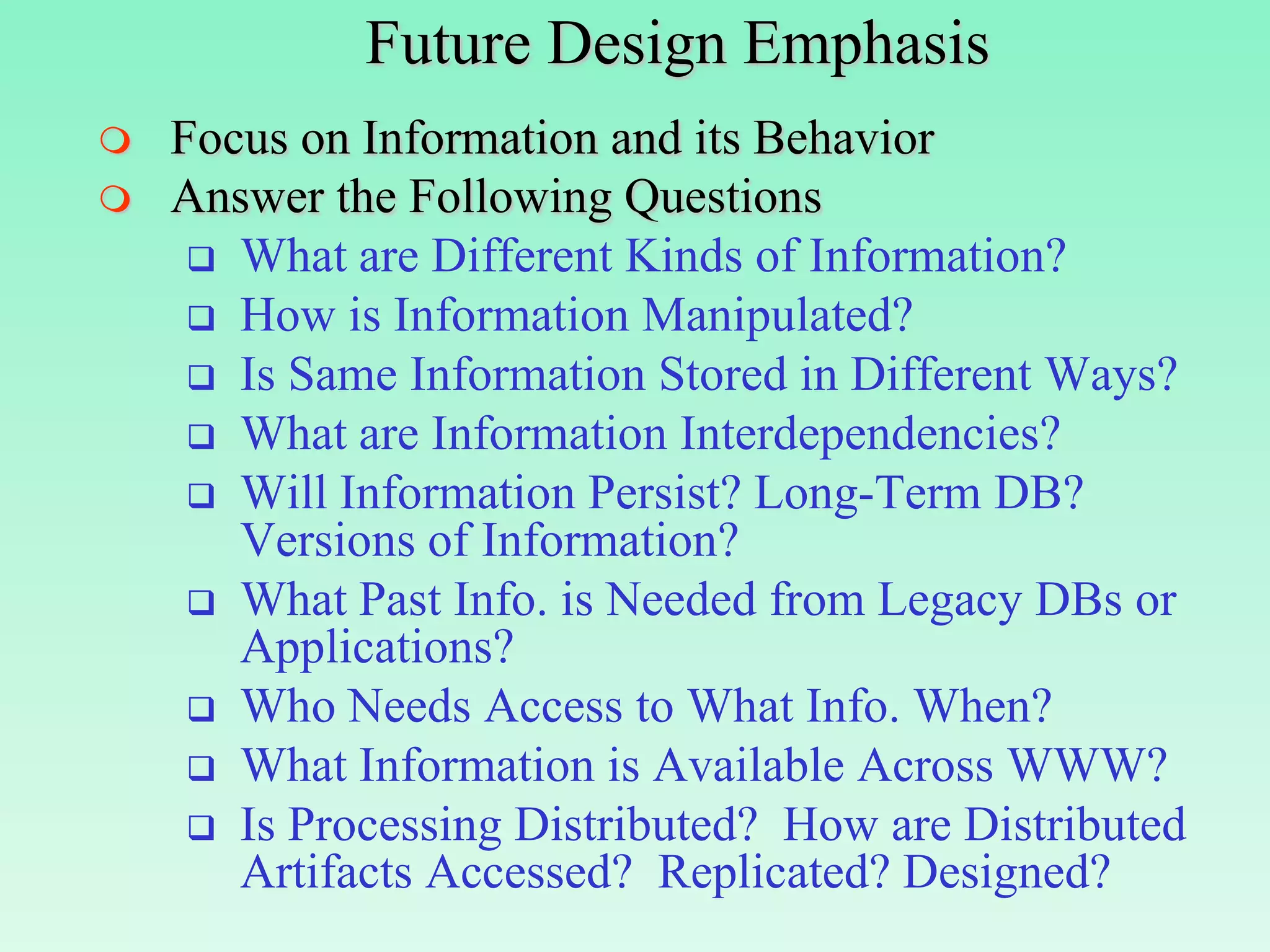

21. Future Design Emphasis
 Focus on Information and its Behavior
 Answer the Following Questions
 What are Different Kinds of Information?
 How is Information Manipulated?
 Is Same Information Stored in Different Ways?
 What are Information Interdependencies?
 Will Information Persist? Long-Term DB?
Versions of Information?
 What Past Info. is Needed from Legacy DBs or
Applications?
 Who Needs Access to What Info. When?
 What Information is Available Across WWW?
 Is Processing Distributed? How are Distributed
Artifacts Accessed? Replicated? Designed?

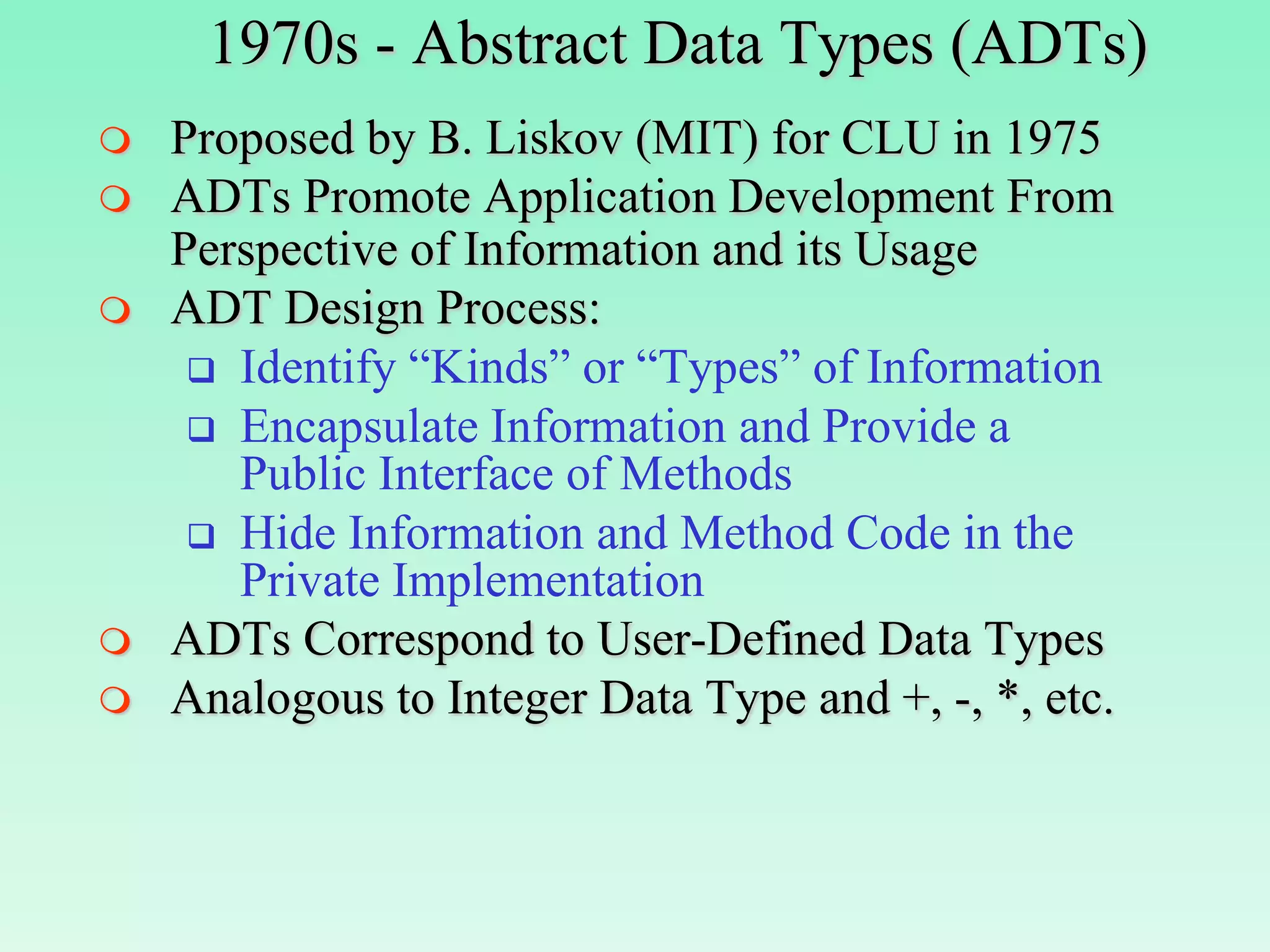

22. 1970s - Abstract Data Types (ADTs)
 Proposed by B. Liskov (MIT) for CLU in 1975
 ADTs Promote Application Development From
Perspective of Information and its Usage
 ADT Design Process:
 Identify “Kinds” or “Types” of Information
 Encapsulate Information and Provide a
Public Interface of Methods
 Hide Information and Method Code in the
Private Implementation
 ADTs Correspond to User-Defined Data Types
 Analogous to Integer Data Type and +, -, *, etc.

23. Abstract Data Types (ADTs)

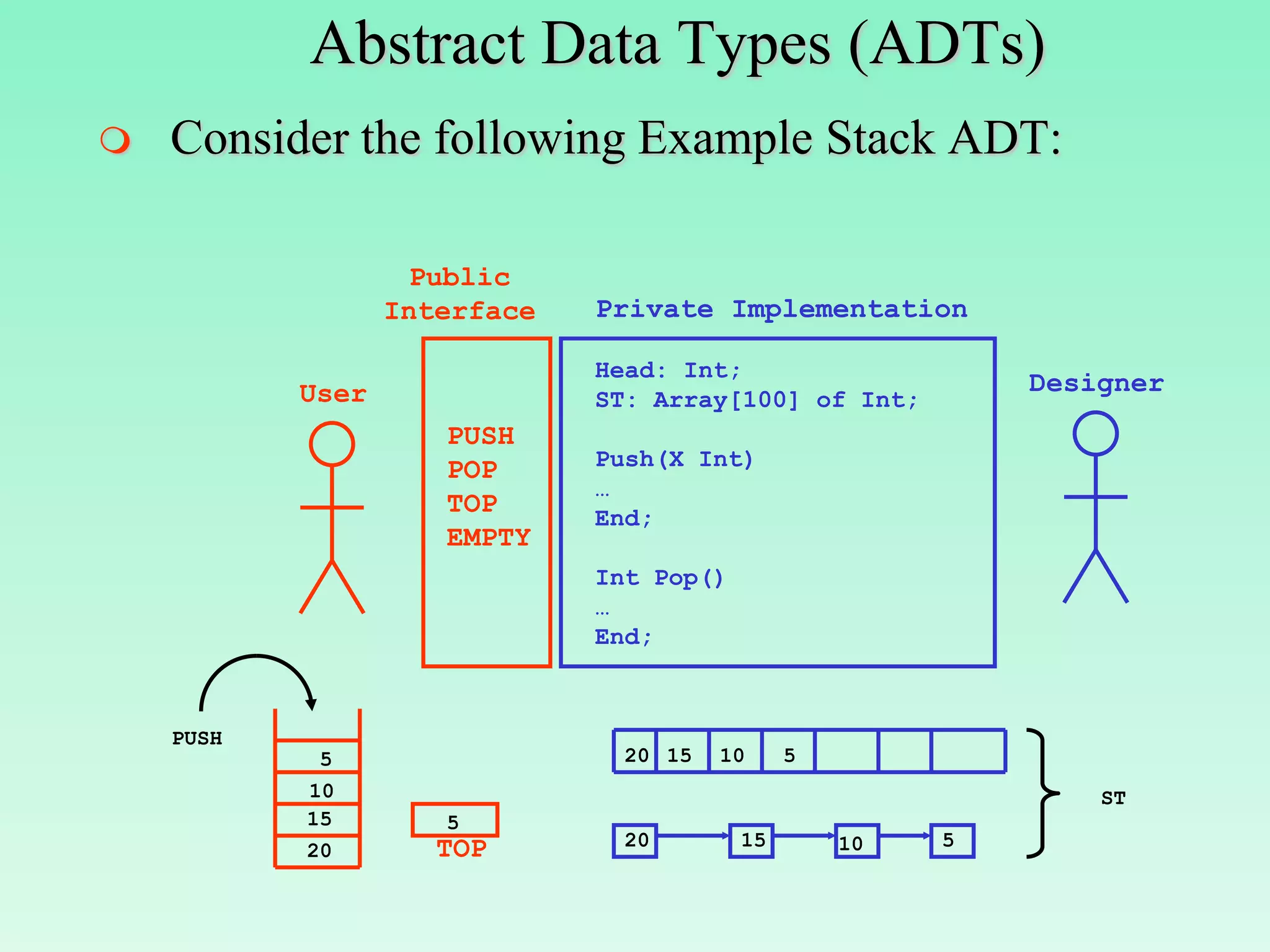

 Consider the following Example Stack ADT:
Public
Interface Private Implementation
Head: Int;
User Designer
ST: Array[100] of Int;
PUSH
POP Push(X Int)
…
TOP End;
EMPTY
Int Pop()
…
End;
PUSH
5 20 15 10 5
10 ST
15 5
TOP 20 15 10 5
20

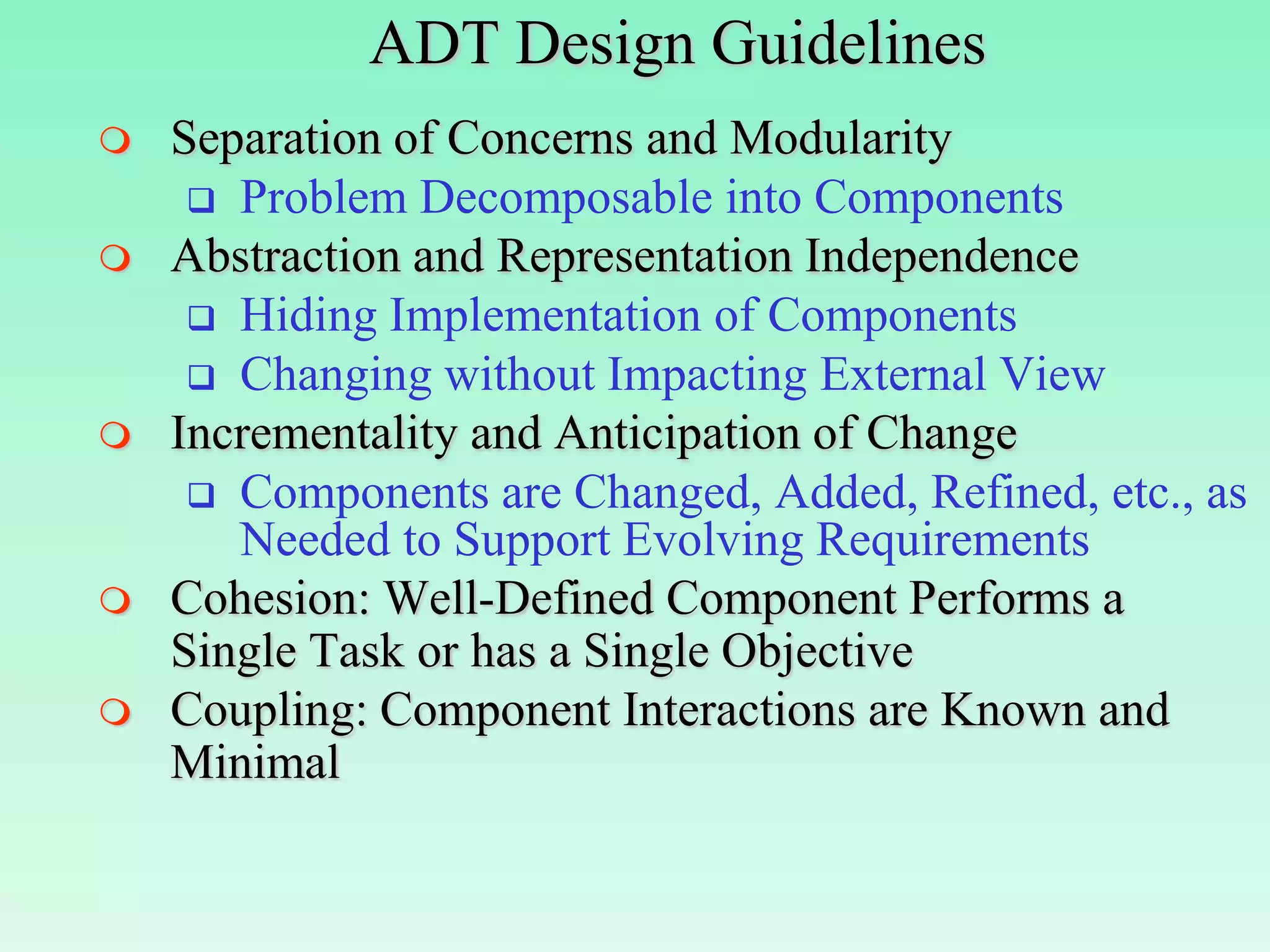

24. ADT Design Guidelines
 Separation of Concerns and Modularity
 Problem Decomposable into Components
 Abstraction and Representation Independence
 Hiding Implementation of Components
 Changing without Impacting External View
 Incrementality and Anticipation of Change
 Components are Changed, Added, Refined, etc., as
Needed to Support Evolving Requirements
 Cohesion: Well-Defined Component Performs a
Single Task or has a Single Objective
 Coupling: Component Interactions are Known and
Minimal

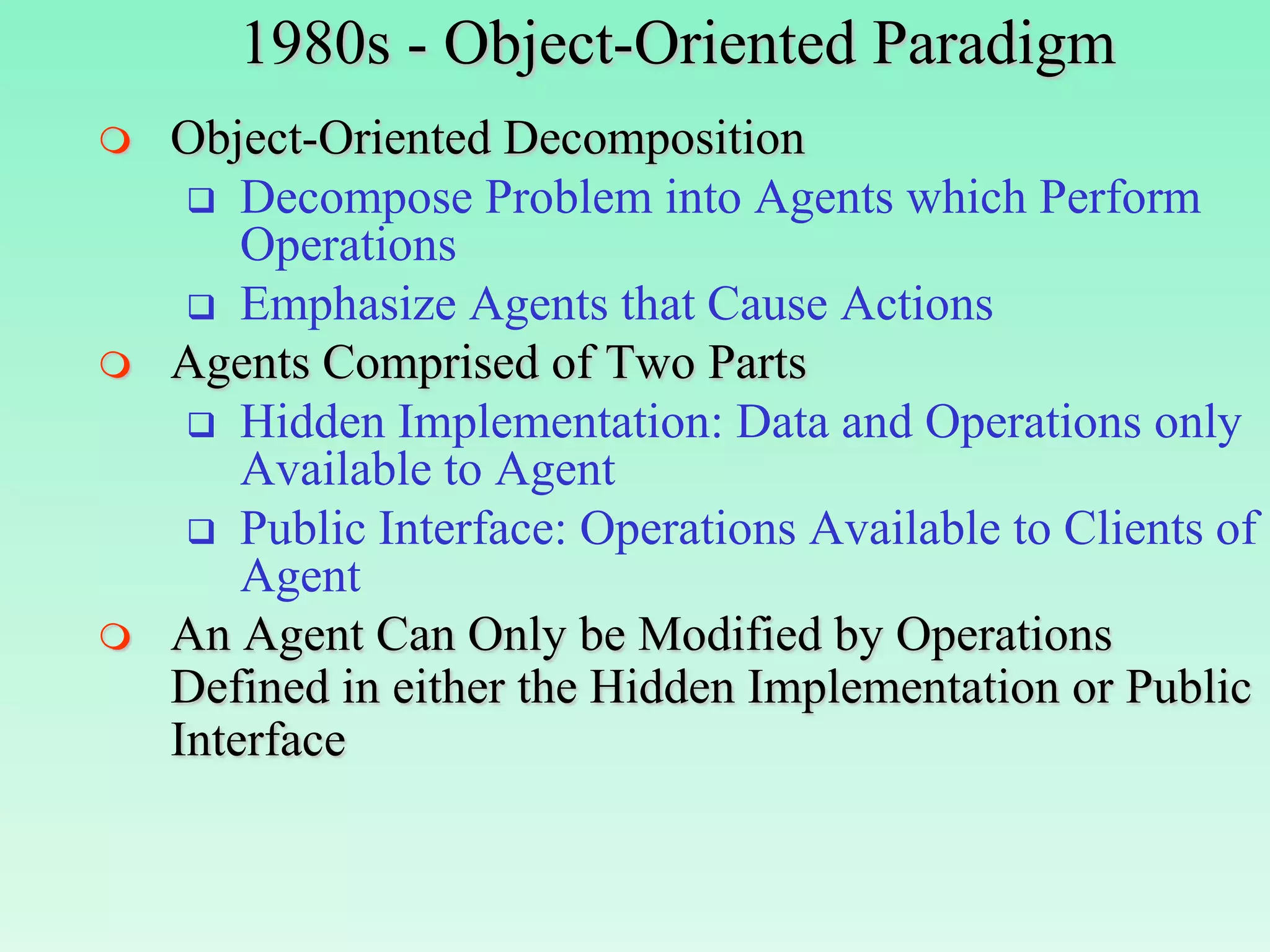

25. 1980s - Object-Oriented Paradigm
 Object-Oriented Decomposition
 Decompose Problem into Agents which Perform
Operations
 Emphasize Agents that Cause Actions
 Agents Comprised of Two Parts
 Hidden Implementation: Data and Operations only
Available to Agent
 Public Interface: Operations Available to Clients of
Agent
 An Agent Can Only be Modified by Operations
Defined in either the Hidden Implementation or Public
Interface

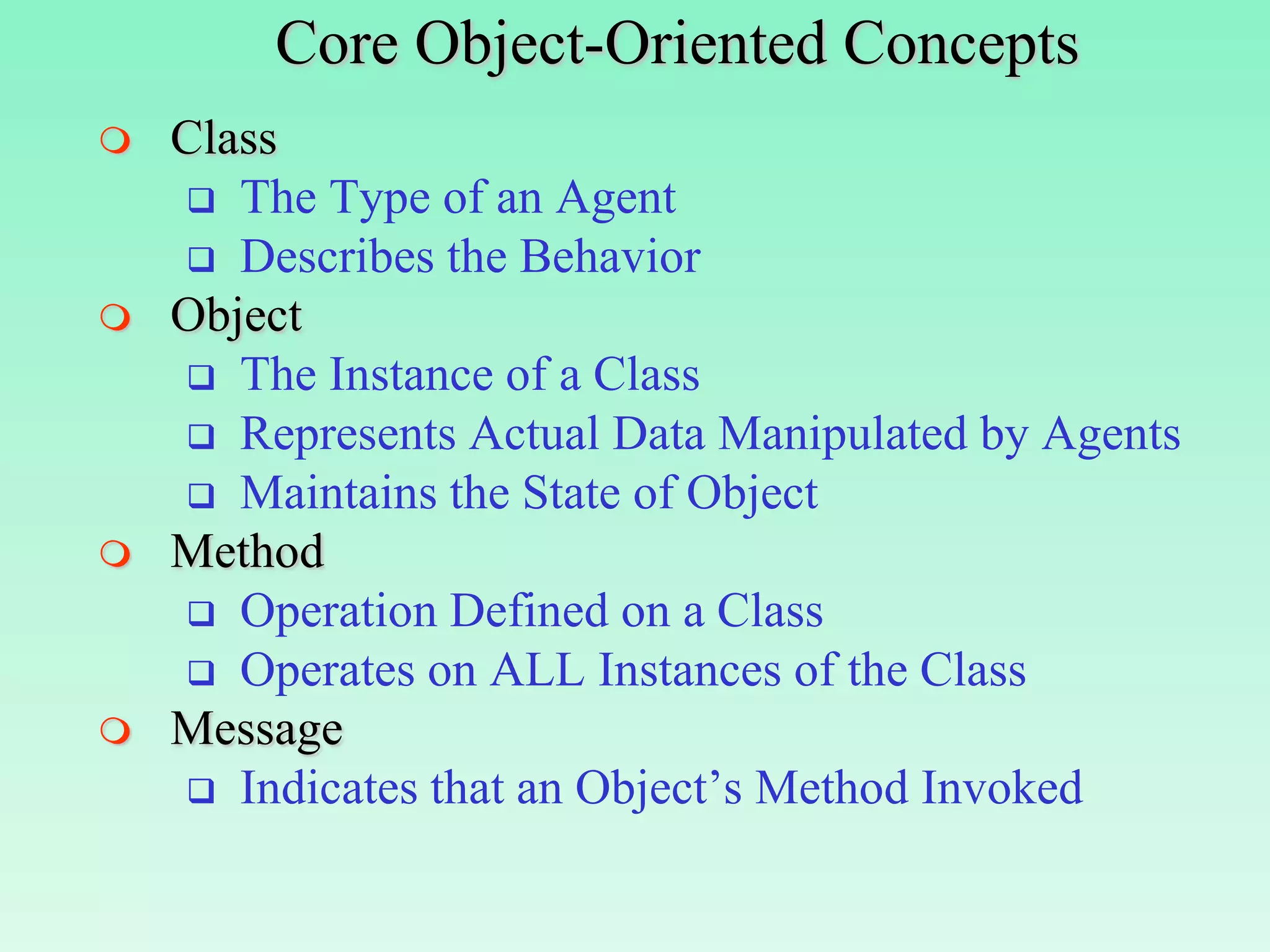

26. Core Object-Oriented Concepts
 Class
 The Type of an Agent
 Describes the Behavior
 Object
 The Instance of a Class
 Represents Actual Data Manipulated by Agents
 Maintains the State of Object
 Method
 Operation Defined on a Class
 Operates on ALL Instances of the Class
 Message
 Indicates that an Object’s Method Invoked

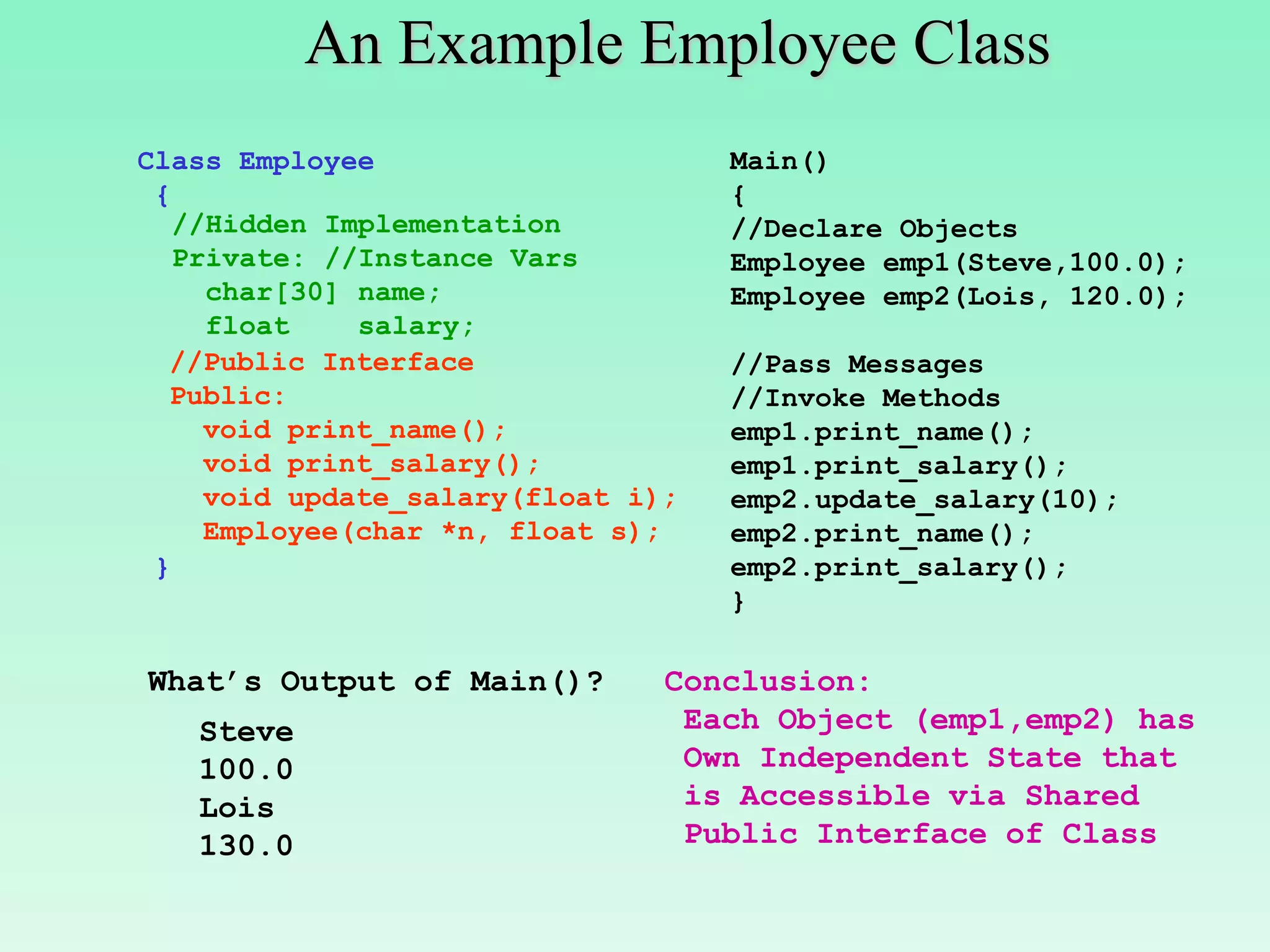

27. An Example Employee Class
Class Employee Main()
{ {
//Hidden Implementation //Declare Objects
Private: //Instance Vars Employee emp1(Steve,100.0);
char[30] name; Employee emp2(Lois, 120.0);
float salary;
//Public Interface //Pass Messages
Public: //Invoke Methods
void print_name(); emp1.print_name();
void print_salary(); emp1.print_salary();
void update_salary(float i); emp2.update_salary(10);
Employee(char *n, float s); emp2.print_name();
} emp2.print_salary();
}
What’s Output of Main()? Conclusion:
Steve Each Object (emp1,emp2) has
100.0 Own Independent State that
Lois is Accessible via Shared
130.0 Public Interface of Class

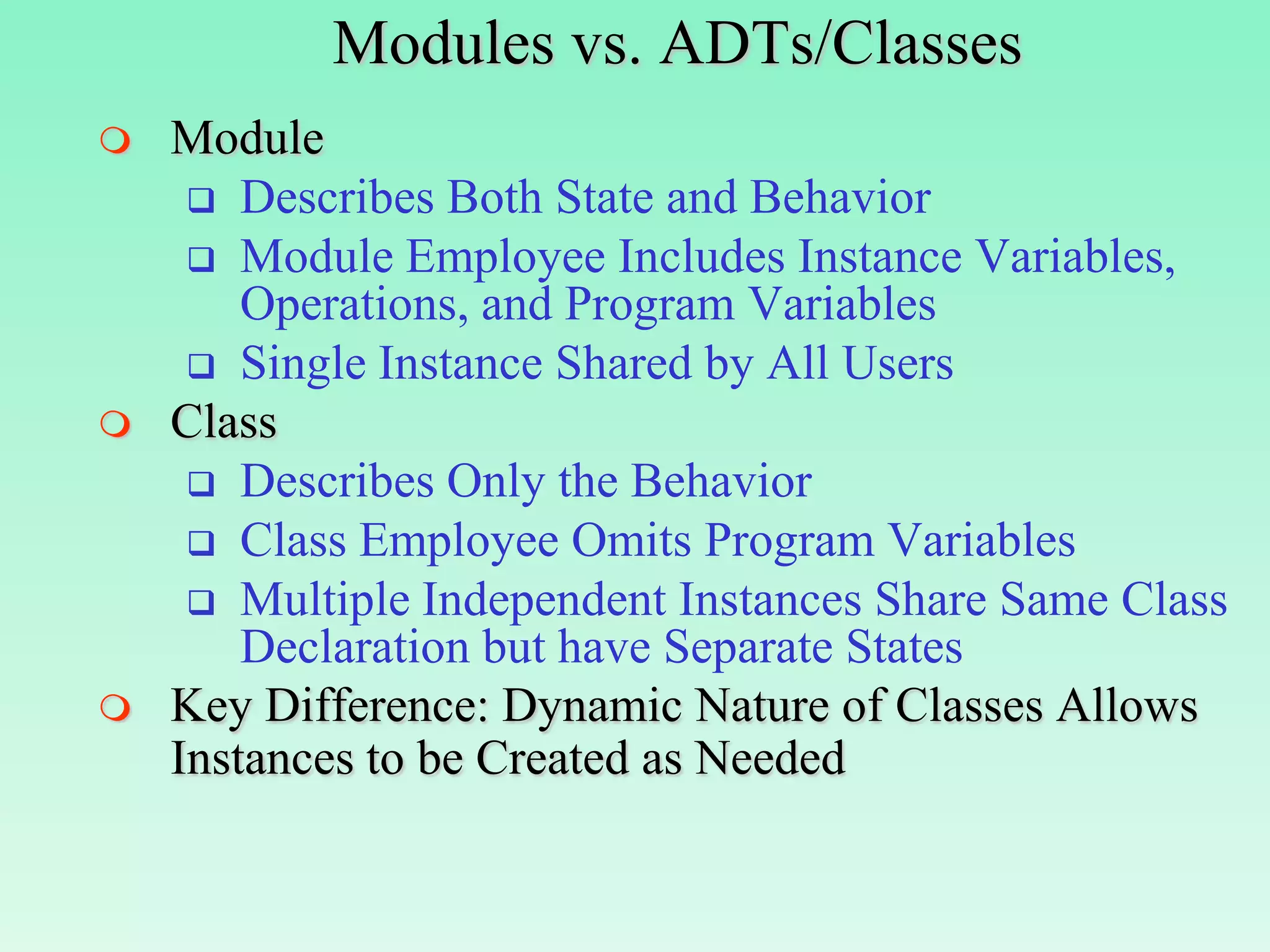

28. Modules vs. ADTs/Classes
 Module
 Describes Both State and Behavior
 Module Employee Includes Instance Variables,
Operations, and Program Variables
 Single Instance Shared by All Users
 Class
 Describes Only the Behavior
 Class Employee Omits Program Variables
 Multiple Independent Instances Share Same Class
Declaration but have Separate States
 Key Difference: Dynamic Nature of Classes Allows
Instances to be Created as Needed

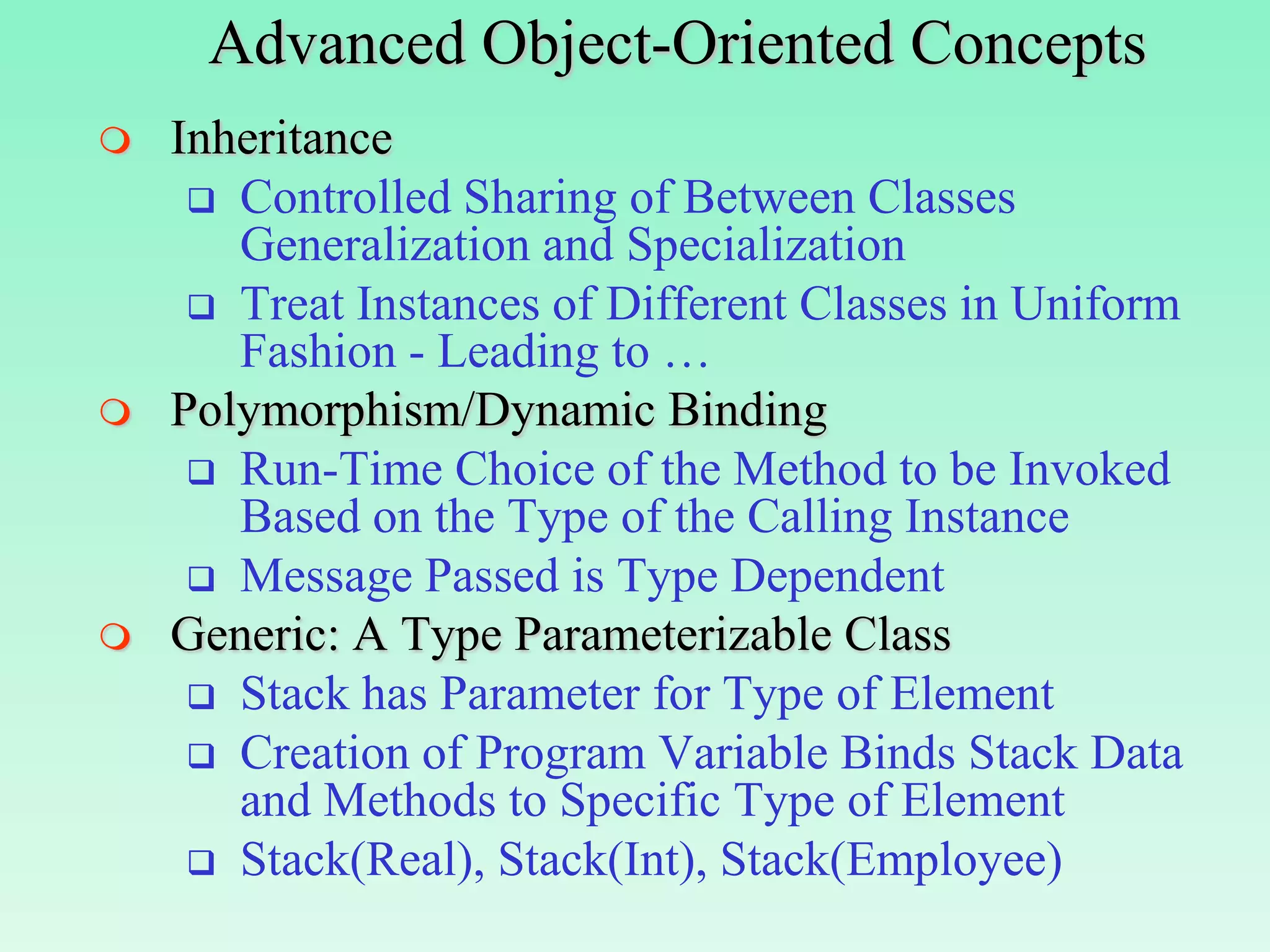

29. Advanced Object-Oriented Concepts
 Inheritance
 Controlled Sharing of Between Classes
Generalization and Specialization
 Treat Instances of Different Classes in Uniform
Fashion - Leading to …
 Polymorphism/Dynamic Binding
 Run-Time Choice of the Method to be Invoked
Based on the Type of the Calling Instance
 Message Passed is Type Dependent
 Generic: A Type Parameterizable Class
 Stack has Parameter for Type of Element
 Creation of Program Variable Binds Stack Data
and Methods to Specific Type of Element
 Stack(Real), Stack(Int), Stack(Employee)

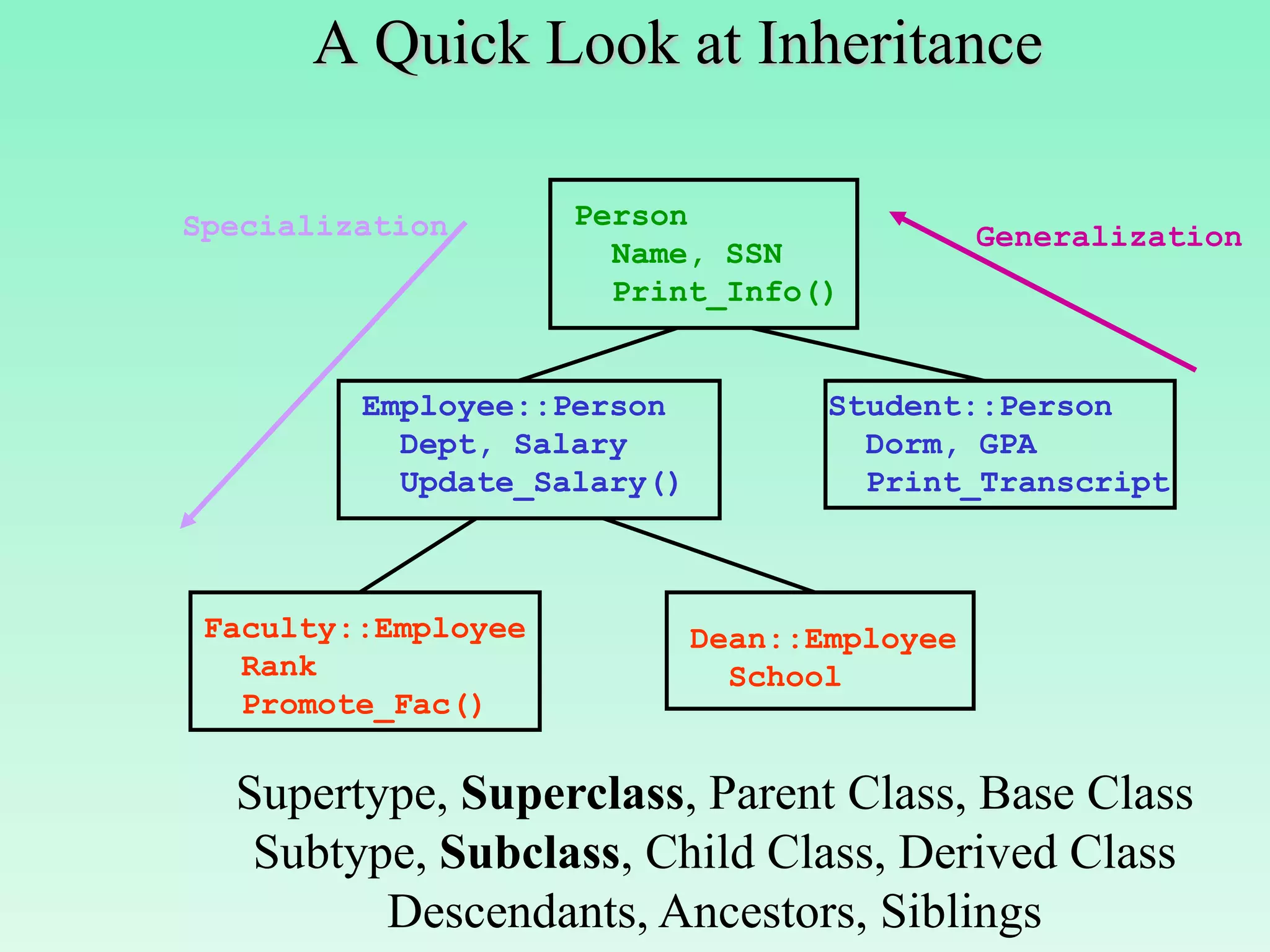

30. A Quick Look at Inheritance
Specialization Person
Generalization
Name, SSN
Print_Info()
Employee::Person Student::Person
Dept, Salary Dorm, GPA
Update_Salary() Print_Transcript
Faculty::Employee Dean::Employee
Rank School
Promote_Fac()
Supertype, Superclass, Parent Class, Base Class
Subtype, Subclass, Child Class, Derived Class
Descendants, Ancestors, Siblings

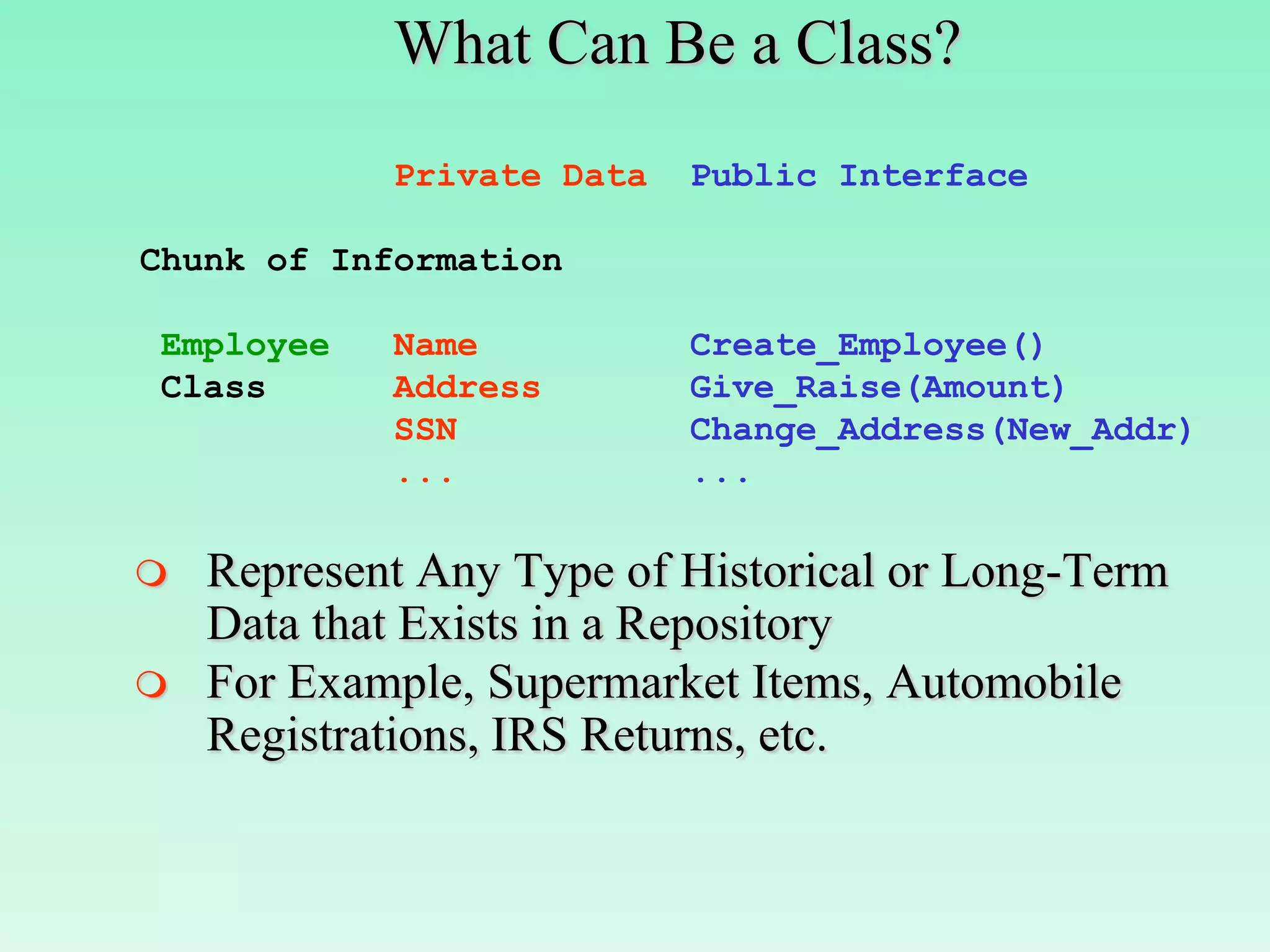

31. What Can Be a Class?
Private Data Public Interface
Chunk of Information
Employee Name Create_Employee()
Class Address Give_Raise(Amount)
SSN Change_Address(New_Addr)
... ...
 Represent Any Type of Historical or Long-Term
Data that Exists in a Repository
 For Example, Supermarket Items, Automobile
Registrations, IRS Returns, etc.

32. What Can Be a Class?
Private Data Public Interface
Functional Component
ATM_Log Acct_Name Check_Database(Name)
Class PIN_Number Verify_PIN(PIN)
... Log_on_Actions(Name, PIN)
Reject()
...
 Represent a Functional Action that Performs a
Well-Defined Task with Minimal Internal State
 For Example, Supermarket UPC Scan, Automobile
Diagnostic Analyzer, etc.

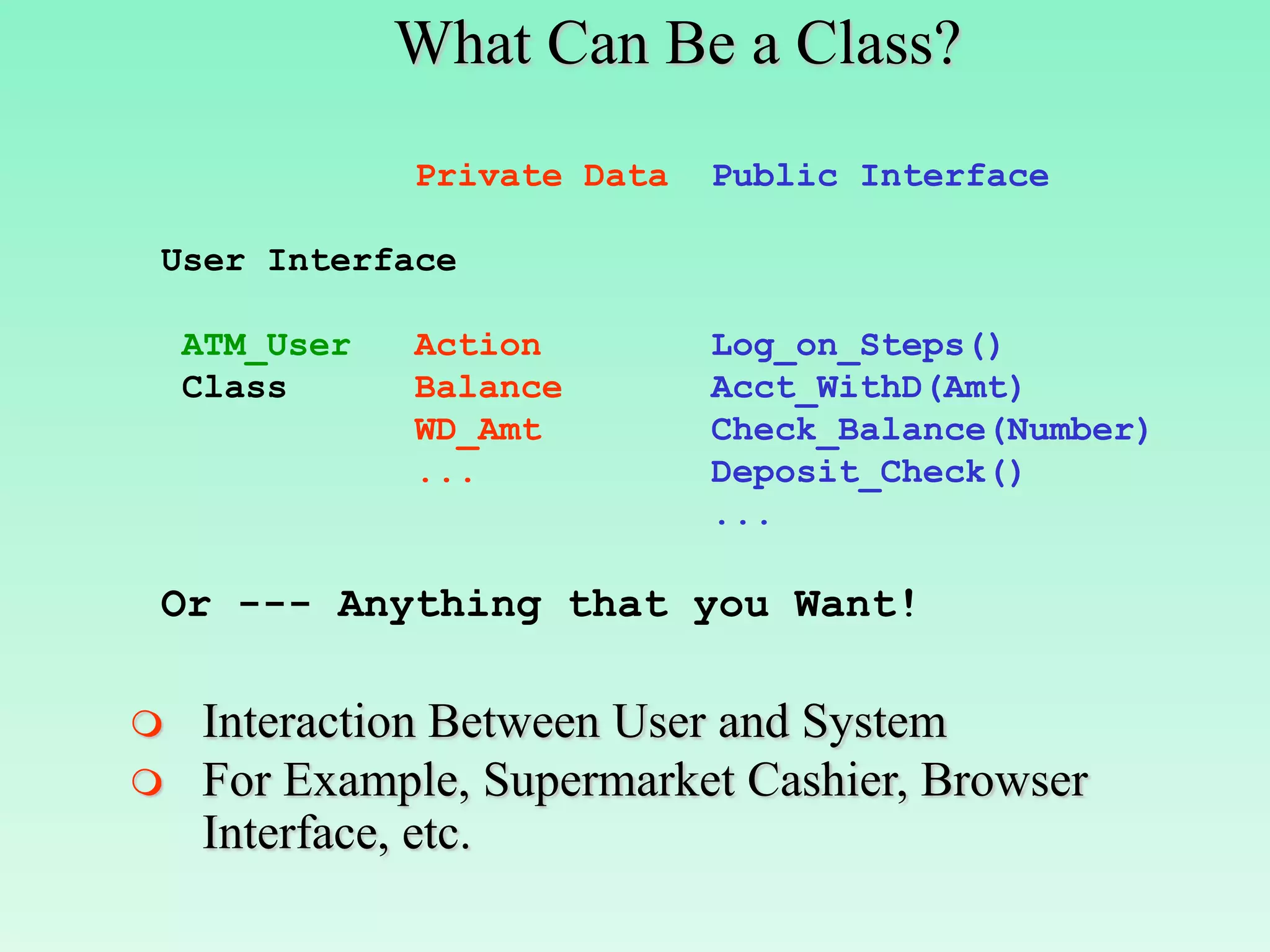

33. What Can Be a Class?
Private Data Public Interface
User Interface
ATM_User Action Log_on_Steps()
Class Balance Acct_WithD(Amt)
WD_Amt Check_Balance(Number)
... Deposit_Check()
...
Or --- Anything that you Want!
 Interaction Between User and System
 For Example, Supermarket Cashier, Browser
Interface, etc.

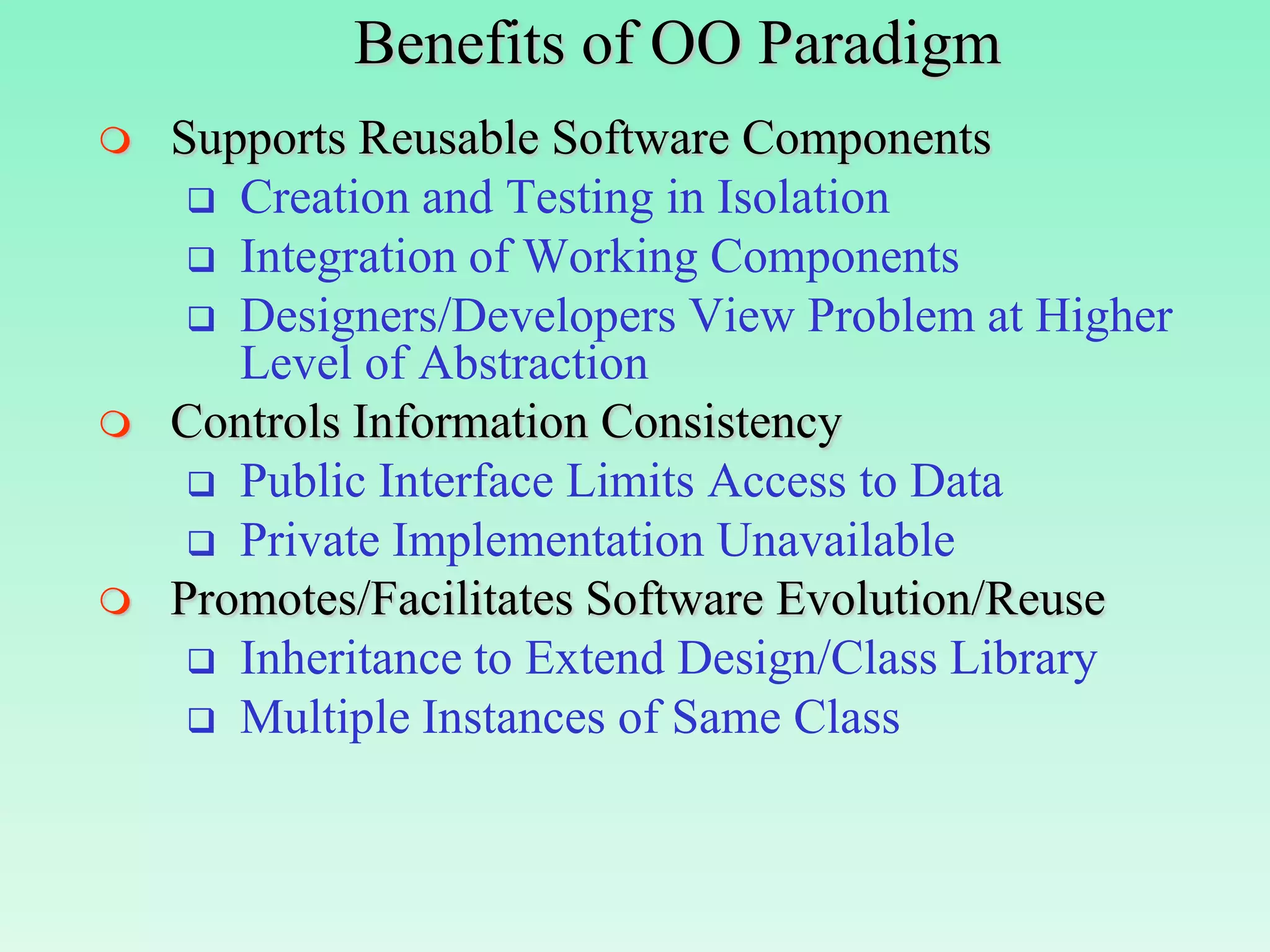

34. Benefits of OO Paradigm
 Supports Reusable Software Components
 Creation and Testing in Isolation
 Integration of Working Components
 Designers/Developers View Problem at Higher
Level of Abstraction
 Controls Information Consistency
 Public Interface Limits Access to Data
 Private Implementation Unavailable
 Promotes/Facilitates Software Evolution/Reuse
 Inheritance to Extend Design/Class Library
 Multiple Instances of Same Class

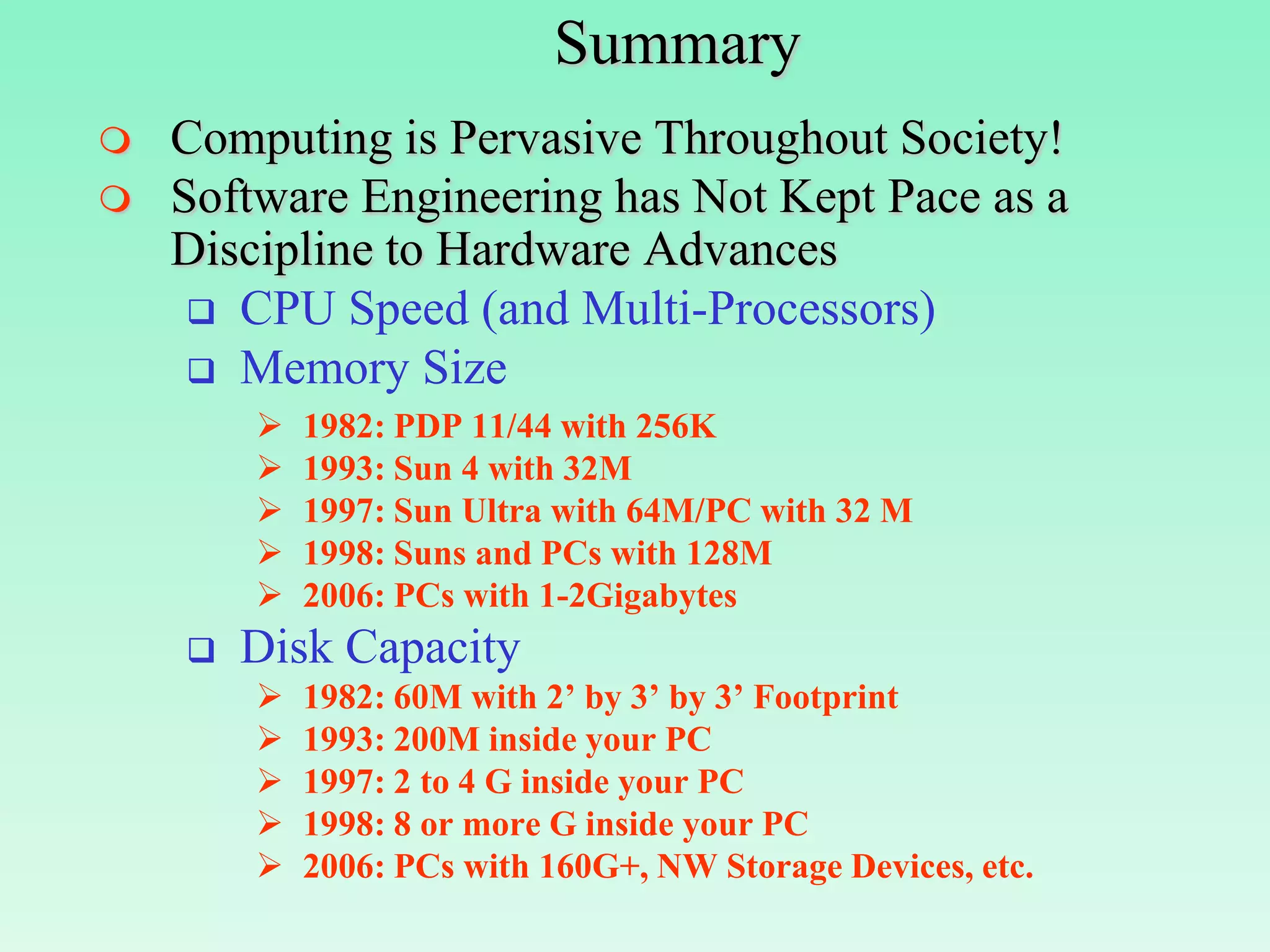

35. Summary
 Computing is Pervasive Throughout Society!
 Software Engineering has Not Kept Pace as a
Discipline to Hardware Advances
 CPU Speed (and Multi-Processors)
 Memory Size
 1982: PDP 11/44 with 256K
 1993: Sun 4 with 32M
 1997: Sun Ultra with 64M/PC with 32 M
 1998: Suns and PCs with 128M
 2006: PCs with 1-2Gigabytes
 Disk Capacity
 1982: 60M with 2’ by 3’ by 3’ Footprint
 1993: 200M inside your PC
 1997: 2 to 4 G inside your PC
 1998: 8 or more G inside your PC
 2006: PCs with 160G+, NW Storage Devices, etc.

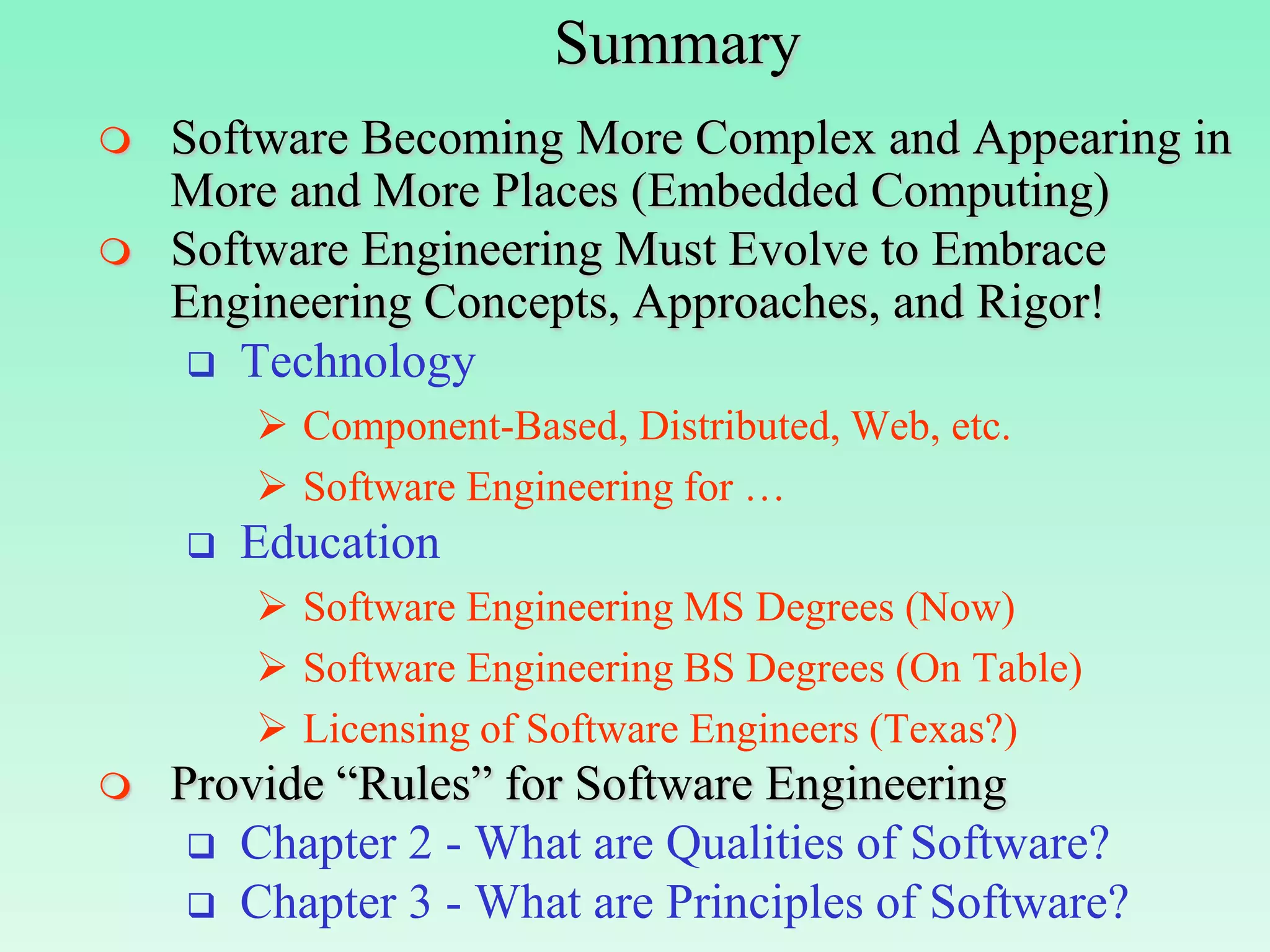

36. Summary
 Software Becoming More Complex and Appearing in
More and More Places (Embedded Computing)
 Software Engineering Must Evolve to Embrace
Engineering Concepts, Approaches, and Rigor!
 Technology
 Component-Based, Distributed, Web, etc.
 Software Engineering for …
 Education
 Software Engineering MS Degrees (Now)
 Software Engineering BS Degrees (On Table)
 Licensing of Software Engineers (Texas?)
 Provide “Rules” for Software Engineering
 Chapter 2 - What are Qualities of Software?
 Chapter 3 - What are Principles of Software?
