Mobile App Testing Essentials
1.

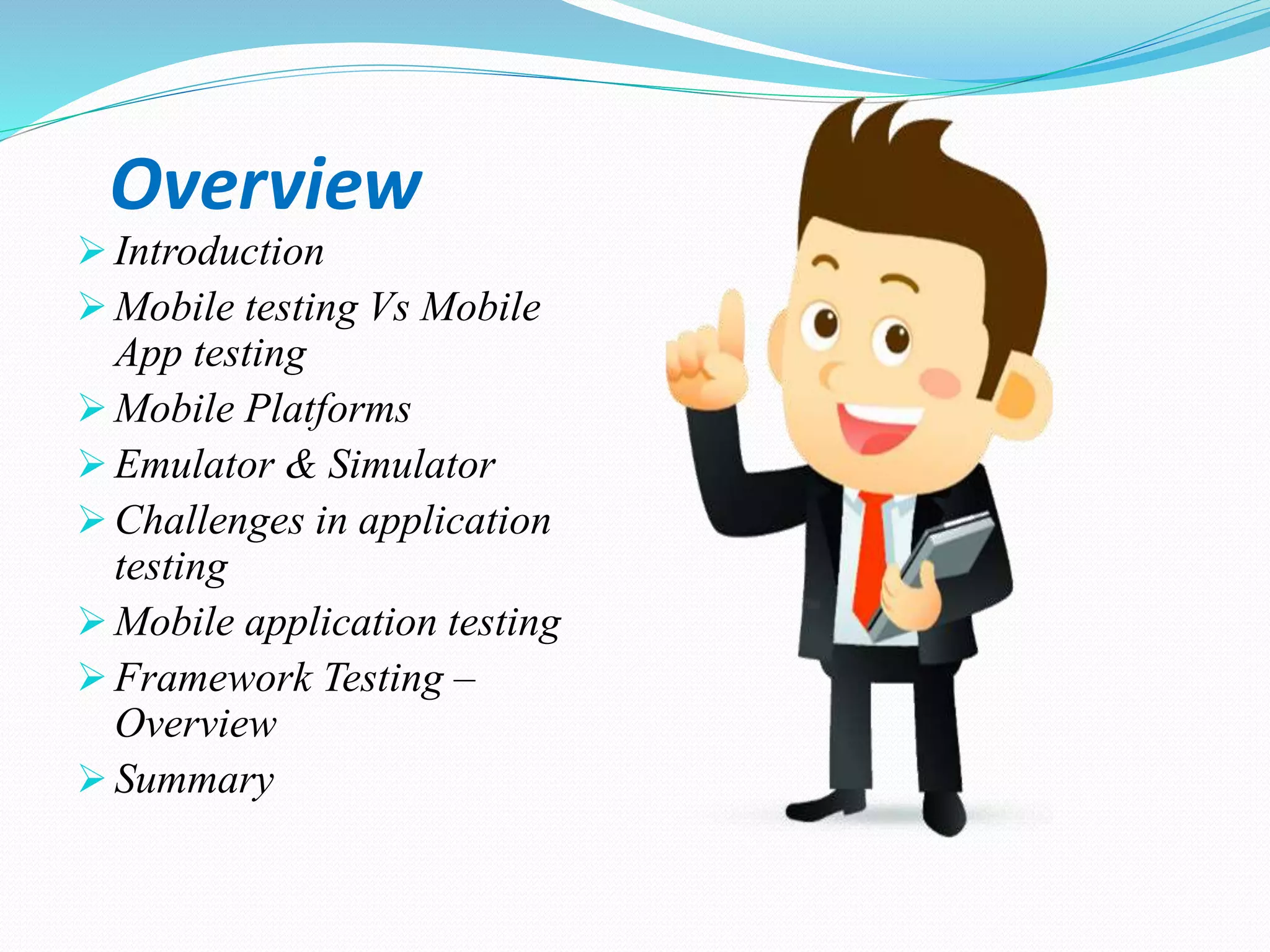

2. Overview
Introduction
Mobile testing Vs Mobile
App testing
Mobile Platforms
Emulator & Simulator
Challenges in application
testing
Mobile application testing
Framework Testing –
Overview
Summary
3. Introduction
Mobile application testing is similar to software testing but testing is
perform on mobile instead of system. It can be automated or manual
type of testing.
Mobile application testing is a process by which application developed
for mobile devices is tested for its functionality, usability and
consistency.
In application testing more about how
application will perform on different
platform , resolution network &
hardware configuration.
4. Comparison
Mobile Testing:
Mobile testing is testing of feature of mobile or handset given by
company or manufacturer.
Main focus is on mobile feature like calling feature , sms , battery
testing , settings , phone book , Network compatibility etc.
Mobile Application Testing:
Testing of application which is provided by third party to user. It can
be pre installed in mobile or can get from stores.
It focus on application functionality, Performance and adhering to
guidelines provided by Platforms.
Testing ensures application perform in same way as its was designed.
5. Mobile Platforms
• Before application testing, lets know about mobile platforms for which
apps are developed. Now days, there are lots of platform or operating
system.
6. Continued…
Platform which are on high priority in market are:
Android (By Google)
iOS (By Apple)
Android OS – Android is based on Java programming language. It is
open source & Linux based operating system for mobile like
Smartphone & tablet.
Latest Version: 7.0(Nougat)
Developed by : Google
iOS – iOS was previously known as iPhone Operating system. It is the
operating system which run on iPhone, iPad & iPod.
Latest Version: 10.1 Beta 5
Developed by: Apple Inc.
7. Emulator & Simulator
As a part of mobile application testing, we need to check if the
application is working as expected with all the majorly used devices
like Android phones, iOS, other different types of tablets and iPads. But
testing each & every physical device will very expensive to carry out
testing.
So there is an smart alterative for testing : Emulator & Simulator.
Emulator - Emulator is a program or device that permits programs
written for one kind of computer to be used on another kind of
computer.
Simulator - A mobile simulator is a software application for
a personal computer which creates a virtual machine version of
a mobile device.
8. Continued…
Disadvantage of Simulator/ Emulator:
A simulator/emulator cannot provide the following features −
Mobile device battery
Mobile device’s camera
Difficult to mimic interruptions like incoming calls and SMS.
Not so much realistic simulation for mobile device memory usage.
Lets discuss differences between simulator & Emulator:
9. Continued…
Emulator Simulator
The emulator aims at emulating
or mimicking as close as
possible the outer behaviour of
an object.
Emulators are developed
machine level assembly
language.
They are suitable for debugging.
Emulator is not good in terms of
performance. It is very slow.
It is re-implement of the
original software
Simulator's objective is
to simulate the internal state of
an object as close as possible to
the internal state of an object.
They are written in high level
language
It is difficult to use for
debugging purpose.
Simulator are faster in
comparison to emulator.
It is just a partial re-
implementation of the original
software .
10. Challenges
Testing is fast-paced industry which is changing constantly. Mobile
apps has not only set target into consumer apps but also in commercial
apps. Mobile apps should be rock solid rock before they are released to
market. The movement towards mobile devices has brought a whole
different set of challenges to the testing world.
6 key challenges that developer & tester are facing during the
development cycle of application. They are:
1. Screen sizes.
2. Different OS versions.
3. Power Consumption.
4. Usability.
5. Connection Type.
6. Internationalisation
11. Continued…
1. Various screen size- In Android world the verity of different aspect
ratios & pixels can be overwhelming. Apple also bring a new screen
size with launch of iphone6. For testing it means that tester need to
check on various devices that all the necessary screen elements are
accessible with different screen sizes and aspect ratios. Example iOS
developers are used to pixel perfect screen design, they now need to
change their mindset to the adaptive screen design instead
12. Continued…
Different range of mobile resolution :
2. Different OS Versions – As we discussed in previous slides, there are
variety of platform for mobile apps. This wide range of operating
system, is main huddle in successfully development of any mobile
application. Also the version of OS, iOS users are known to be
upgrading quickly to the newest versions. On the contrary, Android
uptake has historically been very slow and the fragmentation is wide.
This means that app developers need to support older OS versions and
older API’s, and testers need to test for those.
14. Continued…
3. Power Consumption- There are several types of batteries used in
different mobile devices (i.e. nickel cadmium/ lithium ion/ Nickel metal
hybrid). When testing mobile apps we need to make sure that the power
consumption is kept minimal and the app is developed by keeping the
best practices in mind. The innovation in the battery storage capacity
field hasn’t been as quick as in the app consumption. We are running
lots of apps during the day and many apps are running on background
without noticing user. This all requires CPU cycles which on it’s turn
require power and thus the batteries tend to dry.
Power Consumption test can be done manually; also there are some
free tools available in the market such as Trepn Profiler, Power Tutor,
and Nokia Energy Profiler. These are applications which can display the
real-time power consumption on a smart phone or tablet.
15. Continued…
4.Usability - When testing mobile apps it’s important to pay attention to the
size of click areas and making sure that all texts are readable without
lenses. Mobile device screens are relatively small and there are always
more data developer would like to present than possible to fit to the screen.
It’s challenging to keep the interaction clean and simple for the user, and at
the same time display all the necessary information. Font size and
readability, clickable button are other challenging factors of usability.
5. Connection Type – Connection API’s on mobile platforms have been
developed keeping those challenges in mind, the real world
environment is still very much varying and interesting set of issues may
occur.
There are several standards for mobile data connections (edge, umts,
3G, 4G) as well as for wi-fi. Sometimes there might be no connection
available at all or the device is in flight mode. When users move
around the connection type might change.
It’s important to test the bandwidth usage as not all carriers are
supporting unlimited data volumes.
16. Continued…
6. Internationalisation – Many of the application are developed to be
run on international market. Tester should take care of local settings ,
time zone according to target audience. Tester must also take account
into translation of languages as per region. Right-to-left languages
have always kept developers puzzled.
Though there are list of challenges, but
above are common & general
challenge that developer & tester face
during development cycle. This
challenges can be overcome & quality
can be improve with help of
testing expertise and using correct tools
in suitable environment.
17. Mobile Application Testing
Let us now start with different types of application testing.
1. Functional Testing - Functional testing is the most basic test for any
application to ensure that it is working as per the defined
requirements. Similar to other user-interface based applications,
mobile applications require a number of human interactions in user
scenarios.
Test team verifies that forms correctly
submit and collect information from
users, that all components / function
as expected, and that all links are
correct and functional.
18. Continued…
2. Compatibility Testing - Compatibility testing has got the highest
stack when it comes to mobile application testing. The purpose of a
mobile app compatibility test, to ensure application must run as
desired in all operating system & different resolution.
Checklist of compatibility testing:
* UI of the app must be as per screen size, no text or control should
be cut off.
* All text should be readable in all resolutions device.
* User should be able to suspend/ resume call or sms when
application is running.
* Behavior of app when memory of device is almost full.
* Responsive in both mode – Landscape & Portrait mode.
* Application of response when no network is available.
19. Continued…
3. Localization Testing- Localization testing is the software testing
process for checking the localized version of a product for that
particular culture or locale settings. The areas affected by
localization testing are UI and content.
It is done to ensure the quality of a product for a particular target or
local.
Advantages:
* It helps reduce time for testing since its done for just on local.
* It reduces overall testing and support costs.
Characteristics:
* Modules specific to Culture/locale-specific, language-specific, and
region-specific.
* Installation and upgrading tests run in the localized environment.
20. Continued…
4. Performance Testing – It is a non functional testing. Mobile
performance test covers client application performance, server
performance, and network performance. It is important to make sure
that the performance test scenarios cover all those areas. With the help
of performance testing tools, it is not difficult to identify the existing
networks, servers, and server-side application bottlenecks, given the
predefined loads and transaction mix.
21. Continued…
5. Security Testing - Vulnerabilities to hacking, authentication, and
authorization policies, data security, session management and other
security standards should be verified as a part of mobile app security
testing. Applications should encrypt user name and passwords when
authenticating the user over a network.
One way to test security related scenarios is to route your mobile’s data
through a proxy server like OWASP Zed Attack Proxy and look for
vulnerabilities.
6. Stress Testing – Stress testing is to test the system behaviour under
extreme conditions and is carried out till the system failure. Stress
testing is a must to find exceptions, hangs, and deadlocks that may go
unnoticed during functional and user interface testing.
Criteria of Stress testing:
* Load your application with as much data as possible to try to reach
its breaking point.
22. Continued…
* Perform the same operations over and over again.
* Perform the repeated operations at varying speeds – very quickly or
very slowly.
* Leave your application running for a long period of time, both
interacting with the device and just letting it sit idle, or performing
some automatic task that takes a long time, for example, a slideshow.
* Randomly send screen taps and keystrokes to your application.
7. Interrupt Testing – An application, while functioning, may face
several interruptions like incoming calls or network coverage outage
and recovery. It can also be defined as a branch of Mobile Application
Testing that deals with --how an application reacts to an interruption
and resumes to its previous state. The variety of devices, networks,
configurations, etc. makes it more prominent for Mobile applications
than the others.
23. Continued…
General interruption:
1. Incoming and Outgoing SMS and calls
2. Incoming Notifications from social media,
alarm, software update etc.
3. Network connection loss and restoration.
4. Plugging in & out of charging.
5. Battery if off or phone shut down while
using application.
This list is not exhaustive but includes the
most common scenarios.
8. Usability Testing - It is very important to get usability testing in place
from the early stage of the application design, and it should not be
done only when the application is completed. Usability testing requires
heavy involvement of users, and the output might affect the
application design, which is very difficult to change in the later stages
of the project.
24. Continued…
Usability testing evaluates the application based on the following three
criteria for the target audience:
* Efficiency: The accuracy and completeness with which specified users
can achieve specified goals in a particular environment.
* Effectiveness: The resources expended in relation to the accuracy and
completeness of goals achieved.
* Satisfaction: The comfort and acceptability of the work system to its
users and other people affected by its use.
There are two types of mobile usability testing:
1. Laboratory-based usability testing.
2.Remote usability testing.
25. Continued…
9. Memory Leakage Testing - Mobile devices have very limited memory
as compared to other computers, and mobile operating systems have a
default behaviour to terminate applications that are using excessive
memory and causing a poor user experience.
Memory testing is exceptionally important for mobile applications to
ensure that each application maintains optimized memory usage
throughout the user journey. It is recommended that we conduct
memory testing on the actual target device, since the system
architecture is different from an emulator to an actual device.
26. Continued…
10.Installation Testing - Installation testing verifies that the installation
process goes smoothly without the user having to face any difficulty.
11. Uninstallation Testing - The basics of uninstallation testing can be
summarized in one line as “Uninstallation should sweep out data
related to the App in just one go”.
27. Framework Testing – Overview
A testing framework or more specifically a testing automation
framework is an execution environment to perform automated tests. It
is the overall system in which the tests will be automated. It is defined
as the set of assumptions, concepts, and practices that constitute a work
platform or support for automated testing.
A testing framework is responsible for:
* Defining the format in which to express expectations
* Creating a mechanism to hook into or drive the application under test
* Executing the tests and reporting the results
Types of framework :-
* Android Framework
* iOS Framework
28. Continued…
Android framework: There are
many framework in market but
mainly are –
1. Robotium
2. UIAutomater
3. Appium
4. Calabash
5. Selendroid
29. Continued…
iOS framework: Unlike Android,
Apple does not license iOS for installation
on non-Apple hardware. iOS and iOS
applications are only installed on Apple
devices . Framework available for iOS in
market are –
1. Appium
2. Calabash
3. UI Automation
4. Earlgrey
5. XCTEST / KIF
30. Summary
Considering the significant role the mobile applications is playing
nowadays play now days in our day to day life, testing of these
applications are going to evolve and thus they require a lot of testing
to make them work as required.
Designing the right test strategy, choosing the right mobile simulators,
devices and mobile testing tools can make sure that we have 100%
test coverage and help us include security, usability, performance,
functionality and compatibility based tests into our test suites.
