1. Alan Renga, Archivist
San Diego Air and Space Museum
Rosa Longacre, Registrar/Archivist
San Diego Museum of Man
Kristi Ehrig-Burgess, Library Archives and Digitization Manager,
Mingei International Museum
Anna Chiaretta Lavatelli, Asst. Director of Digital Media,
Balboa Park Online Collaborative
COLLABORATIVE DIGITIZATION

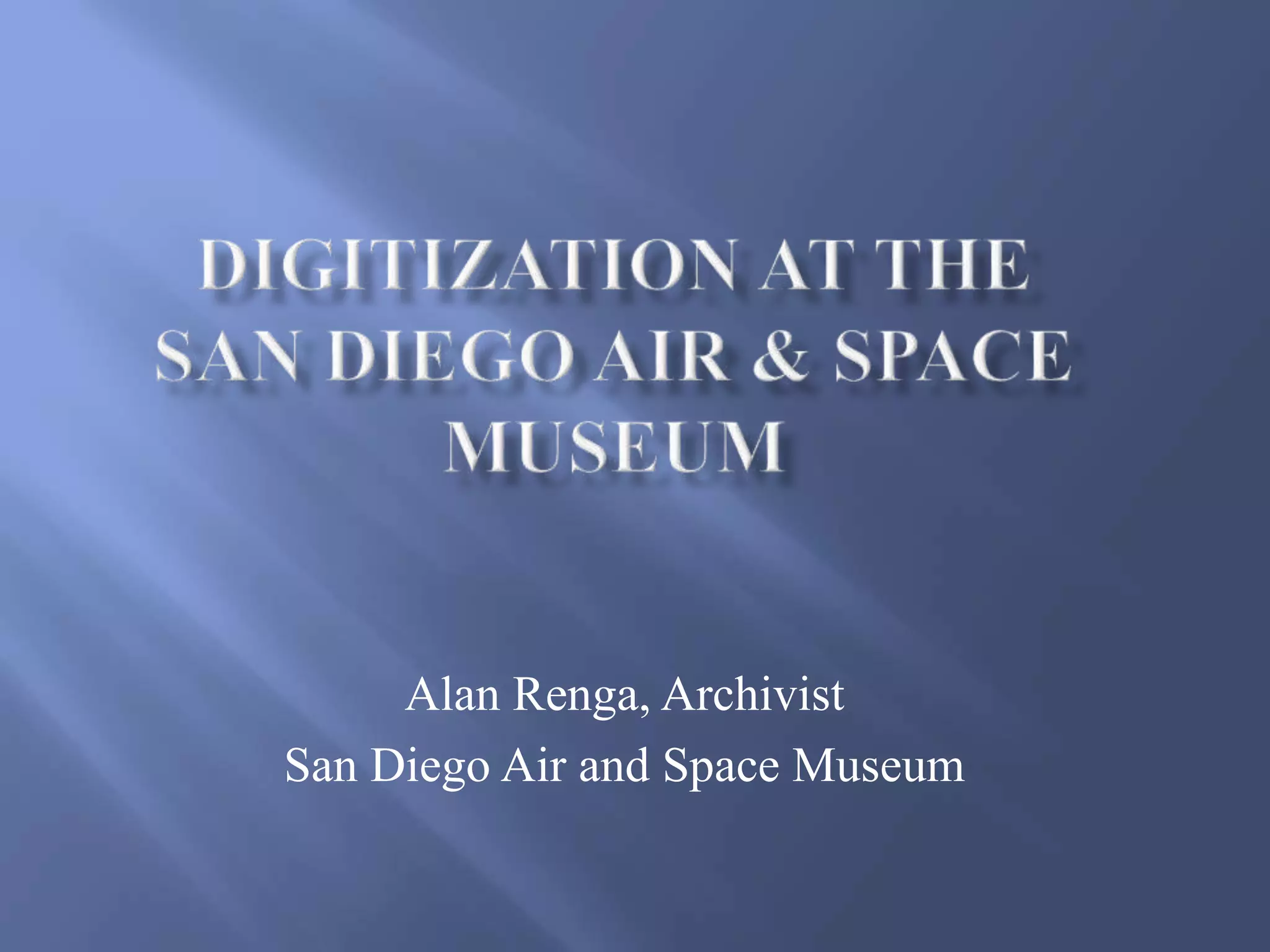

2. Alan Renga, Archivist
San Diego Air and Space Museum

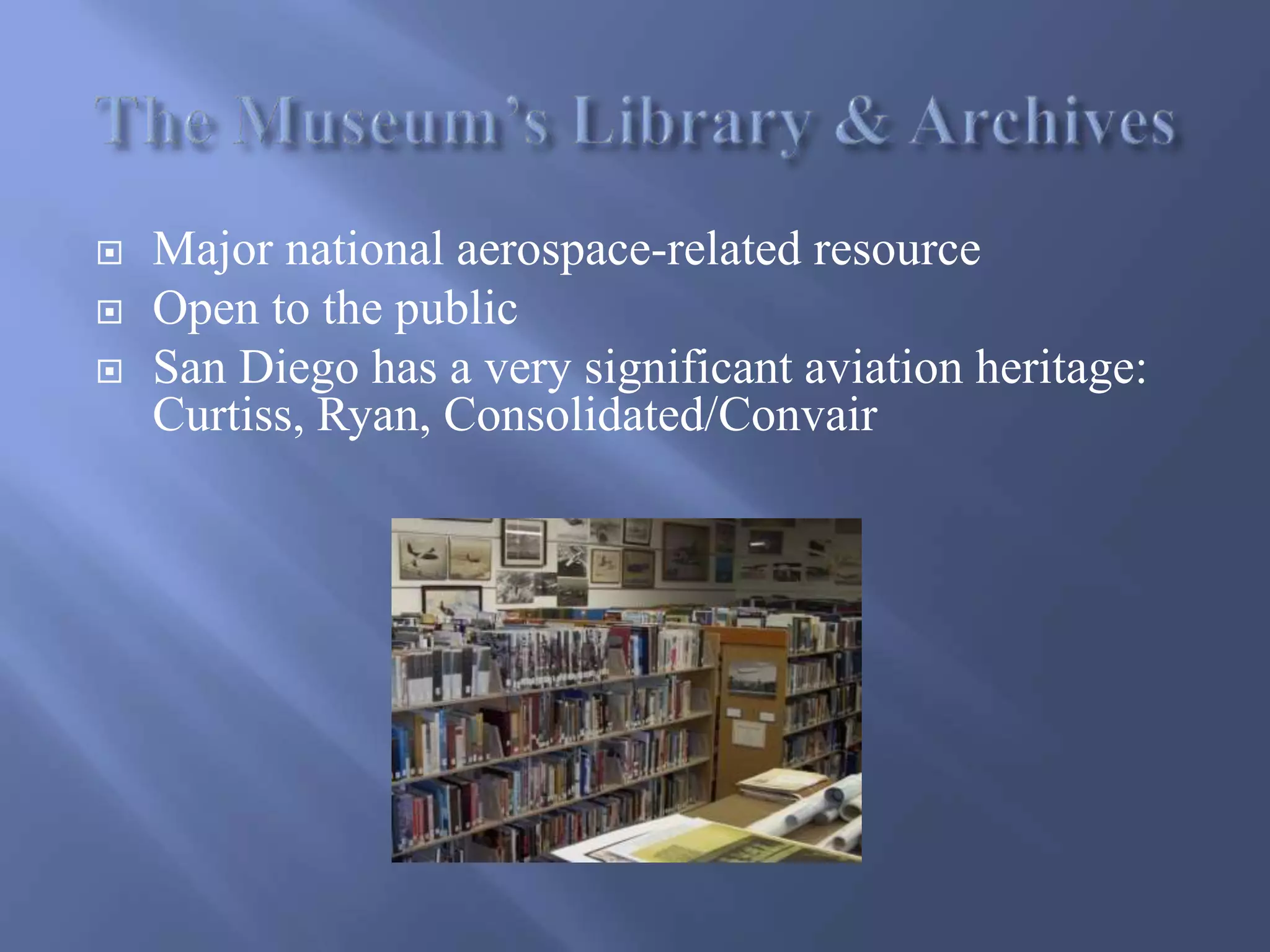

3.  Major national aerospace-related resource
 Open to the public
 San Diego has a very significant aviation heritage:
Curtiss, Ryan, Consolidated/Convair

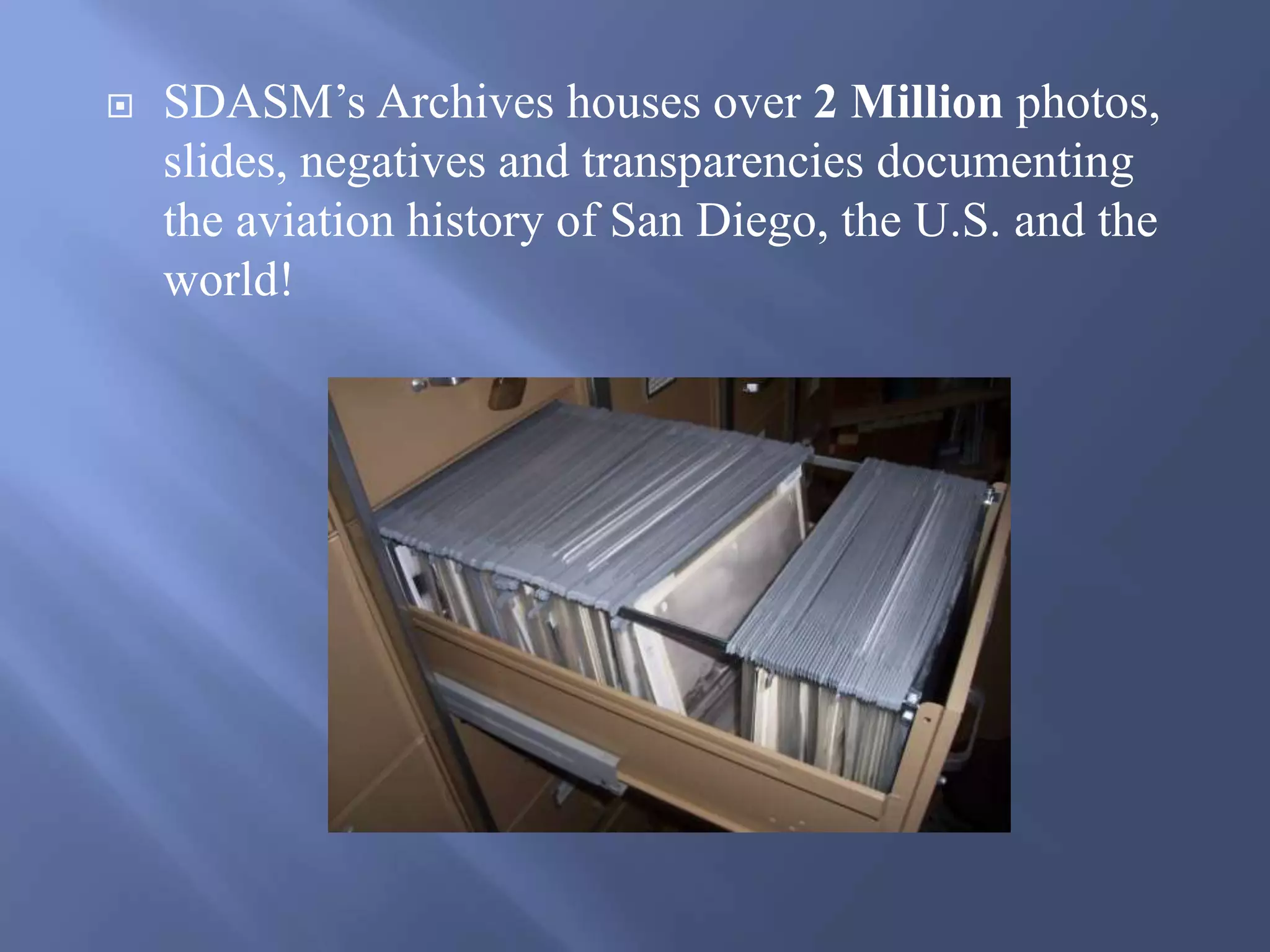

4.  SDASM’s Archives houses over 2 Million photos,
slides, negatives and transparencies documenting
the aviation history of San Diego, the U.S. and the
world!

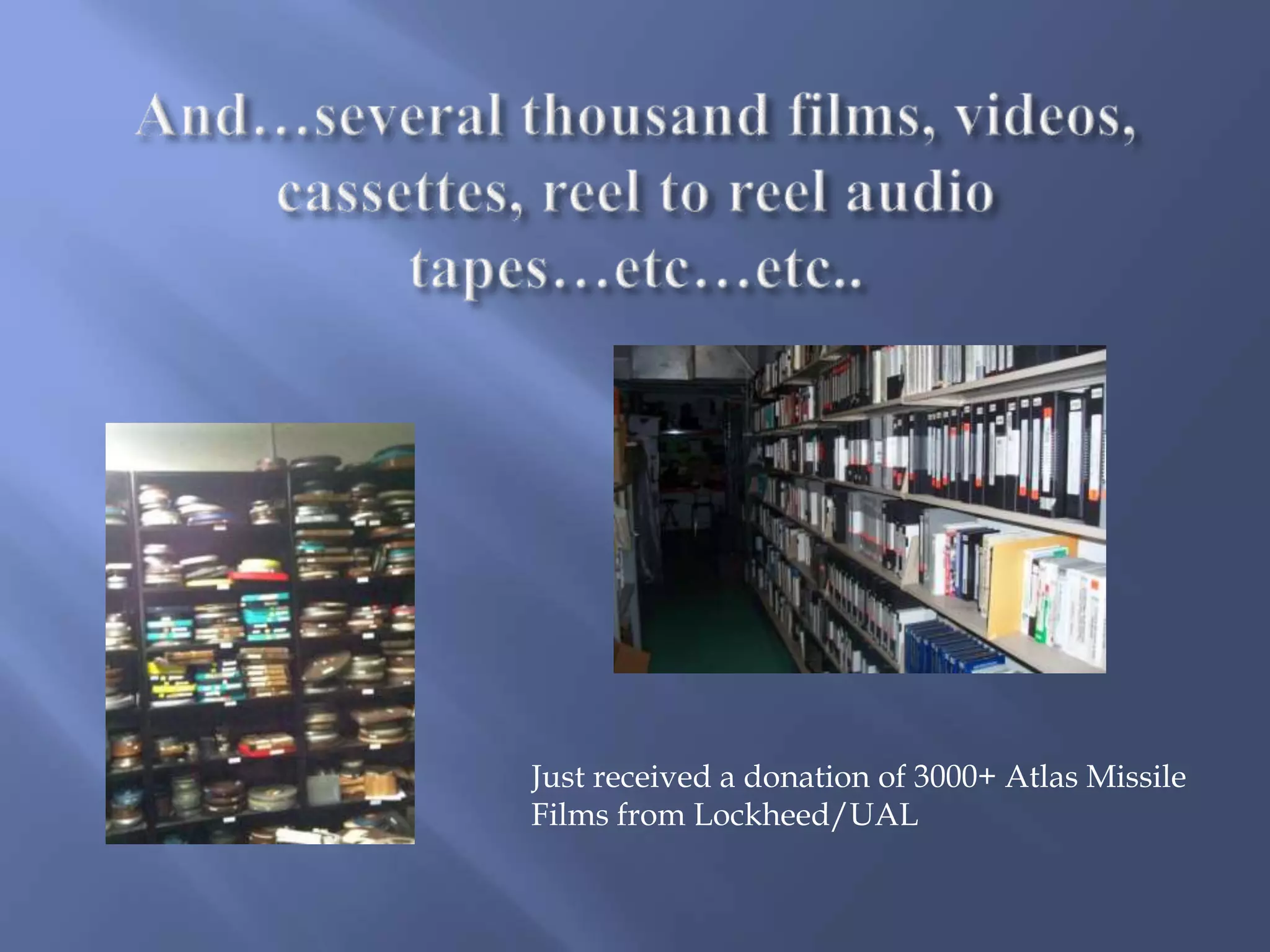

5. Just received a donation of 3000+ Atlas Missile
Films from Lockheed/UAL

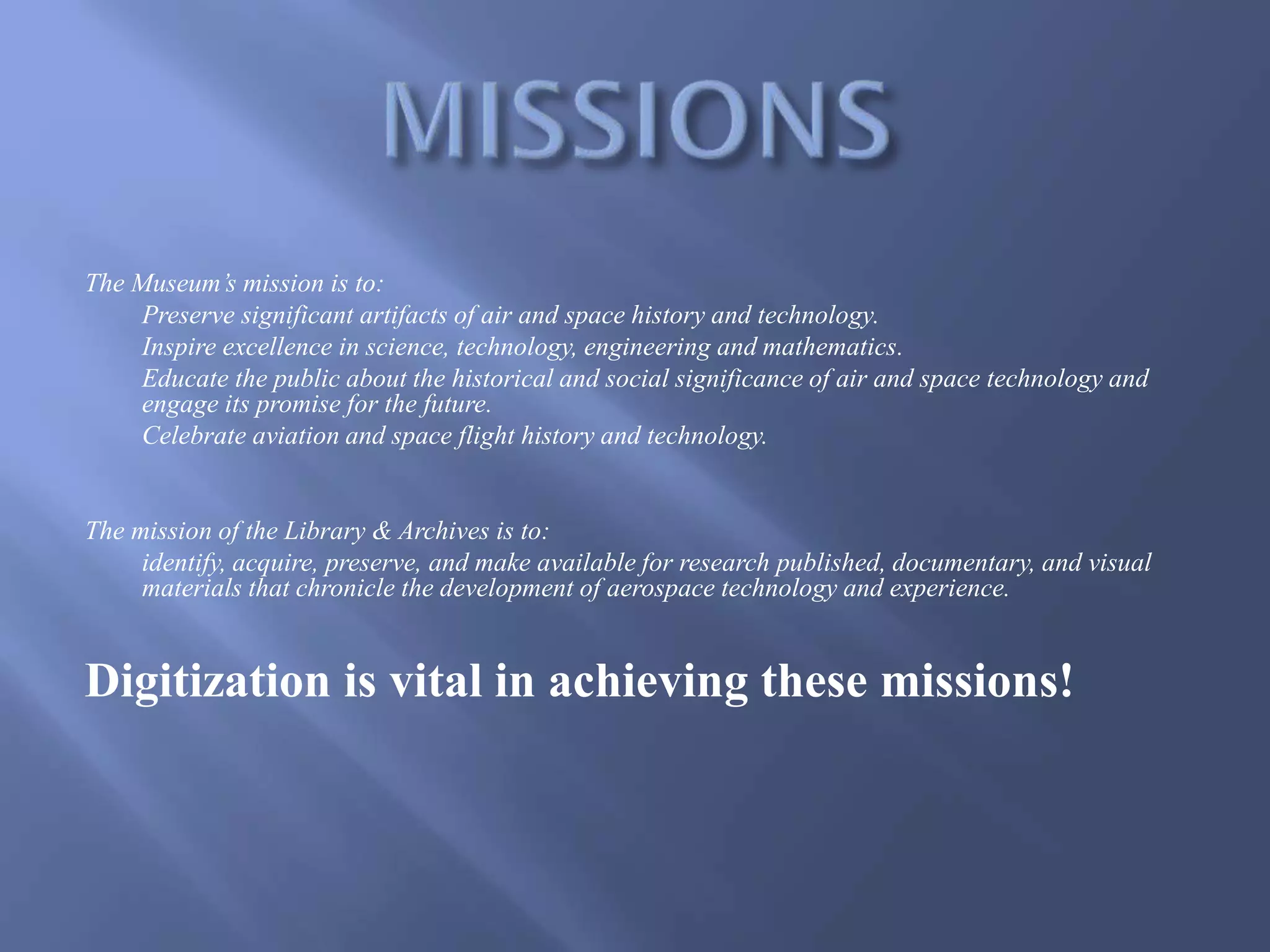

6. The Museum’s mission is to:
Preserve significant artifacts of air and space history and technology.
Inspire excellence in science, technology, engineering and mathematics.
Educate the public about the historical and social significance of air and space technology and
engage its promise for the future.
Celebrate aviation and space flight history and technology.
The mission of the Library & Archives is to:
identify, acquire, preserve, and make available for research published, documentary, and visual
materials that chronicle the development of aerospace technology and experience.
Digitization is vital in achieving these missions!

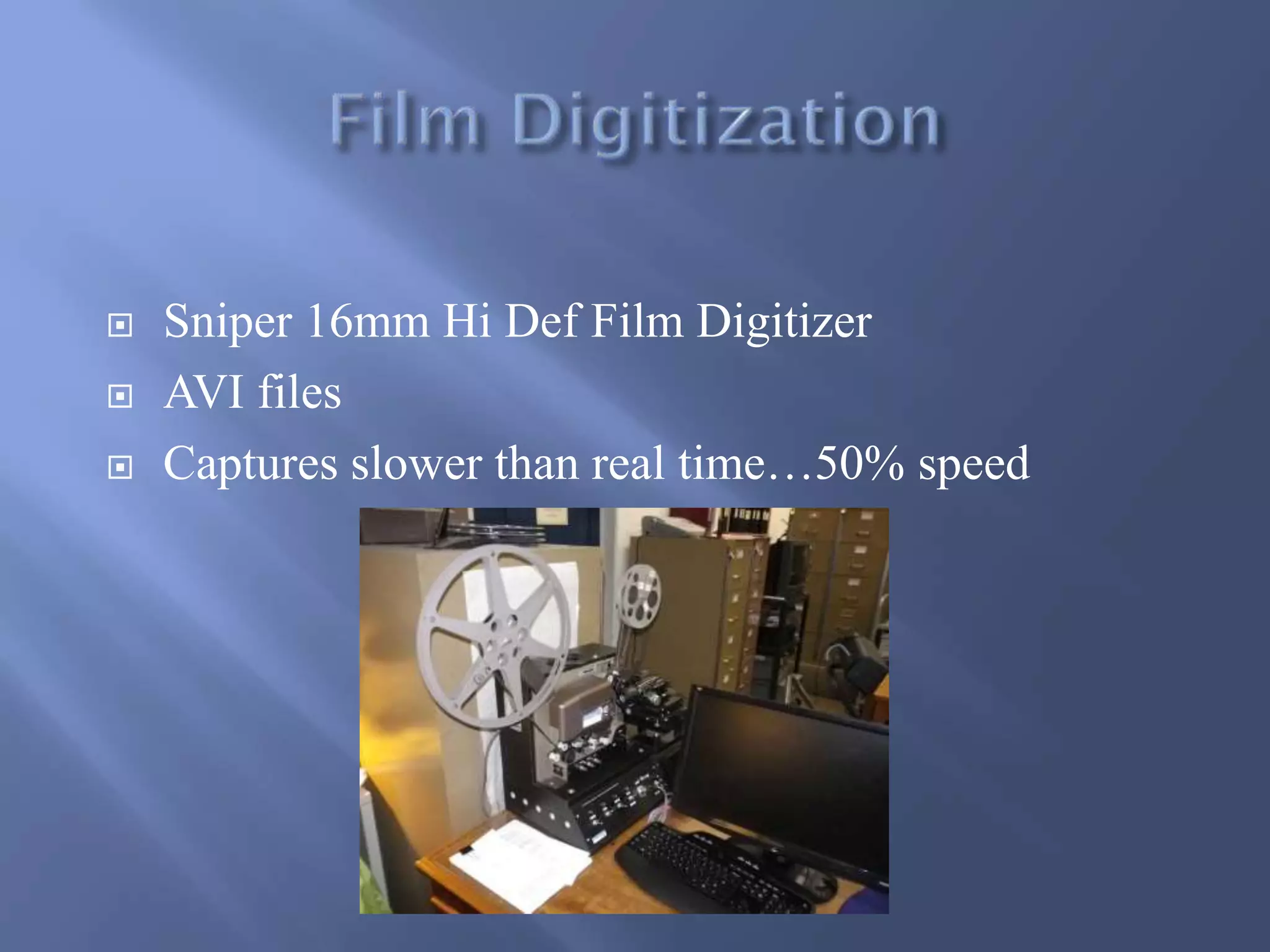

7.  Sniper 16mm Hi Def Film Digitizer
 AVI files
 Captures slower than real time…50% speed

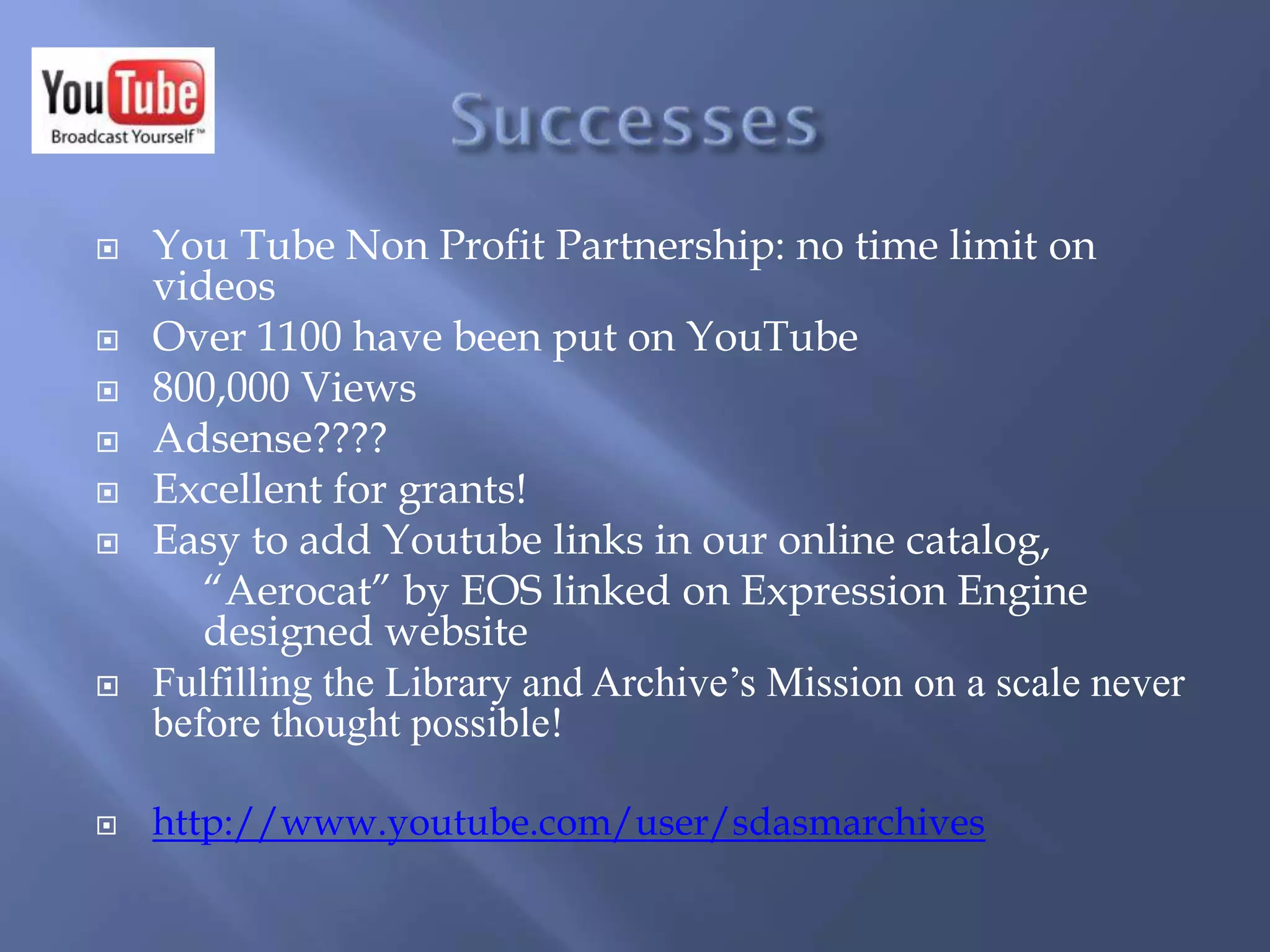

8.  You Tube Non Profit Partnership: no time limit on
videos
 Over 1100 have been put on YouTube
 800,000 Views
 Adsense????
 Excellent for grants!
 Easy to add Youtube links in our online catalog,
“Aerocat” by EOS linked on Expression Engine
designed website
 Fulfilling the Library and Archive’s Mission on a scale never
before thought possible!
 http://www.youtube.com/user/sdasmarchives

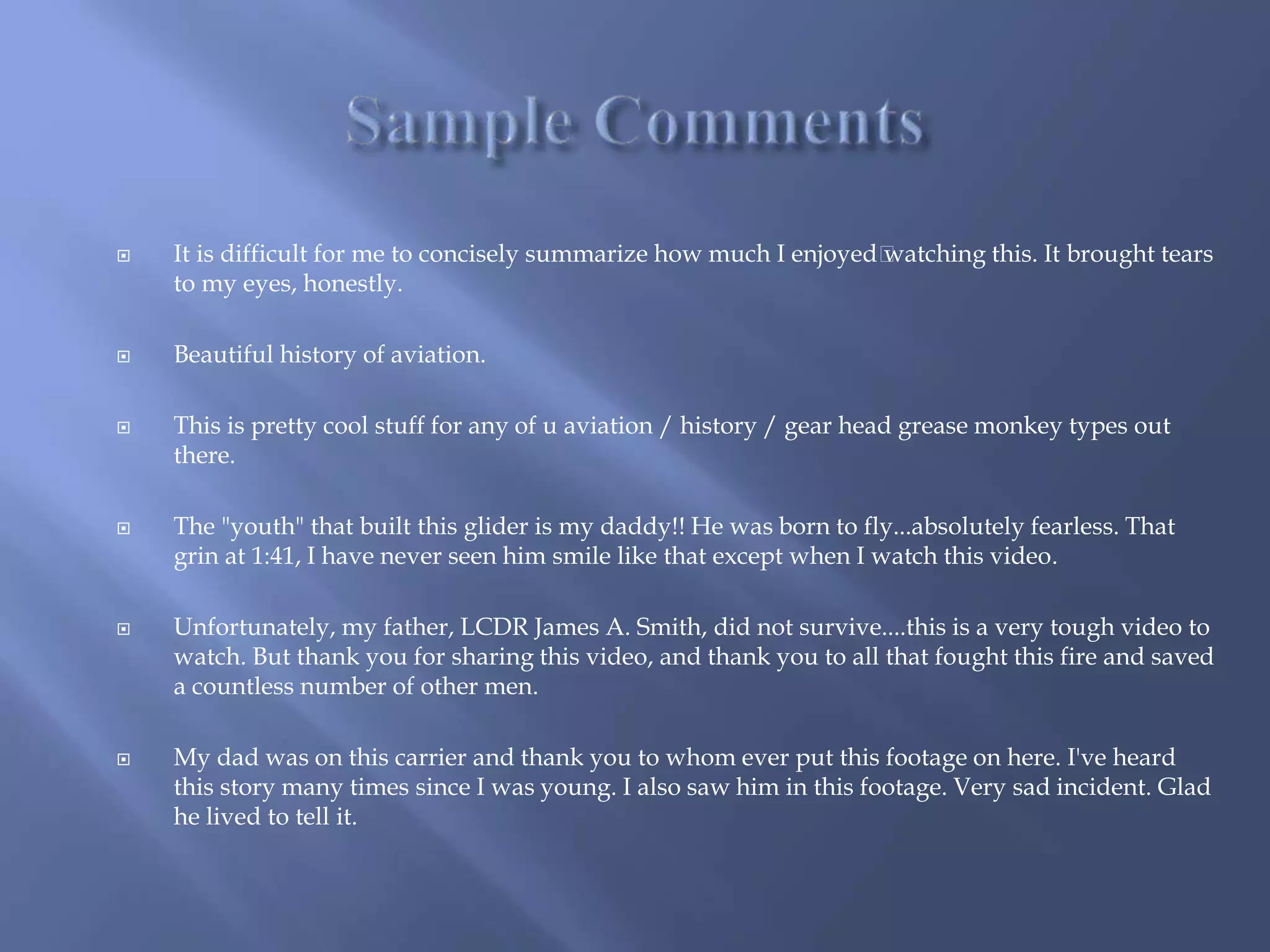

9.  It is difficult for me to concisely summarize how much I enjoyedwatching this. It brought tears
to my eyes, honestly.
 Beautiful history of aviation.
 This is pretty cool stuff for any of u aviation / history / gear head grease monkey types out
there.
 The "youth" that built this glider is my daddy!! He was born to fly...absolutely fearless. That
grin at 1:41, I have never seen him smile like that except when I watch this video.
 Unfortunately, my father, LCDR James A. Smith, did not survive....this is a very tough video to
watch. But thank you for sharing this video, and thank you to all that fought this fire and saved
a countless number of other men.
 My dad was on this carrier and thank you to whom ever put this footage on here. I've heard
this story many times since I was young. I also saw him in this footage. Very sad incident. Glad
he lived to tell it.

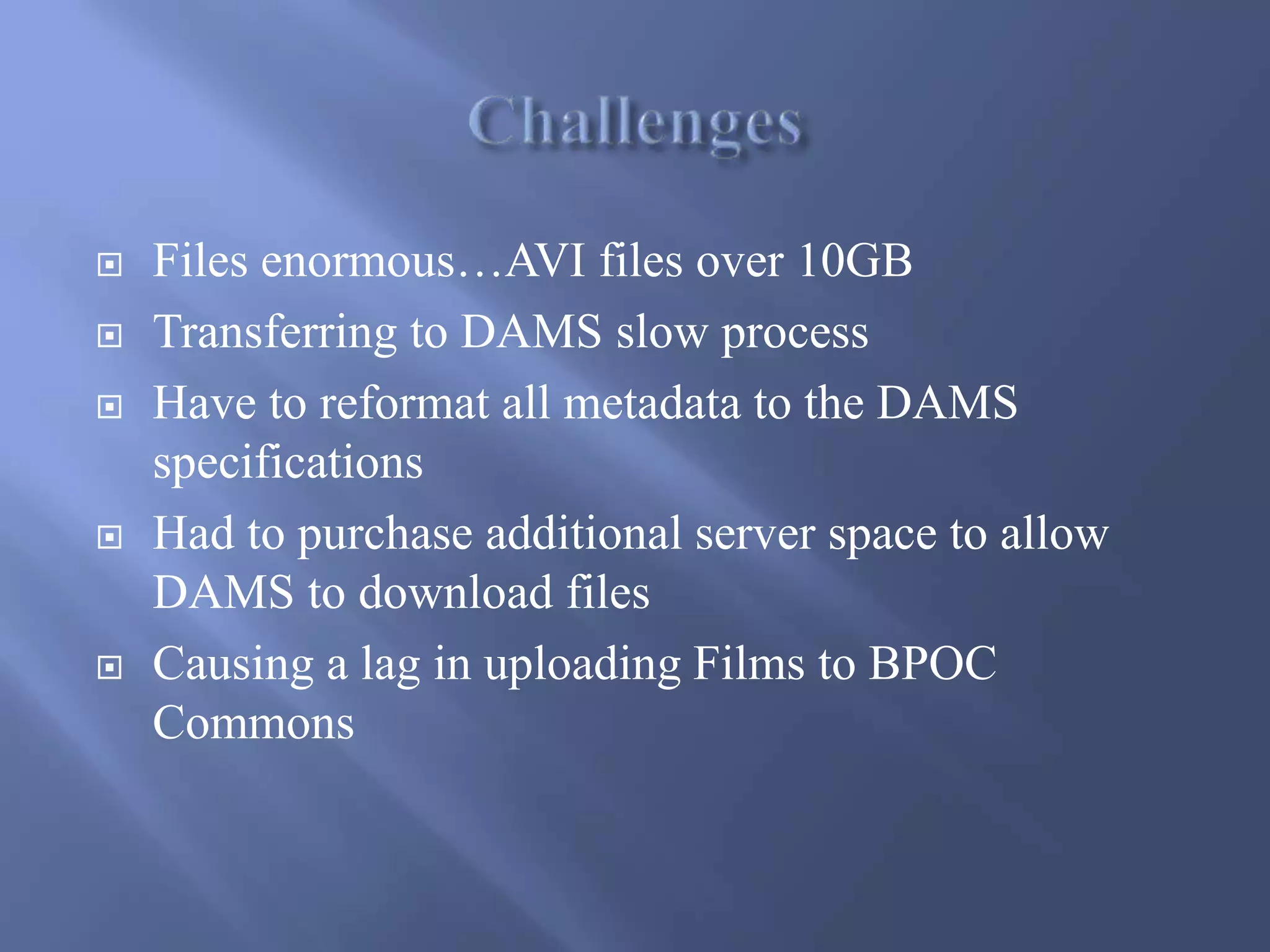

10.  Files enormous…AVI files over 10GB
 Transferring to DAMS slow process
 Have to reformat all metadata to the DAMS
specifications
 Had to purchase additional server space to allow
DAMS to download files
 Causing a lag in uploading Films to BPOC
Commons

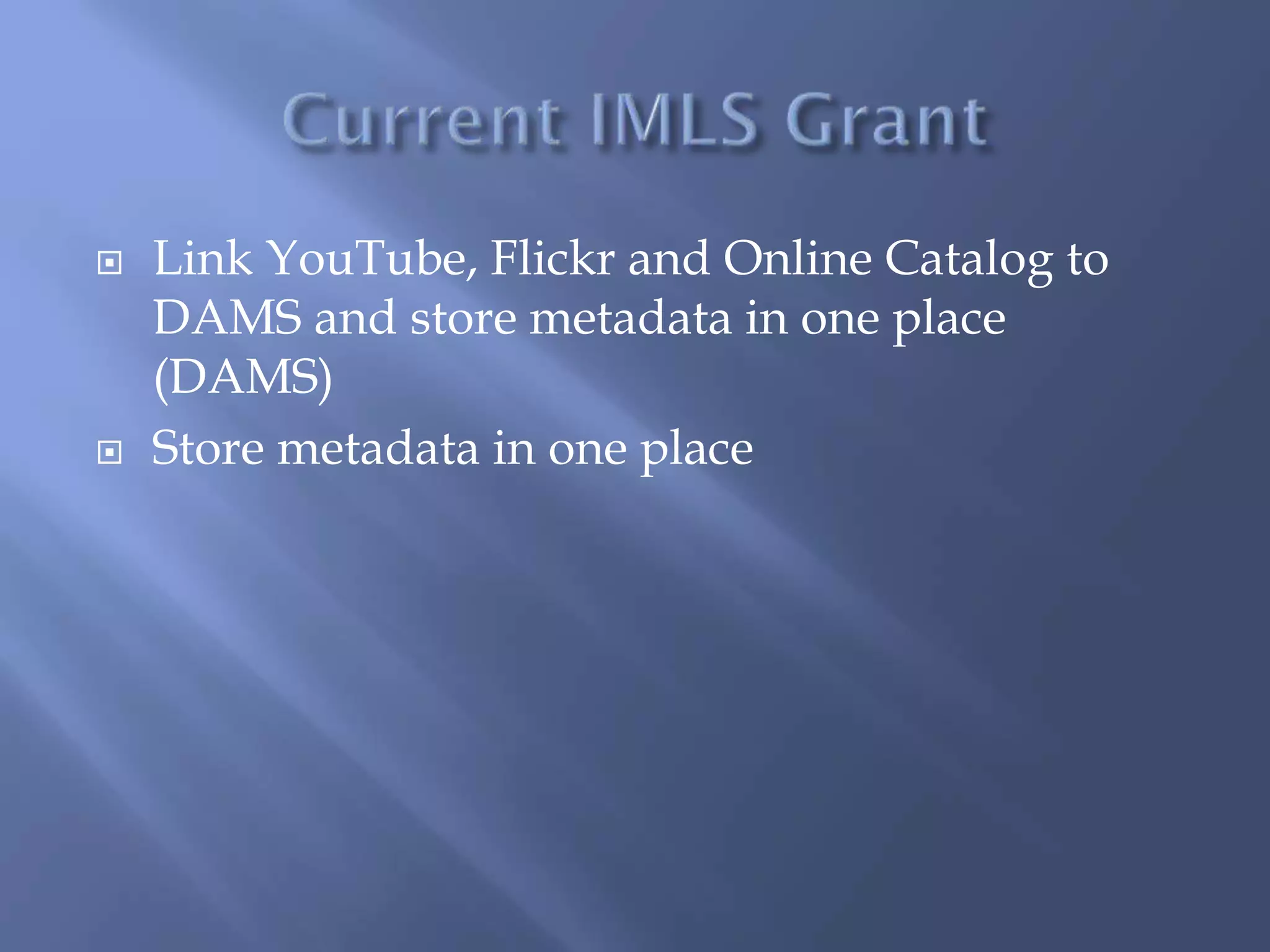

11.  Link YouTube, Flickr and Online Catalog to
DAMS and store metadata in one place
(DAMS)
 Store metadata in one place

12. Balboa Park Commons: Collaborative Digitization for an
Open Public Resource
Rosa Longacre, Registrar/Archivist at the San Diego
Museum of Man

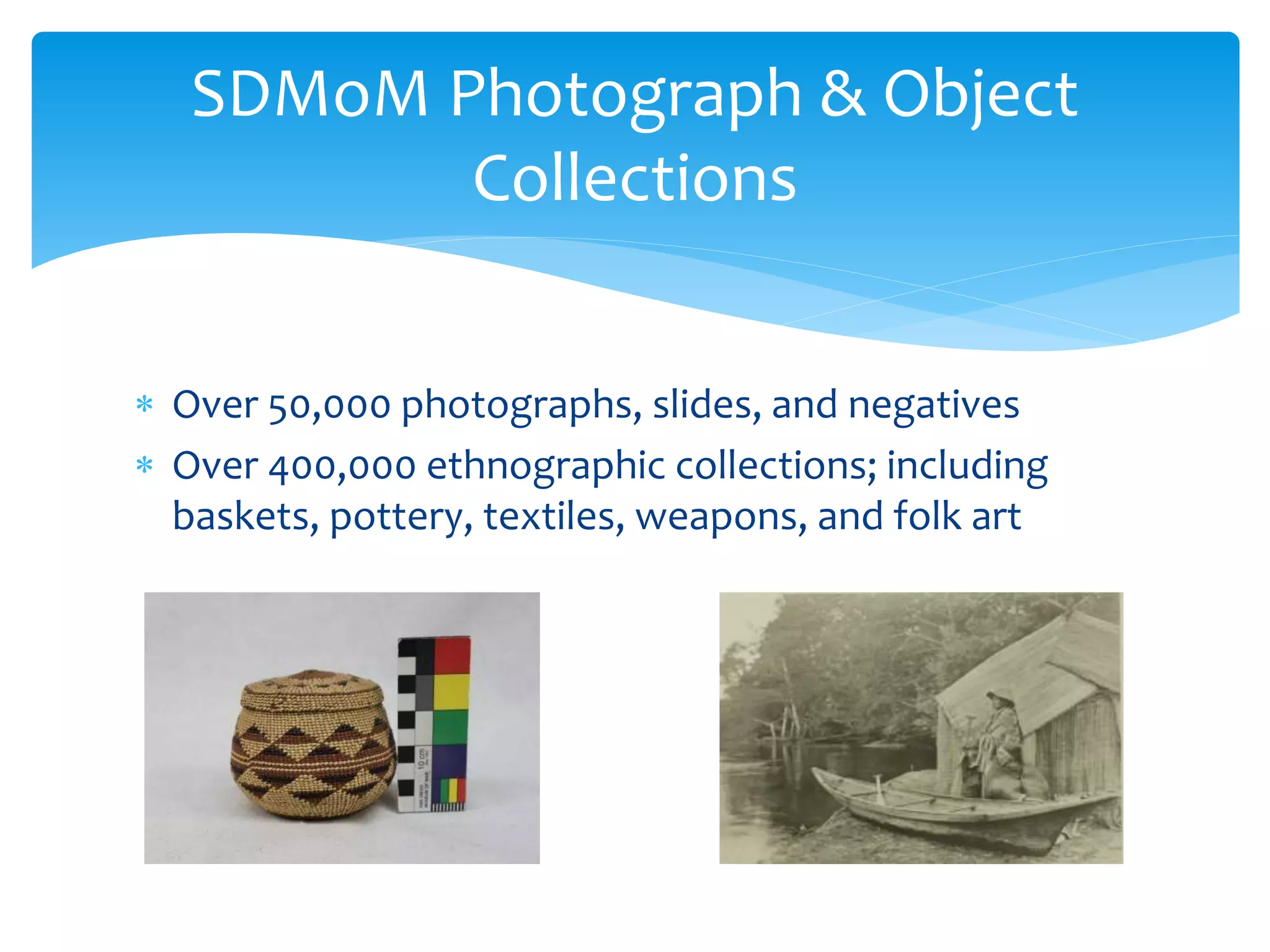

13.  Over 50,000 photographs, slides, and negatives
 Over 400,000 ethnographic collections; including
baskets, pottery, textiles, weapons, and folk art
SDMoM Photograph & Object
Collections

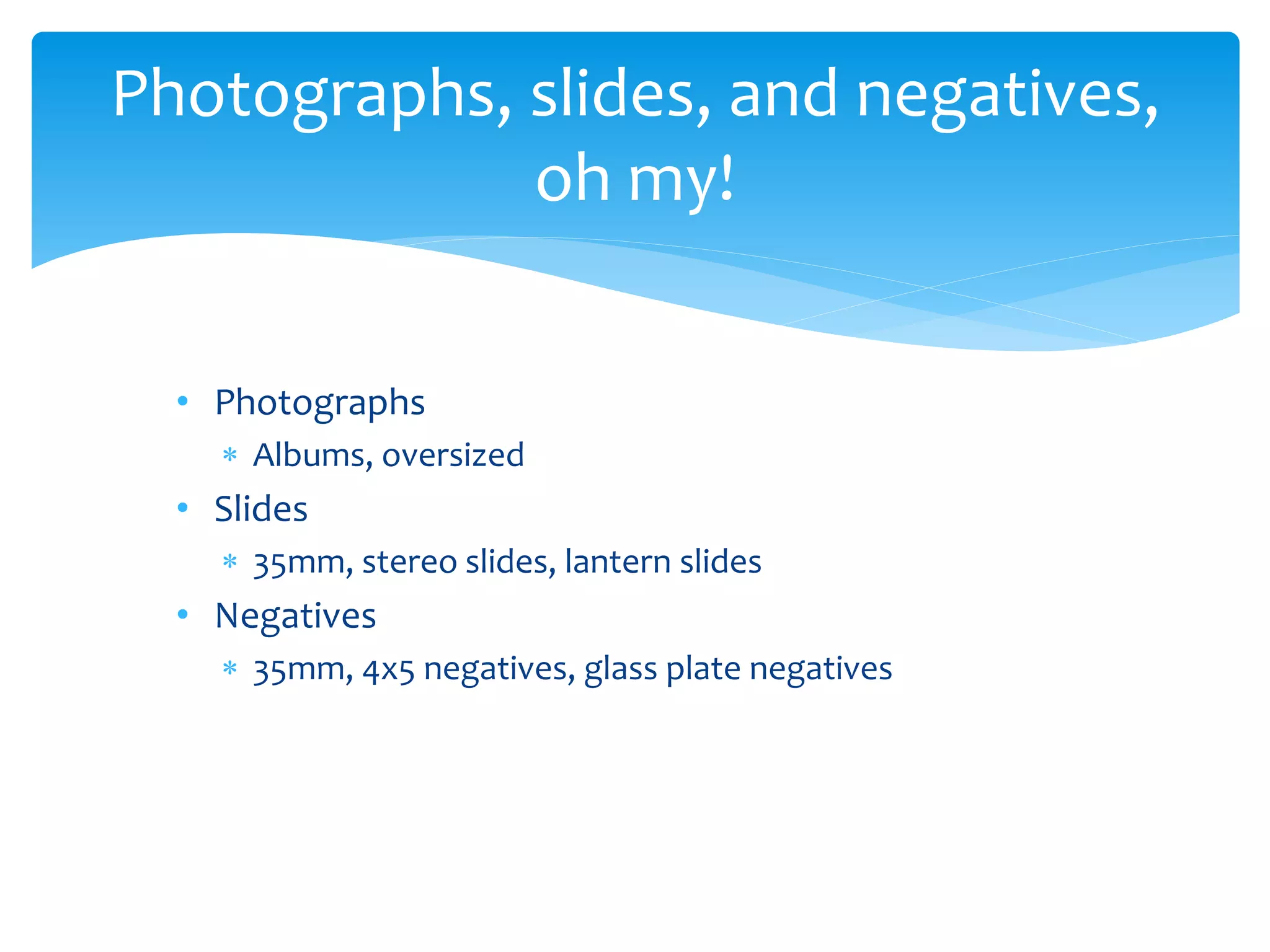

14. • Photographs
 Albums, oversized
• Slides
 35mm, stereo slides, lantern slides
• Negatives
 35mm, 4x5 negatives, glass plate negatives
Photographs, slides, and negatives,
oh my!

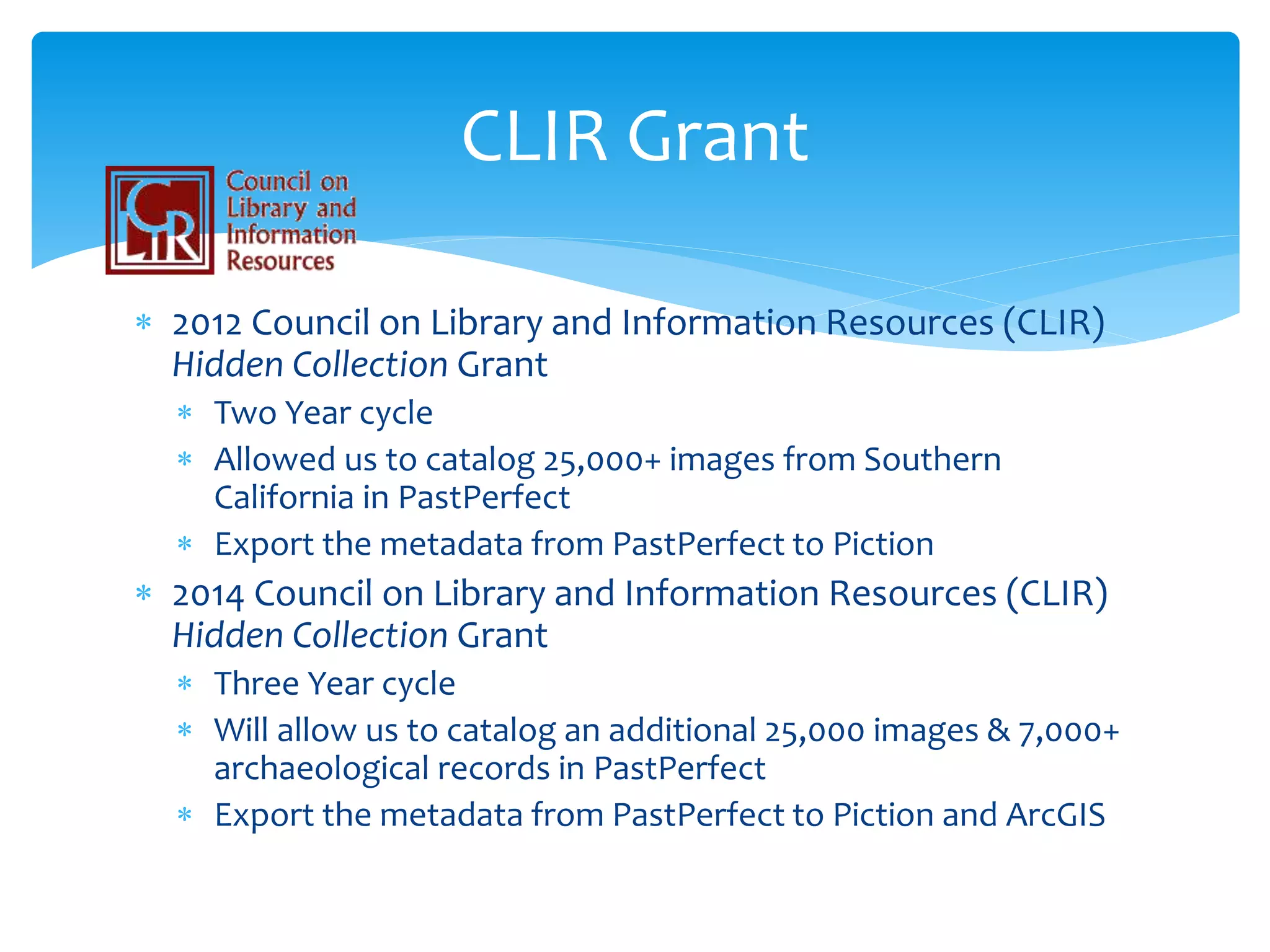

15.  2012 Council on Library and Information Resources (CLIR)
Hidden Collection Grant
 Two Year cycle
 Allowed us to catalog 25,000+ images from Southern
California in PastPerfect
 Export the metadata from PastPerfect to Piction
 2014 Council on Library and Information Resources (CLIR)
Hidden Collection Grant
 Three Year cycle
 Will allow us to catalog an additional 25,000 images & 7,000+
archaeological records in PastPerfect
 Export the metadata from PastPerfect to Piction and ArcGIS
CLIR Grant

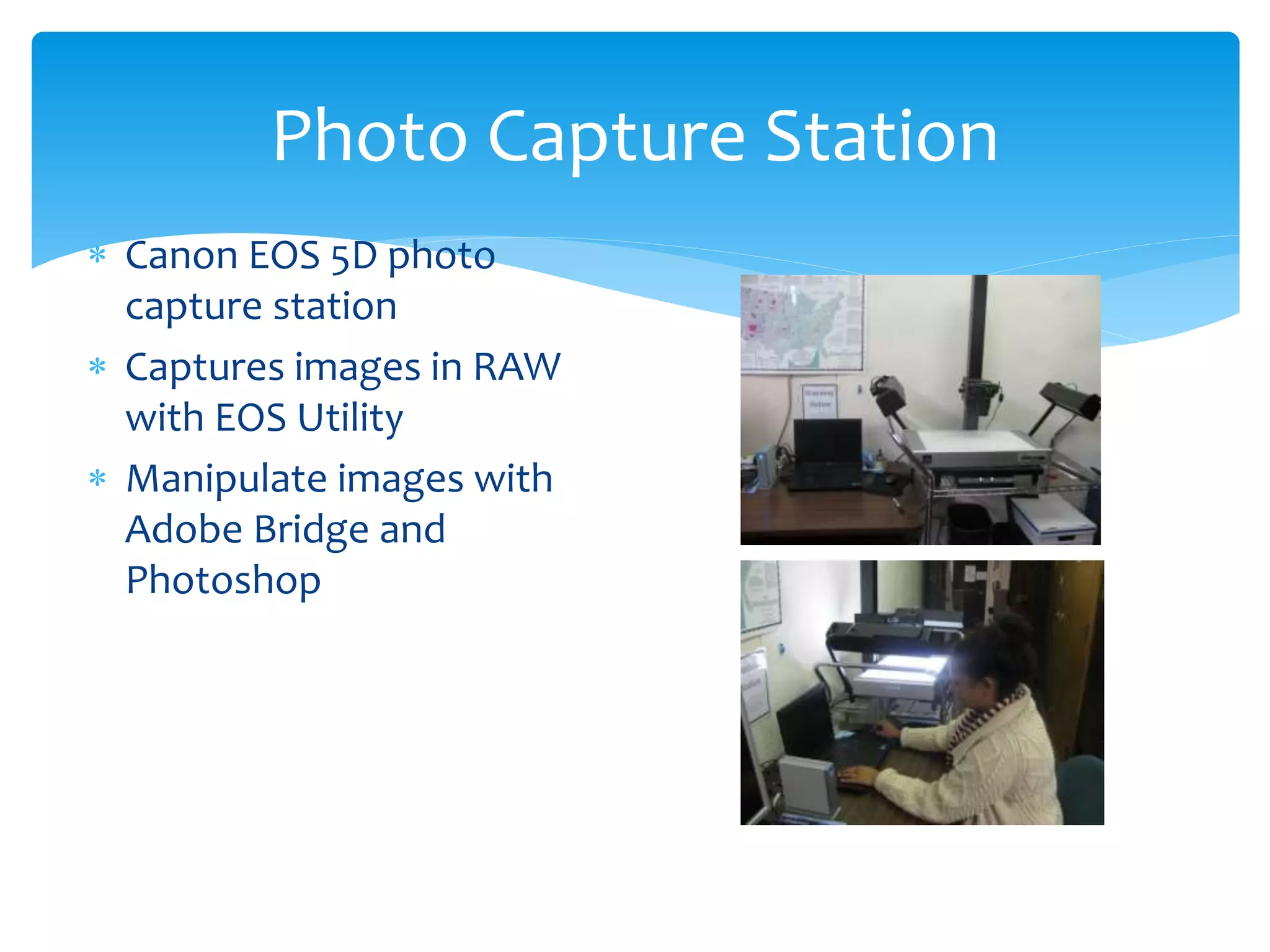

16. Photo Capture Station
 Canon EOS 5D photo
capture station
 Captures images in RAW
with EOS Utility
 Manipulate images with
Adobe Bridge and
Photoshop

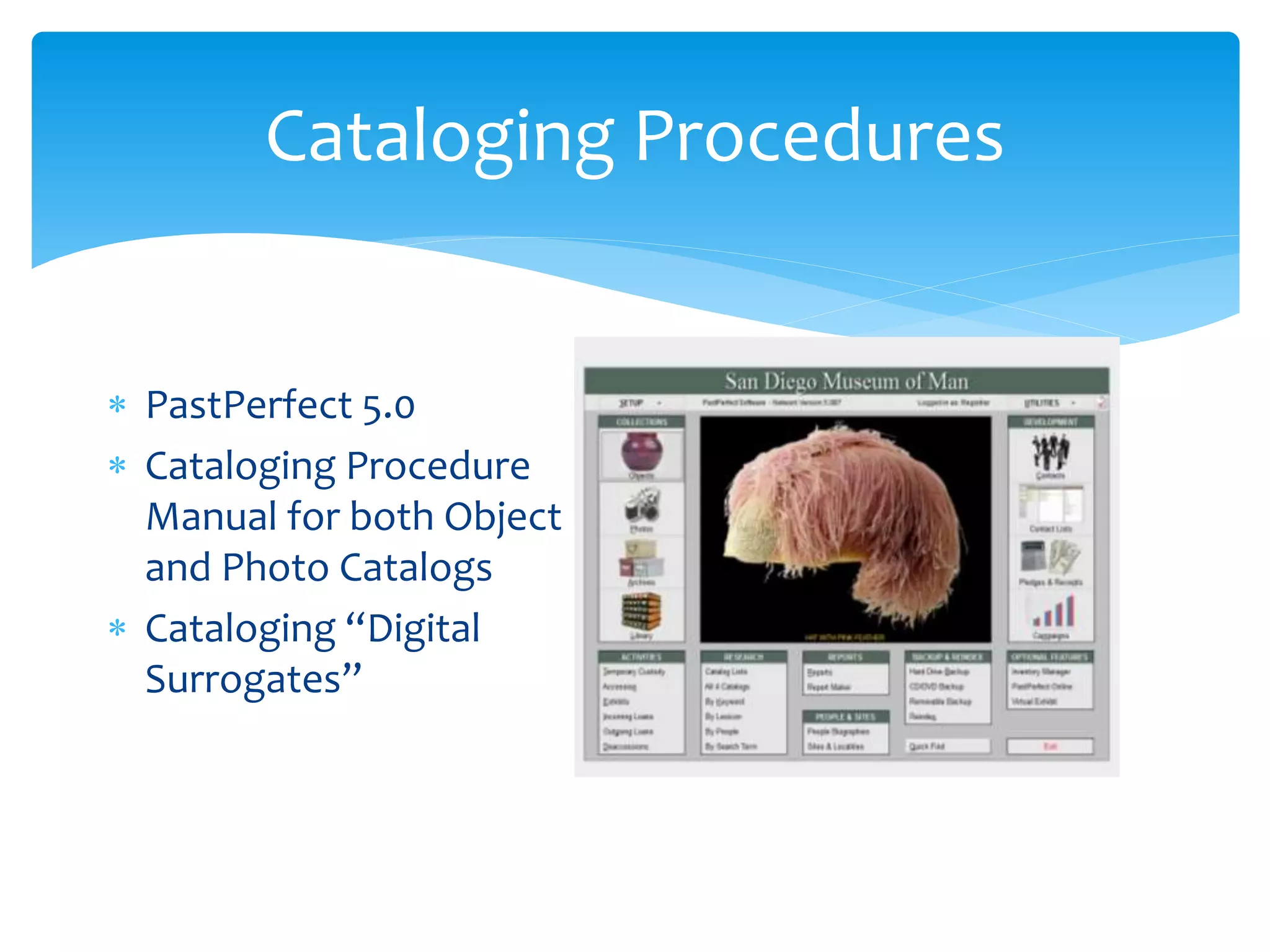

17. Cataloging Procedures
 PastPerfect 5.0
 Cataloging Procedure
Manual for both Object
and Photo Catalogs
 Cataloging “Digital
Surrogates”

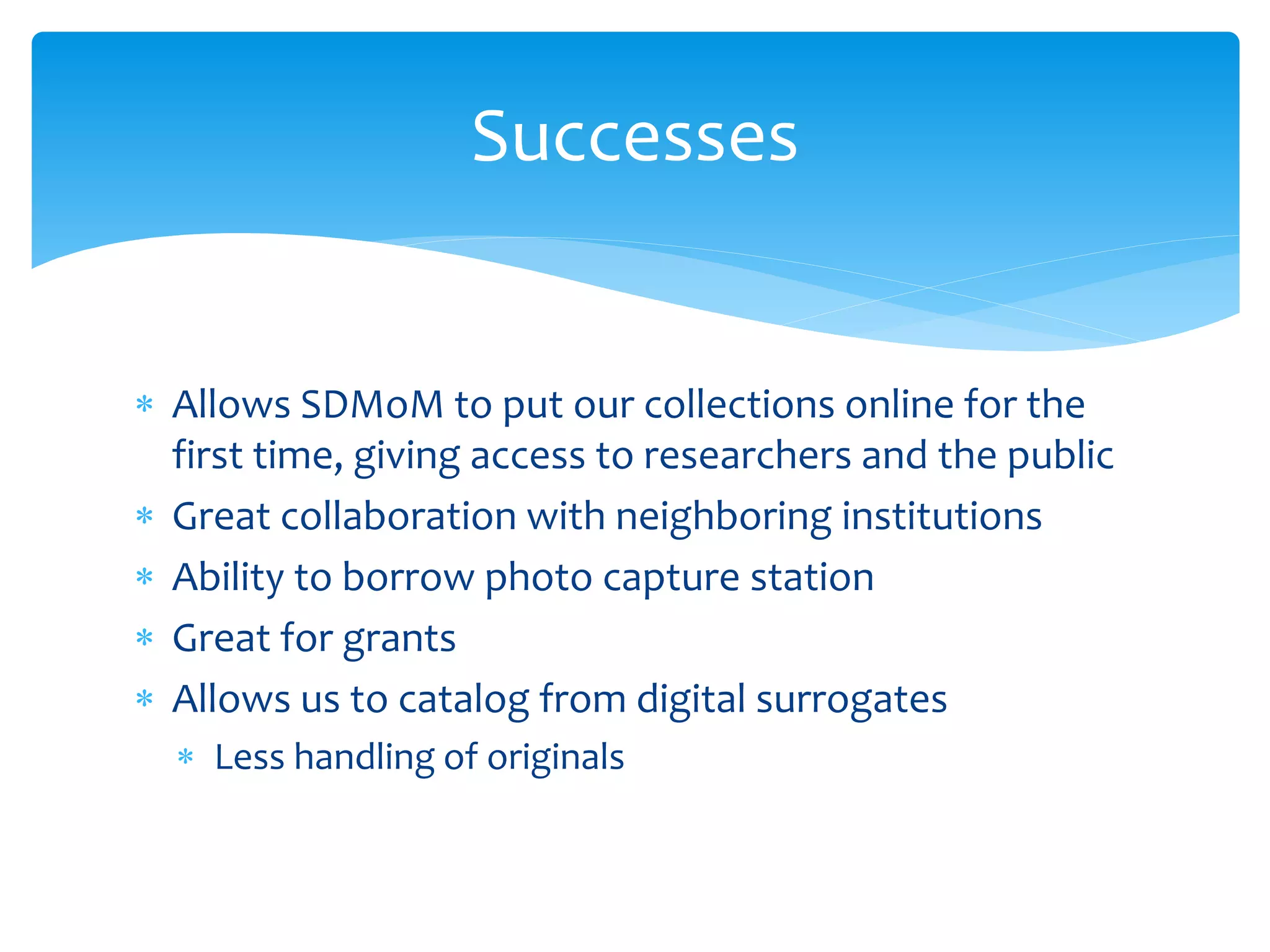

18.  Allows SDMoM to put our collections online for the
first time, giving access to researchers and the public
 Great collaboration with neighboring institutions
 Ability to borrow photo capture station
 Great for grants
 Allows us to catalog from digital surrogates
 Less handling of originals
Successes

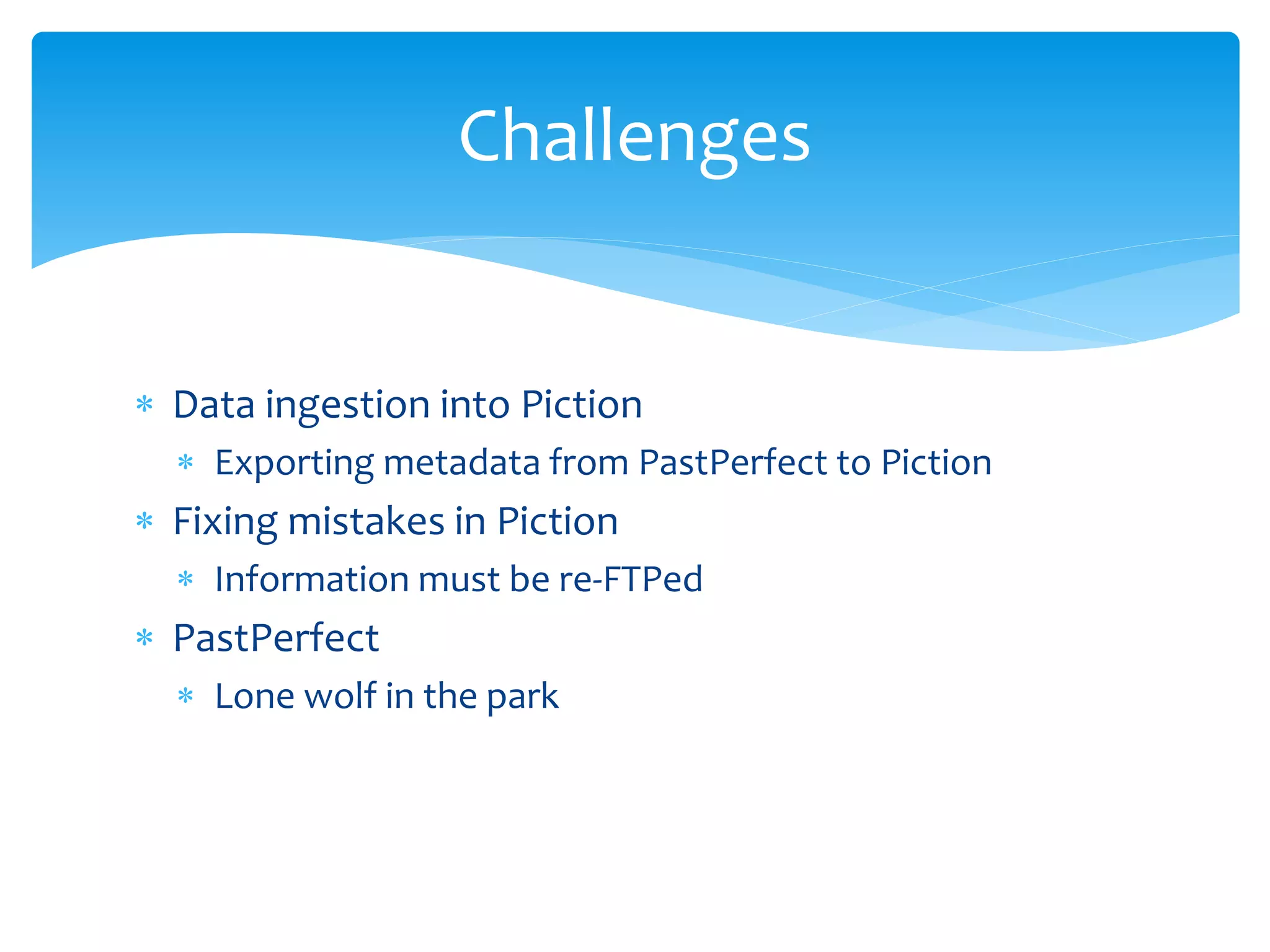

19.  Data ingestion into Piction
 Exporting metadata from PastPerfect to Piction
 Fixing mistakes in Piction
 Information must be re-FTPed
 PastPerfect
 Lone wolf in the park
Challenges

20. Collaborative Digitization
Mingei International Museum
Kristi Ehrig-Burgess
Library Archives and Digitization
Manager kehrigburgess@mingei.org
Digital Initiatives
Symposium University of San Diego April 9,
2014

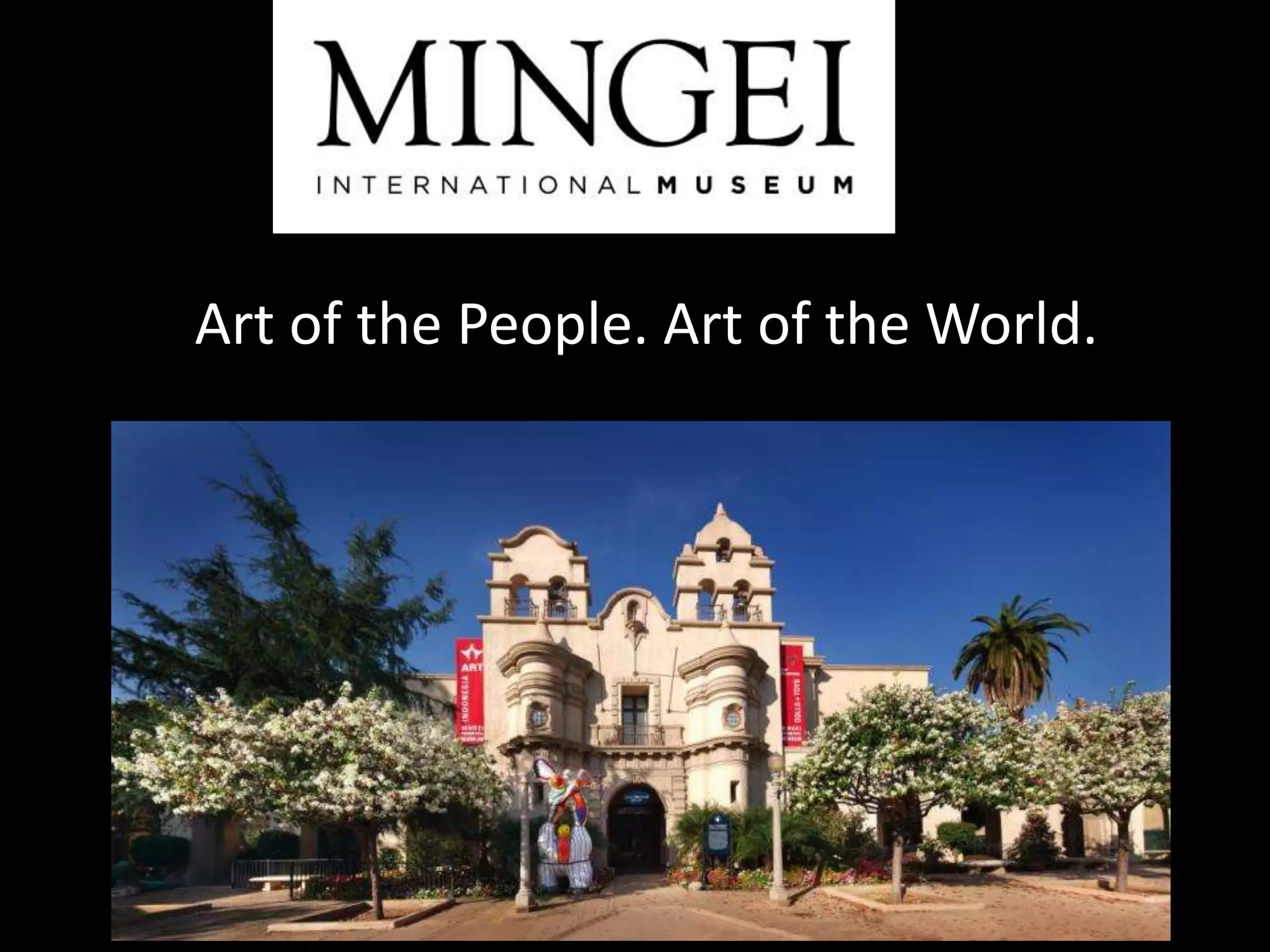

21. Art of the People. Art of the World.

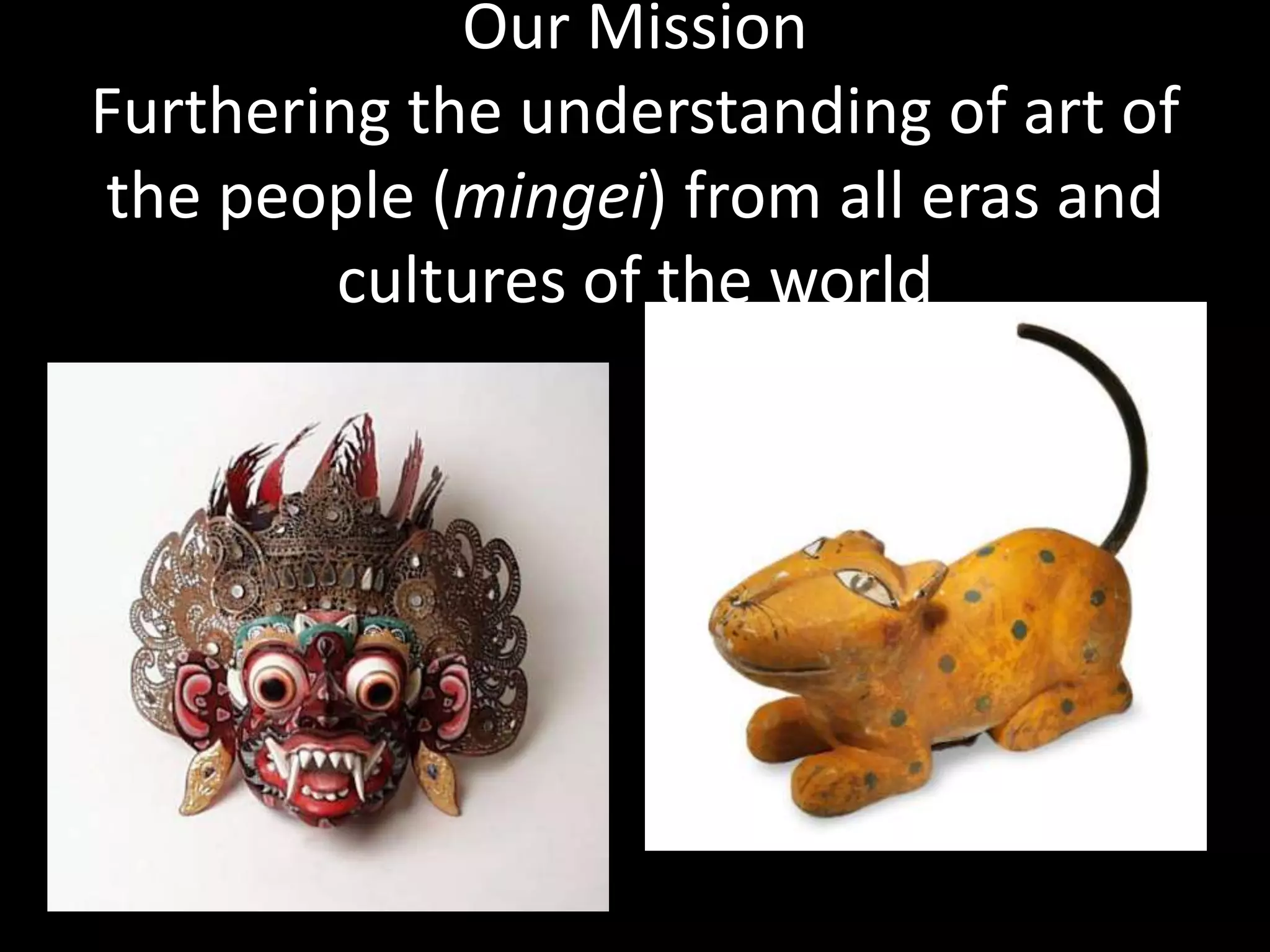

22. Our Mission
Furthering the understanding of art of
the people (mingei) from all eras and
cultures of the world

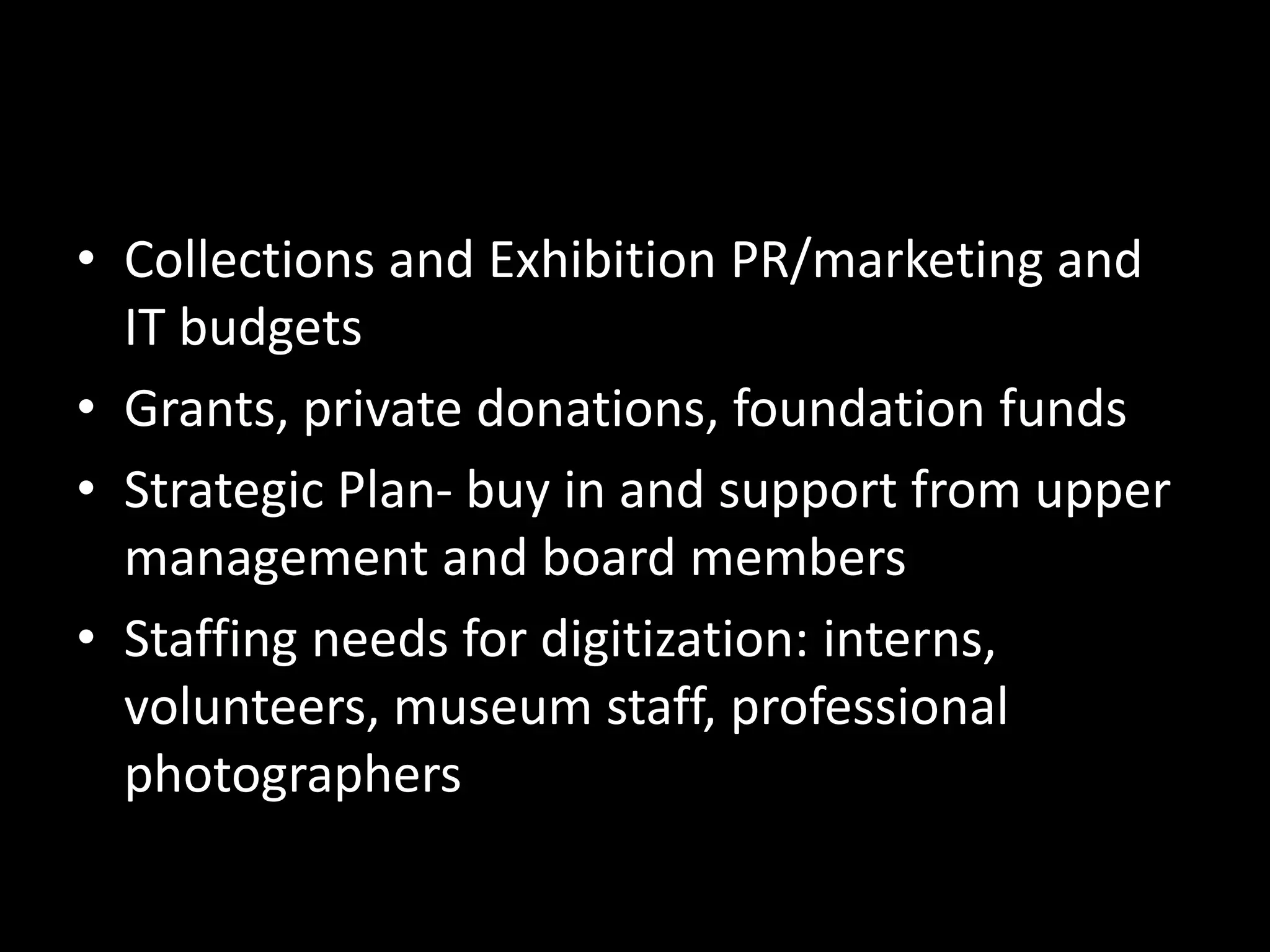

23. • Collections and Exhibition PR/marketing and
IT budgets
• Grants, private donations, foundation funds
• Strategic Plan- buy in and support from upper
management and board members
• Staffing needs for digitization: interns,
volunteers, museum staff, professional
photographers

24. Frances Hamilton White
Reference Library

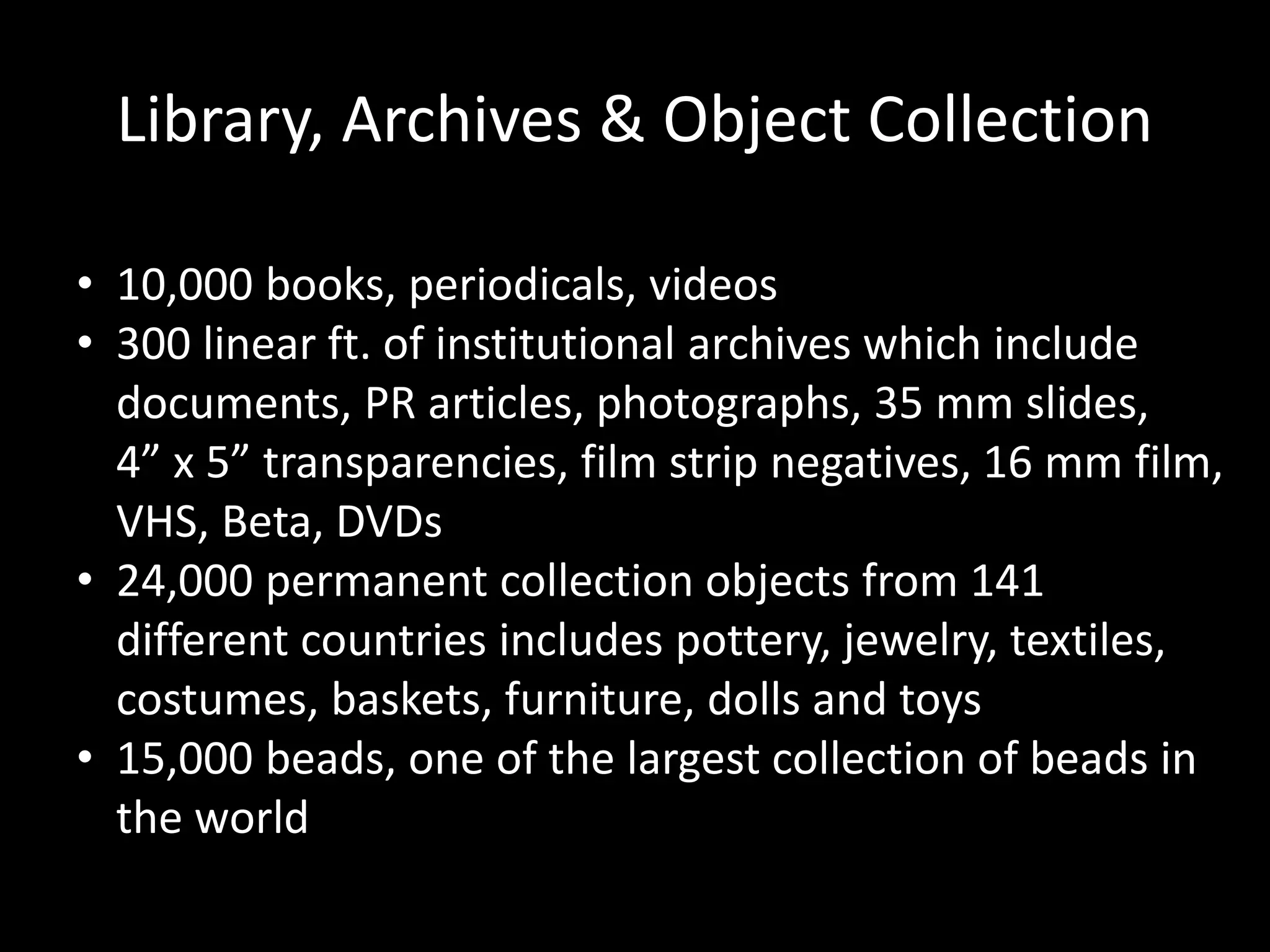

25. Library, Archives & Object Collection
• 10,000 books, periodicals, videos
• 300 linear ft. of institutional archives which include
documents, PR articles, photographs, 35 mm slides,
4” x 5” transparencies, film strip negatives, 16 mm film,
VHS, Beta, DVDs
• 24,000 permanent collection objects from 141
different countries includes pottery, jewelry, textiles,
costumes, baskets, furniture, dolls and toys
• 15,000 beads, one of the largest collection of beads in
the world

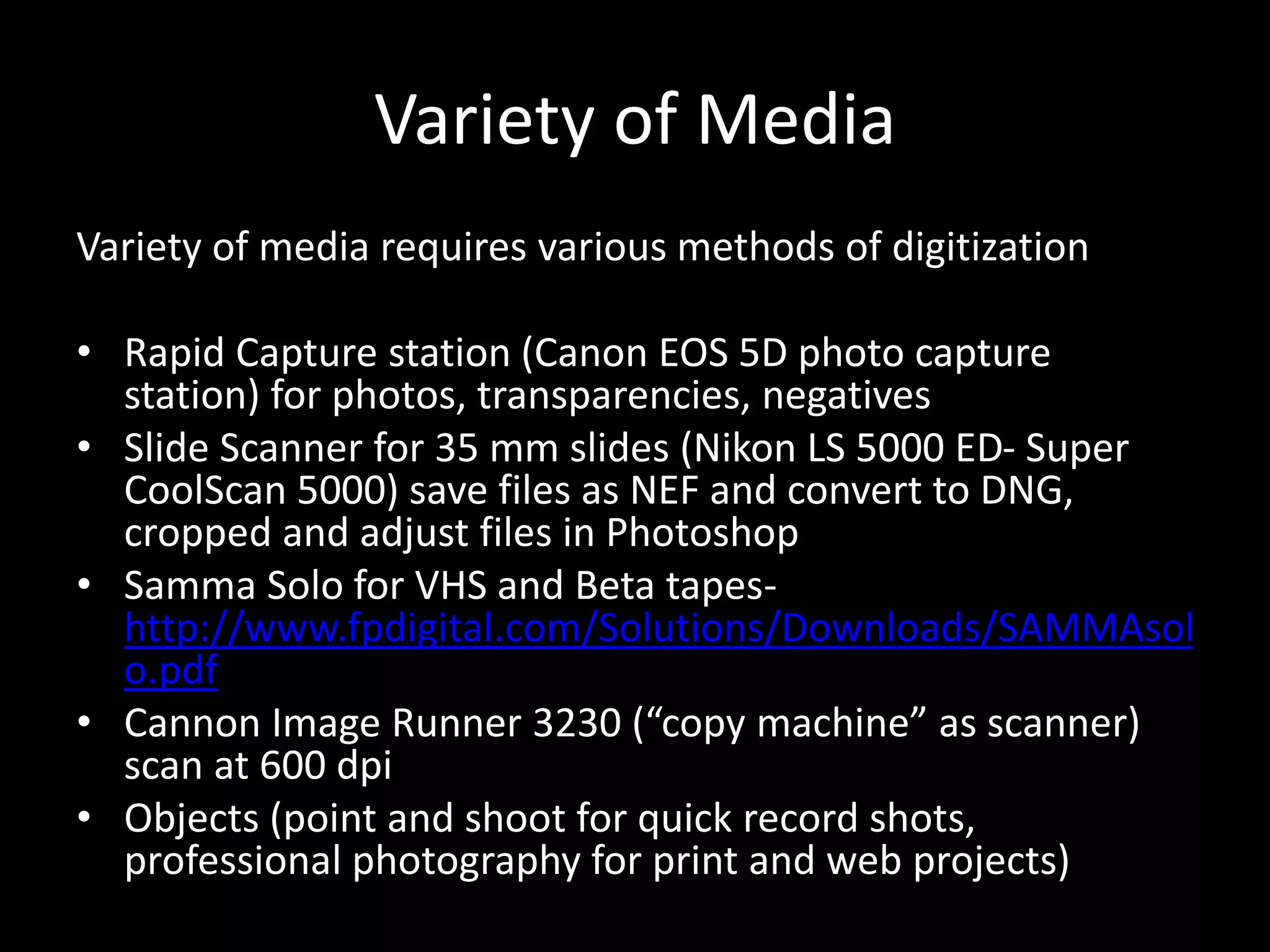

26. Variety of Media
Variety of media requires various methods of digitization
• Rapid Capture station (Canon EOS 5D photo capture
station) for photos, transparencies, negatives
• Slide Scanner for 35 mm slides (Nikon LS 5000 ED- Super
CoolScan 5000) save files as NEF and convert to DNG,
cropped and adjust files in Photoshop
• Samma Solo for VHS and Beta tapes-
http://www.fpdigital.com/Solutions/Downloads/SAMMAsol
o.pdf
• Cannon Image Runner 3230 (“copy machine” as scanner)
scan at 600 dpi
• Objects (point and shoot for quick record shots,
professional photography for print and web projects)

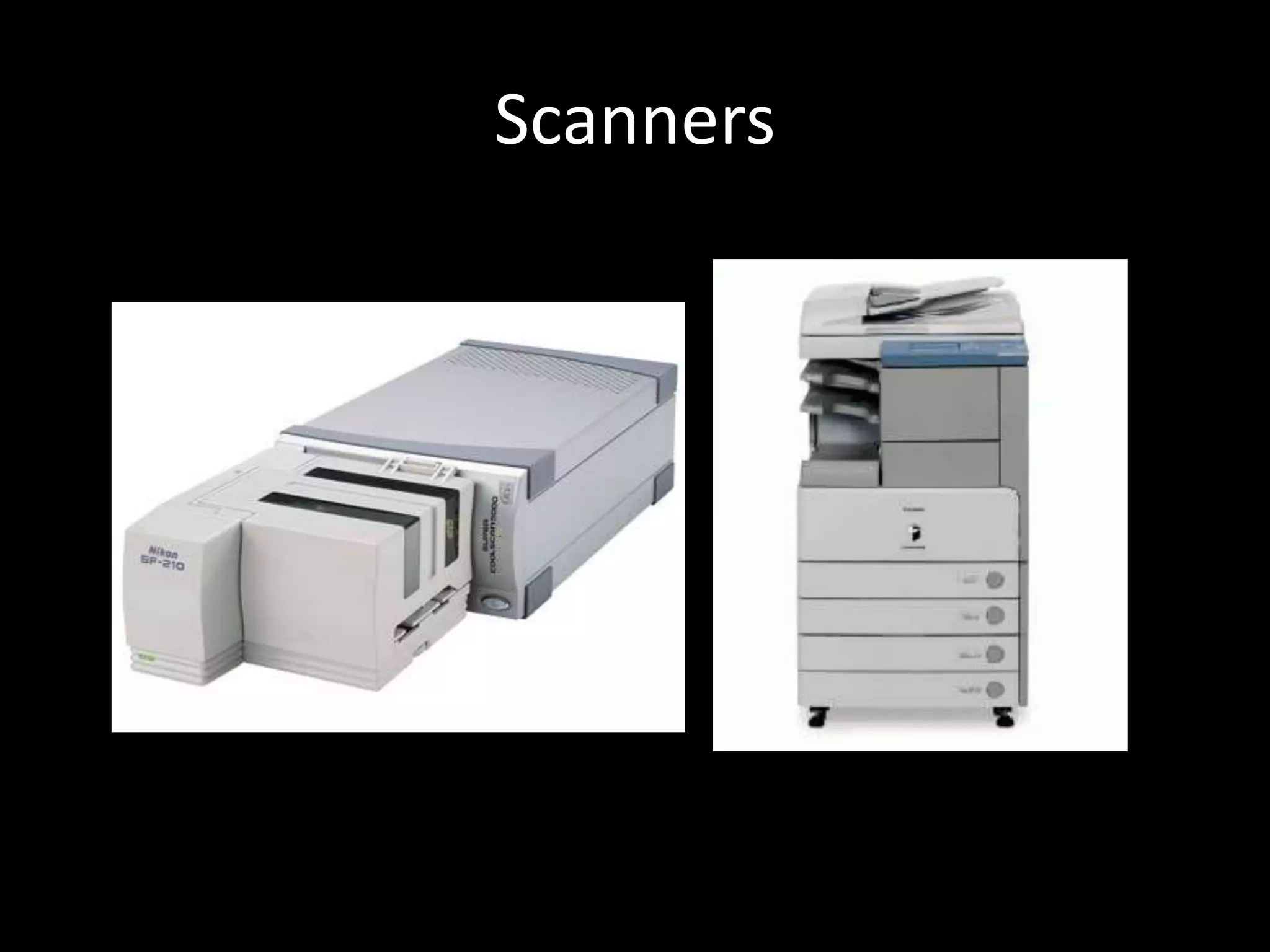

27. Scanners

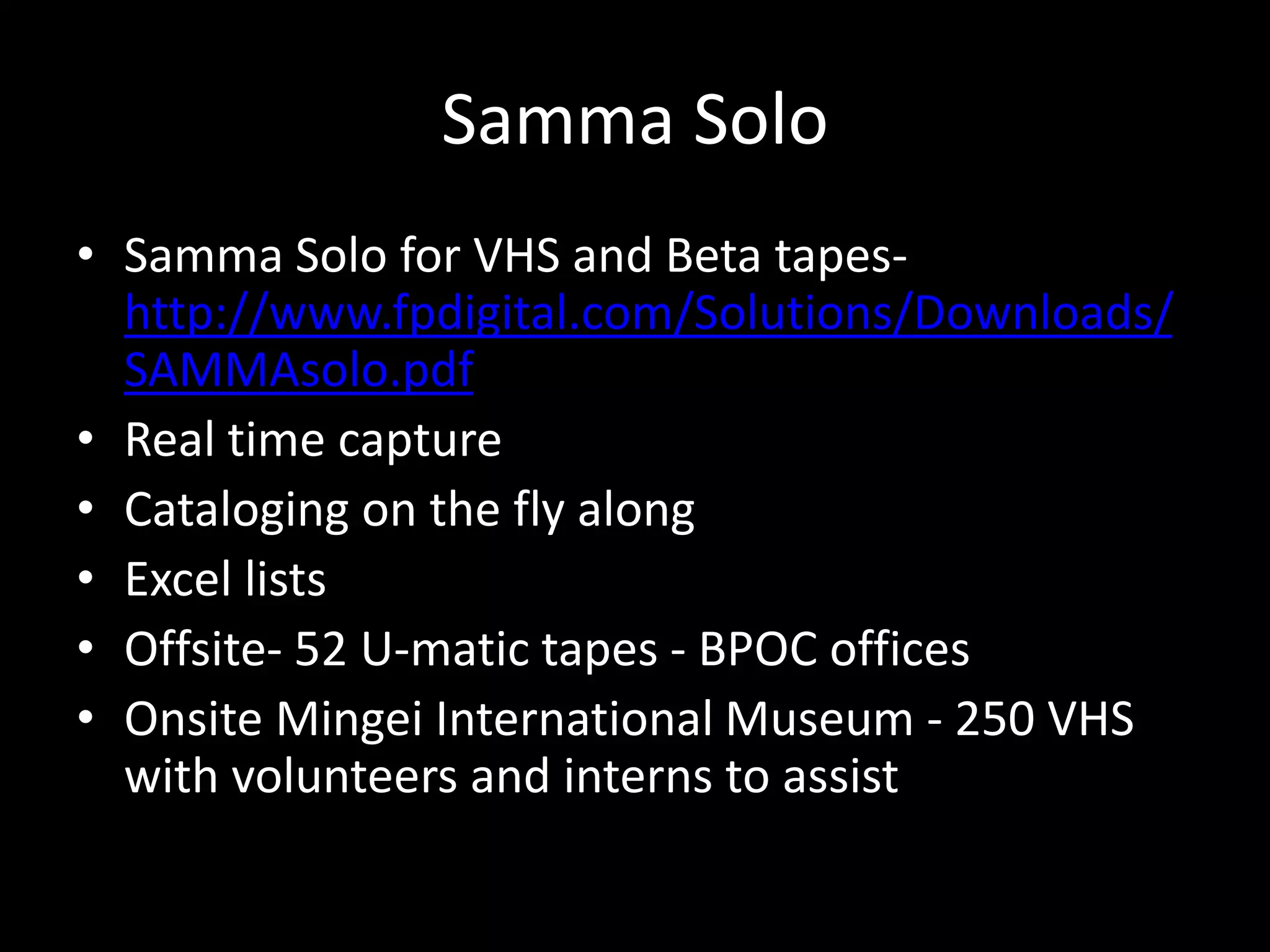

28. Samma Solo
• Samma Solo for VHS and Beta tapes-
http://www.fpdigital.com/Solutions/Downloads/
SAMMAsolo.pdf
• Real time capture
• Cataloging on the fly along
• Excel lists
• Offsite- 52 U-matic tapes - BPOC offices
• Onsite Mingei International Museum - 250 VHS
with volunteers and interns to assist

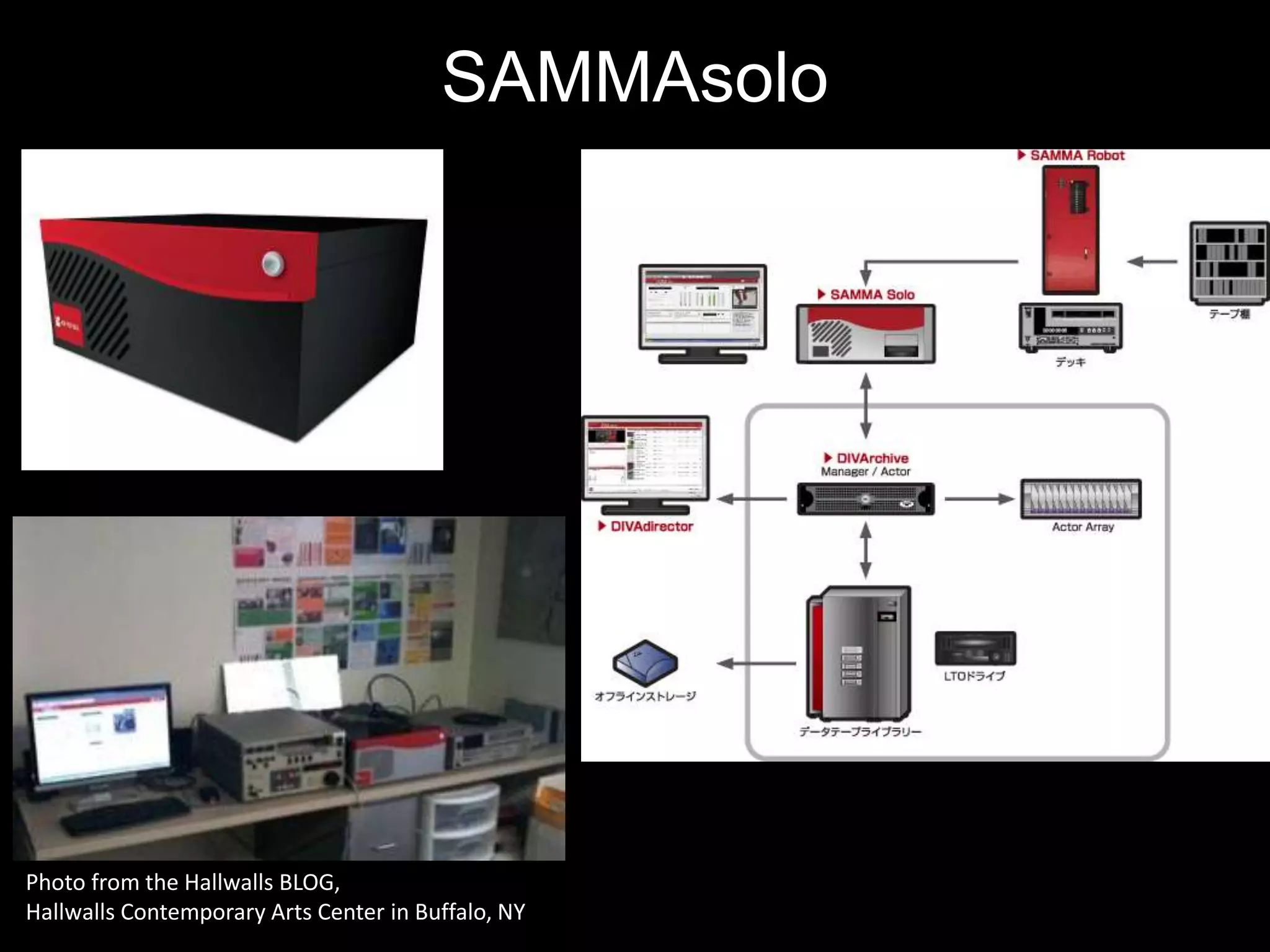

29. SAMMAsolo
Photo from the Hallwalls BLOG,
Hallwalls Contemporary Arts Center in Buffalo, NY

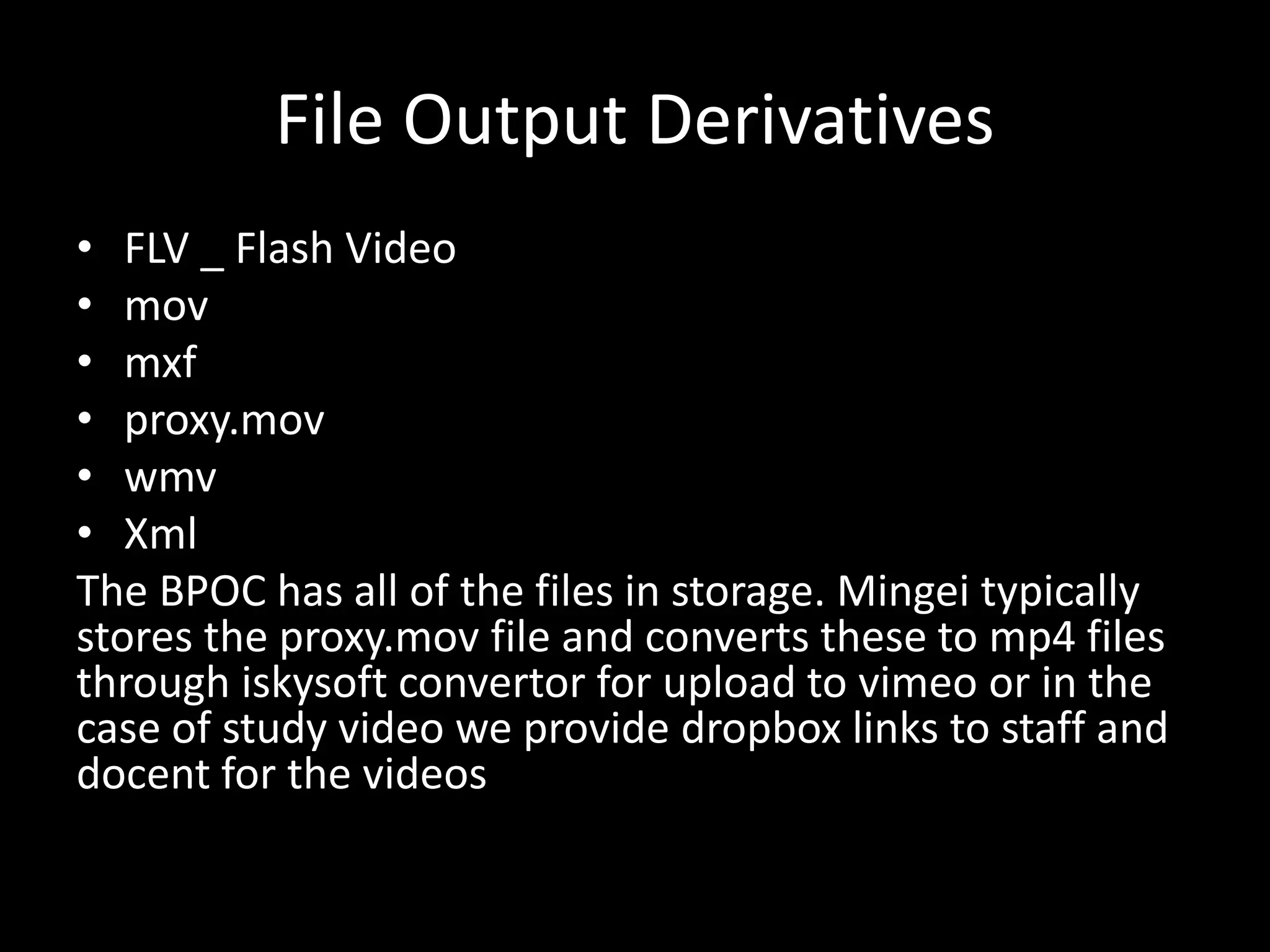

30. File Output Derivatives
• FLV _ Flash Video
• mov
• mxf
• proxy.mov
• wmv
• Xml
The BPOC has all of the files in storage. Mingei typically
stores the proxy.mov file and converts these to mp4 files
through iskysoft convertor for upload to vimeo or in the
case of study video we provide dropbox links to staff and
docent for the videos

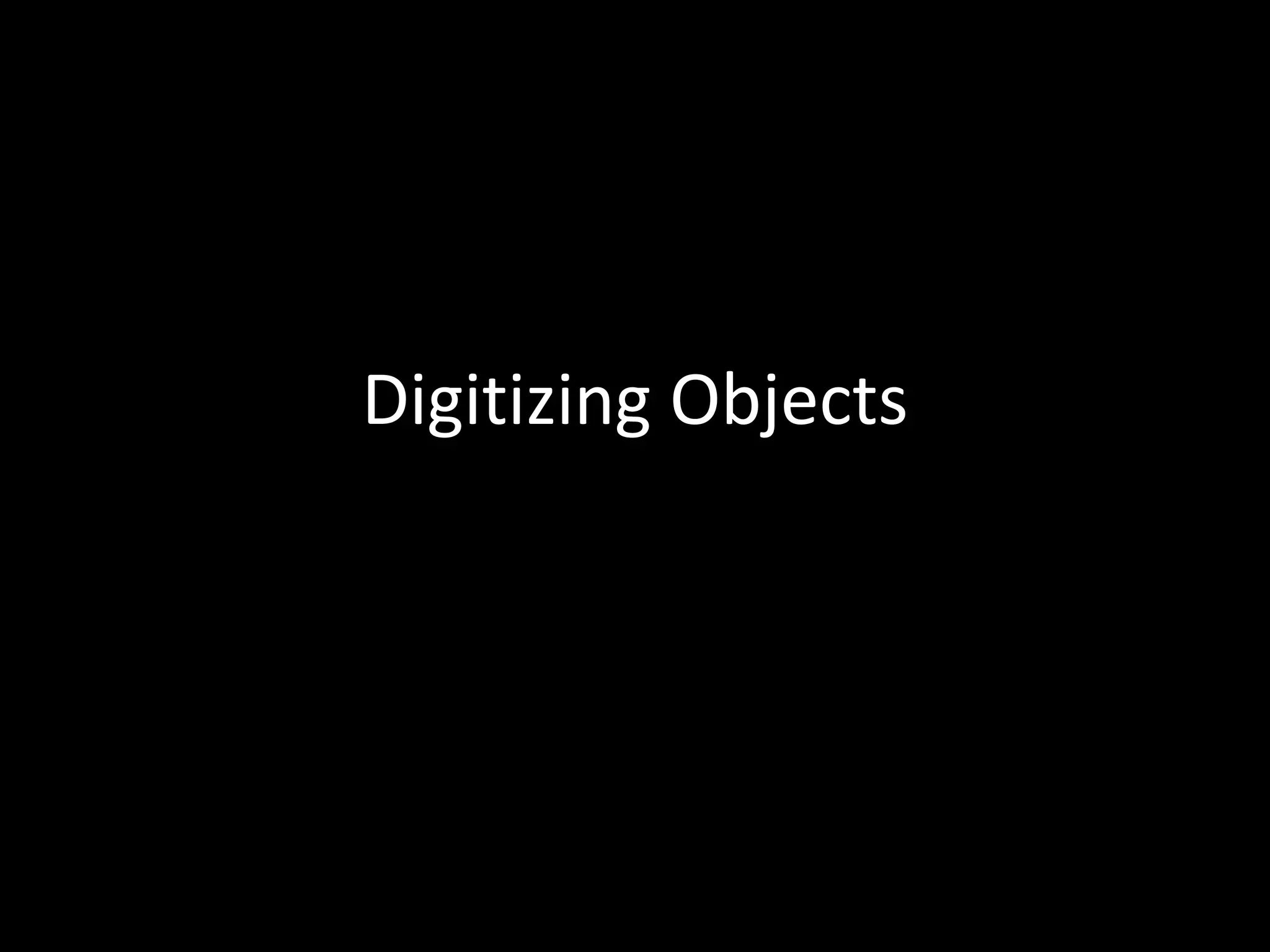

31. Digitizing Objects

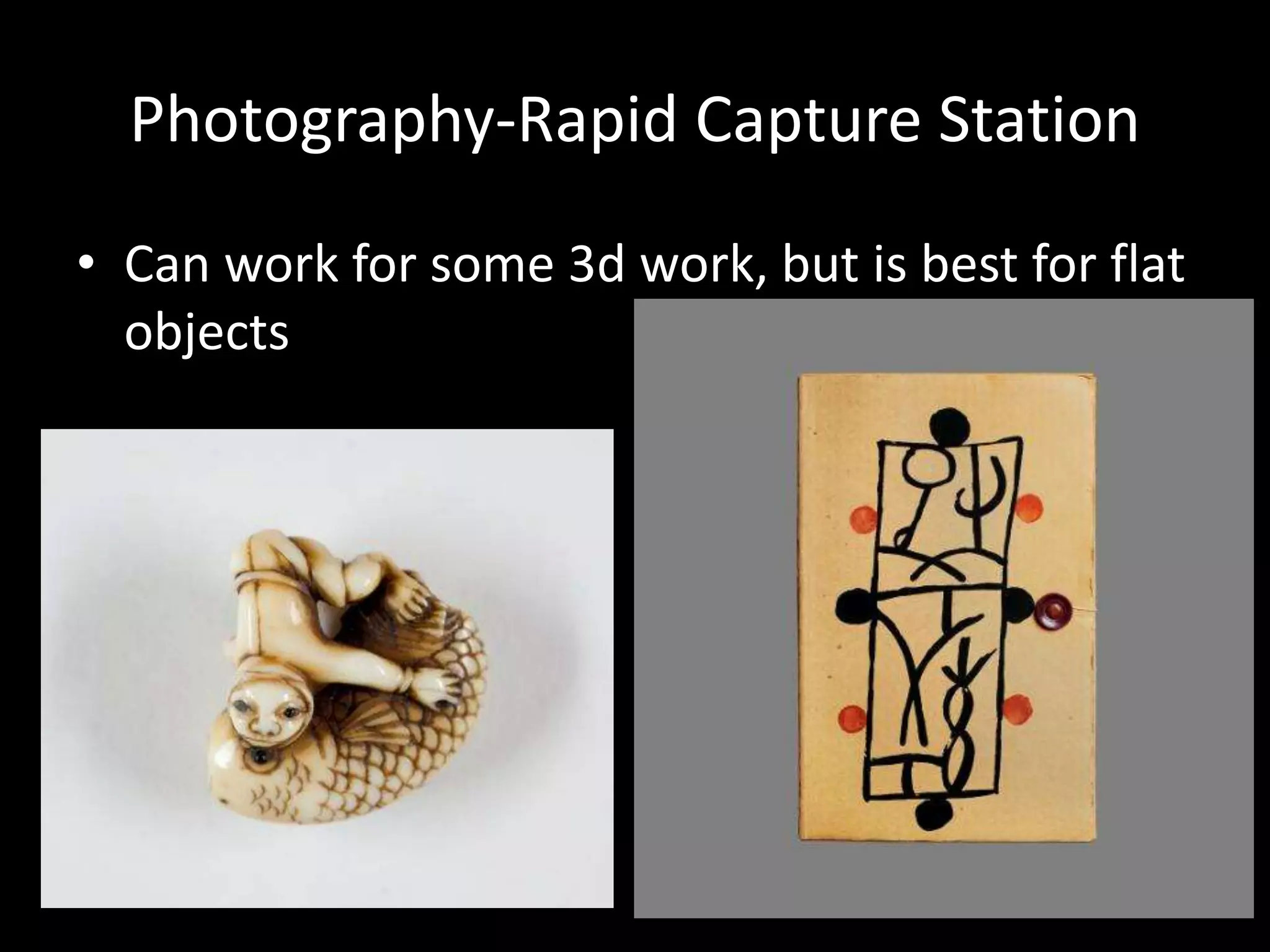

33. Photography-Rapid Capture Station
• Can work for some 3d work, but is best for flat
objects

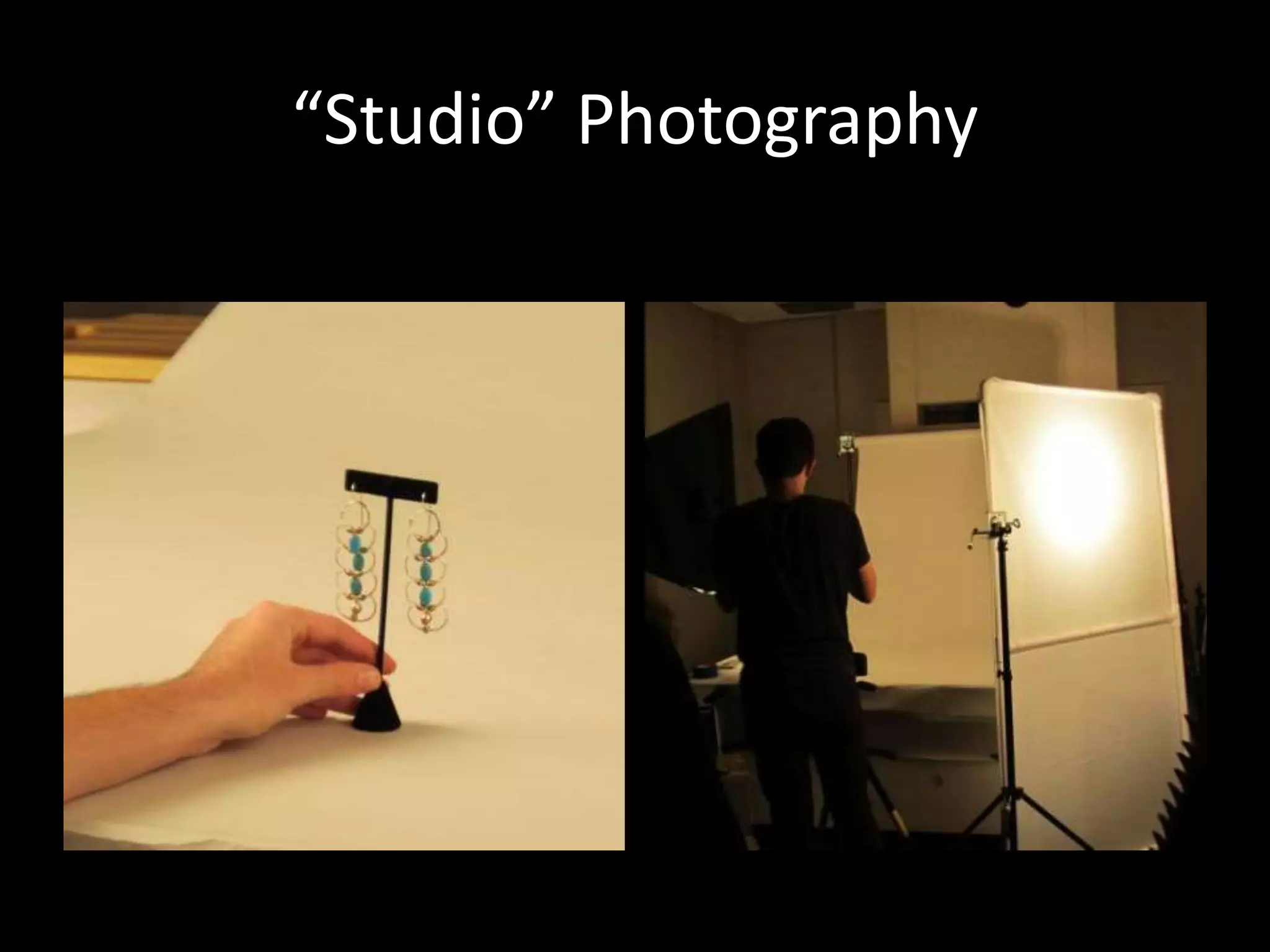

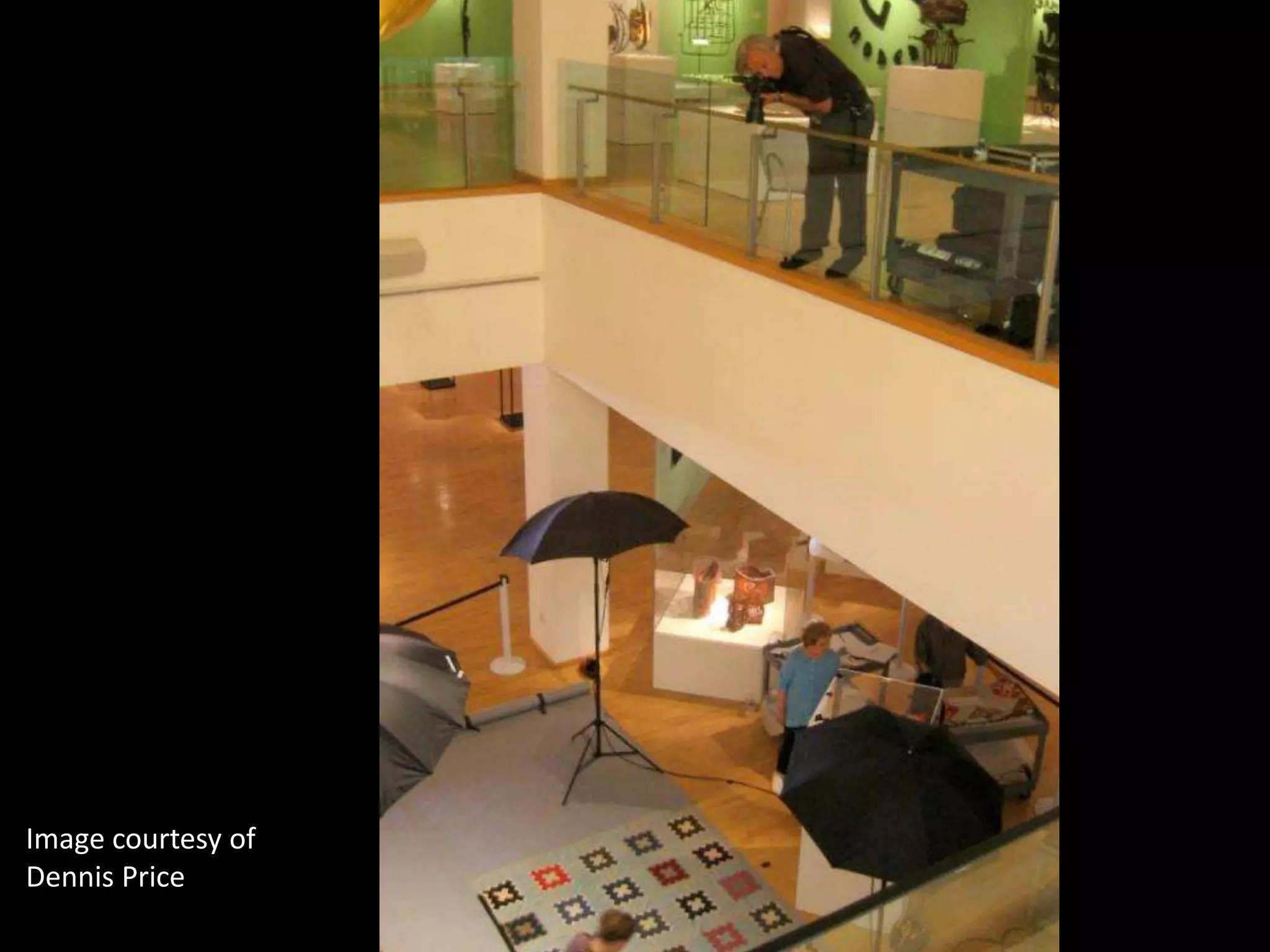

34. “Studio” Photography

35. Image courtesy of
Dennis Price

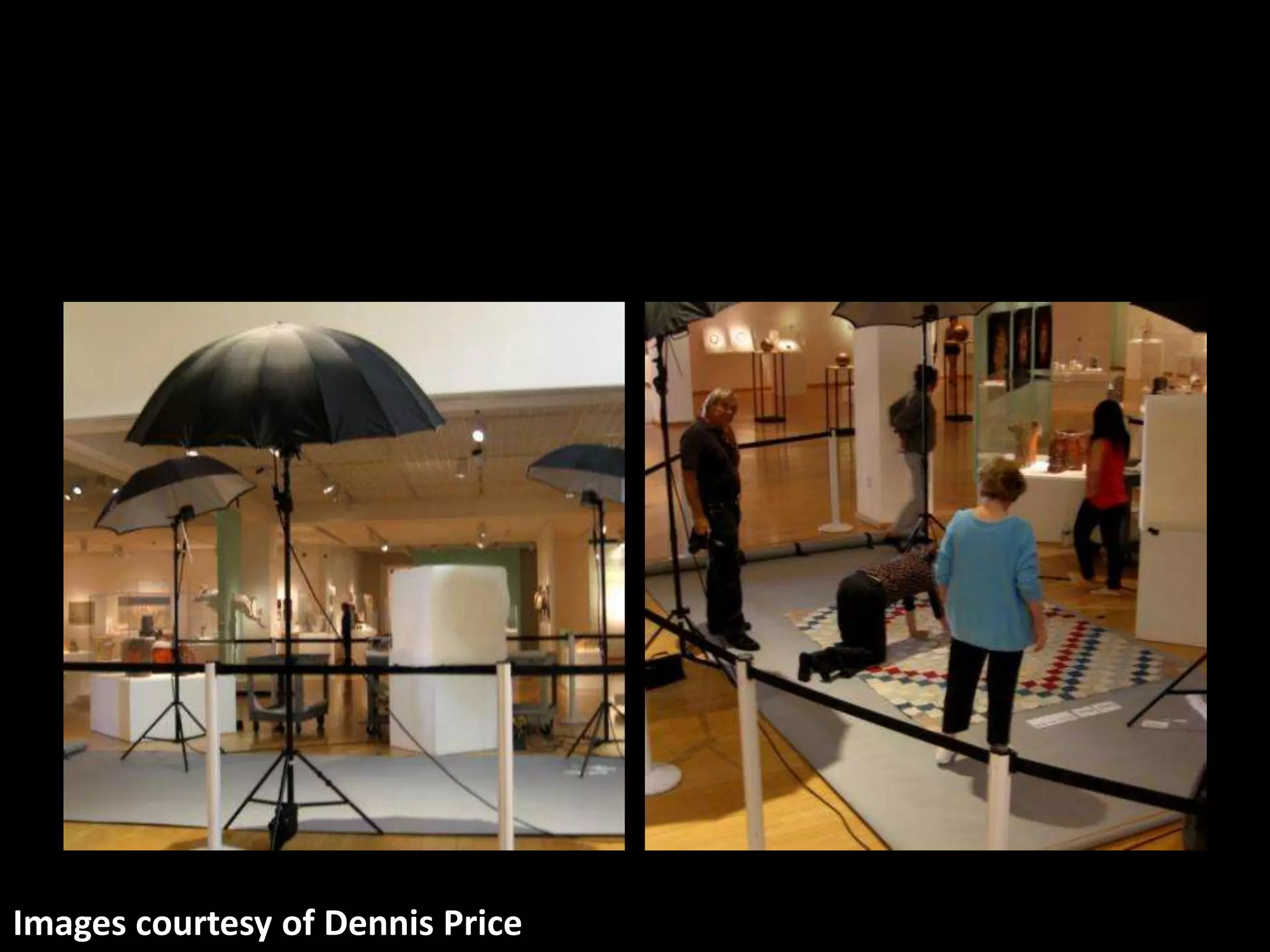

36. Images courtesy of Dennis Price

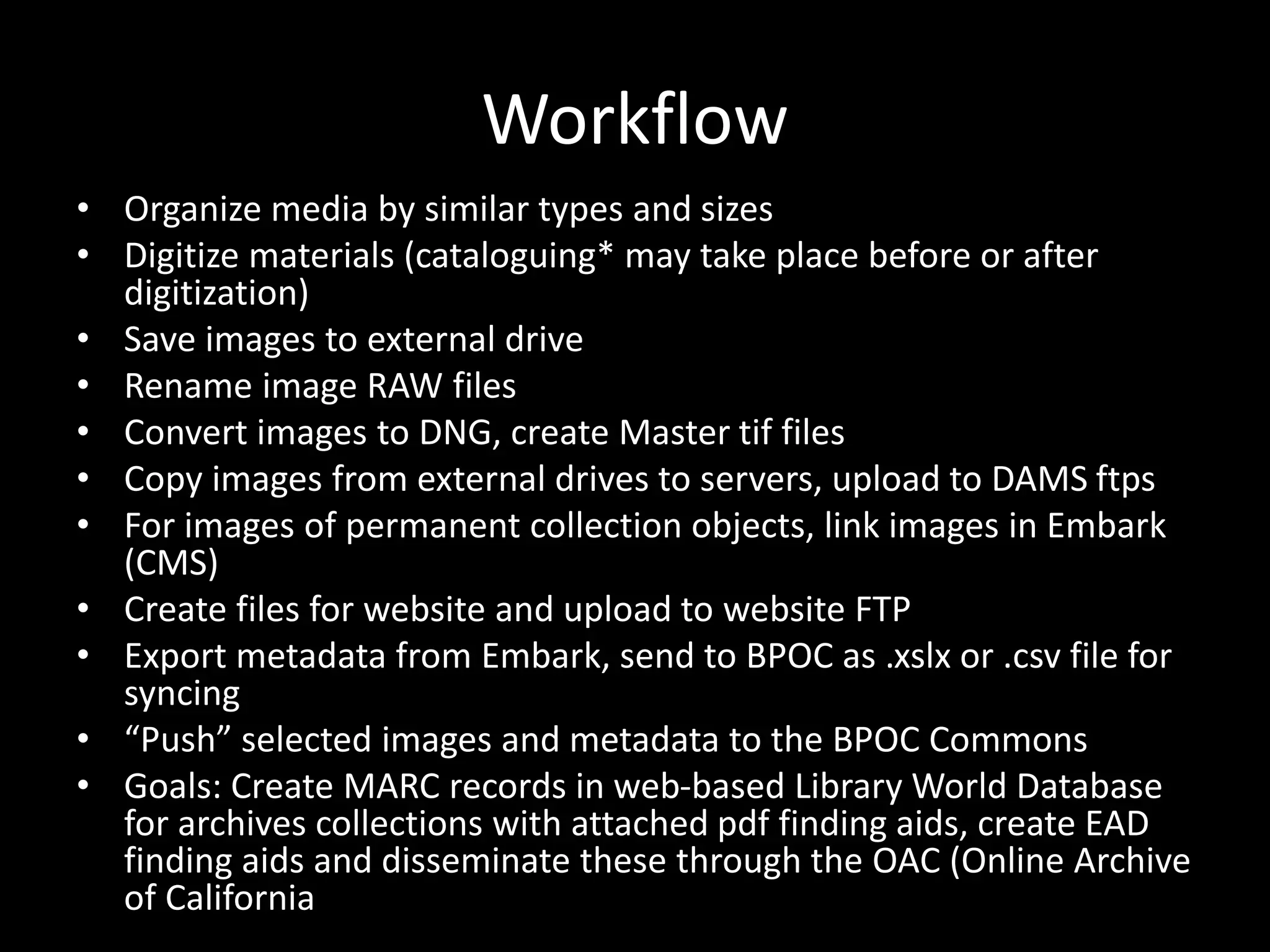

37. Workflow
• Organize media by similar types and sizes
• Digitize materials (cataloguing* may take place before or after
digitization)
• Save images to external drive
• Rename image RAW files
• Convert images to DNG, create Master tif files
• Copy images from external drives to servers, upload to DAMS ftps
• For images of permanent collection objects, link images in Embark
(CMS)
• Create files for website and upload to website FTP
• Export metadata from Embark, send to BPOC as .xslx or .csv file for
syncing
• “Push” selected images and metadata to the BPOC Commons
• Goals: Create MARC records in web-based Library World Database
for archives collections with attached pdf finding aids, create EAD
finding aids and disseminate these through the OAC (Online Archive
of California

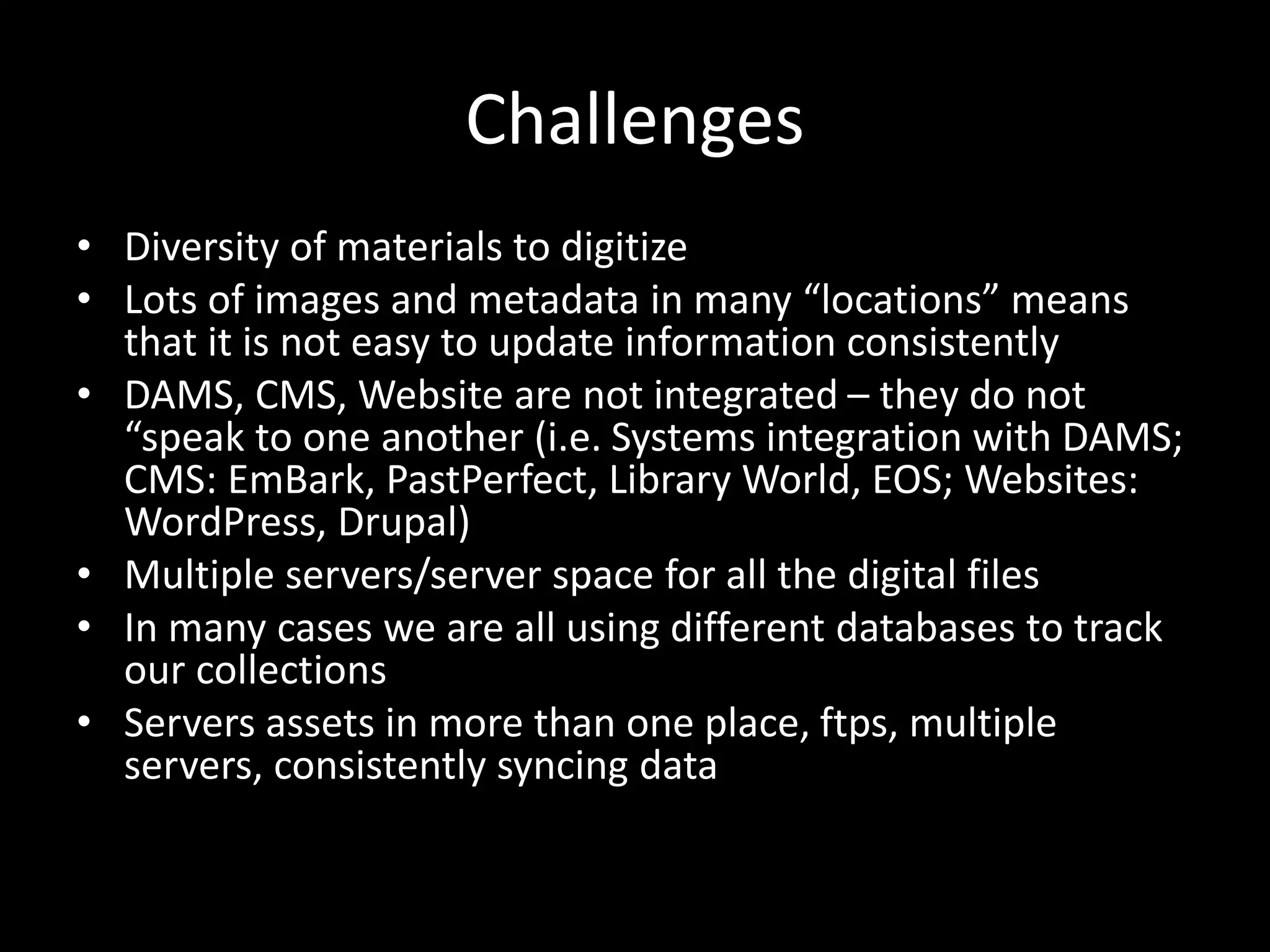

38. Challenges
• Diversity of materials to digitize
• Lots of images and metadata in many “locations” means
that it is not easy to update information consistently
• DAMS, CMS, Website are not integrated – they do not
“speak to one another (i.e. Systems integration with DAMS;
CMS: EmBark, PastPerfect, Library World, EOS; Websites:
WordPress, Drupal)
• Multiple servers/server space for all the digital files
• In many cases we are all using different databases to track
our collections
• Servers assets in more than one place, ftps, multiple
servers, consistently syncing data

39. Great Aspects of Collaboration with
the BPOC
• Borrowing digitization equipment
• Implementation of the shared Piction DAMS
• IT support and technical expertise
• Learning from and sharing with partner
institutions
• Balboa Park Commons
