Balaji Palani
Director, Product
Management
InfluxData
Path to InfluxDB
2.0
Seamlessly migrate your 1.x
dashboards, alerts and tasks

© 2020 InfluxData. All rights reserved. 2

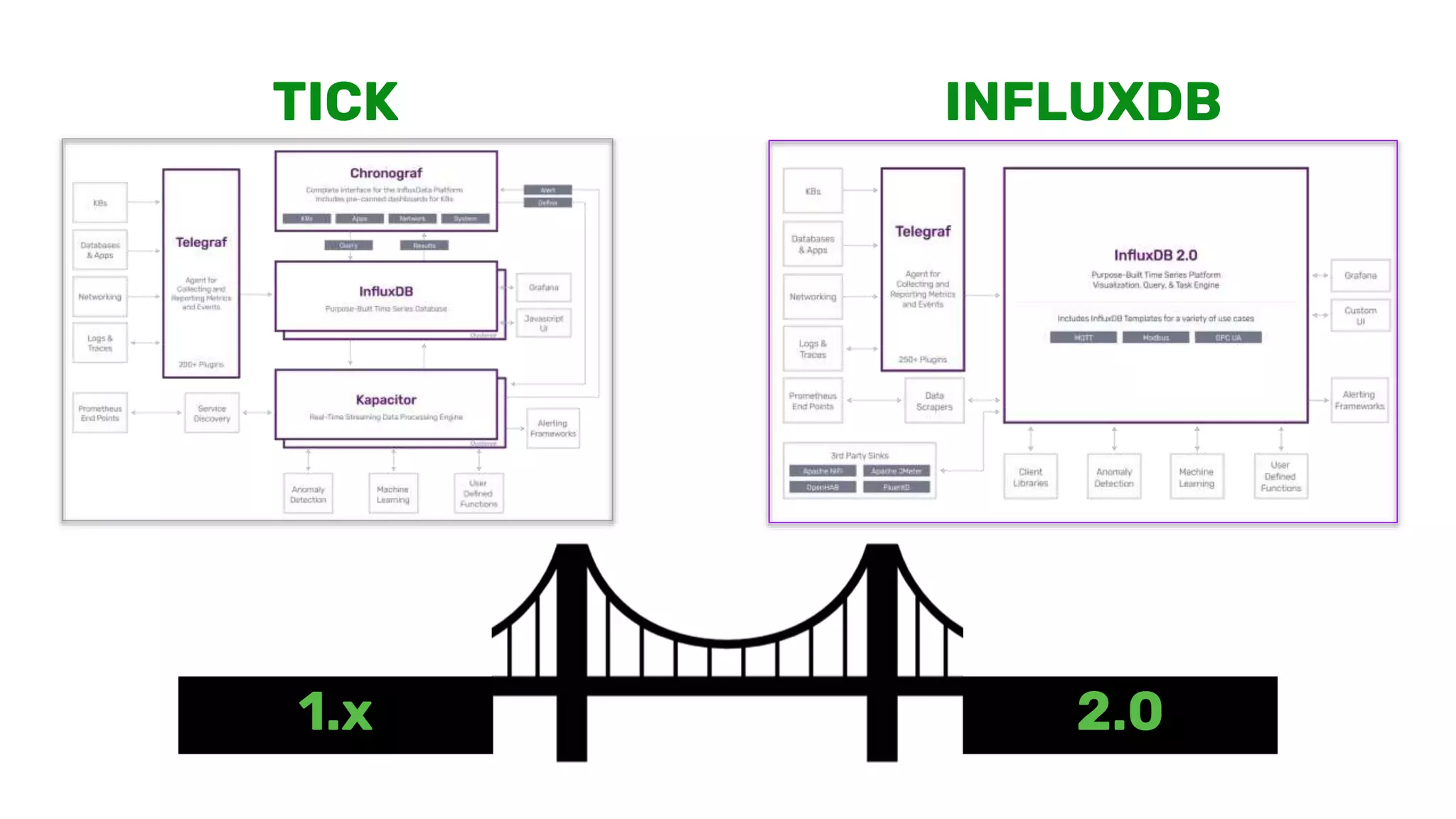

1.x 2.0
TICK INFLUXDB

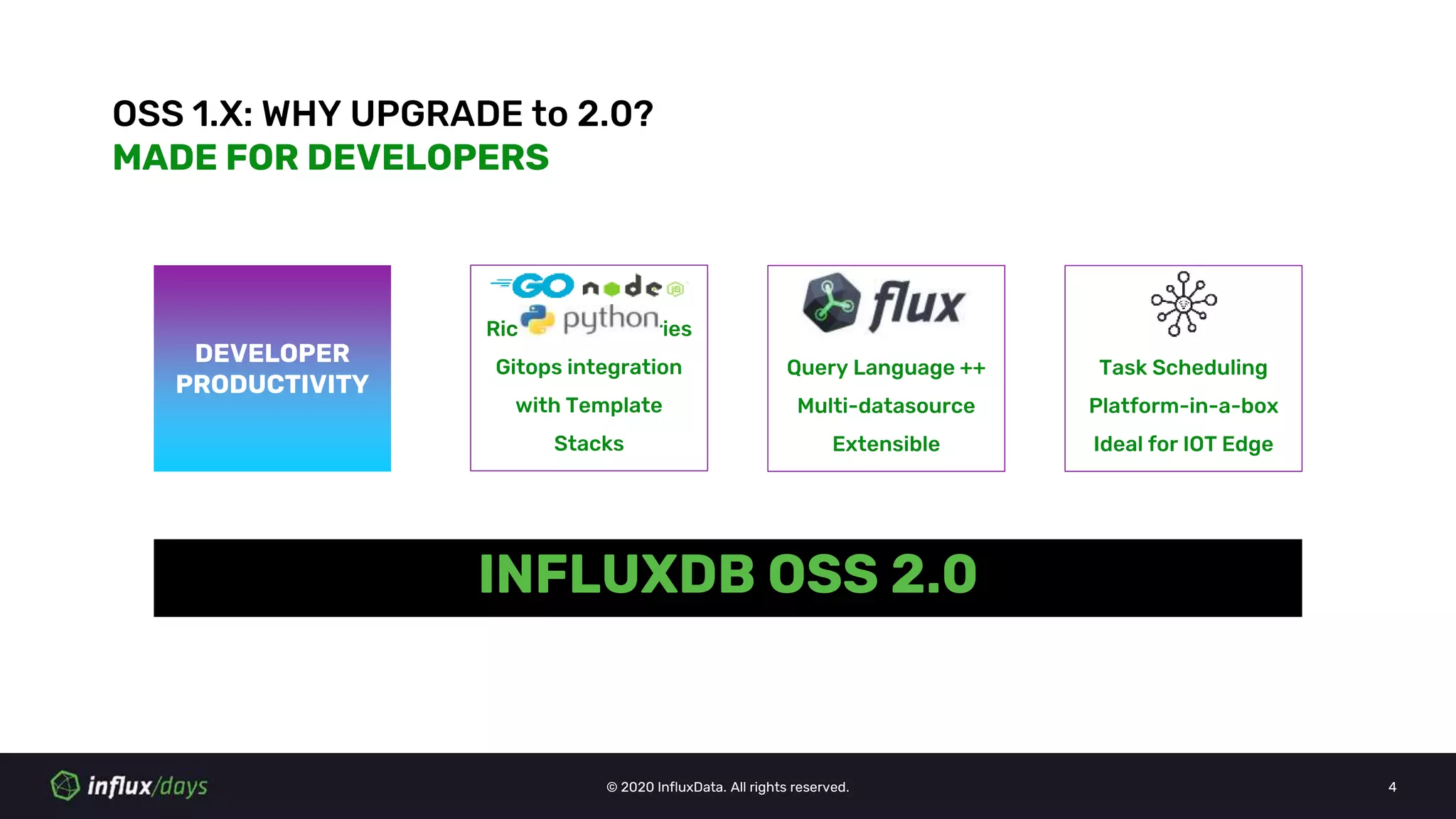

INFLUXDB OSS 2.0
OSS 1.X: WHY UPGRADE to 2.0?
MADE FOR DEVELOPERS
DEVELOPER
PRODUCTIVITY
Query Language ++
Multi-datasource
Extensible
Rich Client Libraries
Gitops integration
with Template
Stacks
Task Scheduling
Platform-in-a-box
Ideal for IOT Edge

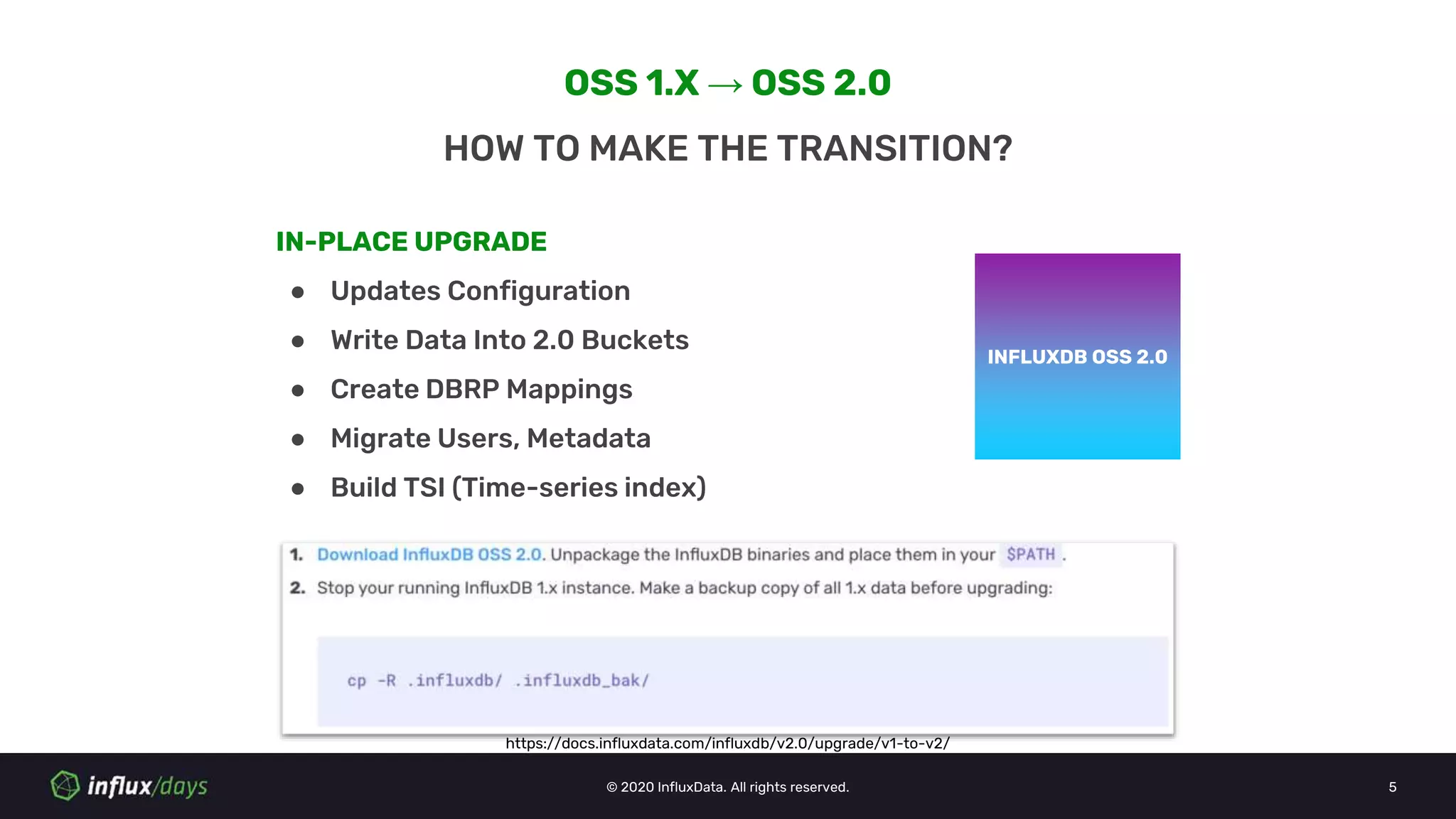

OSS 1.X → OSS 2.0
HOW TO MAKE THE TRANSITION?
INFLUXDB OSS 1.XINFLUXDB OSS 2.0
IN-PLACE UPGRADE
● Updates Configuration
● Write Data Into 2.0 Buckets
● Create DBRP Mappings
● Migrate Users, Metadata
● Build TSI (Time-series index)
https://docs.influxdata.com/influxdb/v2.0/upgrade/v1-to-v2/

INFLUXDB OSS 1.XINFLUXDB OSS 2.0
Continuous Queries
(CQ)
Replace with Flux
Tasks
1.x Supported
Protocols
(Graphite, CollectD,
OpenTSDB, UDP)
Use Telegraf
Kapacitor 1.x
(Subscription API)
Dual write to
InfluxDB 2.0 and
Kapacitor 1.x
Chronograf /
Grafana
(Dashboards)
Existing dashboards
will continue to work
with InfluxQL
compatibility API

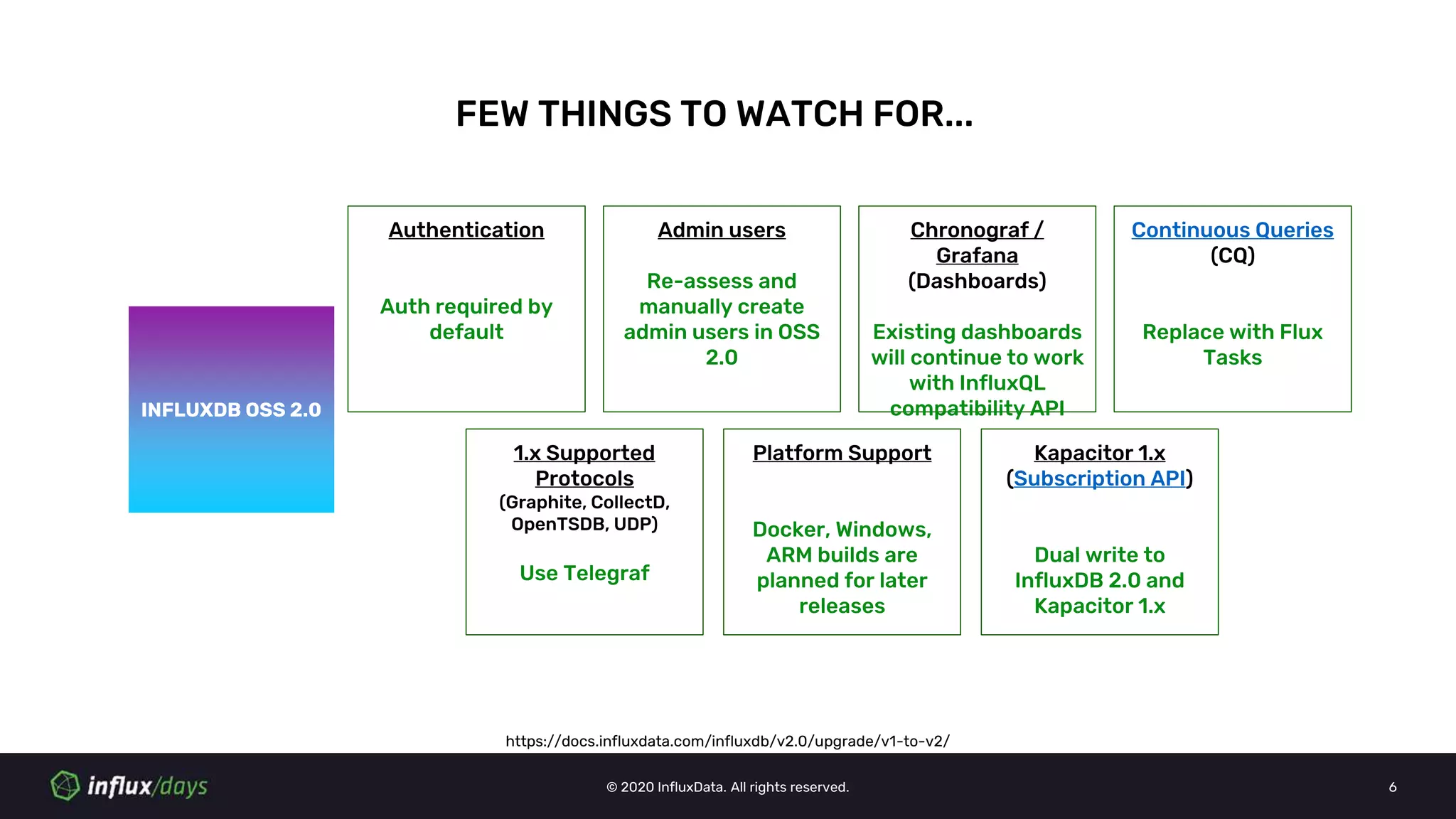

FEW THINGS TO WATCH FOR...
Authentication
Auth required by
default
Admin users
Re-assess and
manually create
admin users in OSS
2.0
Platform Support
Docker, Windows,
ARM builds are
planned for later
releases
https://docs.influxdata.com/influxdb/v2.0/upgrade/v1-to-v2/

TICK 1.X → INFLUXDB CLOUD 2.0

INFLUXDB CLOUD 2.0

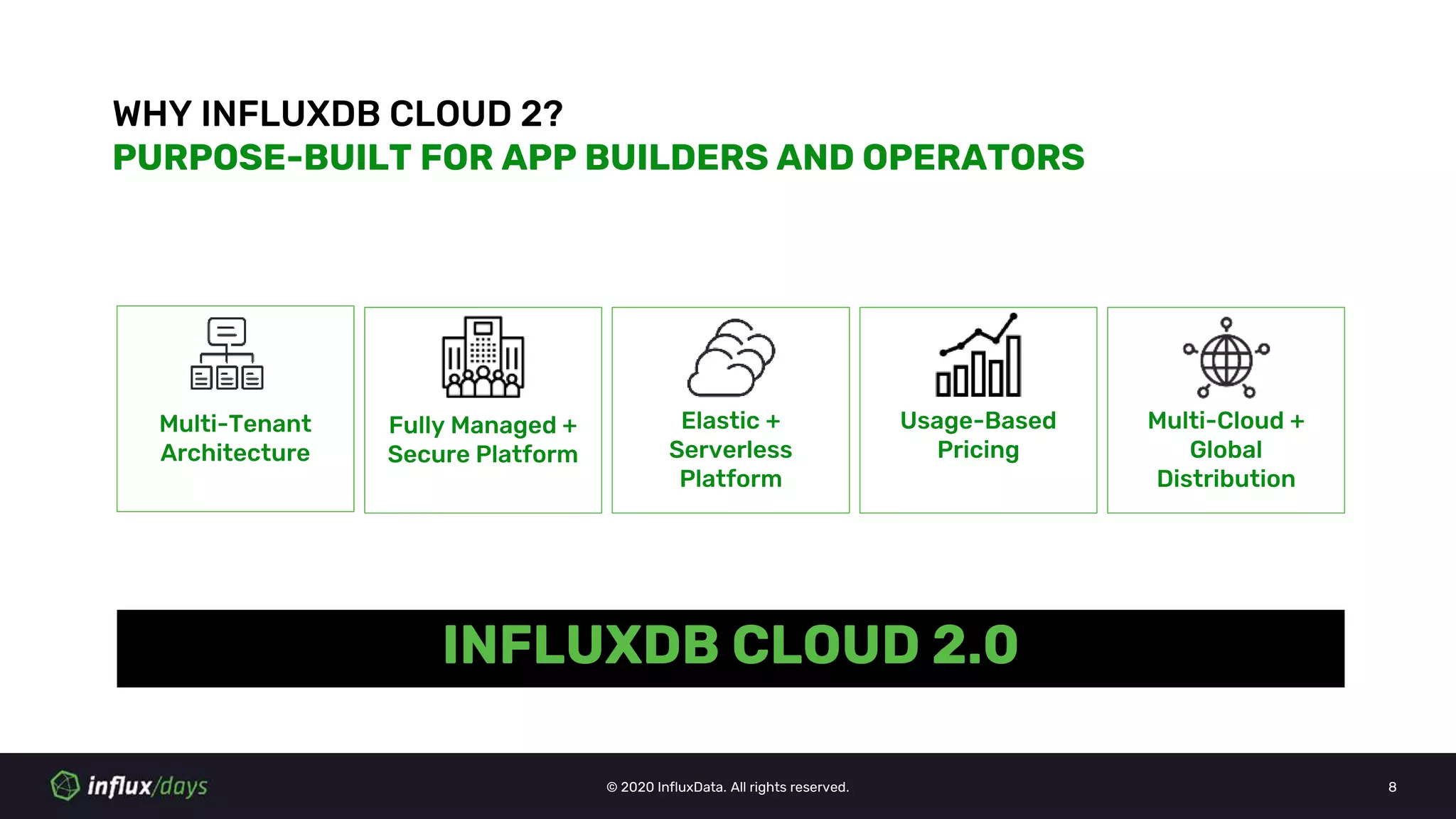

WHY INFLUXDB CLOUD 2?
PURPOSE-BUILT FOR APP BUILDERS AND OPERATORS
Multi-Tenant
Architecture
Fully Managed +
Secure Platform
Elastic +
Serverless
Platform
Usage-Based
Pricing
Multi-Cloud +
Global
Distribution

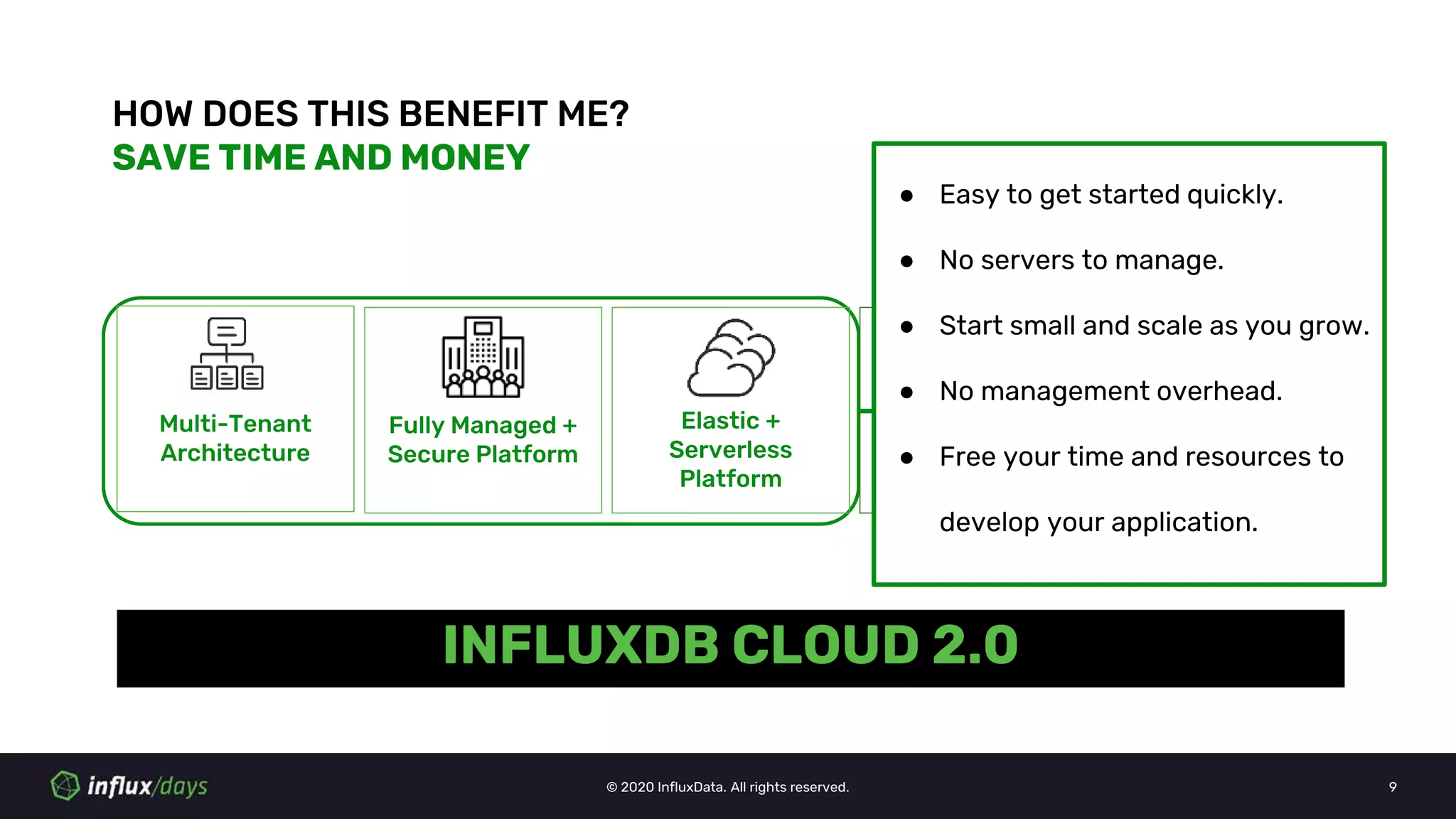

HOW DOES THIS BENEFIT ME?
SAVE TIME AND MONEY
Multi-Tenant
Architecture
Fully Managed +
Secure Platform
Elastic +
Serverless
Platform
Usage Based
Pricing
Multi-Cloud
Availability
INFLUXDB CLOUD 2.0
● Easy to get started quickly.
● No servers to manage.
● Start small and scale as you grow.
● No management overhead.
● Free your time and resources to
develop your application.

INFLUXDB CLOUD 2.0

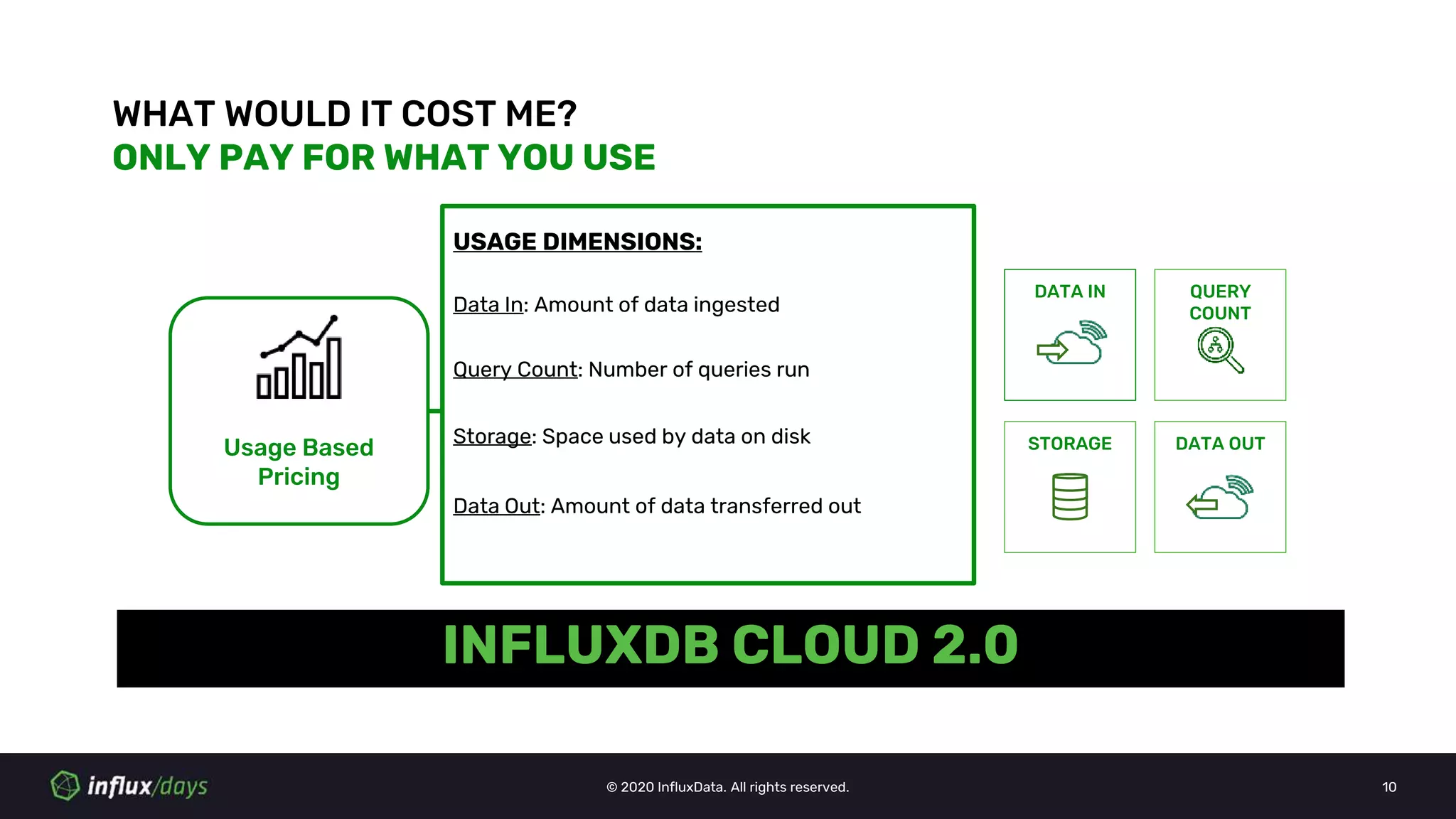

WHAT WOULD IT COST ME?
ONLY PAY FOR WHAT YOU USE
Usage Based
Pricing
USAGE DIMENSIONS:
Data In: Amount of data ingested
DATA IN
Query Count: Number of queries run
QUERY
COUNT
STORAGE DATA OUTStorage: Space used by data on disk
Data Out: Amount of data transferred out

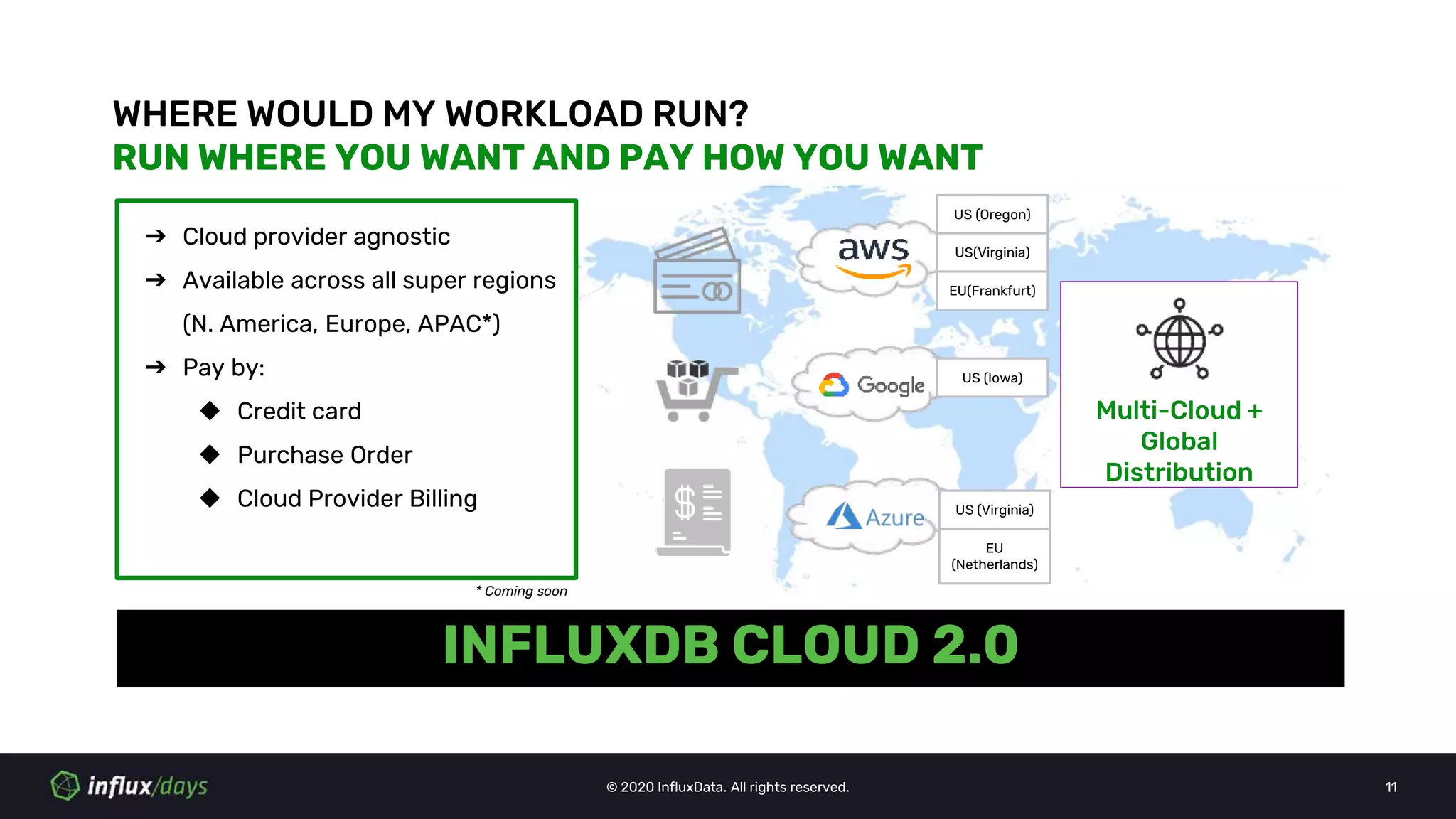

INFLUXDB CLOUD 2.0
WHERE WOULD MY WORKLOAD RUN?
RUN WHERE YOU WANT AND PAY HOW YOU WANT
Multi-Cloud +
Global
Distribution
➔ Cloud provider agnostic
➔ Available across all super regions
(N. America, Europe, APAC*)
➔ Pay by:
◆ Credit card
◆ Purchase Order
◆ Cloud Provider Billing
US (Oregon)
US(Virginia)
EU(Frankfurt)
US (Iowa)
US (Virginia)
EU
(Netherlands)
* Coming soon

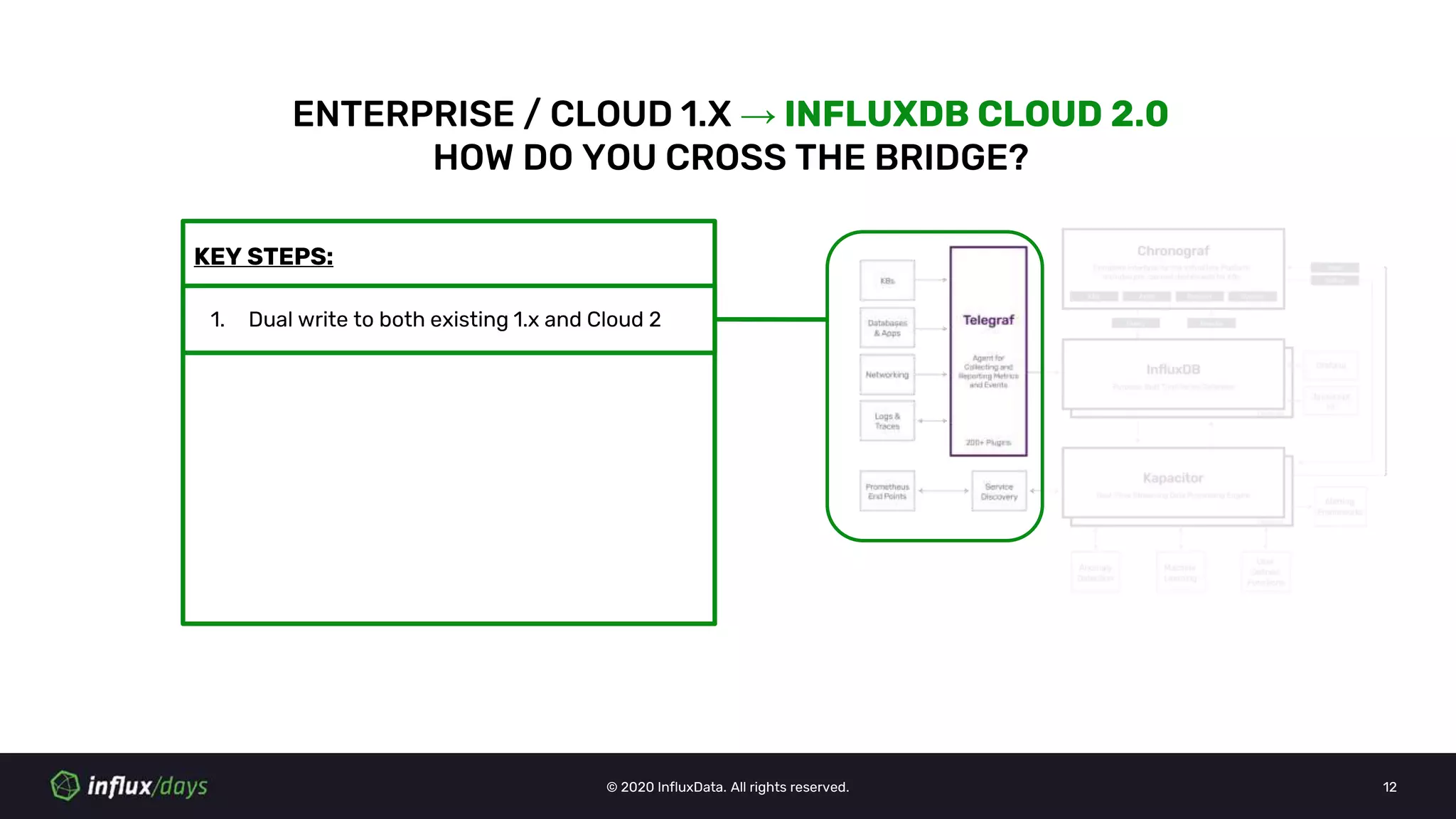

KEY STEPS:
ENTERPRISE / CLOUD 1.X → INFLUXDB CLOUD 2.0
HOW DO YOU CROSS THE BRIDGE?
1. Dual write to both existing 1.x and Cloud 2

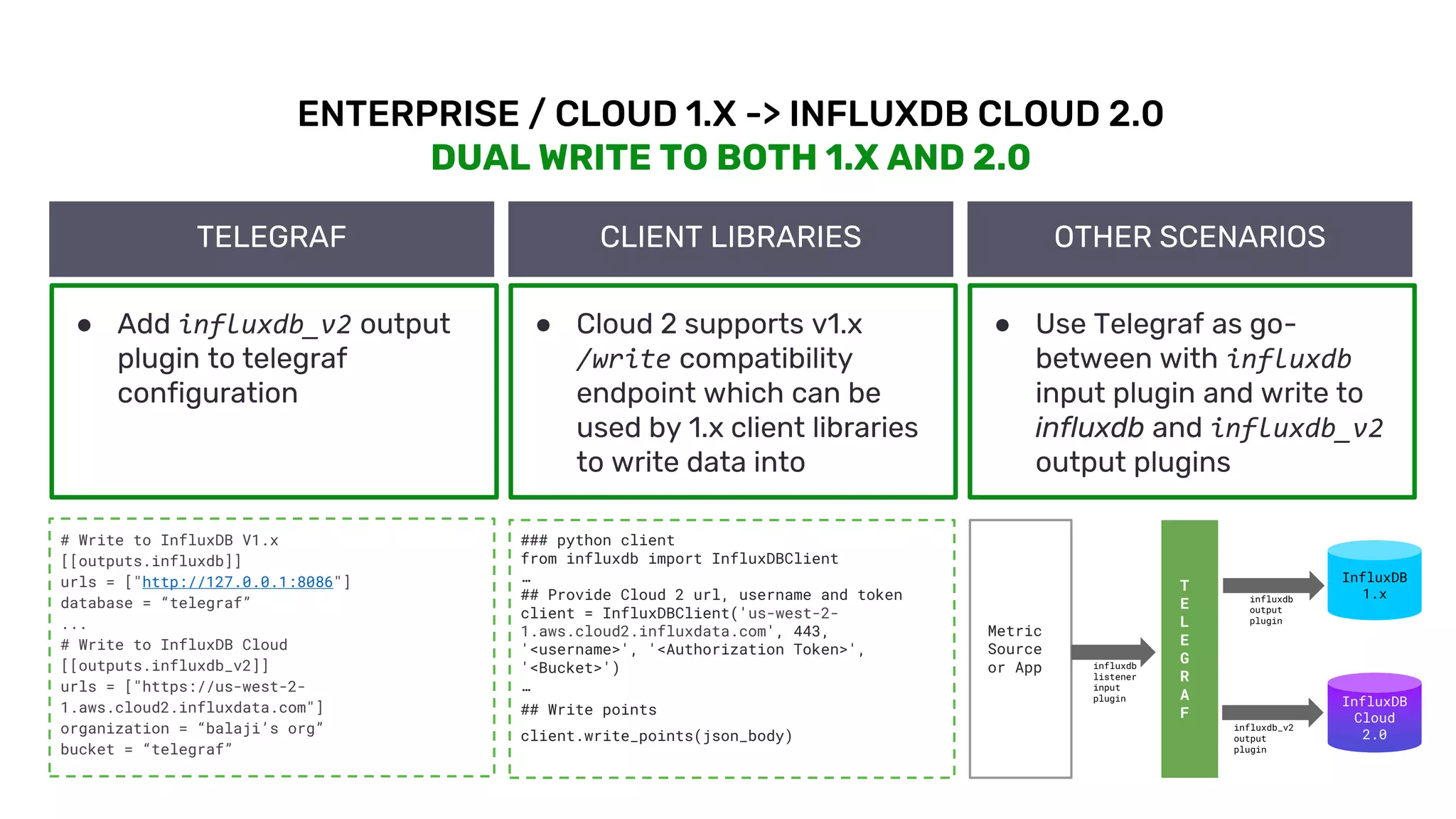

ENTERPRISE / CLOUD 1.X -> INFLUXDB CLOUD 2.0
DUAL WRITE TO BOTH 1.X AND 2.0
TELEGRAF
● Add influxdb_v2 output
plugin to telegraf
configuration
CLIENT LIBRARIES
● Cloud 2 supports v1.x
/write compatibility
endpoint which can be
used by 1.x client libraries
to write data into
OTHER SCENARIOS
● Use Telegraf as go-
between with influxdb
input plugin and write to
influxdb and influxdb_v2
output plugins
# Write to InfluxDB V1.x
[[outputs.influxdb]]
urls = ["http://127.0.0.1:8086"]
database = “telegraf”
...
# Write to InfluxDB Cloud
[[outputs.influxdb_v2]]
urls = ["https://us-west-2-
1.aws.cloud2.influxdata.com"]
organization = “balaji’s org”
bucket = “telegraf”
### python client
from influxdb import InfluxDBClient
…
## Provide Cloud 2 url, username and token
client = InfluxDBClient('us-west-2-
1.aws.cloud2.influxdata.com', 443,
'<username>', '<Authorization Token>',
'<Bucket>')
…
## Write points
client.write_points(json_body)
Metric
Source
or App
T
E
L
E
G
R
A
F
InfluxDB
1.x
InfluxDB
Cloud
2.0
influxdb
listener
input
plugin
influxdb
output
plugin
influxdb_v2
output
plugin

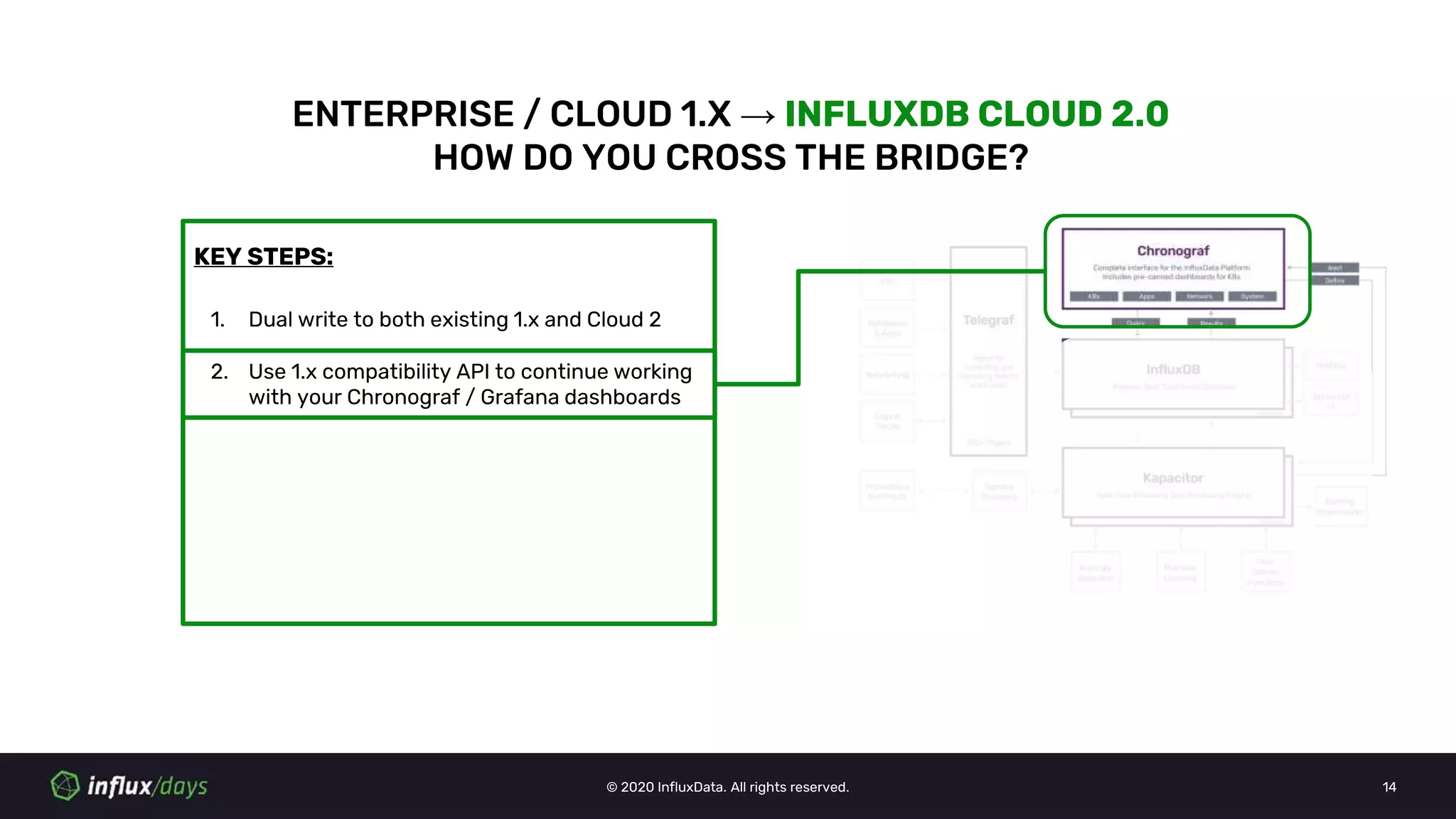

KEY STEPS:
2. Use 1.x compatibility API to continue working
with your Chronograf / Grafana dashboards

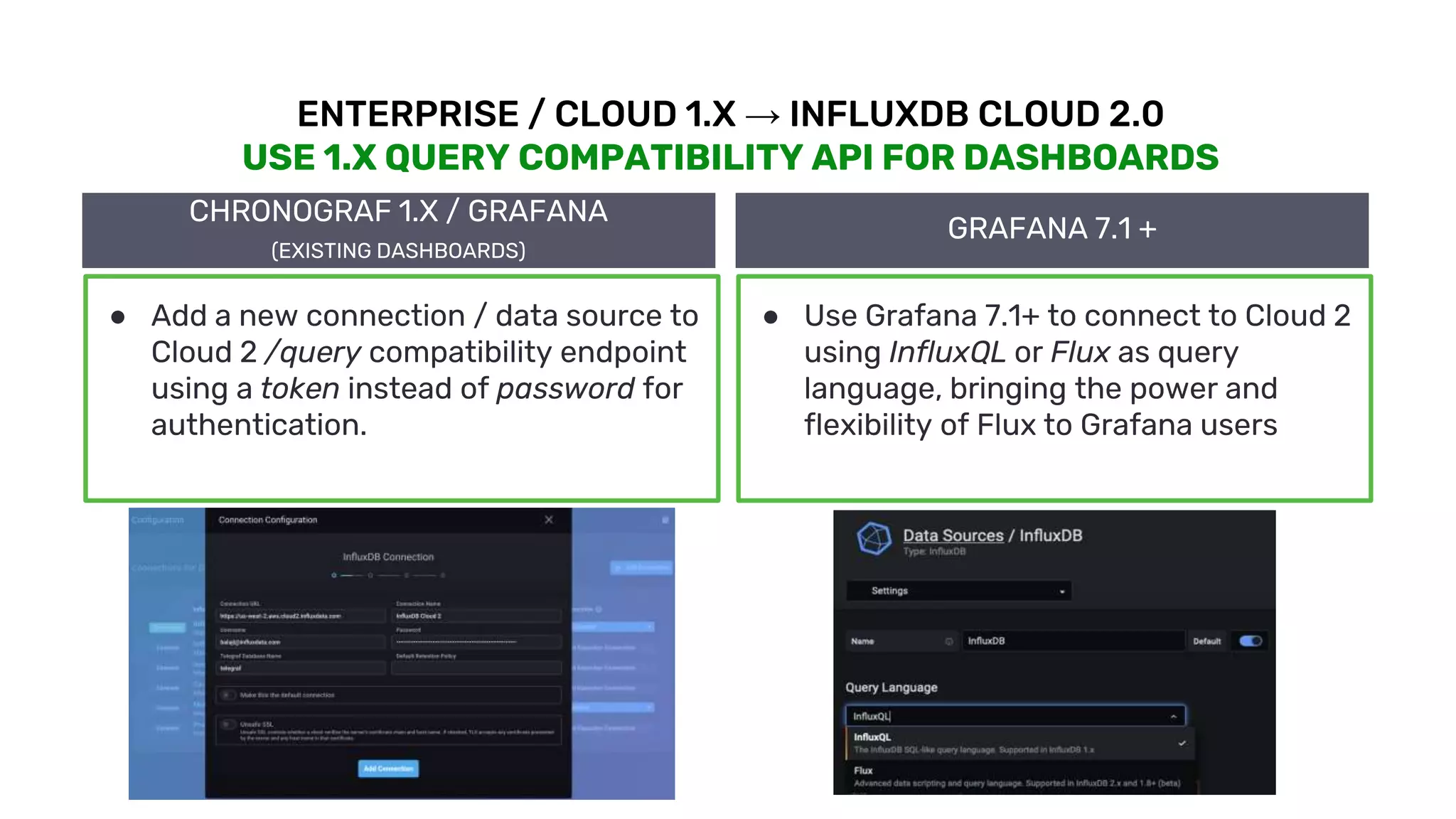

USE 1.X QUERY COMPATIBILITY API FOR DASHBOARDS
CHRONOGRAF 1.X / GRAFANA
(EXISTING DASHBOARDS)
● Add a new connection / data source to
Cloud 2 /query compatibility endpoint
using a token instead of password for
authentication.
GRAFANA 7.1 +
● Use Grafana 7.1+ to connect to Cloud 2
using InfluxQL or Flux as query
language, bringing the power and
flexibility of Flux to Grafana users

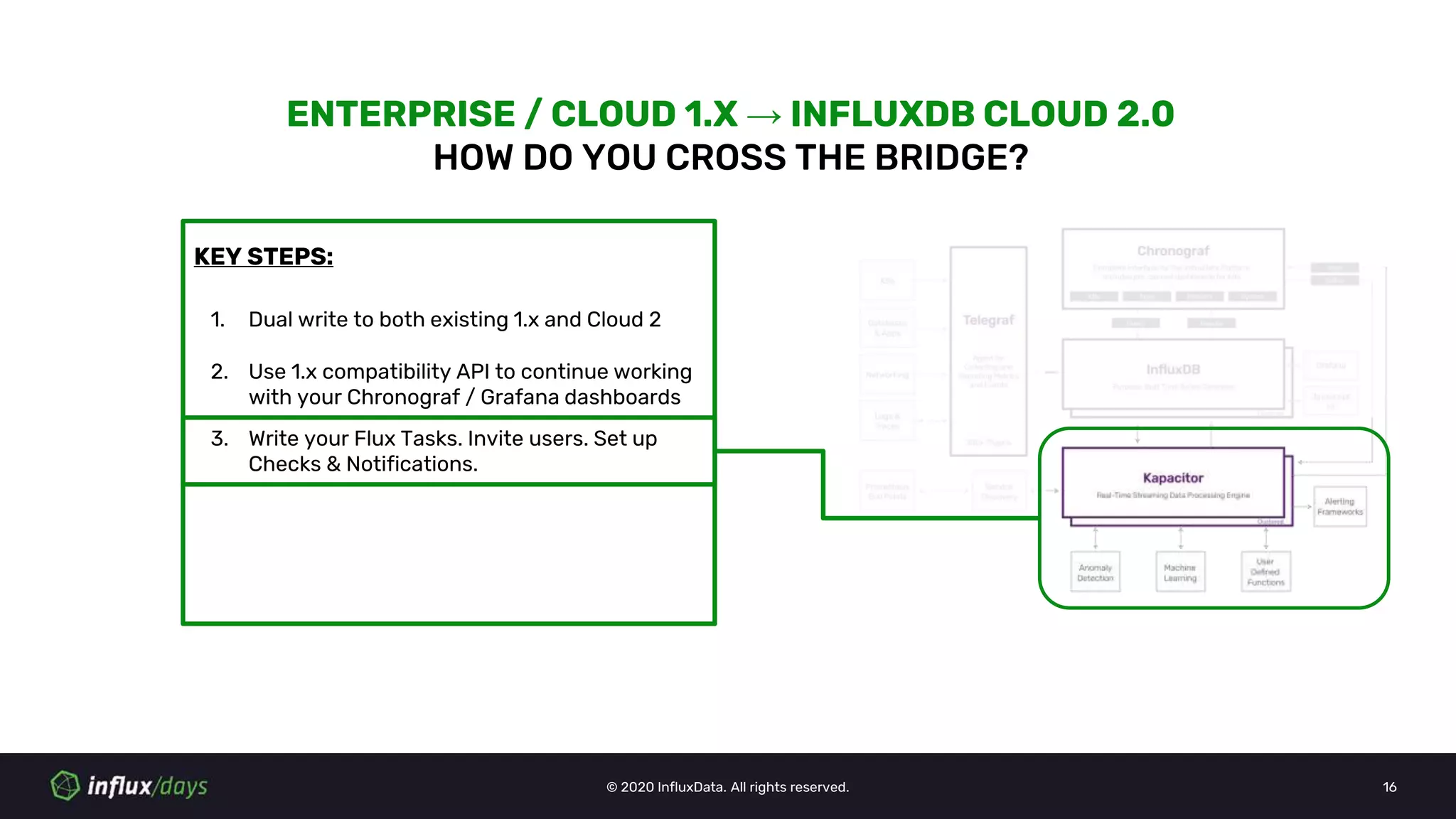

KEY STEPS:
3. Write your Flux Tasks. Invite users. Set up
Checks & Notifications.

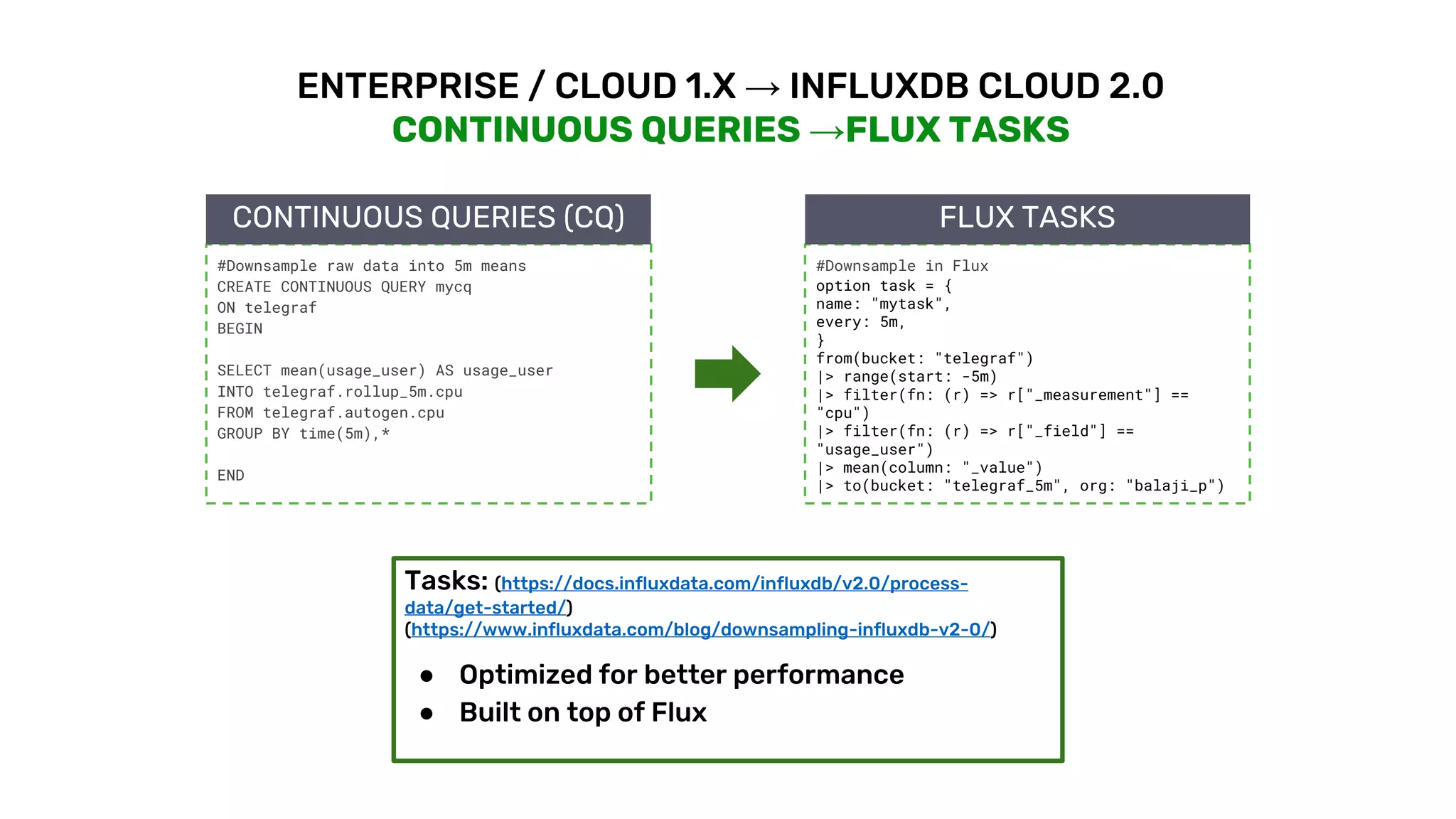

CONTINUOUS QUERIES →FLUX TASKS
#Downsample raw data into 5m means
CREATE CONTINUOUS QUERY mycq
ON telegraf
BEGIN
SELECT mean(usage_user) AS usage_user
INTO telegraf.rollup_5m.cpu
FROM telegraf.autogen.cpu
GROUP BY time(5m),*
END
#Downsample in Flux
option task = {
name: "mytask",
every: 5m,
}
from(bucket: "telegraf")
|> range(start: -5m)
|> filter(fn: (r) => r["_measurement"] ==
"cpu")
|> filter(fn: (r) => r["_field"] ==
"usage_user")
|> mean(column: "_value")
|> to(bucket: "telegraf_5m", org: "balaji_p")
CONTINUOUS QUERIES (CQ) FLUX TASKS
Tasks: (https://docs.influxdata.com/influxdb/v2.0/process-
data/get-started/)
(https://www.influxdata.com/blog/downsampling-influxdb-v2-0/)
● Optimized for better performance
● Built on top of Flux

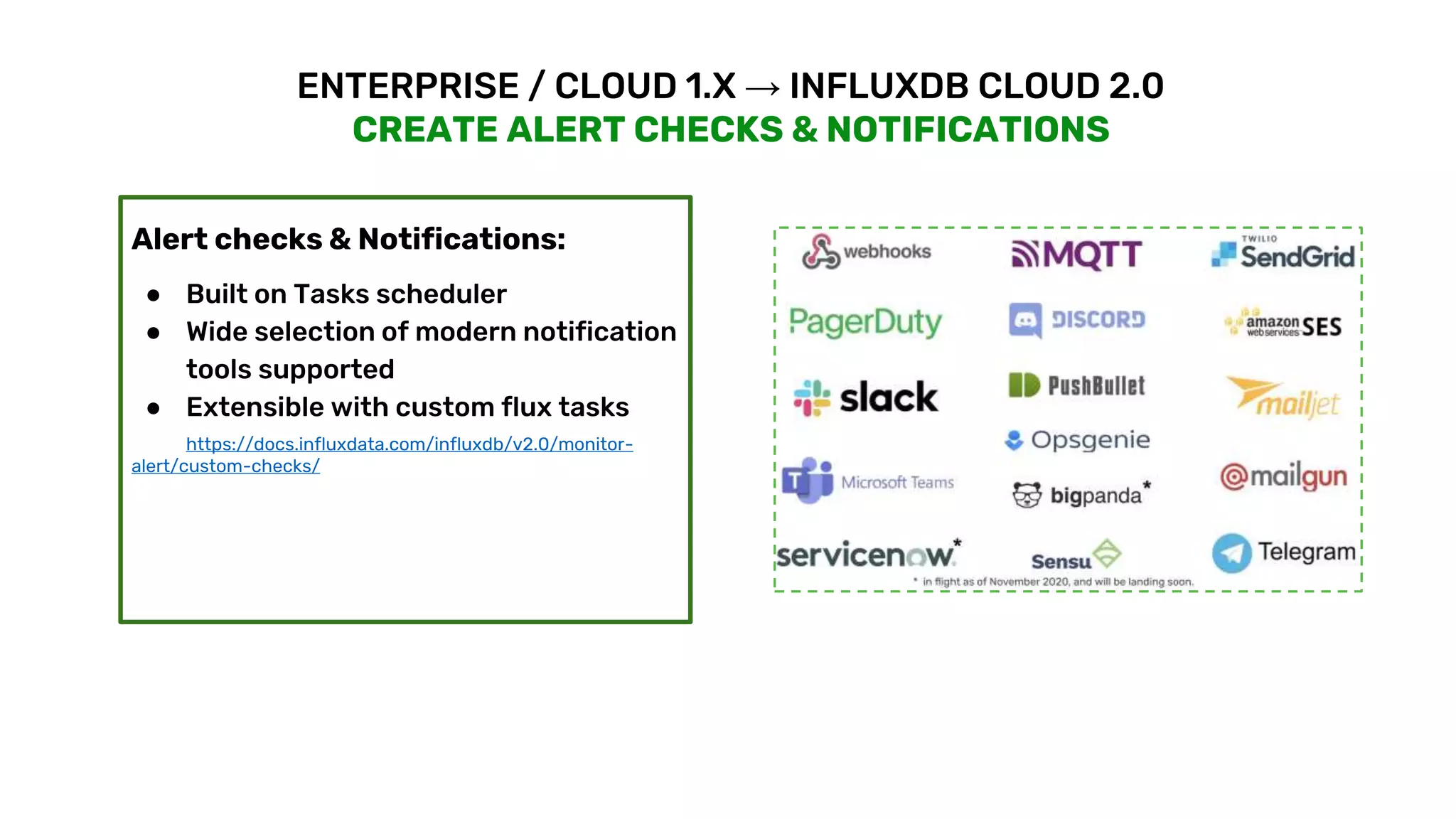

CREATE ALERT CHECKS & NOTIFICATIONS
Alert checks & Notifications:
● Built on Tasks scheduler
● Wide selection of modern notification
tools supported
● Extensible with custom flux tasks
https://docs.influxdata.com/influxdb/v2.0/monitor-
alert/custom-checks/

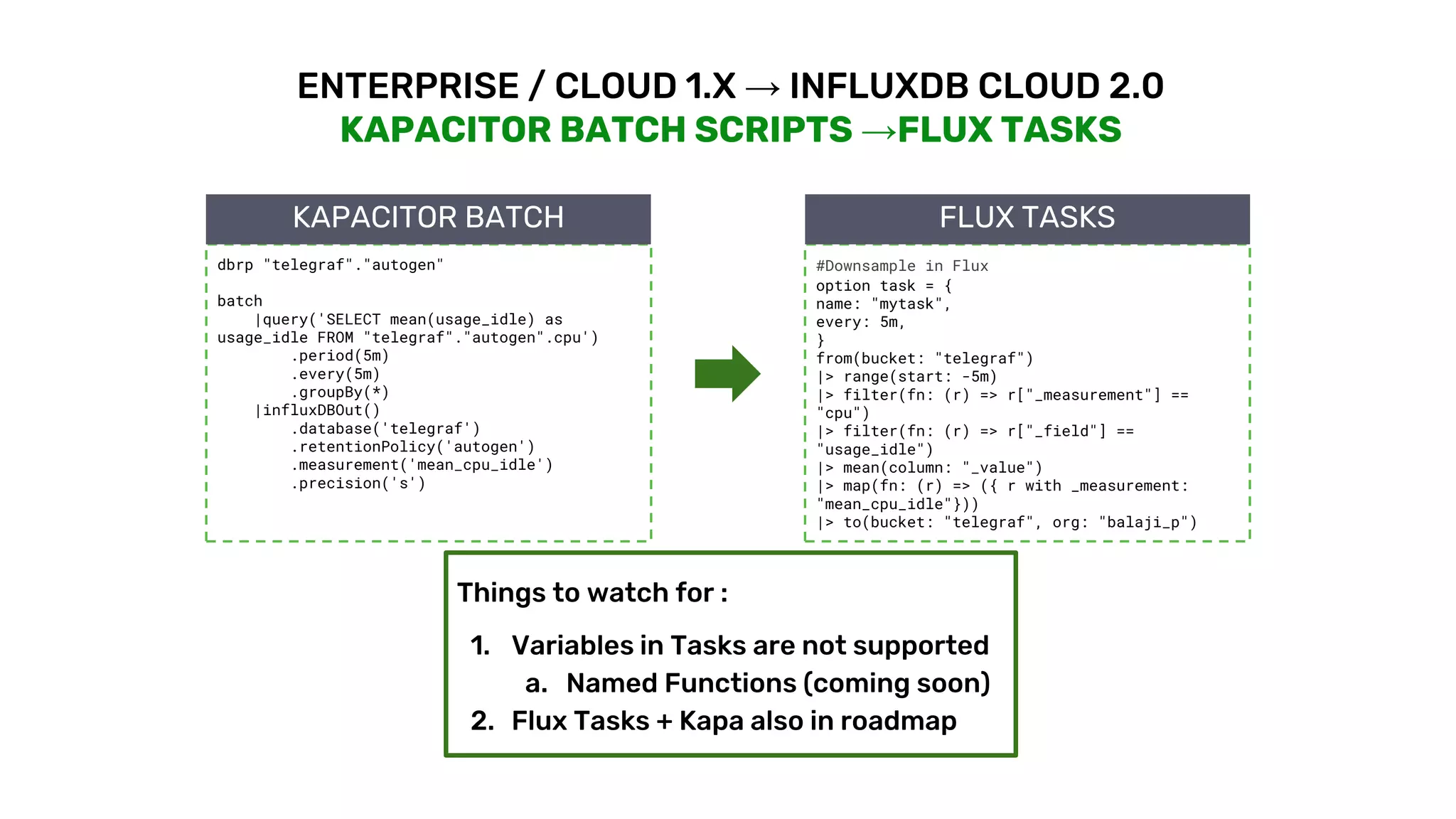

KAPACITOR BATCH SCRIPTS →FLUX TASKS
dbrp "telegraf"."autogen"
batch
|query('SELECT mean(usage_idle) as
usage_idle FROM "telegraf"."autogen".cpu')
.period(5m)
.every(5m)
.groupBy(*)
|influxDBOut()
.database('telegraf')
.retentionPolicy('autogen')
.measurement('mean_cpu_idle')
.precision('s')
#Downsample in Flux
option task = {
name: "mytask",
every: 5m,
}
from(bucket: "telegraf")
|> range(start: -5m)
|> filter(fn: (r) => r["_measurement"] ==
"cpu")
|> filter(fn: (r) => r["_field"] ==
"usage_idle")
|> mean(column: "_value")
|> map(fn: (r) => ({ r with _measurement:
"mean_cpu_idle"}))
|> to(bucket: "telegraf", org: "balaji_p")
KAPACITOR BATCH FLUX TASKS
Things to watch for :
1. Variables in Tasks are not supported
a. Named Functions (coming soon)
2. Flux Tasks + Kapa also in roadmap

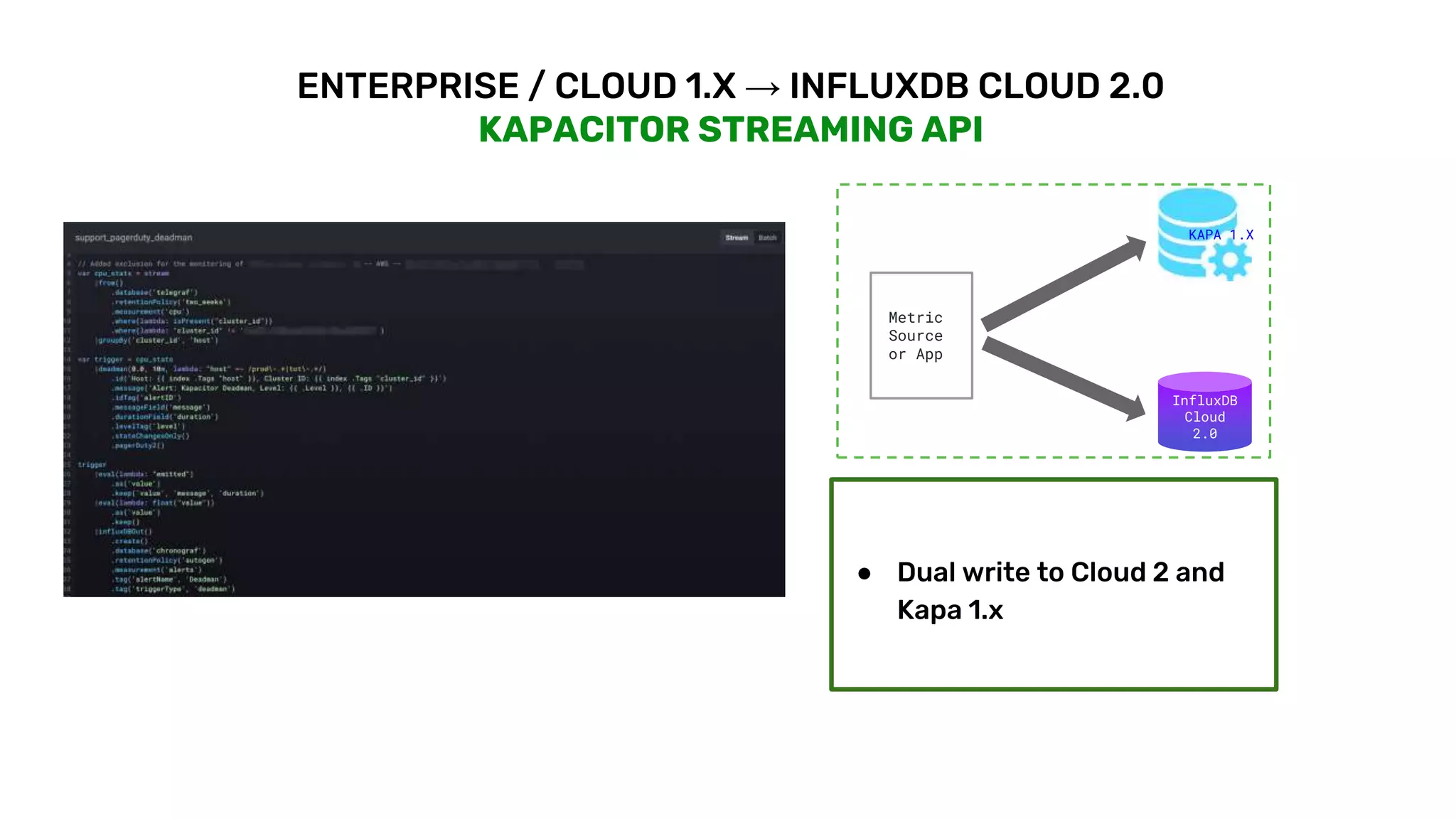

KAPACITOR STREAMING API
● Dual write to Cloud 2 and
Kapa 1.x
Metric
Source
or App
InfluxDB
Cloud
2.0
KAPA 1.X

KEY STEPS:
3. Write your Flux Tasks. Invite users. Setup
Checks & Notifications

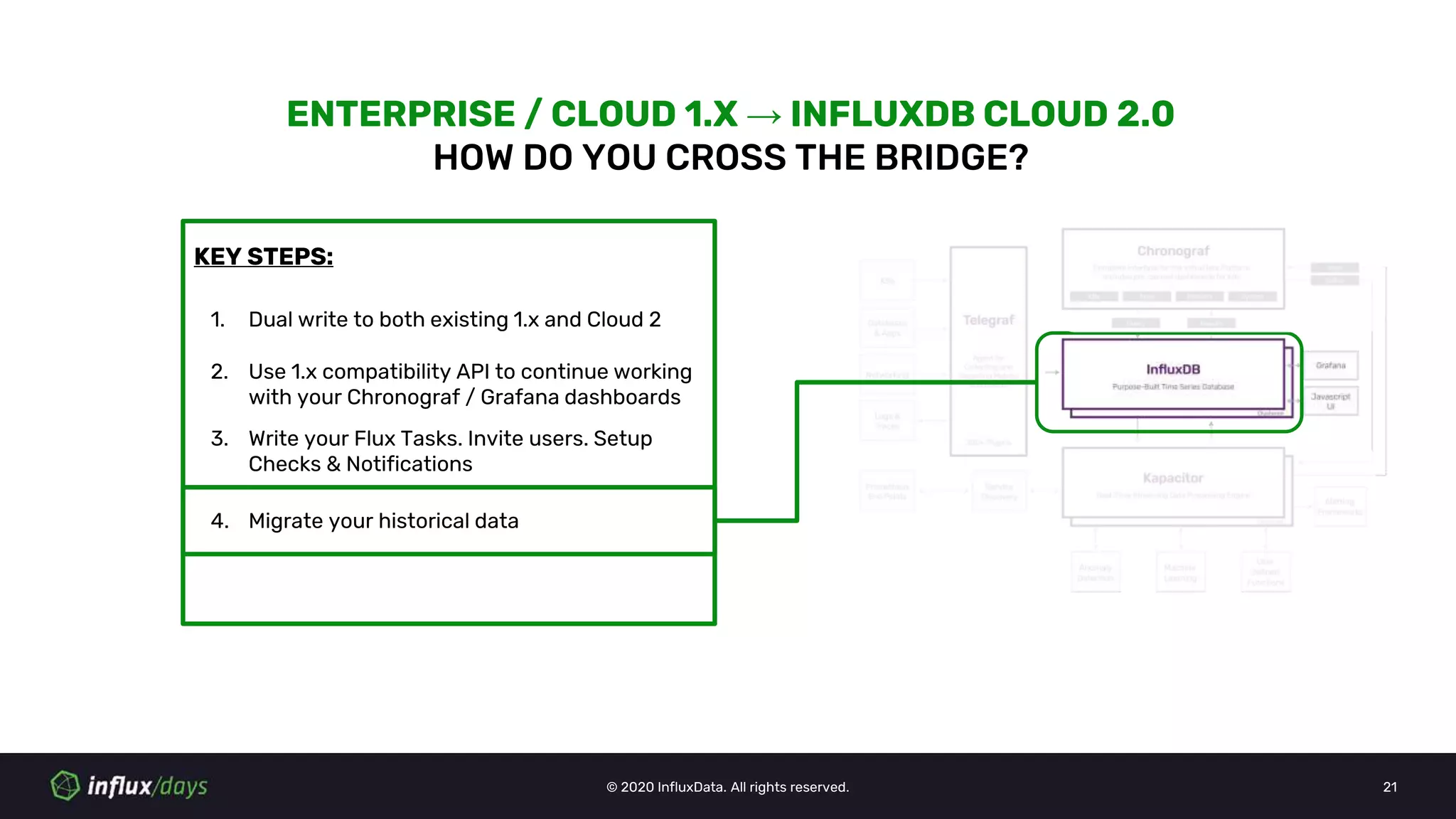

4. Migrate your historical data

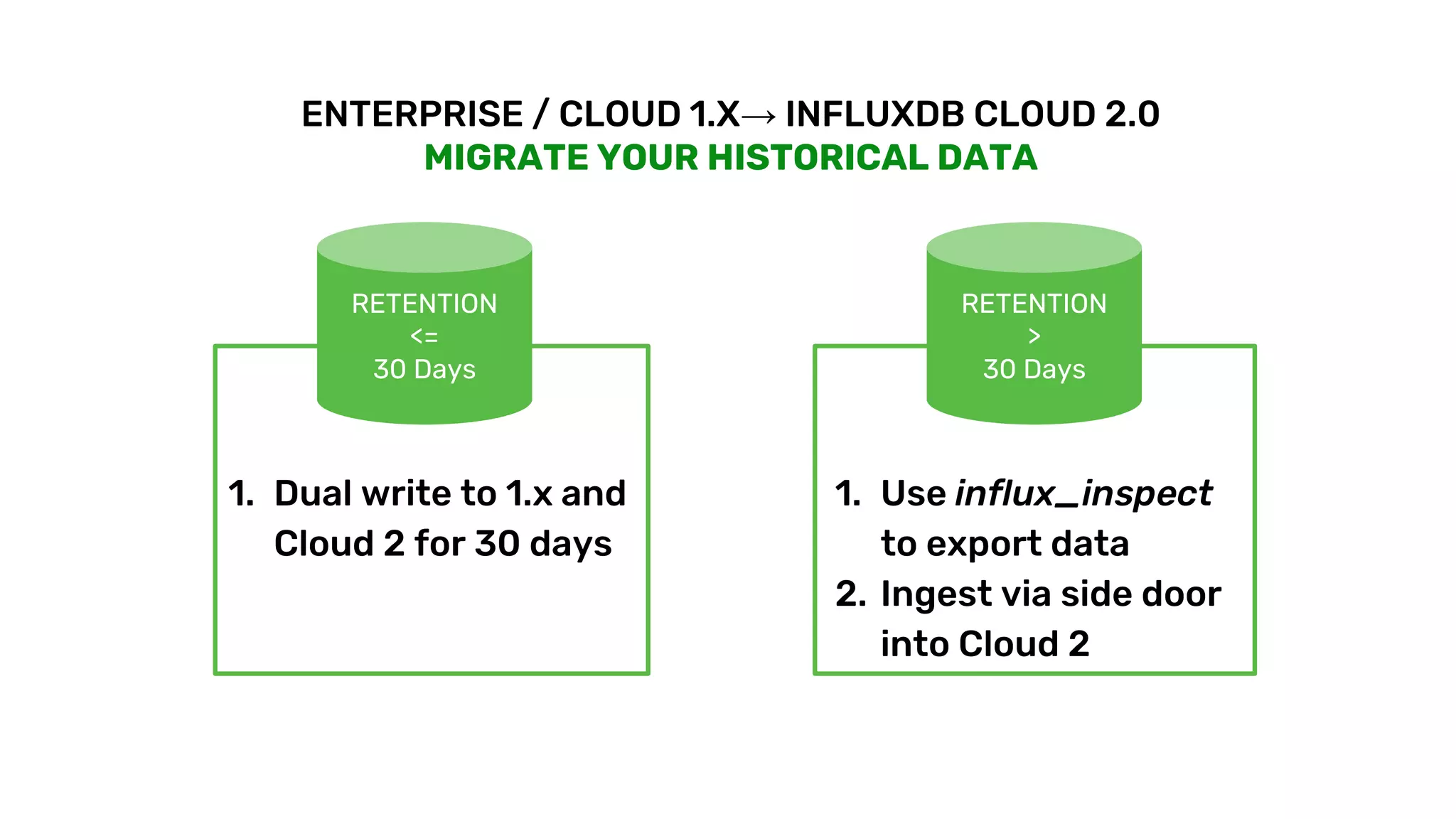

ENTERPRISE / CLOUD 1.X→ INFLUXDB CLOUD 2.0
MIGRATE YOUR HISTORICAL DATA
RETENTION
<=
30 Days
1. Dual write to 1.x and
Cloud 2 for 30 days
RETENTION
>
30 Days
1. Use influx_inspect
to export data
2. Ingest via side door
into Cloud 2

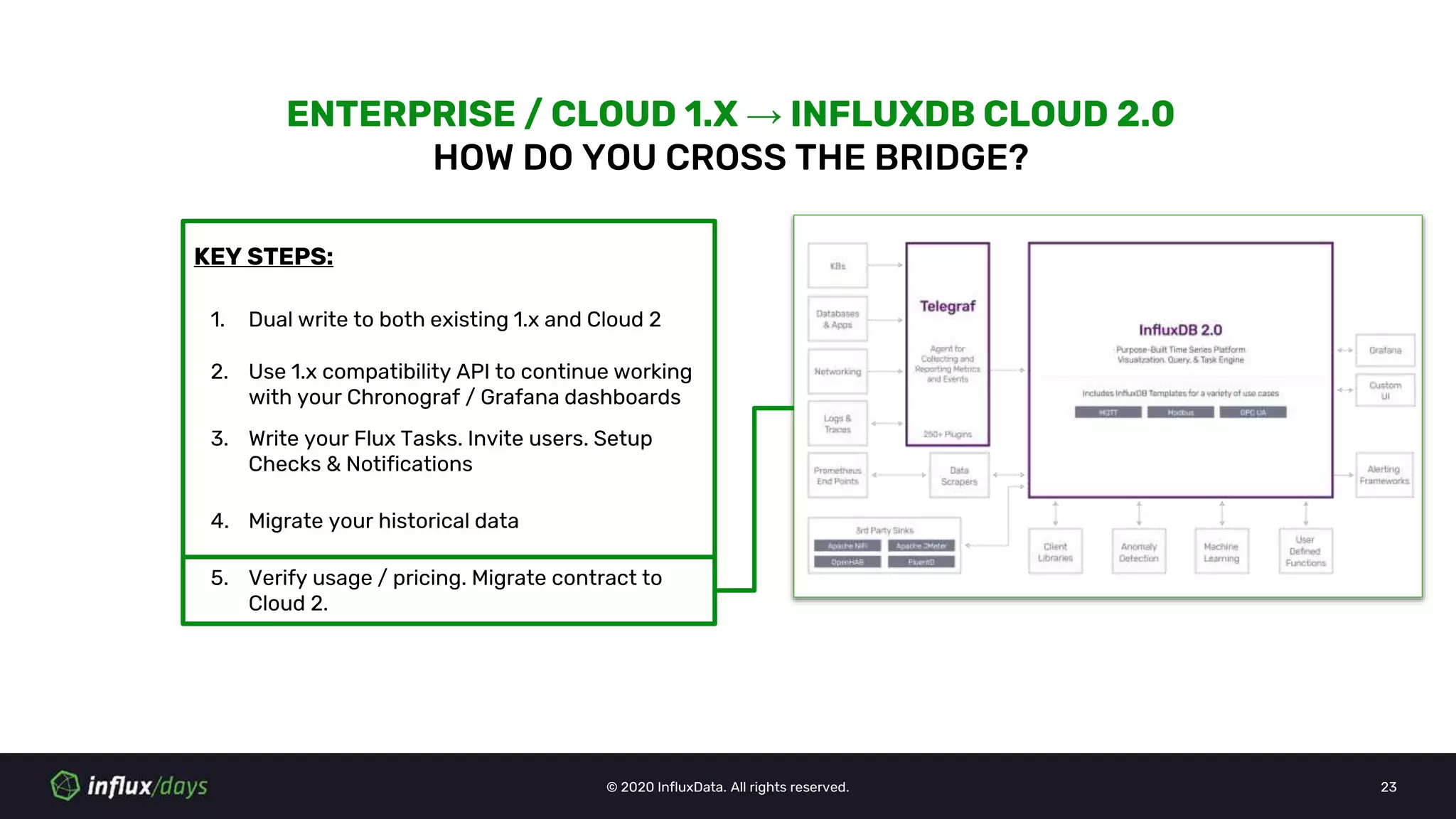

KEY STEPS:
3. Write your Flux Tasks. Invite users. Setup
Checks & Notifications
4. Migrate your historical data
5. Verify usage / pricing. Migrate contract to
Cloud 2.

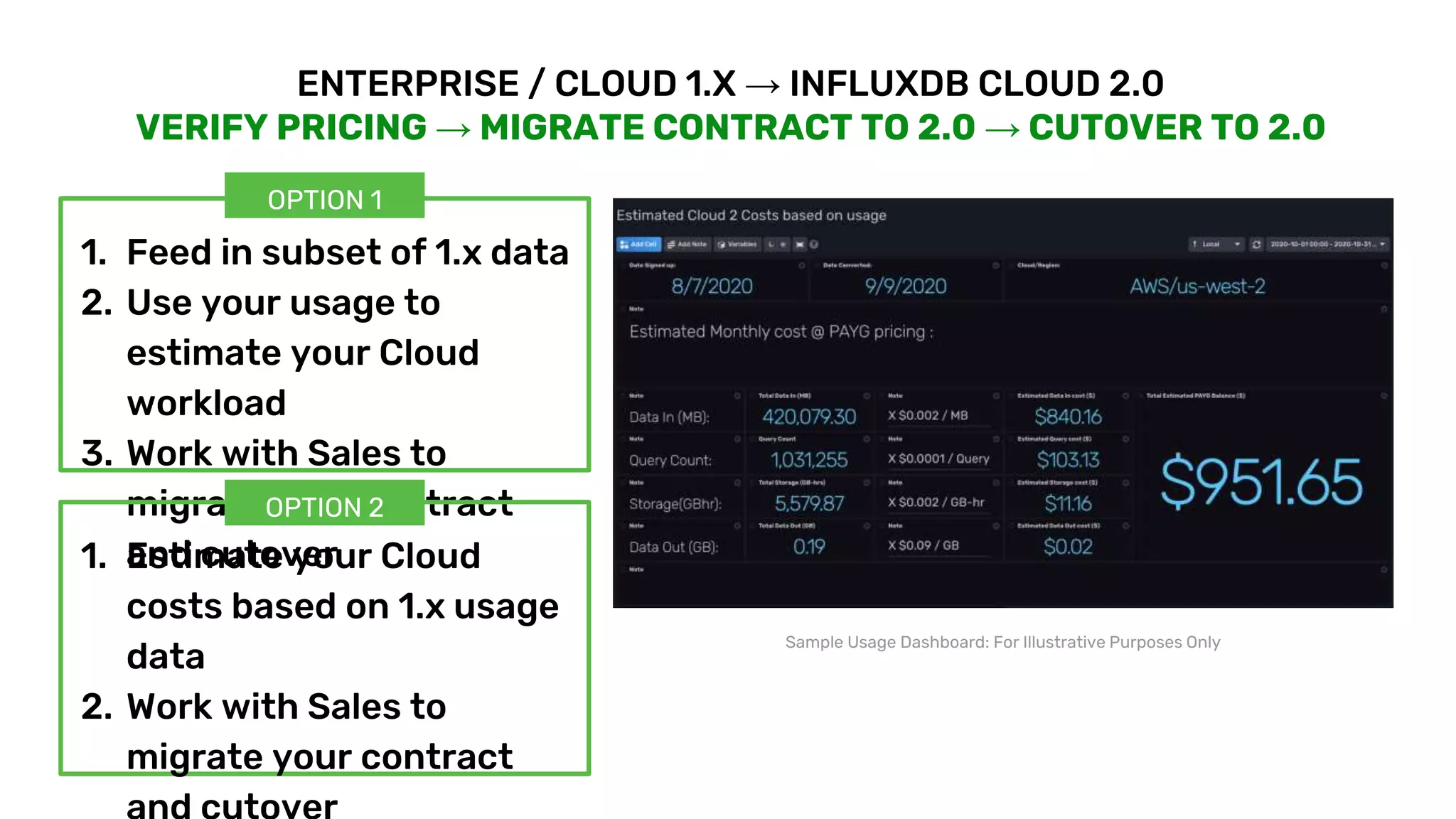

VERIFY PRICING → MIGRATE CONTRACT TO 2.0 → CUTOVER TO 2.0
Sample Usage Dashboard: For Illustrative Purposes Only
1. Feed in subset of 1.x data
2. Use your usage to
estimate your Cloud
workload
3. Work with Sales to
migrate your contract
and cutover1. Estimate your Cloud
costs based on 1.x usage
data
2. Work with Sales to
migrate your contract
OPTION 1
OPTION 2

1.x 2.0
TICK INFLUXDB

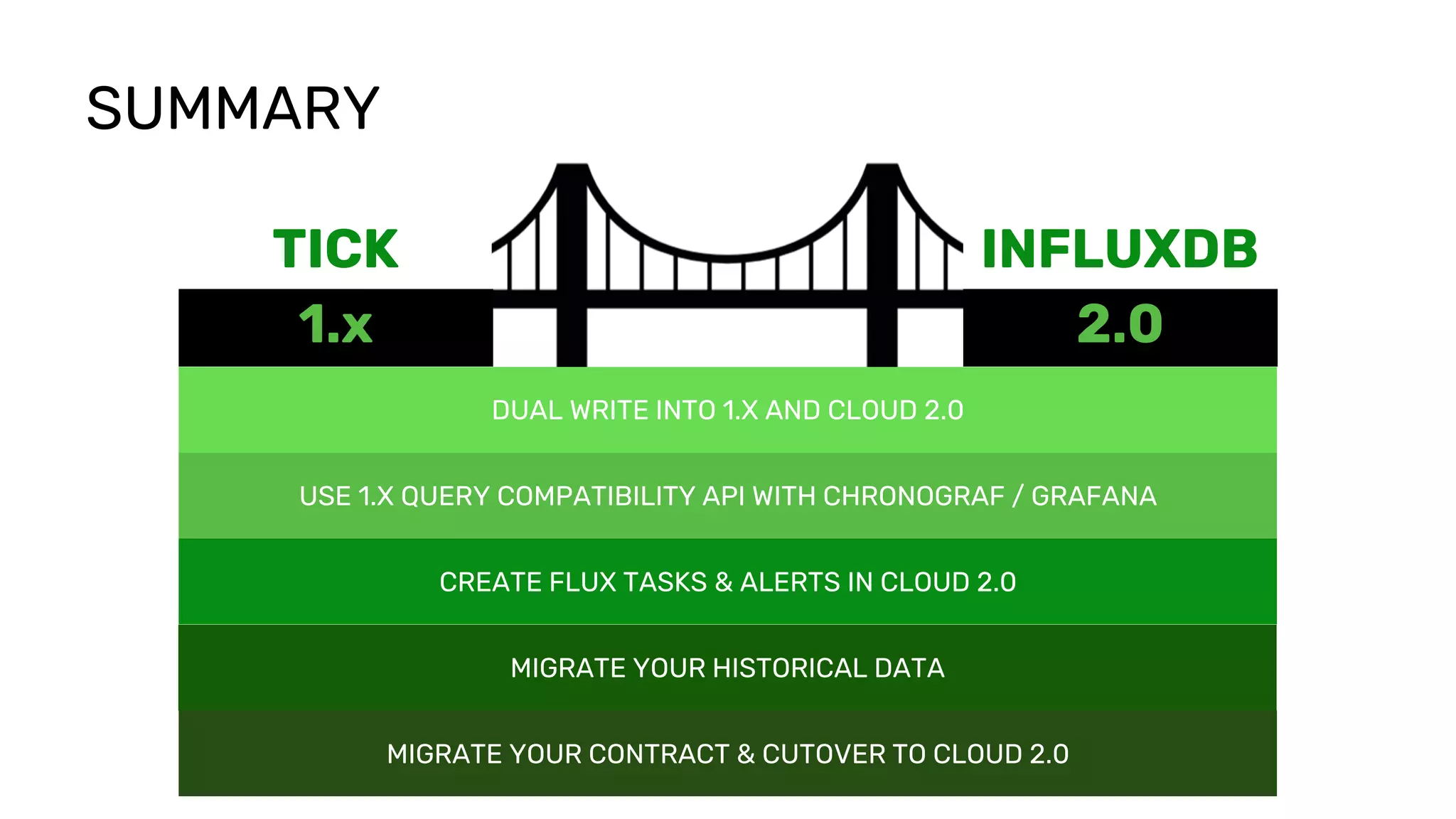

SUMMARY
DUAL WRITE INTO 1.X AND CLOUD 2.0
USE 1.X QUERY COMPATIBILITY API WITH CHRONOGRAF / GRAFANA
CREATE FLUX TASKS & ALERTS IN CLOUD 2.0
MIGRATE YOUR HISTORICAL DATA
MIGRATE YOUR CONTRACT & CUTOVER TO CLOUD 2.0

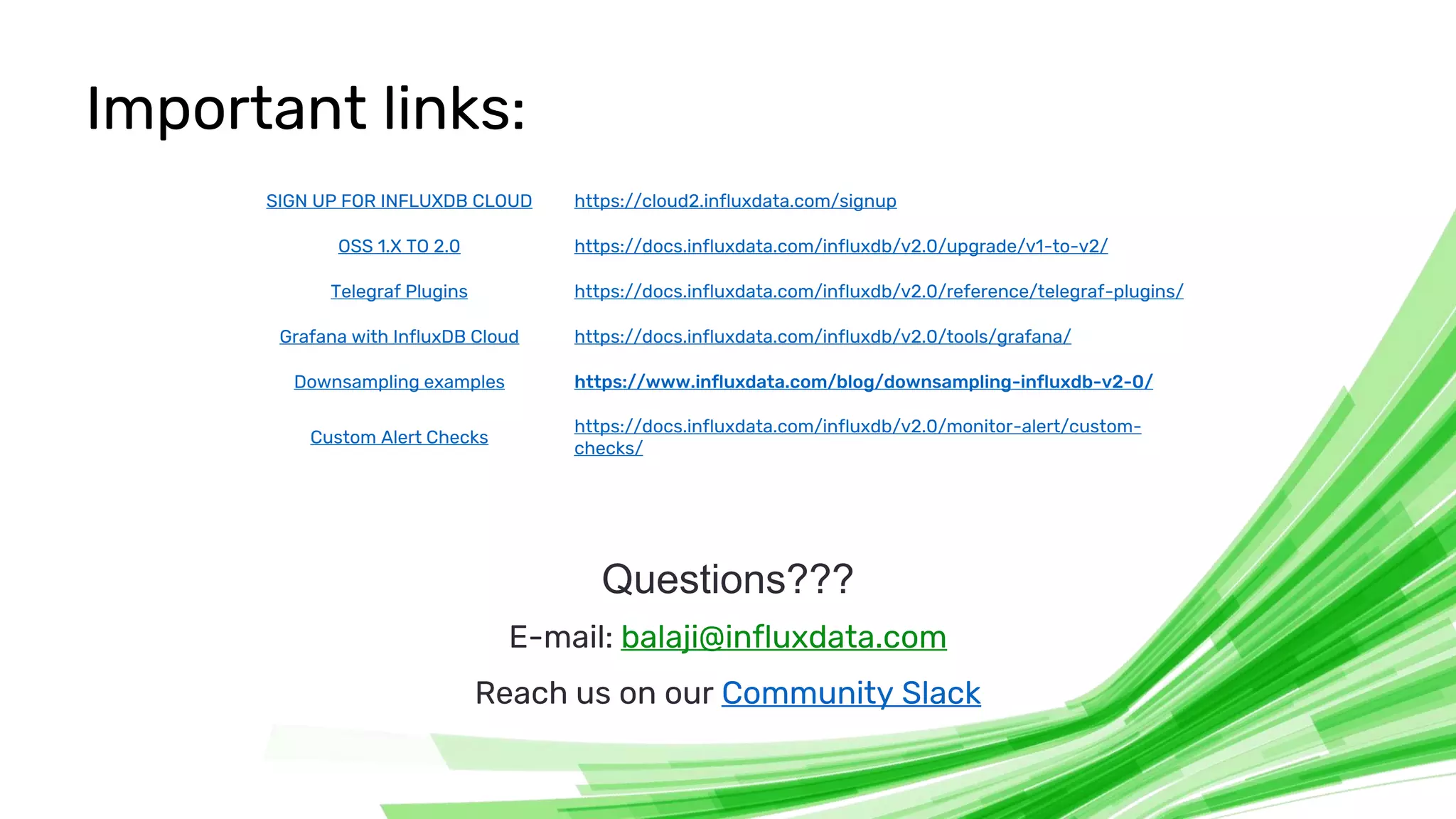

Important links:
Questions???
E-mail: balaji@influxdata.com
Reach us on our Community Slack
SIGN UP FOR INFLUXDB CLOUD https://cloud2.influxdata.com/signup
OSS 1.X TO 2.0 https://docs.influxdata.com/influxdb/v2.0/upgrade/v1-to-v2/
Telegraf Plugins https://docs.influxdata.com/influxdb/v2.0/reference/telegraf-plugins/
Grafana with InfluxDB Cloud https://docs.influxdata.com/influxdb/v2.0/tools/grafana/
Downsampling examples https://www.influxdata.com/blog/downsampling-influxdb-v2-0/
Custom Alert Checks
https://docs.influxdata.com/influxdb/v2.0/monitor-alert/custom-
checks/
