Backbone taxonomies, data aggregation,
and early career systematists:
Something's got to give
M. Andrew Johnston & Nico M. Franz
Hasbrouck Insect Collection, Arizona State University
@MAndrewJohnston
@taxonbytes
Slides: [Slideshare link]

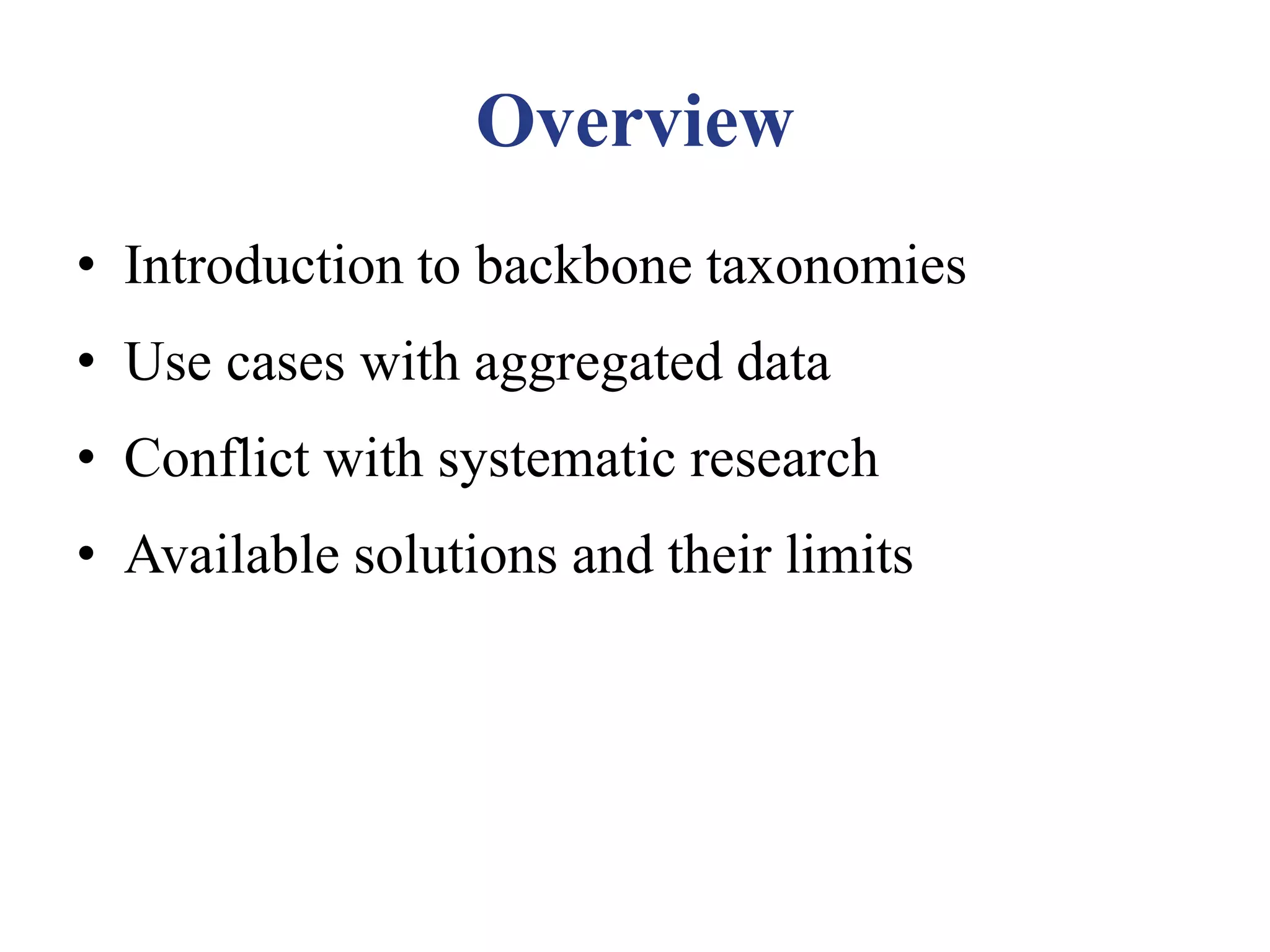

Overview
• Introduction to backbone taxonomies
• Use cases with aggregated data
• Conflict with systematic research
• Available solutions and their limits

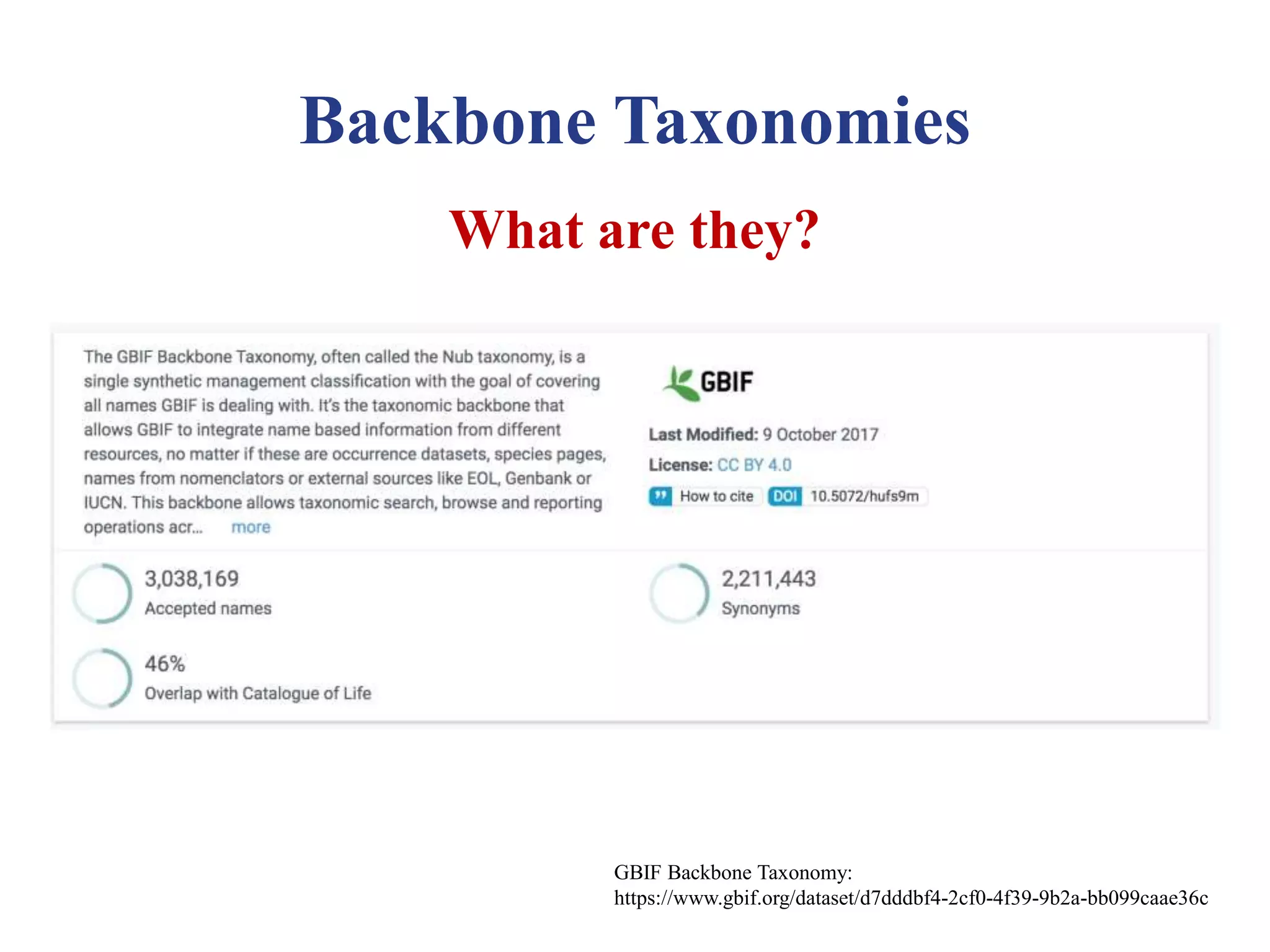

Backbone Taxonomies
What are they?
GBIF Backbone Taxonomy:
https://www.gbif.org/dataset/d7dddbf4-2cf0-4f39-9b2a-bb099caae36c
Backbone Taxonomies
Widely used
Aggregated data and darkling beetles
Eleodes Eschscholtz, 1829
208 Valid species
412 Available species-group names

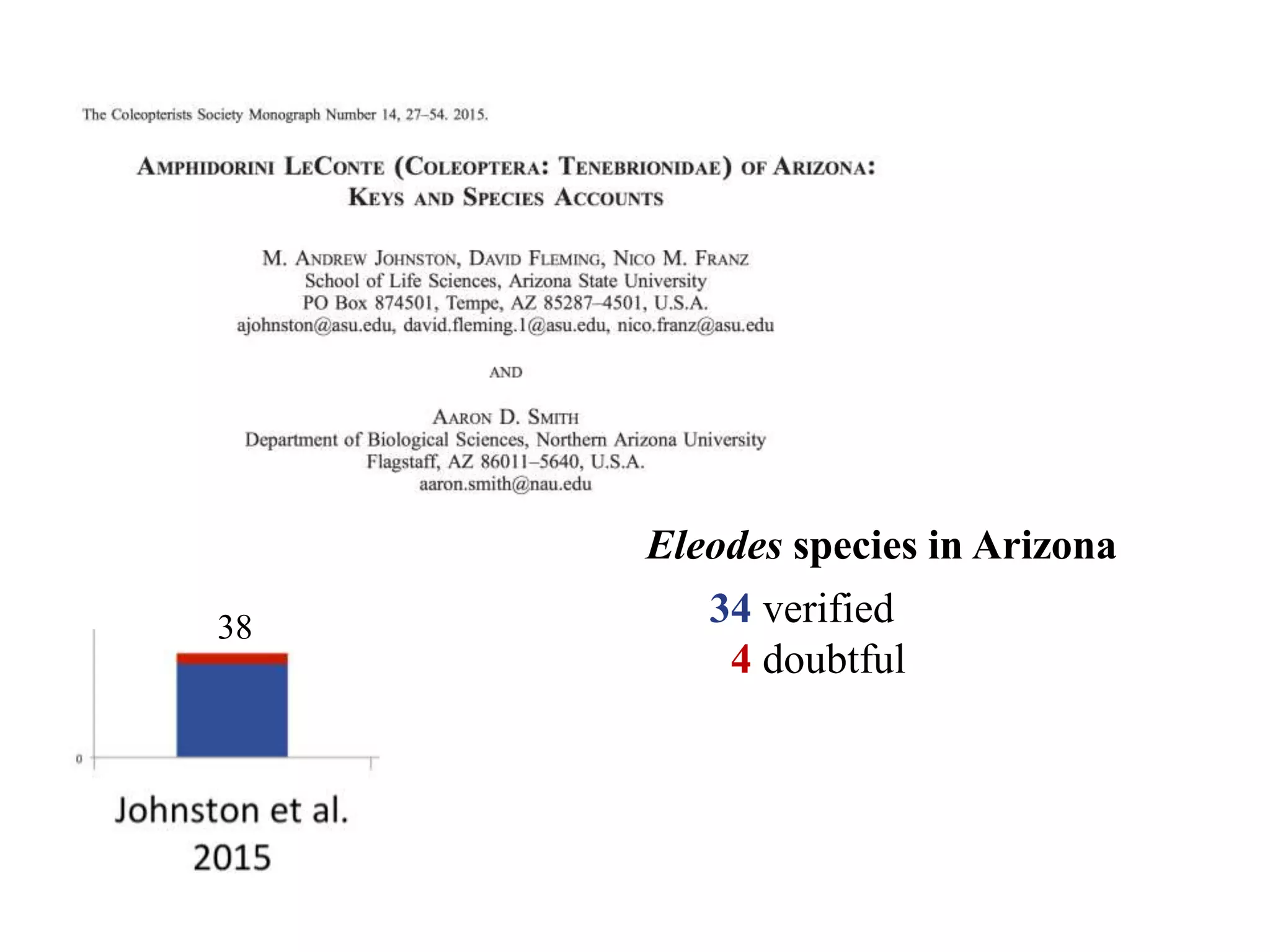

Eleodes species in Arizona
34 verified
4 doubtful
38
38

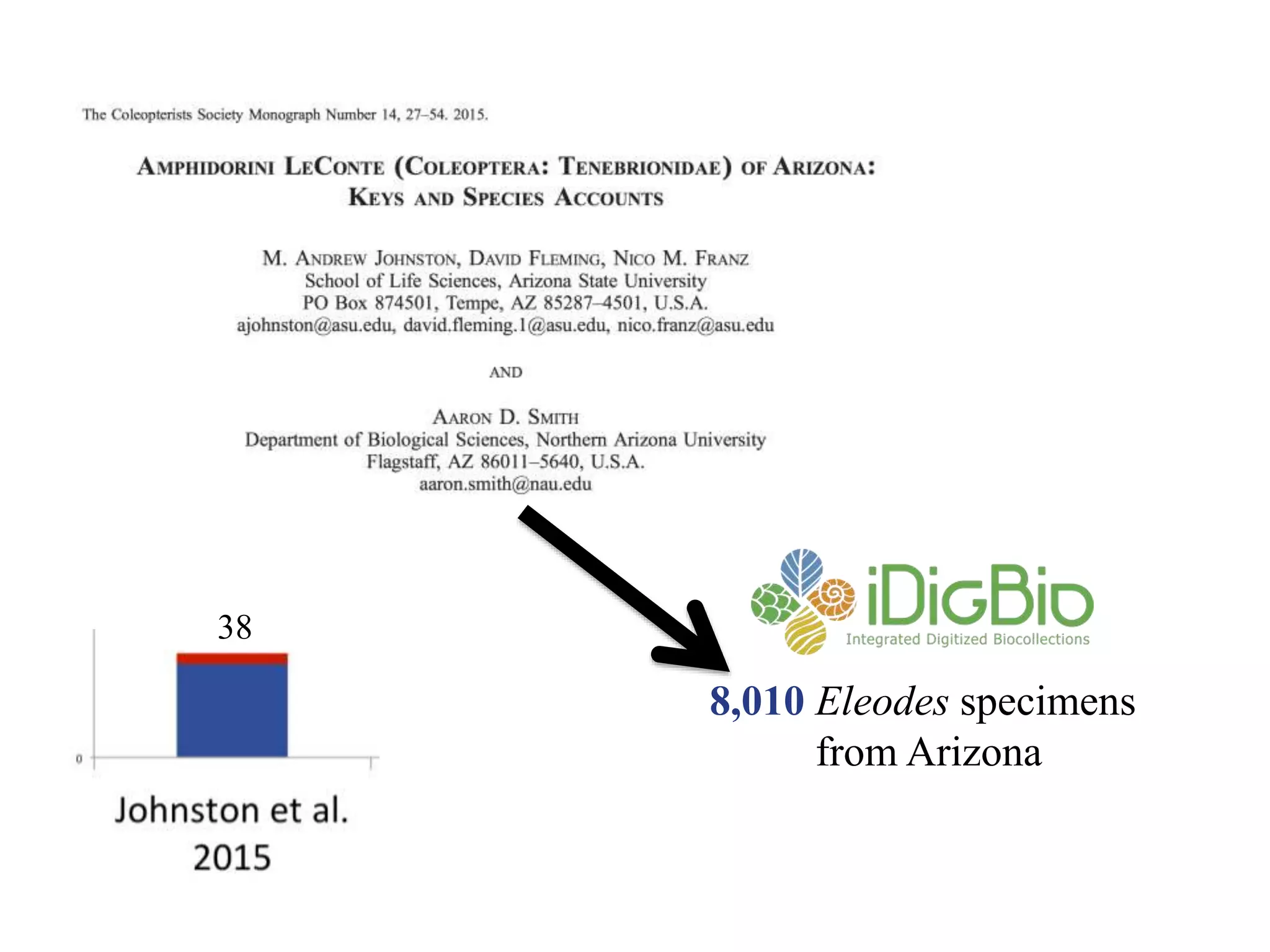

8,010 Eleodes specimens
from Arizona

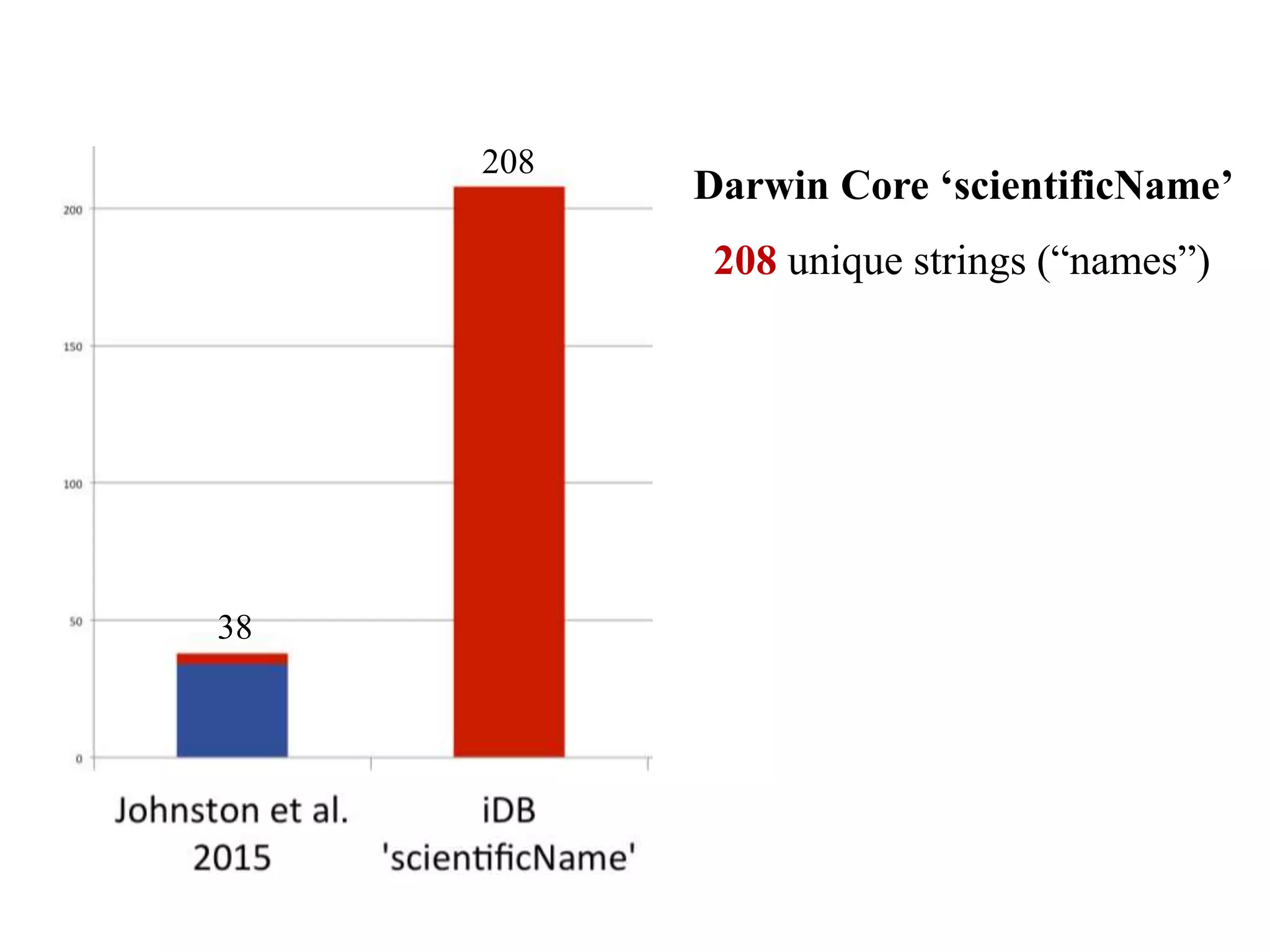

38
208
Darwin Core ‘scientificName’
208 unique strings (“names”)
38
208
Darwin Core ‘scientificName’
Eleodes carbonaria chihuahuaensis
Champion, 1884
Previously valid combinations
eleodes carbonarius chihuahuaensis
eleodes lineatus
eleodes ampla
eleodes nitidus
eleodes lineata
eleodes amplus
eleodes carbonarius amplus
eleodes amplus dolosus
eleodes ampla dolosa
eleodes nitida

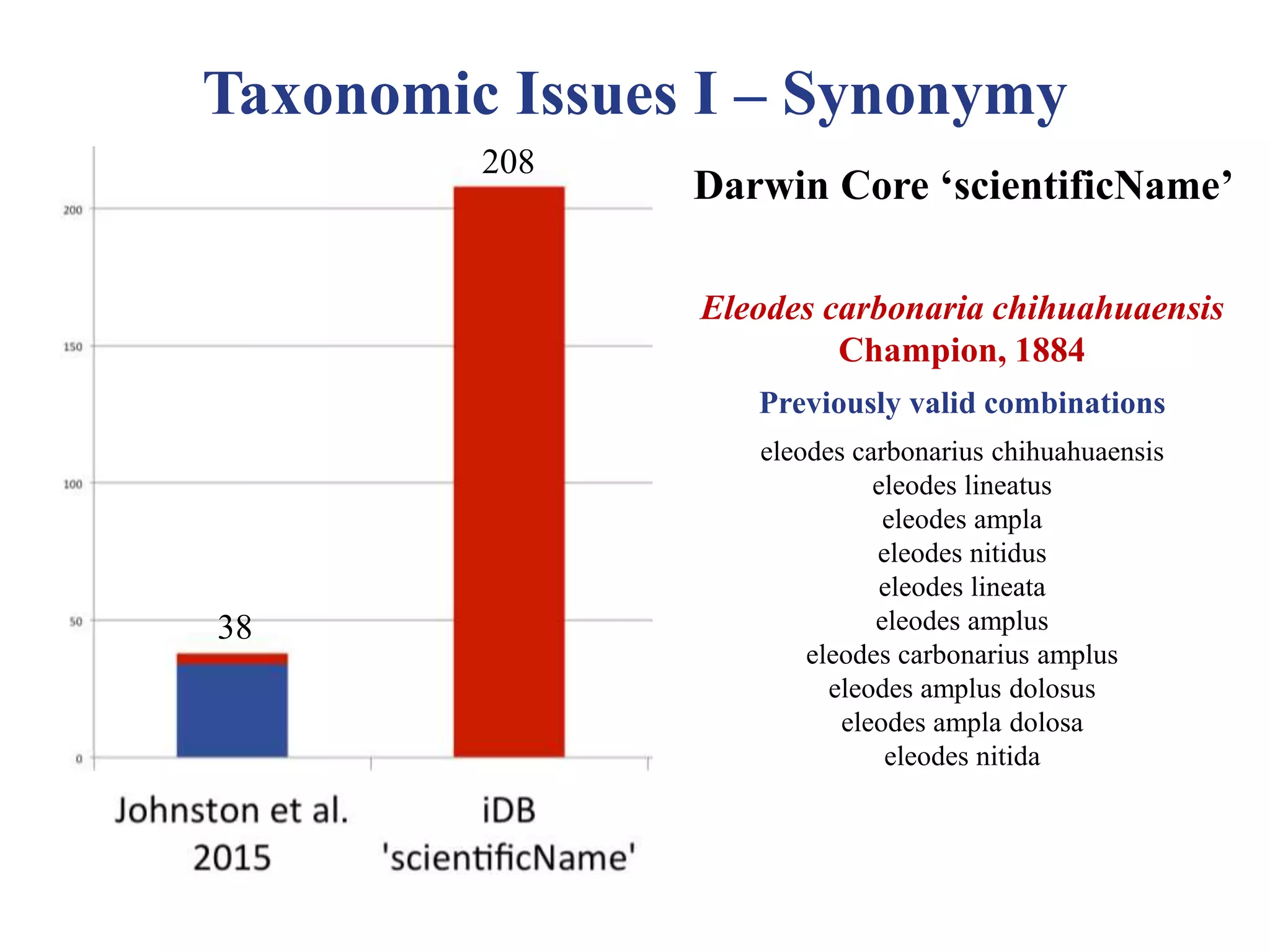

Taxonomic Issues I – Synonymy

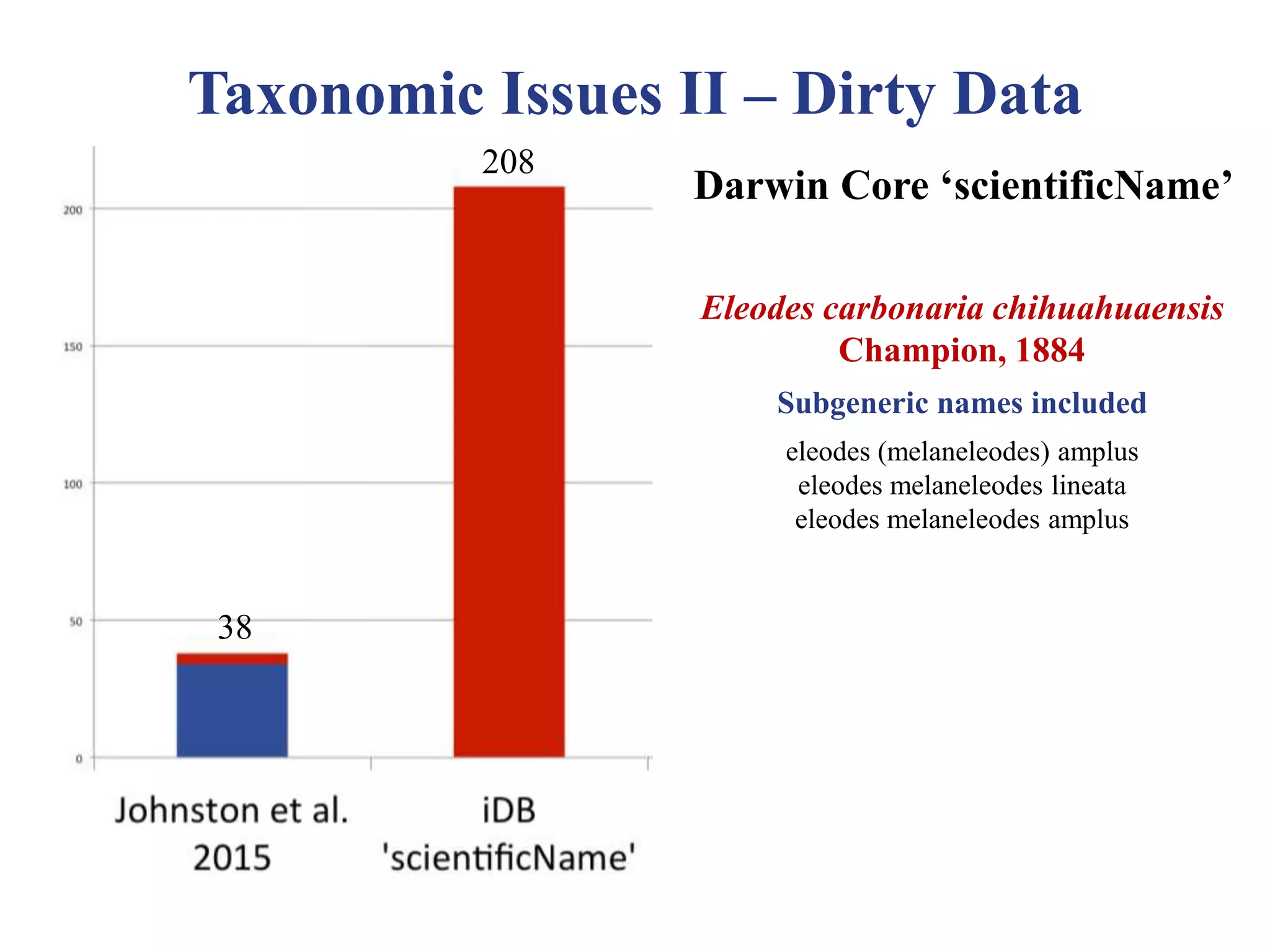

38
208
Darwin Core ‘scientificName’
Eleodes carbonaria chihuahuaensis
Champion, 1884
Subgeneric names included
eleodes (melaneleodes) amplus
eleodes melaneleodes lineata
eleodes melaneleodes amplus
Taxonomic Issues II – Dirty Data

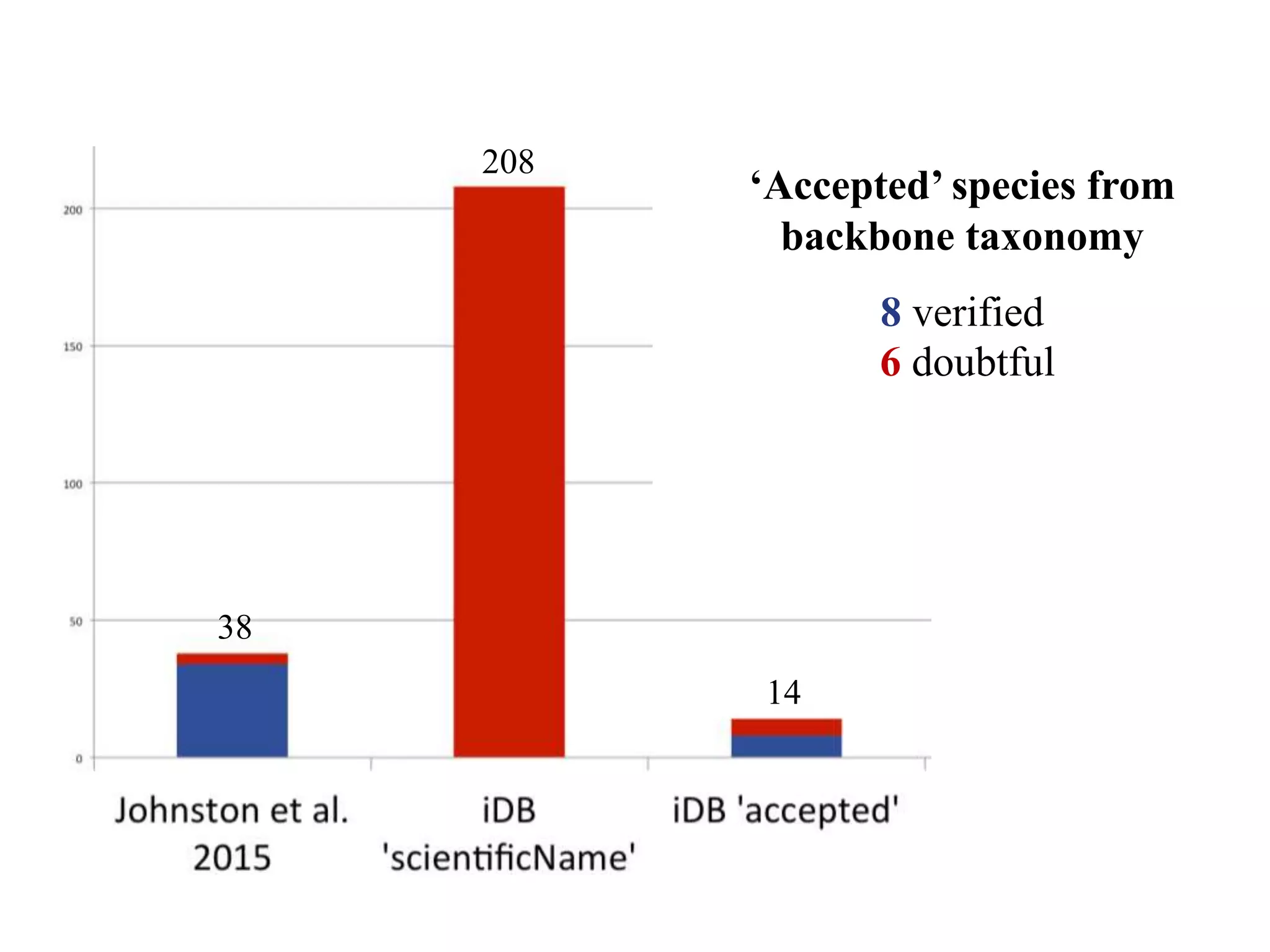

38
208
14
‘Accepted’ species from
backbone taxonomy
8 verified
6 doubtful
38
208
14

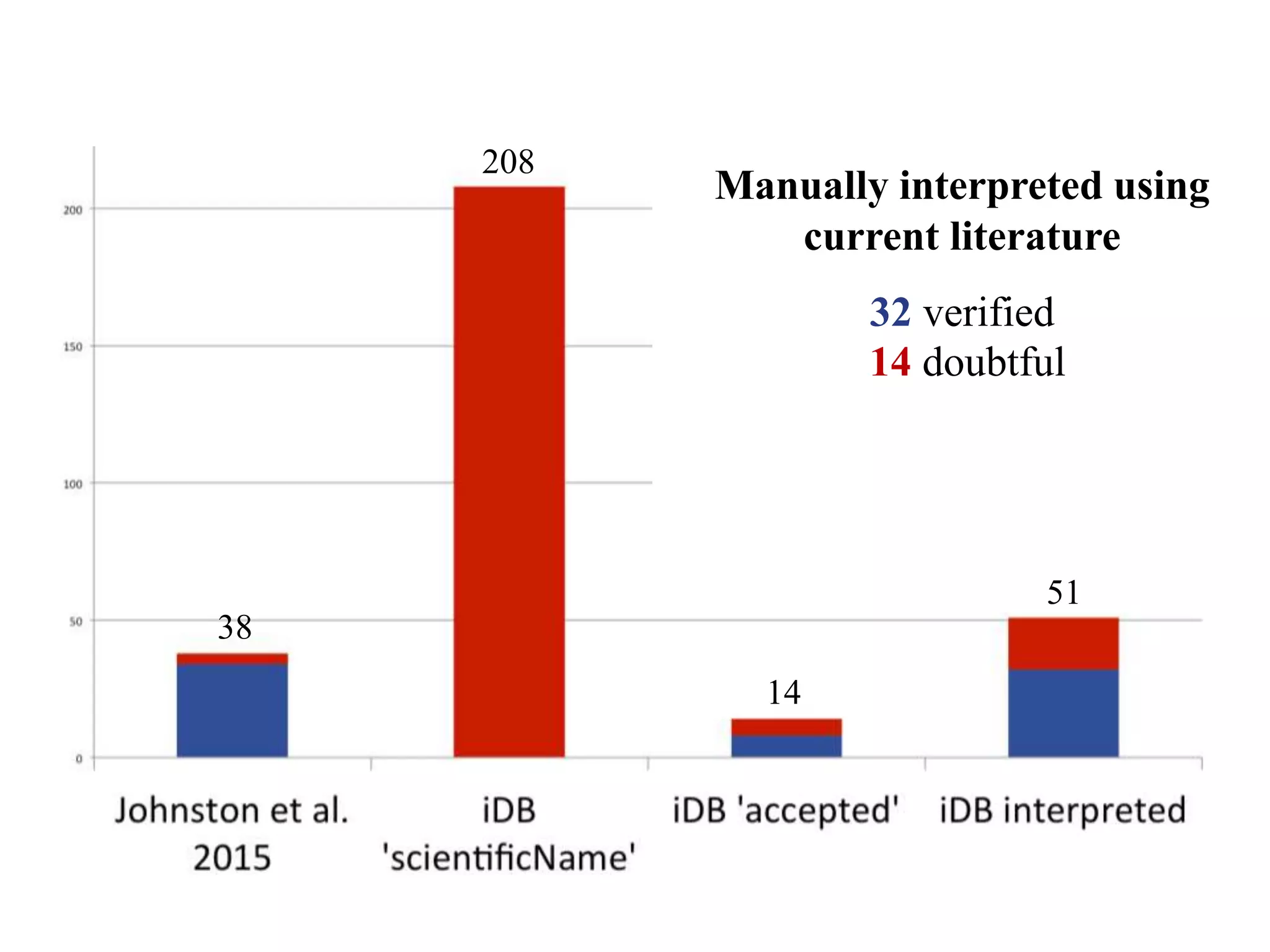

Manually interpreted using
current literature
32 verified
14 doubtful
51

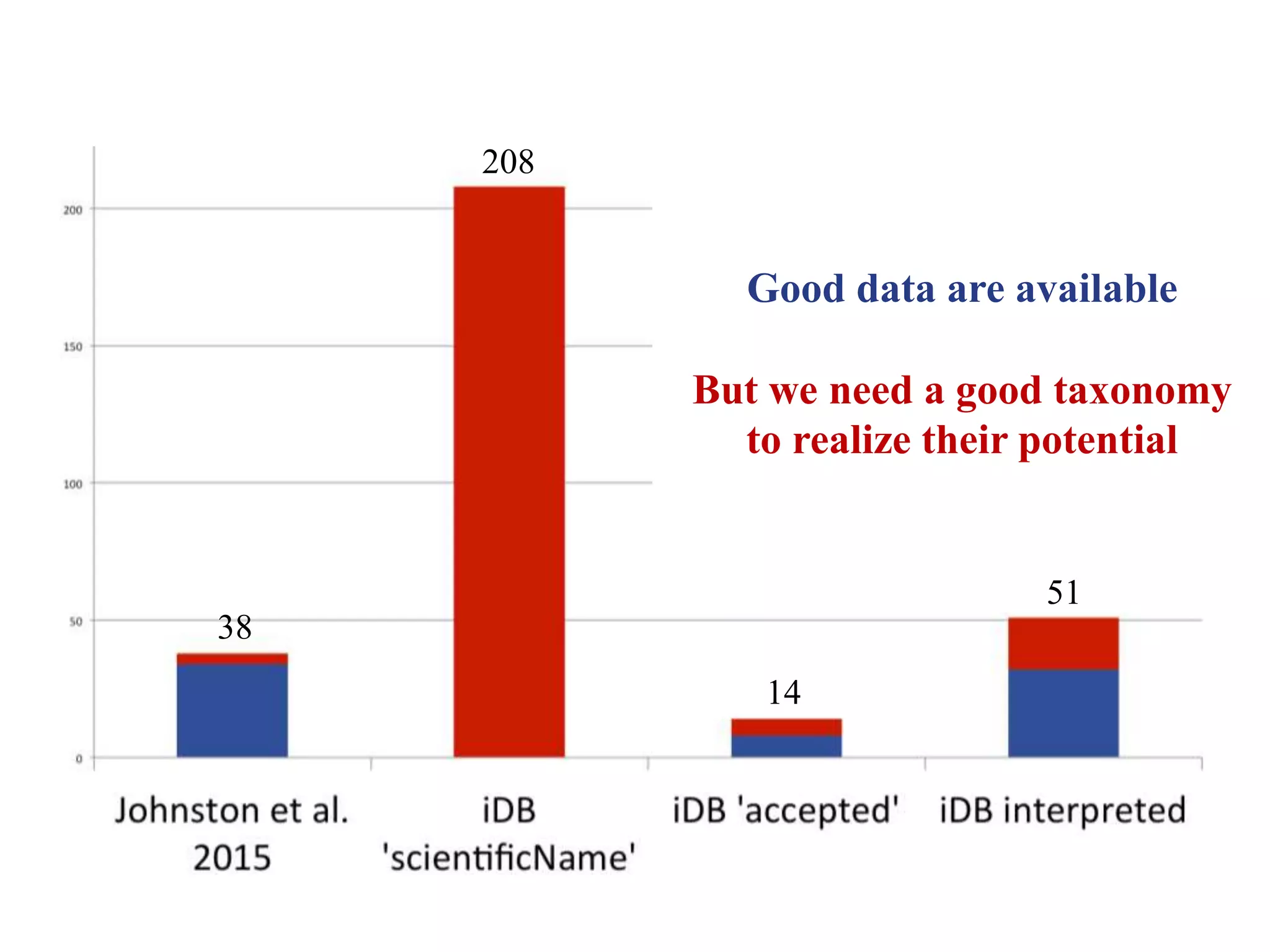

38
208
14
Good data are available
But we need a good taxonomy
to realize their potential
51

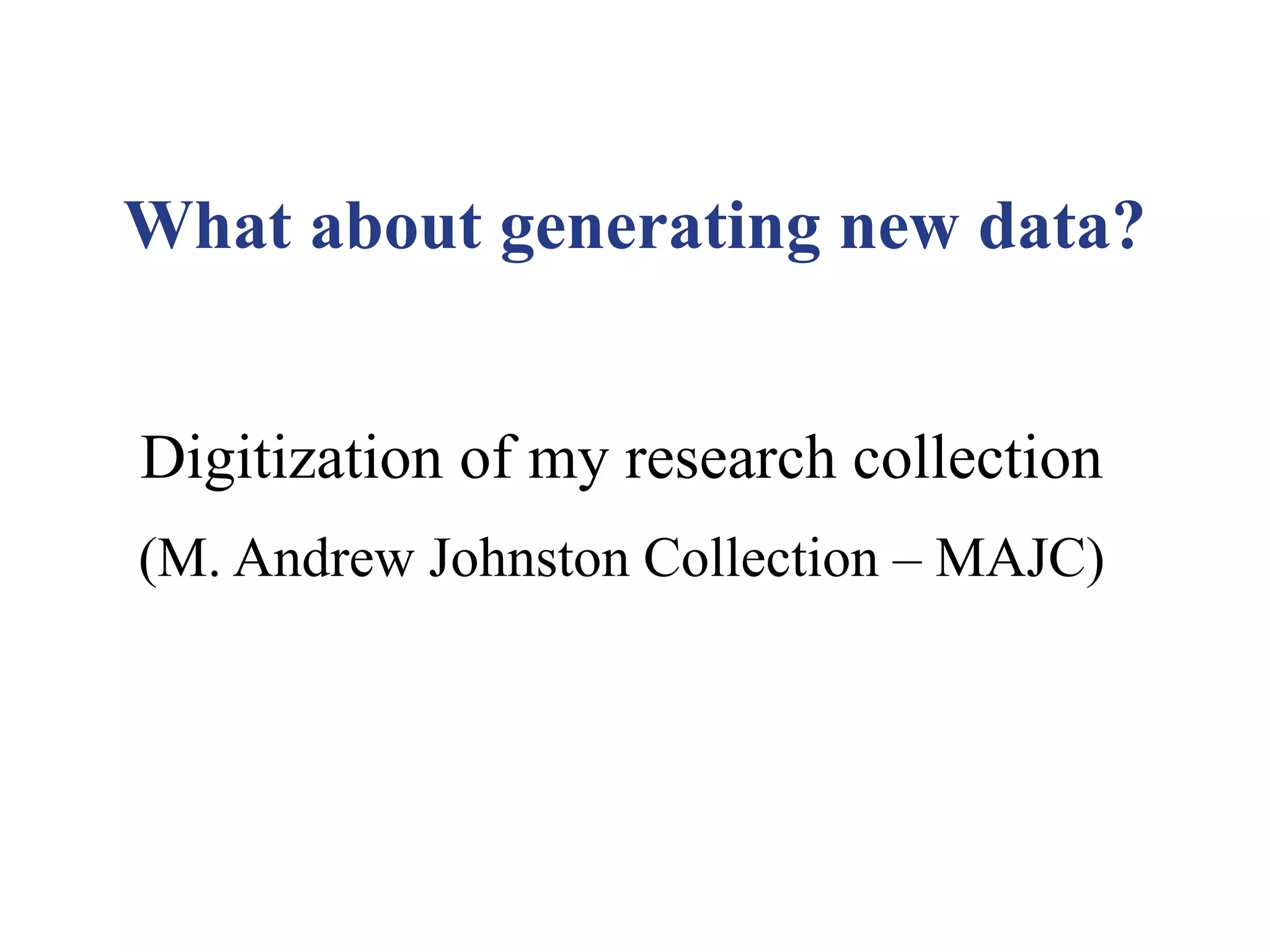

Digitization of my research collection
(M. Andrew Johnston Collection – MAJC)
What about generating new data?

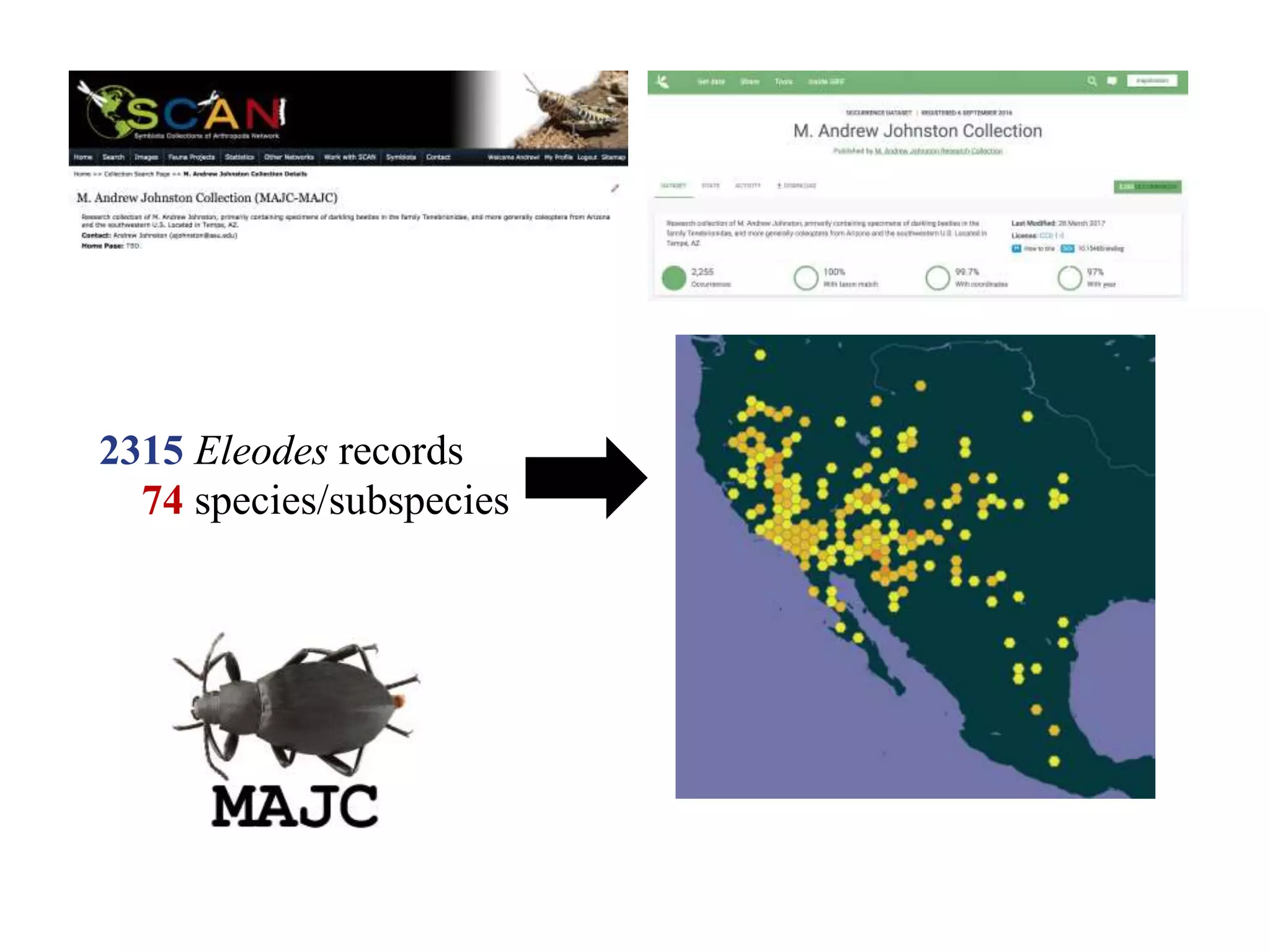

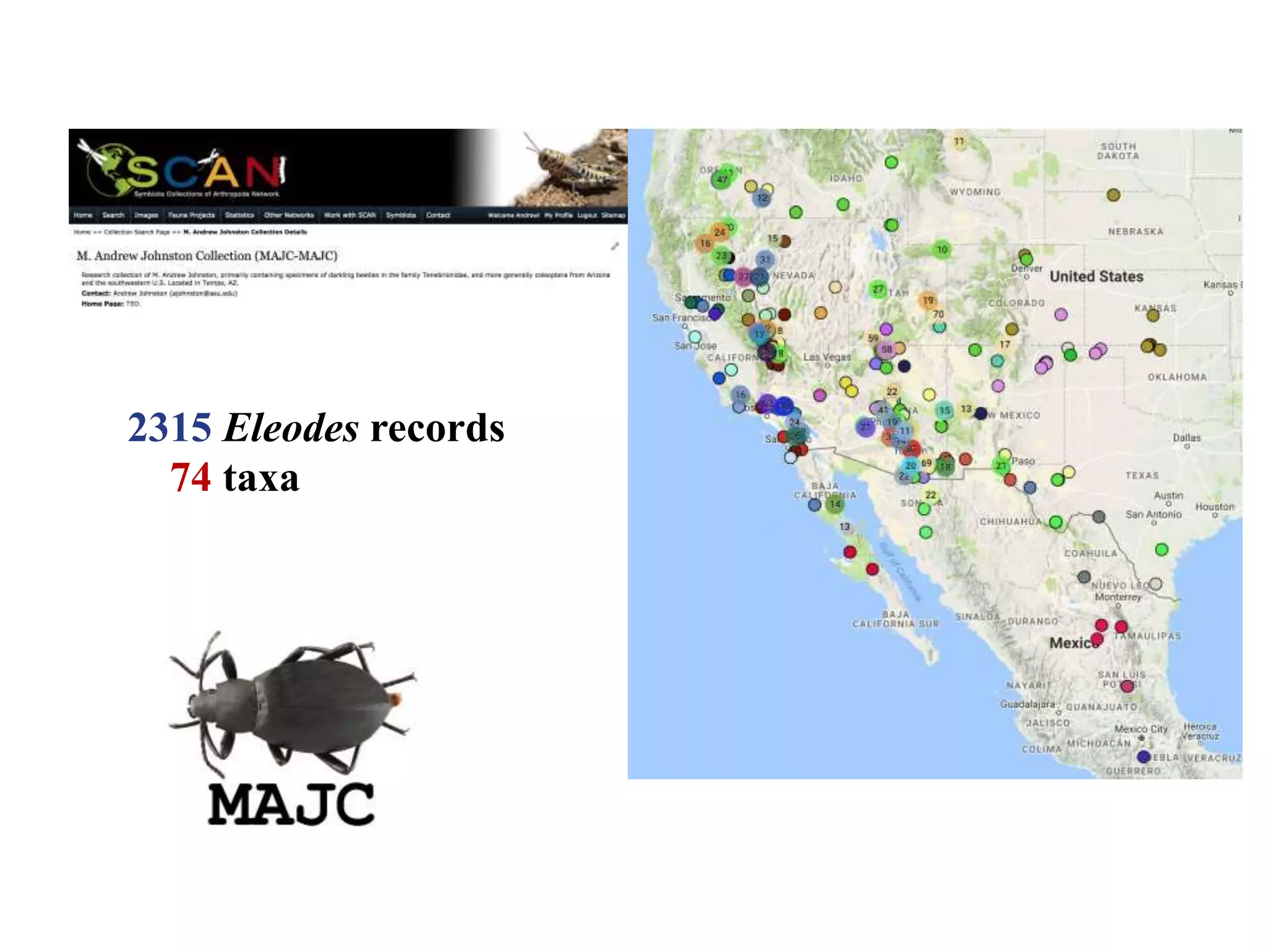

2315 Eleodes records
74 taxa
2315 Eleodes records
74 species/subspecies
2315 Eleodes records
74 species/subspecies

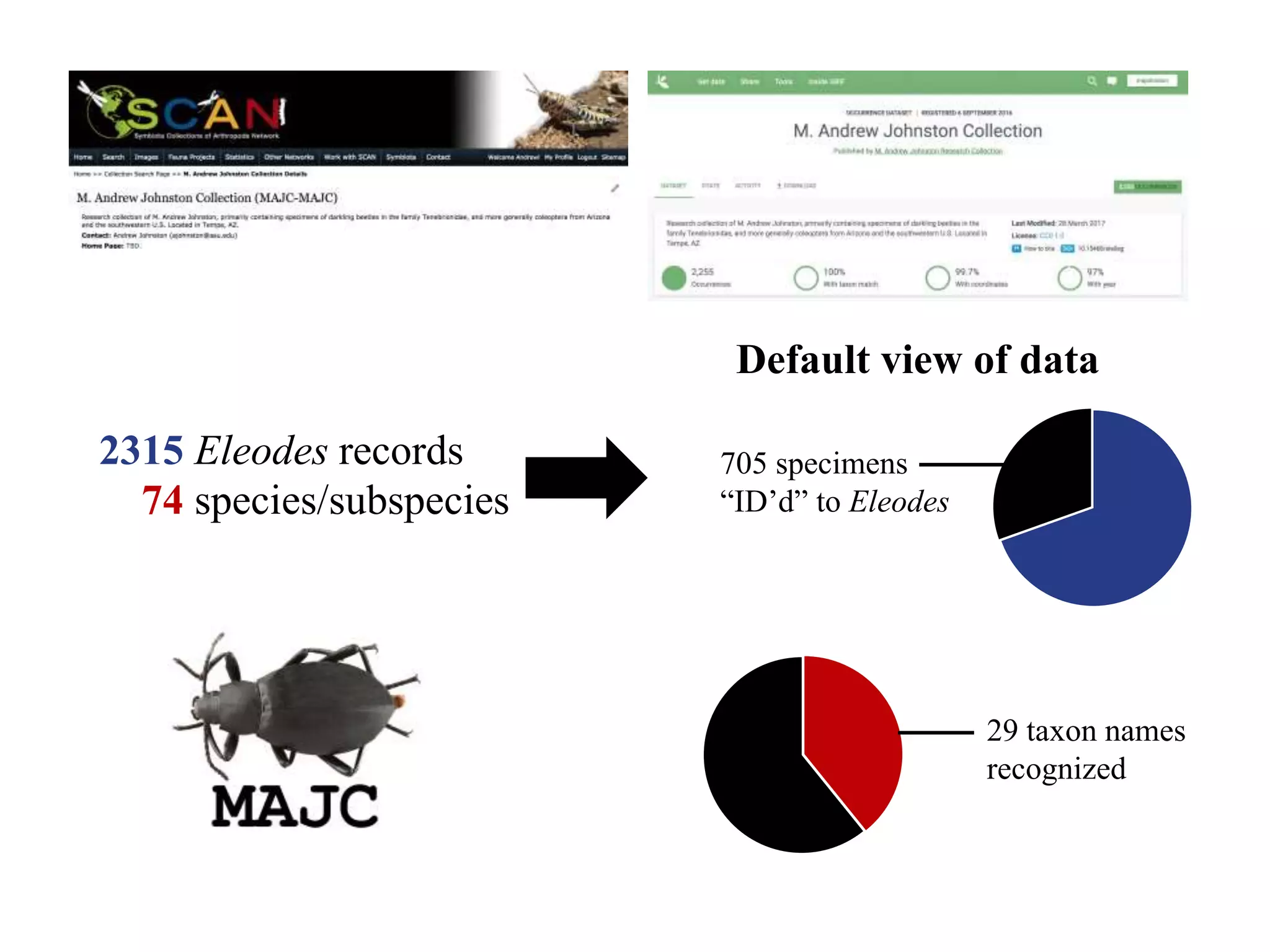

Default view of data
705 specimens
“ID’d” to Eleodes
29 taxon names
recognized

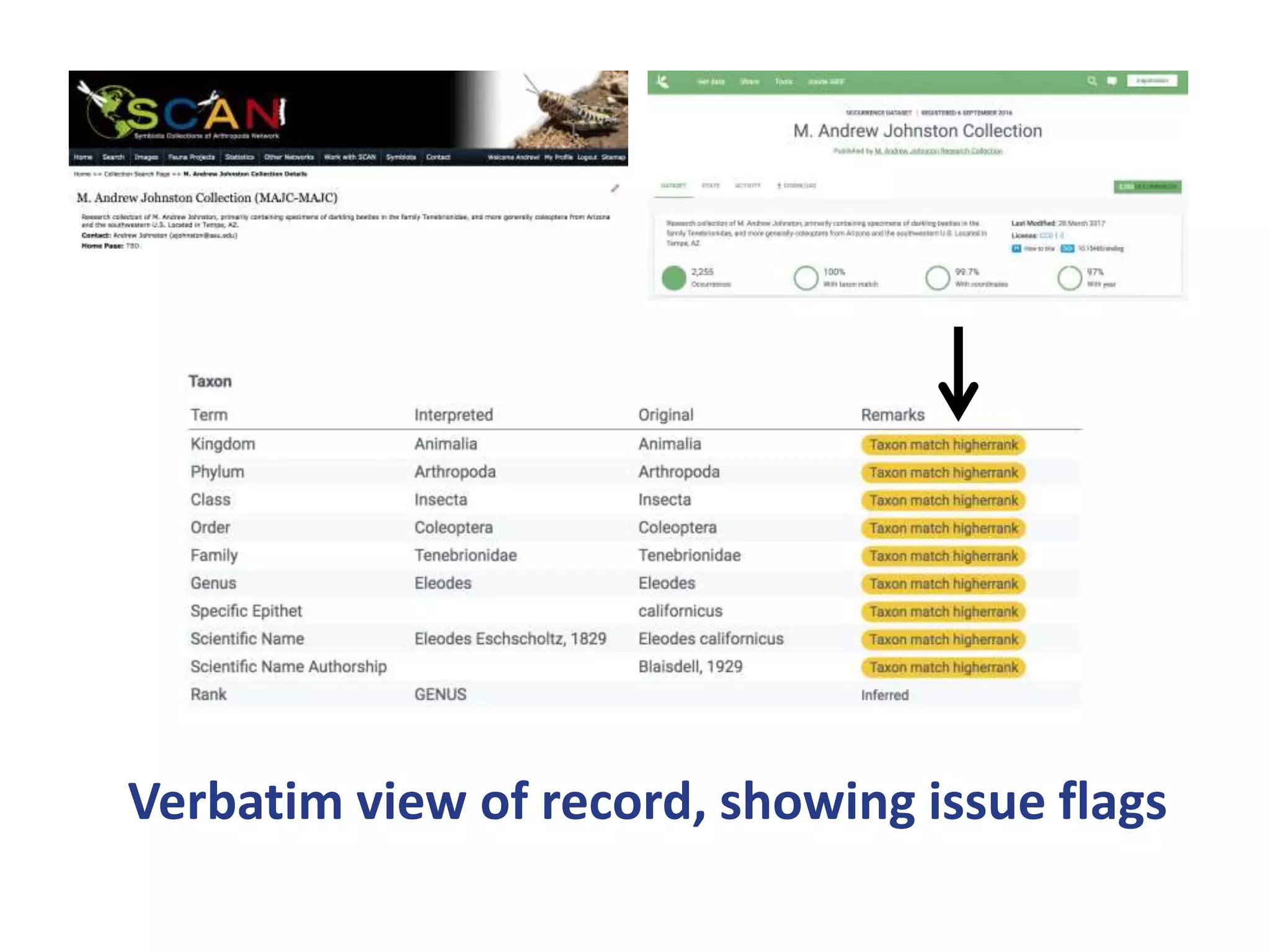

Verbatim view of record, showing issue flags

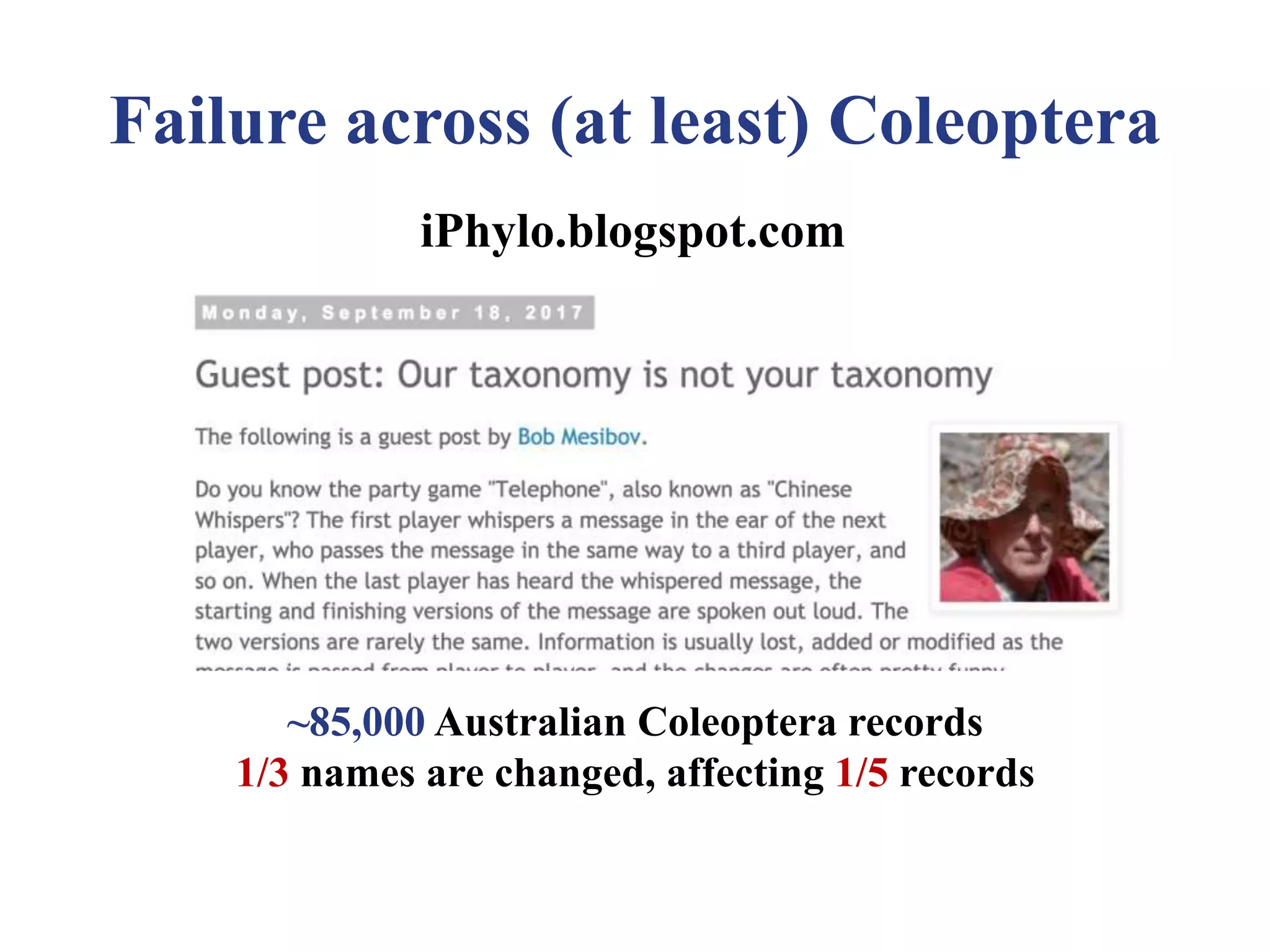

Failure across (at least) Coleoptera
iPhylo Blog Post
iPhylo.blogspot.com
~85,000 Australian Coleoptera records
1/3 names are changed, affecting 1/5 records

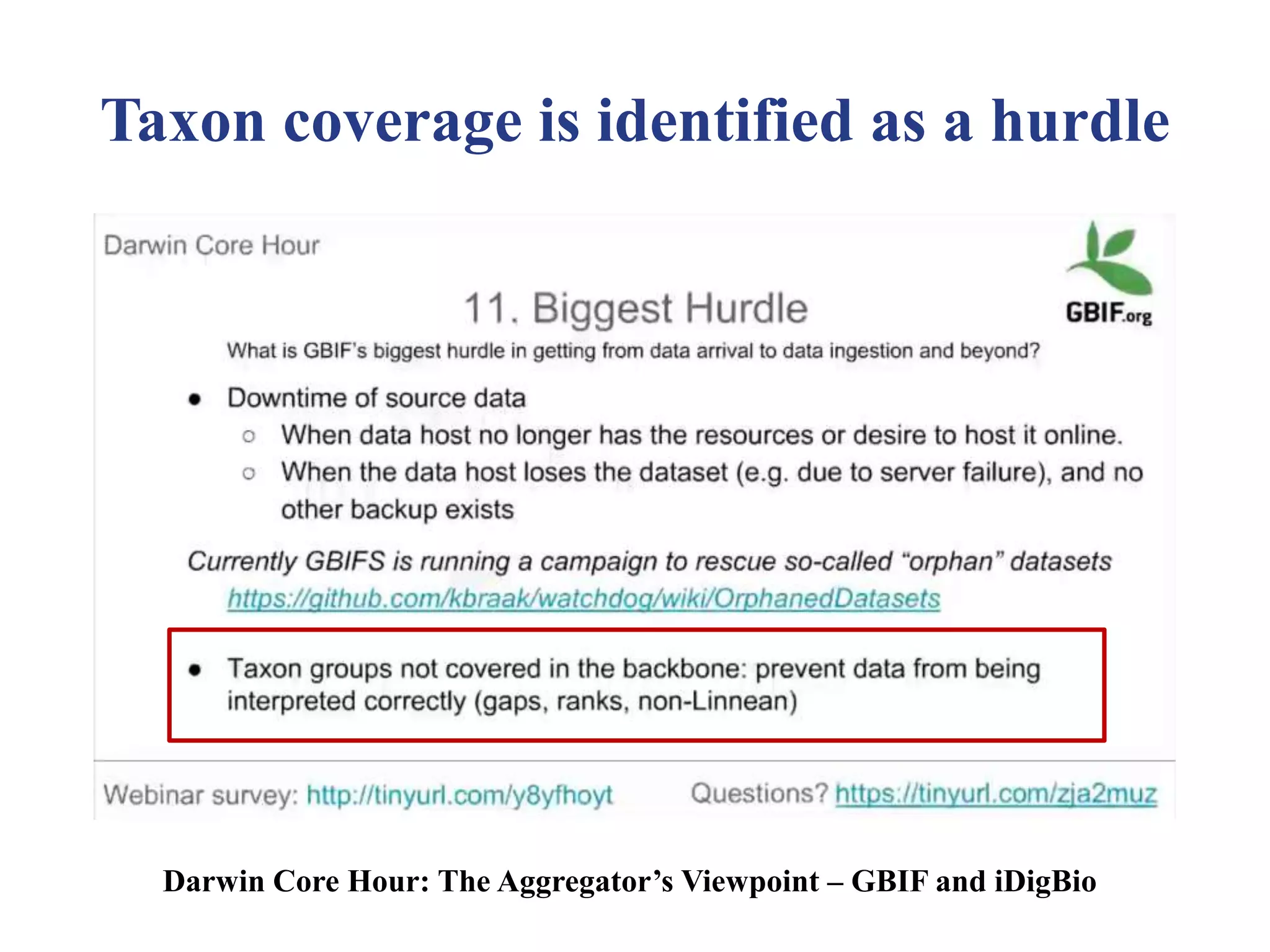

Taxon coverage is identified as a hurdle
Darwin Core Hour: The Aggregator’s Viewpoint – GBIF and iDigBio

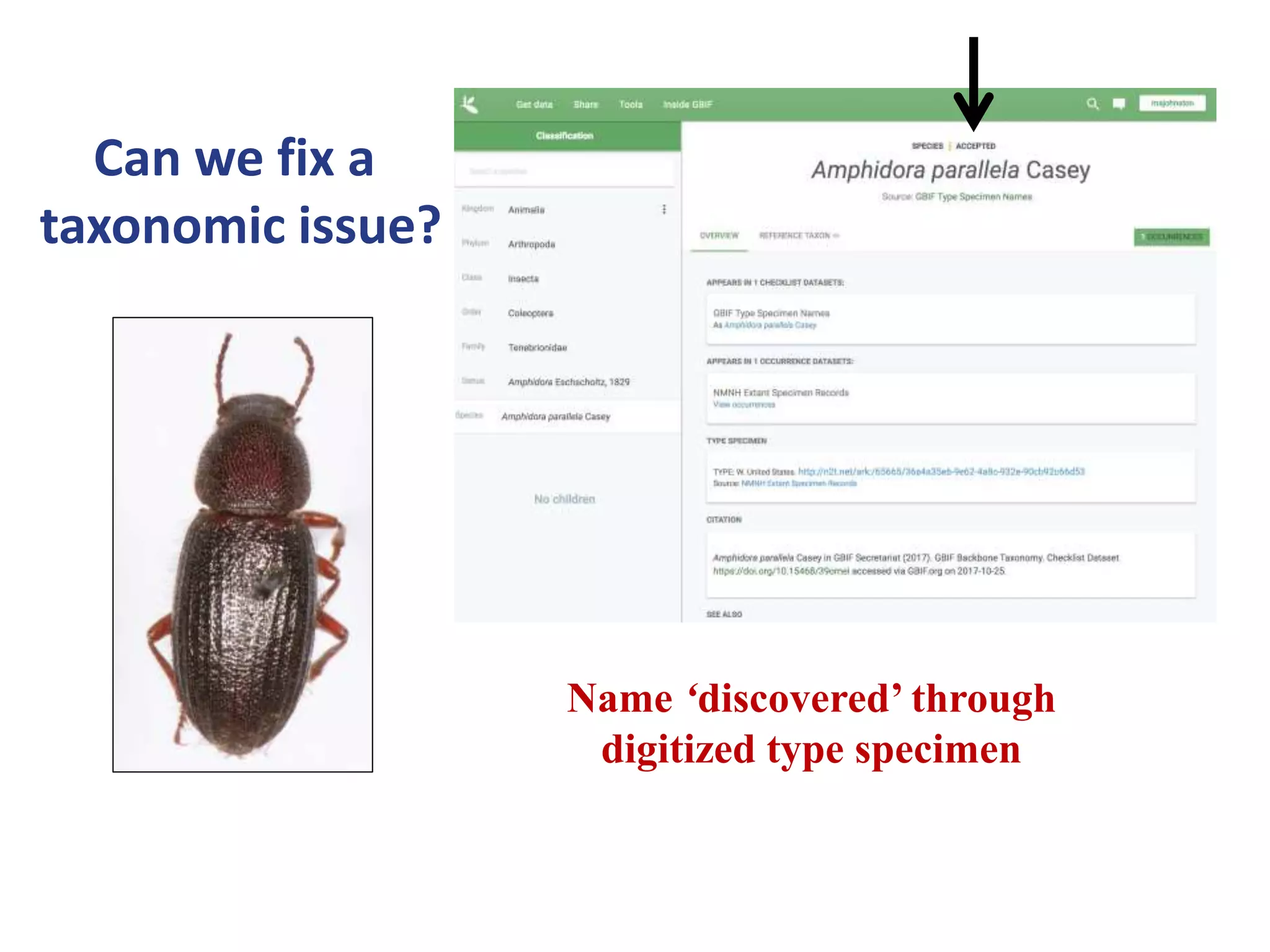

Name ‘discovered’ through
digitized type specimen
Can we fix a
taxonomic issue?
Amphidora Eschscholtz
synonym (Doyen and Lawrence, 1979)
Eleodes Eschscholtz

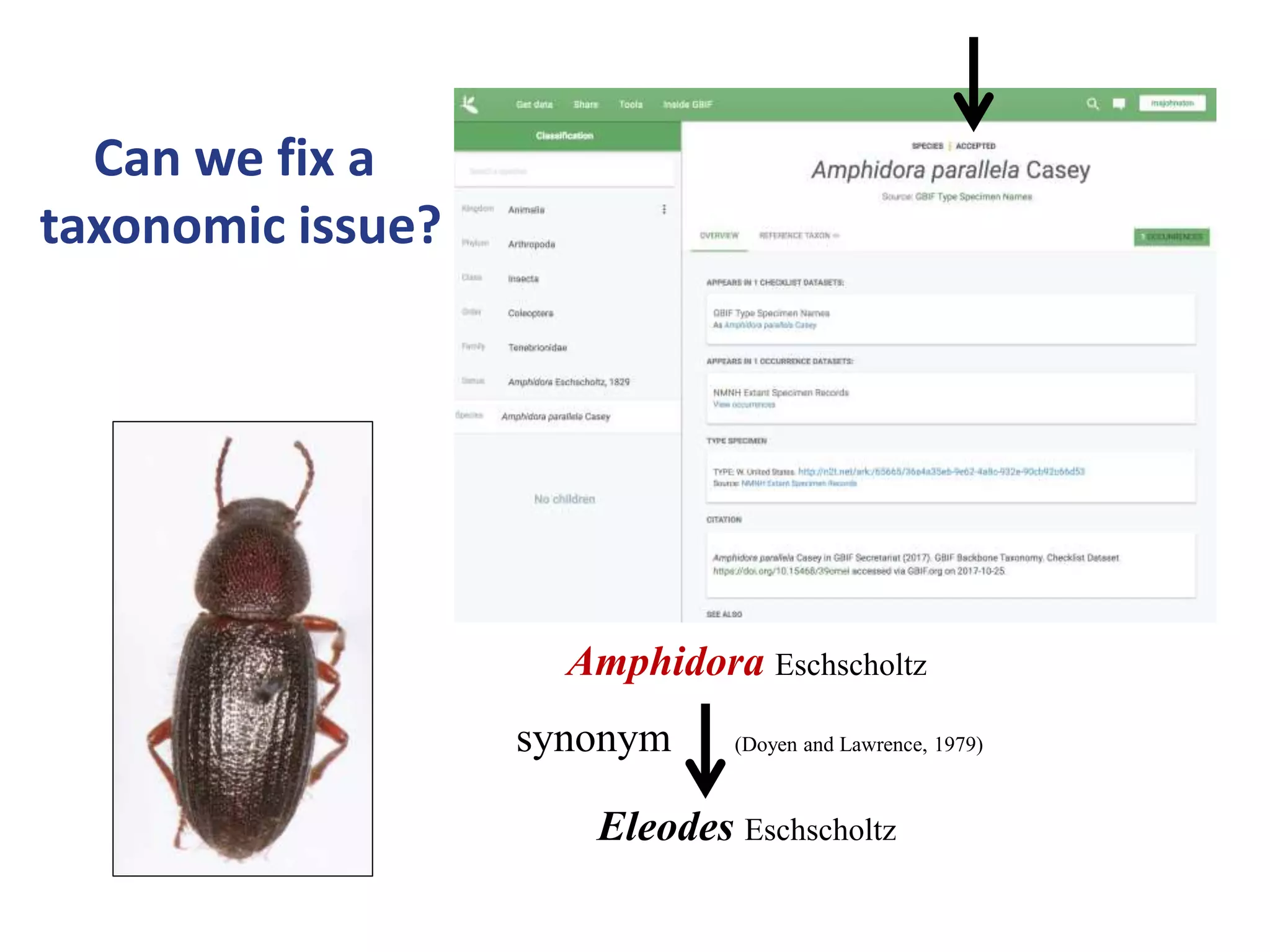

Can we fix a
taxonomic issue?
Amphidora Eschscholtz
synonym (Doyen and Lawrence, 1979)
Eleodes Eschscholtz

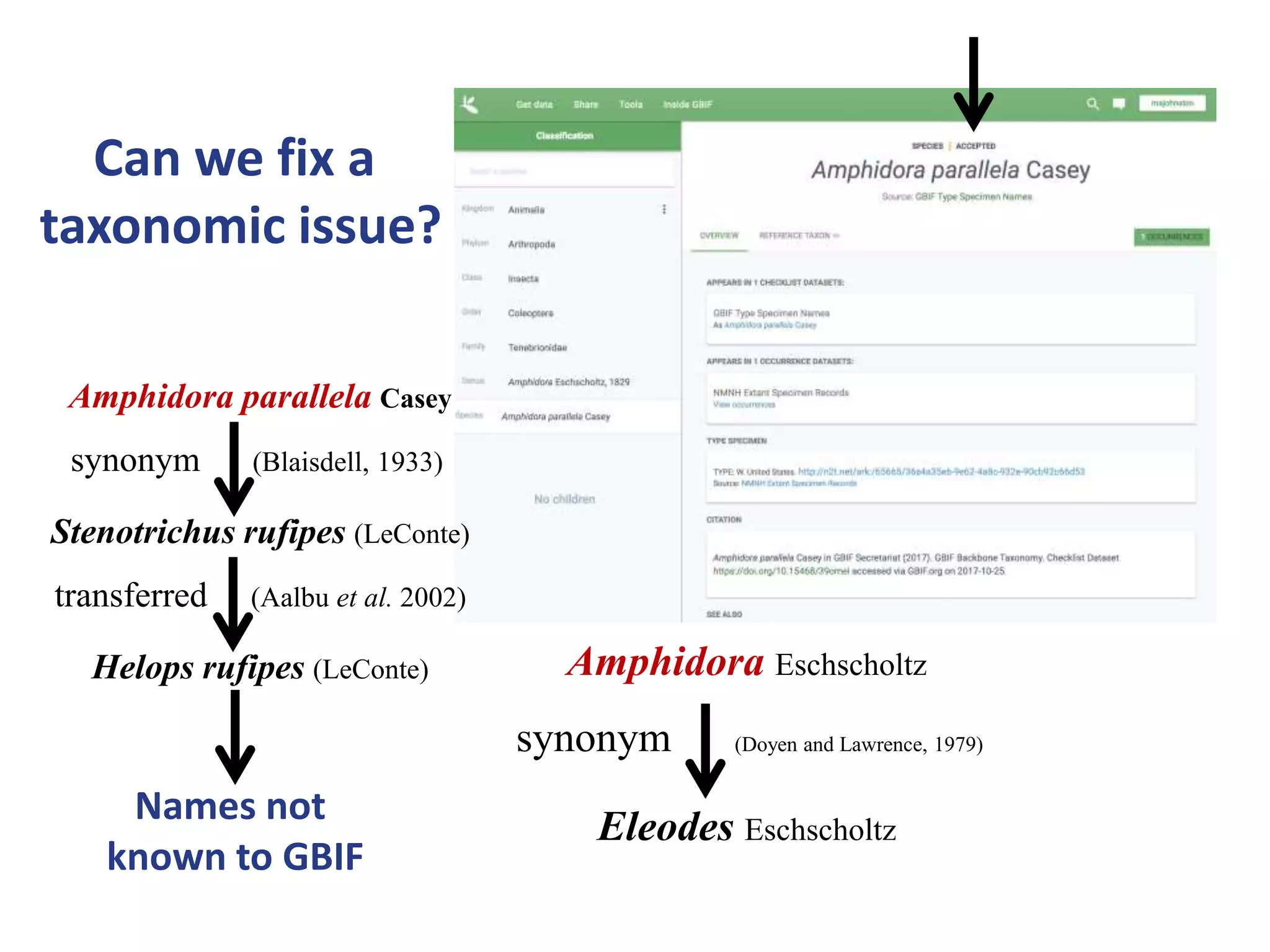

Can we fix a
taxonomic issue?
Amphidora parallela Casey
synonym (Blaisdell, 1933)
Stenotrichus rufipes (LeConte)
transferred (Aalbu et al. 2002)
Helops rufipes (LeConte)
Names not
known to GBIF

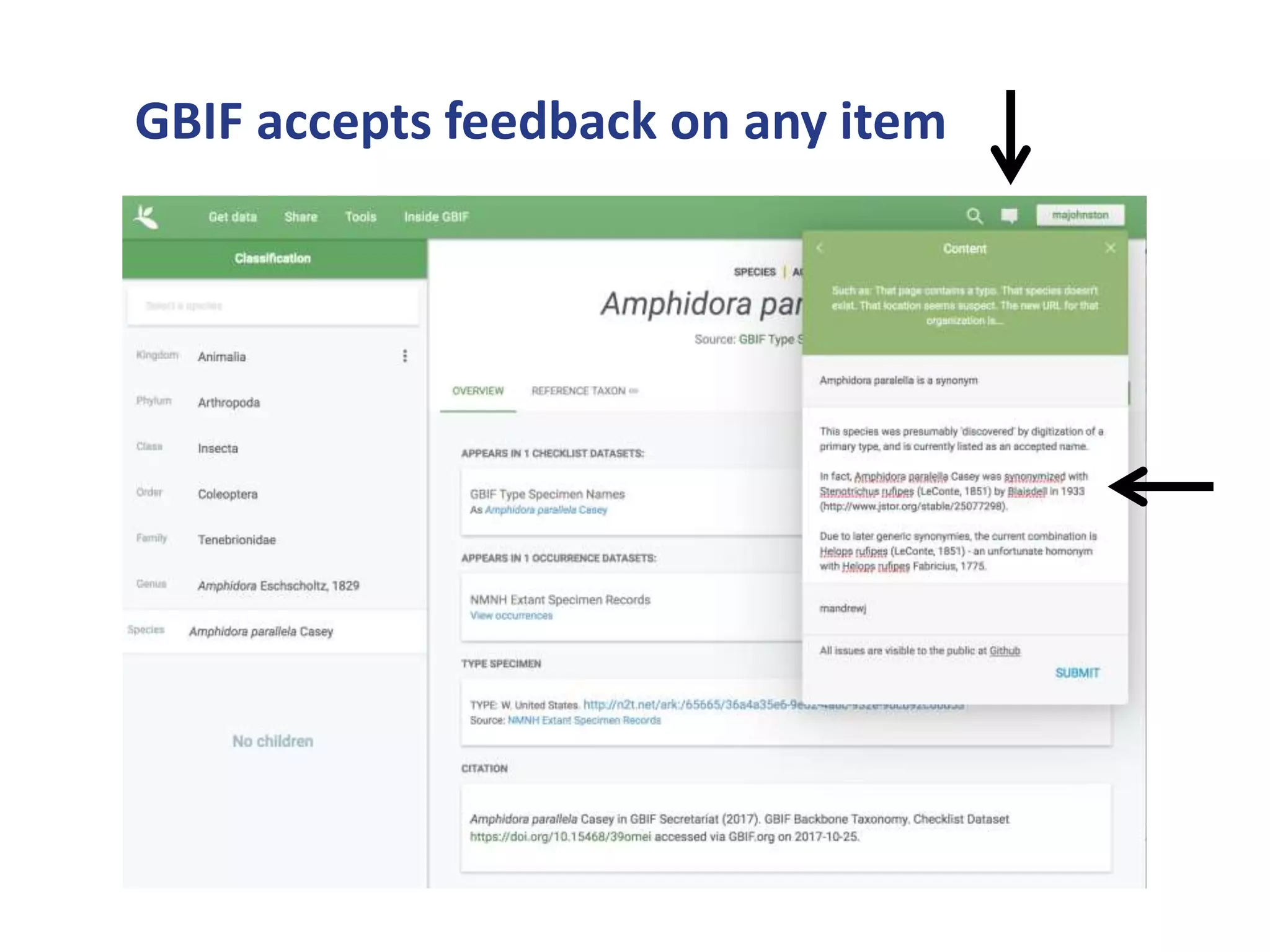

GBIF accepts feedback on any item

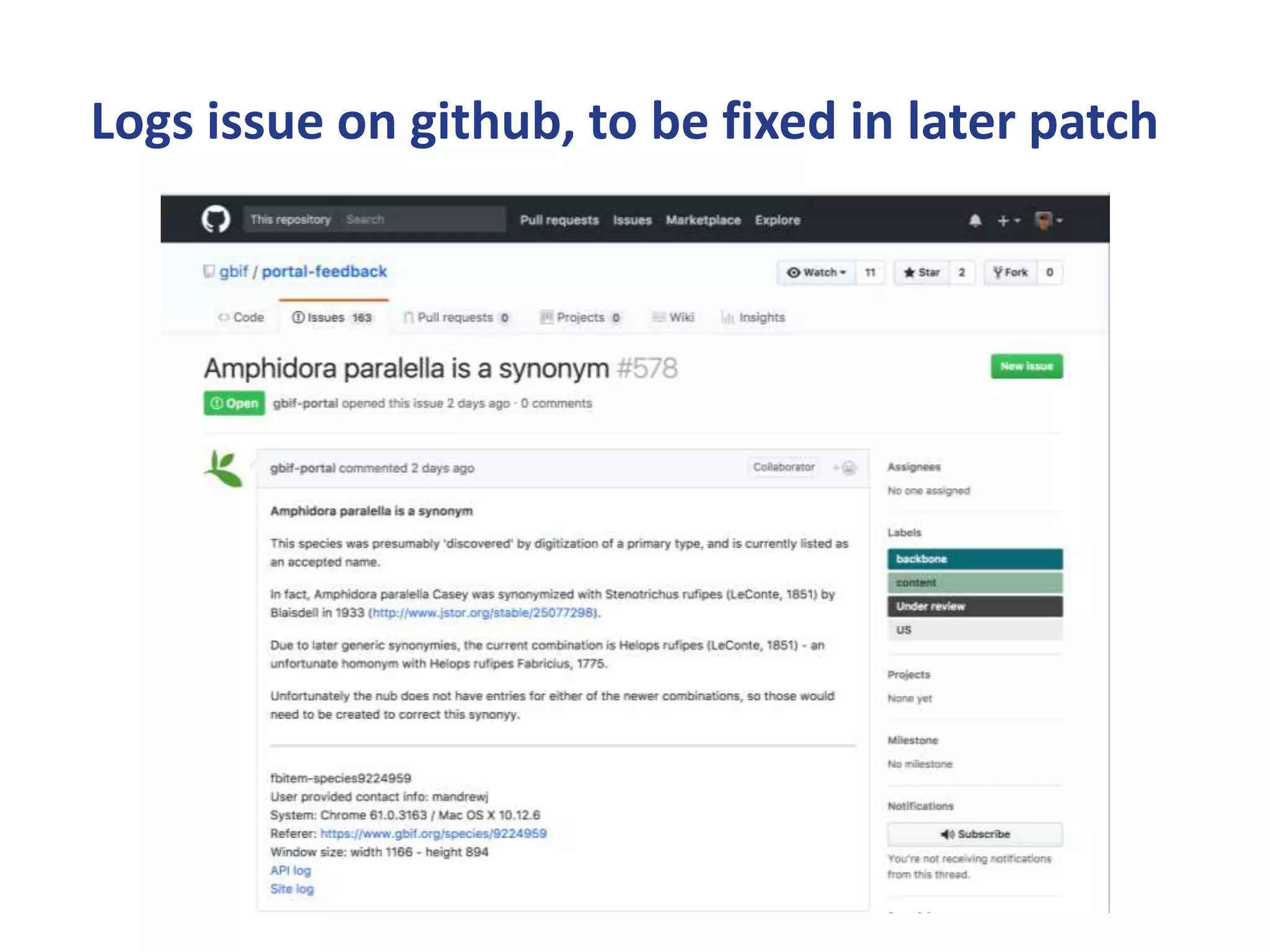

Logs issue on github, to be fixed in later patch
What we can offer:
• A large, distributed workforce

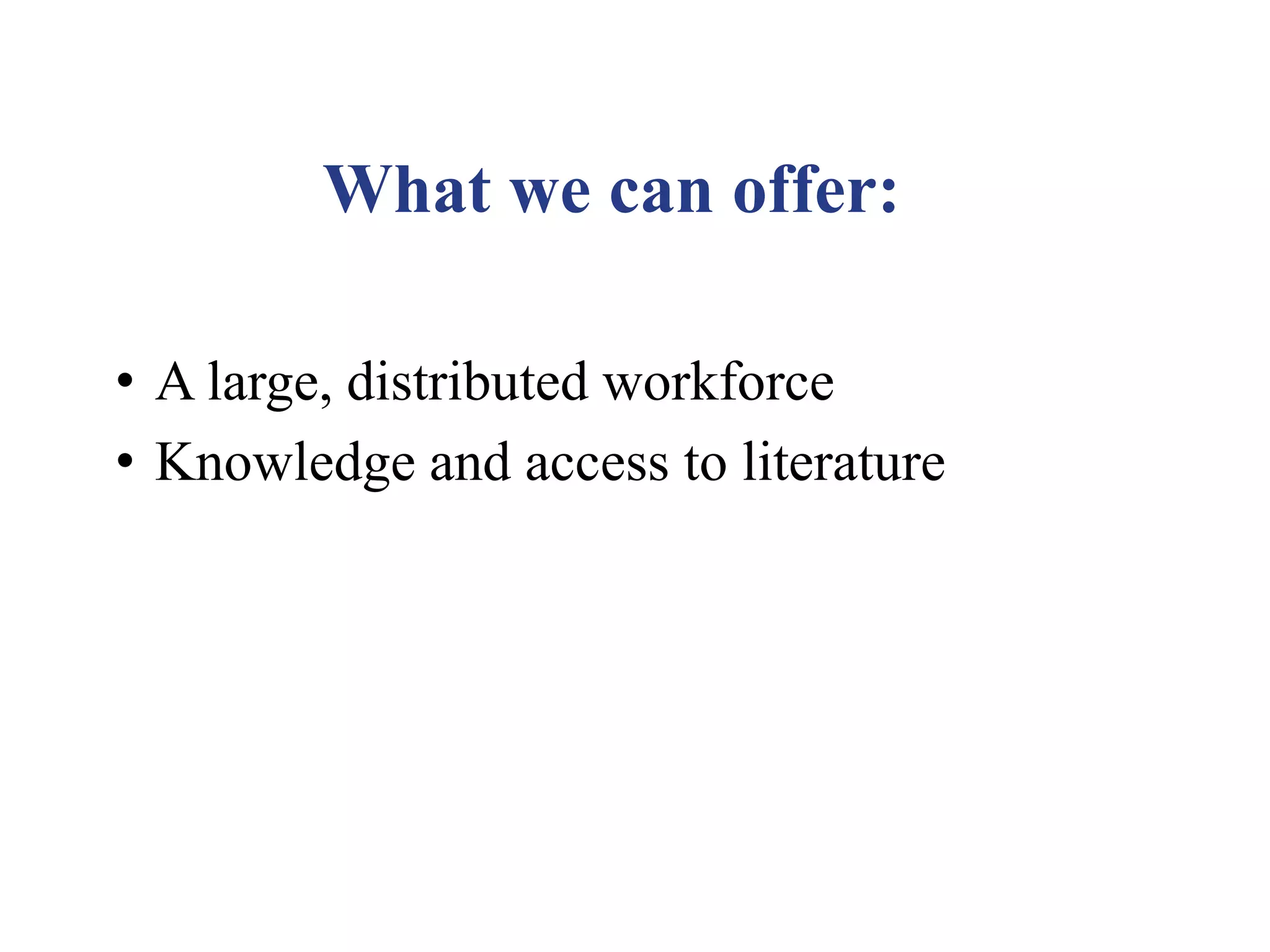

What we can offer:
• A large, distributed workforce
• Knowledge and access to literature

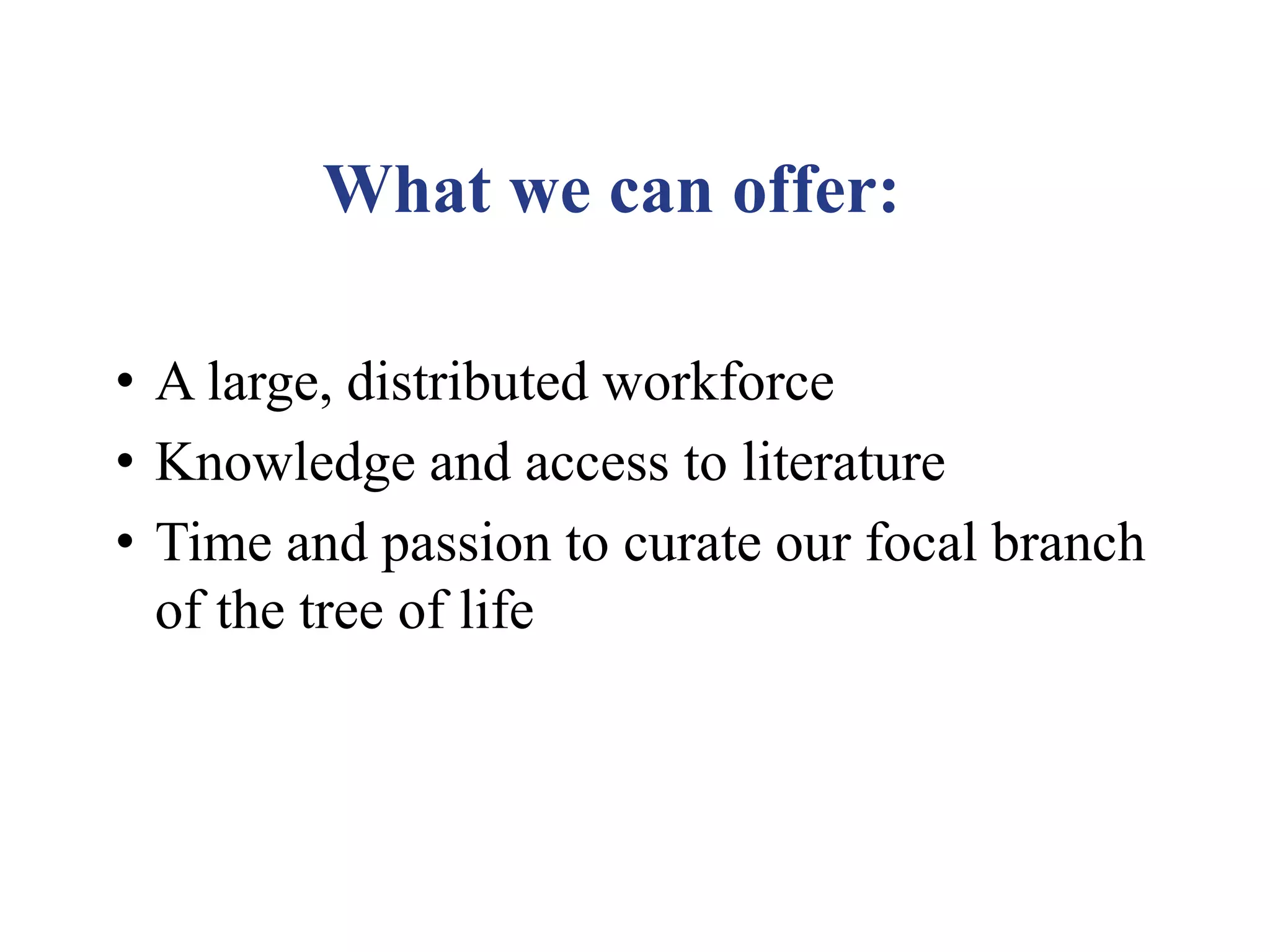

What we can offer:
• A large, distributed workforce
• Knowledge and access to literature
• Time and passion to curate our focal branch
of the tree of life

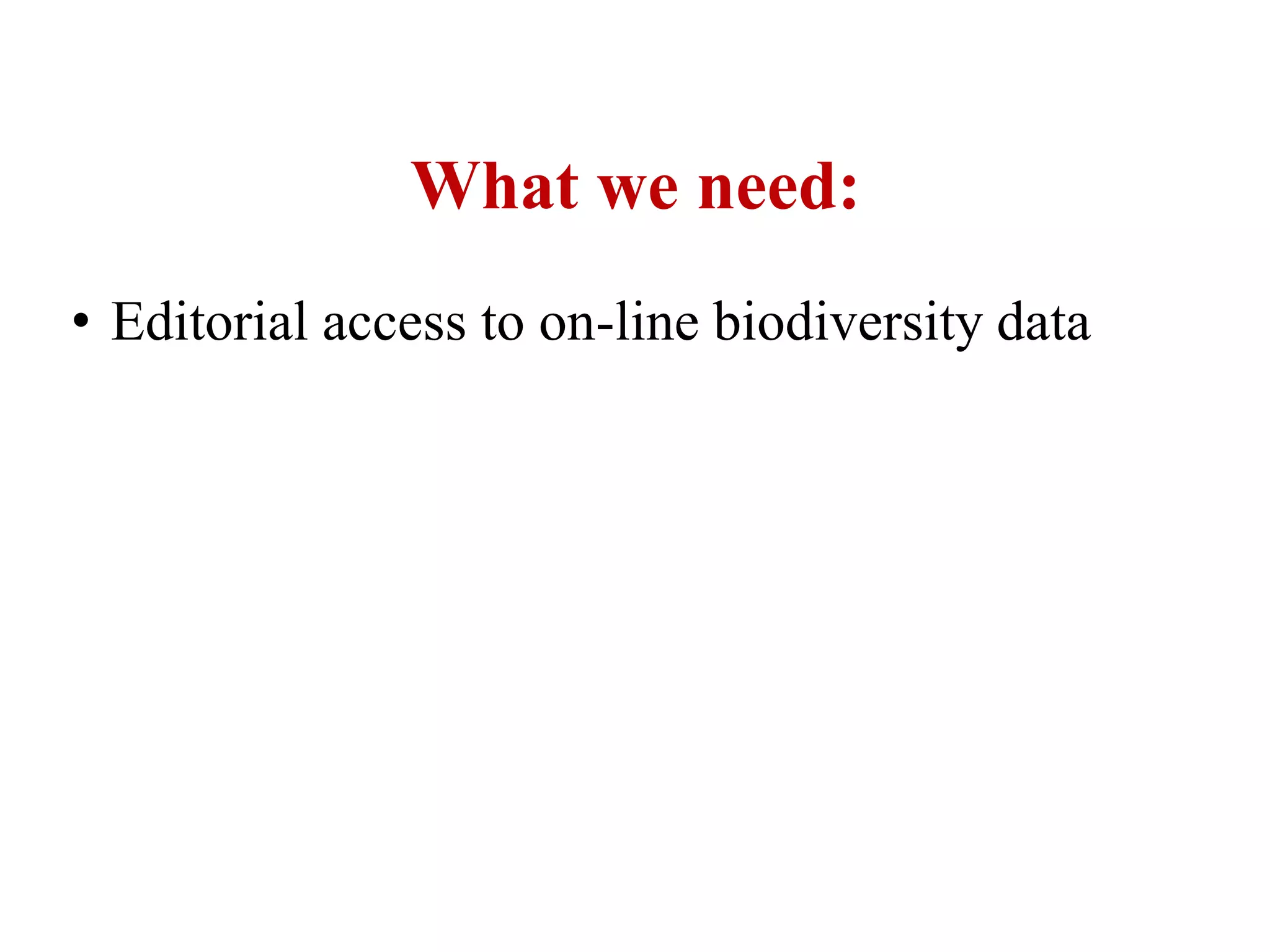

What we need:
• Editorial access to on-line biodiversity data

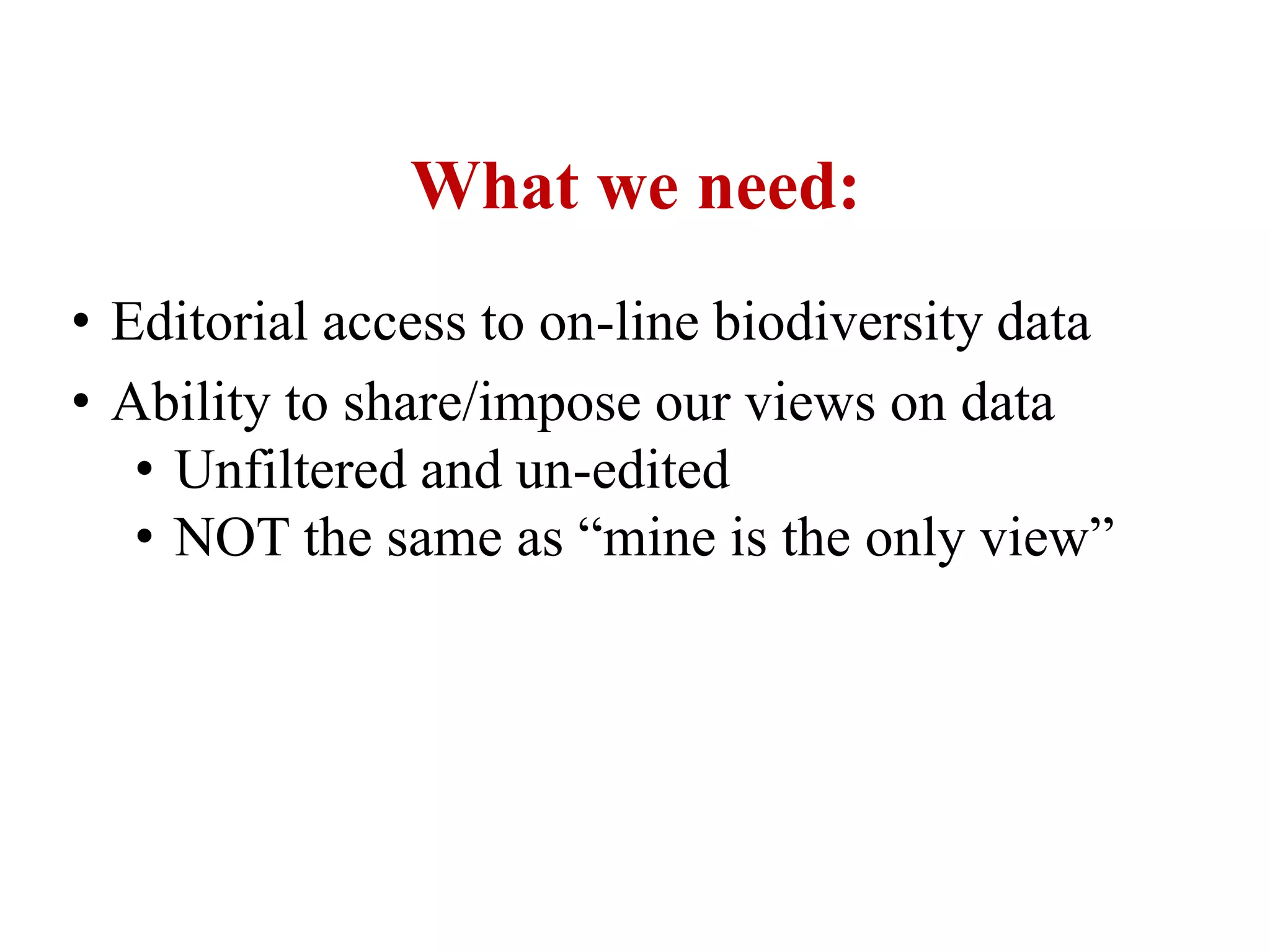

What we need:
• Editorial access to on-line biodiversity data
• Ability to share/impose our views on data
• Unfiltered and un-edited
• NOT the same as “mine is the only view”

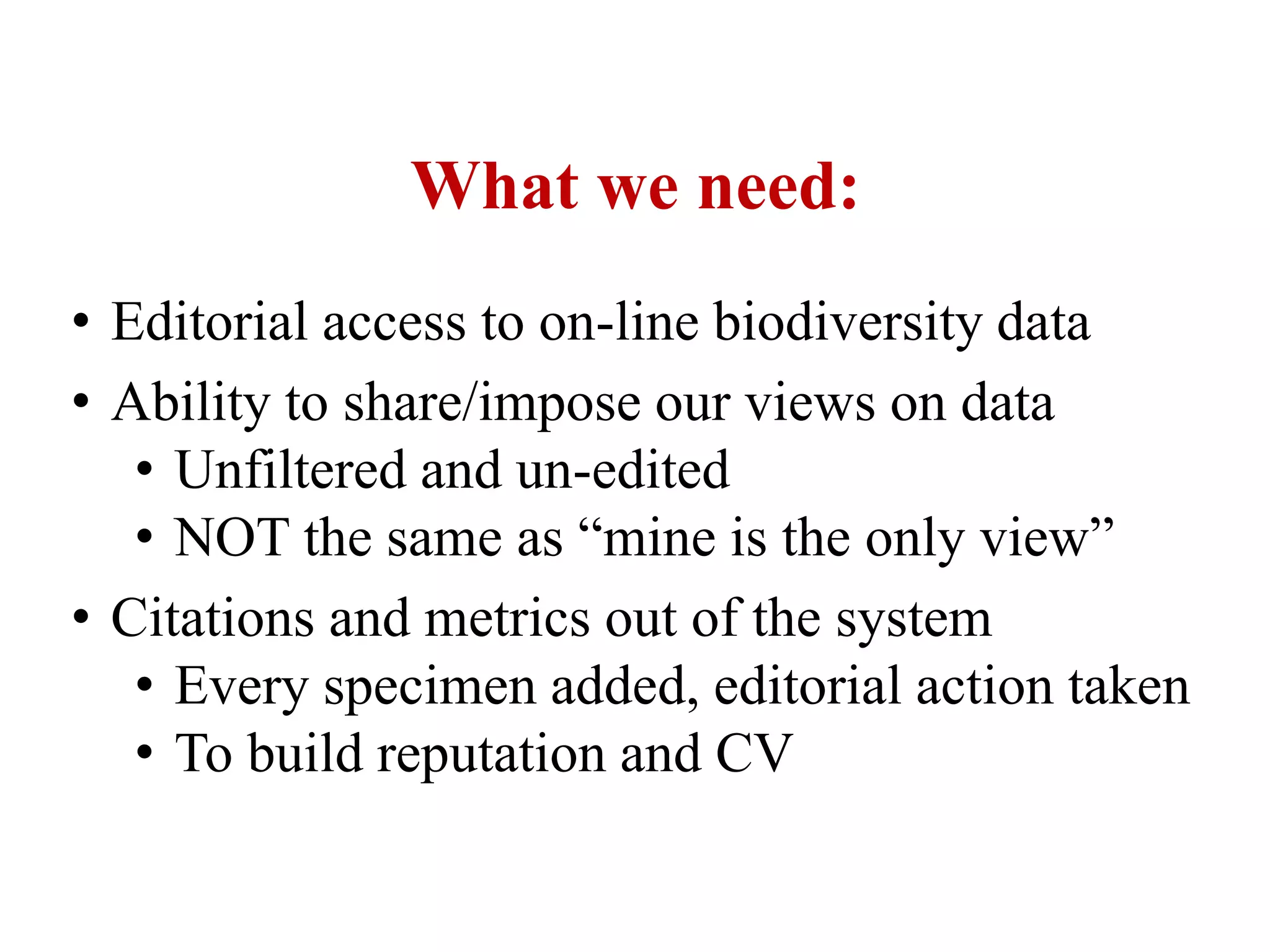

What we need:
• Editorial access to on-line biodiversity data
• Ability to share/impose our views on data
• Unfiltered and un-edited
• NOT the same as “mine is the only view”
• Citations and metrics out of the system
• Every specimen added, editorial action taken
• To build reputation and CV

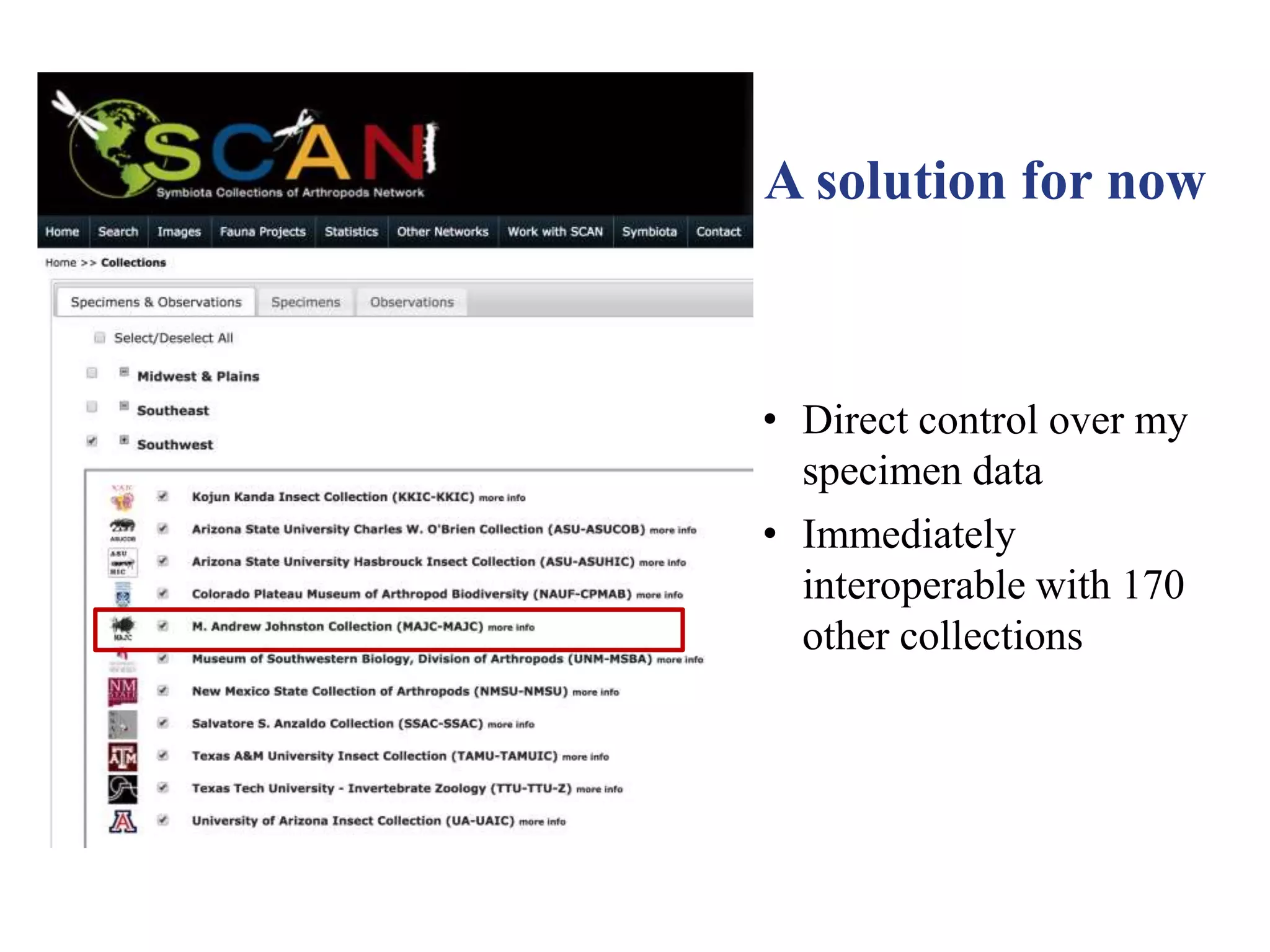

A solution for now
• Direct control over my
specimen data
• Immediately
interoperable with 170
other collections

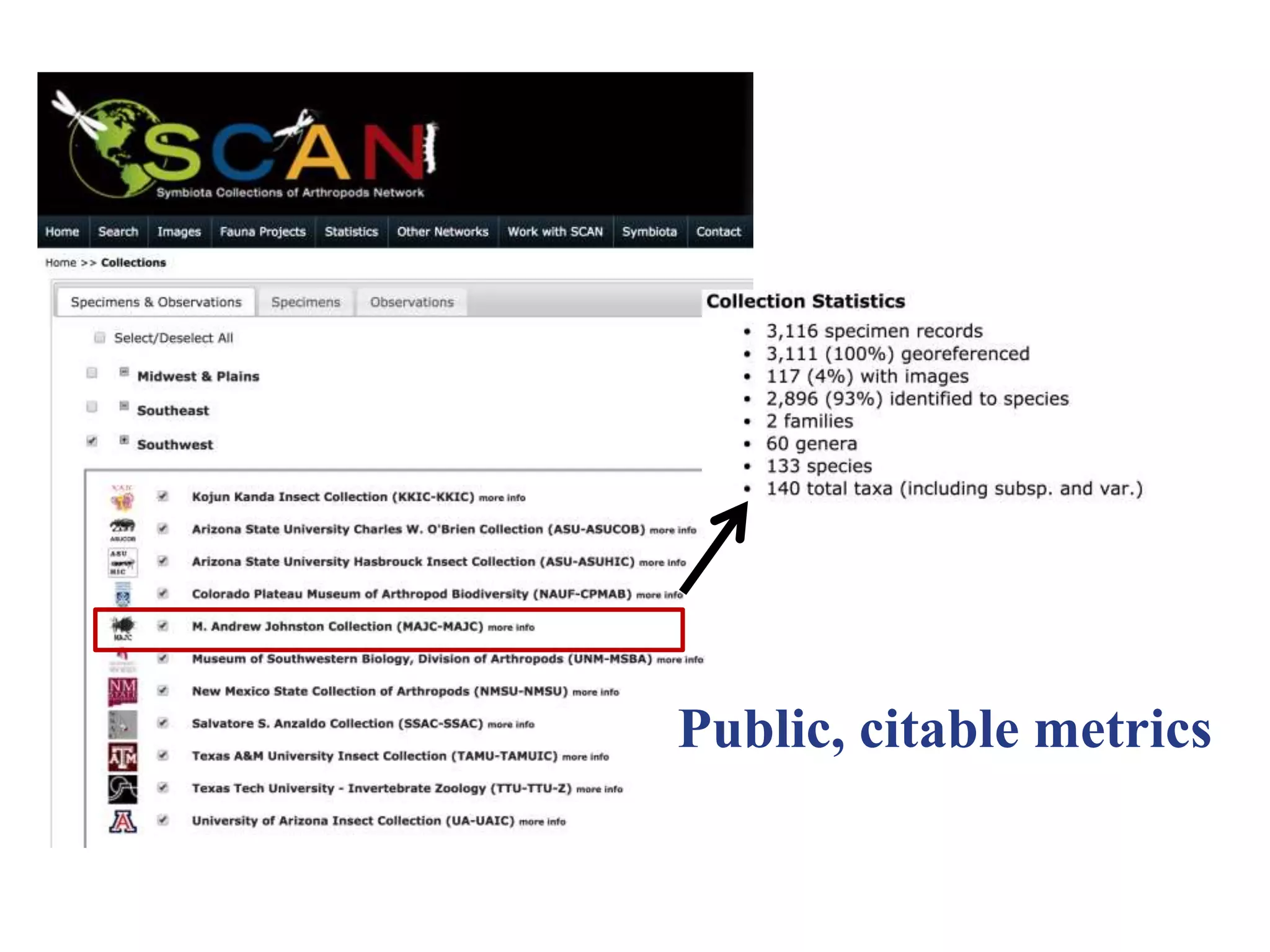

Public, citable metrics

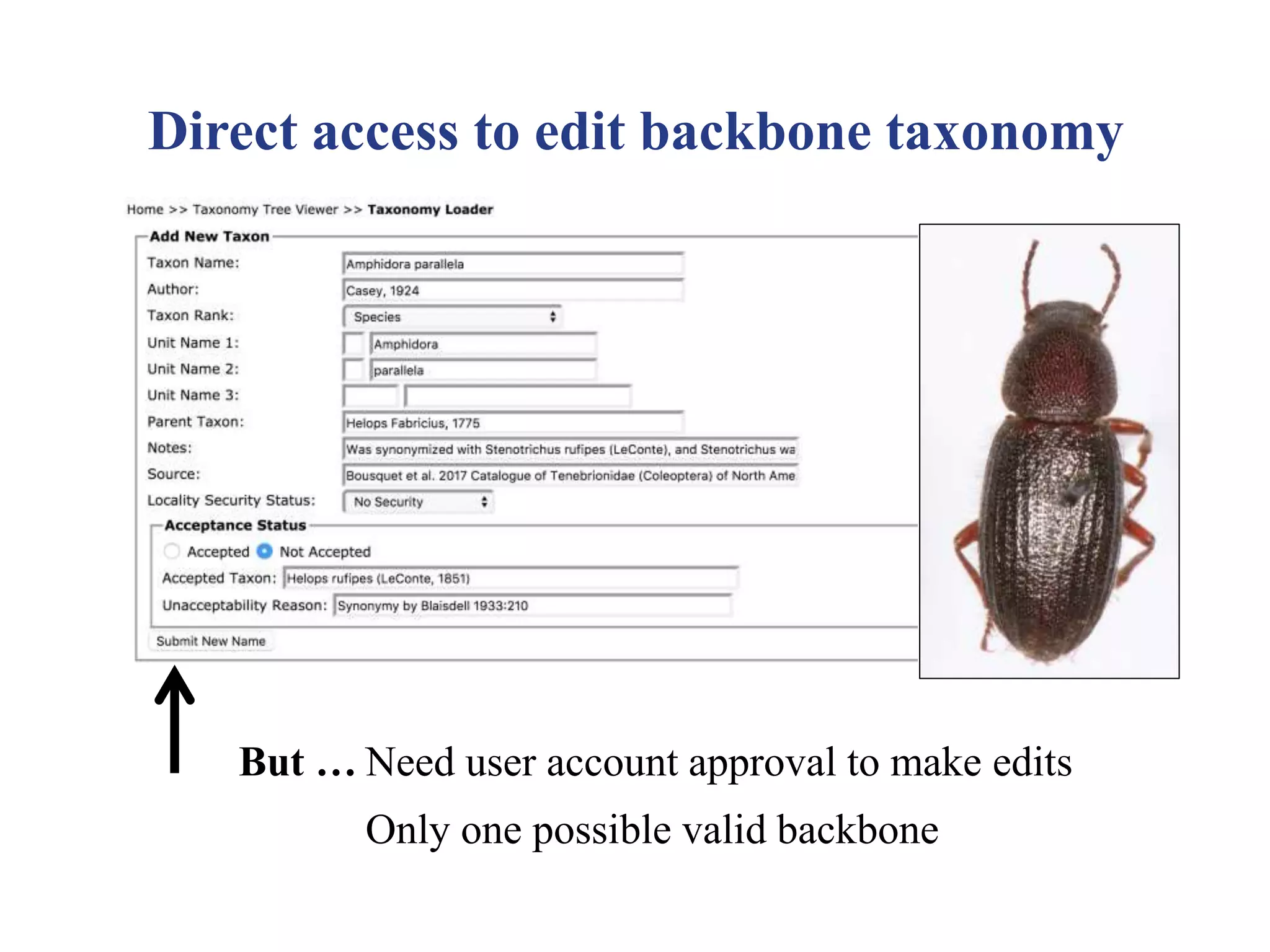

Direct access to edit backbone taxonomy
But … Need user account approval to make edits
Only one possible valid backbone

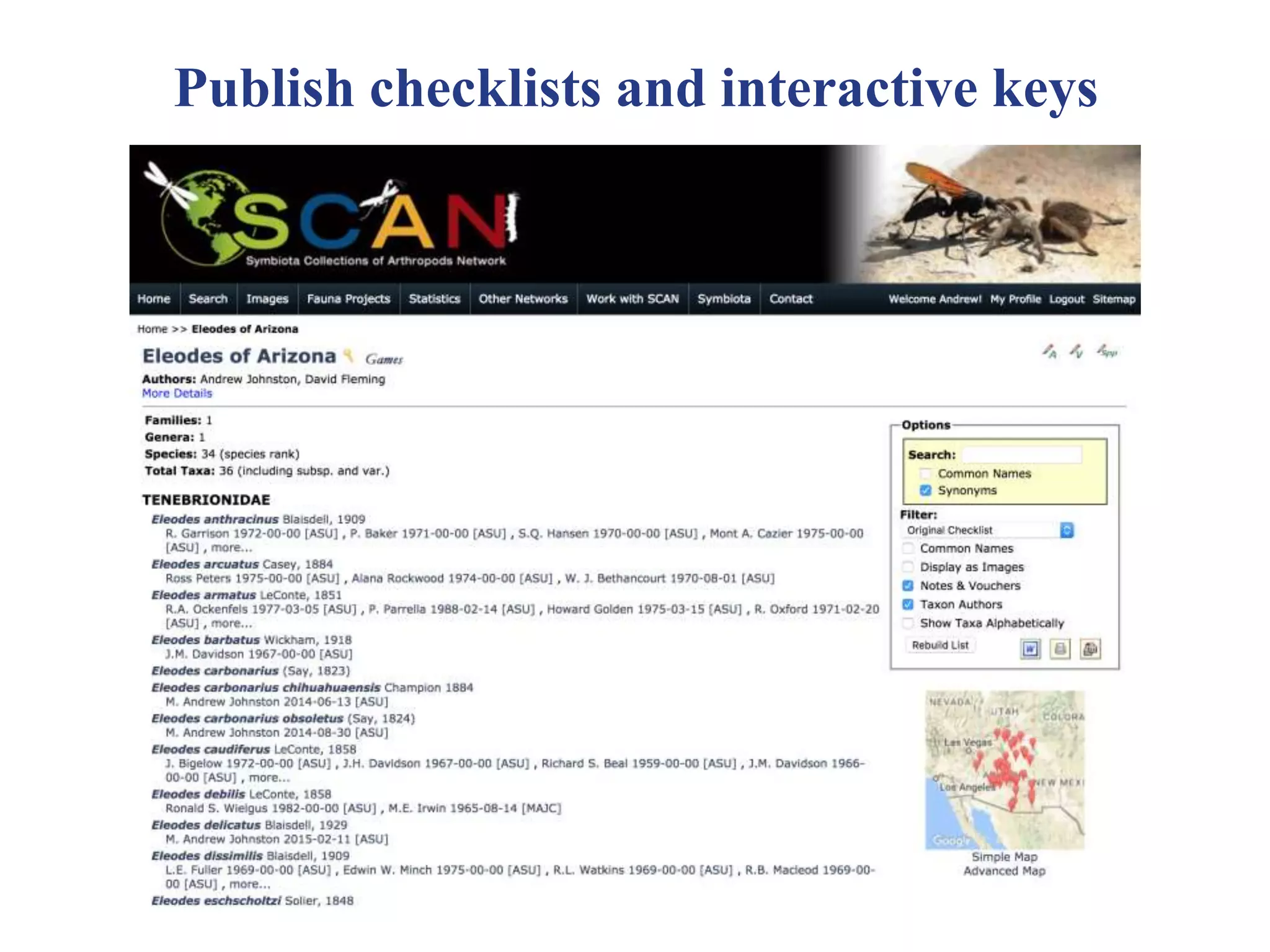

Publish checklists and interactive keys
Backbone taxonomy paradigm shift
Disambiguates ‘taxonomy’ and ‘classification’
Allows for multiple classification systems and concept taxonomy
Graduate students should be empowered
to use and curate biodiversity data

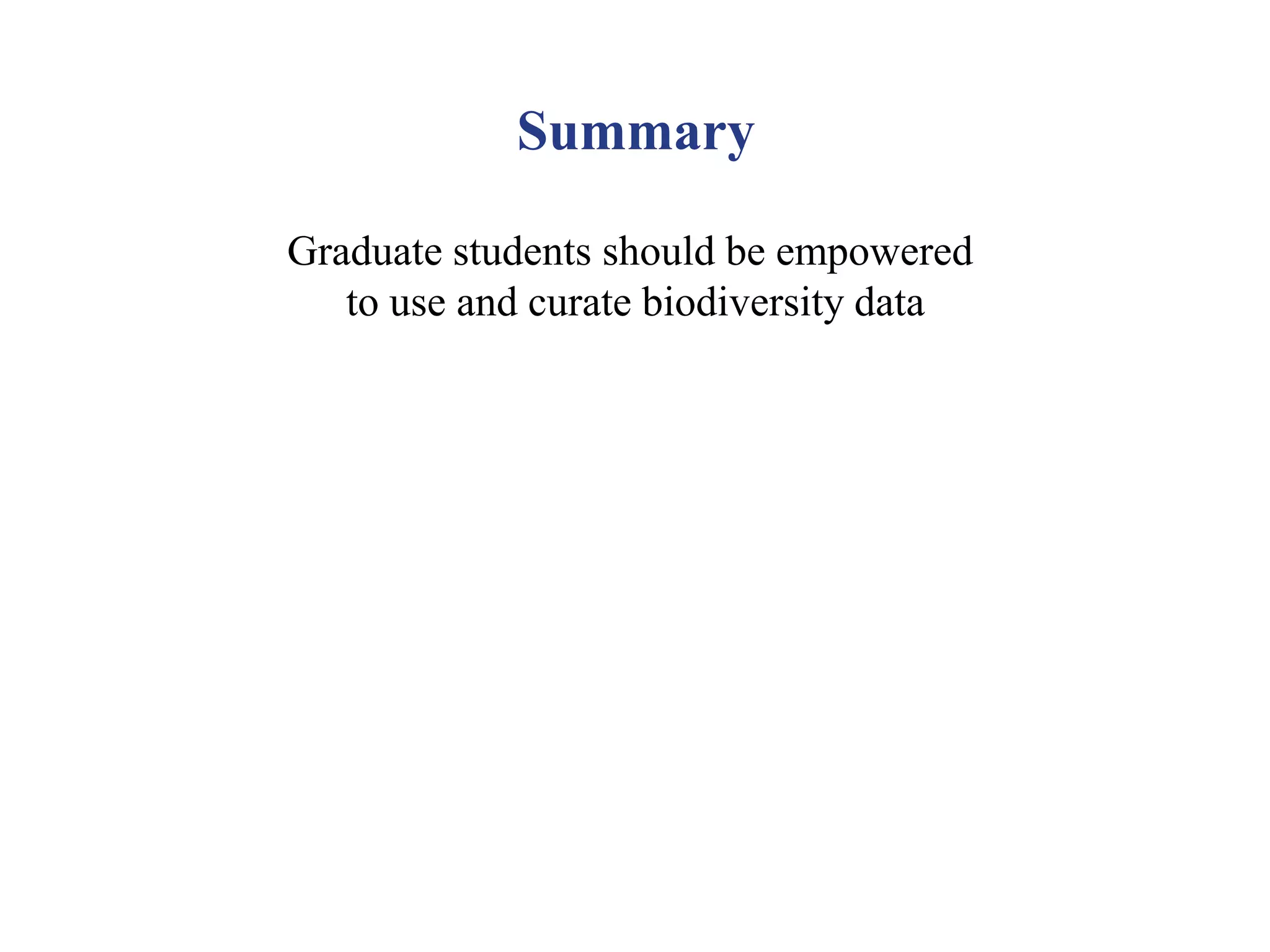

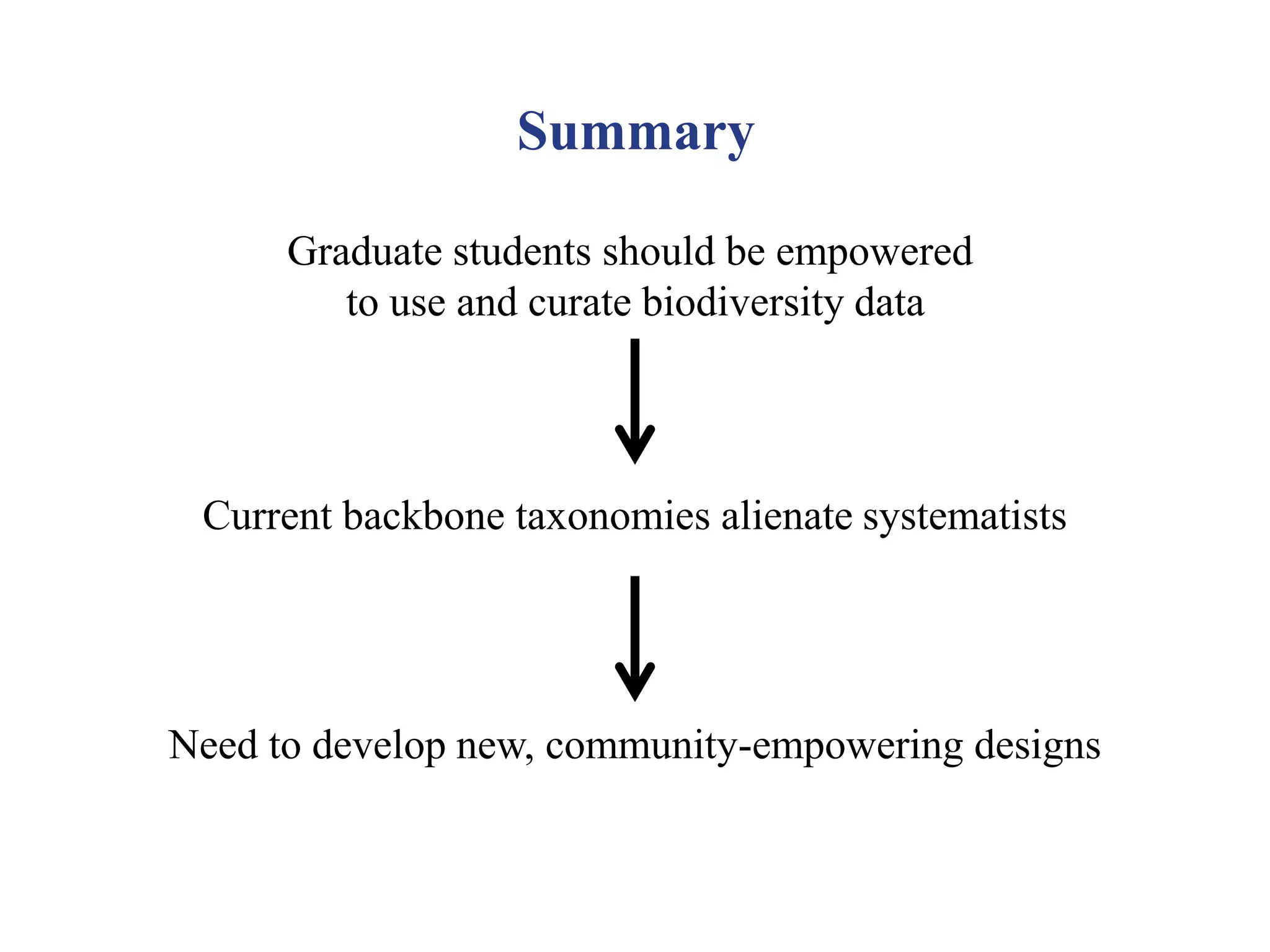

Summary
Graduate students should be empowered
to use and curate biodiversity data
Summary
Current backbone taxonomies alienate systematists
Graduate students should be empowered
to use and curate biodiversity data
Summary
Need to develop new, community-empowering designs
Current backbone taxonomies alienate systematists
Special thanks to:
Bob Mesibov Andrew Jansen
Ed Gilbert Brian Reily
Sal Anzaldo Sangmi Lee
Funding:
NSFARTS DEB-1258154
Evolutionary Biology
Summer Research Fellowship
Data files and scripts: github.com/mandrewj/ECN_backbone_taxonomies
Slides: [slideshare link]
Tenebrionidae taxonomy sec Bousquet et al. 2017. Catalogue of Tenebrionidae (Coleoptera) of
North America, Zookeys.
Thank You
