1. BAB 5BAIKPULIH RANGKAIAN
SKS 3124 PENDAWAIAN RANGKAIAN

2. BAIKPULIH RANGKAIAN
Melaksanakanpengujianbagimengenalpastikegagalanrangkaian
Menentukankaedahbaikpulihkegagalanrangkaian
Melaksanakanproses baikpulih
AFAMY/JULAI 2013 2

3. Melaksanakanpengujianbagimengenalpastikegagalanrangkaian
Menentukanperalatanpengujianyang sesuai
•Perkakasan
•Perisian
•ipconfig
•ping
Melaksanakanpengujian
•Perkakasan
•Perisian
•ipconfig
•ping
AFAMY/JULAI 2013 3

4. Perkakasan
•Menyambung/menamatkankabeldenganpenyambung.
•TamatkankabelethernetdenganpenyambungRJ 45.
Wire crimper
•Menyambung/menamatkankabelkewall jack/modular jack.
Punch down tool
•DVM(Digital Volt Meter)-mudahdantidakmahal. DVM mengukurvoltanmerentasirintangan
•TDR(Time Domain Reflectometer)-mengenalpastilitarpintas, shields defects, kinks danlain-lain gangguandalamkabel.
Media tester
AFAMY/JULAI 2013 4

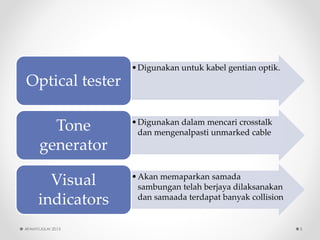

5. •Digunakanuntukkabelgentian optik.
Optical tester
•Digunakandalammencaricrosstalk danmengenalpastiunmarked cable
Tone generator
•Akan memaparkansamadasambungantelahberjayadilaksanakandansamaadaterdapatbanyakcollision
Visual indicators
AFAMY/JULAI 2013 5

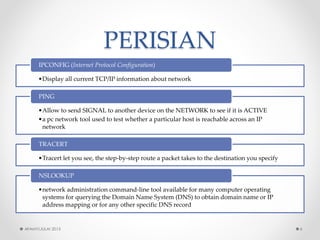

6. PERISIAN
•Display all current TCP/IP information about network
IPCONFIG (Internet Protocol Configuration)
•Allow to send SIGNAL to another device on the NETWORK to see if it is ACTIVE
•a pc network tool used to test whether a particular host is reachable across an IP network
PING
•Tracertlet you see, the step-by-step route a packet takes to the destination you specify
TRACERT
•network administration command-line tool available for many computer operating systems for querying the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record
NSLOOKUP
AFAMY/JULAI 2013 6

7. Command line
•ipconfig
•ipconfig/all
•ping <ipaddress or domain name>
oping 192.168.2.1
oping www.yahoo.com
•tracert<ipaddress or domain name>
otracert192.168.2.1
otracertwww.yahoo.com
•nslookup<domain name or ipaddress >
AFAMY/JULAI 2013 7

8. BERI PERHATIAN
AFAMY/JULAI 2013 8

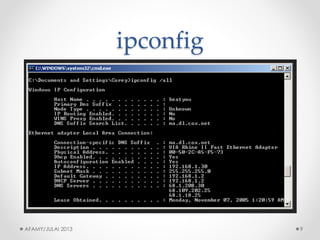

9. ipconfig
AFAMY/JULAI 2013 9

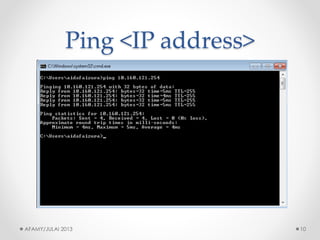

10. Ping <IP address>
AFAMY/JULAI 2013 10

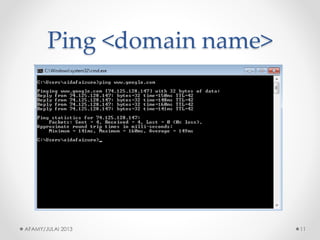

11. Ping <domain name>
AFAMY/JULAI 2013 11

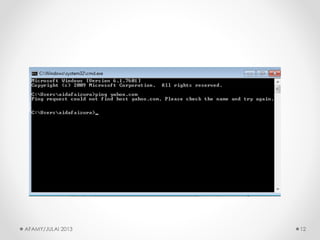

12. AFAMY/JULAI 2013 12

13. AFAMY/JULAI 2013 13

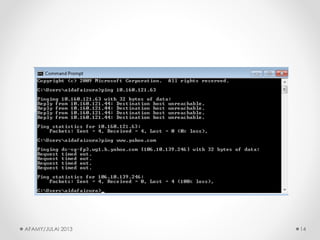

14. AFAMY/JULAI 2013 14

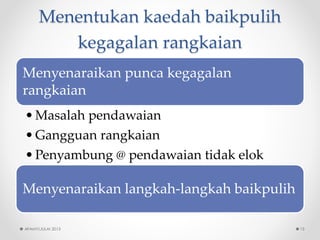

15. Menentukankaedahbaikpulihkegagalanrangkaian
Menyenaraikanpuncakegagalanrangkaian
•Masalahpendawaian
•Gangguanrangkaian
•Penyambung@ pendawaiantidakelok
Menyenaraikanlangkah-langkahbaikpulih
AFAMY/JULAI 2013 15

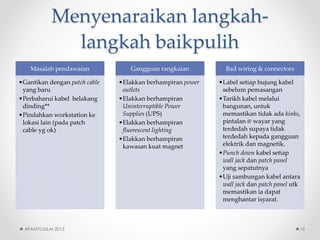

16. Menyenaraikanlangkah- langkahbaikpulih
Masalahpendawaian
•Gantikandenganpatch cableyang baru
•Perbaharuikabelbelakangdinding**
•Pindahkanworkstation kelokasilain (padapatch cable ygok)
Gangguanrangkaian
•Elakkanberhampiranpower outlets
•ElakkanberhampiranUninterruptible Power Supplies (UPS)
•Elakkanberhampiranfluorescent lighting
•Elakkanberhampirankawasankuatmagnet
Bad wiring & connectors
•Label setiaphujungkabelsebelumpemasangan
•Tarikhkabelmelaluibangunan, untukmemastikantidakadakinks, pintalan@ wayaryang terdedahsupayatidakterdedahkepadagangguanelektrikdanmagnetik.
•Punch down kabelsetiapwall jack danpatch panel yang sepatutnya
•Ujisambungankabelantarawall jack danpatch panel utkmemastikaniadapatmenghantarisyarat.
AFAMY/JULAI 2013 16

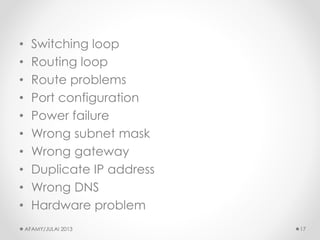

17. •Switching loop
•Routing loop
•Route problems
•Port configuration
•Power failure
•Wrong subnet mask
•Wrong gateway
•Duplicate IP address
•Wrong DNS
•Hardware problem
AFAMY/JULAI 2013 17

18. Melaksanakanproses baikpulih
Melakukanproses baikpulih
Melaksanakanpengujiansemula
AFAMY/JULAI 2013 18
