This document provides an overview of Azure Active Directory and how it can be used to authenticate users and applications to access data and APIs. It describes key Azure AD concepts like tenants, applications, permissions and consent. It also explains different OAuth 2.0 flows that can be used like implicit, authorization code, client credentials and on-behalf-of flows. The document recommends ways to access the Microsoft Graph API using these authorization techniques and links to code samples and documentation for further reference.

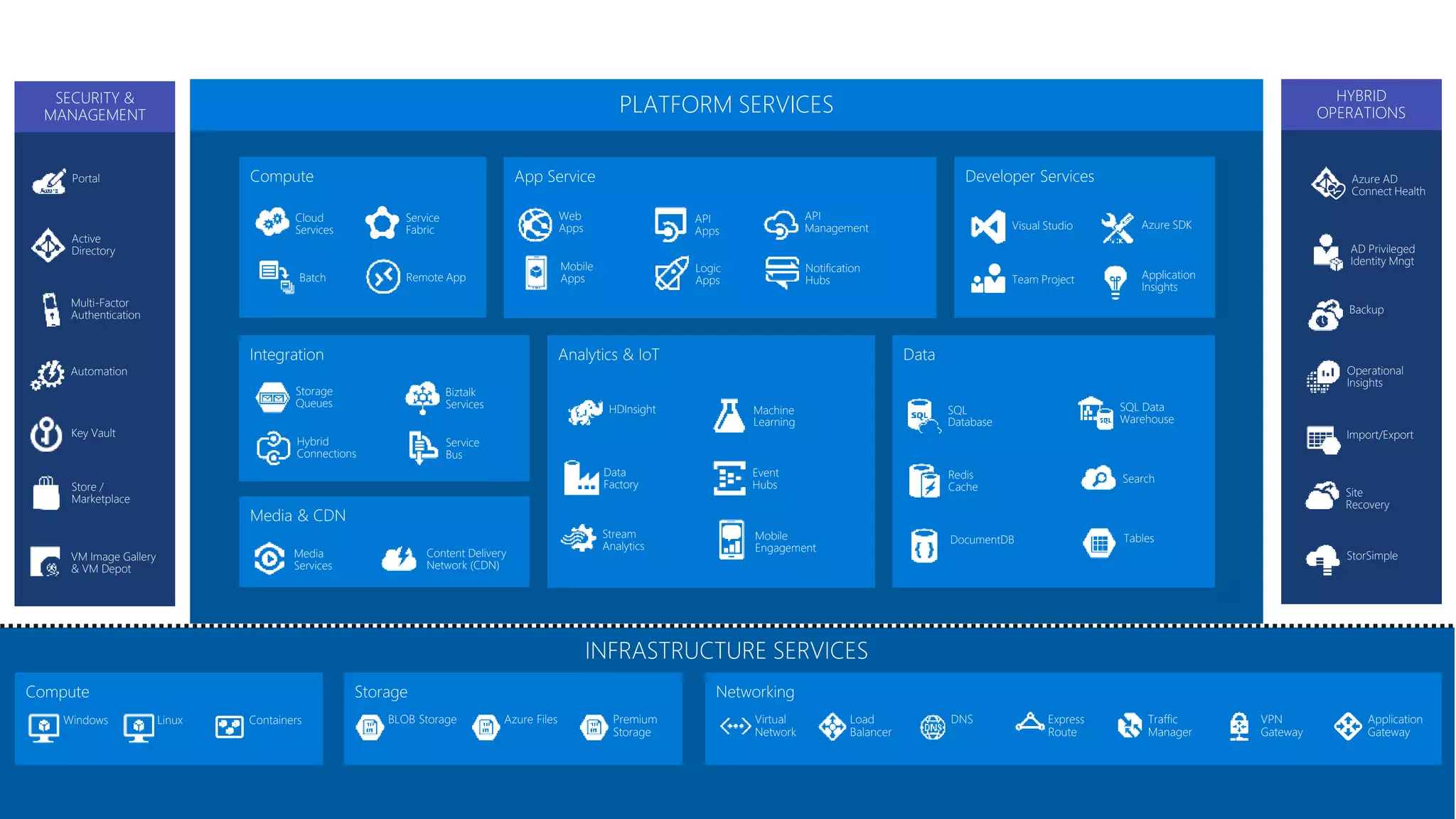

4. Web
Apps
Mobile
Apps
API
Management
API
Apps
Logic
Apps
Notification
Hubs
Content Delivery
Network (CDN)
Media
Services
HDInsight Machine
Learning
Stream
Analytics
Data
Factory
Event
Hubs
Mobile
Engagement
Biztalk
Services
Hybrid
Connections
Service
Bus
Storage
Queues
Backup
StorSimple
Site
Recovery
Import/Export
SQL
Database
DocumentDB
Redis
Cache
Search
Tables
SQL Data
Warehouse
Azure AD
Connect Health
AD Privileged
Identity Mngt
Operational
Insights
Cloud
Services
Batch Remote App
Service
Fabric Visual Studio
Application
Insights
Azure SDK
Team Project
Active
Directory
Multi-Factor
Authentication
Automation
Portal
Key Vault
Store /
Marketplace
VM Image Gallery
& VM Depot
SECURITY &
MANAGEMENT PLATFORM SERVICES HYBRID
OPERATIONS

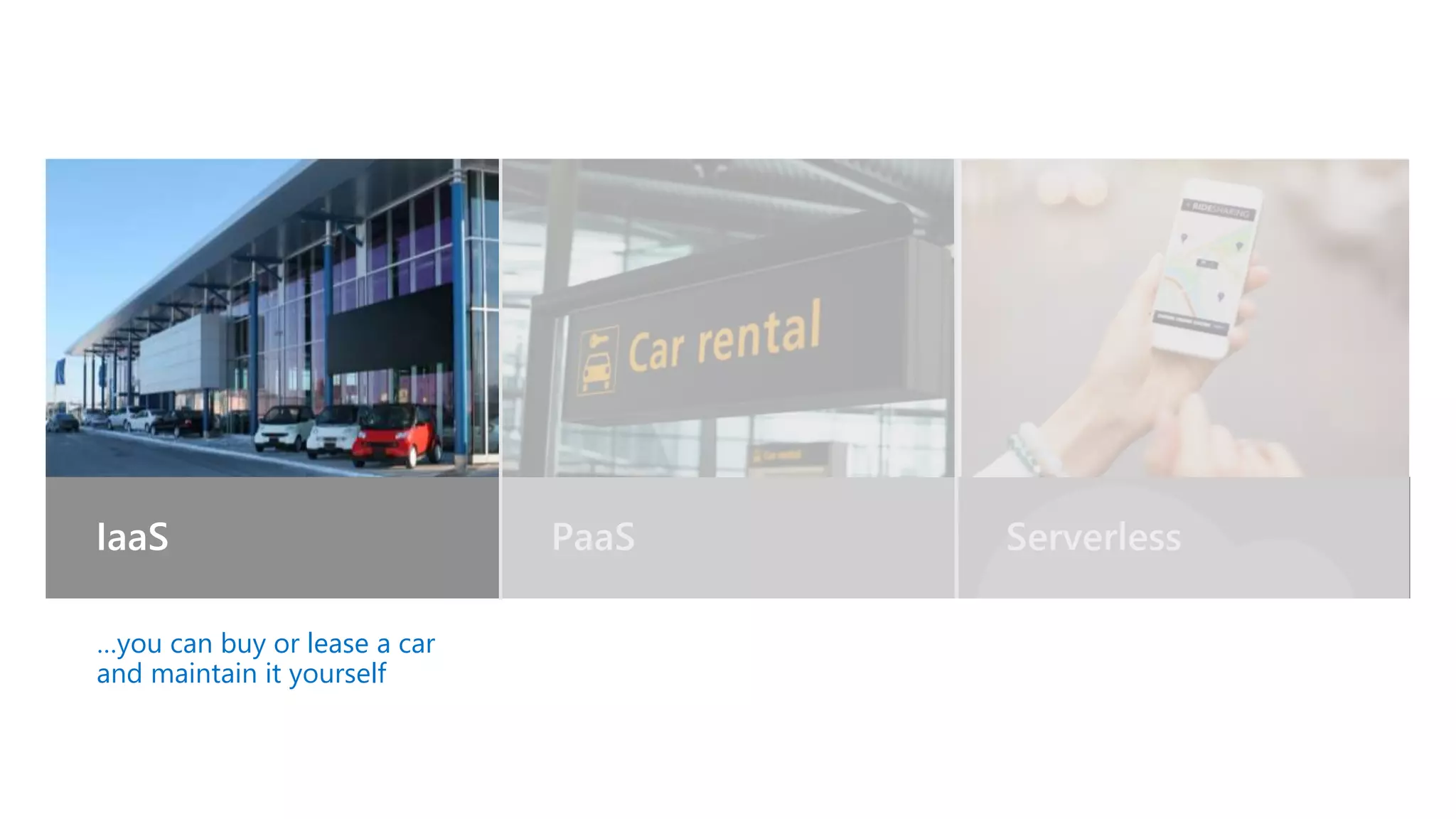

5. …if cloud computing was transportation
…you can buy or lease a car
and maintain it yourself

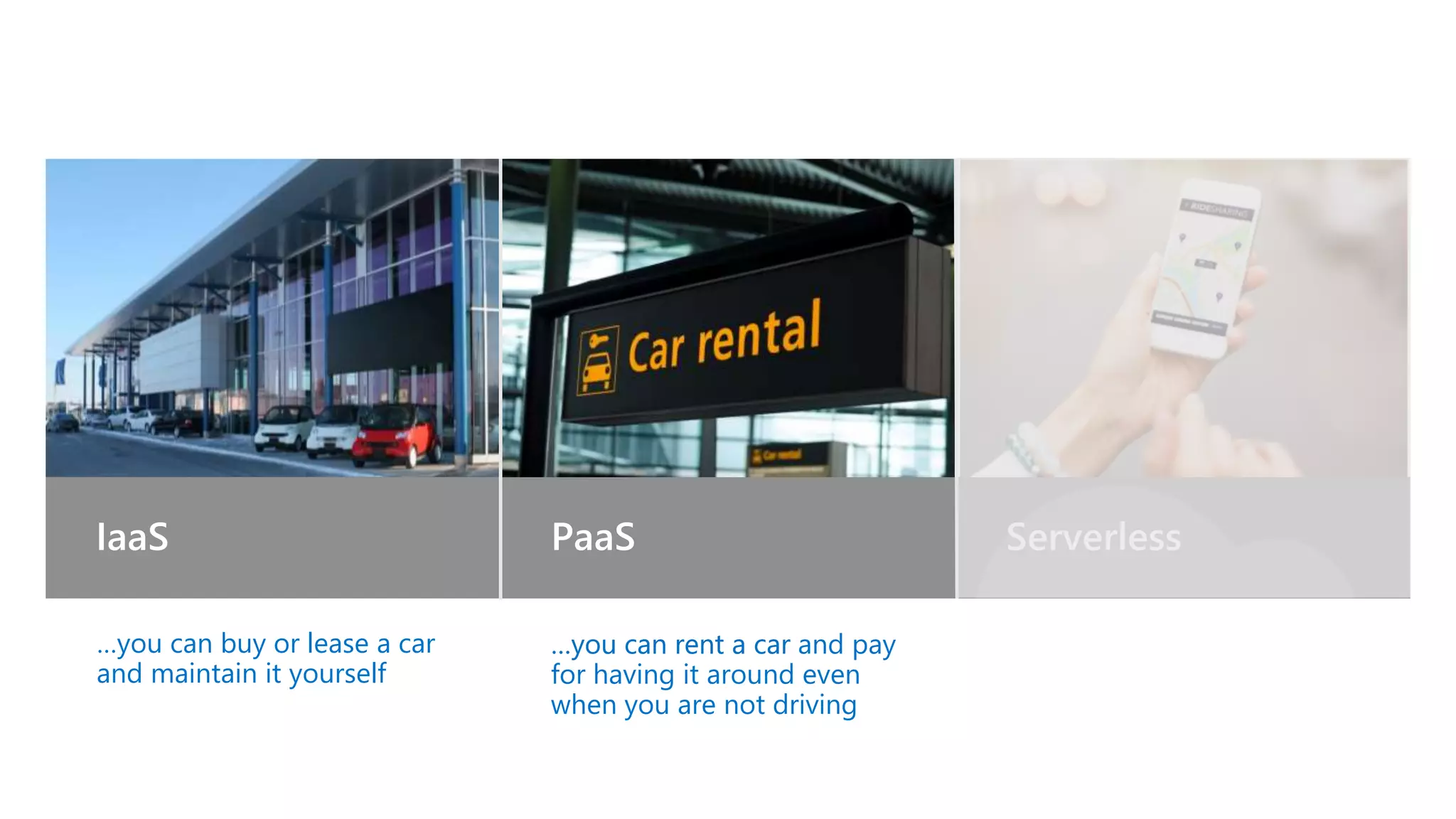

6. …you can rent a car
…if cloud computing was transportation
…you can buy or lease a car
and maintain it yourself
…you can rent a car and pay
for having it around even
when you are not driving

7. …you can rent a car
…if cloud computing was transportation
…you can buy or lease a car
and maintain it yourself
…you can rent a car and pay
for having it around even
when you are not driving
…you can use a ride sharing
app pay only for
transportation

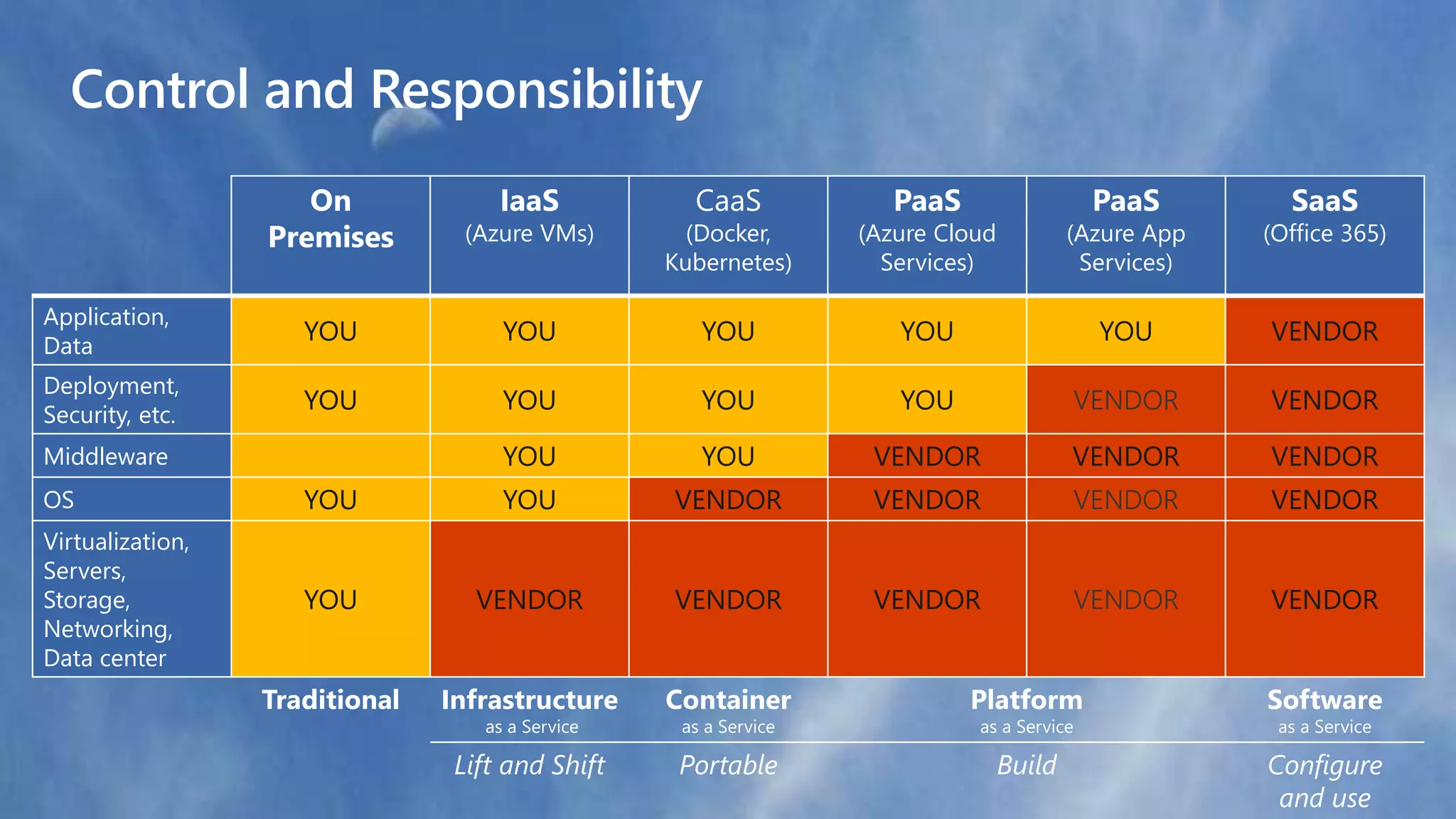

8. Control and Responsibility
On
Premises
IaaS
(Azure VMs)
CaaS
(Docker,
Kubernetes)
PaaS
(Azure Cloud
Services)
PaaS
(Azure App
Services)
SaaS
(Office 365)
Application,
Data
YOU YOU YOU YOU YOU VENDOR
Deployment,
Security, etc.
YOU YOU YOU YOU VENDOR VENDOR
Middleware YOU YOU VENDOR VENDOR VENDOR
OS YOU YOU VENDOR VENDOR VENDOR VENDOR
Virtualization,
Servers,
Storage,
Networking,
Data center
YOU VENDOR VENDOR VENDOR VENDOR VENDOR
Traditional Infrastructure
as a Service
Container
as a Service
Platform
as a Service
Software
as a Service
Lift and Shift Portable Build Configure
and use

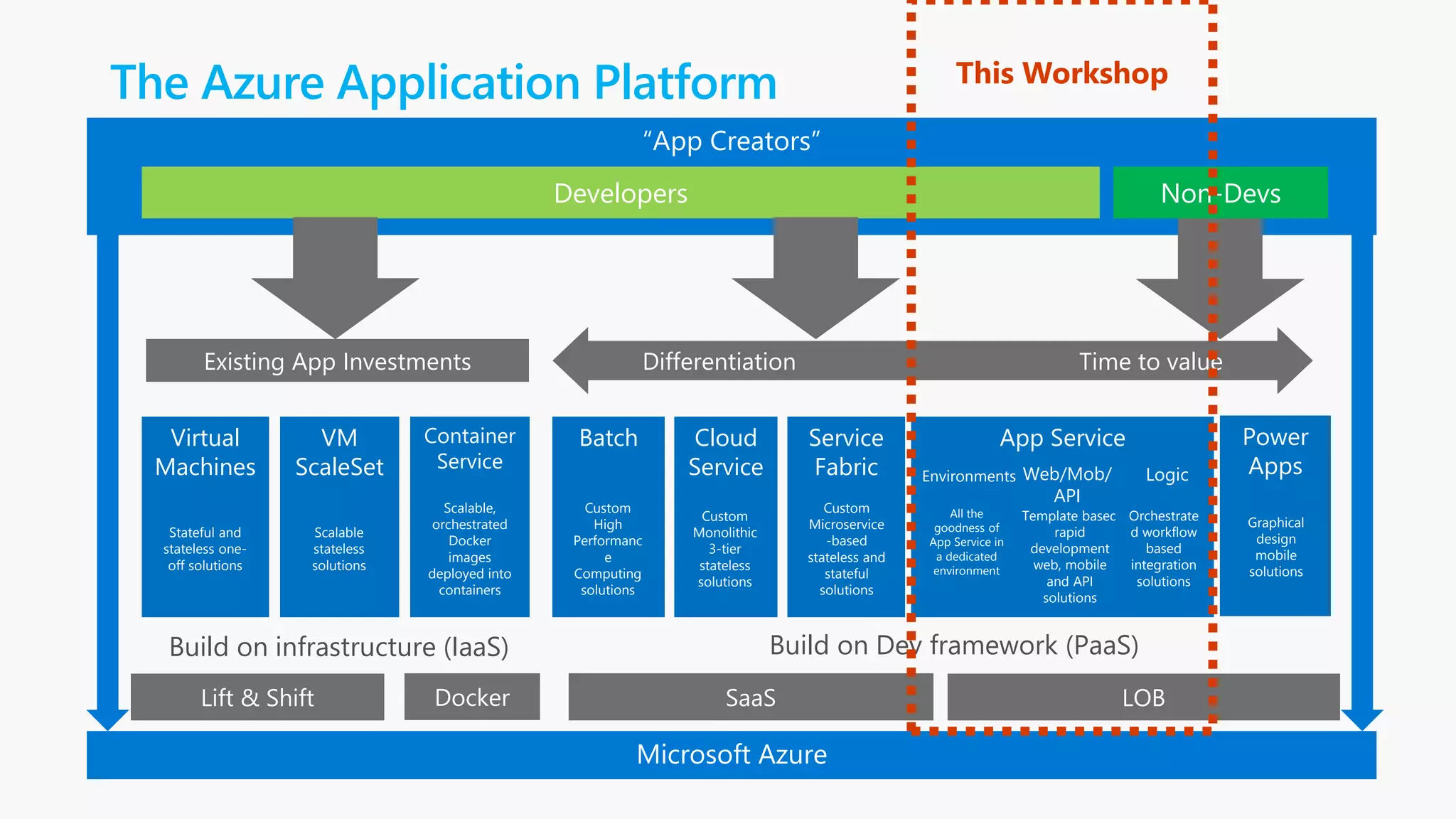

9. Build on infrastructure (IaaS) Build on Dev framework (PaaS)
The Azure Application Platform
“App Creators”
Developers Non-Devs
Microsoft Azure
LOBSaaSLift & Shift Docker
Virtual
Machines
Stateful and
stateless one-
off solutions
VM
ScaleSet
s
Scalable
stateless
solutions
Container
Service
Scalable,
orchestrated
Docker
images
deployed into
containers
Differentiation Time to valueExisting App Investments
Batch
Custom
High
Performanc
e
Computing
solutions
Cloud
Service
s
Custom
Monolithic
3-tier
stateless
solutions
Service
Fabric
Custom
Microservice
-based
stateless and
stateful
solutions
Power
Apps
Graphical
design
mobile
solutions
App Service
Template based
rapid
development
web, mobile
and API
solutions
Orchestrate
d workflow
based
integration
solutions
LogicWeb/Mob/
API
All the
goodness of
App Service in
a dedicated
environment
Environments
This Workshop

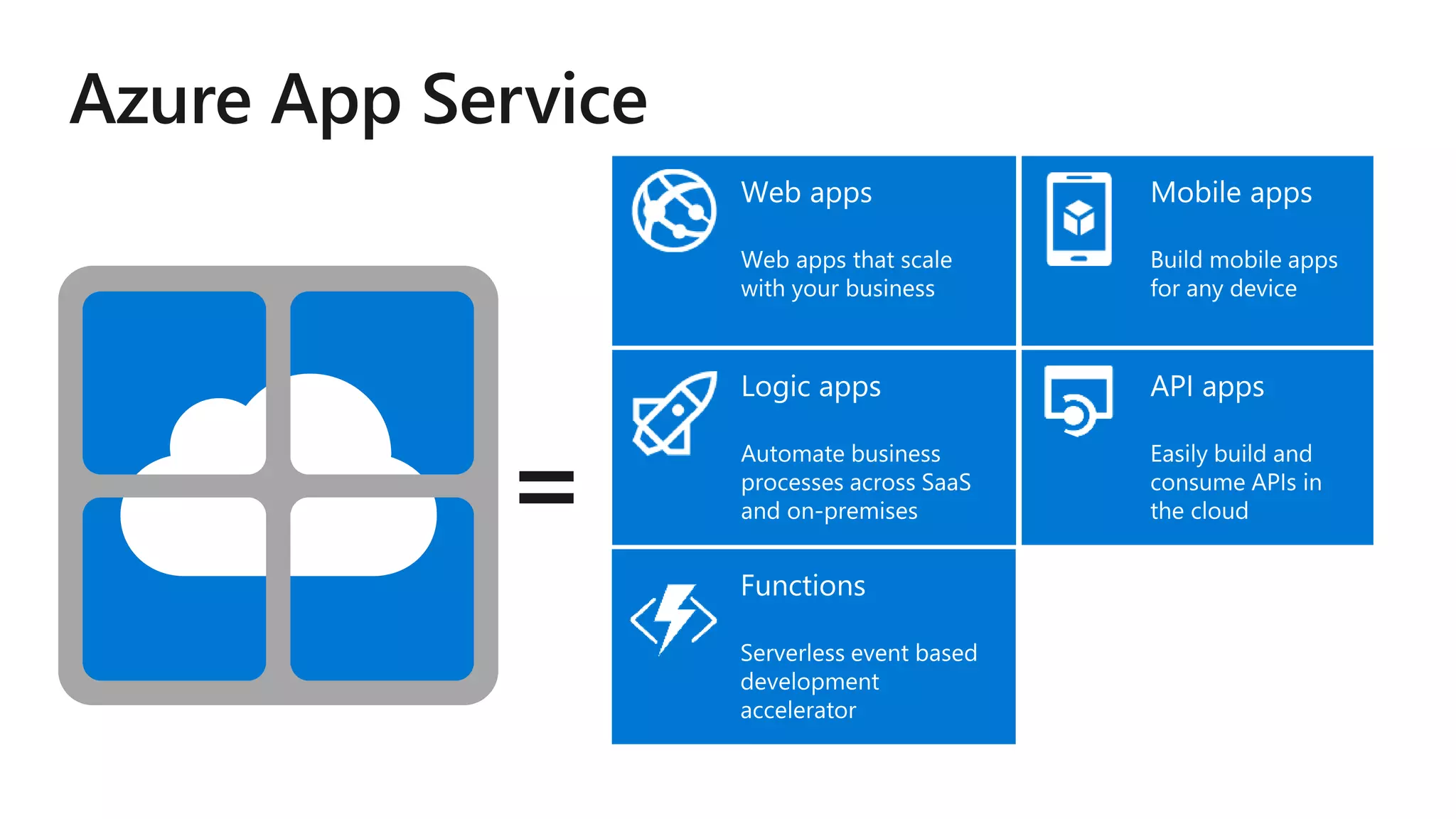

10. Azure App Service

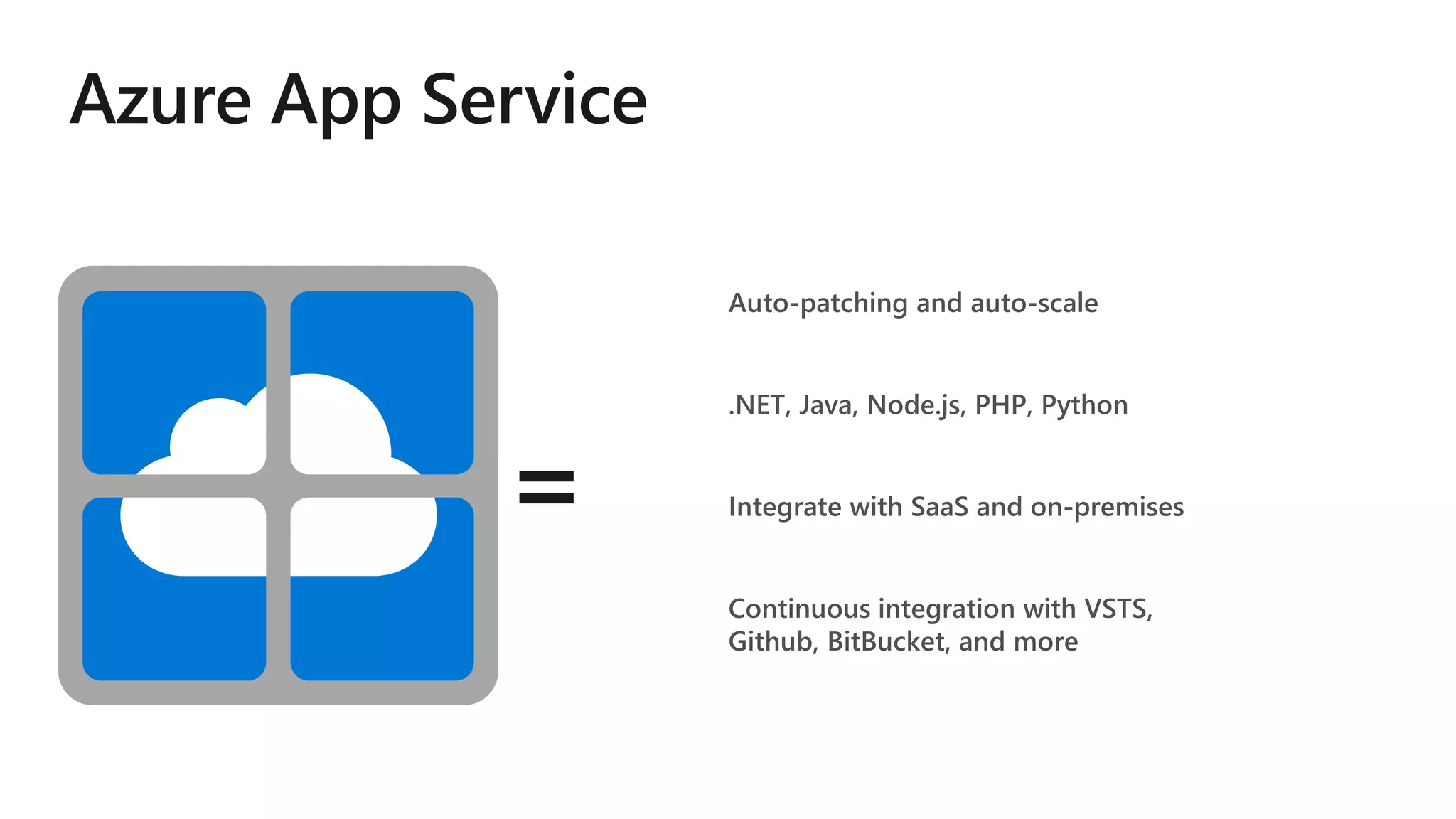

11. Azure App Service

12. Azure Active
Directory

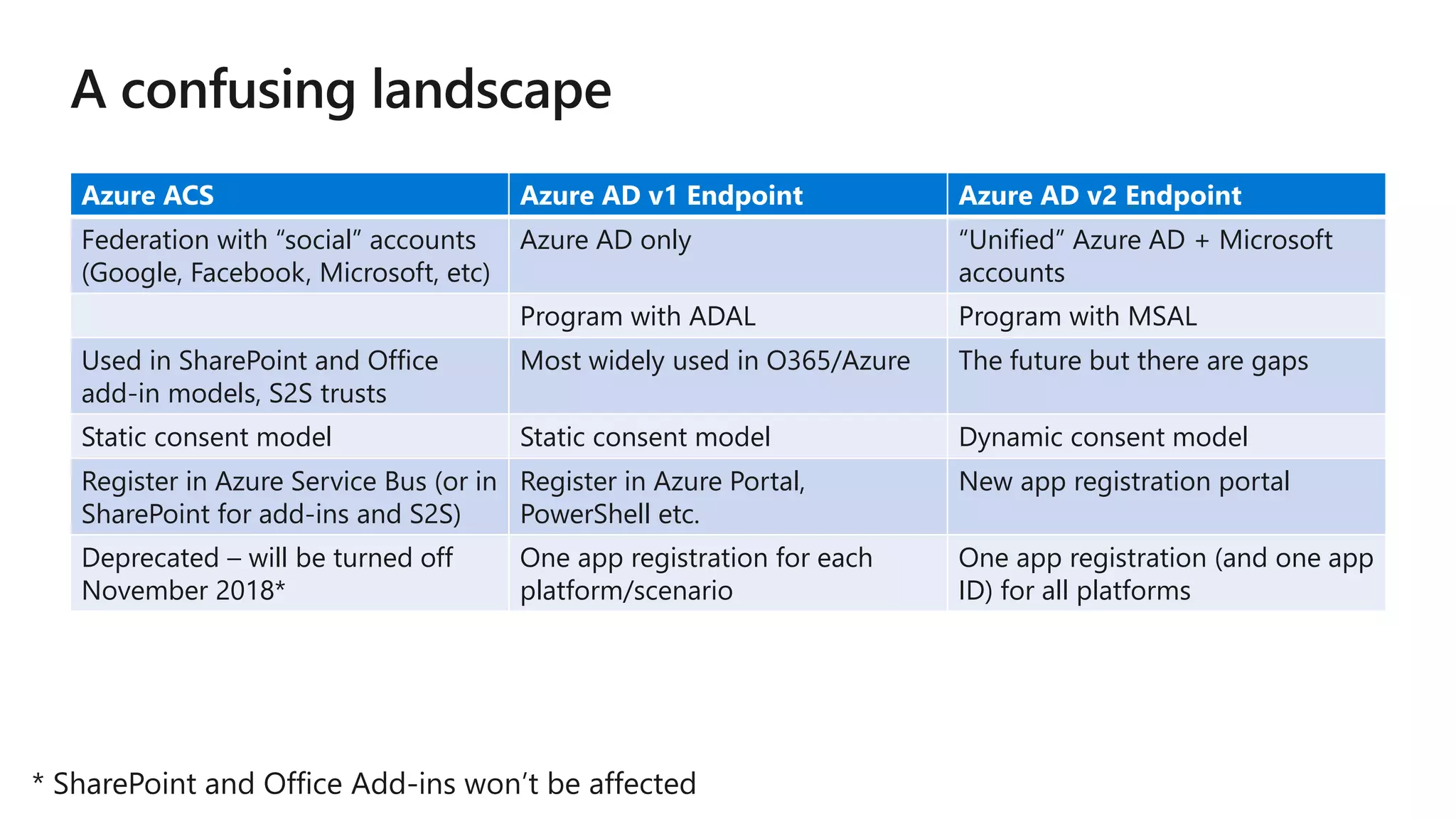

13. Azure ACS Azure AD v1 Endpoint Azure AD v2 Endpoint
Federation with “social” accounts
(Google, Facebook, Microsoft, etc)
Azure AD only “Unified” Azure AD + Microsoft
accounts
Program with ADAL Program with MSAL
Used in SharePoint and Office
add-in models, S2S trusts
Most widely used in O365/Azure The future but there are gaps
Static consent model Static consent model Dynamic consent model
Register in Azure Service Bus (or in
SharePoint for add-ins and S2S)
Register in Azure Portal,
PowerShell etc.
New app registration portal
Deprecated – will be turned off
November 2018*
One app registration for each
platform/scenario
One app registration (and one app
ID) for all platforms

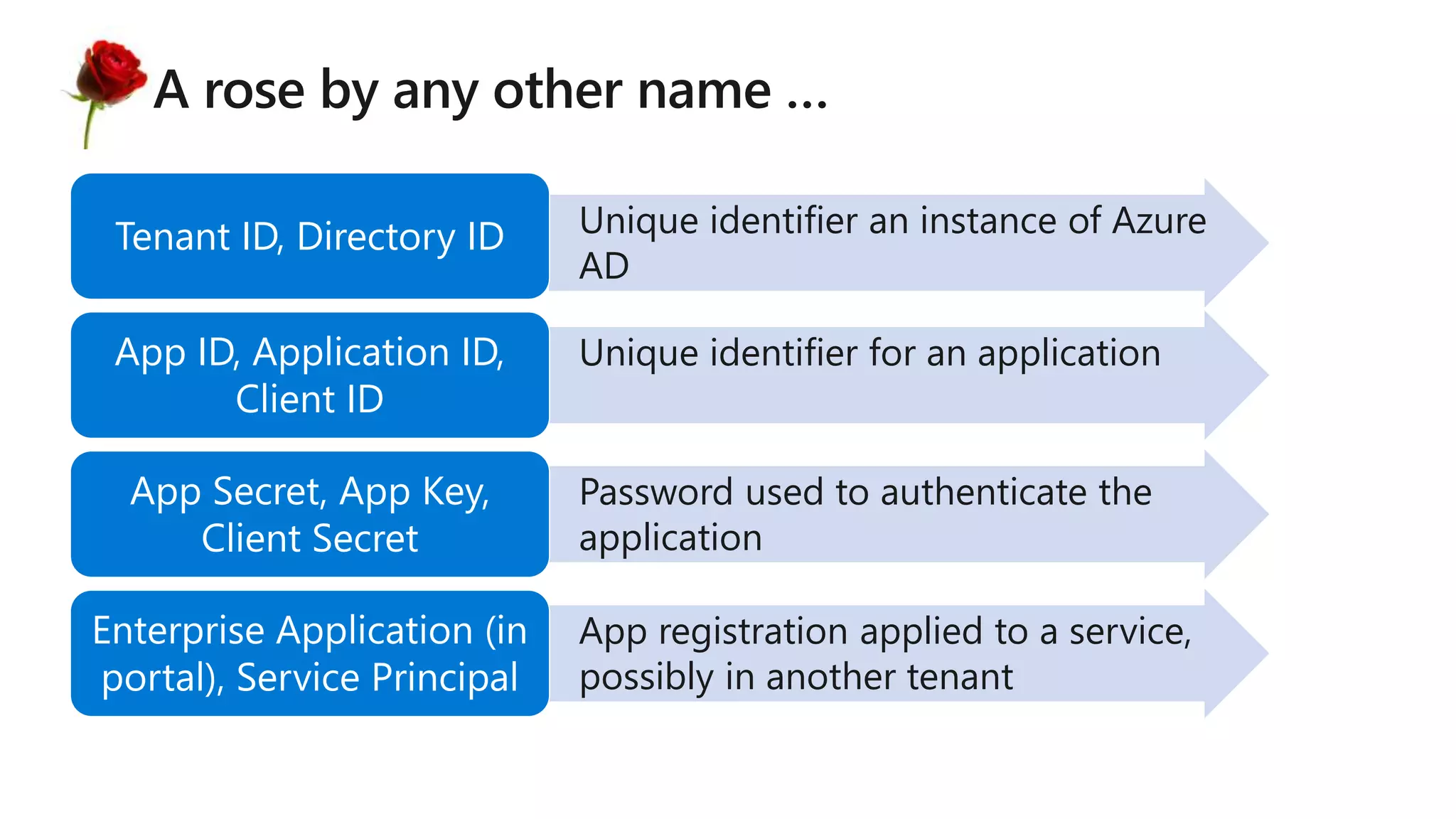

14. • Unique identifier an instance of Azure
AD
Tenant ID, Directory ID
• Unique identifier for an applicationApp ID, Application ID,
Client ID
• Password used to authenticate the
application
App Secret, App Key,
Client Secret

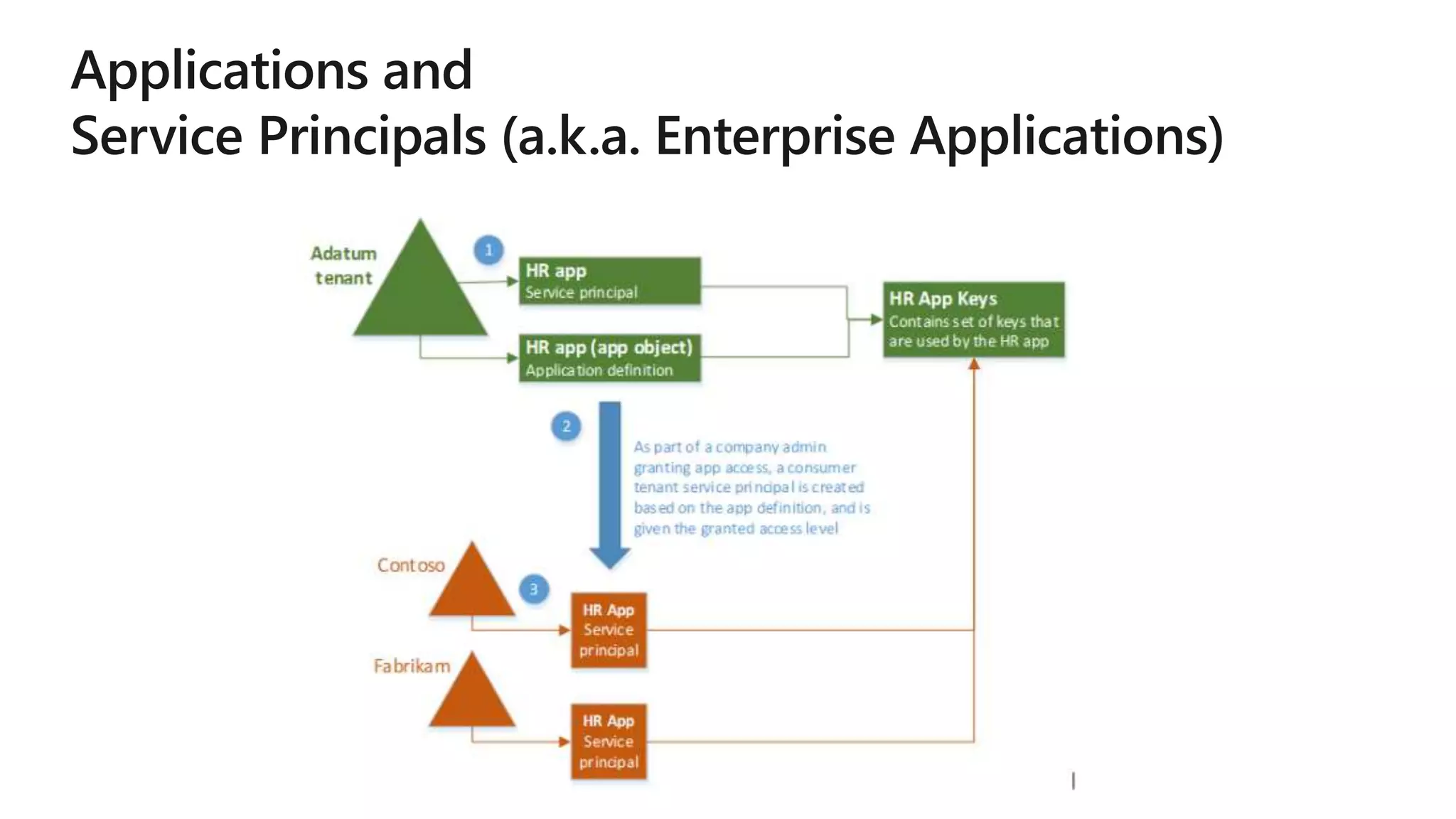

• App registration applied to a service,
possibly in another tenant
Enterprise Application (in
portal), Service Principal

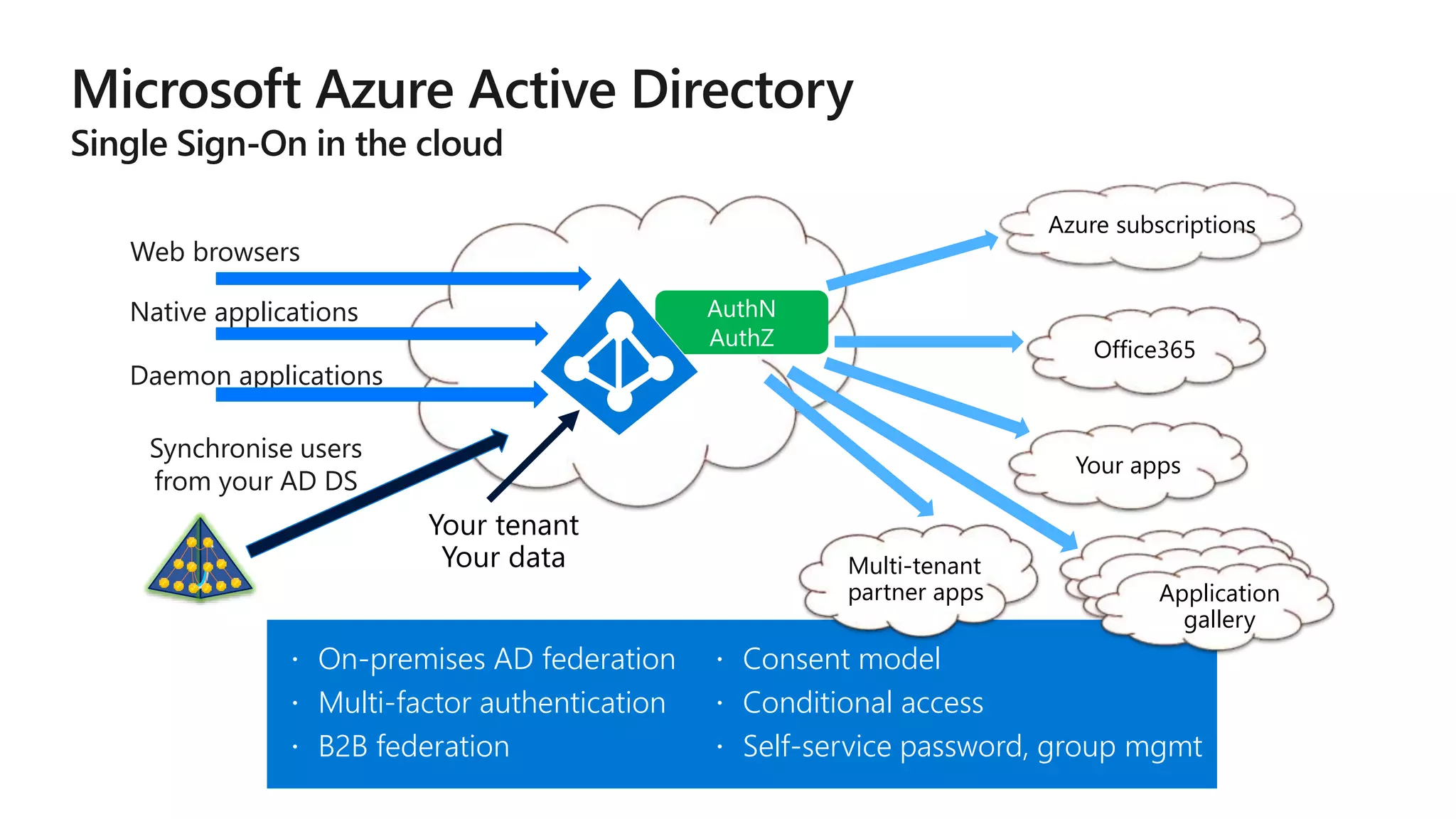

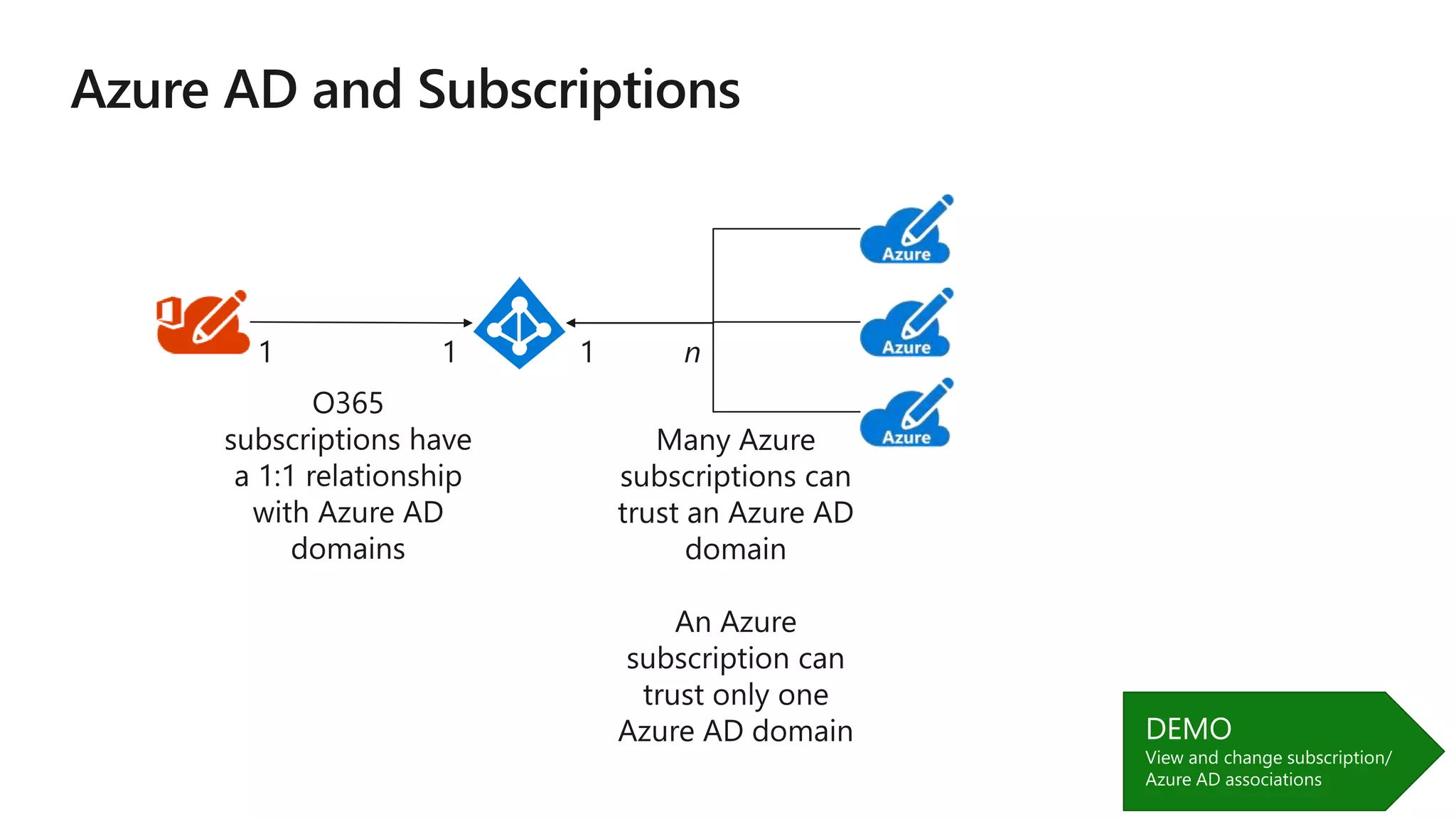

16.  On-premises AD federation
 Multi-factor authentication
 B2B federation
Azure subscriptions
Office365
Your apps
Multi-tenant
partner apps
Daemon applications
Web browsers
Native applications
Application
gallery
Synchronise users
from your AD DS
 Consent model
 Conditional access
 Self-service password, group mgmt

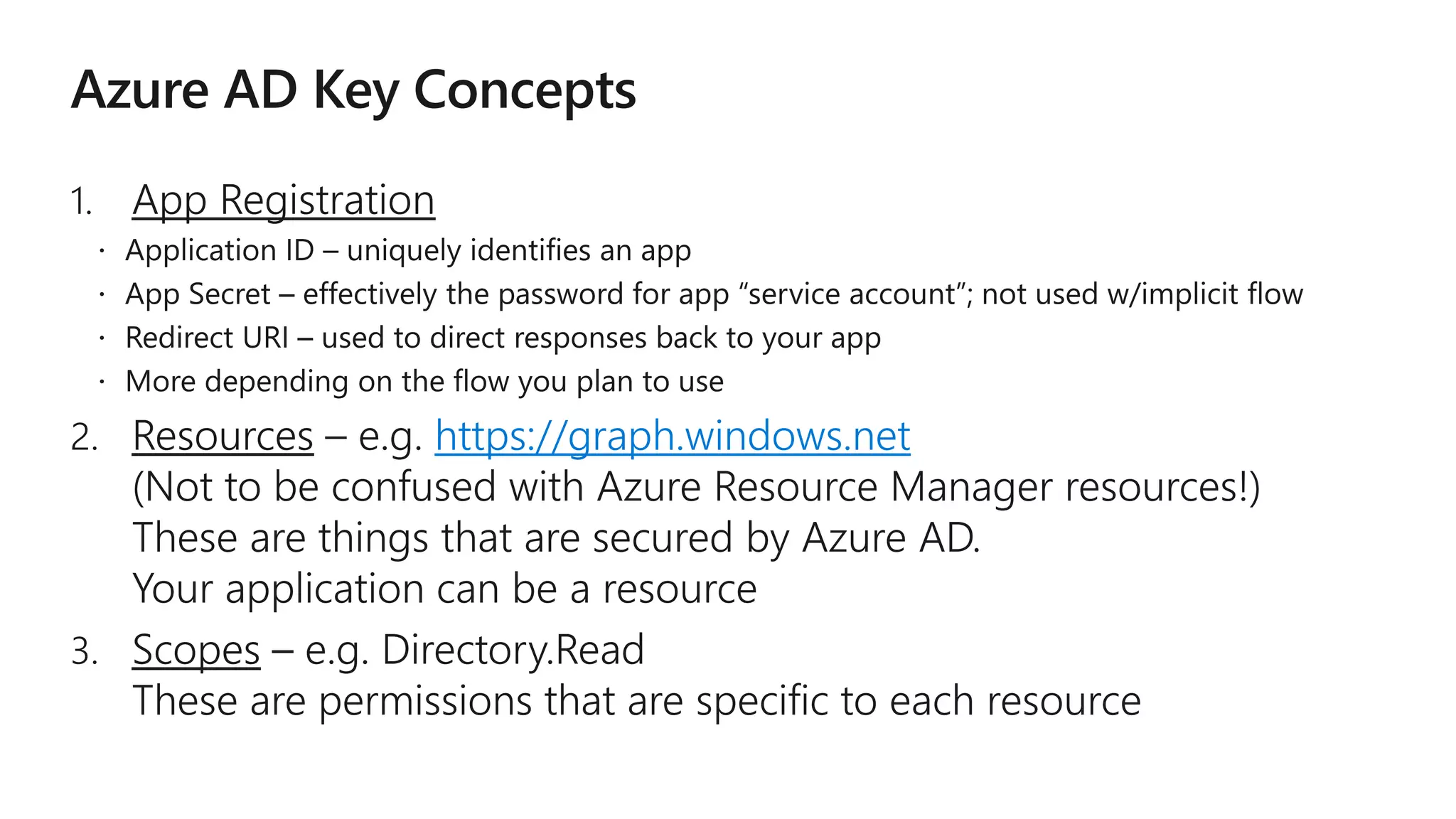

17. https://graph.windows.net

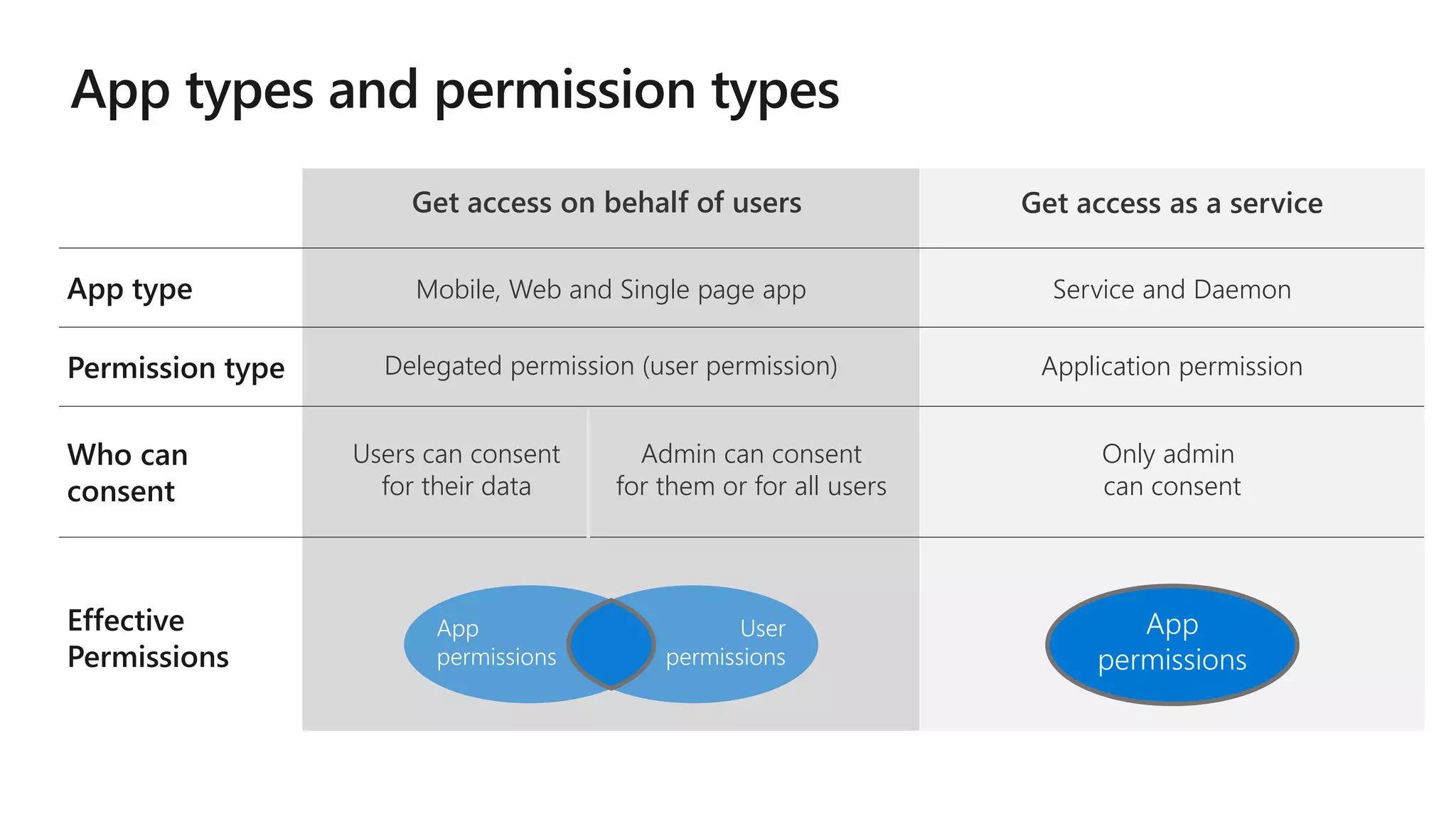

18. App type
Permission type
Who can
consent
Effective
Permissions
Get access on behalf of users Get access as a service
Mobile, Web and Single page app Service and Daemon
Users can consent
for their data
Admin can consent
for them or for all users
Only admin
can consent
App
permissions
User
permissions
App
permissions
Application permissionDelegated permission (user permission)

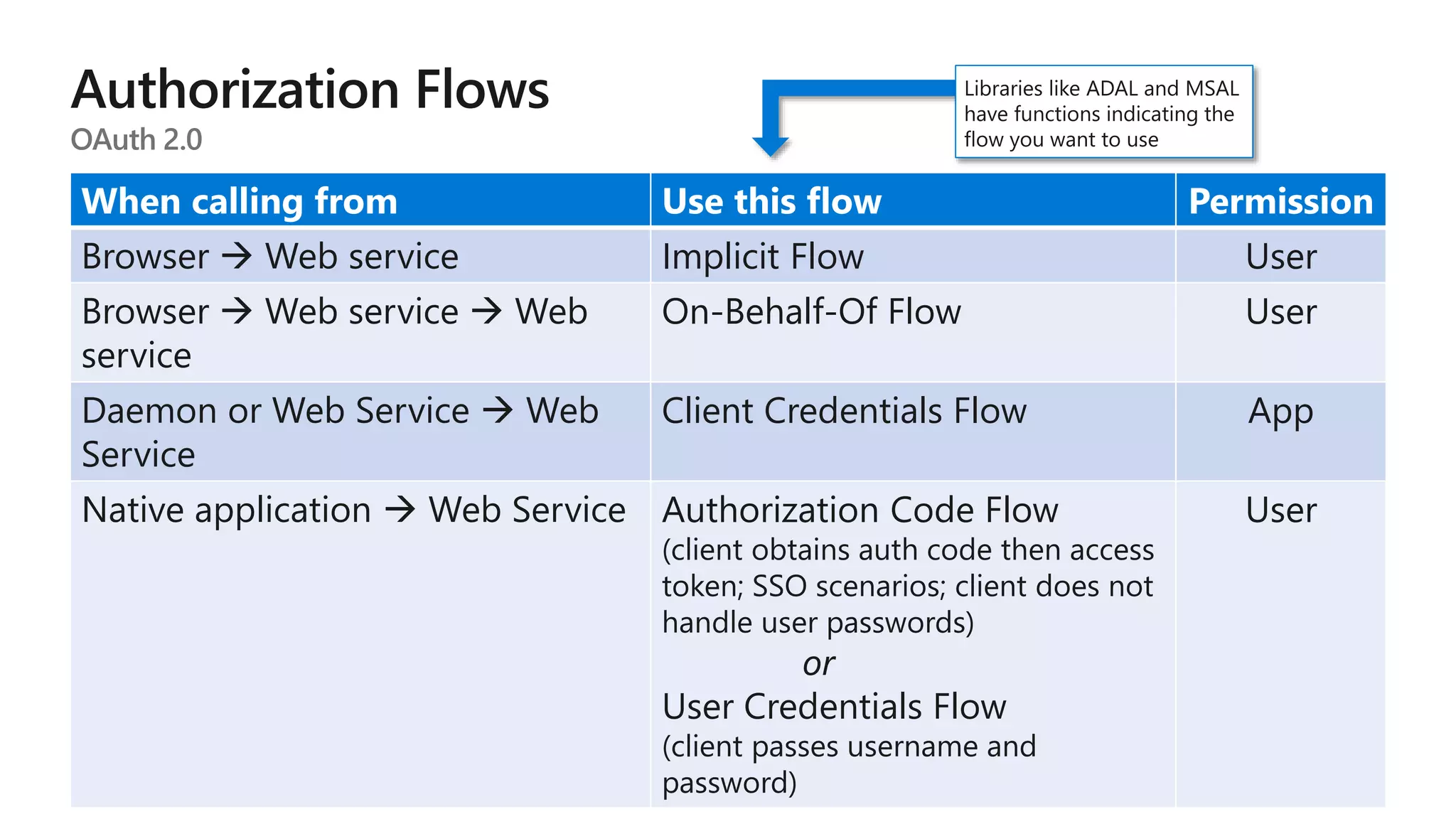

19. OAuth 2.0
When calling from Use this flow Permission
Browser  Web service Implicit Flow User
Browser  Web service  Web
service
On-Behalf-Of Flow User
Daemon or Web Service  Web
Service
Client Credentials Flow App
Native application  Web Service Authorization Code Flow
(client obtains auth code then access
token; SSO scenarios; client does not
handle user passwords)
or
User Credentials Flow
(client passes username and
password)
User

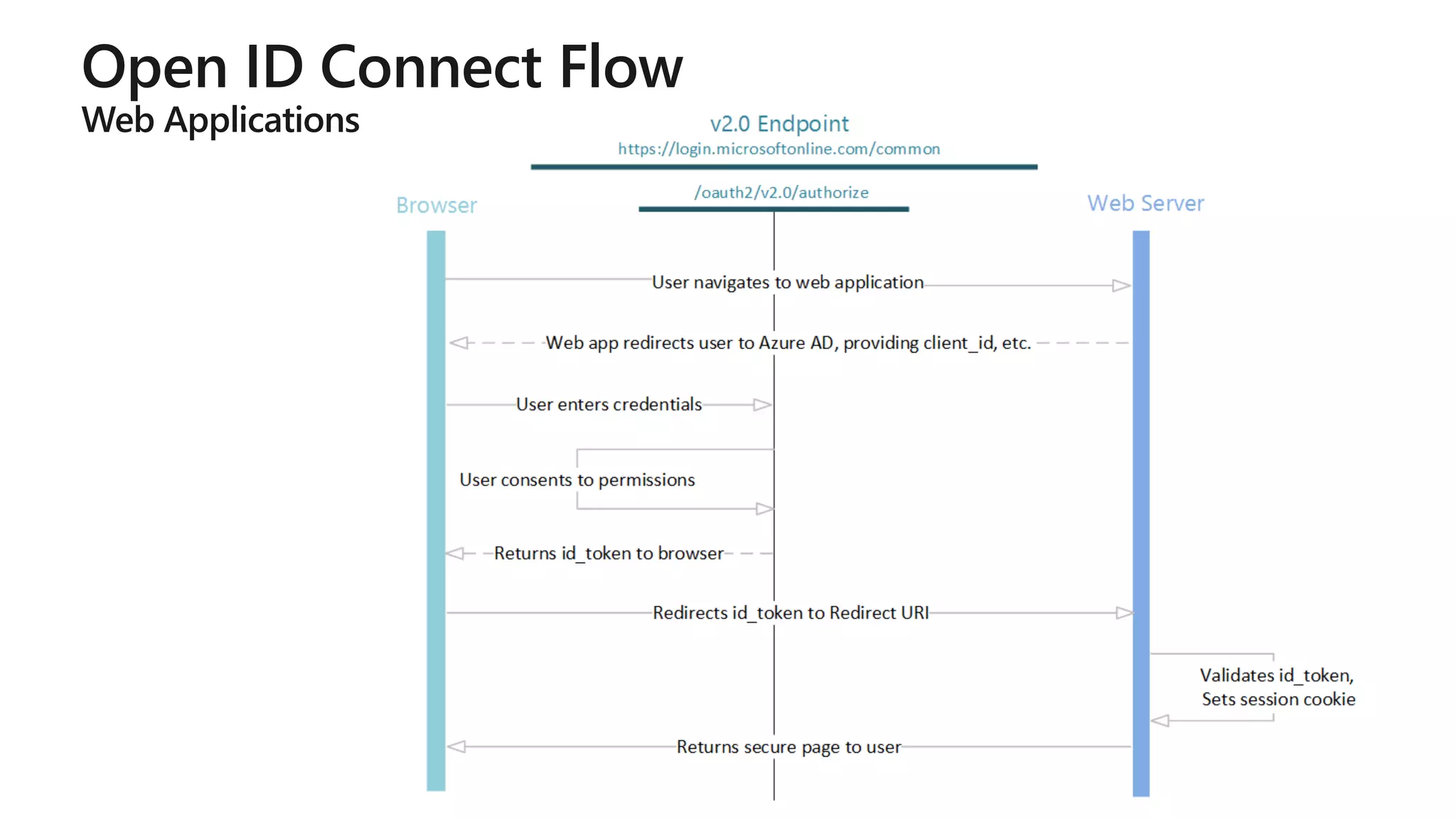

20. Open ID Connect Flow
Web Applications

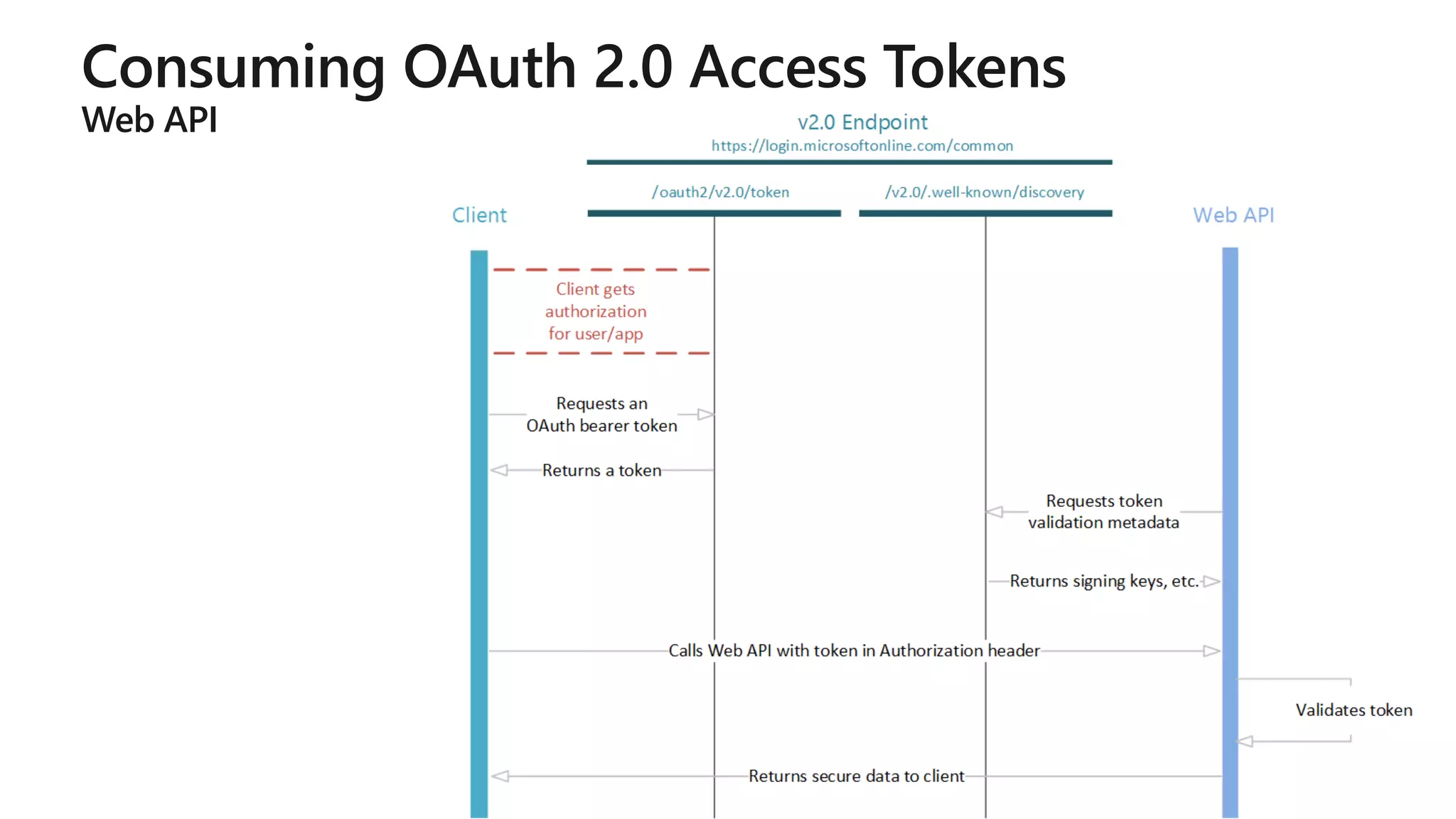

21. Consuming OAuth 2.0 Access Tokens
Web API

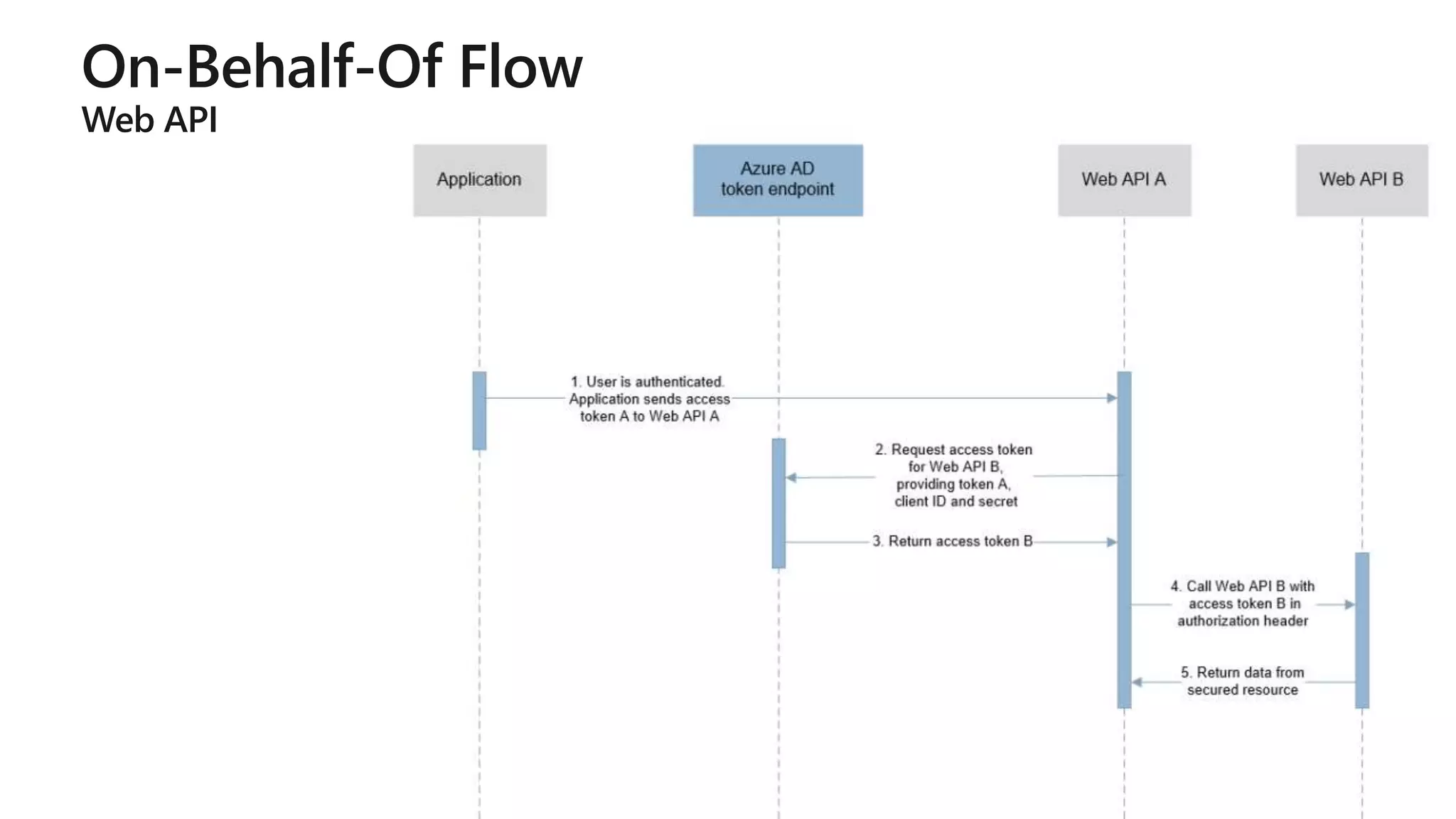

22. On-Behalf-Of Flow
Web API

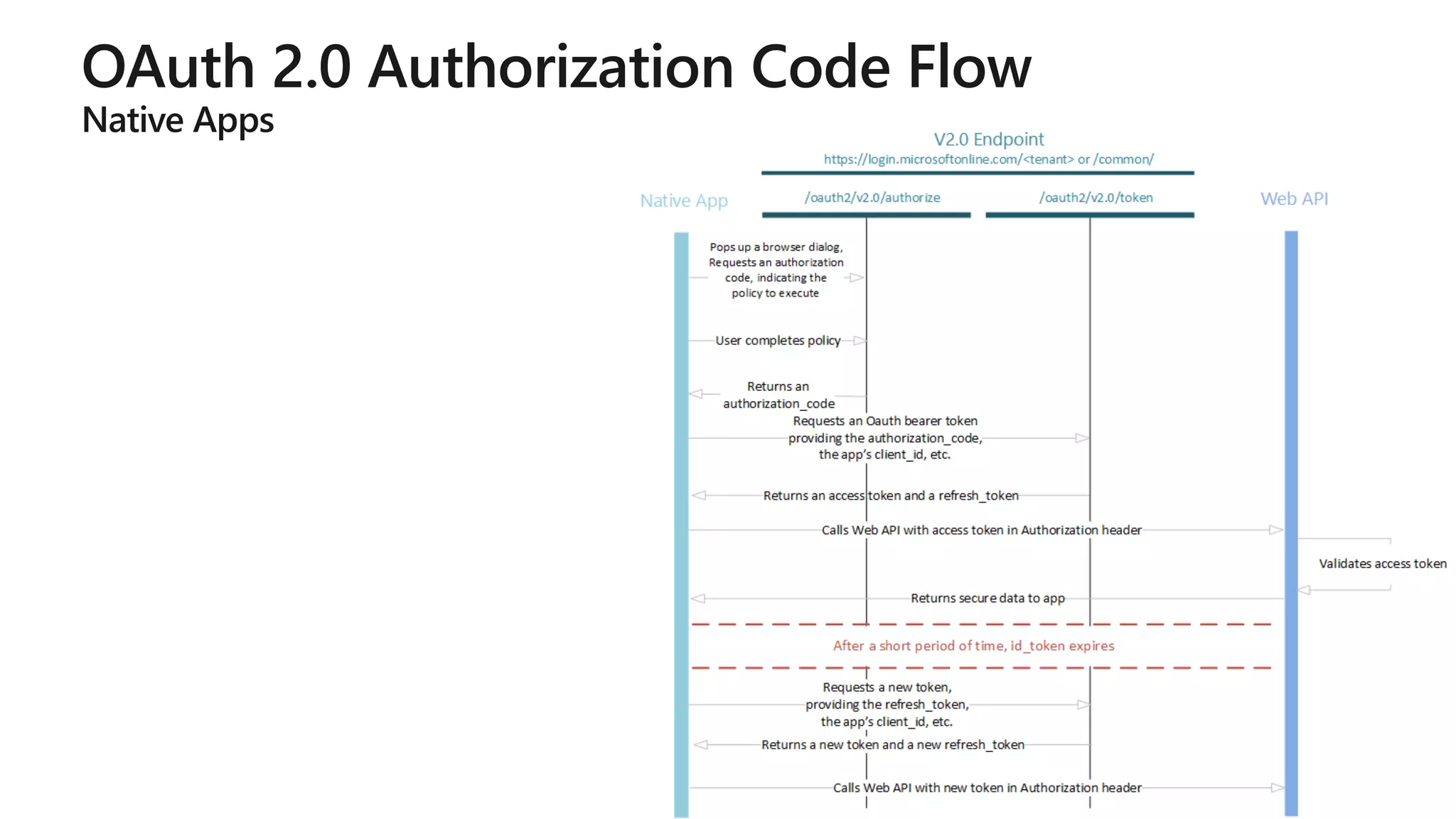

23. OAuth 2.0 Authorization Code Flow
Native Apps

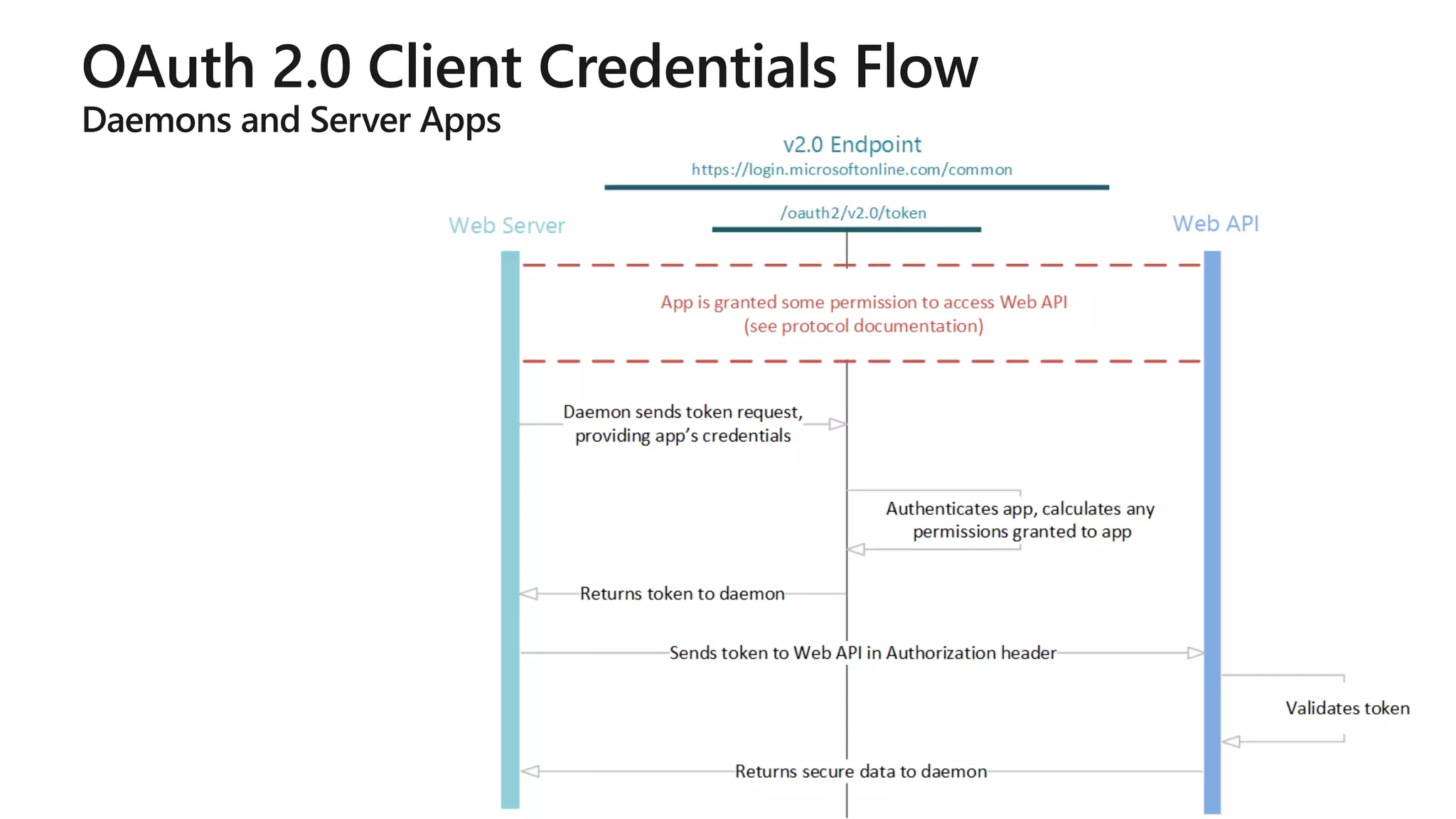

24. OAuth 2.0 Client Credentials Flow
Daemons and Server Apps

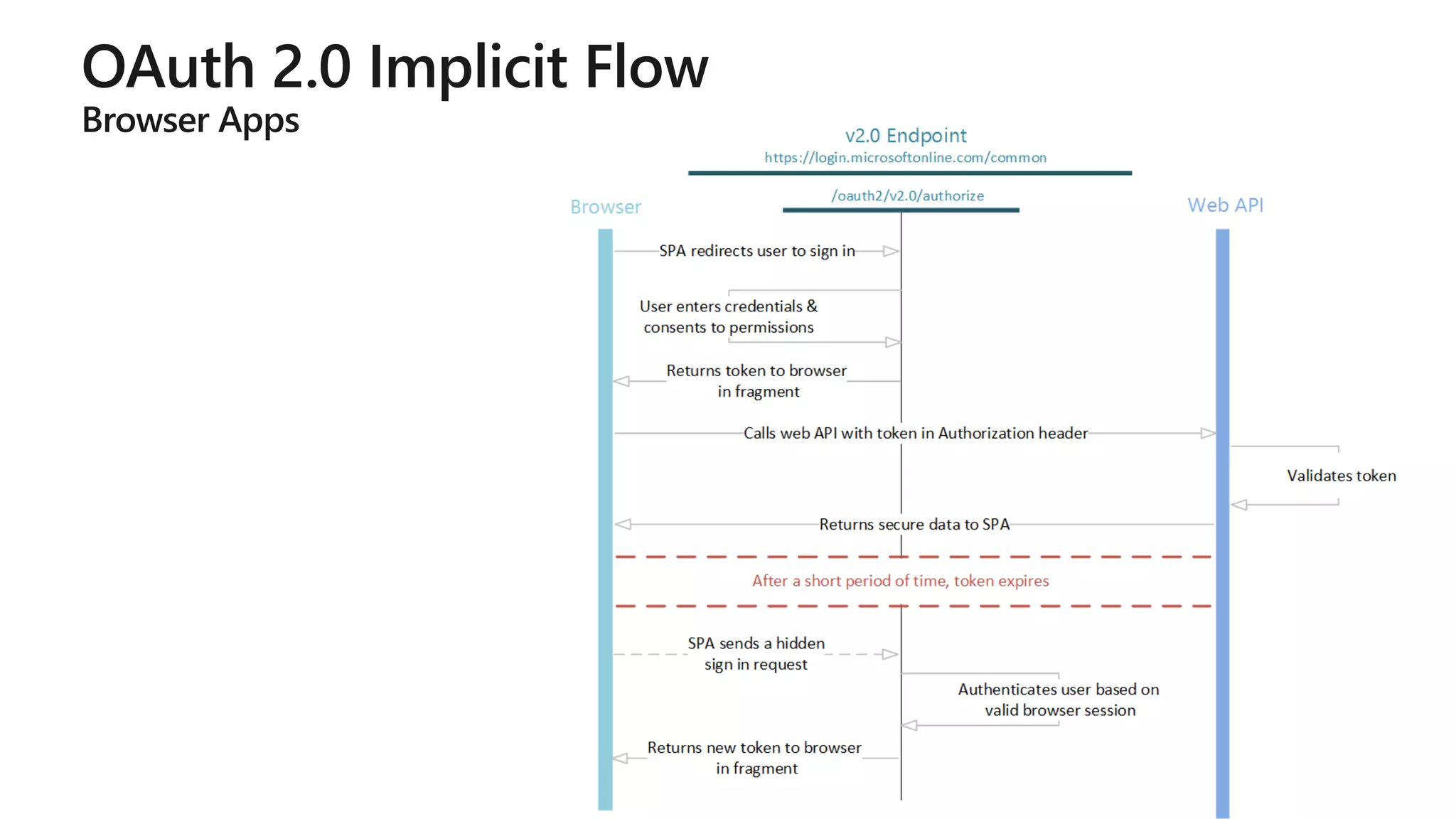

25. OAuth 2.0 Implicit Flow
Browser Apps

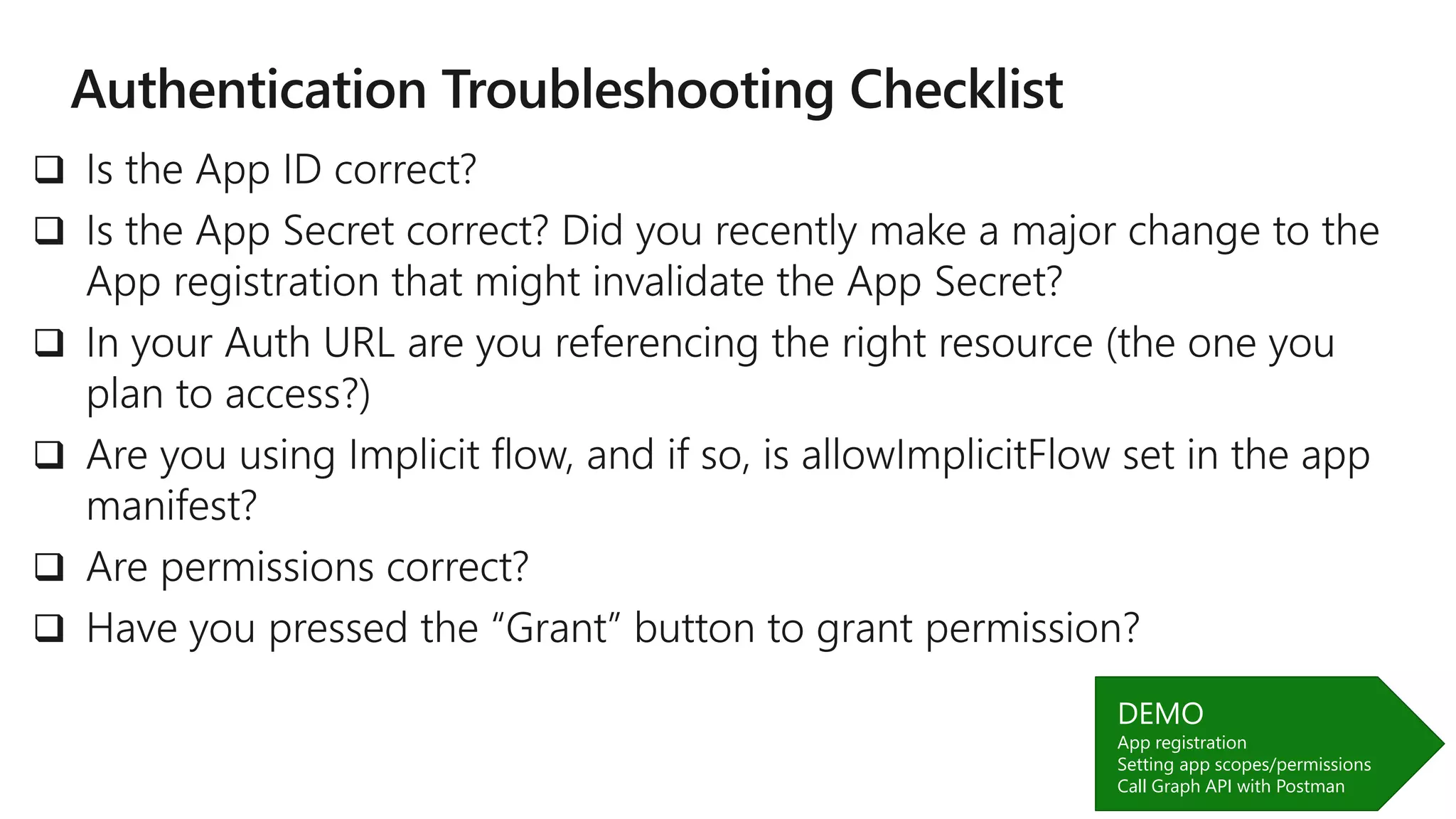

27. App registration
Setting app scopes/permissions
Call Graph API with Postman

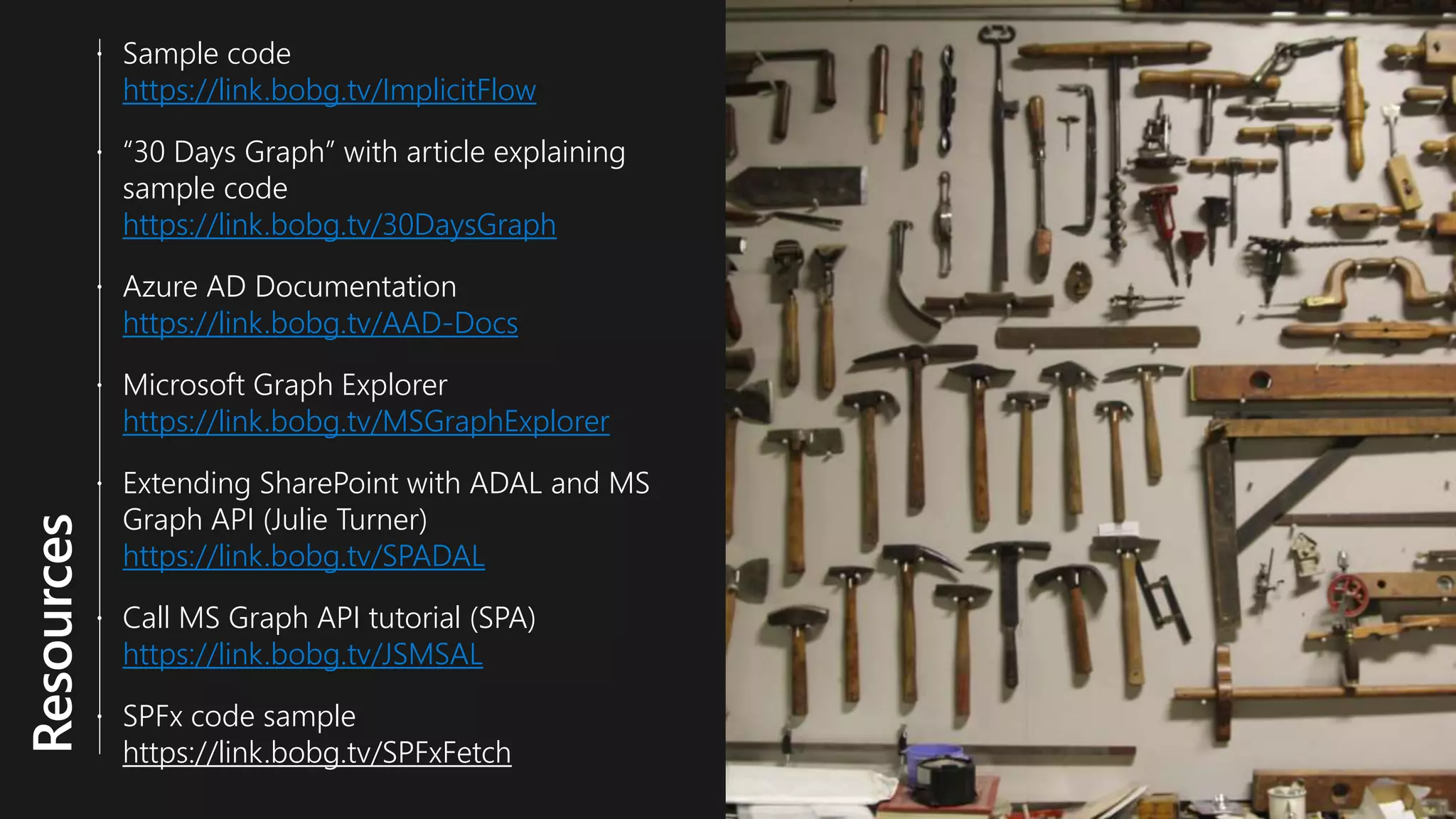

28. Resources  Sample code
https://link.bobg.tv/ImplicitFlow
 “30 Days Graph” with article explaining
sample code
https://link.bobg.tv/30DaysGraph
 Azure AD Documentation
https://link.bobg.tv/AAD-Docs
 Microsoft Graph Explorer
https://link.bobg.tv/MSGraphExplorer
 Extending SharePoint with ADAL and MS
Graph API (Julie Turner)
https://link.bobg.tv/SPADAL
 Call MS Graph API tutorial (SPA)
https://link.bobg.tv/JSMSAL
 SPFx code sample
https://link.bobg.tv/SPFxFetch
