The document describes building a link shortening application called YA.LS using Amazon Web Services. It discusses: 1) Developing the application using Node.js, Express, and other packages and deploying it to AWS Elastic Beanstalk. 2) Storing shortened links and target URLs in DynamoDB and caching them locally. 3) Redirecting requests using the stored URLs. 4) Enhancing it to take screenshots, store them in S3, and record analytics using SQS, Lambda, and Kinesis. 5) Configuring authentication with IAM and deploying the infrastructure with CloudFormation.

1. Amazon Web Services.
From infrastructure
to platform Roman Gomolko
rg@audienceproject.com

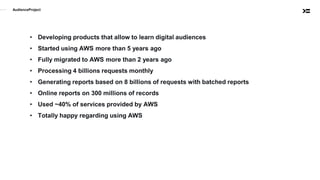

2. AudienceProject
• Developing products that allow to learn digital audiences
• Started using AWS more than 5 years ago
• Fully migrated to AWS more than 2 years ago
• Processing 4 billions requests monthly
• Generating reports based on 8 billions of requests with batched reports
• Online reports on 300 millions of records
• Used ~40% of services provided by AWS
• Totally happy regarding using AWS

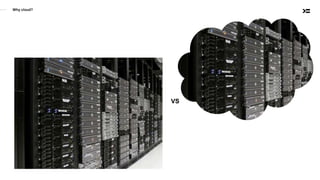

3. Why cloud?
VS

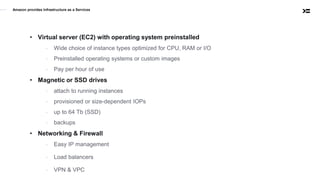

4. Amazon provides Infrastructure as a Services
• Virtual server (EC2) with operating system preinstalled
- Wide choice of instance types optimized for CPU, RAM or I/O
- Preinstalled operating systems or custom images
- Pay per hour of use
• Magnetic or SSD drives
- attach to running instances
- provisioned or size-dependent IOPs
- up to 64 Tb (SSD)
- backups
• Networking & Firewall
- Easy IP management
- Load balancers
- VPN & VPC

6. Development and deployment

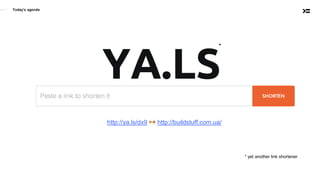

7. Today’s agenda
YA.LS
* yet another link shortener
*
http://ya.ls/dx9 ↣ http://buildstuff.com.ua/

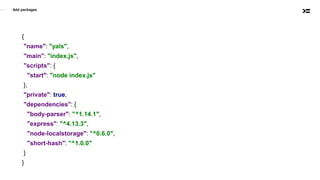

8. Add packages
{
"name": "yals",
"main": "index.js",
"scripts": {
"start": "node index.js"
},
"private": true,
"dependencies": {
"body-parser": "^1.14.1",
"express": "^4.13.3",
"node-localstorage": "^0.6.0",
"short-hash": "^1.0.0"
}
}

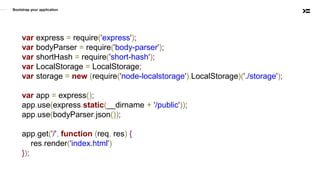

9. Bootstrap your application
var express = require('express');
var bodyParser = require('body-parser');
var shortHash = require('short-hash');
var LocalStorage = LocalStorage;
var storage = new (require('node-localstorage').LocalStorage)('./storage');
var app = express();
app.use(express.static(__dirname + '/public'));
app.use(bodyParser.json());
app.get('/', function (req, res) {
res.render('index.html')
});

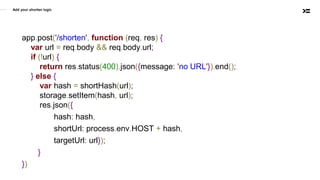

10. Add your shorten logic
app.post('/shorten', function (req, res) {
var url = req.body && req.body.url;
if (!url) {
return res.status(400).json({message: 'no URL'}).end();
} else {
var hash = shortHash(url);
storage.setItem(hash, url);
res.json({
hash: hash,
shortUrl: process.env.HOST + hash,
targetUrl: url});
}
})

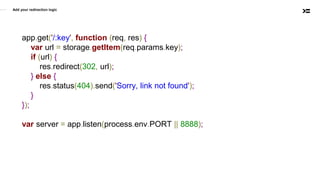

11. Add your redirection logic
app.get('/:key', function (req, res) {
var url = storage.getItem(req.params.key);
if (url) {
res.redirect(302, url);
} else {
res.status(404).send('Sorry, link not found');
}
});
var server = app.listen(process.env.PORT || 8888);

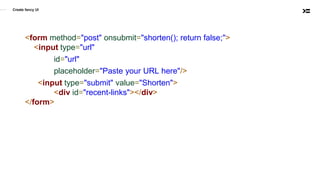

12. <form method="post" onsubmit="shorten(); return false;">
<input type="url"
id="url"
placeholder="Paste your URL here"/>
<input type="submit" value="Shorten">
<div id="recent-links"></div>
</form>
Create fancy UI

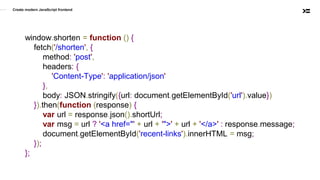

13. window.shorten = function () {
fetch('/shorten', {
method: 'post',
headers: {
'Content-Type': 'application/json'
},
body: JSON.stringify({url: document.getElementById('url').value})
}).then(function (response) {
var url = response.json().shortUrl;
var msg = url ? '<a href="' + url + '">' + url + '</a>' : response.message;
document.getElementById('recent-links').innerHTML = msg;
});
};
Create modern JavaScript frontend

14. PORT=8000
HOST=http://localhost:8000/
npm run start
Launch your application

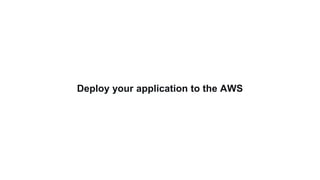

15. Deploy your application to the AWS

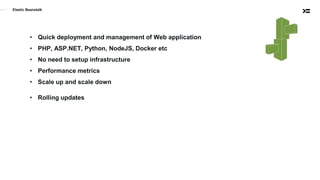

16. Elastic Beanstalk
• Quick deployment and management of Web application
• PHP, ASP.NET, Python, NodeJS, Docker etc
• No need to setup infrastructure
• Performance metrics
• Scale up and scale down
• Rolling updates

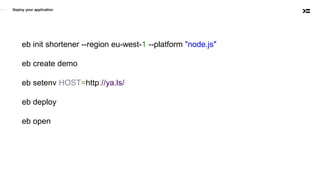

17. Deploy your application
eb init shortener --region eu-west-1 --platform "node.js"
eb create demo
eb setenv HOST=http://ya.ls/
eb deploy
eb open

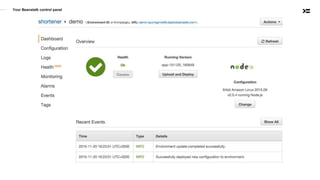

18. Your Beanstalk control panel

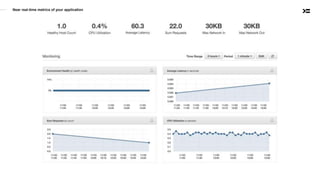

19. Near real-time metrics of your application

20. Your Beanstalk control panel

21. Elastic Beanstalk - scaled setup

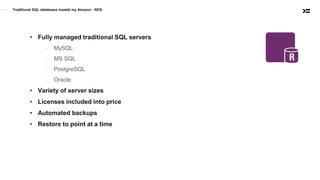

22. Traditional SQL databases hosteb my Amazon - RDS
• Fully managed traditional SQL servers
- MySQL
- MS SQL
- PostgreSQL
- Oracle
• Variety of server sizes
• Licenses included into price
• Automated backups
• Restore to point at a time

23. • Document DB
• No limits on size
• Provisioned throughput
• Differents attribute types including Lists and JSON
DynamoDB

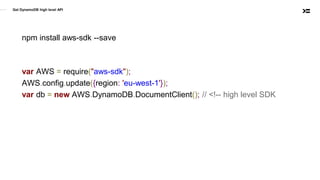

24. Get DynamoDB high level API
npm install aws-sdk --save
var AWS = require("aws-sdk");
AWS.config.update({region: 'eu-west-1'});
var db = new AWS.DynamoDB.DocumentClient(); // <!-- high level SDK

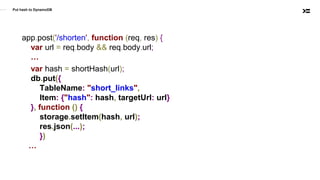

25. Put hash to DynamoDB
app.post('/shorten', function (req, res) {
var url = req.body && req.body.url;
…
var hash = shortHash(url);
db.put({
TableName: "short_links",
Item: {"hash": hash, targetUrl: url}
}, function () {
storage.setItem(hash, url);
res.json(...);
})
…

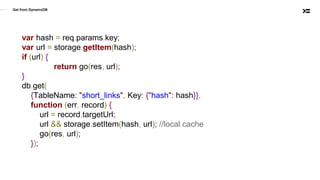

26. Get from DynamoDB
var hash = req.params.key;
var url = storage.getItem(hash);
if (url) {
return go(res, url);
}
db.get(
{TableName: "short_links", Key: {"hash": hash}},
function (err, record) {
url = record.targetUrl;
url && storage.setItem(hash, url); //local cache
go(res, url);
});

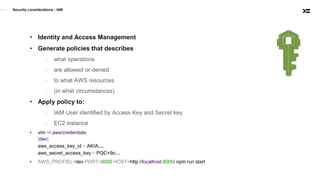

27. Security considerations - IAM
• Identity and Access Management
• Generate policies that describes
- what operations
- are allowed or denied
- to what AWS resources
- (in what circumstances)
• Apply policy to:
- IAM User identified by Access Key and Secret key
- EC2 instance
• vim ~/.aws/credentials
[dev]
aws_access_key_id = AKIA....
aws_secret_access_key = PQC+9o…
• AWS_PROFIEL=dev PORT=8000 HOST=http://localhost:8000/ npm run start

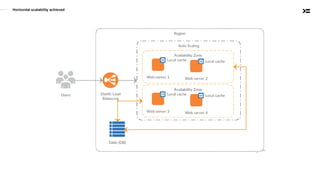

28. Horizontal scalability achieved

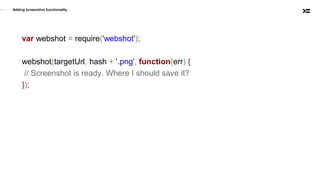

29. Adding screenshot functionality
var webshot = require('webshot');
webshot(targetUrl, hash + '.png', function(err) {
// Screenshot is ready. Where I should save it?
});

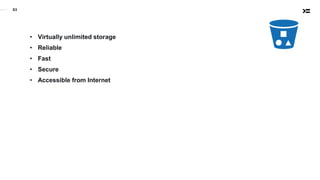

30. S3
• Virtually unlimited storage
• Reliable
• Fast
• Secure
• Accessible from Internet

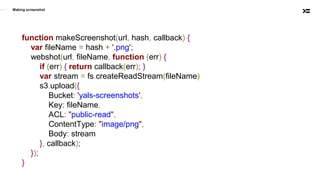

31. Making screenshot
function makeScreenshot(url, hash, callback) {
var fileName = hash + '.png';
webshot(url, fileName, function (err) {
if (err) { return callback(err); }
var stream = fs.createReadStream(fileName)
s3.upload({
Bucket: 'yals-screenshots',
Key: fileName,
ACL: "public-read",
ContentType: "image/png",
Body: stream
}, callback);
});
}

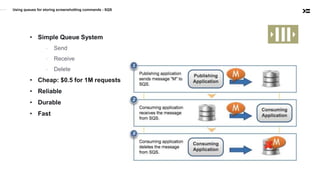

32. Using queues for storing screenshotting commands - SQS
• Simple Queue System
- Send
- Receive
- Delete
• Cheap: $0.5 for 1M requests
• Reliable
• Durable
• Fast

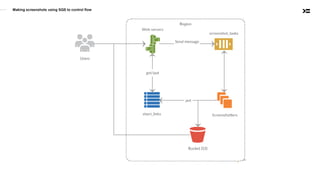

33. Making screenshots using SQS to control flow

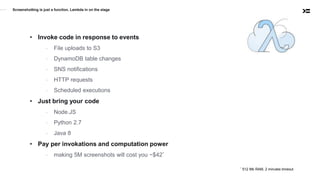

34. Screenshotting is just a function. Lambda in on the stage
• Invoke code in response to events
- File uploads to S3
- DynamoDB table changes
- SNS notifications
- HTTP requests
- Scheduled executions
• Just bring your code
- Node.JS
- Python 2.7
- Java 8
• Pay per invokations and computation power
- making 5M screenshots will cost you ~$42*
* 512 Mb RAM, 2 minutes timeout

35. Screenshotting function with writing results to DynamoDB
exports.handler = function (data, context) {
var hash = …;
var targetUrl = …;
makeScreenshot(hash, targetUrl, function(err, r) {
if (err) {return context.fail(err)};
db.put({
TableName: "short_links",
Item: {"hash": hash, screenshotUrl: r.Location}
}, context.done);
})
};

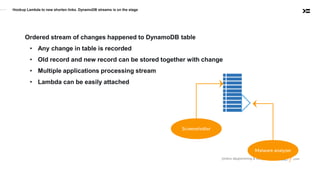

36. Hookup Lambda to new shorten links. DynamoDB streams is on the stage
Ordered stream of changes happened to DynamoDB table
• Any change in table is recorded
• Old record and new record can be stored together with change
• Multiple applications processing stream
• Lambda can be easily attached

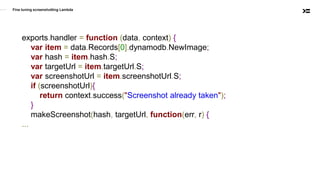

37. Fine tuning screenshotting Lambda
exports.handler = function (data, context) {
var item = data.Records[0].dynamodb.NewImage;
var hash = item.hash.S;
var targetUrl = item.targetUrl.S;
var screenshotUrl = item.screenshotUrl.S;
if (screenshotUrl){
return context.success("Screenshot already taken");
}
makeScreenshot(hash, targetUrl, function(err, r) {
...

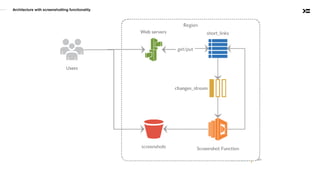

38. Architecture with screenshotting functionality

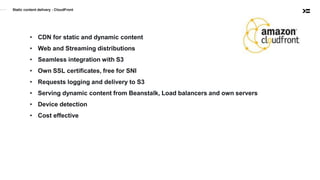

39. Static content delivery - CloudFront
• CDN for static and dynamic content
• Web and Streaming distributions
• Seamless integration with S3
• Own SSL certificates, free for SNI
• Requests logging and delivery to S3
• Serving dynamic content from Beanstalk, Load balancers and own servers
• Device detection
• Cost effective

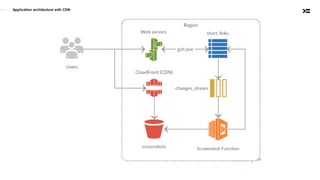

40. Application architecture with CDN

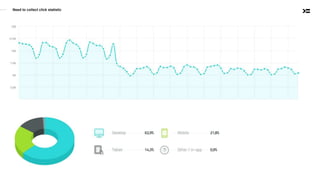

41. Need to collect click statistic

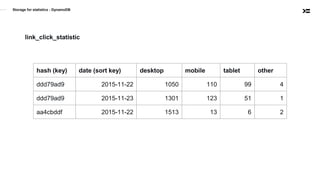

42. Storage for statistics - DynamoDB
link_click_statistic
hash (key) date (sort key) desktop mobile tablet other
ddd79ad9 2015-11-22 1050 110 99 4
ddd79ad9 2015-11-23 1301 123 51 1
aa4cbddf 2015-11-22 1513 13 6 2

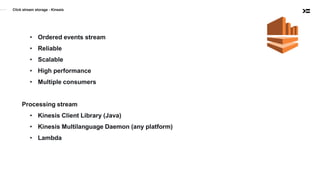

43. Click stream storage - Kinesis
• Ordered events stream
• Reliable
• Scalable
• High performance
• Multiple consumers
Processing stream
• Kinesis Client Library (Java)
• Kinesis Multilanguage Daemon (any platform)
• Lambda

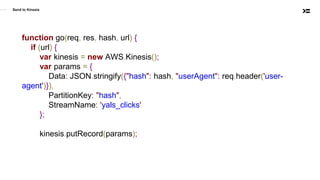

44. Send to Kinesis
function go(req, res, hash, url) {
if (url) {
var kinesis = new AWS.Kinesis();
var params = {
Data: JSON.stringify({"hash": hash, "userAgent": req.header('user-
agent')}),
PartitionKey: "hash",
StreamName: 'yals_clicks'
};
kinesis.putRecord(params);

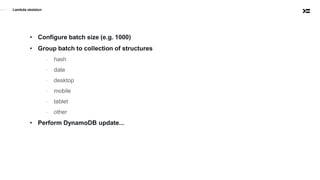

45. Lambda skeleton
• Configure batch size (e.g. 1000)
• Group batch to collection of structures
- hash
- date
- desktop
- mobile
- tablet
- other
• Perform DynamoDB update...

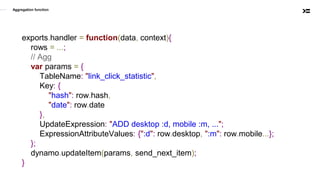

46. Aggregation function
exports.handler = function(data, context){
rows = ...;
// Agg
var params = {
TableName: "link_click_statistic",
Key: {
"hash": row.hash,
"date": row.date
},
UpdateExpression: "ADD desktop :d, mobile :m, ...";
ExpressionAttributeValues: {":d": row.desktop, ":m": row.mobile...};
};
dynamo.updateItem(params, send_next_item);
}

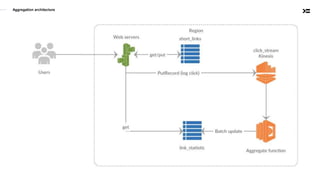

47. Aggregation architecture

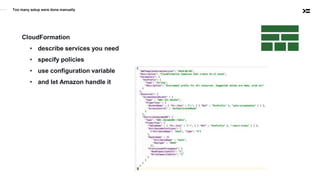

48. Too many setup were done manually
CloudFormation
• describe services you need
• specify policies
• use configuration variable
• and let Amazon handle it

49. Quick recap
• Beanstalk - websites hostings
• RDS - hosted relational DB
• DynamoDB - document DB with cool features
• SQS - simple queue service
• S3 - infinite file storage
• CloudFront - static and dynamic content delivery
• Lambda - running code in response to event
• Kinesis - operate with data streams as wizard
• IAM - security in cloud
• CloudFormation - automated cloud resources provisioning

50. Thank you
Checkout sources https://github.com/romanych/yals

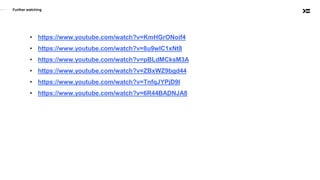

51. Further watching
• https://www.youtube.com/watch?v=KmHGrONoif4
• https://www.youtube.com/watch?v=8u9wIC1xNt8
• https://www.youtube.com/watch?v=pBLdMCksM3A
• https://www.youtube.com/watch?v=ZBxWZ9bgd44
• https://www.youtube.com/watch?v=TnfqJYPjD9I
• https://www.youtube.com/watch?v=6R44BADNJA8
