The document outlines AOL's data platforms architecture and migration strategies from in-house infrastructure to AWS services, emphasizing benefits like cost savings and scalability. It details the migration process, including data upload to S3, EMR design options, job submission via CLI, and monitoring features like cloudwatch. The analysis shows AWS significantly reduces costs compared to in-house services while providing elasticity and ease of deployment.

1. DW on AWS
Gaurav Agrawal
Data Platforms, AOL Inc.

2. AOL Data Platforms Architecture 2014

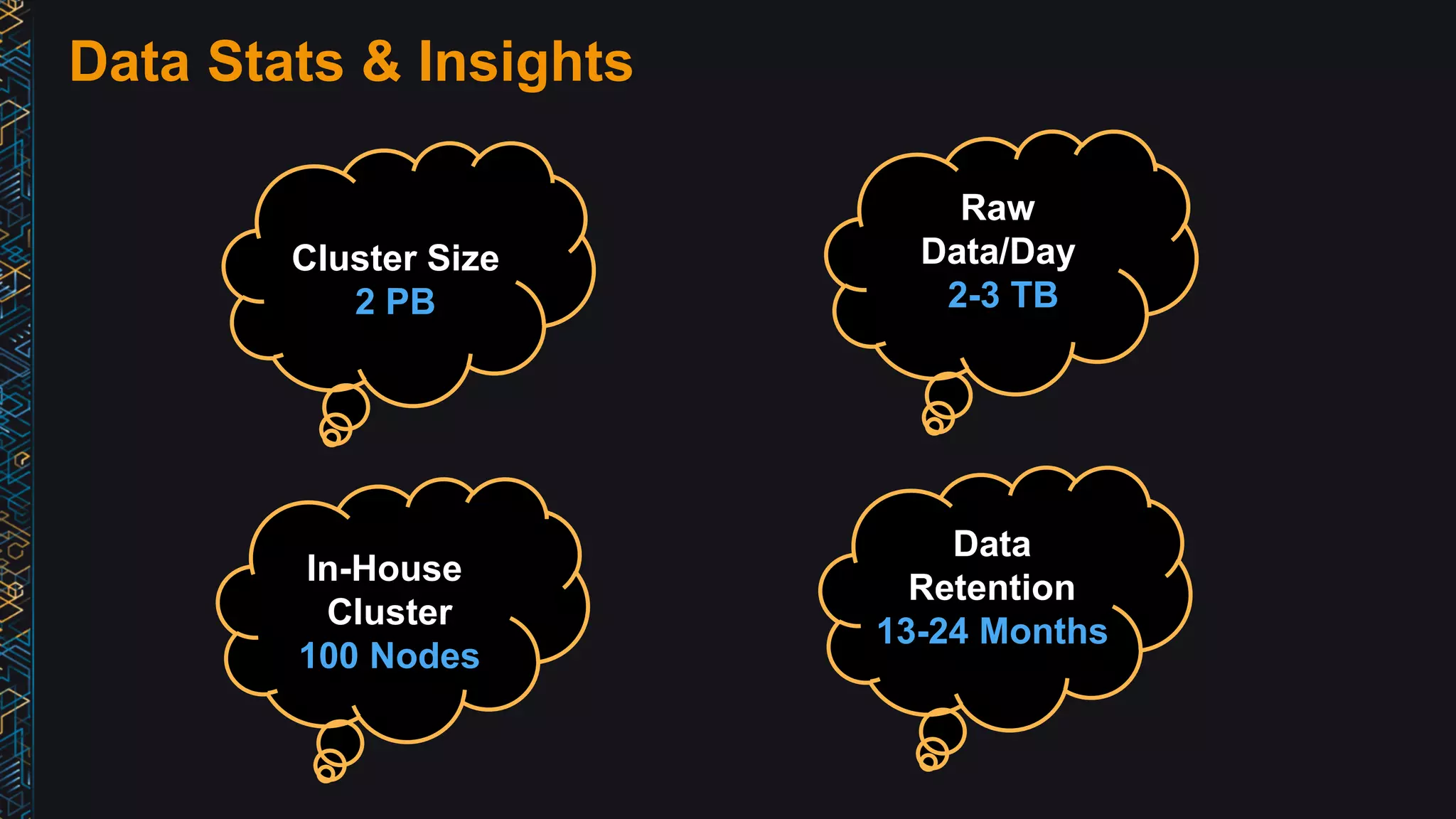

3. Data Stats & Insights
Cluster Size
2 PB
In-House
Cluster
100 Nodes
Raw
Data/Day
2-3 TB
Data
Retention
13-24 Months

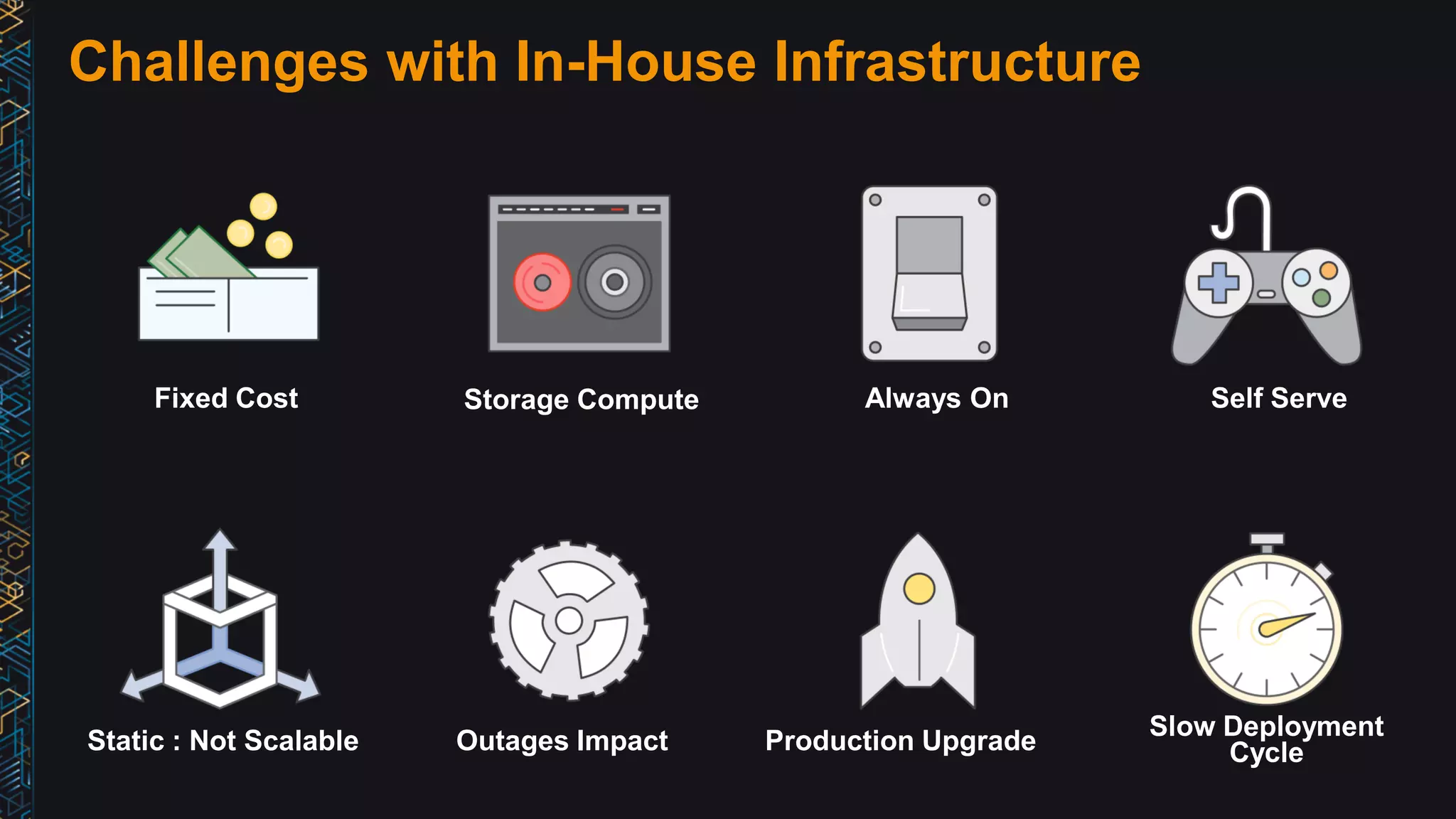

4. Challenges with In-House Infrastructure
Fixed Cost
Slow Deployment
Cycle
Always On Self Serve
Static : Not Scalable Outages Impact Production Upgrade
Storage Compute

5. AOL Data Platforms Architecture 2015
1
2
2
3
4
56

6. Migration
• Web Console vs. CLI

7. Web Console and CLI
Web Console for Training
Setup IAM for users
AWS Services Options
S3 Data upload
EMR Creation & Steps
Try & Test multiple approaches
CLI is your friend..!!!

8. Migration
• Web Console vs. CLI
• Copy Existing Data to S3

9. bucket-prod-control
Environment Level Buckets
Dev, QA, Production, Analyst
Project Level Buckets
Code, Data, Log, Extract and Control
Compressed Snappy Data to GZIP
Multi Platforms Support
Best Compression
Lowest storage cost
Low cost for Data OUT
bucket-dev bucket-qa
bucket-prod bucket-analyst
bucket-prod-code
bucket-prod-log
bucket-prod-data
bucket-prod-extract
76%
Less Storage
70K
Saving/Year
Copy Existing Data to S3

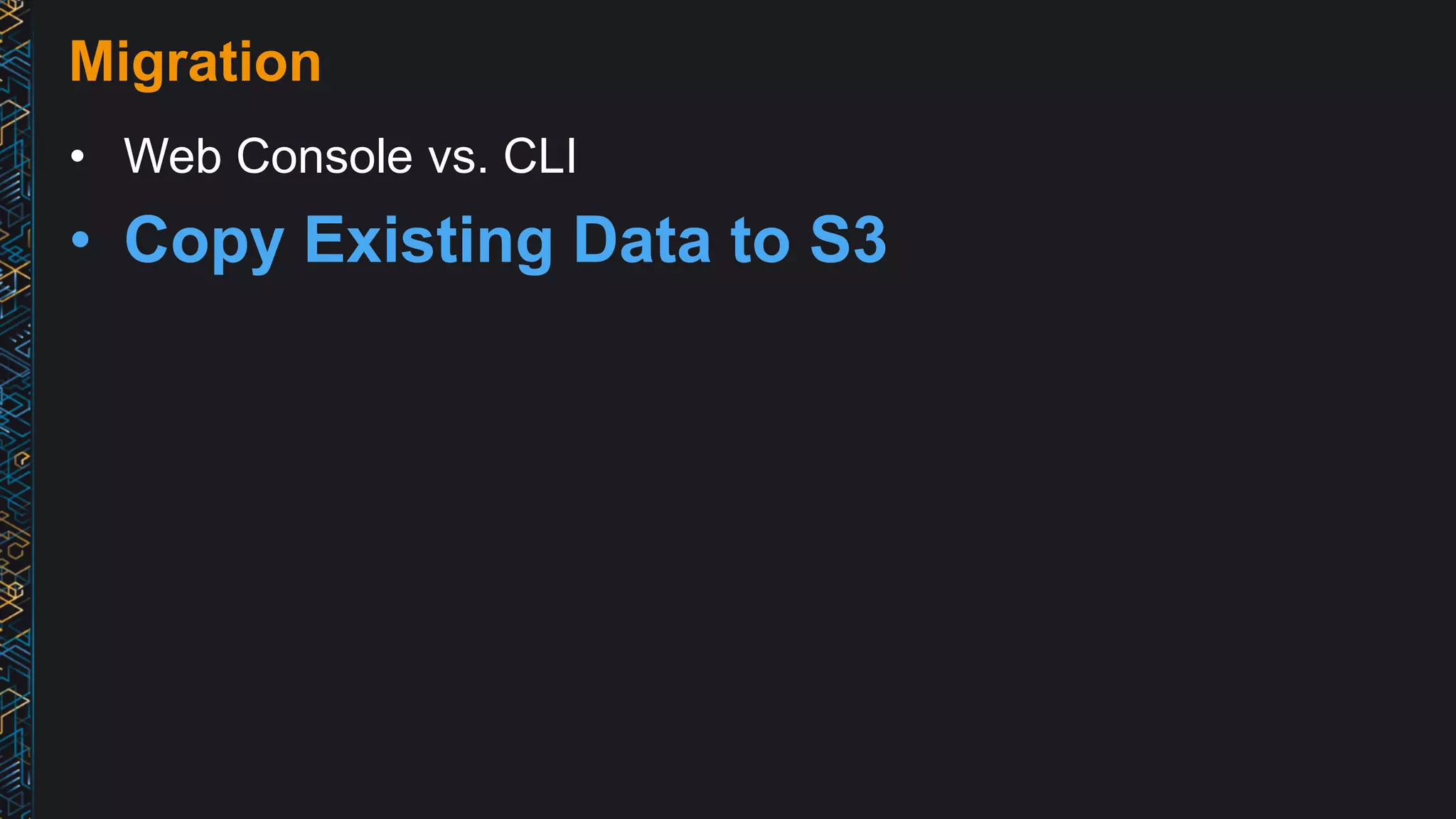

10. Migration
• Web Console vs. CLI
• Copy Existing Data to S3
• EMR Design options

11. EMR Design Options
Transient
Amazon S3
Elastic Cluster
On-Demand vs. Reserved vs.
Core NodesAmazon EMR
vs. Persistent Cluster
vs. local HDFS
vs. Static Cluster
Spot
vs. Task Nodes

12. AOL Data Platforms Architecture 2015

13. Migration
• Web Console vs. CLI
• Copy Existing Data to S3
• EMR Design options
• EMR Jobs Submission - CLI

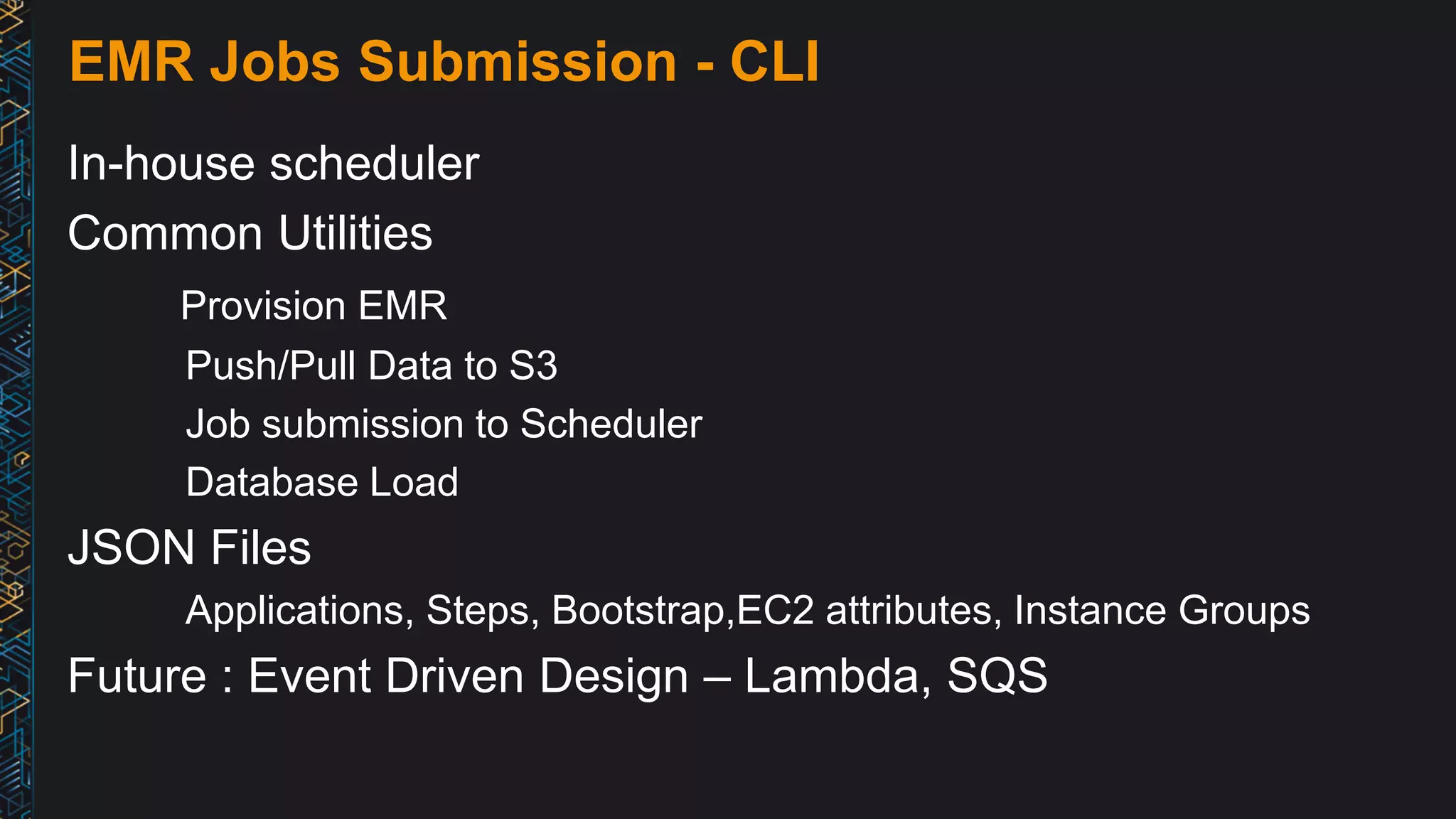

14. EMR Jobs Submission - CLI
In-house scheduler
Common Utilities
Provision EMR
Push/Pull Data to S3
Job submission to Scheduler
Database Load
JSON Files
Applications, Steps, Bootstrap,EC2 attributes, Instance Groups
Future : Event Driven Design – Lambda, SQS

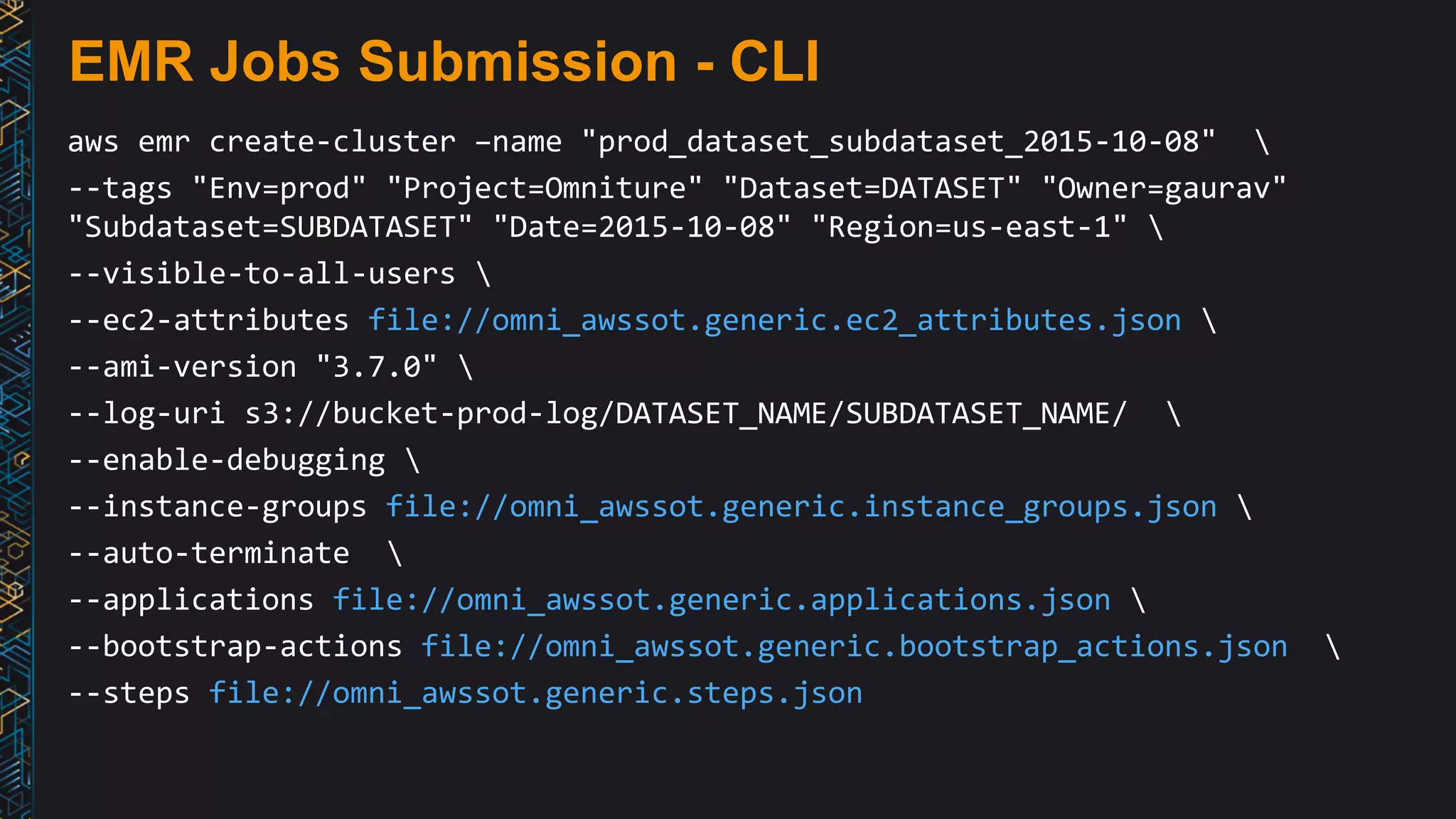

15. EMR Jobs Submission - CLI
aws emr create-cluster –name "prod_dataset_subdataset_2015-10-08"
--tags "Env=prod" "Project=Omniture" "Dataset=DATASET" "Owner=gaurav"
"Subdataset=SUBDATASET" "Date=2015-10-08" "Region=us-east-1"
--visible-to-all-users
--ec2-attributes file://omni_awssot.generic.ec2_attributes.json
--ami-version "3.7.0"
--log-uri s3://bucket-prod-log/DATASET_NAME/SUBDATASET_NAME/
--enable-debugging
--instance-groups file://omni_awssot.generic.instance_groups.json
--auto-terminate
--applications file://omni_awssot.generic.applications.json
--bootstrap-actions file://omni_awssot.generic.bootstrap_actions.json
--steps file://omni_awssot.generic.steps.json

16. Migration
• Web Console vs. CLI
• Copy Existing Data to S3
• EMR Design options
• EMR Jobs Submission – CLI
• Monitoring

17. Monitoring
EMR WatchDog : Node.js
Duplicate Clusters
Failed Clusters
Long-running Clusters
Long-provisioning Clusters
CloudWatch Alarms
Monthly Billing
S3 Bucket Size
SNS Email Notifications
Amazon CloudWatch
Amazon SNS

18. Migration
• Web Console vs. CLI
• Copy Existing Data to S3
• EMR Design options
• EMR Jobs Submission – CLI
• Monitoring
• Elasticity

19. Elasticity
Why be Elastic?
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Cores Nodes Demand - 09/05/2015 Cores Nodes
Daily Processes
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Core Nodes Demand - 09/20/2015 Core Nodes
No Clusters
Spike in Demand
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Cores Nodes Demand - 06/01/2015 Cores Nodes
Major Restatement
Demand > 10K EC2

20. Elasticity
Why be Elastic?
True Cloud Architecture
Spot is an Open Market
Scale Horizontally
Our Limit : 3,000 EC2/Region
Multiple Regions
Multiple Instance Types

21. Migration
• Web Console vs. CLI
• Copy Existing Data to S3
• EMR Design options
• EMR Jobs Submission – CLI
• Monitoring
• Elasticity
• Optimization

22. Optimization
Data Management
Partition Data on S3
S3 Versioning/Lifecycle
Hadoop Run-time Params
Memory Tuning
Compress M & R Output
Combine Splits Input format
Security
Roles
Security Groups
AOL VPC

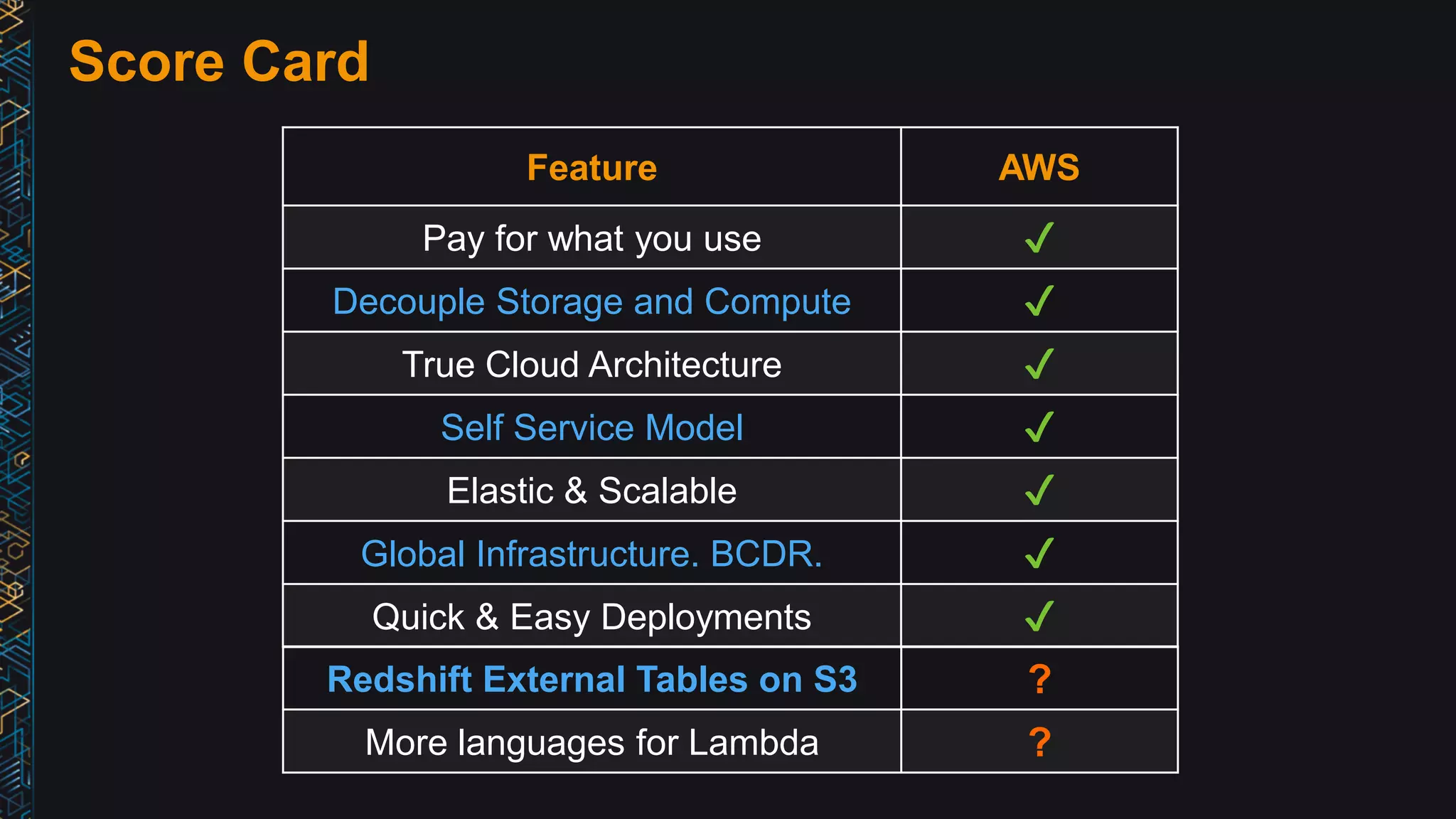

23. Score Card
Feature AWS
Pay for what you use ✔
Decouple Storage and Compute ✔
True Cloud Architecture ✔
Self Service Model ✔
Elastic & Scalable ✔
Global Infrastructure. BCDR. ✔
Quick & Easy Deployments ✔
Redshift External Tables on S3 ?
More languages for Lambda ?

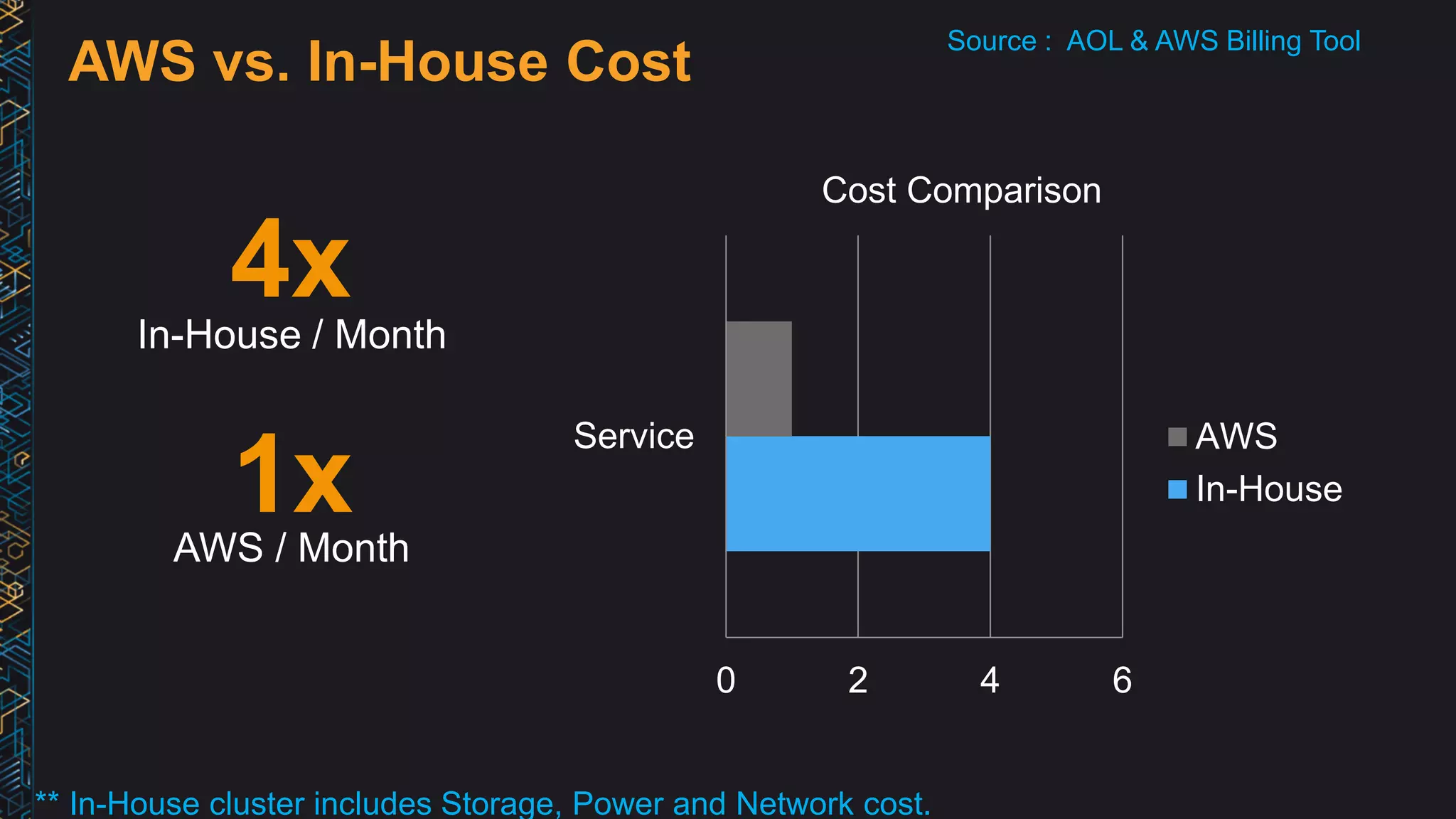

24. AWS vs. In-House Cost
0 2 4 6
Service
Cost Comparison
AWS
In-House
Source : AOL & AWS Billing Tool
4xIn-House / Month
1xAWS / Month
** In-House cluster includes Storage, Power and Network cost.

25. AWS vs. In-House Cost
10/8/2015
Amazon Web Services
1/4th Cost of In-House Hadoop Infrastructure
1/4th Cost
Data Platforms. AOL Inc.

26. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Cores Nodes Demand - 06/01/2015 Core…
Restatement Use Case
• Restate historical data going back 6 months
Availability Zones
10
550
EMR Clusters
24,000
Spot EC2 Instances
0
10
20
30
40
50
60
70
Timing Comparison
In-House
AWS

27. Tag All Resources
Infrastructure as CodeCommand Line Interface
JSON as configuration files
IAM Roles and Policies
Use of Application ID
Enable CloudTrail
S3 Lifecycle ManagementS3 Versioning
Separate Code/Data/Logs buckets
Keyless EMR Clusters
Hybrid Model
Enable Debugging
Create Multiple CLI Profiles
Multi-Factor Authentication
CloudWatch Billing Alarms
Spot EC2 Instances
SNS notifications for failures
Loosely coupled Apps
Scale Horizontally
Best Practices & Suggestions
