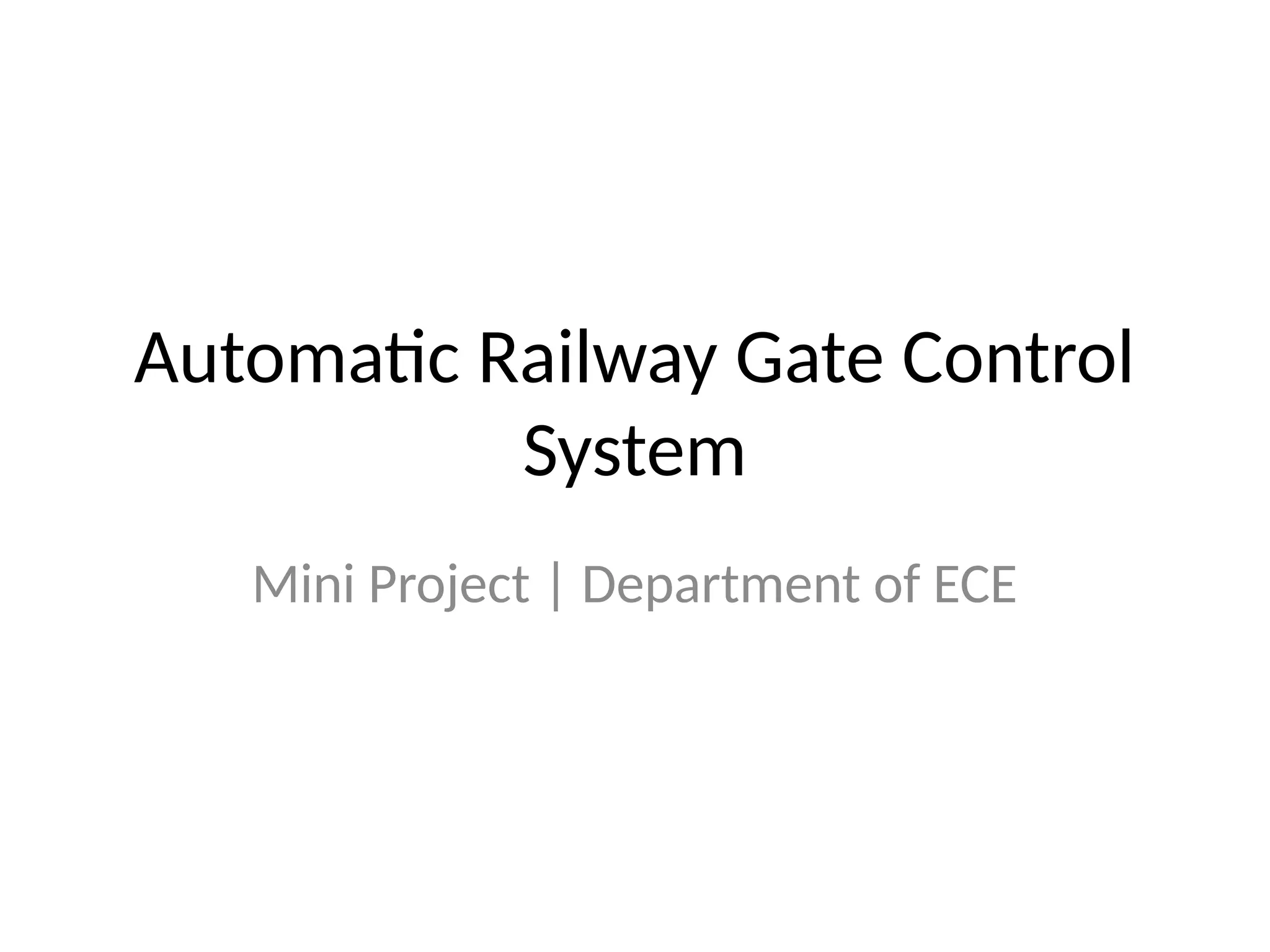

1. Automatic Railway Gate Control
System
Mini Project | Department of ECE

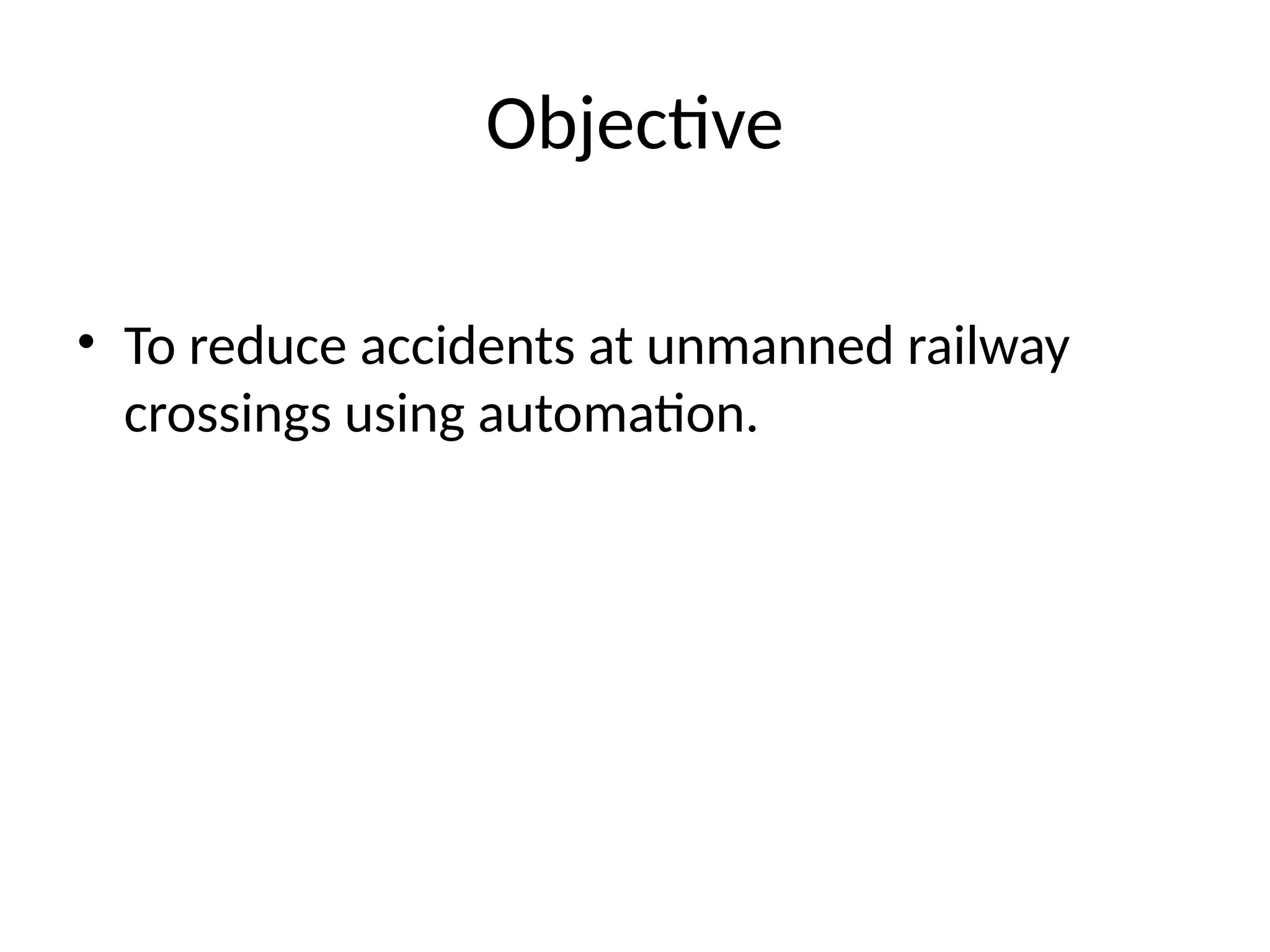

2. Objective
• To reduce accidents at unmanned railway
crossings using automation.

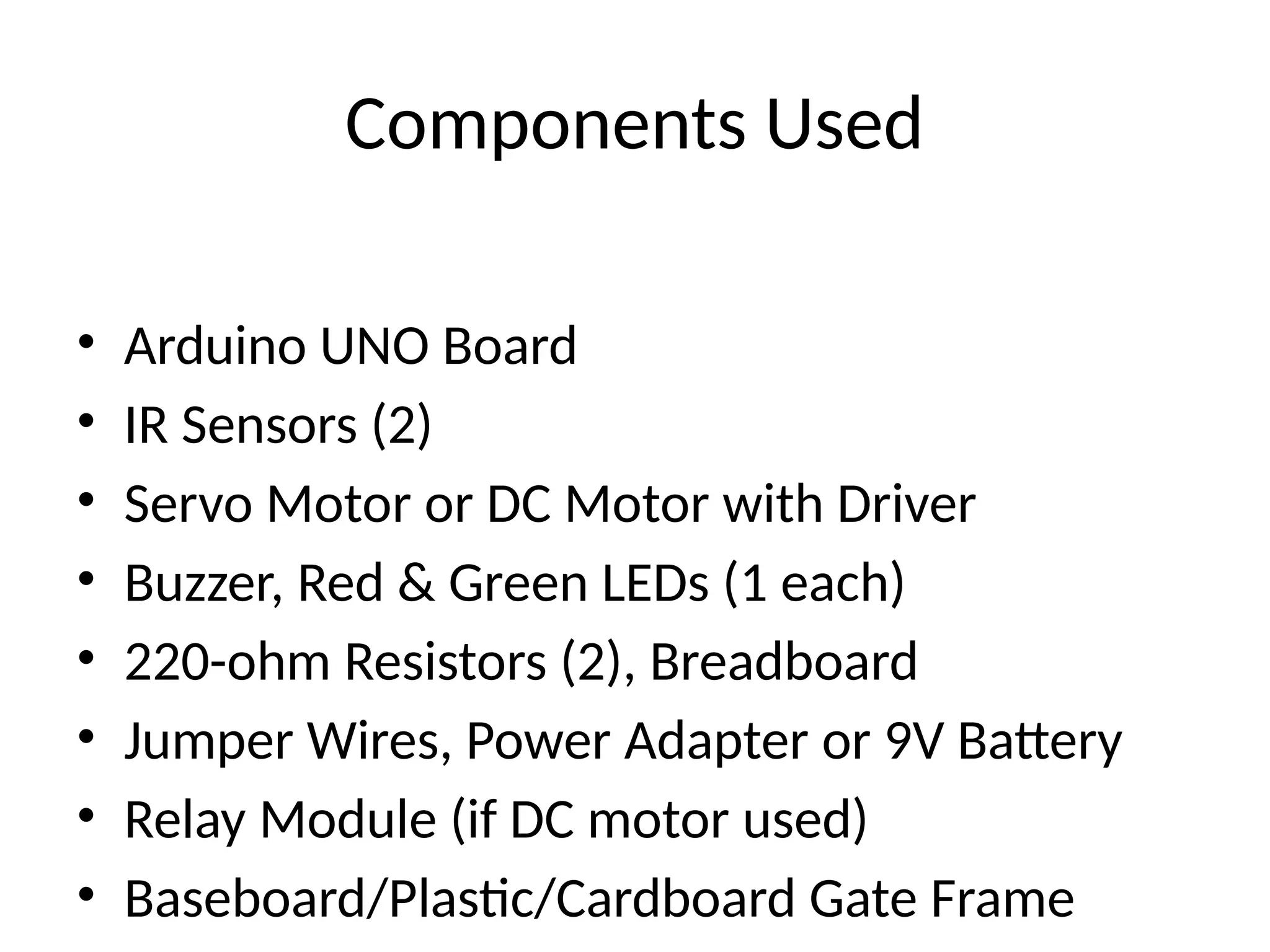

3. Components Used
• Arduino UNO Board
• IR Sensors (2)
• Servo Motor or DC Motor with Driver
• Buzzer, Red & Green LEDs (1 each)
• 220-ohm Resistors (2), Breadboard
• Jumper Wires, Power Adapter or 9V Battery
• Relay Module (if DC motor used)
• Baseboard/Plastic/Cardboard Gate Frame

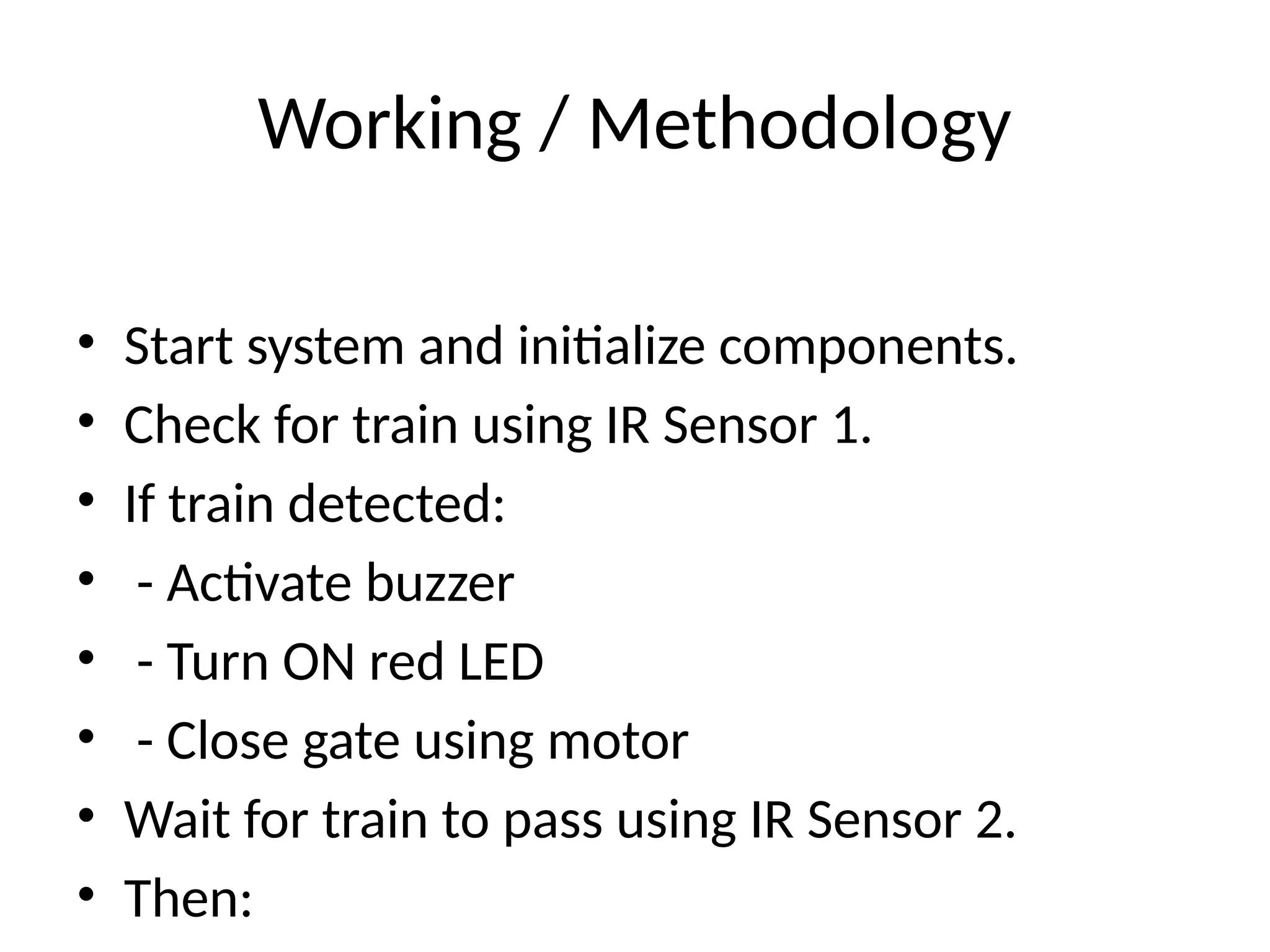

4. Working / Methodology
• Start system and initialize components.
• Check for train using IR Sensor 1.
• If train detected:
• - Activate buzzer
• - Turn ON red LED
• - Close gate using motor
• Wait for train to pass using IR Sensor 2.
• Then:

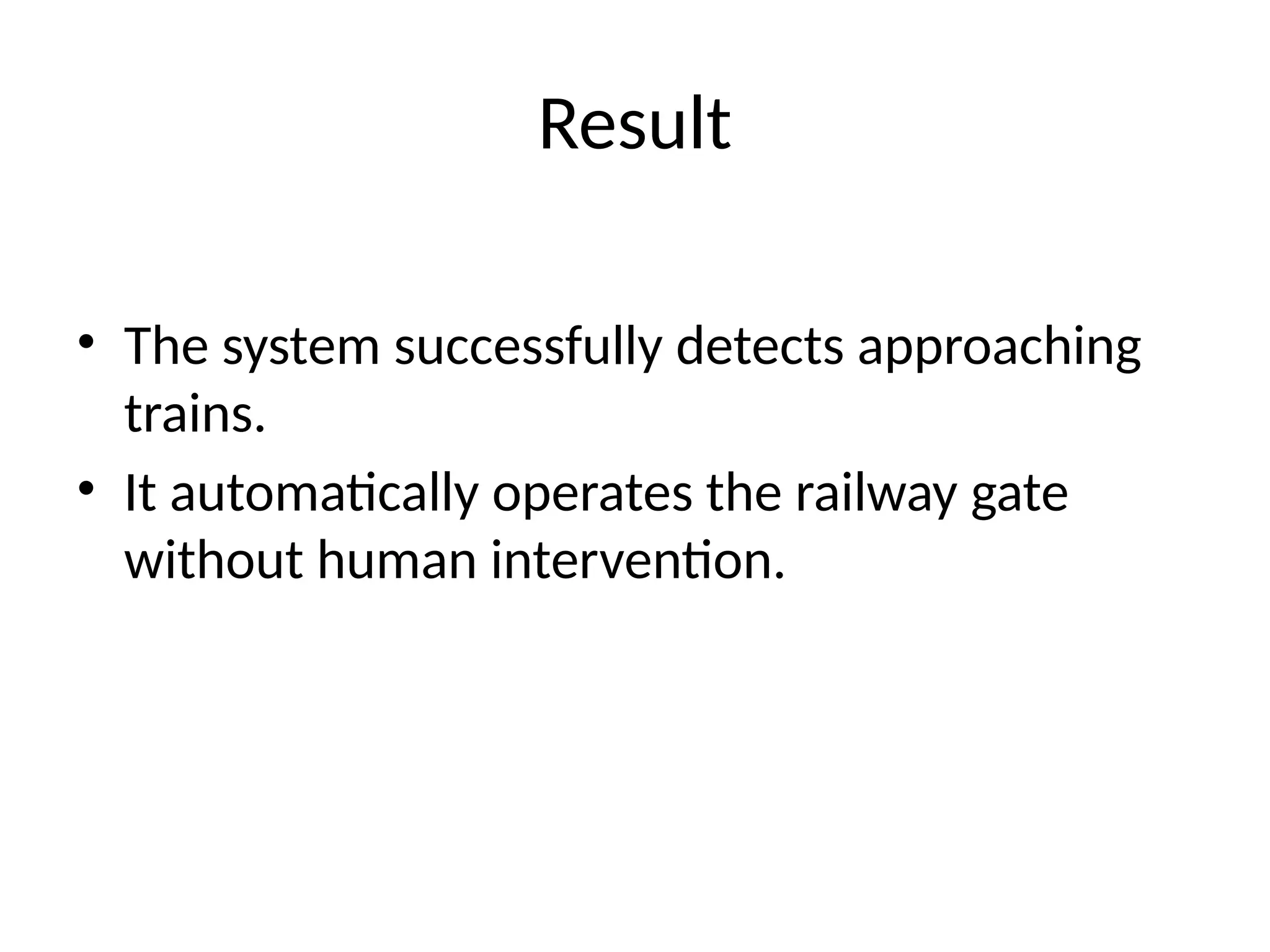

5. Result
• The system successfully detects approaching
trains.
• It automatically operates the railway gate
without human intervention.

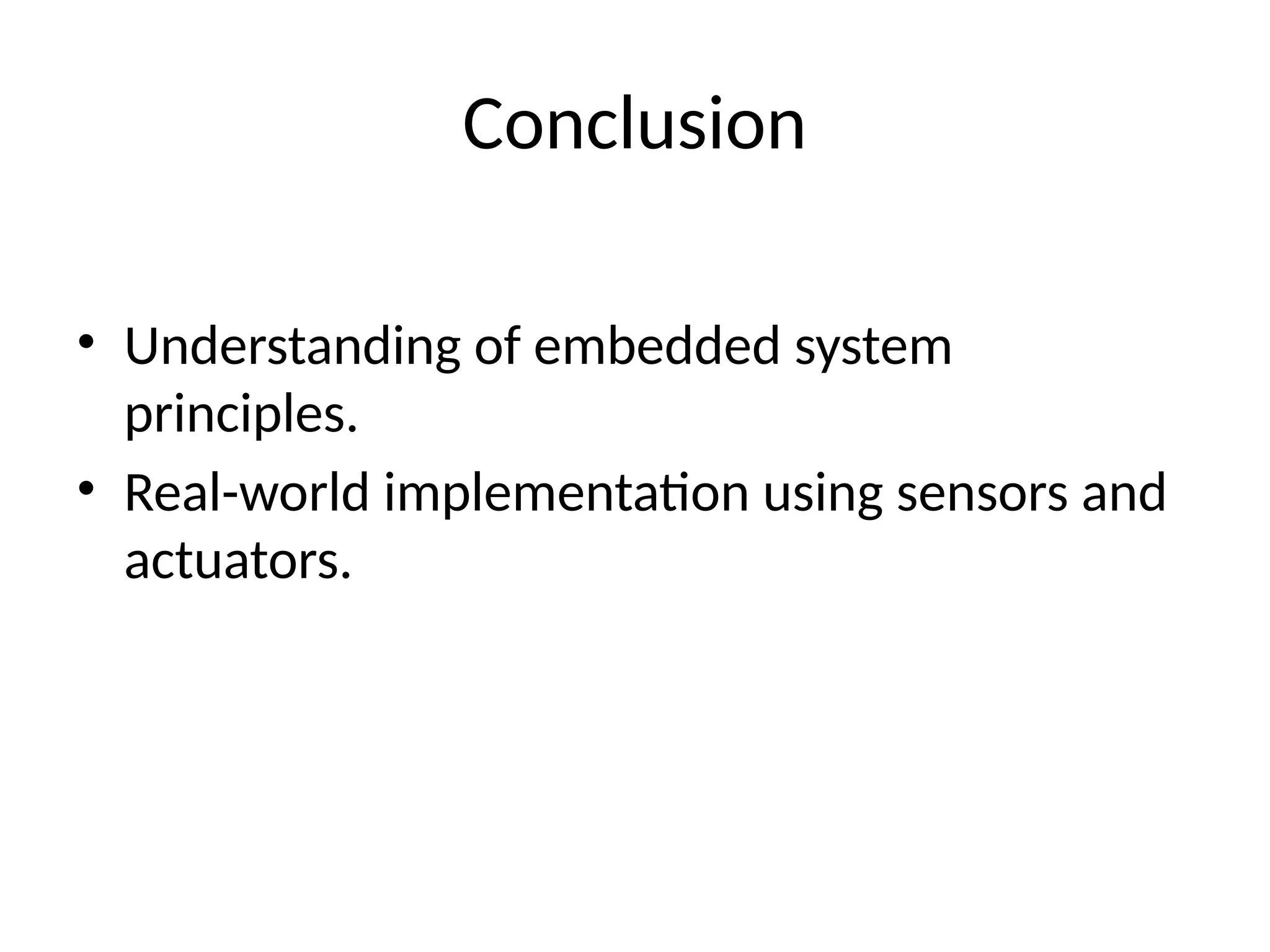

6. Conclusion
• Understanding of embedded system
principles.
• Real-world implementation using sensors and
actuators.

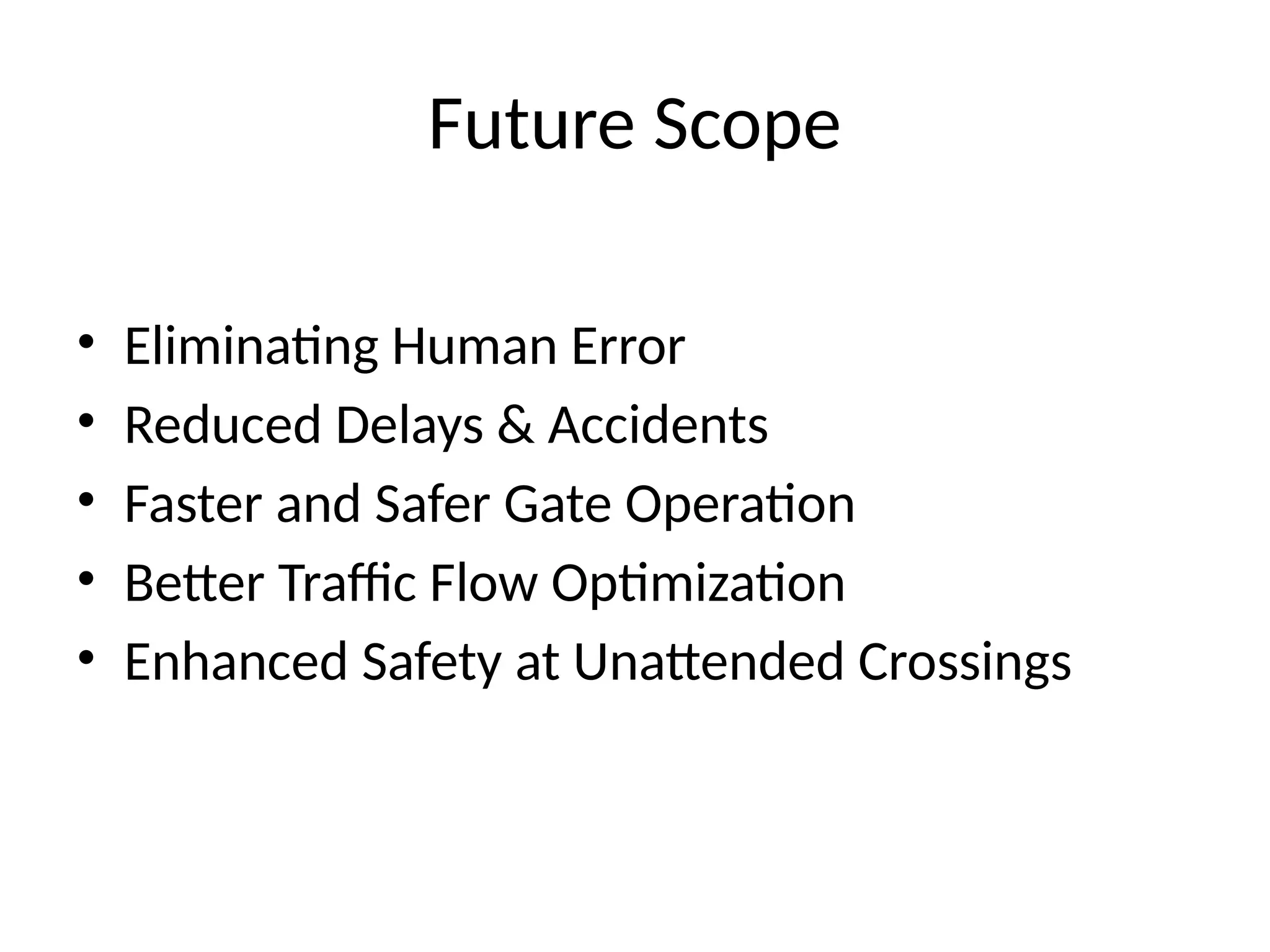

7. Future Scope
• Eliminating Human Error
• Reduced Delays & Accidents
• Faster and Safer Gate Operation
• Better Traffic Flow Optimization
• Enhanced Safety at Unattended Crossings

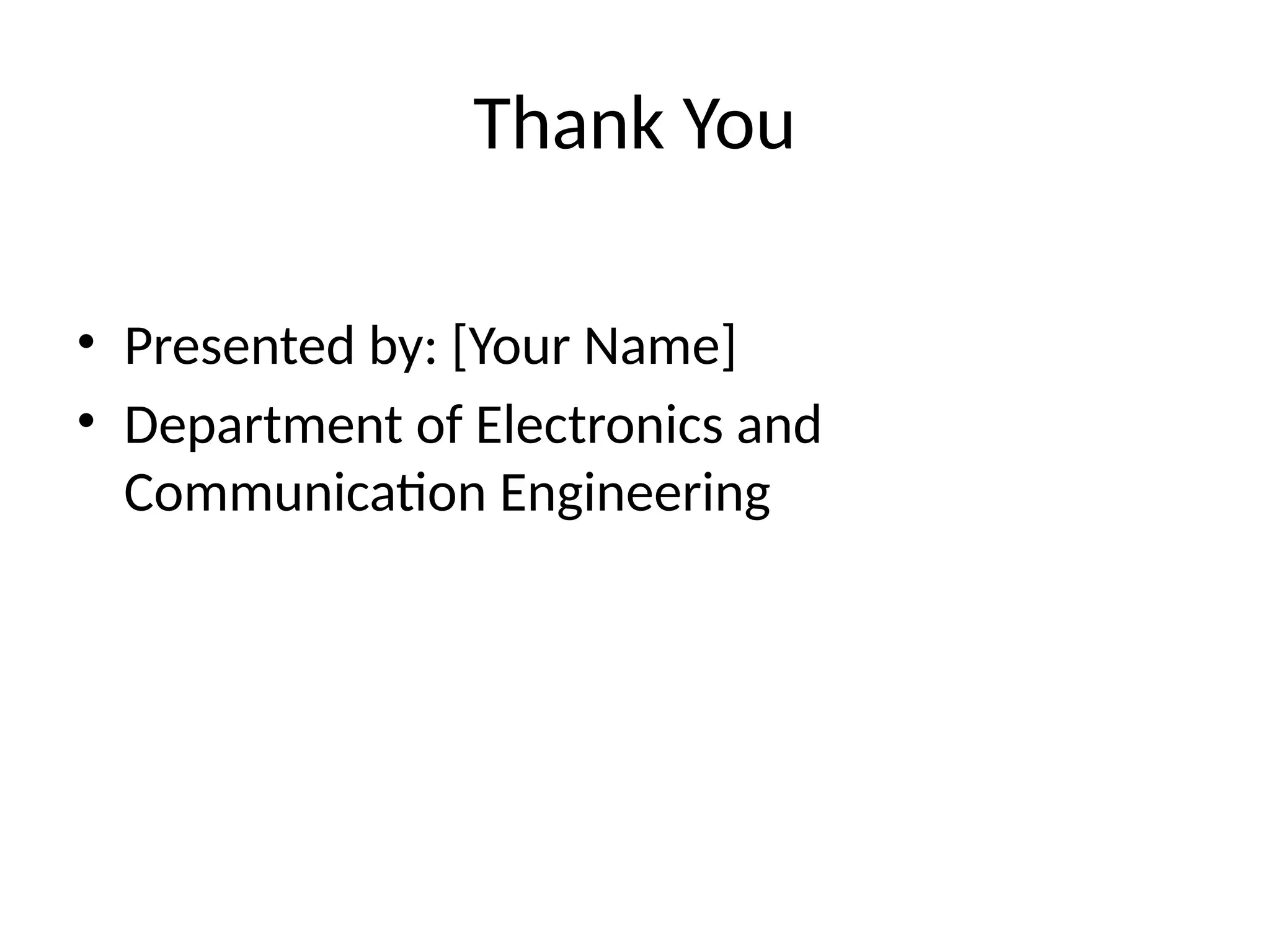

8. Thank You
• Presented by: [Your Name]
• Department of Electronics and
Communication Engineering
