Automatic Reference Counting (ARC) simplifies memory management in Objective-C by eliminating the need for manual retain and release calls, leading to fewer memory leaks. ARC includes a weak reference system and automates deallocation, while imposing constraints on method and variable naming to ensure compatibility with manual memory management. Developers are encouraged to trust ARC to handle memory while being aware of nuances like weak referencing and lifetime qualifiers.

1. Automatic Reference
Counting
Robert Brown
@robby_brown

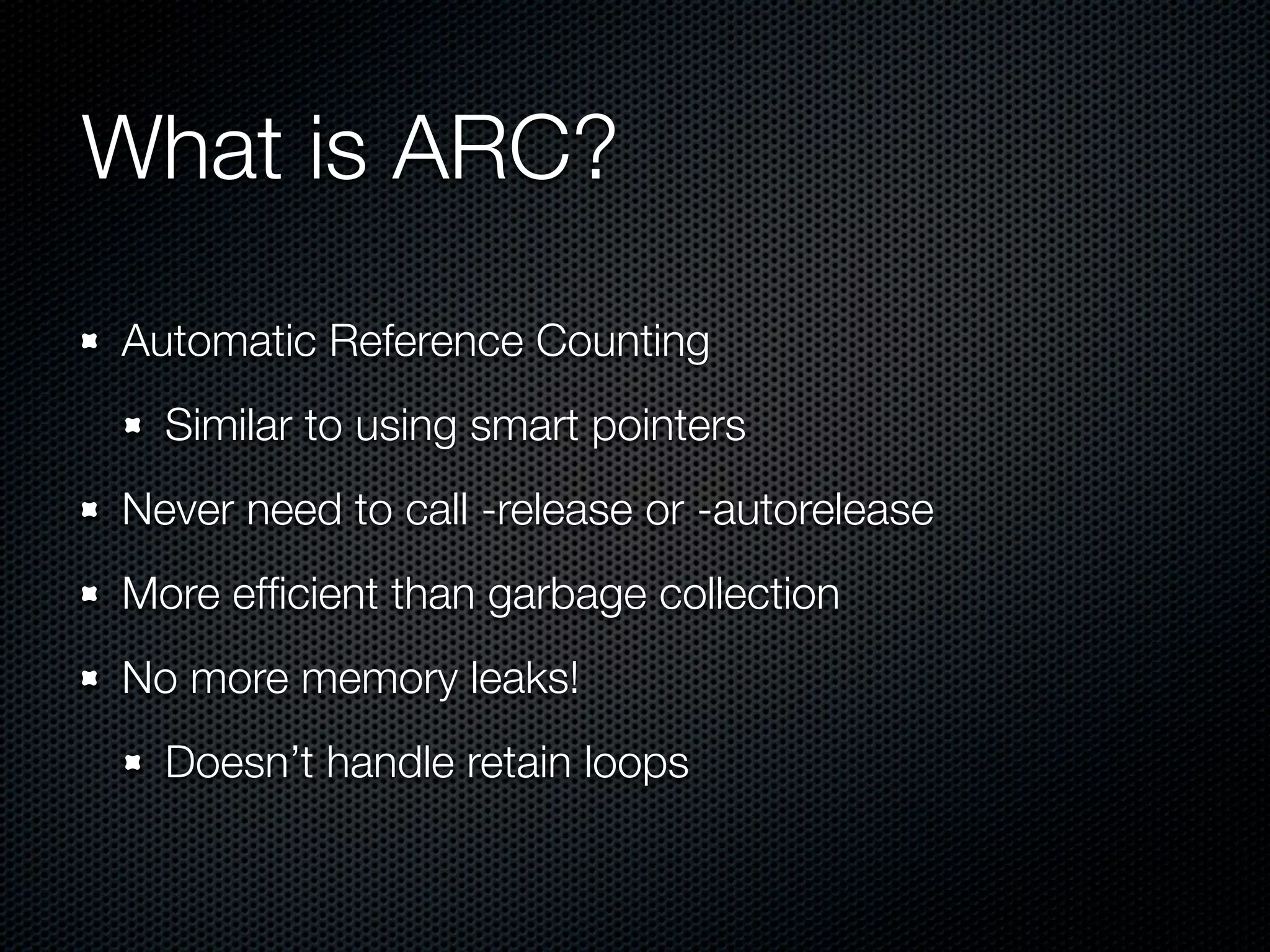

2. What is ARC?
Automatic Reference Counting
Similar to using smart pointers
Never need to call -release or -autorelease
More efficient than garbage collection
No more memory leaks!
Doesn’t handle retain loops

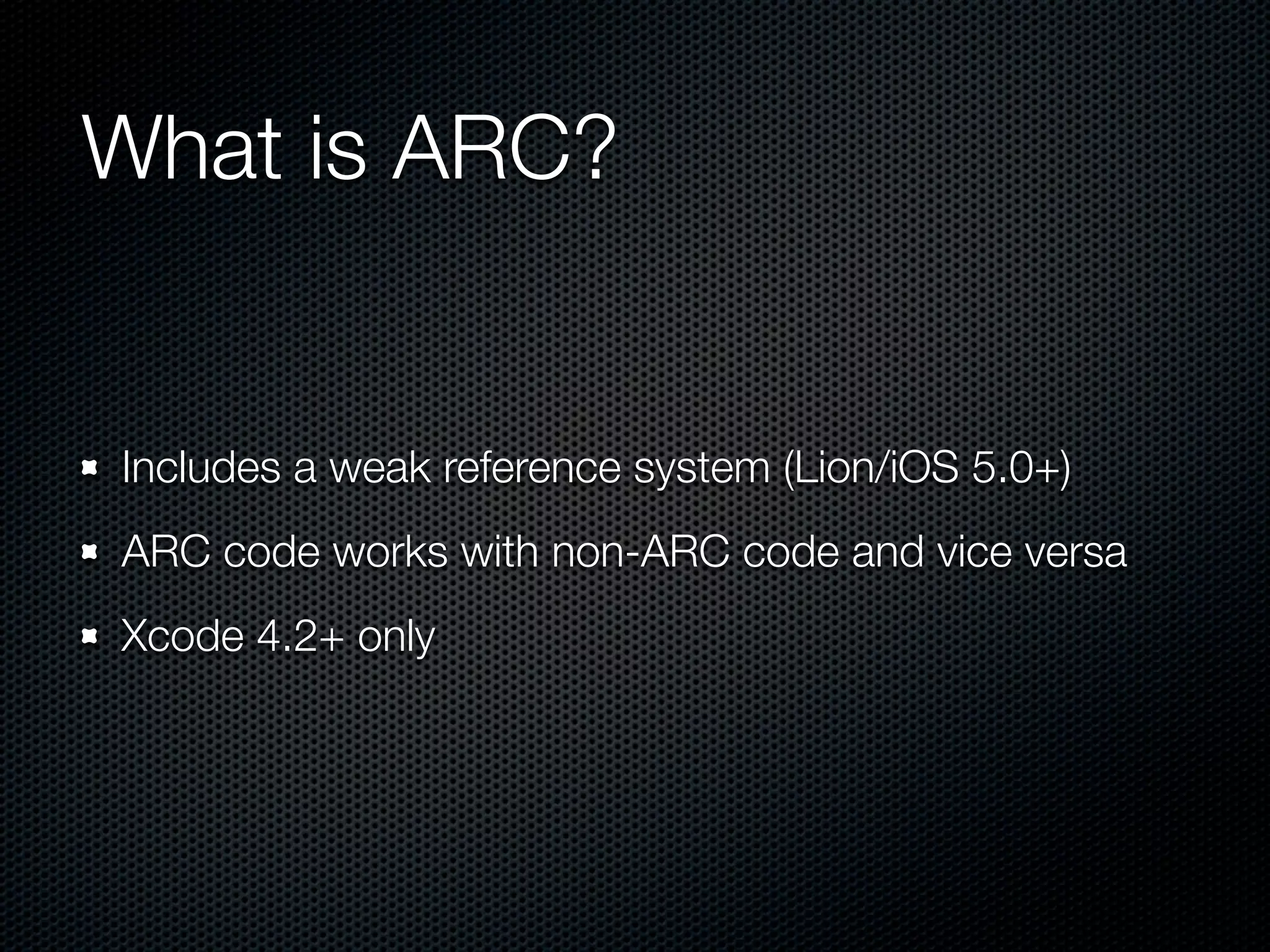

3. What is ARC?
Includes a weak reference system (Lion/iOS 5.0+)
ARC code works with non-ARC code and vice versa
Xcode 4.2+ only

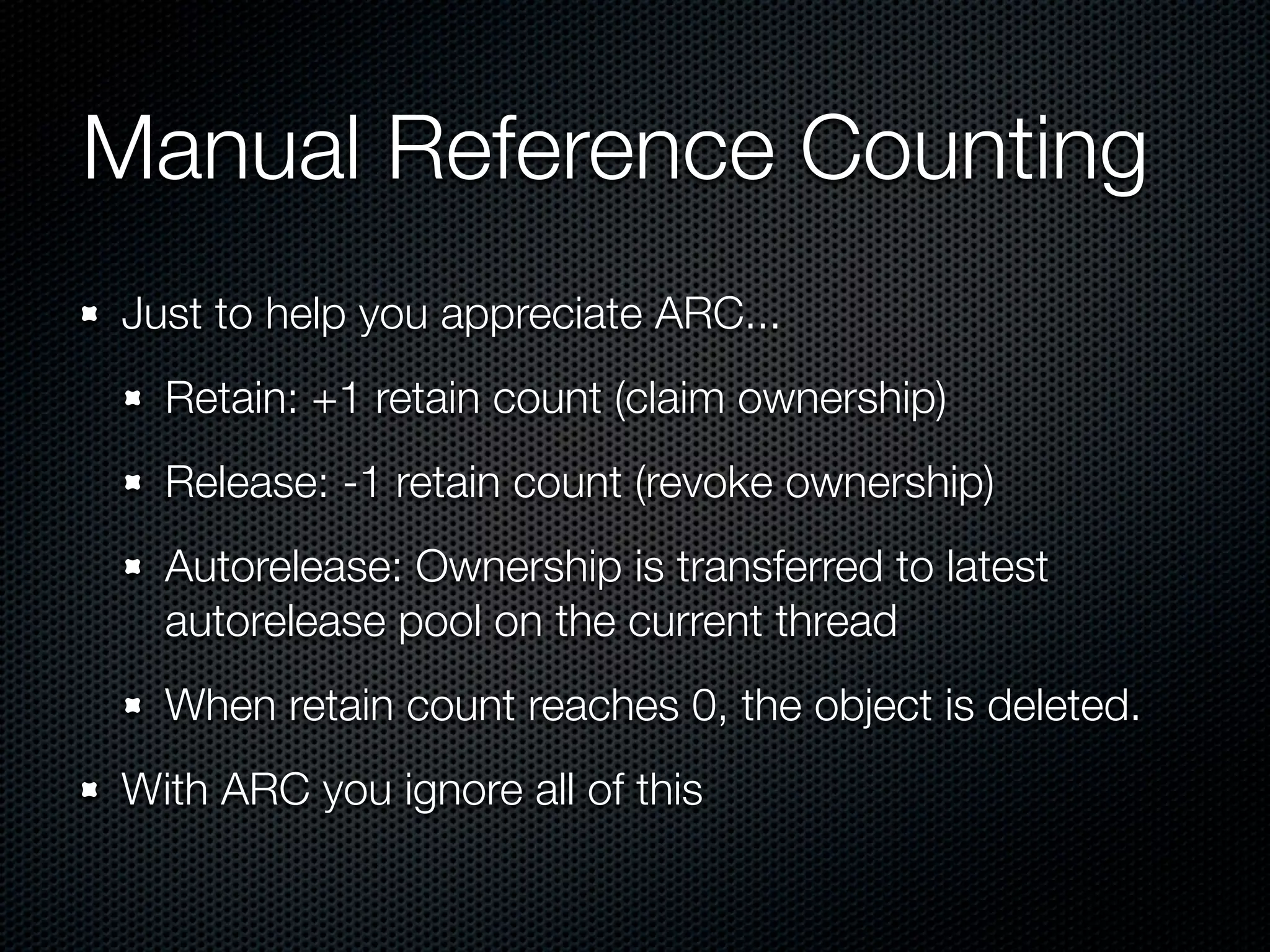

4. Manual Reference Counting
Just to help you appreciate ARC...
Retain: +1 retain count (claim ownership)
Release: -1 retain count (revoke ownership)
Autorelease: Ownership is transferred to latest
autorelease pool on the current thread
When retain count reaches 0, the object is deleted.
With ARC you ignore all of this

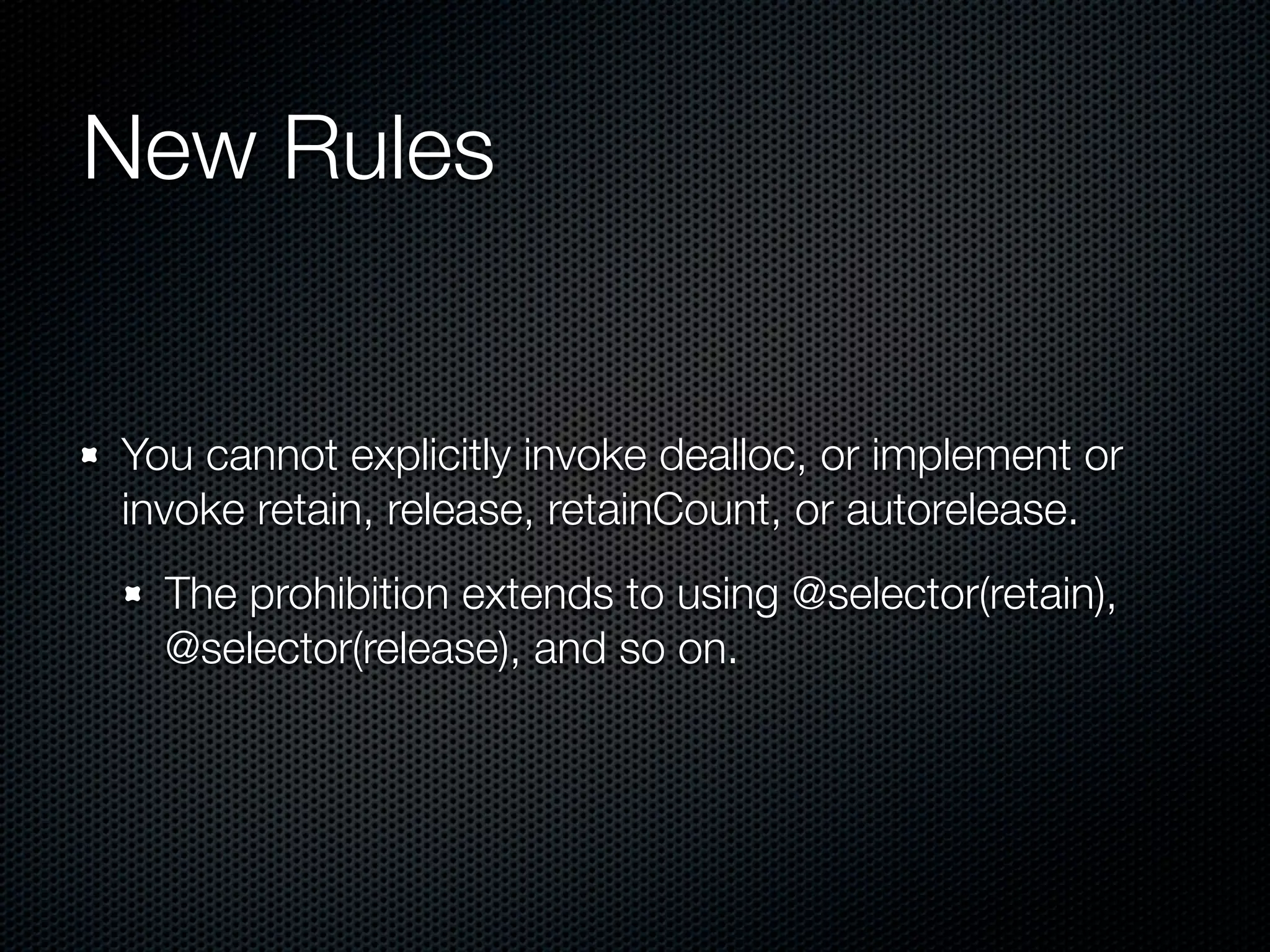

5. New Rules
You cannot explicitly invoke dealloc, or implement or
invoke retain, release, retainCount, or autorelease.
The prohibition extends to using @selector(retain),
@selector(release), and so on.

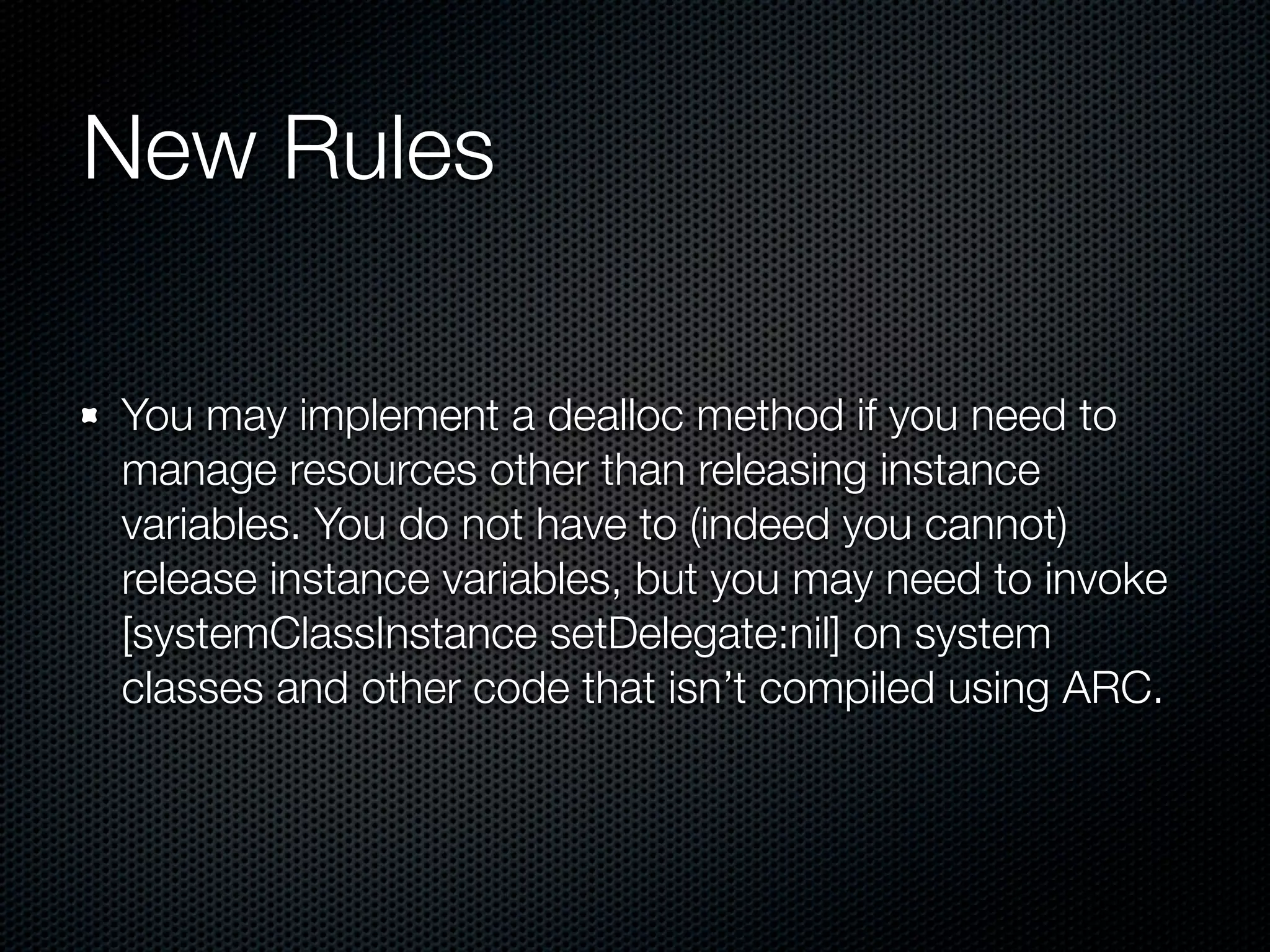

6. New Rules
You may implement a dealloc method if you need to
manage resources other than releasing instance
variables. You do not have to (indeed you cannot)
release instance variables, but you may need to invoke
[systemClassInstance setDelegate:nil] on system
classes and other code that isn’t compiled using ARC.

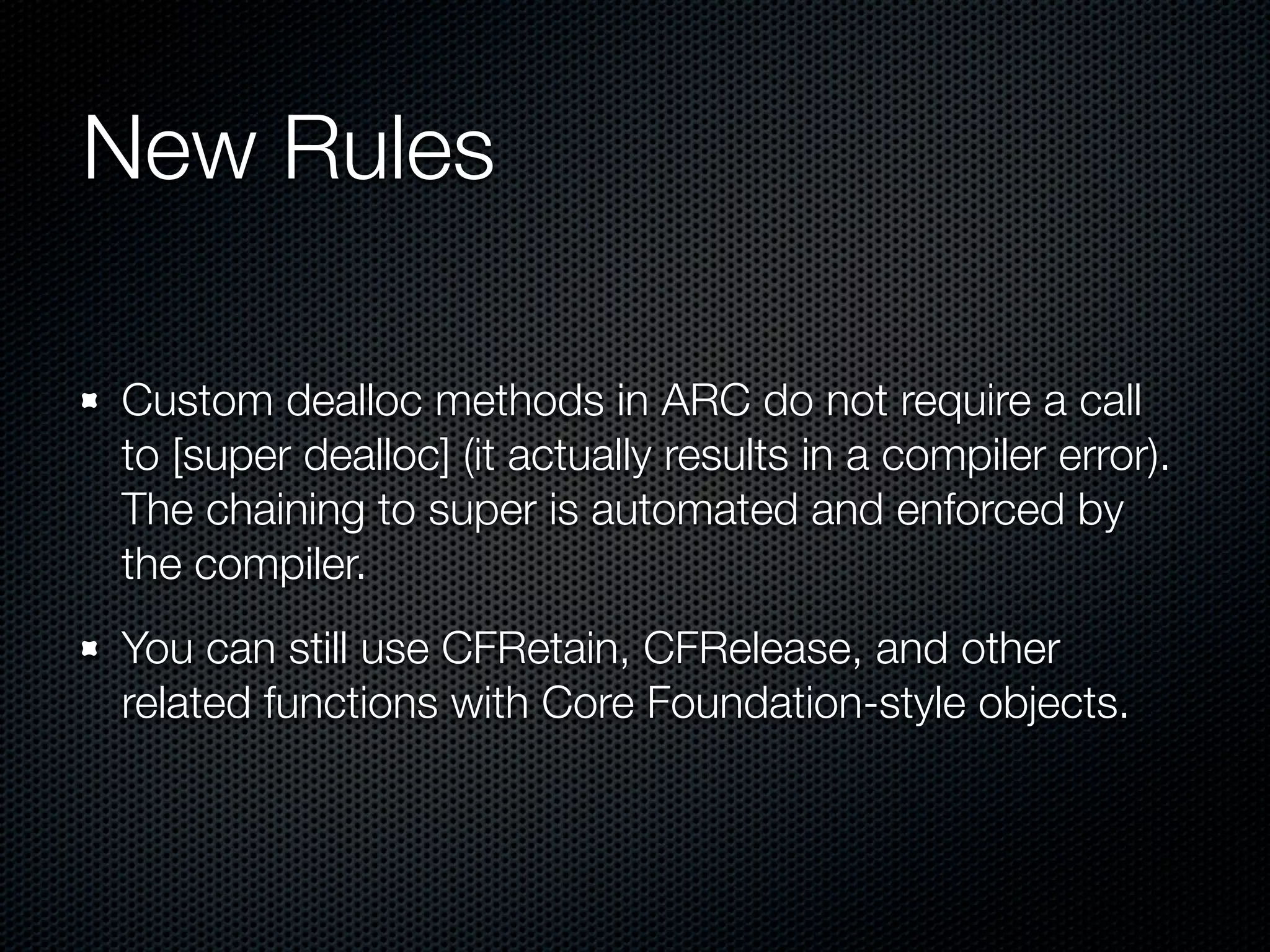

7. New Rules
Custom dealloc methods in ARC do not require a call
to [super dealloc] (it actually results in a compiler error).
The chaining to super is automated and enforced by
the compiler.
You can still use CFRetain, CFRelease, and other
related functions with Core Foundation-style objects.

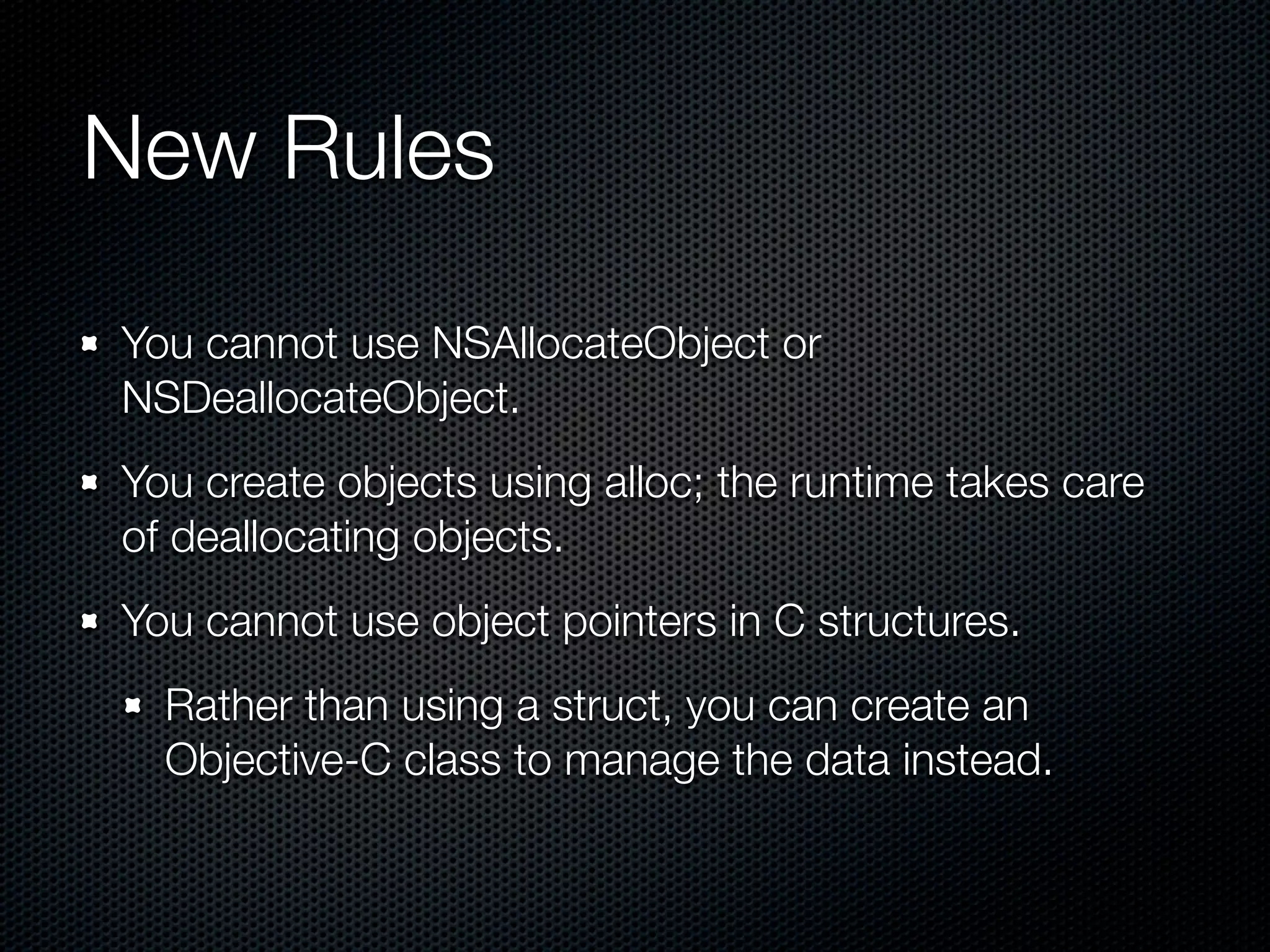

8. New Rules
You cannot use NSAllocateObject or
NSDeallocateObject.
You create objects using alloc; the runtime takes care
of deallocating objects.
You cannot use object pointers in C structures.
Rather than using a struct, you can create an
Objective-C class to manage the data instead.

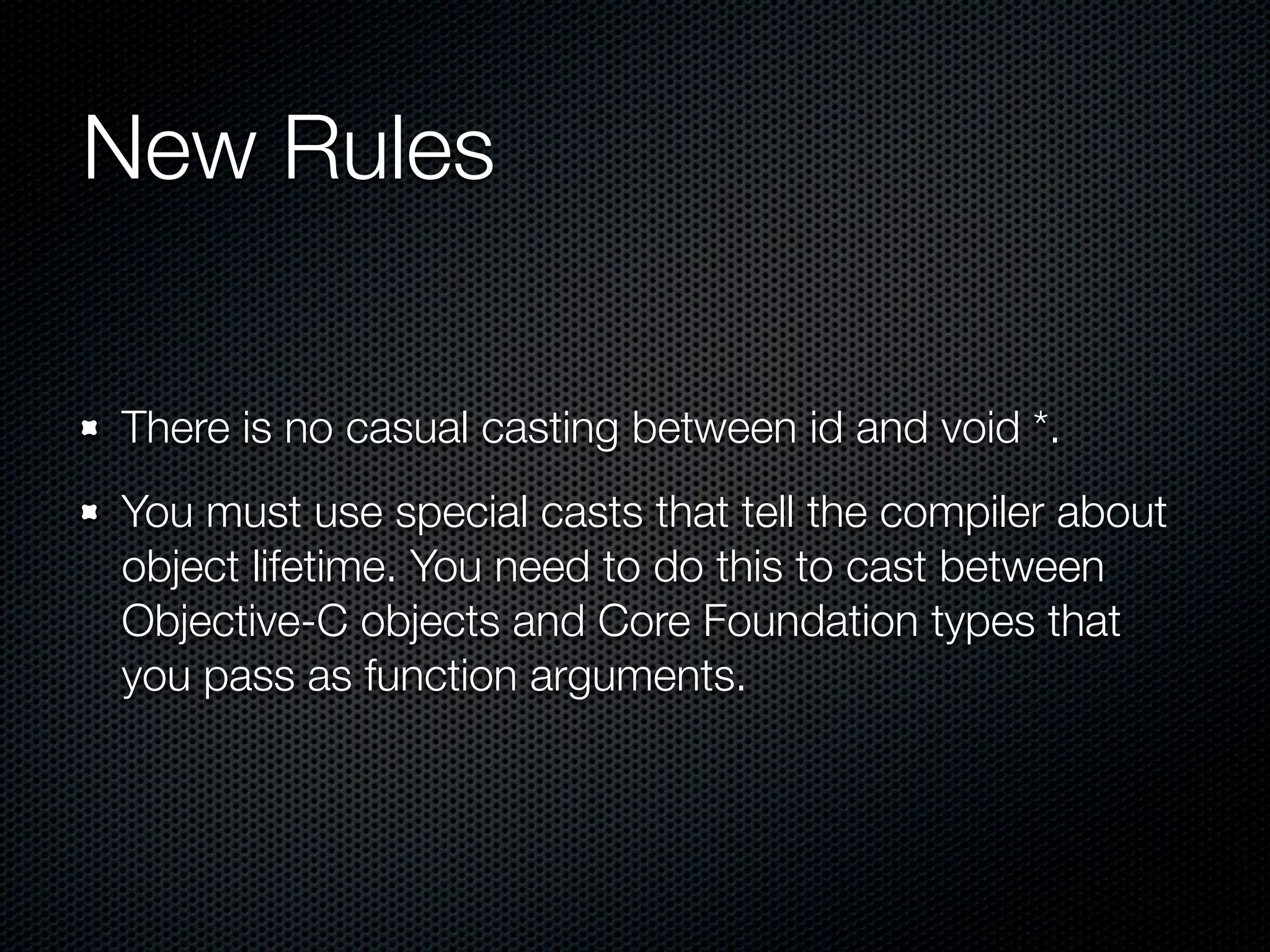

9. New Rules
There is no casual casting between id and void *.
You must use special casts that tell the compiler about
object lifetime. You need to do this to cast between
Objective-C objects and Core Foundation types that
you pass as function arguments.

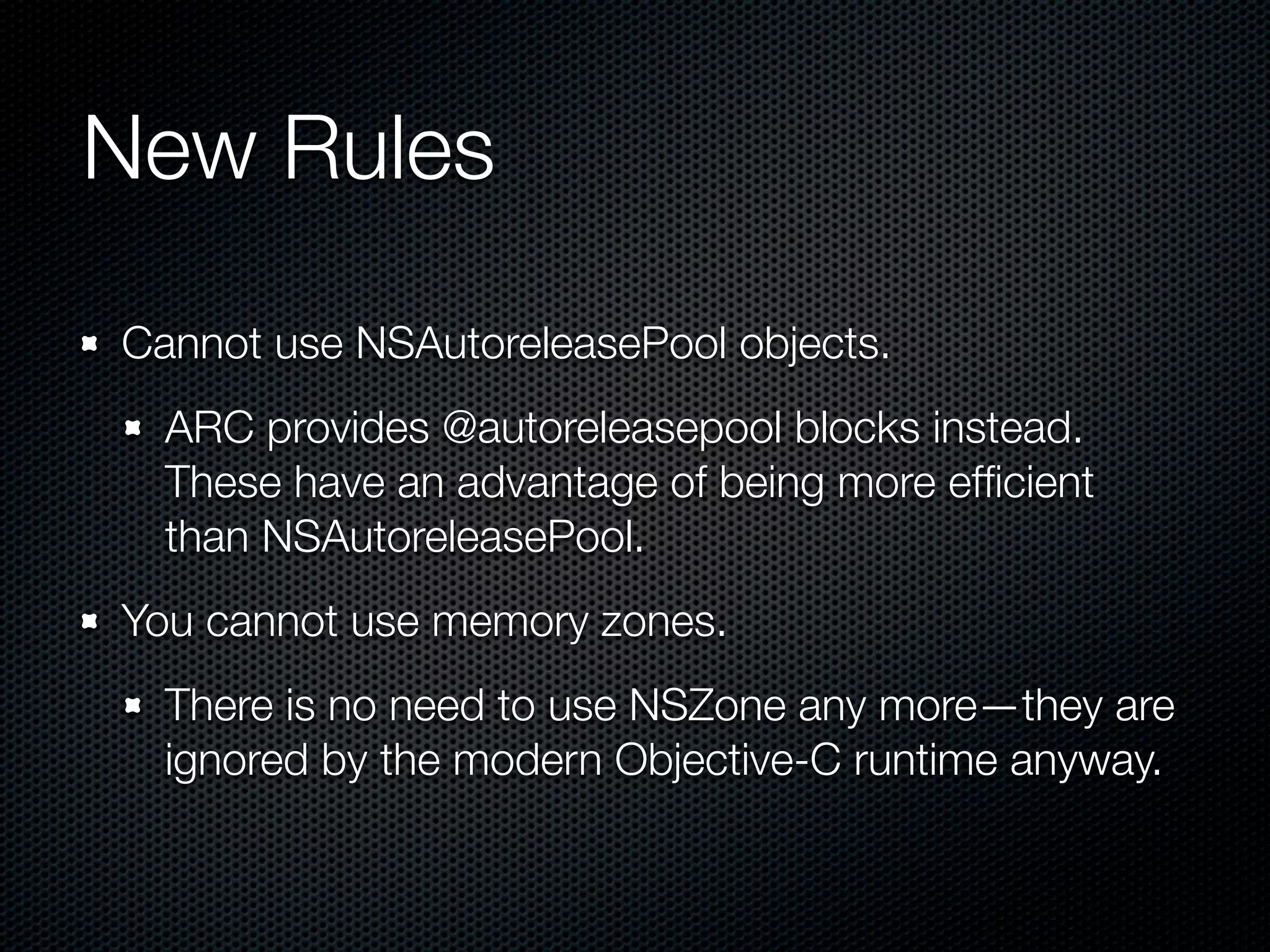

10. New Rules
Cannot use NSAutoreleasePool objects.
ARC provides @autoreleasepool blocks instead.
These have an advantage of being more efficient
than NSAutoreleasePool.
You cannot use memory zones.
There is no need to use NSZone any more—they are
ignored by the modern Objective-C runtime anyway.

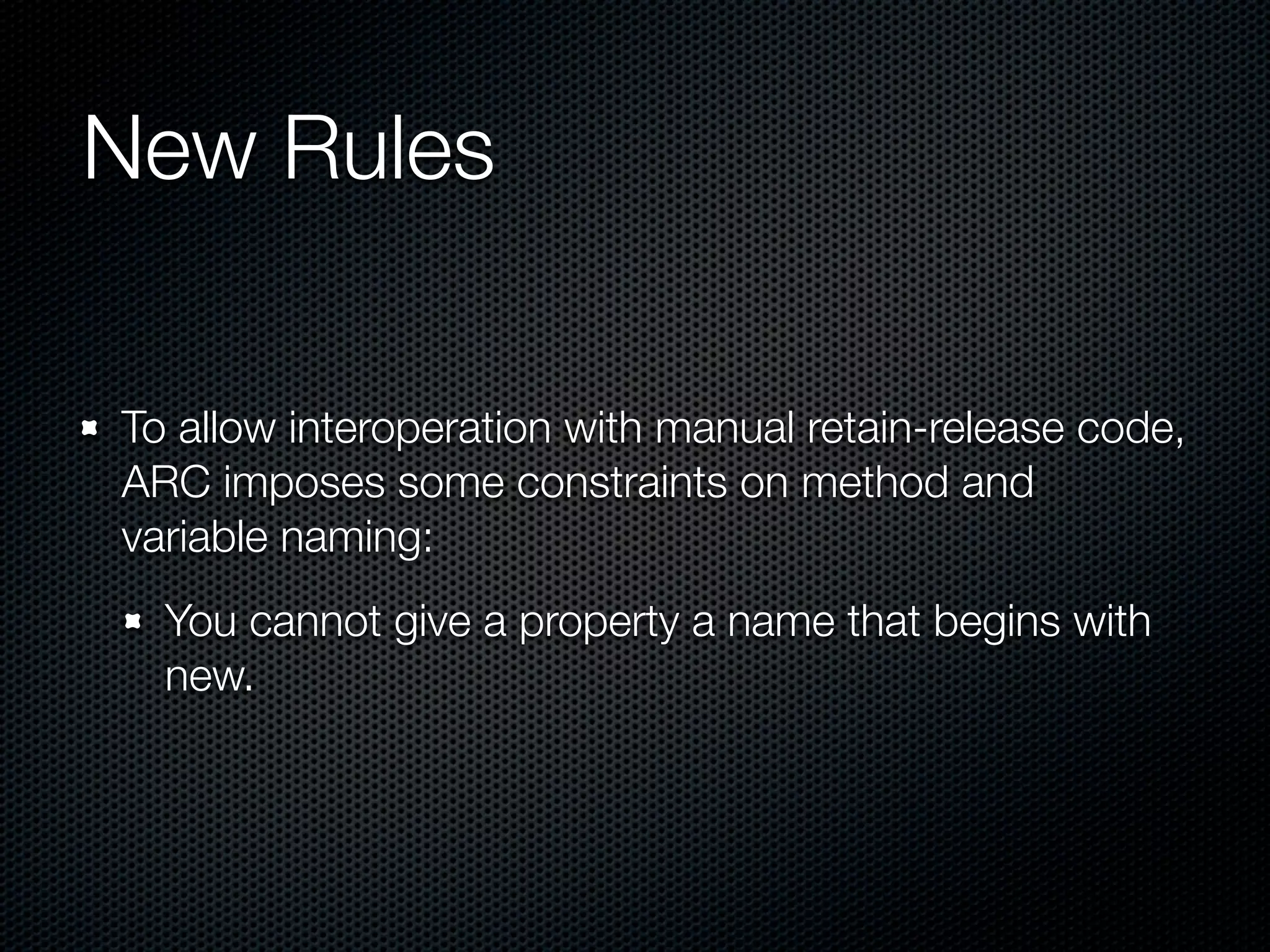

11. New Rules
To allow interoperation with manual retain-release code,
ARC imposes some constraints on method and
variable naming:
You cannot give a property a name that begins with
new.

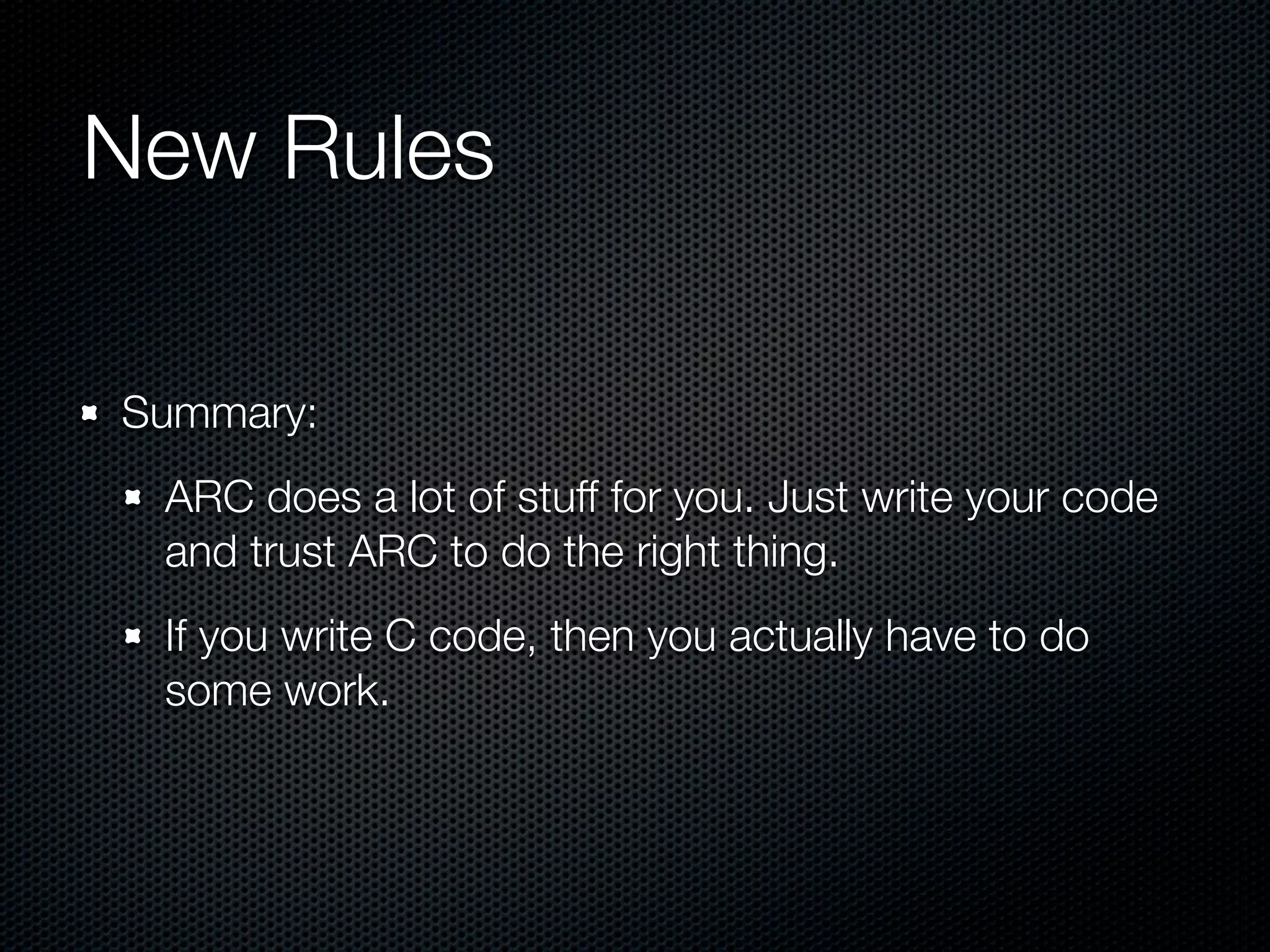

12. New Rules
Summary:
ARC does a lot of stuff for you. Just write your code
and trust ARC to do the right thing.
If you write C code, then you actually have to do
some work.

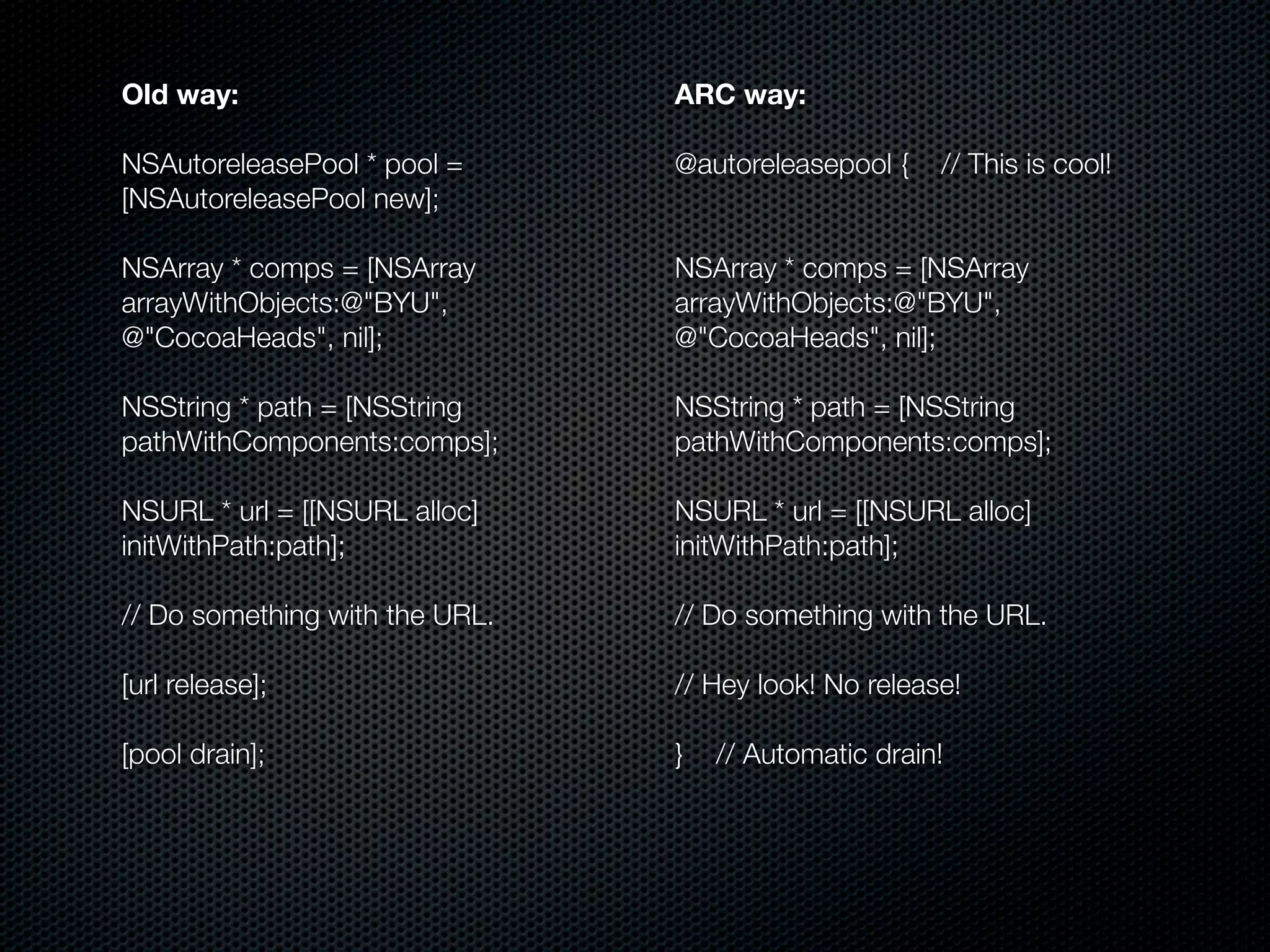

13. Old way: ARC way:
NSAutoreleasePool * pool = @autoreleasepool { // This is cool!
[NSAutoreleasePool new];
NSArray * comps = [NSArray NSArray * comps = [NSArray
arrayWithObjects:@"BYU", arrayWithObjects:@"BYU",
@"CocoaHeads", nil]; @"CocoaHeads", nil];
NSString * path = [NSString NSString * path = [NSString
pathWithComponents:comps]; pathWithComponents:comps];
NSURL * url = [[NSURL alloc] NSURL * url = [[NSURL alloc]
initWithPath:path]; initWithPath:path];
// Do something with the URL. // Do something with the URL.
[url release]; // Hey look! No release!
[pool drain]; } // Automatic drain!

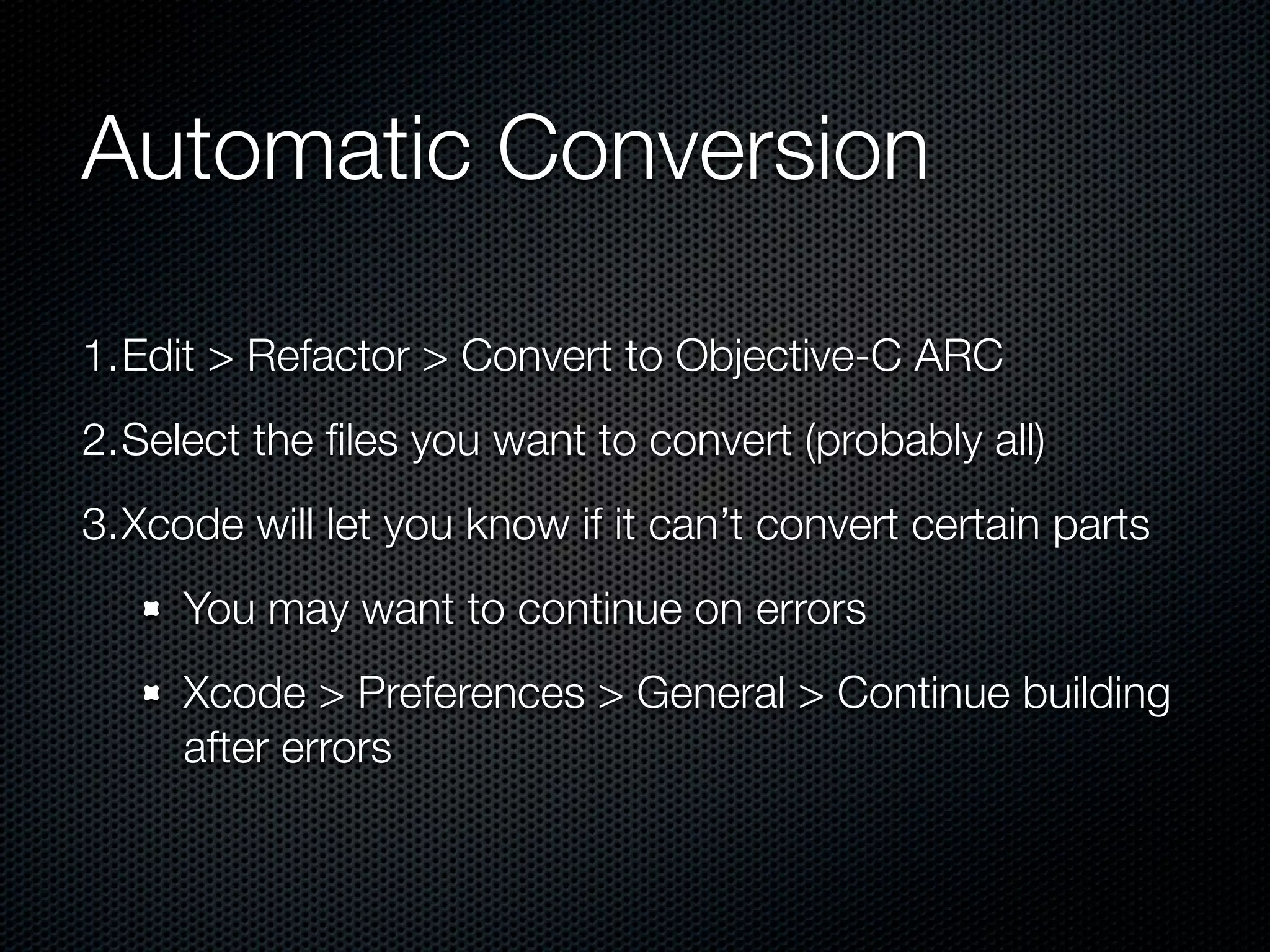

14. Automatic Conversion
1.Edit > Refactor > Convert to Objective-C ARC
2.Select the files you want to convert (probably all)
3.Xcode will let you know if it can’t convert certain parts
You may want to continue on errors
Xcode > Preferences > General > Continue building
after errors

15. Demo

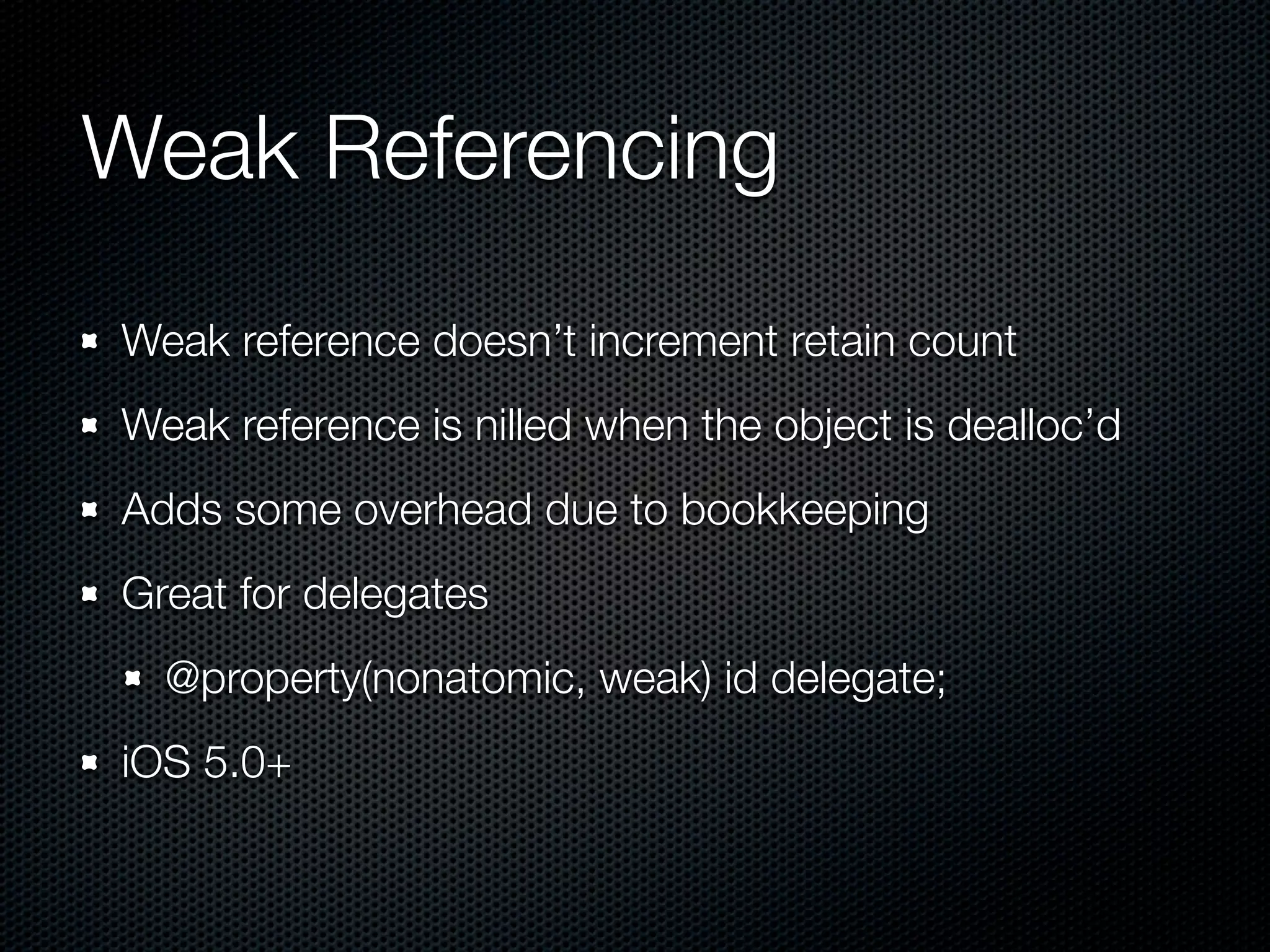

16. Weak Referencing
Weak reference doesn’t increment retain count
Weak reference is nilled when the object is dealloc’d
Adds some overhead due to bookkeeping
Great for delegates
@property(nonatomic, weak) id delegate;
iOS 5.0+

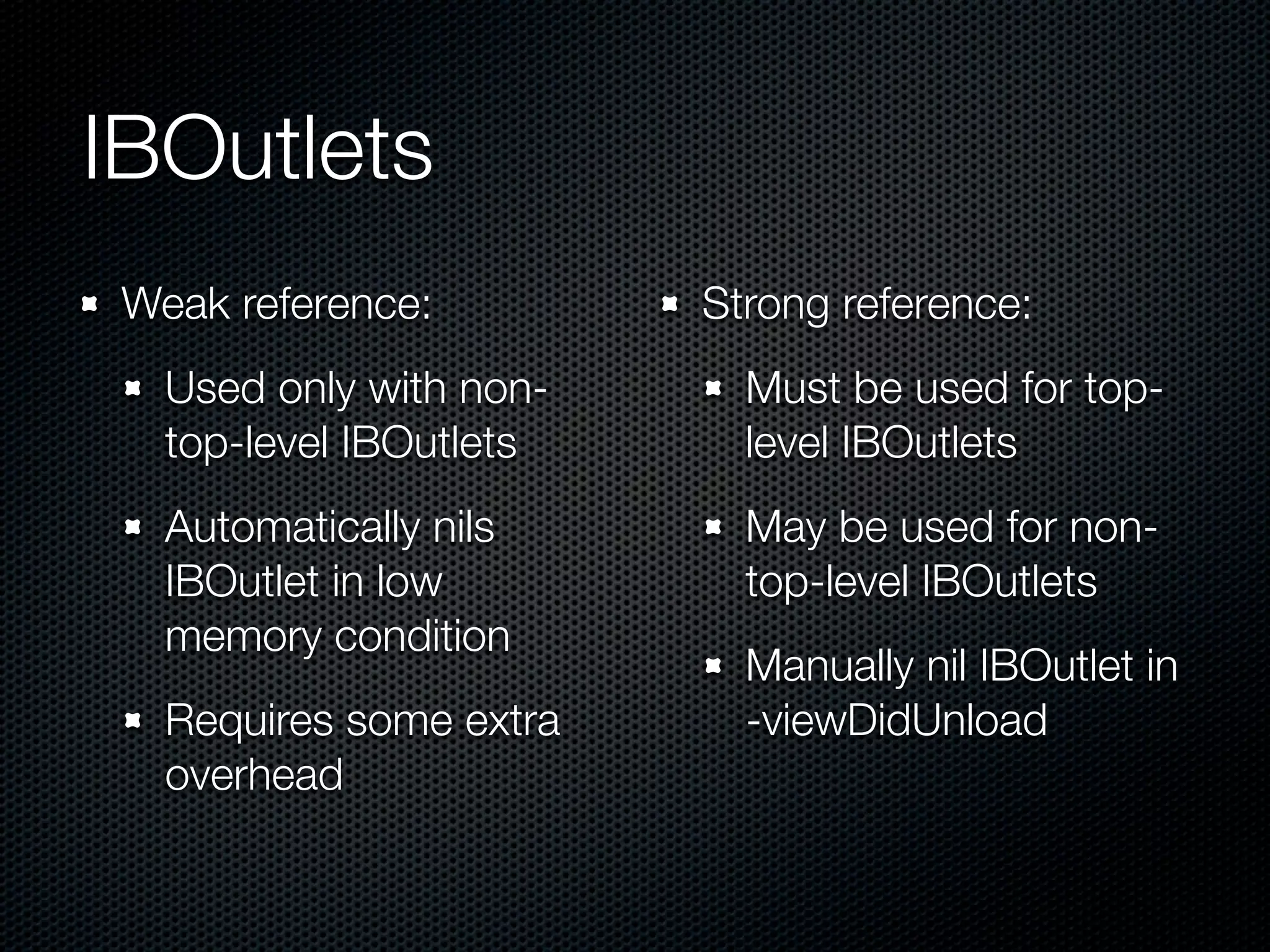

17. IBOutlets
Weak reference: Strong reference:
Used only with non- Must be used for top-
top-level IBOutlets level IBOutlets
Automatically nils May be used for non-
IBOutlet in low top-level IBOutlets
memory condition
Manually nil IBOutlet in
Requires some extra -viewDidUnload
overhead

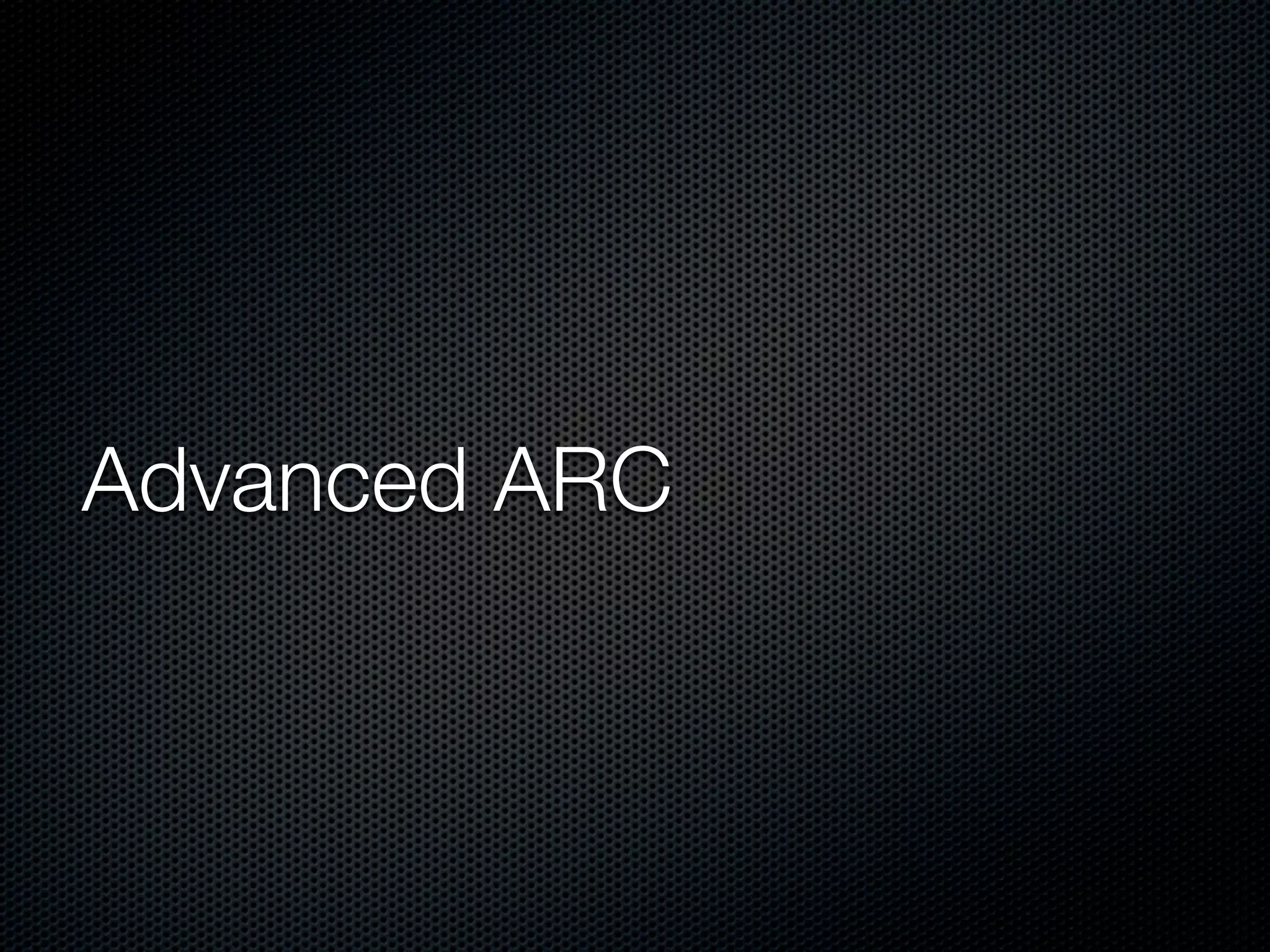

18. Advanced ARC

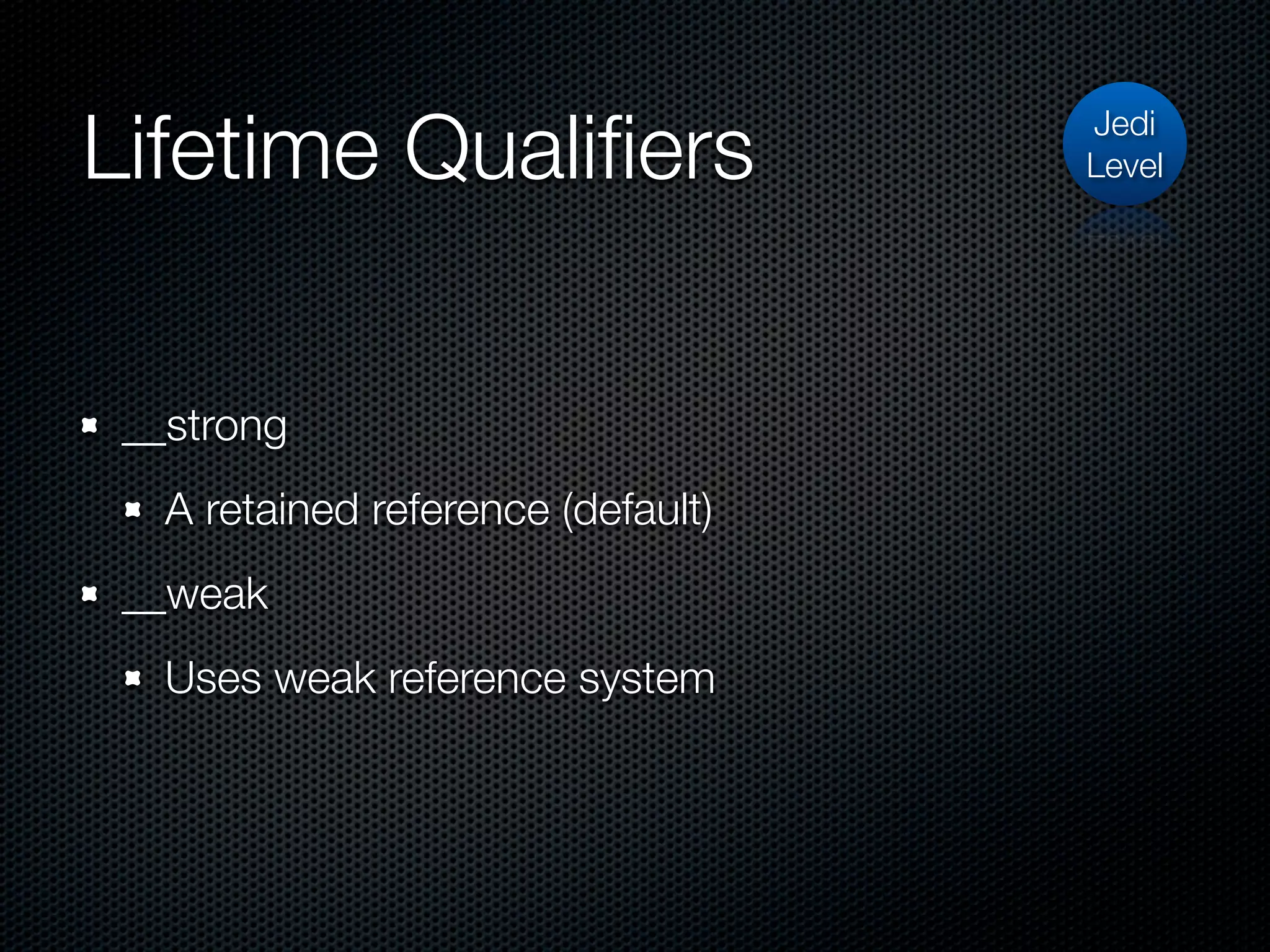

19. Lifetime Qualifiers Jedi
Level
__strong
A retained reference (default)
__weak
Uses weak reference system

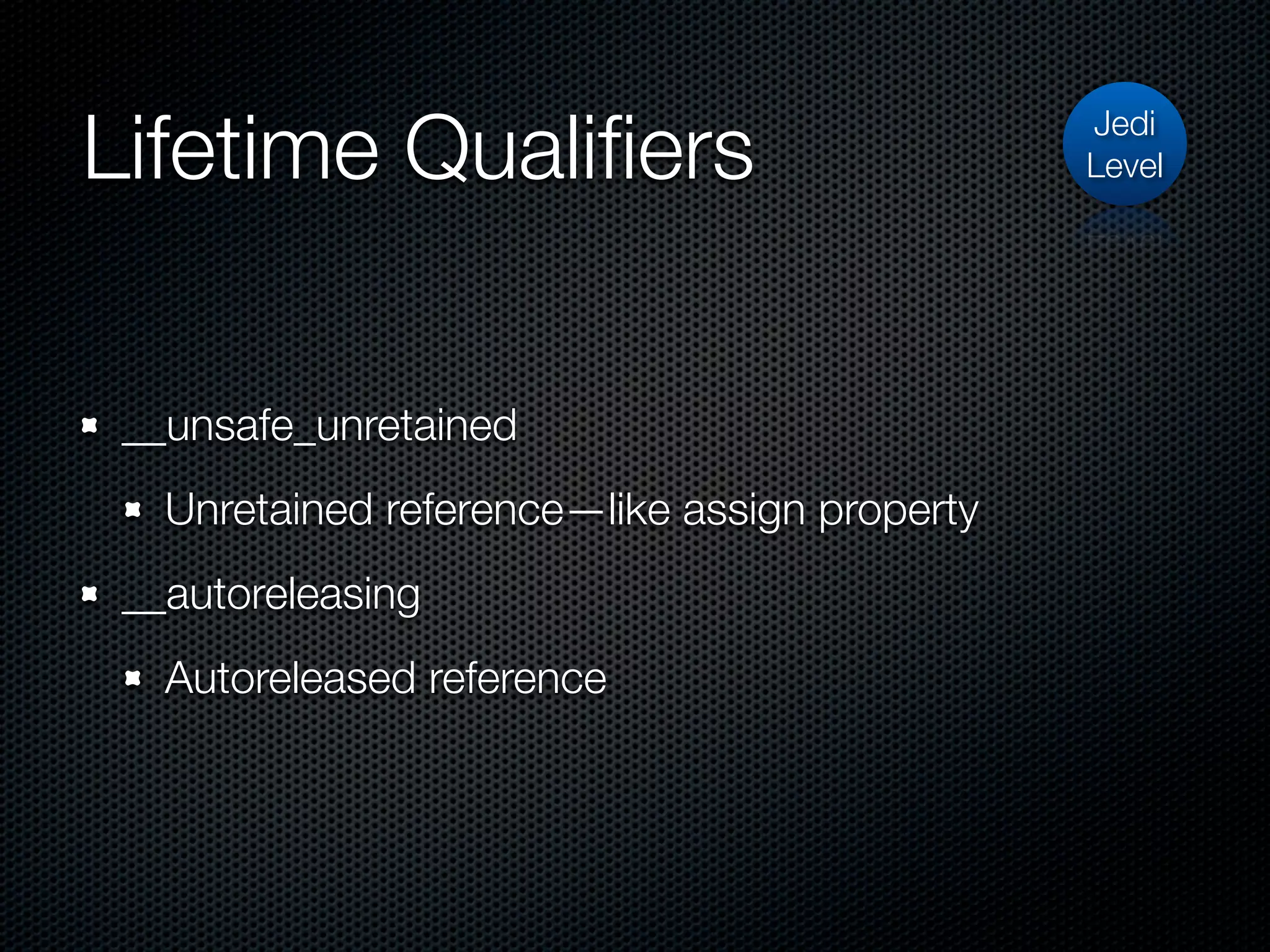

20. Lifetime Qualifiers Jedi
Level
__unsafe_unretained
Unretained reference—like assign property
__autoreleasing
Autoreleased reference

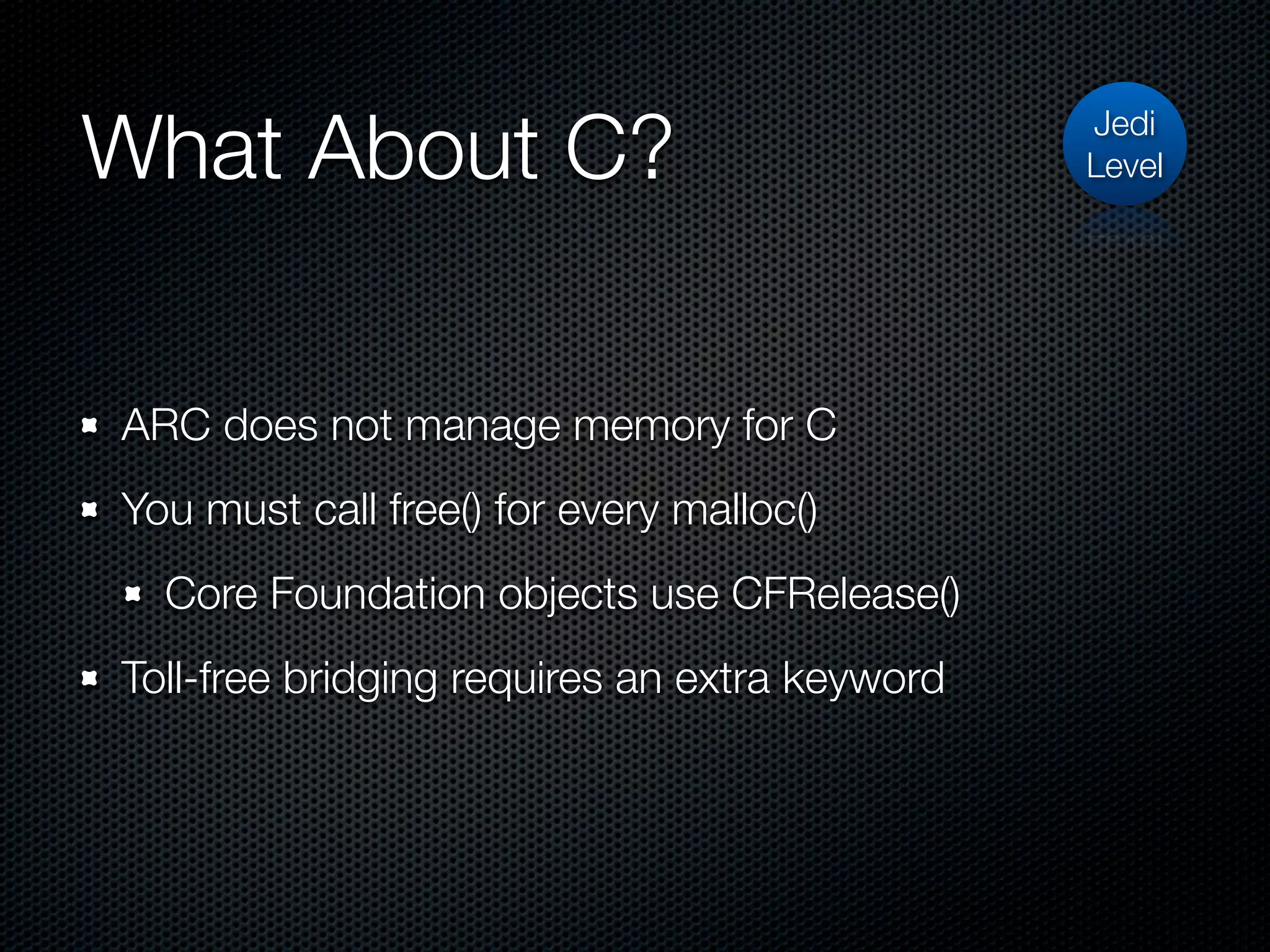

21. What About C? Jedi
Level
ARC does not manage memory for C
You must call free() for every malloc()
Core Foundation objects use CFRelease()
Toll-free bridging requires an extra keyword

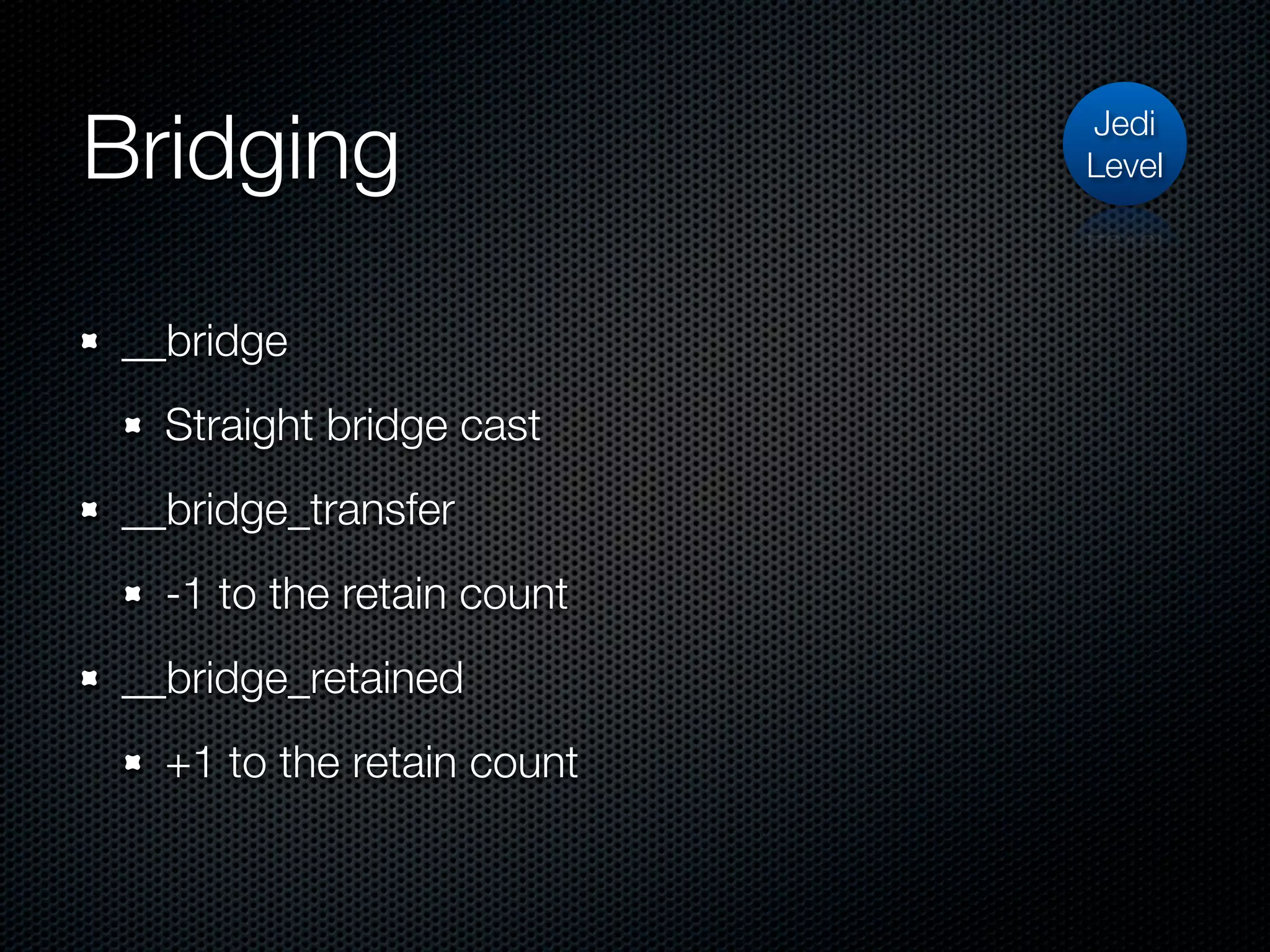

22. Bridging Jedi
Level
__bridge
Straight bridge cast
__bridge_transfer
-1 to the retain count
__bridge_retained
+1 to the retain count

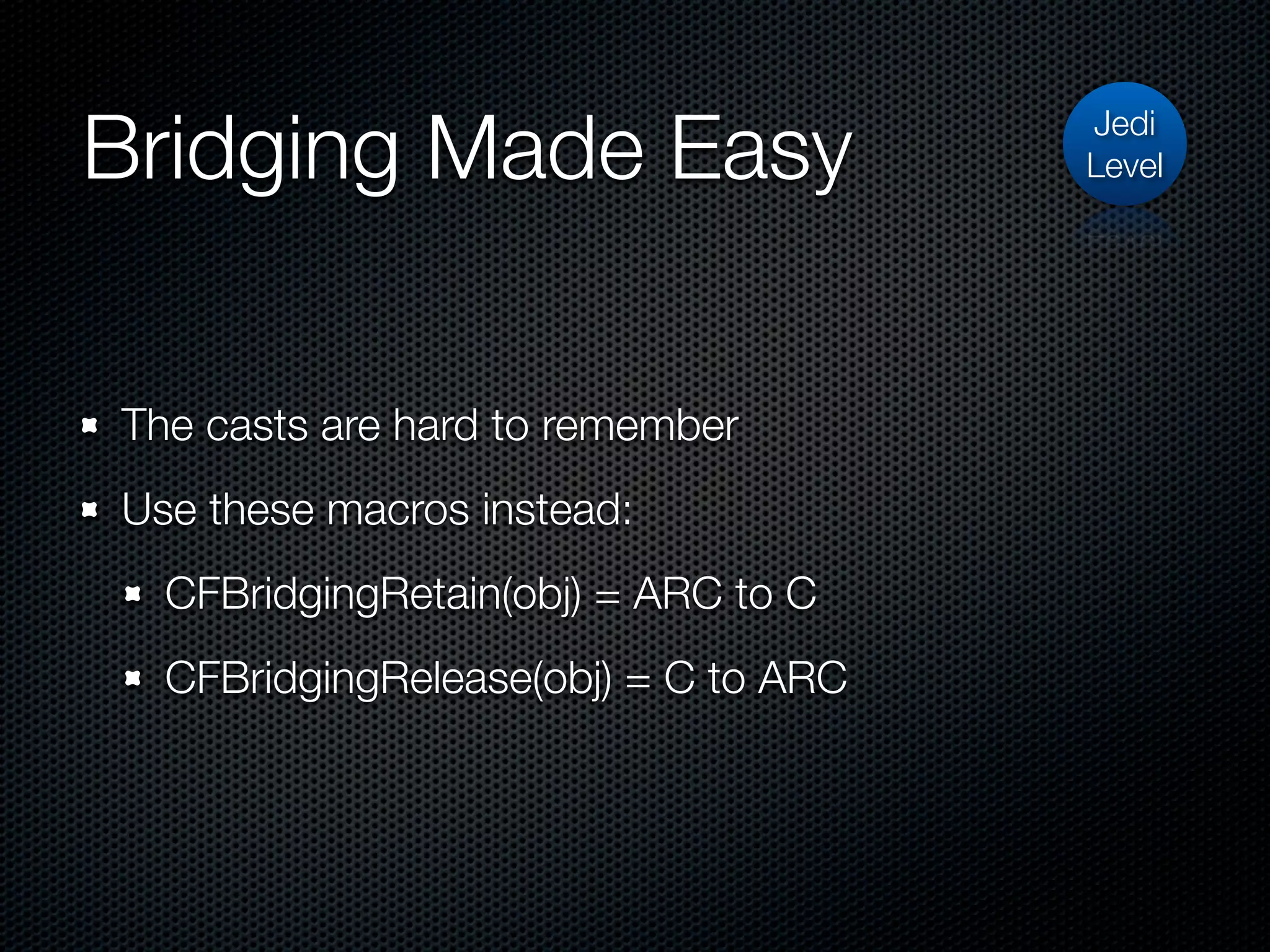

23. Bridging Made Easy Jedi
Level
The casts are hard to remember
Use these macros instead:
CFBridgingRetain(obj) = ARC to C
CFBridgingRelease(obj) = C to ARC

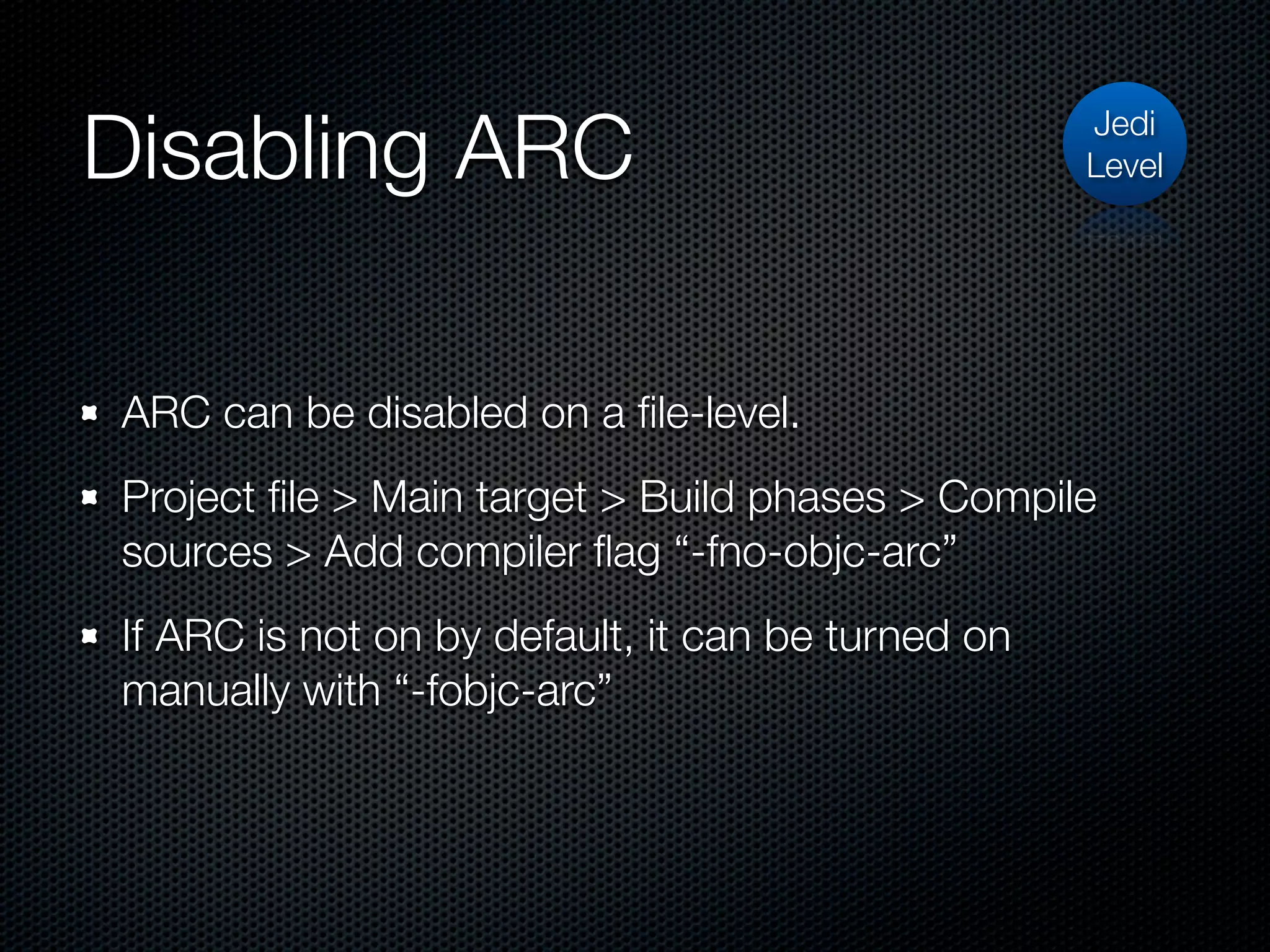

24. Disabling ARC Jedi
Level
ARC can be disabled on a file-level.
Project file > Main target > Build phases > Compile
sources > Add compiler flag “-fno-objc-arc”
If ARC is not on by default, it can be turned on
manually with “-fobjc-arc”

25. Demo

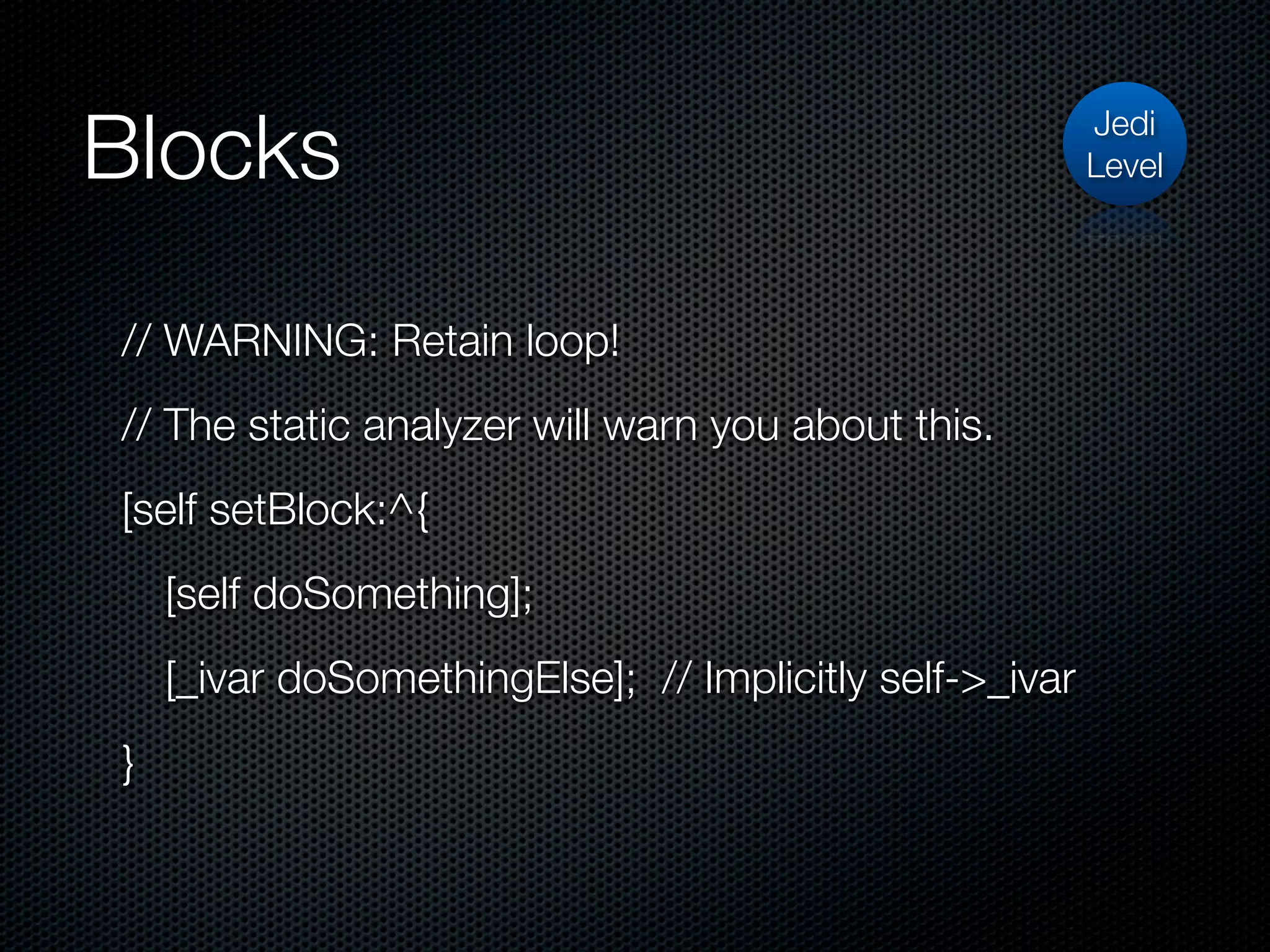

26. Blocks Jedi
Level
// WARNING: Retain loop!
// The static analyzer will warn you about this.
[self setBlock:^{
[self doSomething];
[_ivar doSomethingElse]; // Implicitly self->_ivar
}

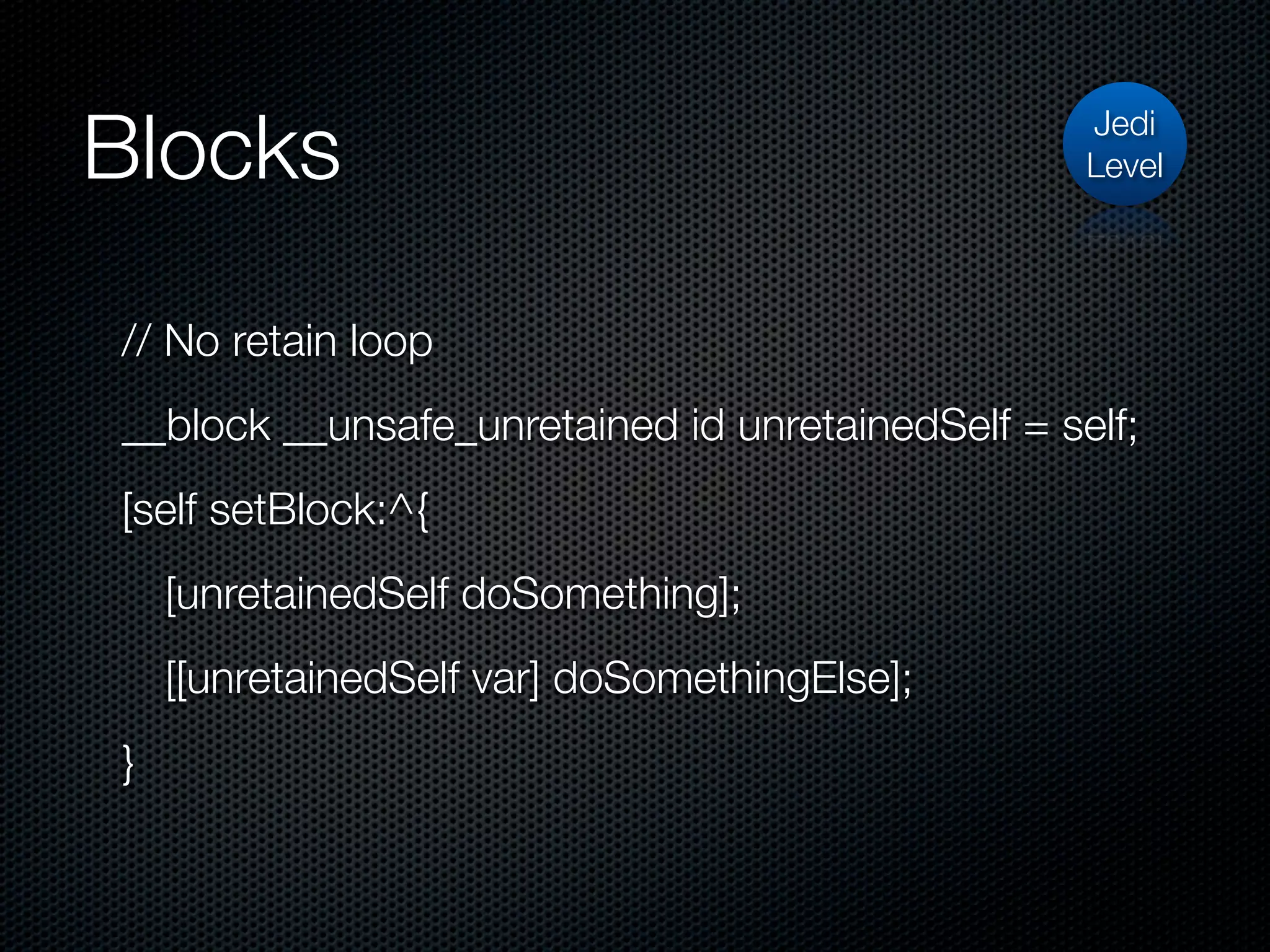

27. Blocks Jedi
Level
// No retain loop
__block __unsafe_unretained id unretainedSelf = self;
[self setBlock:^{
[unretainedSelf doSomething];
[[unretainedSelf var] doSomethingElse];
}

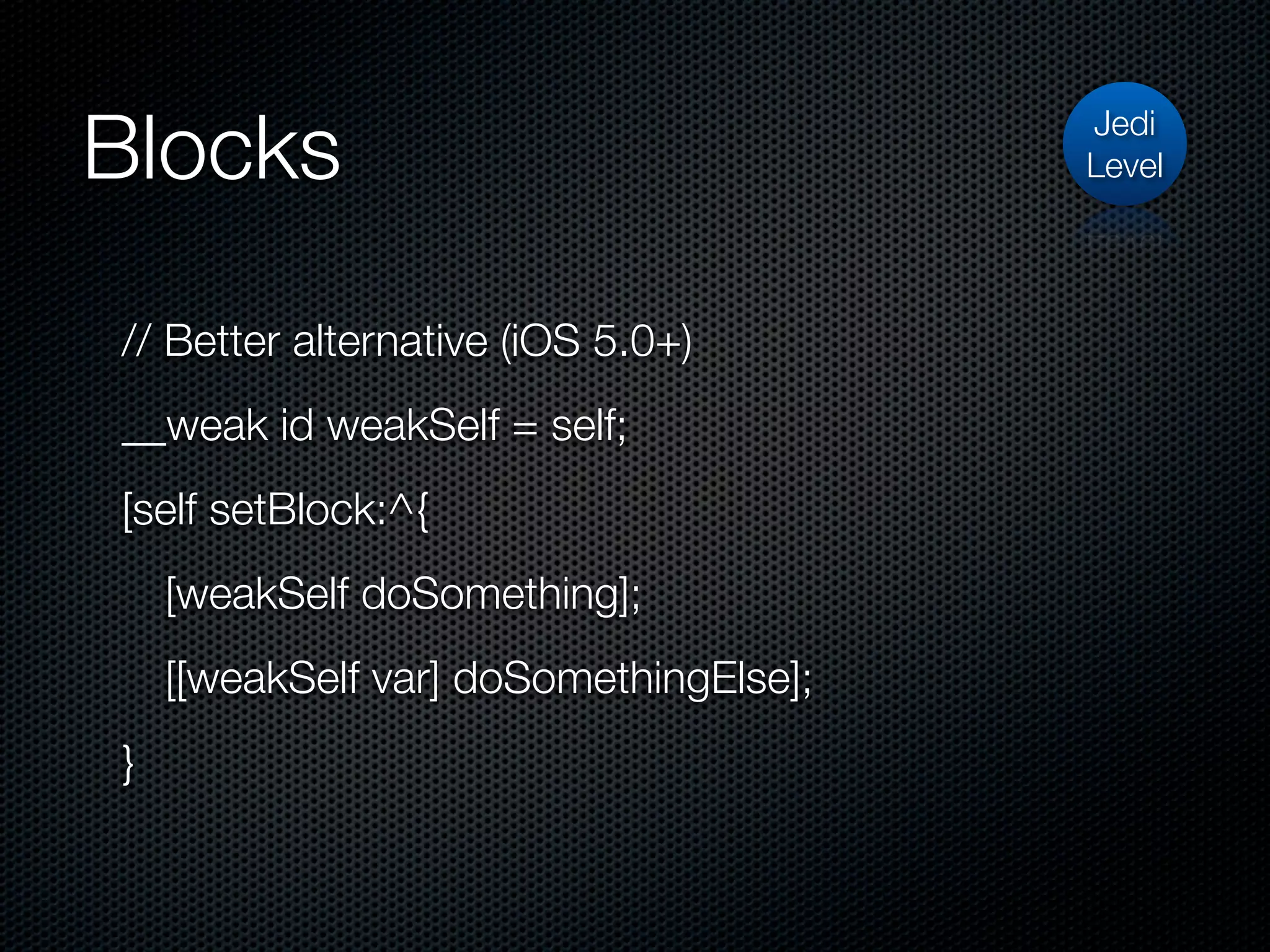

28. Blocks Jedi
Level
// Better alternative (iOS 5.0+)
__weak id weakSelf = self;
[self setBlock:^{
[weakSelf doSomething];
[[weakSelf var] doSomethingElse];
}

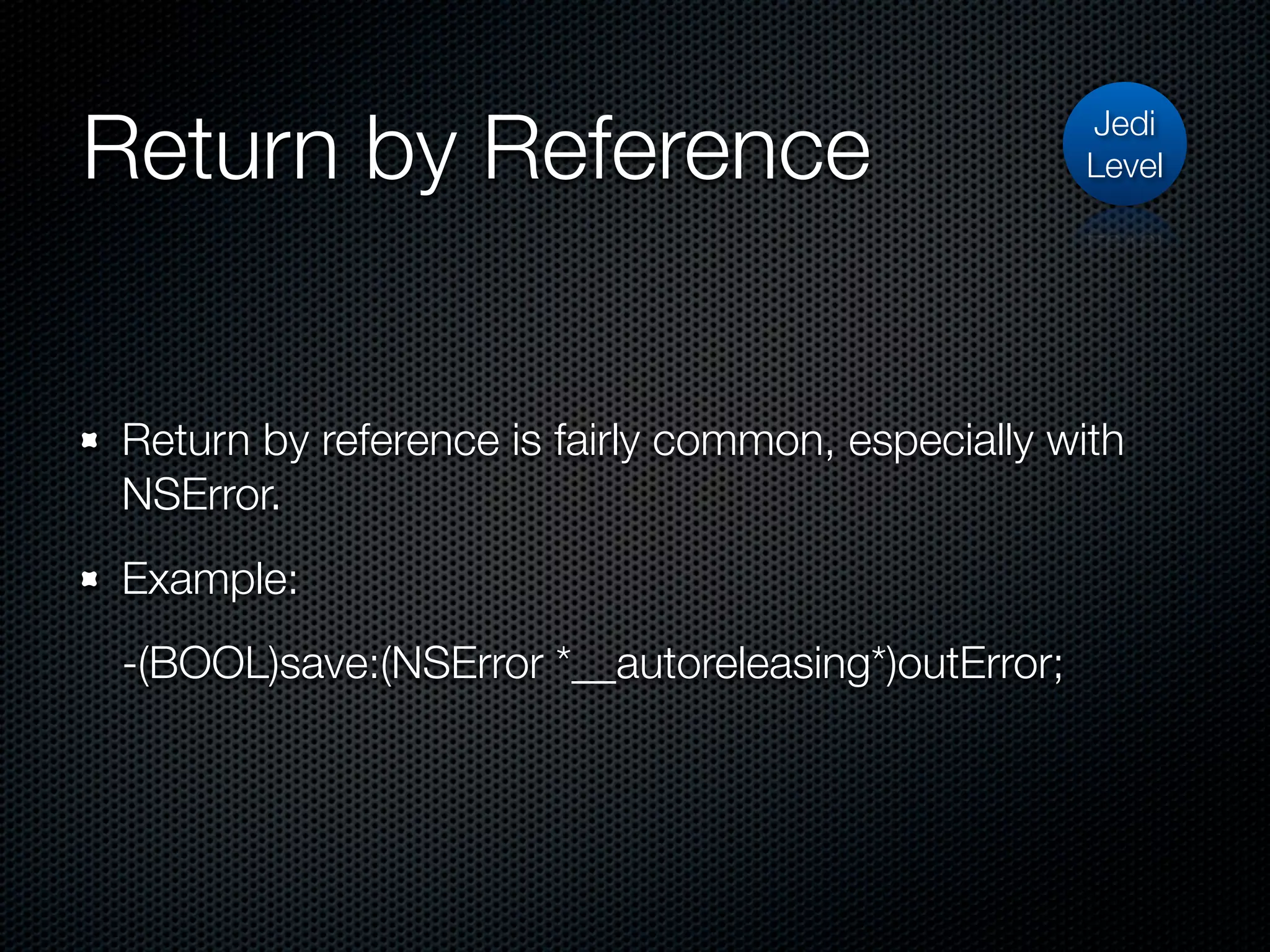

29. Return by Reference Jedi
Level
Return by reference is fairly common, especially with
NSError.
Example:
-(BOOL)save:(NSError *__autoreleasing*)outError;

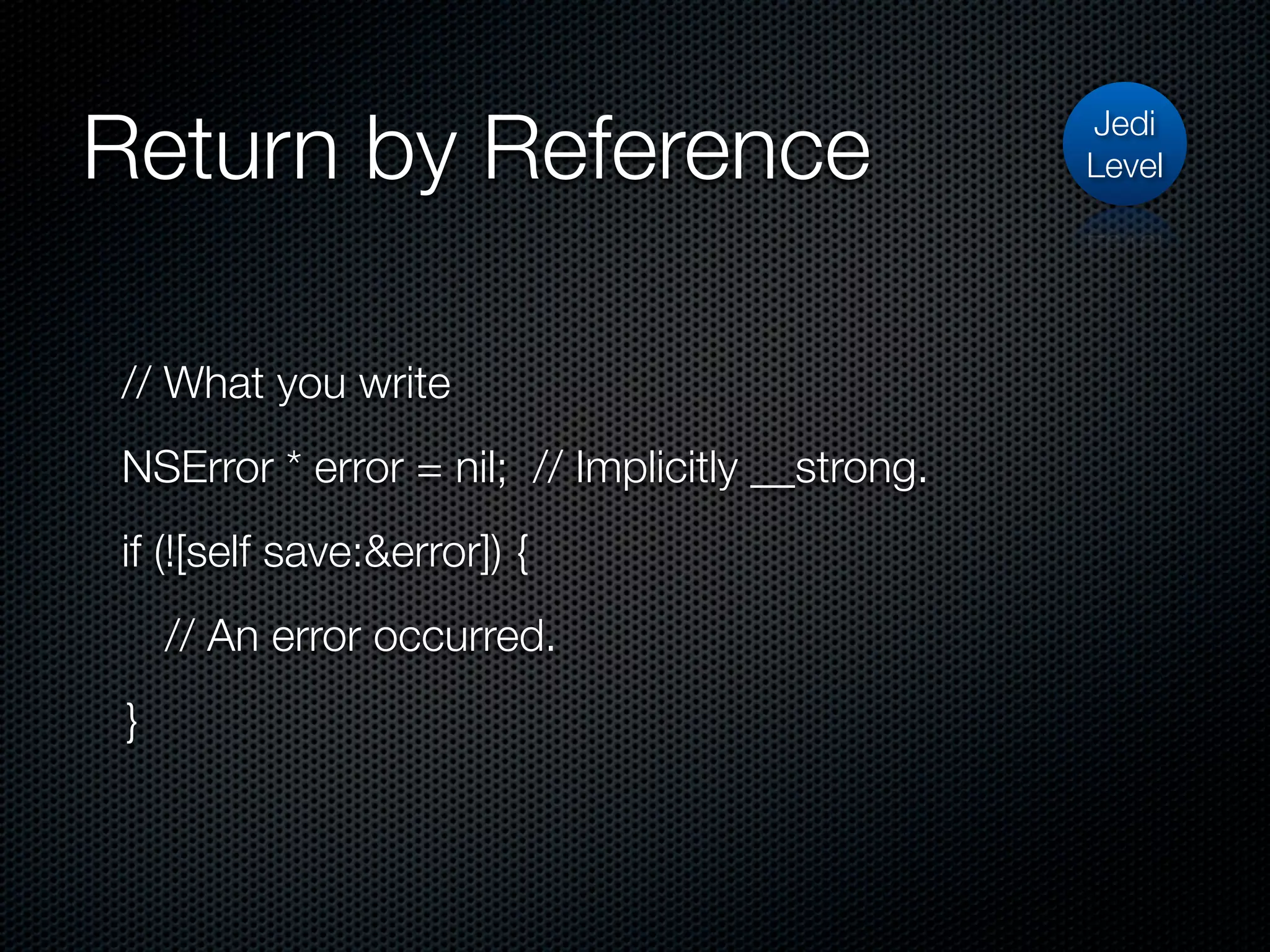

30. Return by Reference Jedi
Level
// What you write
NSError * error = nil; // Implicitly __strong.
if (![self save:&error]) {
// An error occurred.
}

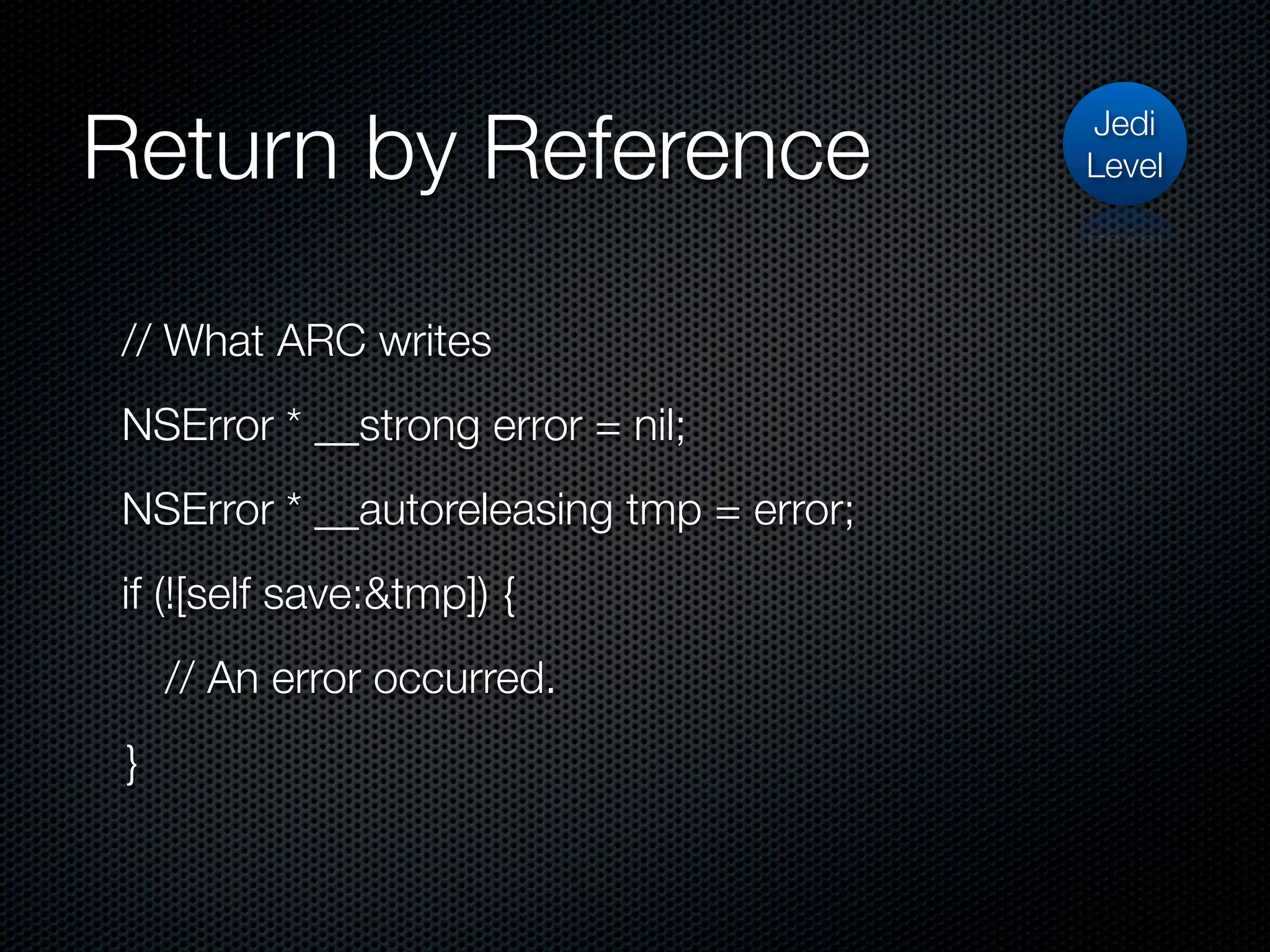

31. Return by Reference Jedi
Level
// What ARC writes
NSError * __strong error = nil;
NSError * __autoreleasing tmp = error;
if (![self save:&tmp]) {
// An error occurred.
}

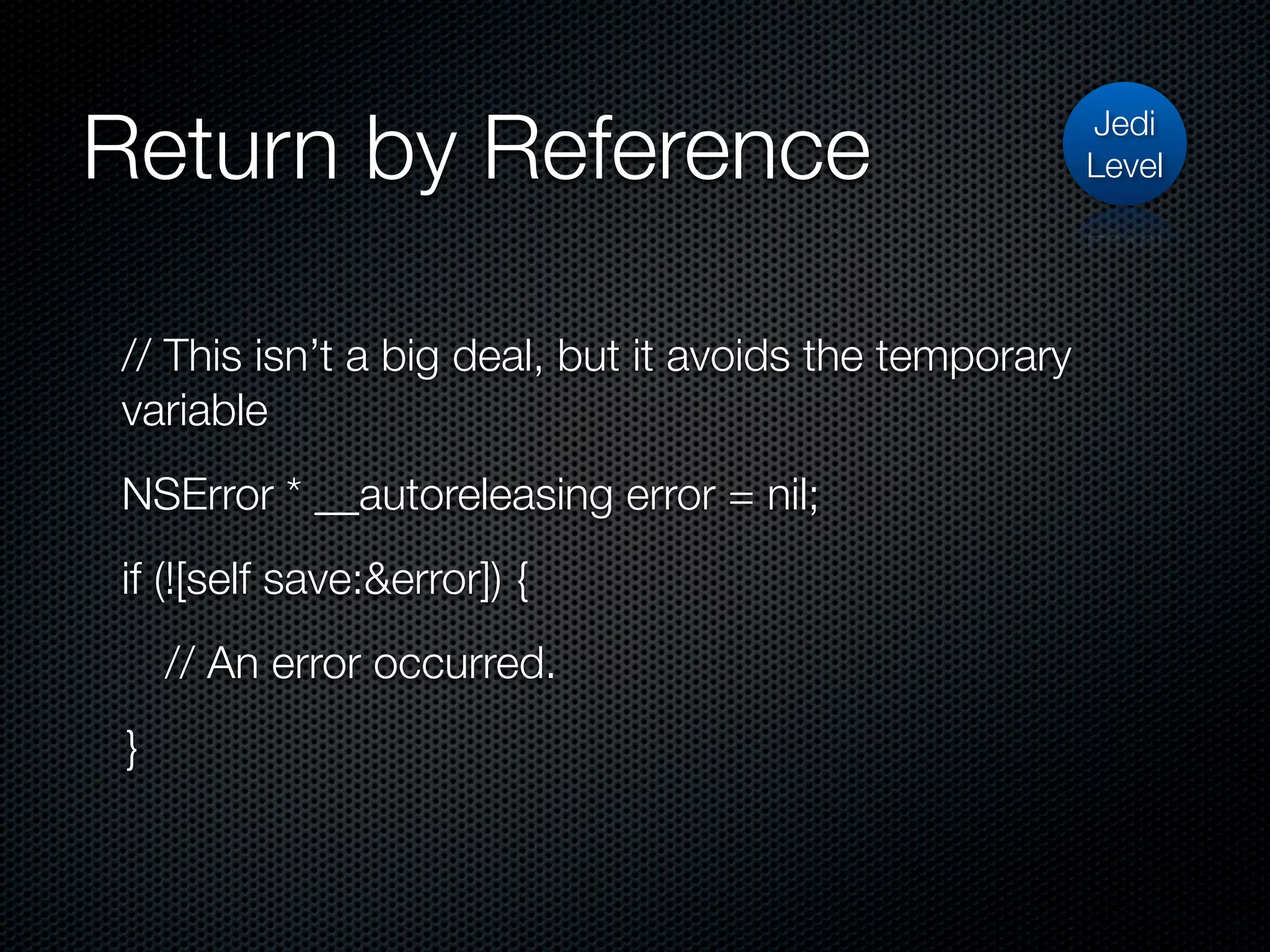

32. Return by Reference Jedi
Level
// This isn’t a big deal, but it avoids the temporary
variable
NSError * __autoreleasing error = nil;
if (![self save:&error]) {
// An error occurred.
}

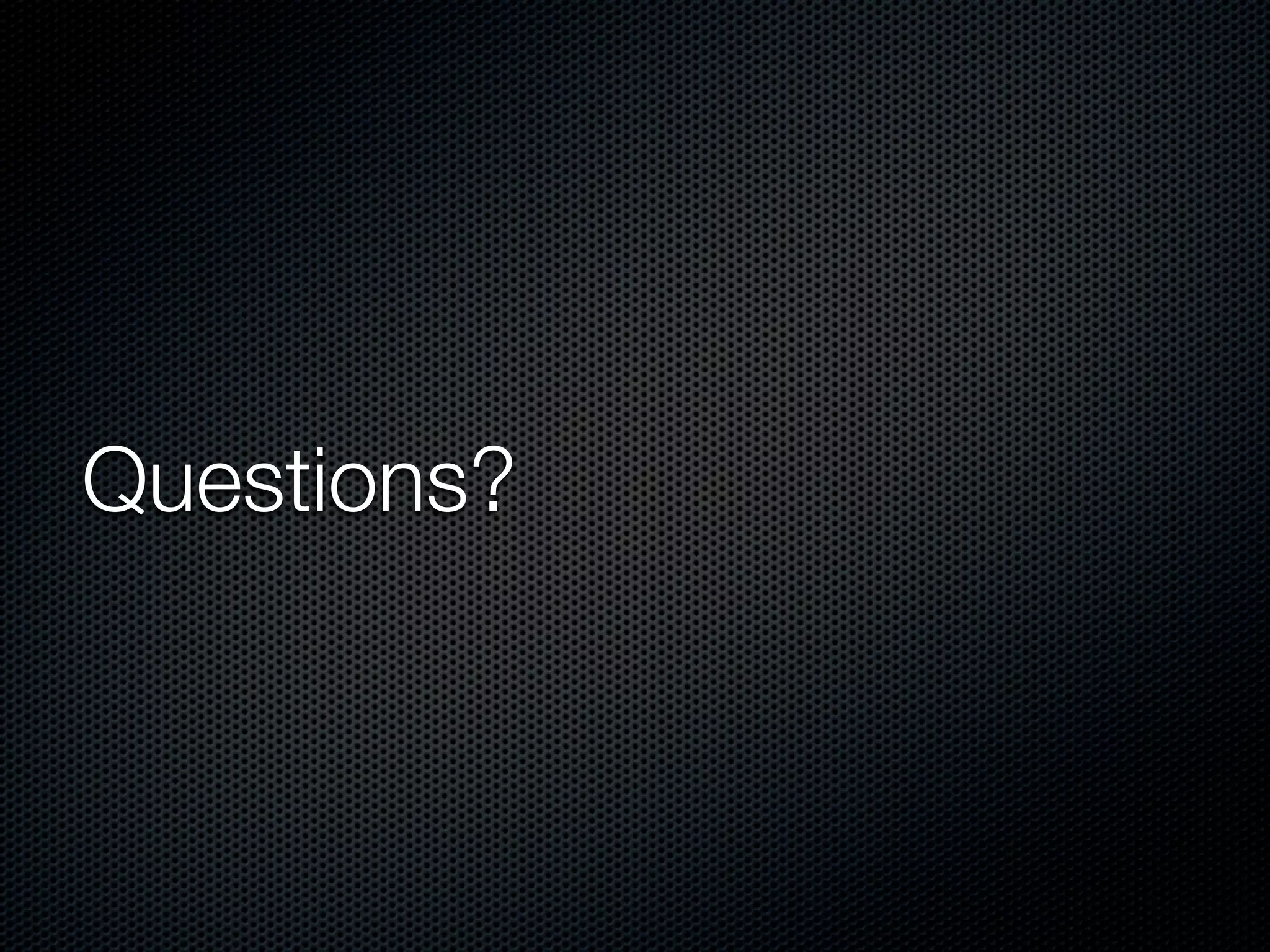

33. Questions?

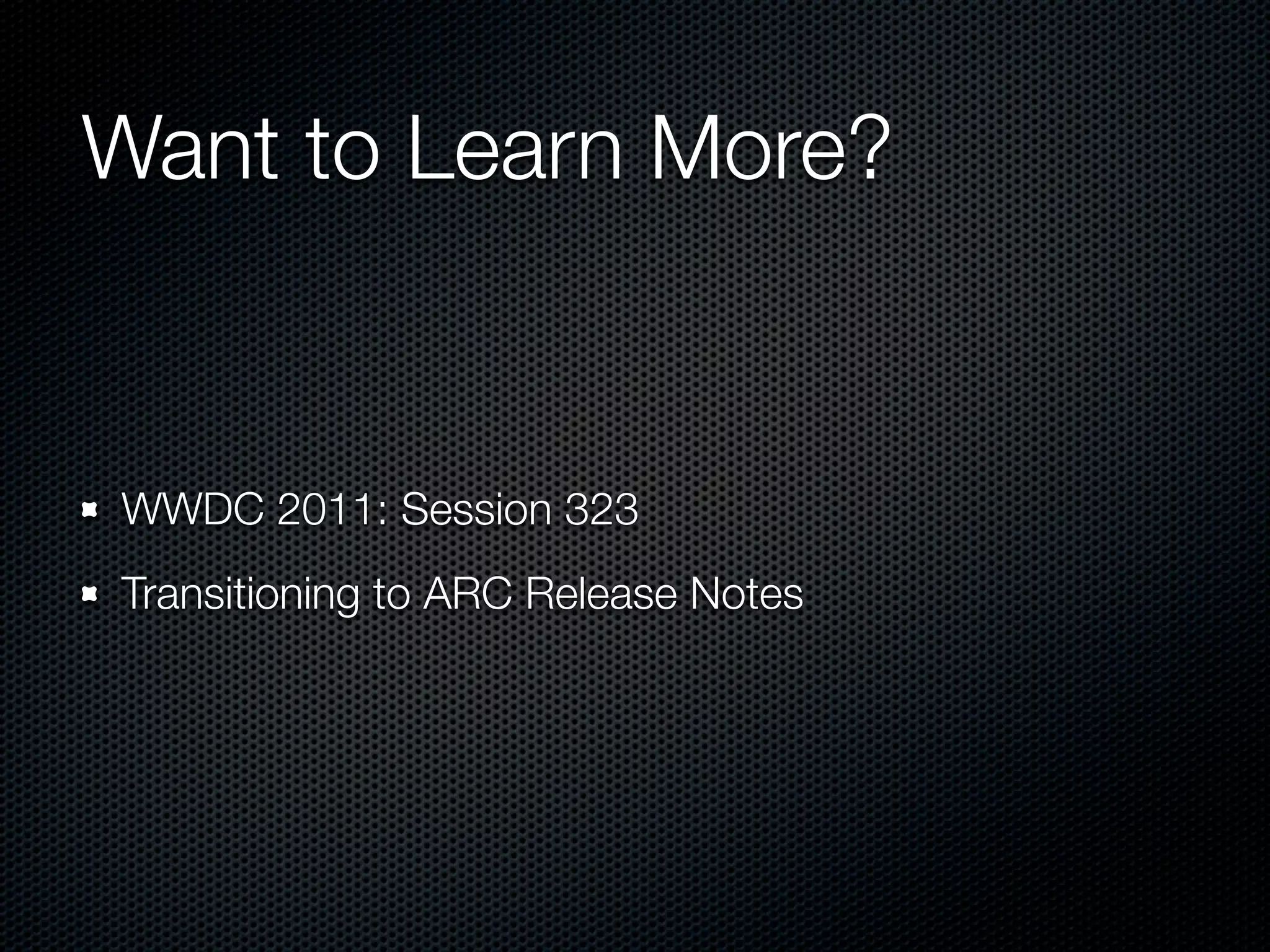

34. Want to Learn More?
WWDC 2011: Session 323
Transitioning to ARC Release Notes
