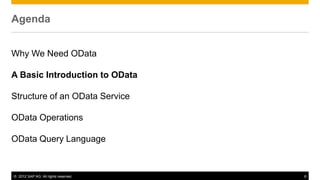

Agenda
Why We Need OData
A Basic Introduction to OData
Structure of an OData Service
OData Operations
OData Query Language

SAP’s Aim
One
SAP
Thousands
(non) SAP developers
One billion
consumers
Provides
 Server infrastructures,
multiple platforms
 SDKs & libraries
 App. dev. frameworks
 Business applications
 Enterprise quality
 Data security
Add
 Scale application
development
 Idea creators
 Web style apps
 Limited ABAP and SAP
process knowhow
Need
 Consumer–level user
experience
 Enterprise quality
 Data security
 Task-centric
 Web style & mobile apps

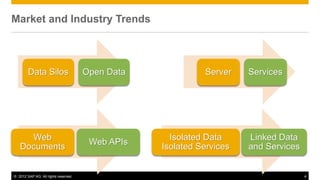

Market and Industry Trends
Server Services
Data Silos Open Data
Isolated Data
Isolated Services
Linked Data
and Services
Web
Documents
Web APIs

Agenda
Why We Need OData
OData Operations

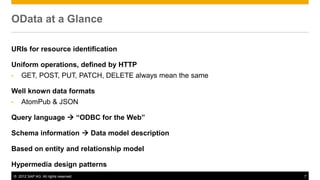

OData at a Glance
URIs for resource identification
Uniform operations, defined by HTTP
• GET, POST, PUT, PATCH, DELETE always mean the same
Well known data formats
• AtomPub & JSON
Query language  “ODBC for the Web”
Schema information  Data model description
Based on entity and relationship model
Hypermedia design patterns

Agenda
Why We Need OData
OData Operations

First OData Example: The Service Document
OData service root URI:
http://services.odata.org/OData/OData.svc/

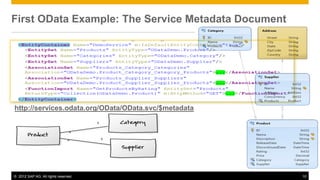

First OData Example: The Service Metadata Document
OData service root URI:
http://services.odata.org/OData/OData.svc/
OData service metadata URI :=
<OData service root URI> + “$metadata”
http://services.odata.org/OData/OData.svc/$metadata

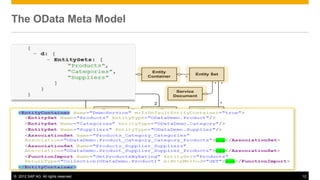

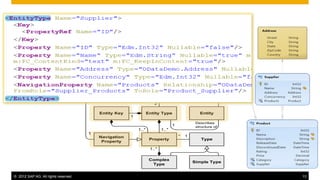

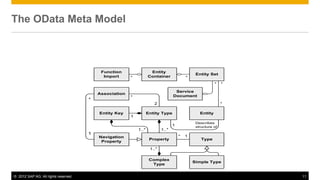

The OData Meta Model
Entity Type
Navigation
Property
Property Type
Simple Type
Complex
Type
Entity Set
Entity
*
*
1..*
1..*
1
*
Entity Key
1..*
1
Association
2
*
Entity
Container
Service
Document
Function
Import *
1
Describes
structure of
1
*
*
*

Entity Type
Navigation
Property
Property Type
Simple Type
Complex
Type
Entity Set
Entity
*
*
1..*
1..*
1
*
Entity Key
1..*
1
Association
2
*
Entity
Container
Service
Document
Function
Import *
1
Describes
structure of
1
*
*
*

Entity Type
Navigation
Property
Property Type
Simple Type
Complex
Type
Entity Set
Entity
*
*
1..*
1..*
1
*
Entity Key
1..*
1
Association
2
*
Entity
Container
Service
Document
Function
Import *
1
Describes
structure of
1
*
*
*

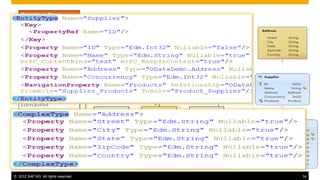

The OData type system

Agenda
Why We Need OData
OData Operations

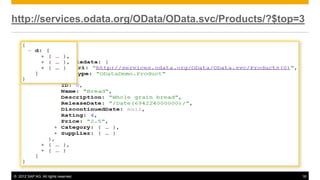

http://services.odata.org/OData/OData.svc/Products/?$top=3

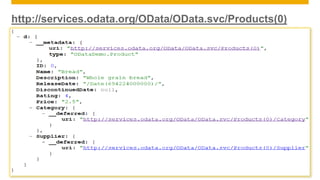

http://services.odata.org/OData/OData.svc/Products(0)

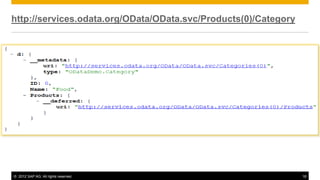

http://services.odata.org/OData/OData.svc/Products(0)/Category

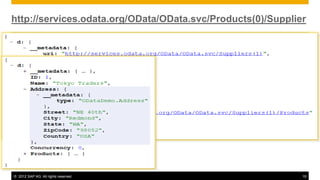

http://services.odata.org/OData/OData.svc/Products(0)/Supplier

CRUD Operations
Operation on resource HTTP verb
Create POST
Read GET
Update PUT
Delete DELETE

<ServiceRootURI>$batch
Entity Type
Navigation
Property
Property Type
Simple Type
Complex
Type
Entity Set
Entity
*
*
1..*
1..*
1
*
Entity Key
1..*
1
Association
2
*
Entity
Container
Service
Document
Function
Import *
1
Describes
structure of
1
*
*
*
CRUD Operations
POST $batch(multiple requests) : multiple responses
GET() : entry
PUT(etag, entry) : nil
PATCH(etag, partial entry) : nil
DELETE() : nil
GET() : feed
POST(entry) : entry

Entity Type
Navigation
Property
Property Type
Simple Type
Complex
Type
Entity Set
Entity
*
*
1..*
1..*
1
*
Entity Key
1..*
1
Association
2
*
Entity
Container
Service
Document
Function
Import *
1
Describes
structure of
1
*
*
*

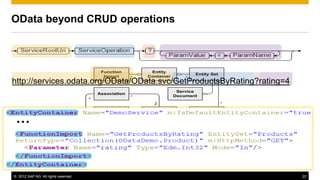

OData beyond CRUD operations
…

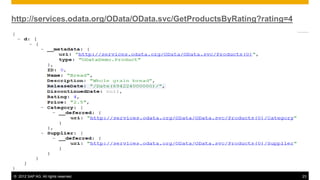

http://services.odata.org/OData/OData.svc/GetProductsByRating?rating=4

http://services.odata.org/OData/OData.svc/GetProductsByRating?rating=4

Agenda
Why We Need OData
OData Operations

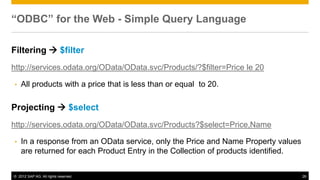

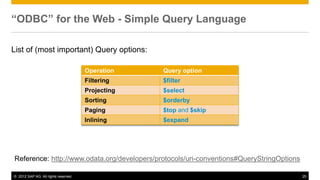

“ODBC” for the Web - Simple Query Language
List of (most important) Query options:
Reference: http://www.odata.org/developers/protocols/uri-conventions#QueryStringOptions
Operation Query option
Filtering $filter
Projecting $select
Sorting $orderby
Paging $top and $skip
Inlining $expand

Filtering  $filter
http://services.odata.org/OData/OData.svc/Products/?$filter=Price le 20
• All products with a price that is less than or equal to 20.
Projecting  $select
http://services.odata.org/OData/OData.svc/Products?$select=Price,Name
• In a response from an OData service, only the Price and Name Property values
are returned for each Product Entry in the Collection of products identified.

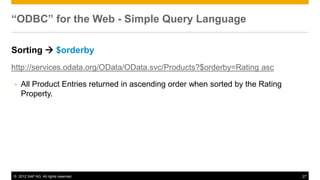

Sorting  $orderby
http://services.odata.org/OData/OData.svc/Products?$orderby=Rating asc
• All Product Entries returned in ascending order when sorted by the Rating
Property.

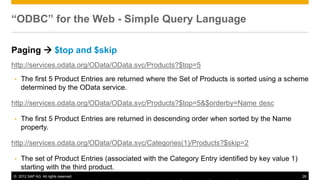

Paging  $top and $skip
http://services.odata.org/OData/OData.svc/Products?$top=5
• The first 5 Product Entries are returned where the Set of Products is sorted using a scheme
determined by the OData service.
http://services.odata.org/OData/OData.svc/Products?$top=5&$orderby=Name desc
• The first 5 Product Entries are returned in descending order when sorted by the Name
property.
http://services.odata.org/OData/OData.svc/Categories(1)/Products?$skip=2
• The set of Product Entries (associated with the Category Entry identified by key value 1)
starting with the third product.

Typical Programming Patterns
for UI-Centric Applications

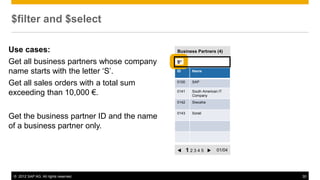

$filter and $select
Use cases:
Get all business partners whose company
name starts with the letter ‘S’.
Get all sales orders with a total sum
exceeding than 10,000 €.
Get the business partner ID and the name
of a business partner only.
ID Name
0100 SAP
0141 South American IT
Company
0142 Siwusha
0143 Sorali
Business Partners (4)
t 1 2 3 4 5 u 01/04
S*

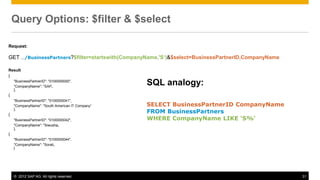

Query Options: $filter & $select
Request:
GET …/BusinessPartners?$filter=startswith(CompanyName,'S‘)&$select=BusinessPartnerID,CompanyName
Result
{
"BusinessPartnerID": "0100000000",
"CompanyName": "SAP„
},
{
"CompanyName": "South American IT Company“
},
{
"CompanyName": "Siwusha„
},
{
"CompanyName": "Sorali„
}
SQL analogy:
SELECT BusinessPartnerID CompanyName
FROM BusinessPartners
WHERE CompanyName LIKE ‘S%‘

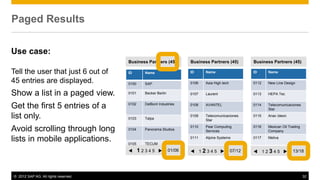

Paged Results
ID Name
0100 SAP
0101 Becker Berlin
0102 DelBont Industries
0103 Talpa
0104 Panorama Studios
0105 TECUM
t 1 2 3 4 5 u 01/06
ID Name
0106 Asia High tech
0107 Laurent
0108 AVANTEL
0109 Telecomunicaciones
Star
0110 Pear Computing
Services
0111 Alpine Systems
Business Partners (45) Business Partners (45)
t 1 2 3 4 5 u 07/12
ID Name
0112 New Line Design
0113 HEPA Tec
Star
0115 Anav Ideon
0116 Mexican Oil Trading
Company
0117 Meliva
Business Partners (45)
t 1 2 3 4 5 u 13/18
Use case:
Tell the user that just 6 out of
45 entries are displayed.
Show a list in a paged view.
Get the first 5 entries of a
list only.
Avoid scrolling through long
lists in mobile applications.

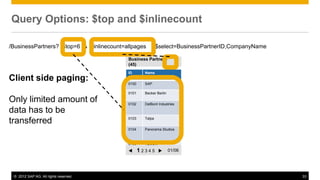

Query Options: $top and $inlinecount
ID Name
0100 SAP
0101 Becker Berlin
0103 Talpa
0105 TECUM
t 1 2 3 4 5 u 01/06
Business Partners
(45)
/BusinessPartners? $top=6 & $inlinecount=allpages &$select=BusinessPartnerID,CompanyName & $skip=6
Client side paging:
Only limited amount of
data has to be
transferred

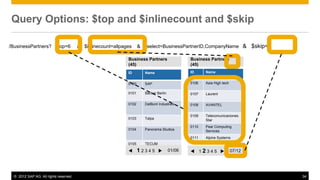

Query Options: $top and $inlinecount and $skip
ID Name
0100 SAP
0101 Becker Berlin
0103 Talpa
0105 TECUM
t 1 2 3 4 5 u 01/06
ID Name
0106 Asia High tech
0107 Laurent
0108 AVANTEL
Star
0110 Pear Computing
Services
0111 Alpine Systems
Business Partners
(45)
Business Partners
(45)
t 1 2 3 4 5 u 07/12
/BusinessPartners? $top=6 & $inlinecount=allpages & $select=BusinessPartnerID,CompanyName & $skip=6

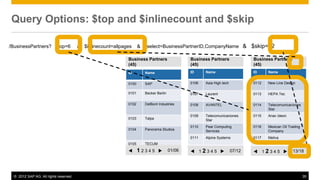

Query Options: $top and $inlinecount and $skip
ID Name
0100 SAP
0101 Becker Berlin
0103 Talpa
0105 TECUM
t 1 2 3 4 5 u 01/06
ID Name
0106 Asia High tech
0107 Laurent
0108 AVANTEL
Star
0110 Pear Computing
Services
0111 Alpine Systems
Business Partners
(45)
Business Partners
(45)
t 1 2 3 4 5 u 07/12
ID Name
0112 New Line Design
0113 HEPA Tec
Star
0115 Anav Ideon
0116 Mexican Oil Trading
Company
0117 Meliva
Business Partners
(45)
t 1 2 3 4 5 u 13/18
/BusinessPartners? $top=6 & $inlinecount=allpages & $select=BusinessPartnerID,CompanyName & $skip=12

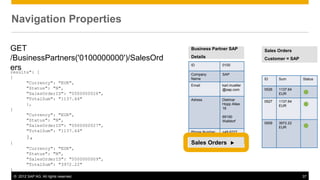

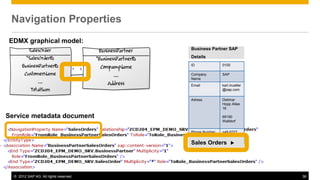

Navigation Properties
EDMX graphical model:
Service metadata document
ID 0100
Company
Name
SAP
Email karl.mueller
@sap.com
Adress Dietmar
Hopp Allee
16
69190
Walldorf
Phone Number +49 6227
…
Sales Orders u
Business Partner SAP
Details

Navigation Properties
GET
/BusinessPartners('0100000000')/SalesOrd
ers ID 0100
Company
Name
SAP
Email karl.mueller
@sap.com
Adress Dietmar
Hopp Allee
16
69190
Walldorf
Phone Number +49 6227
…
Sales Orders u
Business Partner SAP
Details
ID Sum Status
0526 1137.64
EUR l
0527 1137.64
EUR l
0509 3972.22
EUR l
Sales Orders
Customer = SAP
results": [
{
"Currency": "EUR",
"Status": "N",
"SalesOrderID": "0500000026",
"TotalSum": "1137.64"
},
{
"Currency": "EUR",
"Status": "N",
"TotalSum": "1137.64"
},
{
"Currency": "EUR",
"Status": "N",
"TotalSum": "3972.22"
}
]

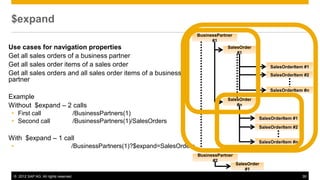

$expand
Use cases for navigation properties
Get all sales orders of a business partner
Get all sales order items of a sales order
Get all sales orders and all sales order items of a business
partner
Example
Without $expand – 2 calls
• First call /BusinessPartners(1)
• Second call /BusinessPartners(1)/SalesOrders
With $expand – 1 call
• /BusinessPartners(1)?$expand=SalesOrders
SalesOrder
#n
SalesOrderItem #1
SalesOrderItem #2
SalesOrderItem #n
SalesOrder
#1
SalesOrderItem #1
SalesOrderItem #2
SalesOrderItem #n
BusinessPartner
#1
SalesOrder
#1
BusinessPartner
#2

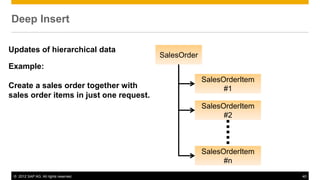

Deep Insert
Updates of hierarchical data
Example:
Create a sales order together with
sales order items in just one request.
SalesOrder
SalesOrderItem
#1
SalesOrderItem
#2
SalesOrderItem
#n

Media Links
Use cases
Show product pictures
Upload pictures taken with device camera

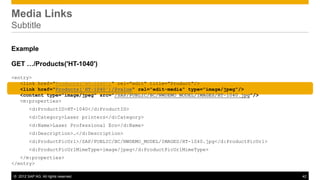

Media Links
Subtitle
Example
GET …/Products('HT-1040')
<entry>
<link href="Products('HT-1040')" rel="edit" title="Product"/>
<link href="Products('HT-1040')/$value" rel="edit-media" type="image/jpeg"/>
<content type="image/jpeg" src="/SAP/PUBLIC/BC/NWDEMO_MODEL/IMAGES/HT-1040.jpg"/>
<m:properties>
<d:ProductID>HT-1040</d:ProductID>
<d:Category>Laser printers</d:Category>
<d:Name>Laser Professional Eco</d:Name>
<d:Description>…</d:Description>
<d:ProductPicUrl>/SAP/PUBLIC/BC/NWDEMO_MODEL/IMAGES/HT-1040.jpg</d:ProductPicUrl>
<d:ProductPicUrlMimeType>image/jpeg</d:ProductPicUrlMimeType>
</m:properties>
</entry>

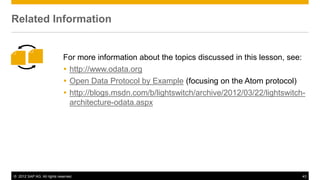

For more information about the topics discussed in this lesson, see:
 http://www.odata.org
 Open Data Protocol by Example (focusing on the Atom protocol)
 http://blogs.msdn.com/b/lightswitch/archive/2012/03/22/lightswitch-
architecture-odata.aspx
Related Information

Autodesk Technical Webinar: SAP NetWeaver Gateway Part 2

More Related Content

What's hot

Similar to Autodesk Technical Webinar: SAP NetWeaver Gateway Part 2

More from SAP PartnerEdge program for Application Development

Recently uploaded

Autodesk Technical Webinar: SAP NetWeaver Gateway Part 2
