October 1, 1999
By: Bill Fane
It was a warm Friday morning, a perfect day for Grampa LearnCurve and his g
celebrate their 33rd wedding anniversary. Suddenly the phone rang. “It’s time,”
in-law. What’s with the Grampa LearnCurve bit? Yes, campers, Captain Learn
grandfather. Rebecca Nicole Milne, 8lb. 12oz., born July 9, 1999.
Last month we covered AutoCAD’s various noncontinuous linetype styles. Som
available styles aren’t appropriate, so you learned how to define your own.
Excuse me, last month you promised to discuss linetypes that include text and
linetype that indicates hot water supply in a piping diagram.
Not a problem. Just issue either the Layer or Linetype command and load in th
linetype. To read last month’s article on how to load a linetype.
Hold it! I also need linetypes for cold water and drains and compressed air and
Oh, all right, I’ll teach you how to create other linetypes that have text in them.
introduced complex linetypes in Release 13.
Last month we learned that AutoCAD holds linetype definitions in external files
extension.
You can create and edit these files with any standard text editor such as Notep
Release 14 holds its standard linetype definitions in a file called C:Program file
Supportacad.lin.
Note that Release 13 keeps the complex linetype definitions in a separate file c
but the principles and procedures are exactly the same. In fact, you can easily
complex linetype definitions from ltypeshp.lin into acad.lin.
You can create your own file or you can edit the standard one. If you choose th
remember rule number 2: Always keep a safe copy of the original file before yo
AutoCAD linetype customizing facilities,
two
Manufacturing
AEC
GIS
CAD Management
Cadalyst Magazine
E-Newsletters
CAD Software & Hardware
Reviews
Features & Columns
CAD Software Tutorials
CAD Tips & Tools
Discussion Forums
CAD Video Gallery
Cadalyst Benchmark Test
CAD Events Calendar
CAD Cartoons
Subscriber Services
Job Search
Cadalyst Store
Advertising
Page 1 of 4AutoCAD linetype customizing facilities, part two | Cadalyst
9/15/2010http://www.cadalyst.com/cad/autocad/autocad-linetype-customizing-facilities-part-two-4791

2. Microfinance
Empowers
Join us in enabling
the poorest of the
poor to improve their
own lives
Public Service Ads by
Google
number 1 is Never break rule number 2. Rule number 3 is: The original files ar
installation CD-ROM when you don’t obey rules 1 and 2.
Linetype definitions with text
Before we begin, I must note a couple of points about linetype definitions. Onc
into a drawing, it is saved with the drawing. This means that if you send a draw
they don’t need your linetype definition file.
The other side of the coin is that if you change the definition of a linetype, you
reload it back into the drawing. Thus, if you experiment with the changes we ar
below, you must use the Linetype command to load in your changes each time
see the changes.
When you open your copy of acad.lin, you see the definition for Hot_water_sup
*HOT_WATER_SUPPLY,Hot water supply
—— HW —— HW —— HW ——
A,.5,.2,[“HW”,STANDARD,S=.1, R=0.0, X=-0.1,Y=-.05],-.2
The first line includes the name of the linetype up to the comma. The rest of th
descriptive text that appears in the Linetype dialog box. The Release 14 and 2
boxes also have an Appearance field that shows a quick translation of the linet
The second line (shaded above) contains the meat of the definition. A compari
noncontinuous definition shows many similarities. For example, it must always
commas separate line segment definitions. Positive values indicate pen down,
segments. Negative values define pen up, or gap, segments. For best results,
should end with a pen-up segment. In our example (figure 1), the line starts wit
units long followed by a gap of 0.2 units,
then a bunch of stuff that we’ll come back to, and another gap of 0.2 units. The
repeats as necessary.
The only difference in a complex linetype definition appears in the section betw
brackets:
["HW",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05]
Once again, the definition is divided into sections by commas. HW specifies th
appears spaced down the line. It is case-sensitive.
Standard is the text style name. You can specify any text style that currently ex

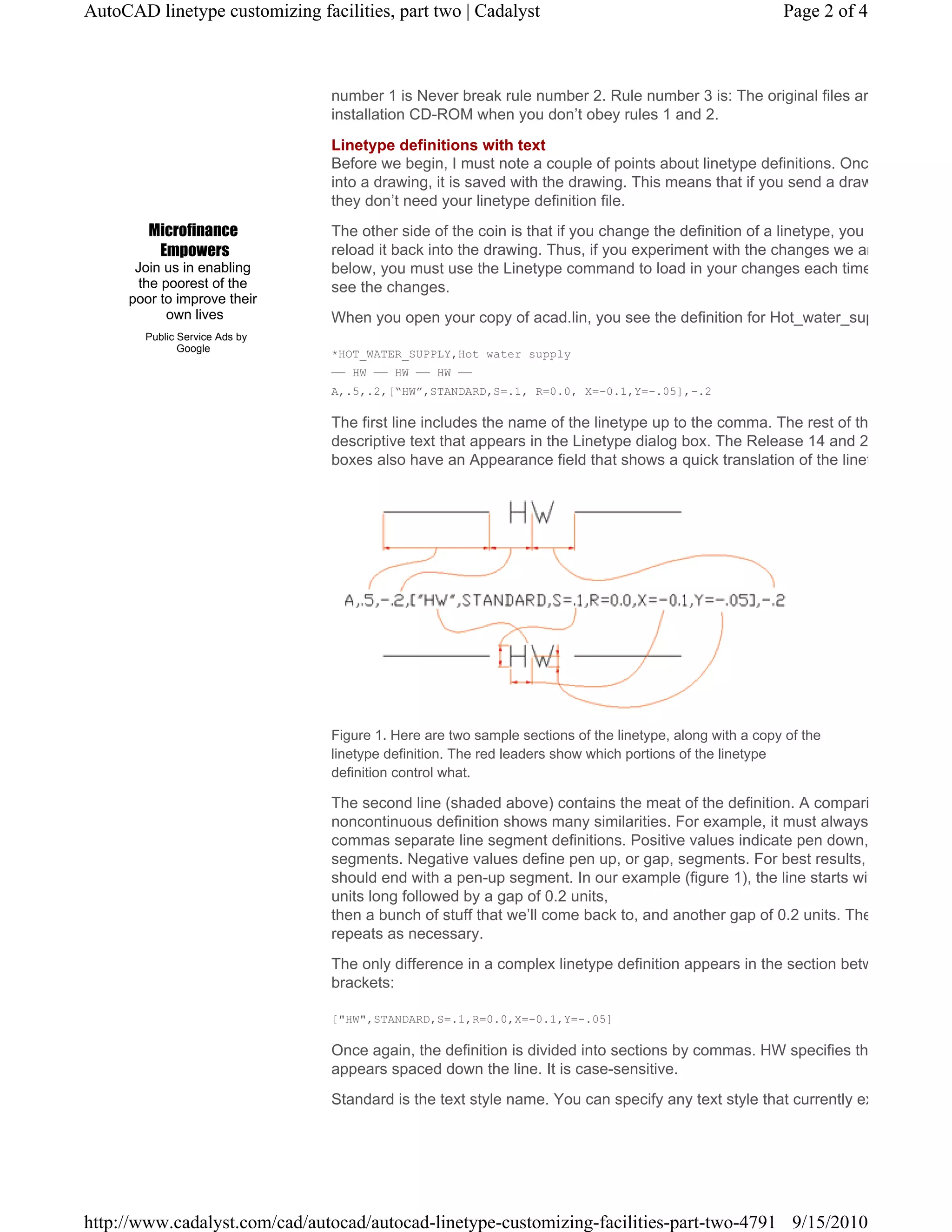

Figure 1. Here are two sample sections of the linetype, along with a copy of the
