The document discusses claim-based authentication using standards like OAuth 2.0 and OpenID Connect. In claim-based authentication, an identity management service (IDP) stores and shares user attributes and claims with a web service (RP). The IDP verifies the user's identity and the web service receives and relies on the user's claims to provide access or make authorization decisions. The document warns that access tokens alone could be modified, so OpenID Connect is recommended as it includes ID tokens that can be verified for more secure authentication.

1. Authentication(認証)
Who uses OAuth Authentication?

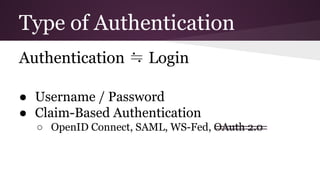

2. Type of Authentication
Authentication ≒ Login
● Username / Password
● Claim-Based Authentication
○ OpenID Connect, SAML, WS-Fed, OAuth 2.0

3. Claim Based Authentication
Database
Mr. Yamada
(User)
Web Service(RP/SP)
ID Management Service
(OP/IdP)
Players

4. Claim Based Authentication
Database
Mr. Yamada
(User)
Web Service(RP/SP)
ID Management Service
(OP/IdP)
Name:Taro Yamada
Mail:yam@hde.com
Age: 19
Yamada’s claim
Hello Mr. Yamada!!
①
②

5. Claim Based Authentication
Database
Mr. Yamada
(User)
Web Service(RP/SP)
ID Management Service
(OP/IdP)
Access Control
Beer Please!
No. You are 19.
Too young!

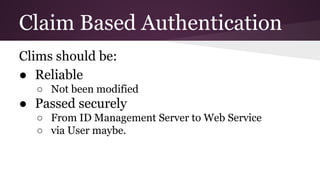

6. Claim Based Authentication
Clims should be:
● Reliable
○ Not been modified
● Passed securely
○ From ID Management Server to Web Service
○ via User maybe.

7. Bad Example

8. API Server
OAuth Authentication
Database
Mr. Arakaki
Bank of Samura
ID Management Service
Access token
Who is it?
It’s ArakakiHello Arakaki!
①
②
③④

9. Looks good?

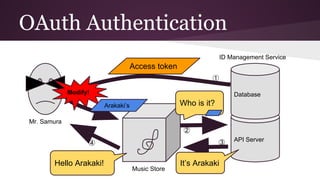

10. API Server
OAuth Authentication
Database
Mr. Samura
Music Store
ID Management Service
Modify!
Arakaki’s
Access token
Who is it?
It’s ArakakiHello Arakaki!
①
②
③④

11. Use OpenID Connect
Web service can verify access token(or code).

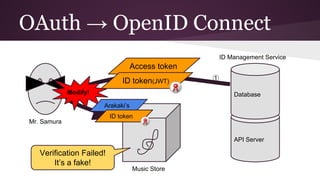

12. API Server
OAuth → OpenID Connect
Database
Mr. Samura
Music Store
ID Management Service
Access token
ID token(JWT)
Verification Failed!
It’s a fake!
Modify!
Arakaki’s
ID token
①

13. Use OpenID Connect
OAuth 2.0 is not an Authentication protocol.
Use OpenID Connect for Authentication.
It’s not a big change but pretty safe.
