1. Putting the
in
Docker Swarm

2. What I do: am a human phone assistant
What I do: assist phones.
Who am I

3. +

4. • Lightweight and distributable containers
• Containers should be single-process, no durable storage, ephemeral little
creatures
• Scalability due to built in resilience and orchestration layers
• Higher packing density than virtual machines due to shared libs

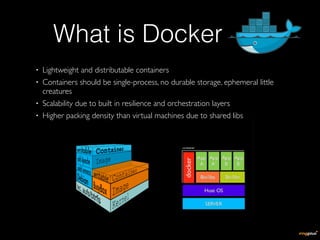

What is Docker

5. Docker Swarm mode
• Orchestration layer (Swarm) is built into Docker Engine
• Easily scale containers across multiple nodes
• Easy, multi-hostVXLAN routing
• Built in state reconciliation, health checks, and designed for resilient deployments
• Mesh networking allows ingress from any node to reach any other node
• Auto-load balancing of inbound requests utilizes in-kernel Linux IPVS
• Built-in DNS-based service discovery
• Rolling Updates
• Ease of Scaling
• A free basket of puppies (Docker EE only)

6. Deploying Your First Swarm

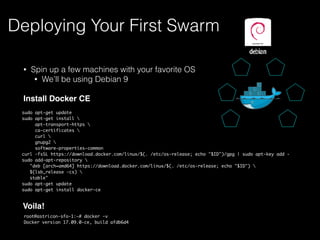

7. • Spin up a few machines with your favorite OS
• We’ll be using Debian 9
Install Docker CE
Deploying Your First Swarm
sudo apt-get update
sudo apt-get install
apt-transport-https
ca-certificates
curl
gnupg2
software-properties-common
curl -fsSL https://download.docker.com/linux/$(. /etc/os-release; echo "$ID")/gpg | sudo apt-key add -
sudo add-apt-repository
"deb [arch=amd64] https://download.docker.com/linux/$(. /etc/os-release; echo "$ID")
$(lsb_release -cs)
stable"
sudo apt-get update
sudo apt-get install docker-ce
Voila!
root@astricon-sfo-1:~# docker -v
Docker version 17.09.0-ce, build afdb6d4

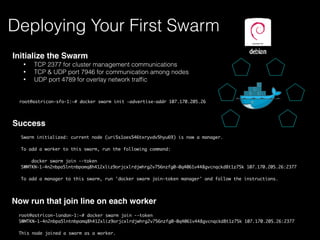

8. Initialize the Swarm
• TCP 2377 for cluster management communications
• TCP & UDP port 7946 for communication among nodes
• UDP port 4789 for overlay network traffic
Deploying Your First Swarm
root@astricon-sfo-1:~# docker swarm init —advertise-addr 107.170.205.26
Now run that join line on each worker
root@astricon-london-1:~# docker swarm join --token
SWMTKN-1-4n2nbpa5lntnbpomq8h412xliz9orjcxlrdjwhrg2v756nzfg0-0q4061v448gvcnqckd8t1z75k 107.170.205.26:2377
This node joined a swarm as a worker.
Swarm initialized: current node (uri5s1oes546txryvdv5hyu69) is now a manager.
To add a worker to this swarm, run the following command:
docker swarm join --token
SWMTKN-1-4n2nbpa5lntnbpomq8h412xliz9orjcxlrdjwhrg2v756nzfg0-0q4061v448gvcnqckd8t1z75k 107.170.205.26:2377
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.
Success

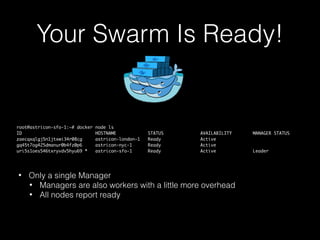

9. Your Swarm Is Ready!
root@astricon-sfo-1:~# docker node ls
ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS
zaecqxqlgj5n1jtxwi34r08cg astricon-london-1 Ready Active
gq45t7og425dmanur0b4fz0p6 astricon-nyc-1 Ready Active
uri5s1oes546txryvdv5hyu69 * astricon-sfo-1 Ready Active Leader
• Only a single Manager
• Managers are also workers with a little more overhead
• All nodes report ready

10. Let’s Get Our Asterisk
Swarm On

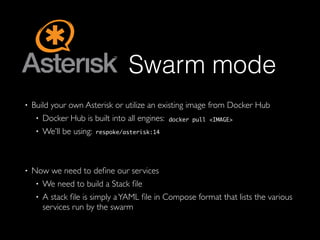

11. Swarm mode
• Build your own Asterisk or utilize an existing image from Docker Hub
• Docker Hub is built into all engines:
• We’ll be using:
• Now we need to define our services
• We need to build a Stack file
• A stack file is simply aYAML file in Compose format that lists the various
services run by the swarm
docker pull <IMAGE>
respoke/asterisk:14

12. Let’s Break For

13. version: "3.4"
services:
### To demonstrate mesh networking, let’s use Nginx
nginx:
image: nginx
ports:
- 80:80
networks:
- astricon-is-radical
networks:
astricon-is-radical:
attachable: true

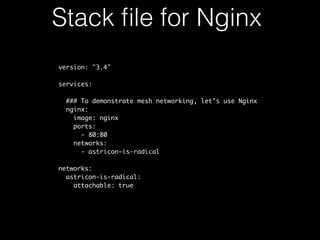

Stack file for Nginx

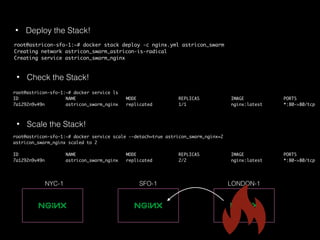

14. root@astricon-sfo-1:~# docker stack deploy -c nginx.yml astricon_swarm
Creating network astricon_swarm_astricon-is-radical
Creating service astricon_swarm_nginx
• Deploy the Stack!
• Check the Stack!
root@astricon-sfo-1:~# docker service ls
ID NAME MODE REPLICAS IMAGE PORTS
7a1292n9v49n astricon_swarm_nginx replicated 1/1 nginx:latest *:80->80/tcp
• Scale the Stack!
root@astricon-sfo-1:~# docker service scale —-detach=true astricon_swarm_nginx=2
astricon_swarm_nginx scaled to 2
ID NAME MODE REPLICAS IMAGE PORTS
7a1292n9v49n astricon_swarm_nginx replicated 2/2 nginx:latest *:80->80/tcp
NYC-1 SFO-1 LONDON-1

15. NYC-1 SFO-1 LONDON-1
astriconswarm.io

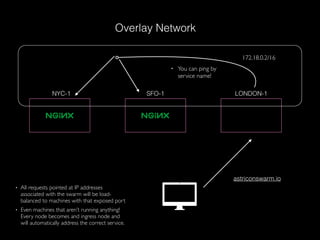

• All requests pointed at IP addresses
associated with the swarm will be load-
balanced to machines with that exposed port
• Even machines that aren’t running anything!
Every node becomes and ingress node and
will automatically address the correct service.
• You can ping by
service name!
Overlay Network
172.18.0.2/16

16. Back to

17. version: "3.4"
services:
### The Big Kahuna!
asterisk:
image: respoke/asterisk:14
networks:
- host_mode
deploy:
placement:
constraints: [node.labels.service == asterisk]
networks:
host_mode:
external:
name: 'host'

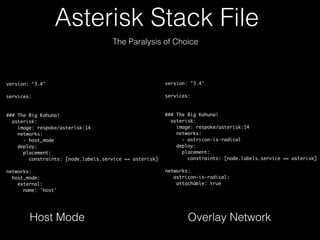

Asterisk Stack File
The Paralysis of Choice
version: "3.4"
services:
### The Big Kahuna!
asterisk:
image: respoke/asterisk:14
networks:
- astricon-is-radical
deploy:
placement:
constraints: [node.labels.service == asterisk]
networks:
astricon-is-radical:
attachable: true
Host Mode Overlay Network

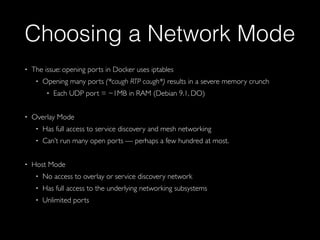

18. Choosing a Network Mode
• The issue: opening ports in Docker uses iptables
• Opening many ports (*caugh RTP caugh*) results in a severe memory crunch
• Each UDP port = ~1MB in RAM (Debian 9.1, DO)
• Overlay Mode
• Has full access to service discovery and mesh networking
• Can’t run many open ports — perhaps a few hundred at most.
• Host Mode
• No access to overlay or service discovery network
• Has full access to the underlying networking subsystems
• Unlimited ports

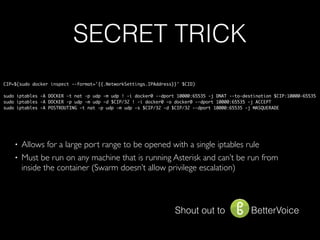

19. SECRET TRICK
CIP=$(sudo docker inspect --format='{{.NetworkSettings.IPAddress}}' $CID)
sudo iptables -A DOCKER -t nat -p udp -m udp ! -i docker0 --dport 10000:65535 -j DNAT --to-destination $CIP:10000-65535
sudo iptables -A DOCKER -p udp -m udp -d $CIP/32 ! -i docker0 -o docker0 --dport 10000:65535 -j ACCEPT
sudo iptables -A POSTROUTING -t nat -p udp -m udp -s $CIP/32 -d $CIP/32 --dport 10000:65535 -j MASQUERADE
Shout out to BetterVoice
• Allows for a large port range to be opened with a single iptables rule
• Must be run on any machine that is running Asterisk and can’t be run from
inside the container (Swarm doesn’t allow privilege escalation)

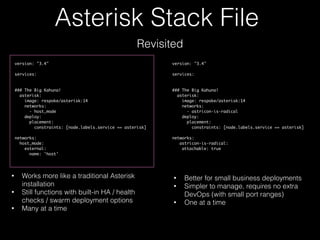

20. version: "3.4"
services:
### The Big Kahuna!
asterisk:
image: respoke/asterisk:14
networks:
- host_mode
deploy:
placement:
constraints: [node.labels.service == asterisk]
networks:
host_mode:
external:
name: 'host'
Asterisk Stack File
version: "3.4"
services:
### The Big Kahuna!
asterisk:
image: respoke/asterisk:14
networks:
- astricon-is-radical
deploy:
placement:
constraints: [node.labels.service == asterisk]
networks:
astricon-is-radical:
attachable: true
Revisited
• Better for small business deployments
• Simpler to manage, requires no extra
DevOps (with small port ranges)
• One at a time
• Works more like a traditional Asterisk
installation
• Still functions with built-in HA / health
checks / swarm deployment options
• Many at a time

21. Additional Pieces

22. DNS - Route 53
• Setup Geolocation to route
to closest server
• SRV records point to multiple
datacenters
• Health checks or API calls to
verify uptime/downtime

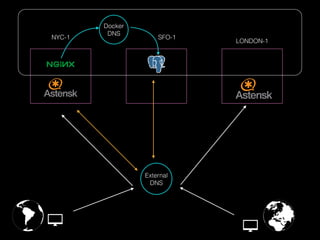

23. NYC-1 SFO-1
LONDON-1
External
DNS
Docker
DNS

24. Docker Healthchecks

25. version: "3.4"
services:
### The Big Kahuna!
asterisk:
image: respoke/asterisk:14
networks:
- host_mode
deploy:
placement:
constraints: [node.labels.service == asterisk]
healthcheck:
test: ["CMD", "sipsak", "-s", "sip:foo@astricon.swarm"]
interval: 30s
timeout: 15s
retries: 3
networks:
host_mode:
external:
name: 'host'

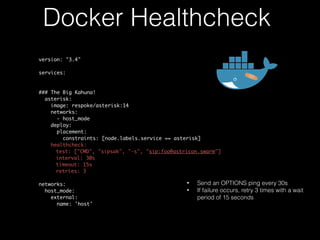

Docker Healthcheck
• Send an OPTIONS ping every 30s
• If failure occurs, retry 3 times with a wait
period of 15 seconds

26. Data Persistence
Secrets Management docker secrets create
Node labels docker node update --label-add
Private Registry docker service update --with-registry-auth

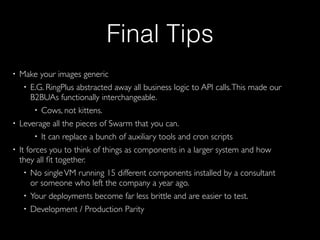

27. Final Tips
• Make your images generic
• E.G. RingPlus abstracted away all business logic to API calls.This made our
B2BUAs functionally interchangeable.
• Cows, not kittens.
• Leverage all the pieces of Swarm that you can.
• It can replace a bunch of auxiliary tools and cron scripts
• It forces you to think of things as components in a larger system and how
they all fit together.
• No singleVM running 15 different components installed by a consultant
or someone who left the company a year ago.
• Your deployments become far less brittle and are easier to test.
• Development / Production Parity

28. Evan McGee
@startledmarmot
evan@hifelix.io
