This document summarizes the presentation "Drilling with Charlie" given by Charles Brister on November 10, 2005 to the Association for the Study of Peak Oil USA. It discusses the history of oil drilling over the last 100 years, highlighting key technological developments like directional drilling, measurement while drilling tools, and the challenges of drilling in difficult conditions. It also considers debates around the sustainability of oil supply and whether new technologies can overcome depletion.

1. The following presentation is the sole opinion
of the presenter. All drawings, charts and
photographs are for educational purposes only.

2. Drilling with Charlie
by
Charles Brister
November 10, 2005
Association for the Study of Peak Oil USA

3. 100 years ago, they made it look easy...

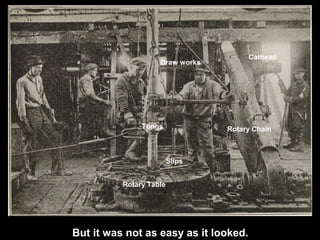

4. But it was not as easy as it looked.
Rotary Table
Tongs
Draw works
Cathead
Rotary Chain
Slips

5. Rotary Table
Tongs
Draw works
Rotary Chain
Slips
The fundamentals of rotary drilling are the same as 100 years ago.

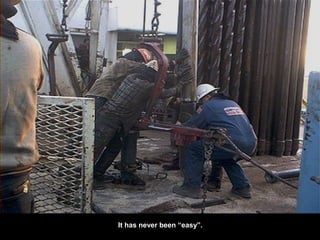

6. It has never been “easy”.

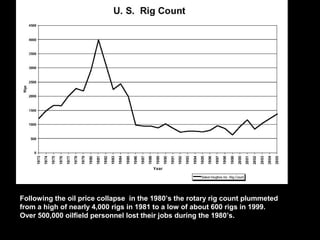

7. Following the oil price collapse in the 1980’s the rotary rig count plummeted
from a high of nearly 4,000 rigs in 1981 to a low of about 600 rigs in 1999.
Over 500,000 oilfield personnel lost their jobs during the 1980’s.

8. The big rigs were cut up first because
there was no market for rigs capable
of drilling to great depths.
The experienced hands were forced
to try to build new lives- most
swore never to return.

9. 2005: It is the survivors who the burden falls upon.

10. Floyd, Toolpusher, 71 Bob, Geologist, 75
Who will take their place?

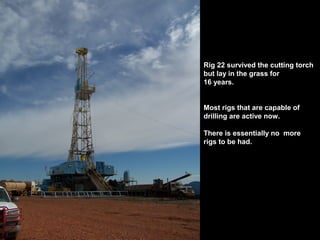

11. Rig 22 survived the cutting torch
but lay in the grass for
16 years.
Most rigs that are capable of
drilling are active now.
There is essentially no more
rigs to be had.

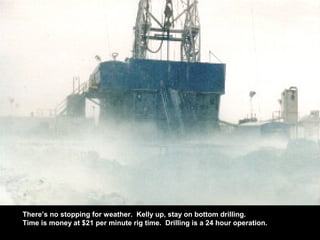

12. There’s no stopping for weather. Kelly up, stay on bottom drilling.
Time is money at $21 per minute rig time. Drilling is a 24 hour operation.

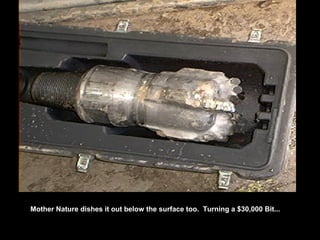

13. Mother Nature dishes it out below the surface too. Turning a $30,000 Bit...

14. ….into a $30,000 piece of Junk.

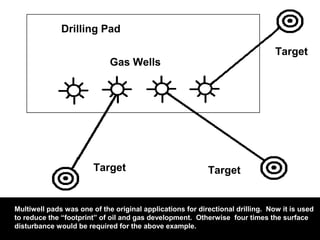

15. Multiwell pads was one of the original applications for directional drilling. Now it is used
to reduce the “footprint” of oil and gas development. Otherwise four times the surface
disturbance would be required for the above example.
Drilling Pad
Gas Wells
Target Target
Target

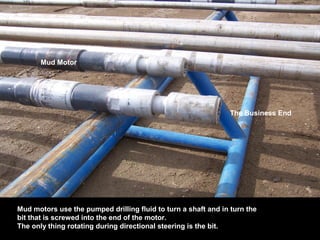

16. Mud Motor
The Business End
Mud motors use the pumped drilling fluid to turn a shaft and in turn the
bit that is screwed into the end of the motor.
The only thing rotating during directional steering is the bit.

17. Directional Probe
with
accelerometers
& magnetometers
Gamma Probe with
Sodium Iodide Sensor
Pulser/Tubine
Power Source
Measurement While Drilling (MWD)
provides surveys of the well bore location,
along with measuring the relative gamma
radiation of the rock formations being drilled.
Before MWD, tools were lowered by wireline-
very time consuming and impractical for
horizontal drilling.

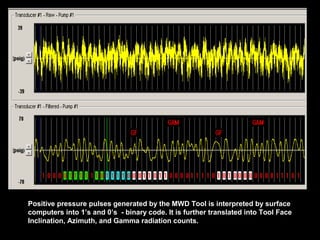

18. Positive pressure pulses generated by the MWD Tool is interpreted by surface
computers into 1’s and 0’s - binary code. It is further translated into Tool Face
Inclination, Azimuth, and Gamma radiation counts.

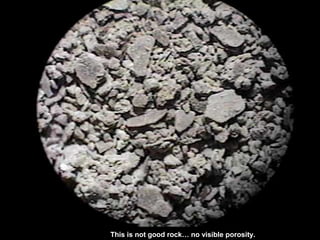

19. This is not good rock… no visible porosity.

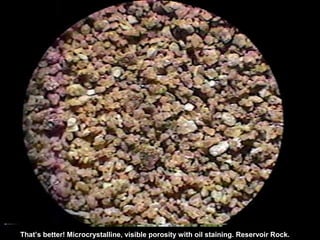

20. That’s better! Microcrystalline, visible porosity with oil staining. Reservoir Rock.

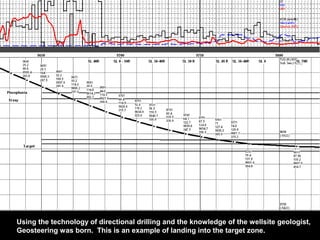

21. Using the technology of directional drilling and the knowledge of the wellsite geologist,
Geosteering was born. This is an example of landing into the target zone.

22. 2 miles down and 2 miles out- in a 3 ft thick target zone. We follow Mother Natures’
handiwork, down dip and then back up.

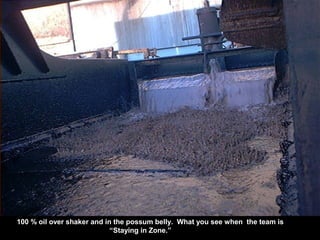

23. 100 % oil over shaker and in the possum belly. What you see when the team is
“Staying in Zone.”

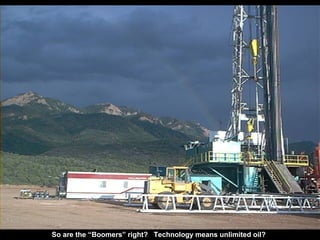

24. So are the “Boomers” right? Technology means unlimited oil?

25. Or are the “Doomers” right? Mother Nature will cut us off no matter what we do...

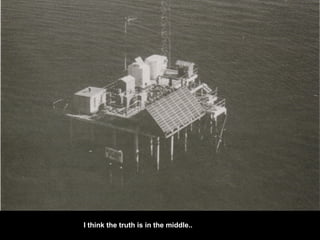

26. I think the truth is in the middle..

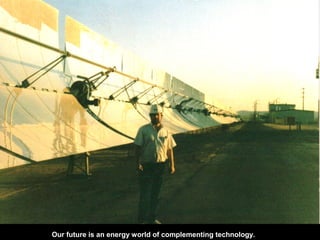

27. Our future is an energy world of complementing technology.

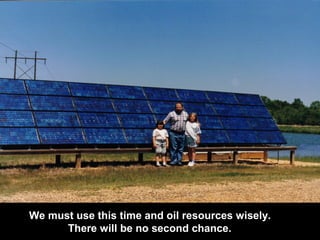

28. We must use this time and oil resources wisely.
There will be no second chance.
