Arquitectura de Microservicios con .NET Core y Contenedores
The document provides a comprehensive overview of using Docker for application development, detailing the components such as Docker images, containers, and registries, along with the infrastructure involved. It emphasizes the development lifecycle with Docker, including code creation, image building, and container orchestration through Docker Compose. Additionally, it touches on microservices architecture, asynchronous communication patterns, and event-driven design using an event bus.
More Related Content
Similar to Arquitectura de Microservicios con .NET Core y Contenedores
More from Christian Melendez
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Arquitectura de Microservicios con .NET Core y Contenedores

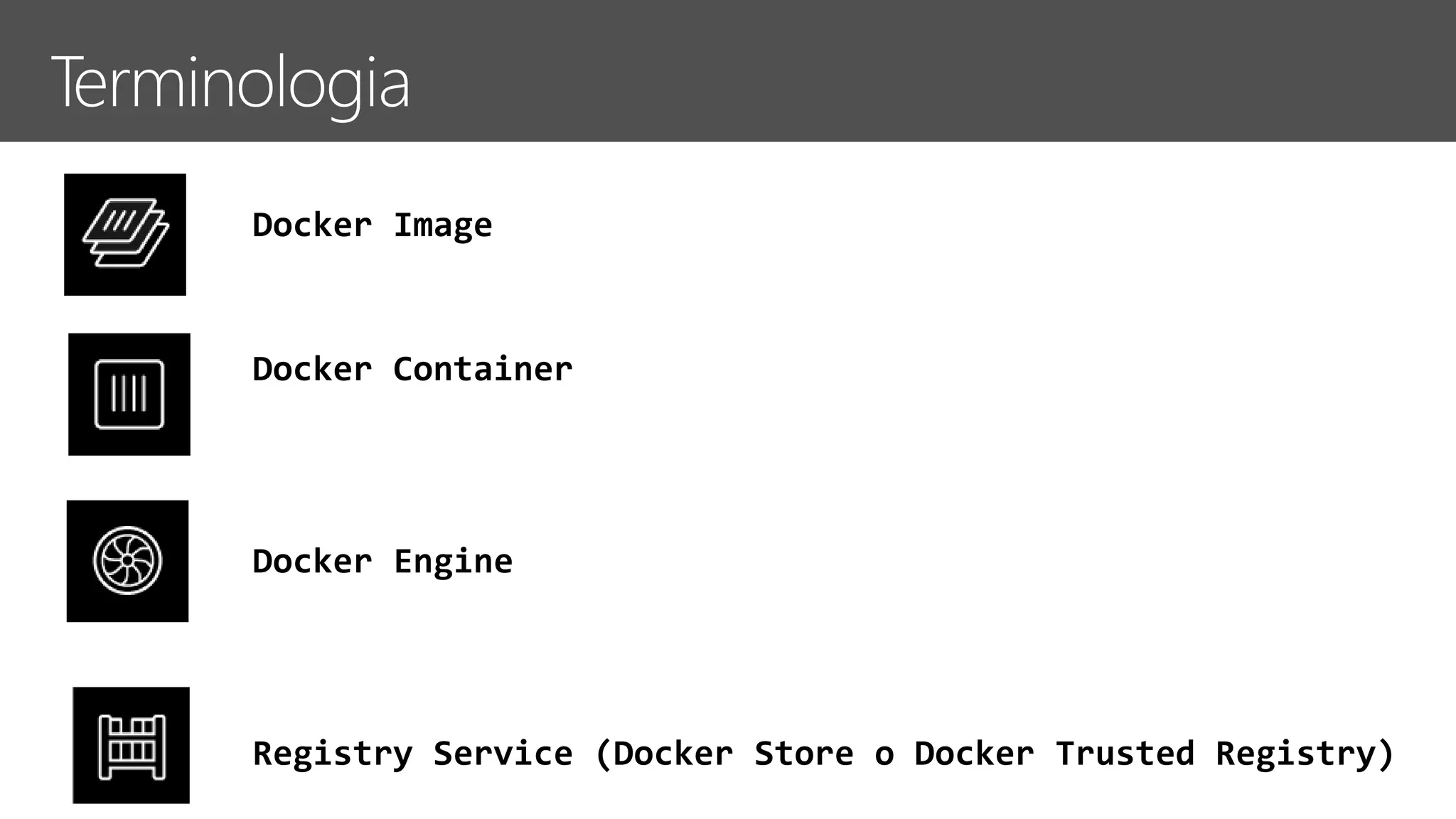

- 5. Docker Image Docker Container DockerEngine Registry Service (Docker Store o Docker Trusted Registry)

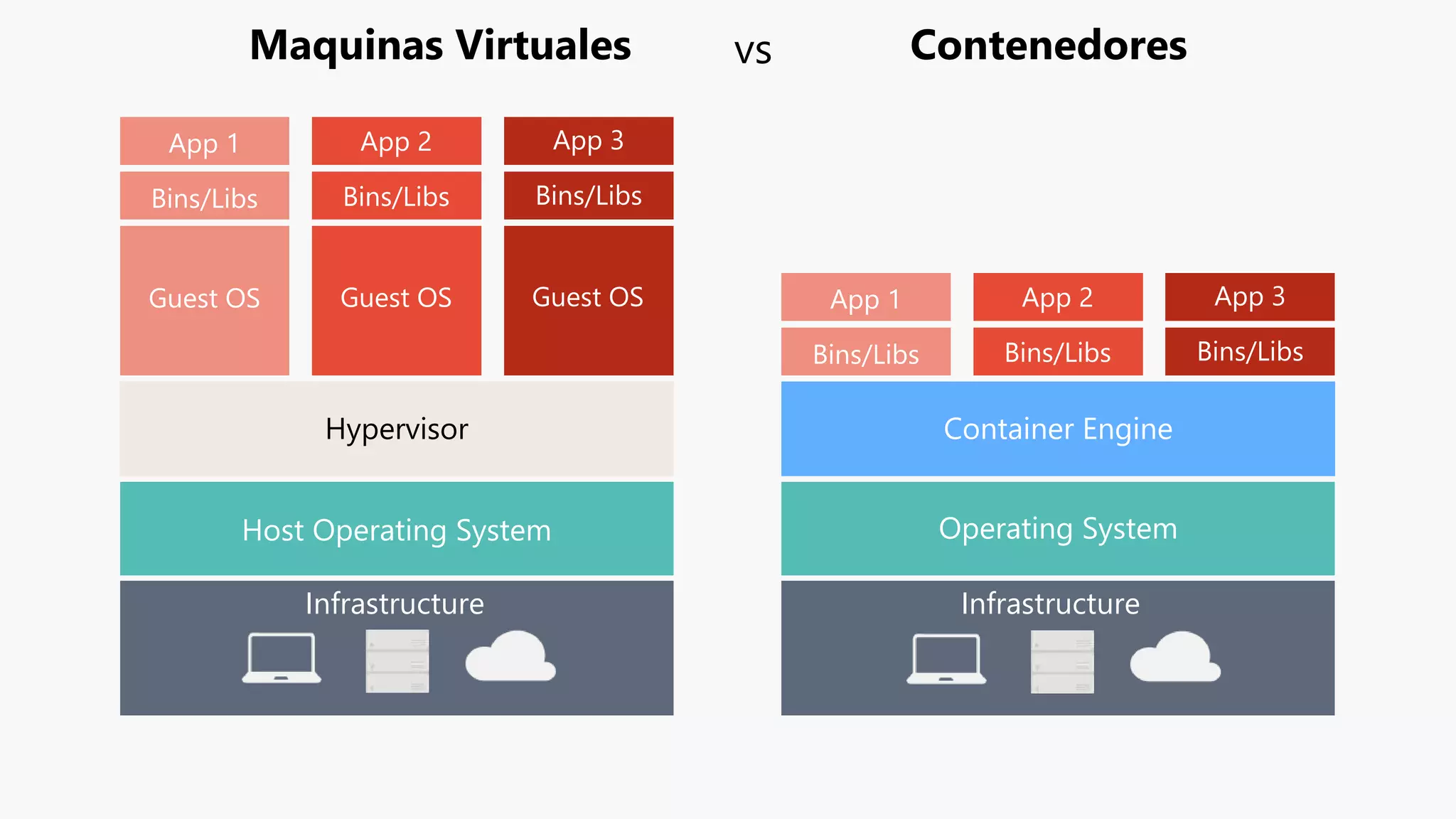

- 6. Infrastructure Infrastructure Host OperatingSystem Hypervisor Guest OS Bins/Libs App 1 Guest OS Bins/Libs App 2 Guest OS Bins/Libs App 3 Bins/Libs App 1 Bins/Libs App 2 Bins/Libs App 3 Container Engine Operating System Maquinas Virtuales Contenedoresvs

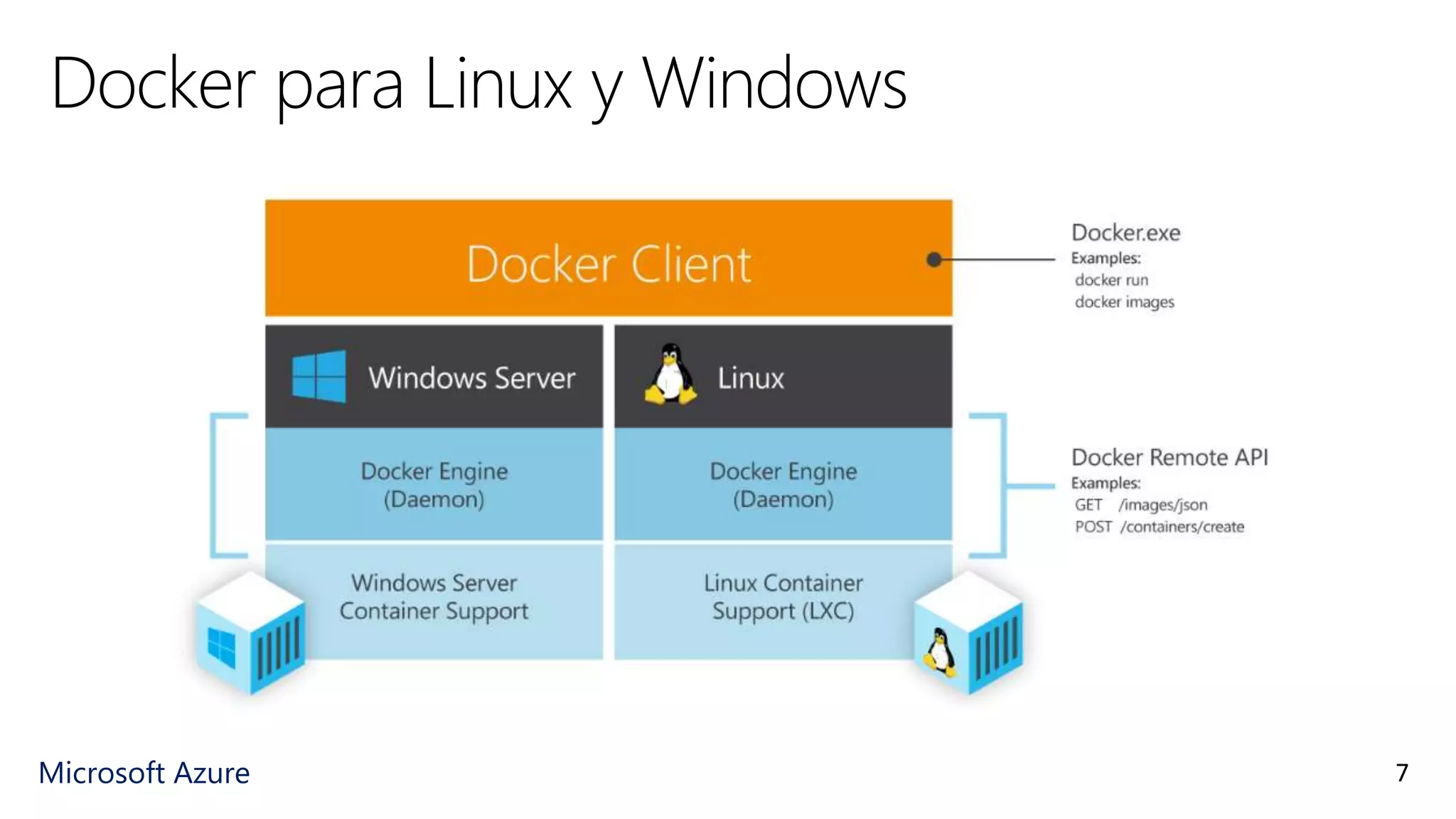

- 7. Microsoft Azure Docker paraLinux y Windows 7

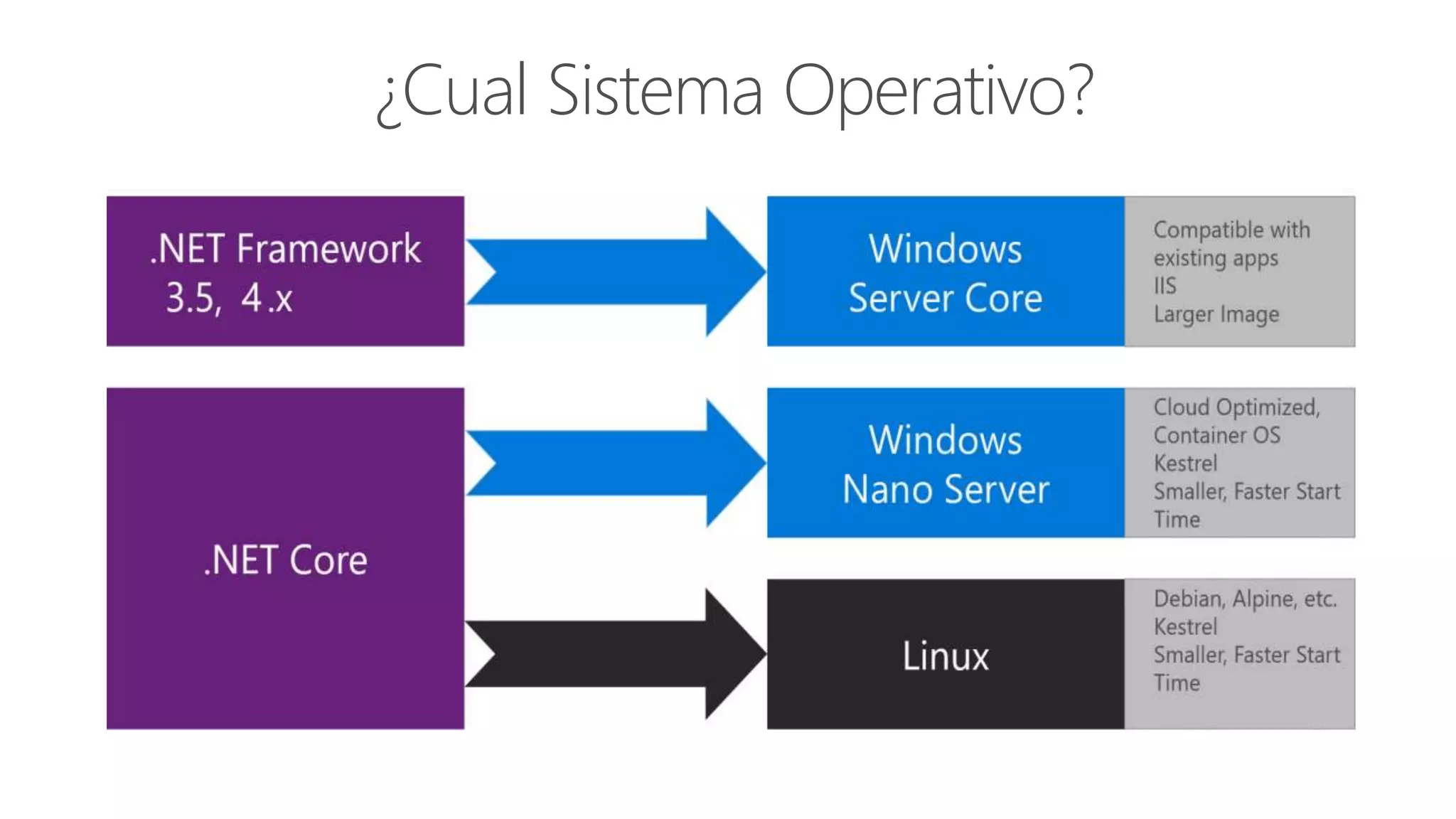

- 9. Docker y .NET •.NET Core Docker xPlat. (Linux & Windows) • .NET Framework solo Windows Ver en Docker Store
- 10.

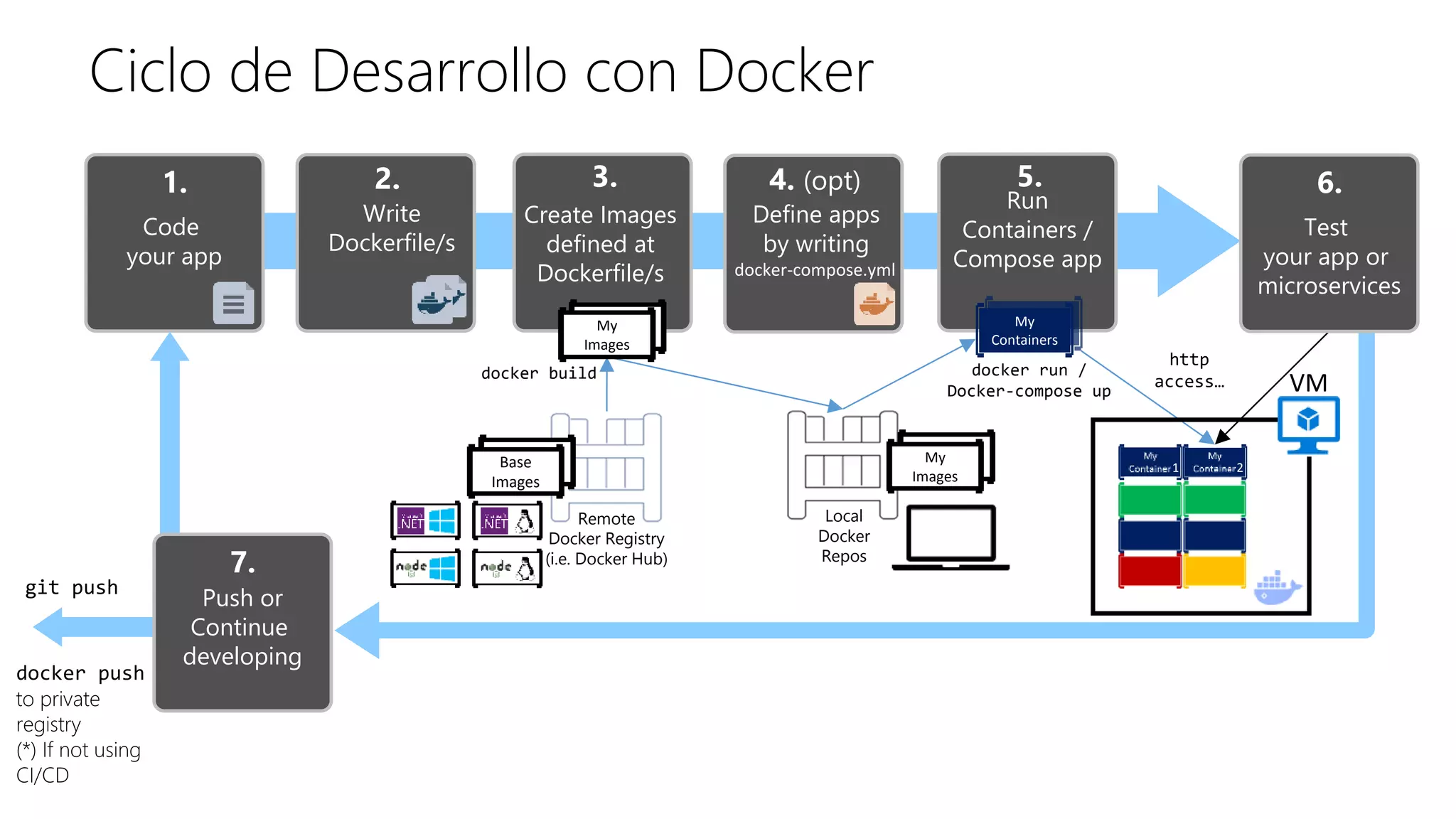

- 13. Ciclo de Desarrollocon Docker Write Dockerfile/s Remote Docker Registry (i.e. Docker Hub) 1. 2. Code your app Create Images defined at Dockerfile/s 3. Run Containers / Compose app 5. docker run / Docker-compose up http access… Local Docker Repos VM 6. Test your app or microservices git push My Containers My Containers Base Images My Images My Images 1 2 Define apps by writing 4. (opt) docker-compose.yml docker build 7. Push or Continue developing docker push to private registry (*) If not using CI/CD

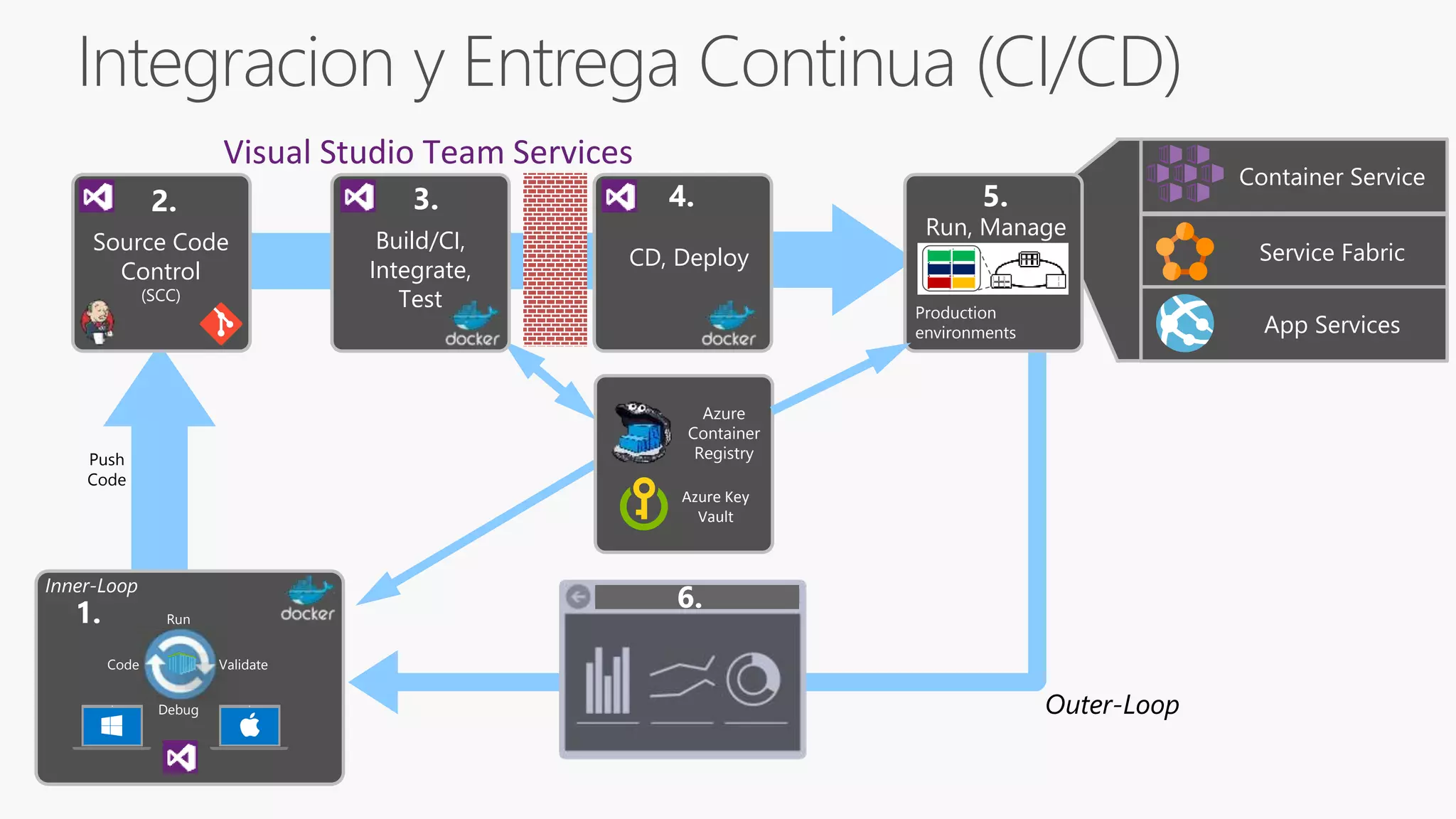

- 14. Build/CI, Integrate, Test 3. 1. Monitor andDiagnose Outer-Loop Push Code Production environments Run, Manage 5. 6. Container Service Service Fabric App Services Azure Container Registry Code Run Validate Debug Inner-Loop Azure Key Vault CD, Deploy 4. Visual Studio Team Services Source Code Control (SCC) 2.
- 24. Se enfoca en: -Docker-compose.yml & Debugging Multi-Containers App - Simple CRUD microservice vs DDD & CQRS microservice - Reintentos y Circuit breakers - Health Checks

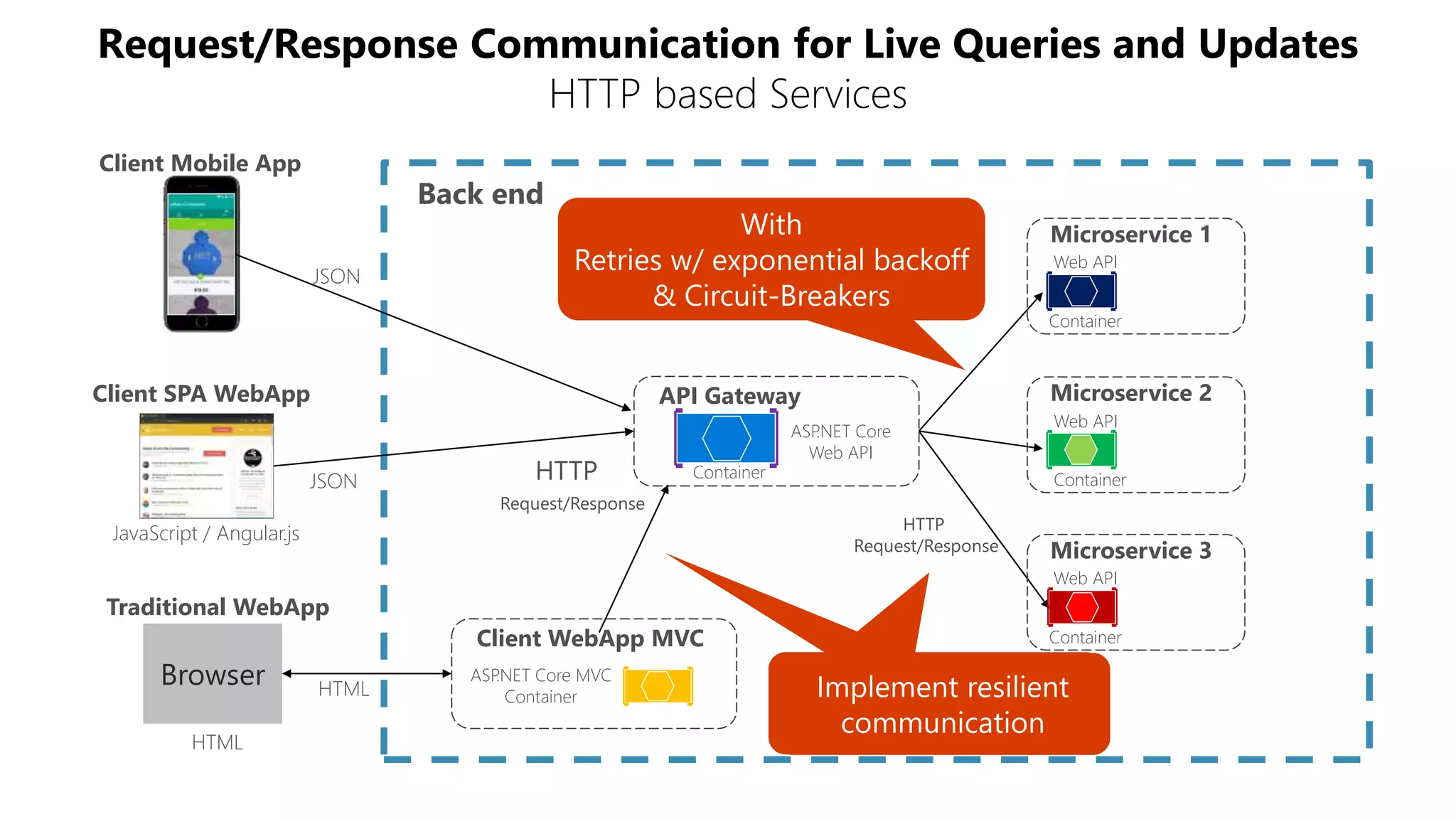

- 25. Microservice 2 Microservice 1 ClientWebApp MVC Container Container Web API Web API ASP.NET Core MVC Container Microservice 3 Container Web API Client SPA WebApp JavaScript / Angular.js Client Mobile App API Gateway ASP.NET Core Web API Container Back end Traditional WebApp Browser HTML HTML JSON JSON Request/Response Communication for Live Queries and Updates HTTP based Services HTTP Request/Response HTTP Request/Response

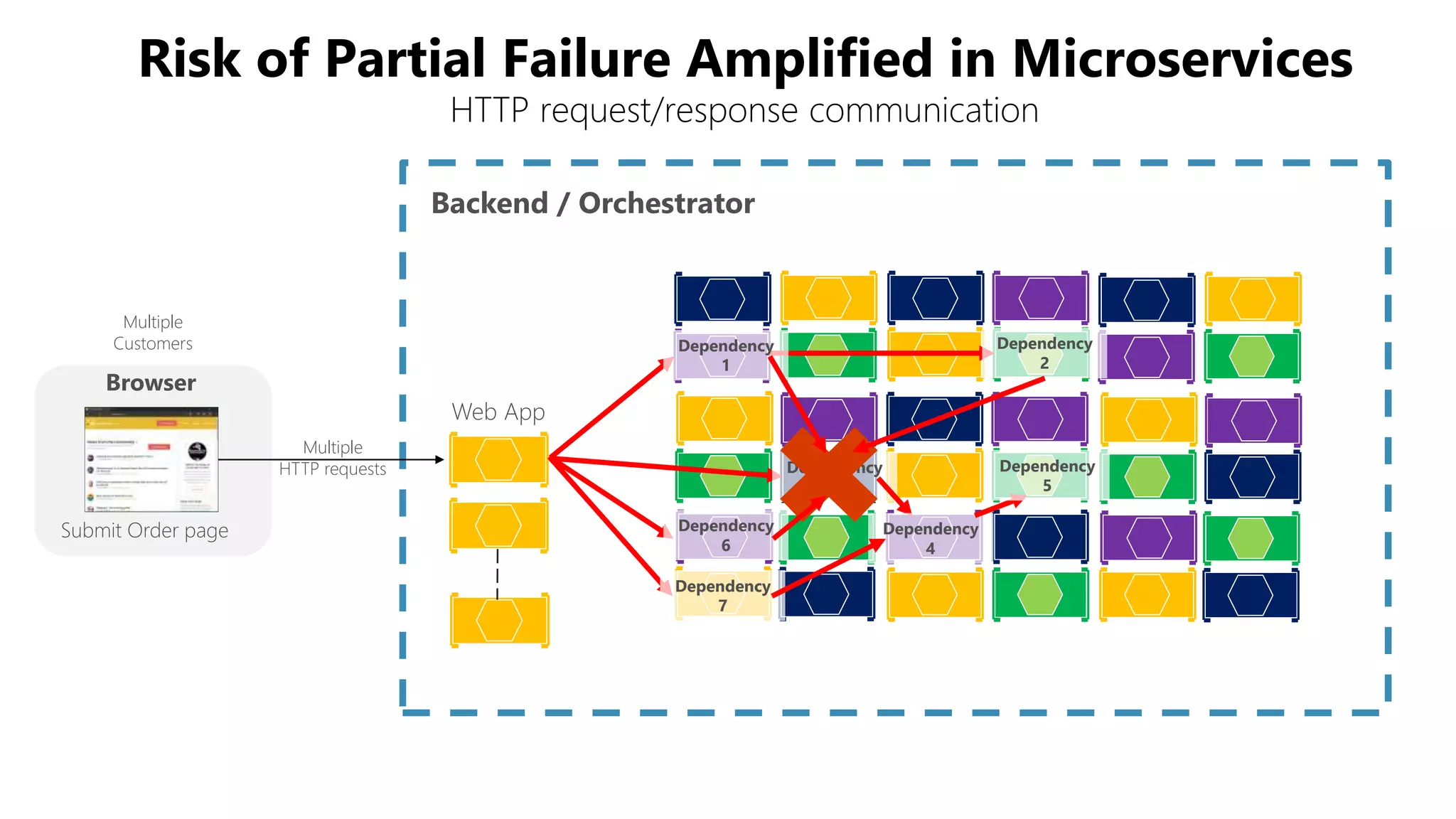

- 26. Multiple HTTP requests Browser Submit Orderpage Backend / Orchestrator Web App Multiple Customers Dependency 1 Dependency 2 Dependency 3 Dependency 6 Dependency 7 Dependency 4 Dependency 5 Risk of Partial Failure Amplified in Microservices HTTP request/response communication

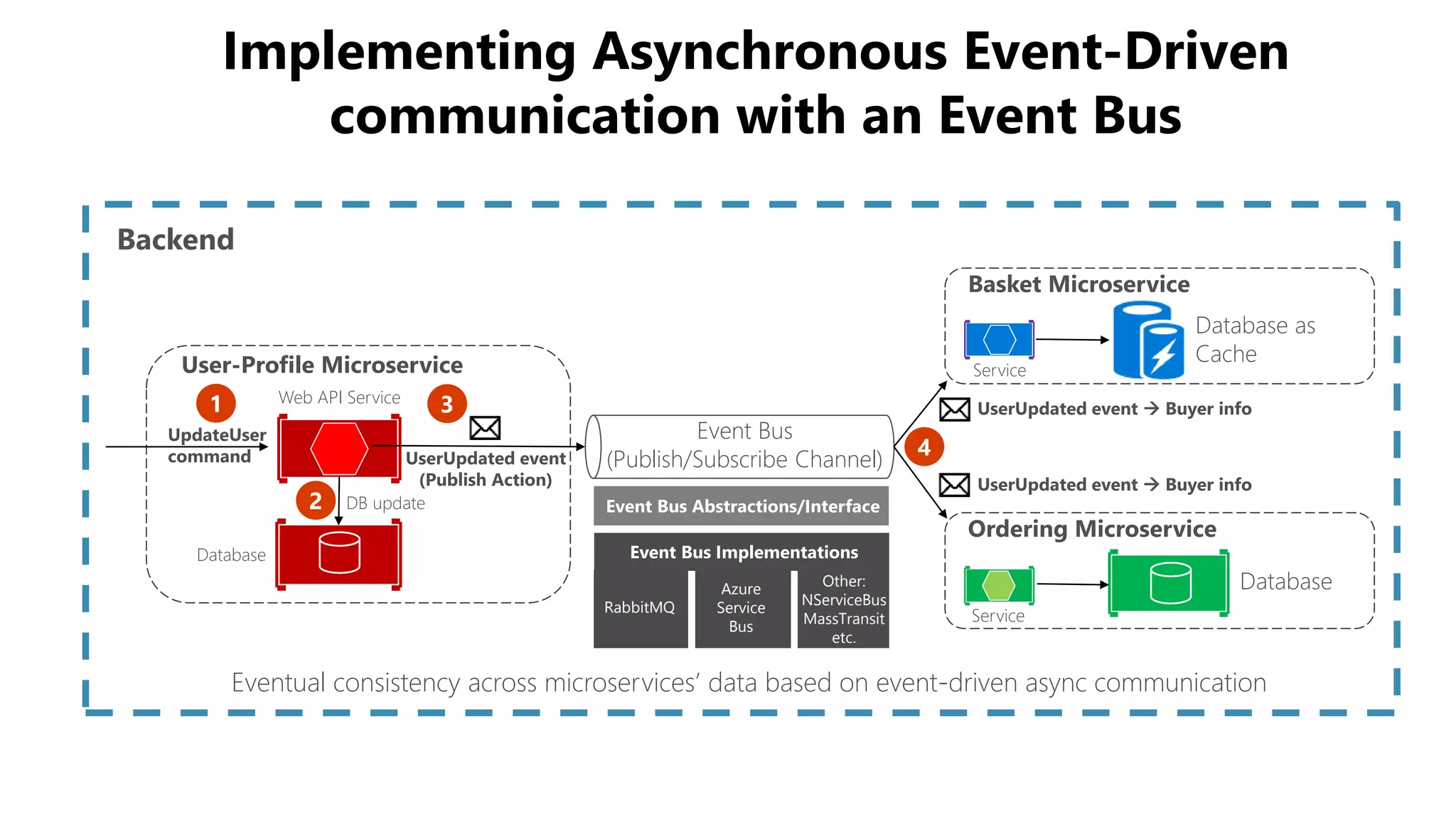

- 27. Implementing Asynchronous Event-Driven communicationwith an Event Bus Database Ordering Microservice Basket Microservice Database as Cache Service ServiceUser-Profile Microservice Web API Service Database Backend UserUpdated event (Publish Action) Event Bus (Publish/Subscribe Channel) UpdateUser command UserUpdated event Buyer info UserUpdated event Buyer info Eventual consistency across microservices’ data based on event-driven async communication DB update Event Bus Abstractions/Interface Event Bus Implementations RabbitMQ Azure Service Bus Other: NServiceBus MassTransit etc.
- 29.
- 31.
