![17
VS2019 container building
Multi-stage Dockerfile per project
Can be built without VS2019
FROM mcr.microsoft.com/dotnet/core/aspnet:3.0-buster-slim AS base
WORKDIR /app
EXPOSE 13995
EXPOSE 44369
…
FROM base AS final
WORKDIR /app
COPY --from=publish /app .
ENTRYPOINT ["dotnet", "Leaderboard.WebAPI.dll"]](https://image.slidesharecdn.com/architecting-191031204740/85/Architecting-NET-solutions-in-a-Docker-ecosystem-NET-Fest-Kyiv-2019-17-320.jpg)
![44
Reading secrets from Azure Key Vault
Available from IConfiguration in ASP.NET Core
Key and secret names
Connecting to KeyVault securely
if (env.IsProduction())
{
builder.AddAzureKeyVault(
$"https://{Configuration["azurekeyvault_vault"]}.vault.azure.net/",
Configuration["azurekeyvault_clientid"],
Configuration["azurekeyvault_clientsecret"]);
Configuration = builder.Build();
}](https://image.slidesharecdn.com/architecting-191031204740/85/Architecting-NET-solutions-in-a-Docker-ecosystem-NET-Fest-Kyiv-2019-42-320.jpg)
![58
Implementing readiness and liveliness
1. Add health checks with tags
2. Register multiple endpoints
with filter using
Options predicate
/api/v1/…
/health
/health/ready
/health/lively
app.UseHealthChecks("/health/ready",
new HealthCheckOptions() {
Predicate = reg => reg.Tags.Contains("ready")
});
services.AddHealthChecks()
.AddCheck<CircuitBreakerHealthCheck>(
"circuitbreakers",
tags: new string[] { "ready" });
app.UseHealthChecks("/health/lively",
new HealthCheckOptions() {
Predicate = _ => true
});](https://image.slidesharecdn.com/architecting-191031204740/85/Architecting-NET-solutions-in-a-Docker-ecosystem-NET-Fest-Kyiv-2019-56-320.jpg)
Uploaded byAlex Thissen
Architecting .NET solutions in a Docker ecosystem - .NET Fest Kyiv 2019
This document discusses architecting .NET applications using Docker and container technology, highlighting the integration with Visual Studio, and .NET Core features. It covers key aspects including application lifecycle management, deployment strategies, security concerns, resilience, and health monitoring in containerized environments. Various orchestration tools, Azure DevOps configurations, and best practices for managing dependencies and configurations across different environments are also detailed.
More Related Content
Similar to Architecting .NET solutions in a Docker ecosystem - .NET Fest Kyiv 2019
Architecting .NET solutions in a Docker ecosystem - .NET Fest Kyiv 2019
- 1. ARCHITECTING .NET SOLUTIONS INA DOCKER ECOSYSTEM ALEXTHISSEN
- 3. 3 Agenda A story oncreating .NET applications using container technology Featuring Docker and Visual Studio With highlights and some emphasis on .NET Core
- 4. 4 Task: Fit yourapplication into a container
- 5. 5 Making progress. Itwill fit. It must…
- 6.

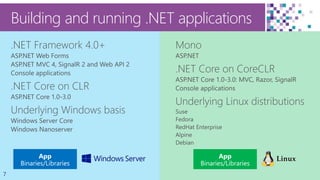

- 7. 7 Building and running.NET applications
- 8.

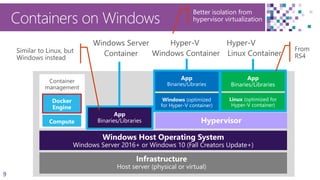

- 9. 9 Containers on Windows Betterisolation from hypervisor virtualization Container management Docker Engine Compute
- 10. 10 Docker and containers Standardizedtooling Adopted for standalone and cluster scenarios
- 11. 11 Changes when switchingto containers Environments Configuration Security Networking Storage Composition Lifecycle Hosting Monitoring
- 12. 12 Application architecture lessrelevant Featuring your favorite patterns Microservices or Monolith
- 13.
- 14. 14 Web APIWeb API containercontainer Leaderboard Microservice Identity Microservice ASP.NETCore Web App Client applications (browser) Web Page Games reporting high-scores

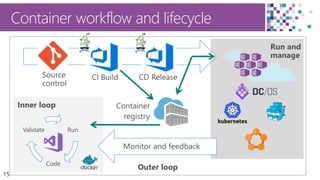

- 15. 15 Container workflow andlifecycle Inner loop Run Code Validate Outer loop

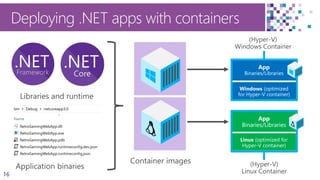

- 16. 16 Deploying .NET appswith containers

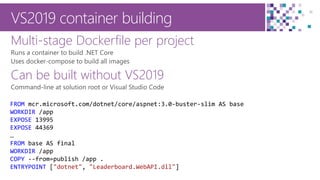

- 17. 17 VS2019 container building Multi-stageDockerfile per project Can be built without VS2019 FROM mcr.microsoft.com/dotnet/core/aspnet:3.0-buster-slim AS base WORKDIR /app EXPOSE 13995 EXPOSE 44369 … FROM base AS final WORKDIR /app COPY --from=publish /app . ENTRYPOINT ["dotnet", "Leaderboard.WebAPI.dll"]
- 18. 18 mcr.microsoft.com/windows/servercore:1903 -or- debian:buster-slimdebian:buster-slim Docker imagelayers .NET Core mcr.microsoft.com/dotnet/core/runtime:3.0 mcr.microsoft.com/dotnet/core/runtime-deps mcr.microsoft.com/dotnet/core/aspnet:3.0 Your application layer: e.g. alexthissen/gamingwebapp:latest

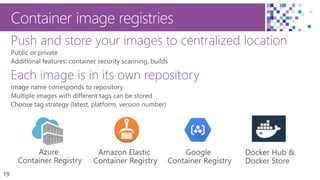

- 19. 19 Container image registries Pushand store your images to centralized location Each image is in its own repository

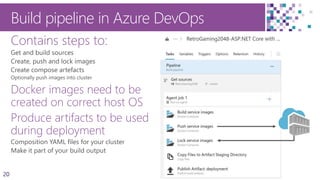

- 20. 20 Build pipeline inAzure DevOps Contains steps to: Docker images need to be created on correct host OS Produce artifacts to be used during deployment

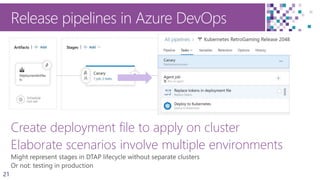

- 21. 21 Release pipelines inAzure DevOps Create deployment file to apply on cluster Elaborate scenarios involve multiple environments
- 22. Demo: Lifecycle A newdevelopment lifecycle for Docker based solutions Visual Studio 2019 Azure DevOps

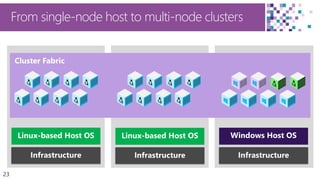

- 23. 23 From single-node hostto multi-node clusters

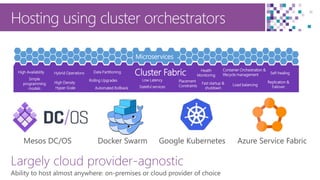

- 24. 24 Hosting using clusterorchestrators Cluster FabricHigh Availability Hyper-Scale Hybrid Operations High Density Rolling Upgrades Stateful services Low Latency Fast startup & shutdown Container Orchestration & lifecycle management Replication & Failover Simple programming models Load balancing Self-healingData Partitioning Automated Rollback Health Monitoring Placement Constraints Microservices Mesos DC/OS Docker Swarm Google Kubernetes Azure Service Fabric Largely cloud provider-agnostic

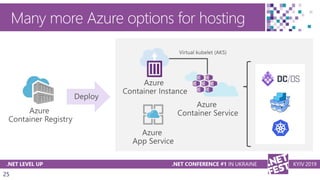

- 25. 25 Many more Azureoptions for hosting
- 26.

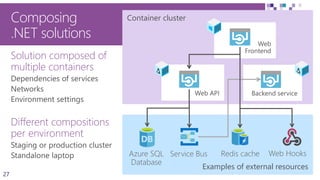

- 27. 27 Container cluster Examples ofexternal resources Solution composed of multiple containers Different compositions per environment Web Frontend Web API Composing .NET solutions Backend service
- 28. 28 Container cluster Redis cache External resources Web Frontend WebAPI Backend service SQL Server on Linux RabbitMQ Maximize isolation in development and testing

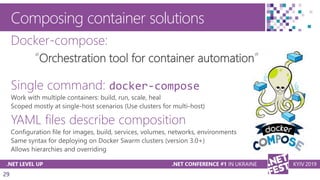

- 29. 29 Composing container solutions Docker-compose: “Orchestrationtool for container automation” Single command: docker-compose YAML files describe composition

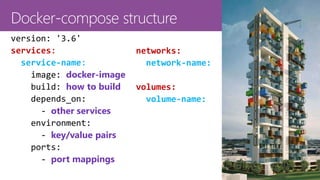

- 30. 30 services: service-name: docker-image how to build otherservices key/value pairs port mappings networks: network-name: volumes: volume-name:

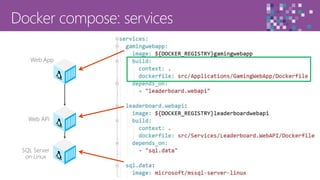

- 31. 31 Web API Web App SQLServer on Linux

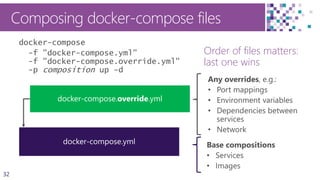

- 32. 32 Composing docker-compose files Orderof files matters: last one wins docker-compose -f "docker-compose.yml" -f "docker-compose.override.yml" -p composition up -d
- 33.

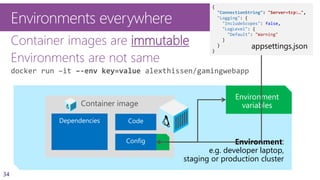

- 34. 34 Environment: e.g. developer laptop, stagingor production cluster Environments everywhere Container images are immutable Environments are not same docker run –it –-env key=value alexthissen/gamingwebapp Container image { "ConnectionString": "Server=tcp:…", "Logging": { "IncludeScopes": false, "LogLevel": { "Default": "Warning" } } } appsettings.json

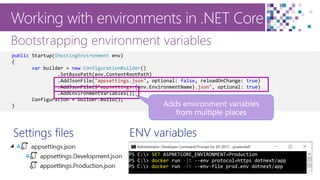

- 35. 35 Working with environmentsin .NET Core Bootstrapping environment variables public Startup(IHostingEnvironment env) { var builder = new ConfigurationBuilder() .SetBasePath(env.ContentRootPath) .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true) .AddJsonFile($"appsettings.{env.EnvironmentName}.json", optional: true) .AddEnvironmentVariables(); Configuration = builder.Build(); } ENV variablesSettings files

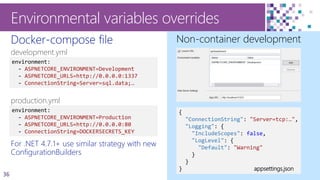

- 36. 36 Docker-compose file development.yml production.yml For .NET4.7.1+ use similar strategy with new ConfigurationBuilders Environmental variables overrides Non-container development environment: - ASPNETCORE_ENVIRONMENT=Development - ASPNETCORE_URLS=http://0.0.0.0:1337 - ConnectionString=Server=sql.data;… environment: - ASPNETCORE_ENVIRONMENT=Production - ASPNETCORE_URLS=http://0.0.0.0:80 - ConnectionString=DOCKERSECRETS_KEY { "ConnectionString": "Server=tcp:…", "Logging": { "IncludeScopes": false, "LogLevel": { "Default": "Warning" } } } appsettings.json
- 37. 37 Base compositions • Services •Images using registry names • Dependencies between services • Networks Composing for different environments Environmental overrides: • Port mappings • Endpoint configurations • Non-production services SQL Server on Linux Redis cache Azure SQL Database Azure Cache

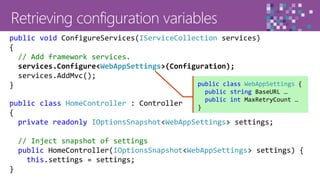

- 38. 39 public class HomeController: Controller { private readonly IOptionsSnapshot<WebAppSettings> settings; // Inject snapshot of settings public HomeController(IOptionsSnapshot<WebAppSettings> settings) { this.settings = settings; } public void ConfigureServices(IServiceCollection services) { // Add framework services. services.Configure<WebAppSettings>(Configuration); services.AddMvc(); } public class WebAppSettings { public string BaseURL … public int MaxRetryCount … }
- 39.

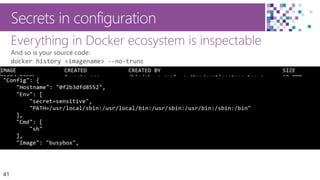

- 40. 41 Everything in Dockerecosystem is inspectable Secrets in configuration

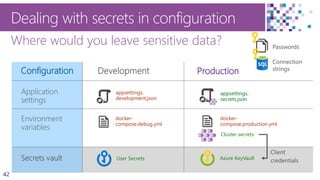

- 41. 42 Configuration Dealing with secretsin configuration Where would you leave sensitive data? Production appsettings. development.json Cluster secrets docker- compose.debug.yml docker- compose.production.yml User Secrets Azure KeyVault appsettings. secrets.json Connection strings Passwords appsettings. secrets.json

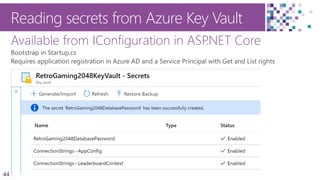

- 42. 44 Reading secrets fromAzure Key Vault Available from IConfiguration in ASP.NET Core Key and secret names Connecting to KeyVault securely if (env.IsProduction()) { builder.AddAzureKeyVault( $"https://{Configuration["azurekeyvault_vault"]}.vault.azure.net/", Configuration["azurekeyvault_clientid"], Configuration["azurekeyvault_clientsecret"]); Configuration = builder.Build(); }
- 43. Demo: Secrets Creating andreading secrets in a Kubernetes cluster Mounting secret settings in volume Reading individual secrets Read from Azure KeyVault
- 44.
- 45. 47 Resiliency: design forfailure Determine your strategy for resiliency Focus on dependencies outside of your own container Cloud and containers: Transient errors are a fact, not a possibility

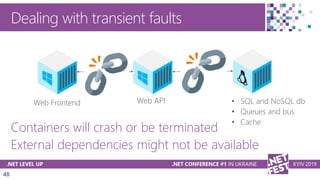

- 46. 48 Dealing with transientfaults Containers will crash or be terminated External dependencies might not be available

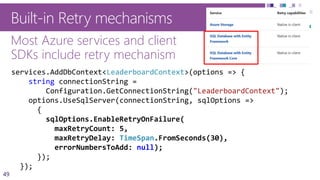

- 47. 49 Built-in Retry mechanisms MostAzure services and client SDKs include retry mechanism Patterns and Practices TFH Application Block (.NET FX) Roll your own for container connectivity services.AddDbContext<LeaderboardContext>(options => { string connectionString = Configuration.GetConnectionString("LeaderboardContext"); options.UseSqlServer(connectionString, sqlOptions => { sqlOptions.EnableRetryOnFailure( maxRetryCount: 5, maxRetryDelay: TimeSpan.FromSeconds(30), errorNumbersToAdd: null); }); });

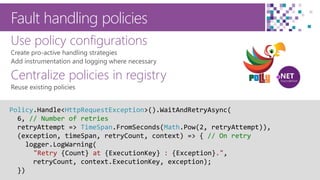

- 48. 50 Fault handling policies Usepolicy configurations Centralize policies in registry Policy.Handle<HttpRequestException>().WaitAndRetryAsync( 6, // Number of retries retryAttempt => TimeSpan.FromSeconds(Math.Pow(2, retryAttempt)), (exception, timeSpan, retryCount, context) => { // On retry logger.LogWarning( "Retry {Count} at {ExecutionKey} : {Exception}.", retryCount, context.ExecutionKey, exception); })

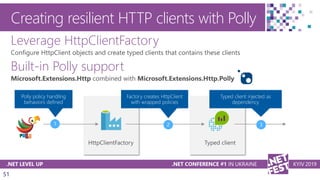

- 49. 51 Creating resilient HTTPclients with Polly Leverage HttpClientFactory Built-in Polly support
- 50. Demo: Resiliency Preparing forfailures Typed Clients Polly support
- 51. 53 Other options: servicemeshes Provides several capabilities:

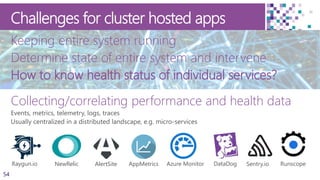

- 52. 54 Challenges for clusterhosted apps Keeping entire system running Determine state of entire system and intervene How to know health status of individual services? Collecting/correlating performance and health data Sentry.ioRaygun.io RunscopeNewRelic AlertSite DataDogAppMetrics Azure Monitor

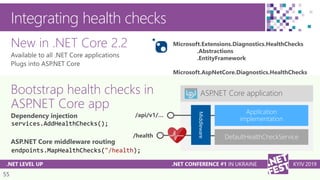

- 53. 55 ASP.NET Core application /api/v1/…Middle ware Integrating health checks New in .NET Core 2.2 Bootstrap health checks in ASP.NET Core app services.AddHealthChecks(); endpoints.MapHealthChecks("/health); /health DefaultHealthCheckService Microsoft.Extensions.Diagnostics.HealthChecks .Abstractions .EntityFramework Microsoft.AspNetCore.Diagnostics.HealthChecks

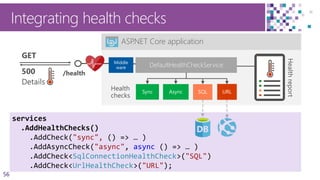

- 54. 56 Integrating health checks services .AddHealthChecks() .AddCheck("sync",() => … ) .AddAsyncCheck("async", async () => … ) .AddCheck<SqlConnectionHealthCheck>("SQL") .AddCheck<UrlHealthCheck>("URL"); ASP.NET Core application /health DefaultHealthCheckService
- 55. 57 Probing containers tocheck for availability and health Readiness and liveness Kubernetes node Kubernetes node Kubernetes nodes Containers Readiness Liveliness

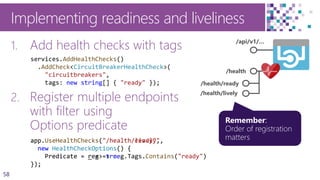

- 56. 58 Implementing readiness andliveliness 1. Add health checks with tags 2. Register multiple endpoints with filter using Options predicate /api/v1/… /health /health/ready /health/lively app.UseHealthChecks("/health/ready", new HealthCheckOptions() { Predicate = reg => reg.Tags.Contains("ready") }); services.AddHealthChecks() .AddCheck<CircuitBreakerHealthCheck>( "circuitbreakers", tags: new string[] { "ready" }); app.UseHealthChecks("/health/lively", new HealthCheckOptions() { Predicate = _ => true });
- 57. 59 Zero downtime deployments Originalpods only taken offline after new healthy one is up Allows roll forward upgrades: Never roll back to previous version
- 58.
- 59.

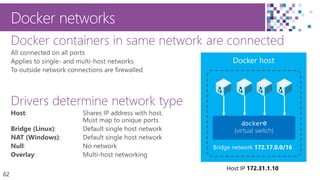

- 60. 62 Docker containers insame network are connected Drivers determine network type Docker networks Bridge network 172.17.0.0/16 Host IP 172.31.1.10
- 61. 63 Hosts may span across cloud providers Dockernetworks: overlay in Swarm Overlay network 10.0.0.0/24 Host IP 172.31.1.10 Host IP 192.168.2.13 docker_gwbridge 172.18.0.0/16 docker_gwbridge
- 62.

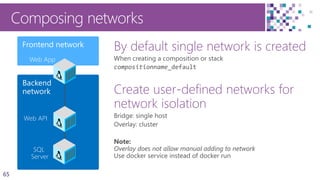

- 63. 65 Composing networks By defaultsingle network is created Create user-defined networks for network isolation Backend network Frontend network Web API Web App SQL Server

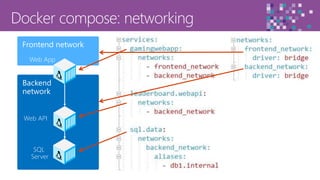

- 64. 66 Backend network Frontend network Web API WebApp SQL Server
- 65. 67 Gear your architectureto work with containers Environments Configuration Security Networking Storage Composition Lifecycle Hosting Monitoring
