This document provides installation and reference information for the APS48Z vehicle security and keyless entry system. It includes: - Descriptions of the wire harness colors and functions, including connections for door locks, power, and sensors. - Instructions for setting up options like arming mode and anti-hijacking via onboard jumpers. - Diagrams of typical wiring connections for components like door locks, starter kill, and full system wiring. - Details on programming and operating the included 1-way 4-button remote controls. - A reminder that professional installation is recommended due to the expertise required to properly install the system.

1. Installation and Reference Guide
2019 Voxx Electronics Corporation. All rights reserved. APS48Z_Rev0_11/19
2 Wire Harness Colors and Functions
2
Main Input / Output Connector
3
Main Power Connector
3
Door Lock Connector
4 Internal / External Components
4 Shock Sensor
4 Adjusting Shock Sensor
4 LED / Valet Programming Button
4 System Operation
4 Alarm Override Procedures
5
Remote Programming Procedure
5
Remote Operation
6 Setup Options
6
Security Control
APS48Z
Vehicle Security / Keyless Entry System
7 Wiring Diagrams
7
Door Lock Connections
10

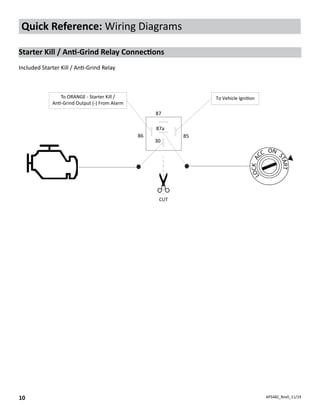

Starter Kill Relay
11 Full System Connections
Thank you for trusting Prestige products! If you are a consumer, please note:
Professional installation is strongly recommended.
This manual assumes the installer has adequate knowledge of the following expertise. Therefore, it does not
cover these topics in detail:
• 12-volt electronics
• Testing and verifying circuits
• Making safe and lasting wiring connections
• Factory ignition, power, lighting, data bus and sensing systems
• Factory systems and components to avoid
• Safe wire routing, circuit protection and product placement
• Access to vehicle-specific technical information
In addition, this manual assumes the installer has the proper tools, skill and facilities to perform a professional installation.
Performing an improper installation could result in damage to the vehicle or its components, improper system function,
unsafe vehicle operation or physical injury. Such instances would not be covered by the vehicle manufacturer's warranty,
nor by Voxx Electronics, Inc.
Detailed Descriptions Quick Reference

2. APS48Z_Rev0_11/19
2

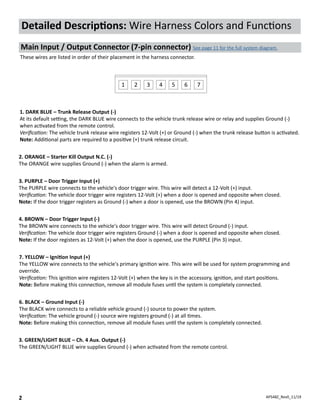

Detailed Descriptions: Wire Harness Colors and Functions
1 2 3 4 5 6 7
6. BLACK – Ground Input (-)
The BLACK wire connects to a reliable vehicle ground (-) source to power the system.
Verification: The vehicle ground (-) source wire registers ground (-) at all times.
Note: Before making this connection, remove all module fuses until the system is completely connected.
Main Input / Output Connector (7-pin connector) See page 11 for the full system diagram.
These wires are listed in order of their placement in the harness connector.
3. PURPLE – Door Trigger Input (+)
The PURPLE wire connects to the vehicle's door trigger wire. This wire will detect a 12-Volt (+) input.
Verification: The vehicle door trigger wire registers 12-Volt (+) when a door is opened and opposite when closed.
Note: If the door trigger registers as Ground (-) when a door is opened, use the BROWN (Pin 4) input.
2. ORANGE – Starter Kill Output N.C. (-)
The ORANGE wire supplies Ground (-) when the alarm is armed.
4. BROWN – Door Trigger Input (-)
The BROWN wire connects to the vehicle's door trigger wire. This wire will detect Ground (-) input.
Verification: The vehicle door trigger wire registers Ground (-) when a door is opened and opposite when closed.
Note: If the door registers as 12-Volt (+) when the door is opened, use the PURPLE (Pin 3) input.
7. YELLOW – Ignition Input (+)
The YELLOW wire connects to the vehicle's primary ignition wire. This wire will be used for system programming and
override.
Verification: This ignition wire registers 12-Volt (+) when the key is in the accessory, ignition, and start positions.
Note: Before making this connection, remove all module fuses until the system is completely connected.
1. DARK BLUE – Trunk Release Output (-)
At its default setting, the DARK BLUE wire connects to the vehicle trunk release wire or relay and supplies Ground (-)
when activated from the remote control.
Verification: The vehicle trunk release wire registers 12-Volt (+) or Ground (-) when the trunk release button is activated.
Note: Additional parts are required to a positive (+) trunk release circuit.
3. GREEN/LIGHT BLUE – Ch. 4 Aux. Output (-)
The GREEN/LIGHT BLUE wire supplies Ground (-) when activated from the remote control.

3. APS48Z_Rev0_11/19 3

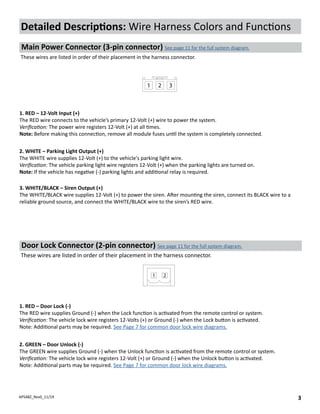

1. RED – 12-Volt Input (+)
The RED wire connects to the vehicle’s primary 12-Volt (+) wire to power the system.
Verification: The power wire registers 12-Volt (+) at all times.
Note: Before making this connection, remove all module fuses until the system is completely connected.
3. WHITE/BLACK – Siren Output (+)
The WHITE/BLACK wire supplies 12-Volt (+) to power the siren. After mounting the siren, connect its BLACK wire to a
reliable ground source, and connect the WHITE/BLACK wire to the siren’s RED wire.
Detailed Descriptions: Wire Harness Colors and Functions
Main Power Connector (3-pin connector) See page 11 for the full system diagram.
These wires are listed in order of their placement in the harness connector.
Door Lock Connector (2-pin connector) See page 11 for the full system diagram.
These wires are listed in order of their placement in the harness connector.
1. RED – Door Lock (-)
The RED wire supplies Ground (-) when the Lock function is activated from the remote control or system.
Verification: The vehicle lock wire registers 12-Volts (+) or Ground (-) when the Lock button is activated.
Note: Additional parts may be required. See Page 7 for common door lock wire diagrams.
2. GREEN – Door Unlock (-)
The GREEN wire supplies Ground (-) when the Unlock function is activated from the remote control or system.
Verification: The vehicle lock wire registers 12-Volt (+) or Ground (-) when the Unlock button is activated.
Note: Additional parts may be required. See Page 7 for common door lock wire diagrams.
1 2
2. WHITE – Parking Light Output (+)
The WHITE wire supplies 12-Volt (+) to the vehicle's parking light wire.
Verification: The vehicle parking light wire registers 12-Volt (+) when the parking lights are turned on.
Note: If the vehicle has negative (-) parking lights and additional relay is required.
1 2 3

4. APS48Z_Rev0_11/19
4

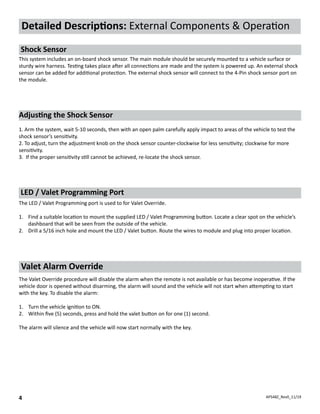

Detailed Descriptions: External Components & Operation
Shock Sensor
This system includes an on-board shock sensor. The main module should be securely mounted to a vehicle surface or
sturdy wire harness. Testing takes place after all connections are made and the system is powered up. An external shock
sensor can be added for additional protection. The external shock sensor will connect to the 4-Pin shock sensor port on
the module.
LED / Valet Programming Port
The LED / Valet Programming port is used to for Valet Override.
1. Find a suitable location to mount the supplied LED / Valet Programming button. Locate a clear spot on the vehicle’s
dashboard that will be seen from the outside of the vehicle.
2. Drill a 5/16 inch hole and mount the LED / Valet button. Route the wires to module and plug into proper location.
The Valet Override procedure will disable the alarm when the remote is not available or has become inoperative. If the
vehicle door is opened without disarming, the alarm will sound and the vehicle will not start when attempting to start
with the key. To disable the alarm:
1. Turn the vehicle ignition to ON.
2. Within five (5) seconds, press and hold the valet button on for one (1) second.
The alarm will silence and the vehicle will now start normally with the key.
Valet Alarm Override
Adjusting the Shock Sensor
1. Arm the system, wait 5-10 seconds, then with an open palm carefully apply impact to areas of the vehicle to test the
shock sensor’s sensitivity.
2. To adjust, turn the adjustment knob on the shock sensor counter-clockwise for less sensitivity; clockwise for more
sensitivity.
3. If the proper sensitivity still cannot be achieved, re-locate the shock sensor.

5. APS48Z_Rev0_11/19 5

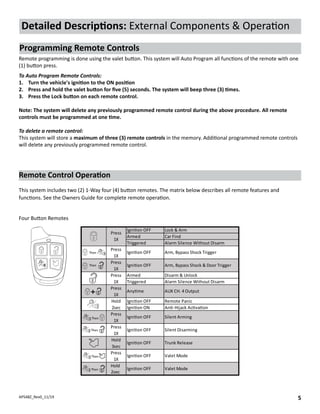

Four Button Remotes
Igni�on OFF Lock & Arm
Armed Car Find
Triggered Alarm Silence Without Disarm
Armed Disarm & Unlock
Triggered Alarm Silence Without Disarm
Igni�on OFF Remote Panic
Igni�on ON An�-Hijack Ac�va�on
Press
1X
Hold
2sec
Igni�on OFF
Igni�on OFF
Valet Mode
Valet Mode
Press
1X
Igni�on OFF Silent Disarming
Hold
3sec
Igni�on OFF Trunk Release
AUX CH. 4 Output
Hold
2sec
Press
1X
Igni�on OFF Silent Arming
Press
1X
Any�me
Igni�on OFF
Press
1X
Press
1X
Igni�on OFF Arm, Bypass Shock & Door Trigger
Press
1X
Arm, Bypass Shock Trigger
Press
1X
Then
Then
Then
Then
Then
Then
Remote Control Operation
This system includes two (2) 1-Way four (4) button remotes. The matrix below describes all remote features and
functions. See the Owners Guide for complete remote operation.
Programming Remote Controls
To Auto Program Remote Controls:
1. Turn the vehicle's ignition to the ON position
2. Press and hold the valet button for five (5) seconds. The system will beep three (3) times.
3. Press the Lock button on each remote control.
Note: The system will delete any previously programmed remote control during the above procedure. All remote
controls must be programmed at one time.
To delete a remote control:
This system will store a maximum of three (3) remote controls in the memory. Additional programmed remote controls
will delete any previously programmed remote control.
Remote programming is done using the valet button. This system will Auto Program all functions of the remote with one
(1) button press.
Detailed Descriptions: External Components & Operation

6. APS48Z_Rev0_11/19
6

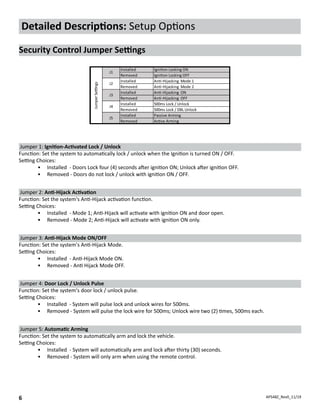

Detailed Descriptions: Setup Options
Security Control Jumper Settings
Installed Igni�on Locking ON
Removed Igni�on Locking OFF
Installed An�-Hijacking Mode 1
Removed An�-Hijacking Mode 2
Installed An�-Hijacking ON
Removed An�-Hijacking OFF
Installed 500ms Lock / Unlock
Removed 500ms Lock / DBL Unlock
Installed Passive Arming
Removed Ac�ve Arming
Jumper
Se�ngs
J1
J2
J3
J4
J5
Jumper 1: Ignition-Activated Lock / Unlock
Function: Set the system to automatically lock / unlock when the Ignition is turned ON / OFF.
Setting Choices:
• Installed - Doors Lock four (4) seconds after ignition ON; Unlock after ignition OFF.
• Removed - Doors do not lock / unlock with ignition ON / OFF.
Jumper 2: Anti-Hijack Activation
Function: Set the system's Anti-Hijack activation function.
Setting Choices:
• Installed - Mode 1; Anti-Hijack will activate with ignition ON and door open.
• Removed - Mode 2; Anti-Hijack will activate with ignition ON only.
Jumper 3: Anti-Hijack Mode ON/OFF
Function: Set the system's Anti-Hijack Mode.
Setting Choices:
• Installed - Anti-Hijack Mode ON.
• Removed - Anti Hijack Mode OFF.
Jumper 4: Door Lock / Unlock Pulse
Function: Set the system's door lock / unlock pulse.
Setting Choices:
• Installed - System will pulse lock and unlock wires for 500ms.
• Removed - System will pulse the lock wire for 500ms; Unlock wire two (2) times, 500ms each.
Jumper 5: Automatic Arming
Function: Set the system to automatically arm and lock the vehicle.
Setting Choices:
• Installed - System will automatically arm and lock after thirty (30) seconds.
• Removed - System will only arm when using the remote control.

7. APS48Z_Rev0_11/19 7
Quick Reference: Wiring Diagrams
Door Lock Connections
Positive-Trigger Door Locks
Verification: The vehicle wires register 12V+ when the Lock and Unlock switches are activated.
Negative-Trigger Door Locks
Verification: The vehicle wires register Ground when the Lock and Unlock switches are activated.
Lock
Unlock
Vehicle Door Lock
Control Relays
RED ( - ) Lock Output
GREEN ( - ) Unlock Output
Lock
Unlock
87
87a
86 85
30
87
87a
86 85
30
Vehicle Door Lock
Control Relays
Fused +12 Volt
Ba�ery Source
Fused +12 Volt
Ba�ery Souce
RED ( - ) Lock Output
GREEN ( - ) Unlock Output

8. APS48Z_Rev0_11/19
8
Quick Reference: Wiring Diagrams
Door Lock Connections
Single-Wire Negative Multiplex Door Locks (Relays required)
Verification: The vehicle wire registers variable Ground values when the Lock and Unlock switches are activated. Please
consult the vehicle-specific wire and location chart on the Voxx University for resistor values.
Single-Wire Positive Multiplex Door Locks (Relays required)
Verification: The vehicle wire registers variable 12V+ values when the Lock and Unlock switches are activated. Please
consult the vehicle-specific wire and location chart Voxx University for resistor values.
Lock
Unlock
Vehicle Door Lock
Control Relays
RED ( - ) Lock Output Green ( - ) Unlock Output
87
87a
86
30
87
87a
86
30
85 85
Fused +12 Volt
Battery Source
Ground
Resistor
Lock
Unlock
Vehicle Door Lock
Control Relays
RED ( - ) Lock Output Green ( - ) Unlock Output
87
87a
86
30
87
87a
86
30
85 85
Fused +12 Volt
Battery Source
Resistor

9. APS48Z_Rev0_11/19 9
Quick Reference: Wiring Diagrams
Door Lock Connections

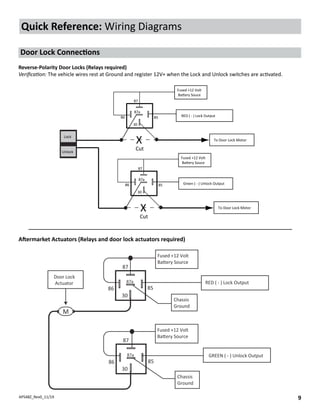

Reverse-Polarity Door Locks (Relays required)
Verification: The vehicle wires rest at Ground and register 12V+ when the Lock and Unlock switches are activated.
Aftermarket Actuators (Relays and door lock actuators required)
Lock
Unlock
87
87a
86 85
30
87
87a
86 85
30
Fused +12 Volt
Battery Souce
Fused +12 Volt
Battery Souce
RED ( - ) Lock Output
Green ( - ) Unlock Output
X
Cut
X
Cut
To Door Lock Motor
To Door Lock Motor
30
87
87a
86 85
Fused +12 Volt
Ba�ery Source
Door Lock
Actuator
30
87
87a
86 85
Chassis
Ground
Chassis
Ground
RED ( - ) Lock Output
GREEN ( - ) Unlock Output
Fused +12 Volt
Ba�ery Source
M

10. APS48Z_Rev0_11/19
10
Quick Reference: Wiring Diagrams
Starter Kill / Anti-Grind Relay Connections
Included Starter Kill / Anti-Grind Relay
L
O
C
K
A
CC ON
S
T
A
R
T
CUT
87
87a
86 85
30
To Vehicle Ignition
To ORANGE - Starter Kill /
Anti-Grind Output (-) From Alarm

11. APS48Z_Rev0_11/19 11
Quick Reference: Wiring Diagrams
VOXX
4
Red
BaƩery
12V
(+)
3
Black
Ground
While
Armed
(-)
2
Green
Full
Trigger
Input
(-)
1
Blue
Warn
Away
Input
(-)
Shock
2
Green
Unlock
(-)
1
Red
Lock
(-)
Door
Lock
2
Red
BaƩery
12V
(+)
1
Blue
LED
Output
(-)
LED
2
Gray
Valet
Switch
Input
1
Black
Ground
(-)
Valet
7
Green/Lt.
Blue
AUX
Ch.
4
Output
(-)
6
Black
Ground
Input
(-)
5
Yellow
IgniƟon
Input
(+)
4
Brown
Door
Trigger
Input
(-)
3
Purple
Door
Trigger
Input
(+)
2
Orange
Starter
Kill
Output
(-)
1
Blue
Trunk
Output
(-)
7
Pin
Main
3
White/Black
Siren
Output
(+)
2
White
Parking
Light
Output
(+)
1
Red
BaƩery
12V
Input
(+)
Power
Shock
Sensor
Adjustment
Installed
Passive
Arming
Removed
AcƟve
Arming
Installed
500ms
Lock
/
Unlock
Removed
500ms
Lock
/
DBL
Unlock
Installed
AnƟ-Hijacking
ON
Removed
AnƟ-Hijacking
OFF
Installed
AnƟ-Hijacking
Mode
1
Removed
AnƟ-Hijacking
Mode
2
Installed
Passive
Locking
Removed
AcƟve
Locking
Jumper
Seƫngs
J5
J4
J3
J2
J1
1
2
3
4
5
Optional
Shock
Sensor
Part
#4700033
91Z
91Z
