1. DevelopingappsforReconHUDsXavier Hallade, Application Engineer, Intel Corporation

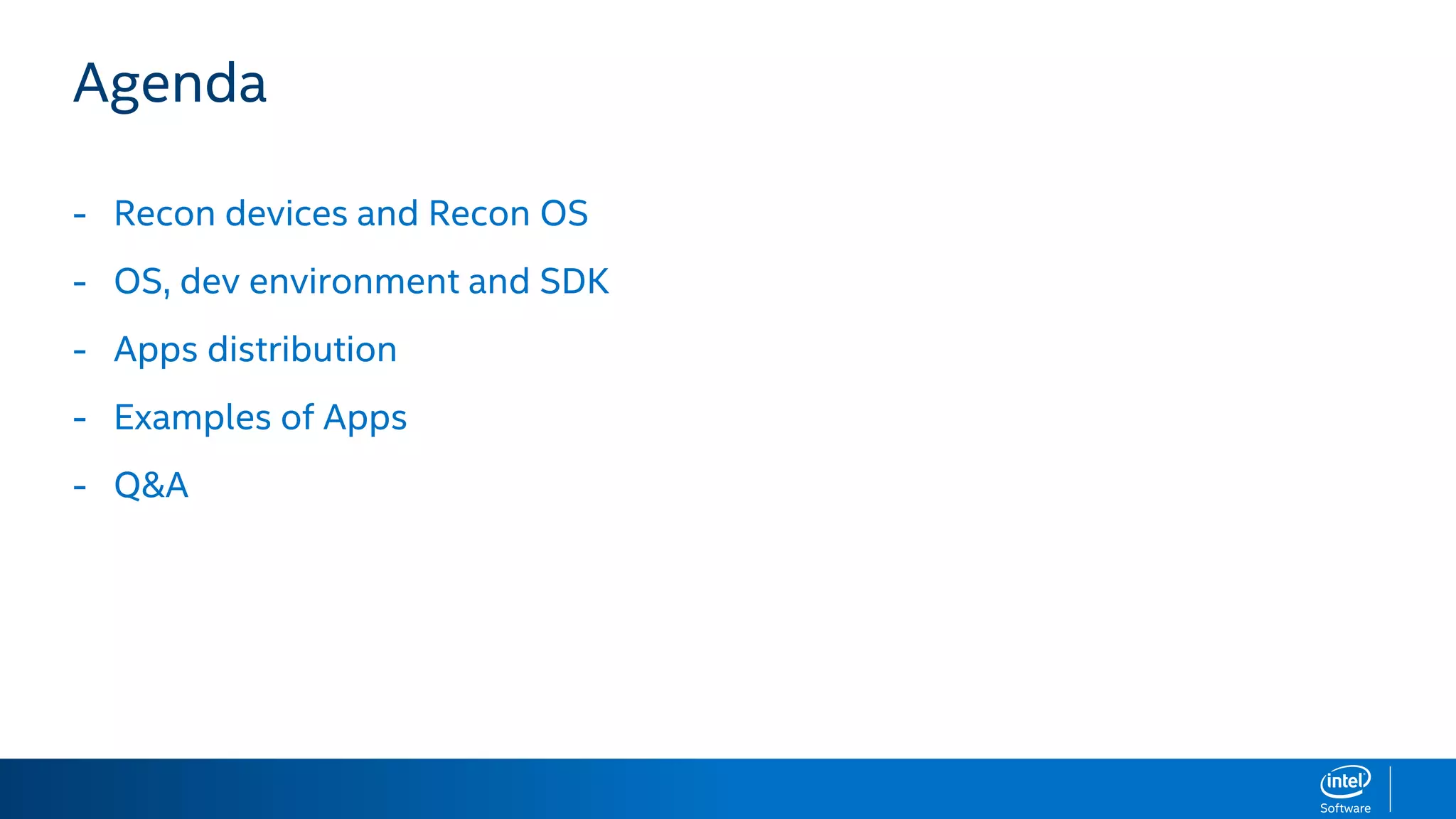

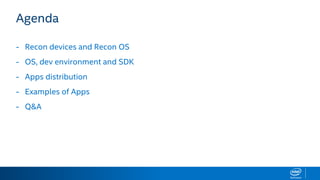

2. Agenda
- Recon devices and Recon OS
- OS, dev environment and SDK
- Apps distribution
- Examples of Apps
- Q&A

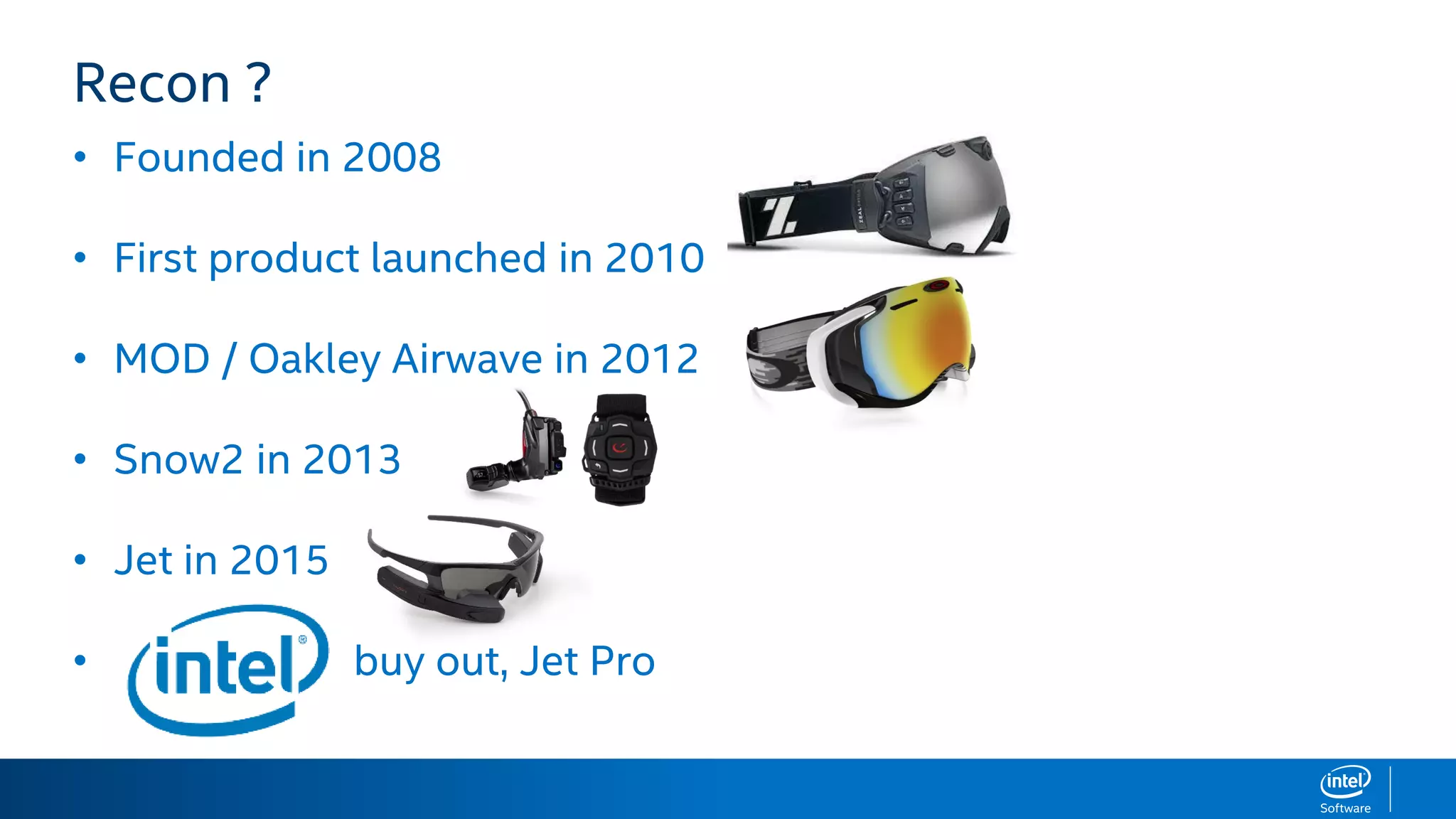

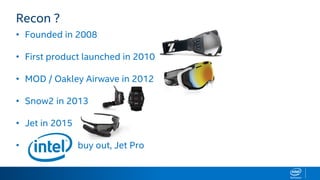

3. Recon ?
• Founded in 2008
• First product launched in 2010
• MOD / Oakley Airwave in 2012
• Snow2 in 2013
• Jet in 2015
• buy out, Jet Pro

4. Smart eyewear for sports and high-intensity
environments
RECON JET BENEFITS Recon Jet / Jet Pro
● Metrics – Key information are delivered in real
time, just below your eye.
● Camera – record your point of view with still
pictures and 720p videos
● Notifications – get text and call notifications
from your phone.
● Connectivity – share and get metrics, photos
and videos over BLE/WiFi.

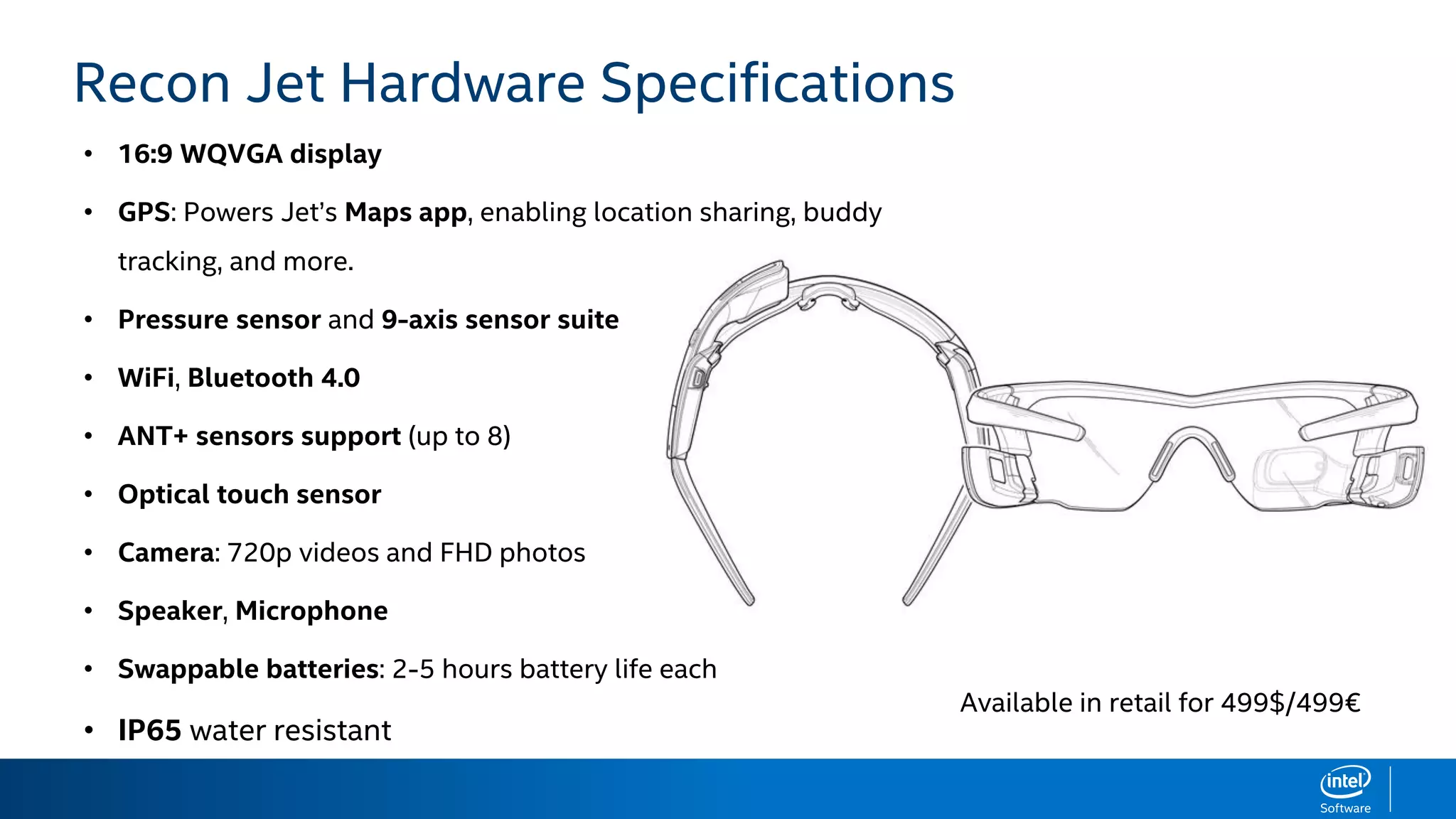

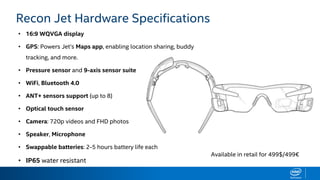

5. HARDWARE SPECIFICATIONS
• 16:9 WQVGA display
• GPS: Powers Jet’s Maps app, enabling location sharing, buddy
tracking, and more.
• Pressure sensor and 9-axis sensor suite
• WiFi, Bluetooth 4.0
• ANT+ sensors support (up to 8)
• Optical touch sensor
• Camera: 720p videos and FHD photos
• Speaker, Microphone
• Swappable batteries: 2-5 hours battery life each
• IP65 water resistant
Recon Jet Hardware Specifications
Available in retail for 499$/499€

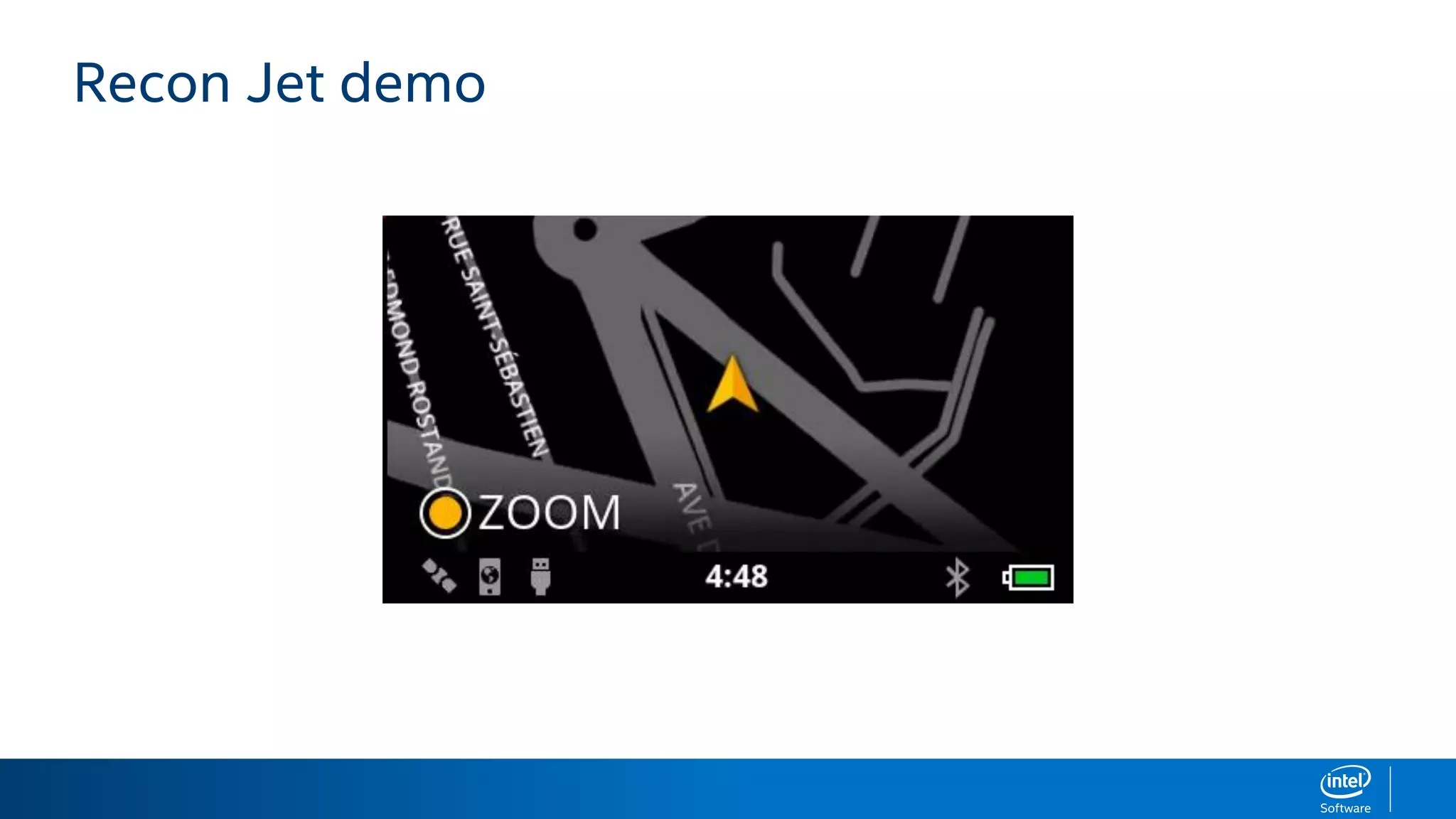

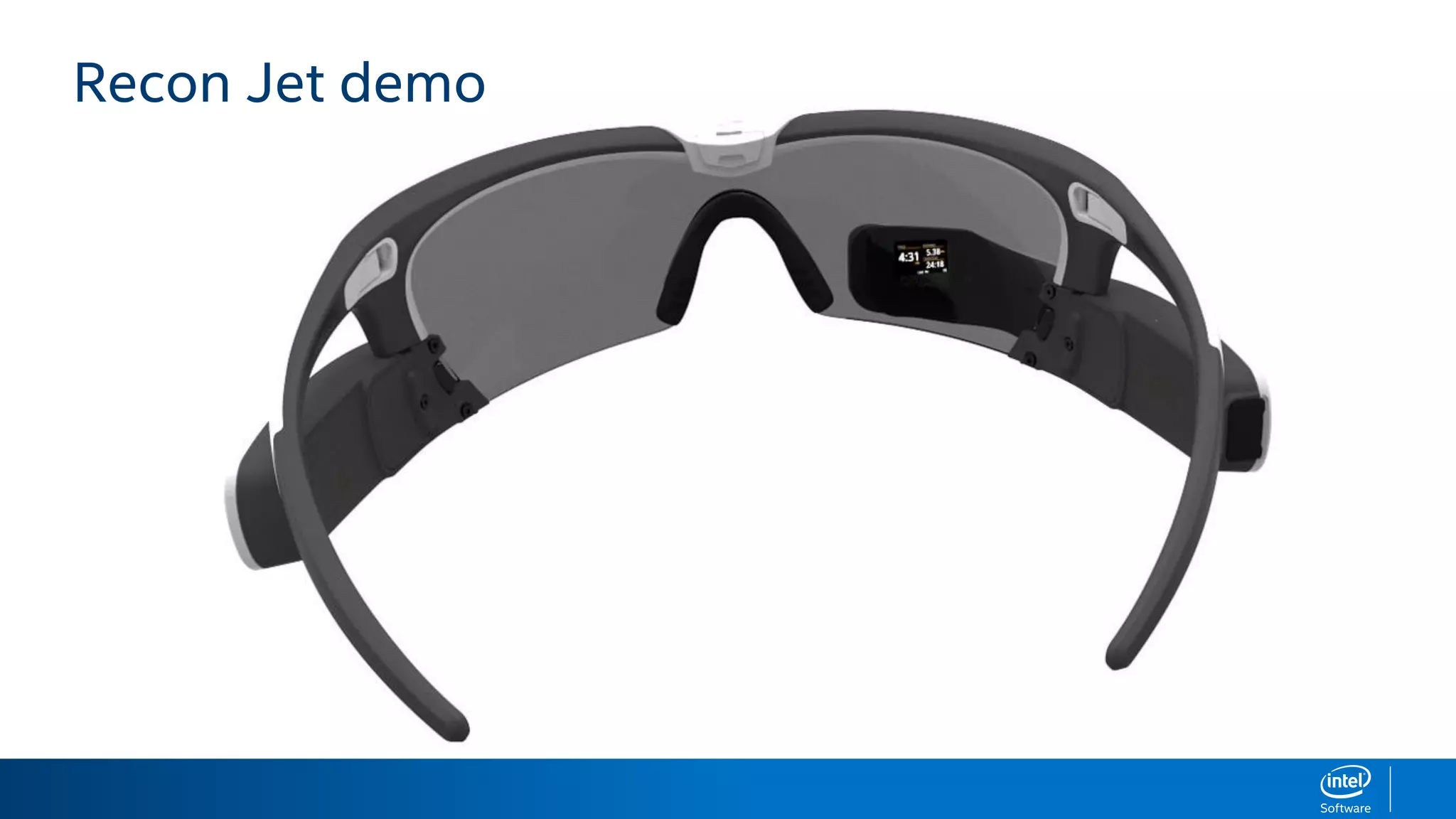

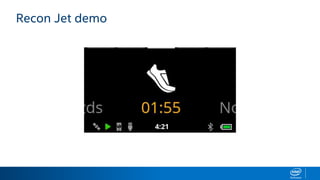

6. Recon Jet demo

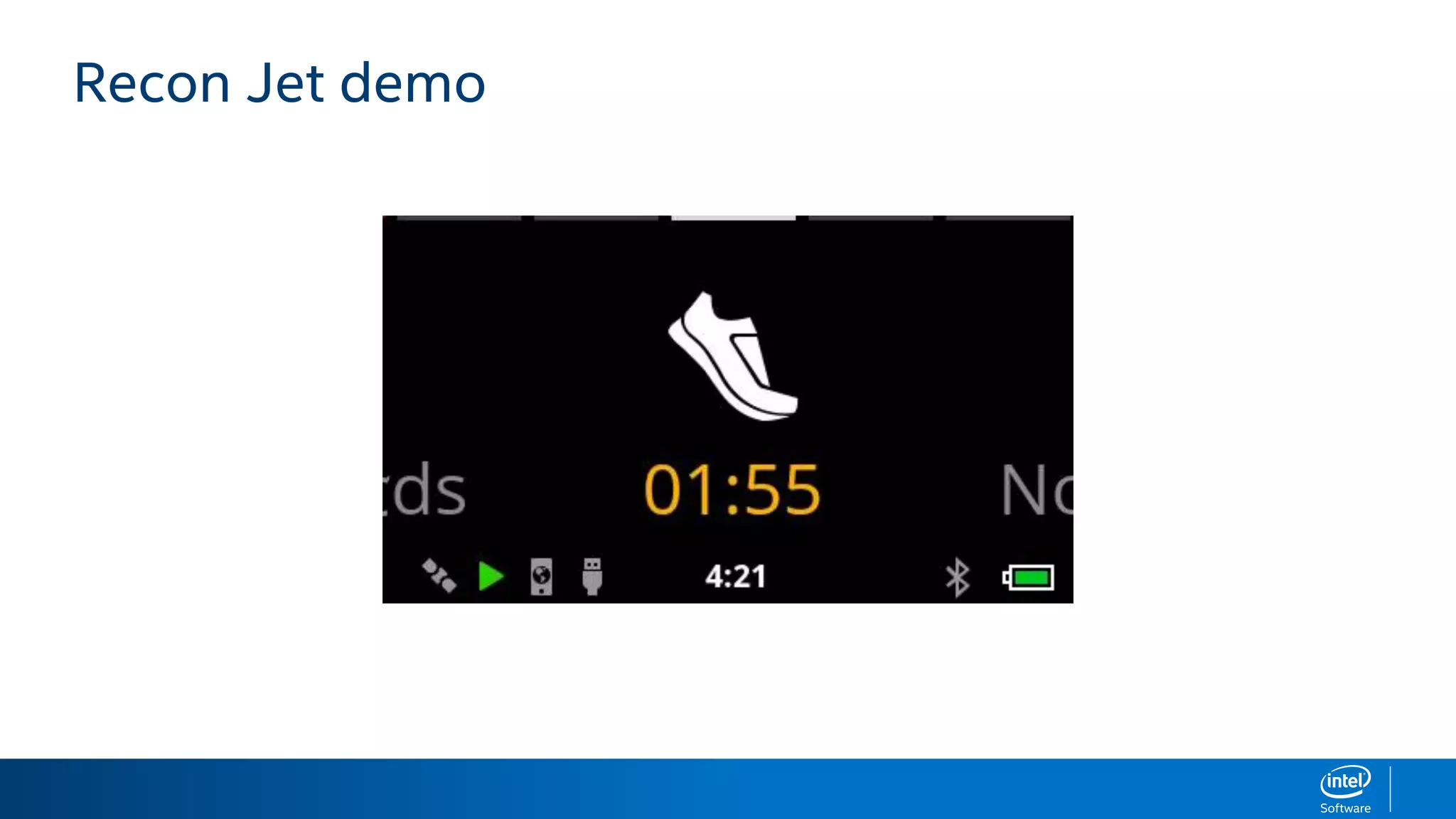

7. Recon Jet demo

8. Recon Jet demo

9. ReconOSandSDK

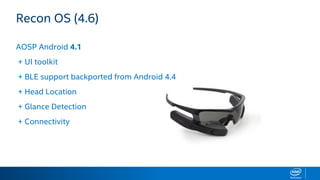

10. Recon OS (4.6)
AOSP Android 4.1
+ UI toolkit
+ BLE support backported from Android 4.4
+ Head Location
+ Glance Detection
+ Connectivity

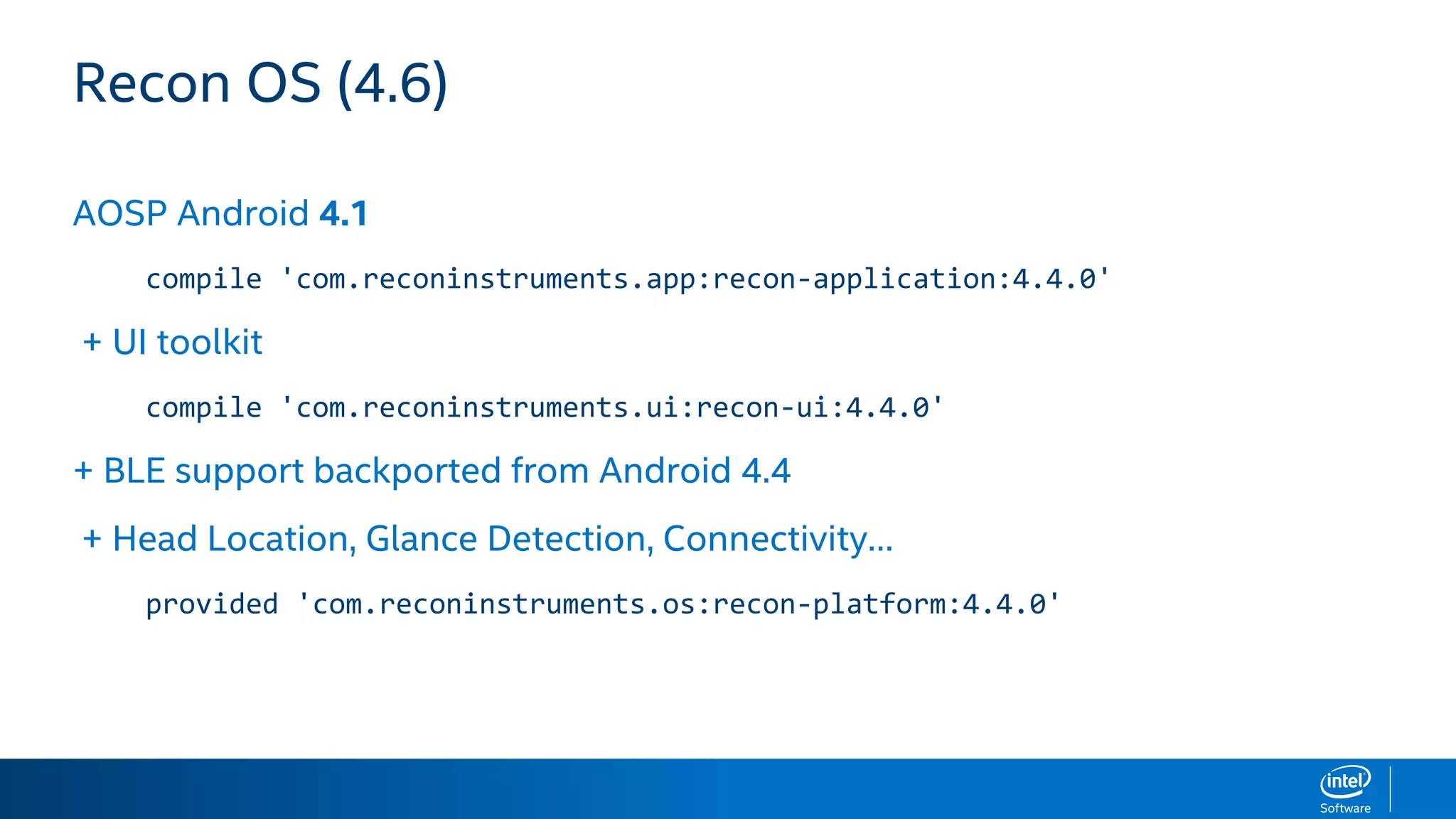

11. Recon OS (4.6)
AOSP Android 4.1
compile 'com.reconinstruments.app:recon-application:4.4.0'
+ UI toolkit
compile 'com.reconinstruments.ui:recon-ui:4.4.0'
+ BLE support backported from Android 4.4
+ Head Location, Glance Detection, Connectivity…
provided 'com.reconinstruments.os:recon-platform:4.4.0'

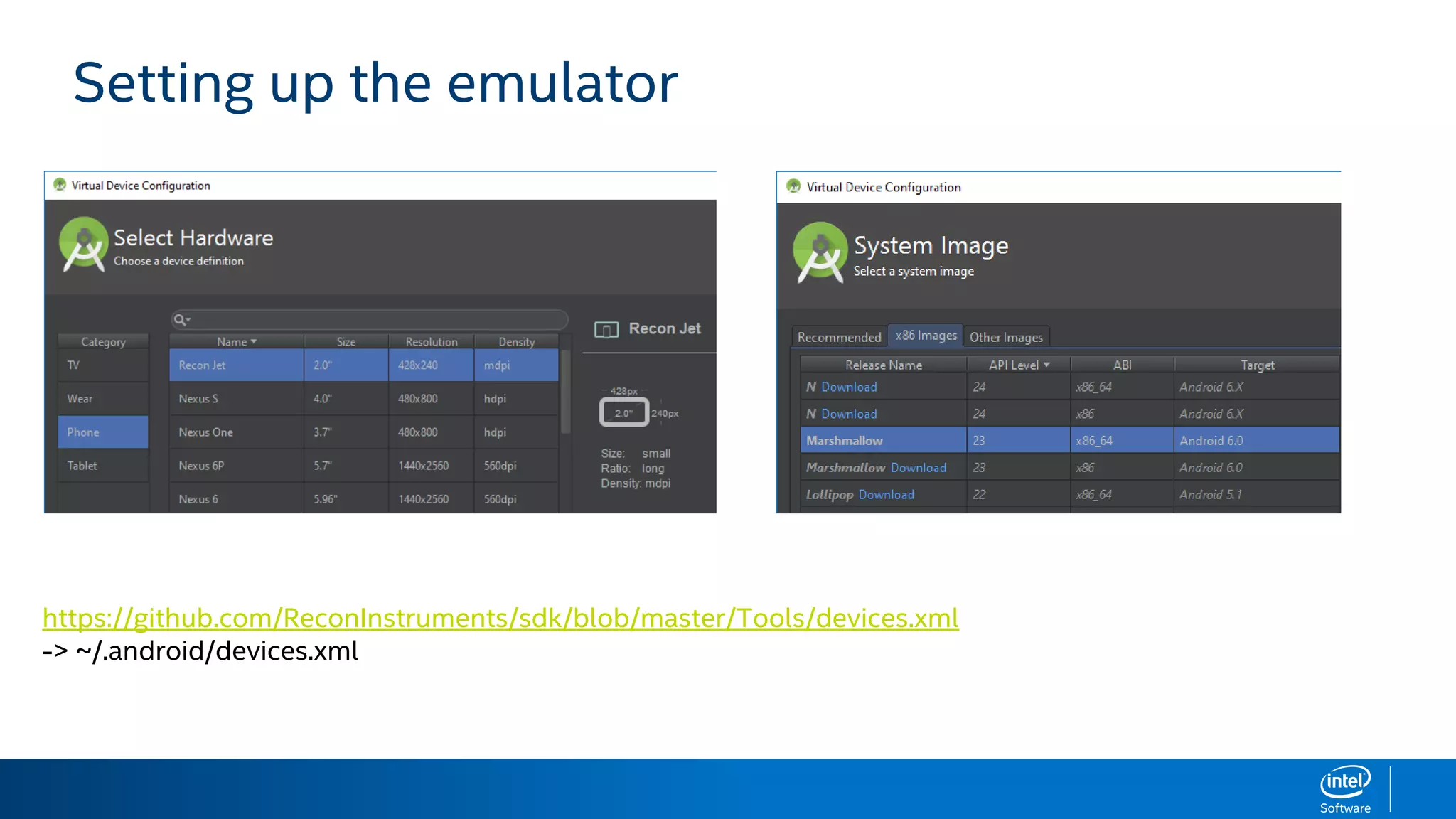

12. Setting up the emulator
https://github.com/ReconInstruments/sdk/blob/master/Tools/devices.xml
-> ~/.android/devices.xml

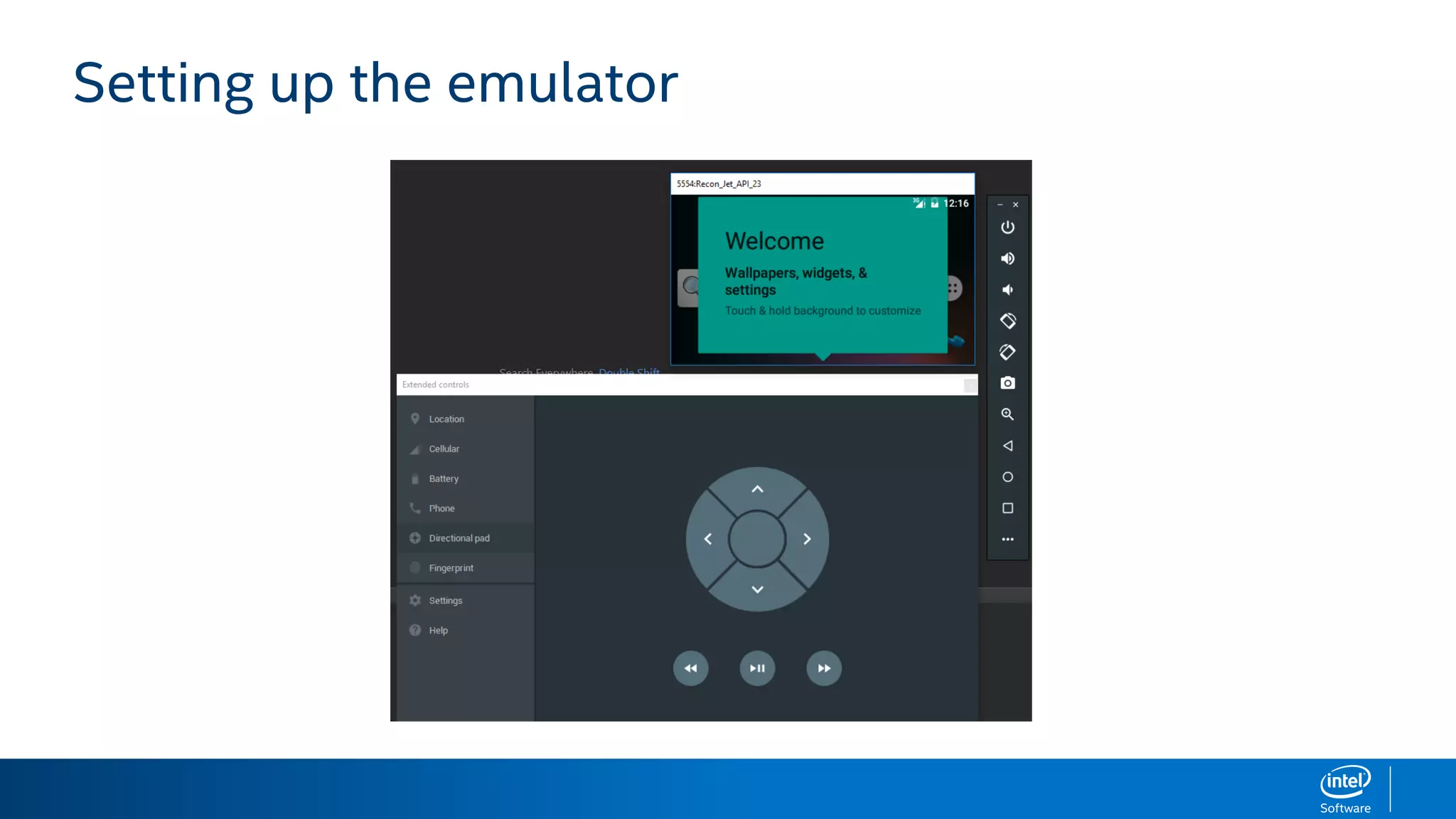

13. Setting up the emulator

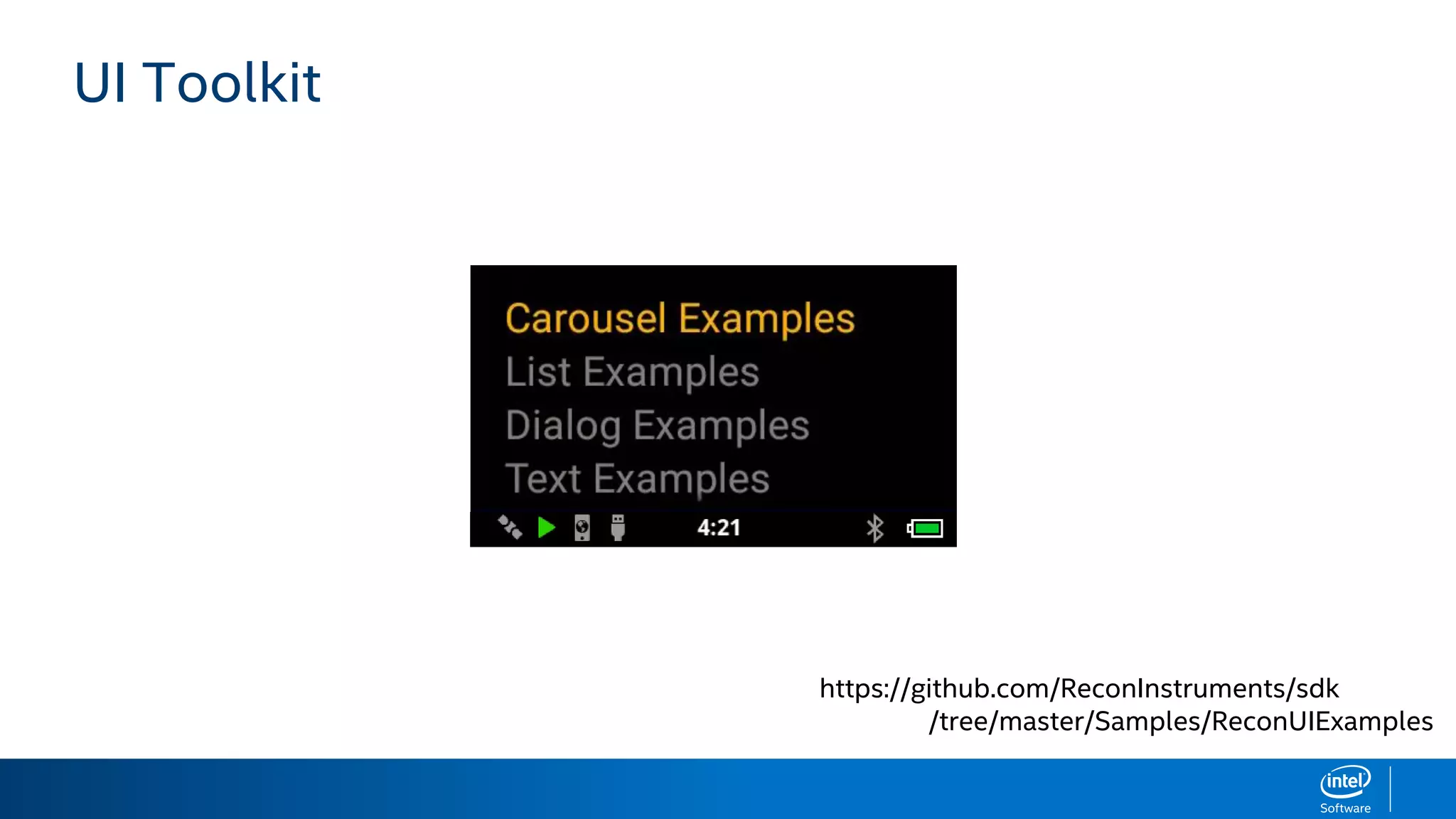

14. UI Toolkit
https://github.com/ReconInstruments/sdk
/tree/master/Samples/ReconUIExamples

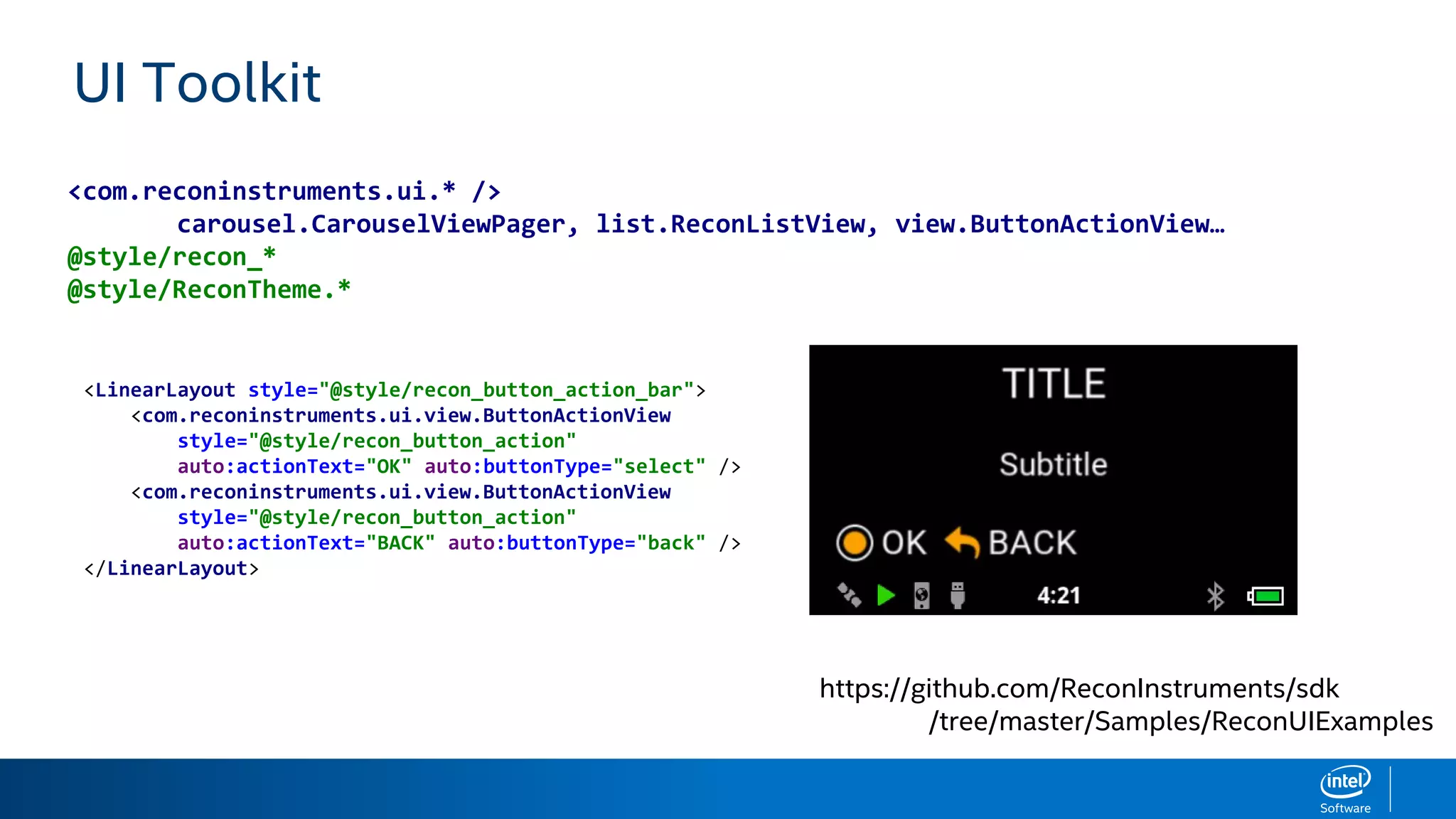

15. UI Toolkit
https://github.com/ReconInstruments/sdk
/tree/master/Samples/ReconUIExamples
<com.reconinstruments.ui.* />
carousel.CarouselViewPager, list.ReconListView, view.ButtonActionView…
@style/recon_*
@style/ReconTheme.*
<LinearLayout style="@style/recon_button_action_bar">
<com.reconinstruments.ui.view.ButtonActionView
style="@style/recon_button_action"
auto:actionText="OK" auto:buttonType="select" />
<com.reconinstruments.ui.view.ButtonActionView
style="@style/recon_button_action"
auto:actionText="BACK" auto:buttonType="back" />
</LinearLayout>

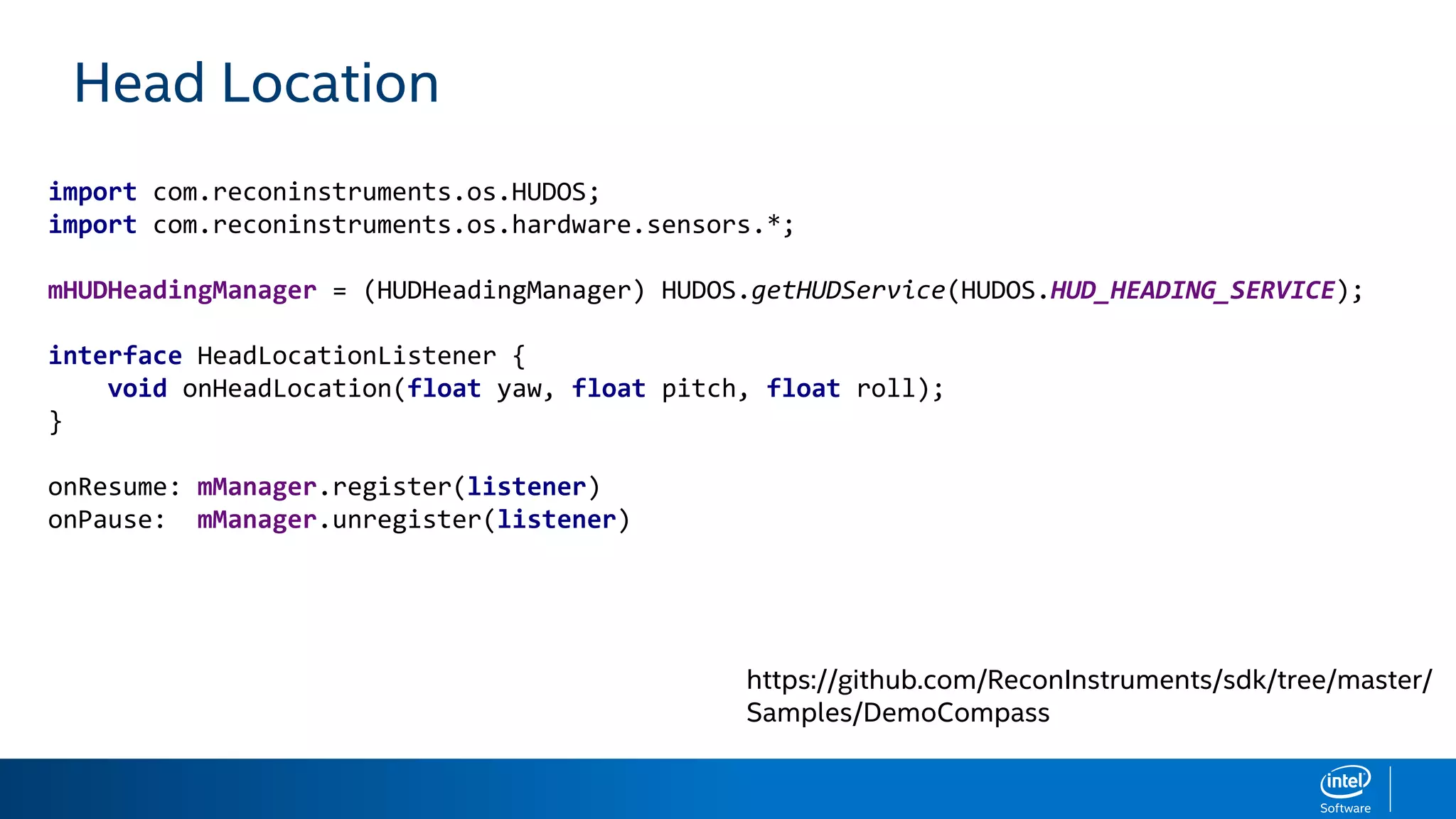

16. Head Location
import com.reconinstruments.os.HUDOS;
import com.reconinstruments.os.hardware.sensors.*;
mHUDHeadingManager = (HUDHeadingManager) HUDOS.getHUDService(HUDOS.HUD_HEADING_SERVICE);
interface HeadLocationListener {
void onHeadLocation(float yaw, float pitch, float roll);
}
onResume: mManager.register(listener)
onPause: mManager.unregister(listener)
https://github.com/ReconInstruments/sdk/tree/master/
Samples/DemoCompass

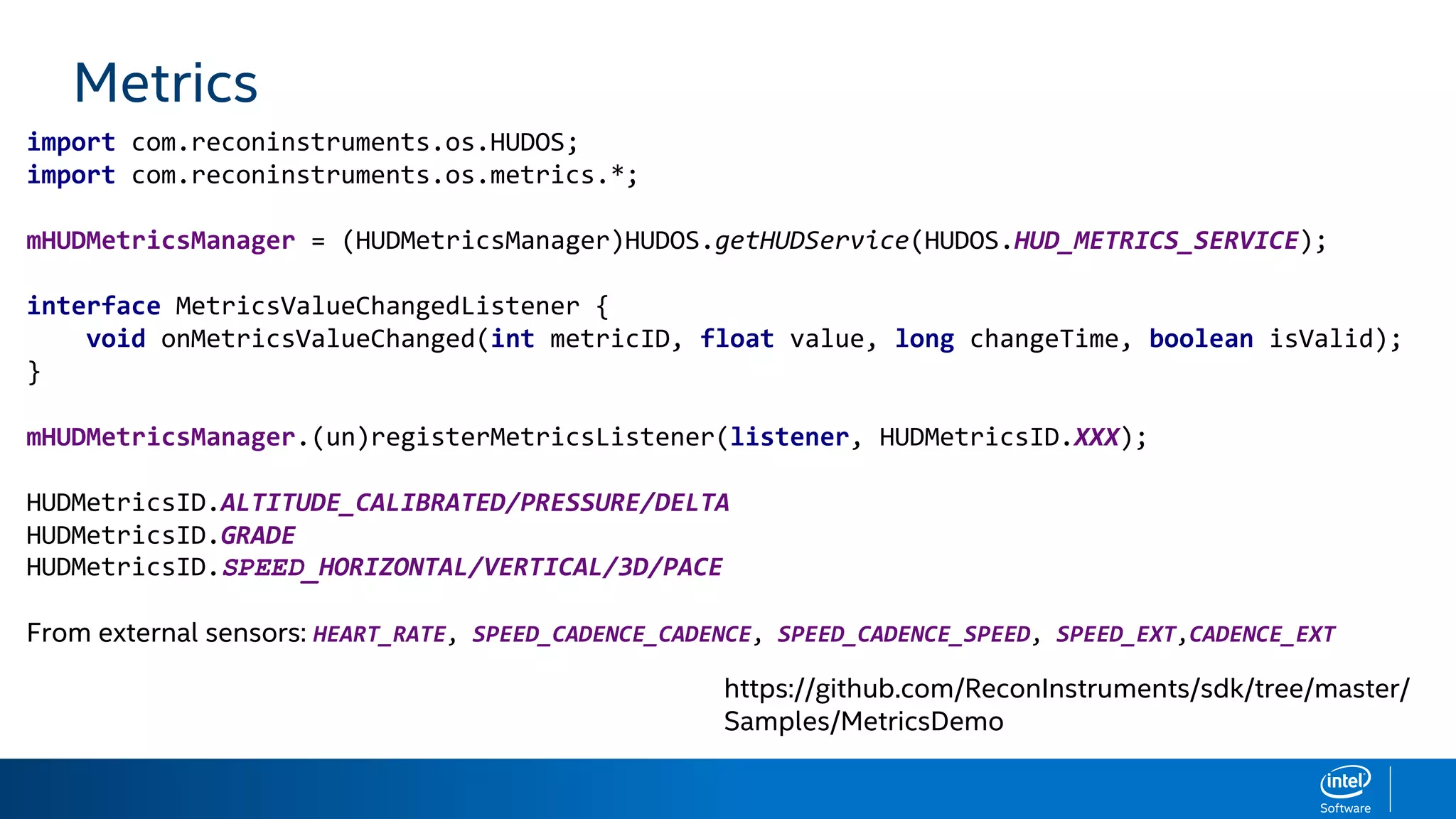

17. Metrics
import com.reconinstruments.os.HUDOS;
import com.reconinstruments.os.metrics.*;
mHUDMetricsManager = (HUDMetricsManager)HUDOS.getHUDService(HUDOS.HUD_METRICS_SERVICE);
interface MetricsValueChangedListener {
void onMetricsValueChanged(int metricID, float value, long changeTime, boolean isValid);
}
mHUDMetricsManager.(un)registerMetricsListener(listener, HUDMetricsID.XXX);
HUDMetricsID.ALTITUDE_CALIBRATED/PRESSURE/DELTA
HUDMetricsID.GRADE
HUDMetricsID.SPEED_HORIZONTAL/VERTICAL/3D/PACE
From external sensors: HEART_RATE, SPEED_CADENCE_CADENCE, SPEED_CADENCE_SPEED, SPEED_EXT,CADENCE_EXT
https://github.com/ReconInstruments/sdk/tree/master/
Samples/MetricsDemo

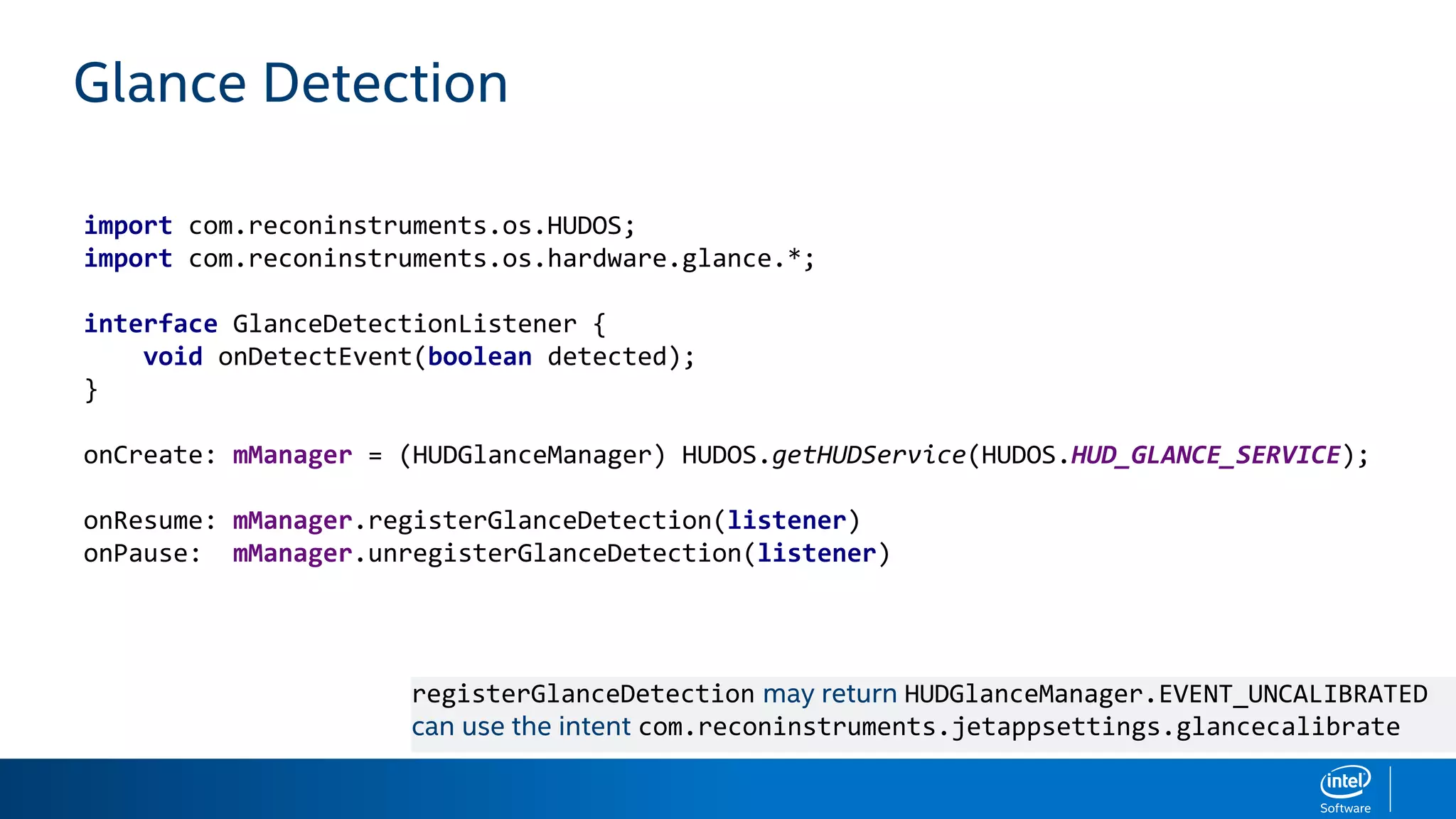

18. Glance Detection
import com.reconinstruments.os.HUDOS;
import com.reconinstruments.os.hardware.glance.*;
interface GlanceDetectionListener {
void onDetectEvent(boolean detected);
}
onCreate: mManager = (HUDGlanceManager) HUDOS.getHUDService(HUDOS.HUD_GLANCE_SERVICE);
onResume: mManager.registerGlanceDetection(listener)
onPause: mManager.unregisterGlanceDetection(listener)
registerGlanceDetection may return HUDGlanceManager.EVENT_UNCALIBRATED
can use the intent com.reconinstruments.jetappsettings.glancecalibrate

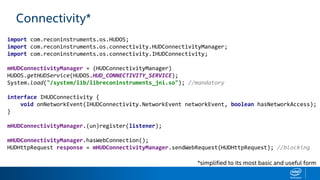

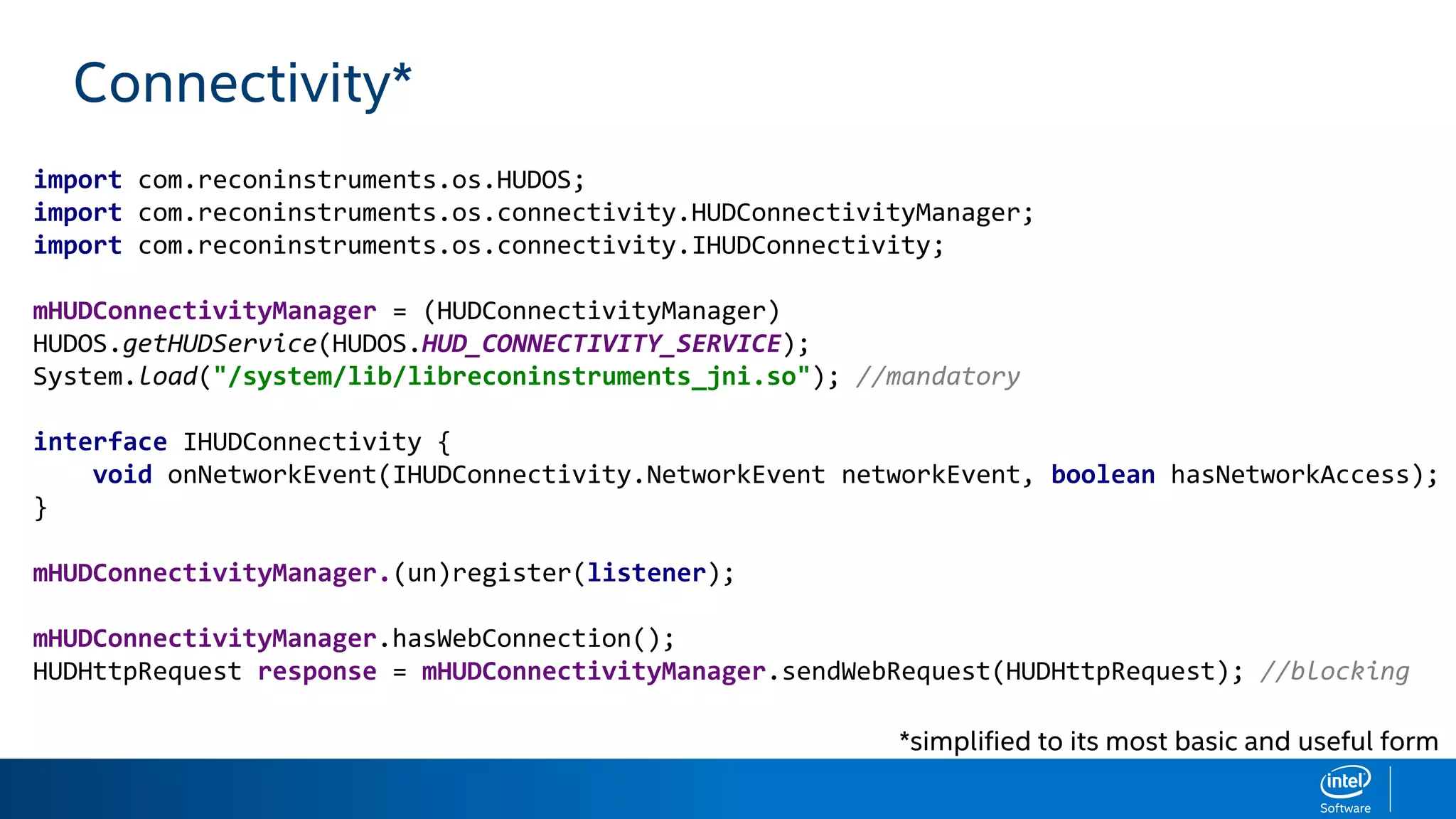

19. Connectivity*
import com.reconinstruments.os.HUDOS;
import com.reconinstruments.os.connectivity.HUDConnectivityManager;
import com.reconinstruments.os.connectivity.IHUDConnectivity;
mHUDConnectivityManager = (HUDConnectivityManager)
HUDOS.getHUDService(HUDOS.HUD_CONNECTIVITY_SERVICE);
System.load("/system/lib/libreconinstruments_jni.so"); //mandatory
interface IHUDConnectivity {
void onNetworkEvent(IHUDConnectivity.NetworkEvent networkEvent, boolean hasNetworkAccess);
}
mHUDConnectivityManager.(un)register(listener);
mHUDConnectivityManager.hasWebConnection();
HUDHttpRequest response = mHUDConnectivityManager.sendWebRequest(HUDHttpRequest); //blocking
*simplified to its most basic and useful form

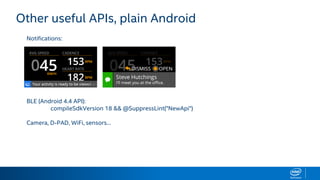

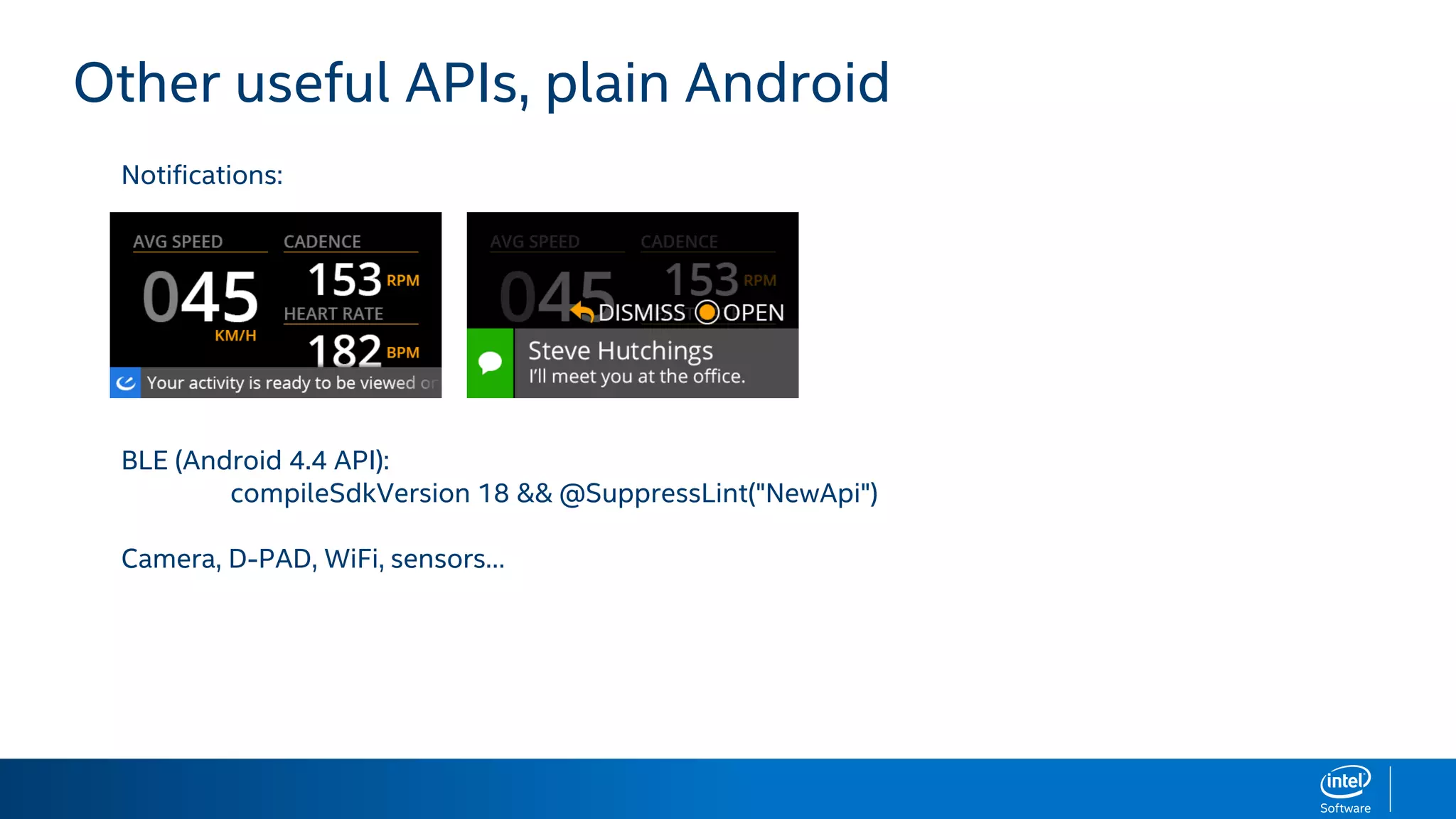

20. Other useful APIs, plain Android
Notifications:
BLE (Android 4.4 API):
compileSdkVersion 18 && @SuppressLint("NewApi")
Camera, D-PAD, WiFi, sensors…

21. DistributingApps

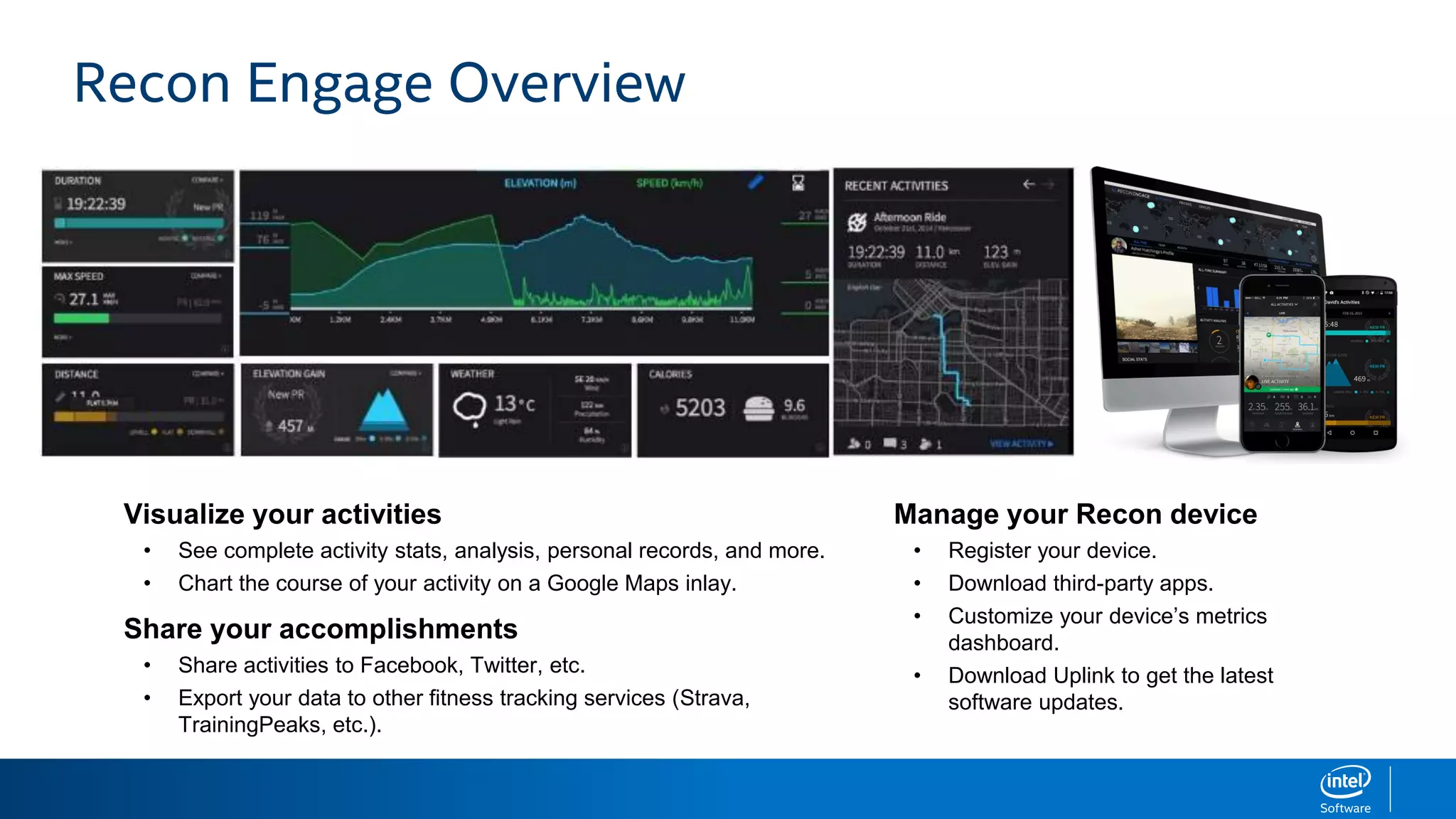

22. Visualize your activities
• See complete activity stats, analysis, personal records, and more.
• Chart the course of your activity on a Google Maps inlay.
Share your accomplishments
• Share activities to Facebook, Twitter, etc.
• Export your data to other fitness tracking services (Strava,
TrainingPeaks, etc.).
Manage your Recon device
• Register your device.
• Download third-party apps.
• Customize your device’s metrics
dashboard.
• Download Uplink to get the latest
software updates.
Recon Engage Overview

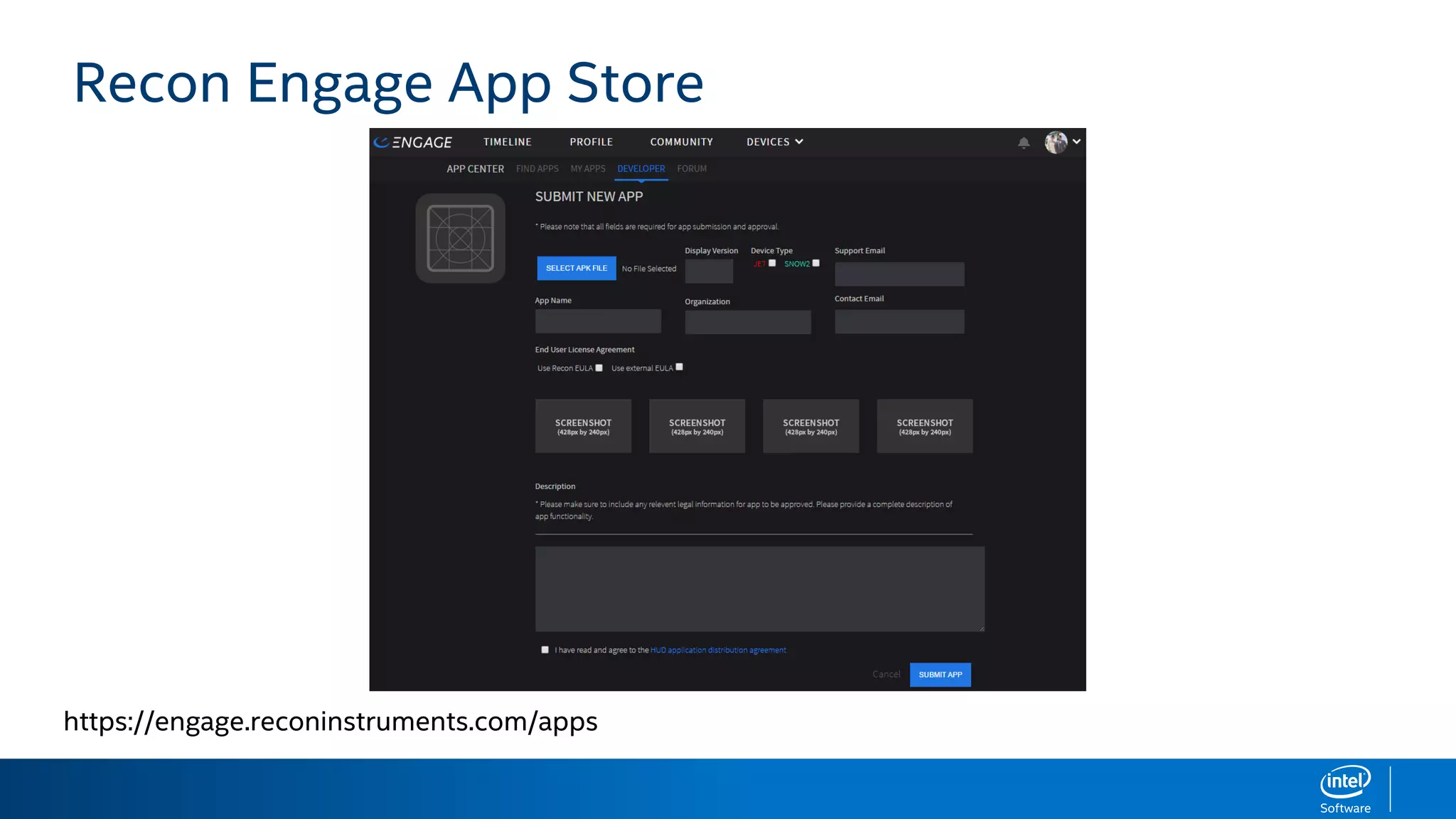

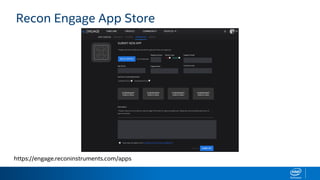

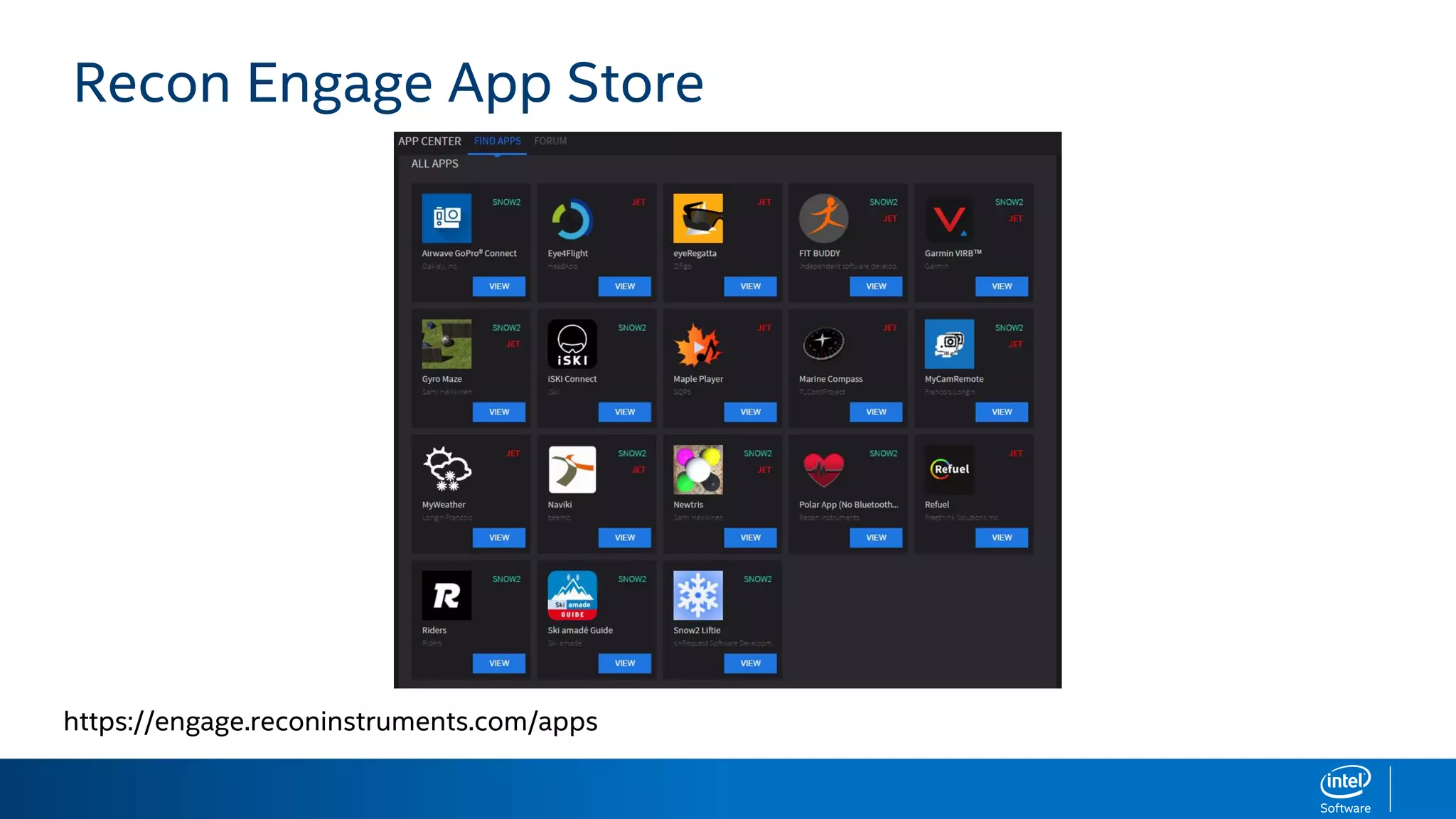

23. Recon Engage App Store
https://engage.reconinstruments.com/apps

24. Recon Engage App Store
https://engage.reconinstruments.com/apps

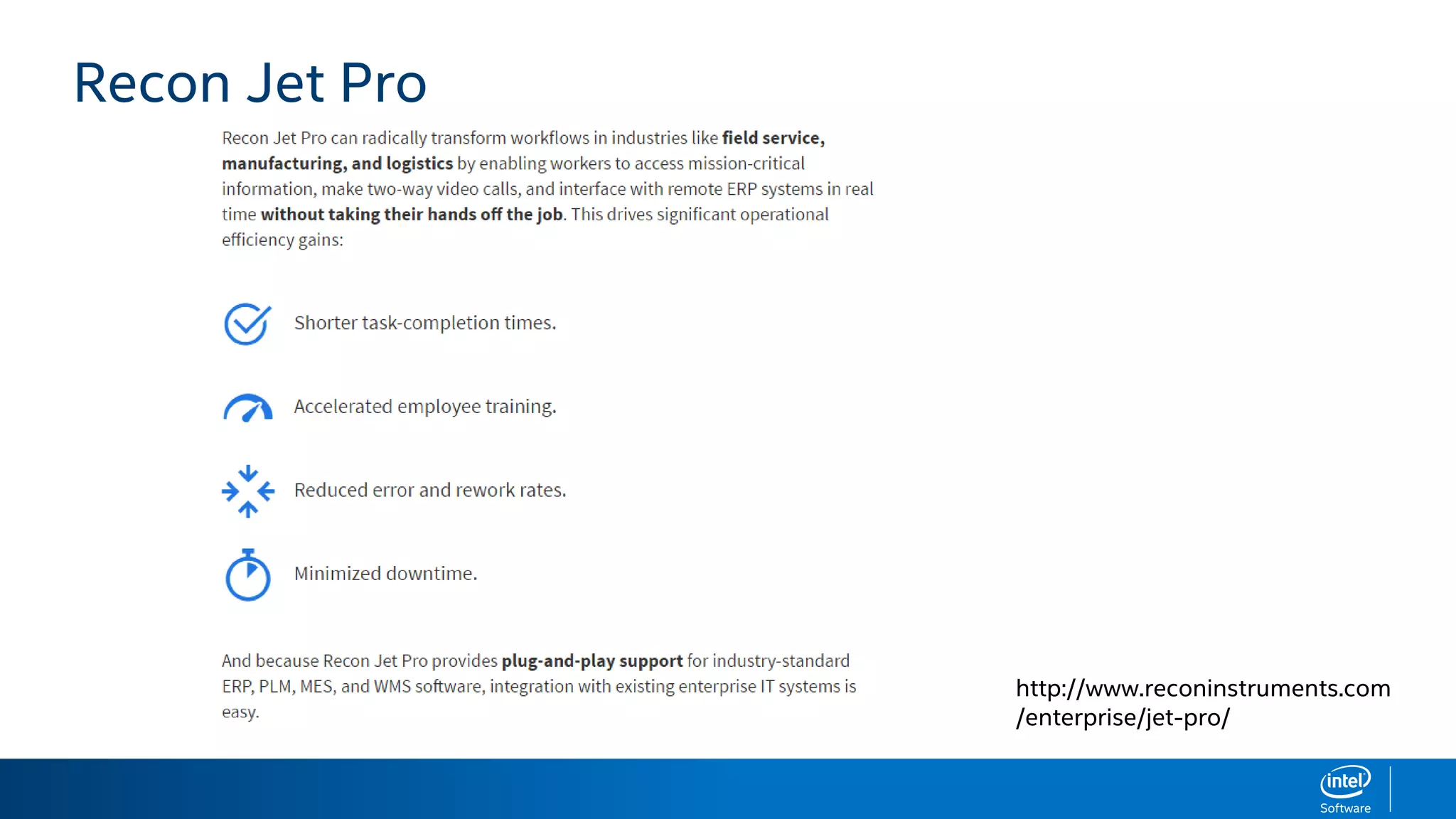

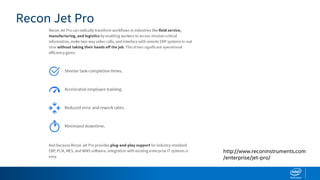

25. Recon Jet Pro
http://www.reconinstruments.com
/enterprise/jet-pro/

26. Examplesofapps

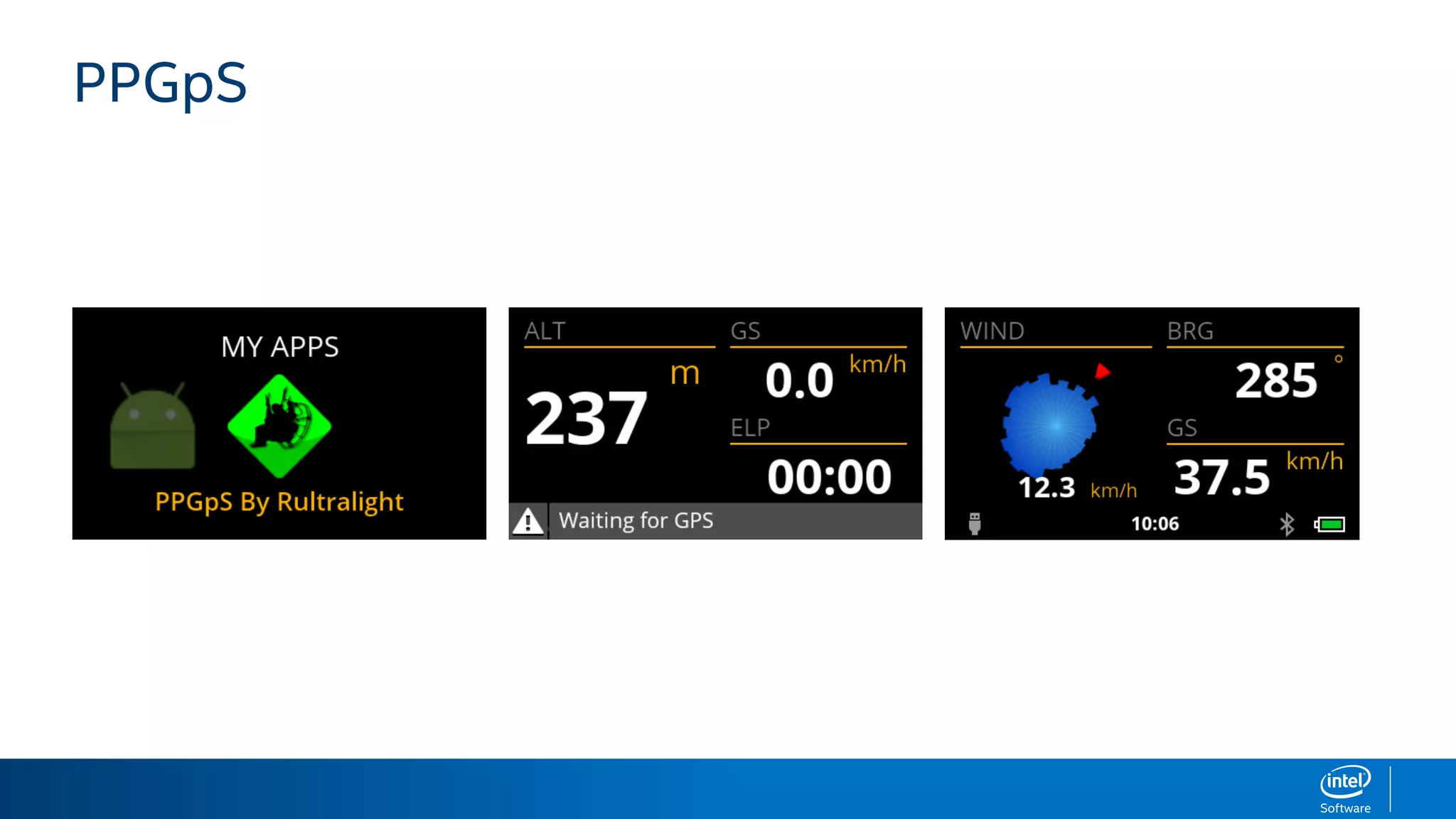

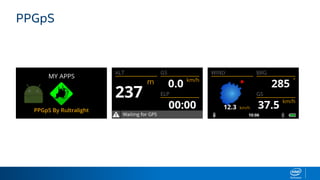

27. App for ultralight flyers (prototype)

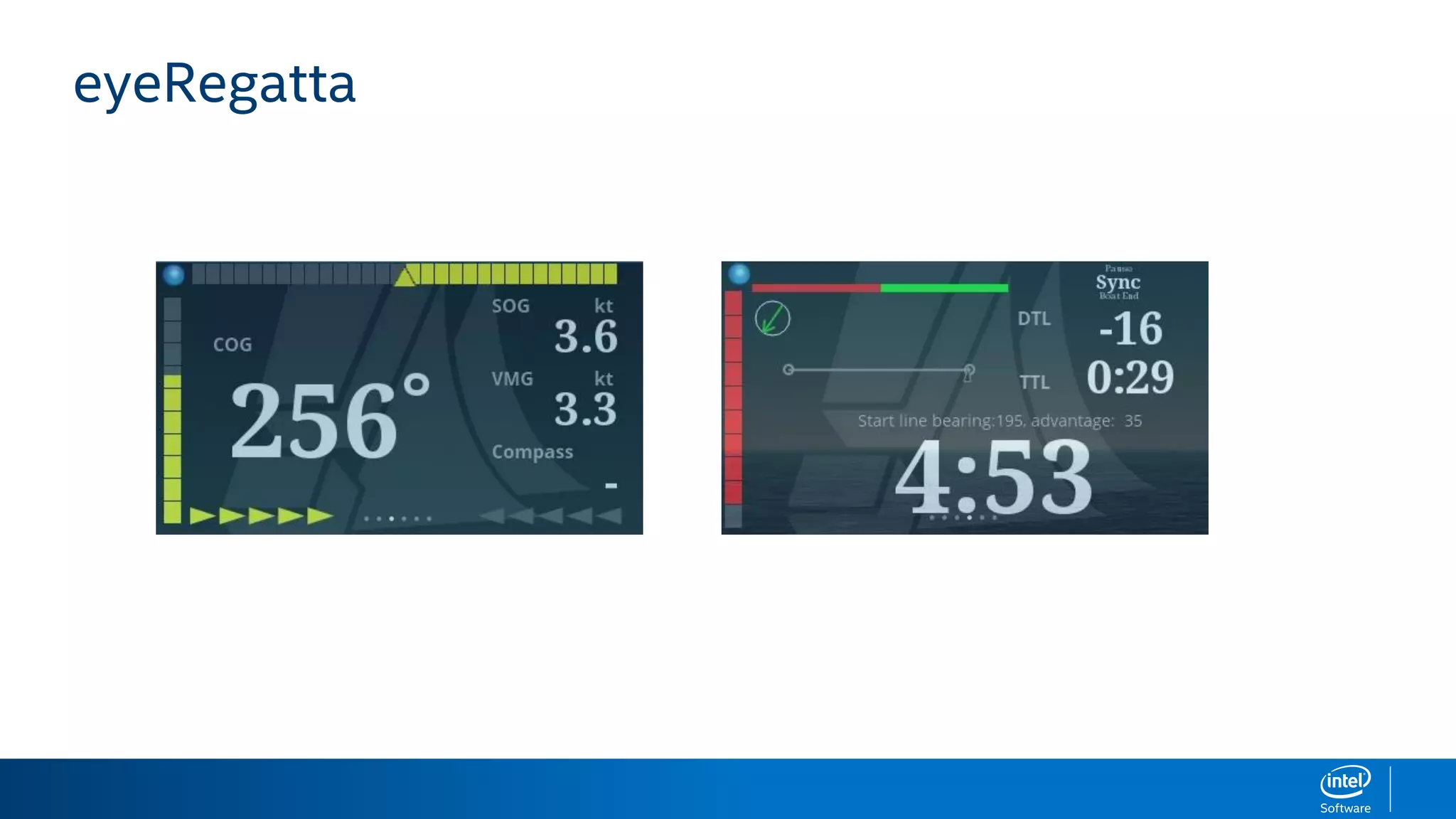

28. eyeRegatta

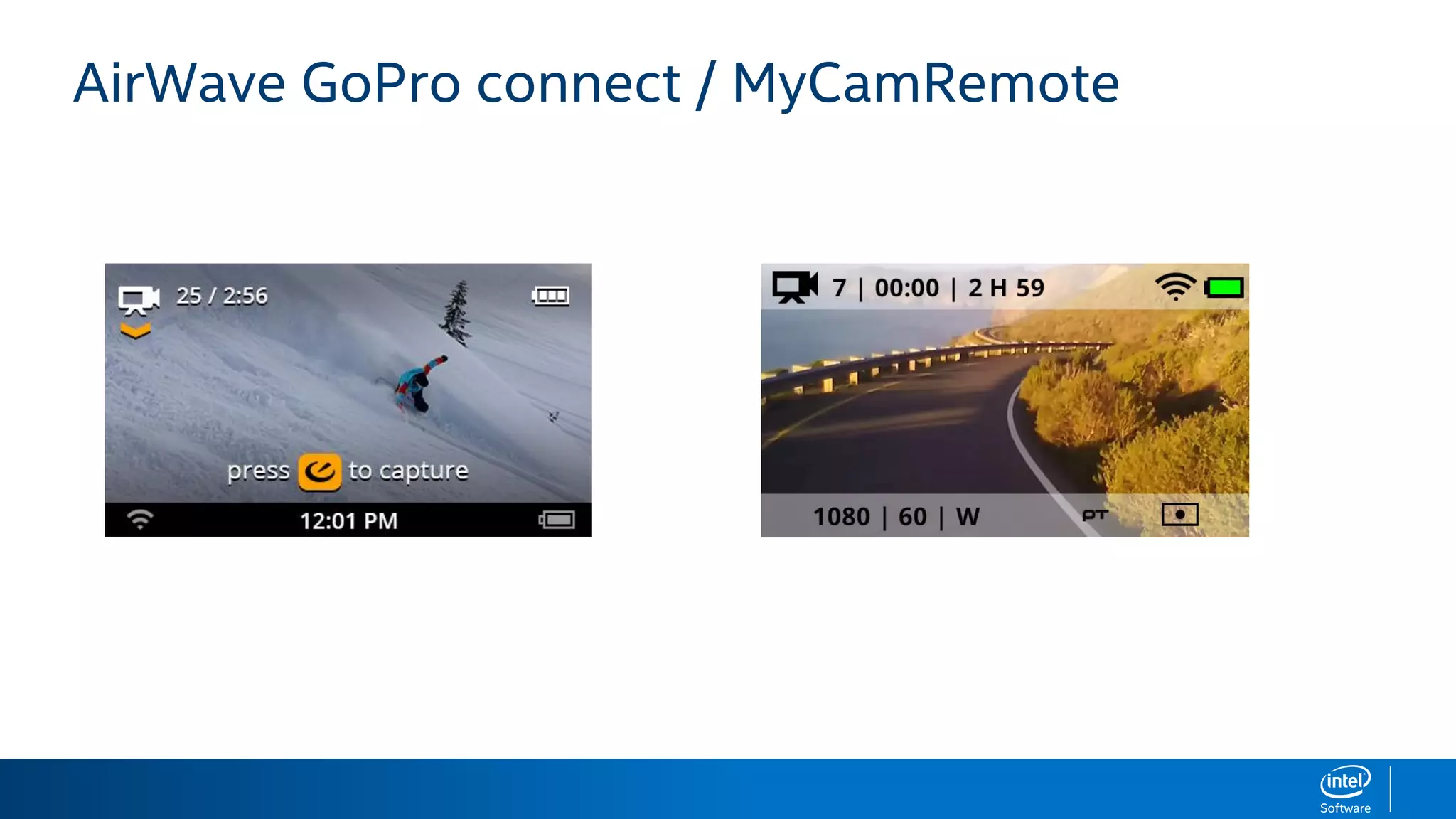

29. AirWave GoPro connect / MyCamRemote

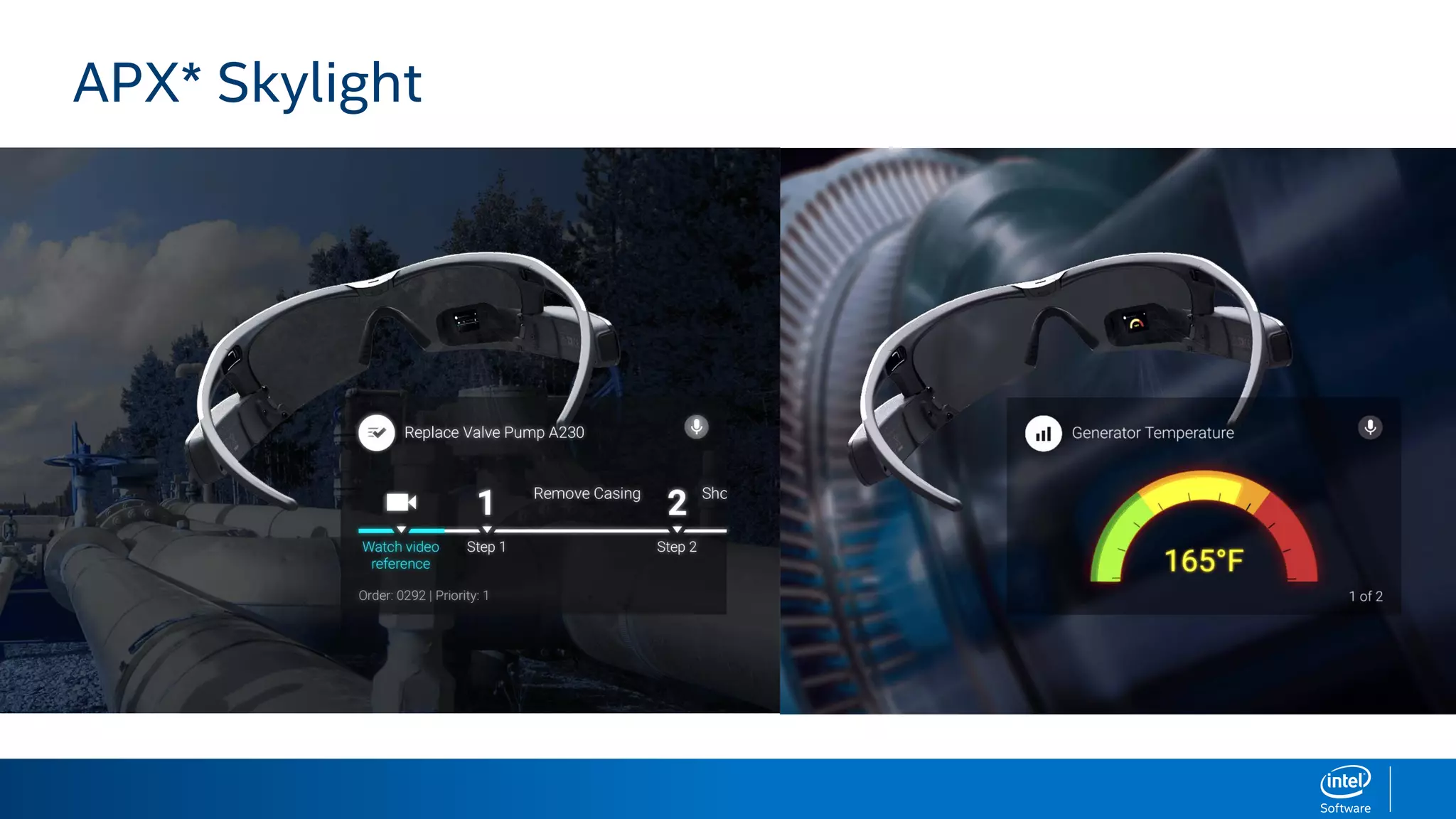

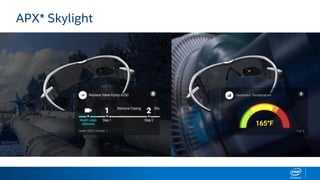

30. APX* Skylight

31. THANKYOU
xavier.hallade@intel.com - @ph0b - +XavierHallade
