Android App Development using HTML5 Technology
The document provides an overview of Android app development using HTML5 and related technologies, including key frameworks like jQuery Mobile and PhoneGap. It covers essential topics such as SDK installation, web services, and creating mobile applications across platforms. The document also mentions an app challenge focused on augmented reality and computer vision, offering substantial prizes to winners.
More Related Content
Similar to Android App Development using HTML5 Technology
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Android App Development using HTML5 Technology
- 1. Android App Development using HTML5 Technology APPMAZINC Mobile Apps Camp 2012
- 2. Summary Intro Android Development Android SDK Installation Intro HTML5 Intro jQuery Mobile Intro Webservice (XML, JSON) PhoneGap (Apache Cordova) Make RSS Reader App with PhoneGap
- 3. Intro Android Development Android Development Java HTML5 Native (C/C++) Adobe AIR Python Unity Develop on Mac, Windows, Linux and even on Android it self (AIDE: Android Java IDE)
- 4. Android SDK Installation Java SDK Eclipse Android SDK ADT Plug-in HTML5 PhoneGap jQueryMobile

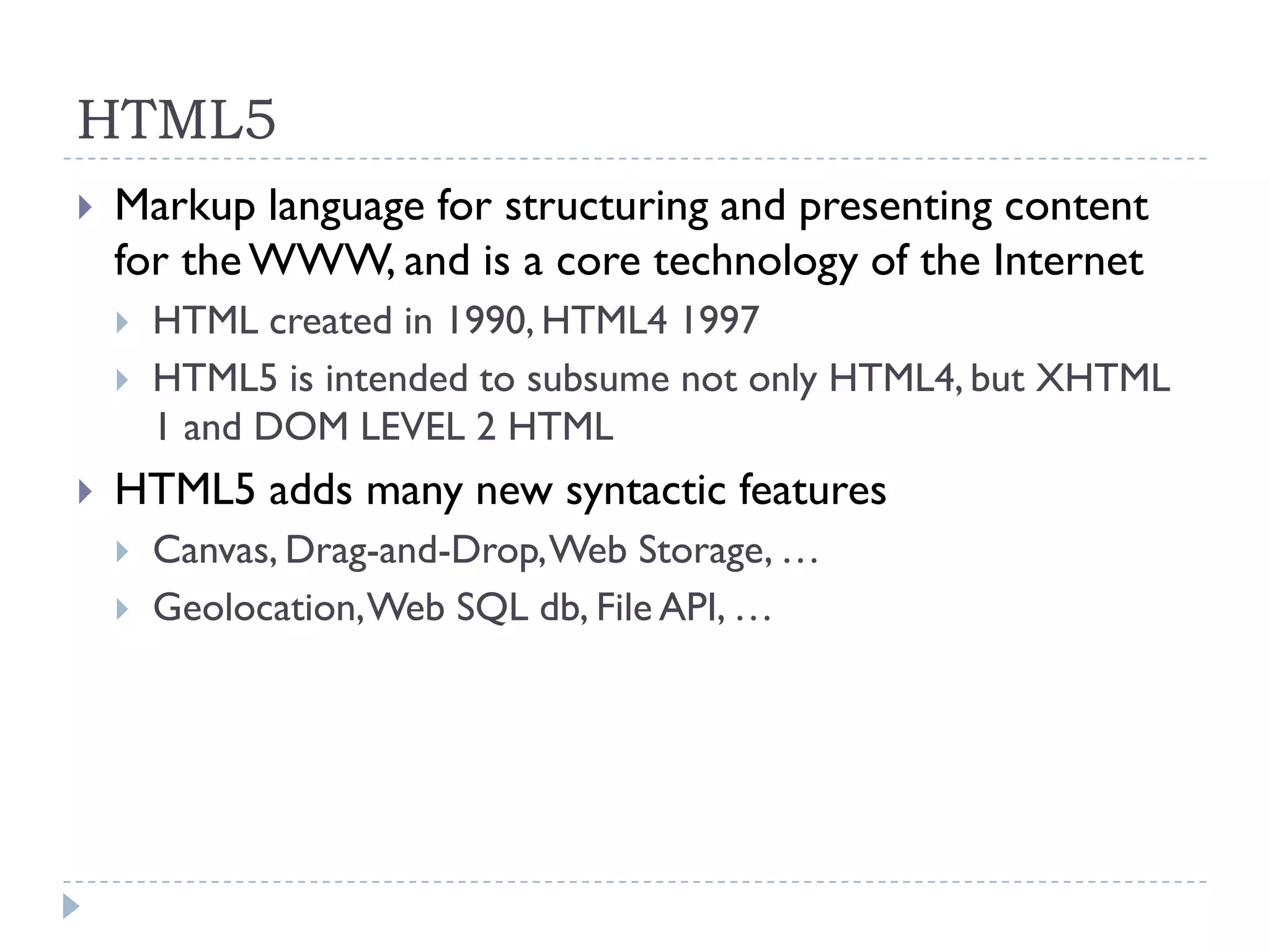

- 5. HTML5 Markup language for structuring and presenting content for the WWW, and is a core technology of the Internet HTML created in 1990, HTML4 1997 HTML5 is intended to subsume not only HTML4, but XHTML 1 and DOM LEVEL 2 HTML HTML5 adds many new syntactic features Canvas, Drag-and-Drop, Web Storage, … Geolocation, Web SQL db, File API, …
- 6.
- 7.

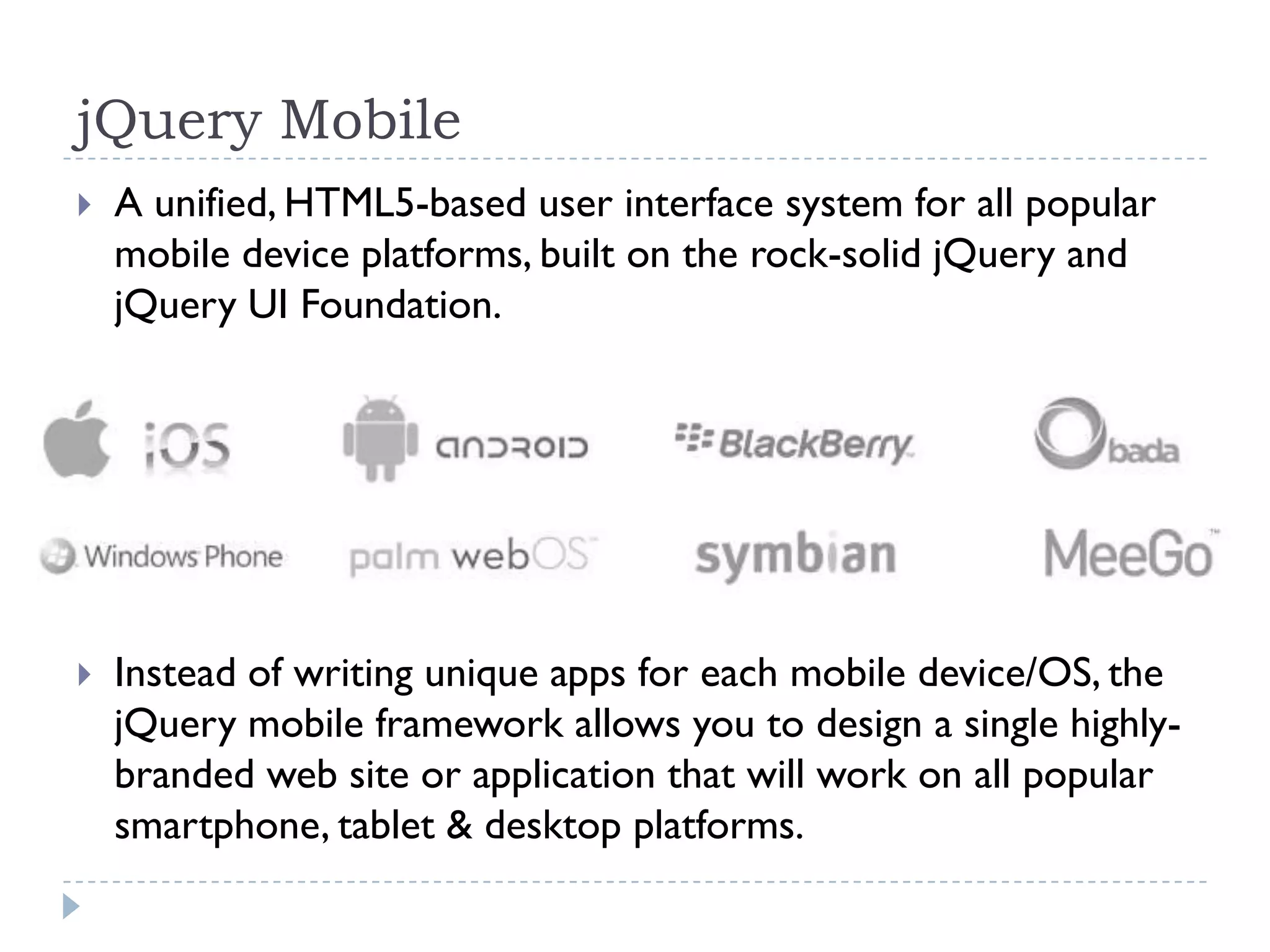

- 8. jQuery Mobile A unified, HTML5-based user interface system for all popular mobile device platforms, built on the rock-solid jQuery and jQuery UI Foundation. Instead of writing unique apps for each mobile device/OS, the jQuery mobile framework allows you to design a single highly- branded web site or application that will work on all popular smartphone, tablet & desktop platforms.

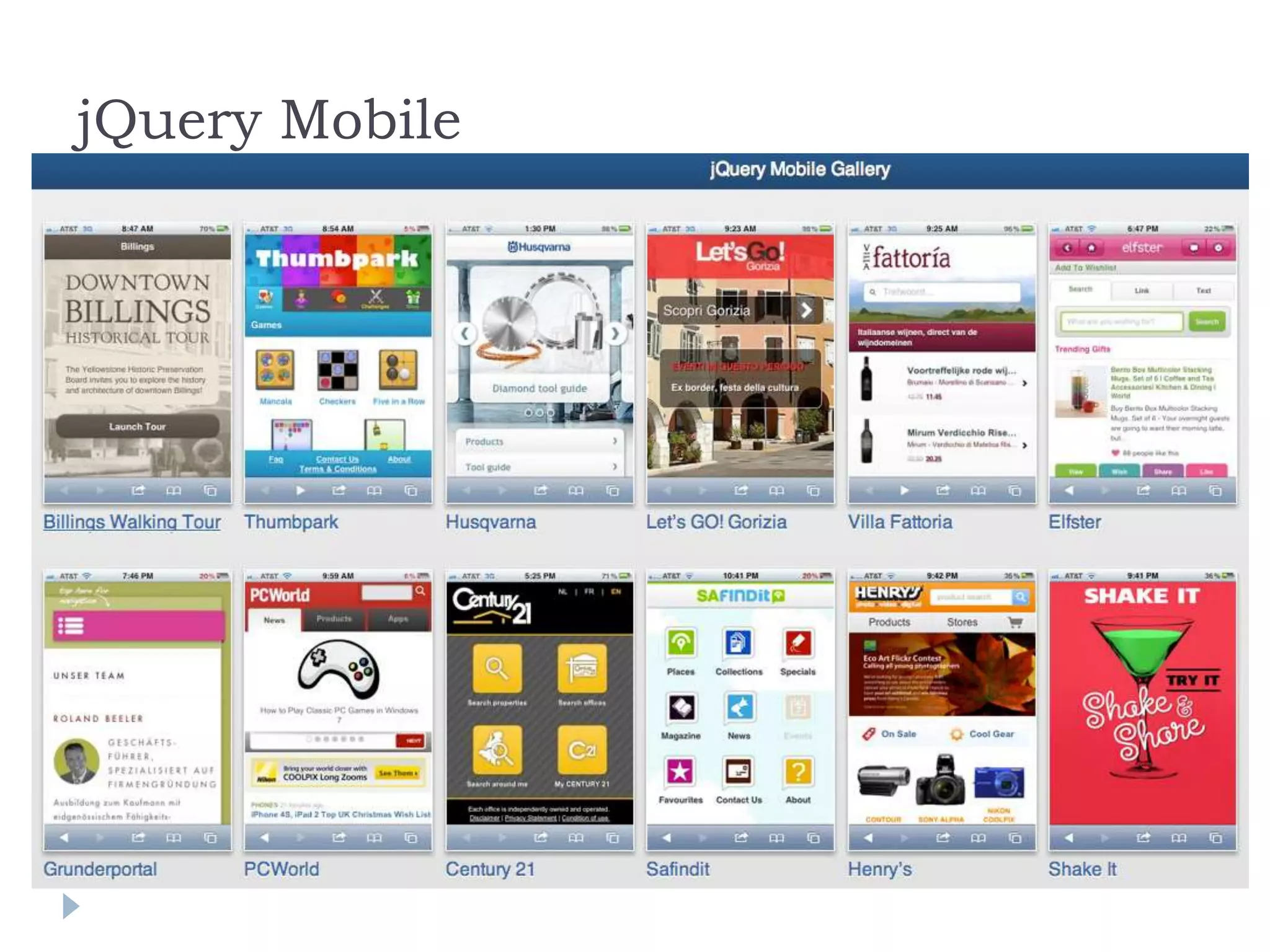

- 9.
- 10.

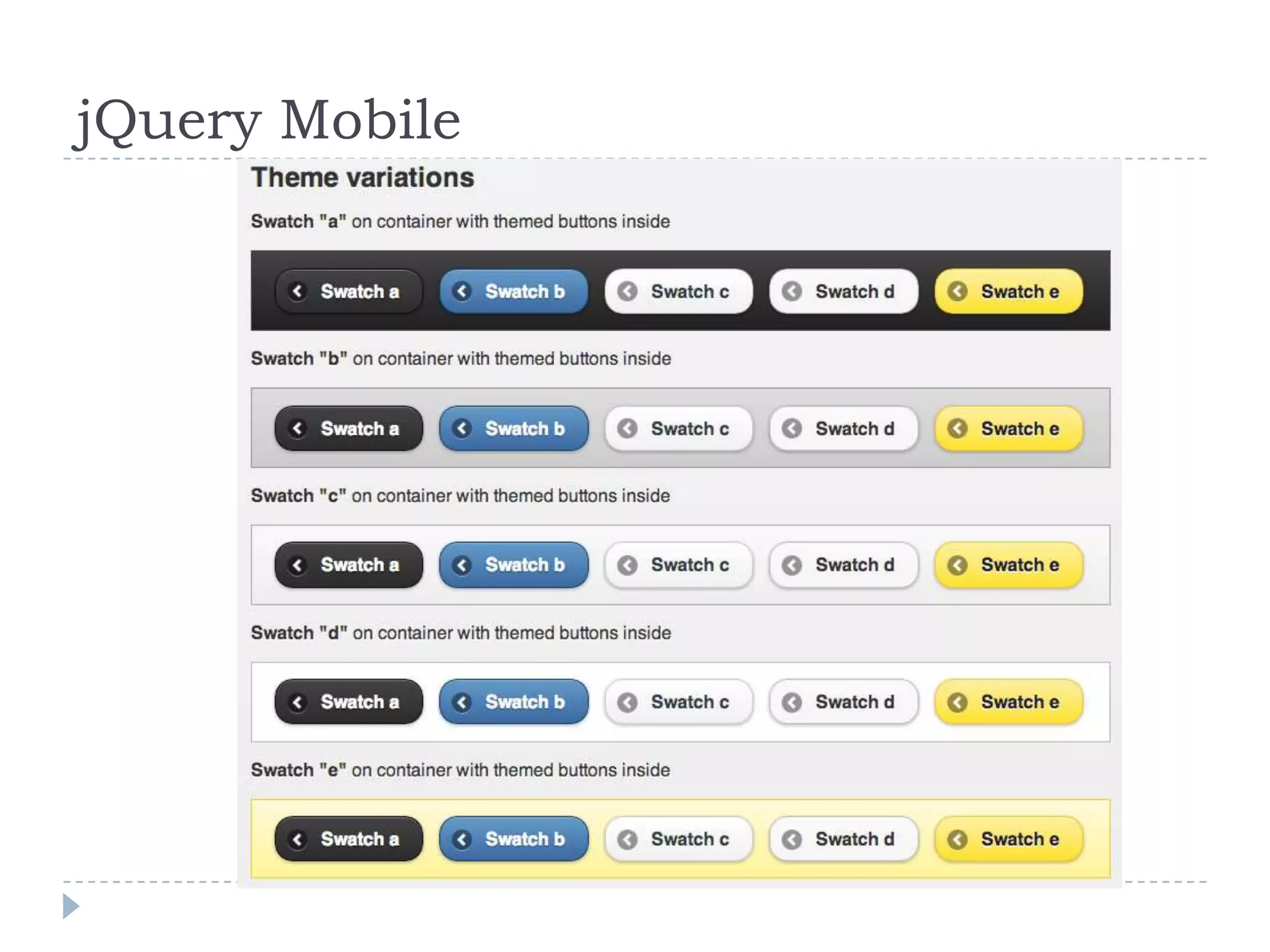

- 11.

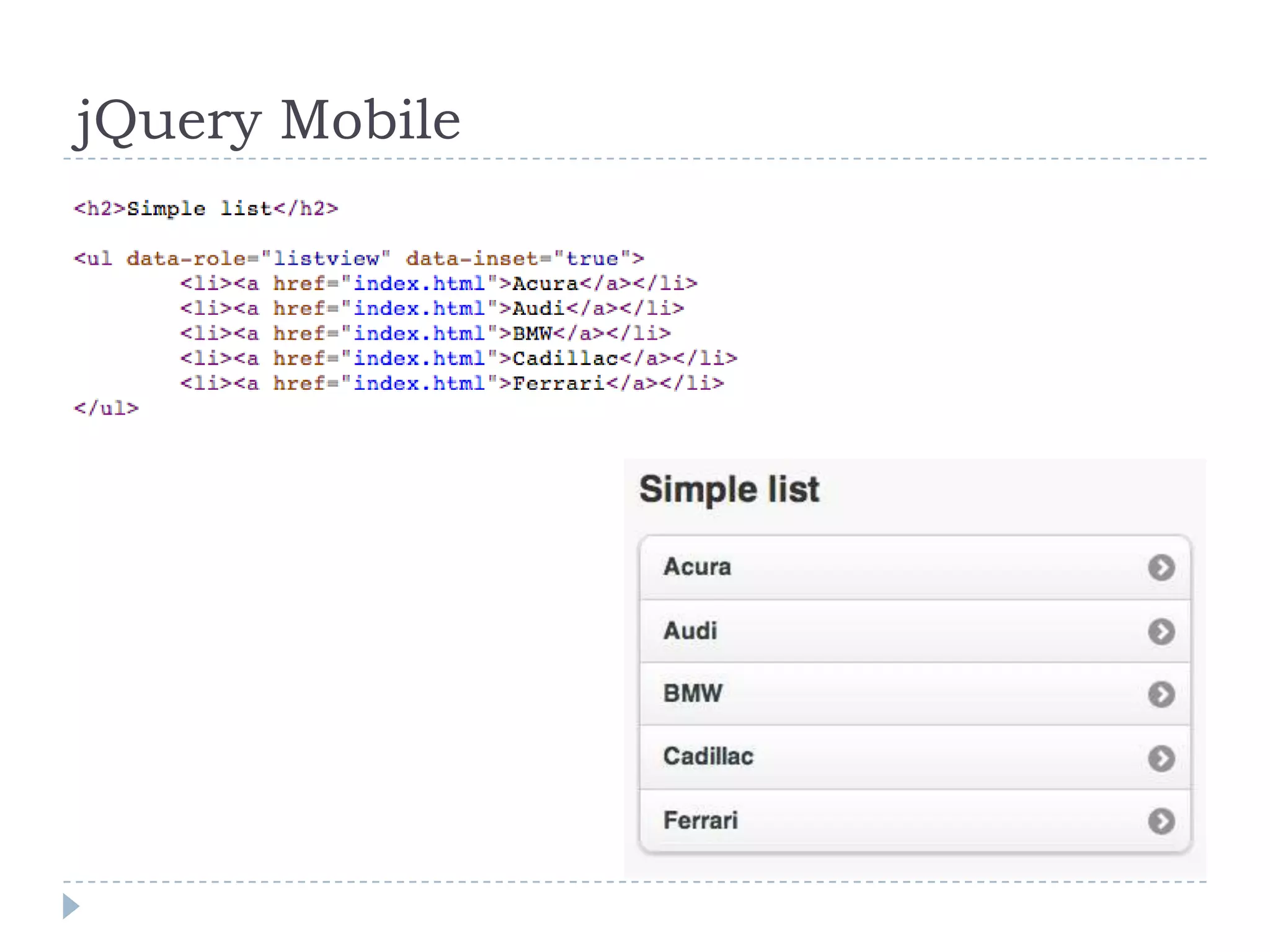

- 12.

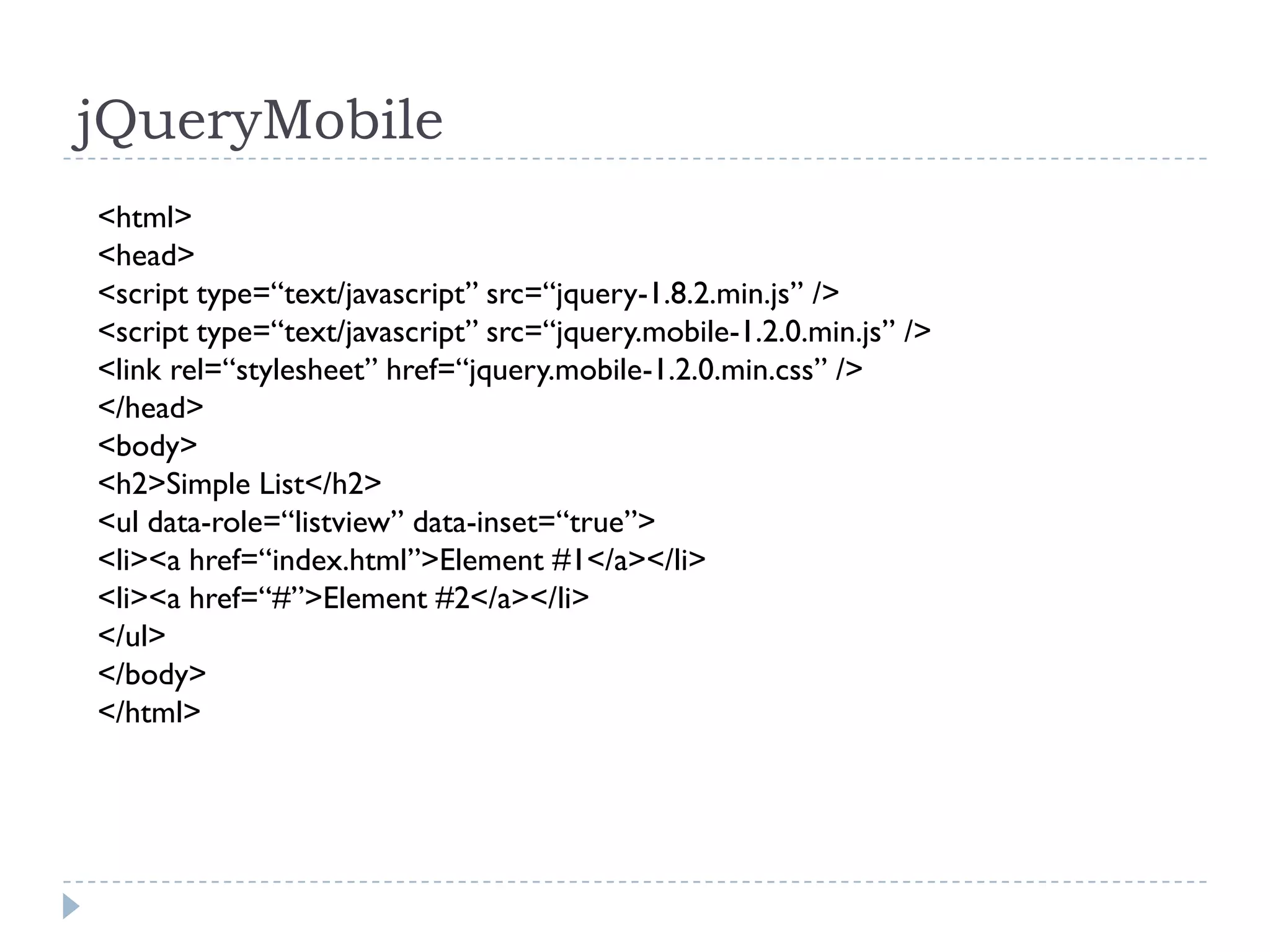

- 13. jQueryMobile <html> <head> <script type=“text/javascript” src=“jquery-1.8.2.min.js”/> <script type=“text/javascript” src=“jquery.mobile-1.2.0.min.js” /> <link rel=“stylesheet” href=“jquery.mobile-1.2.0.min.css” /> </head> <body> <h2>Simple List</h2> <ul data-role=“listview” data-inset=“true”> <li><a href=“index.html”>Element #1</a></li> <li><a href=“#”>Element #2</a></li> </ul> </body> </html>

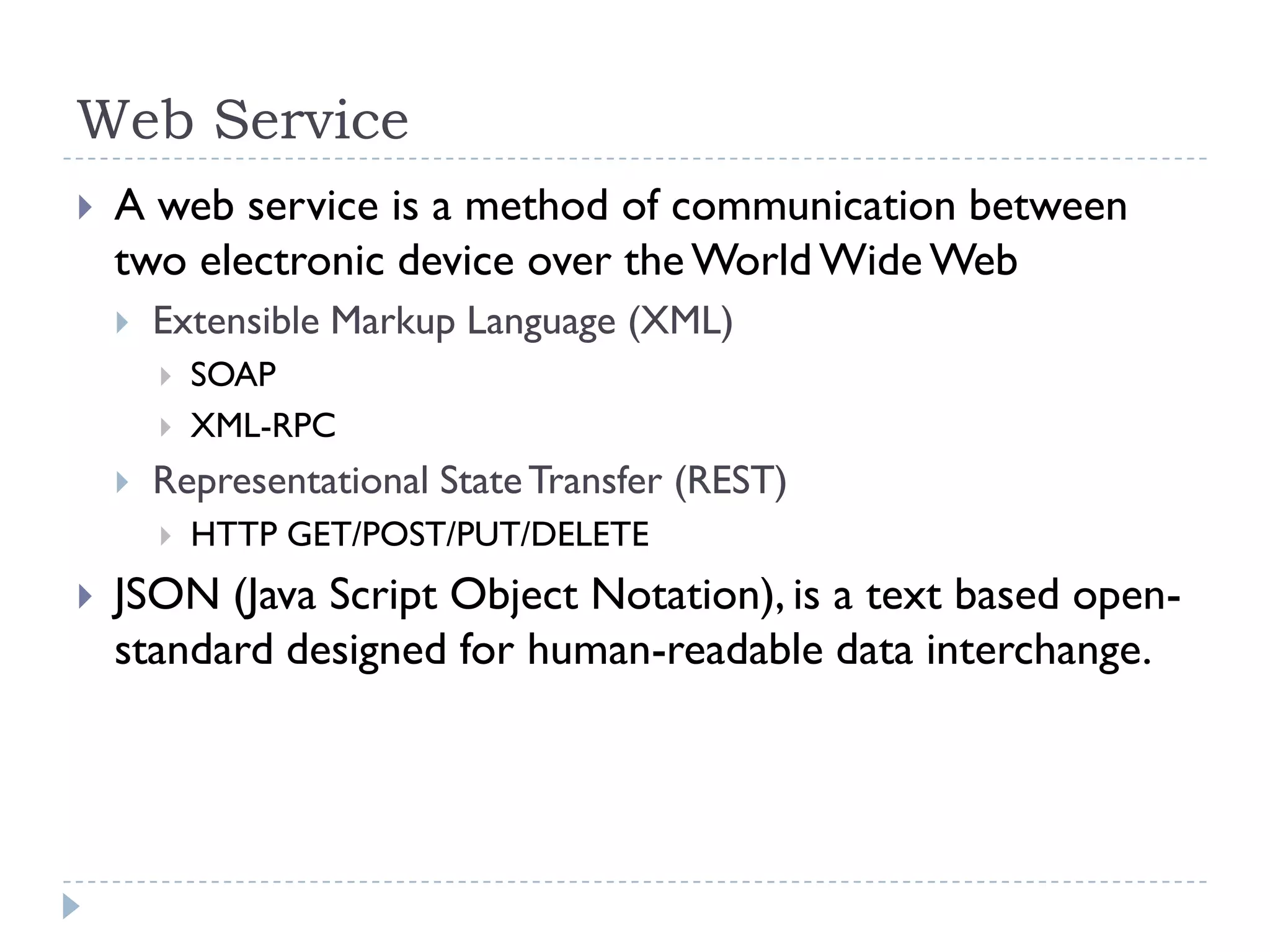

- 14. Web Service A web service is a method of communication between two electronic device over the World Wide Web Extensible Markup Language (XML) SOAP XML-RPC Representational State Transfer (REST) HTTP GET/POST/PUT/DELETE JSON (Java Script Object Notation), is a text based open- standard designed for human-readable data interchange.

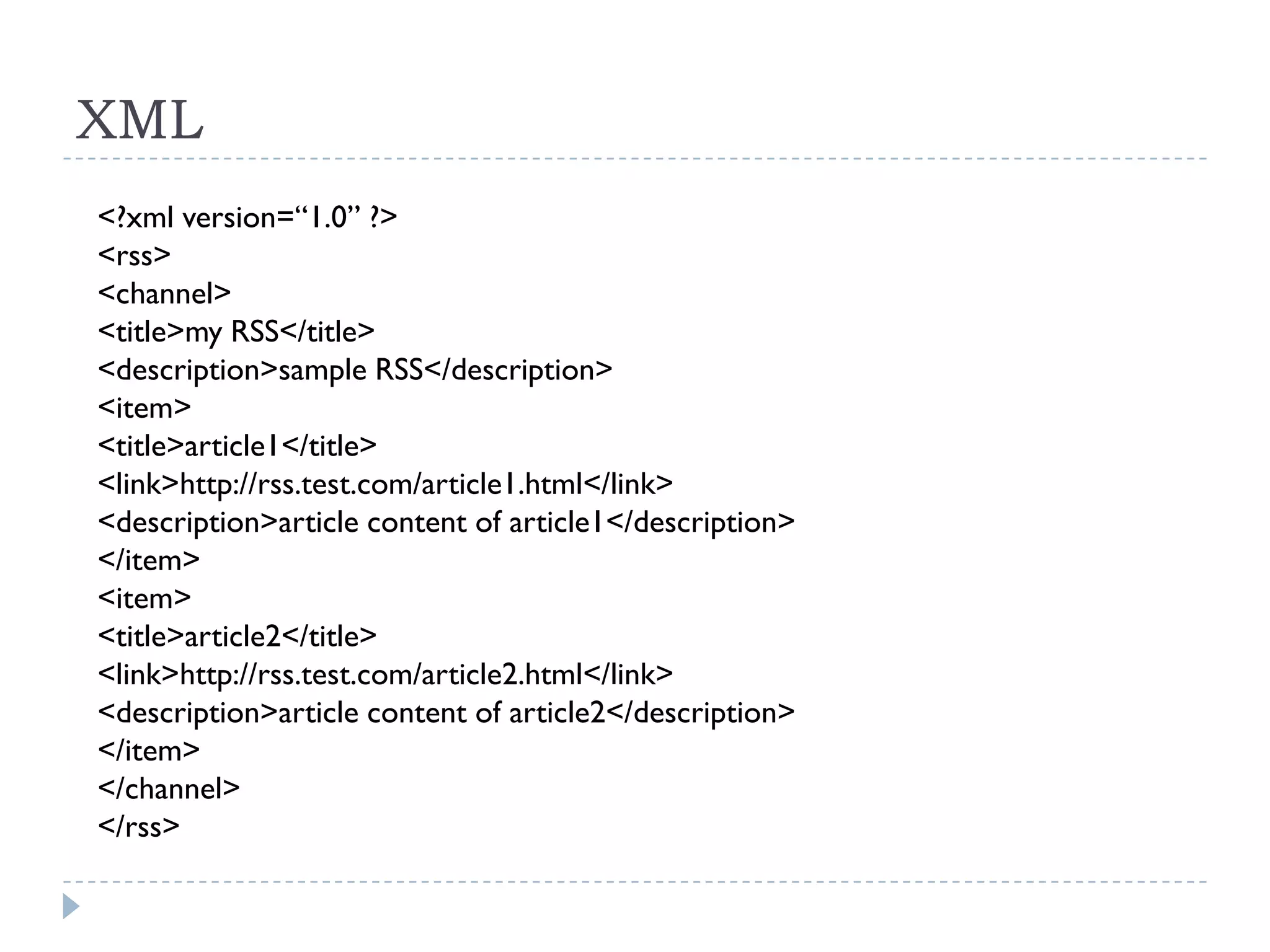

- 15. XML <?xml version=“1.0” ?> <rss> <channel> <title>myRSS</title> <description>sample RSS</description> <item> <title>article1</title> <link>http://rss.test.com/article1.html</link> <description>article content of article1</description> </item> <item> <title>article2</title> <link>http://rss.test.com/article2.html</link> <description>article content of article2</description> </item> </channel> </rss>

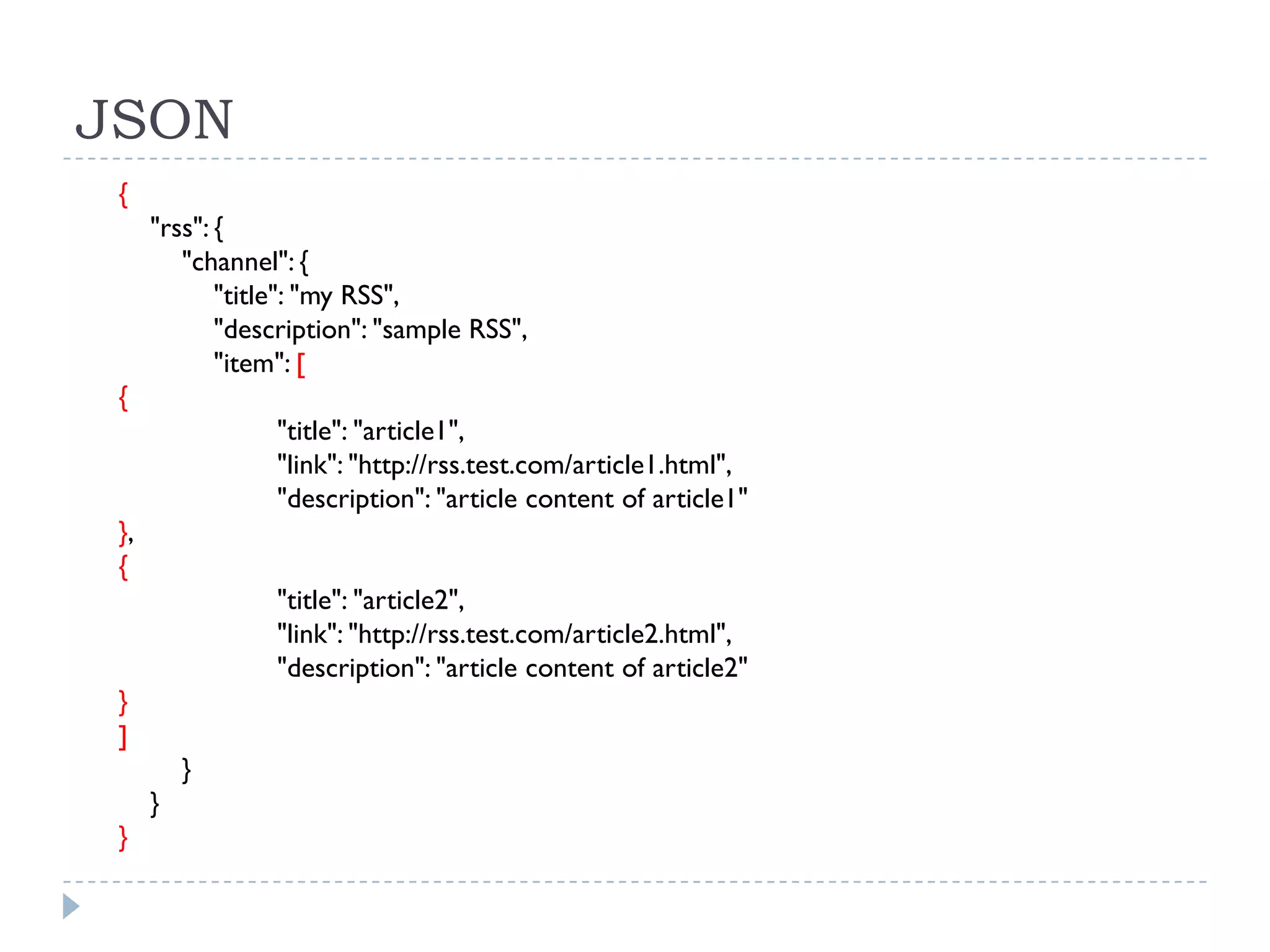

- 16. JSON { "rss": { "channel": { "title": "my RSS", "description": "sample RSS", "item": [ { "title": "article1", "link": "http://rss.test.com/article1.html", "description": "article content of article1" }, { "title": "article2", "link": "http://rss.test.com/article2.html", "description": "article content of article2" } ] } } }

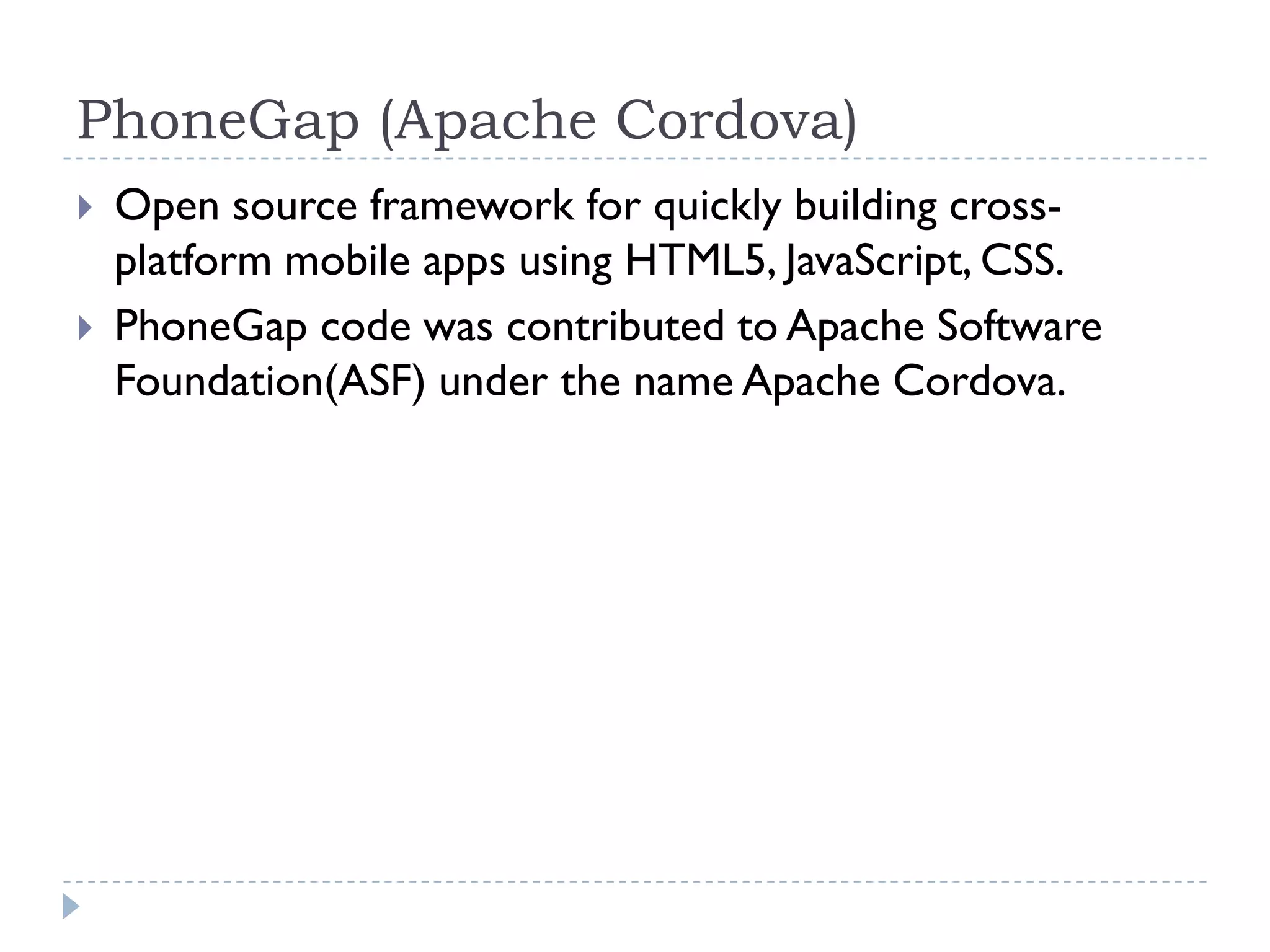

- 17. PhoneGap (Apache Cordova) Open source framework for quickly building cross- platform mobile apps using HTML5, JavaScript, CSS. PhoneGap code was contributed to Apache Software Foundation(ASF) under the name Apache Cordova.

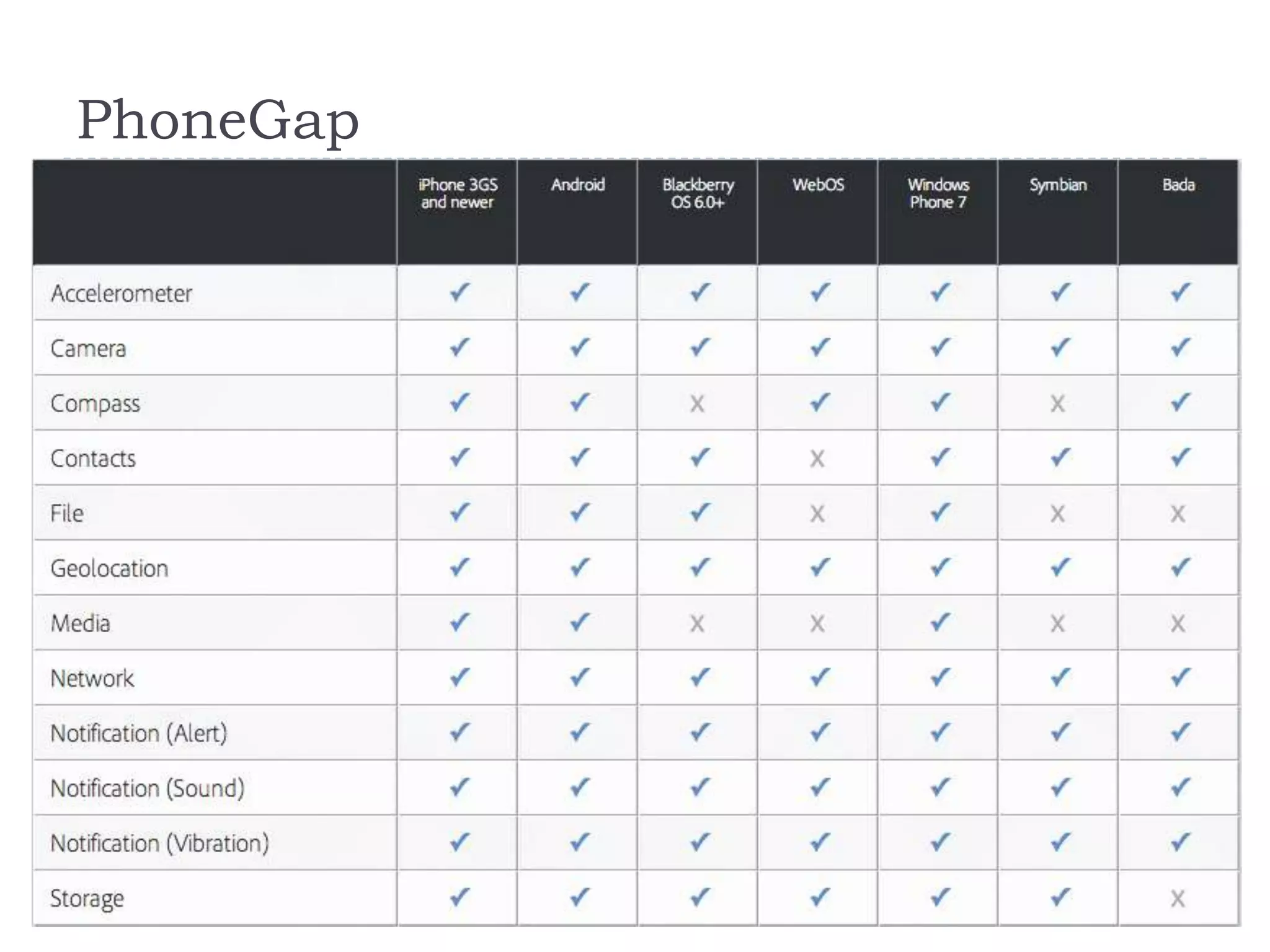

- 18.

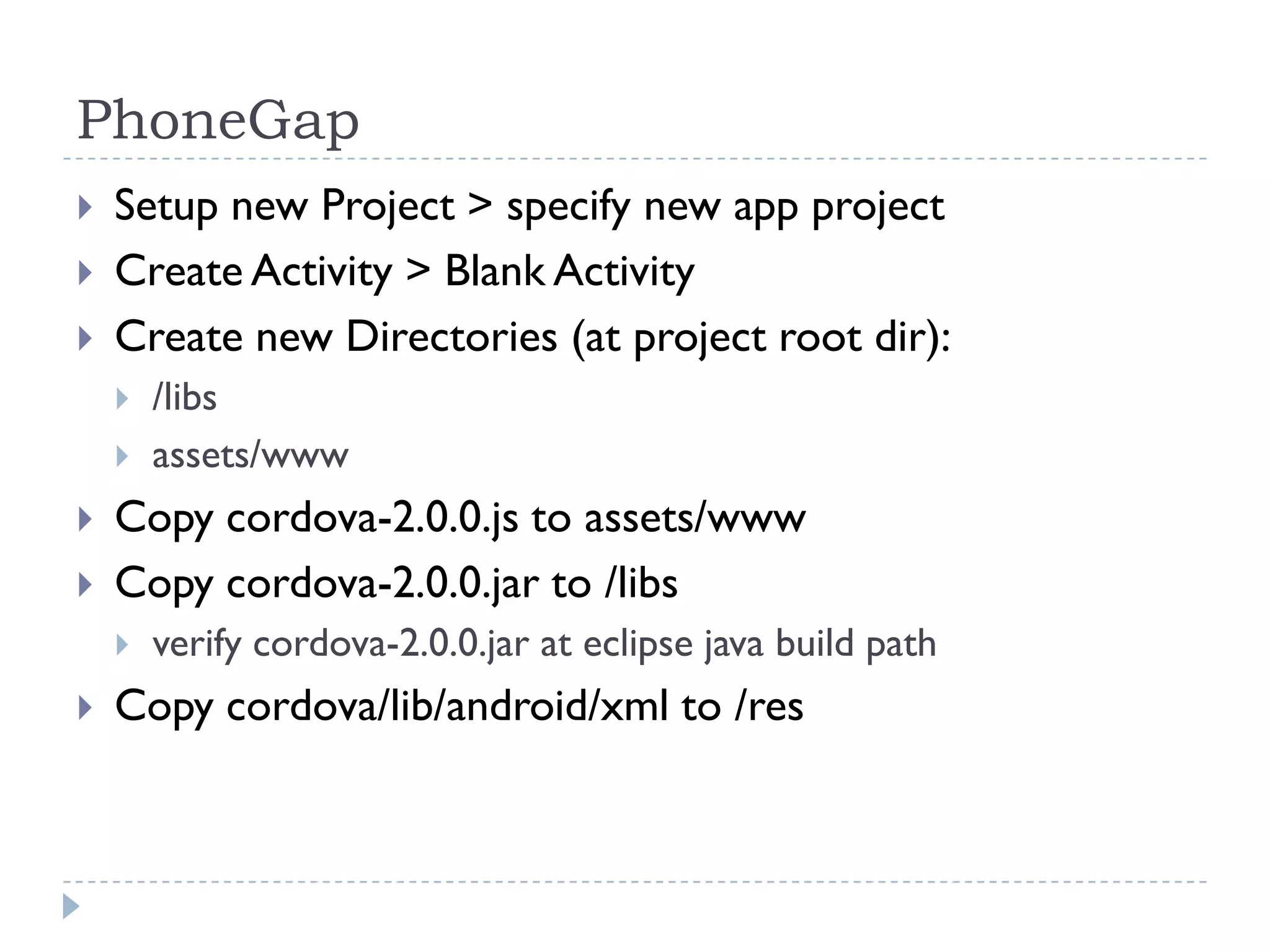

- 19. PhoneGap Setup new Project > specify new app project Create Activity > Blank Activity Create new Directories (at project root dir): /libs assets/www Copy cordova-2.0.0.js to assets/www Copy cordova-2.0.0.jar to /libs verify cordova-2.0.0.jar at eclipse java build path Copy cordova/lib/android/xml to /res

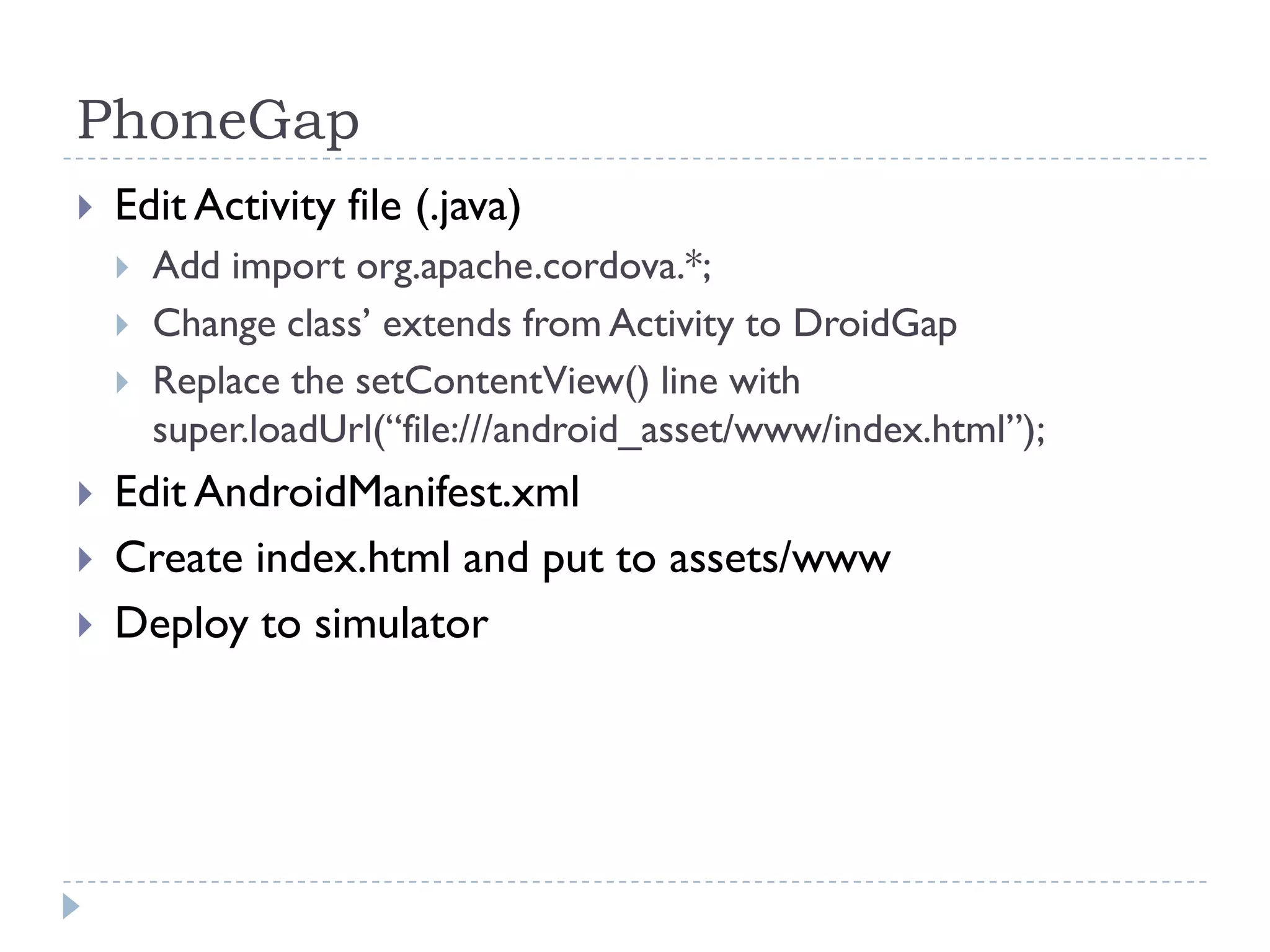

- 20. PhoneGap Edit Activity file (.java) Add import org.apache.cordova.*; Change class’ extends from Activity to DroidGap Replace the setContentView() line with super.loadUrl(“file:///android_asset/www/index.html”); Edit AndroidManifest.xml Create index.html and put to assets/www Deploy to simulator

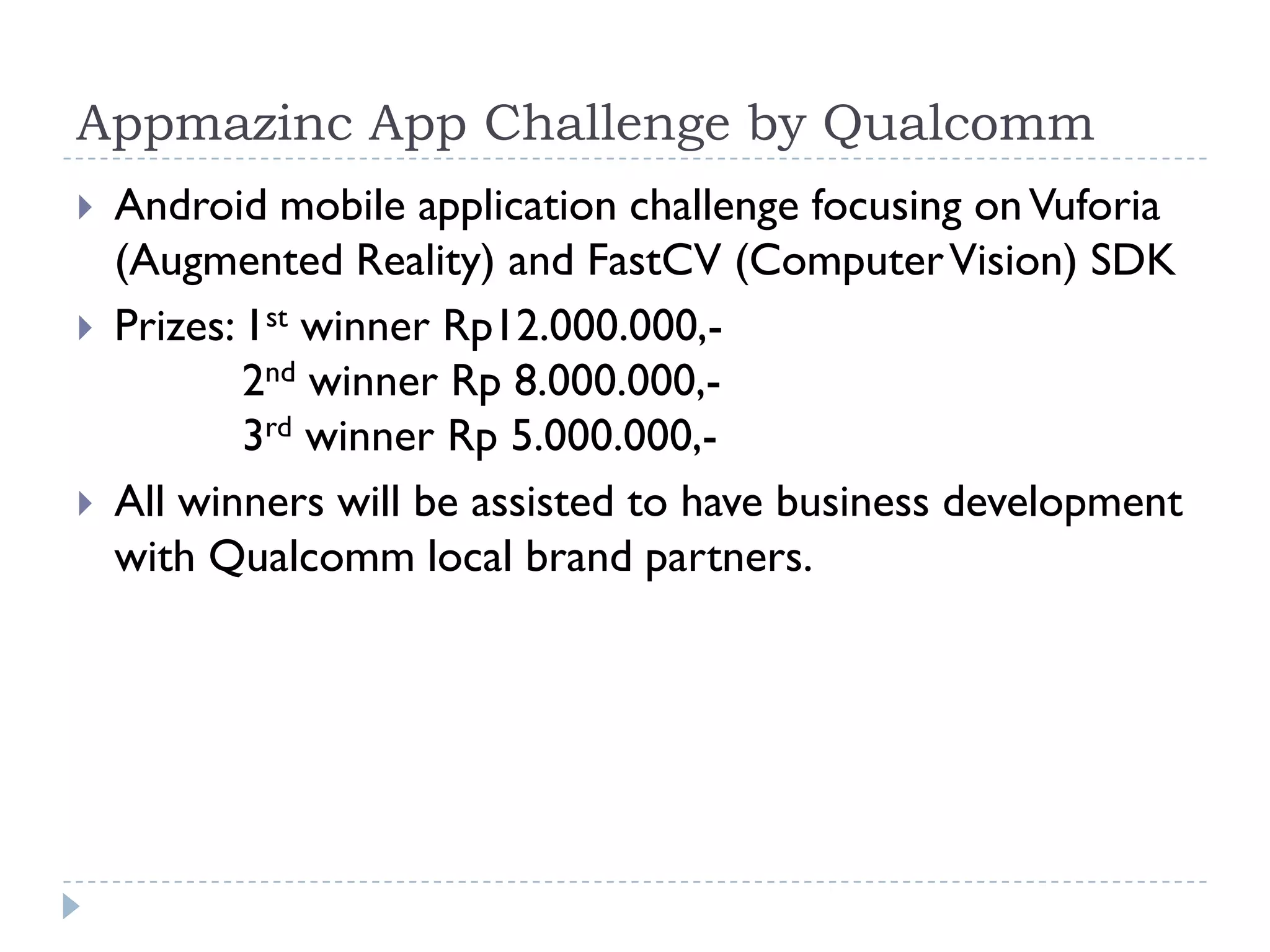

- 21. Appmazinc App Challengeby Qualcomm Android mobile application challenge focusing on Vuforia (Augmented Reality) and FastCV (Computer Vision) SDK Prizes: 1st winner Rp12.000.000,- 2nd winner Rp 8.000.000,- 3rd winner Rp 5.000.000,- All winners will be assisted to have business development with Qualcomm local brand partners.

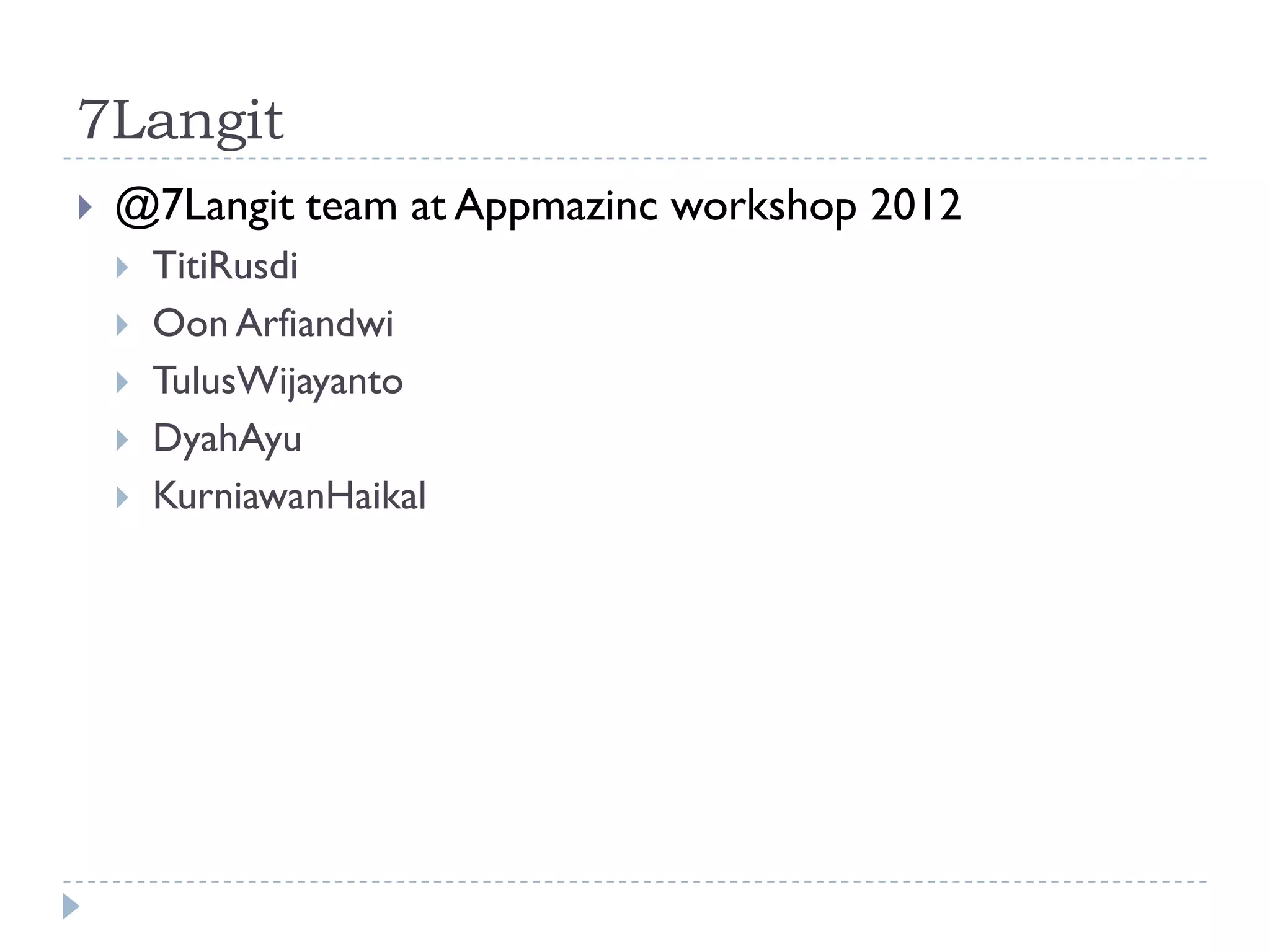

- 22. 7Langit @7Langit team at Appmazinc workshop 2012 TitiRusdi Oon Arfiandwi TulusWijayanto DyahAyu KurniawanHaikal
