1. Confidential │ © 2020 VMware, Inc.
Application
Modernization
With Event Streaming
Architecture
David Wadden
Staff Engineer
July 20th, 2020
@ronmervis

2. Confidential │ © 2020 VMware, Inc. 2
David Wadden
Staff Engineer
@ronmervis

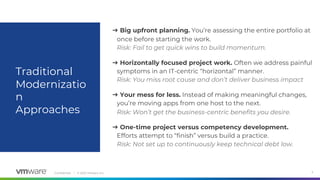

3. Confidential │ © 2020 VMware, Inc. 3
➔ Big upfront planning. You’re assessing the entire portfolio at
once before starting the work.
Risk: Fail to get quick wins to build momentum.
➔ Horizontally focused project work. Often we address painful
symptoms in an IT-centric “horizontal” manner.
Risk: You miss root cause and don’t deliver business impact
➔ Your mess for less. Instead of making meaningful changes,
you’re moving apps from one host to the next.
Risk: Won’t get the business-centric benefits you desire.
➔ One-time project versus competency development.
Efforts attempt to “finish” versus build a practice.
Risk: Not set up to continuously keep technical debt low.
Traditional
Modernizatio
n
Approaches

4. Confidential │ © 2020 VMware, Inc.
We Start with Events First

5. Confidential │ © 2020 VMware, Inc.

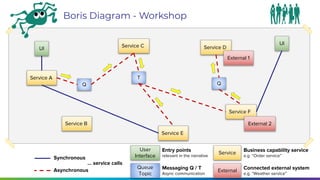

Service Business capability service
e.g. “Order service”
Queue
Topic
Messaging Q / T
Async communication
Service A
Service B
Service C Service D
Service E
Service F
External Connected external system
e.g. “Weather service”
External 2
External 1
UI
UI
Q Q
T
User
Interface
Entry points
relevant in the narrative
Synchronous
… service calls
Asynchronous
Boris Diagram - Workshop

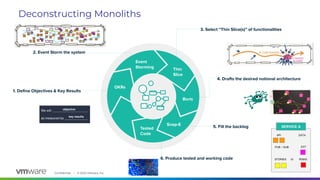

6. Confidential │ © 2020 VMware, Inc.
Event
Storming
2. Event Storm the system
Thin
Slice
3. Select “Thin Slice(s)” of functionalities
OKRs
1. Define Objectives & Key Results
Tested
Code
6. Produce tested and working code
Boris
4. Drafts the desired notional architecture
Snap-E 5. Fill the backlog
API DATA
PUB / SUB EXT
STORIES UI RISKS
SERVICE A
Deconstructing Monoliths

7. 7Confidential │ © 2020 VMware, Inc.
Business Domain
Decomposition

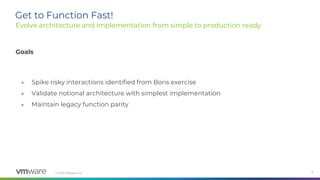

8. © 2020 VMware, Inc. 8
Get to Function Fast!
Evolve architecture and implementation from simple to production ready
Goals
● Spike risky interactions identified from Boris exercise
● Validate notional architecture with simplest implementation
● Maintain legacy function parity

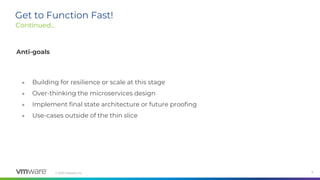

9. © 2020 VMware, Inc. 9
Get to Function Fast!
Continued...
Anti-goals
● Building for resilience or scale at this stage
● Over-thinking the microservices design
● Implement final state architecture or future proofing
● Use-cases outside of the thin slice

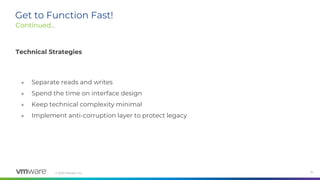

10. © 2020 VMware, Inc. 10
Get to Function Fast!
Continued...
Technical Strategies
● Separate reads and writes
● Spend the time on interface design
● Keep technical complexity minimal
● Implement anti-corruption layer to protect legacy

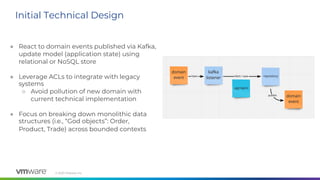

11. © 2020 VMware, Inc.
● React to domain events published via Kafka,
update model (application state) using
relational or NoSQL store
● Leverage ACLs to integrate with legacy
systems
○ Avoid pollution of new domain with
current technical implementation
● Focus on breaking down monolithic data
structures (i.e., “God objects”: Order,
Product, Trade) across bounded contexts
Initial Technical Design

12. © 2020 VMware, Inc.
Domain Architecture / Boris

13. © 2020 VMware, Inc.
Initial System Architecture

14. 14Confidential │ © 2020 VMware, Inc.
Evolving to
Kafka Streams

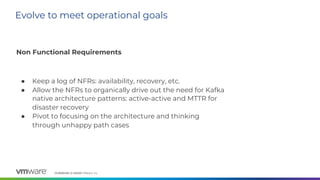

15. © 2020 VMware, Inc.Confidential │ ©2020 VMware, Inc.
Non Functional Requirements
● Keep a log of NFRs: availability, recovery, etc.
● Allow the NFRs to organically drive out the need for Kafka
native architecture patterns: active-active and MTTR for
disaster recovery
● Pivot to focusing on the architecture and thinking
through unhappy path cases
Evolve to meet operational goals

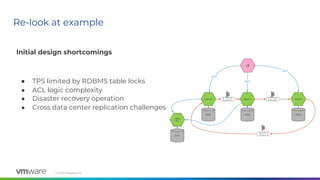

16. © 2020 VMware, Inc.
Re-look at example
Initial design shortcomings
● TPS limited by RDBMS table locks
● ACL logic complexity
● Disaster recovery operation
● Cross data center replication challenges

17. © 2020 VMware, Inc.
Leverage same model with Kafka Streams Architecture
● If the domain model is implemented
properly, it can be reused wholesale
within Kafka Streams as an aggregate
rolled up from a given KStreams
processor topology
● The existing model then becomes the
materialized view derived from the event
streams
● The materialized view can then service
any existing queries with minimal
change

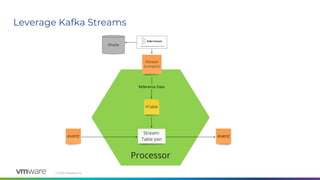

18. © 2020 VMware, Inc.
Leverage Kafka Streams

19. © 2020 VMware, Inc.
Evolved System Architecture

20. 20Confidential │ ©2020 VMware, Inc.
Recap

21. Thank You
Confidential │ © 2020 VMware, Inc.
@ronmervis
