Change your architecture during deployment
- 1. Dennis van der Stelt Change your Architecture During deployment Dennis van der Stelt @ Particular Software Makers of NServiceBus @dvdstelt dennis.vanderstelt@particular.net https://bloggingabout.net/ https://calendly/dvdstelt/
- 2. Dennis van der Stelt
- 3. Dennis van der Stelt Four Three LET’S TALK ABOUT PERSPECTIVE Just because you see things in a way, doesn’tmean someone else is wrong.
- 4. Dennis van der Stelt
- 5. Dennis van der Stelt London Southampton Plymouth Liverpool Manchester Glasgow Edinburgh Aberdeen WHISKY (neat) WHISKEY (on the rocks) BOURBON SCOTCH
- 6. Dennis van der Stelt
- 7. Dennis van der Stelt Everything we hear is an opinion, not a fact. Everything we see is a perspective, not the truth Marcus Aurelius
- 8. Dennis van der Stelt Services Microservices LET’S TALK ABOUT PERSPECTIVE Services aren’t necessarily microservices.But are microservices services?
- 9. Dennis van der Stelt DIFFERENT VIEWS OF A SYSTEM Which views can we distinguish in this diagram?
- 10. Dennis van der Stelt C4 MODEL Visualizing software architecture Created by Simon Brown – https://c4model.com
- 11. Dennis van der Stelt 4+1 ARCHITECTURAL VIEW MODEL Philippe Kruchten,1995 Scenarios Logical view Development view Process view Physical view
- 12. Dennis van der Stelt 4+1 ARCHITECTURAL VIEW MODEL Philippe Kruchten,1995 Logical view Explains how the system is structured Usually contains services & components Process view Shows communication between services Development view Structure of the components & codebase Usually inside an IDE, source-control repositories, etc. Physical view Shows how services are deployed
- 13. Dennis van der Stelt 4+1 VIEW MODEL – LOGICAL VIEW This is an example. You probably shouldn’tdo services like this. customer service order service inventory service product service email service
- 14. Dennis van der Stelt 4+1 VIEW MODEL – PROCESS VIEW Sequence diagrams are just a potential part of this view inventory service product service order service some request some request some response some response
- 15. Dennis van der Stelt 4+1 VIEW MODEL – PROCESS VIEW When using NServiceBus, ServiceInsightcan provide great sequencediagrams on your message flow
- 16. Dennis van der Stelt 4+1 VIEW MODEL – DEVELOPMENT VIEW More details about how projects are hosted, data storage, etc. products inventory orders website WebAPI WebAPI WebAPI orders products inventory
- 17. Dennis van der Stelt 4+1 VIEW MODEL – DEVELOPMENT VIEW Or decide to add a gateway products inventory orders website WebAPI WebAPI WebAPI orders products inventory Gateway WebAPI
- 18. Dennis van der Stelt 4+1 VIEW MODEL – DEVELOPMENT VIEW GitHub repositories and/or IDE projects
- 19. Dennis van der Stelt 4+1 VIEW MODEL – PHYSICAL VIEW Remember, these are just examples reversed proxy website website orders products inventory inventory container products container orders container
- 20. Dennis van der Stelt 4+1 VIEW MODEL The same architecture, but different views Logical View Physical View reversed proxy website website orders products inventory inventory container products container orders container customer service order service inventory service product service email service
- 21. Dennis van der Stelt
- 22. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 23. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 24. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 25. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 26. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 27. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 28. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATABASE Can we share a database among (micro)services? orders products inventory inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container
- 29. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATABASE Can we share a database among (micro)services? orders schema products schema inventory schema inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container This is nothing more than a schema
- 30. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATABASE Can we share a database among (micro)services? inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container orders schema products schema inventory schema
- 31. Dennis van der Stelt data ownership is not about how the data is hosted
- 32. Dennis van der Stelt SHARED DATABASE Can we share a database among (micro)services? inventory products orders website MyServerSqlExpress Databases Orders Products Inventory Tables Orders OrderLines Products Products BackOrder Reserved Tables Tables orders schema products schema inventory schema
- 33. Dennis van der Stelt SHARED DATABASE Can we share a database among (micro)services? inventory products orders website orders schema products schema inventory schema MyServerSqlExpress Databases RetailShop Tables Orders OrderLines Products Products BackOrder Reserved
- 34. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 35. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website this is about data ownership not about how we physically deploy
- 36. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATABASES Something we definitely don’t want! inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container orders products inventory
- 37. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATABASES Something we definitely don’t want! inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container orders products inventory
- 38. Dennis van der Stelt
- 39. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATA Services querying each others’ data via RPC calls is much better orders products inventory inventory Logical View Physical View products inventory orders orders products inventory products orders website WebAPI WebAPI WebAPI
- 40. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATA Services querying each others’ data via RPC calls is much better orders products inventory inventory Logical View Physical View products inventory orders orders products inventory products orders website WebAPI WebAPI WebAPI Does the logical architecture change if we do this?
- 41. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATA Services querying each others’ data via RPC calls is much better </sarcasm> orders products inventory inventory Logical View Physical View products inventory orders orders products inventory products orders website WebAPI WebAPI WebAPI
- 42. Dennis van der Stelt 4+1 VIEW MODEL – SHARED DATA Services querying each others’ data via RPC calls orders products inventory inventory Bad, bad, baaaaaaaaaad solution The proposed alternative products orders website WebAPI WebAPI WebAPI inventory products orders website orders products inventory
- 43. Dennis van der Stelt can’t share data via SQL API but you can share data via web API?
- 44. Dennis van der Stelt how does that improve data ownership
- 45. Dennis van der Stelt https://go.particular.net/share-data
- 46. Dennis van der Stelt https://go.particular.net/share-data
- 47. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 48. Dennis van der Stelt ✓Maximum of 30 lines of code ✓Highly maintainable and testable ✓Loosely coupled ✓Database per microservice ✓Independently deployable ✓Owned by a small team WHAT ARE MICROSERVICES Some random list, copied from a random website
- 49. Dennis van der Stelt INDEPENDENTLY DEPLOYABLE MICROSERVICES Because the deployment makes them loosely coupled Logical view Development view Physical view
- 50. Dennis van der Stelt 4+1 VIEW MODEL – DEPLOYING COMPONENTS What we did with schemas, can we do that with more? inventory container Logical View Physical View products inventory orders orders products inventory products container orders container website container orders schema products schema inventory schema
- 51. Dennis van der Stelt 4+1 VIEW MODEL – DEPLOYING COMPONENTS What we did with schemas, can we do that with more? Logical View Physical View products inventory orders orders products inventory website container orders schema products schema inventory schema container inventory products orders
- 52. Dennis van der Stelt 4+1 VIEW MODEL – DEPLOYING COMPONENTS What we did with schemas, can we do that with more? Logical View Physical View products inventory orders orders products inventory orders schema products schema inventory schema container inventory products orders website
- 53. Dennis van der Stelt
- 54. Dennis van der Stelt
- 55. Dennis van der Stelt
- 56. Dennis van der Stelt

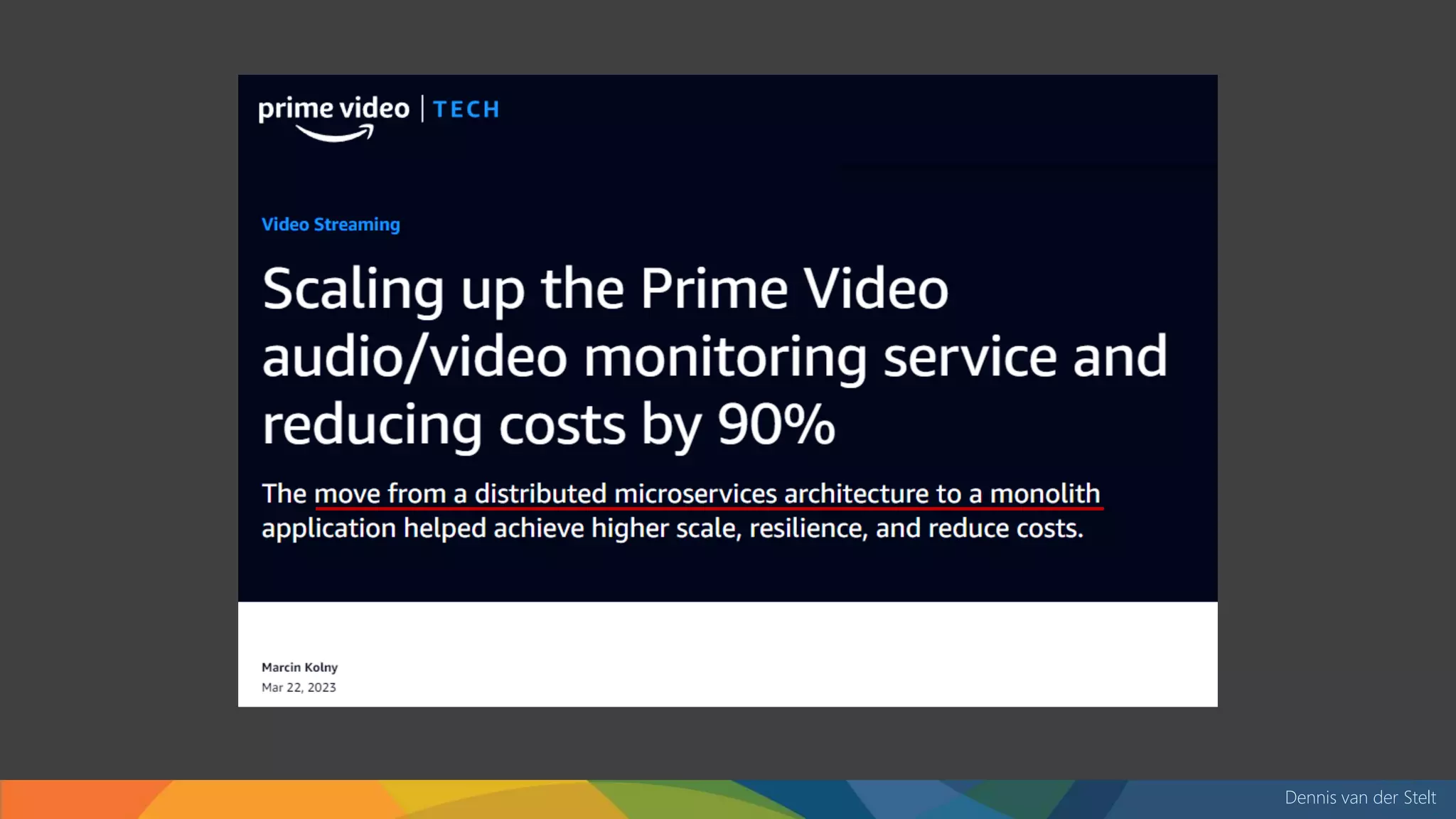

- 57. Dennis van der Stelt why did amazon prime change?
- 58. Dennis van der Stelt Building evolvable software systems is a strategy, not a religion. And revisiting architectures with an open mind is a must.
- 59. Dennis van der Stelt Microservices were oversold as a solution to everything … by vendors who wanted to sell Kubernetes
- 60. Dennis van der Stelt
- 61. Dennis van der Stelt there are no solutions only trade-offs
- 62. Dennis van der Stelt data ownership in the user interface
- 63. Dennis van der Stelt DATA OWNERSHIP Let’s dive deeper into data ownership in the user interface orders products inventory inventory Logical View Physical View products inventory orders orders products inventory products orders website WebAPI WebAPI WebAPI
- 64. Dennis van der Stelt LOGICAL BOUNDARIES Let’s set the stage… Names are removed as we should not focus on names, but rather the colors! Logical View Physical View API API API API API API website
- 65. Dennis van der Stelt LOGICAL BOUNDARIES Let’s set the stage… Names are removed as we should not focus on names, but rather the colors! Logical View Physical View API API API API API API website logical boundaries physical boundaries
- 66. Dennis van der Stelt LOGICAL BOUNDARIES Composing data from our back-end Logical View Physical View API API API API API API website composition
- 67. Dennis van der Stelt DATA COMPOSITION Composing data from our back-end, to fill in details in our UI Patterns of Enterprise Application Architecture 42 customer reviews Add to cart $42.00 save $13.37 Kindle Hardcover This item ships to Haifa, Israel Others with more on the way https://www.amazon.com/peaa-martin/ Product Catalog Inventory Finance Shipping Marketing
- 68. Dennis van der Stelt LOGICAL BOUNDARIES If we’re composing theuser interface, let’s make that visiblein our physical view Logical View Physical View API API API API API API composition
- 69. Dennis van der Stelt LOGICAL BOUNDARIES If we’re composing theuser interface, let’s make that visiblein our physical view Logical View Physical View API API API API API API
- 70. Dennis van der Stelt LOGICAL BOUNDARIES Let’s reflect it also in our logical view Logical View Physical View API API API API API API
- 71. Dennis van der Stelt Gateway LOGICAL BOUNDARIES For several reasons we want to add a gateway Logical View Physical View API API API API API API Gateway
- 72. Dennis van der Stelt Gateway LOGICAL BOUNDARIES Having an all-knowing gateway breaks data ownership again Logical View Physical View API API API API API API massive coupling Gateway
- 73. Dennis van der Stelt DEMO ViewModel Composition Gateway using ASP.NET
- 74. Dennis van der Stelt Gateway LOGICAL BOUNDARIES Having an all-knowing gateway breaks data ownership again Logical View Physical View API API API API API API massive coupling Gateway
- 75. Dennis van der Stelt LOGICAL BOUNDARIES The solution Logical View Physical View API API API API API API appender appender appender Composition Gateway Composition Gateway
- 76. Dennis van der Stelt LOGICAL BOUNDARIES Data ownership means no data sharing. Can 4+1 view models help? Logical View Physical View API API API Composition Gateway appender appender appender API API API Composition Gateway appender appender appender
- 77. Dennis van der Stelt LOGICAL BOUNDARIES Data ownership means no data sharing. Can 4+1 view models help? Logical View Physical View API API API Composition Gateway appender appender appender API API API Composition Gateway appender appender appender physical boundaries logical boundaries
- 78. Dennis van der Stelt LOGICAL VS PHYSICAL Let’s stretch the example even further Physical View API Composition Gateway appender
- 79. Dennis van der Stelt LOGICAL VS PHYSICAL Let’s stretch the example even further Physical View API Composition Gateway appender rpc request
- 80. Dennis van der Stelt LOGICAL VS PHYSICAL Let’s stretch the example even further Physical View API Composition Gateway appender Composition Gateway appender API rpc request
- 81. Dennis van der Stelt LOGICAL VS PHYSICAL Let’s stretch the example even further Physical View API Composition Gateway appender Composition Gateway appender API rpc request rpc request
- 82. Dennis van der Stelt LOGICAL VS PHYSICAL Let’s stretch the example even further Physical View API Composition Gateway appender Composition Gateway appender API also deploy connectionstring rpc request rpc request
- 83. Dennis van der Stelt LOGICAL VS PHYSICAL Does our logical view change? Logical View Physical View Composition Gateway appender API appender API appender API API API API Composition Gateway appender appender appender
- 84. Dennis van der Stelt CONCLUSION What have we (hopefully) learned? Different views of your system architecture allow you to alter the structure from design to development to deployment Logical boundary != physical boundary Sharing data over services breaks data ownership and autonomy! Want to learn more? I’d love to share more details if you contact me! It’s “Whisky”, not “Whiskey” ;-)
- 85. Dennis van der Stelt https://go.particular.net/change-architecture for links to code & more information Free Offer 30-Minute Consultation Question
- 86. Dennis van der Stelt Dennis van der Stelt dennis.vanderstelt@particular.net @dvdstelt linkedin.com/in/dvdstelt/ calendly.com/dvdstelt https://particular.net/ Solution Architect at Particular Software, makers of NServiceBus
