APIs with Bounded Contexts: Modeling APIs with Domain-Driven Design
The document discusses the challenges of API design and advocates for using domain-driven design (DDD) to better align APIs with business needs. It emphasizes modeling user flows and operations through APIs and the importance of creating a common vocabulary and understanding between software and business domains. The speaker provides heuristics for designing APIs, including how to model flows and operations, and recommends various resources for further exploration of the topic.
More Related Content
Similar to APIs with Bounded Contexts: Modeling APIs with Domain-Driven Design
APIs with Bounded Contexts: Modeling APIs with Domain-Driven Design
- 1. APIs with BoundedContexts Better design with domain-driven APIs José Haro Peralta Consultant, author, and instructor Founder of microapis.io Platform Summit Oct 16-18, 2023
- 2. $ whoami • I’mJose • Consultant, author, instructor • Author of Microservice APIs • Founder of microapis.io • Creator of fencer @JoseHaroPeralta @microapis
- 3.

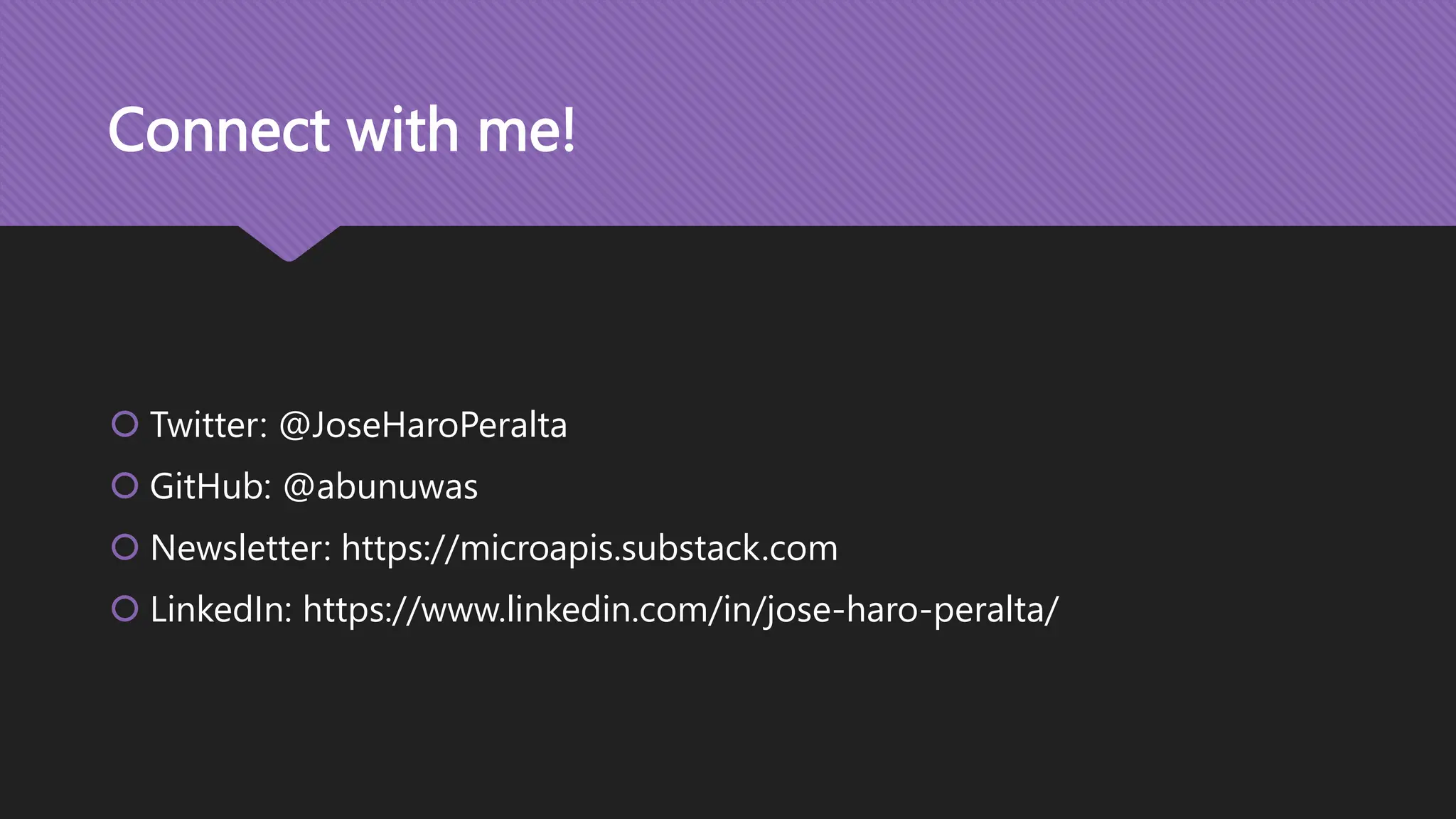

- 4. Connect with me! Twitter: @JoseHaroPeralta GitHub: @abunuwas Newsletter: https://microapis.substack.com LinkedIn: https://www.linkedin.com/in/jose-haro-peralta/

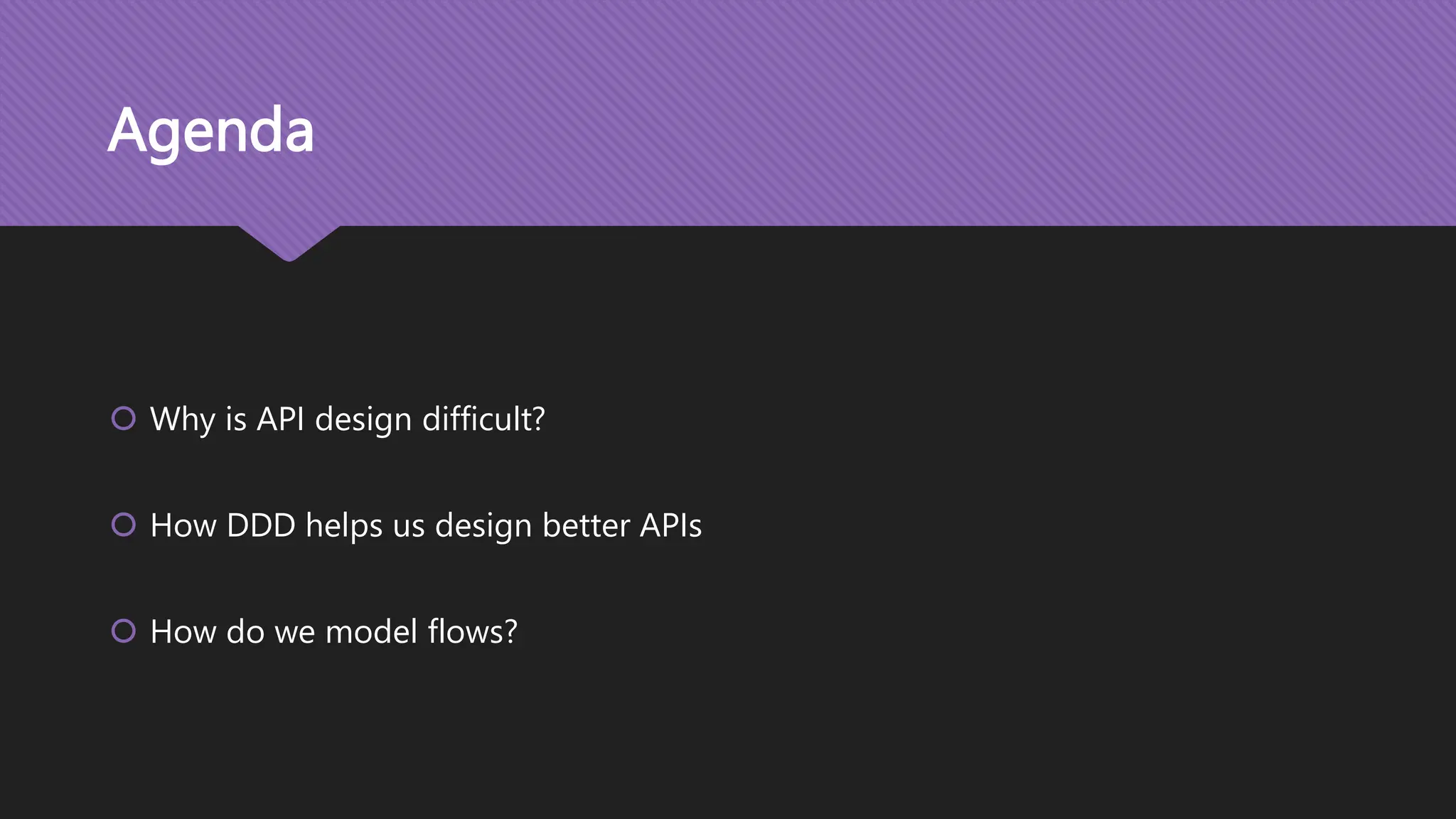

- 5. Agenda Why isAPI design difficult? How DDD helps us design better APIs How do we model flows?

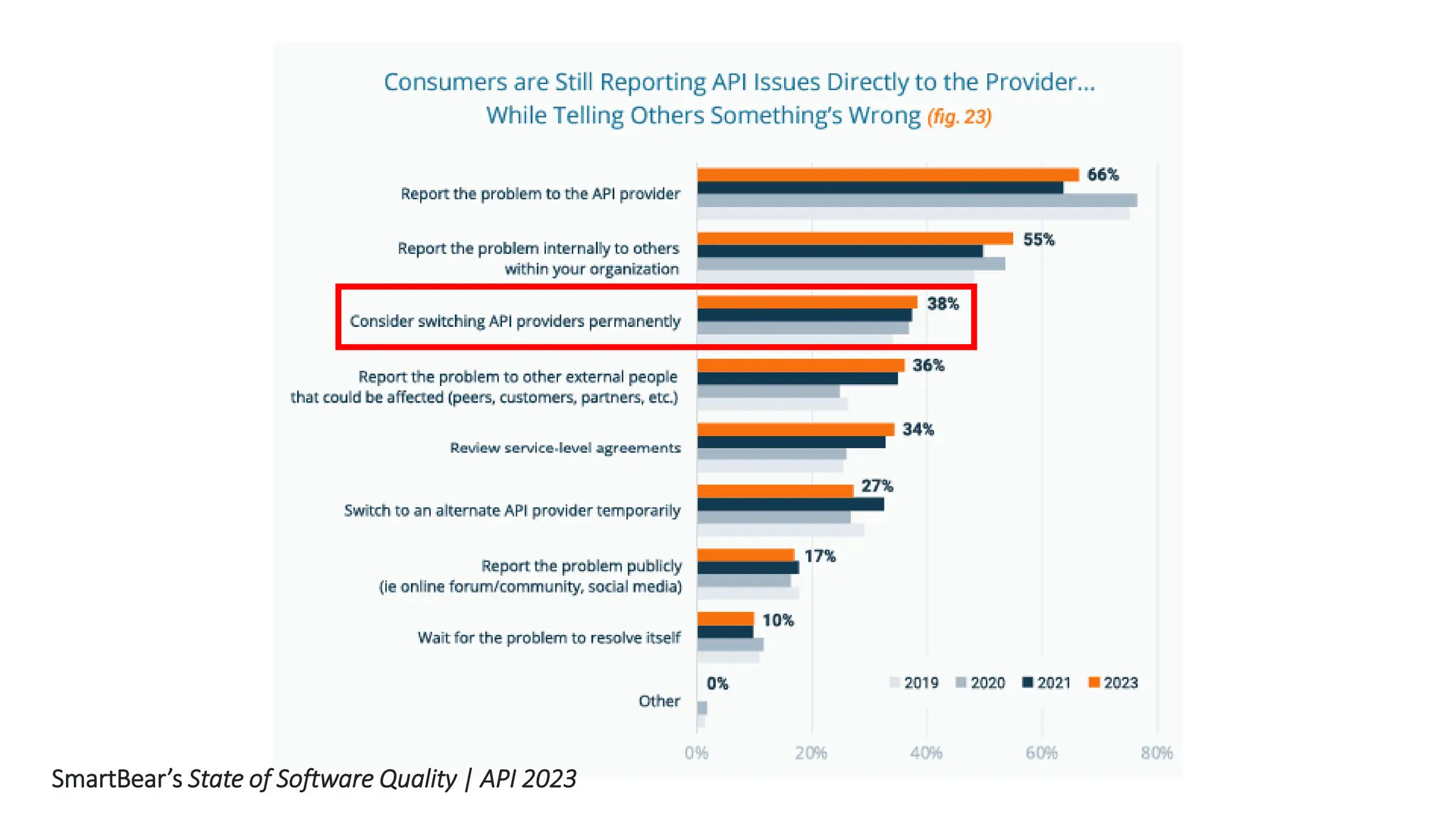

- 6. SmartBear’s State ofSoftware Quality | API 2023
- 7.

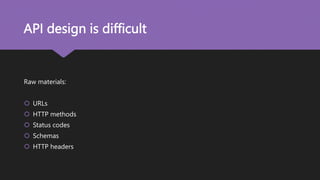

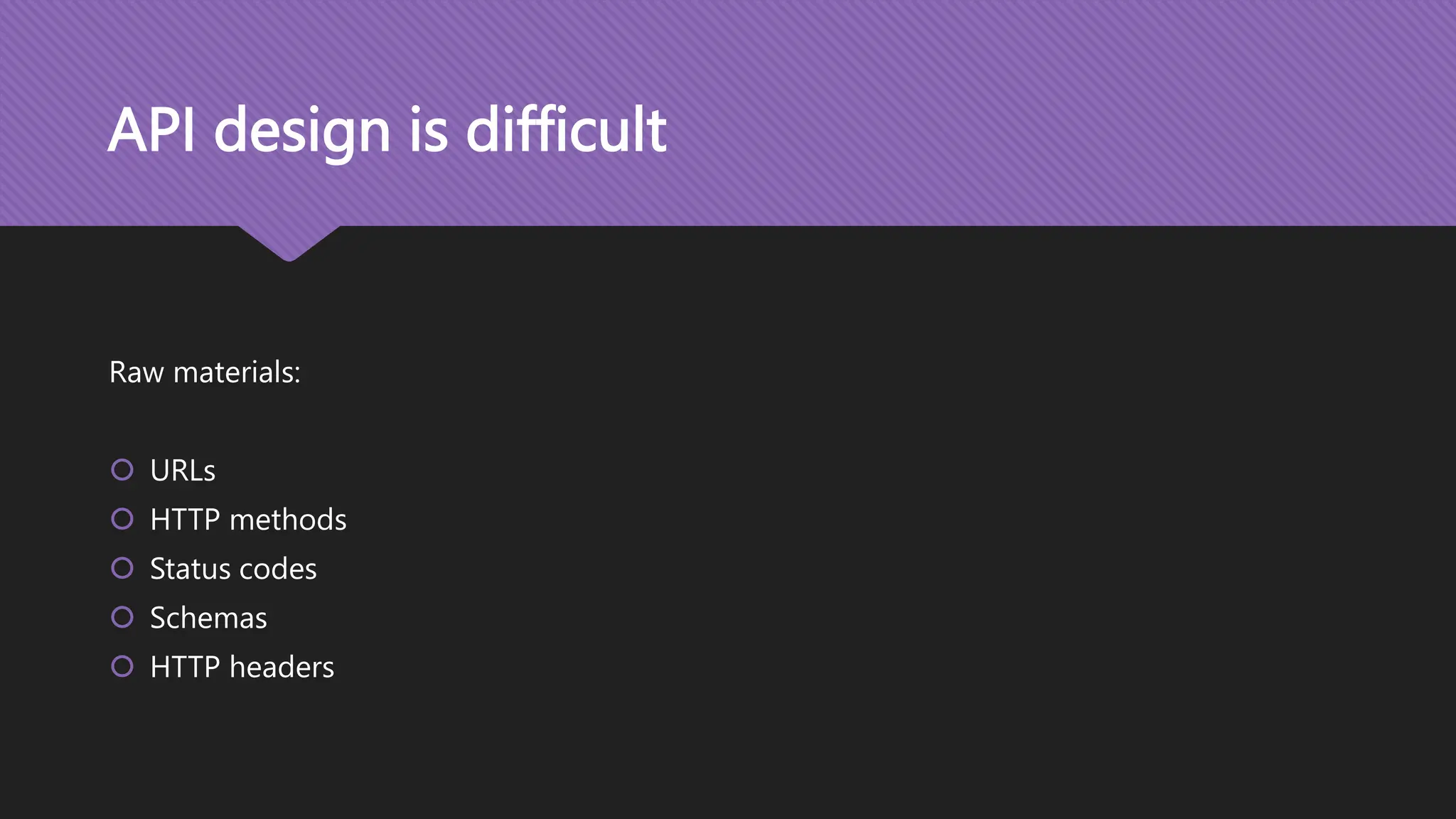

- 8. API design isdifficult Raw materials: URLs HTTP methods Status codes Schemas HTTP headers

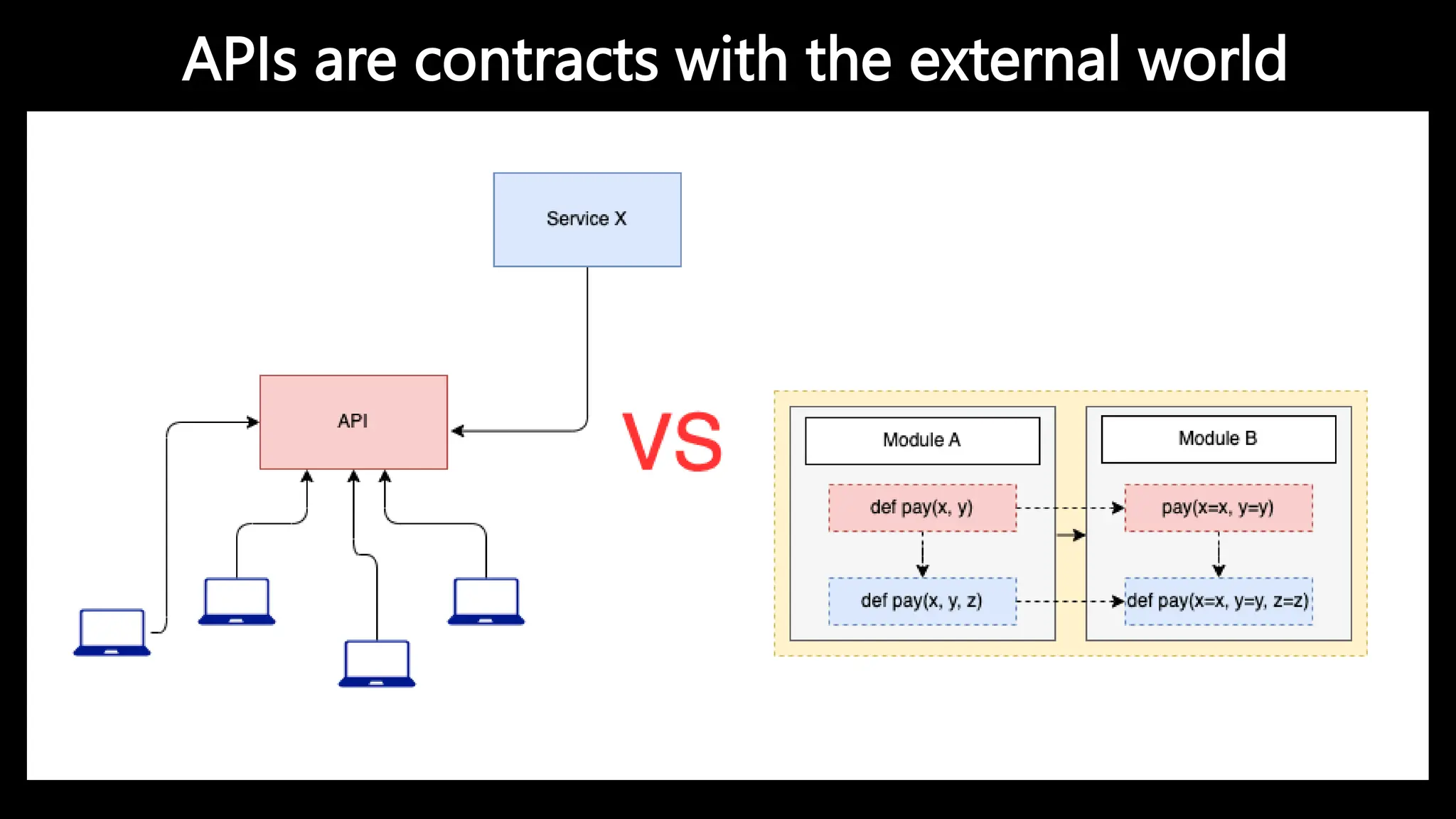

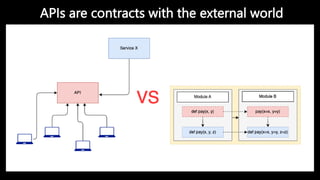

- 9. APIs are contractswith the external world
- 10.
- 11.

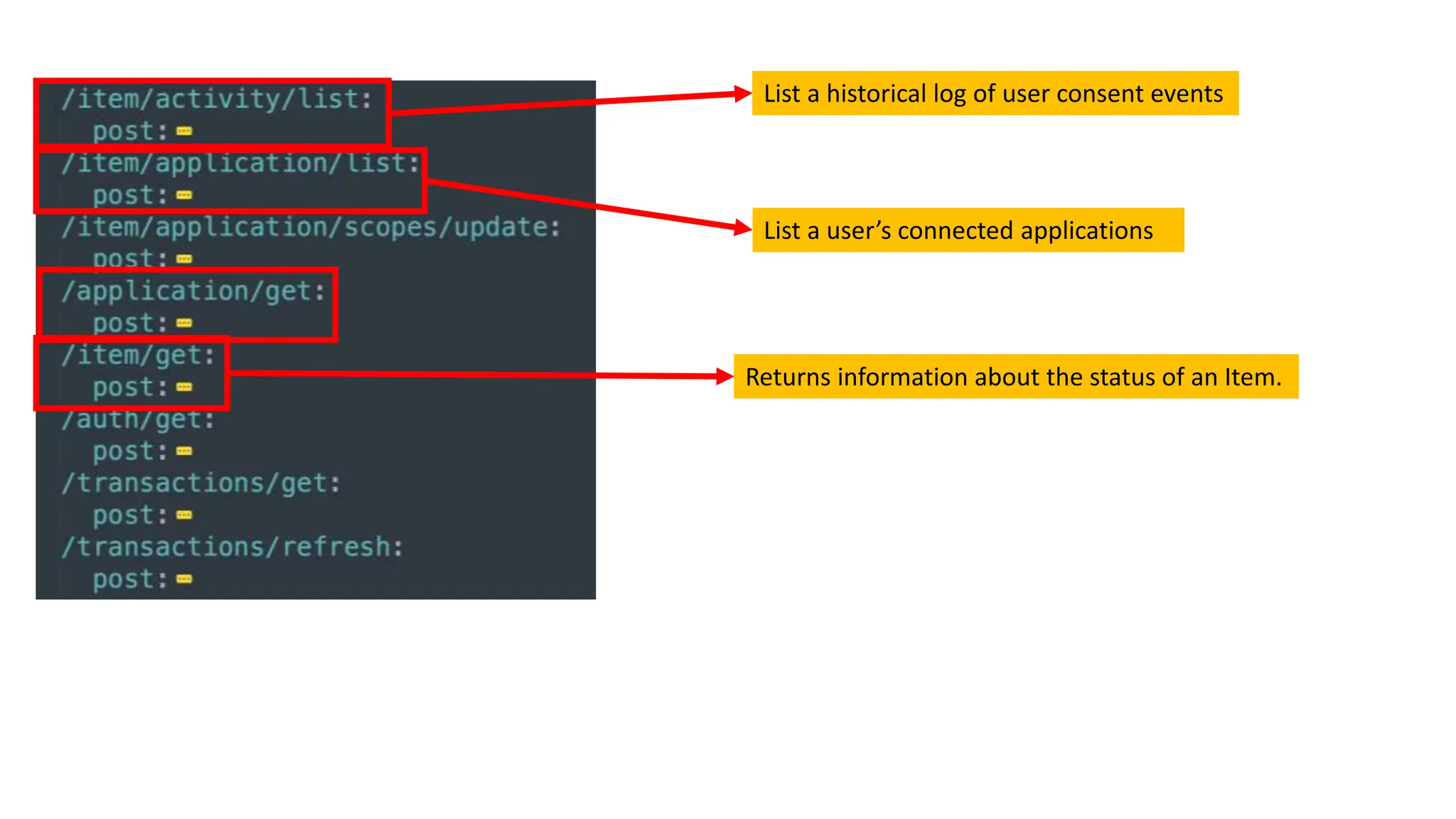

- 12. List a historicallog of user consent events Returns information about the status of an Item. List a user’s connected applications

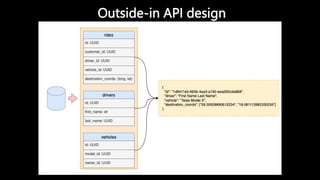

- 15.

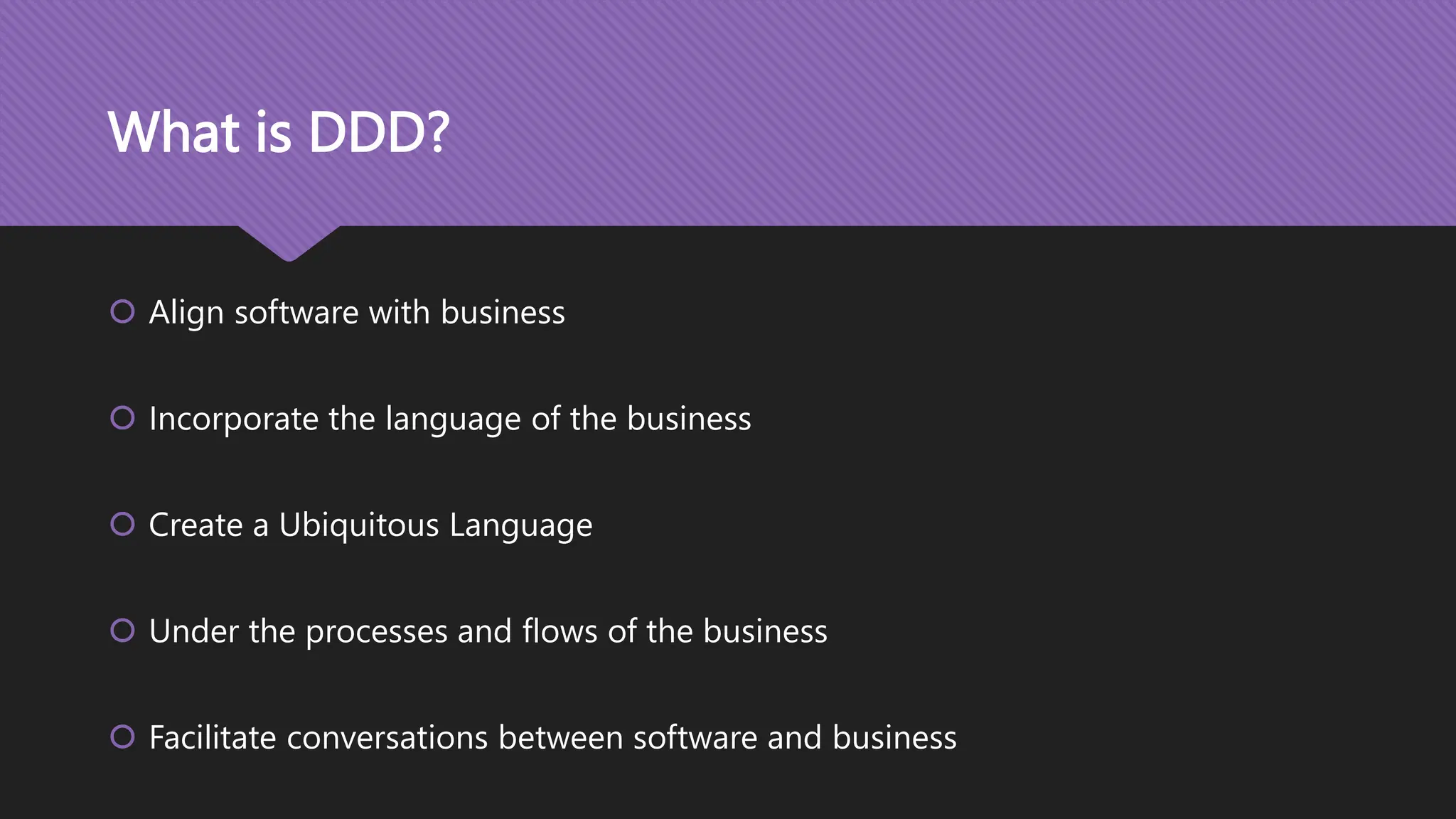

- 16. What is DDD? Align software with business Incorporate the language of the business Create a Ubiquitous Language Under the processes and flows of the business Facilitate conversations between software and business

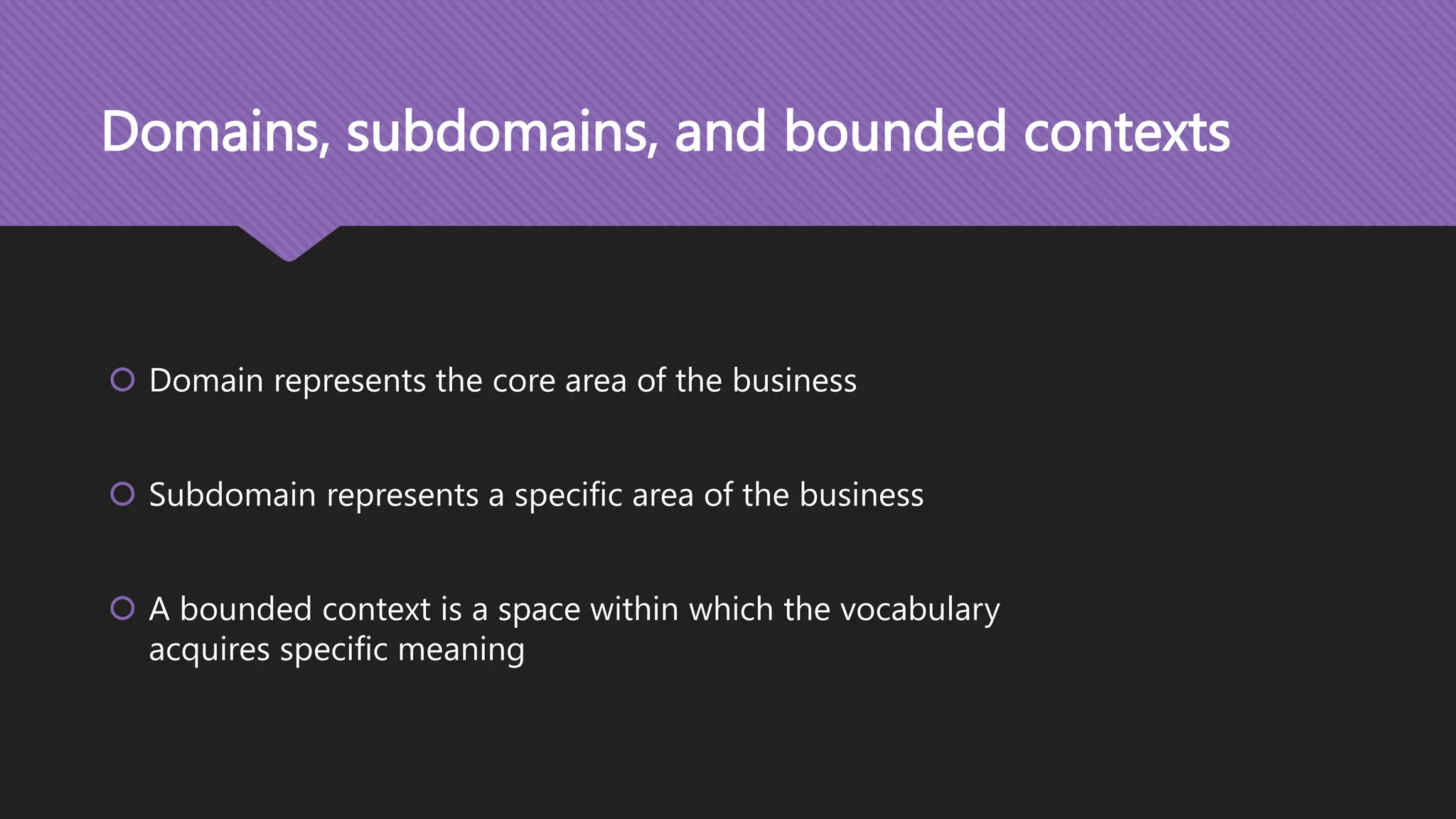

- 17. Domains, subdomains, andbounded contexts Domain represents the core area of the business Subdomain represents a specific area of the business A bounded context is a space within which the vocabulary acquires specific meaning
- 18.

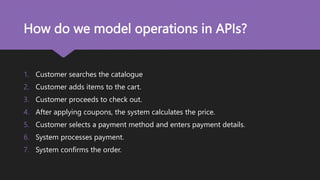

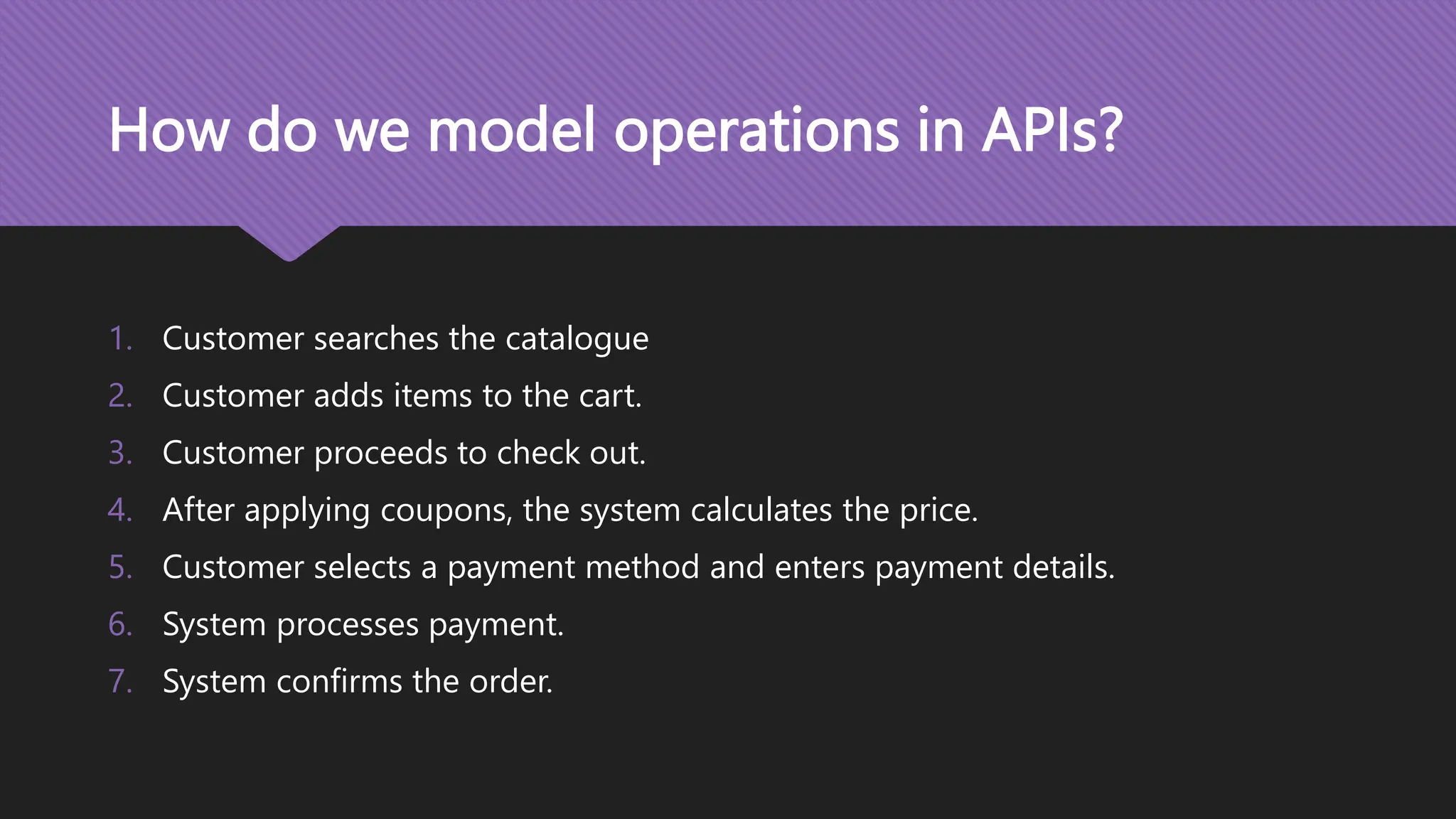

- 19. How do wemodel operations in APIs? 1. Customer searches the catalogue 2. Customer adds items to the cart. 3. Customer proceeds to check out. 4. After applying coupons, the system calculates the price. 5. Customer selects a payment method and enters payment details. 6. System processes payment. 7. System confirms the order.

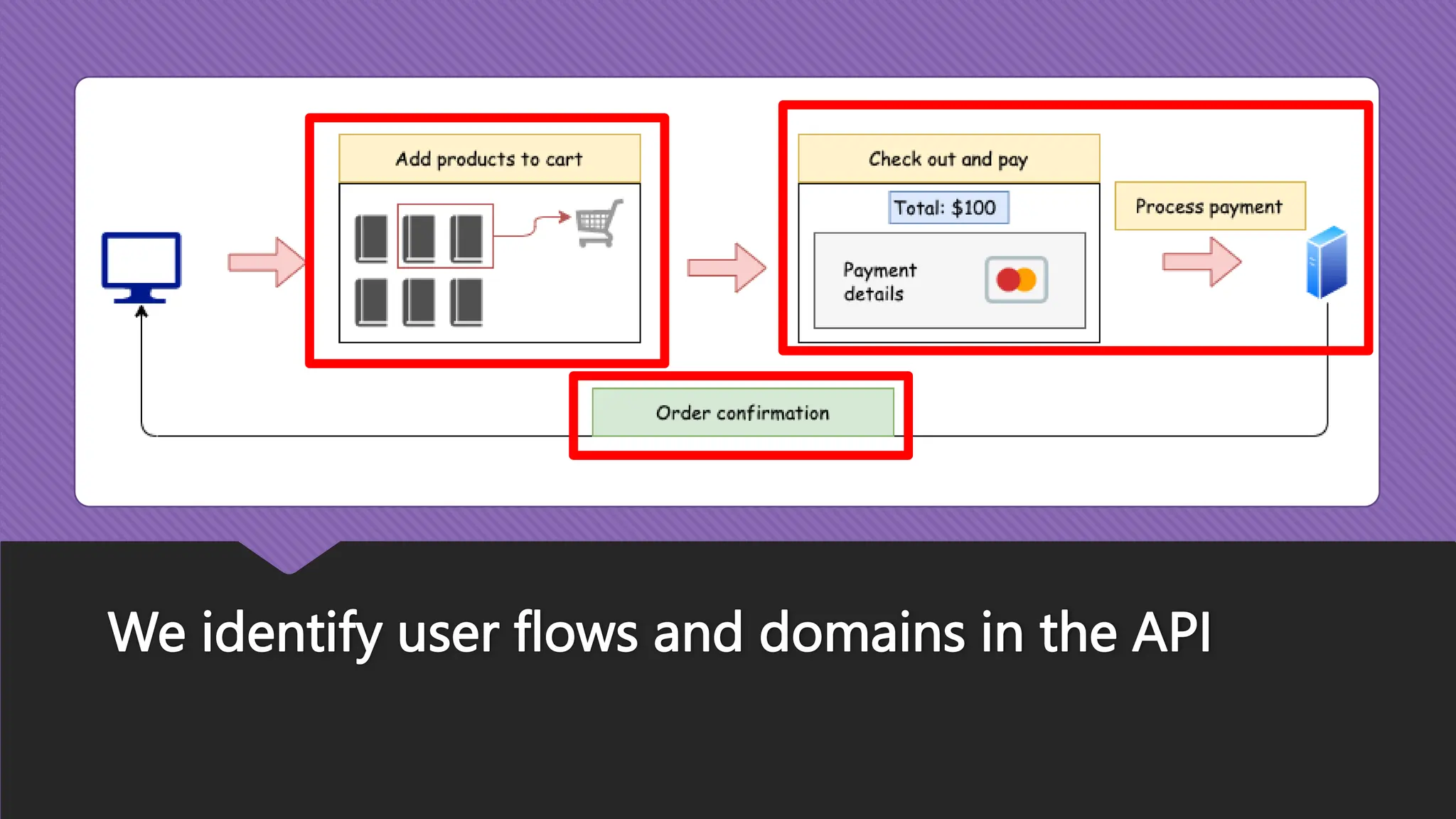

- 20. We identify userflows and domains in the API

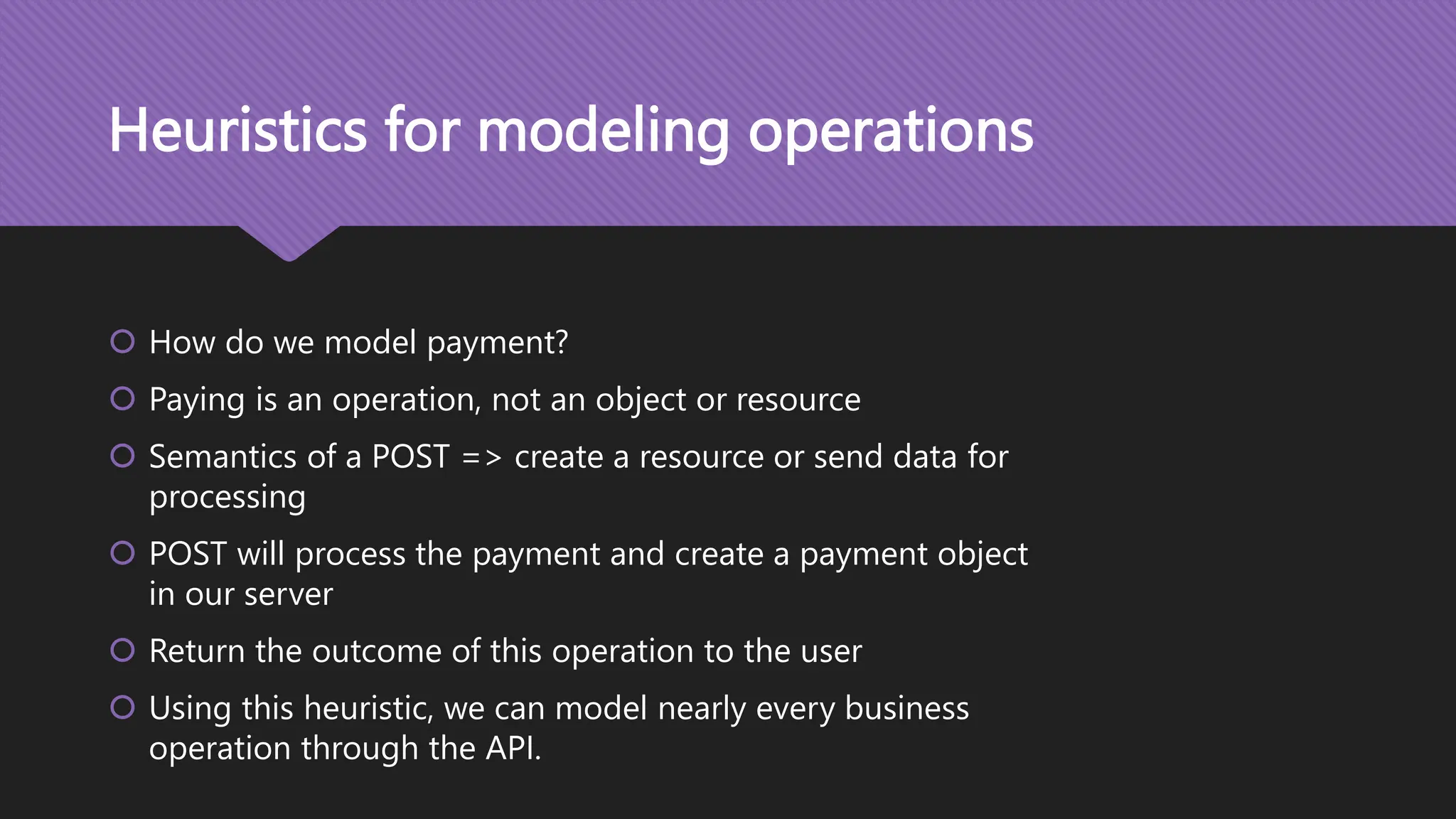

- 21. Heuristics for modelingoperations How do we model payment? Paying is an operation, not an object or resource Semantics of a POST => create a resource or send data for processing POST will process the payment and create a payment object in our server Return the outcome of this operation to the user Using this heuristic, we can model nearly every business operation through the API.

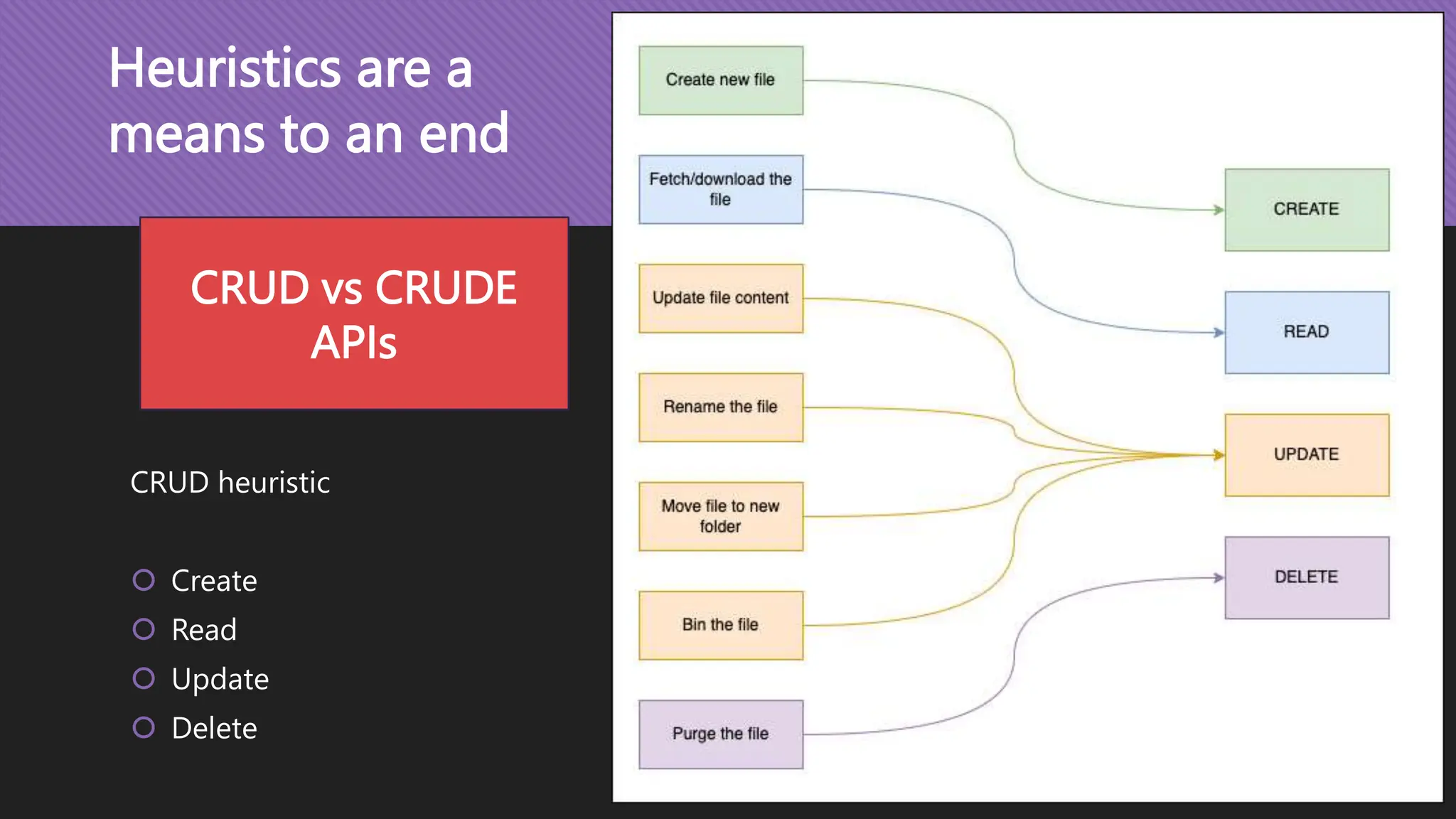

- 22. Heuristics are a meansto an end CRUD heuristic Create Read Update Delete CRUD vs CRUDE APIs
- 23.

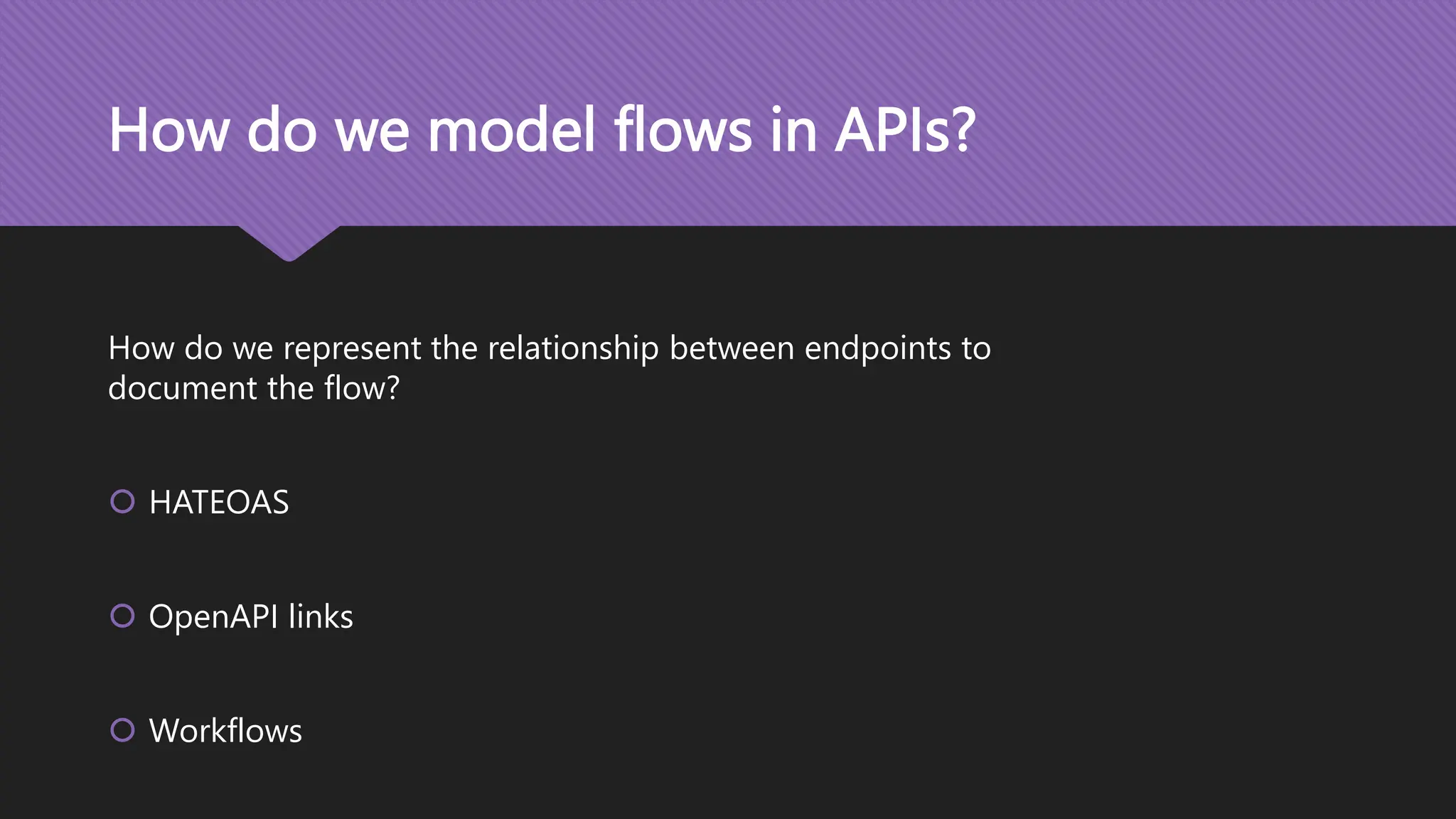

- 26. How do wemodel flows in APIs? How do we represent the relationship between endpoints to document the flow? HATEOAS OpenAPI links Workflows

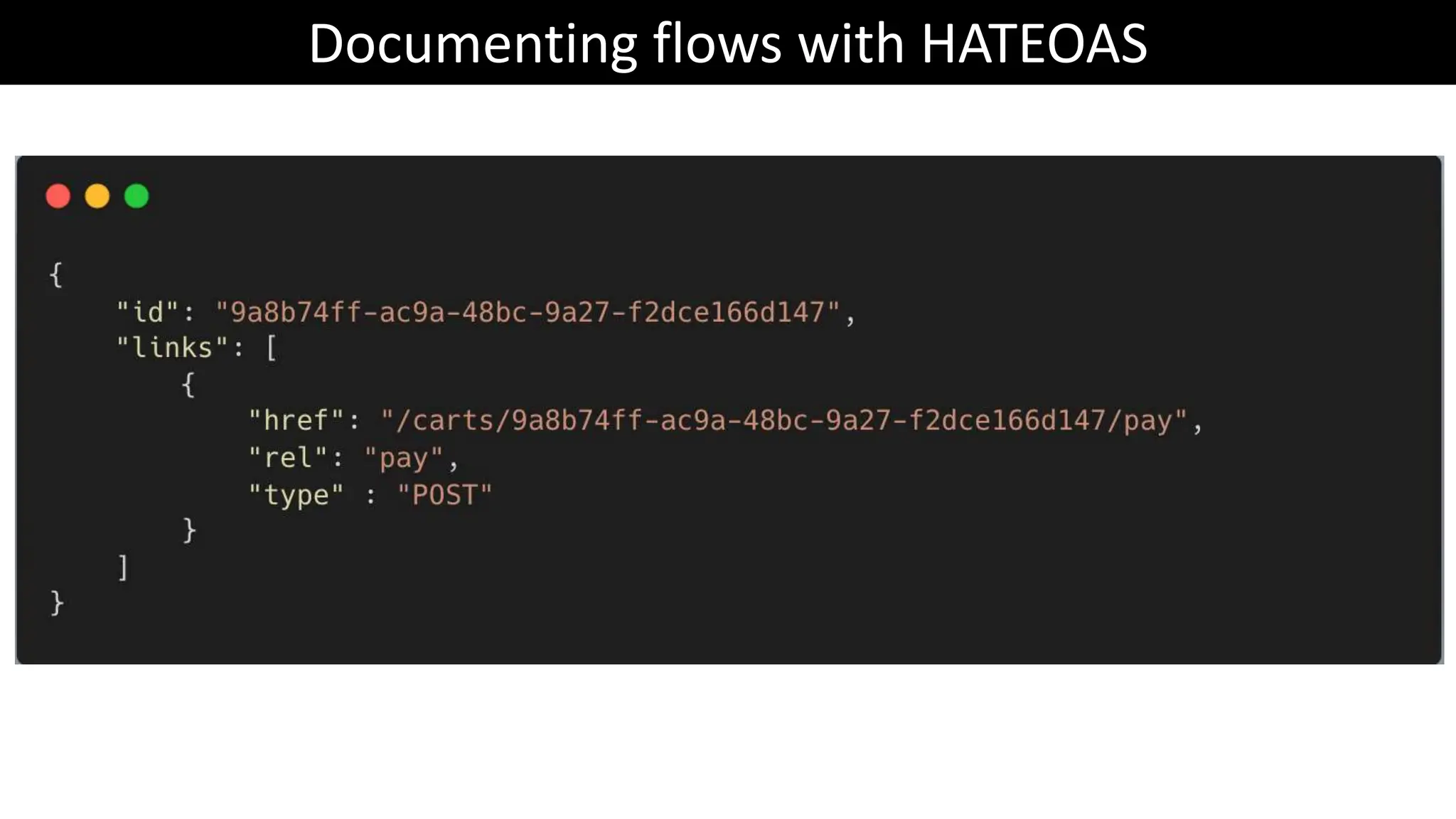

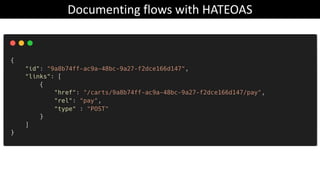

- 27. Documenting flows withHATEOAS

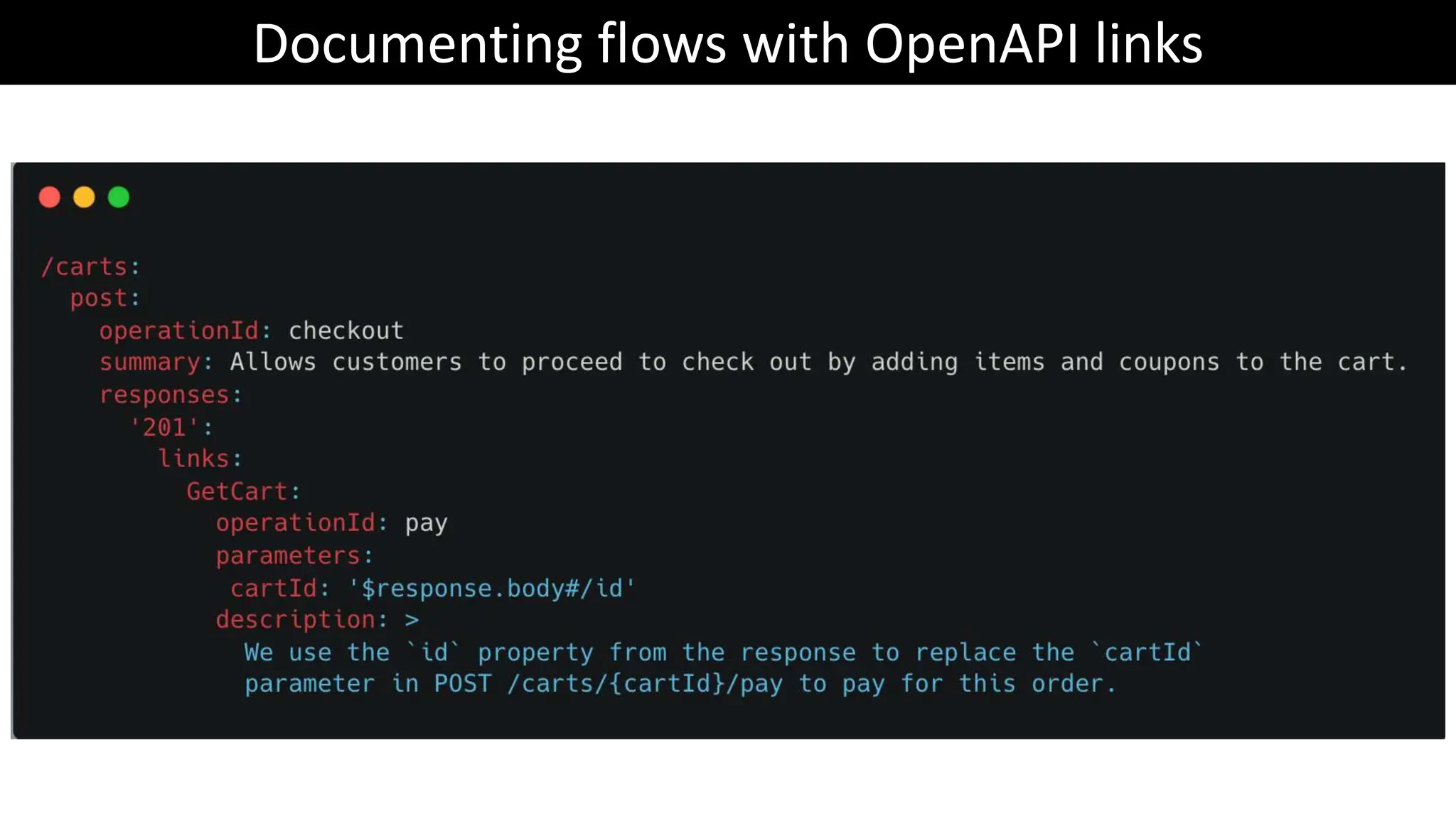

- 28. Documenting flows withOpenAPI links

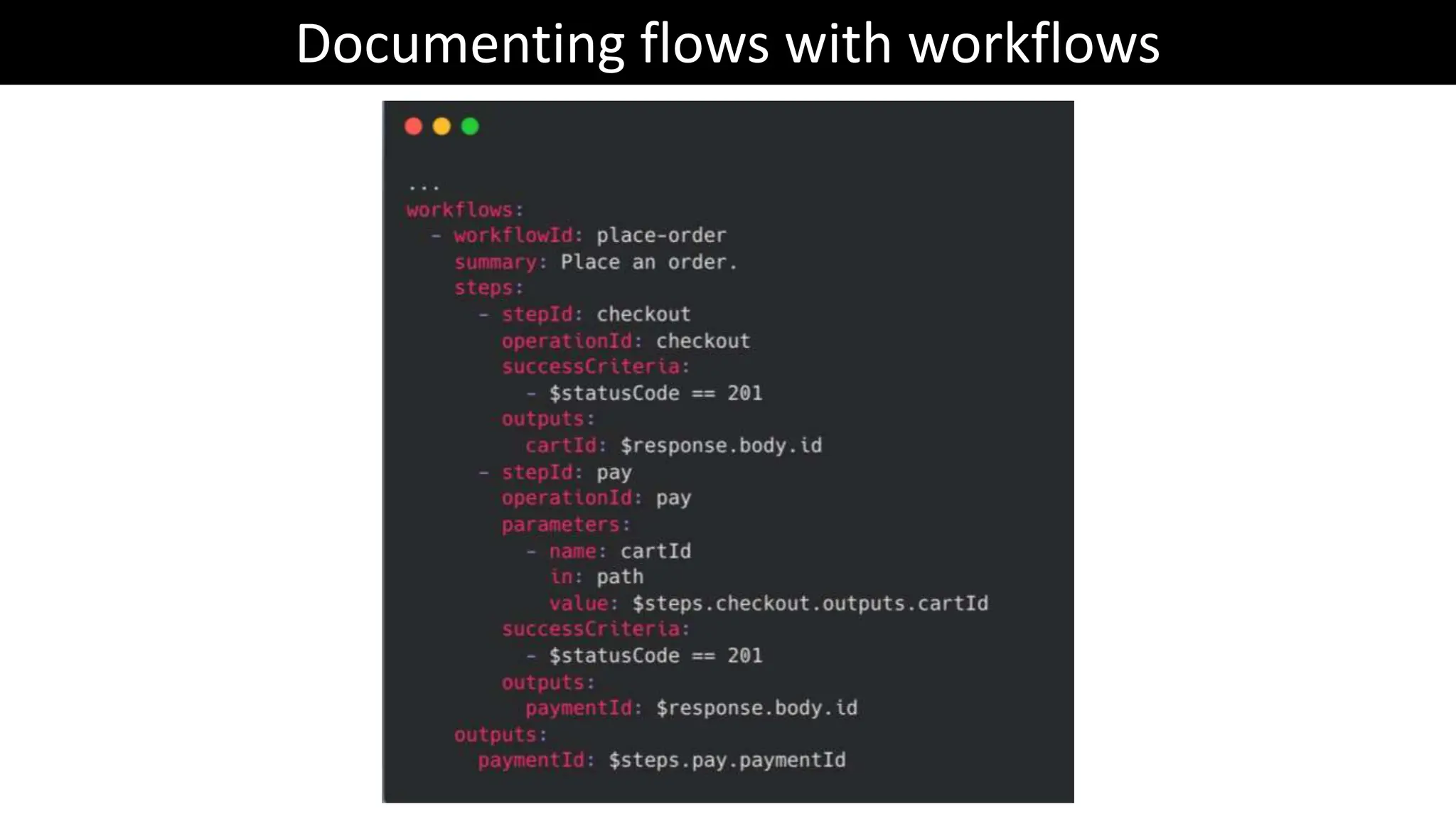

- 29. Documenting flows withworkflows
- 30.

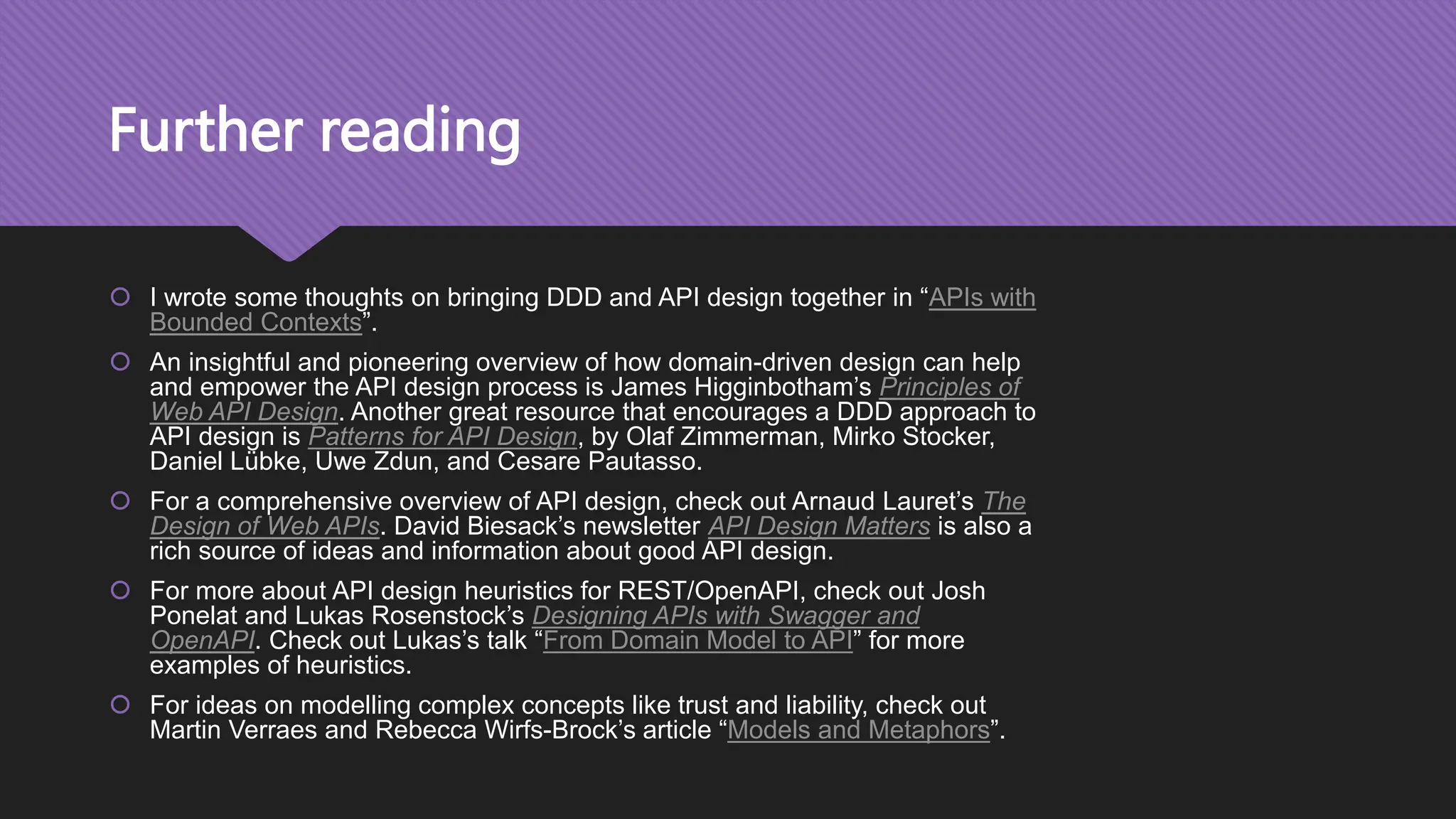

- 31. Further reading Iwrote some thoughts on bringing DDD and API design together in “APIs with Bounded Contexts”. An insightful and pioneering overview of how domain-driven design can help and empower the API design process is James Higginbotham’s Principles of Web API Design. Another great resource that encourages a DDD approach to API design is Patterns for API Design, by Olaf Zimmerman, Mirko Stocker, Daniel Lübke, Uwe Zdun, and Cesare Pautasso. For a comprehensive overview of API design, check out Arnaud Lauret’s The Design of Web APIs. David Biesack’s newsletter API Design Matters is also a rich source of ideas and information about good API design. For more about API design heuristics for REST/OpenAPI, check out Josh Ponelat and Lukas Rosenstock’s Designing APIs with Swagger and OpenAPI. Check out Lukas’s talk “From Domain Model to API” for more examples of heuristics. For ideas on modelling complex concepts like trust and liability, check out Martin Verraes and Rebecca Wirfs-Brock’s article “Models and Metaphors”.

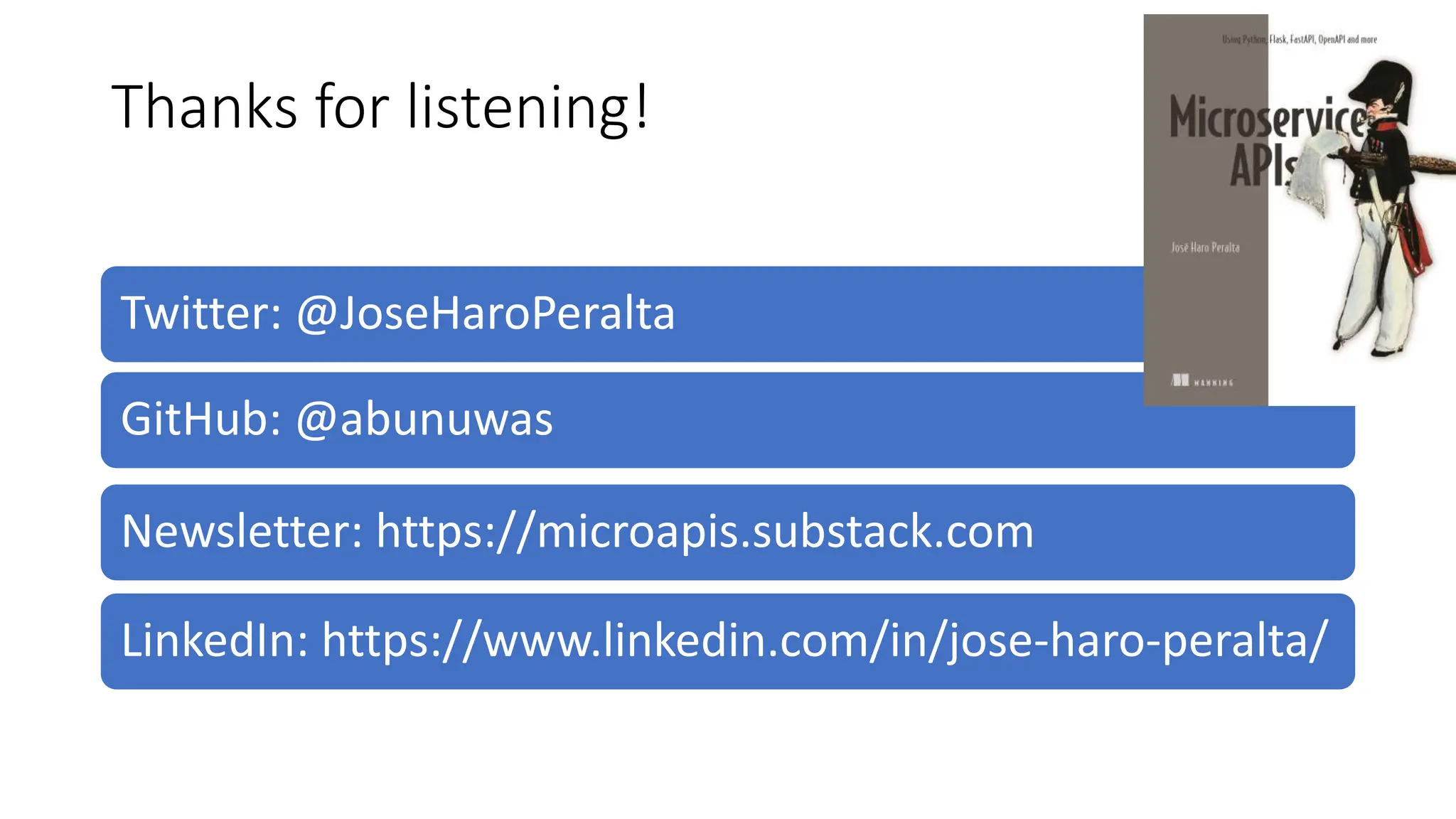

- 32. Thanks for listening! Twitter:@JoseHaroPeralta GitHub: @abunuwas Newsletter: https://microapis.substack.com LinkedIn: https://www.linkedin.com/in/jose-haro-peralta/
