Apigility Reloaded provides a fresh look at Apigility 1.1. It summarizes issues with Apigility 1.0 like performance problems, bugs, and complex configuration. Apigility 1.1 aims to address these issues by making the framework lighter, simpler to use and more stable. The presentation demonstrates how to create RESTful and RPC web services with Apigility 1.1 and connect services to databases using both direct SQL and the Doctrine ORM. It also covers features like authentication, API documentation and deployment. In conclusion, Apigility 1.1 is almost effortless to work with.

1. APIGILITY ReloadedAPIGILITY Reloaded
Ein frischer Blick auf Apigility 1.1

Repository: https://github.com/RalfEggert/ipc2015-apigility
1 / 44

2. Über michÜber mich
2 / 44www.RalfEggert.dewww.RalfEggert.de

3. Fragen ans PublikumFragen ans Publikum
3 / 44
[b01][b01]

4. [B00][B00]
Apigility 1.0Apigility 1.0
4 / 44

5. Performance LastigPerformance Lastig
5 / 44
[b02][b02]

6. Bug lastigBug lastig
6 / 44
[b03]

7. KonfigurationsLastigKonfigurationsLastig
7 / 44
[b00]

8. Code lastigCode lastig
8 / 44
[b00]

9. [B04]
9 / 44
Apigility 1.0Apigility 1.0
War mir zuWar mir zu
AufwändigAufwändig

10. [B05]
10 / 44
Dann schau dirDann schau dir
Apigility 1.1 an!Apigility 1.1 an!

11. [B06]
Apigility 1.1Apigility 1.1
In a NutshellIn a Nutshell
11 / 44

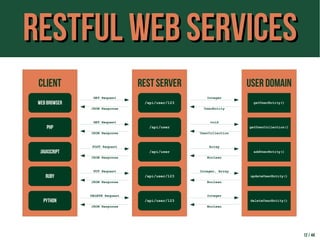

12. Restful Web ServicesRestful Web Services
12 / 44
CLIENT
WebBrowser
PHP
Javascript
RUBY
PYTHON
REST SERVER
/api/user/123
/api/user
/api/user
/api/user/123
/api/user/123
USER DOMAIN
getUserEntity()
getUserCollection()
addUserEntity()
updateUserEntity()
deleteUserEntity()
GET Request
JSON Response
GET Request
JSON Response
POST Request
JSON Response
PUT Request
JSON Response
DELETE Request
JSON Response
Integer
UserEntity
void
UserCollection
Array
Boolean
Integer, Array
Boolean
Integer
Boolean

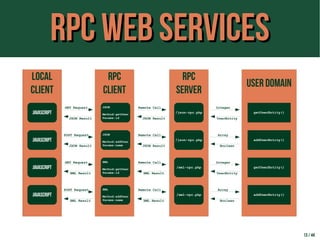

13. RPC Web ServicesRPC Web Services
13 / 44
Local
CLIENT
javascript
RPC
Client
JSON
Method:getUser
Params:id
USER DOMAIN
getUserEntity()
GET Request
JSON Result
Integer
UserEntity
RPC
Server
/json-rpc.php
Remote Call
JSON Result
javascript
JSON
Method:addUser
Params:name
addUserEntity()
POST Request
JSON Result
Array
Boolean
/json-rpc.php
Remote Call
JSON Result
javascript
XML
Method:getUser
Params:id
getUserEntity()
GET Request
XML Result
Integer
UserEntity
/xml-rpc.php
Remote Call
XML Result
javascript
XML
Method:addUser
Params:name
addUserEntity()
POST Request
XML Result
Array
Boolean
/xml-rpc.php
Remote Call
XML Result

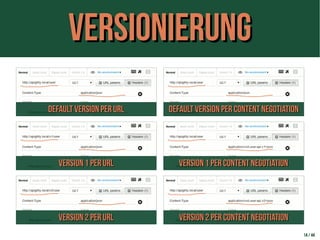

14. VersionierungVersionierung
14 / 44
default Version per URLdefault Version per URL
Version 1 per URLVersion 1 per URL
Version 2 per URLVersion 2 per URL
default Version per Content Negotiationdefault Version per Content Negotiation
Version 1 per Content NegotiationVersion 1 per Content Negotiation
Version 2 per Content NegotiationVersion 2 per Content Negotiation

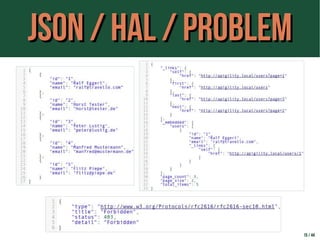

15. JSON / HAL / ProblemJSON / HAL / Problem
15 / 44

16. WEITERE FEATURESWEITERE FEATURES
Datenbank-basiertDatenbank-basiert Code-basiertCode-basiert AuthentifizierungAuthentifizierung
API DokumentationAPI Dokumentation DatenvalidierungDatenvalidierung DeploymentDeployment
16 / 44
[B09]
[B08][B08][B07]
[B12][B12][B11][B10]

17. [b07]
DB-ConnectedDB-Connected
ServiceService
17 / 44

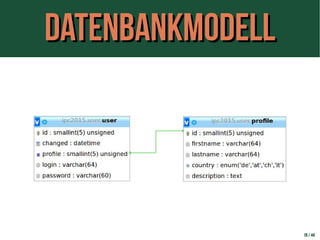

18. DatenbankmodellDatenbankmodell
18 / 44

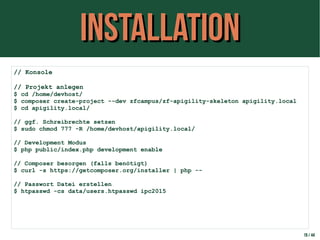

19. InstallationInstallation
19 / 44
// Konsole
// Projekt anlegen
$ cd /home/devhost/
$ composer create-project --dev zfcampus/zf-apigility-skeleton apigility.local
$ cd apigility.local/
// ggf. Schreibrechte setzen
$ sudo chmod 777 -R /home/devhost/apigility.local/
// Development Modus
$ php public/index.php development enable
// Composer besorgen (falls benötigt)
$ curl -s https://getcomposer.org/installer | php --
// Passwort Datei erstellen
$ htpasswd -cs data/users.htpasswd ipc2015

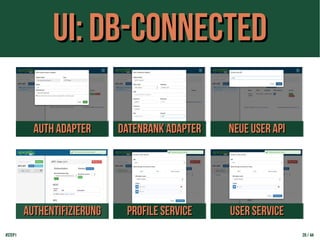

20. UI: DB-connectedUI: DB-connected
Auth AdapterAuth Adapter Datenbank AdapterDatenbank Adapter Neue User APINeue User API
AuthentifizierungAuthentifizierung Profile ServiceProfile Service User ServiceUser Service
#step1 20 / 44

21. Testen mit POSTMANTesten mit POSTMAN
2121 // 4444
[b13][b13]

22. [B00]
Doctrine-Doctrine-
ConnectedConnected
ServiceService
22 / 44

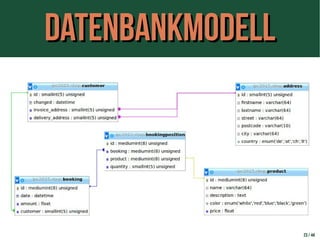

23. DatenbankmodellDatenbankmodell
23 / 44

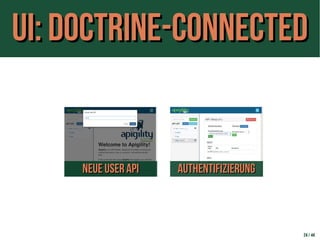

24. UI: DOCTRINE-connectedUI: DOCTRINE-connected
Neue User APINeue User API AuthentifizierungAuthentifizierung
24 / 44

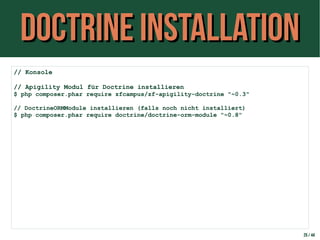

25. Doctrine InstallationDoctrine Installation
25 / 44
// Konsole
// Apigility Modul für Doctrine installieren
$ php composer.phar require zfcampus/zf-apigility-doctrine "~0.3"
// DoctrineORMModule installieren (falls noch nicht installiert)
$ php composer.phar require doctrine/doctrine-orm-module "~0.8"

26. Module aktivierenModule aktivieren
26 / 44
// Datei /config/application.config.php
return array(
'modules' => array(
[...]
'DoctrineModule',
'DoctrineORMModule',
'PhproDoctrineHydrationModule',
'ZFApigilityDoctrineServer',
),
);
// Datei /config/development.config.php
return array(
'modules' => array(
[...]
'ZFApigilityDoctrineAdmin',
),
);

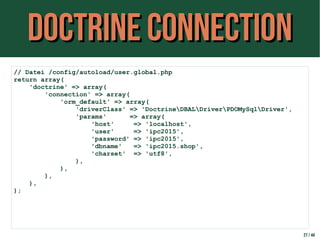

27. Doctrine ConnectionDoctrine Connection
27 / 44
// Datei /config/autoload/user.global.php
return array(
'doctrine' => array(
'connection' => array(
'orm_default' => array(
'driverClass' => 'DoctrineDBALDriverPDOMySqlDriver',
'params' => array(
'host' => 'localhost',
'user' => 'ipc2015',
'password' => 'ipc2015',
'dbname' => 'ipc2015.shop',
'charset' => 'utf8',
),
),
),
),
);

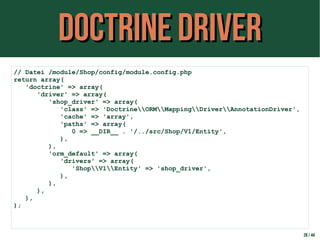

28. Doctrine DriverDoctrine Driver
28 / 44
// Datei /module/Shop/config/module.config.php
return array(
'doctrine' => array(
'driver' => array(
'shop_driver' => array(
'class' => 'DoctrineORMMappingDriverAnnotationDriver',
'cache' => 'array',
'paths' => array(
0 => __DIR__ . '/../src/Shop/V1/Entity',
),
),
'orm_default' => array(
'drivers' => array(
'ShopV1Entity' => 'shop_driver',
),
),
),
),
);

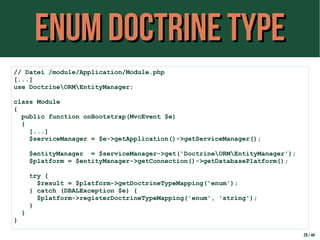

29. ENUM Doctrine TYPEENUM Doctrine TYPE
29 / 44
// Datei /module/Application/Module.php
[...]
use DoctrineORMEntityManager;
class Module
{
public function onBootstrap(MvcEvent $e)
{
[...]
$serviceManager = $e->getApplication()->getServiceManager();
$entityManager = $serviceManager->get('DoctrineORMEntityManager');
$platform = $entityManager->getConnection()->getDatabasePlatform();
try {
$result = $platform->getDoctrineTypeMapping('enum');
} catch (DBALException $e) {
$platform->registerDoctrineTypeMapping('enum', 'string');
}
}
}

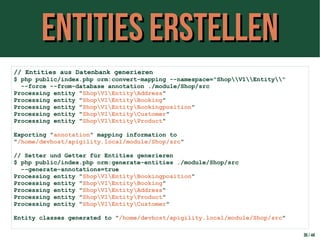

30. Entities erstellenEntities erstellen
30 / 44
// Entities aus Datenbank generieren
$ php public/index.php orm:convert-mapping --namespace="ShopV1Entity"
--force --from-database annotation ./module/Shop/src
Processing entity "ShopV1EntityAddress"
Processing entity "ShopV1EntityBooking"
Processing entity "ShopV1EntityBookingposition"
Processing entity "ShopV1EntityCustomer"
Processing entity "ShopV1EntityProduct"
Exporting "annotation" mapping information to
"/home/devhost/apigility.local/module/Shop/src"
// Setter und Getter für Entities generieren
$ php public/index.php orm:generate-entities ./module/Shop/src
--generate-annotations=true
Processing entity "ShopV1EntityBookingposition"
Processing entity "ShopV1EntityBooking"
Processing entity "ShopV1EntityAddress"
Processing entity "ShopV1EntityProduct"
Processing entity "ShopV1EntityCustomer"
Entity classes generated to "/home/devhost/apigility.local/module/Shop/src"

31. UI: Doctrine-connectedUI: Doctrine-connected
Address ServiceAddress Service Customer ServiceCustomer Service Product ServiceProduct Service
Booking ServiceBooking Service Bookingpos. ServiceBookingpos. Service
#step2 31 / 44

32. Testen mit POSTMANTesten mit POSTMAN
3232 // 4444
[b13][b13]

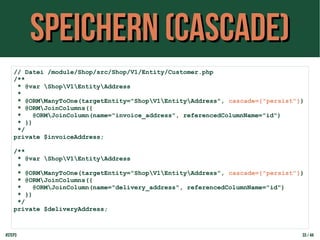

33. Speichern (cascade)Speichern (cascade)
// Datei /module/Shop/src/Shop/V1/Entity/Customer.php
/**
* @var ShopV1EntityAddress
*
* @ORMManyToOne(targetEntity="ShopV1EntityAddress", cascade={"persist"})
* @ORMJoinColumns({
* @ORMJoinColumn(name="invoice_address", referencedColumnName="id")
* })
*/
private $invoiceAddress;
/**
* @var ShopV1EntityAddress
*
* @ORMManyToOne(targetEntity="ShopV1EntityAddress", cascade={"persist"})
* @ORMJoinColumns({
* @ORMJoinColumn(name="delivery_address", referencedColumnName="id")
* })
*/
private $deliveryAddress;
#step3 33 / 44

34. [B14]
Many-to-ManyMany-to-Many
34 / 44

35. Testen mit POSTMANTesten mit POSTMAN
3535 // 4444
[b13][b13]

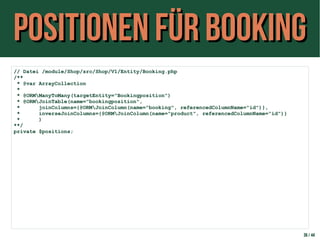

36. Positionen für BookingPositionen für Booking
36 / 44
// Datei /module/Shop/src/Shop/V1/Entity/Booking.php
/**
* @var ArrayCollection
*
* @ORMManyToMany(targetEntity="Bookingposition")
* @ORMJoinTable(name="bookingposition",
* joinColumns={@ORMJoinColumn(name="booking", referencedColumnName="id")},
* inverseJoinColumns={@ORMJoinColumn(name="product", referencedColumnName="id")}
* )
**/
private $positions;

37. BookingHydratorBookingHydrator
37 / 44
// Datei /module/Shop/config/module.config.php
return array(
'doctrine-hydrator' => array(
[...]
'ShopV1RestBookingBookingHydrator' => array(
[...]
'strategies' => array(
'positions' => 'ZFApigilityDoctrineServer
HydratorStrategyCollectionExtract',
),
[...]
),
[...]
),
);

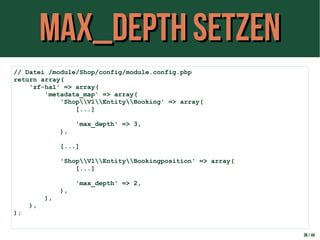

38. Max_Depth setzenMax_Depth setzen
38 / 44
// Datei /module/Shop/config/module.config.php
return array(
'zf-hal' => array(
'metadata_map' => array(
'ShopV1EntityBooking' => array(
[...]
'max_depth' => 3,
),
[...]
'ShopV1EntityBookingposition' => array(
[...]
'max_depth' => 2,
),
),
),
);

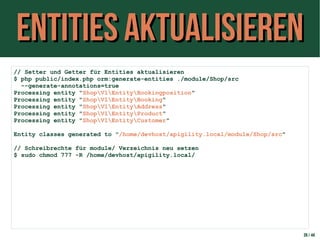

39. Entities aktualisierenEntities aktualisieren
39 / 44
// Setter und Getter für Entities aktualisieren
$ php public/index.php orm:generate-entities ./module/Shop/src
--generate-annotations=true
Processing entity "ShopV1EntityBookingposition"
Processing entity "ShopV1EntityBooking"
Processing entity "ShopV1EntityAddress"
Processing entity "ShopV1EntityProduct"
Processing entity "ShopV1EntityCustomer"
Entity classes generated to "/home/devhost/apigility.local/module/Shop/src"
// Schreibrechte für module/ Verzeichnis neu setzen
$ sudo chmod 777 -R /home/devhost/apigility.local/

40. Testen mit POSTMANTesten mit POSTMAN
4040 // 4444
[b13][b13]

41. [B15]
41 / 44
Fazit:Fazit:
Apigility 1.1Apigility 1.1
ist (fast)ist (fast)
kinderleichtkinderleicht

42. Fragen vom Publikum?Fragen vom Publikum?
42 / 44
[b16]

43. DANKEDANKE
Für Ihre / Eure Aufmerksamkeit!

Repository: https://github.com/RalfEggert/ipc2015-apigility
43 / 44

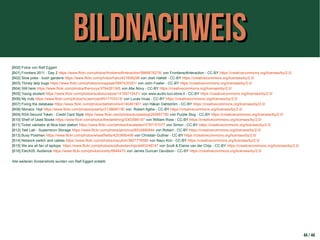

44. BildnachweisBildnachweis
