Eine Einführung in Apigility, das auf dem Zend Framework 2 basiert und mit dem man schnell mal eben seine API zusammen klicken kann.

1. AAPPIIGGIILLIITTYY
Heute klicken wir unsere API einfach mal zusammen...

1 / 54

2. ÜÜbbeerr RRaallff EEggggeerrtt
● PHP seit 1999
● Zend Framework 2
● Trainer
● Berater
● Autor
● Insulaner
2 / 54

3. [A]
PPrroolloogg
3 / 54

4. [1]
Neue API
in 2 Stunden?
4 / 54

5. [2]
5 / 54

6. [3]
IInn aa NNuuttsshheellll
6 / 54

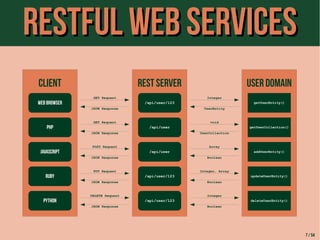

7. RReessttffuull WWeebb SSeerrvviicceess
CLIENT
Web Browser
PHP
Javascript
RUBY
PYTHON
REST SERVER
/api/user/123
/api/user
/api/user
/api/user/123
/api/user/123
USER DOMAIN
getUserEntity()
getUserCollection()
addUserEntity()
updateUserEntity()
deleteUserEntity()
GET Request
JSON Response
GET Request
JSON Response
POST Request
JSON Response
PUT Request
JSON Response
DELETE Request
JSON Response
Integer
UserEntity
void
UserCollection
Array
Boolean
Integer, Array
Boolean
Integer
Boolean
7 / 54

8. RRPPCC WWeebb SSeerrvviicceess
Local
CLIENT
javascript
RPC
Client
JSON
Method:getUser
Params:id
USER DOMAIN
getUserEntity()
GET Request
JSON Result
Integer
UserEntity
RPC
Server
/json-rpc.php
Remote Call
JSON Result
javascript
JSON
Method:addUser
Params:name
addUserEntity()
POST Request
JSON Result
Array
Boolean
/json-rpc.php
Remote Call
JSON Result
javascript
XML
Method:getUser
Params:id
getUserEntity()
GET Request
XML Result
Integer
UserEntity
/xml-rpc.php
Remote Call
XML Result
javascript
XML
Method:addUser
Params:name
addUserEntity()
POST Request
XML Result
Array
Boolean
/xml-rpc.php
Remote Call
XML Result
8 / 54

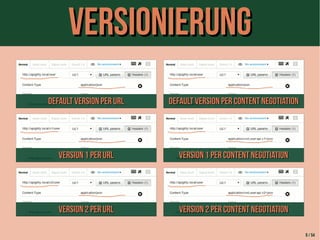

9. VVeerrssiioonniieerruunngg
ddeeffaauulltt VVeerrssiioonn ppeerr UURRLL
VVeerrssiioonn 11 ppeerr UURRLL
VVeerrssiioonn 22 ppeerr UURRLL
ddeeffaauulltt VVeerrssiioonn ppeerr CCoonntteenntt NNeeggoottiiaattiioonn
VVeerrssiioonn 11 ppeerr CCoonntteenntt NNeeggoottiiaattiioonn
VVeerrssiioonn 22 ppeerr CCoonntteenntt NNeeggoottiiaattiioonn
9 / 54

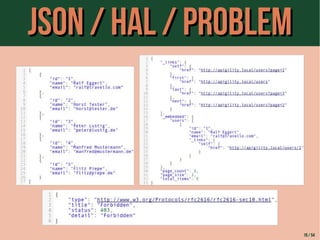

10. JJSSOONN // HHAALL // PPrroobblleemm
10 / 54

11. WWEEIITTEERREE FFEEAATTUURREESS
[4, 5, 6, 7, 8, 9]
DDaatteennbbaannkk--bbaassiieerrtt CCooddee--bbaassiieerrtt aauutthheennttiiffiizziieerruunngg
AAPPII DDookkuummeennttaattiioonn DDaatteennvvaalliiddiieerruunngg DDeeppllooyymmeenntt
11 / 54

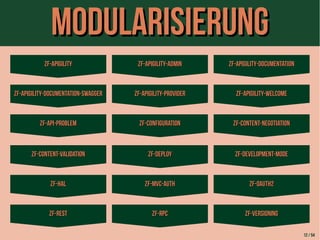

12. MMoodduullaarriissiieerruunngg
ZZff--aappiiggiilliittyy ZZff--aappiiggiilliittyy--aaddmmiinn ZZff--aappiiggiilliittyy--ddooccuummeennttaattiioonn
ZZff--aappiiggiilliittyy--ddooccuummeennttaattiioonn--sswwaaggggeerr ZZff--aappiiggiilliittyy--pprroovviiddeerr ZZff--aappiiggiilliittyy--WWeellccoommee
ZZff--aappii--pprroobblleemm ZZff--ccoonnffiigguurraattiioonn ZZff--ccoonntteenntt--nneeggoottiiaattiioonn
ZZff--ccoonntteenntt--vvaalliiddaattiioonn ZZff--ddeeppllooyy ZZff--ddeevveellooppmmeenntt--mmooddee
ZZff--hhaall ZZff--mmvvcc--aauutthh ZZff--ooaauutthh22
ZZff--rreesstt ZZff--RRPPCC ZZff--vveerrssiioonniinngg
12 / 54

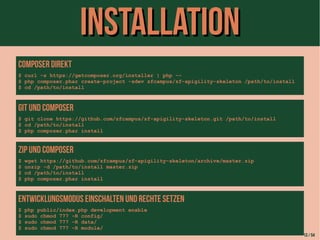

13. IInnssttaallllaattiioonn
Composer direkt
$ curl -s https://getcomposer.org/installer | php --
$ php composer.phar create-project -sdev zfcampus/zf-apigility-skeleton /path/to/install
$ cd /path/to/install
Git und Composer
$ git clone https://github.com/zfcampus/zf-apigility-skeleton.git /path/to/install
$ cd /path/to/install
$ php composer.phar install
ZIP und Composer
$ wget https://github.com/zfcampus/zf-apigility-skeleton/archive/master.zip
$ unzip -d /path/to/install master.zip
$ cd /path/to/install
$ php composer.phar install
Entwicklungsmodus einschalten und Rechte setzen
$ php public/index.php development enable
$ sudo chmod 777 -R config/
$ sudo chmod 777 -R data/
$ sudo chmod 777 -R module/
13 / 54

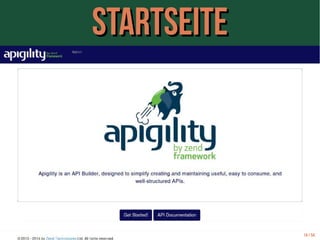

14. SSttaarrttsseeiittee
14 / 54

15. [4]
DDBB--bbaassiieerrtteerr
RREESSTT--SSeerrvviiccee
15 / 54

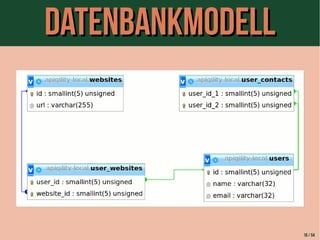

16. DDaatteennbbaannkkmmooddeellll
16 / 54

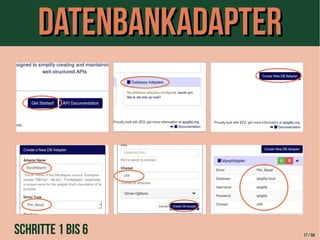

17. DDaatteennbbaannkkaaddaapptteerr
Schritte 1 bis 6 17 / 54

18. RReesstt SSeerrvviiccee,, DDBB--bbaassiieerrtt
Schritte 1 bis 6 18 / 54

19. RReesstt SSeerrvviiccee,, DDBB--bbaassiieerrtt
Schritte 7 bis 12 19 / 54

20. RReesstt SSeerrvviiccee,, DDBB--bbaassiieerrtt
Schritte 13 bis 18 20 / 54

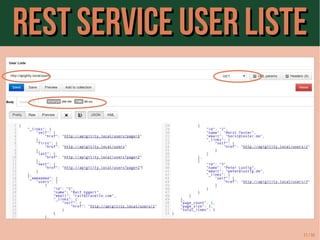

21. RREESSTT SSeerrvviiccee UUsseerr LLiissttee
21 / 54

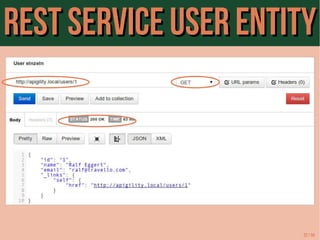

22. RREESSTT SSeerrvviiccee UUsseerr EEnnttiittyy
22 / 54

23. [10]
PPOOSSTT
PPUUTT
DDEELLEETTEE
23 / 54

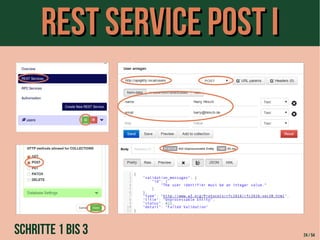

24. RReesstt SSeerrvviiccee PPoosstt II
Schritte 1 bis 3 24 / 54

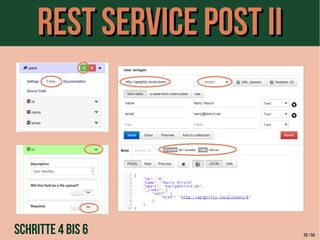

25. RReesstt SSeerrvviiccee PPoosstt IIII
Schritte 4 bis 6 25 / 54

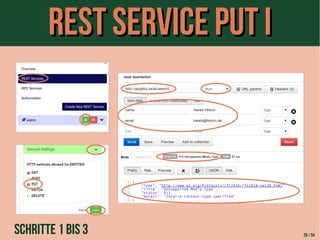

26. RReesstt SSeerrvviiccee PPuutt II
Schritte 1 bis 3 26 / 54

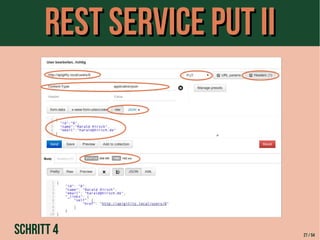

27. RReesstt SSeerrvviiccee PPuutt IIII
Schritt 4 27 / 54

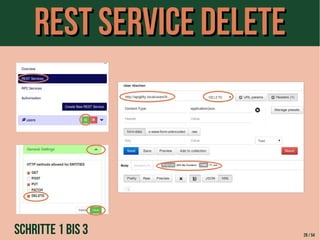

28. RReesstt SSeerrvviiccee DDeelleettee
Schritte 1 bis 3 28 / 54

29. [6]
AAUUTTHHEENNTTIIFFII--
ZZIIEERRUUNNGG
29 / 54

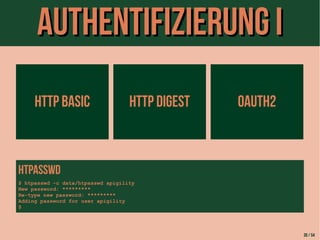

30. AAuutthheennttiiffiizziieerruunngg II
HTTP BASIC HTTP DIGEST OAUTH2
HTpasswd
$ htpasswd -c data/htpasswd apigility
New password: *********
Re-type new password: *********
Adding password for user apigility
$
30 / 54

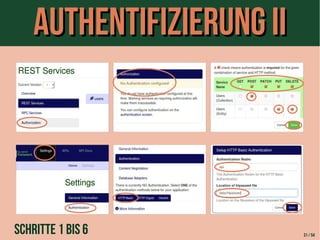

31. AAuutthheennttiiffiizziieerruunngg IIII
Schritte 1 bis 6 31 / 54

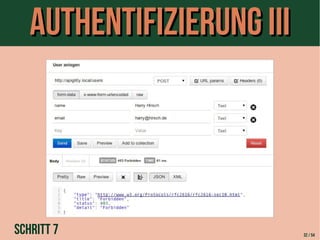

32. AAuutthheennttiiffiizziieerruunngg IIIIII
Schritt 7 32 / 54

33. AAuutthheennttiiffiizziieerruunngg IIVV
Schritt 8 33 / 54

34. [5]
CCooddee--bbaassiieerrtteerr
RREESSTT SSEERRVVIICCEE
34 / 54

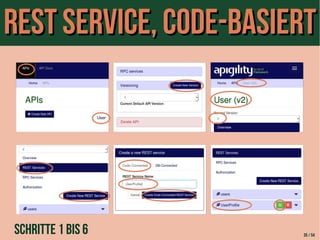

35. RReesstt SSeerrvviiccee,, CCooddee--bbaassiieerrtt
Schritte 1 bis 6 35 / 54

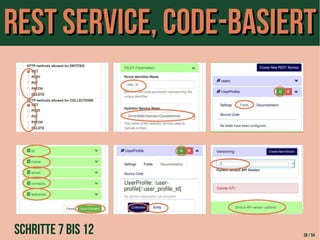

36. RReesstt SSeerrvviiccee,, CCooddee--bbaassiieerrtt
Schritte 7 bis 12 36 / 54

37. [11]
Was ist daran
Code-basiert?
37 / 54

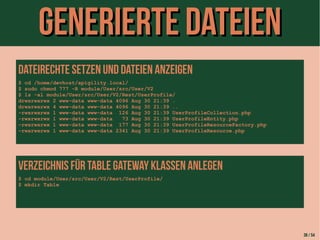

38. GGeenneerriieerrttee DDaatteeiieenn
Dateirechte setzen und Dateien anzeigen
$ cd /home/devhost/apigility.local/
$ sudo chmod 777 -R module/User/src/User/V2
$ ls -al module/User/src/User/V2/Rest/UserProfile/
drwxrwxrwx 2 www-data www-data 4096 Aug 30 21:39 .
drwxrwxrwx 4 www-data www-data 4096 Aug 30 21:39 ..
-rwxrwxrwx 1 www-data www-data 126 Aug 30 21:39 UserProfileCollection.php
-rwxrwxrwx 1 www-data www-data 73 Aug 30 21:39 UserProfileEntity.php
-rwxrwxrwx 1 www-data www-data 177 Aug 30 21:39 UserProfileResourceFactory.php
-rwxrwxrwx 1 www-data www-data 2341 Aug 30 21:39 UserProfileResource.php
Verzeichnis für table Gateway Klassen anlegen
$ cd module/User/src/User/V2/Rest/UserProfile/
$ mkdir Table
38 / 54

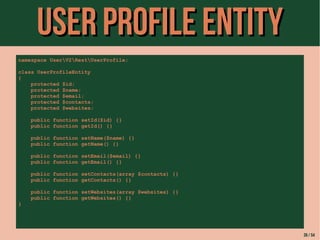

39. UUsseerr PPrrooffiillee eennttiittyy
namespace UserV2RestUserProfile;
class UserProfileEntity
{
protected $id;
protected $name;
protected $email;
protected $contacts;
protected $websites;
public function setId($id) {}
public function getId() {}
public function setName($name) {}
public function getName() {}
public function setEmail($email) {}
public function getEmail() {}
public function setContacts(array $contacts) {}
public function getContacts() {}
public function setWebsites(array $websites) {}
public function getWebsites() {}
}
39 / 54

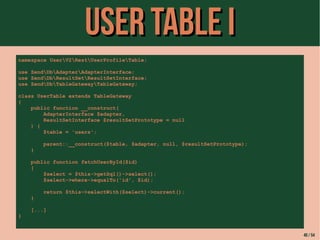

40. UUsseerr TTaabbllee II
namespace UserV2RestUserProfileTable;
use ZendDbAdapterAdapterInterface;
use ZendDbResultSetResultSetInterface;
use ZendDbTableGatewayTableGateway;
class UserTable extends TableGateway
{
public function __construct(
AdapterInterface $adapter,
ResultSetInterface $resultSetPrototype = null
) {
$table = 'users';
parent::__construct($table, $adapter, null, $resultSetPrototype);
}
public function fetchUserById($id)
{
$select = $this->getSql()->select();
$select->where->equalTo('id', $id);
return $this->selectWith($select)->current();
}
[...]
}
40 / 54

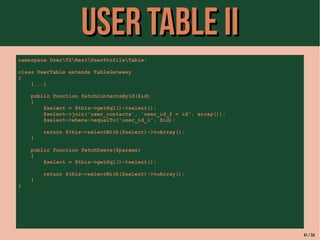

41. UUsseerr TTaabbllee IIII
namespace UserV2RestUserProfileTable;
class UserTable extends TableGateway
{
[...]
public function fetchContactsById($id)
{
$select = $this->getSql()->select();
$select->join('user_contacts', 'user_id_2 = id', array());
$select->where->equalTo('user_id_1', $id);
return $this->selectWith($select)->toArray();
}
public function fetchUsers($params)
{
$select = $this->getSql()->select();
return $this->selectWith($select)->toArray();
}
}
41 / 54

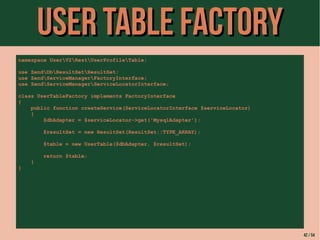

42. UUsseerr TTaabbllee ffaaccttoorryy
namespace UserV2RestUserProfileTable;
use ZendDbResultSetResultSet;
use ZendServiceManagerFactoryInterface;
use ZendServiceManagerServiceLocatorInterface;
class UserTableFactory implements FactoryInterface
{
public function createService(ServiceLocatorInterface $serviceLocator)
{
$dbAdapter = $serviceLocator->get('MysqlAdapter');
$resultSet = new ResultSet(ResultSet::TYPE_ARRAY);
$table = new UserTable($dbAdapter, $resultSet);
return $table;
}
}
42 / 54

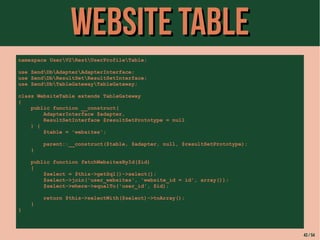

43. WWeebbssiittee TTaabbllee
namespace UserV2RestUserProfileTable;
use ZendDbAdapterAdapterInterface;
use ZendDbResultSetResultSetInterface;
use ZendDbTableGatewayTableGateway;
class WebsiteTable extends TableGateway
{
public function __construct(
AdapterInterface $adapter,
ResultSetInterface $resultSetPrototype = null
) {
$table = 'websites';
parent::__construct($table, $adapter, null, $resultSetPrototype);
}
public function fetchWebsitesById($id)
{
$select = $this->getSql()->select();
$select->join('user_websites', 'website_id = id', array());
$select->where->equalTo('user_id', $id);
return $this->selectWith($select)->toArray();
}
}
43 / 54

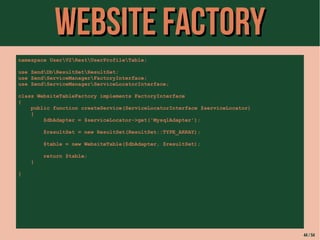

44. WWeebbssiittee FFaaccttoorryy
namespace UserV2RestUserProfileTable;
use ZendDbResultSetResultSet;
use ZendServiceManagerFactoryInterface;
use ZendServiceManagerServiceLocatorInterface;
class WebsiteTableFactory implements FactoryInterface
{
public function createService(ServiceLocatorInterface $serviceLocator)
{
$dbAdapter = $serviceLocator->get('MysqlAdapter');
$resultSet = new ResultSet(ResultSet::TYPE_ARRAY);
$table = new WebsiteTable($dbAdapter, $resultSet);
return $table;
}
}
44 / 54

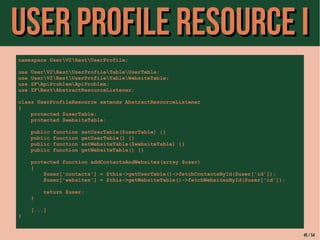

45. UUsseerr PPrrooffiillee RReessoouurrccee II
namespace UserV2RestUserProfile;
use UserV2RestUserProfileTableUserTable;
use UserV2RestUserProfileTableWebsiteTable;
use ZFApiProblemApiProblem;
use ZFRestAbstractResourceListener;
class UserProfileResource extends AbstractResourceListener
{
protected $userTable;
protected $websiteTable;
public function setUserTable($userTable) {}
public function getUserTable() {}
public function setWebsiteTable($websiteTable) {}
public function getWebsiteTable() {}
protected function addContactsAndWebsites(array $user)
{
$user['contacts'] = $this->getUserTable()->fetchContactsById($user['id']);
$user['websites'] = $this->getWebsiteTable()->fetchWebsitesById($user['id']);
return $user;
}
[...]
}
45 / 54

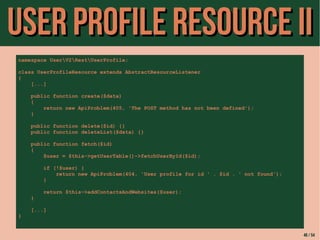

46. UUsseerr PPrrooffiillee RReessoouurrccee IIII
namespace UserV2RestUserProfile;
class UserProfileResource extends AbstractResourceListener
{
[...]
public function create($data)
{
return new ApiProblem(405, 'The POST method has not been defined');
}
public function delete($id) {}
public function deleteList($data) {}
public function fetch($id)
{
$user = $this->getUserTable()->fetchUserById($id);
if (!$user) {
return new ApiProblem(404, 'User profile for id ' . $id . ' not found');
}
return $this->addContactsAndWebsites($user);
}
[...]
}
46 / 54

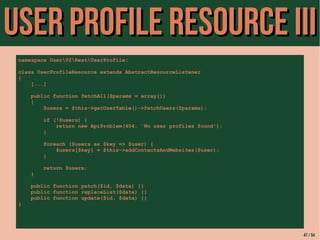

47. UUsseerr PPrrooffiillee RReessoouurrccee IIIIII
namespace UserV2RestUserProfile;
class UserProfileResource extends AbstractResourceListener
{
[...]
public function fetchAll($params = array())
{
$users = $this->getUserTable()->fetchUsers($params);
if (!$users) {
return new ApiProblem(404, 'No user profiles found');
}
foreach ($users as $key => $user) {
$users[$key] = $this->addContactsAndWebsites($user);
}
return $users;
}
public function patch($id, $data) {}
public function replaceList($data) {}
public function update($id, $data) {}
}
47 / 54

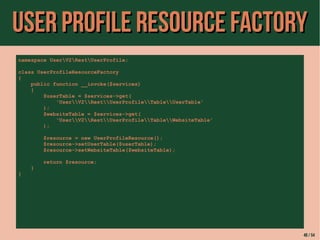

48. UUsseerr PPrrooffiillee RReessoouurrccee FFaaccttoorryy
namespace UserV2RestUserProfile;
class UserProfileResourceFactory
{
public function __invoke($services)
{
$userTable = $services->get(
'UserV2RestUserProfileTableUserTable'
);
$websiteTable = $services->get(
'UserV2RestUserProfileTableWebsiteTable'
);
$resource = new UserProfileResource();
$resource->setUserTable($userTable);
$resource->setWebsiteTable($websiteTable);
return $resource;
}
}
48 / 54

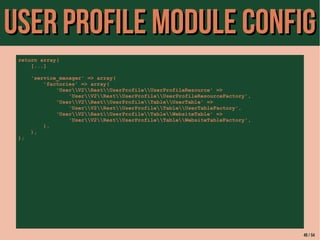

49. UUsseerr PPrrooffiillee MMoodduullee CCoonnffiigg
return array(
[...]
'service_manager' => array(
'factories' => array(
'UserV2RestUserProfileUserProfileResource' =>
'UserV2RestUserProfileUserProfileResourceFactory',
'UserV2RestUserProfileTableUserTable' =>
'UserV2RestUserProfileTableUserTableFactory',
'UserV2RestUserProfileTableWebsiteTable' =>
'UserV2RestUserProfileTableWebsiteTableFactory',
),
),
);
49 / 54

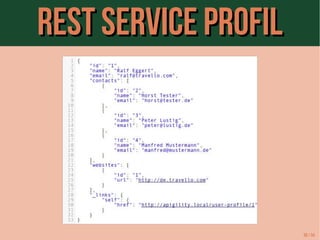

50. RREESSTT SSeerrvviiccee PPrrooffiill
50 / 54

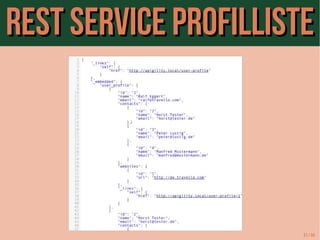

51. RREESSTT SSeerrvviiccee PPrrooffiillLLiissttee
51 / 54

52. [A]
EEPPIILLOOGG
52 / 54

53. AAPPII ZZUUSSAAMMMMEENNKKLLIICCKKEENN
Klappt für einfache APIs, ansonsten ist Handarbeit erforderlich...

Repository: https://github.com/RalfEggert/phpughh-apigility
53 / 54

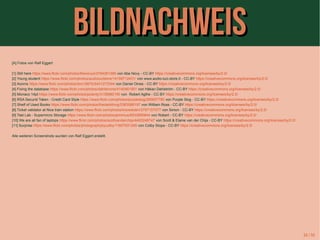

54. BBiillddnnaacchhwweeiiss
[A] Fotos von Ralf Eggert
[1] Still here https://www.flickr.com/photos/thenovys/3784261365 von Abe Novy - CC-BY https://creativecommons.org/licenses/by/2.0/
[2] Young student https://www.flickr.com/photos/audiolucistore/14159712431/ von www.audio-luci-store.it - CC-BY https://creativecommons.org/licenses/by/2.0/
[3] Acorns https://www.flickr.com/photos/dno1967b/5431273344 von Daniel Oines - CC-BY https://creativecommons.org/licenses/by/2.0/
[4] Fixing the database https://www.flickr.com/photos/dahlstroms/4140461901 von Håkan Dahlström - CC-BY https://creativecommons.org/licenses/by/2.0/
[5] Monaco 14pt https://www.flickr.com/photos/polarity/3138680190 von Robert Agthe - CC-BY https://creativecommons.org/licenses/by/2.0/
[6] RSA Securid Token - Credit Card Style https://www.flickr.com/photos/purpleslog/265657780 von Purple Slog - CC-BY https://creativecommons.org/licenses/by/2.0/
[7] Shelf of Used Books https://www.flickr.com/photos/thedarkthing/5363586197 von William Ross - CC-BY https://creativecommons.org/licenses/by/2.0/
[8] Ticket validator at Nice train station https://www.flickr.com/photos/traveleden/3797157077 von Simon - CC-BY https://creativecommons.org/licenses/by/2.0/
[9] Test Lab - Supermicro Storage https://www.flickr.com/photos/jemimus/8533890844 von Robert - CC-BY https://creativecommons.org/licenses/by/2.0/
[10] We are all fan of laptops https://www.flickr.com/photos/scottvanderchijs/4493248747 von Scott & Elaine van der Chijs - CC-BY https://creativecommons.org/licenses/by/2.0/
[11] Surprise https://www.flickr.com/photos/photographybycolby/11927931295 von Colby Stopa - CC-BY https://creativecommons.org/licenses/by/2.0/
Alle weiteren Screenshots wurden von Ralf Eggert erstellt.
54 / 54
