This document discusses using Windows Server AppFabric caching to scale data layers. AppFabric caching provides a distributed, in-memory cache that can span machines and processes. It addresses issues like limited cache memory on individual servers. The document outlines how AppFabric caching works, how to install and configure it, and how to access the cache through the API. It also describes features like data distribution, eviction policies, and change notifications that allow the cache to efficiently scale to large workloads and data sets.

1. Como garantir a escalabilidade da sua camada de dados com o Windows Server AppFabricWIN304NunoGodinhoPartner & CTO @ ITech4Allnuno.godinho@itech4all.com@NunoGodinho

2. Session abstractSession title

3. Speaker Bio and PhotoSpeaker Name

4. Nuno Filipe GodinhoPartner & CTO @ ITech4allMail: Nuno.Godinho@itech4all.comNuno.Godinho@sapo.ptBlogs: http://pontonetpt.com/blogs/nunogodinhohttp://xamlpt.com/blogs/nunogodinhohttp://weblogs.asp.net/nunogodinhohttp://msmvps.org/blogs/nunogodinhoTwitter: @NunoGodinhoAbout Me

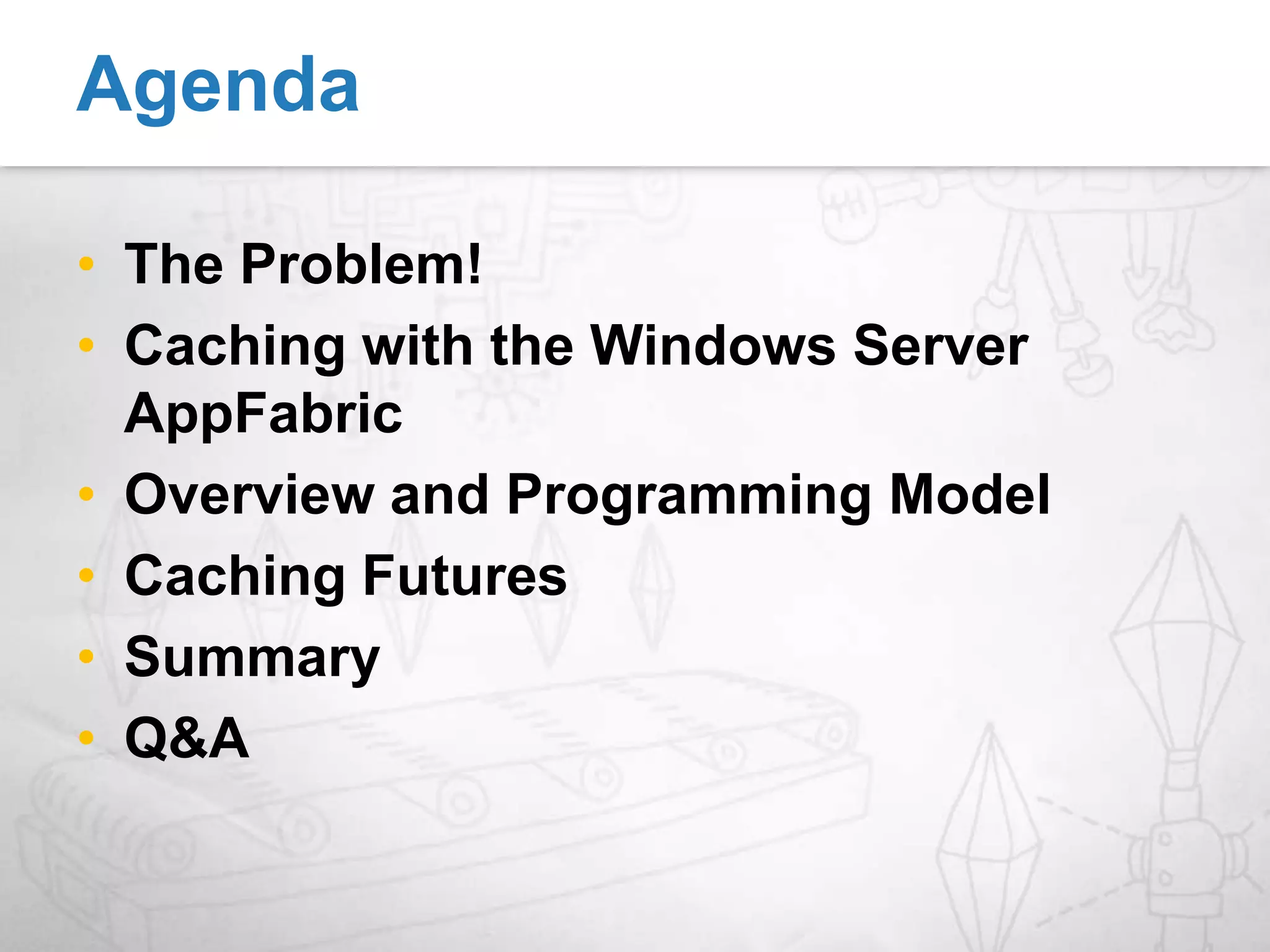

5. The Problem!Caching with the Windows Server AppFabricOverview and Programming ModelCaching FuturesSummaryQ&AAgenda

6. The Problem

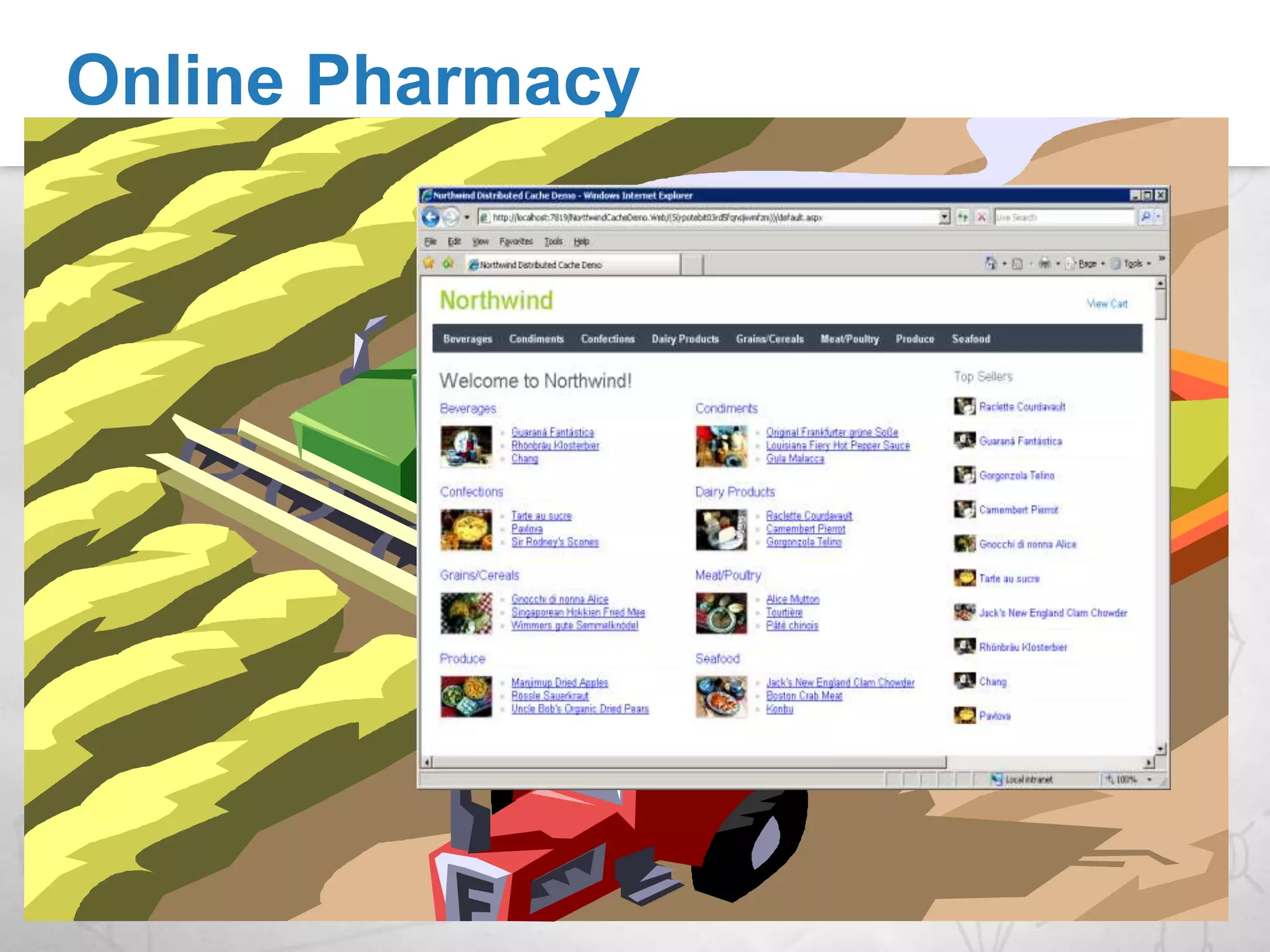

7. Online Pharmacy

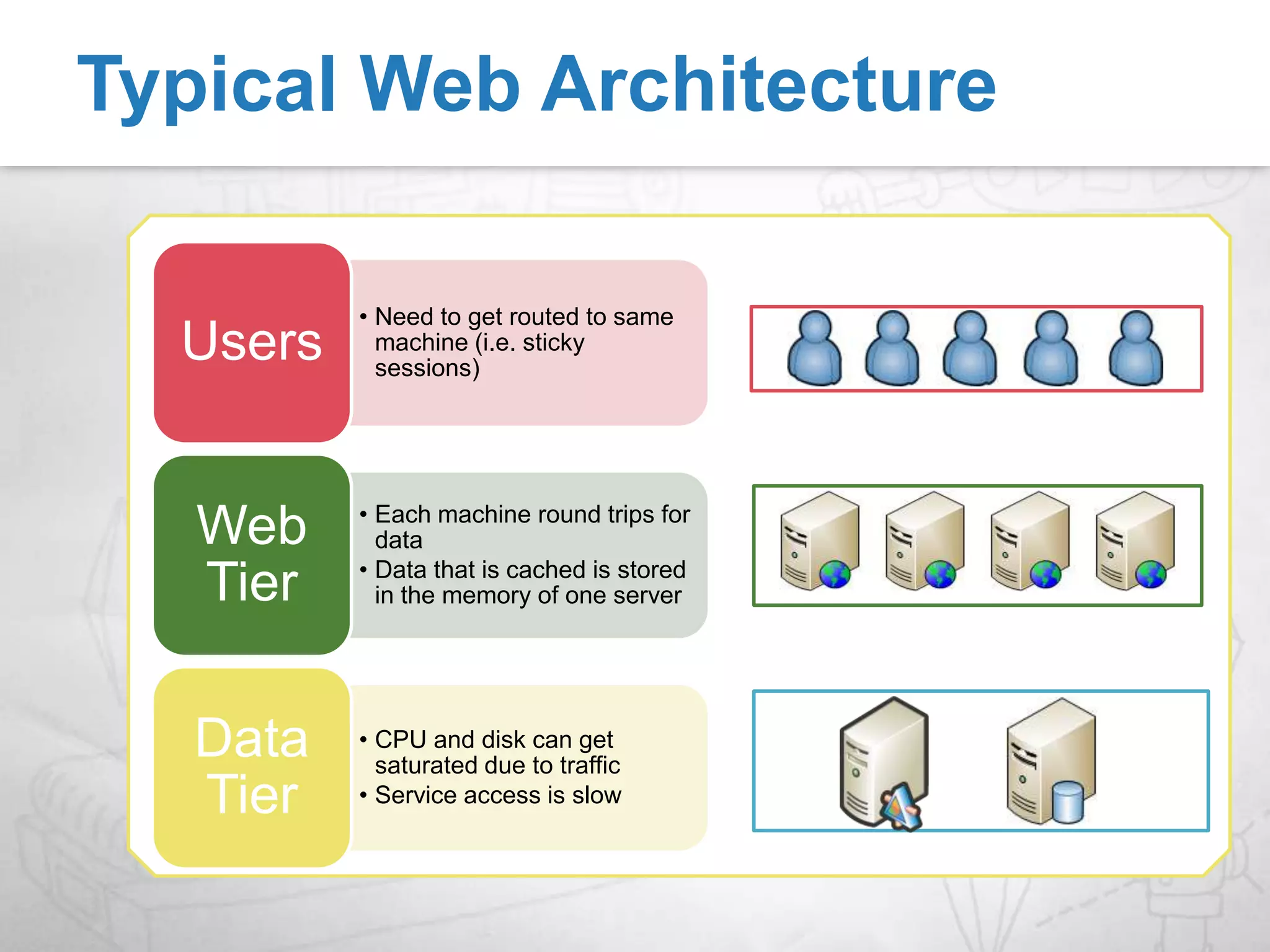

8. Typical Web Architecture

9. Typical ArchitectureUsersLoad BalancerSticky RoutingApplication/ Web Tier Application Application ApplicationASP.Net App Session Cart Hosted in memoryCatalog sits in DatabaseData TierDatabase

10. And then… Flu Hits!

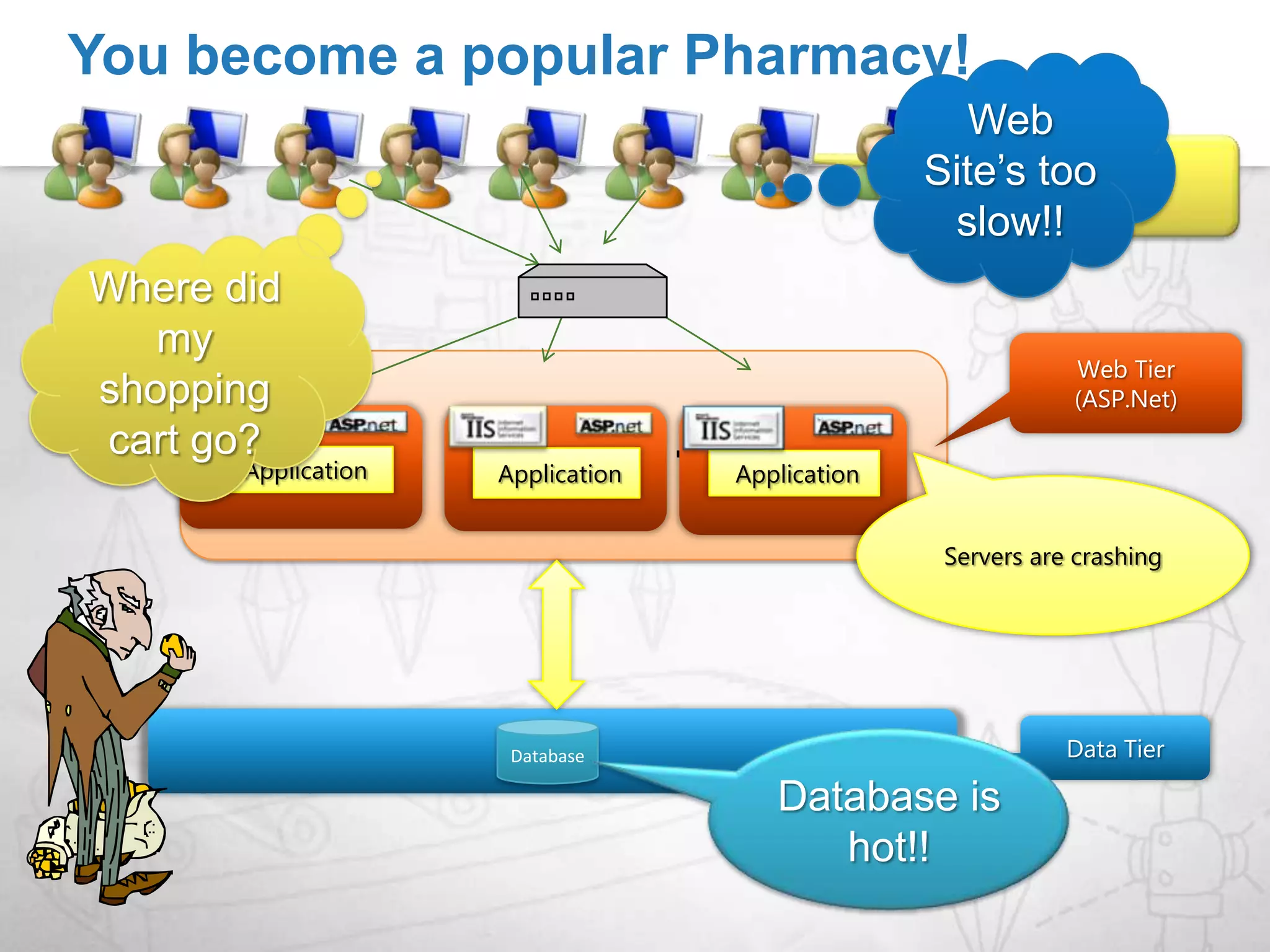

11. You become a popular Pharmacy!Web Site’s too slow!!UsersWhere did my shopping cart go?Web Tier(ASP.Net)… Application Application ApplicationServers are crashingDatabase is hot!!Data TierDatabase

12. Possible Solution

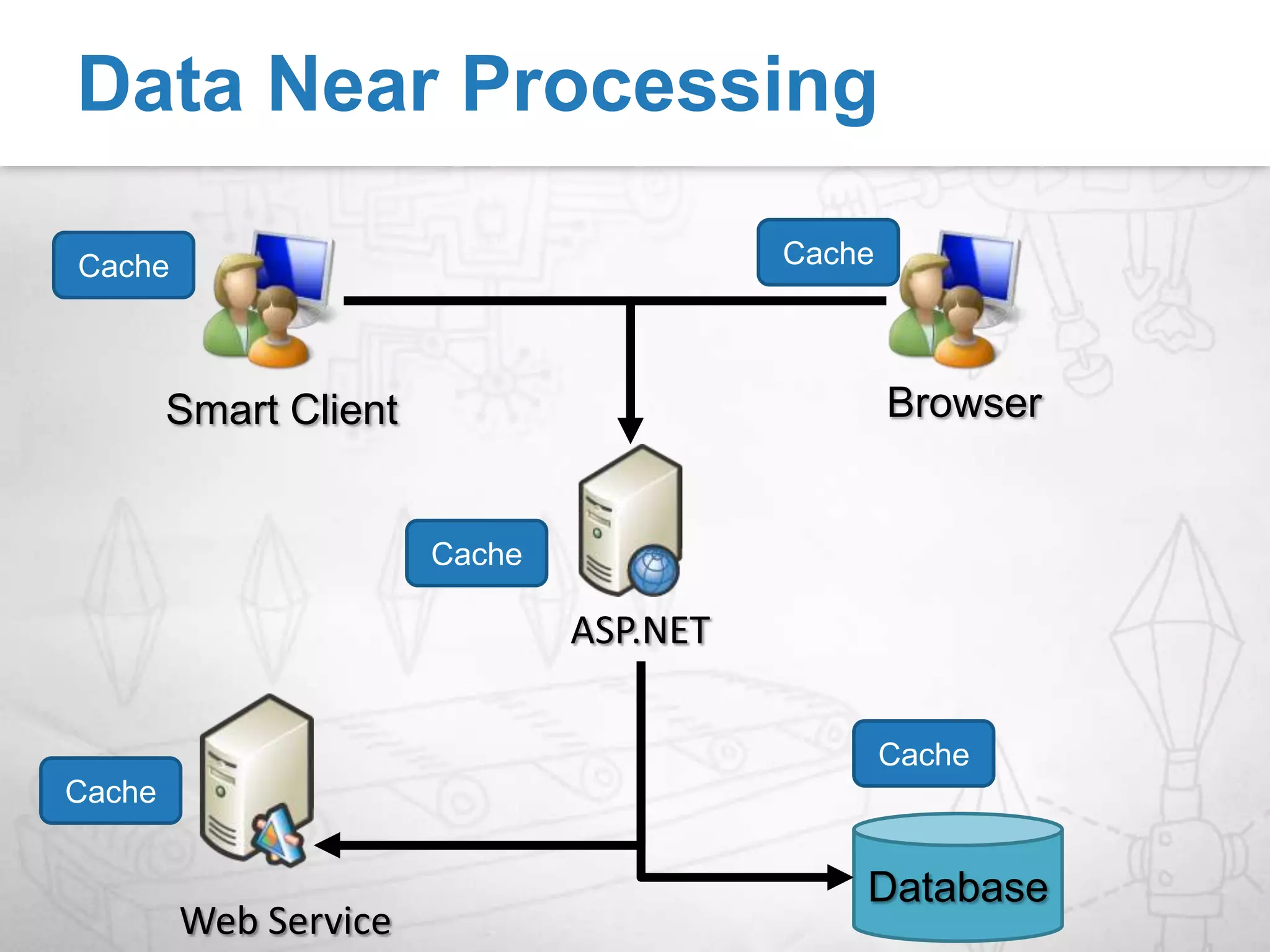

13. Data Near ProcessingCacheCacheBrowserSmart ClientCacheWeb ServiceASP.NETCacheCacheDatabase

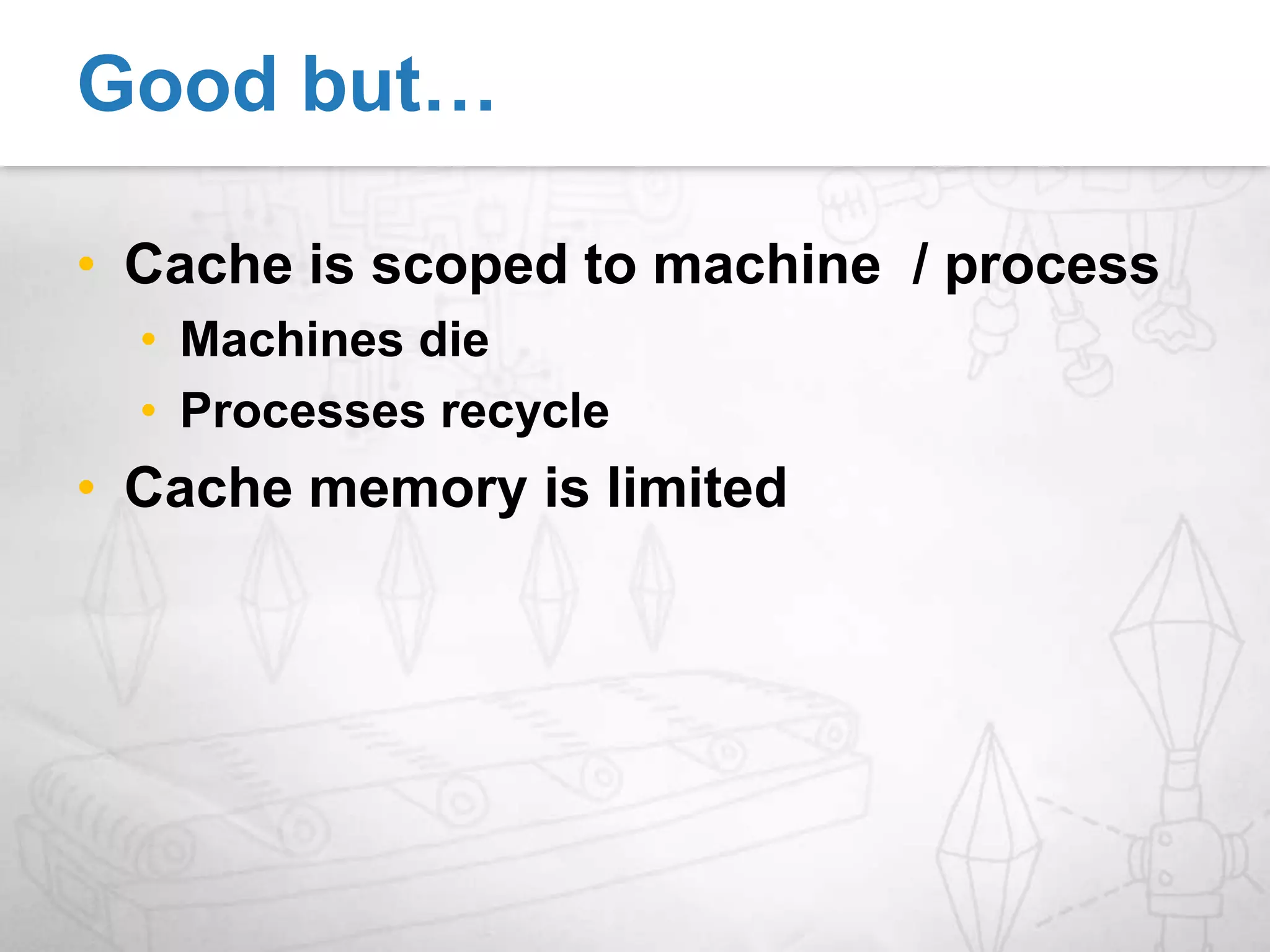

14. Cache is scoped to machine / processMachines dieProcesses recycleCache memory is limitedGood but…

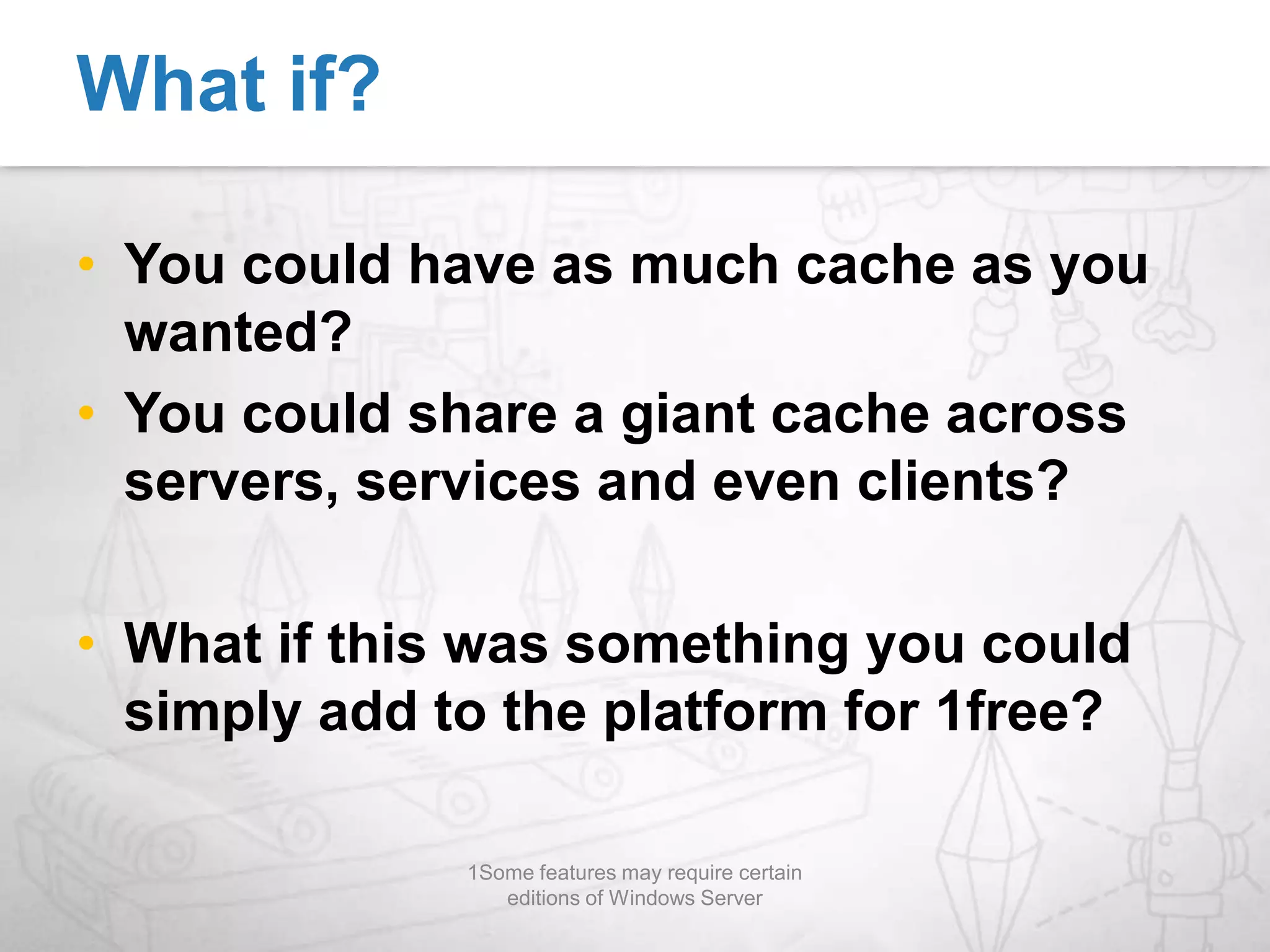

15. You could have as much cache as you wanted?You could share a giant cache across servers, services and even clients?What if this was something you could simply add to the platform for 1free?1Some features may require certain editions of Windows Server What if?

16. Caching with the Windows Server AppFabric

17. What Is It?

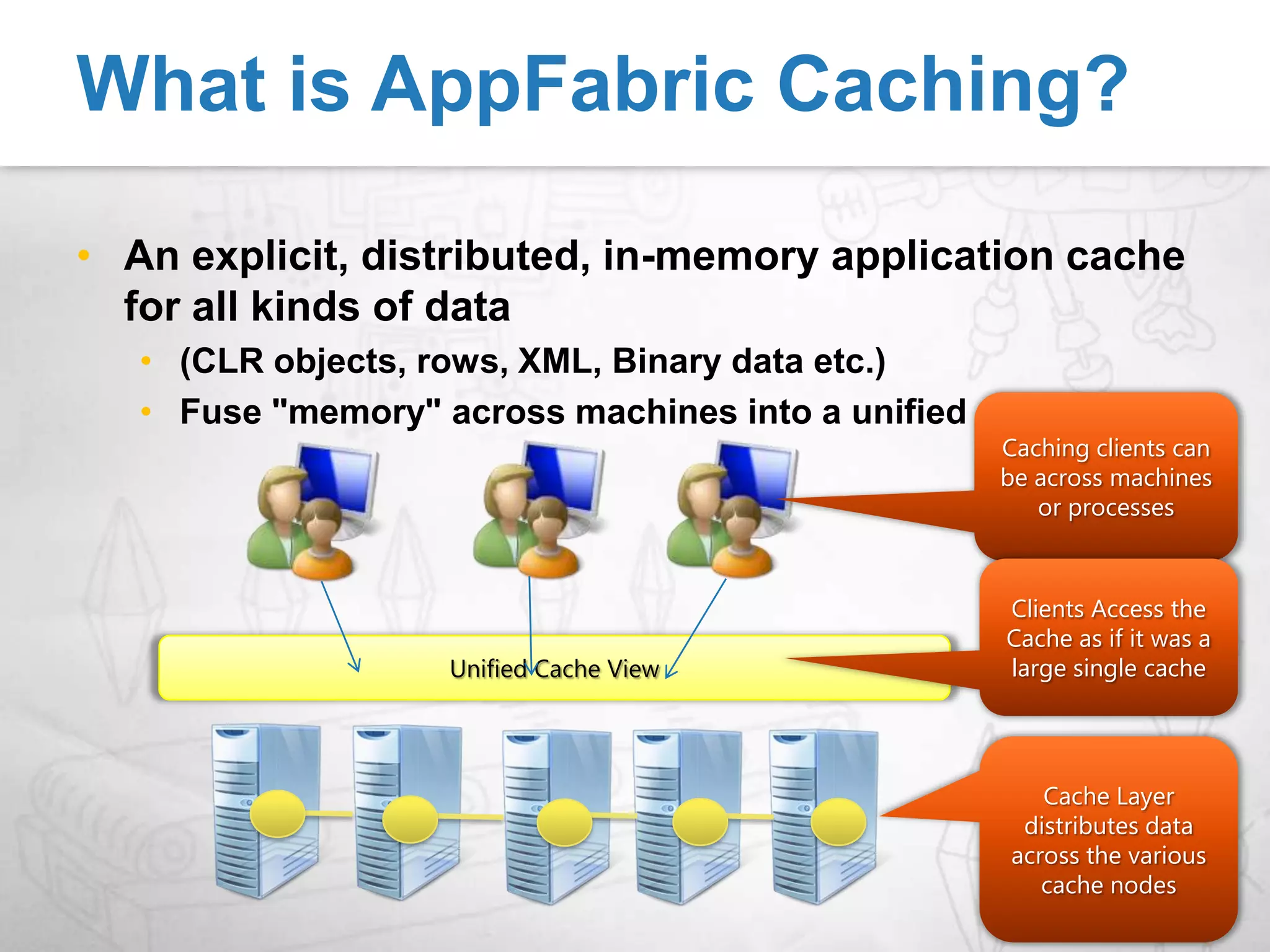

18. An explicit, distributed, in-memory application cache for all kinds of data (CLR objects, rows, XML, Binary data etc.)Fuse "memory" across machines into a unified cacheWhat is AppFabric Caching?Caching clients can be across machines or processesClients Access the Cache as if it was a large single cacheUnified Cache ViewCache Layer distributes data across the various cache nodes

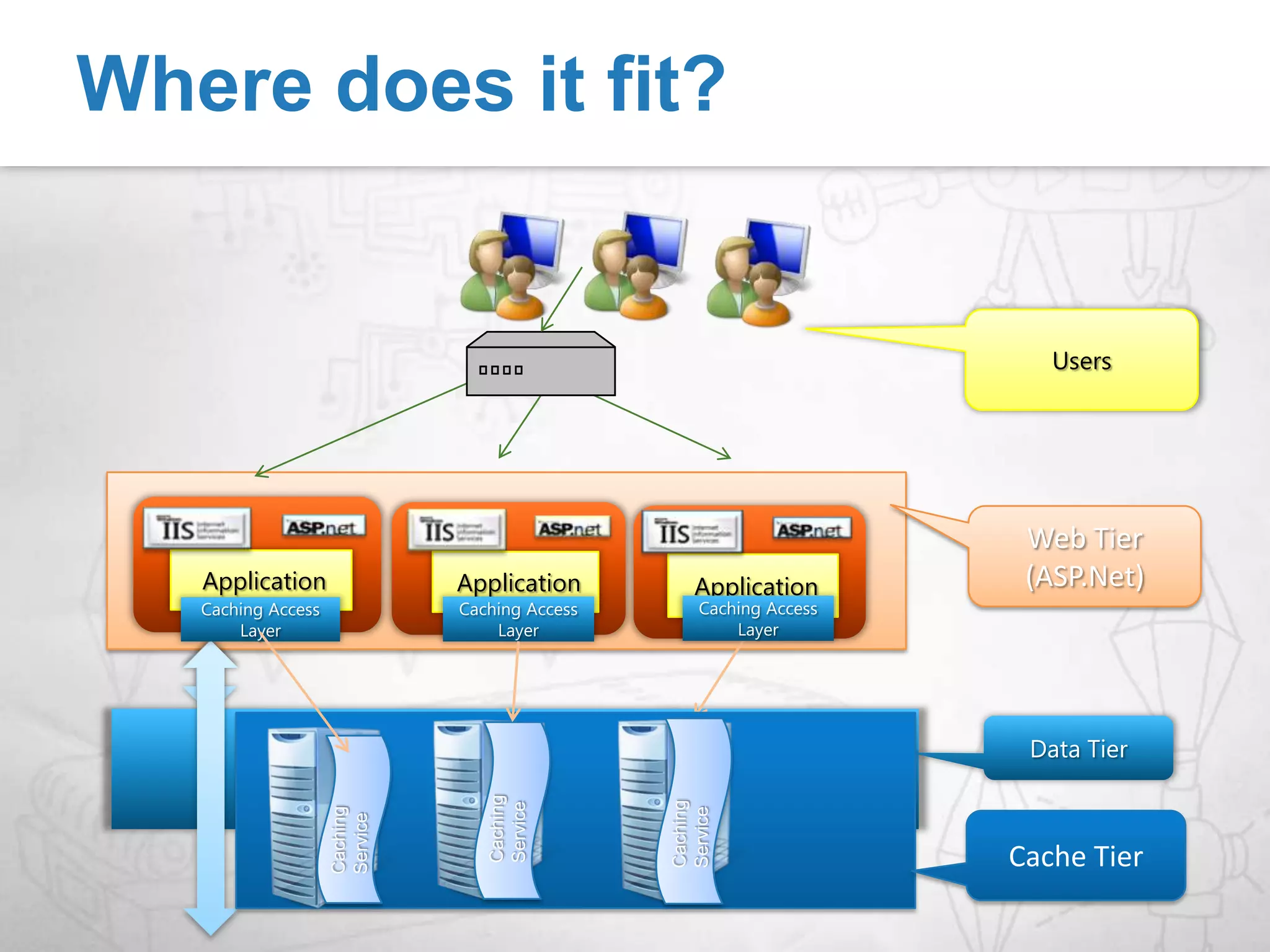

19. Where does it fit?UsersCaching Access LayerCaching Access LayerCaching Access Layer…Web Tier(ASP.Net) Application Application ApplicationCaching ServiceCaching ServiceCaching ServiceCache TierData TierDatabaseCloud

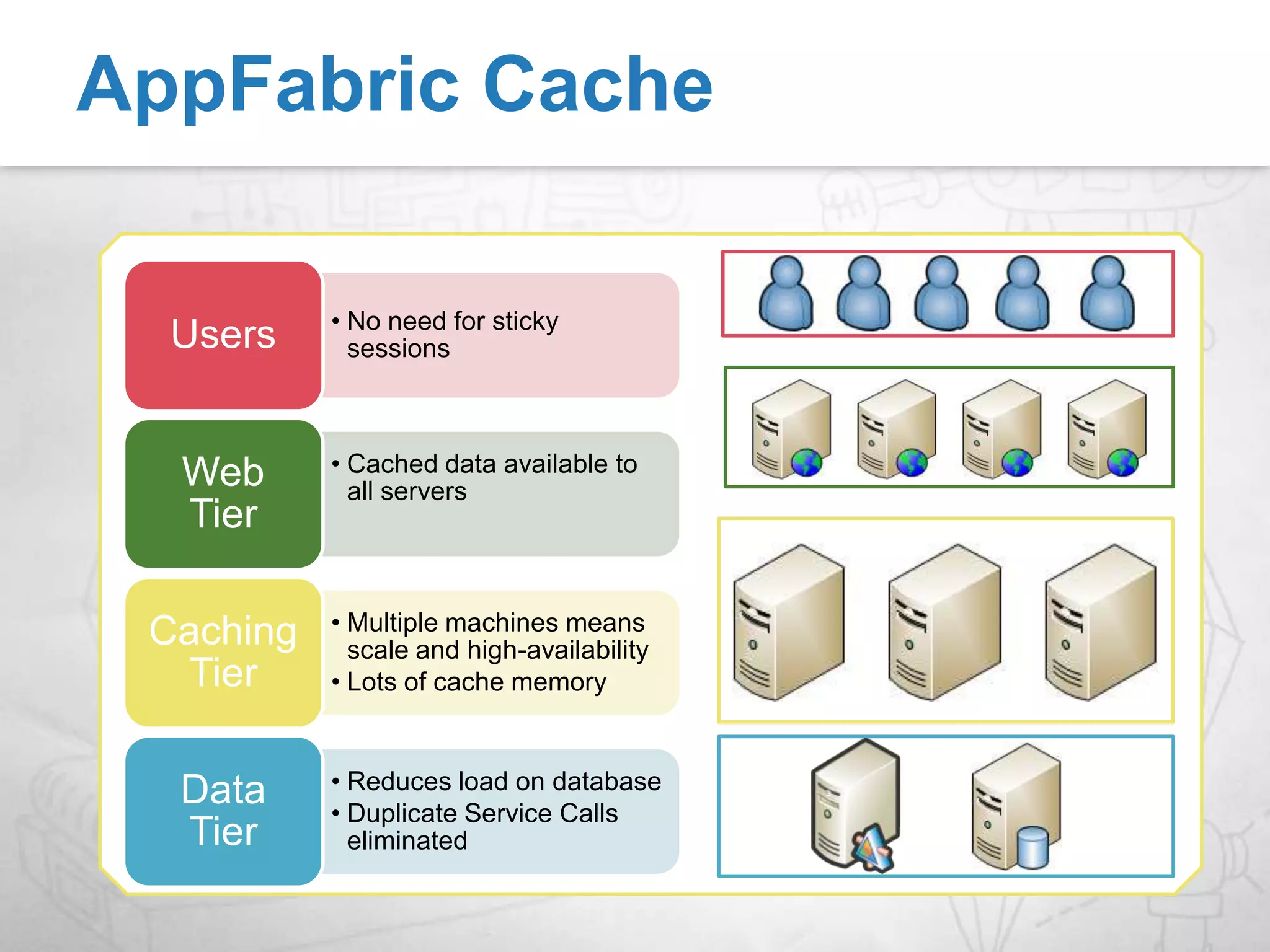

20. AppFabric Cache

21. Why AppFabric Caching

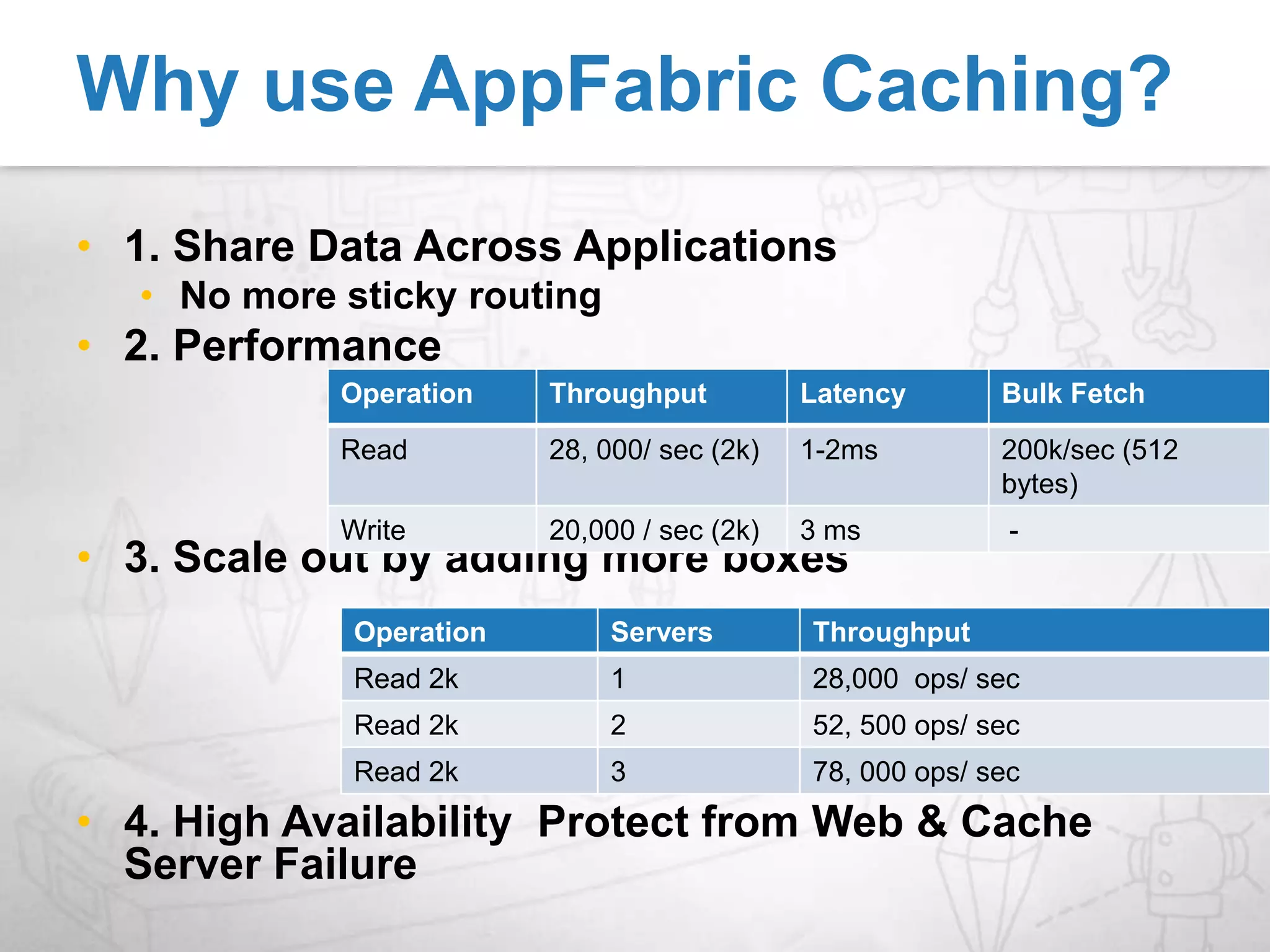

22. 1. Share Data Across ApplicationsNo more sticky routing2. Performance3. Scale out by adding more boxes4. High Availability Protect from Web & Cache Server FailureWhy use AppFabric Caching?

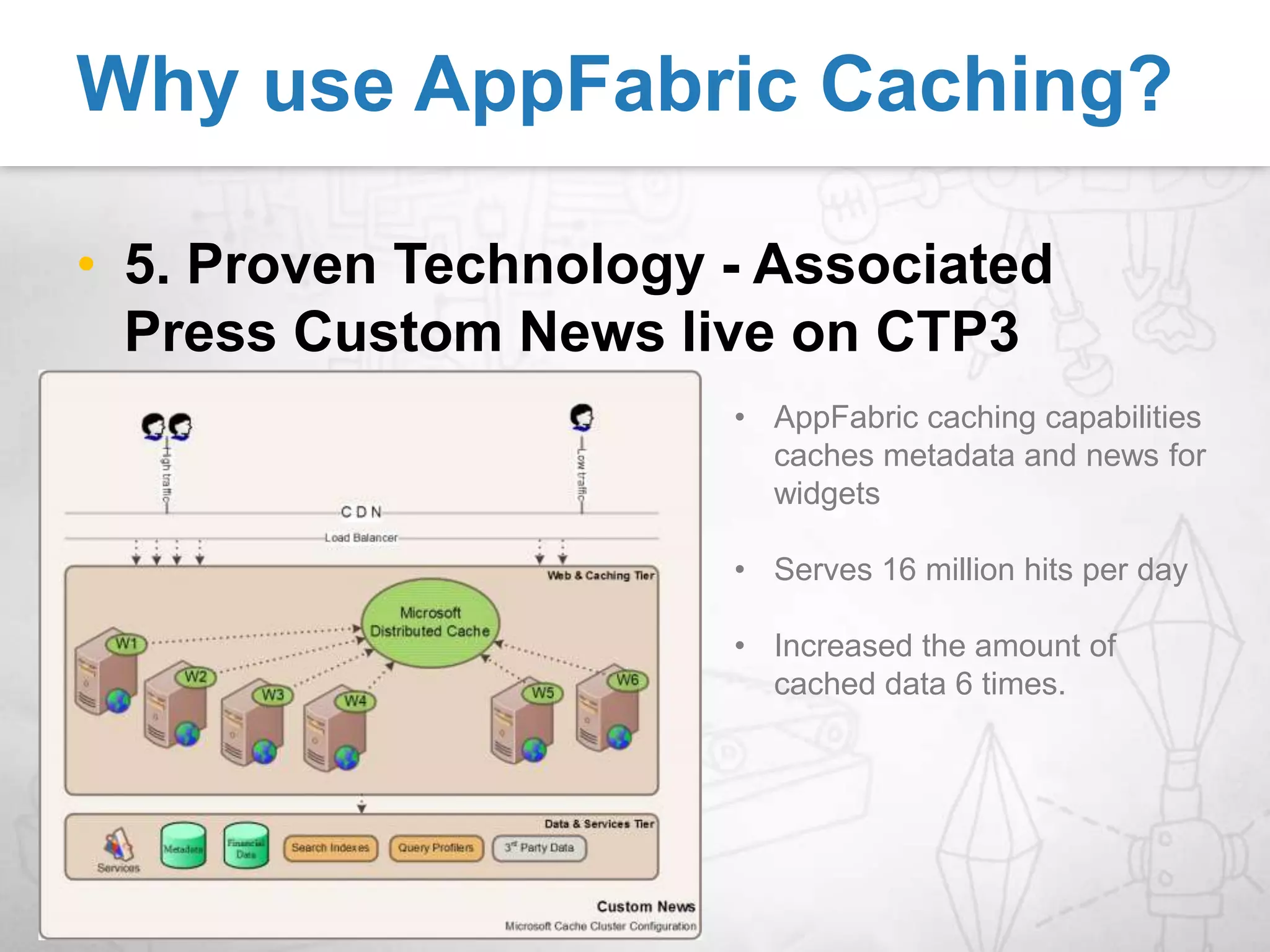

23. 5. Proven Technology - Associated Press Custom News live on CTP3Why use AppFabric Caching?AppFabric caching capabilities caches metadata and news for widgets

24. Serves 16 million hits per day

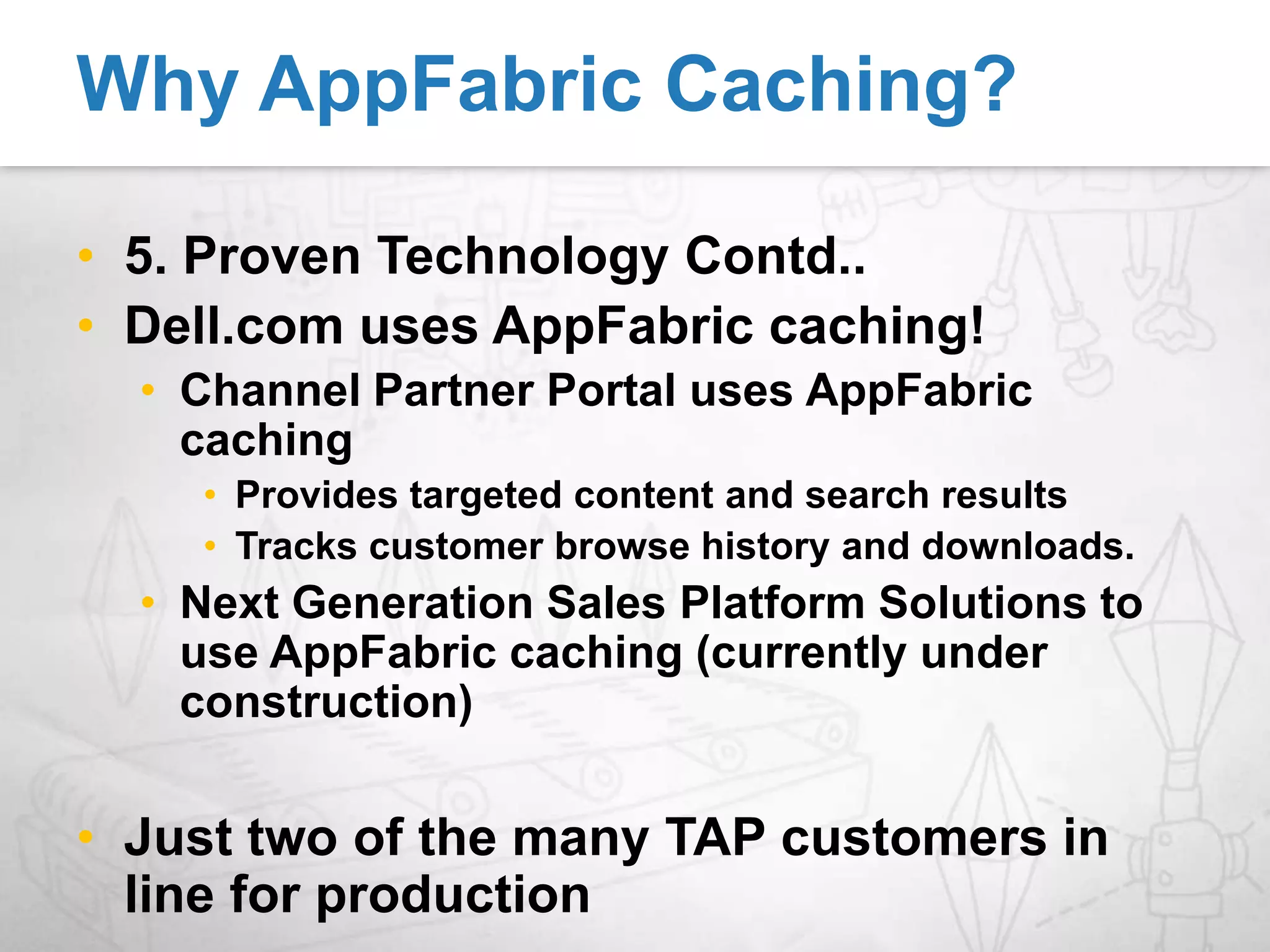

25. Increased the amount of cached data 6 times.5. Proven Technology Contd..Dell.com uses AppFabric caching!Channel Partner Portal uses AppFabric cachingProvides targeted content and search results Tracks customer browse history and downloads.Next Generation Sales Platform Solutions to use AppFabric caching (currently under construction)Just two of the many TAP customers in line for productionWhy AppFabric Caching?

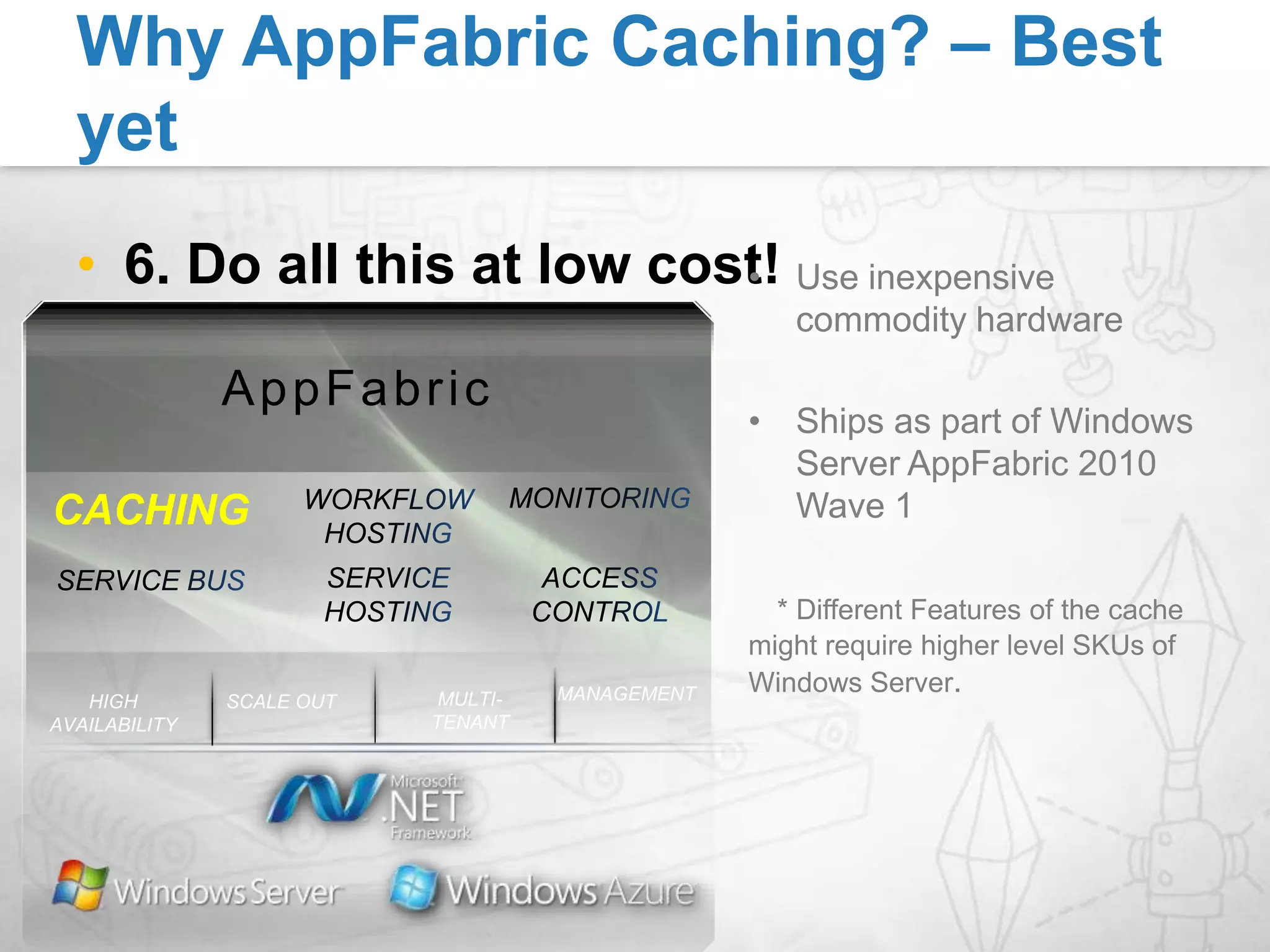

26. 6. Do all this at low cost!Why AppFabric Caching? – Best yetUse inexpensive commodity hardware

27. Ships as part of Windows Server AppFabric 2010 Wave 1 * Different Features of the cache might require higher level SKUs of Windows Server.AppFabricMONITORINGWORKFLOW HOSTINGCACHINGACCESS CONTROLSERVICE HOSTINGSERVICE BUSMANAGEMENTMULTI-TENANT SCALE OUTHIGH AVAILABILITY

28. What Stage Is It In?

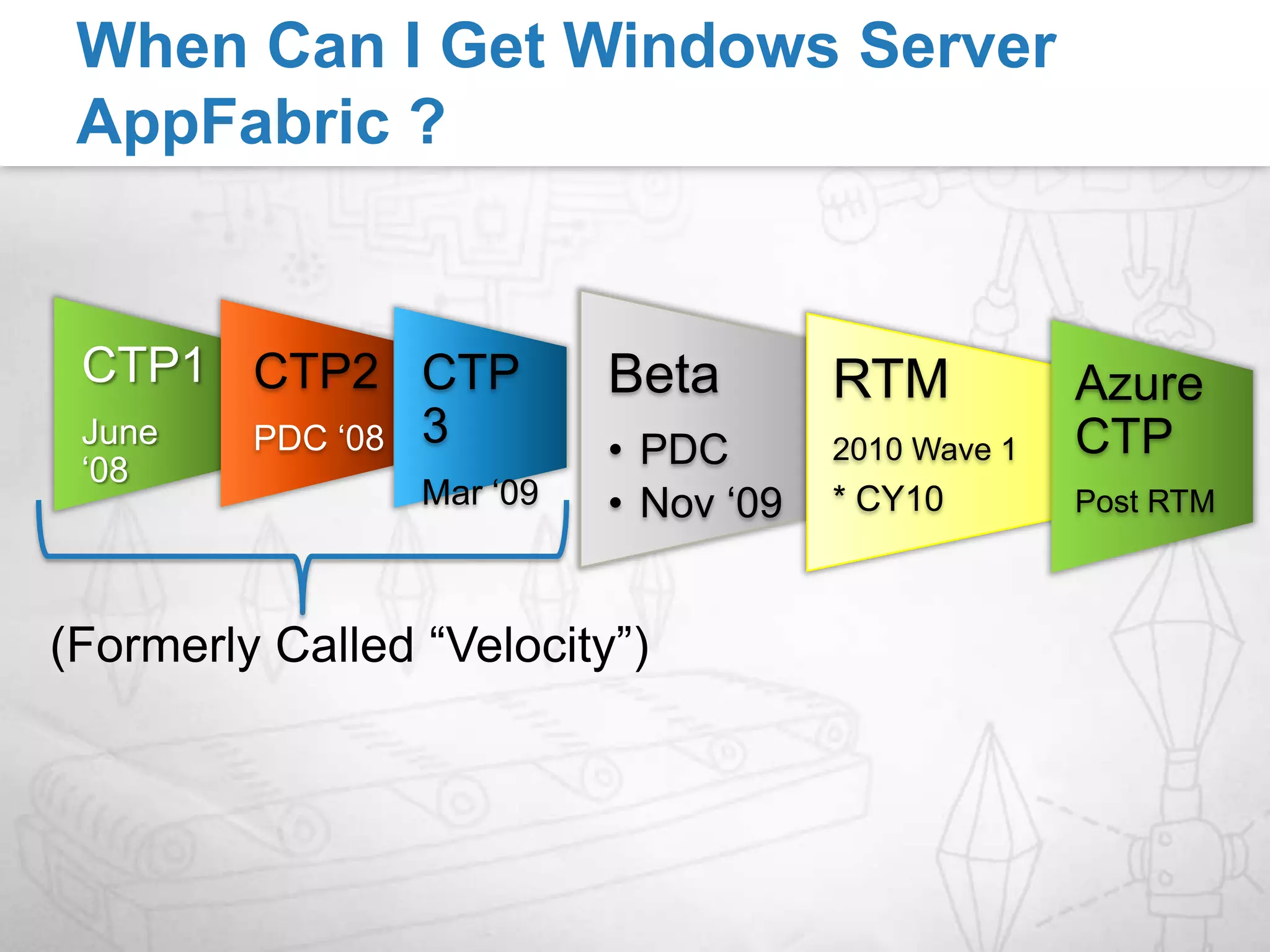

29. When Can I Get Windows Server AppFabric ?Azure CTPPost RTMRTM2010 Wave 1* CY10CTP2PDC ‘08CTP1June ‘08CTP3Mar ‘09BetaPDC

30. Nov ‘09(Formerly Called “Velocity”)

31. Installation

32. Overview and Programming AppFabric Caching

33. Deployment and Access API

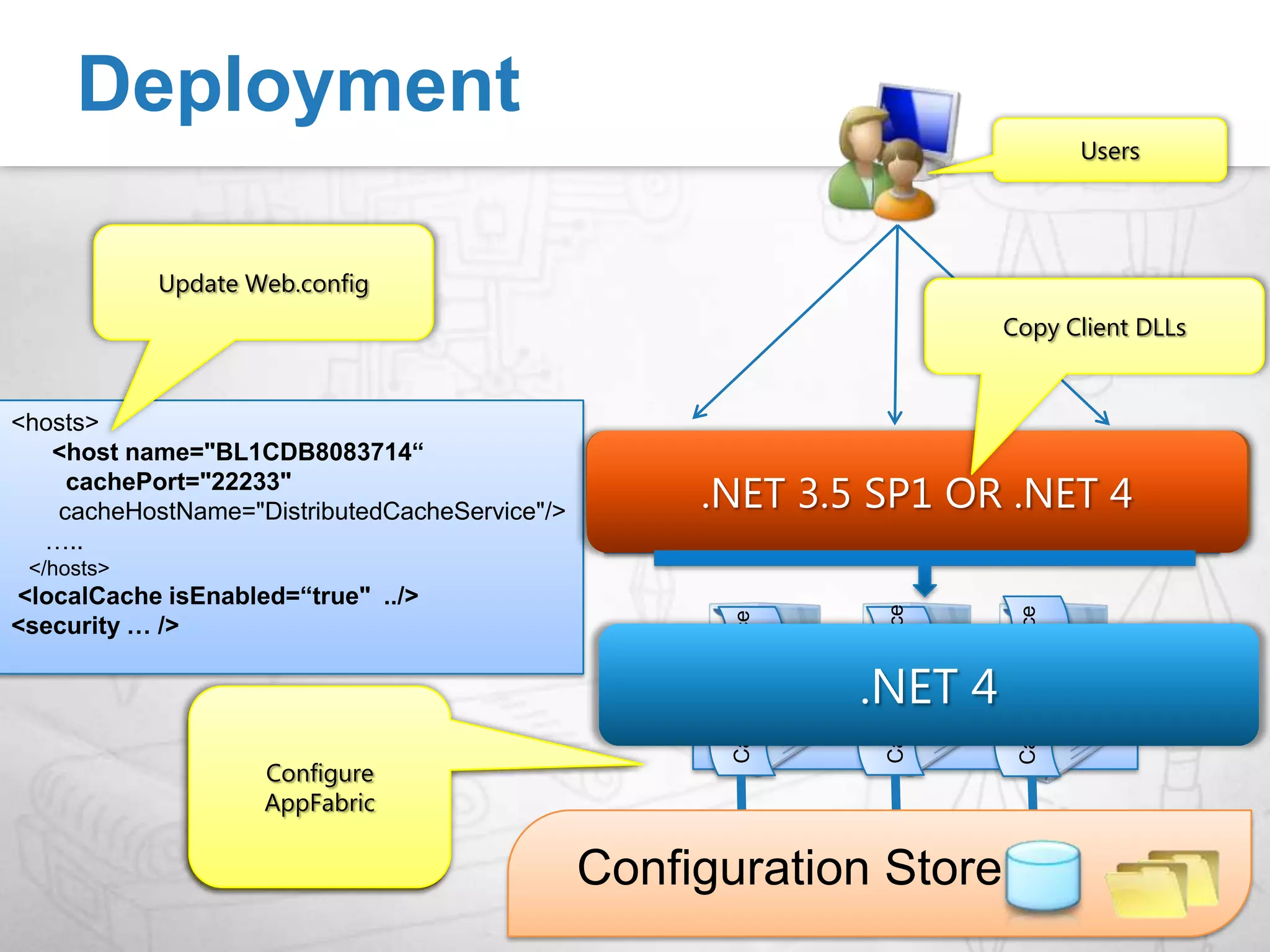

34. DeploymentUsersUpdate Web.configCopy Client DLLs Application Application Application…Caching Access LayerCaching Access LayerCaching Access Layer<hosts> <host name="BL1CDB8083714“cachePort="22233" cacheHostName="DistributedCacheService"/> ….. </hosts> <localCacheisEnabled=“true" ../><security … />.NET 3.5 SP1 OR .NET 4Caching ServiceCaching ServiceCaching Service.NET 4Configure AppFabricInstall AppFabricConfiguration Store

35. AppFabric Caching CodePlex Toolhttp://mdcadmintool.codeplex.com/

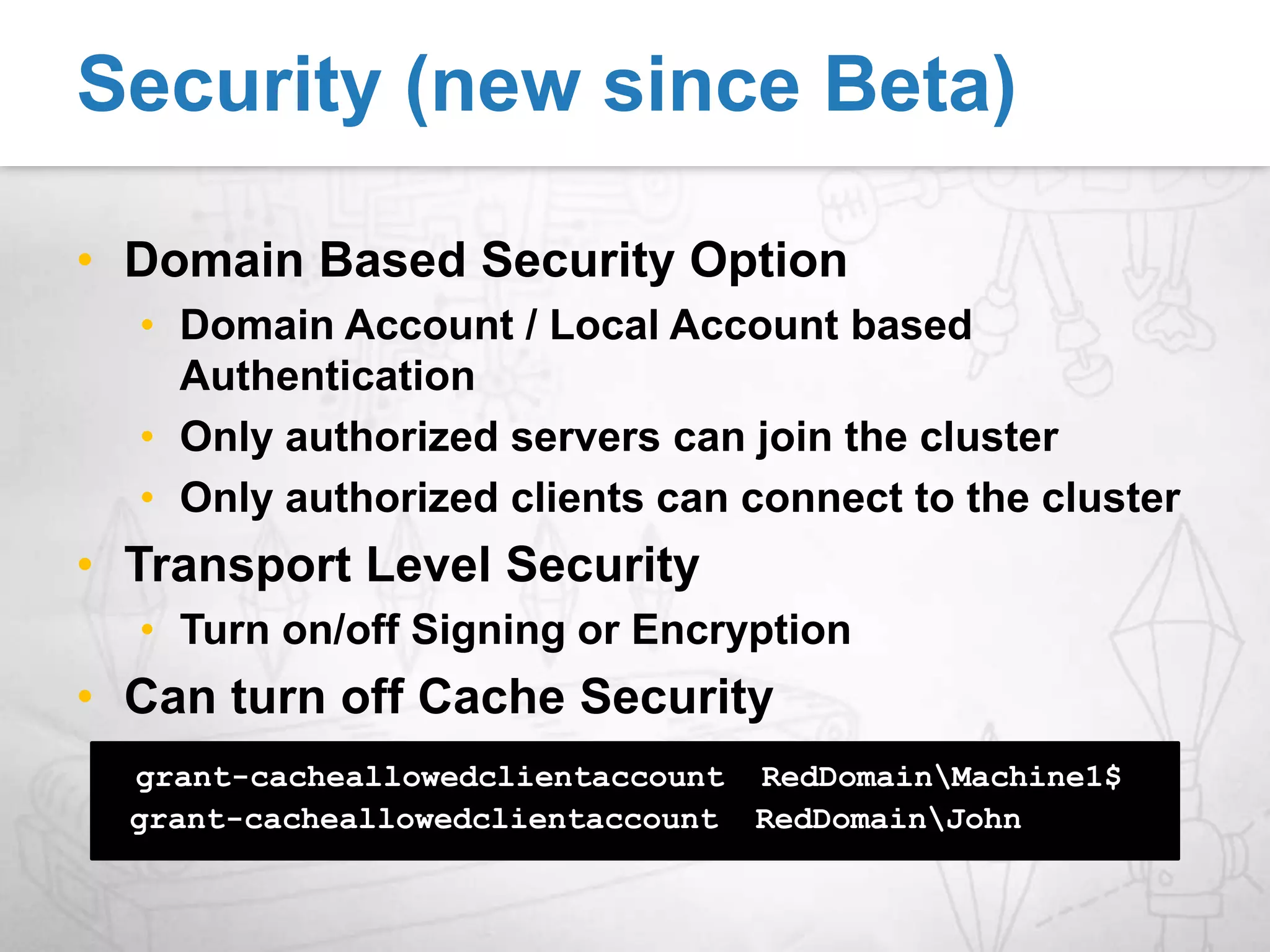

36. Domain Based Security OptionDomain Account / Local Account based AuthenticationOnly authorized servers can join the clusterOnly authorized clients can connect to the clusterTransport Level SecurityTurn on/off Signing or EncryptionCan turn off Cache SecurityUse Firewalls, IPSec, VLANs to protect cacheSecurity (new since Beta) grant-cacheallowedclientaccount RedDomain\Machine1$ grant-cacheallowedclientaccount RedDomain\John

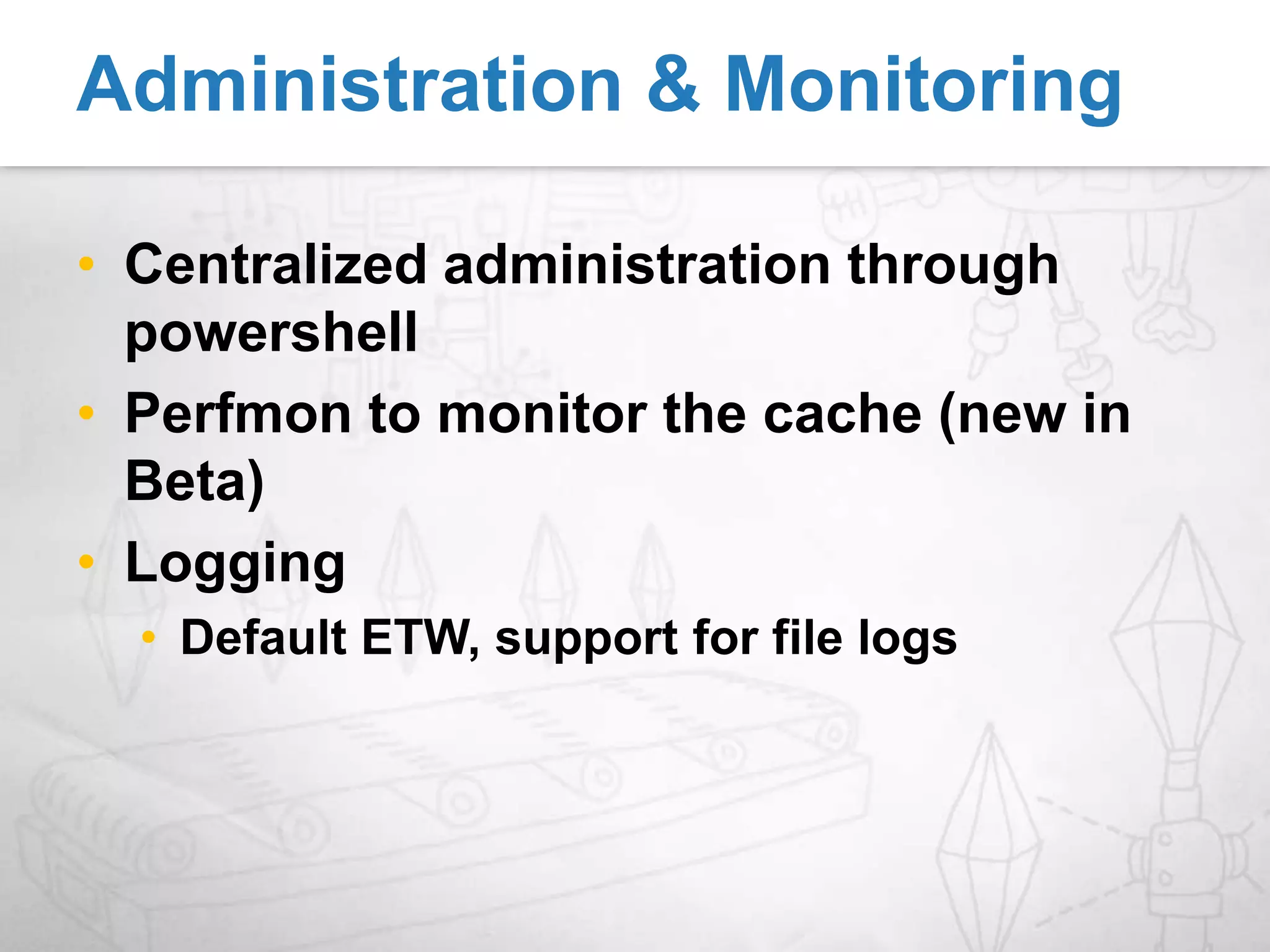

37. Centralized administration through powershellPerfmon to monitor the cache (new in Beta)Logging Default ETW, support for file logs Administration & Monitoring

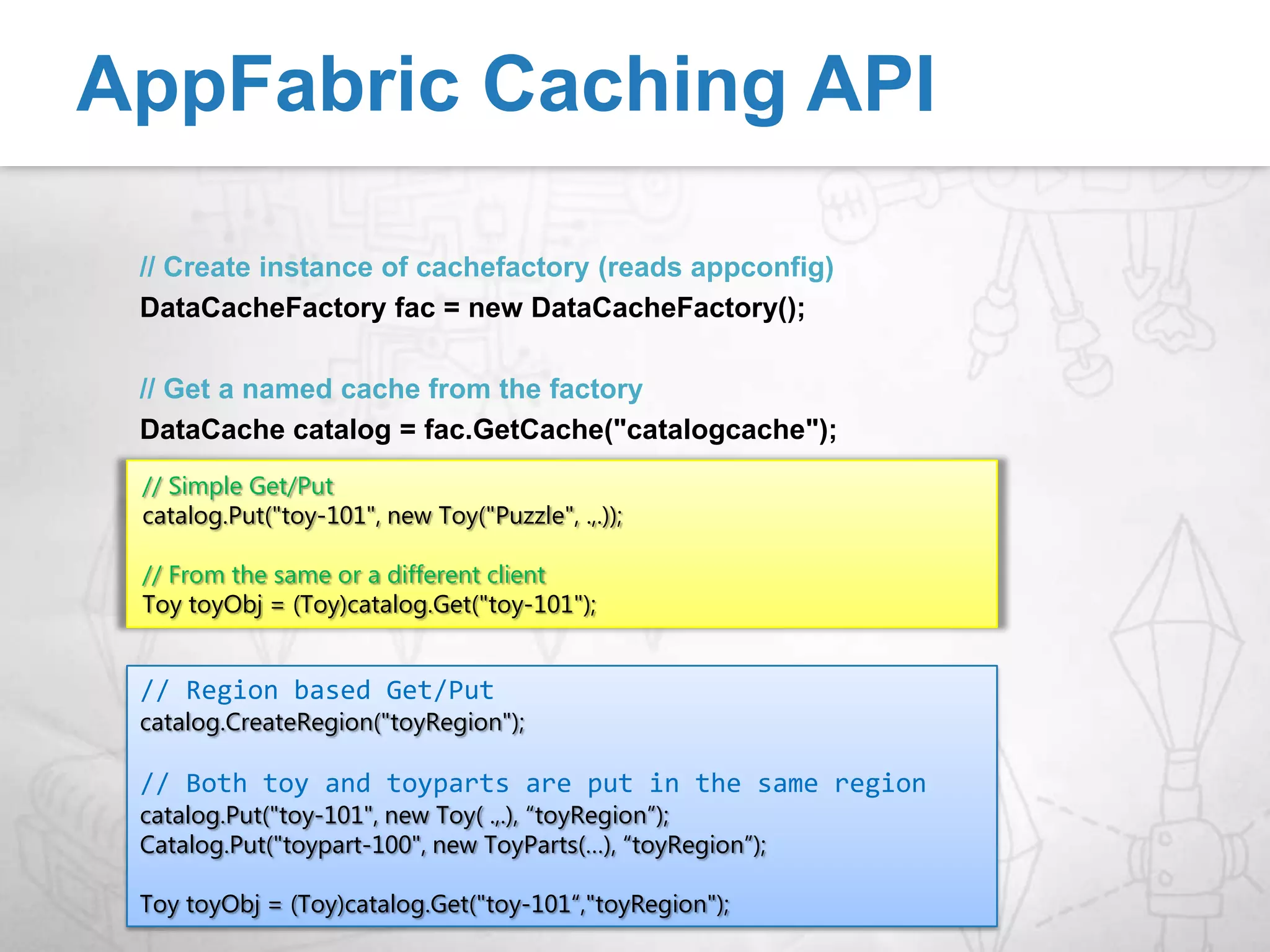

38. // Create instance of cachefactory (reads appconfig)DataCacheFactoryfac = new DataCacheFactory();// Get a named cache from the factoryDataCache catalog = fac.GetCache("catalogcache");AppFabric Caching API// Simple Get/Putcatalog.Put("toy-101", new Toy("Puzzle", .,.));// From the same or a different clientToy toyObj = (Toy)catalog.Get("toy-101");// Region based Get/Putcatalog.CreateRegion("toyRegion");// Both toy and toyparts are put in the same region catalog.Put("toy-101", new Toy( .,.), “toyRegion”);Catalog.Put("toypart-100", new ToyParts(…), “toyRegion”);Toy toyObj = (Toy)catalog.Get("toy-101“,"toyRegion");

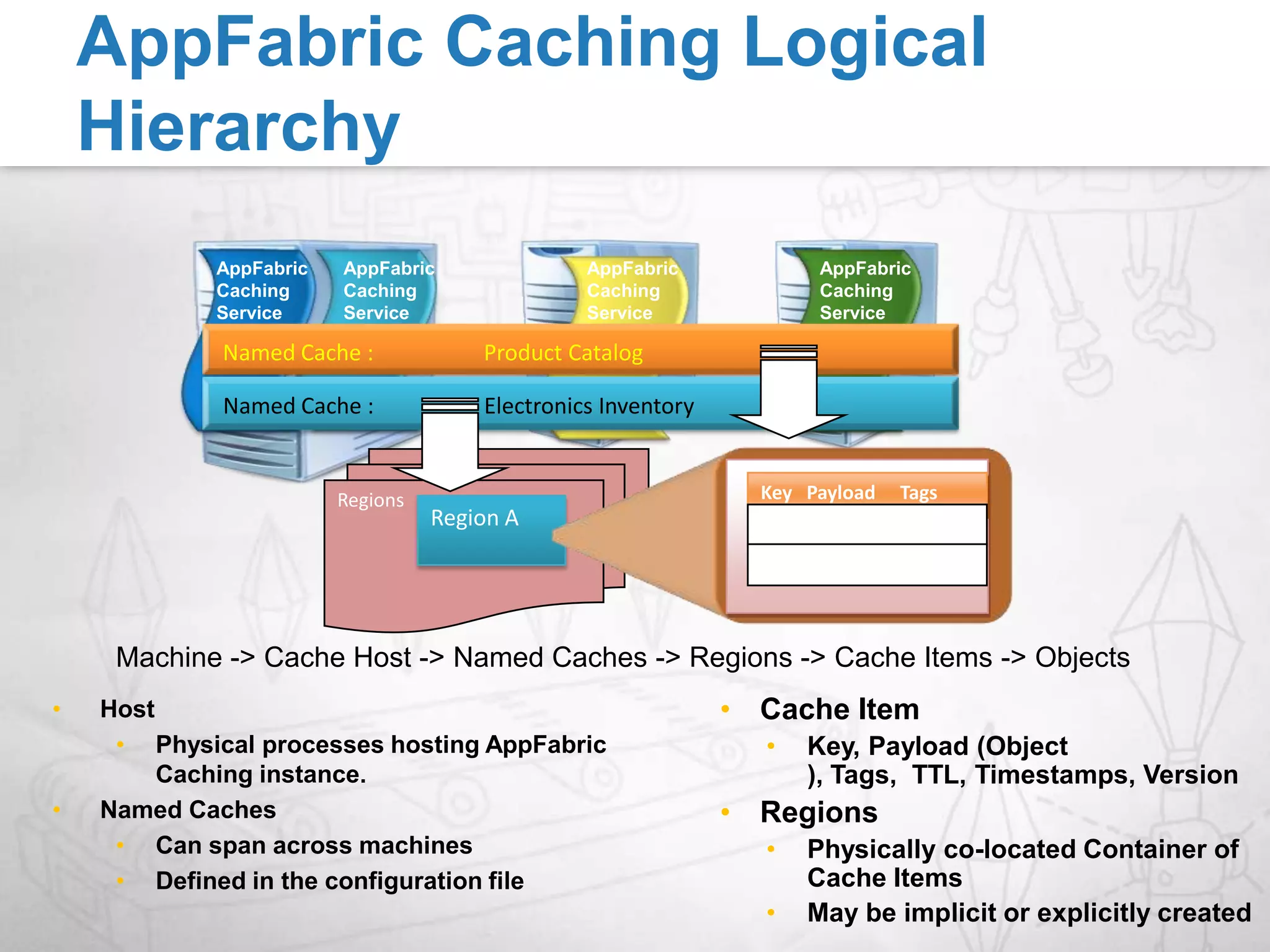

39. AppFabric Caching Logical HierarchyAppFabric Caching ServiceAppFabric Caching ServiceAppFabric Caching ServiceAppFabric Caching ServiceNamed Cache : Product CatalogNamed Cache : Electronics InventoryRegions Key Payload Tags Region A121 xxxx “Toy” “Child”123 yyyy “Toy” “Chair”.. Machine -> Cache Host -> Named Caches -> Regions -> Cache Items -> ObjectsHostPhysical processes hosting AppFabric Caching instance.Named CachesCan span across machinesDefined in the configuration fileCache ItemKey, Payload (Object ), Tags, TTL, Timestamps, VersionRegionsPhysically co-located Container of Cache ItemsMay be implicit or explicitly created

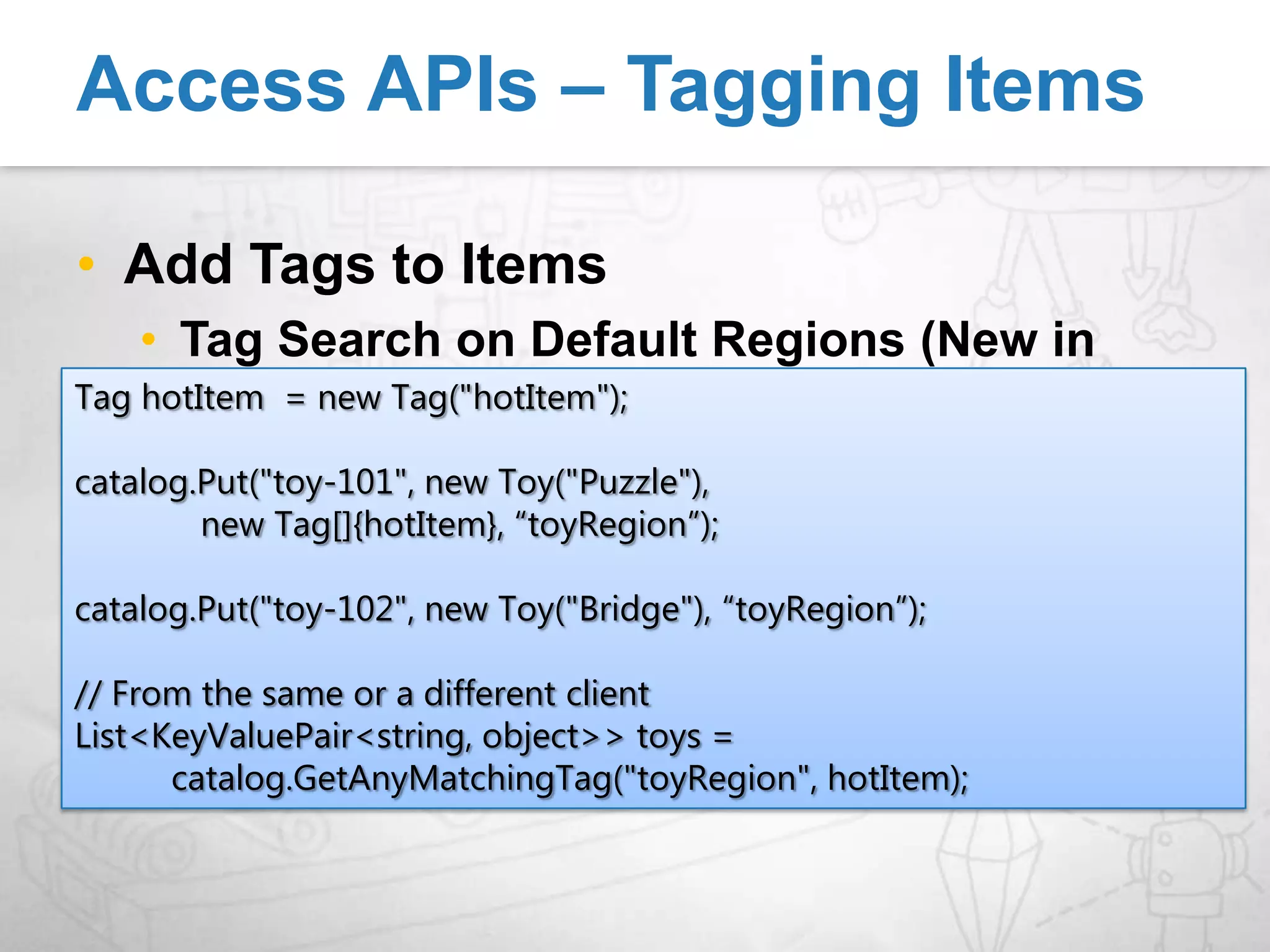

40. Add Tags to ItemsTag Search on Default Regions (New in Beta)Access APIs – Tagging ItemsTag hotItem = new Tag("hotItem");catalog.Put("toy-101", new Toy("Puzzle"), new Tag[]{hotItem}, “toyRegion”);catalog.Put("toy-102", new Toy("Bridge"), “toyRegion”);// From the same or a different clientList<KeyValuePair<string, object>> toys = catalog.GetAnyMatchingTag("toyRegion", hotItem);

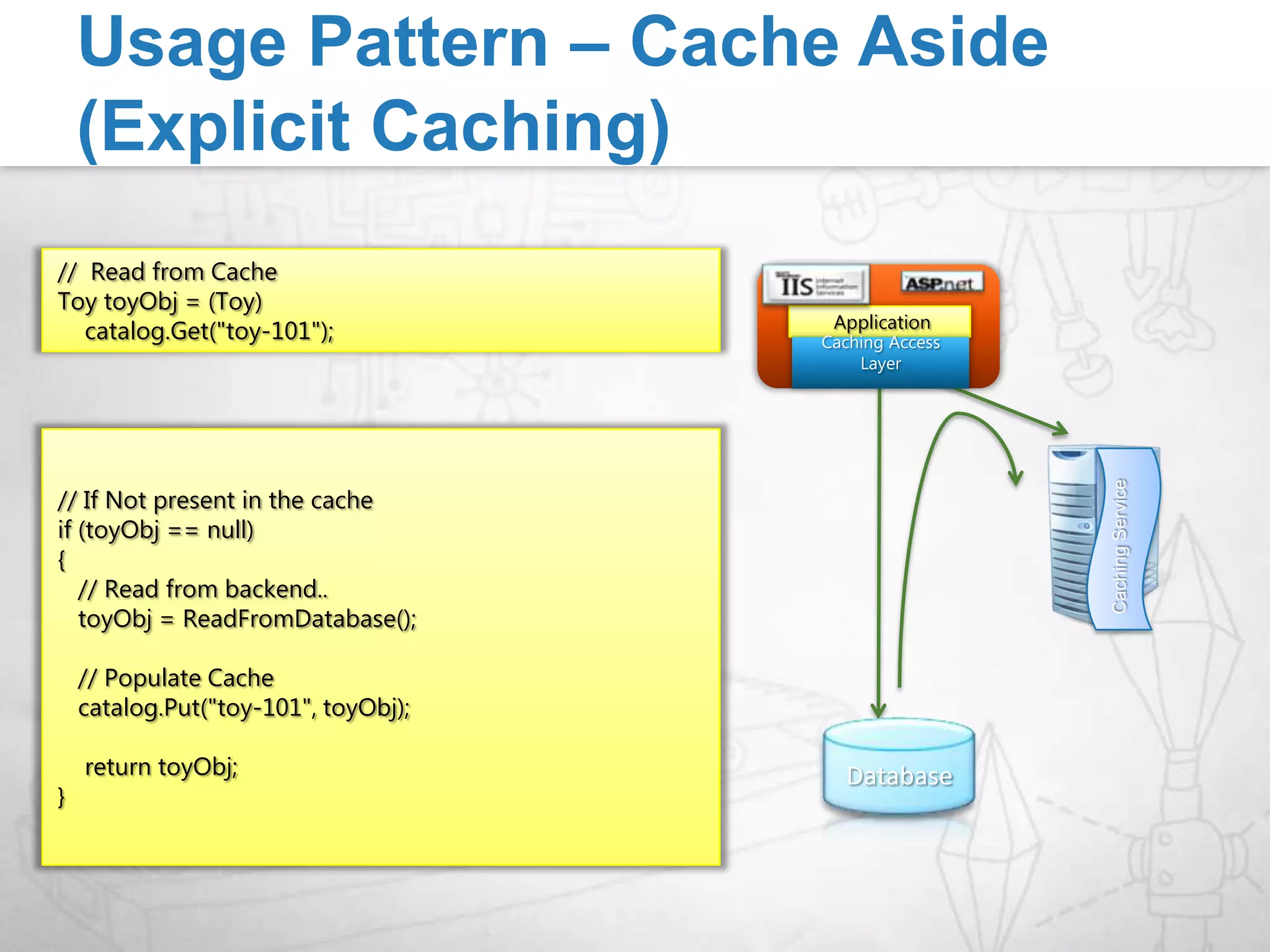

41. Usage Pattern – Cache Aside (Explicit Caching)// Read from CacheToy toyObj = (Toy)catalog.Get("toy-101"); ApplicationCaching Access Layer// If Not present in the cacheif (toyObj == null){ // Read from backend.. toyObj = ReadFromDatabase(); // Populate Cachecatalog.Put("toy-101", toyObj); return toyObj;}Caching ServiceDatabase

42. How does it Scale?

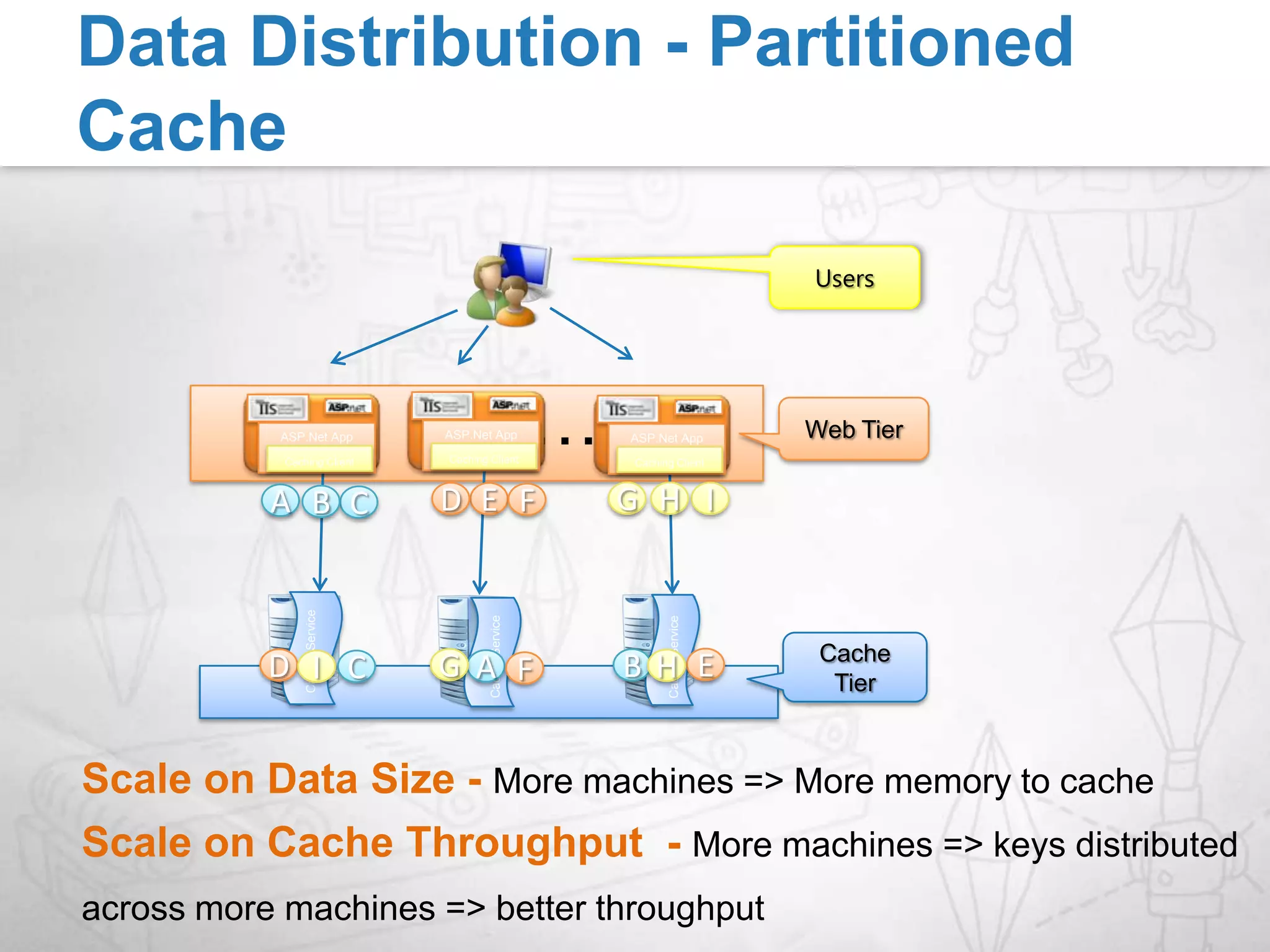

43. Data Distribution - Partitioned CacheUsers…GHIDEFABCWeb TierASP.Net AppASP.Net AppASP.Net AppCaching ClientCaching ClientCaching ClientEGBDHAICFCache ServiceCache ServiceCache TierCache ServiceScale on Data Size -More machines => More memory to cacheScale on Cache Throughput -More machines => keys distributed across more machines => better throughput

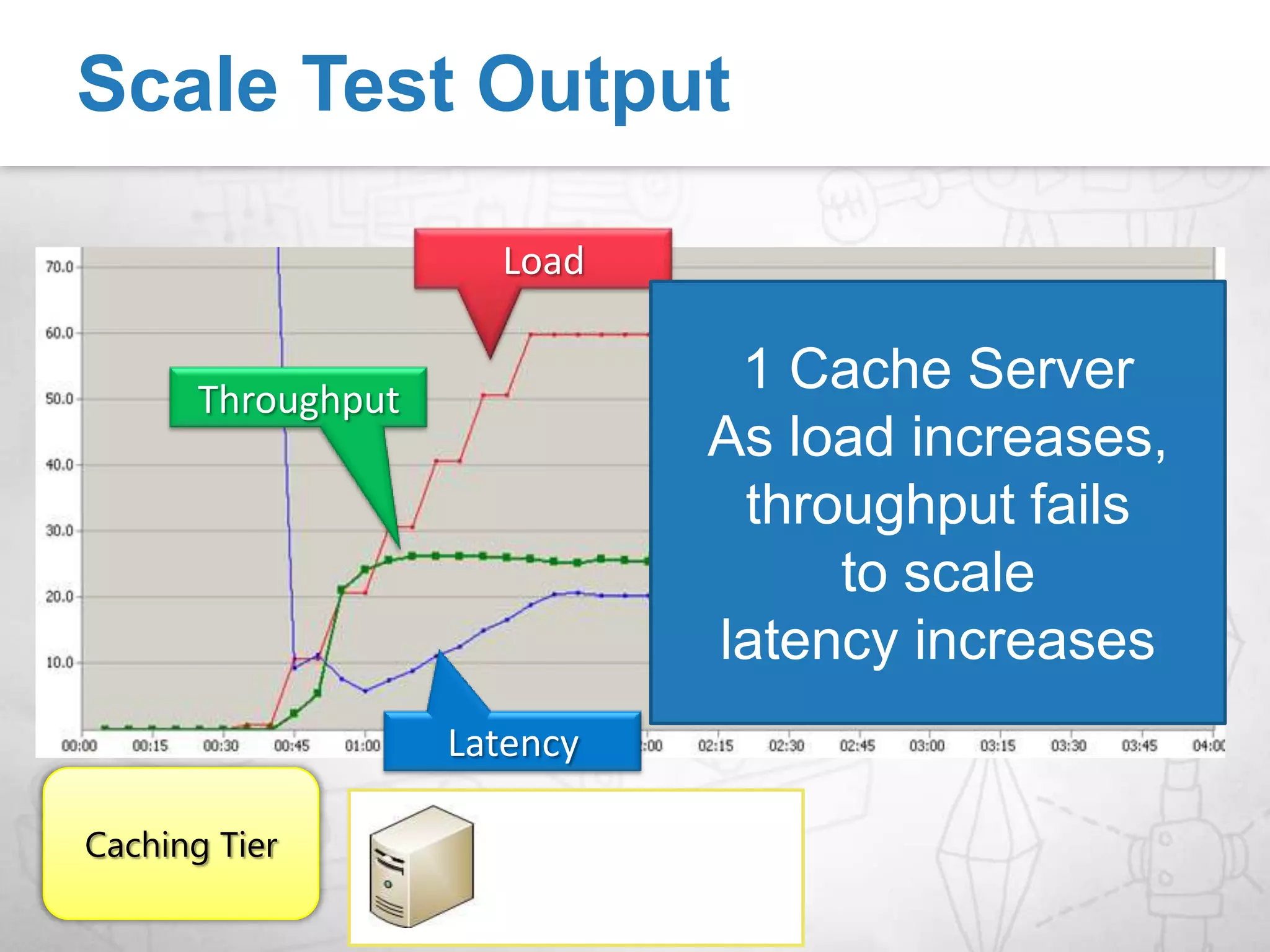

44. Scale Test OutputLoad1 Cache ServerAs load increases, throughput fails to scale latency increasesCaching TierThroughputLatency

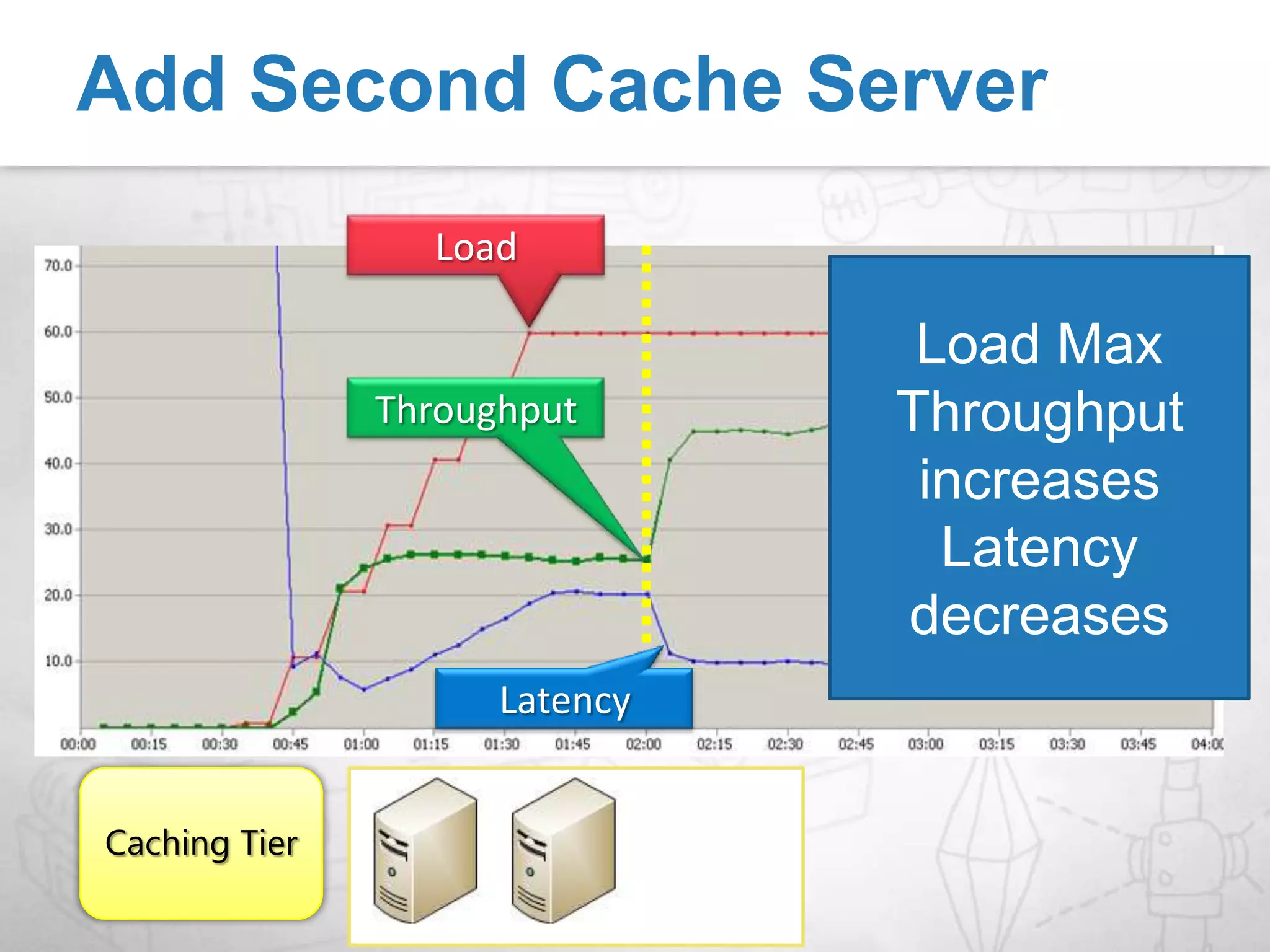

45. Add Second Cache ServerLoadLoad MaxThroughput increasesLatency decreasesCaching TierThroughputLatency

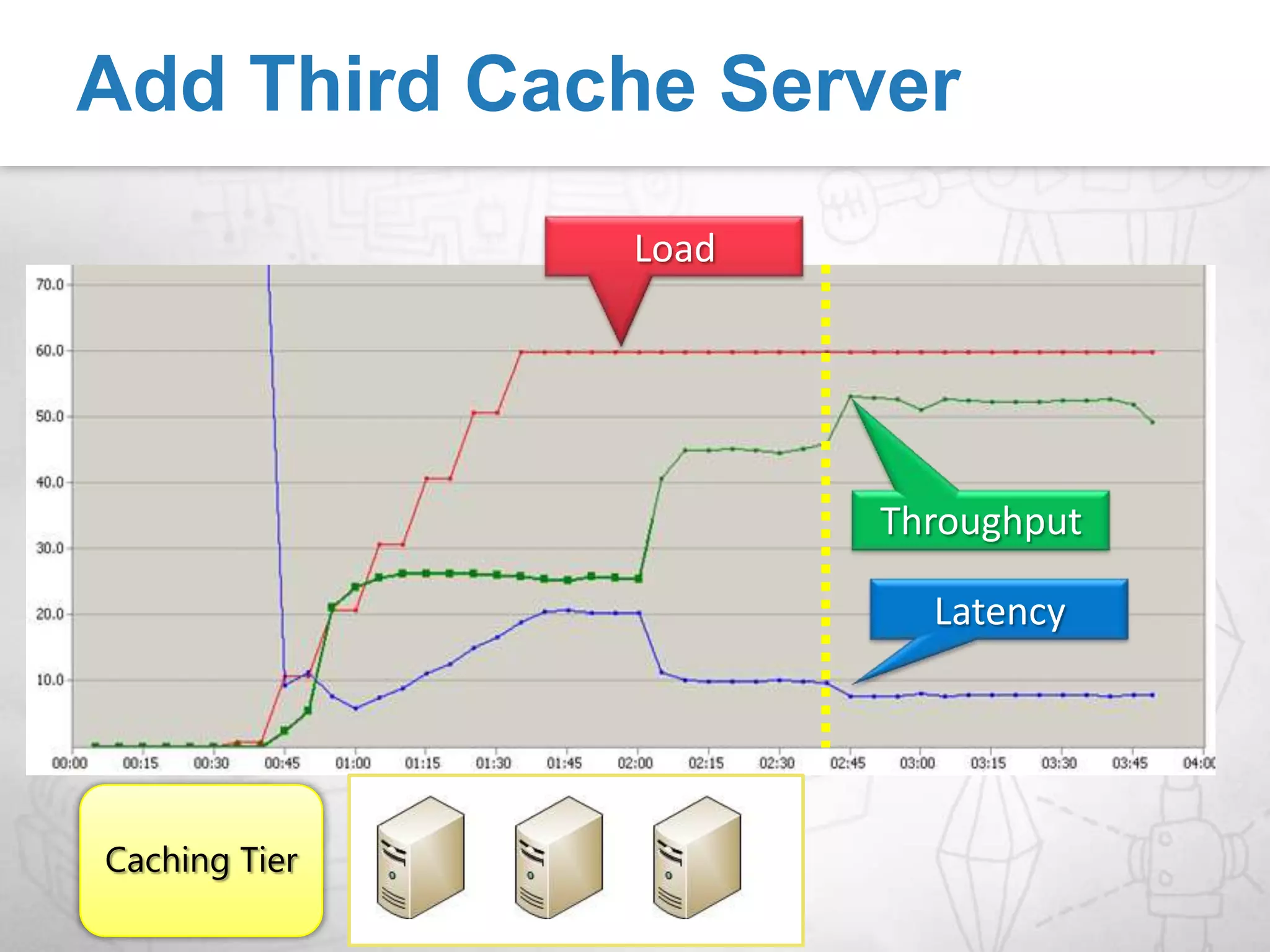

46. Add Third Cache ServerLoadCaching TierThroughputLatency

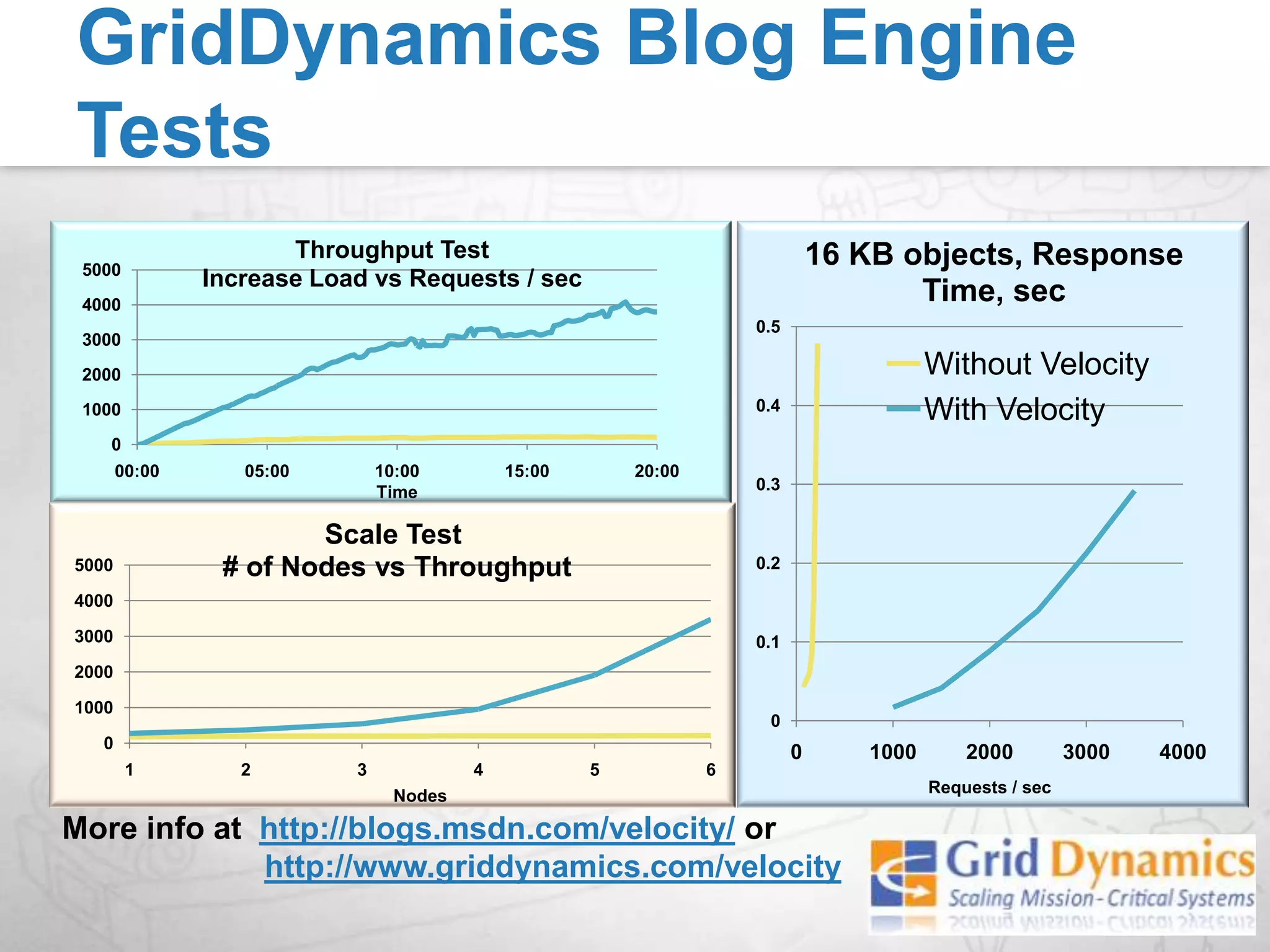

47. GridDynamics Blog Engine TestsMore info at http://blogs.msdn.com/velocity/ orhttp://www.griddynamics.com/velocity

48. Features

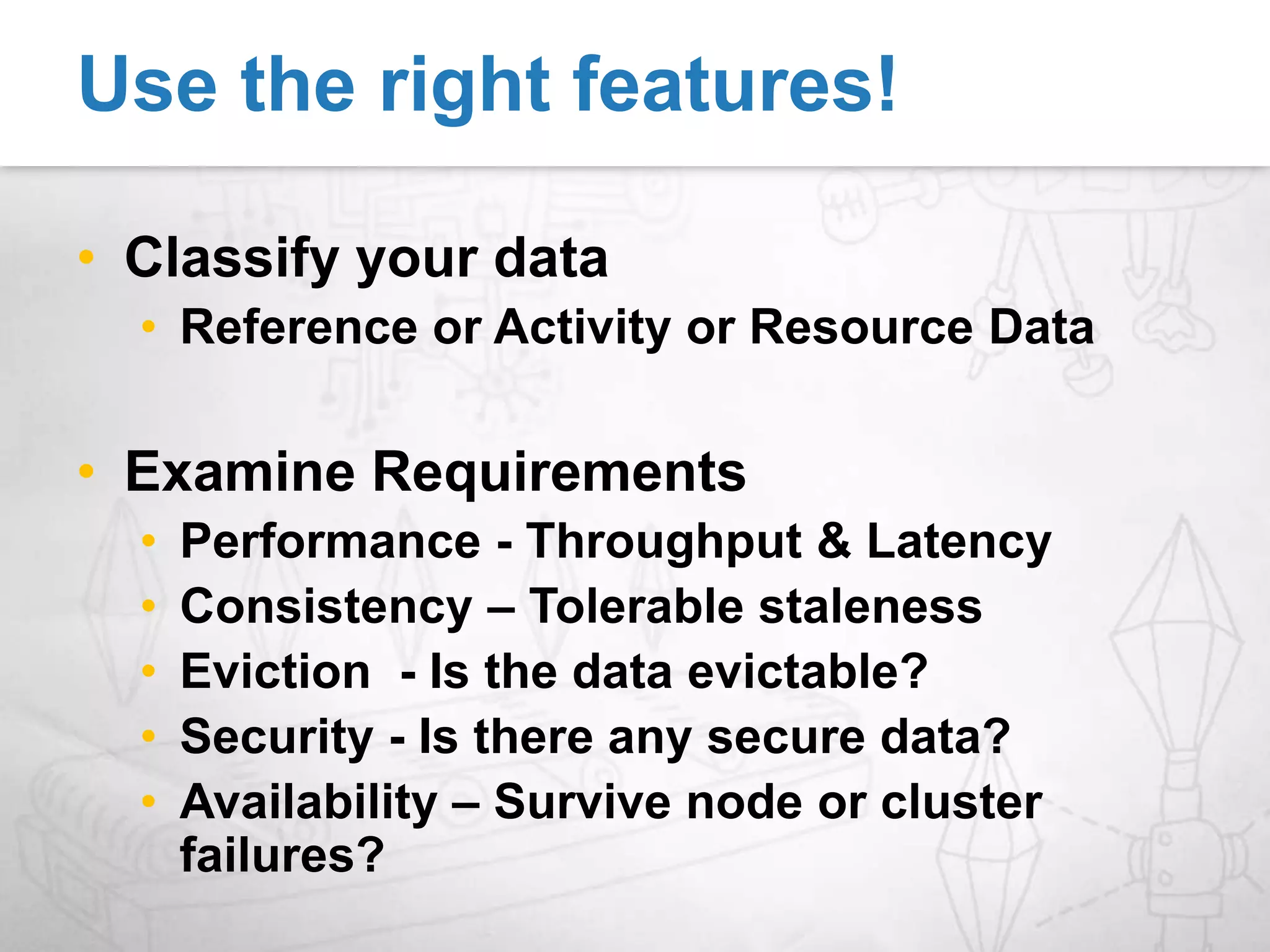

49. Classify your data Reference or Activity or Resource DataExamine RequirementsPerformance - Throughput & Latency Consistency – Tolerable stalenessEviction - Is the data evictable?Security - Is there any secure data?Availability – Survive node or cluster failures?Use the right features!

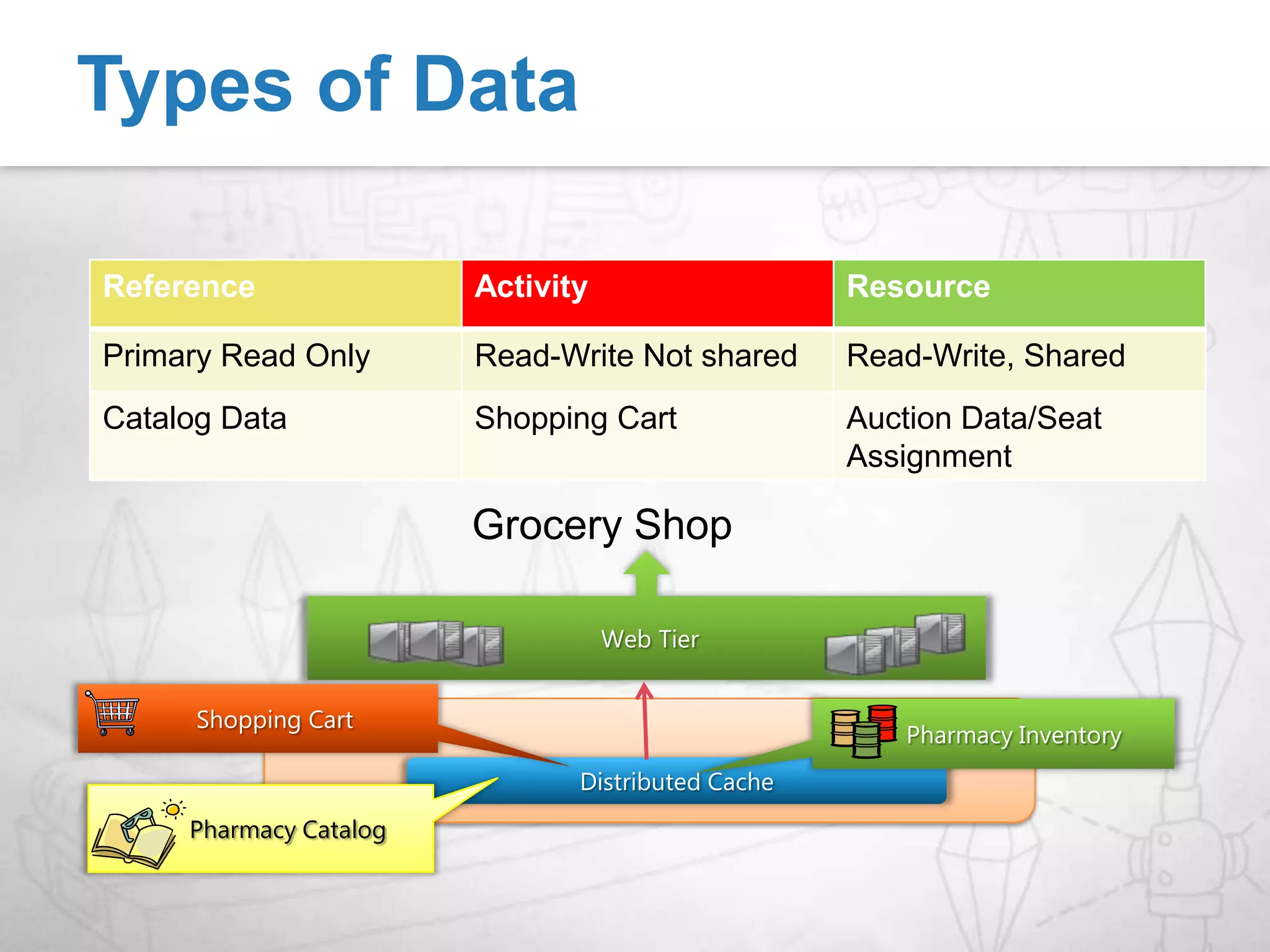

50. Types of DataGrocery Shop Web Tier Shopping CartPharmacy InventoryDistributed CachePharmacy Catalog

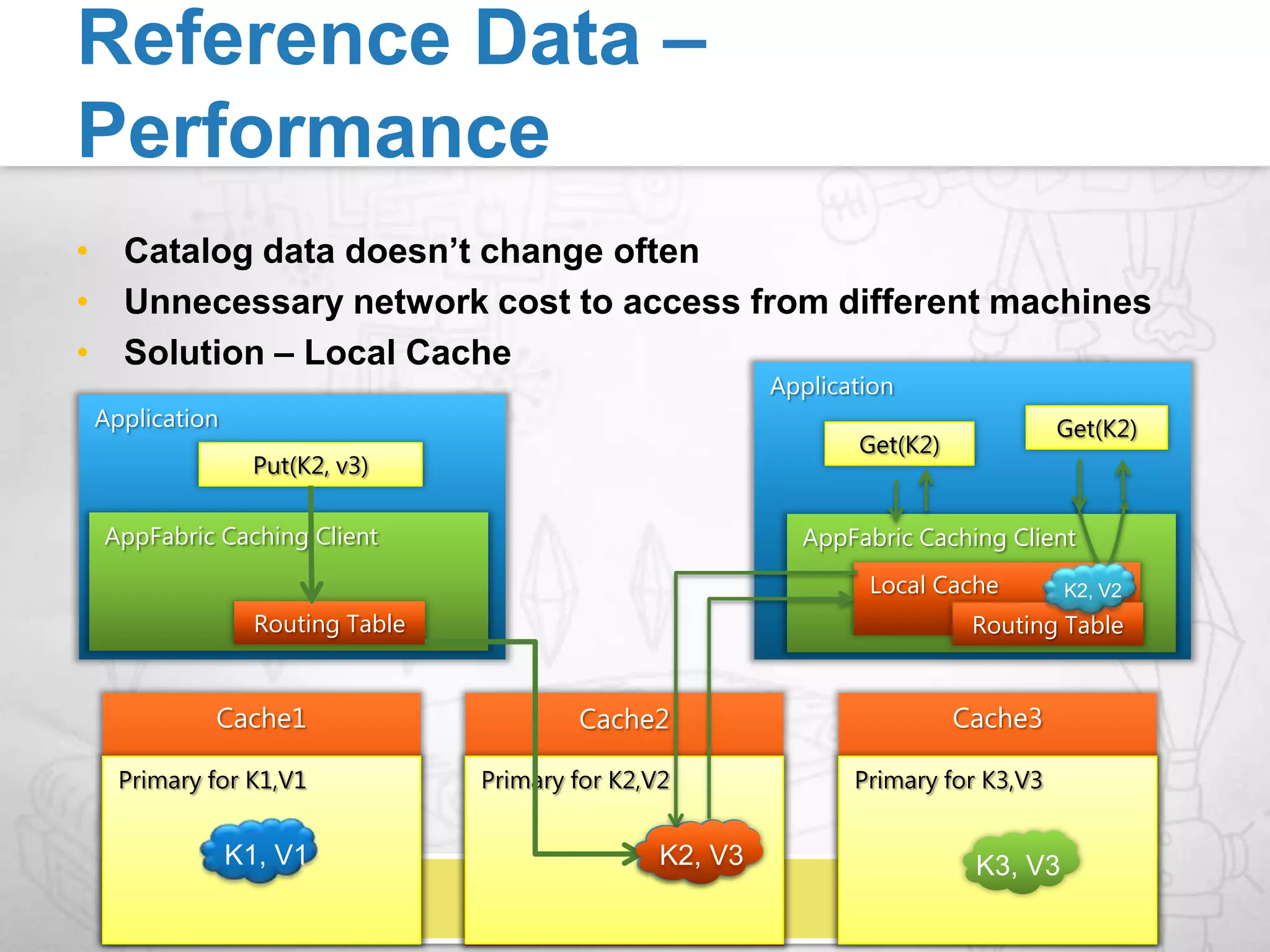

51. Catalog data doesn’t change oftenUnnecessary network cost to access from different machinesSolution – Local CacheApplicationApplicationReference Data – PerformanceGet(K2)Get(K2)Put(K2, v3)AppFabric Caching ClientAppFabric Caching ClientLocal CacheRouting TableRouting TableK2, V2K2, V2Cache2Cache3Cache1Primary for K1,V1Primary for K3,V3Primary for K2,V2K1, V1K2, V3K3, V3

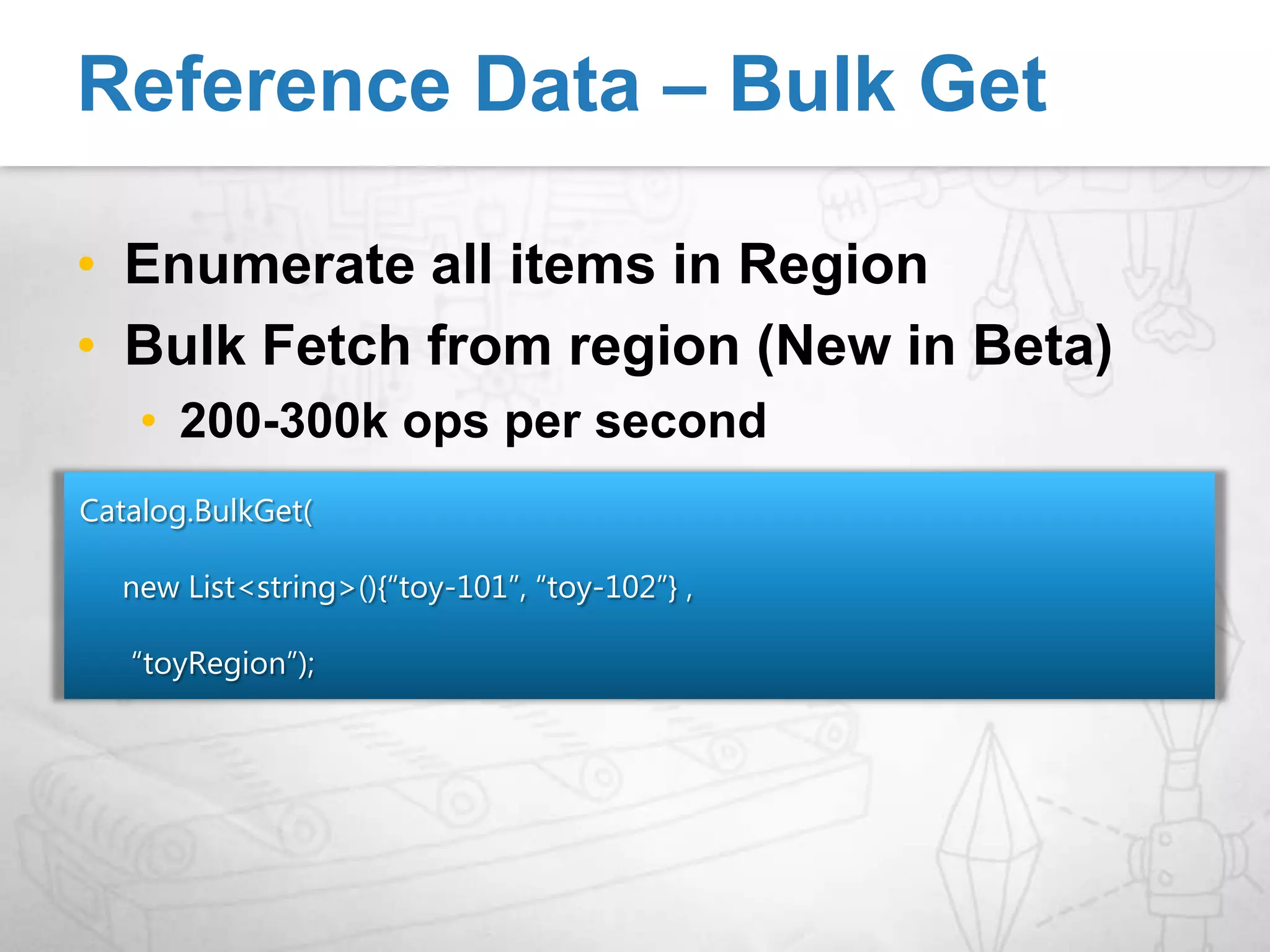

52. Enumerate all items in RegionBulk Fetch from region (New in Beta)200-300k ops per secondReference Data – Bulk GetCatalog.BulkGet( new List<string>(){“toy-101”, “toy-102”} , “toyRegion”);

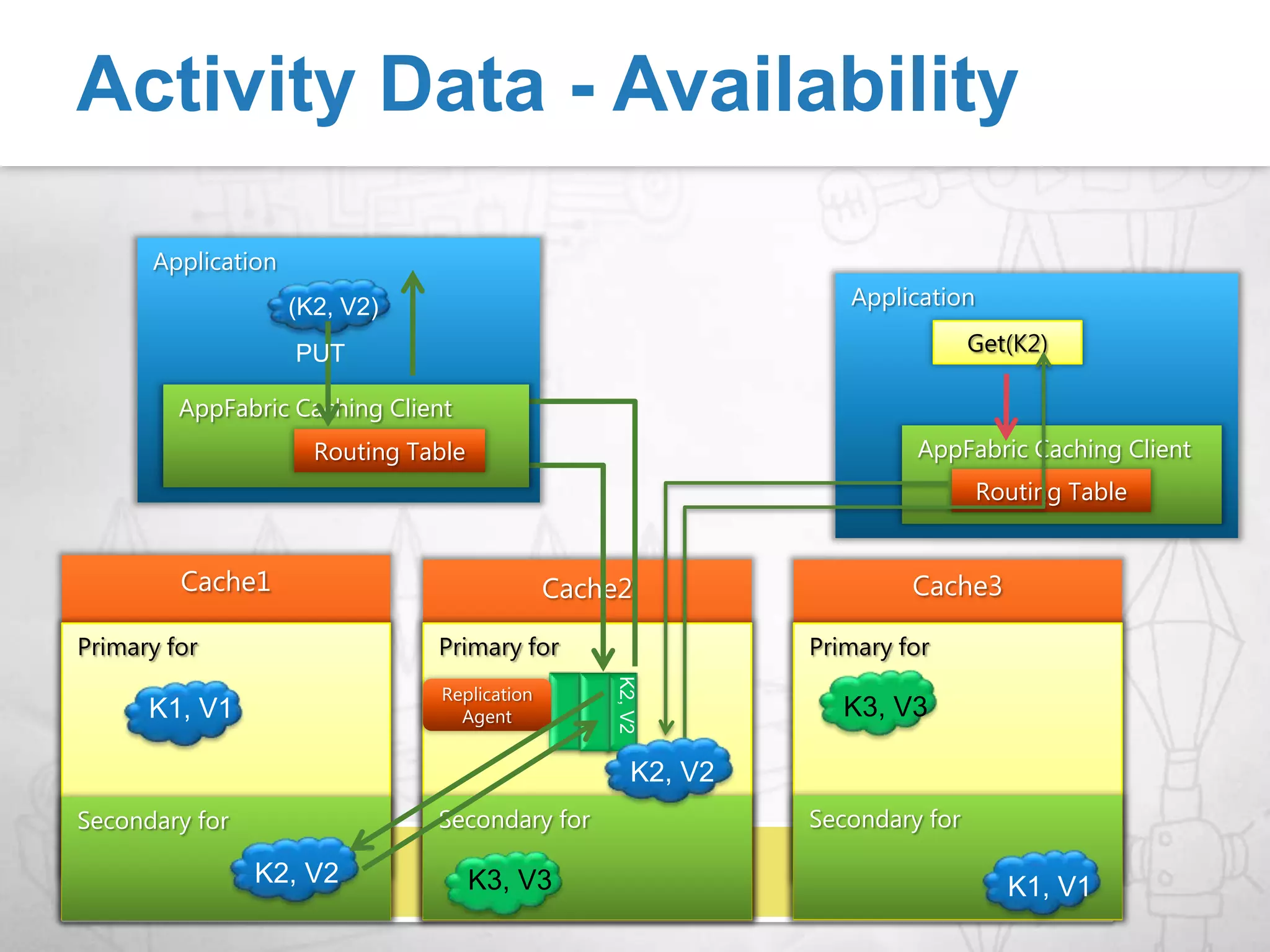

53. ApplicationPUTApplicationGet(K2)AppFabric Caching ClientAppFabric Caching ClientRouting TableRouting TableCache1Cache2Cache3Activity Data - AvailabilityPrimary forPrimary forPrimary for Replication Agent(K2, V2)K3, V3K2, V2K1, V1K2, V2K2, V2Secondary forSecondary for Secondary forK3, V3K1, V1

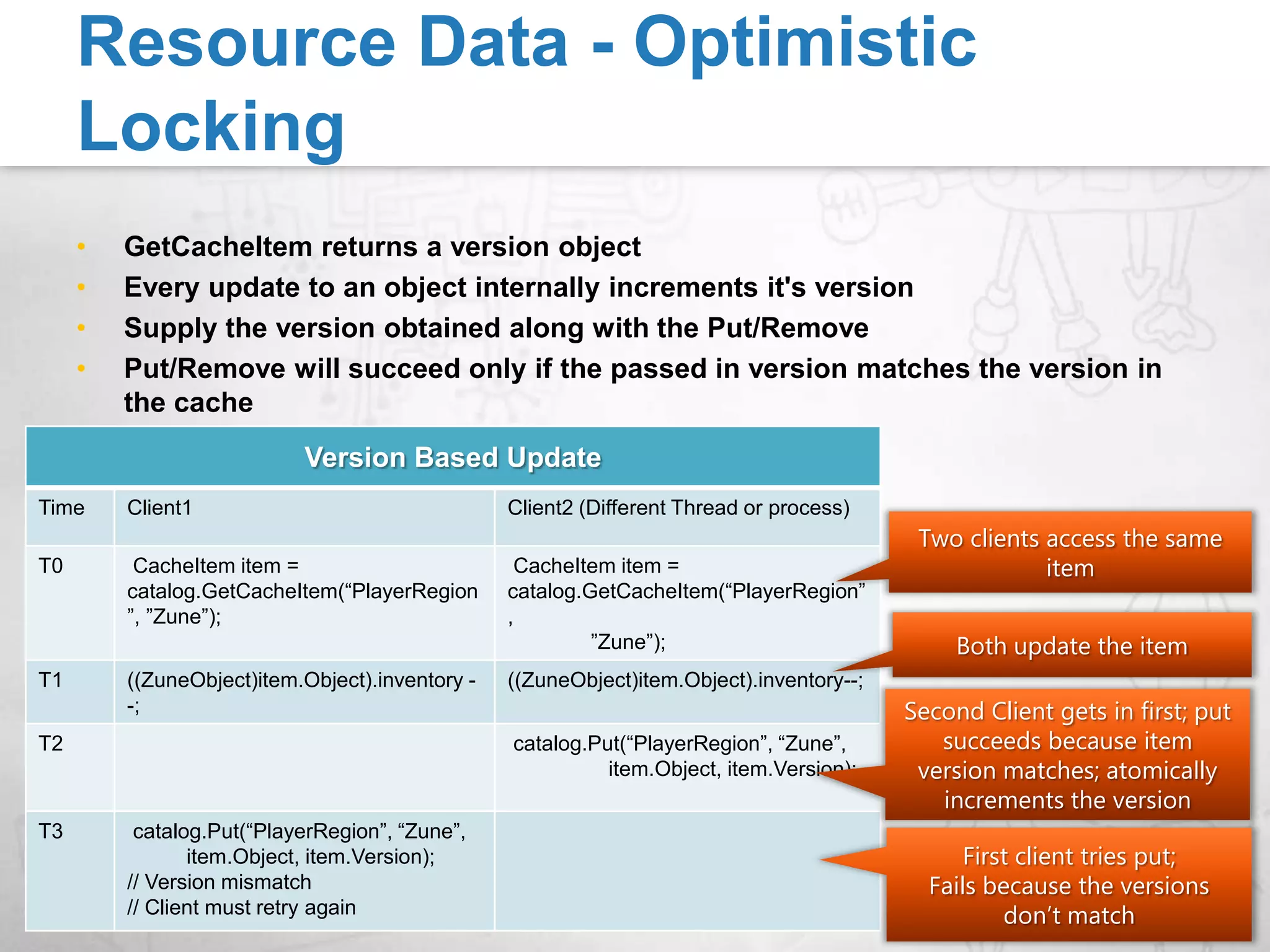

54. GetCacheItem returns a version objectEvery update to an object internally increments it's versionSupply the version obtained along with the Put/RemovePut/Remove will succeed only if the passed in version matches the version in the cache Resource Data - Optimistic LockingTwo clients access the same item Both update the itemSecond Client gets in first; put succeeds because item version matches; atomically increments the versionFirst client tries put;Fails because the versions don’t match

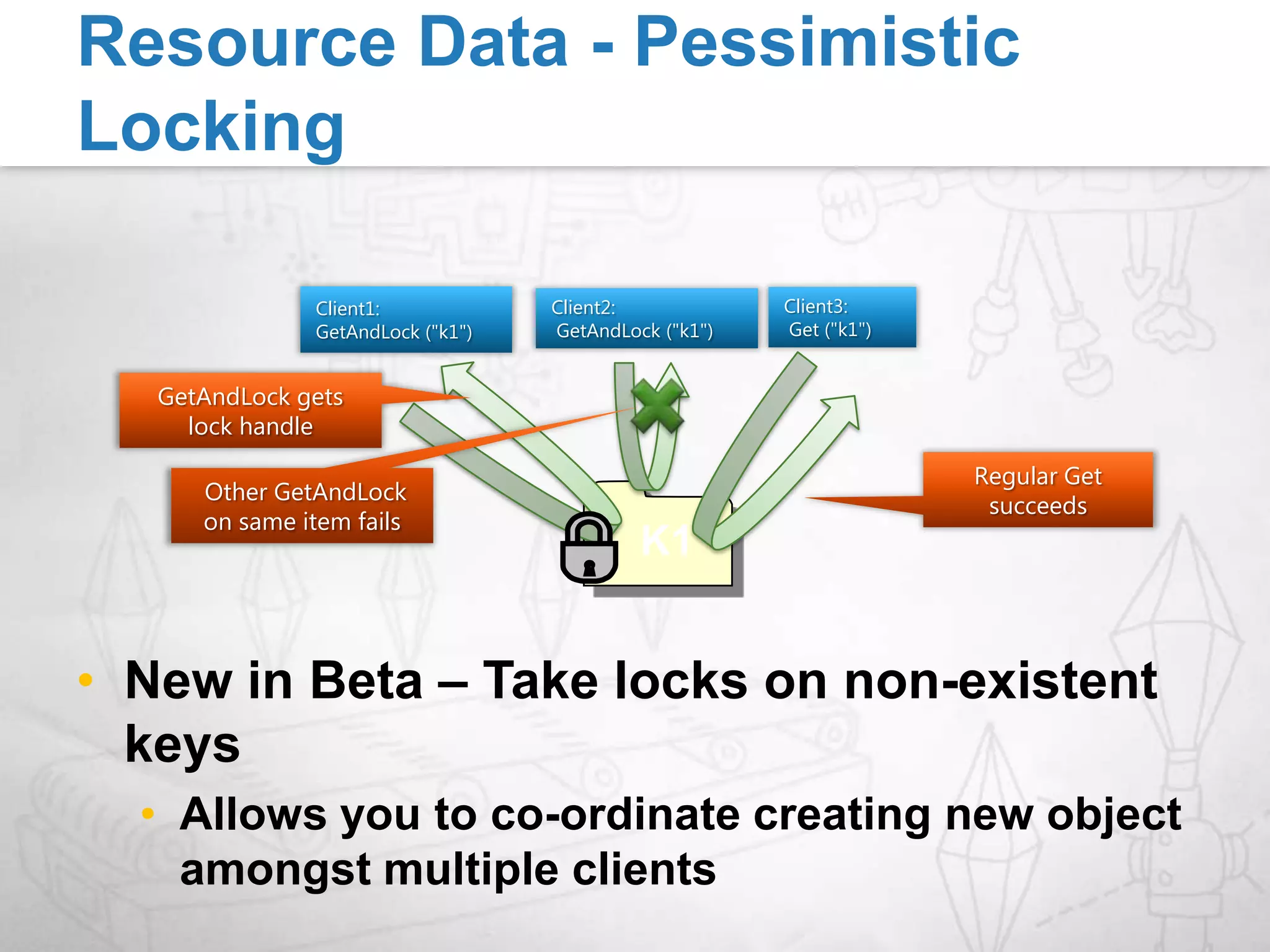

55. Resource Data - Pessimistic LockingClient1: GetAndLock ("k1")Client3: Get ("k1")Client2: GetAndLock ("k1")GetAndLock gets lock handleRegular Get succeeds Other GetAndLock on same item failsNew in Beta – Take locks on non-existent keysAllows you to co-ordinate creating new object amongst multiple clientsK1

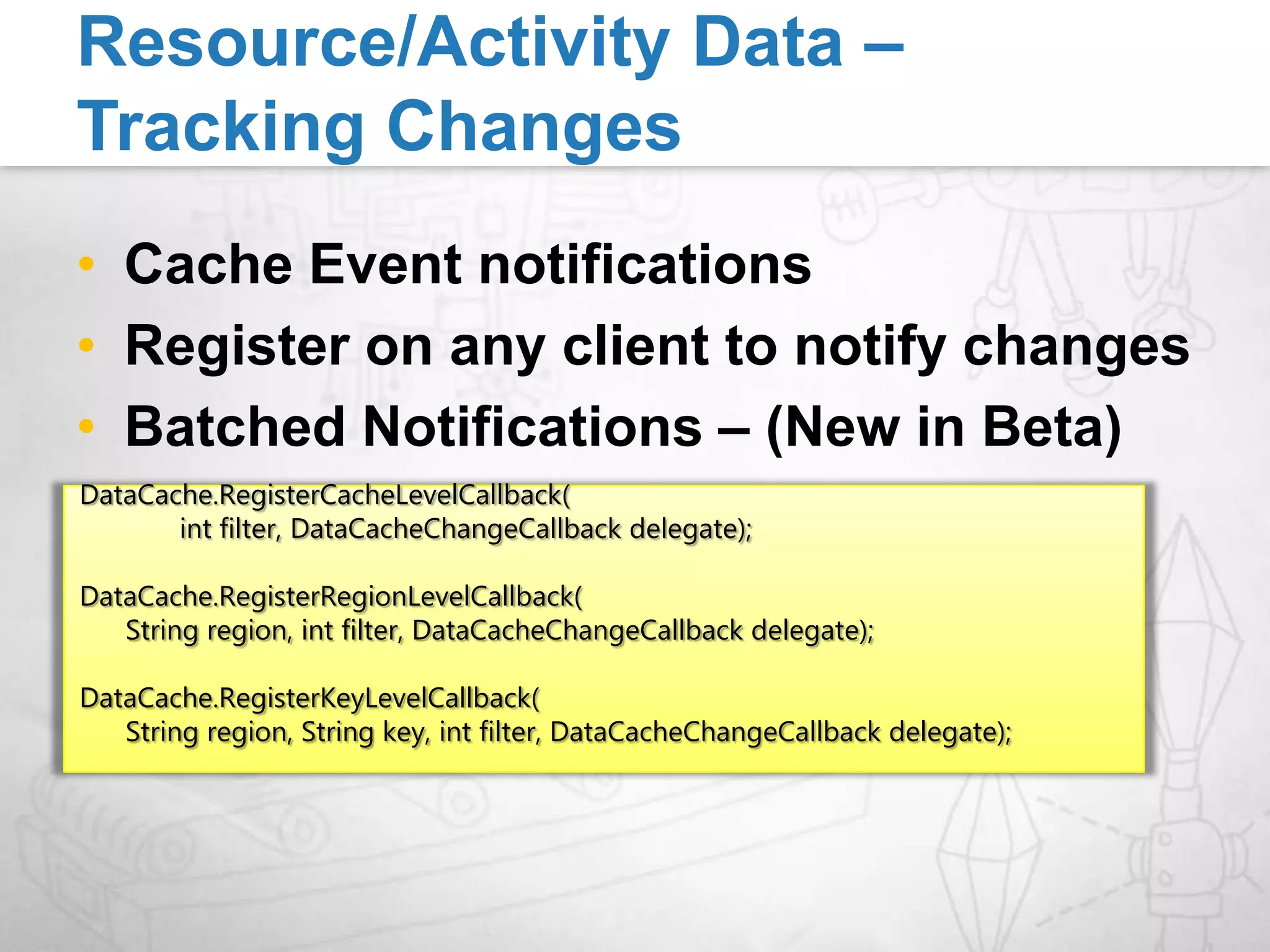

56. Cache Event notificationsRegister on any client to notify changesBatched Notifications – (New in Beta)Resource/Activity Data – Tracking ChangesDataCache.RegisterCacheLevelCallback(int filter, DataCacheChangeCallback delegate); DataCache.RegisterRegionLevelCallback( String region, int filter, DataCacheChangeCallback delegate); DataCache.RegisterKeyLevelCallback( String region, String key, int filter, DataCacheChangeCallback delegate);

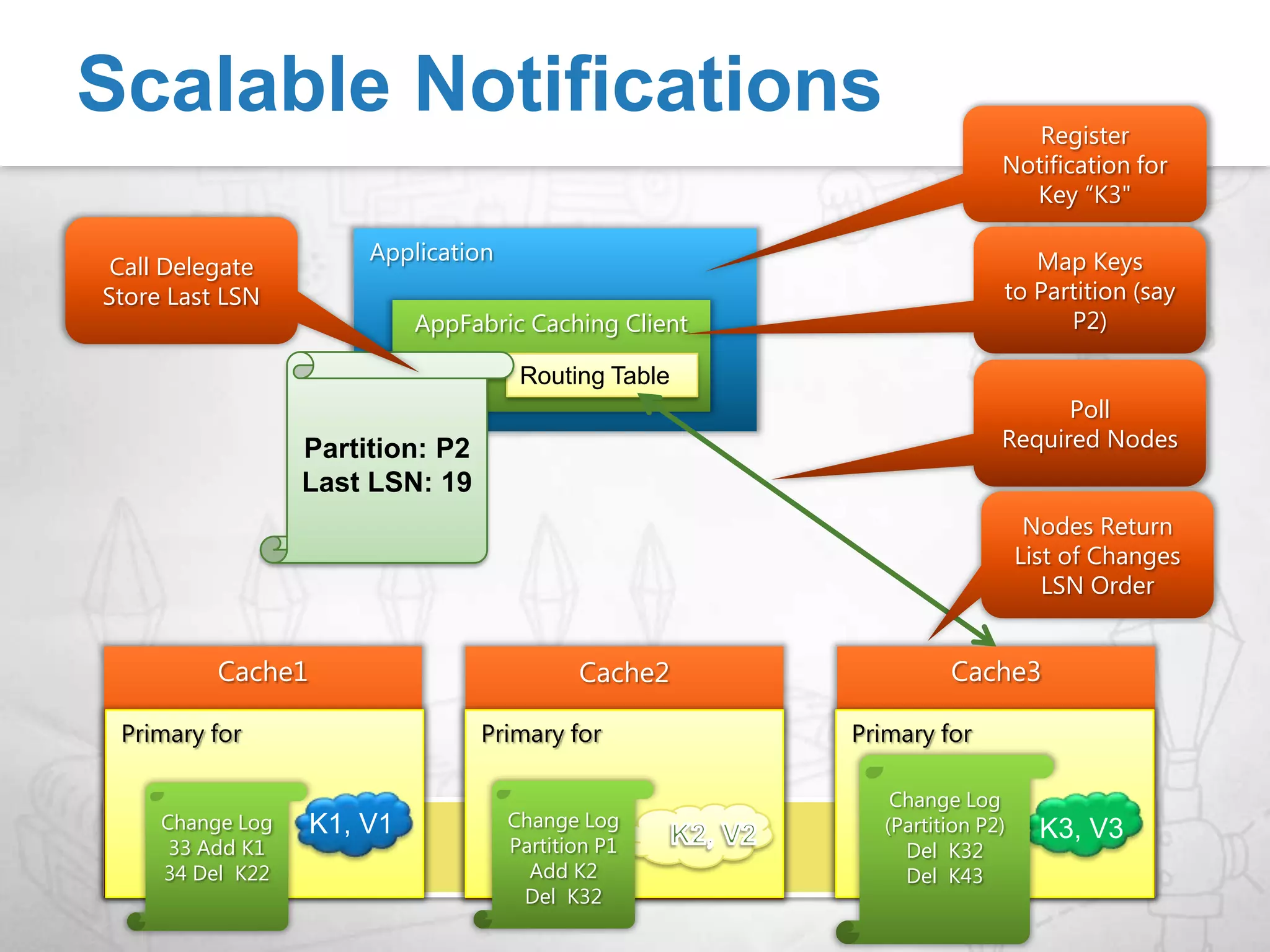

57. Register Notification for Key “K3"Call DelegateStore Last LSN Map Keys to Partition (say P2)ApplicationAppFabric Caching ClientPartition: P2Last LSN: 19Routing TablePoll Required NodesNodes Return List of ChangesLSN OrderCache2Cache3Cache1K2, V2Primary forPrimary forPrimary forChange Log (Partition P2)Del K32Del K43Change LogPartition P1Add K2Del K32Change Log33 Add K134 Del K22K1, V1K3, V3Scalable Notifications

58. Programming Model

59. AppFabric Caching Futures

60. AppFabric Caching and Azure Platform

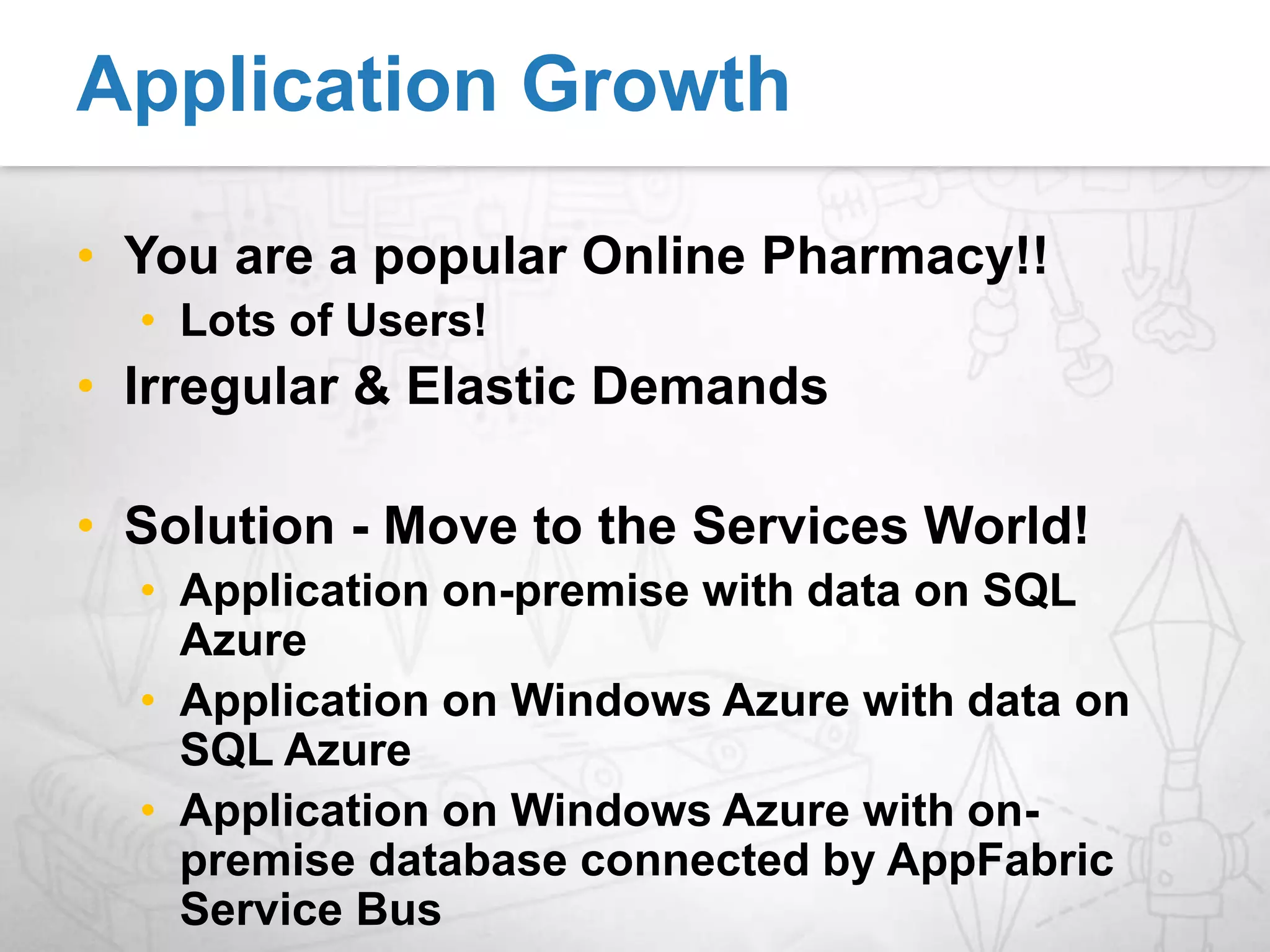

61. You are a popular Online Pharmacy!!Lots of Users!Irregular & Elastic DemandsSolution - Move to the Services World!Application on-premise with data on SQL AzureApplication on Windows Azure with data on SQL AzureApplication on Windows Azure with on-premise database connected by AppFabric Service BusApplication Growth

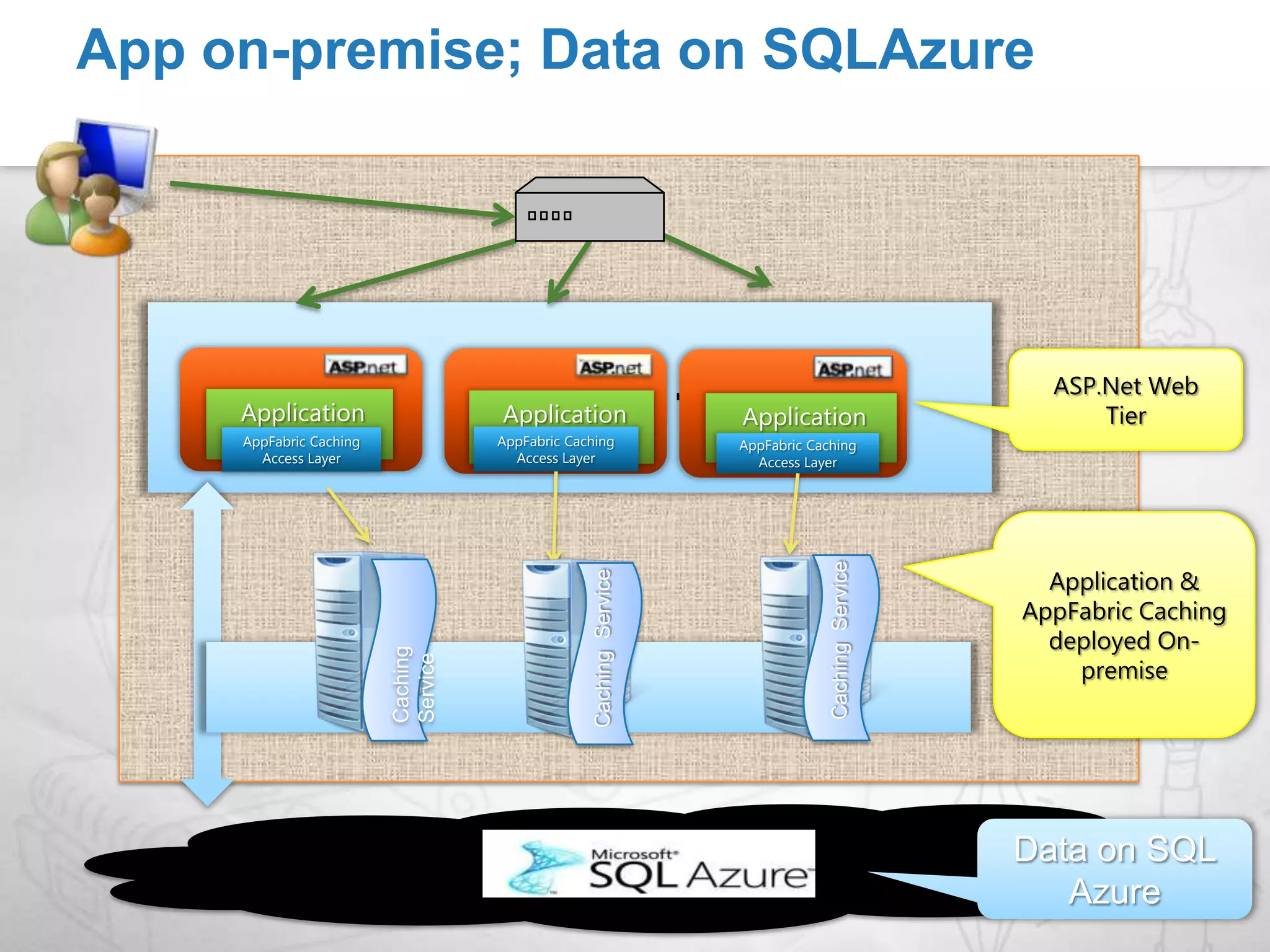

62. App on-premise; Data on SQLAzure…ASP.Net Web Tier Application Application ApplicationAppFabric Caching Access LayerAppFabric Caching Access LayerAppFabric Caching Access LayerApplication & AppFabric Caching deployed On-premiseCaching ServiceCaching ServiceCaching ServiceCaching Worker RoleData on SQL Azure

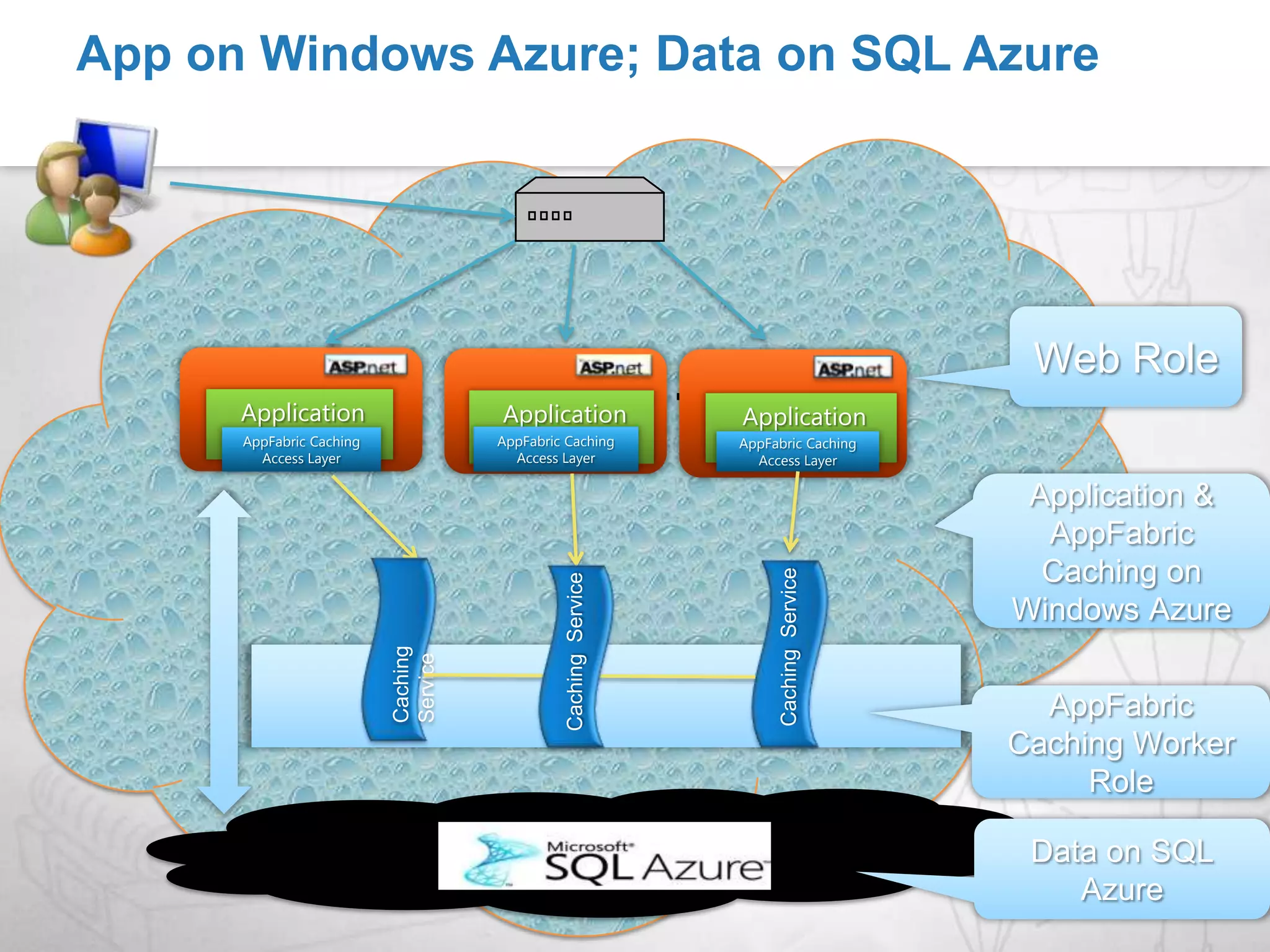

63. App on Windows Azure; Data on SQL AzureWeb Role… Application Application ApplicationAppFabric Caching Access LayerAppFabric Caching Access LayerAppFabric Caching Access LayerApplication & AppFabric Caching on Windows AzureCaching ServiceCaching ServiceCaching ServiceCaching Worker RoleAppFabric Caching Worker RoleData on SQL Azure

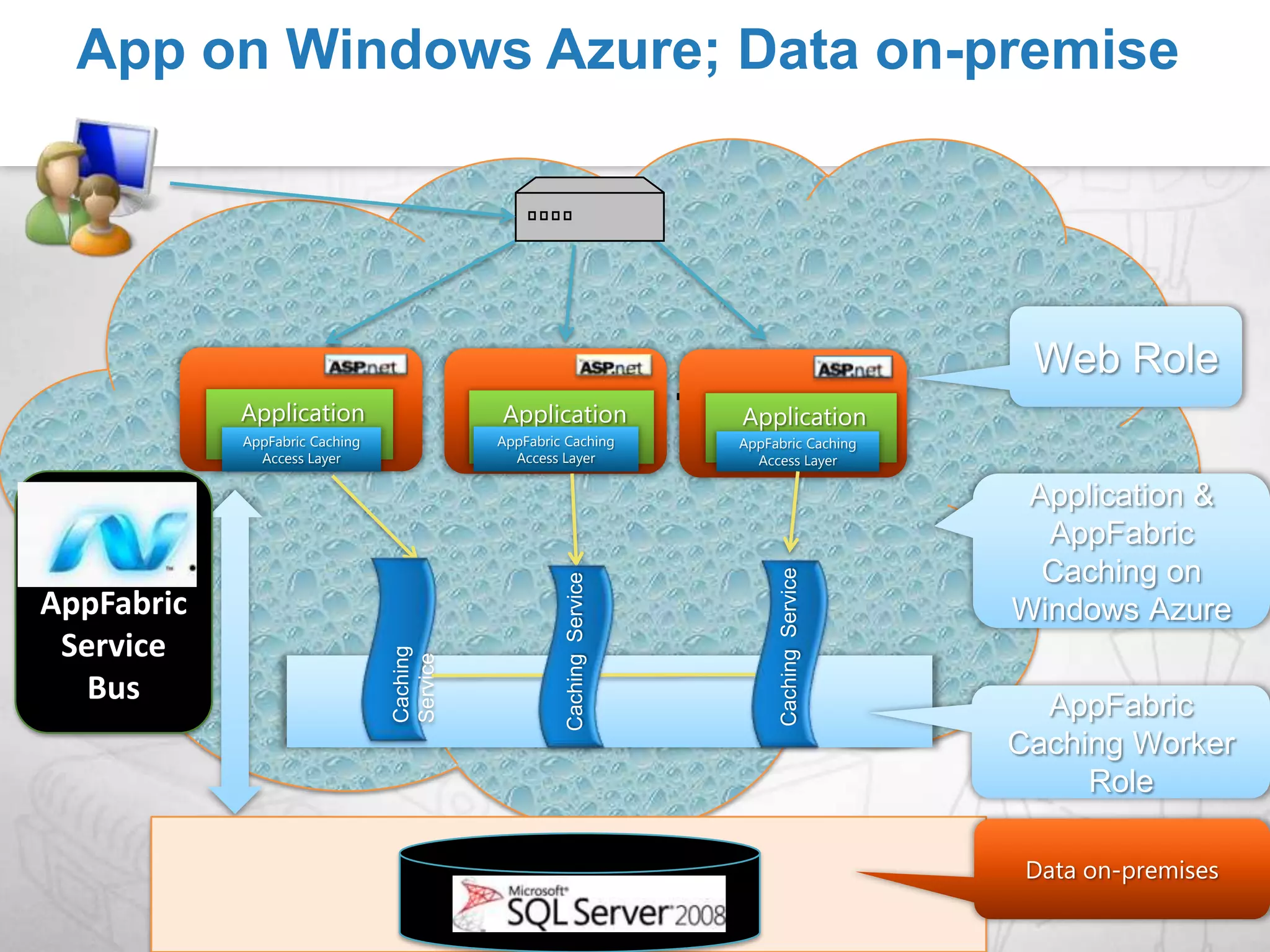

64. App on Windows Azure; Data on-premiseWeb Role… Application Application ApplicationAppFabric Caching Access LayerAppFabric Caching Access LayerAppFabric Caching Access LayerAppFabric Service BusApplication & AppFabric Caching on Windows AzureCaching ServiceCaching ServiceCaching ServiceCaching Worker RoleAppFabric Caching Worker RoleData on-premises

65. ASP.NET and Persistence

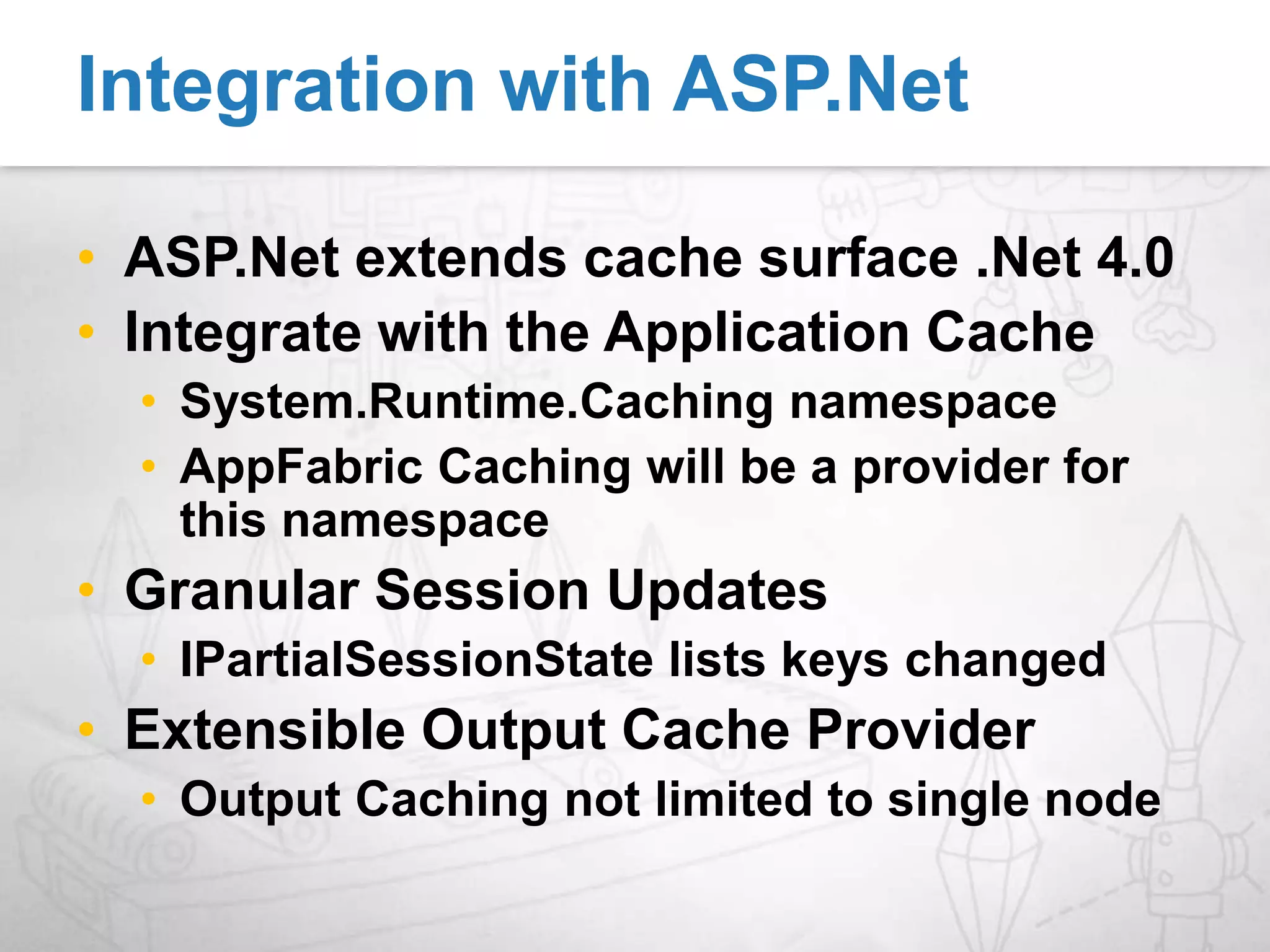

66. ASP.Net extends cache surface .Net 4.0Integrate with the Application CacheSystem.Runtime.Caching namespaceAppFabric Caching will be a provider for this namespaceGranular Session UpdatesIPartialSessionState lists keys changedExtensible Output Cache ProviderOutput Caching not limited to single nodeIntegration with ASP.Net

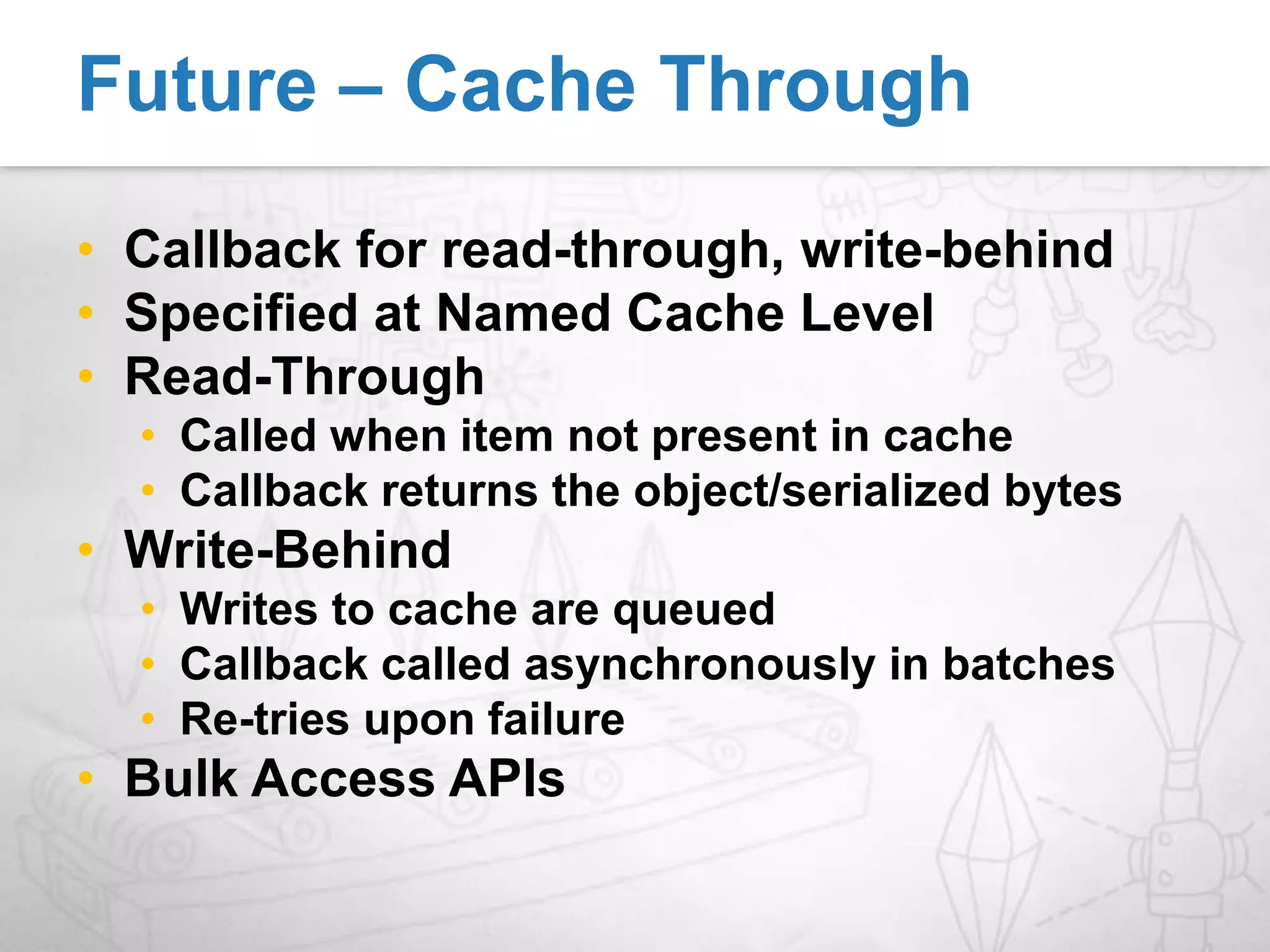

67. Callback for read-through, write-behind Specified at Named Cache LevelRead-ThroughCalled when item not present in cacheCallback returns the object/serialized bytesWrite-BehindWrites to cache are queued Callback called asynchronously in batchesRe-tries upon failureBulk Access APIsFuture – Cache Through

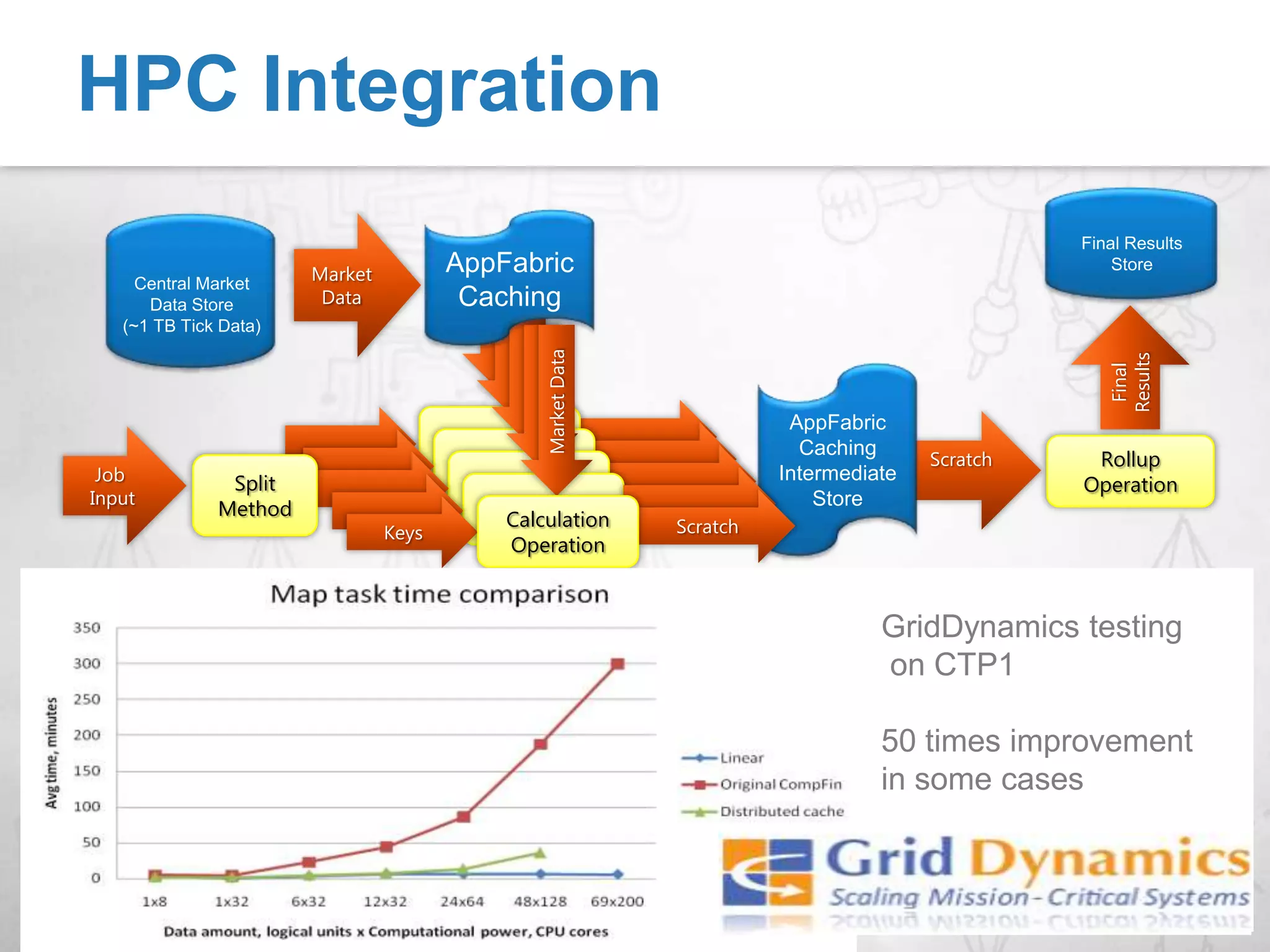

68. HPC IntegrationFinal Results StoreAppFabric CachingMarket DataCentral Market Data Store(~1 TB Tick Data)FinalResultsAppFabric CachingIntermediateStoreMarket DataScratchJob InputRollupOperationSplitMethodScratchKeysCalculationOperationGridDynamics testing on CTP1 50 times improvement in some cases

69. Summary

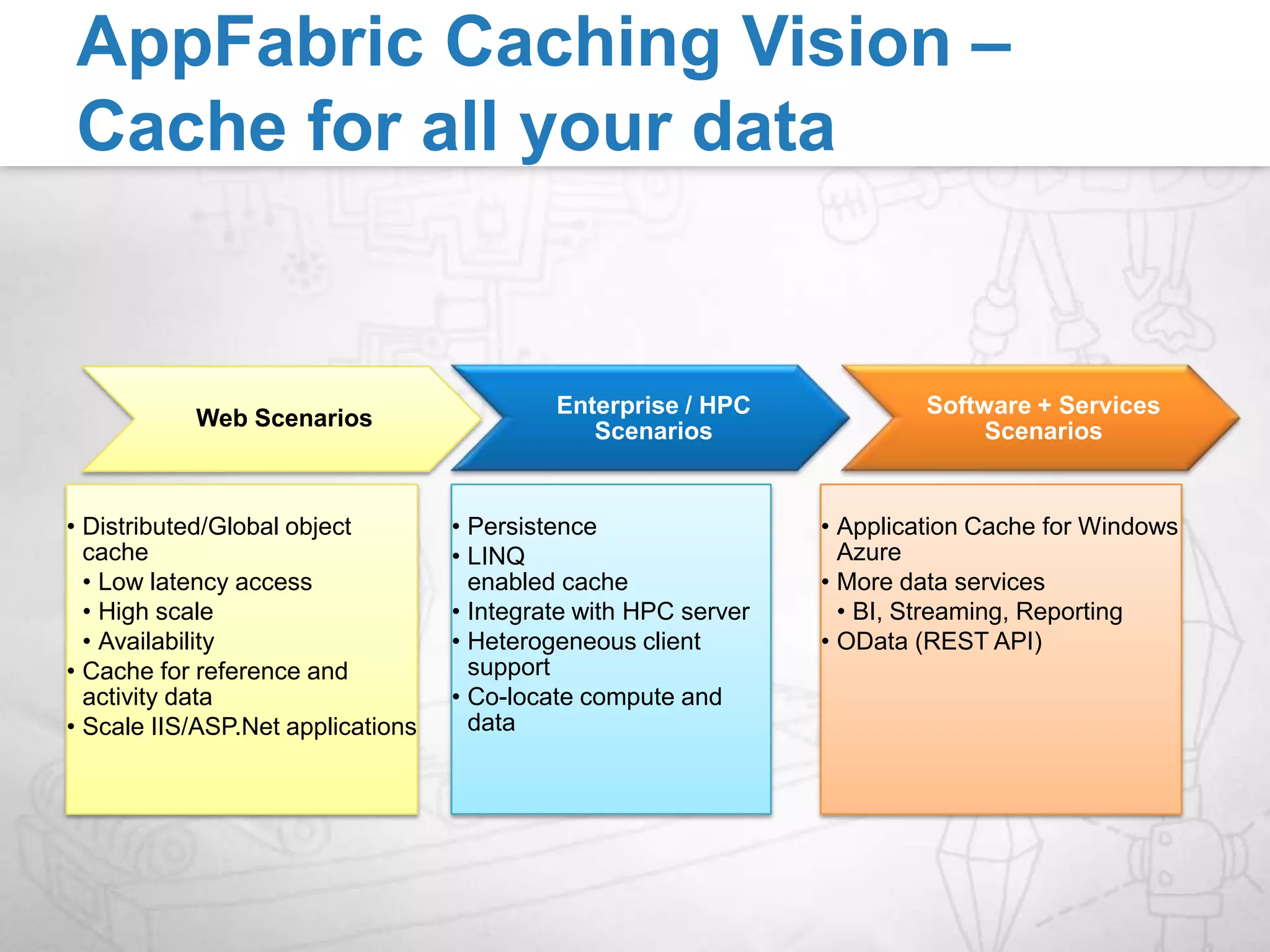

70. AppFabric Caching Vision – Cache for all your data

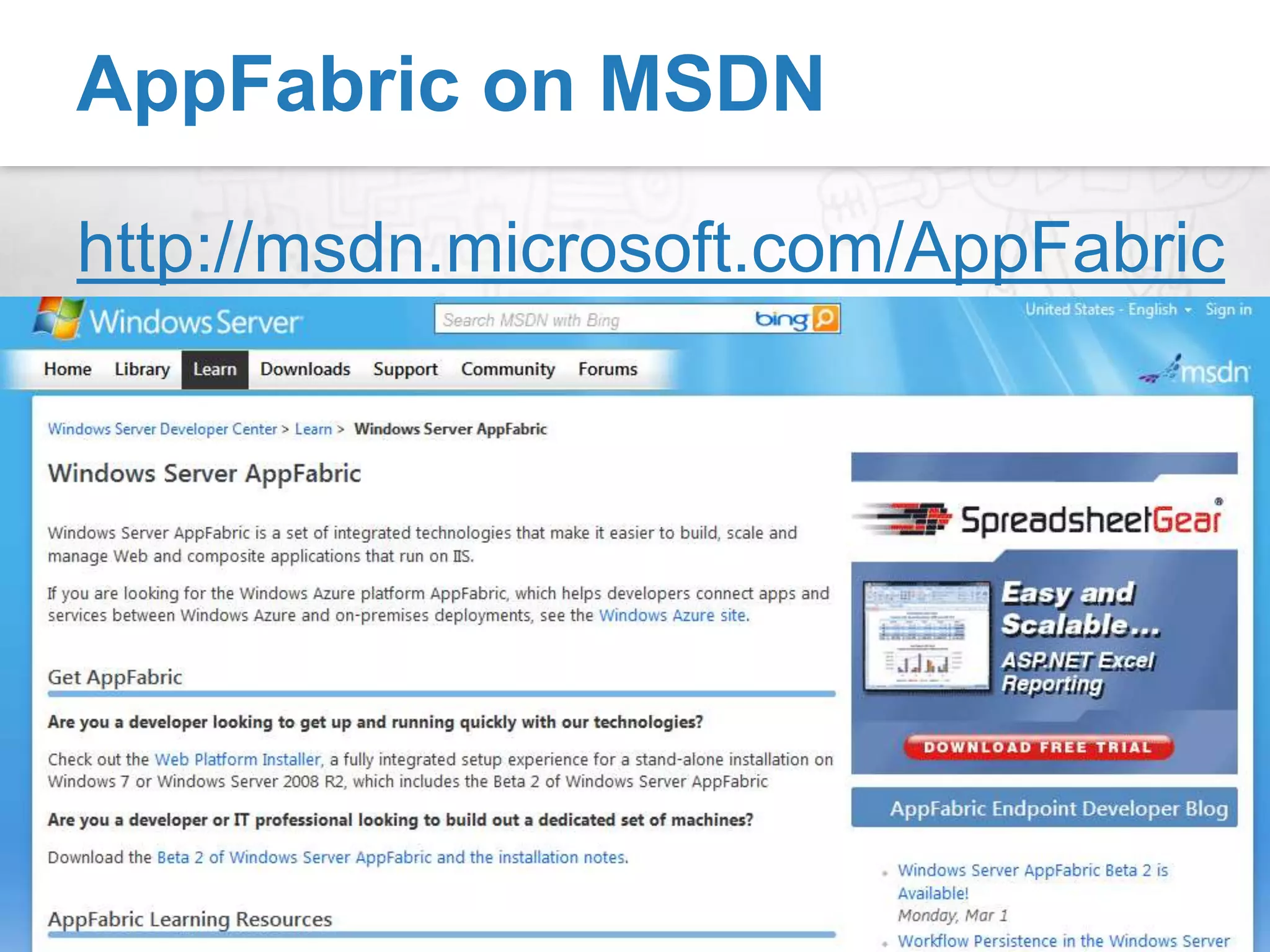

71. http://msdn.microsoft.com/AppFabricAppFabric on MSDN
