Apache Spark Data intensive processing in practice
- 2. www.tantusdata.com About me • Data Engineer @TantusData • Have worked for: Spotify, Apple, telcos, startups • Cluster installations, application architecture and development, training, data team support marcin@tantusdata.com marcin.szymaniuk@gmail.com @mszymani
- 3. www.tantusdata.com Agenda • What is Spark? • Use case overview • Architecture • Big picture

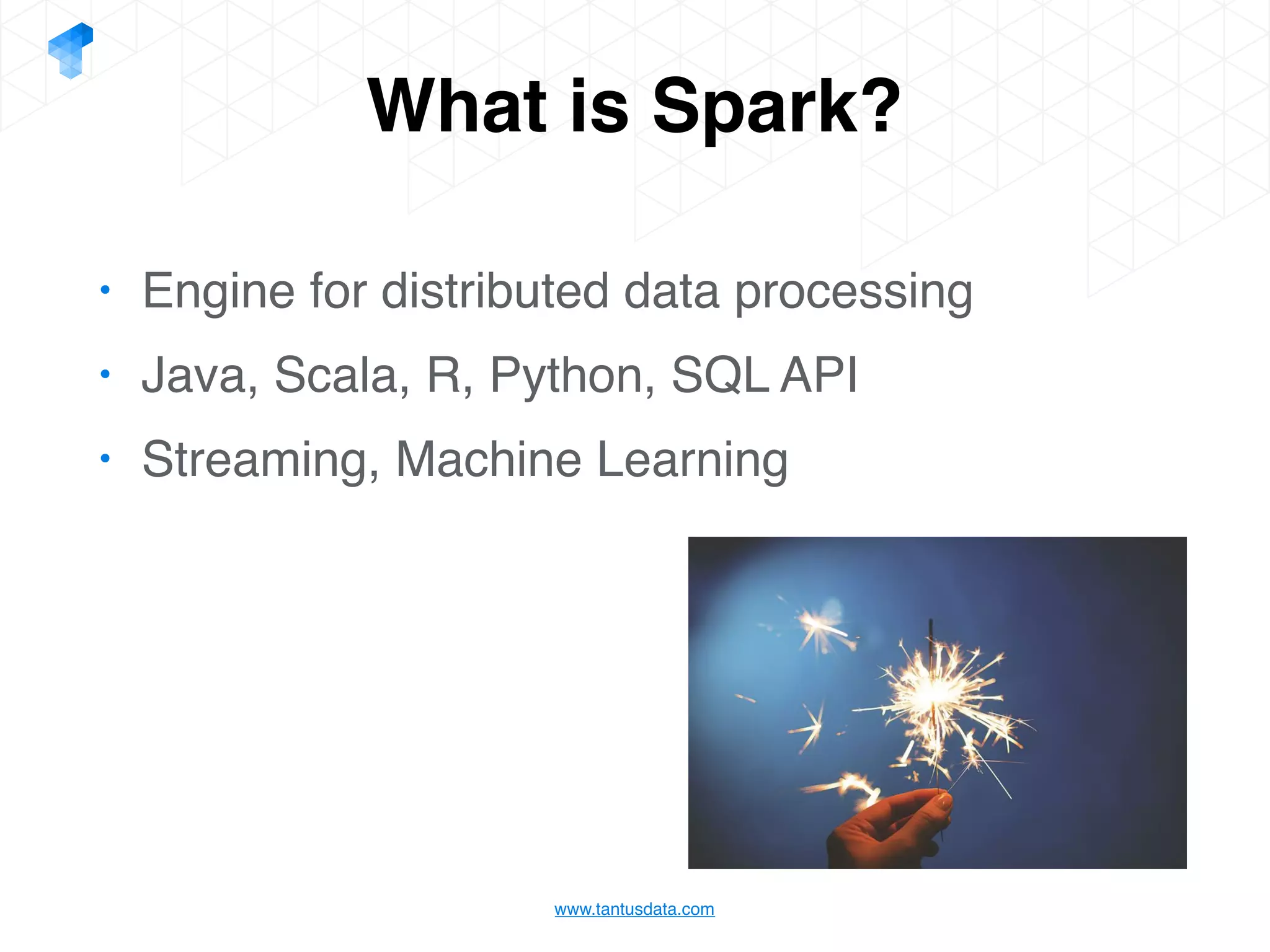

- 4. www.tantusdata.com What is Spark? • Engine for distributed data processing • Java, Scala, R, Python, SQL API • Streaming, Machine Learning

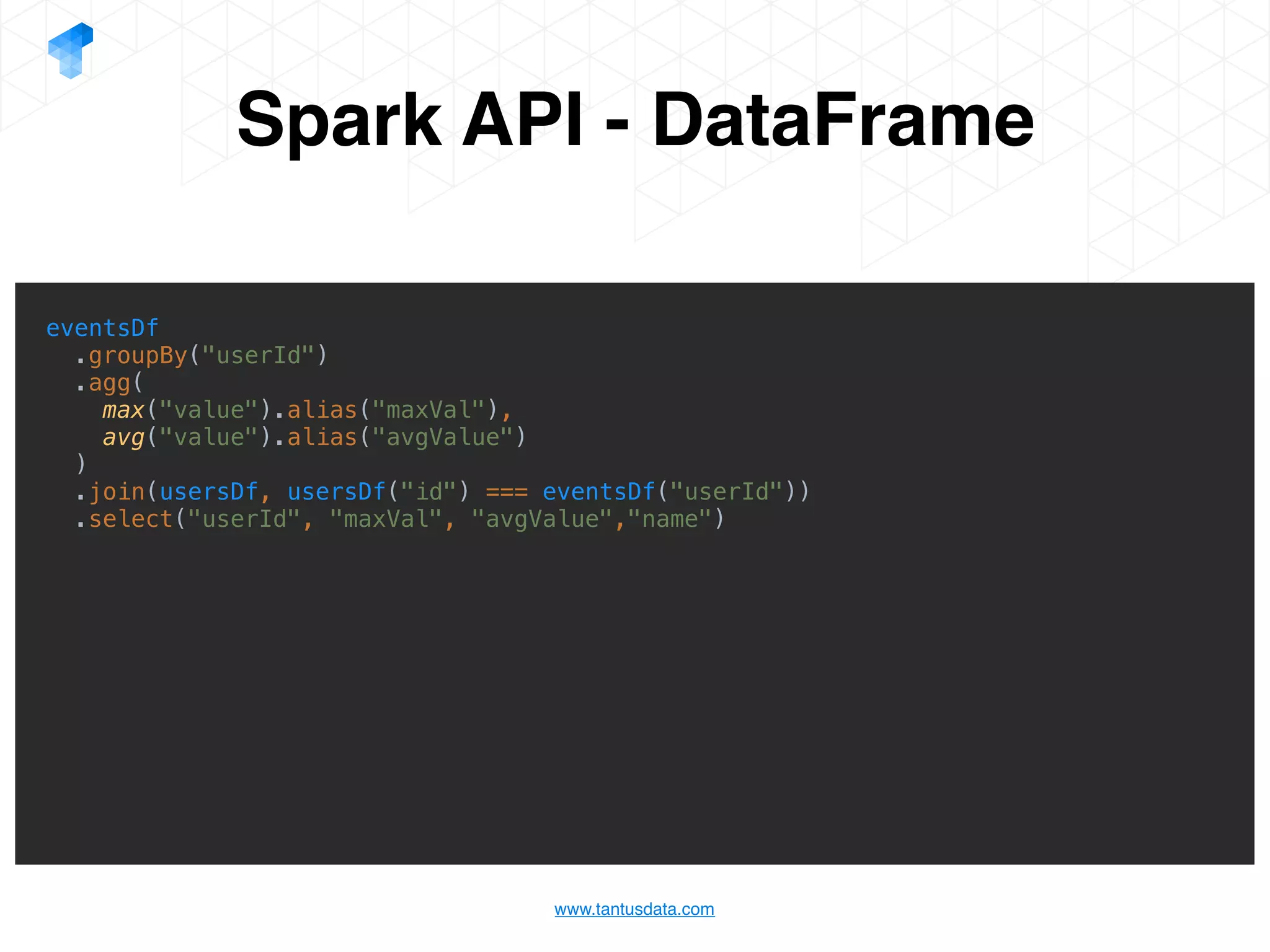

- 10. www.tantusdata.com Spark API - DataFrame eventsDf .groupBy("userId") .agg( max("value").alias("maxVal"), avg("value").alias("avgValue") ) .join(usersDf, usersDf("id") === eventsDf("userId")) .select("userId", "maxVal", "avgValue","name")

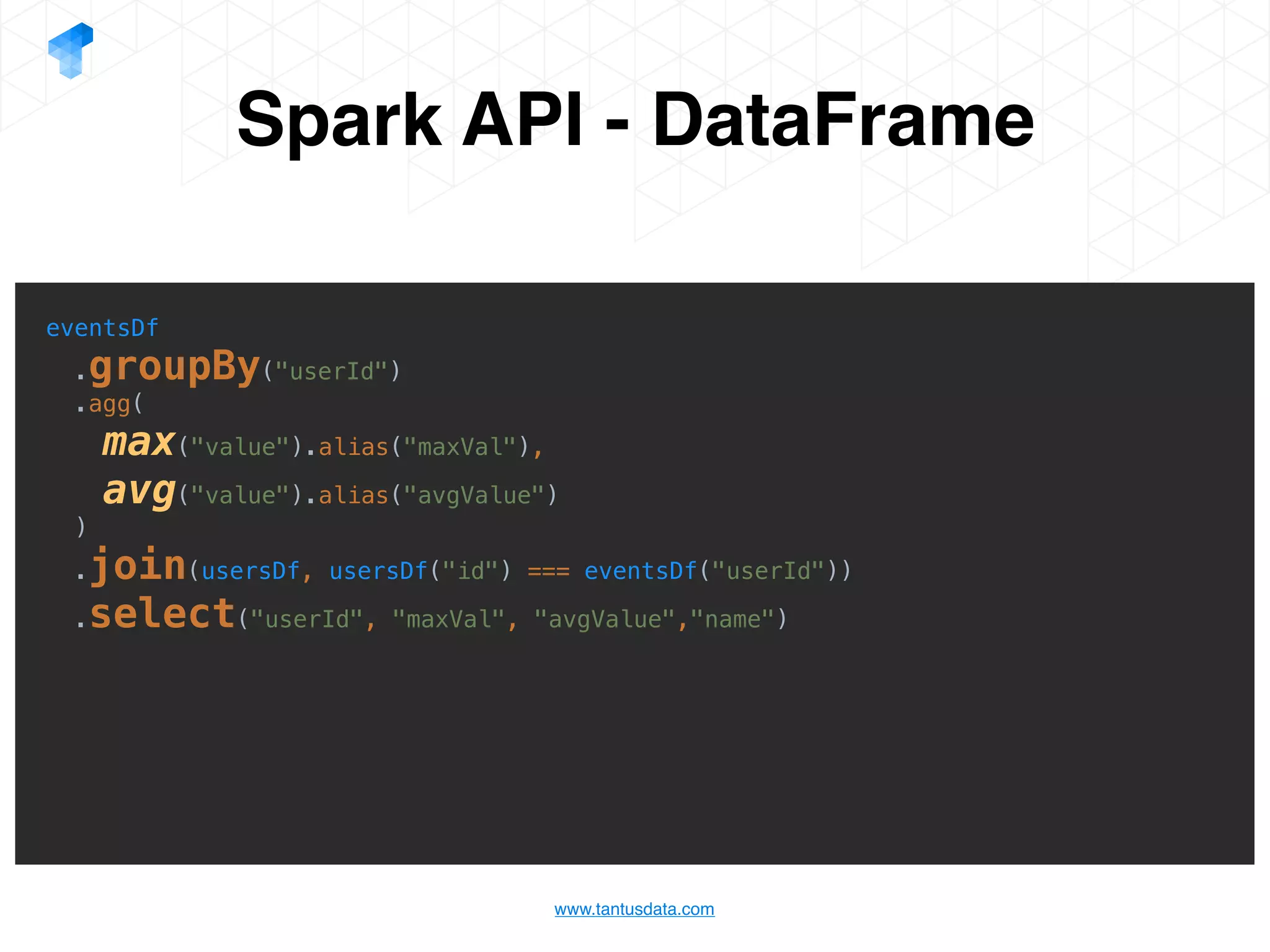

- 11. www.tantusdata.com Spark API - DataFrame eventsDf .groupBy("userId") .agg( max("value").alias("maxVal"), avg("value").alias("avgValue") ) .join(usersDf, usersDf("id") === eventsDf("userId")) .select("userId", "maxVal", "avgValue","name")

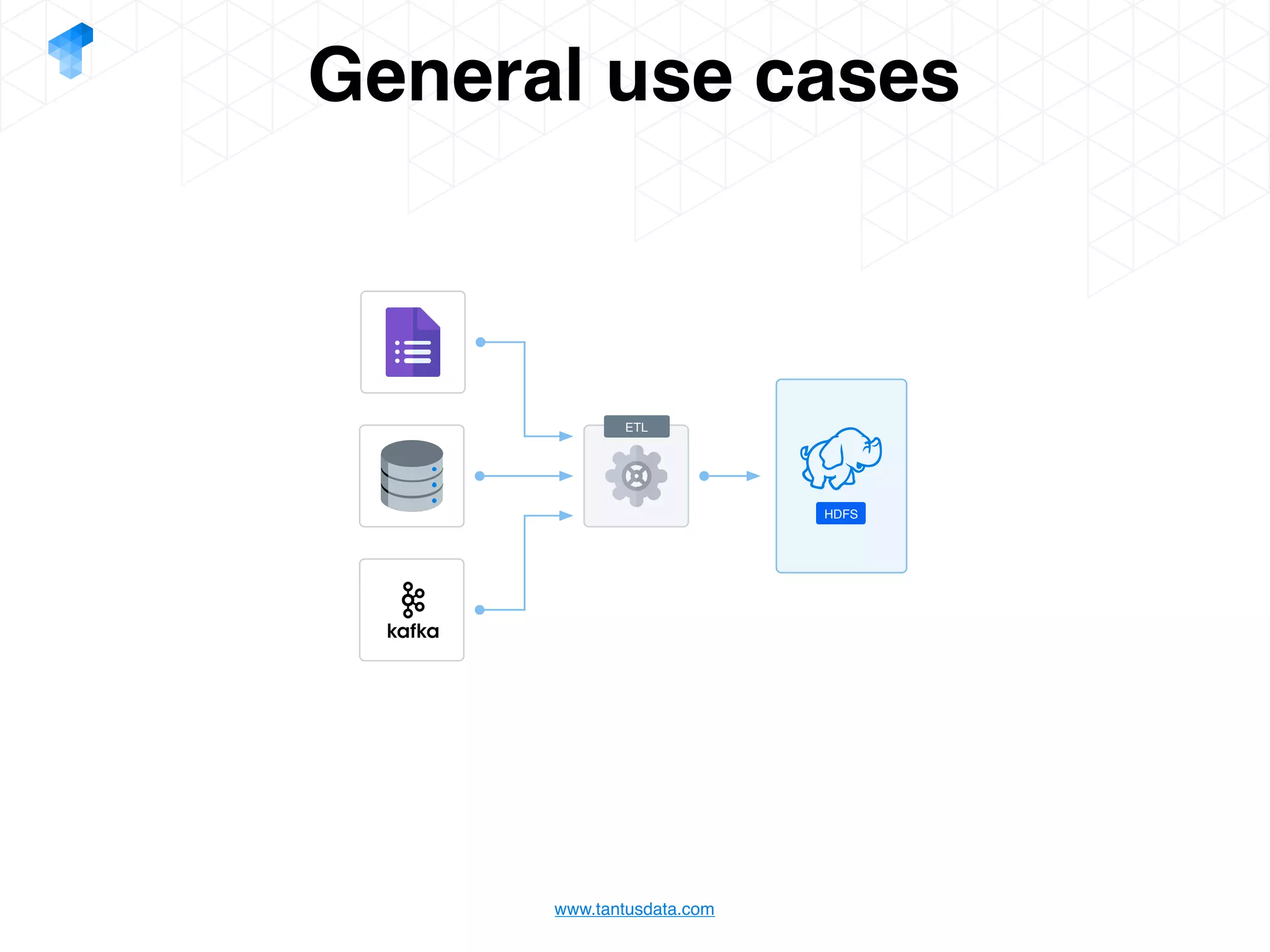

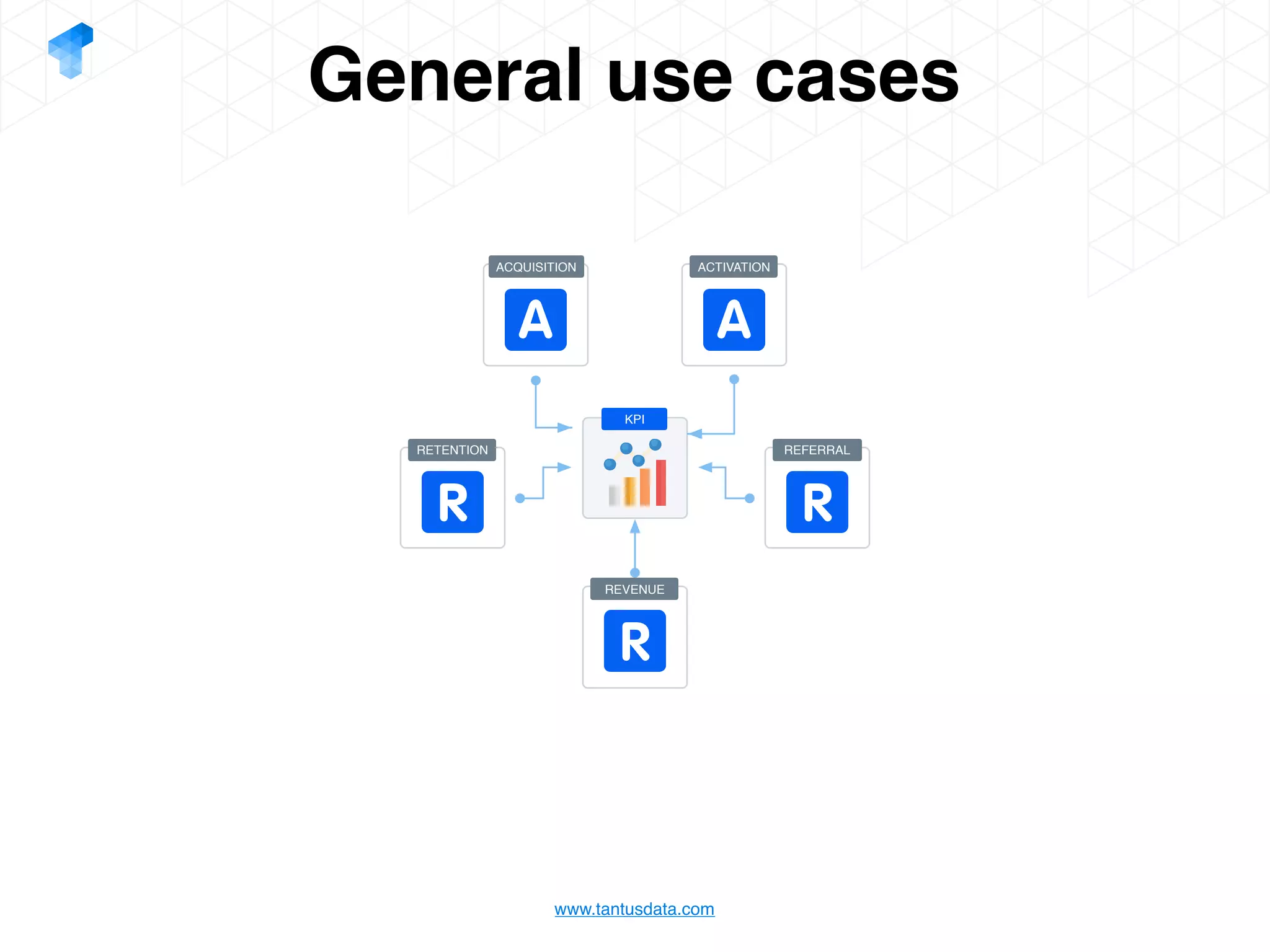

- 13. www.tantusdata.com General use cases KPI ACQUISITION ACTIVATION RETENTION REFERRAL REVENUE

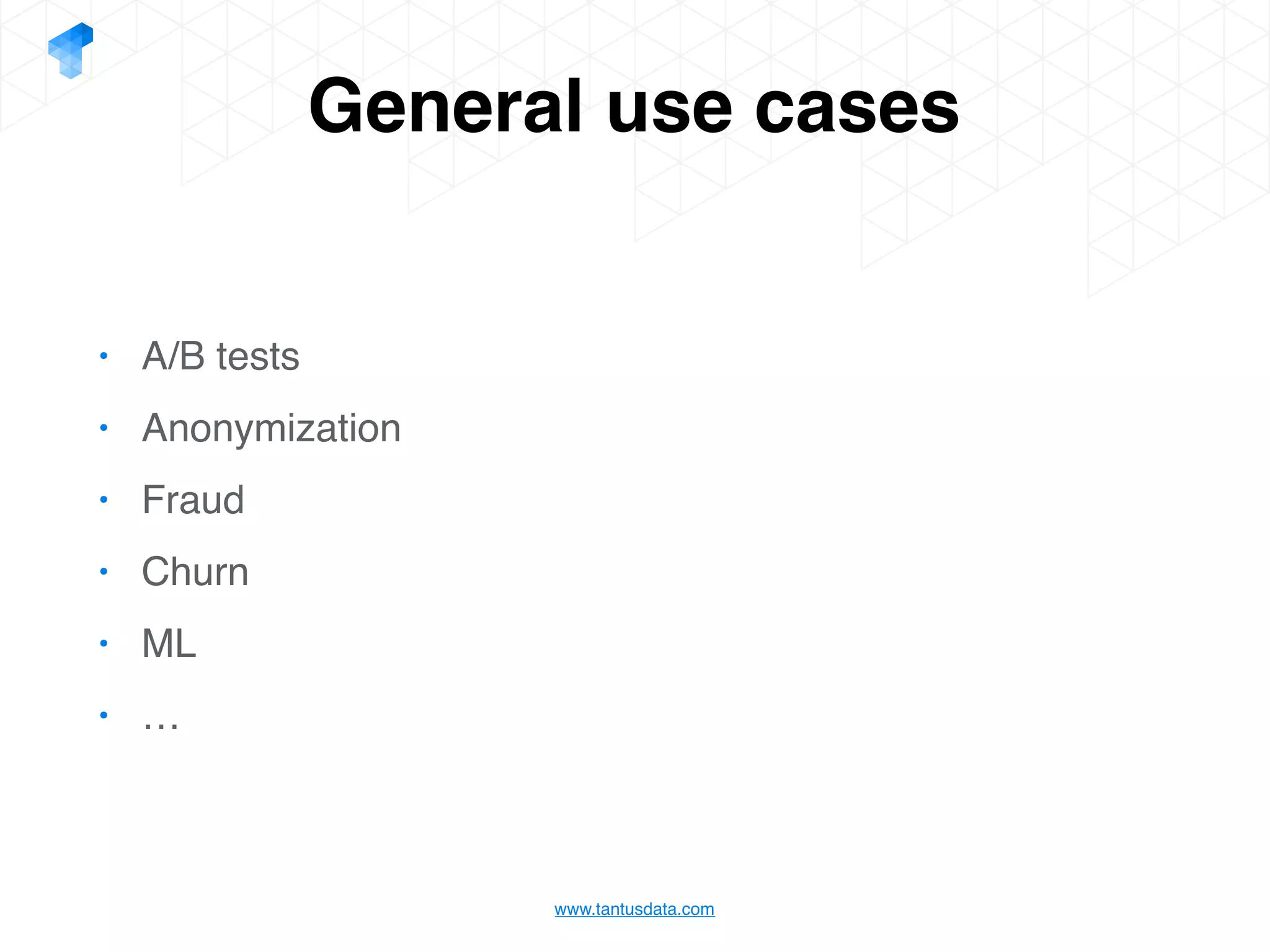

- 14. www.tantusdata.com General use cases • A/B tests • Anonymization • Fraud • Churn • ML • …

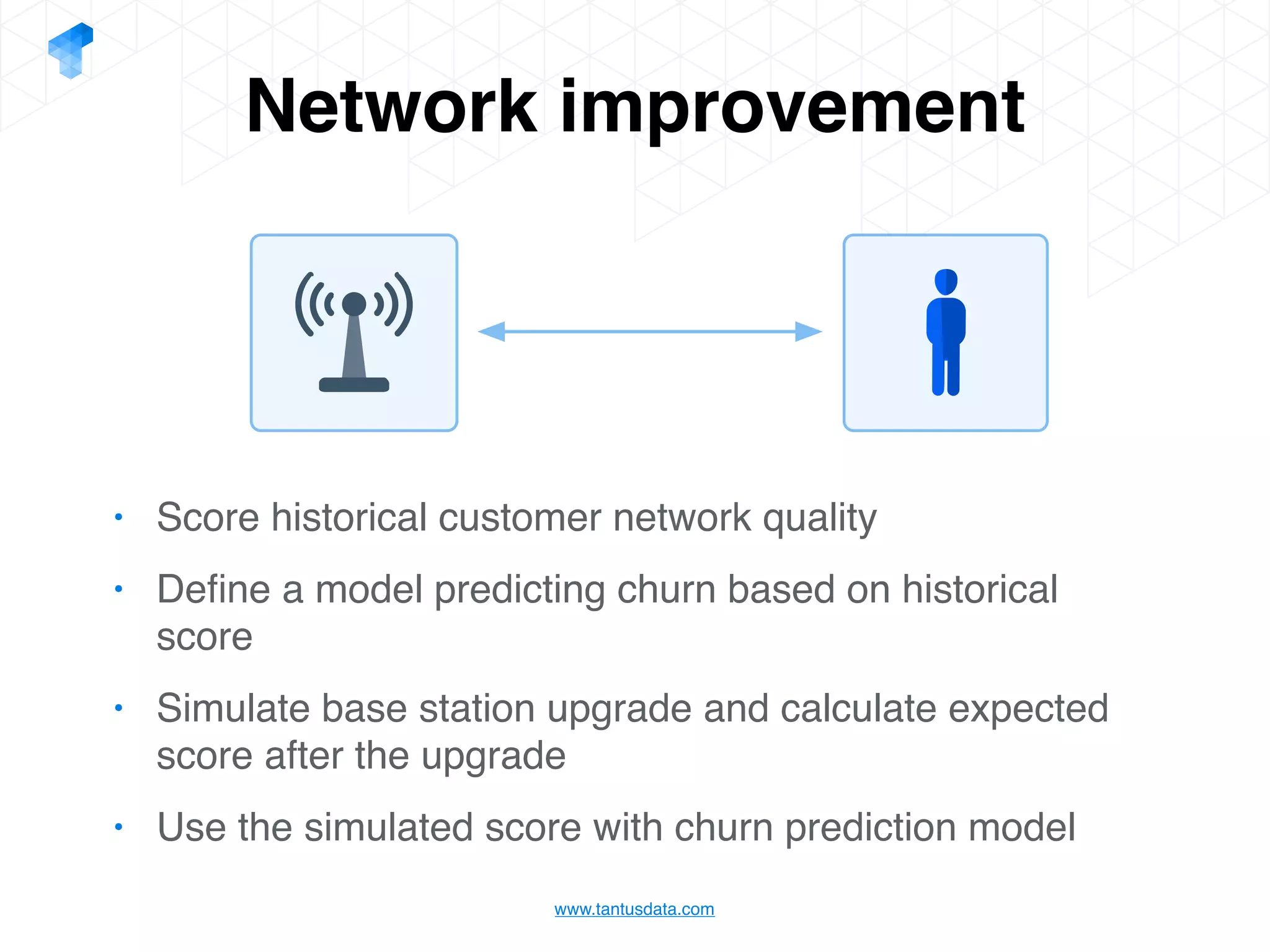

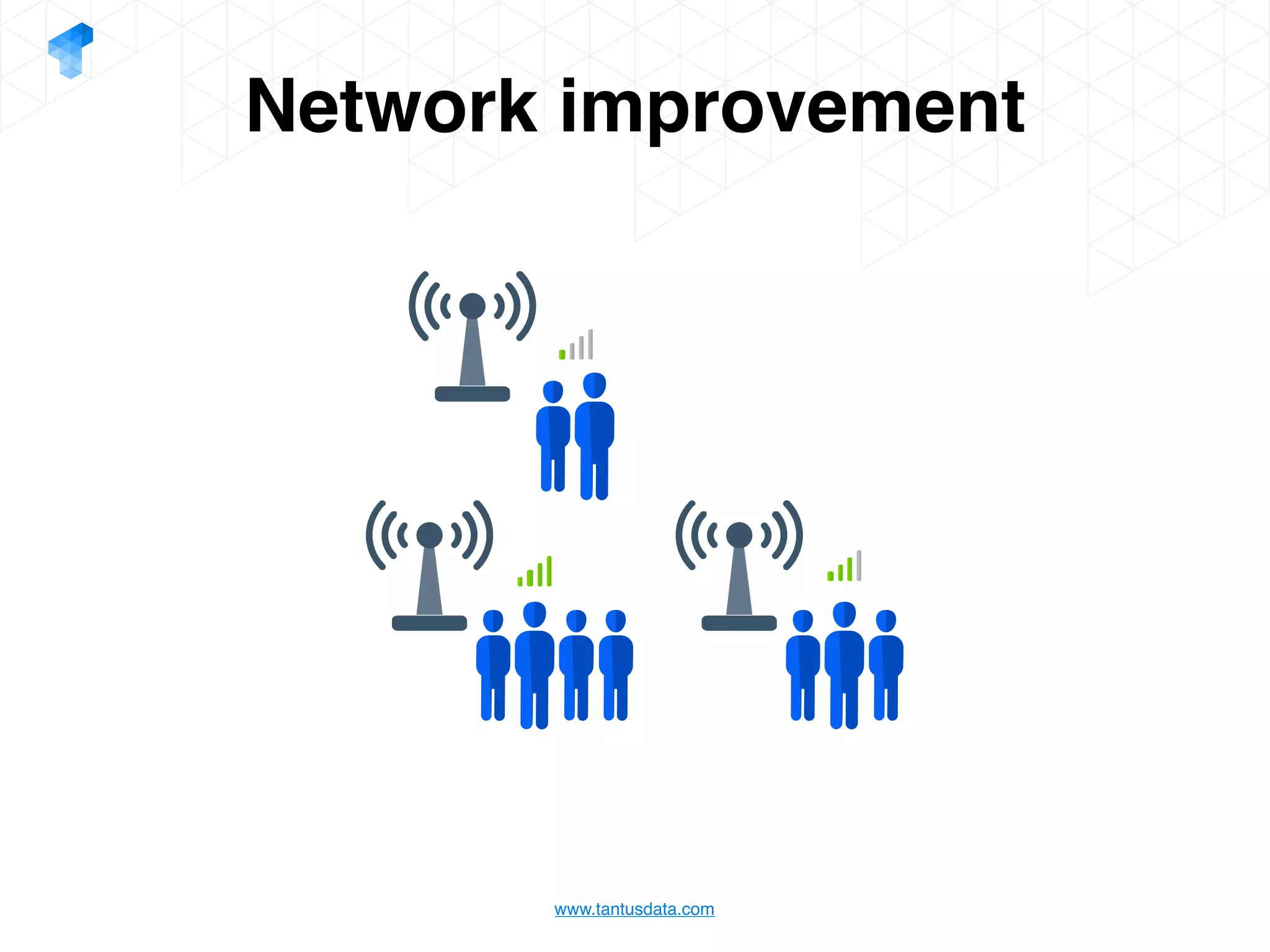

- 16. www.tantusdata.com Network improvement • Score historical customer network quality • Define a model predicting churn based on historical score • Simulate base station upgrade and calculate expected score after the upgrade • Use the simulated score with churn prediction model

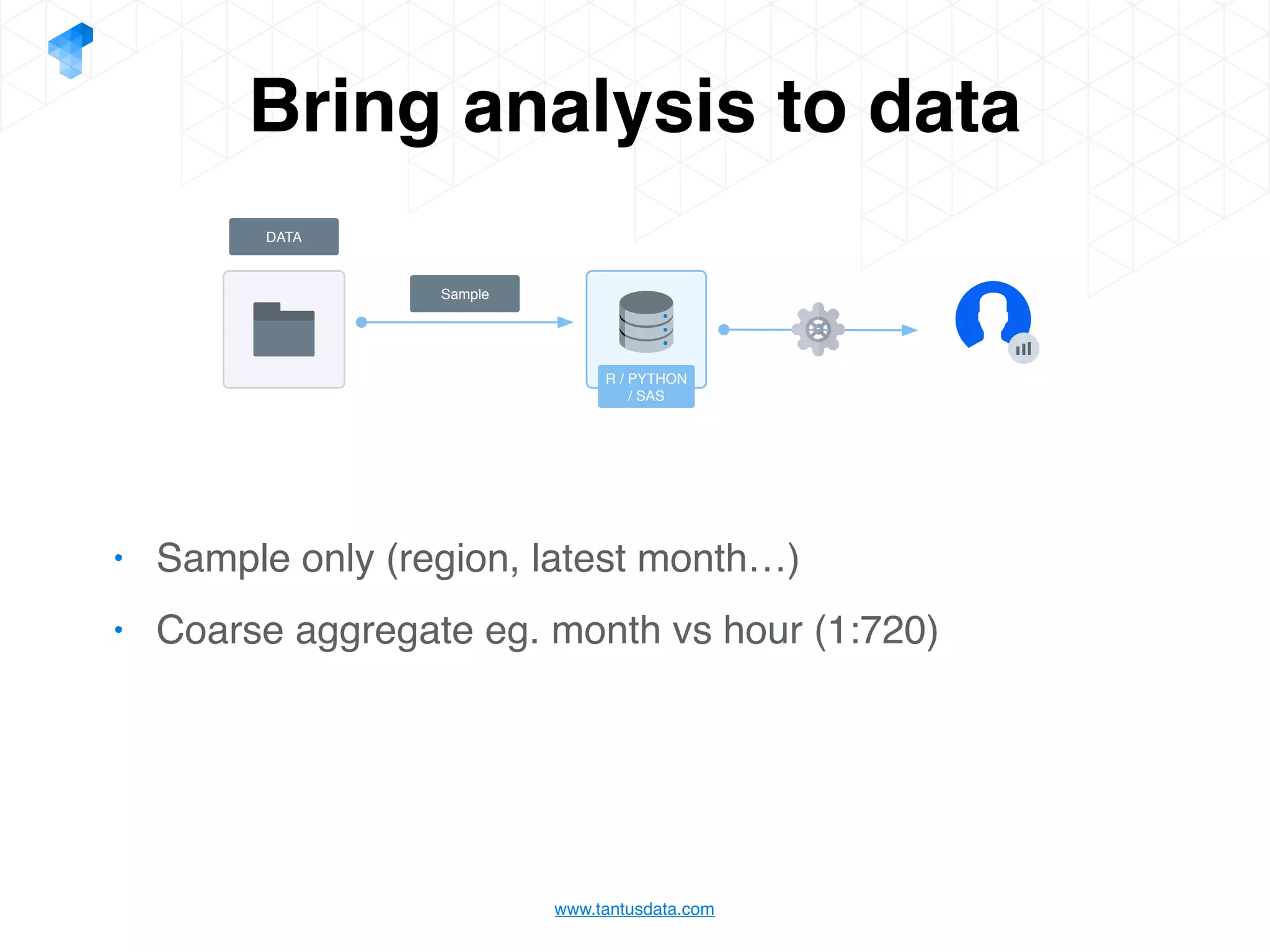

- 17. www.tantusdata.com Bring analysis to data DATA R / PYTHON / SAS Sample • Sample only (region, latest month…) • Coarse aggregate eg. month vs hour (1:720)
- 18. www.tantusdata.com Bring analysis to data Photo credit: productcoalition.com

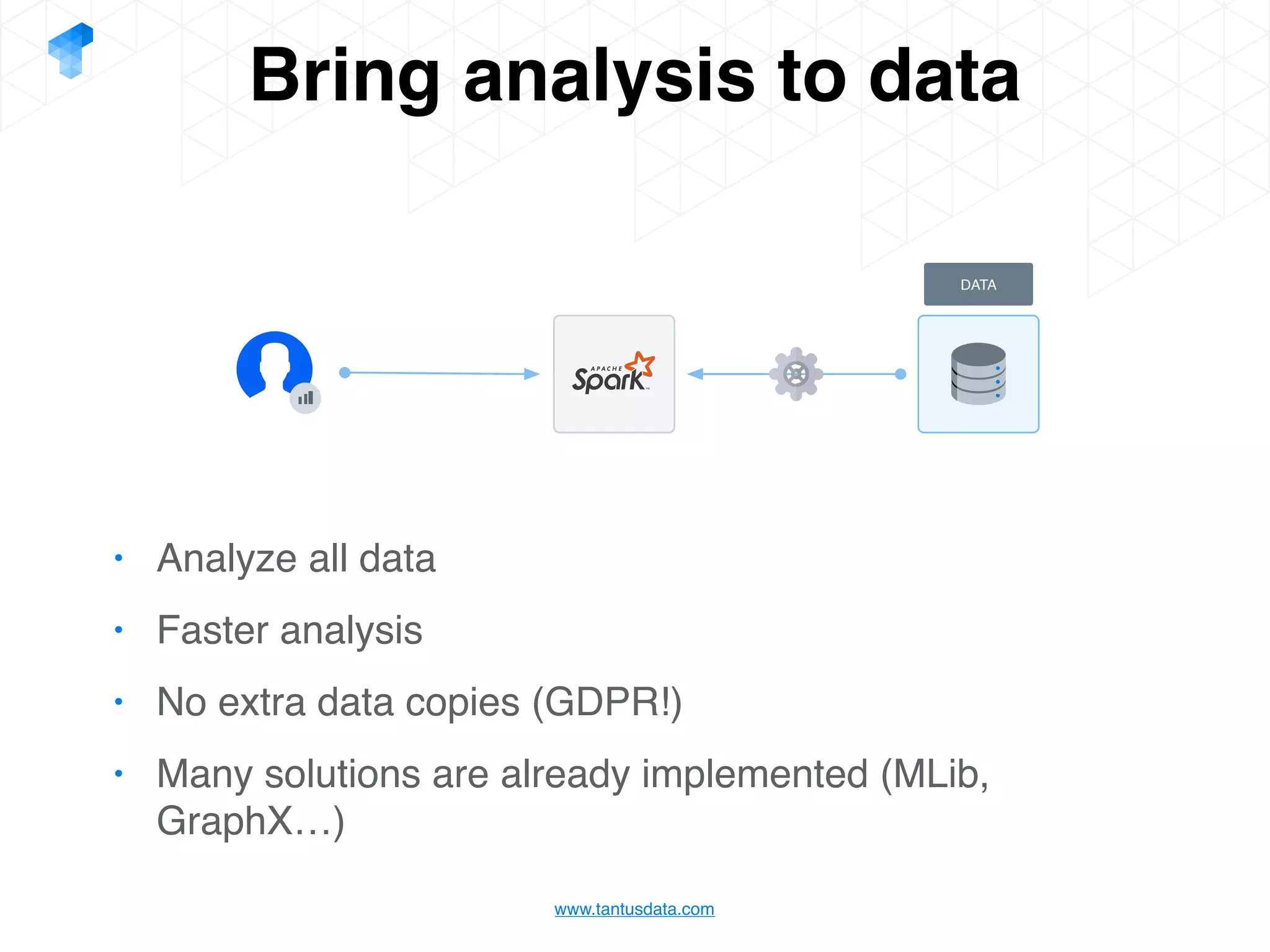

- 19. www.tantusdata.com Bring analysis to data DATA • Analyze all data • Faster analysis • No extra data copies (GDPR!) • Many solutions are already implemented (MLib, GraphX…)

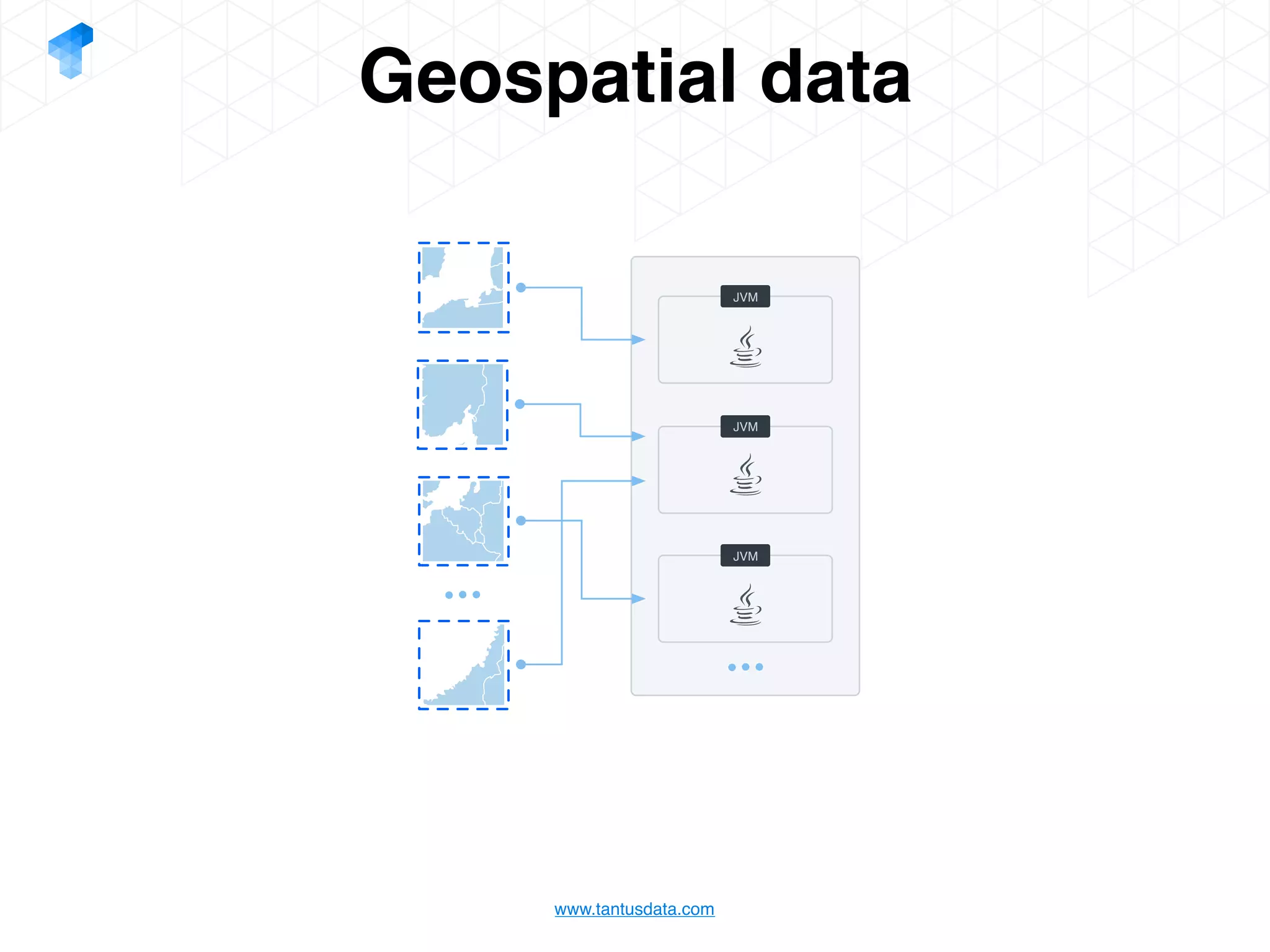

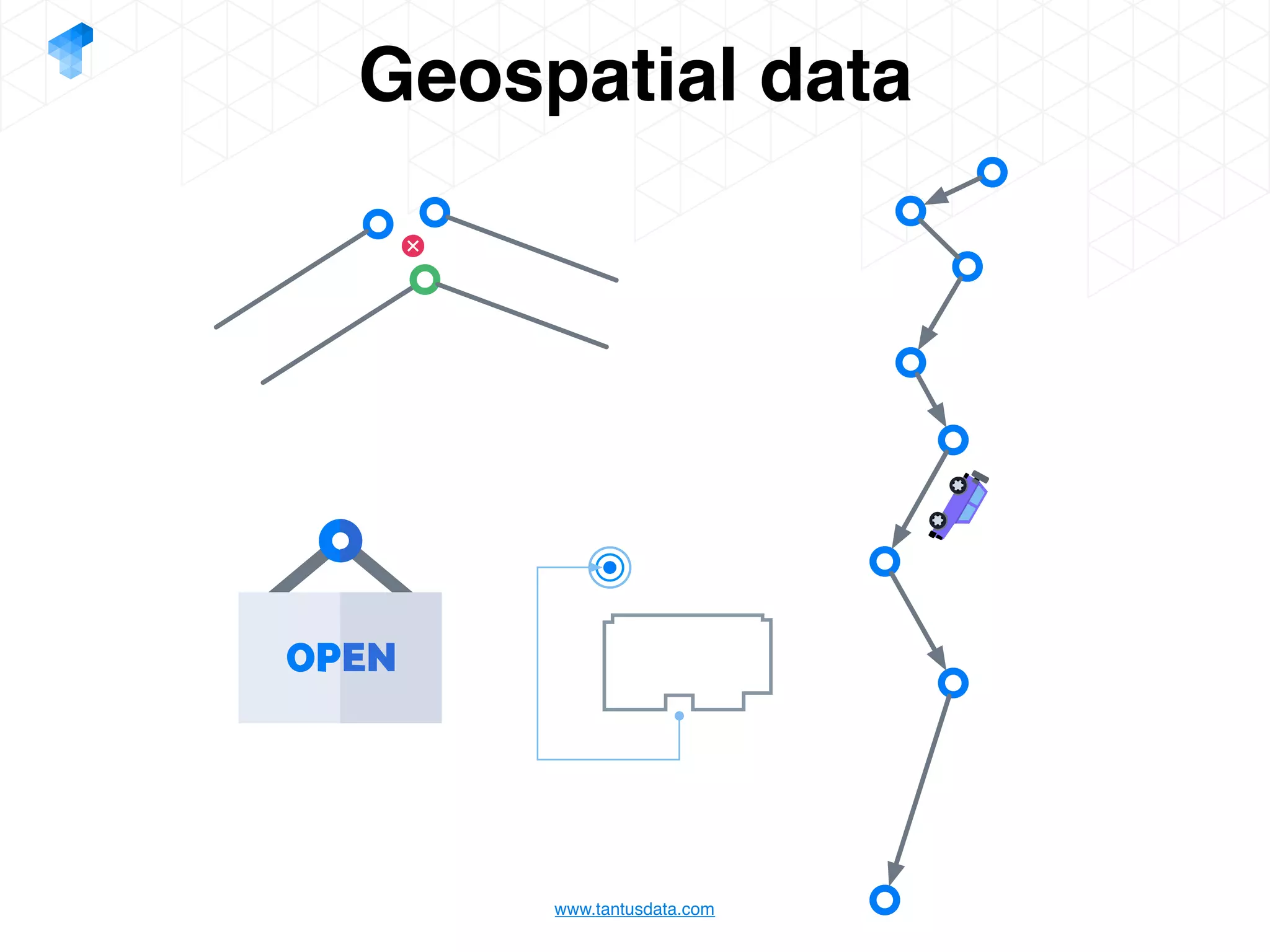

- 20. www.tantusdata.com Geospatial data • General map service • Self driving cars

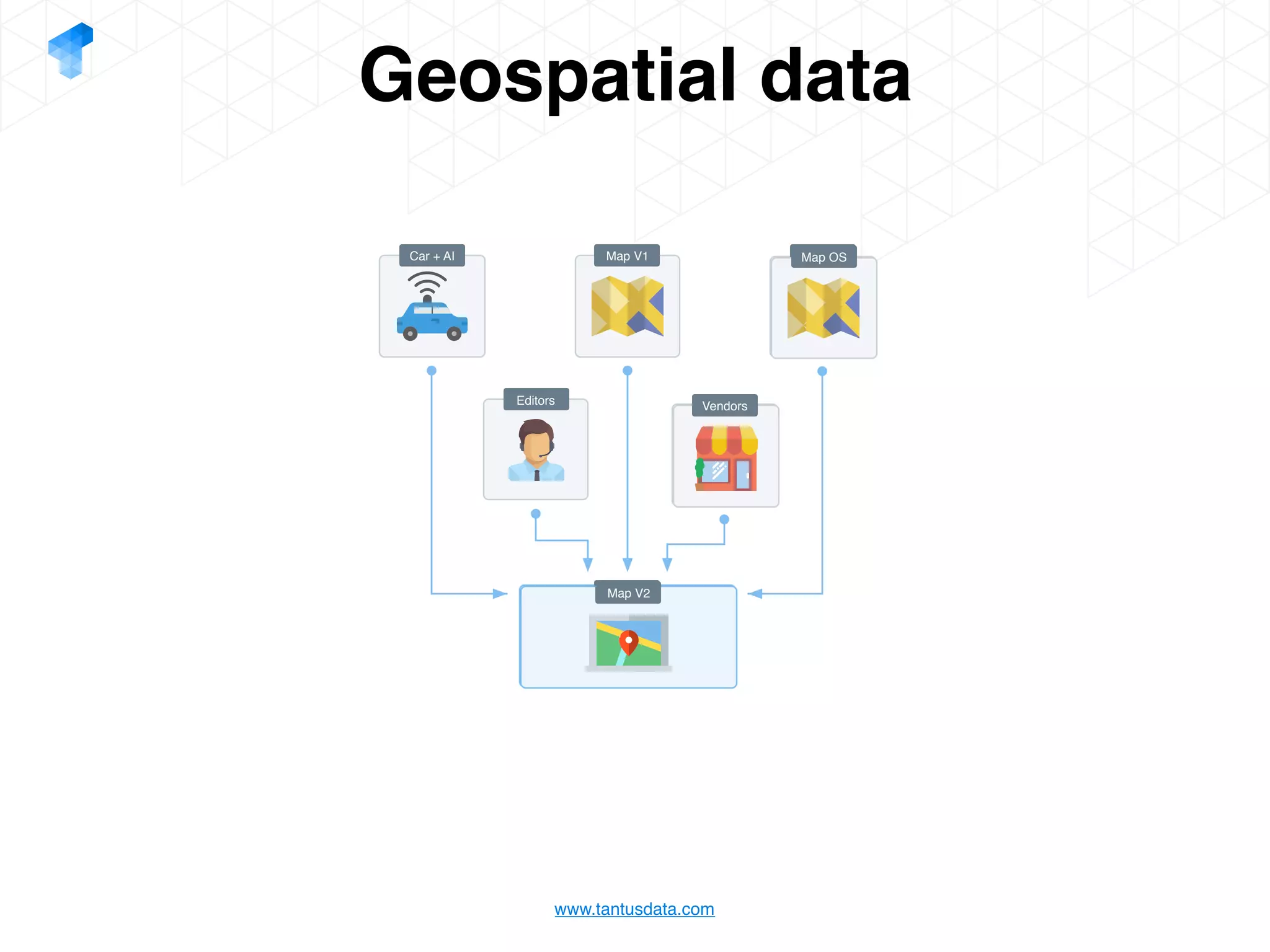

- 21. www.tantusdata.com Geospatial data Map V1Car + AI Map V2 Map OSMap OS Editors Map V2 Vendors

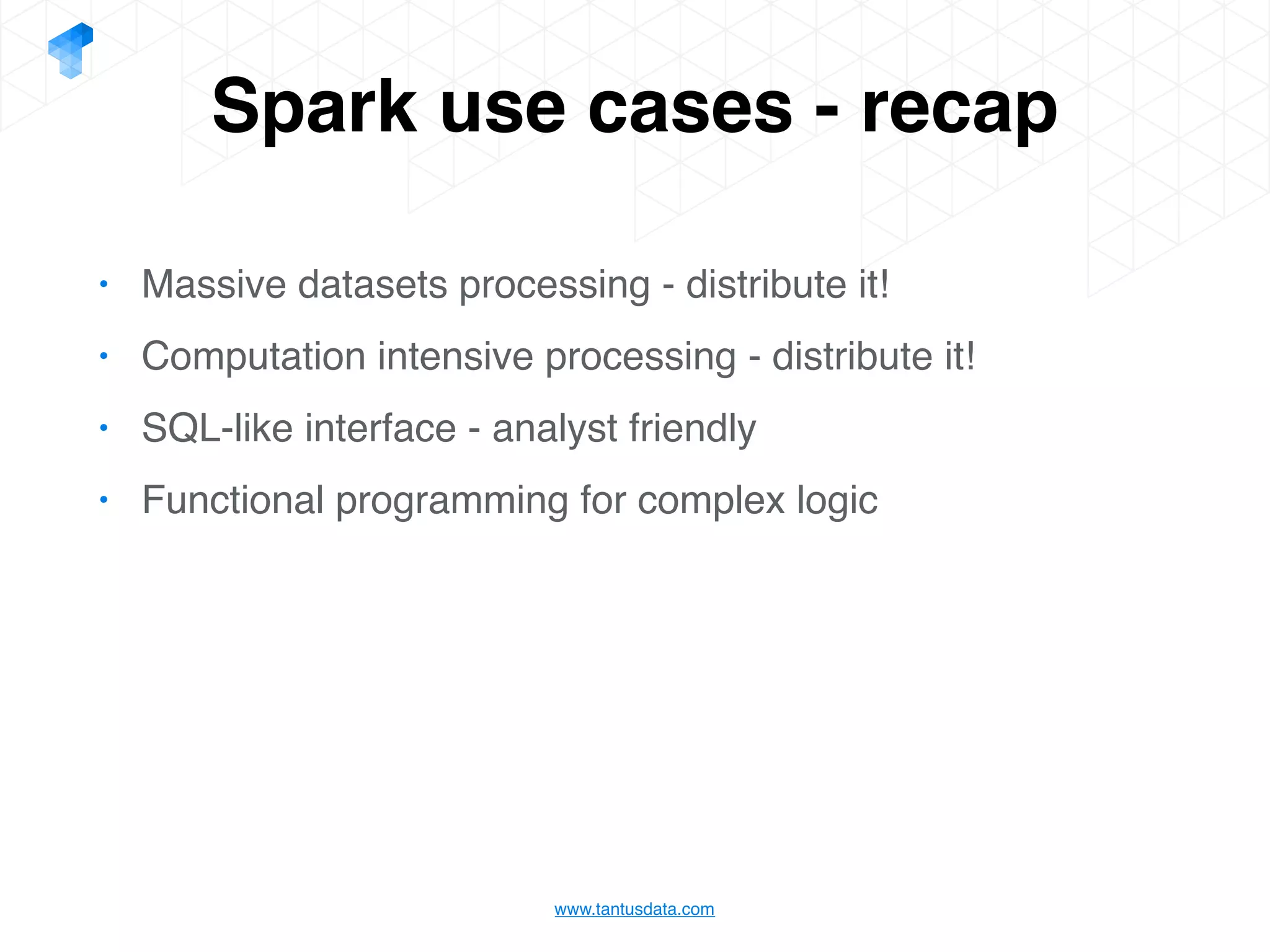

- 26. www.tantusdata.com Spark use cases - recap • Massive datasets processing - distribute it! • Computation intensive processing - distribute it! • SQL-like interface - analyst friendly • Functional programming for complex logic

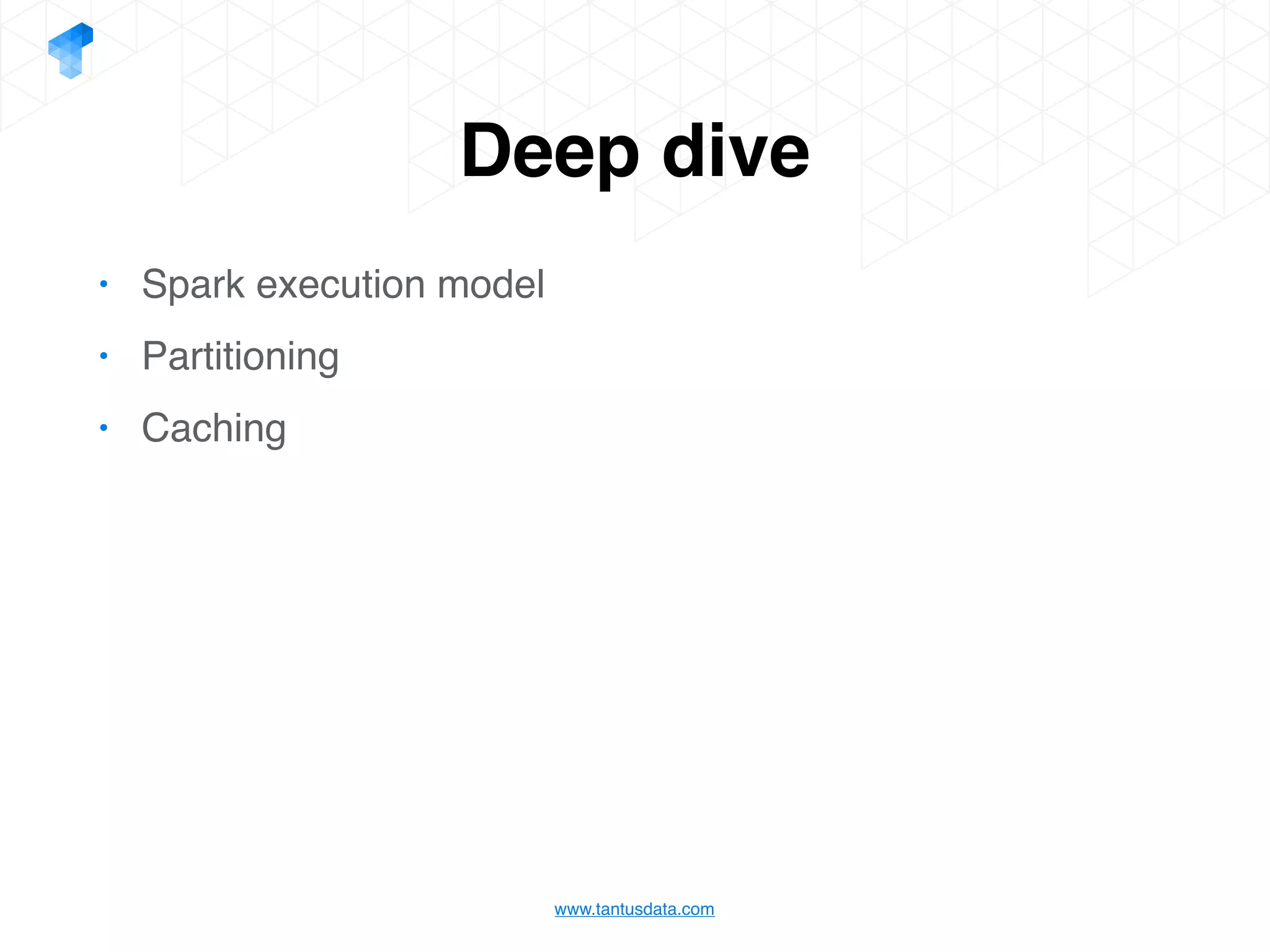

- 27. www.tantusdata.com Deep dive • Spark execution model • Partitioning • Caching
- 28. www.tantusdata.com Deep dive Photo credit: amazon.ca

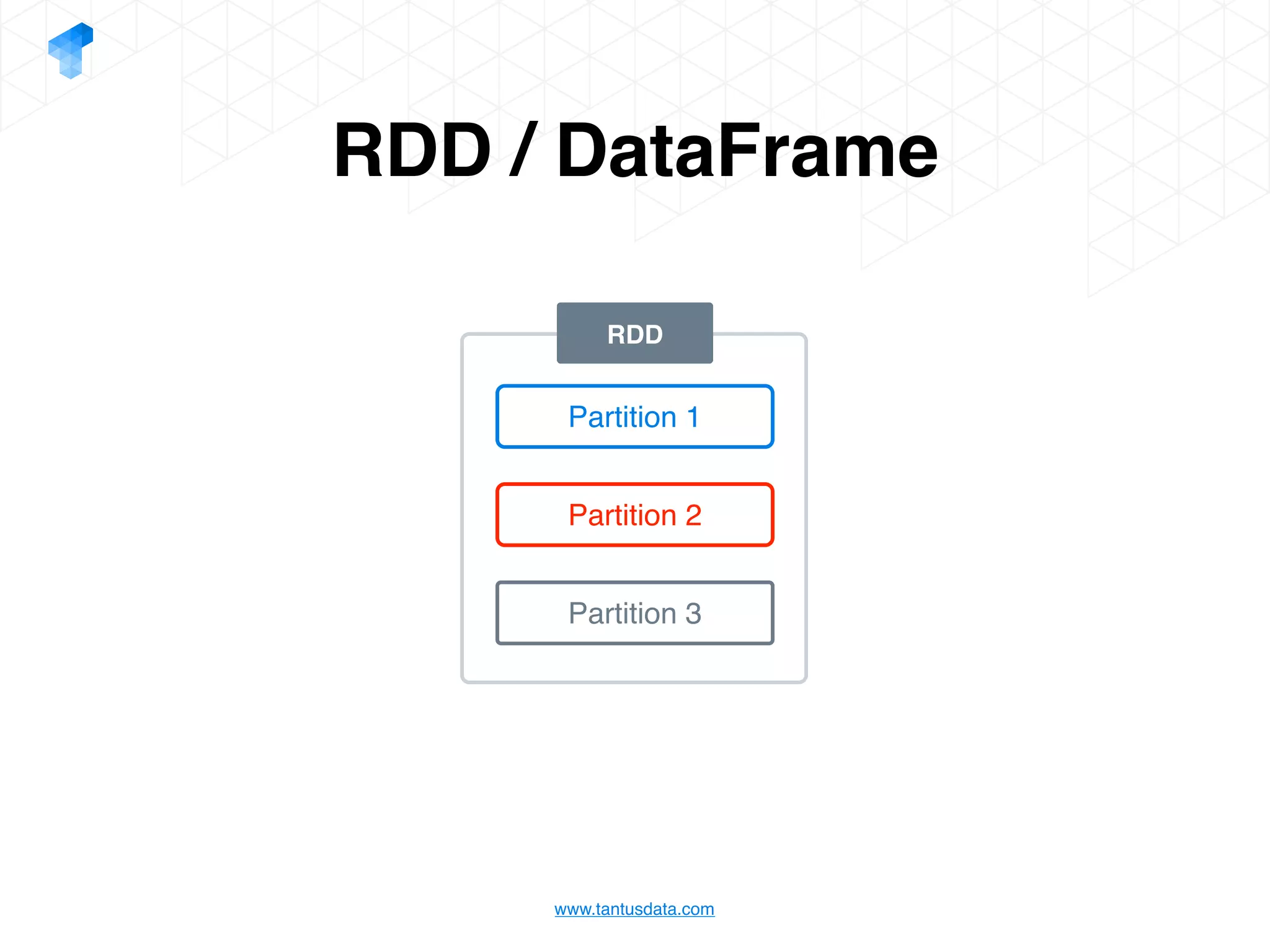

- 29. www.tantusdata.com RDD / DataFrame RDD Partition 1 Partition 2 Partition 3
- 30. www.tantusdata.com Narrow transformation f:x toUpperCase(x) rdd.map(f) foo Partition 1 Partition 2 Partition 3 RDD Bar baz blah blah LOREm ipsum dolor sit amet FOO Partition 1 Partition 2 Partition 3 New RDD BAR BAZ BLAH BLAH LOREM IPSUM DOLOR SIT AMET

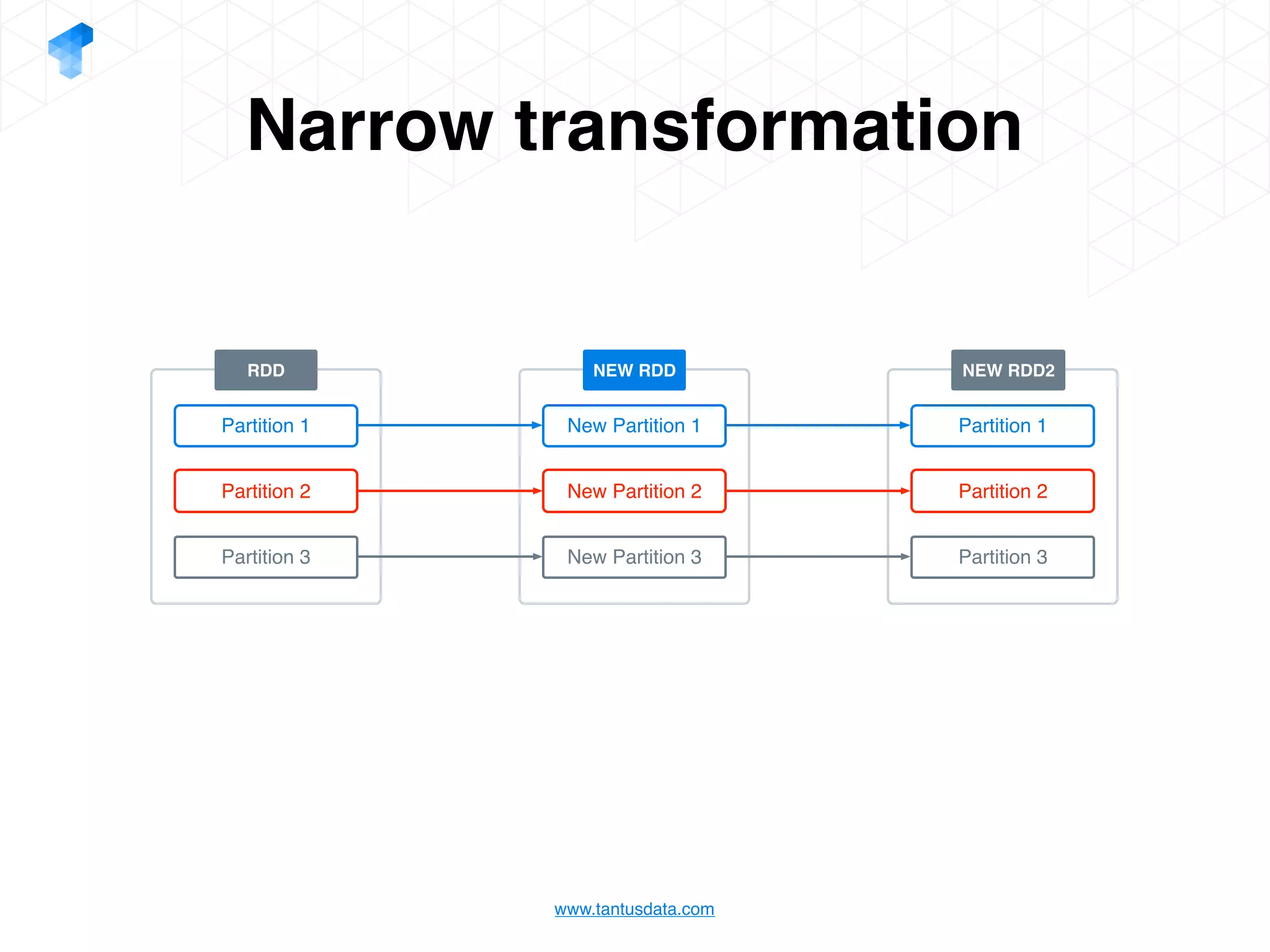

- 31. www.tantusdata.com Narrow transformation RDD Partition 1 NEW RDD New Partition 1 NEW RDD2 Partition 1 Partition 2 New Partition 2 Partition 2 Partition 3 New Partition 3 Partition 3

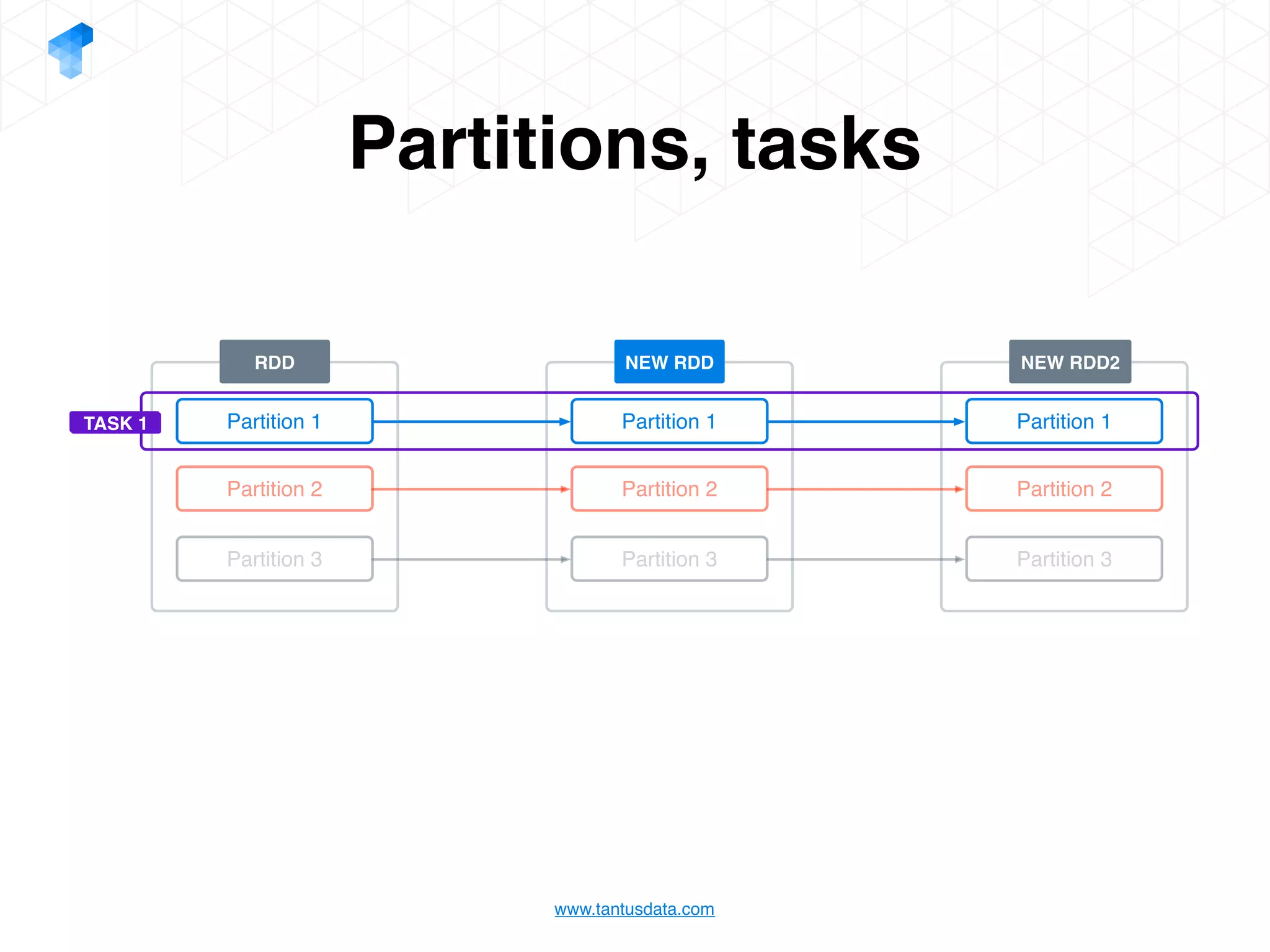

- 32. www.tantusdata.com Partitions, tasks RDD Partition 1 NEW RDD Partition 1 NEW RDD2 Partition 1 Partition 3 Partition 3 Partition 3 Partition 2 Partition 2 Partition 2 TASK 1TASK 1

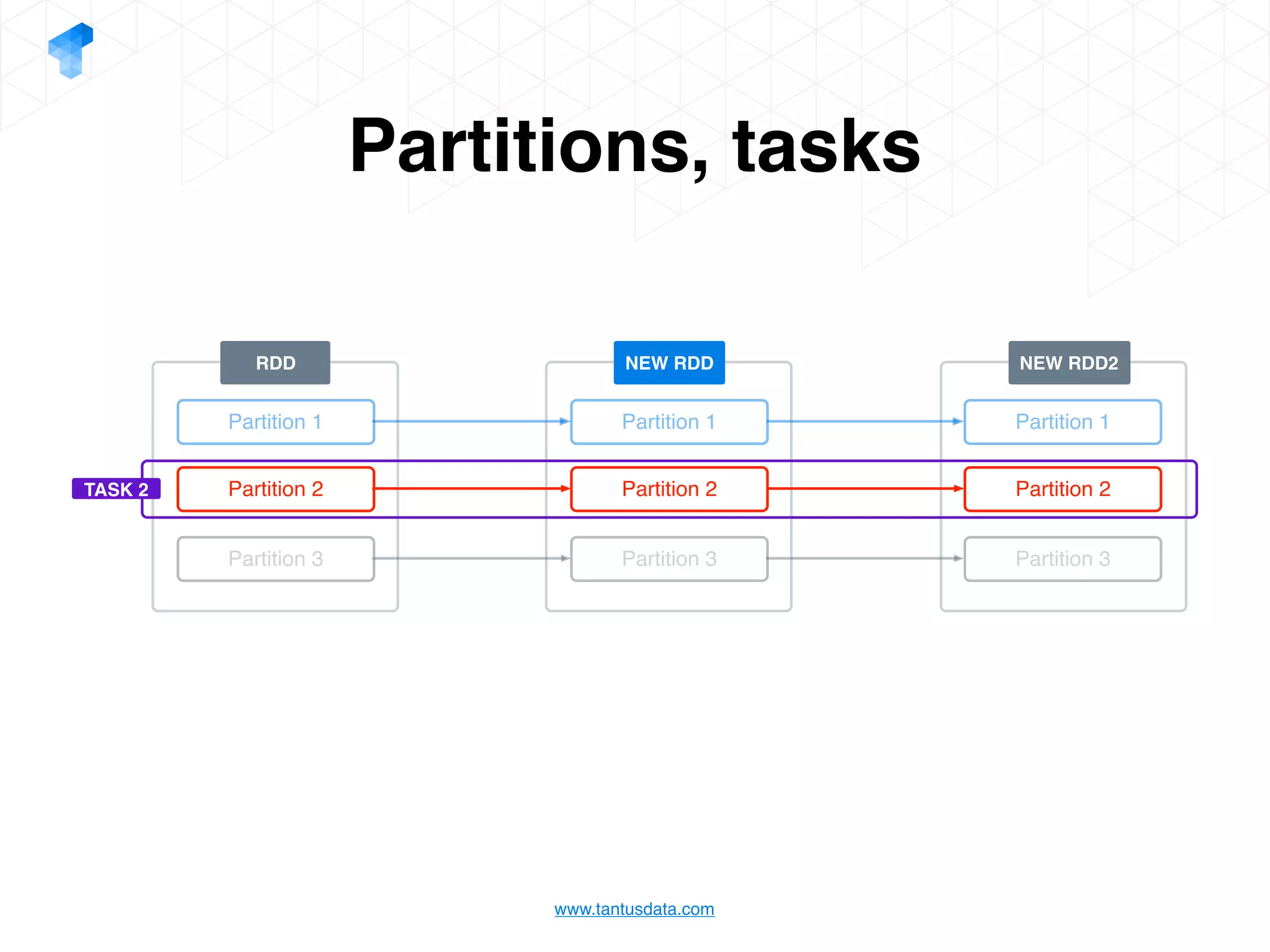

- 33. www.tantusdata.com Partitions, tasks RDD Partition 1 NEW RDD Partition 1 NEW RDD2 Partition 1 Partition 3 Partition 3 Partition 3 Partition 2 Partition 2 Partition 2TASK 2

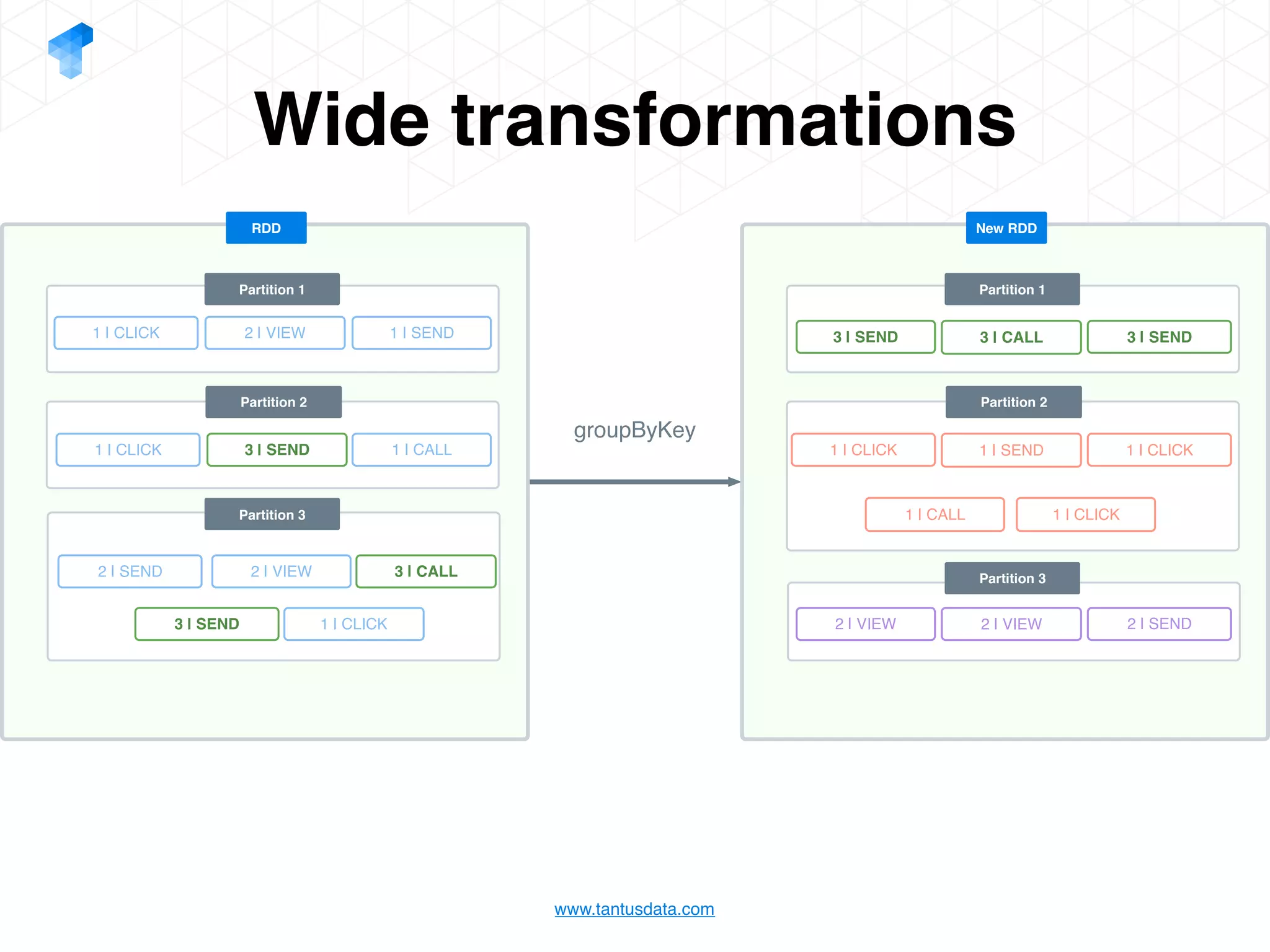

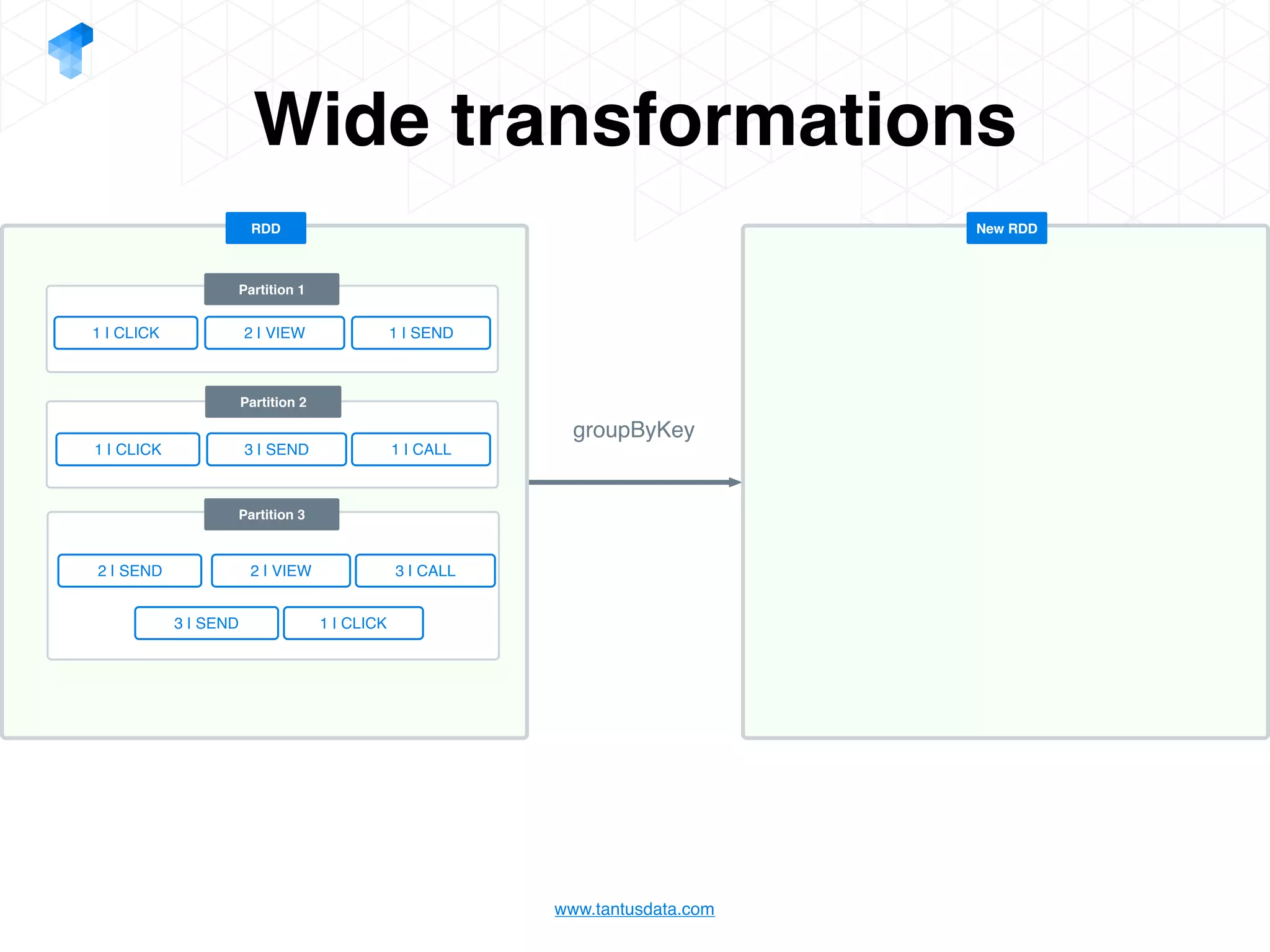

- 34. www.tantusdata.com Wide transformations groupByKey 1 | CLICK Partition 1 Partition 2 Partition 3 RDD 2 | VIEW 1 | SEND 1 | CLICK 3 | SEND 2 | SEND 2 | VIEW 3 | CALL 3 | SEND 1 | CLICK New RDD 1 | CALL

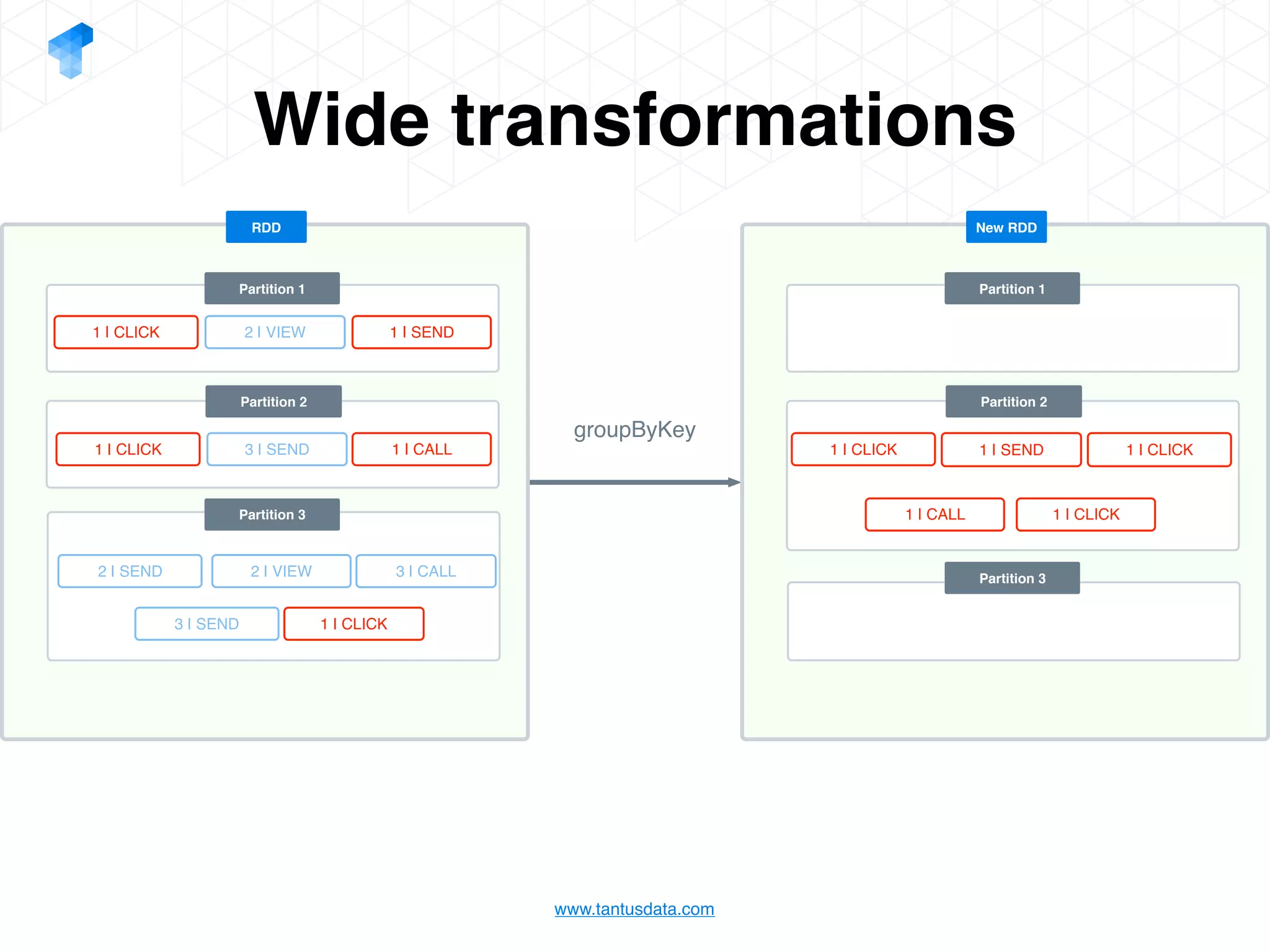

- 35. www.tantusdata.com Wide transformations groupByKey 1 | CLICK Partition 1 Partition 2 Partition 3 RDD 2 | VIEW 1 | SEND 1 | CLICK 3 | SEND 2 | SEND 2 | VIEW 3 | CALL 3 | SEND 1 | CLICK Partition 1 Partition 2 Partition 3 New RDD 1 | CALL 1 | CLICK 1 | SEND 1 | CLICK 1 | CLICK1 | CALL

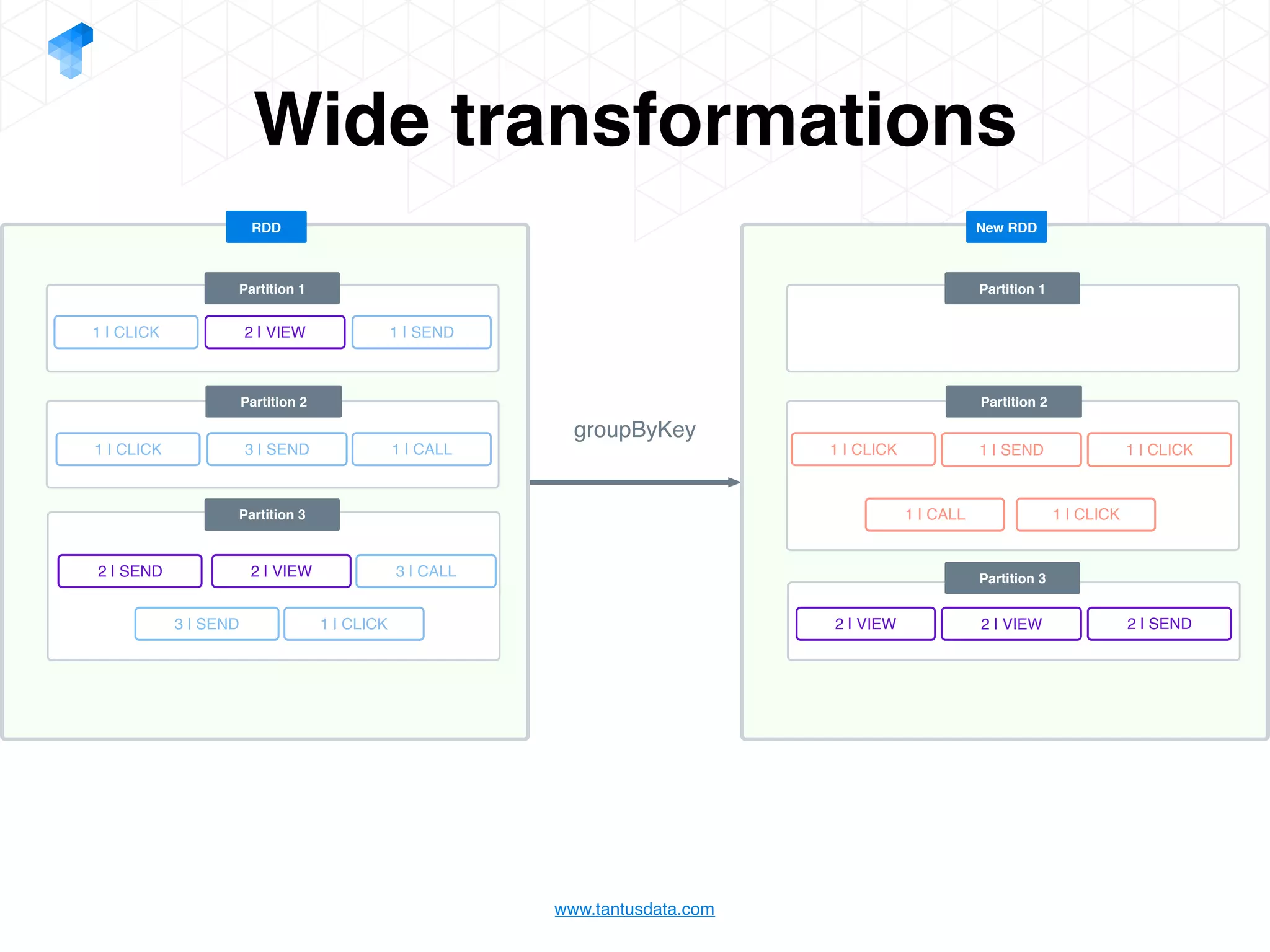

- 36. www.tantusdata.com Wide transformations groupByKey 1 | CLICK Partition 1 Partition 2 Partition 3 RDD 2 | VIEW 1 | SEND 1 | CLICK 3 | SEND 2 | SEND 2 | VIEW 3 | CALL 3 | SEND 1 | CLICK Partition 1 Partition 2 Partition 3 New RDD 1 | CALL 1 | CLICK 1 | SEND 1 | CLICK 1 | CLICK1 | CALL 2 | VIEW 2 | SEND2 | VIEW
- 37. www.tantusdata.com Wide transformations groupByKey 1 | CLICK Partition 1 Partition 2 Partition 3 RDD 2 | VIEW 1 | SEND 1 | CLICK 3 | SEND 2 | SEND 2 | VIEW 3 | CALL 3 | SEND 1 | CLICK Partition 1 Partition 2 Partition 3 New RDD 1 | CALL 1 | CLICK 1 | SEND 1 | CLICK 1 | CLICK1 | CALL 2 | VIEW 2 | SEND2 | VIEW 3 | SEND 3 | CALL 3 | SEND

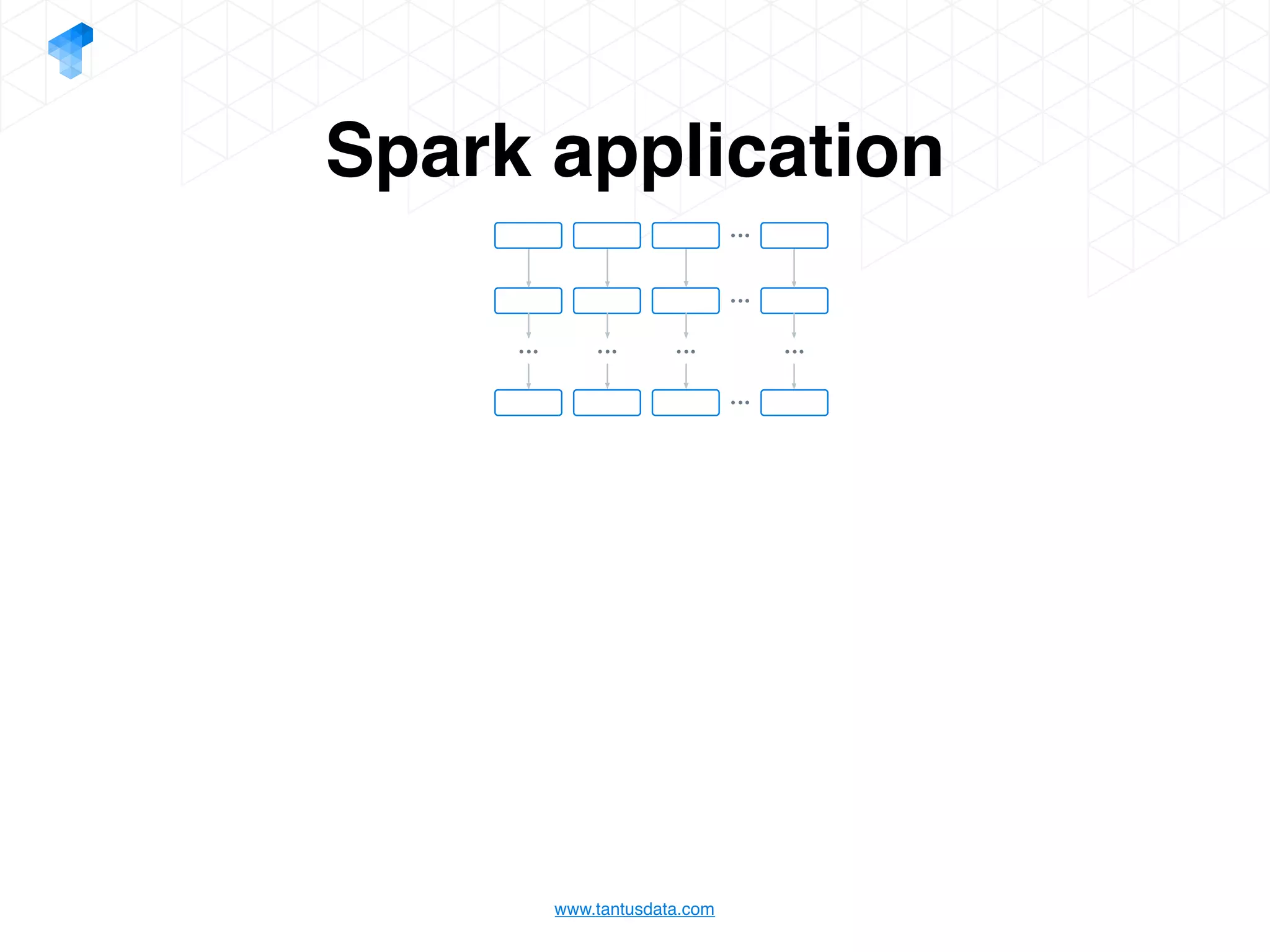

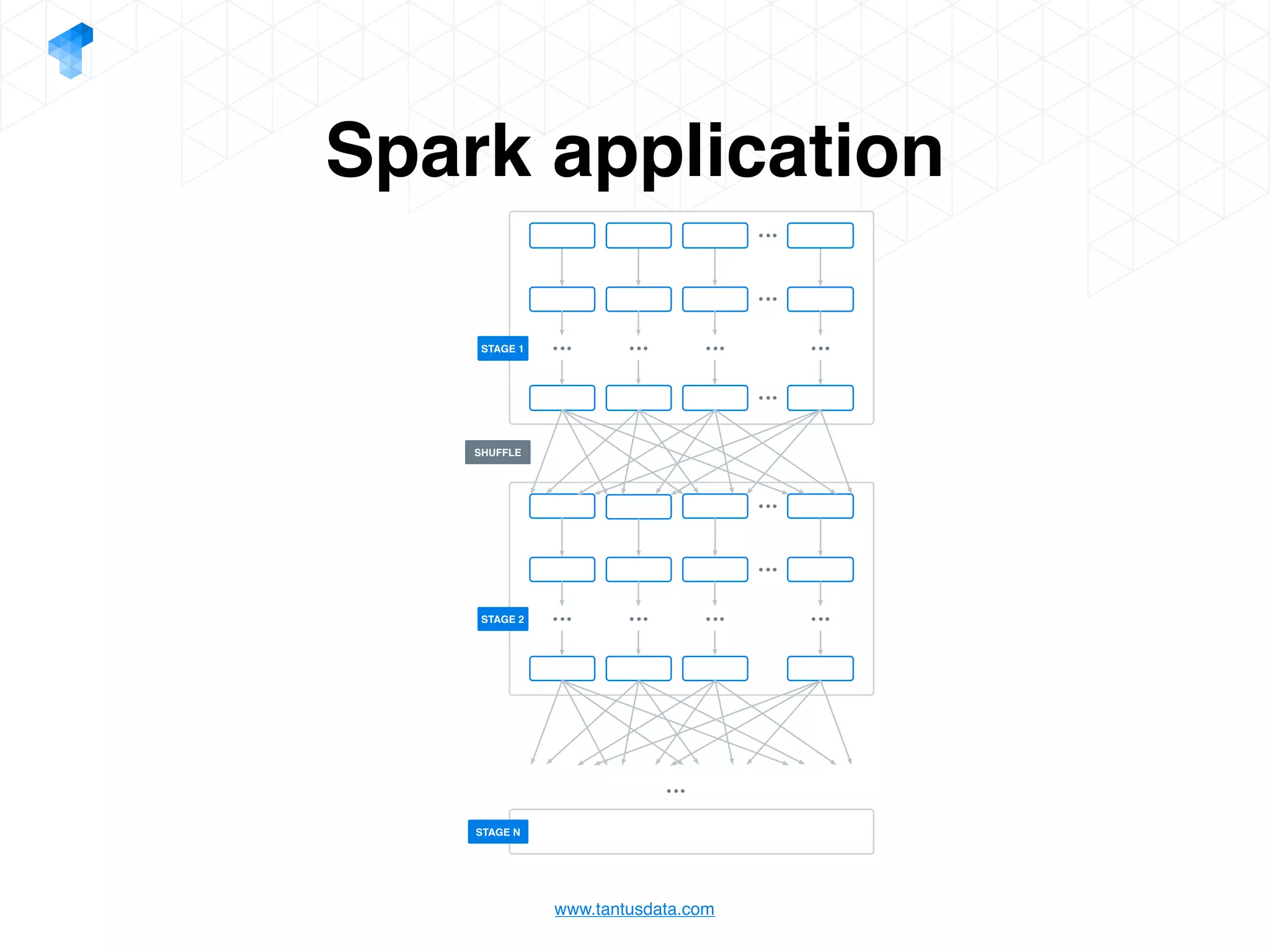

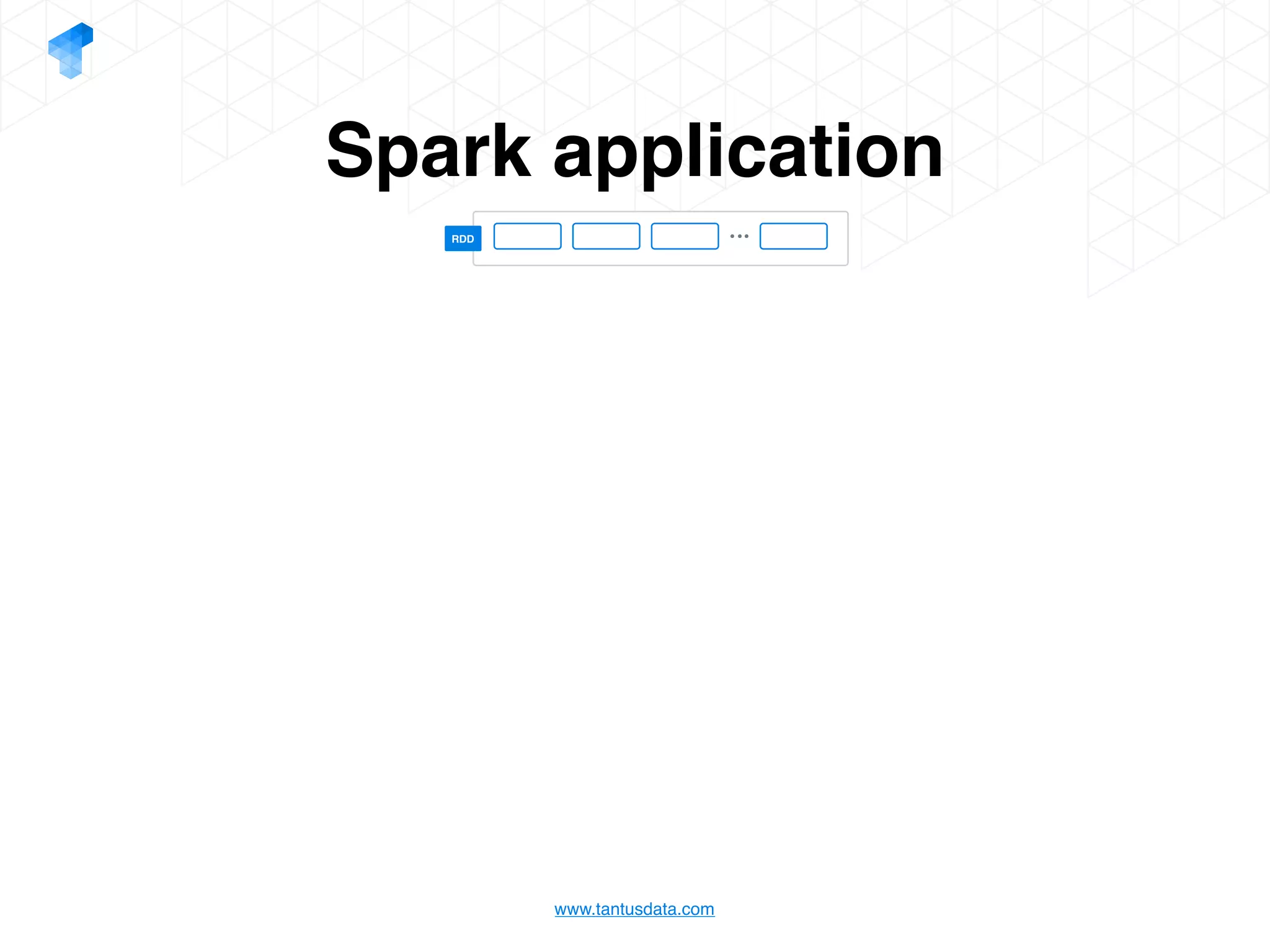

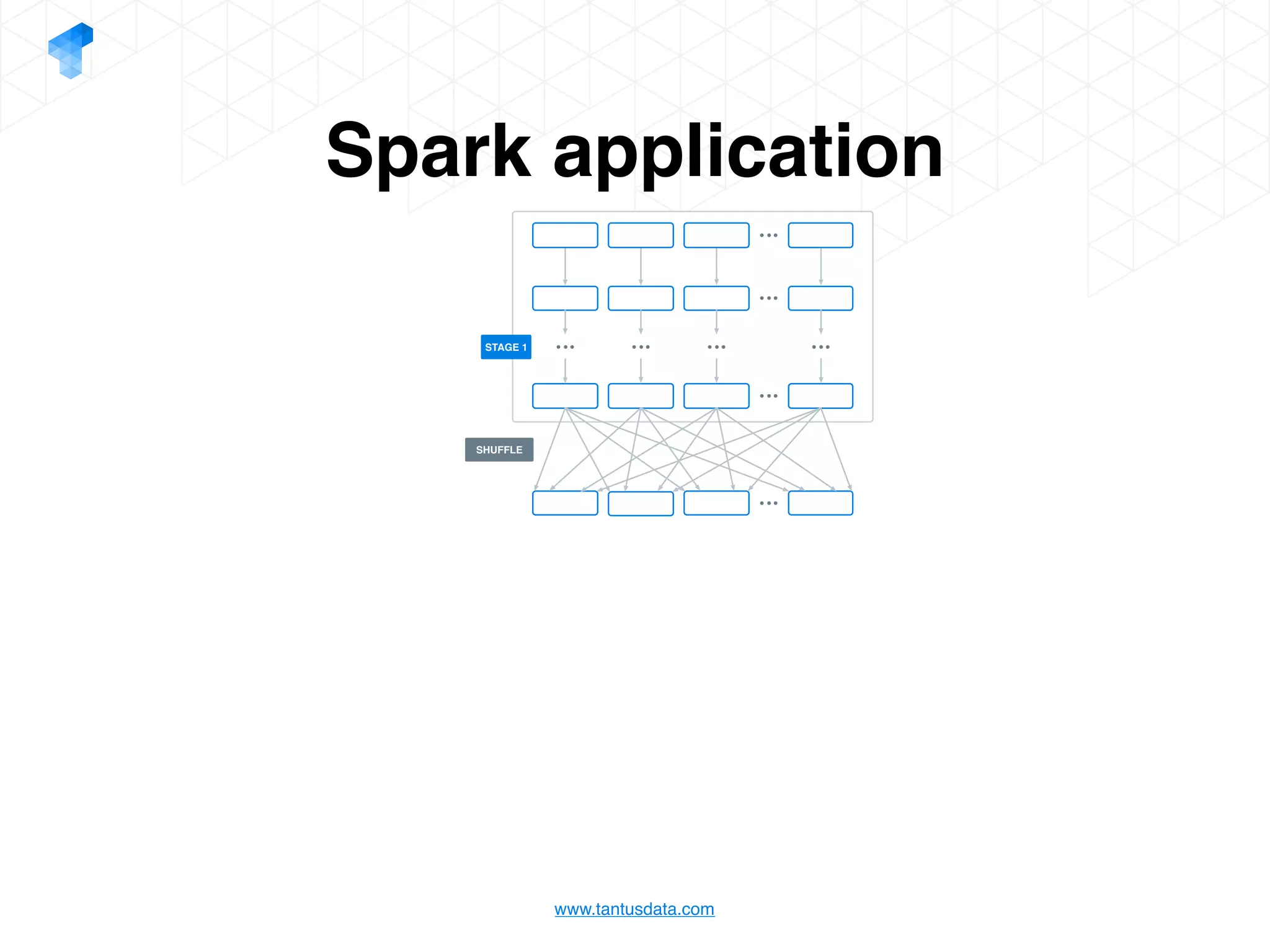

- 41. www.tantusdata.com Spark application STAGE 2 STAGE 1 SHUFFLE STAGE N

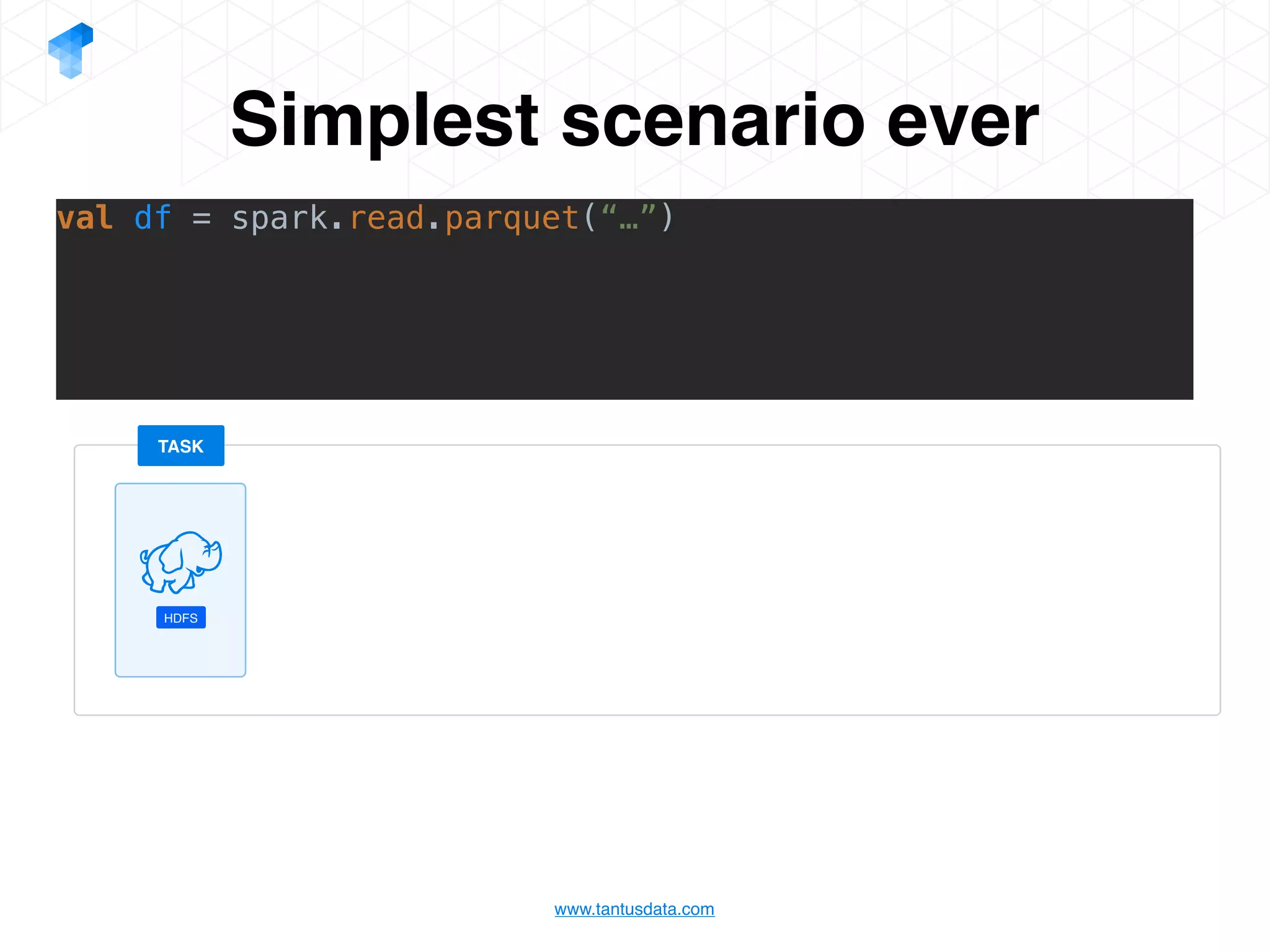

- 42. www.tantusdata.com Simplest scenario ever val df = spark.read.parquet(“…”) HDFS TASK

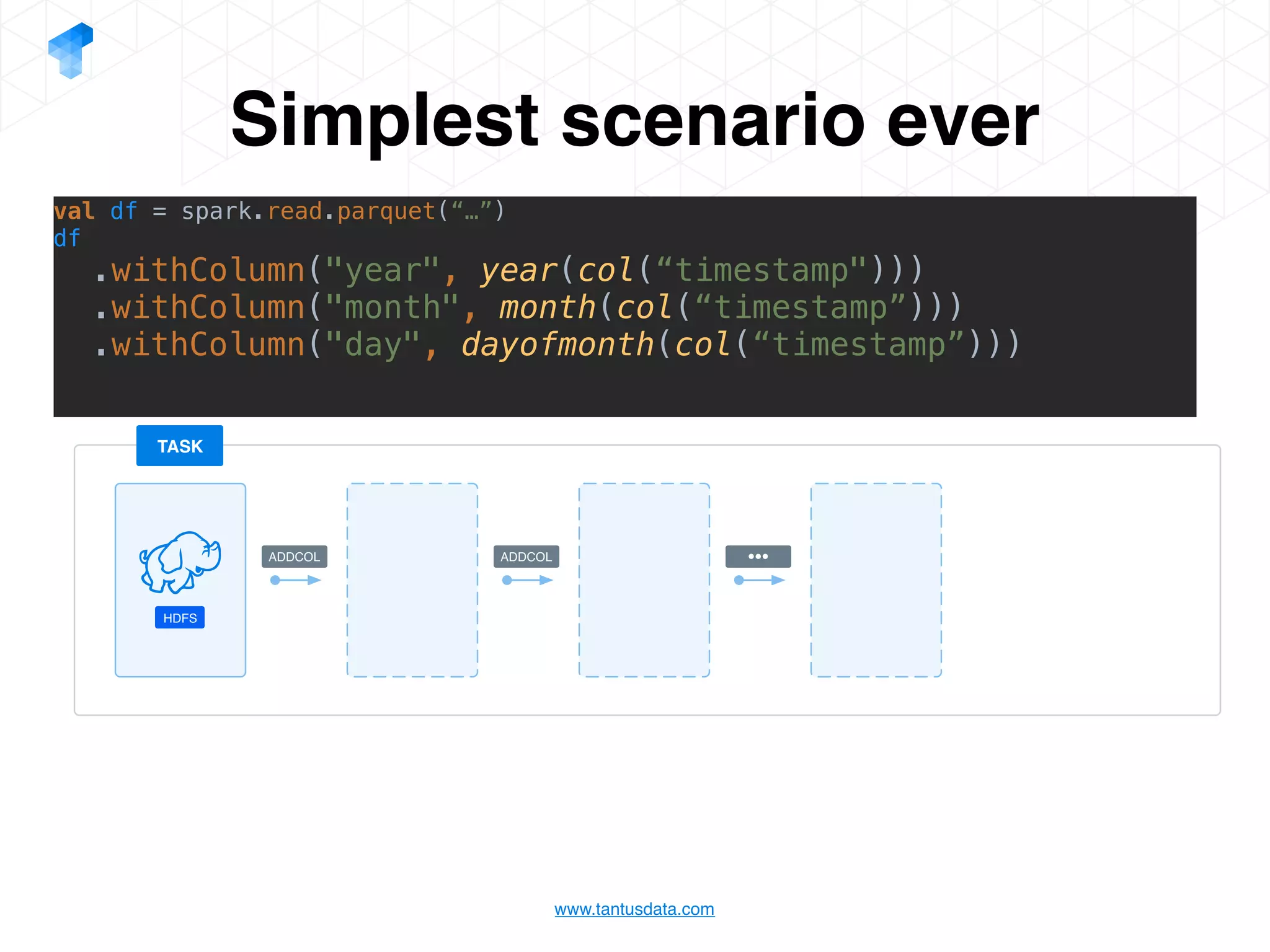

- 43. www.tantusdata.com Simplest scenario ever HDFS TASK ADDCOL ADDCOL val df = spark.read.parquet(“…”) df .withColumn("year", year(col(“timestamp"))) .withColumn("month", month(col(“timestamp”))) .withColumn("day", dayofmonth(col(“timestamp”)))

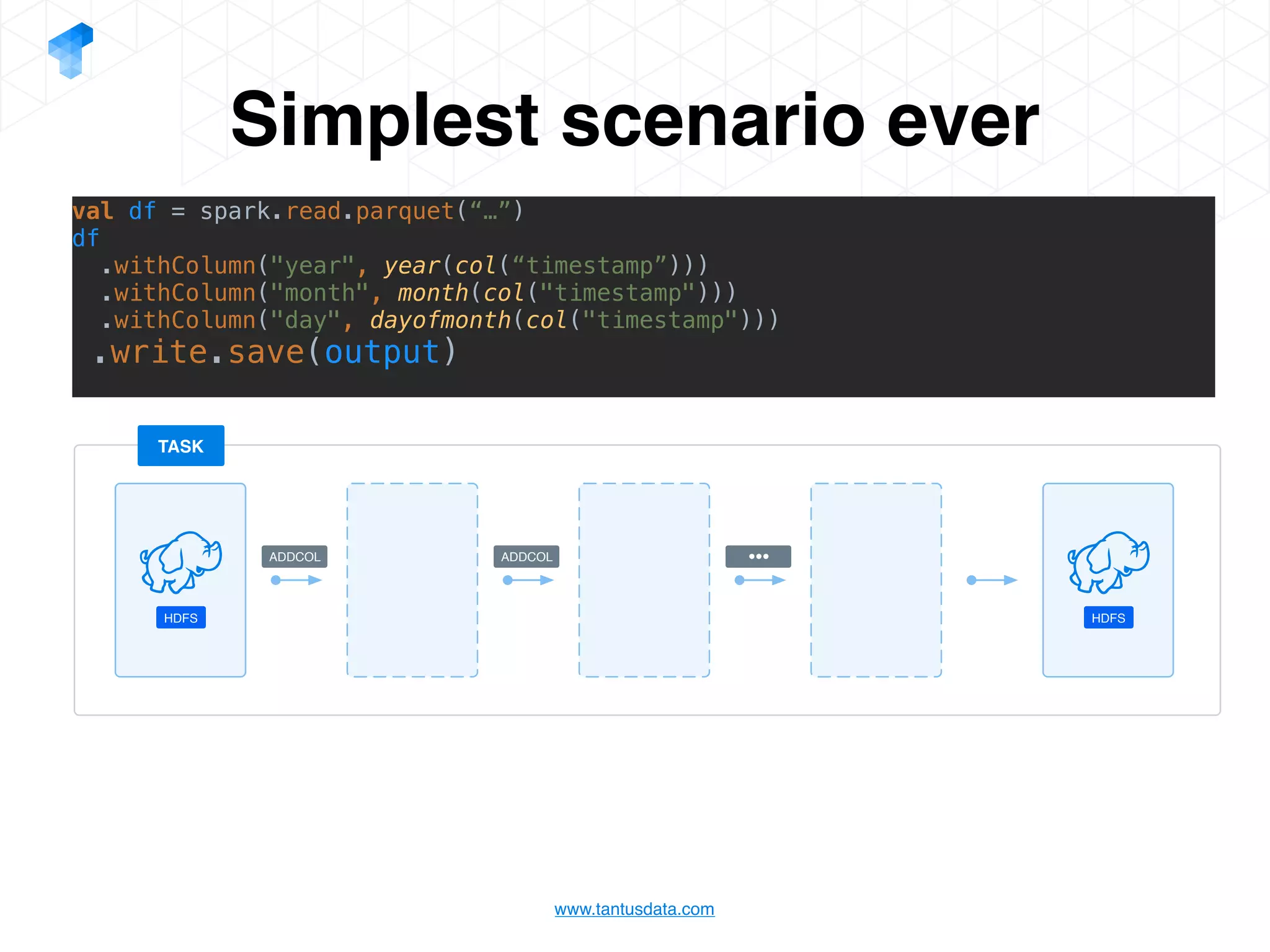

- 44. www.tantusdata.com Simplest scenario ever HDFS TASK ADDCOL ADDCOL HDFS val df = spark.read.parquet(“…”) df .withColumn("year", year(col(“timestamp”))) .withColumn("month", month(col("timestamp"))) .withColumn("day", dayofmonth(col("timestamp"))) .write.save(output)

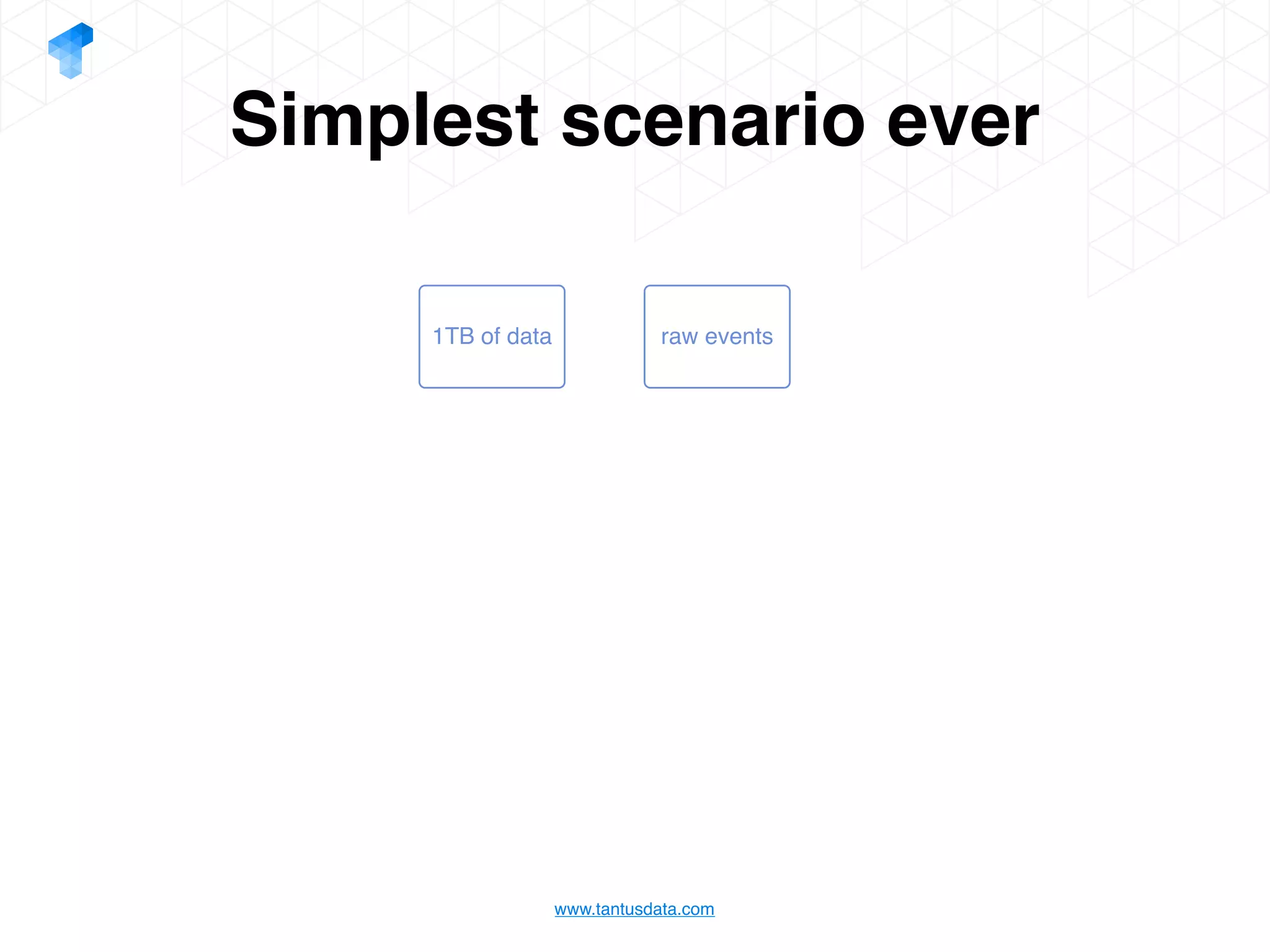

- 45. www.tantusdata.com Simplest scenario ever 1TB of data raw events

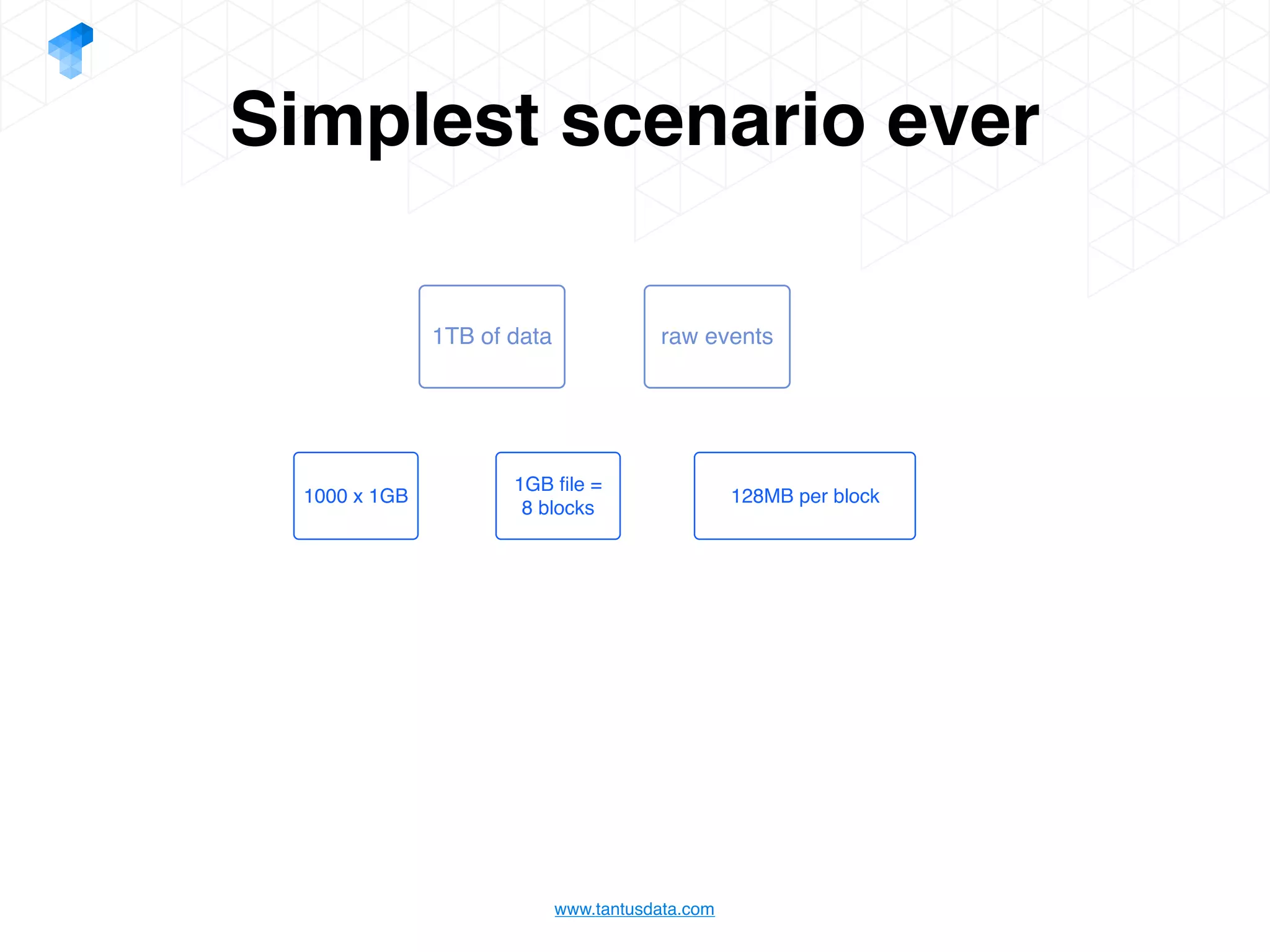

- 46. www.tantusdata.com Simplest scenario ever 1TB of data raw events 1000 x 1GB 1GB file = 8 blocks 128MB per block

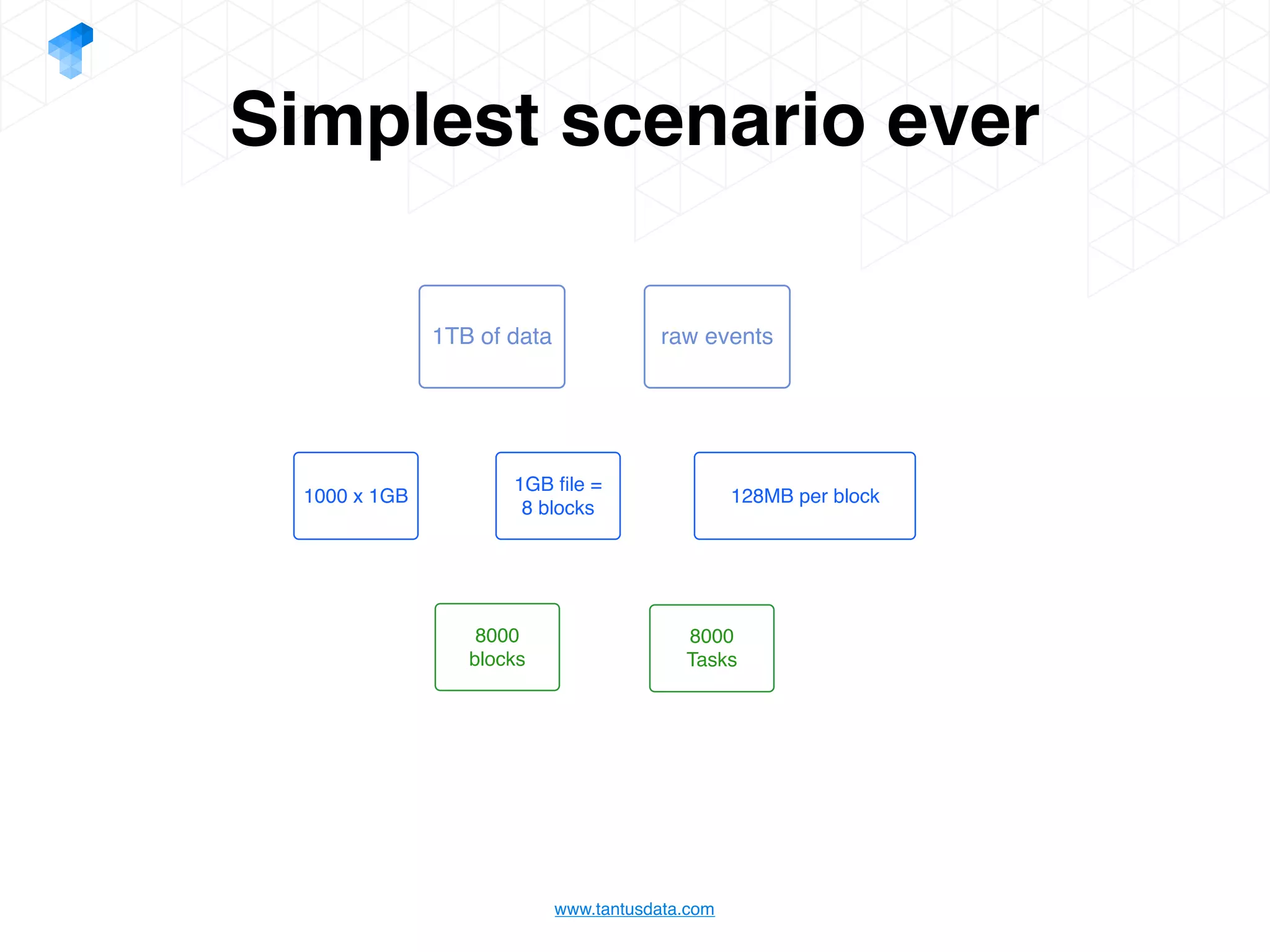

- 47. www.tantusdata.com Simplest scenario ever 1TB of data raw events 1000 x 1GB 1GB file = 8 blocks 128MB per block 8000 blocks 8000 Tasks

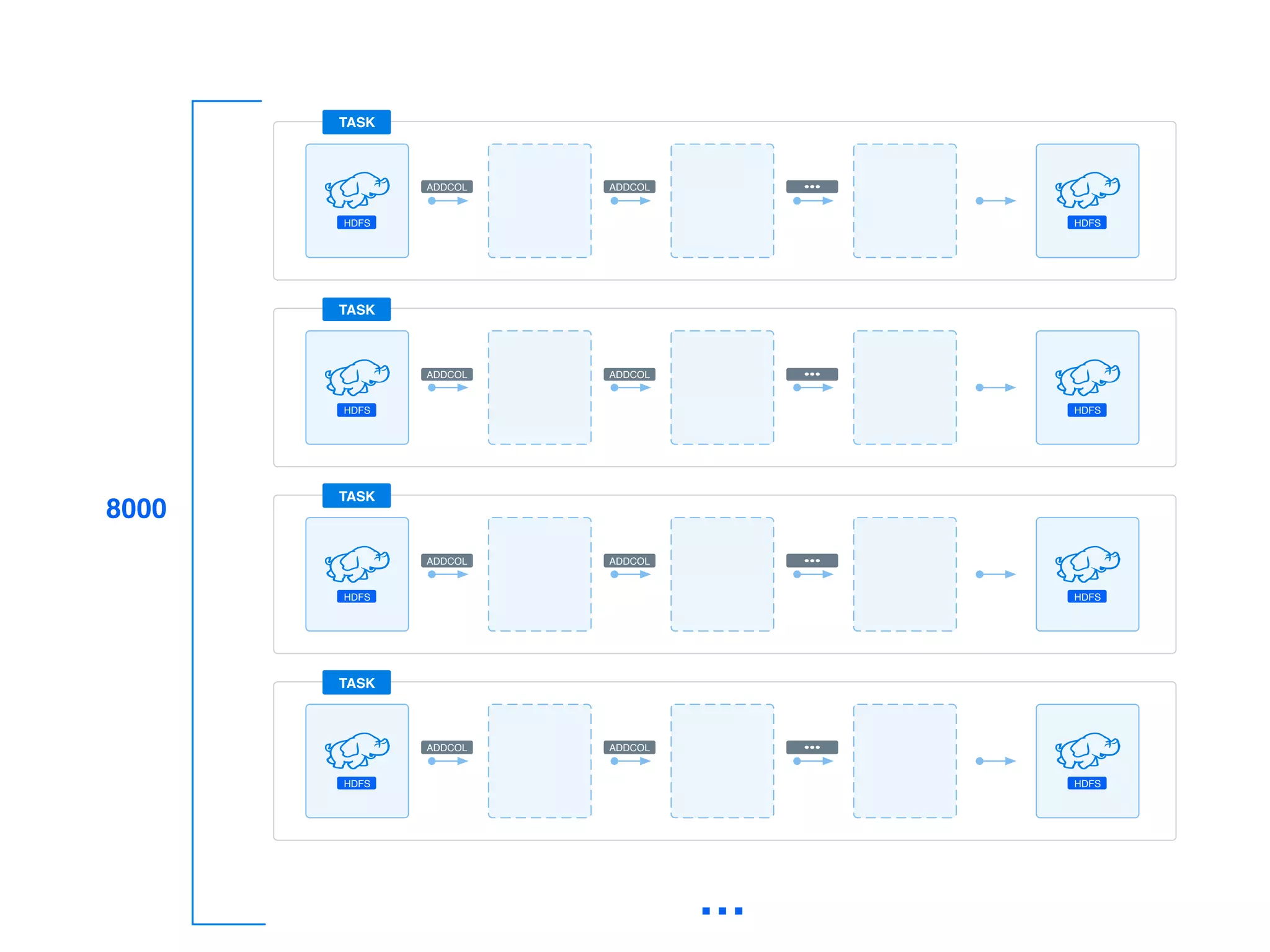

- 48. HDFS TASK ADDCOL ADDCOL HDFS HDFS TASK ADDCOL ADDCOL HDFS HDFS TASK ADDCOL ADDCOL HDFS HDFS TASK ADDCOL ADDCOL HDFS … 8000

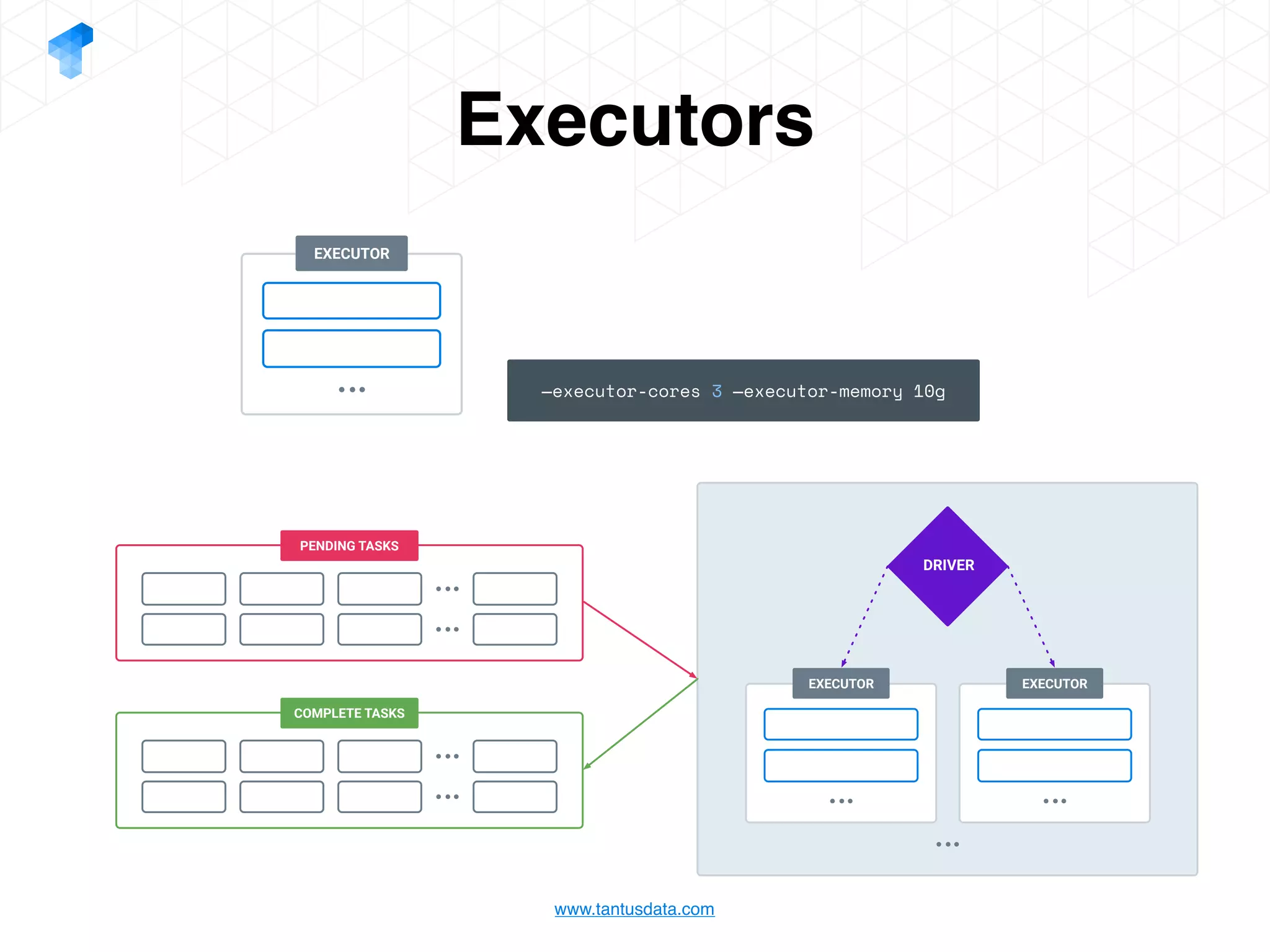

- 49. www.tantusdata.com EXECUTOR —executor-cores 3 —executor-memory 10g Executors —executor-cores 3 —executor-memory 10g EXECUTOR PENDING TASKS COMPLETE TASKS DRIVER EXECUTOR

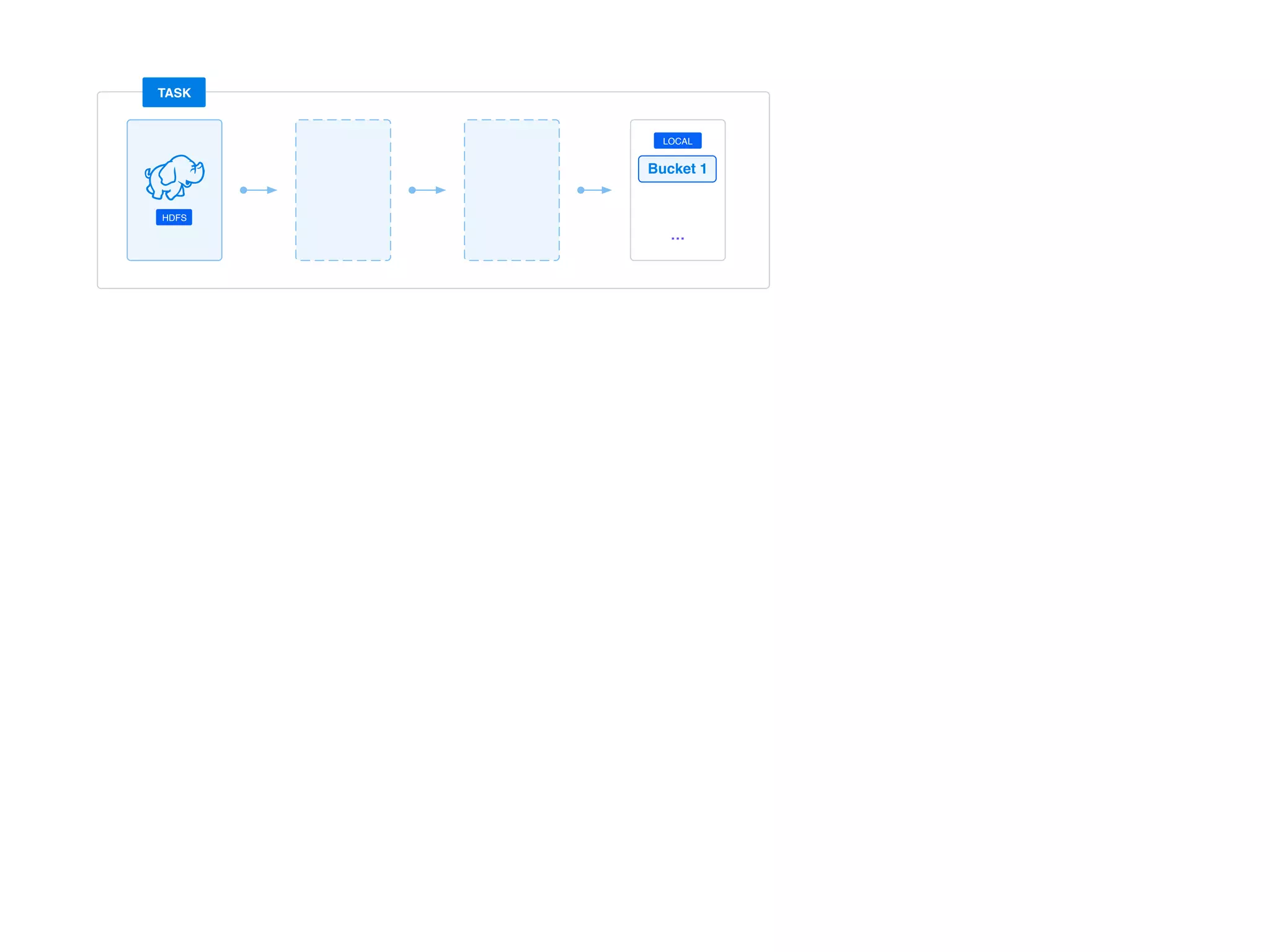

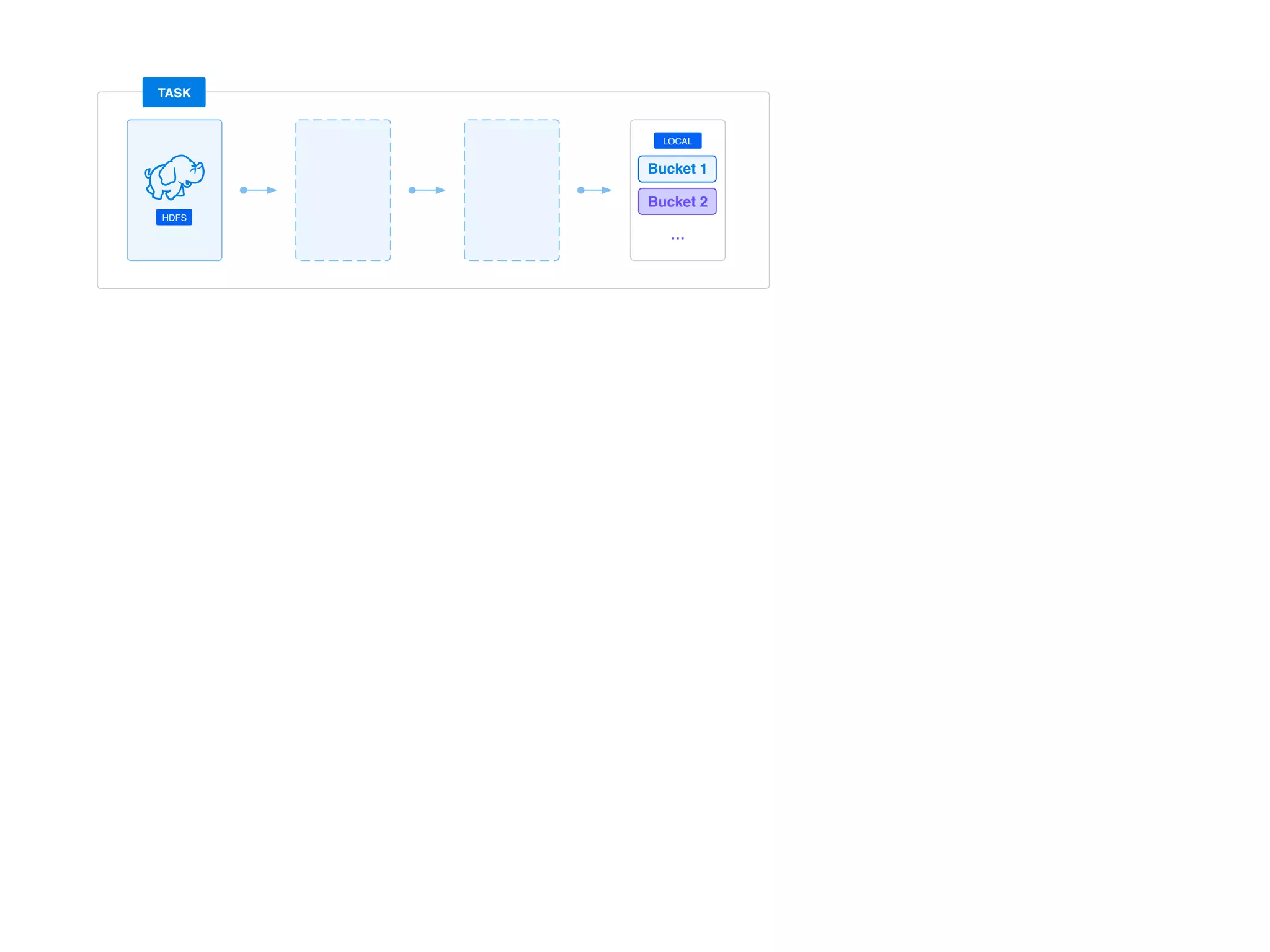

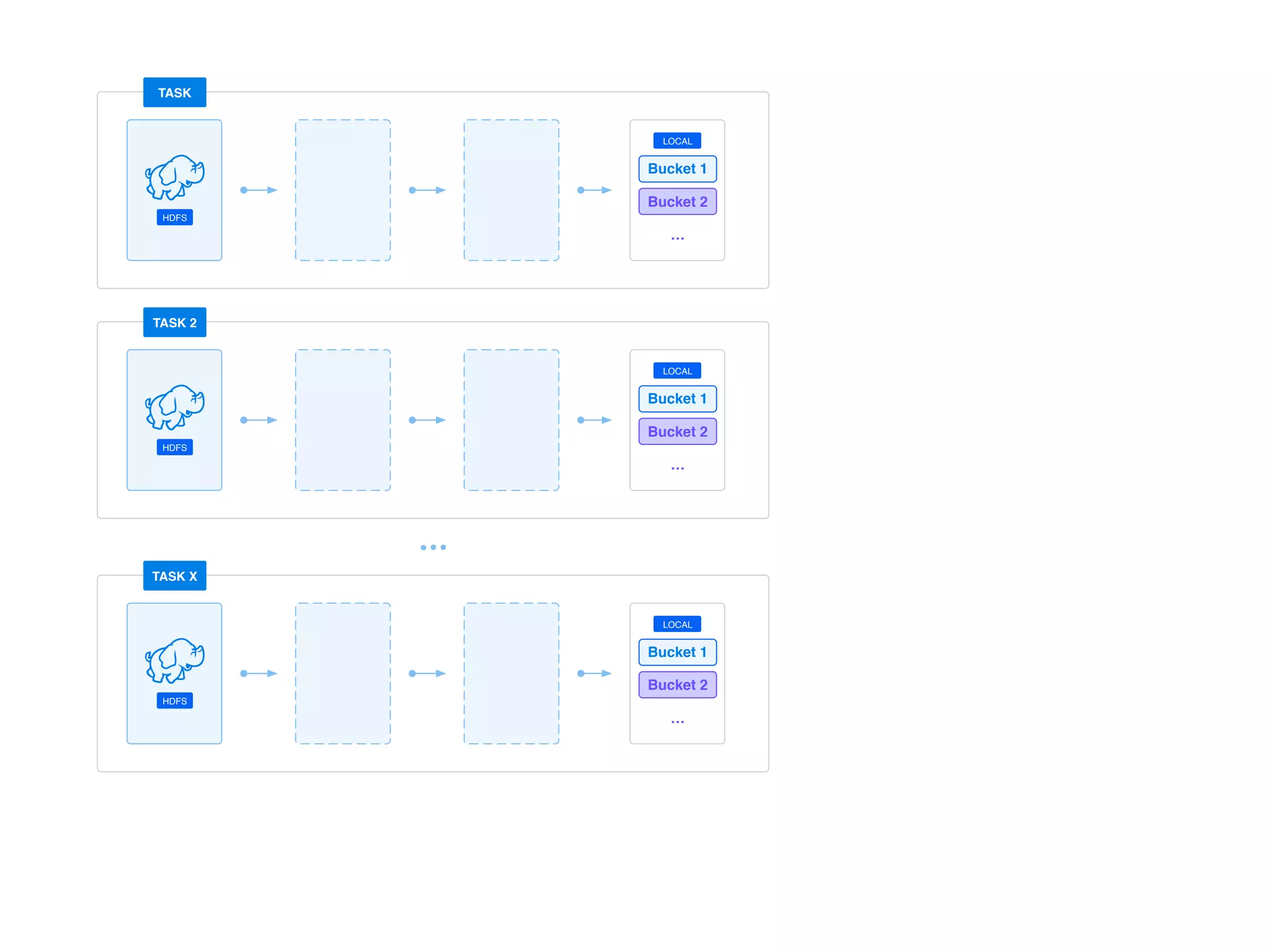

- 53. HDFS TASK Bucket 1 Bucket 2 LOCAL HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL … … … HDFS HDFS
- 54. HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL … … … HDFS HDFS

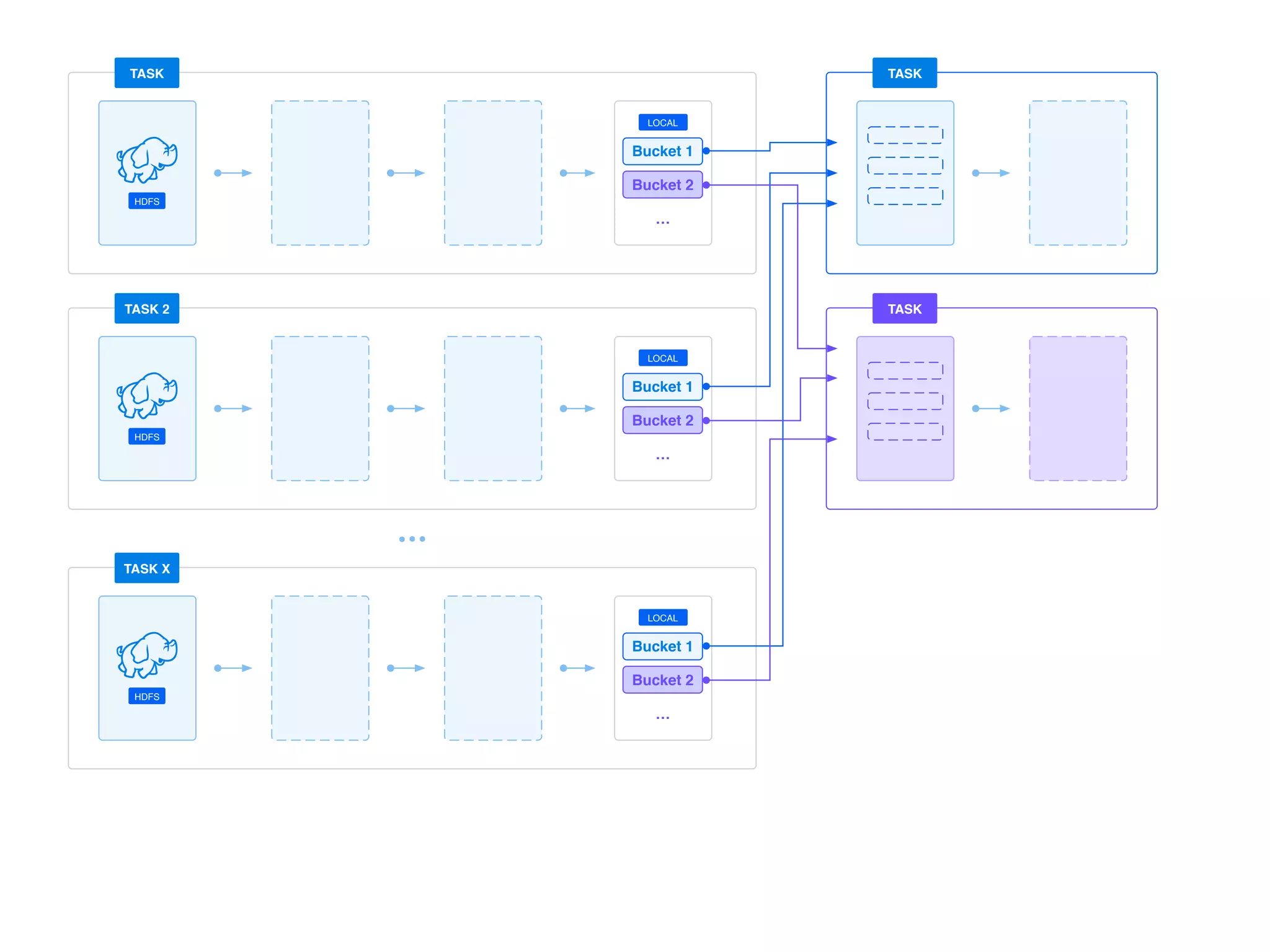

- 55. HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS

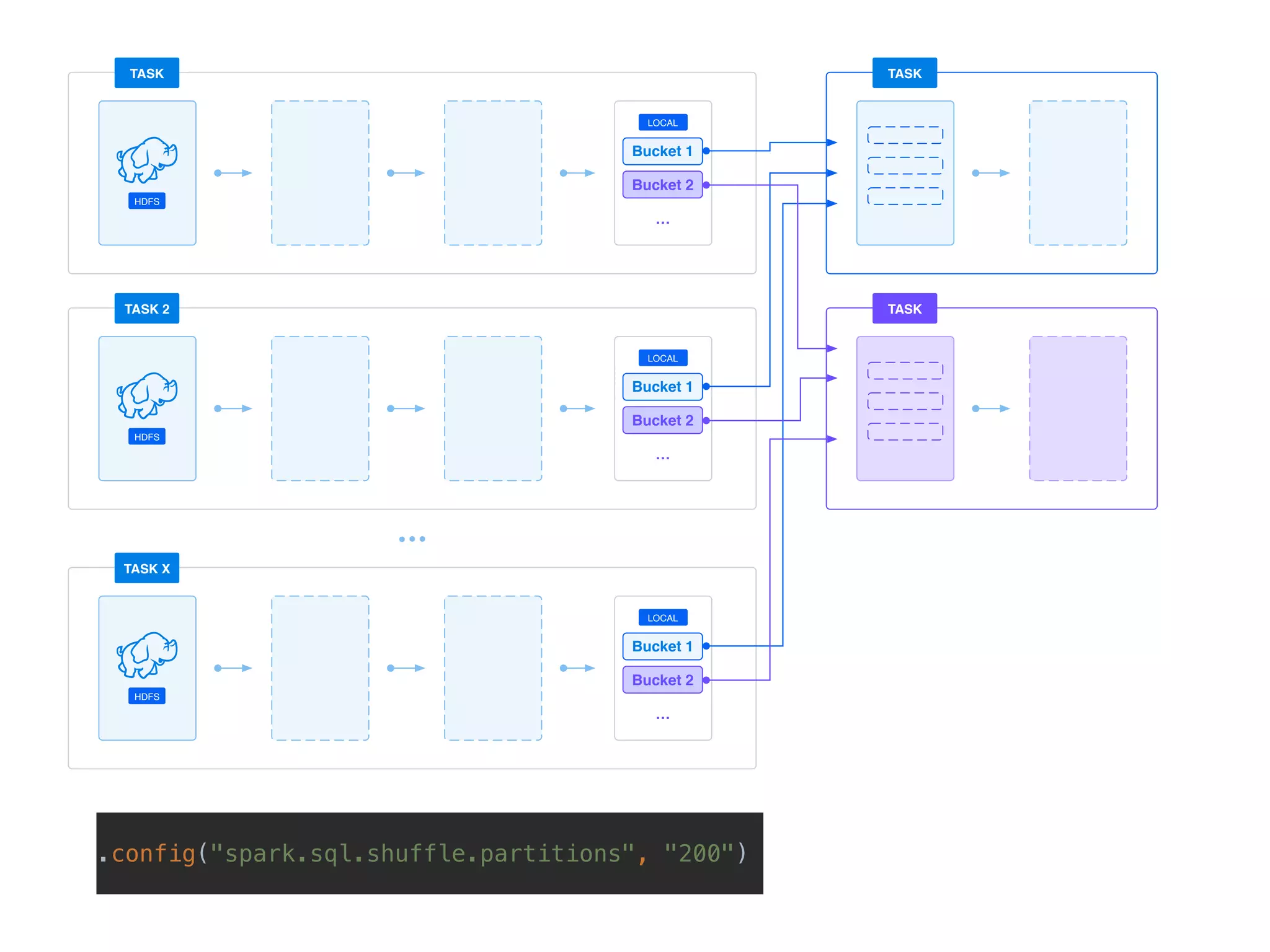

- 56. .config("spark.sql.shuffle.partitions", "200") HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS

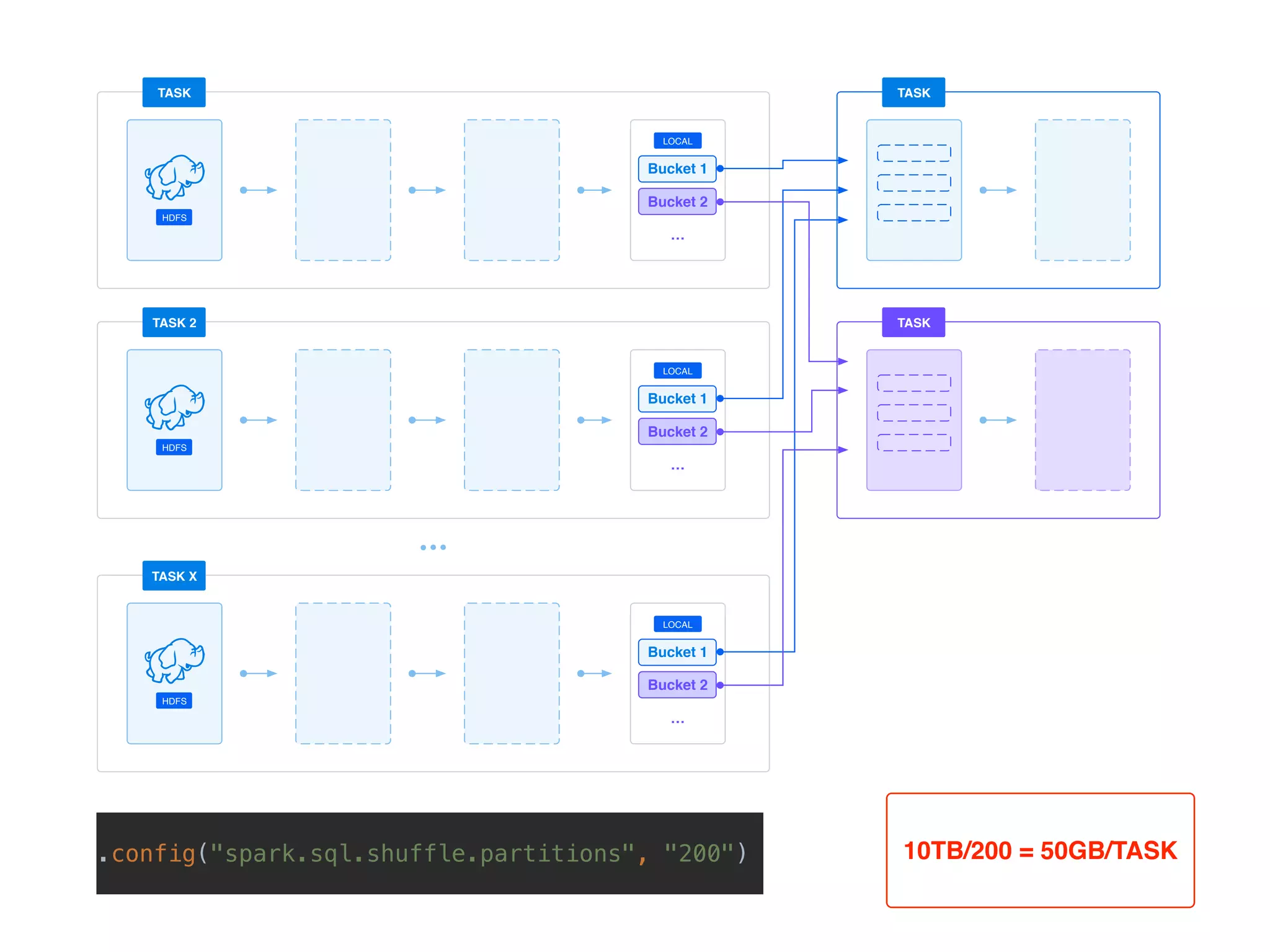

- 57. HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS 10TB/200 = 50GB/TASK.config("spark.sql.shuffle.partitions", "200")

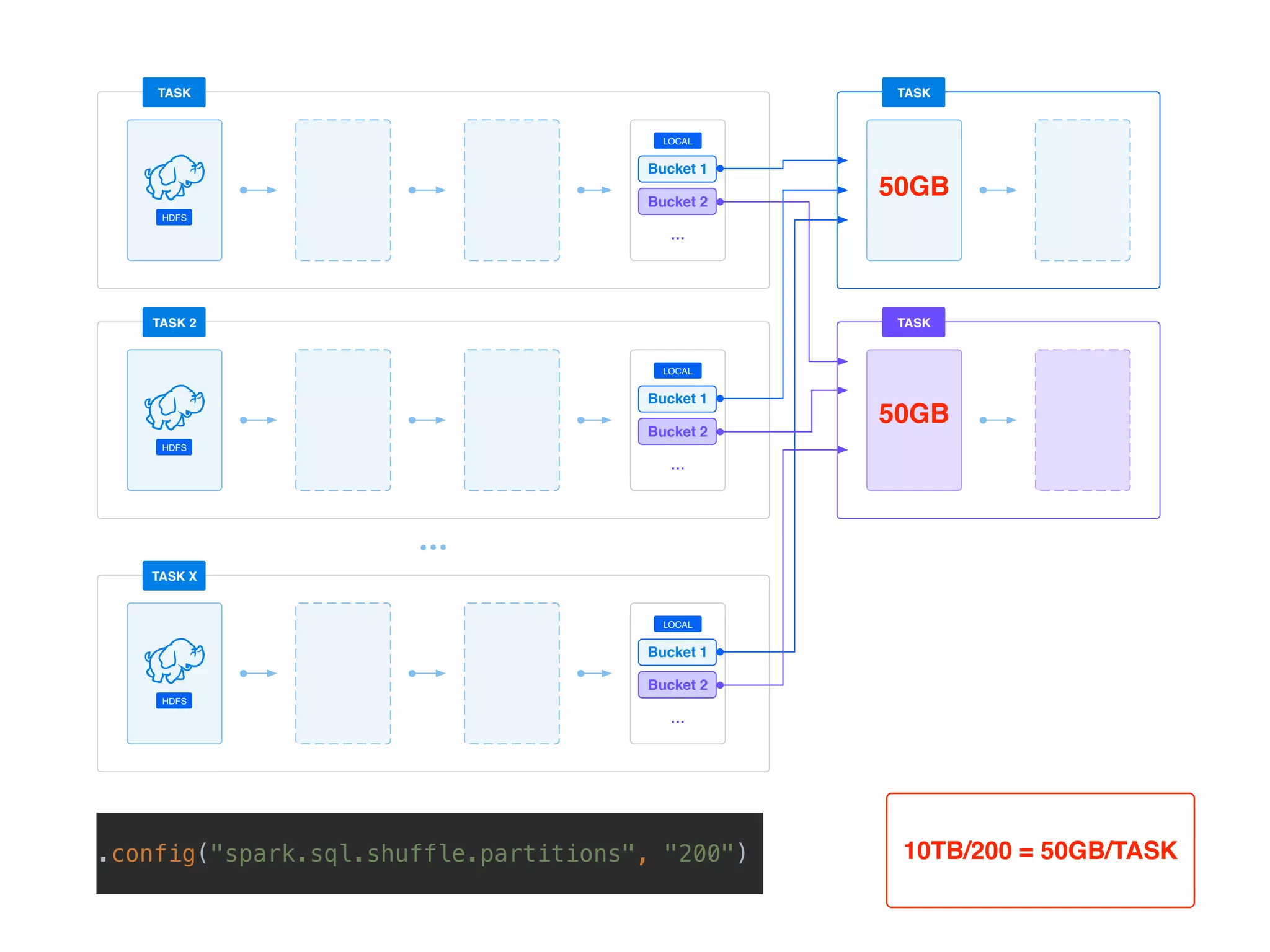

- 58. 10TB/200 = 50GB/TASK HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS 50GB 50GB .config("spark.sql.shuffle.partitions", "200")

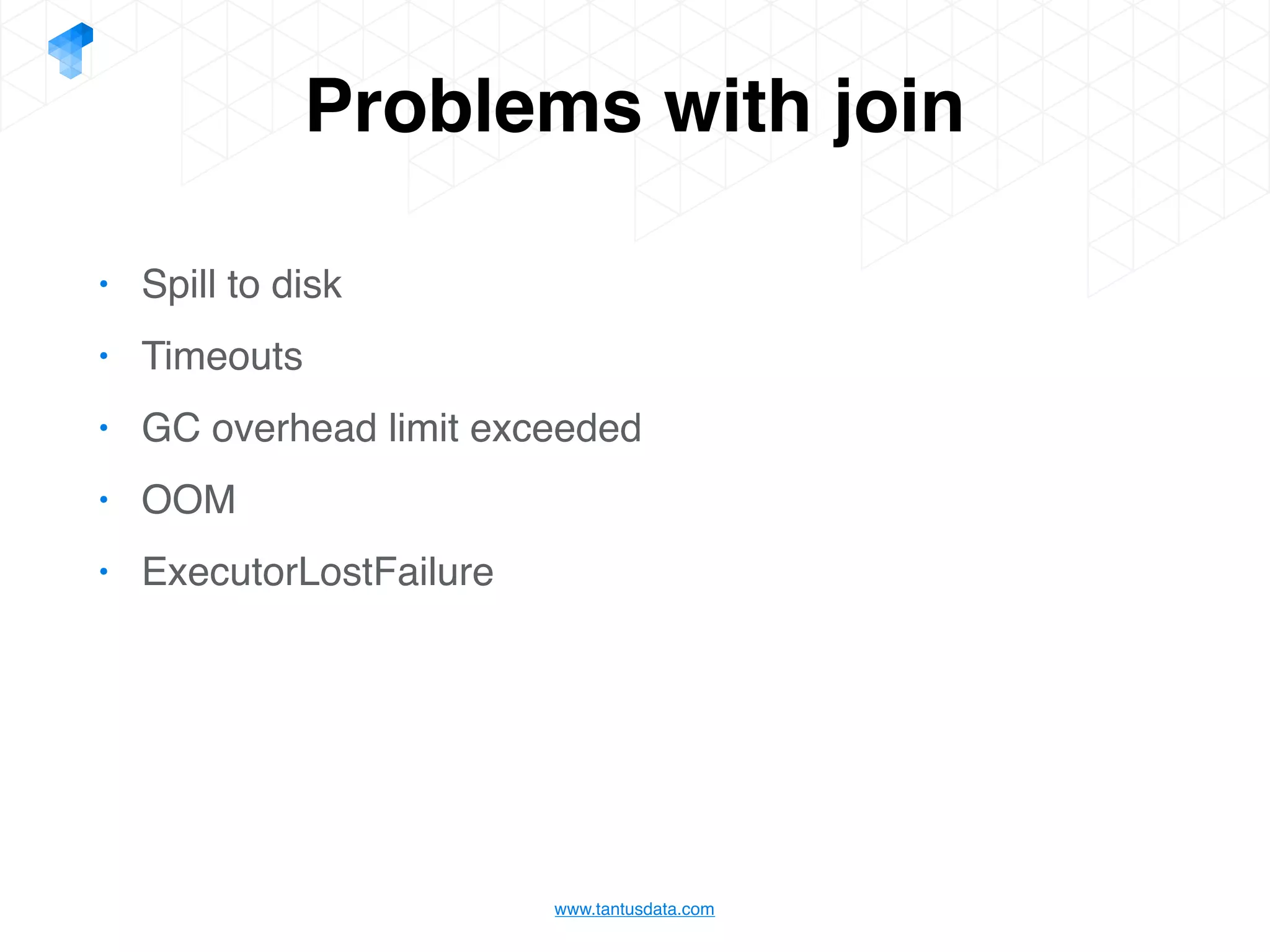

- 59. www.tantusdata.com Problems with join • Spill to disk • Timeouts • GC overhead limit exceeded • OOM • ExecutorLostFailure

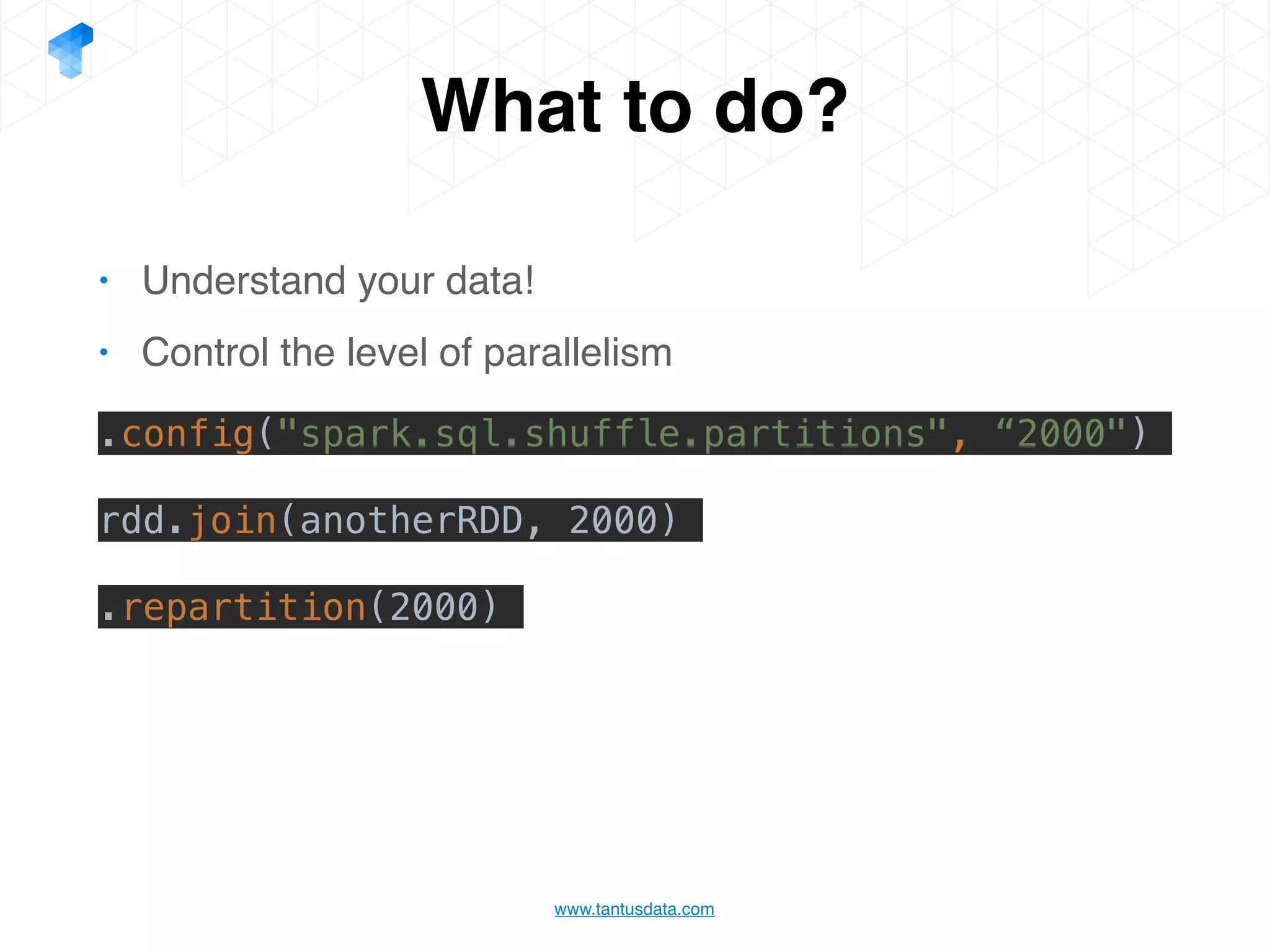

- 60. www.tantusdata.com What to do? • Understand your data! • Control the level of parallelism .config("spark.sql.shuffle.partitions", “2000") rdd.join(anotherRDD, 2000) .repartition(2000)

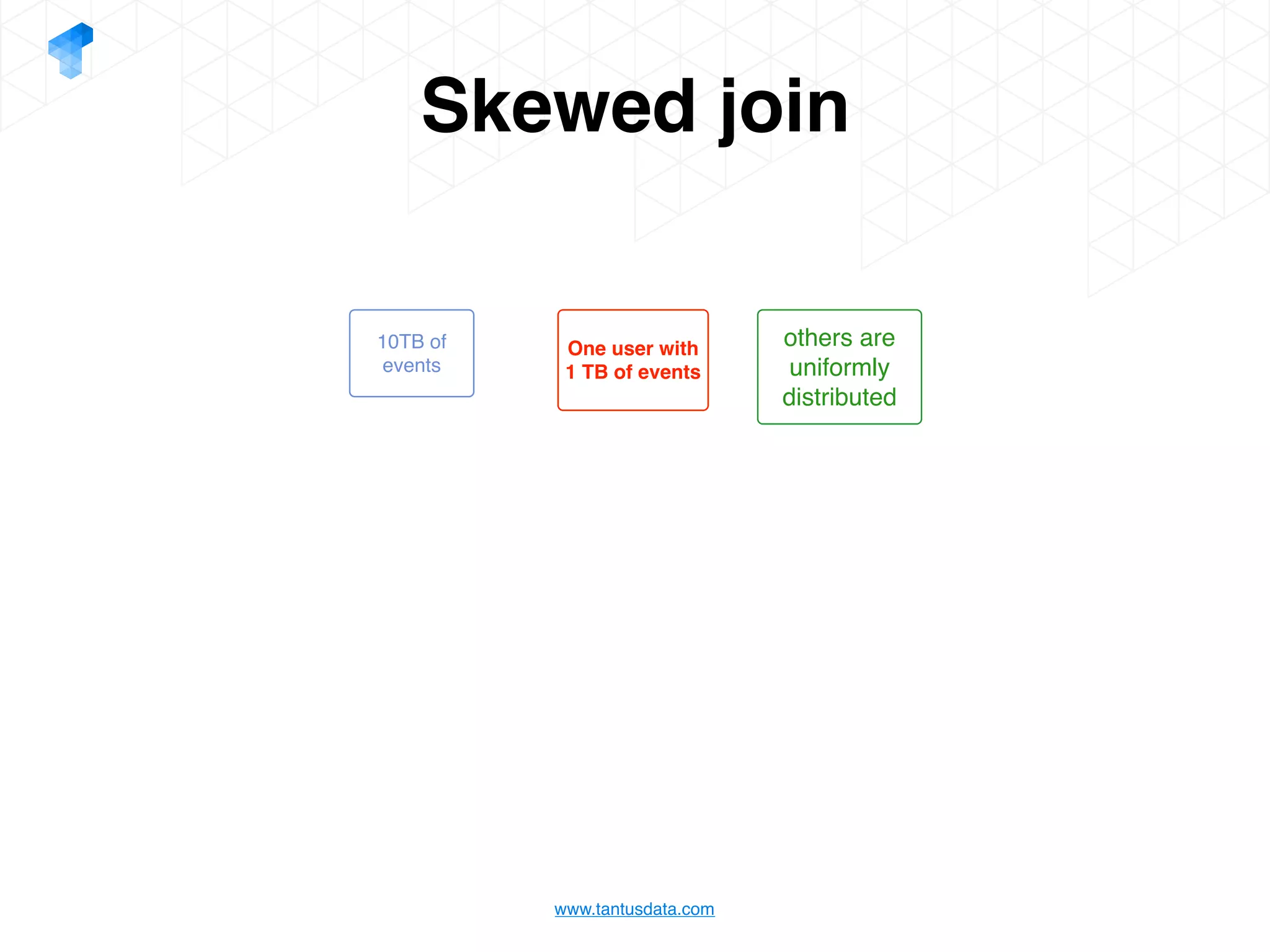

- 61. www.tantusdata.com Skewed join 10TB of events One user with 1 TB of events others are uniformly distributed

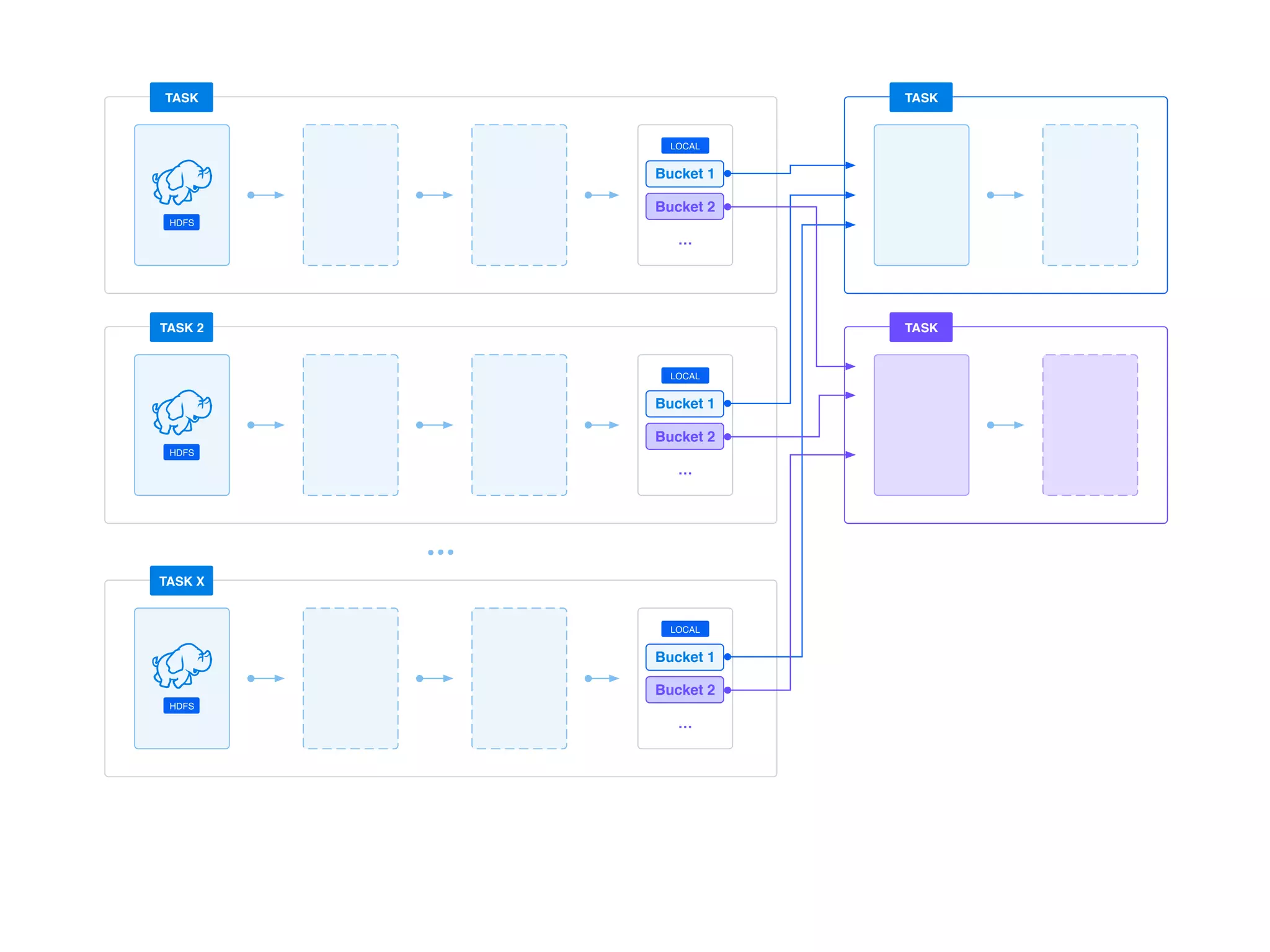

- 62. HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS

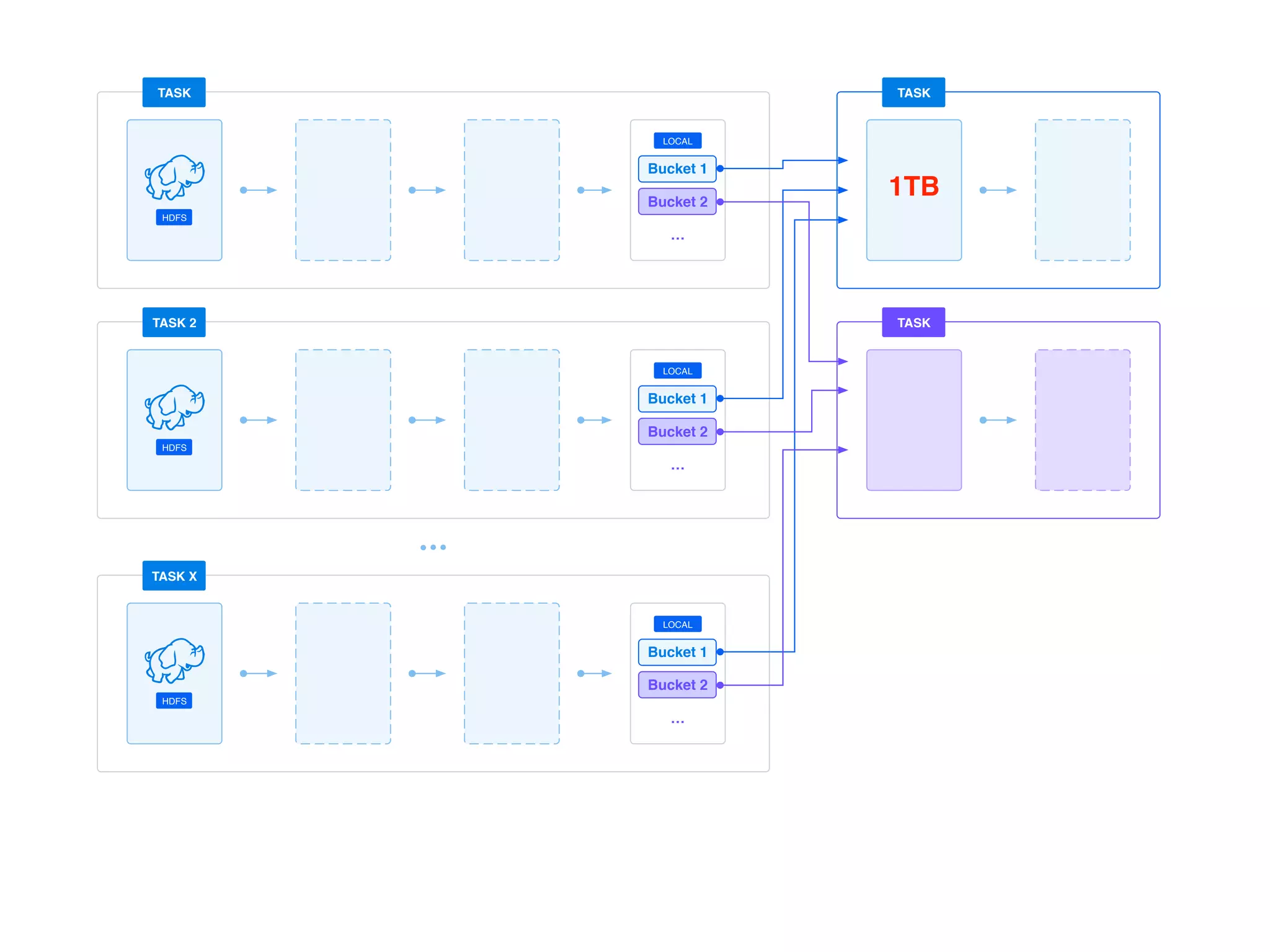

- 63. HDFS TASK Bucket 1 Bucket 2 LOCAL TASK HDFS TASK 2 Bucket 1 Bucket 2 LOCAL HDFS TASK X Bucket 1 Bucket 2 LOCAL TASK … … … HDFS HDFS 1TB
- 64. www.tantusdata.com Skewed join • Bad data? • Wrong logic? • Just ok? Photo credit: hiveminer.com

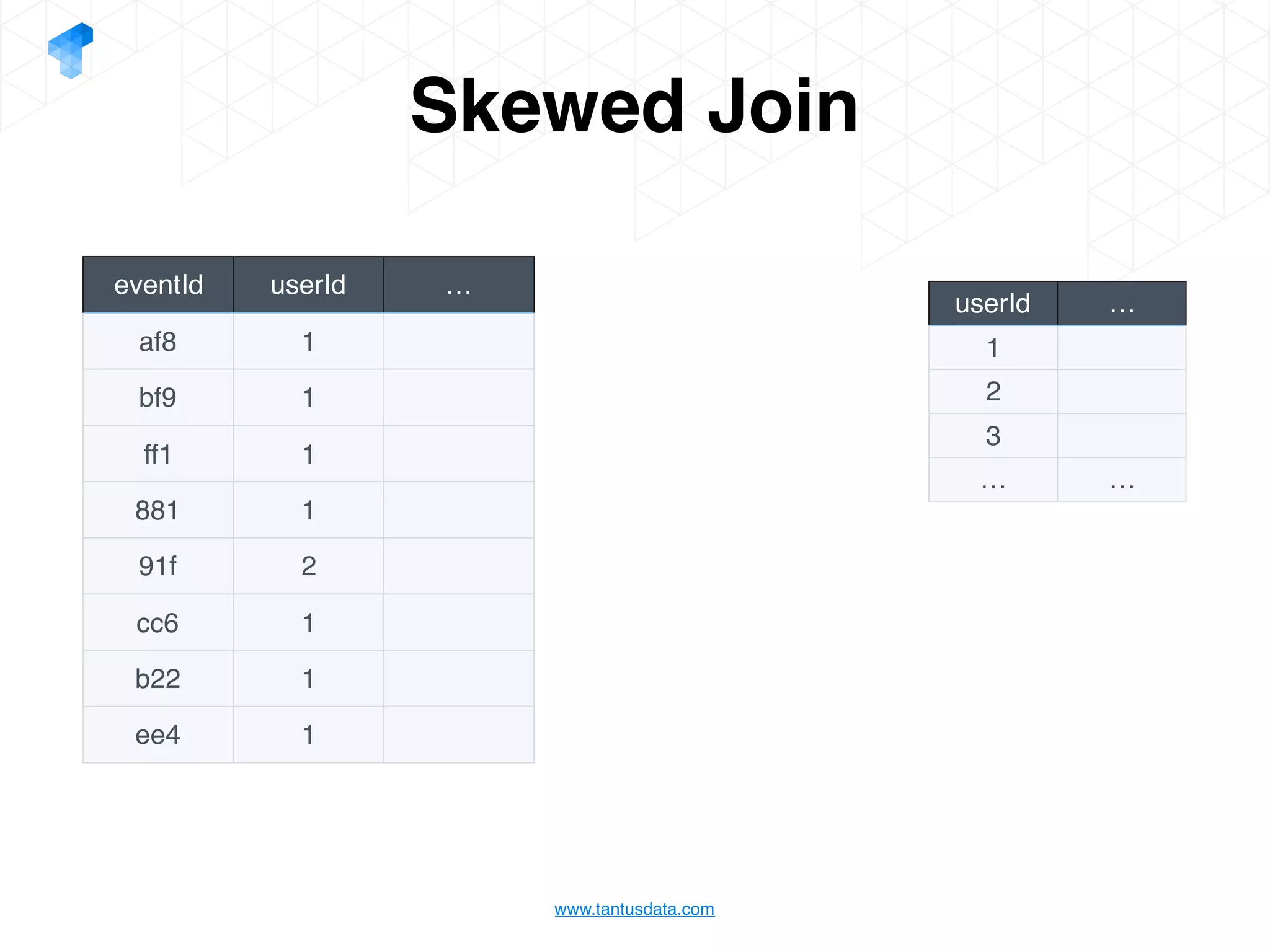

- 65. www.tantusdata.com Skewed Join userId … 1 2 3 … … eventId userId … af8 1 bf9 1 ff1 1 881 1 91f 2 cc6 1 b22 1 ee4 1
- 66. www.tantusdata.com userId … 1 2 3 … … eventId userId … af8 1 bf9 1 ff1 1 881 1 91f 2 cc6 1 b22 1 ee4 1 Skewed Join

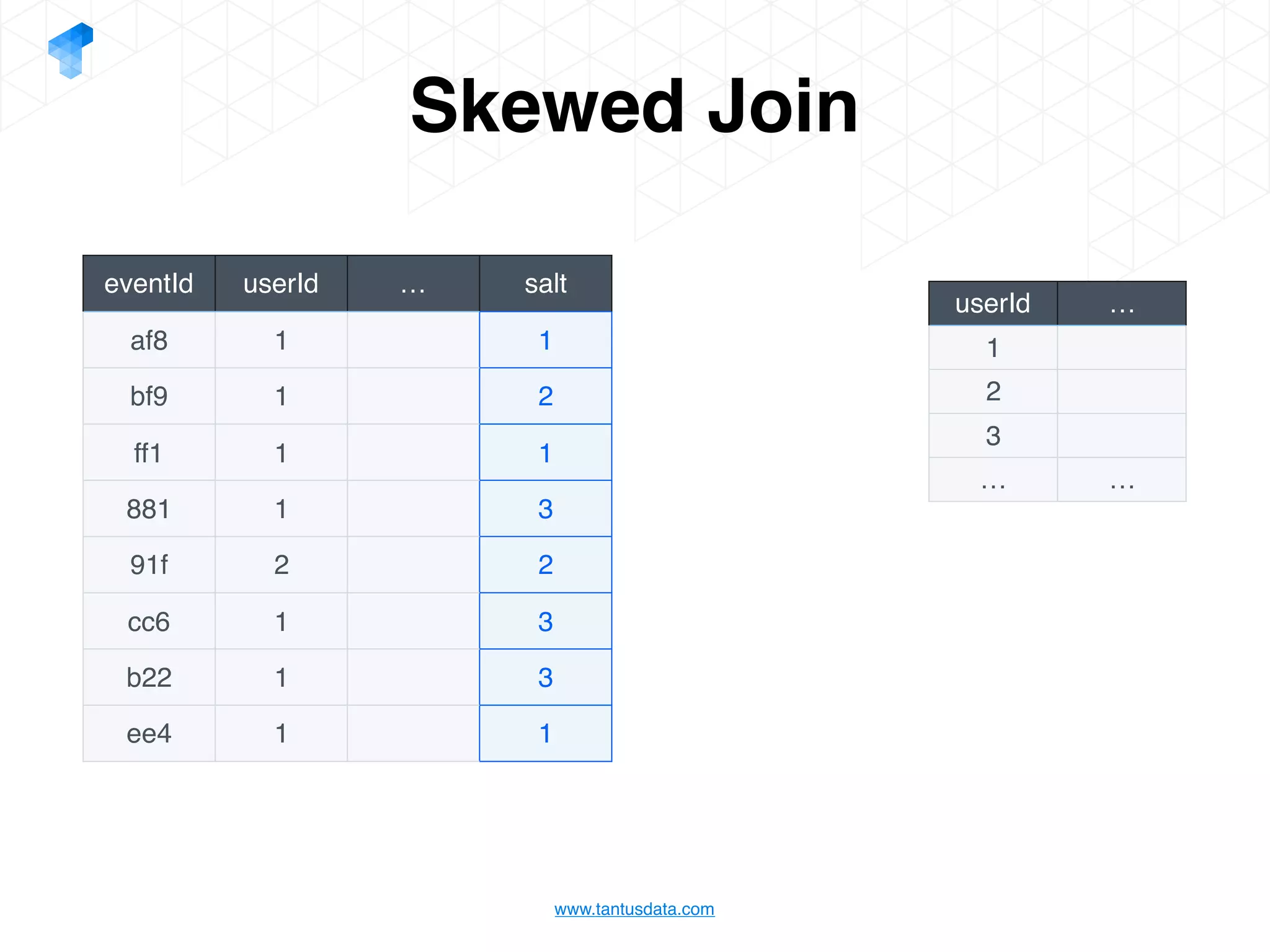

- 67. www.tantusdata.com userId … 1 2 3 … … eventId userId … salt af8 1 1 bf9 1 2 ff1 1 1 881 1 3 91f 2 2 cc6 1 3 b22 1 3 ee4 1 1 Skewed Join

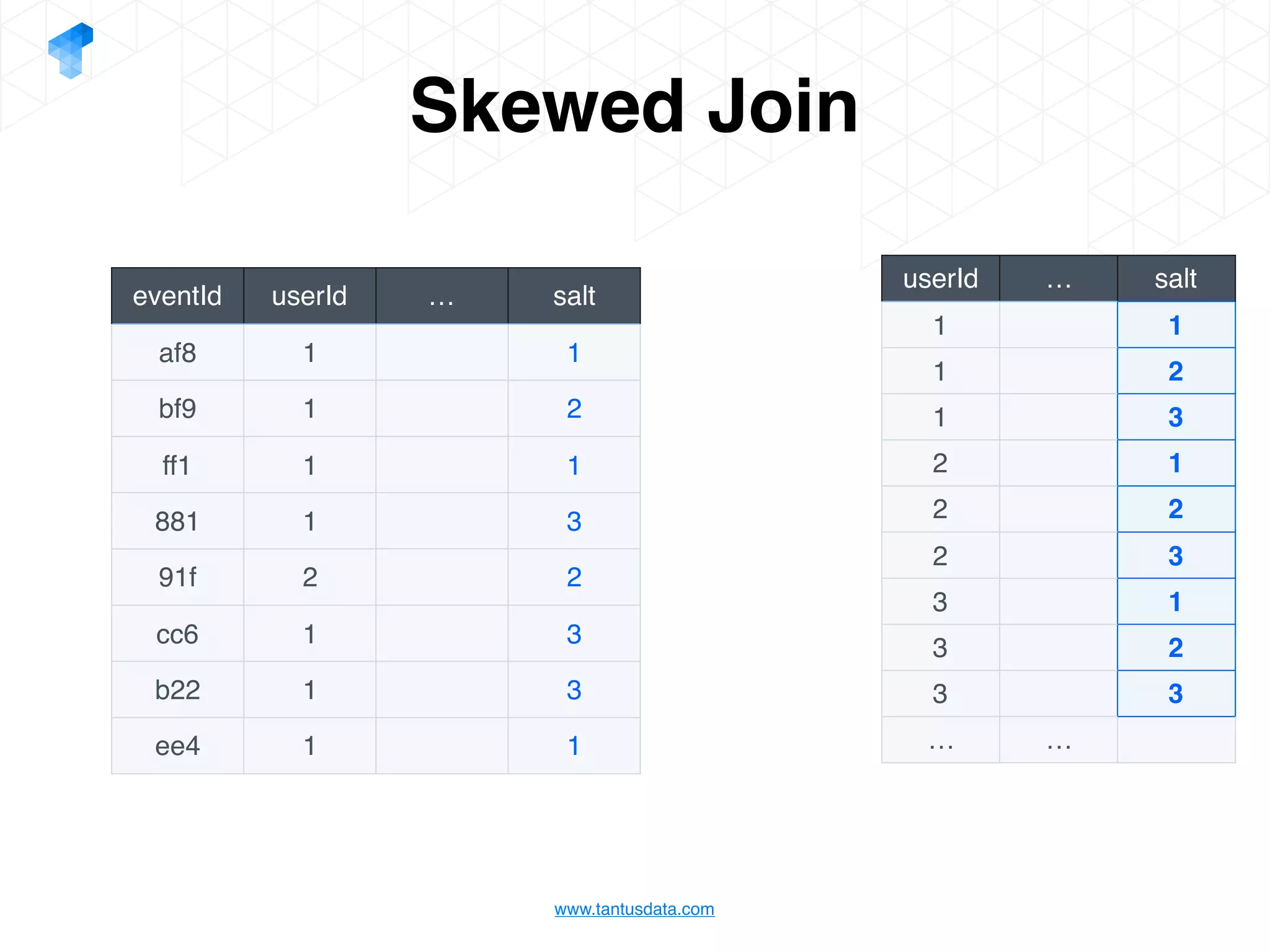

- 68. www.tantusdata.com userId … salt 1 1 1 2 1 3 2 1 2 2 2 3 3 1 3 2 3 3 … … Skewed Join eventId userId … salt af8 1 1 bf9 1 2 ff1 1 1 881 1 3 91f 2 2 cc6 1 3 b22 1 3 ee4 1 1

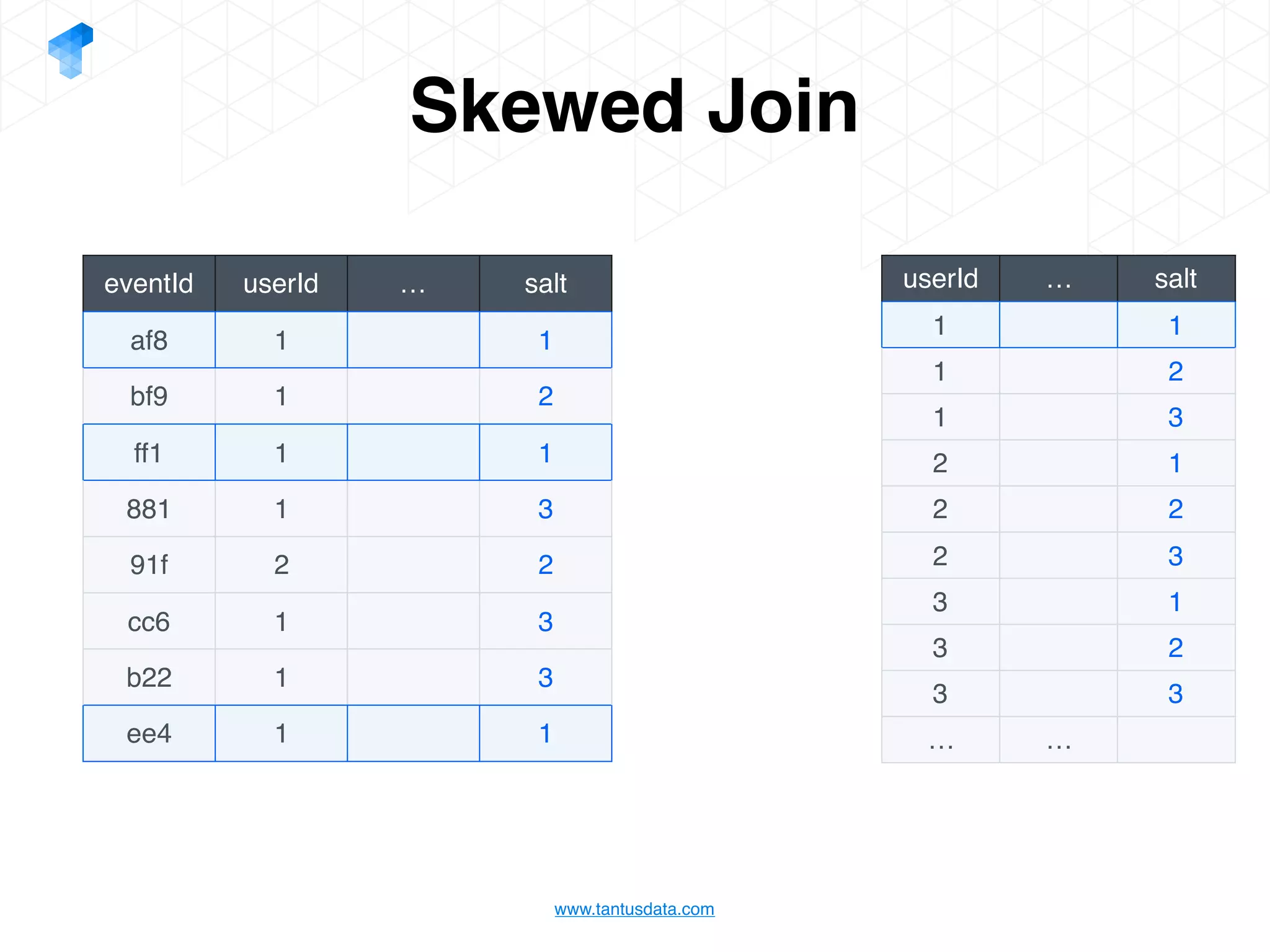

- 69. www.tantusdata.com userId … salt 1 1 1 2 1 3 2 1 2 2 2 3 3 1 3 2 3 3 … … eventId userId … salt af8 1 1 bf9 1 2 ff1 1 1 881 1 3 91f 2 2 cc6 1 3 b22 1 3 ee4 1 1 Skewed Join

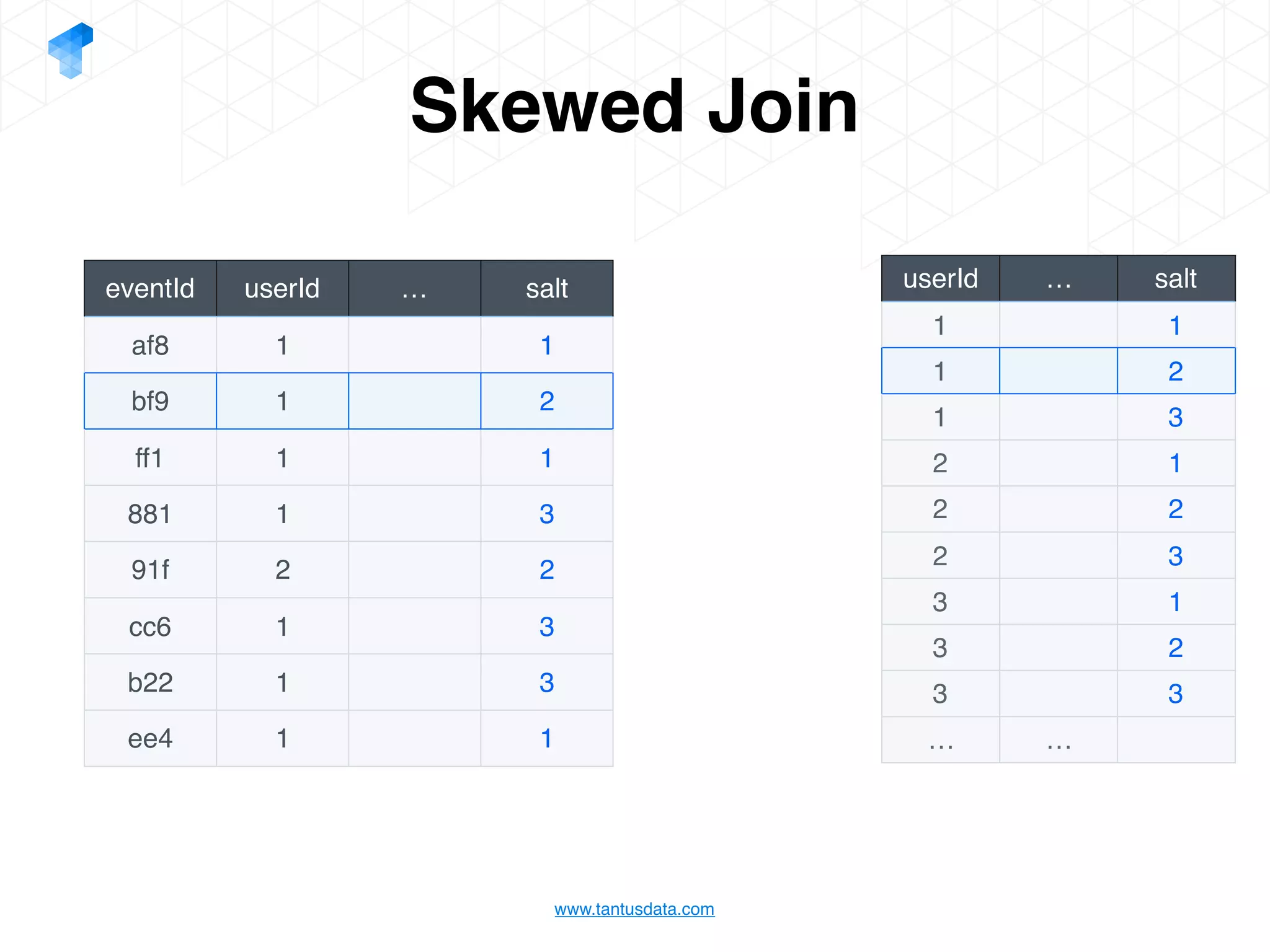

- 70. www.tantusdata.com eventId userId … salt af8 1 1 bf9 1 2 ff1 1 1 881 1 3 91f 2 2 cc6 1 3 b22 1 3 ee4 1 1 Skewed Join userId … salt 1 1 1 2 1 3 2 1 2 2 2 3 3 1 3 2 3 3 … …

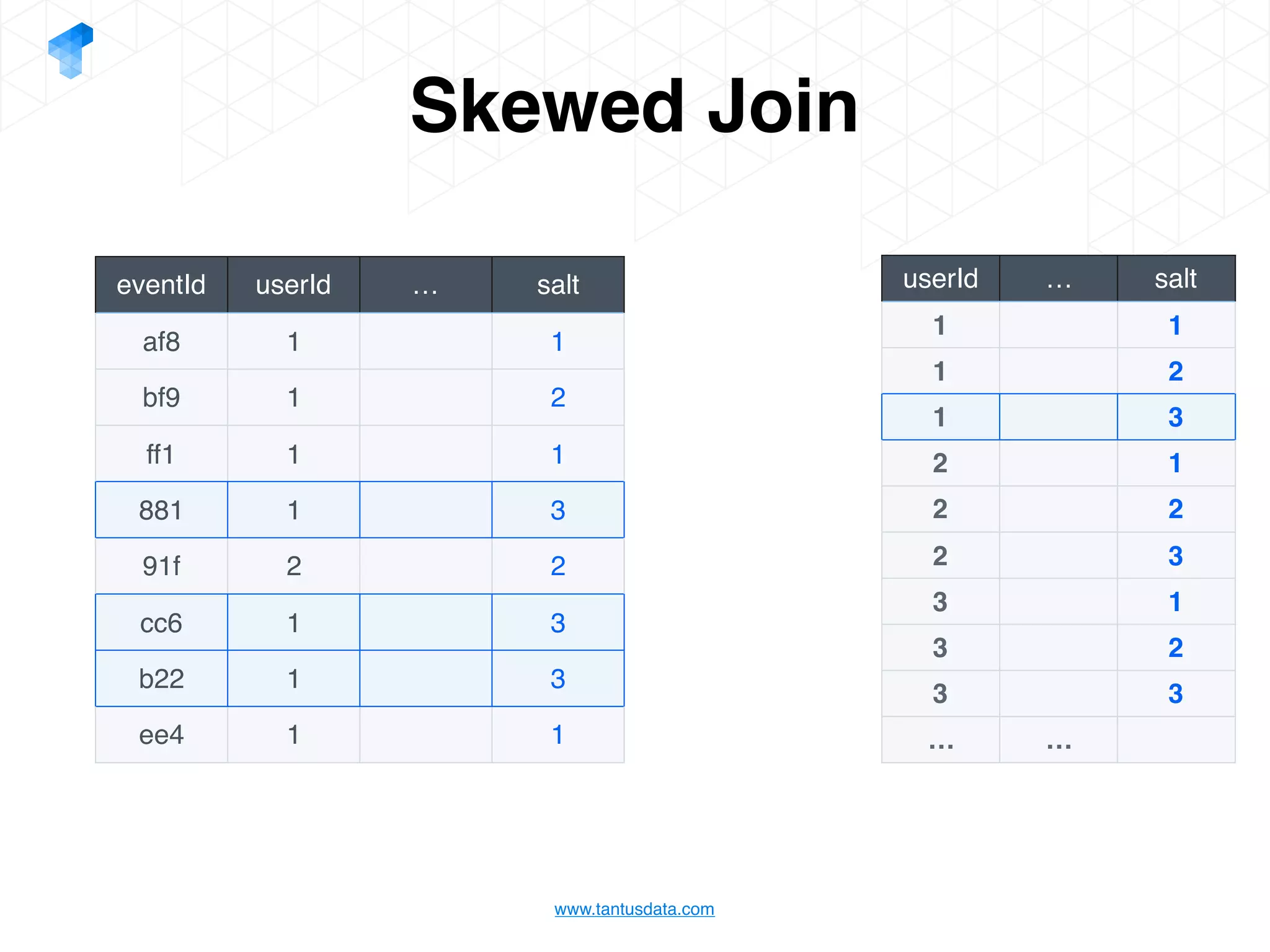

- 71. www.tantusdata.com userId … salt 1 1 1 2 1 3 2 1 2 2 2 3 3 1 3 2 3 3 … … Skewed Join eventId userId … salt af8 1 1 bf9 1 2 ff1 1 1 881 1 3 91f 2 2 cc6 1 3 b22 1 3 ee4 1 1
- 72. www.tantusdata.com • Know your data! • Fix the data? • Improve the logic? • Add salt? Skewed Join - recap Photo credit: shamakern.com

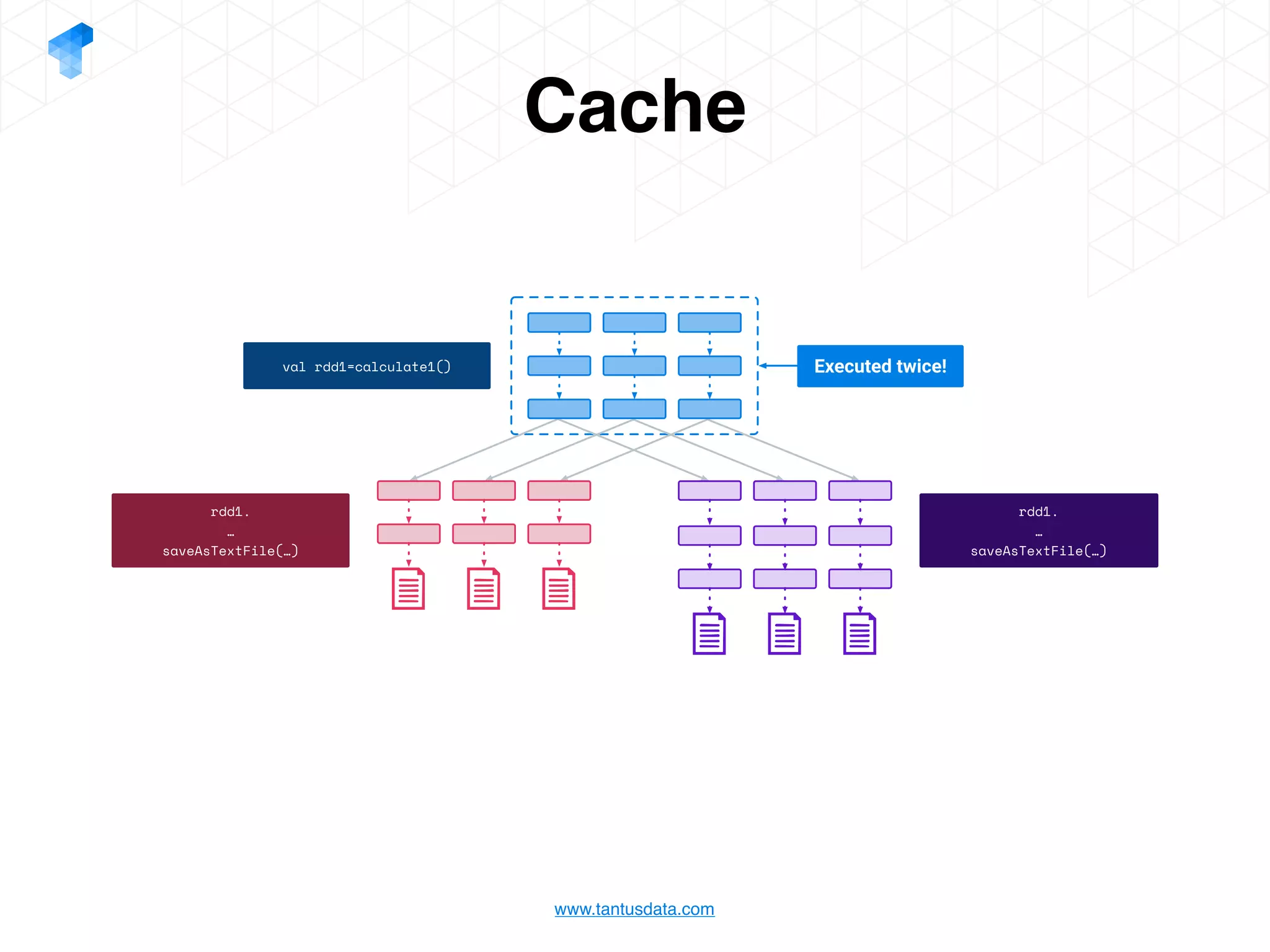

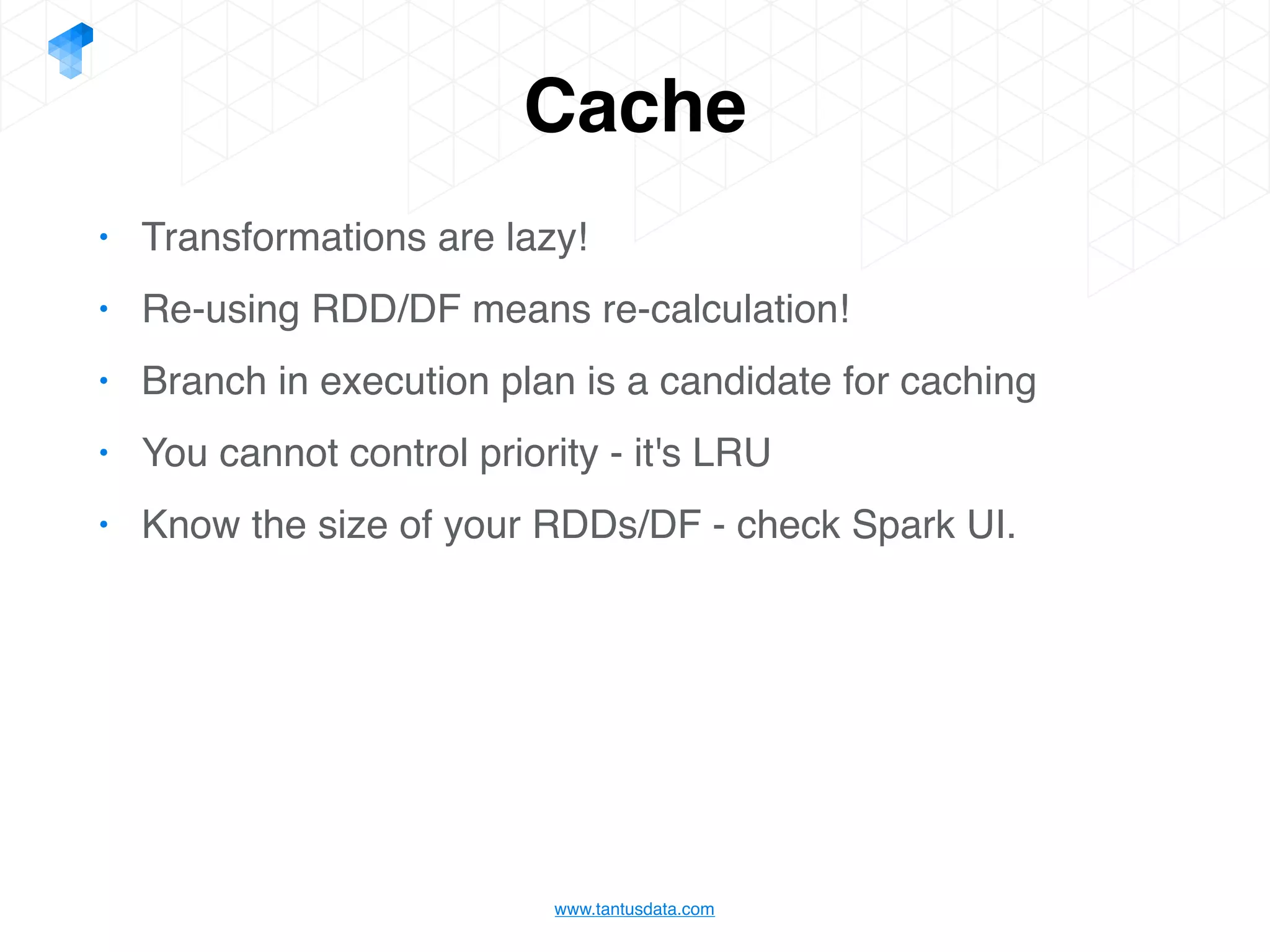

- 80. www.tantusdata.com Cache • Transformations are lazy! • Re-using RDD/DF means re-calculation! • Branch in execution plan is a candidate for caching • You cannot control priority - it's LRU • Know the size of your RDDs/DF - check Spark UI.
- 81. www.tantusdata.com Other gotchas • Broadcasting • Sizing executors • Locality • Off heap memory • …

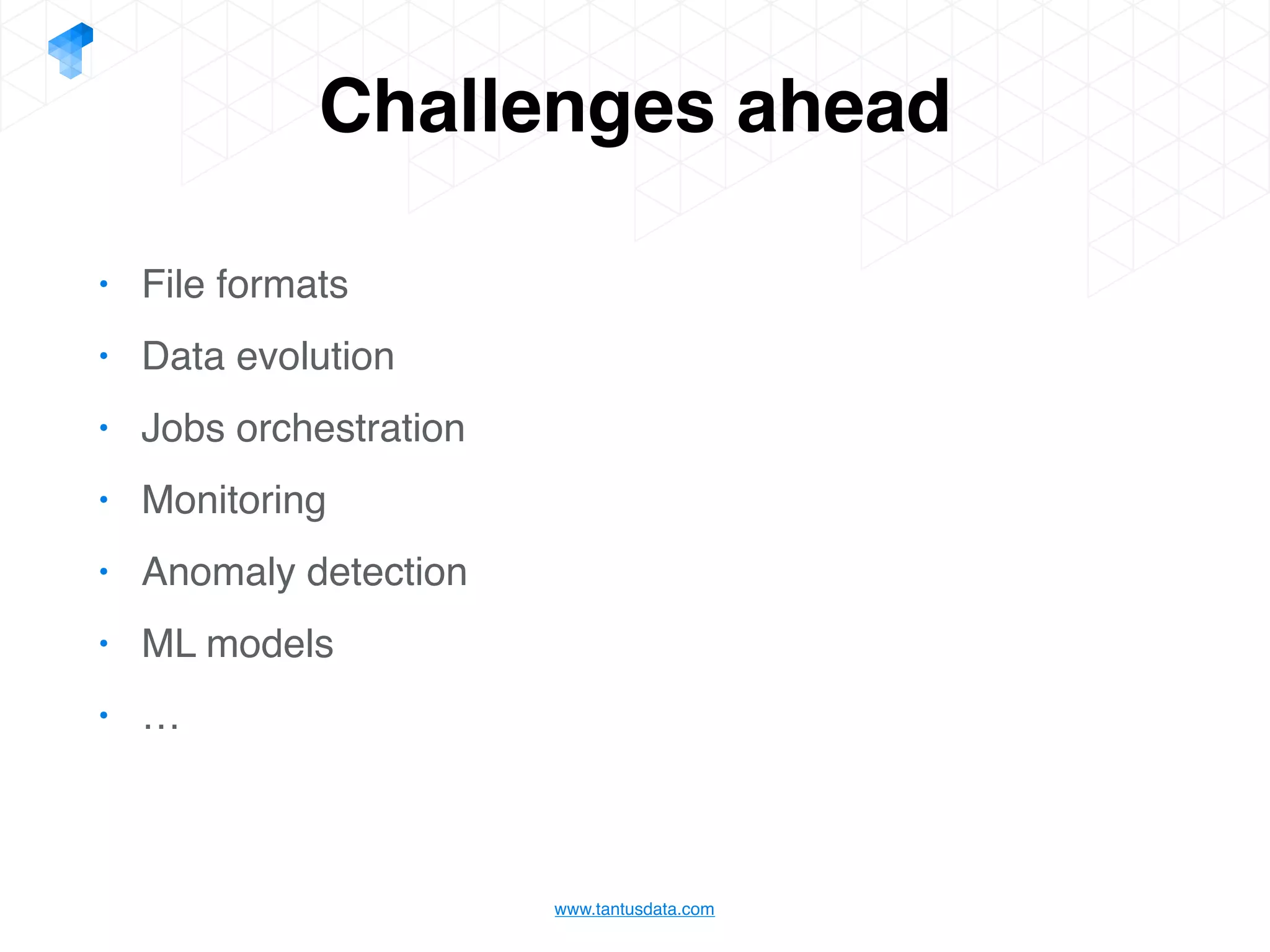

- 82. www.tantusdata.com Challenges ahead • File formats • Data evolution • Jobs orchestration • Monitoring • Anomaly detection • ML models • …

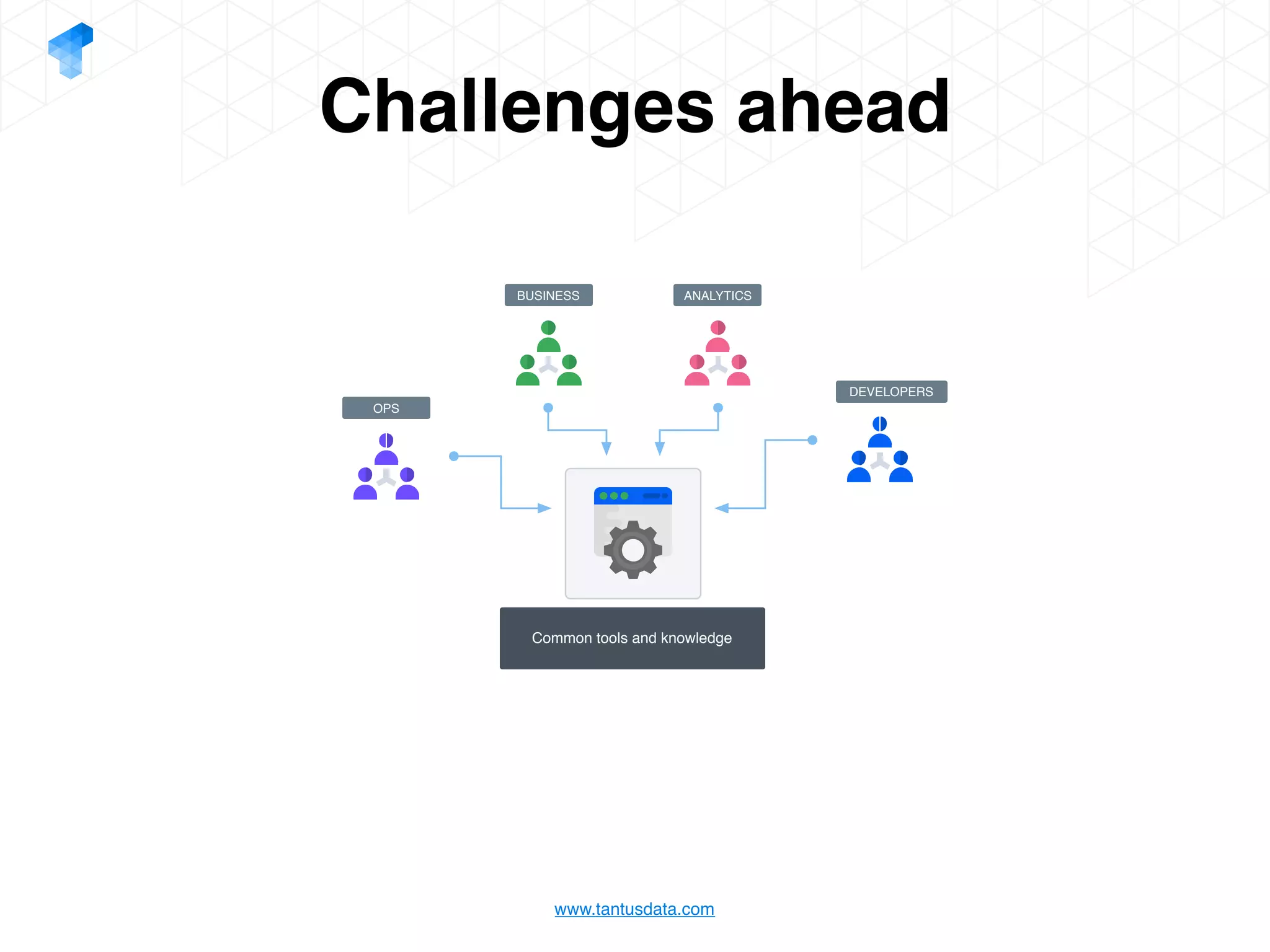

- 84. www.tantusdata.com Challenges ahead OPS DEVELOPERS BUSINESS ANALYTICS Common tools and knowledge

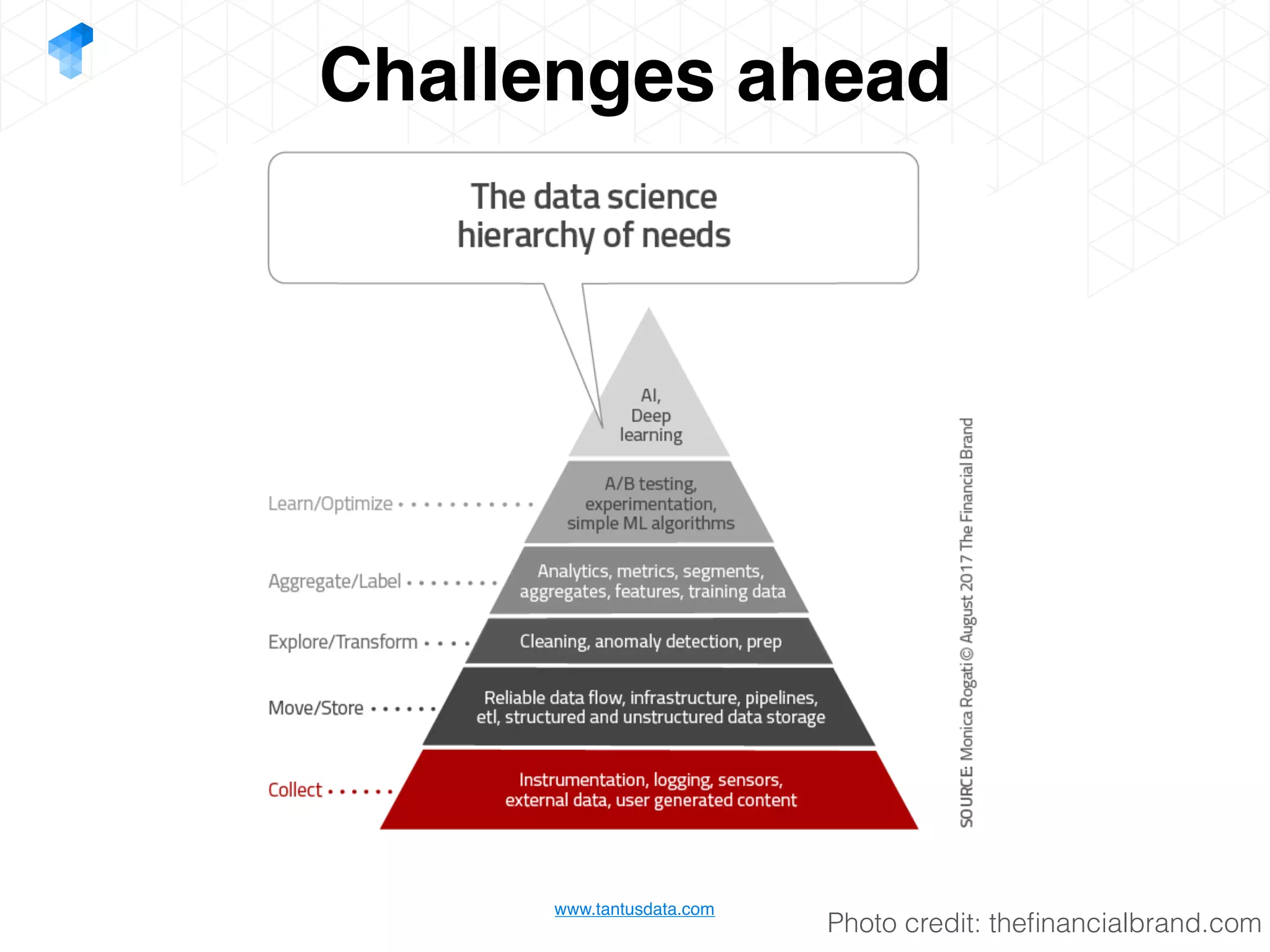

- 85. www.tantusdata.com Challenges ahead Photo credit: thefinancialbrand.com
- 86. www.tantusdata.com Conclusions • Spark can help you with data processing at scale • You should know how it works • Think about big picture from day one
