This document discusses annotation processing in Android, including libraries that use annotation processors like AndroidAnnotations and ButterKnife. It covers annotation targets and retentions, how to write a basic annotation processor that gathers annotations and generates source files, and how to generate code using the Filer API or JavaPoet. It also discusses testing processors and passing parameters to processors from the Gradle build file.

1. Annotation processing
in Android
Randy Hu @ 91 APP

3. Library use Annotation
Processor
• AndroidAnnotation
• http://androidannotations.org/
• ButterKnife
• https://github.com/JakeWharton/butterknife
• Dagger
• http://square.github.io/dagger/

4. Library (not) use Annotation
Processor
• Retrofit
• http://square.github.io/retrofit/
• galette
• https://github.com/uPhyca/GAlette

5. Annotation
@Target(ElementType.METHOD)
@Retention(RetentionPolicy.SOURCE)
public @interface Override {
}
• Target
• Where can annotate
• Retention
• Where to store

6. Target
• TYPE
• FIELD
• METHOD
• PARAMETER
• CONSTRUCTOR
• LOCAL_VARIABLE
• ANNOTATION_TYPE
• PACKAGE

7. Retention
• SOURCE
• CLASS
• RUNTIME
• used in Reflection
• java.lang.reflect.AnnotatedElement

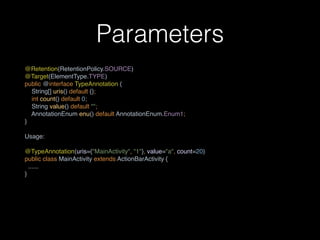

8. Parameters
@Retention(RetentionPolicy.SOURCE)
@Target(ElementType.TYPE)
public @interface TypeAnnotation {
String[] uris() default {};
int count() default 0;
String value() default "";
AnnotationEnum enu() default AnnotationEnum.Enum1;
}
Usage:
@TypeAnnotation(uris={"MainActivity", "1"}, value="a", count=20)
public class MainActivity extends ActionBarActivity {
......
}

9. Write Annotation
Processor ( with your bare hand )

10. Modules
• annotations
• Annotations can be used in app & annotation-
processor
• app
• main
• processor
• process annotations annotated in app

11. Dependency - top level
buildscript {
repositories {
jcenter()
}
dependencies {
classpath 'com.android.tools.build:gradle:1.2.3'
classpath 'com.neenbedankt.gradle.plugins:android-apt:1.4'
}
}

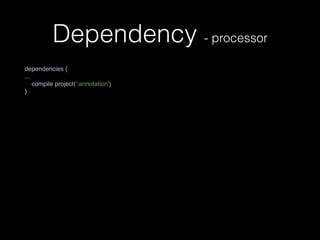

12. Dependency - processor
dependencies {
...
compile project(':annotation')
}

13. Dependency - app
apply plugin: 'com.android.application'
apply plugin: 'android-apt'
...
...
dependencies {
...
apt project(':annotationprocessor')
compile project(':annotation')
}

14. annotations
@Retention(RetentionPolicy.SOURCE)
@Target(ElementType.METHOD)
public @interface MethodAnnotation {
String parameterName();
String parameterValue();
}

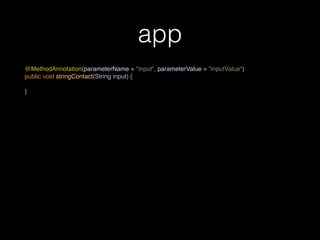

15. app
@MethodAnnotation(parameterName = "input", parameterValue = "inputValue")
public void stringContact(String input) {
}

16. processor - basic setting
// Supported Annotation
@SupportedAnnotationTypes({"me.lunacat.annotations.MethodAnnotation"})
public class AnnotationProcessor extends AbstractProcessor {
private Filer filer;
private Messager messager;
@Override
public synchronized void init(ProcessingEnvironment env){
super.init(env);
filer = processingEnv.getFiler(); // File instance
messager = processingEnv.getMessager(); // Logger
}
@Override
public SourceVersion getSupportedSourceVersion() {
return SourceVersion.latestSupported();
}
// processing function
public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment
roundEnv) {}
}

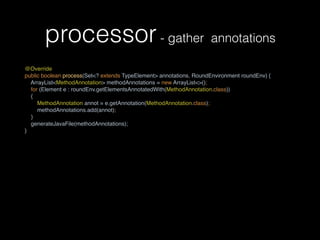

17. processor- gather annotations
@Override
public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {
ArrayList<MethodAnnotation> methodAnnotations = new ArrayList<>();
for (Element e : roundEnv.getElementsAnnotatedWith(MethodAnnotation.class))
{
MethodAnnotation annot = e.getAnnotation(MethodAnnotation.class);
methodAnnotations.add(annot);
}
generateJavaFile(methodAnnotations);
}

18. processor - generate code
private void generateJavaFile(ArrayList<MethodAnnotation> methodAnnotations) throws
IOException {
// create ExtraClass with annotation content
JavaFileObject source = filer.createSourceFile(“in.test.AnnotationGenClass”);
Writer writer = source.openWriter();
try {
PrintWriter pw = new PrintWriter(writer);
pw.println("package in.test;");
pw.println("public class AnnotationGenClass {");
for(MethodAnnotation annot: methodAnnotations) {
pw.println("public static final void " + annot.parameterName() + "() {}");
}
pw.println("}");
pw.flush();
pw.close();
}
finally {
writer.close();
}
}

19. processor - generate resources
private void generateJavaFile(ArrayList<MethodAnnotation> methodAnnotations) throws
IOException {
// create method.txt with annotation contents
FileObject file = filer.createResource(
StandardLocation.SOURCE_OUTPUT,
"",
"methods.txt",
null);
writer = file.openWriter();
try {
PrintWriter pw = new PrintWriter(writer);
for(MethodAnnotation annot: methodAnnotations) {
pw.println(annot.parameterName());
}
pw.flush();
pw.close();
}
finally {
writer.close();
}
}

20. processor - create meta-data
create file: javax.annotation.processing.Processor
file content: me.lunacat.AnnotationProcessor

21. Write Annotation
Processor ( with tools )

22. Generate Code - filer
private void generateJavaFile(ArrayList<MethodAnnotation> methodAnnotations) throws
IOException {
// create ExtraClass with annotation content
JavaFileObject source = filer.createSourceFile(“in.test.AnnotationGenClass”);
Writer writer = source.openWriter();
try {
PrintWriter pw = new PrintWriter(writer);
pw.println("package in.test;");
pw.println("public class AnnotationGenClass{");
for(MethodAnnotation annot: methodAnnotations) {
pw.println("public static final void " + annot.parameterName() + "() {}");
}
pw.println("}");
pw.flush();
pw.close();
}
finally {
writer.close();
}
}

23. Generate Code - JavaPoet
for(MethodAnnotation annot: methodAnnotations) {
MethodSpec dumpMethod = MethodSpec
.methodBuilder(annot.parameterName())
.addModifiers(Modifier.FINAL, Modifier.STATIC, Modifier.PUBLIC)
.returns(void.class)
.build();
dumpMethods.add(dumpMethod);
}
// create class
TypeSpec.Builder classBuilder = TypeSpec
.classBuilder("AnnotationGenClass")
.addModifiers(Modifier.PUBLIC);
if ( dumpMethods != null ) {
classBuilder.addMethods(dumpMethods);
}
JavaFile.builder("me.lunacat.annotationgent", classBuilder.build())
.build()
.writeTo(filer);
with dependencies
dependencies {
compile 'com.squareup:javapoet:1.1.0'
}

24. MetaData - bare hand
create file: java.annotation.processing.Processor
file content: me.lunacat.AnnotationProcessor

25. MetaData - Auto
• Auto
• https://github.com/google/auto
@AutoService(Processor.class)
public class AnnotationProcessor extends AbstractProcessor {
}
With dependency:
dependencies {
compile 'com.google.auto.service:auto-service:1.0-rc2'
}

26. Testing
JavaFileObject sampleActivity = JavaFileObjects
.forSourceString("SampleActivity", "package com.example;"
+ "import me.lunacat.annotations.TypeAnnotation; "
+ "@Type("airbnb://example.com/deepLink") public class SampleActivity {}”);
// sampleActivity with AnnotationProcessor with generate source like
assert_().about(javaSource())
.that(sampleActivity)
.processedWith(new AnnotationProcessor())
.compilesWithoutError()
.and()
.generatesSources(
JavaFileObjects.forResource("AnnotationGenClass.java"),
JavaFileObjects.forSourceString("AnnotationGenClass",
"package.."));
with dependencies
dependencies {
testCompile 'com.google.testing.compile:compile-testing:0.6'
}

27. Debug

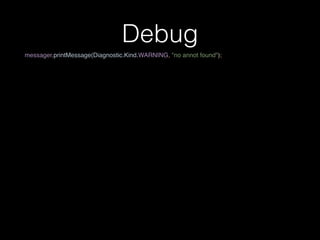

28. Debug
messager.printMessage(Diagnostic.Kind.WARNING, "no annot found");

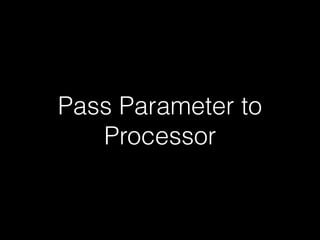

29. Pass Parameter to
Processor

30. Pass Parameter to Processor
apt {
arguments{
host "http://www.123456789.host/"
}
}
build.gradle (app)
Processor
public synchronized void init(ProcessingEnvironment env) {
String host = env.getOptions().get("host");
}

31. References
• Annotation 101
• http://brianattwell.com/android-annotation-processing-
pojo-string-generator/
• http://hannesdorfmann.com/annotation-processing/
annotationprocessing101/#processing-rounds
• Debug Annotation Processor
• https://turbomanage.wordpress.com/2014/06/09/
debug-an-annotation-processor-with-intellij-and-gradle/
