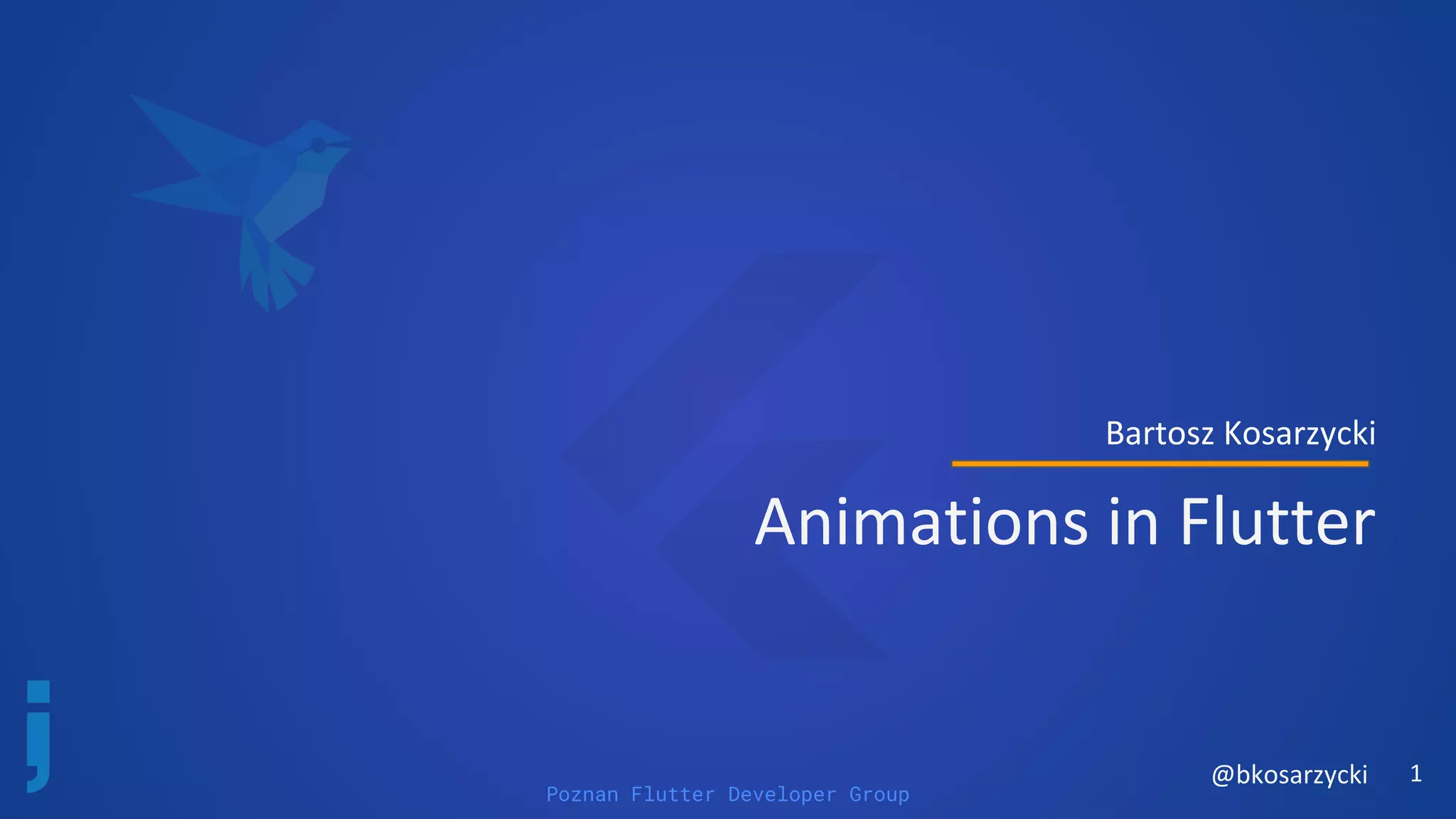

1. Poznan Flutter Developer Group
Bartosz Kosarzycki
Animations in Flutter
1@bkosarzycki

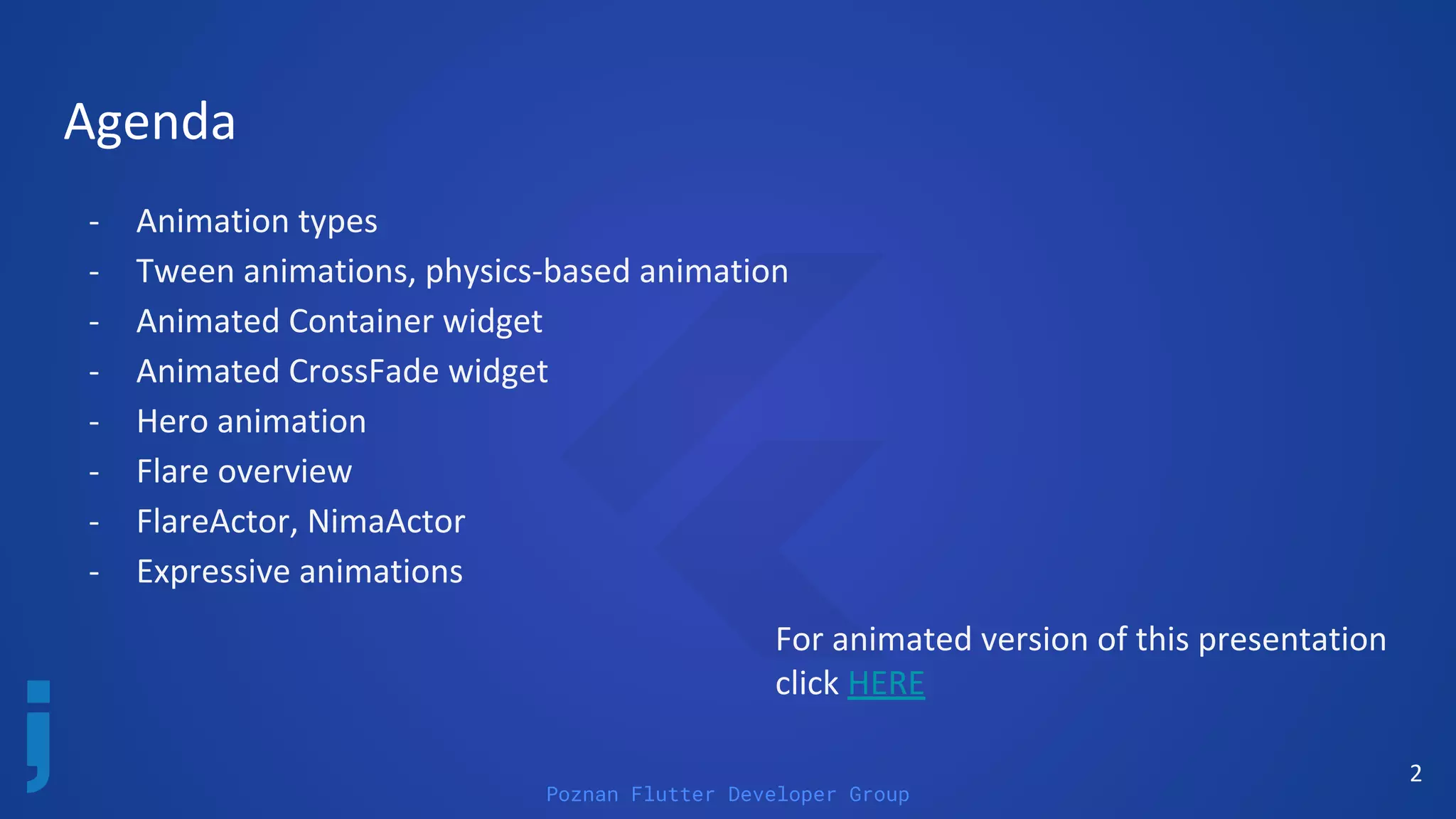

2. Poznan Flutter Developer Group
Agenda
- Animation types
- Tween animations, physics-based animation
- Animated Container widget
- Animated CrossFade widget
- Hero animation
- Flare overview
- FlareActor, NimaActor
- Expressive animations
2
For animated version of this presentation
click HERE

3. Poznan Flutter Developer Group
Animation types
- Tween animations
animate value over time
- Physics-based animations
animate in response to user input/movement, animation which include real-world physics
- Animating widgets
help to simplify animations - single responsibility
3
Animations in Flutter ARE INDEPENDENT from widgets
they animate

4. Poznan Flutter Developer Group
Tween animations
- Short: in-between animations
- start value, end value
- curve [ function: transition over time ]
4
Tween<double>(
begin: 0.0,
end: 5.0,
)
Tween<Position>(
begin: Position(5.0, 10.0),
end: Position(10.0, 15.0),
)

5. Poznan Flutter Developer Group

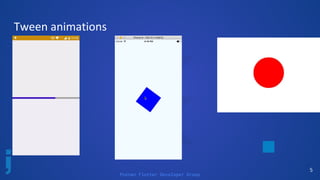

Tween animations
5

6. Poznan Flutter Developer Group
Tween animations
6
ColorTween(
begin: Colors.red,
end: Colors.blue,
)
var colorAnim = ColorTween(
begin: Colors.red,
end: Colors.blue,
).animate(_colorAnimController);

7. Poznan Flutter Developer Group
7

8. Poznan Flutter Developer Group
Tween animations - implementation
8
@override
void initState() {
super.initState();
_simpleAnimController = AnimationController(
vsync: this,
duration: Duration(milliseconds:1000))
..addListener(() => setState(() {})
);
_simpleAnim = Tween<double>(
begin: 50,
end: 300,
).animate(_simpleAnimController);
_simpleAnimController.forward();
}
Center(
child: Padding(
padding: EdgeInsets.only(top: _simpleAnim.value),
child: Container(
width: 100,
height: 100,
child: FlutterLogo(),
),
),
class _TweenAnimationPageState extends State<TweenAnimationPage>
with TickerProviderStateMixin {
AnimationController _simpleAnimController;
Animation<double> _simpleAnim;
[...]

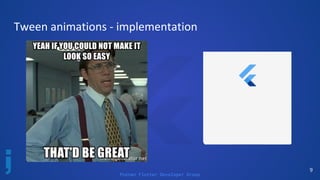

9. Poznan Flutter Developer Group
Tween animations - implementation
9

10. Poznan Flutter Developer Group
Physics-based animations
10
simulation = ScrollSpringSimulation(
SpringDescription(
mass: 1.0,
stiffness: 1.0,
damping: 1.0,
),
0.0, // start value
1.0, // end value
0.0, // velocity
);
@override
Widget build(BuildContext context) {
return GestureDetector(
onPanStart: startDrag,
onPanUpdate: onDrag,
onPanEnd: endDrag,
child: CustomPaint( // canvas on which to draw during the
paint phase
painter: BoxPainter(
boxPosition: boxPosition,
boxPositionOnStart: boxPositionOnStart ?? boxPosition,
touchPoint: point,
),
child: Container(),
),
);
}

11. Poznan Flutter Developer Group
Physics-based animations
11
void onDrag(DragUpdateDetails details) {
setState(() {
point = (context.findRenderObject() as RenderBox)
.globalToLocal(details.globalPosition);
final dragVec = start.dy - point.dy;
final normDragVec = (dragVec / context.size.height).clamp(- 1.0, 1.0);
boxPosition = (boxPositionOnStart + normDragVec).clamp( 0.0, 1.0);
});
}

12. Poznan Flutter Developer Group
Physics-based animations
- RenderBox, RenderObject
- onPanStart(), onPanUpdate(), onPanEnd()
which correspond to startDrag(), onDrag(),
endDrag() [GestureDetector]
- context.findRenderObject() as RenderBox
- DragUpdateDetails, DragStartDetails etc.
-
12

13. Poznan Flutter Developer Group
Physics library
13
/// Simple one-dimensional physics simulations, such as springs, friction, and
/// gravity, for use in user interface animations.
///
/// To use, import `package:flutter/physics.dart`.
library physics;
export 'src/physics/clamped_simulation.dart' ;
export 'src/physics/friction_simulation.dart' ;
export 'src/physics/gravity_simulation.dart' ;
export 'src/physics/simulation.dart' ;
export 'src/physics/spring_simulation.dart' ;
export 'src/physics/tolerance.dart' ;
export 'src/physics/utils.dart' ;

14. Poznan Flutter Developer Group
14
No animation object

15. Poznan Flutter Developer Group
15

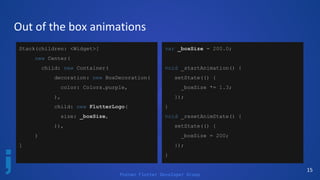

Out of the box animations
Stack(children: <Widget>[
new Center(
child: new Container(
decoration: new BoxDecoration(
color: Colors.purple,
),
child: new FlutterLogo(
size: _boxSize,
)),
)
]
var _boxSize = 200.0;
void _startAnimation() {
setState(() {
_boxSize *= 1.3;
});
}
void _resetAnimState() {
setState(() {
_boxSize = 200;
});
}

16. Poznan Flutter Developer Group
16

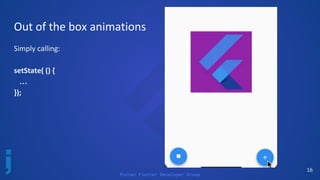

Out of the box animations
Simply calling:
setState( () {
…
});

17. Poznan Flutter Developer Group
Handy animation widgets
17

18. Poznan Flutter Developer Group
18

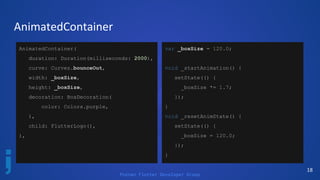

AnimatedContainer
AnimatedContainer(
duration: Duration(milliseconds: 2000),
curve: Curves.bounceOut,
width: _boxSize,
height: _boxSize,
decoration: BoxDecoration(
color: Colors.purple,
),
child: FlutterLogo(),
),
var _boxSize = 120.0;
void _startAnimation() {
setState(() {
_boxSize *= 1.7;
});
}
void _resetAnimState() {
setState(() {
_boxSize = 120.0;
});
}

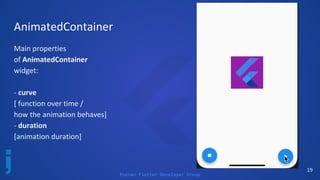

19. Poznan Flutter Developer Group
19
AnimatedContainer
Main properties
of AnimatedContainer
widget:
- curve
[ function over time /
how the animation behaves]
- duration
[animation duration]

20. Poznan Flutter Developer Group
20
AnimatedContainer

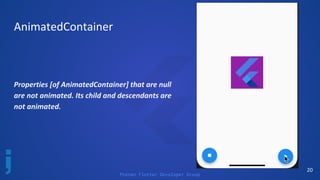

Properties [of AnimatedContainer] that are null
are not animated. Its child and descendants are
not animated.

21. Poznan Flutter Developer Group
21
AnimatedContainer

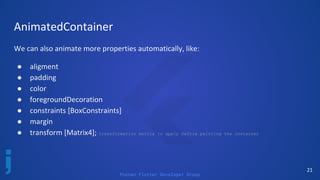

We can also animate more properties automatically, like:
● aligment
● padding
● color
● foregroundDecoration
● constraints [BoxConstraints]
● margin
● transform [Matrix4]; transformation matrix to apply before painting the container

22. Poznan Flutter Developer Group
22
AnimatedCrossFade
var _rainbowdashImgUrl =
'assets/images/rainbowdash.png' ;
var _dashImgUrl = 'assets/images/dash.png' ;
AnimatedCrossFade(
duration: Duration(milliseconds: 300),
crossFadeState: _animationStarted,
firstChild: Image.asset(_dashImgUrl),
secondChild: Image.asset(_rainbowdashImgUrl),
)
CrossFadeState _animationStarted =
CrossFadeState.showFirst;
void _startAnimation() => setState(() {
_animationStarted =
CrossFadeState.showSecond;
});
void _resetAnimState() => setState(() {
_animationStarted =
CrossFadeState.showFirst;
});

23. Poznan Flutter Developer Group
23
AnimatedCrossFade
Main properties:
duration - animation length
crossFadeState - triggers the animation
[ enum showFirst, showSecond; ]

24. Poznan Flutter Developer Group
24

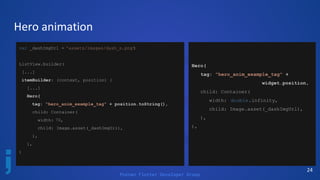

Hero animation
var _dashImgUrl = 'assets/images/dash_s.png';
ListView.builder(
[...]
itemBuilder: (context, position) {
[...]
Hero(
tag: "hero_anim_example_tag" + position.toString(),
child: Container(
width: 70,
child: Image.asset(_dashImgUrl),
),
),
)
Hero(
tag: "hero_anim_example_tag" +
widget.position,
child: Container(
width: double.infinity,
child: Image.asset(_dashImgUrl),
),
),

25. Poznan Flutter Developer Group
25
Hero animation
Main properties:
tag - identifies specific widget which needs to be
animated across consequent screens
Tag has to be unique in a widget tree!

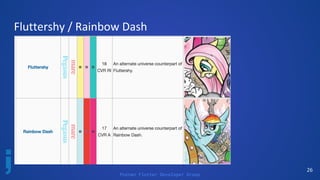

26. Poznan Flutter Developer Group
26
Fluttershy / Rainbow Dash

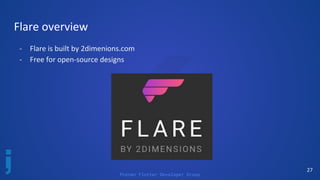

27. Poznan Flutter Developer Group
27
Flare overview
- Flare is built by 2dimenions.com
- Free for open-source designs

28. Poznan Flutter Developer Group
28

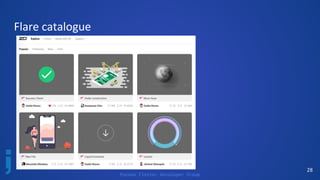

Flare catalogue

29. Poznan Flutter Developer Group
29

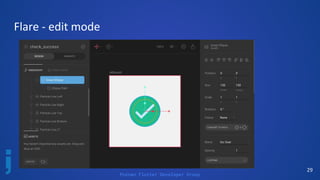

Flare - edit mode

30. Poznan Flutter Developer Group
30
Flare - edit mode
- easily import *.svg files
- edit layers, objects, paths
- define animations & states
- infinite loop animations
- basic concepts:
- stage
- nodes
- bones
- animations (design & animate mode)

31. Poznan Flutter Developer Group
31

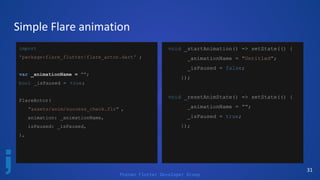

Simple Flare animation
import
'package:flare_flutter/flare_actor.dart' ;
var _animationName = "";
bool _isPaused = true;
FlareActor(
"assets/anim/success_check.flr" ,
animation: _animationName,
isPaused: _isPaused,
),
void _startAnimation() => setState(() {
_animationName = "Untitled";
_isPaused = false;
});
void _resetAnimState() => setState(() {
_animationName = "";
_isPaused = true;
});

32. Poznan Flutter Developer Group
32
FlareActor
Main properties:
filename - *.flr file location [String]
[e.g. ‘assets/anim/example.flr’]
animation - initial animation [String][Optional]
defined inside Flare
isPaused - animation state [Boolean]

33. Poznan Flutter Developer Group
33
Flare 2d transformations

34. Poznan Flutter Developer Group
34
Simple Nima animation
import 'package:nima/nima_actor.dart';
var _animationName = "idle";
NimaActor("assets/anim/robot.nma",
alignment: Alignment.center,
animation: _animationName),
)
// 'attack' , 'jump', 'idle'
void _startAnimation() => setState(() {
_animationName = "attack";
});
void _resetAnimState() => setState(() {
_animationName = "idle";
});
void _jumpAnimState() => setState(() {
_animationName = "jump";
});

35. Poznan Flutter Developer Group
35

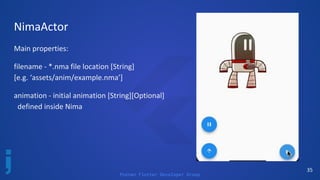

NimaActor
Main properties:
filename - *.nma file location [String]
[e.g. ‘assets/anim/example.nma’]
animation - initial animation [String][Optional]
defined inside Nima

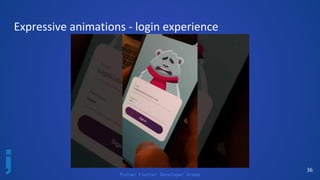

36. Poznan Flutter Developer Group
36
Expressive animations - login experience

37. Poznan Flutter Developer Group
37
Expressive animations

38. Poznan Flutter Developer Group
38

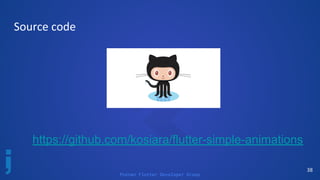

Source code
https://github.com/kosiara/flutter-simple-animations

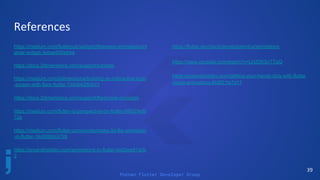

39. Poznan Flutter Developer Group
References
https://medium.com/flutterpub/widgetoftheweek-animatedcont
ainer-widget-3ebae930ebba
https://docs.2dimensions.com/support/tutorials
https://medium.com/2dimensions/building-an-interactive-login
-screen-with-flare-flutter-749db628bb51
https://docs.2dimensions.com/support/flare/core-concepts
https://medium.com/flutter-io/perspective-on-flutter-6f832f4d9
12e
https://medium.com/flutter-community/make-3d-flip-animation
-in-flutter-16c006bb3798
https://proandroiddev.com/animations-in-flutter-6e02ee91a0b
2
39
https://flutter.dev/docs/development/ui/animations
https://www.youtube.com/watch?v=LHZ0KSvTTqQ
https://proandroiddev.com/getting-your-hands-dirty-with-flutter
-basic-animations-6b9f21fa7d17

40. Poznan Flutter Developer Group
Summary
Bartosz Kosarzycki
Rafał Ślósarz
Poznań Flutter Developer Group
facebook.com/poznanflutter
40@bkosarzycki
