The document discusses AngularJS and provides an introduction and overview. It describes AngularJS as an open source JavaScript framework developed by Google that uses MVC architecture and data binding. It discusses key concepts like directives, scopes, controllers and views. It also covers communicating with servers using $http and $resource, and provides an example of writing a custom directive to wrap the jQuery DataTables plugin.

1. 1
AngularJS - CloudVis Technology
AngularJS Framework
Tăng Phú
phutang@cloudvis.vn
Technical Leader @ CloudVis Technology

2. 2
AngularJS - CloudVis Technology

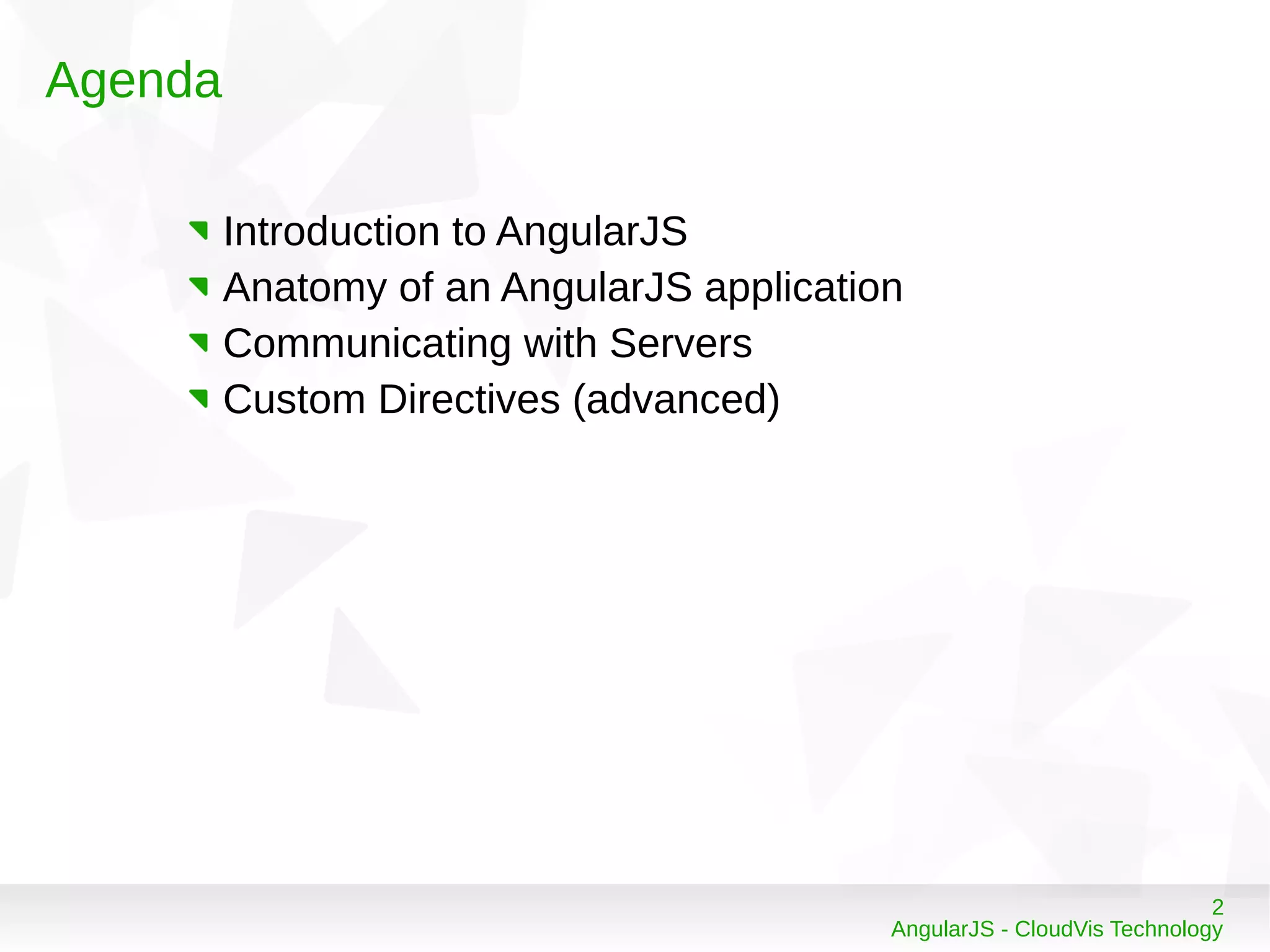

Agenda
Introduction to AngularJS
Anatomy of an AngularJS application
Communicating with Servers
Custom Directives (advanced)

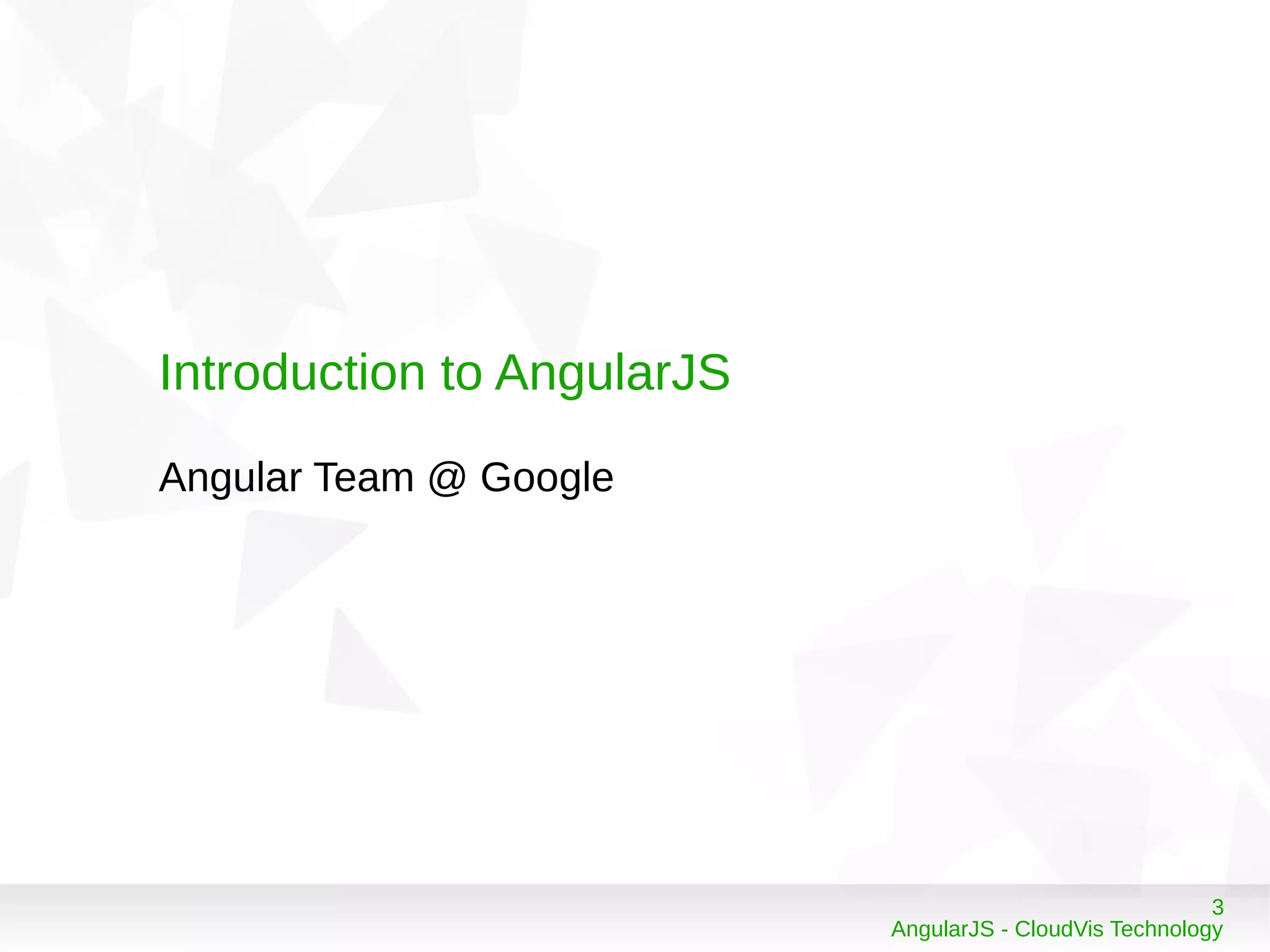

3. 3
AngularJS - CloudVis Technology
Introduction to AngularJS
Angular Team @ Google

4. 4
AngularJS - CloudVis Technology

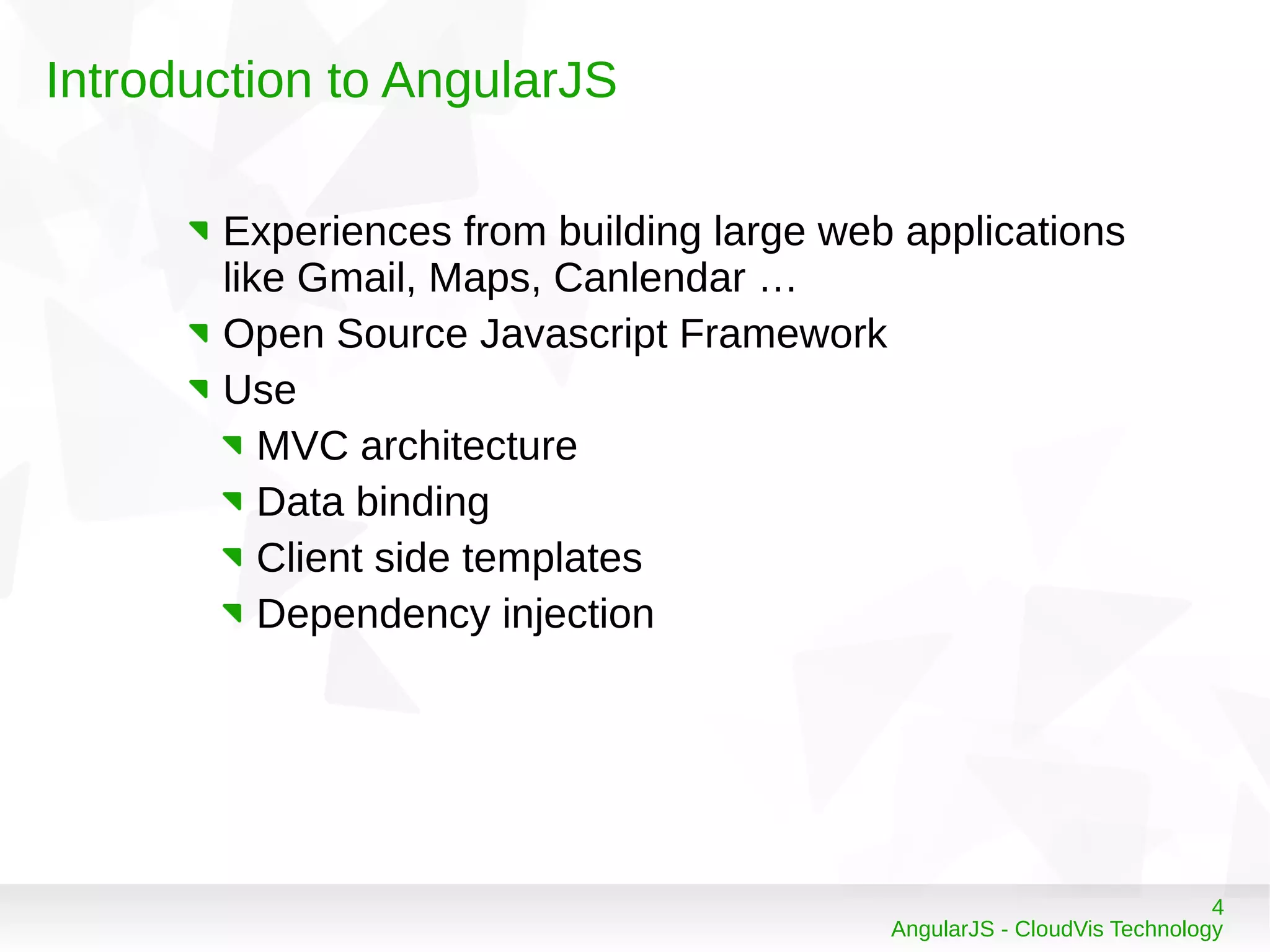

Introduction to AngularJS
Experiences from building large web applications
like Gmail, Maps, Canlendar …
Open Source Javascript Framework
Use
MVC architecture
Data binding
Client side templates
Dependency injection

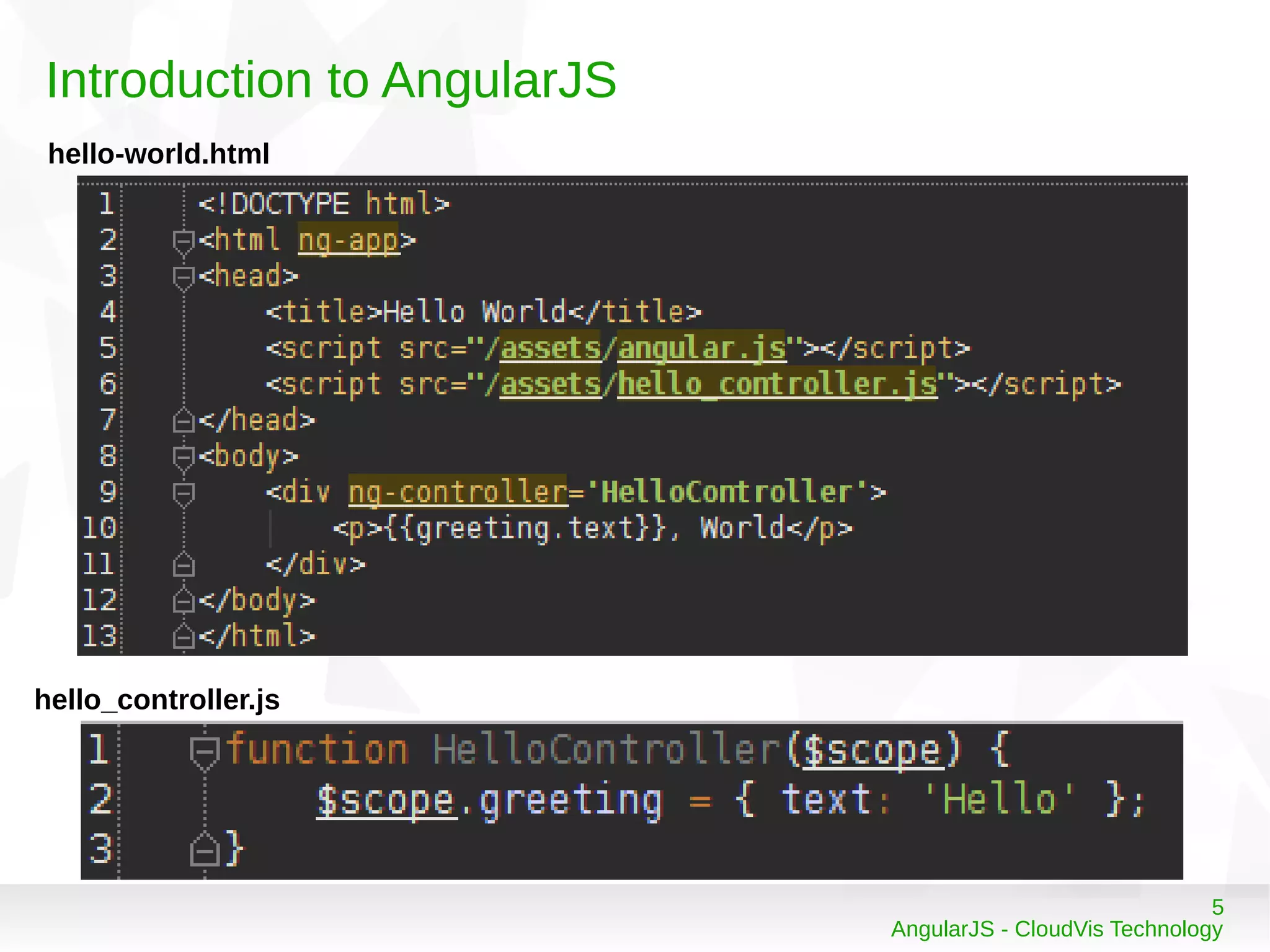

5. 5
AngularJS - CloudVis Technology
Introduction to AngularJS
hello-world.html
hello_controller.js

6. 6
AngularJS - CloudVis Technology

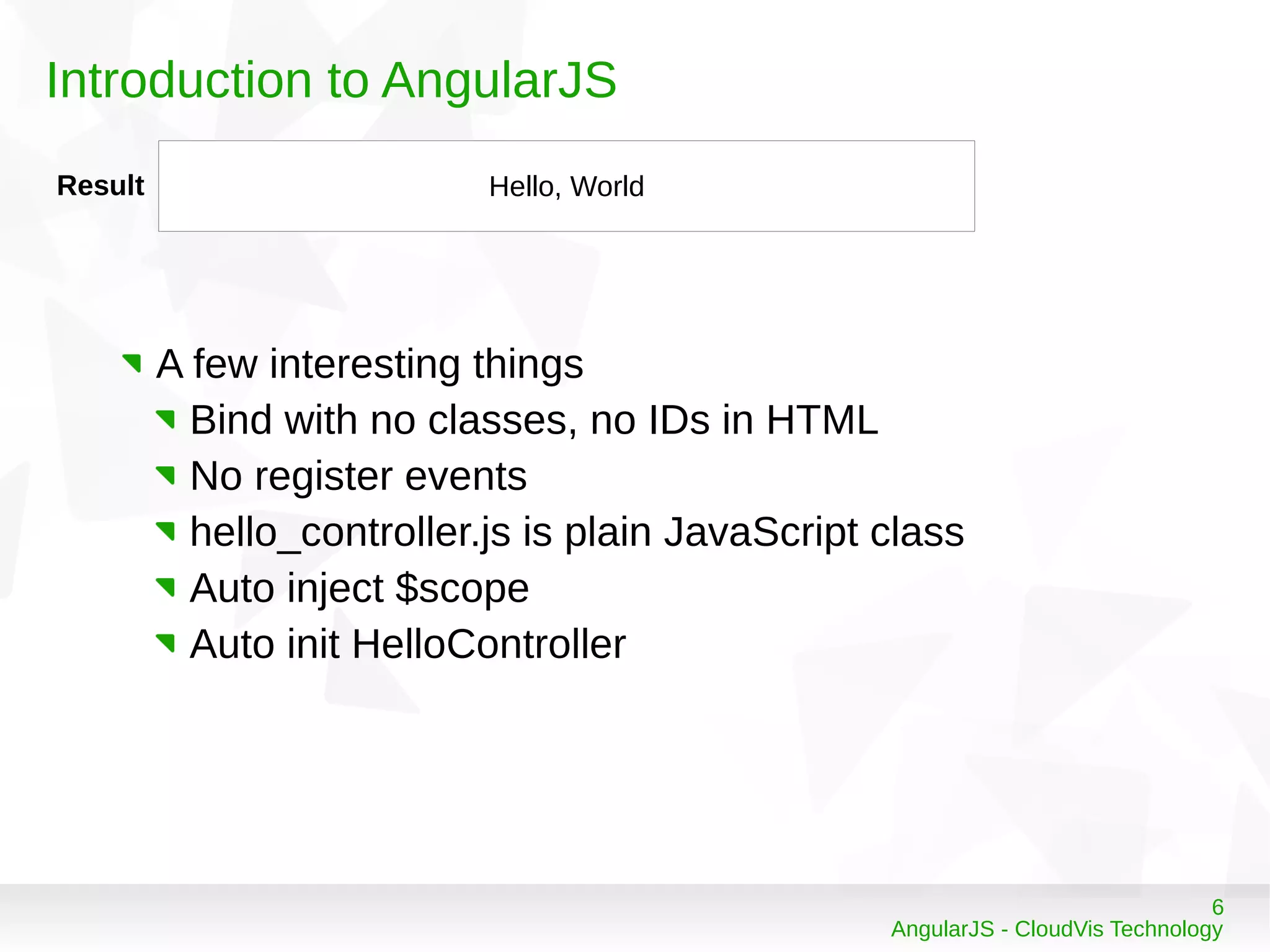

Introduction to AngularJS
Result Hello, World
A few interesting things
Bind with no classes, no IDs in HTML
No register events
hello_controller.js is plain JavaScript class
Auto inject $scope
Auto init HelloController

7. 7

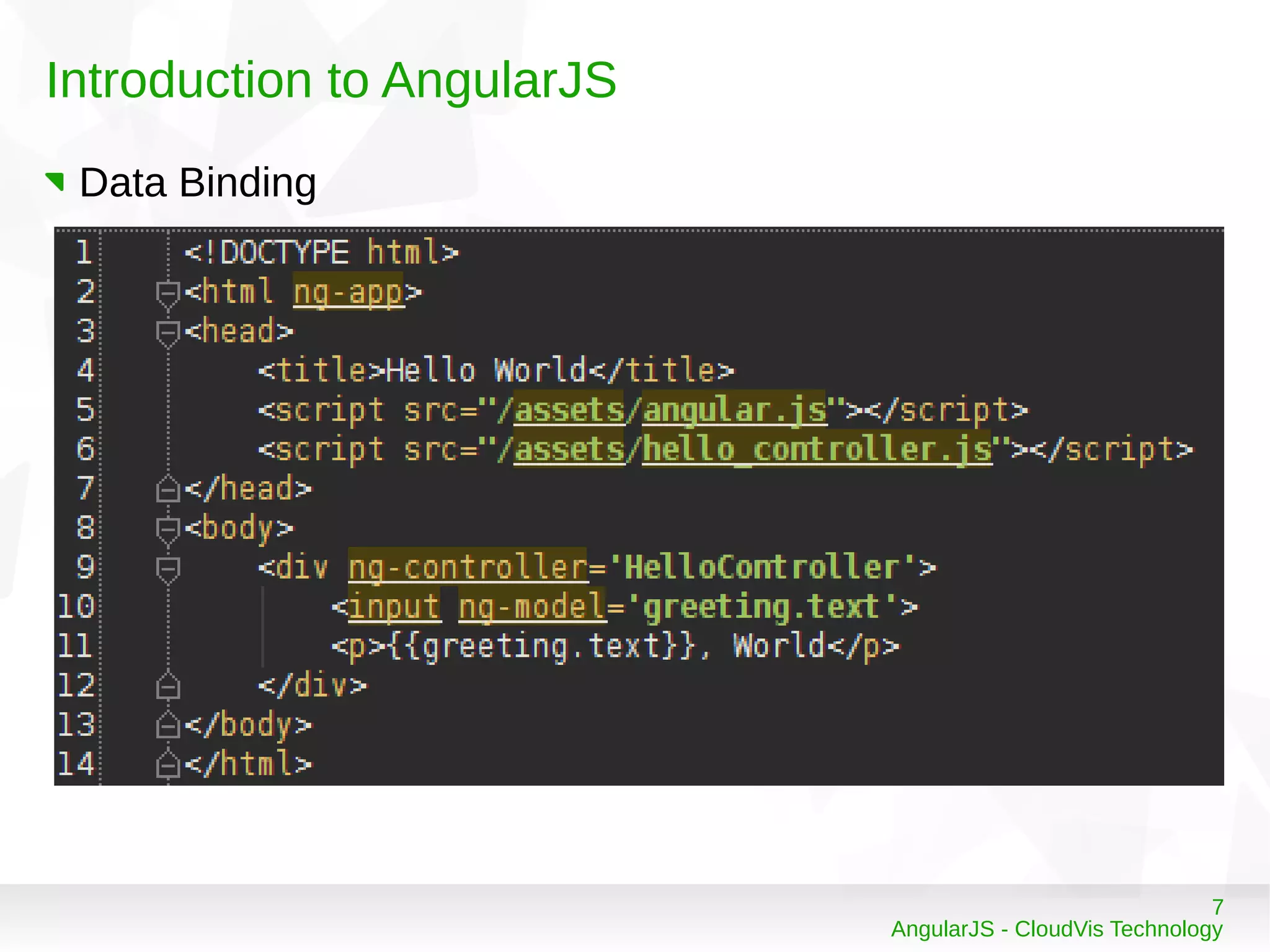

AngularJS - CloudVis Technology
Introduction to AngularJS
Data Binding

8. 8

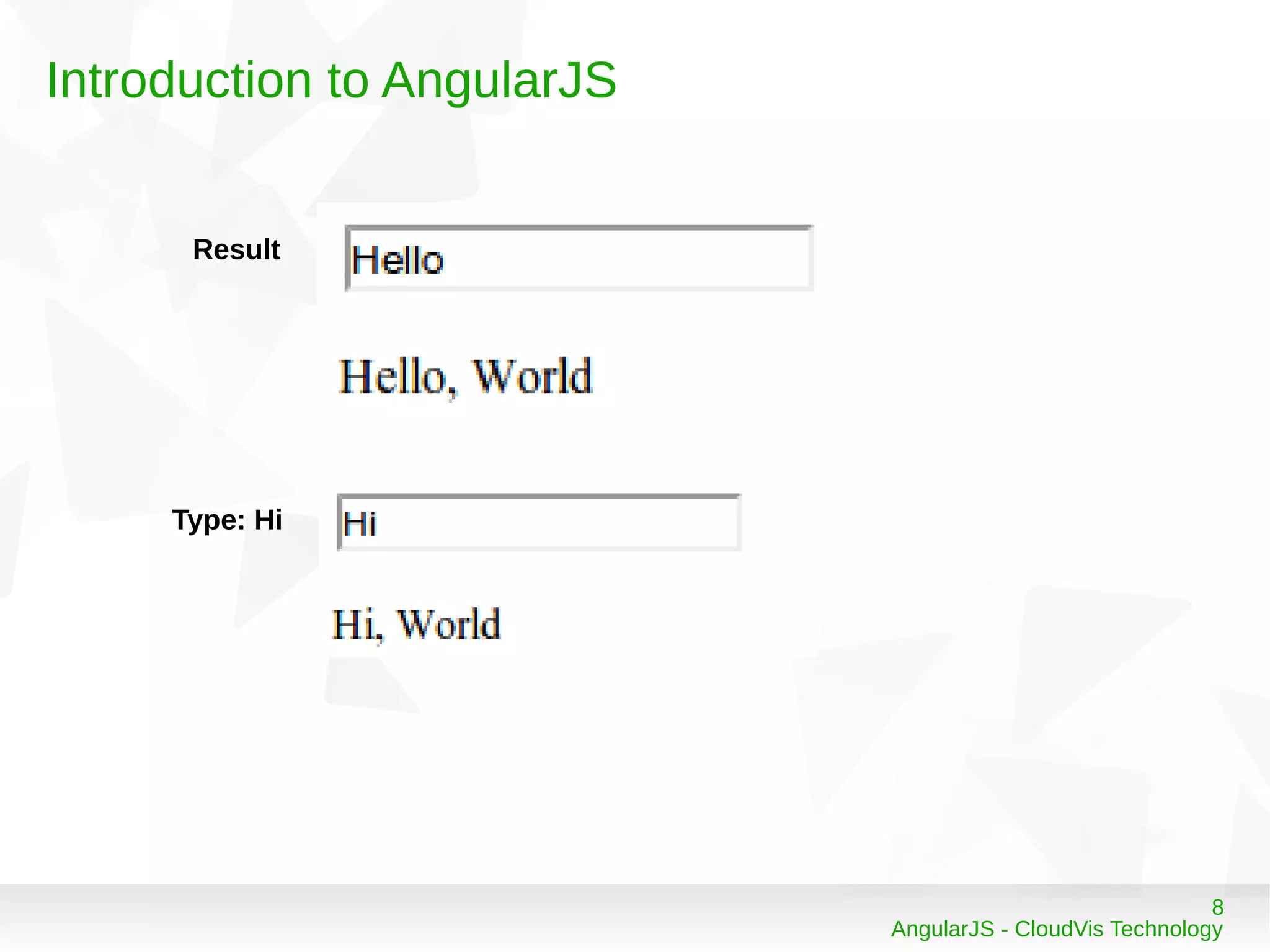

AngularJS - CloudVis Technology
Introduction to AngularJS
Result
Type: Hi

9. 9
AngularJS - CloudVis Technology

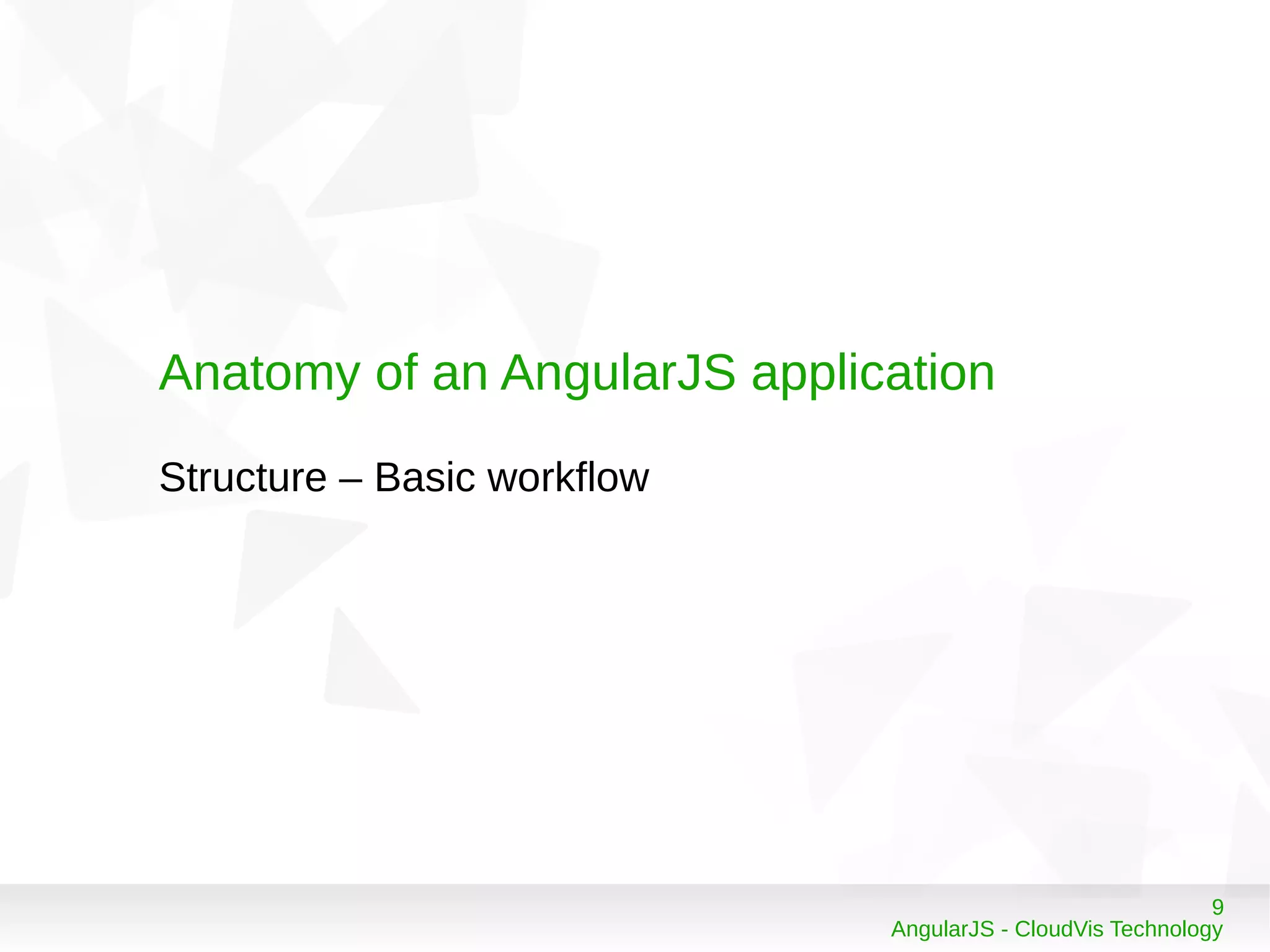

Anatomy of an AngularJS application
Structure – Basic workflow

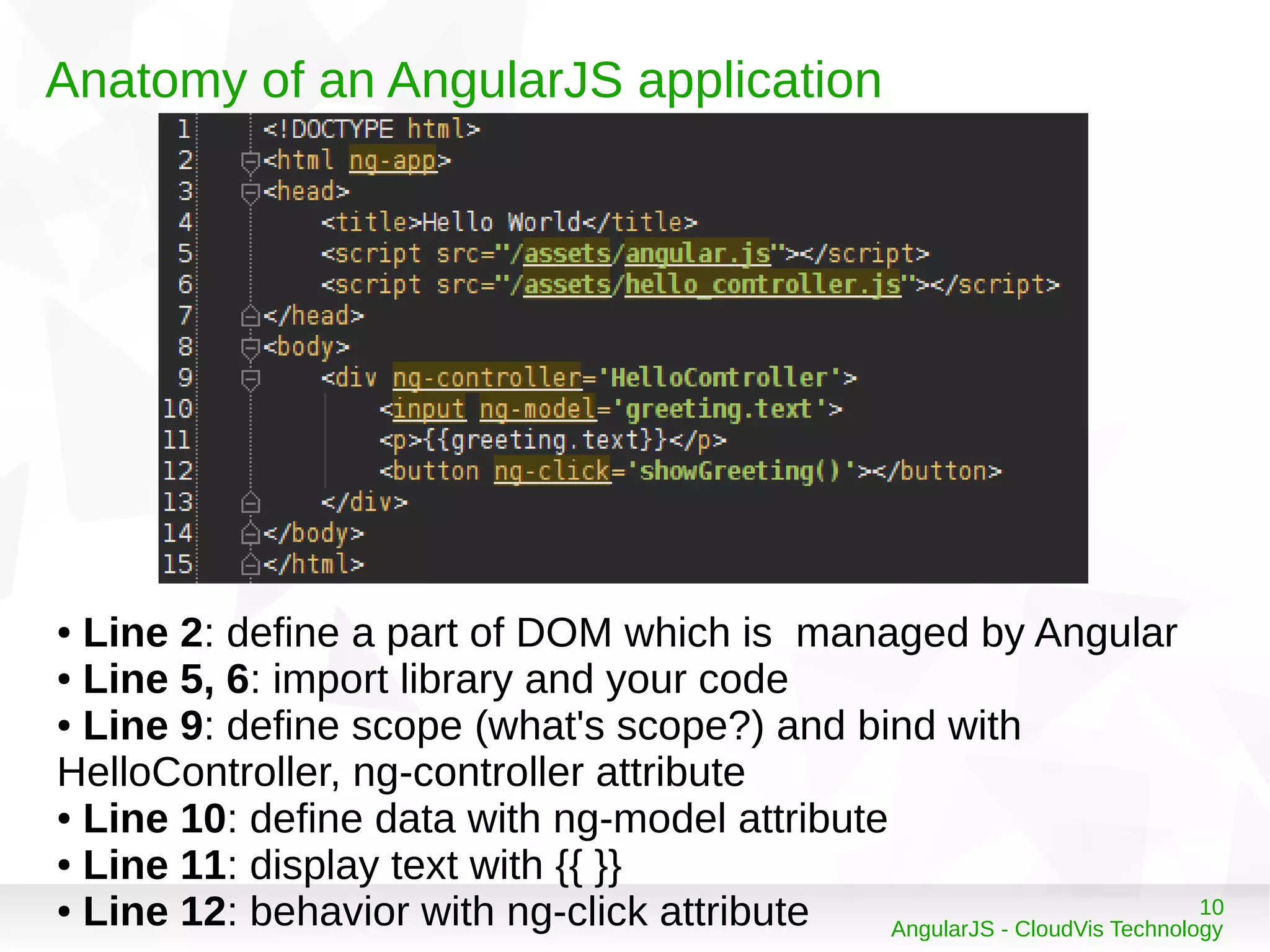

10. 10
AngularJS - CloudVis Technology
Anatomy of an AngularJS application
● Line 2: define a part of DOM which is managed by Angular
● Line 5, 6: import library and your code
● Line 9: define scope (what's scope?) and bind with
HelloController, ng-controller attribute
● Line 10: define data with ng-model attribute
● Line 11: display text with {{ }}
● Line 12: behavior with ng-click attribute

11. 11

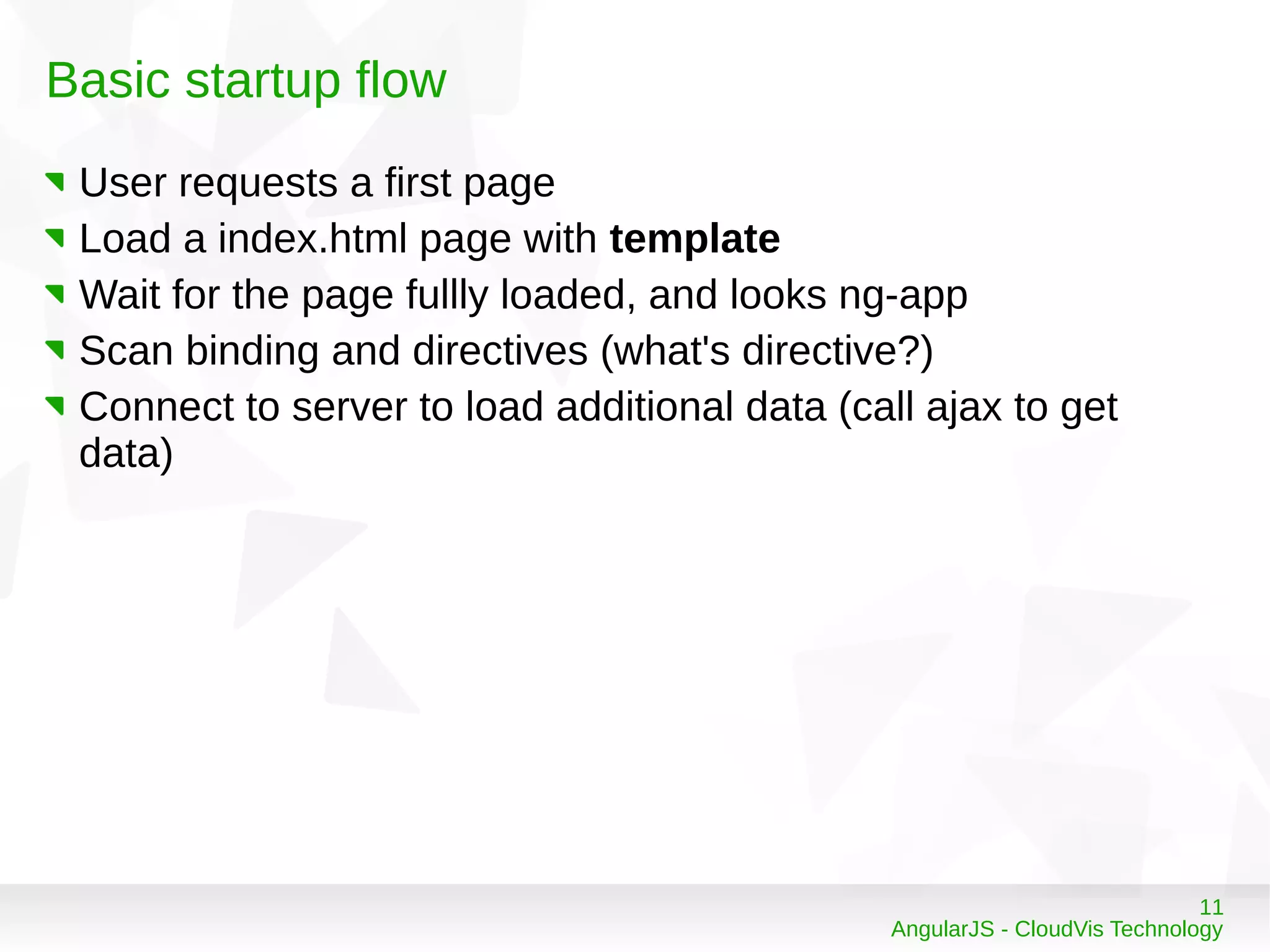

AngularJS - CloudVis Technology
Basic startup flow
User requests a first page
Load a index.html page with template
Wait for the page fullly loaded, and looks ng-app
Scan binding and directives (what's directive?)
Connect to server to load additional data (call ajax to get
data)

12. 12

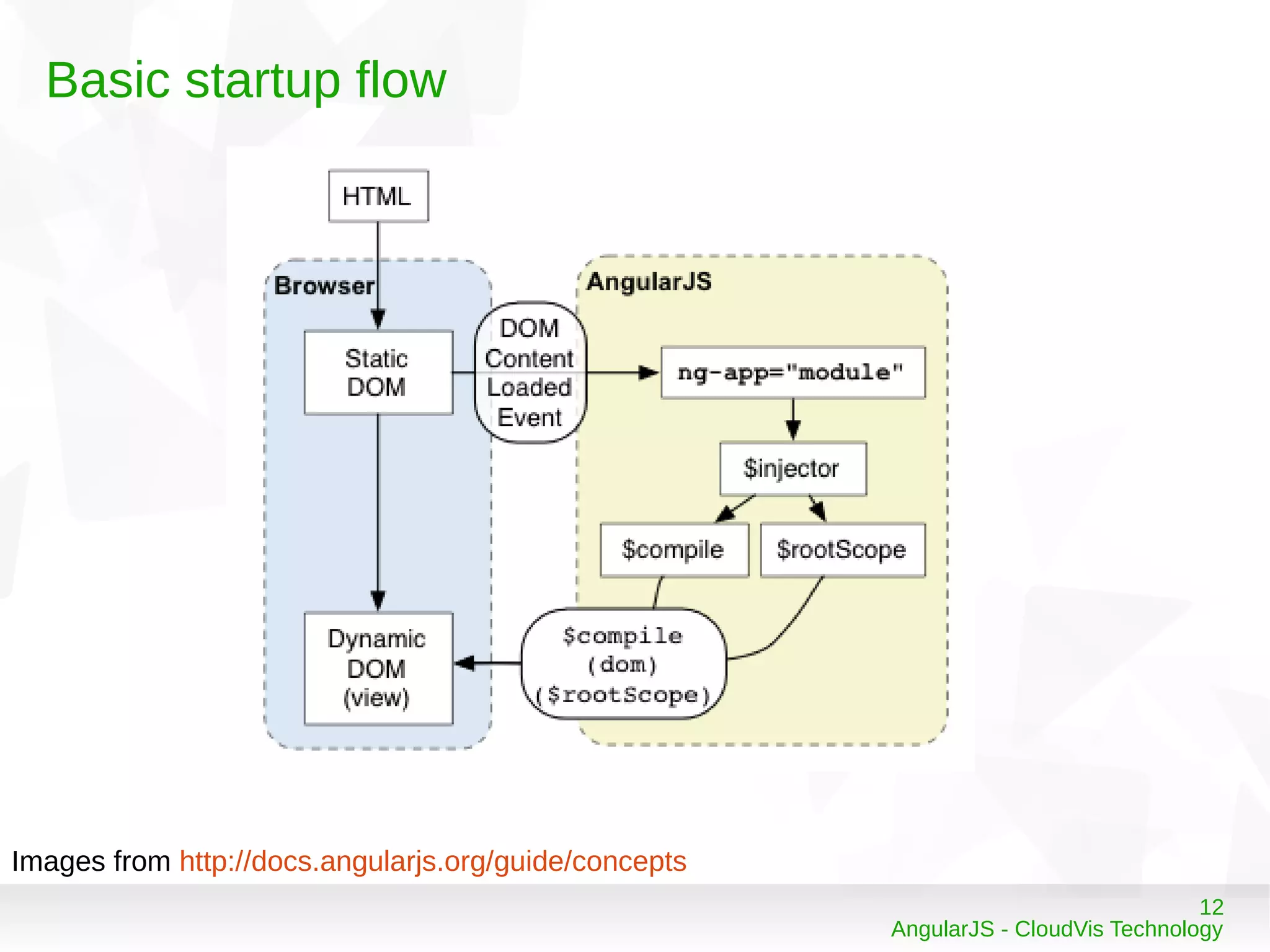

AngularJS - CloudVis Technology
Basic startup flow
Images from http://docs.angularjs.org/guide/concepts

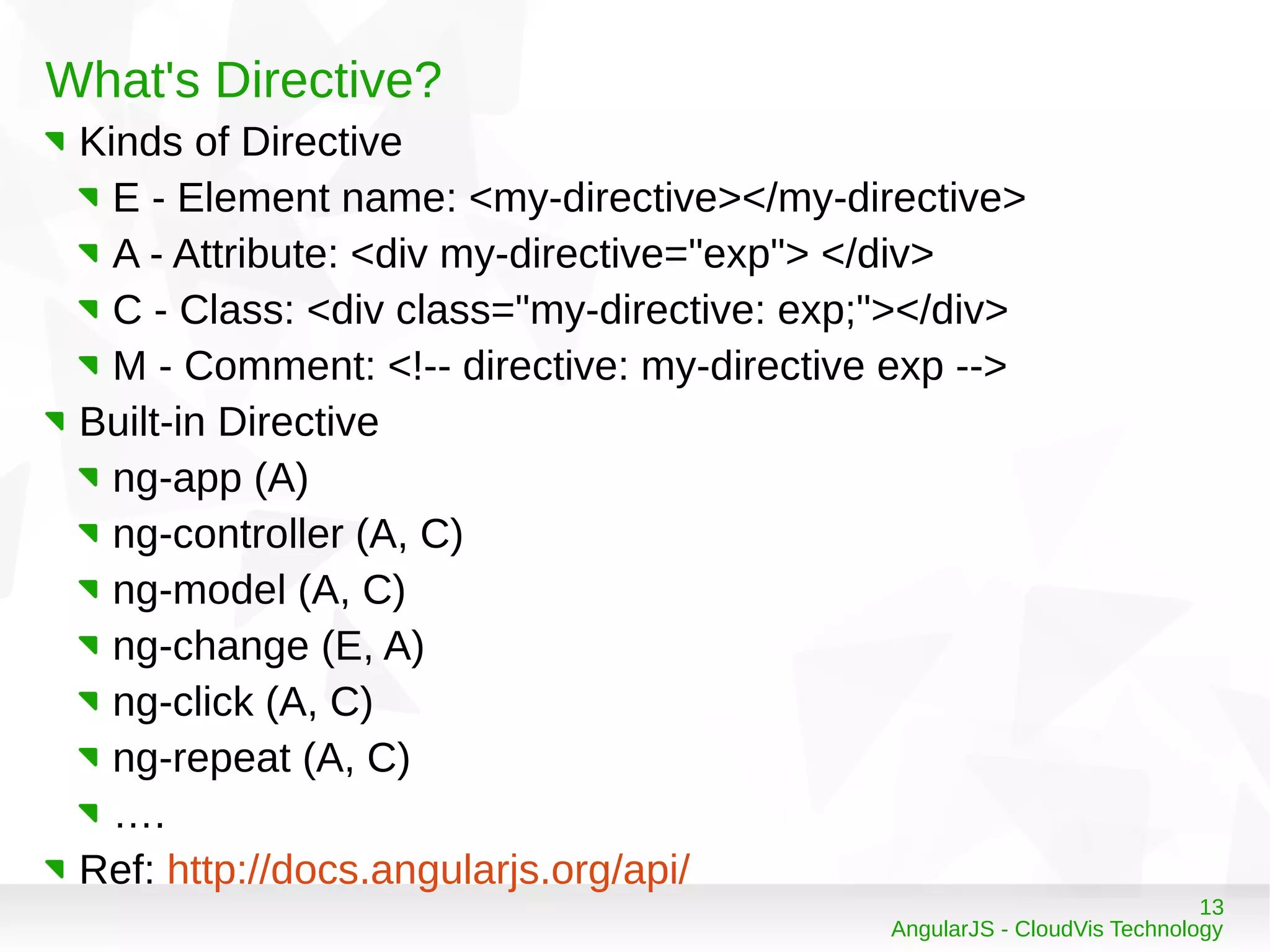

13. 13
AngularJS - CloudVis Technology
What's Directive?
Kinds of Directive
E - Element name: <my-directive></my-directive>
A - Attribute: <div my-directive="exp"> </div>
C - Class: <div class="my-directive: exp;"></div>
M - Comment: <!-- directive: my-directive exp -->
Built-in Directive
ng-app (A)
ng-controller (A, C)
ng-model (A, C)
ng-change (E, A)
ng-click (A, C)
ng-repeat (A, C)
….
Ref: http://docs.angularjs.org/api/

14. 14
AngularJS - CloudVis Technology

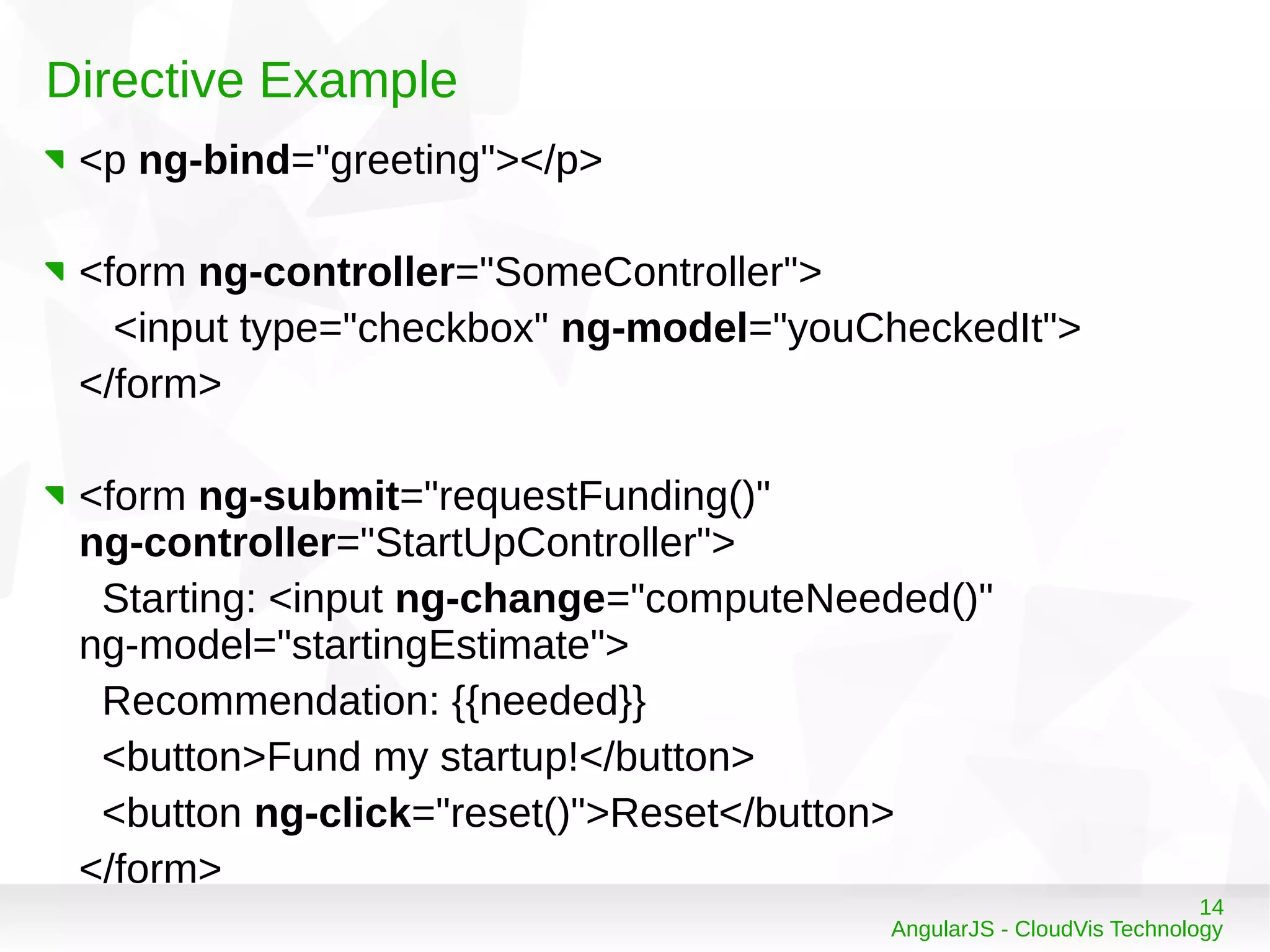

Directive Example
<p ng-bind="greeting"></p>
<form ng-controller="SomeController">
<input type="checkbox" ng-model="youCheckedIt">
</form>
<form ng-submit="requestFunding()"
ng-controller="StartUpController">
Starting: <input ng-change="computeNeeded()"
ng-model="startingEstimate">
Recommendation: {{needed}}
<button>Fund my startup!</button>
<button ng-click="reset()">Reset</button>
</form>

15. 15
AngularJS - CloudVis Technology

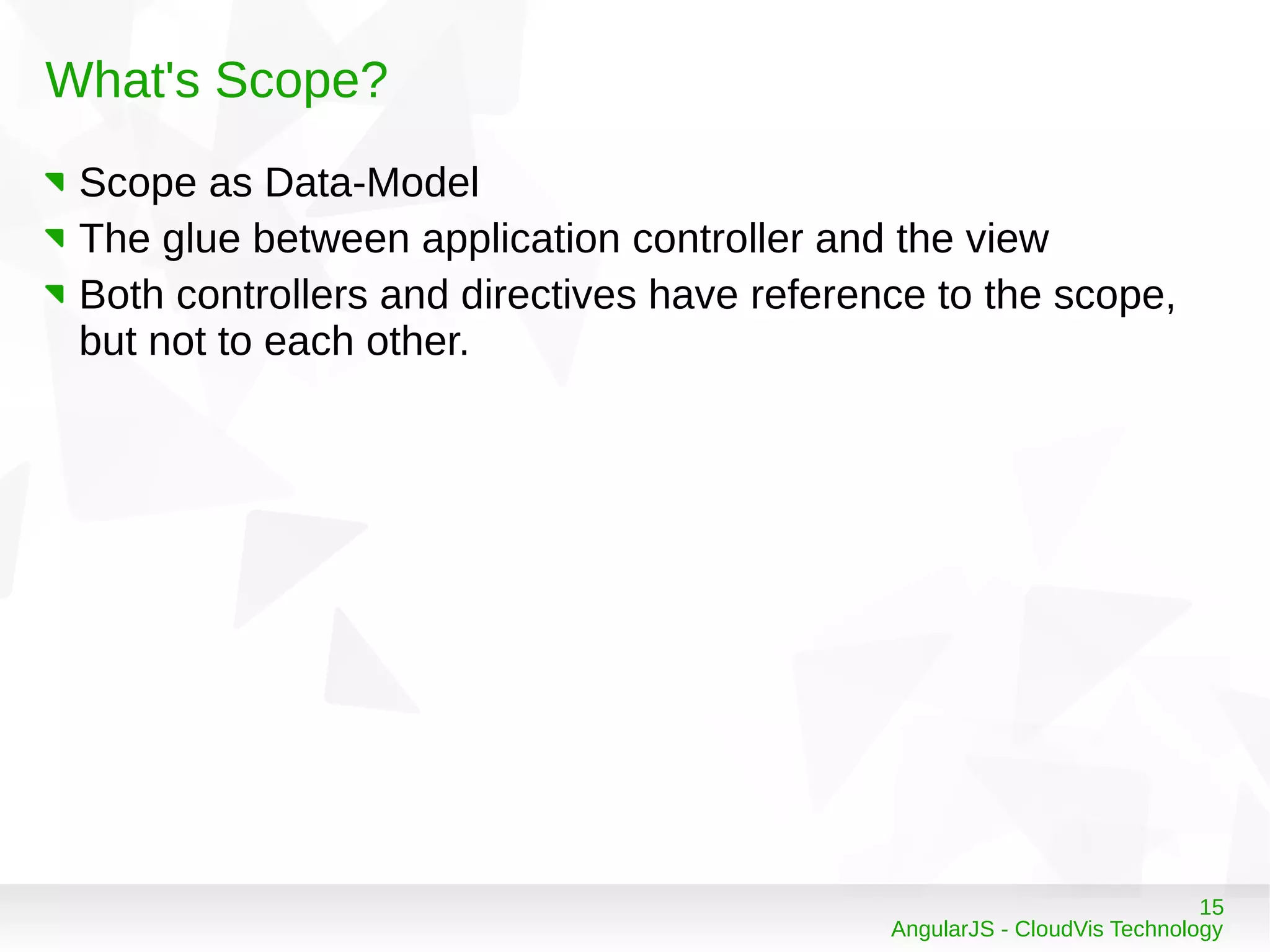

What's Scope?
Scope as Data-Model
The glue between application controller and the view
Both controllers and directives have reference to the scope,
but not to each other.

16. 16
AngularJS - CloudVis Technology

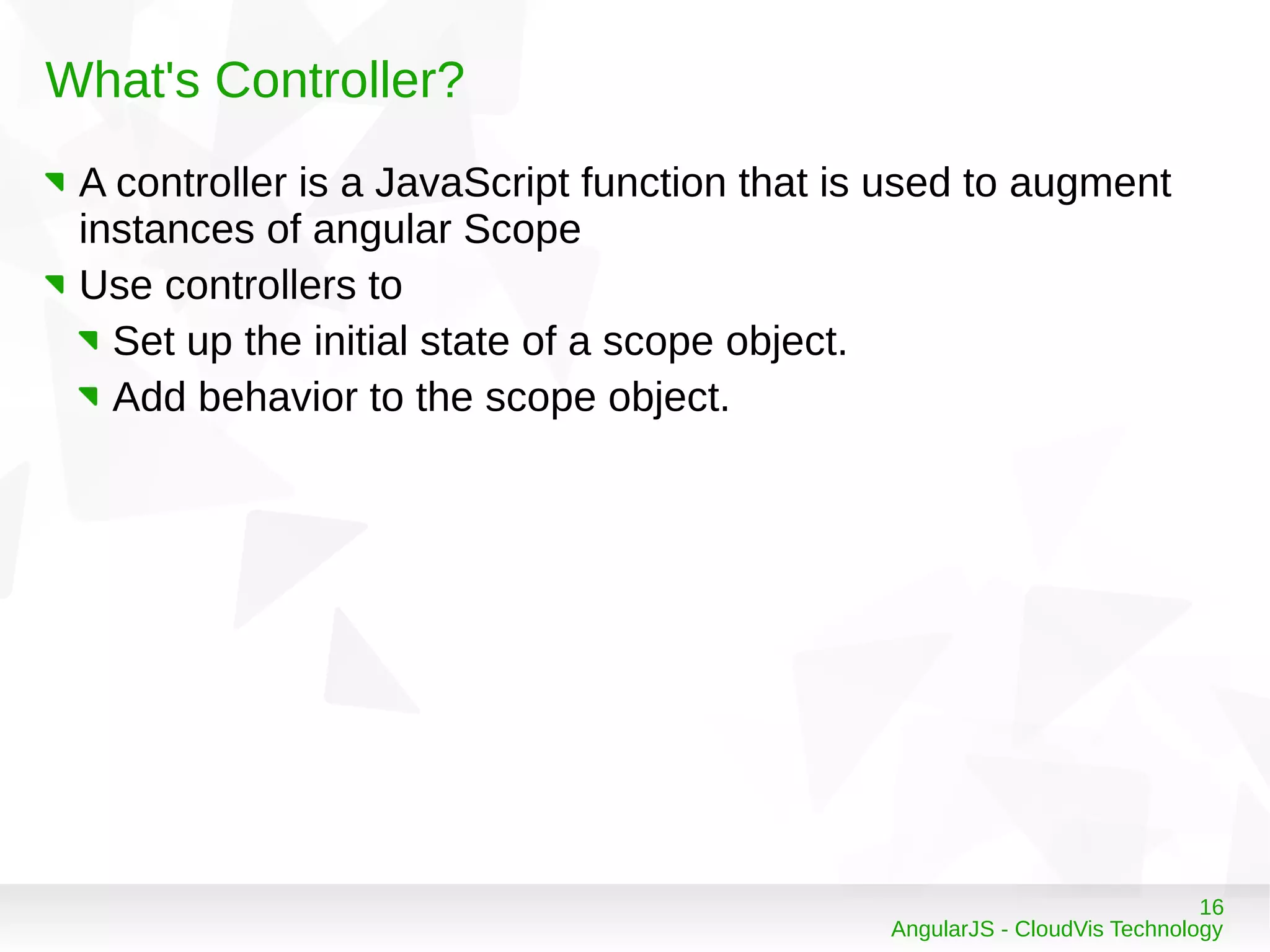

What's Controller?
A controller is a JavaScript function that is used to augment
instances of angular Scope
Use controllers to
Set up the initial state of a scope object.
Add behavior to the scope object.

17. 17
AngularJS - CloudVis Technology

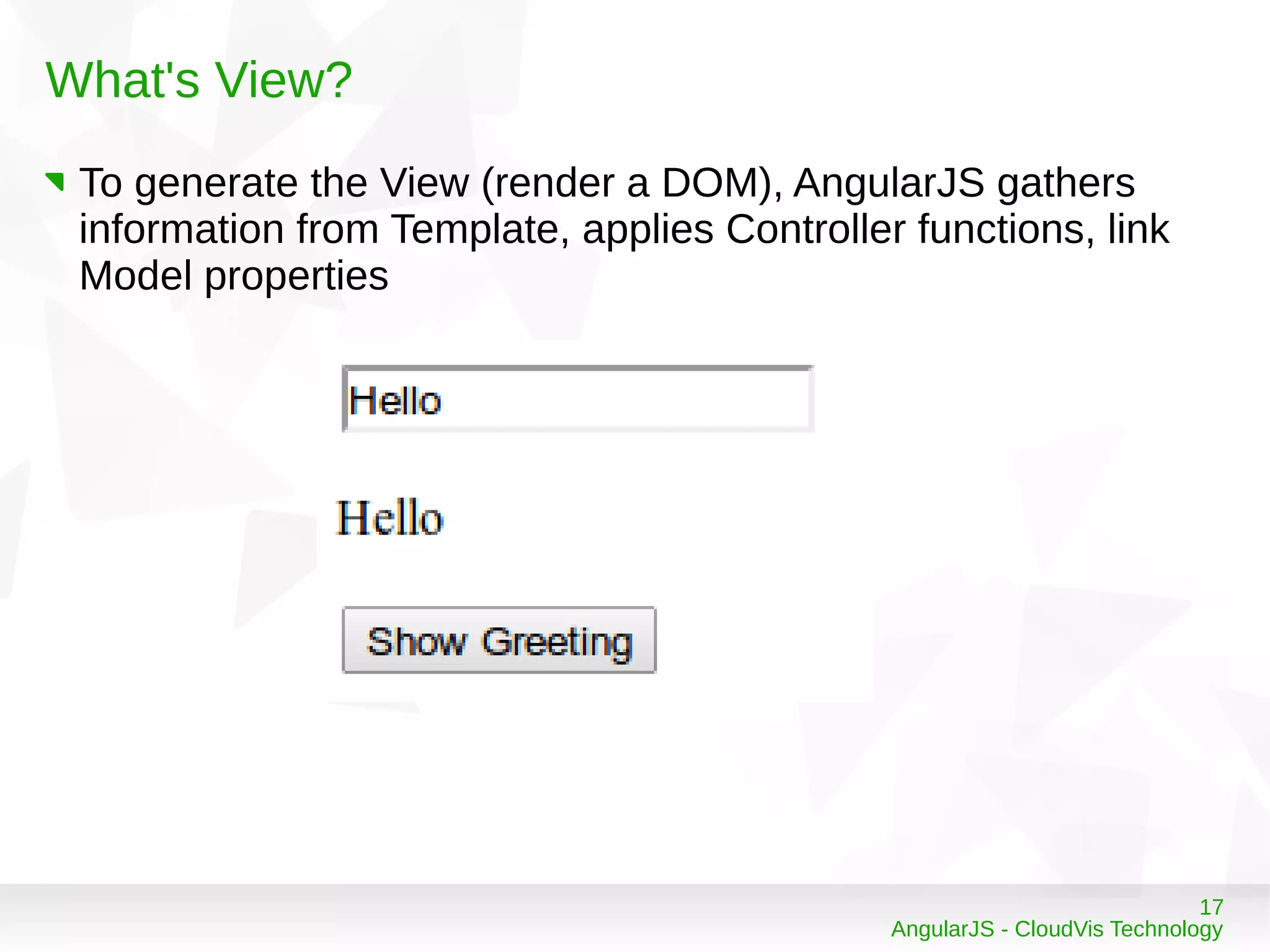

What's View?
To generate the View (render a DOM), AngularJS gathers
information from Template, applies Controller functions, link
Model properties

18. 18

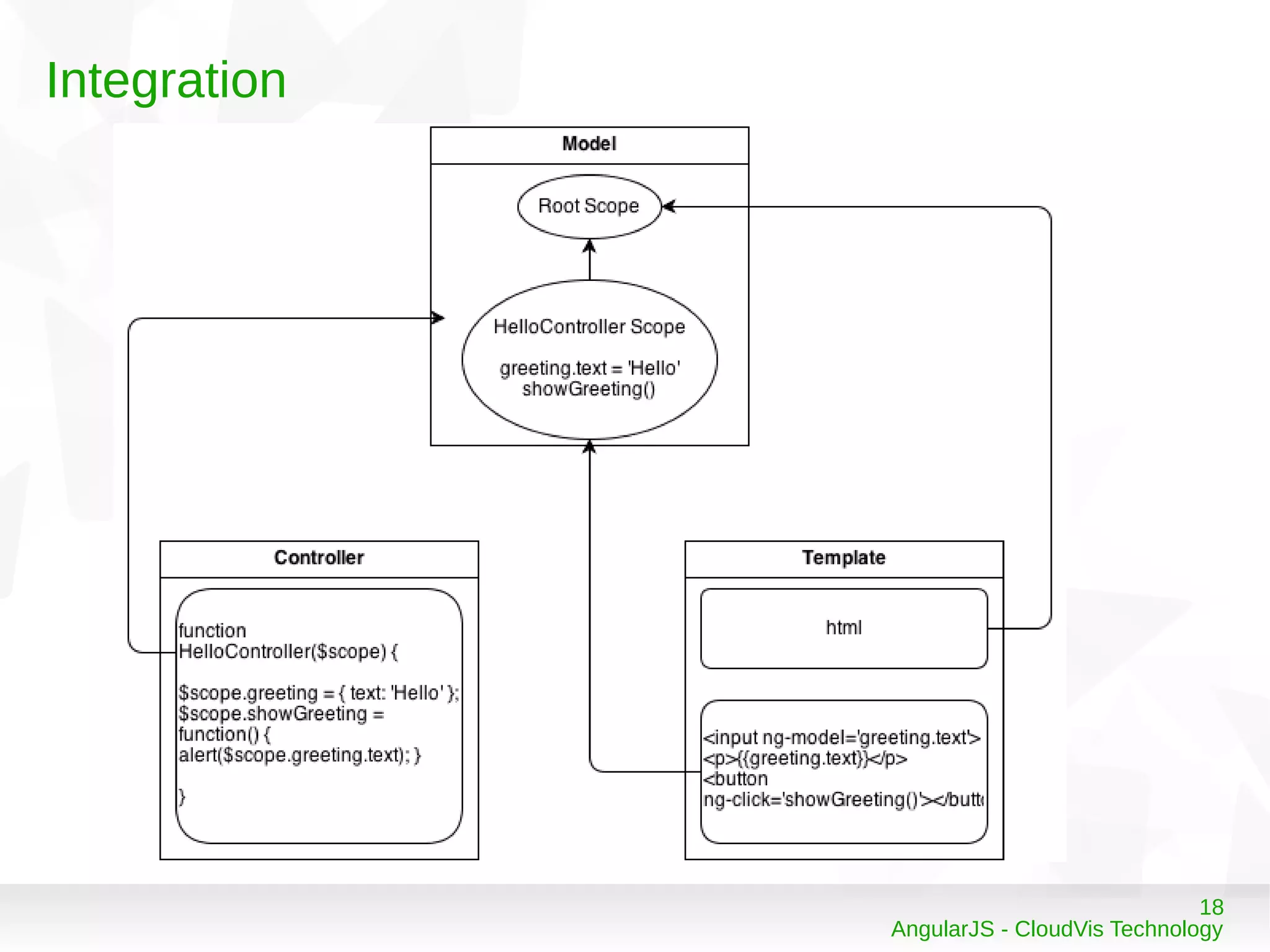

AngularJS - CloudVis Technology
Integration

19. 19
AngularJS - CloudVis Technology

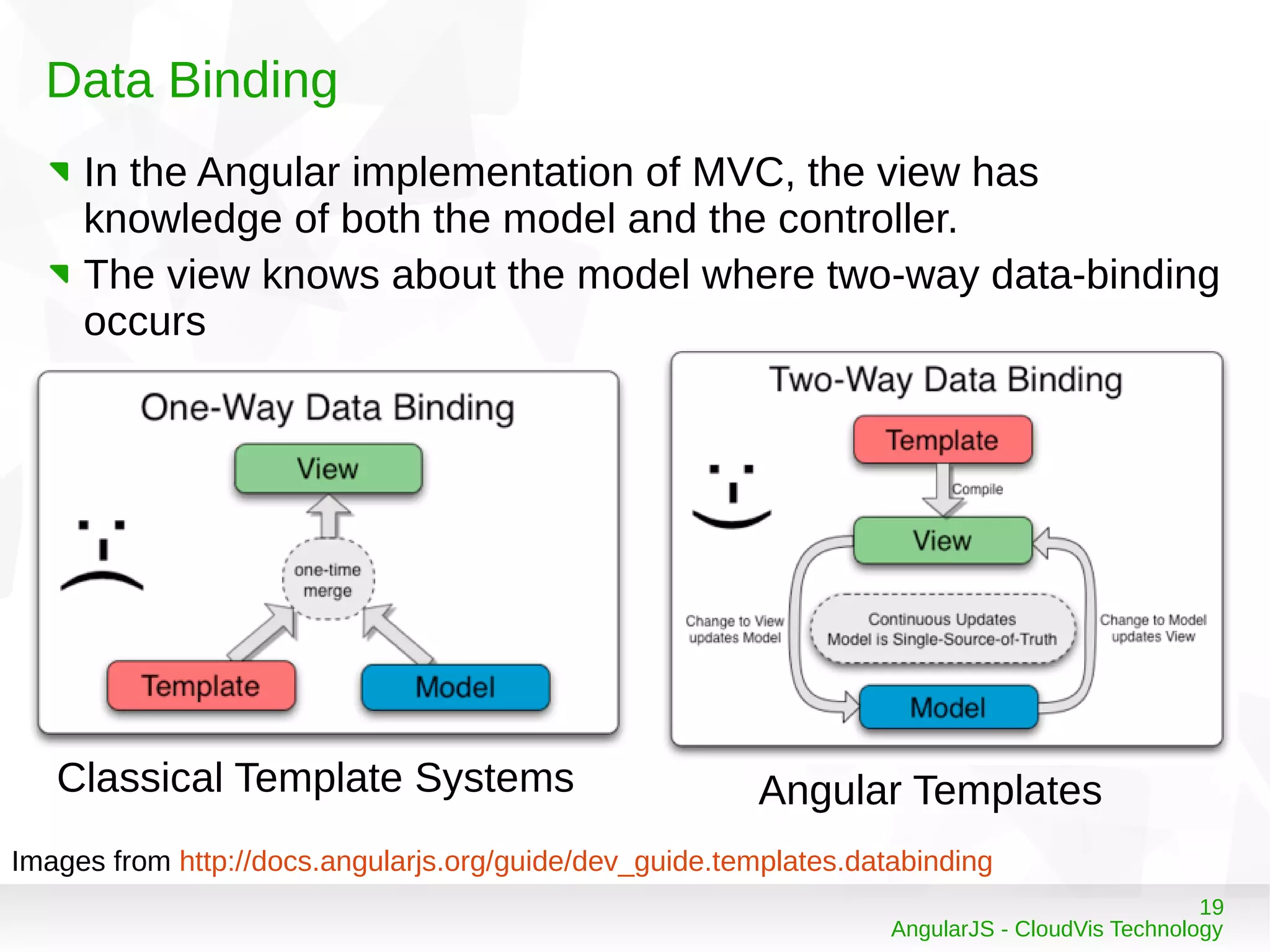

Data Binding
In the Angular implementation of MVC, the view has
knowledge of both the model and the controller.
The view knows about the model where two-way data-binding
occurs
Images from http://docs.angularjs.org/guide/dev_guide.templates.databinding
Classical Template Systems Angular Templates

20. 20
AngularJS - CloudVis Technology

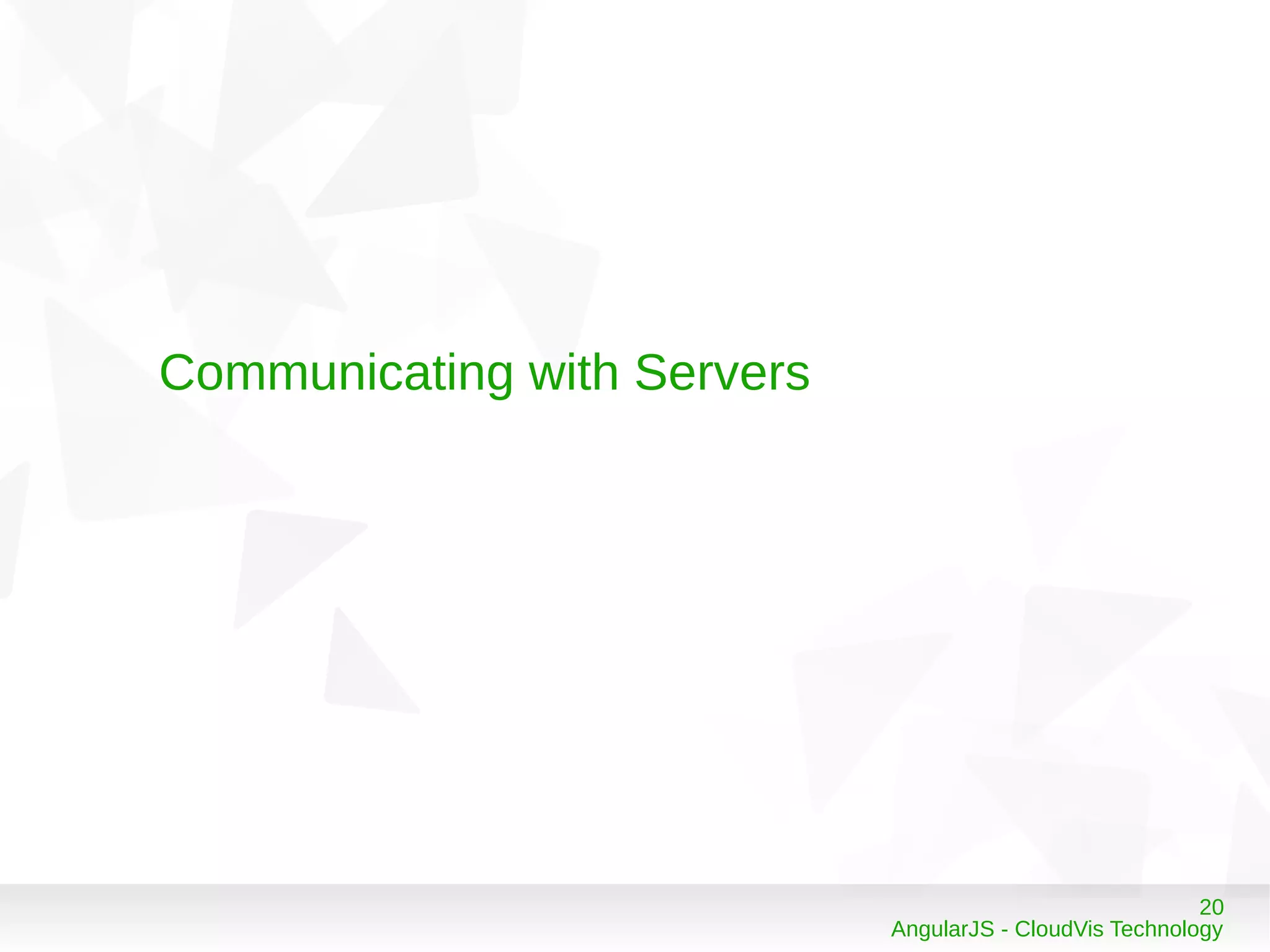

Communicating with Servers

21. 21
AngularJS - CloudVis Technology

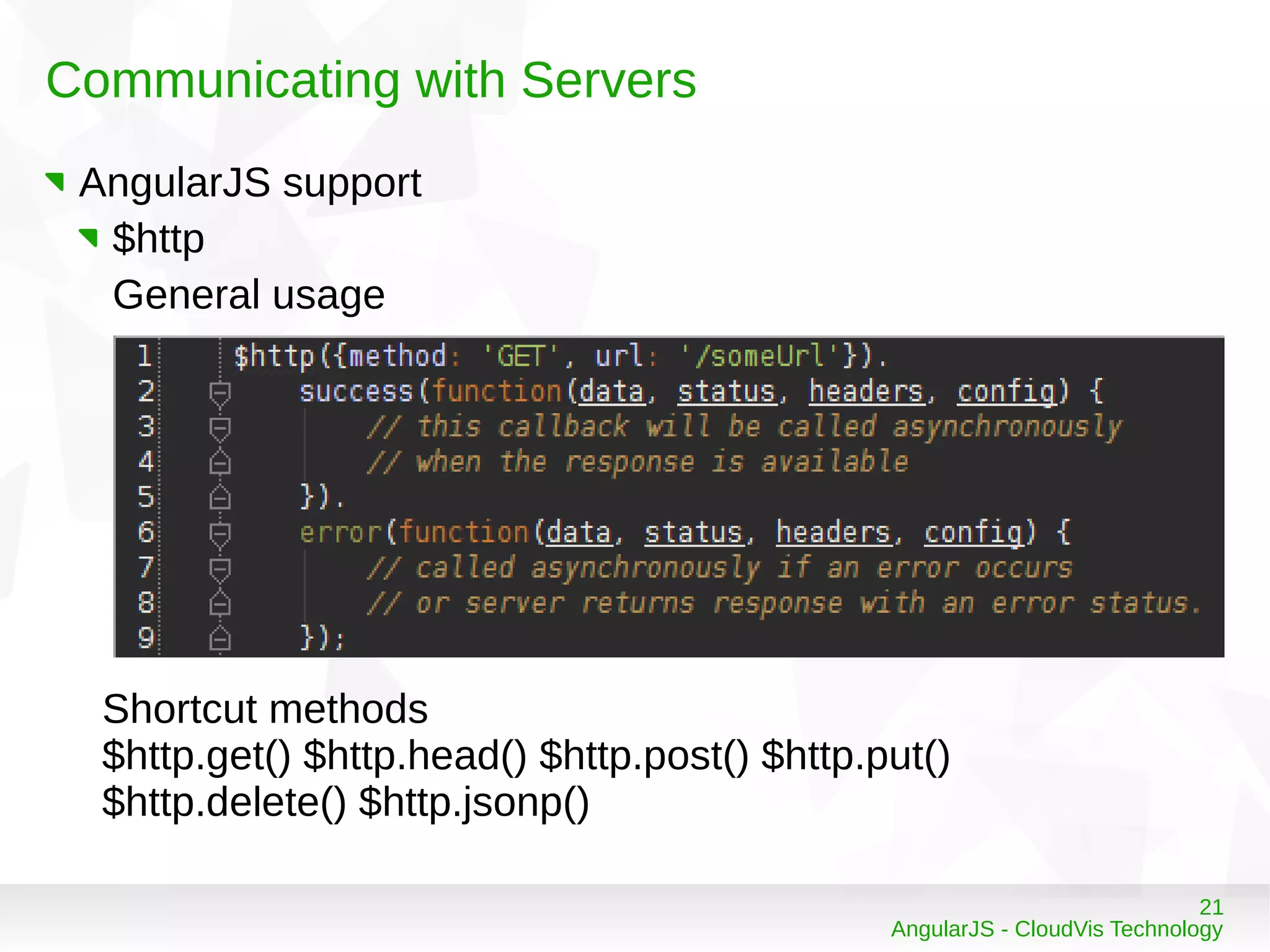

Communicating with Servers
AngularJS support
$http
General usage
Shortcut methods
$http.get() $http.head() $http.post() $http.put()
$http.delete() $http.jsonp()

22. 22

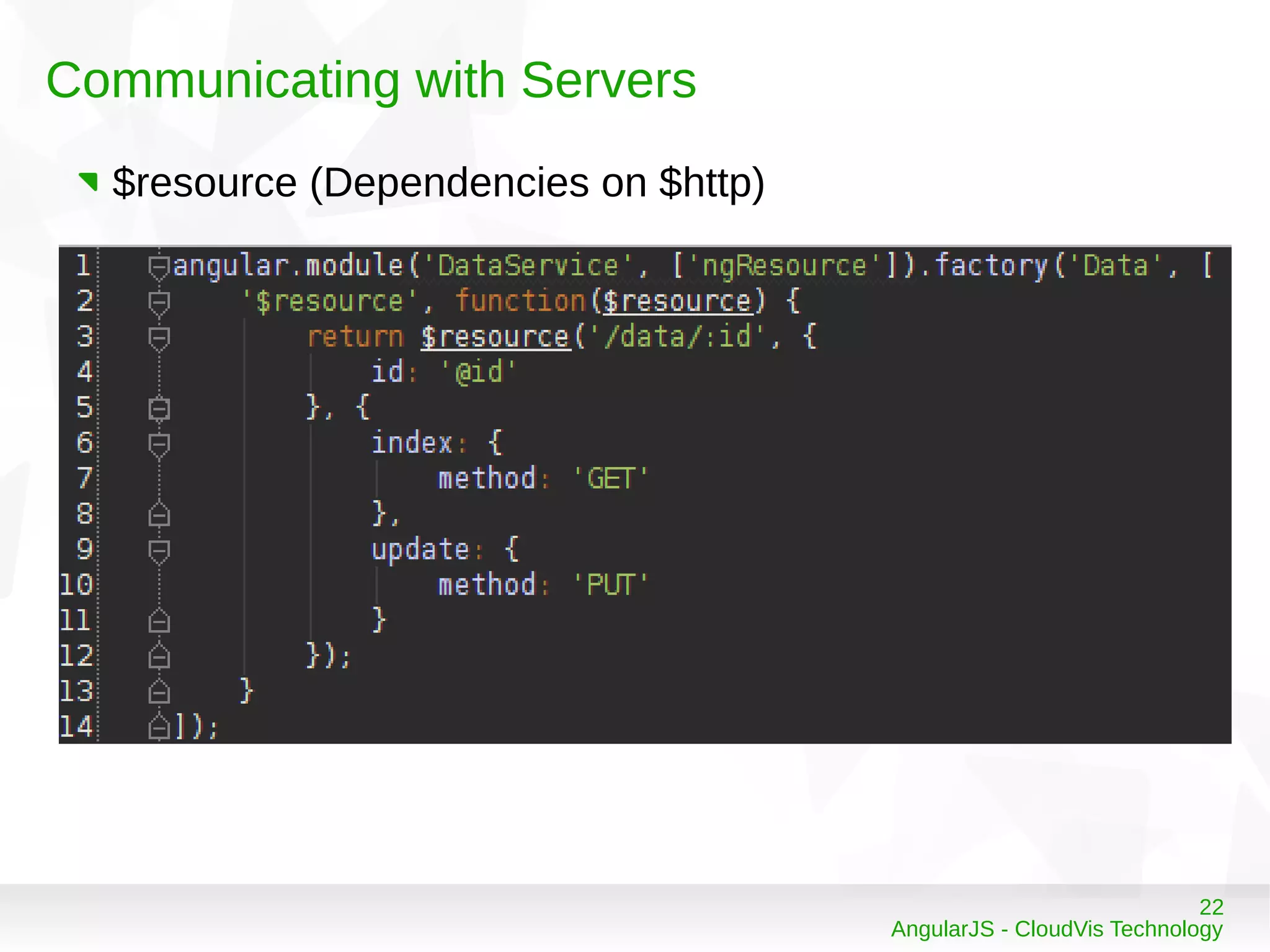

AngularJS - CloudVis Technology
Communicating with Servers
$resource (Dependencies on $http)

23. 23

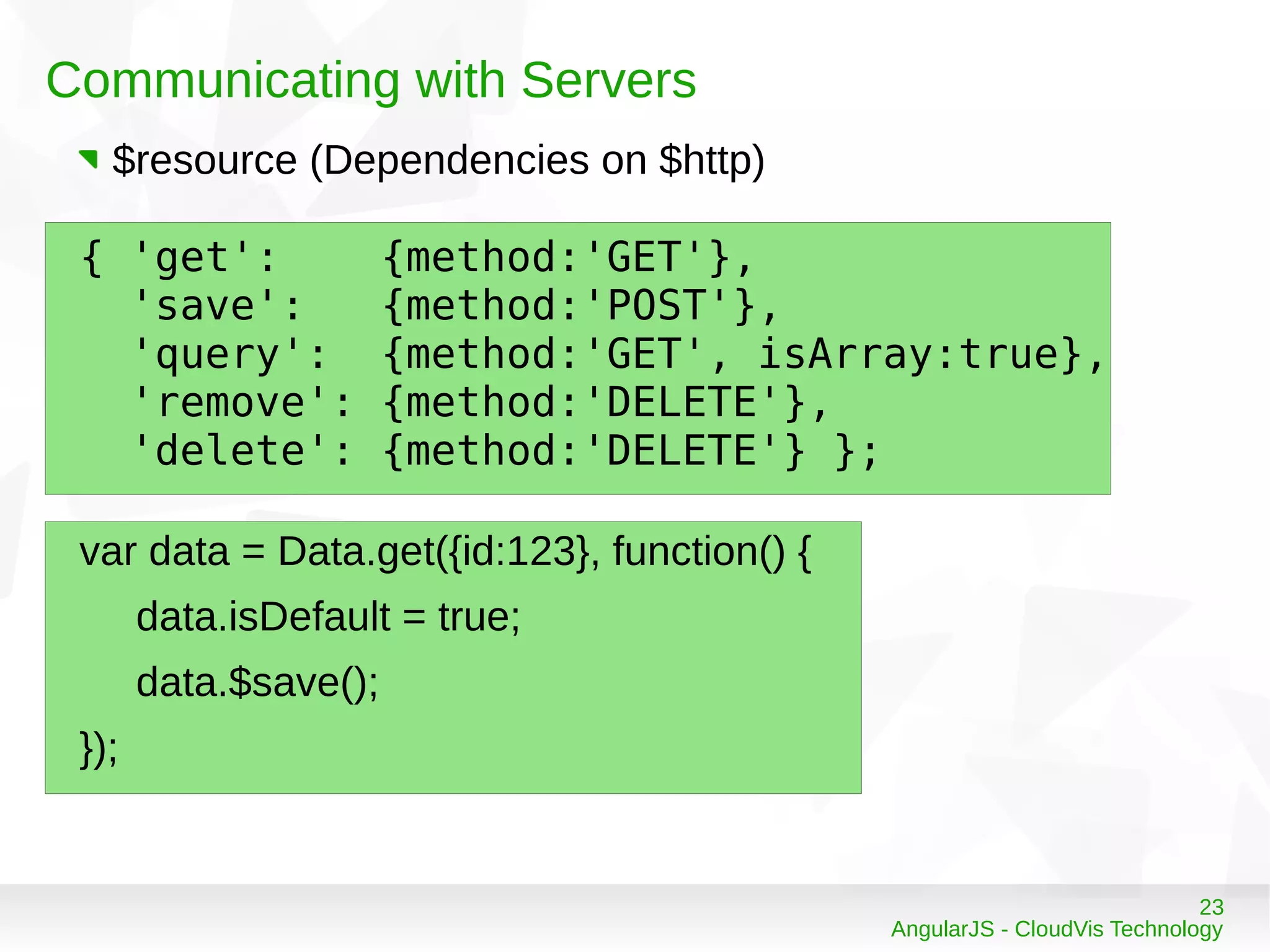

AngularJS - CloudVis Technology
Communicating with Servers
var data = Data.get({id:123}, function() {
data.isDefault = true;
data.$save();
});
{ 'get': {method:'GET'},
'save': {method:'POST'},
'query': {method:'GET', isArray:true},
'remove': {method:'DELETE'},
'delete': {method:'DELETE'} };
$resource (Dependencies on $http)

24. 24
AngularJS - CloudVis Technology

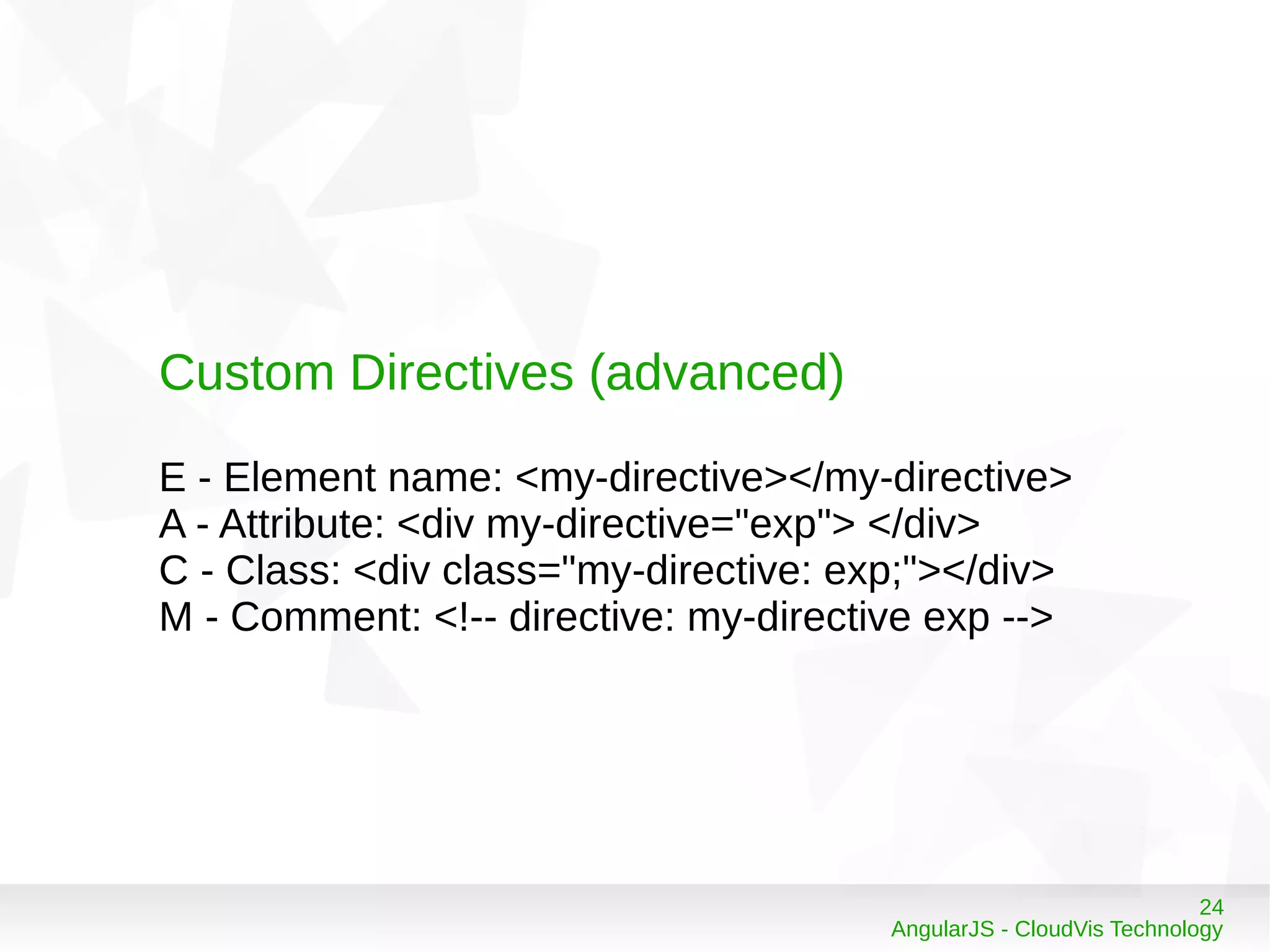

Custom Directives (advanced)
E - Element name: <my-directive></my-directive>
A - Attribute: <div my-directive="exp"> </div>
C - Class: <div class="my-directive: exp;"></div>
M - Comment: <!-- directive: my-directive exp -->

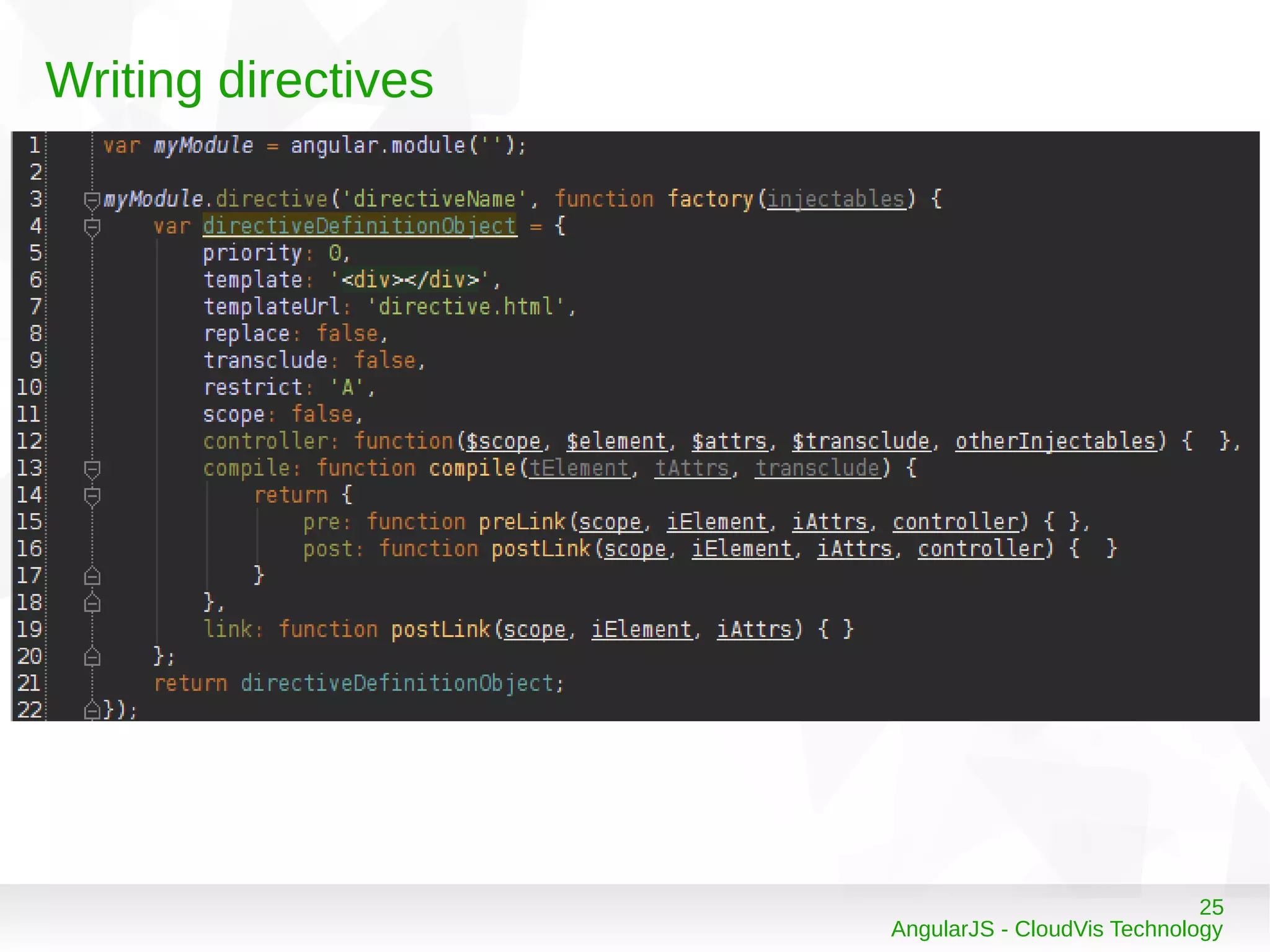

25. 25
AngularJS - CloudVis Technology
Writing directives

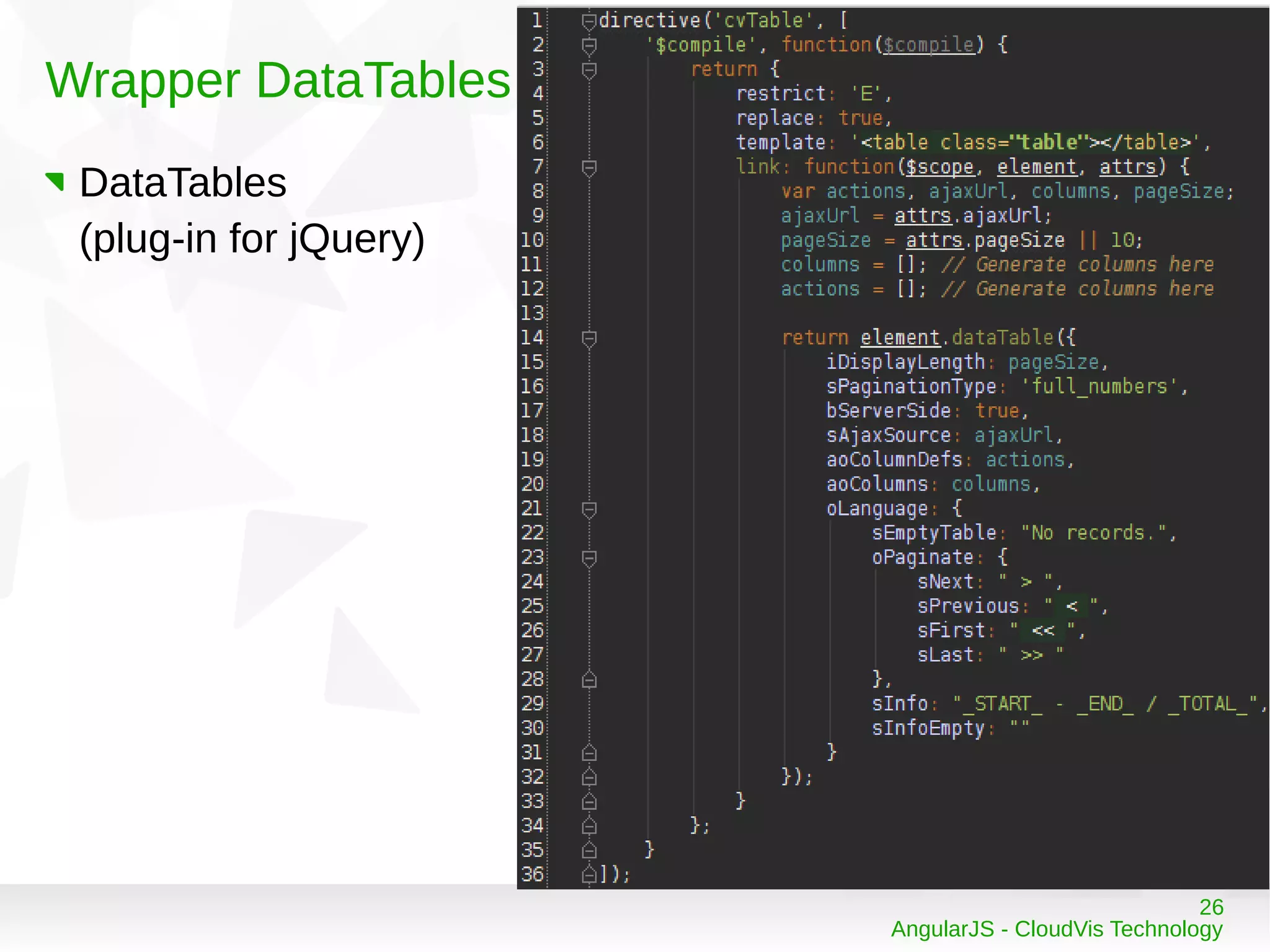

26. 26
AngularJS - CloudVis Technology
Wrapper DataTables
DataTables
(plug-in for jQuery)

27. 27
AngularJS - CloudVis Technology

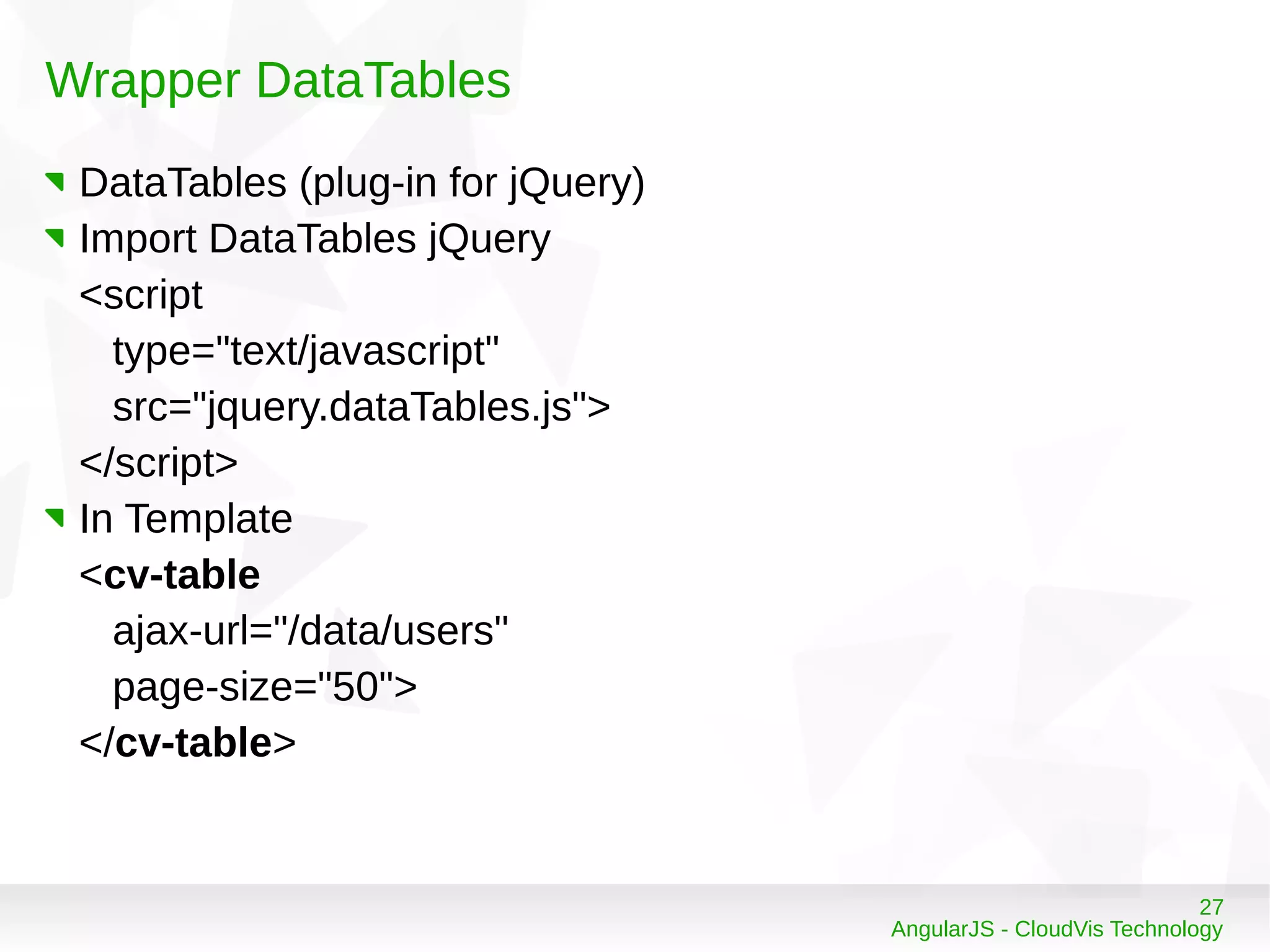

Wrapper DataTables
DataTables (plug-in for jQuery)
Import DataTables jQuery
<script
type="text/javascript"
src="jquery.dataTables.js">
</script>
In Template
<cv-table
ajax-url="/data/users"
page-size="50">
</cv-table>

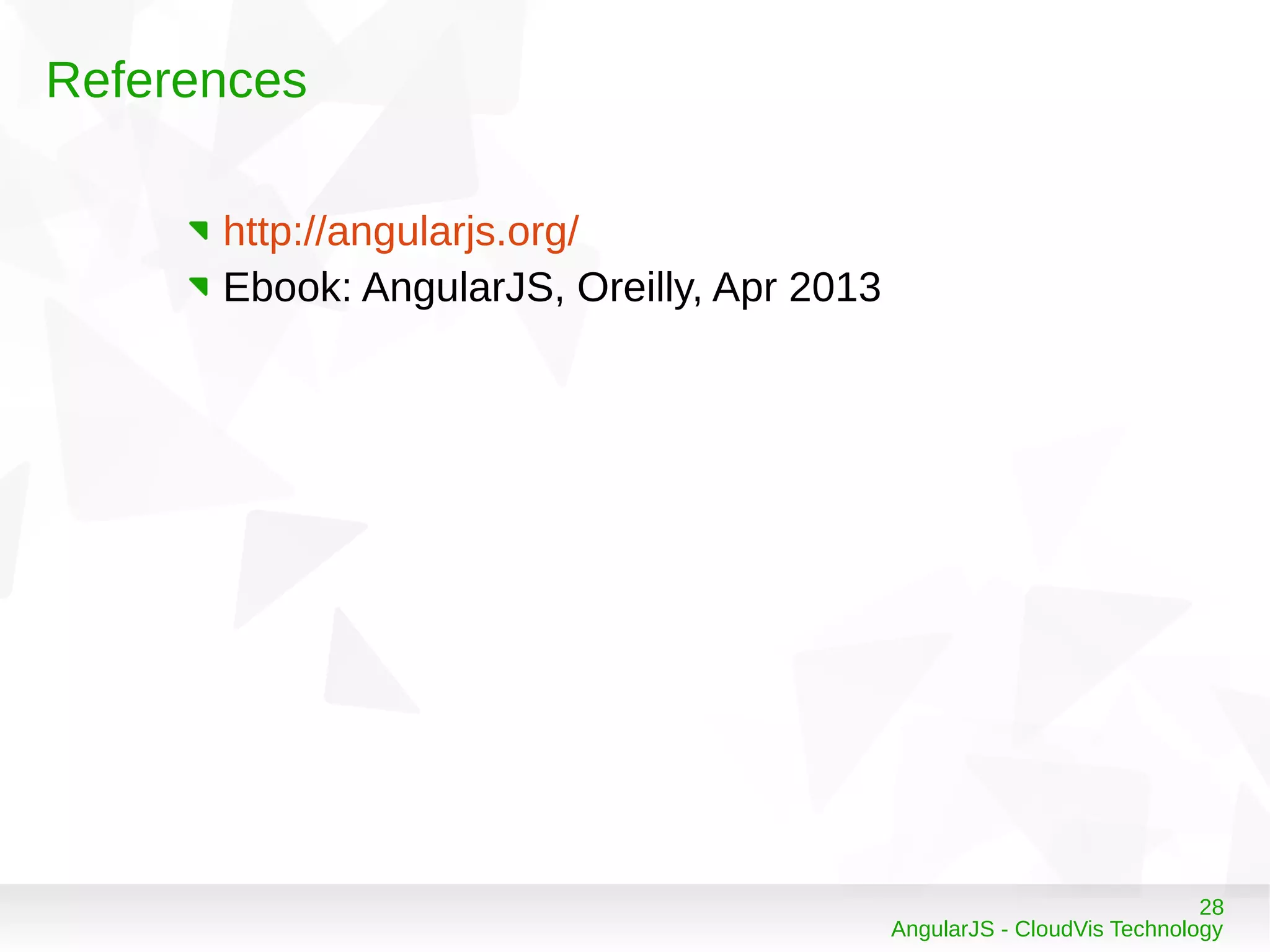

28. 28
AngularJS - CloudVis Technology
References
http://angularjs.org/
Ebook: AngularJS, Oreilly, Apr 2013

29. 29
AngularJS - CloudVis Technology
Thank you
