1. Let’s Redux
for people who use React but haven’t tried Redux
@josephj6802

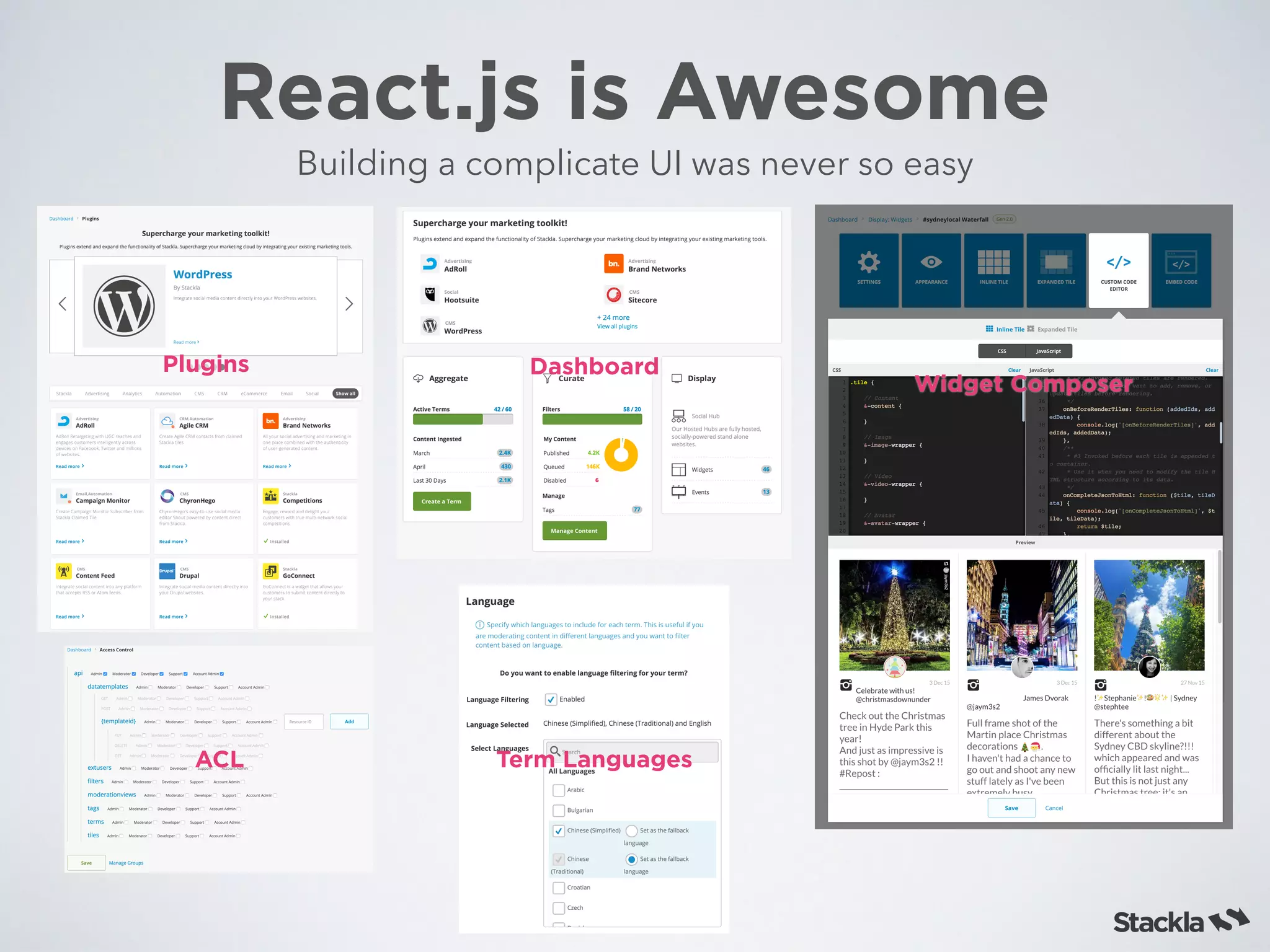

2. React.js is Awesome
Building a complicate UI was never so easy
Plugins Dashboard
Widget Composer
ACL Term Languages

3. Building a complicate UI was never so easy
React.js is Awesome
• Easy to learn
• Manage State instead of DOM
• One-way Data Flow Model
• UI = fn(State)
Advantages
Absolutely a correct technical decision

4. PROBLEMS!!
React doesn’t We don’t have a
front-end application architecture.
“It worked well with simple
components, but as our interfaces
become more complicate we soon
found…”

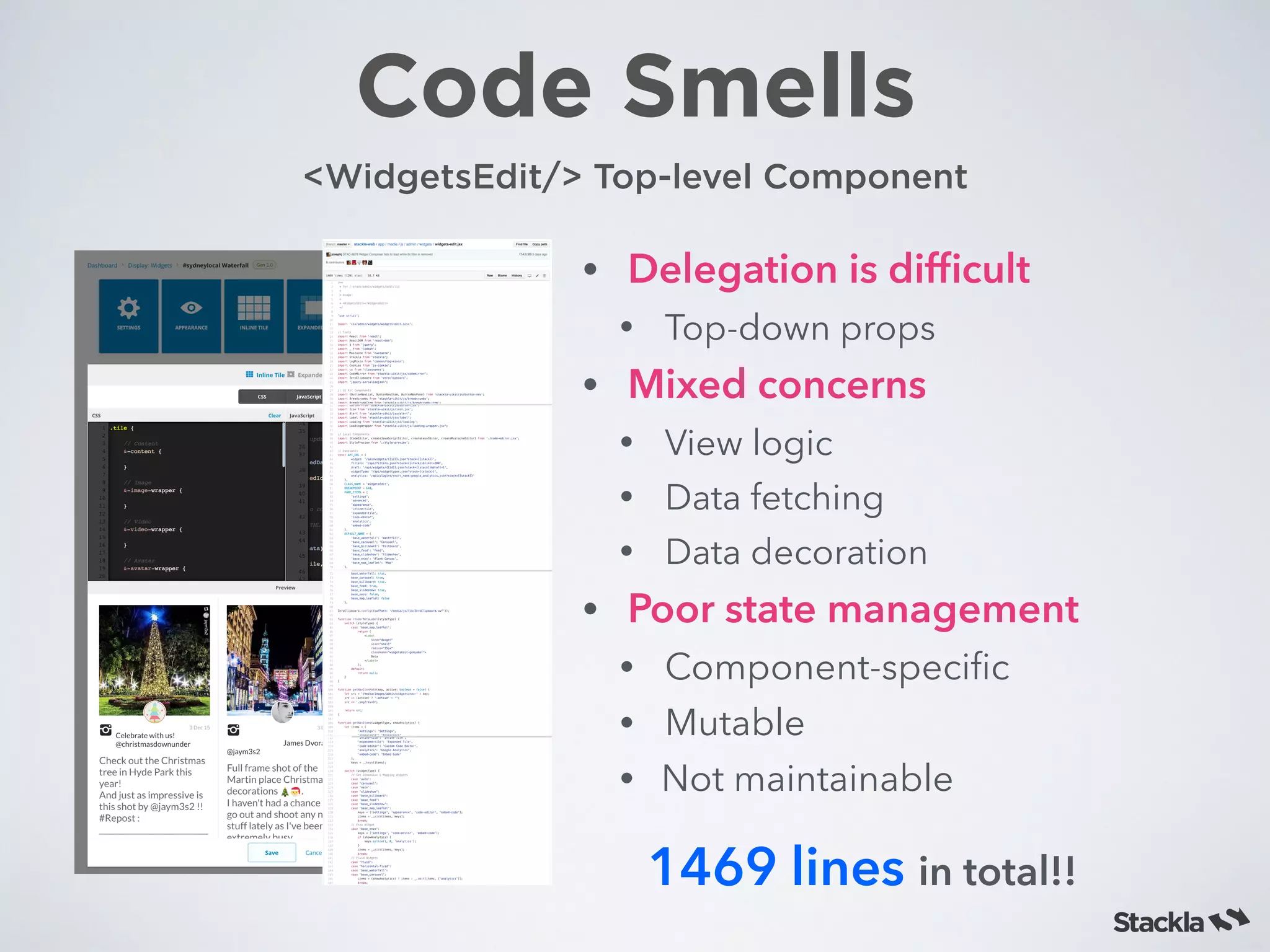

5. Code Smells
• Delegation is difficult
• Top-down props
• Mixed concerns
• View logic
• Data fetching
• Data decoration
• Poor state management
• Component-specific
• Mutable
• Not maintainable
<WidgetsEdit/> Top-level Component
1469 lines in total!!

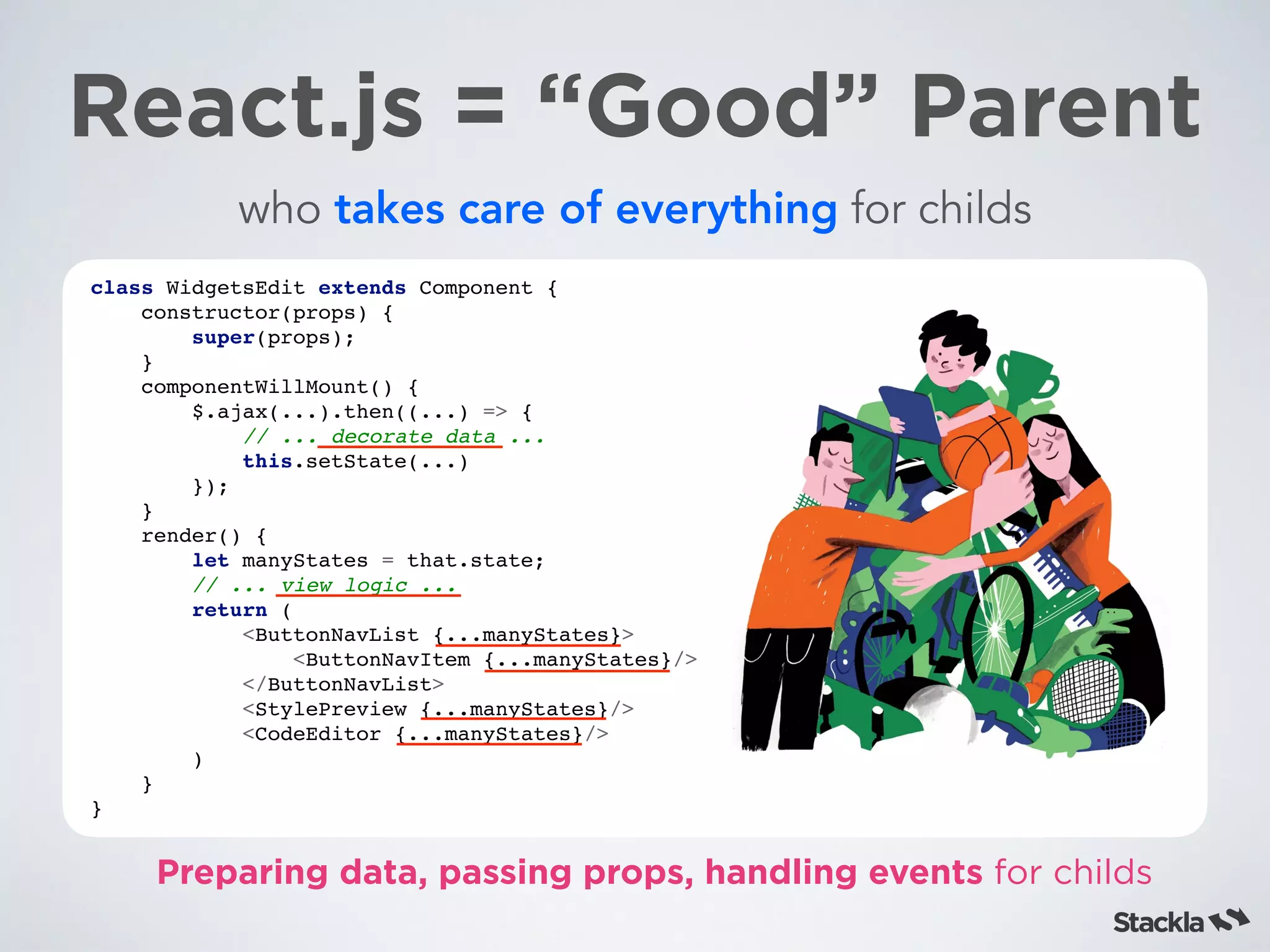

6. React.js = “Good” Parent
class WidgetsEdit extends Component {
constructor(props) {
super(props);
}
componentWillMount() {
$.ajax(...).then((...) => {
// ... decorate data ...
this.setState(...)
});
}
render() {
let manyStates = that.state;
// ... view logic ...
return (
<ButtonNavList {...manyStates}>
<ButtonNavItem {...manyStates}/>
</ButtonNavList>
<StylePreview {...manyStates}/>
<CodeEditor {...manyStates}/>
)
}
}
who takes care of everything for childs
Preparing data, passing props, handling events for childs

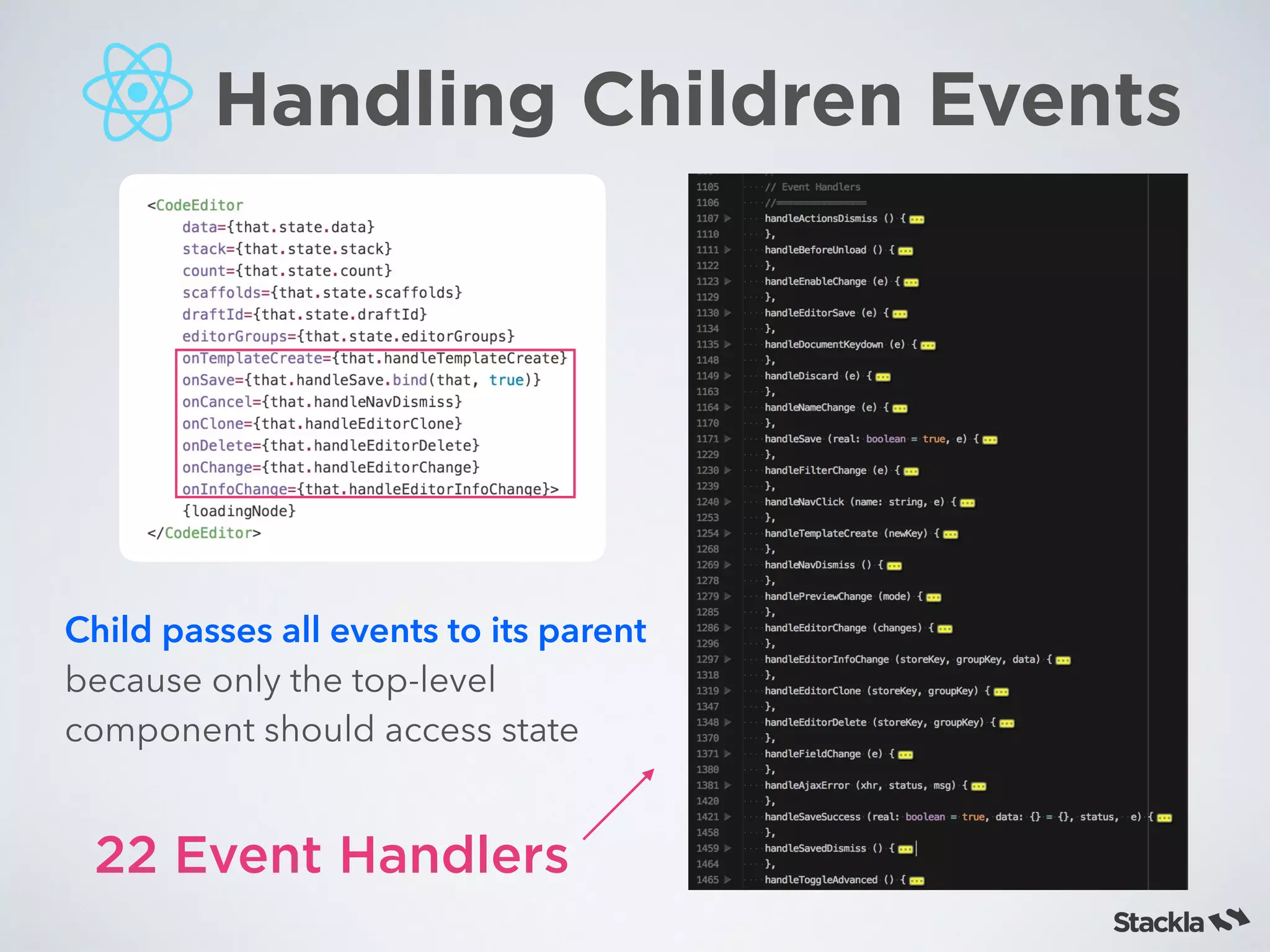

7. 22 Event Handlers
Child passes all events to its parent
because only the top-level
component should access state
Handling Children Events

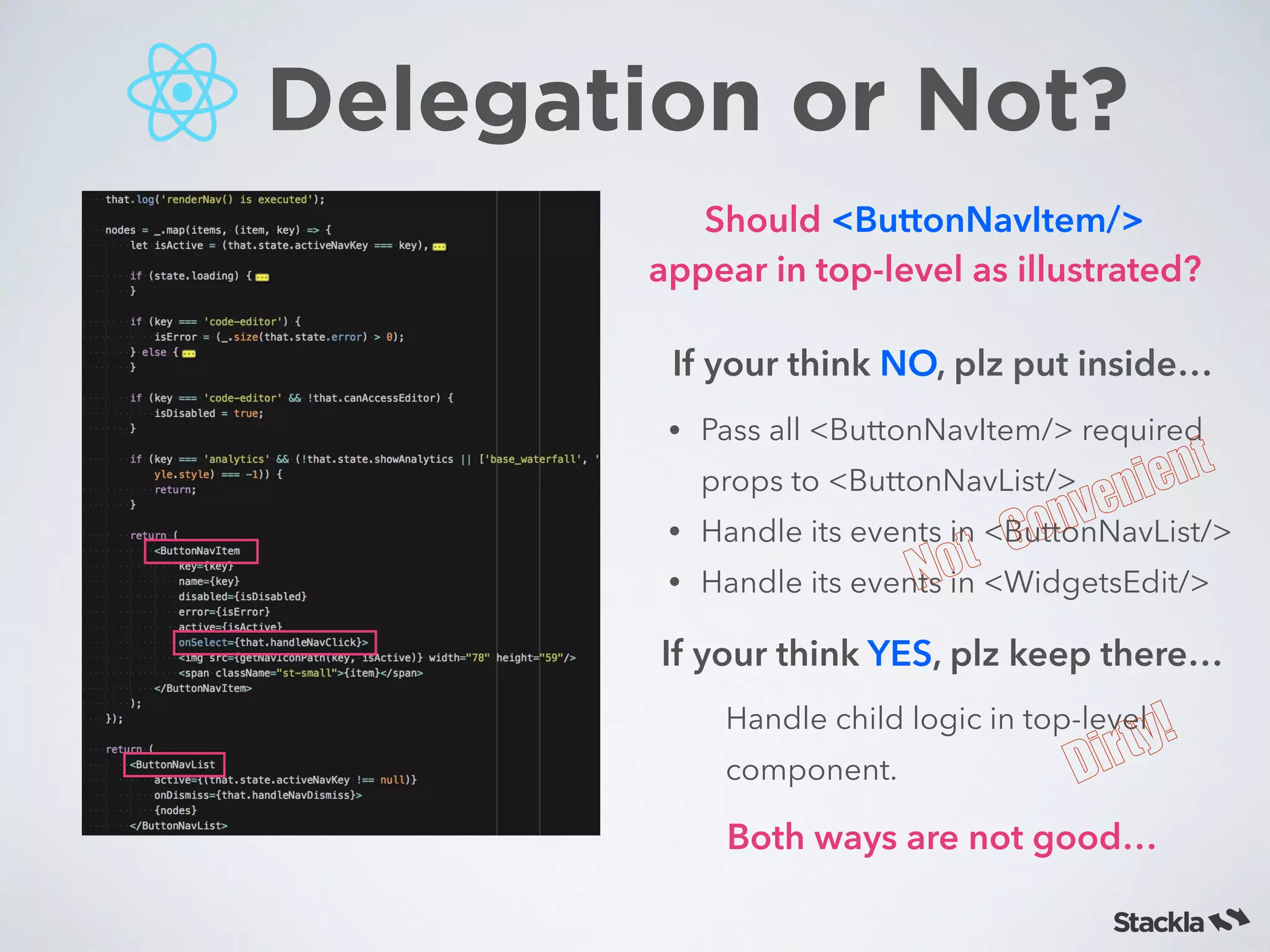

8. Delegation or Not?
If your think NO, plz put inside…
• Pass all <ButtonNavItem/> required
props to <ButtonNavList/>
• Handle its events in <ButtonNavList/>
• Handle its events in <WidgetsEdit/>
If your think YES, plz keep there…
Handle child logic in top-level
component.
Both ways are not good…
Not Convenient
Dirty!
Should <ButtonNavItem/>
appear in top-level as illustrated?

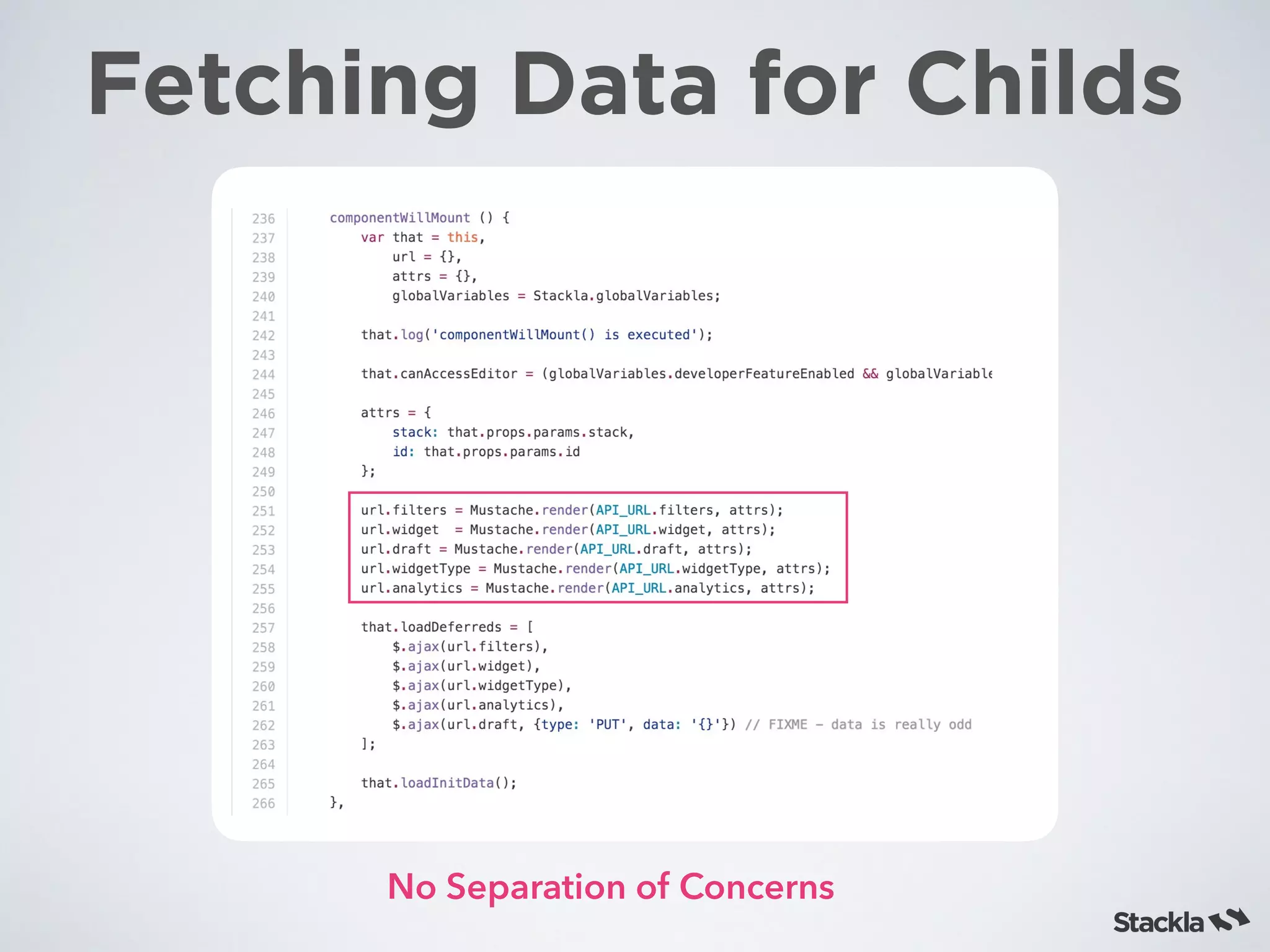

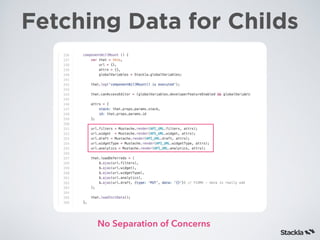

9. Fetching Data for Childs
No Separation of Concerns

10. Why Redux?
Not have children?
https://github.com/reactjs/redux/issues/151#issuecomment-173749456

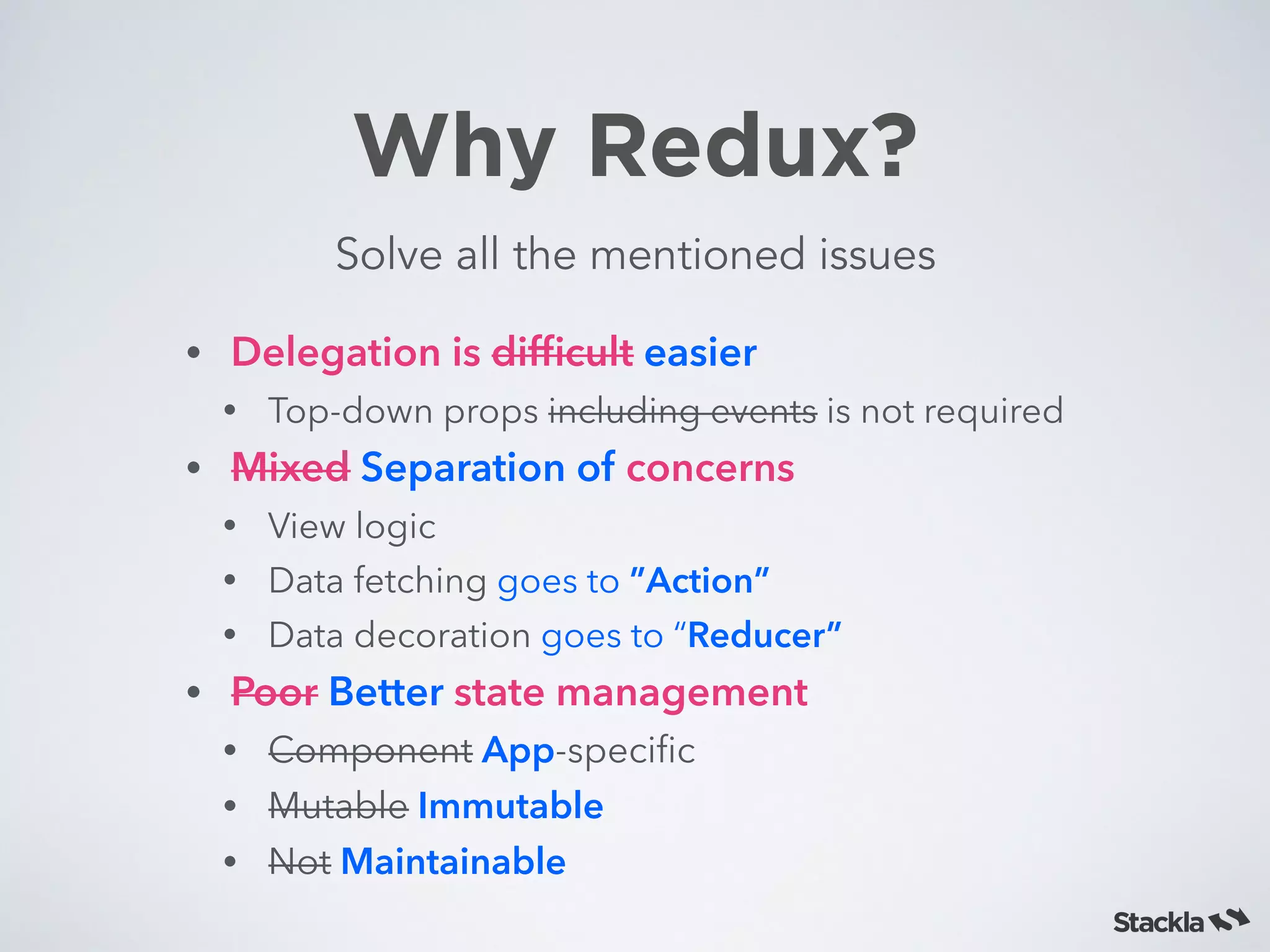

11. Why Redux?
Solve all the mentioned issues
• Delegation is difficult easier
• Top-down props including events is not required
• Mixed Separation of concerns
• View logic
• Data fetching goes to ”Action”
• Data decoration goes to “Reducer”
• Poor Better state management
• Component App-specific
• Mutable Immutable
• Not Maintainable

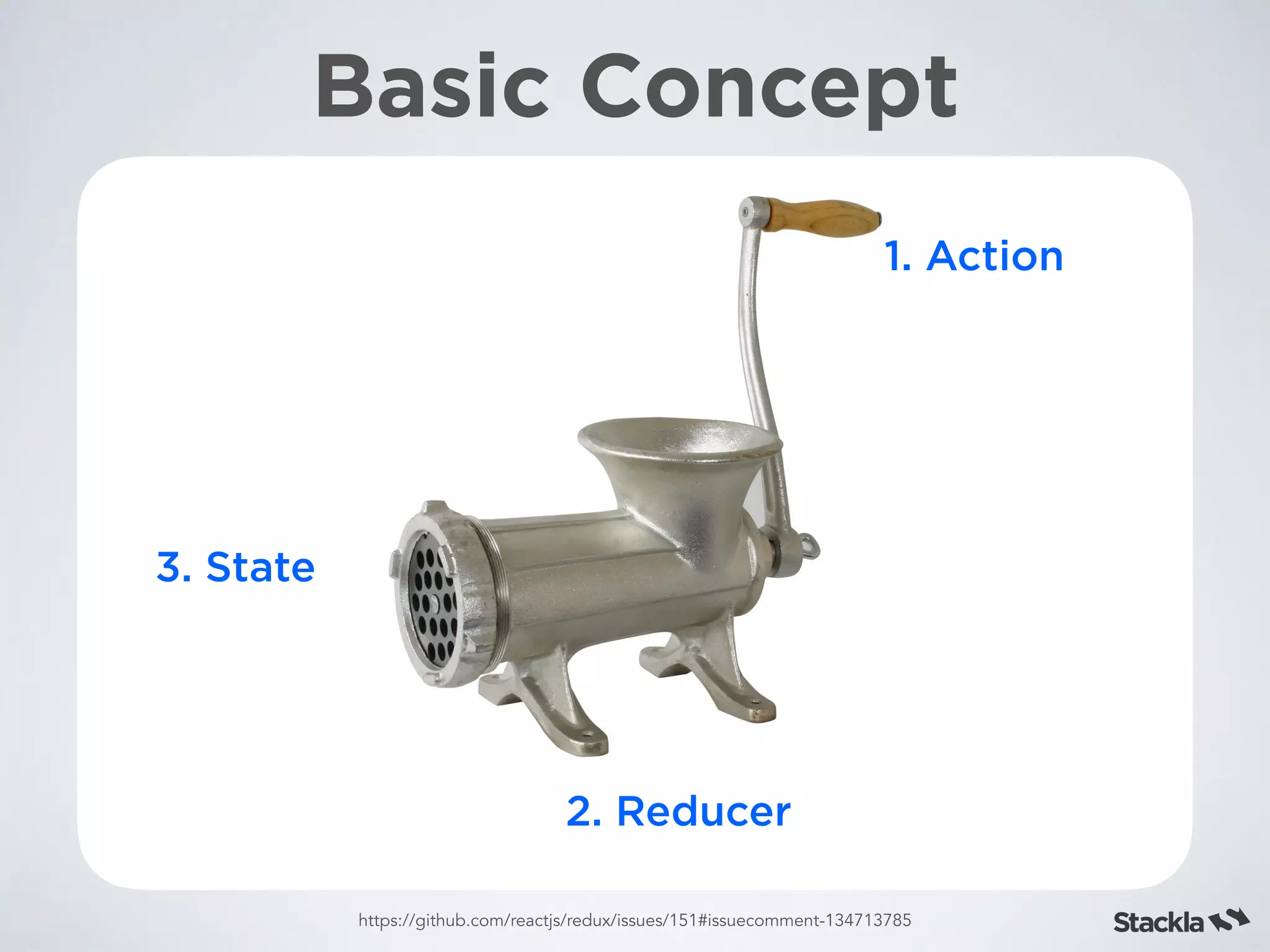

12. Basic Concept
1. Action
2. Reducer
3. State
https://github.com/reactjs/redux/issues/151#issuecomment-134713785

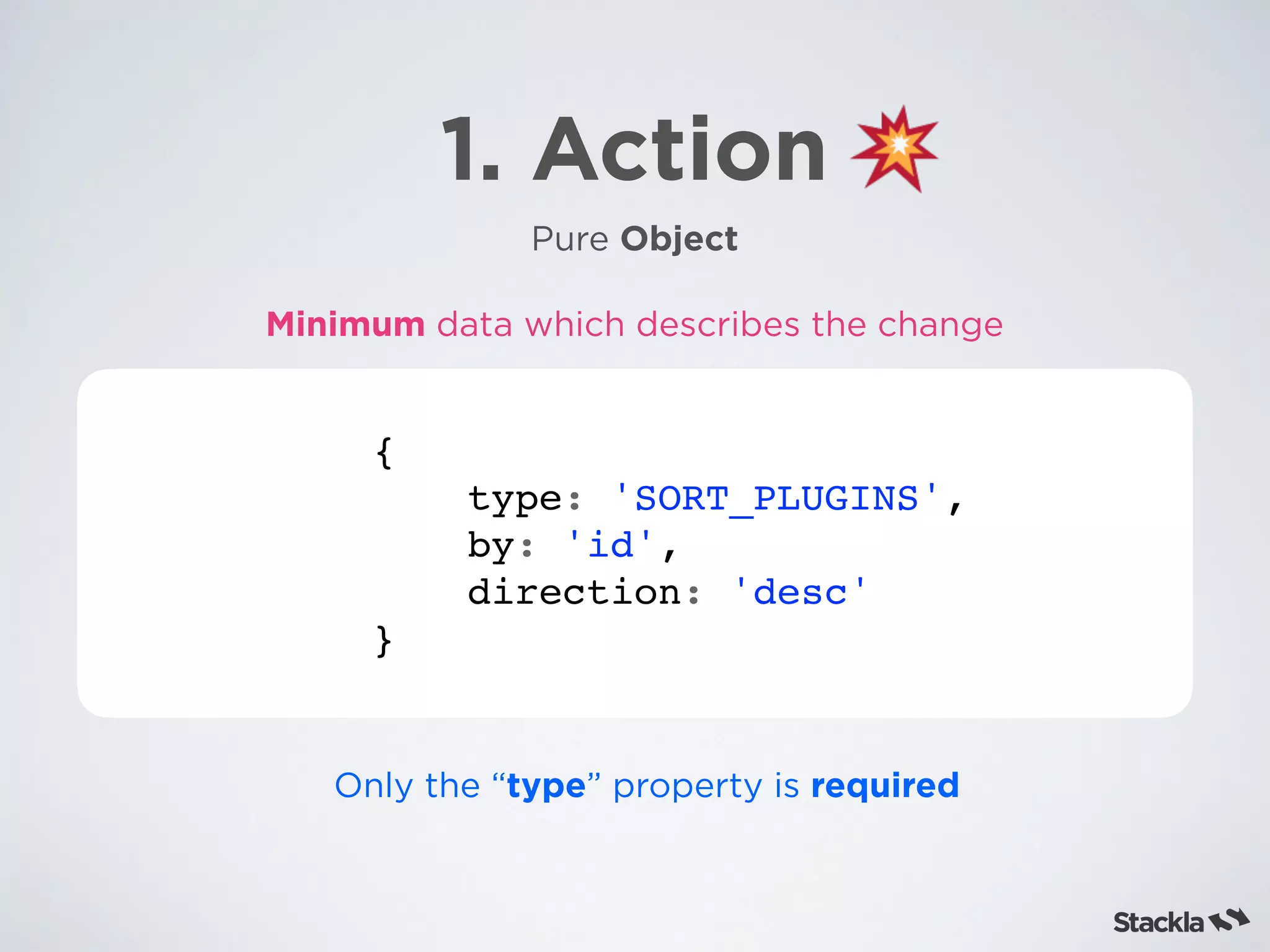

13. 1. Action
Pure Object
{
type: 'SORT_PLUGINS',
by: 'id',
direction: 'desc'
}
Minimum data which describes the change
Only the “type” property is required

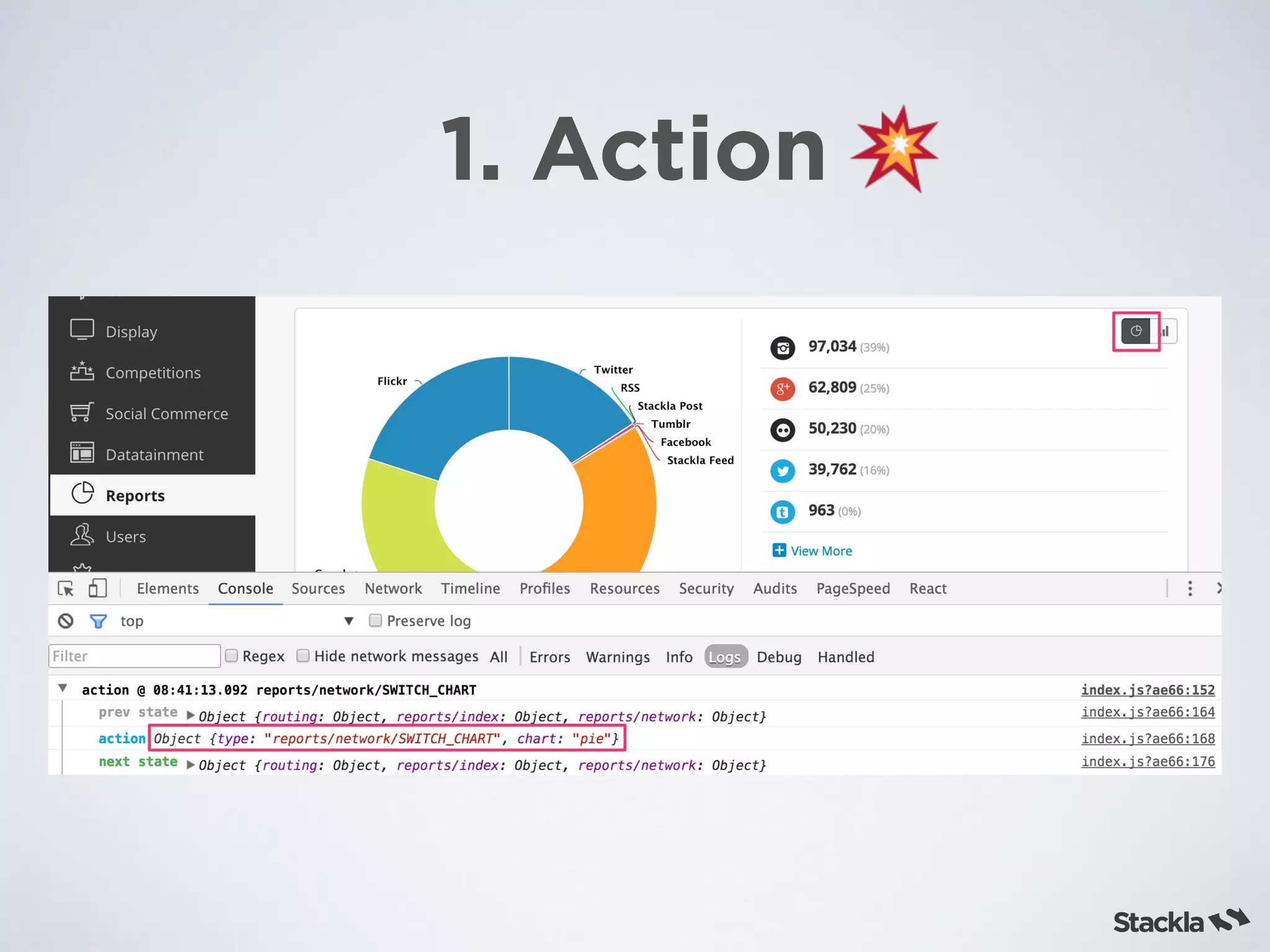

14. 1. Action

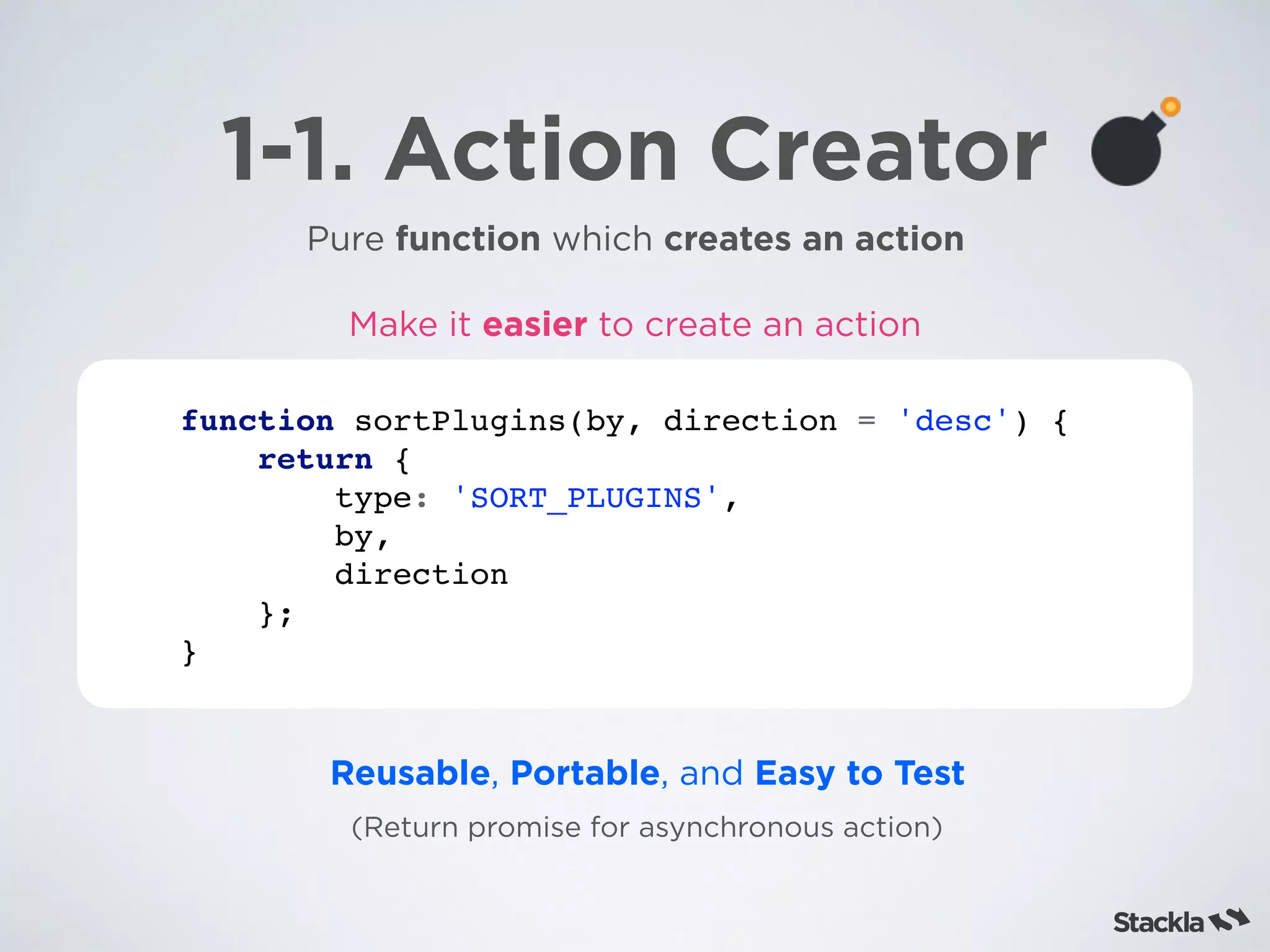

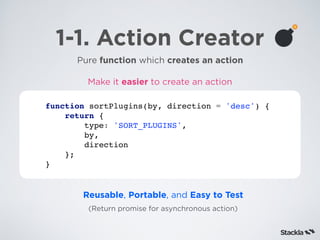

15. 1-1. Action Creator
Pure function which creates an action
function sortPlugins(by, direction = 'desc') {
return {
type: 'SORT_PLUGINS',
by,
direction
};
}
Reusable, Portable, and Easy to Test
(Return promise for asynchronous action)
Make it easier to create an action

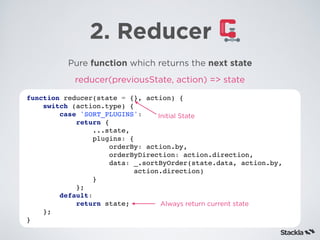

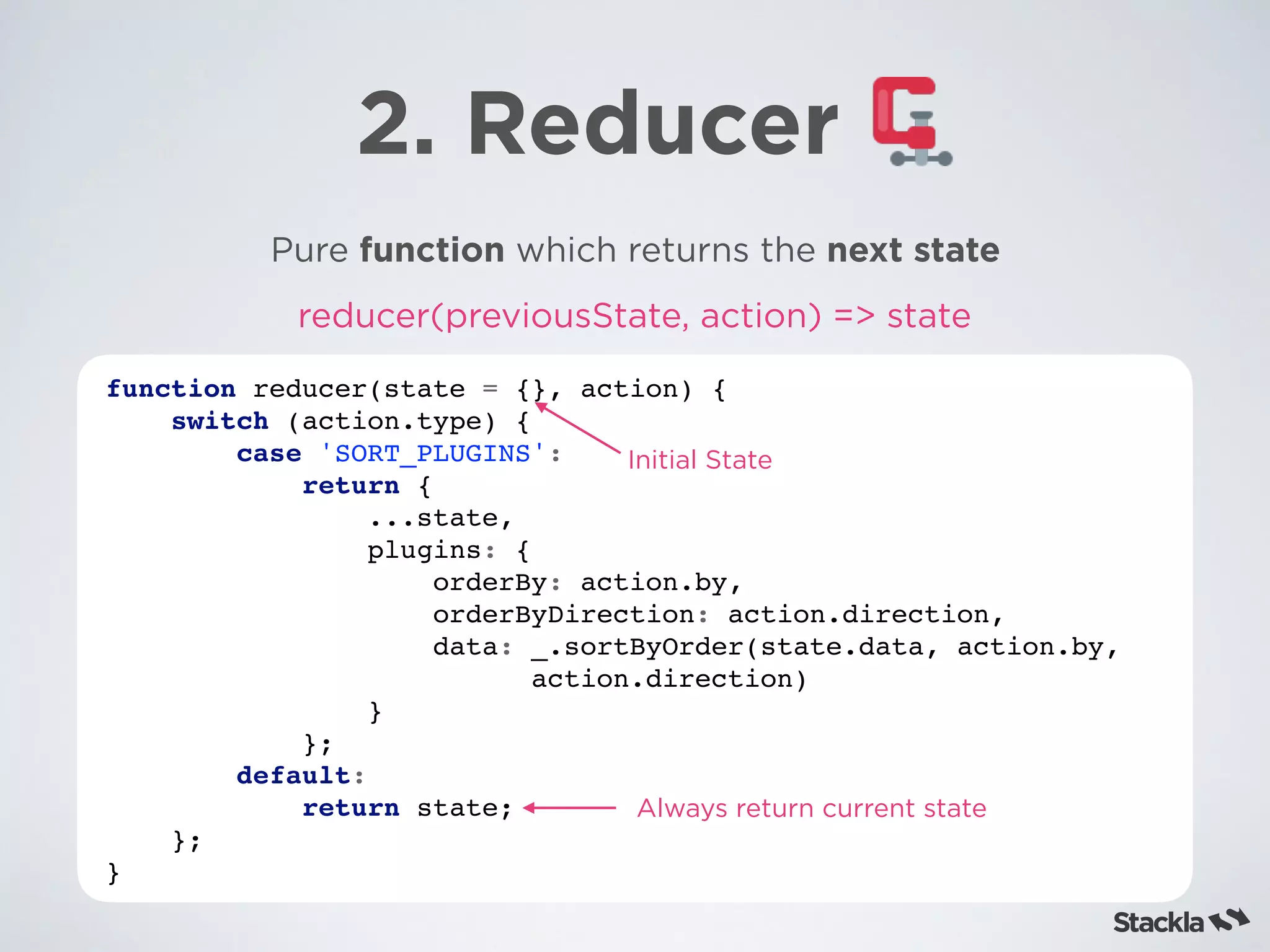

16. 2. Reducer
Pure function which returns the next state
function reducer(state = {}, action) {
switch (action.type) {
case 'SORT_PLUGINS':
return {
...state,
plugins: {
orderBy: action.by,
orderByDirection: action.direction,
data: _.sortByOrder(state.data, action.by,
action.direction)
}
};
default:
return state;
};
}
reducer(previousState, action) => state
Initial State
Always return current state

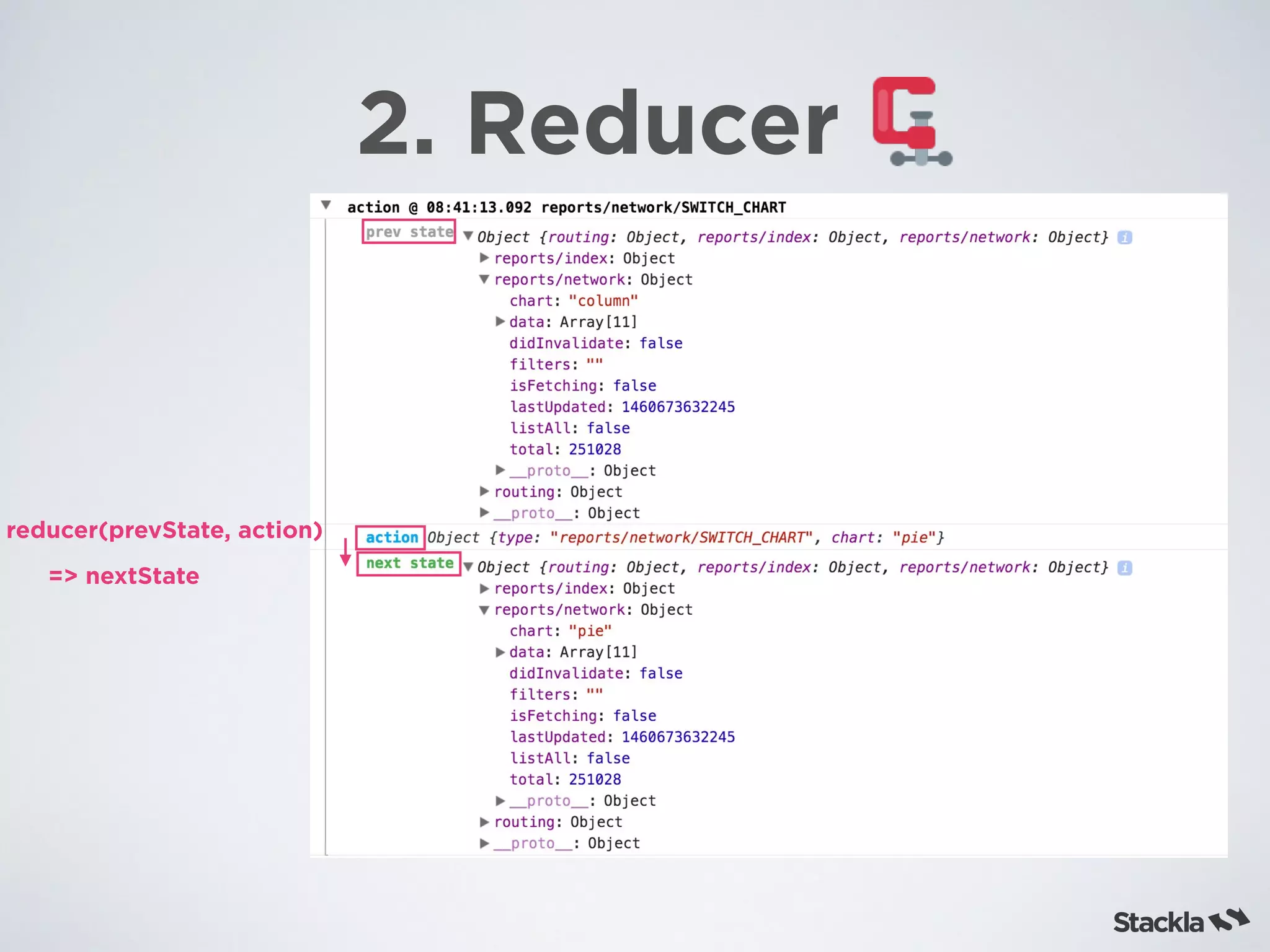

17. 2. Reducer
reducer(prevState, action)
=> nextState

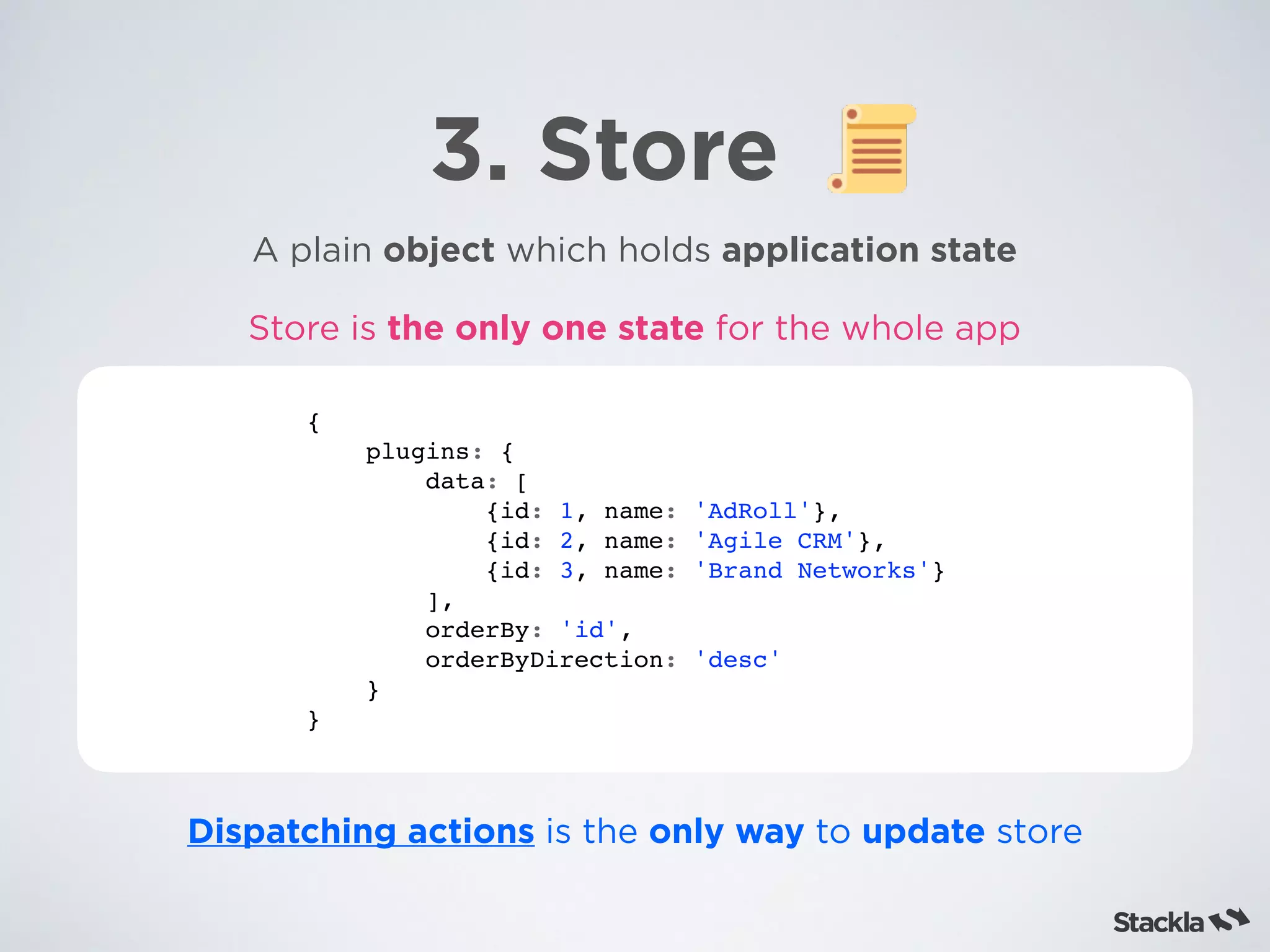

18. 3. Store
A plain object which holds application state
{
plugins: {
data: [
{id: 1, name: 'AdRoll'},
{id: 2, name: 'Agile CRM'},
{id: 3, name: 'Brand Networks'}
],
orderBy: 'id',
orderByDirection: 'desc'
}
}
Dispatching actions is the only way to update store
Store is the only one state for the whole app

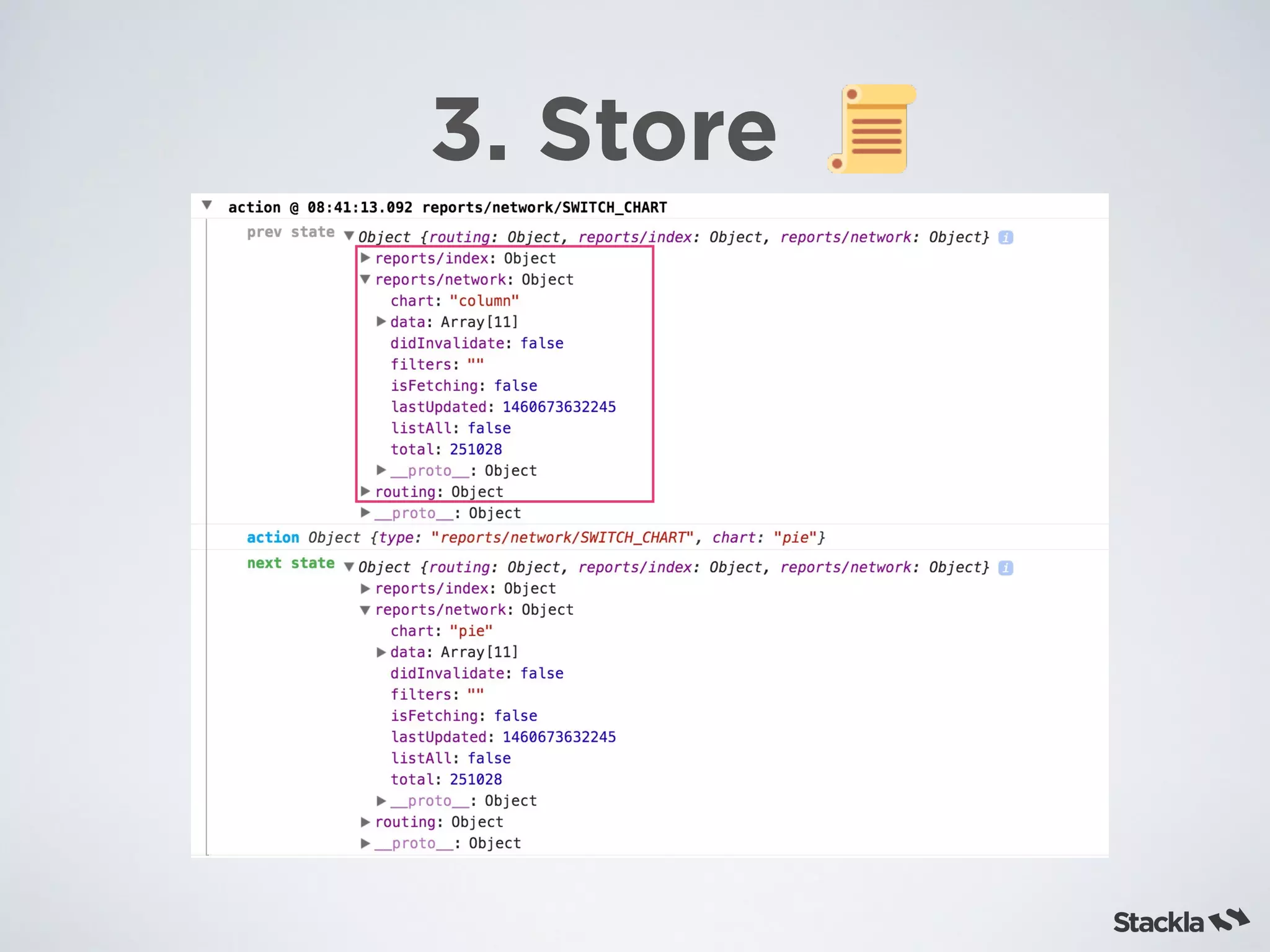

19. 3. Store

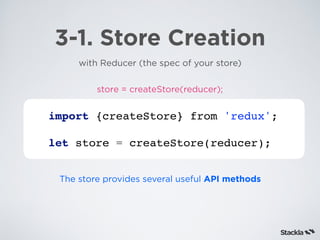

20. 3-1. Store Creation
with Reducer (the spec of your store)
store = createStore(reducer);
import {createStore} from 'redux';
let store = createStore(reducer);
The store provides several useful API methods

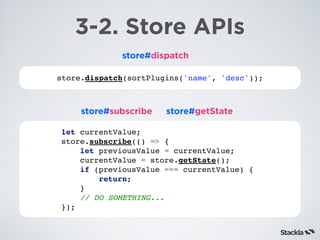

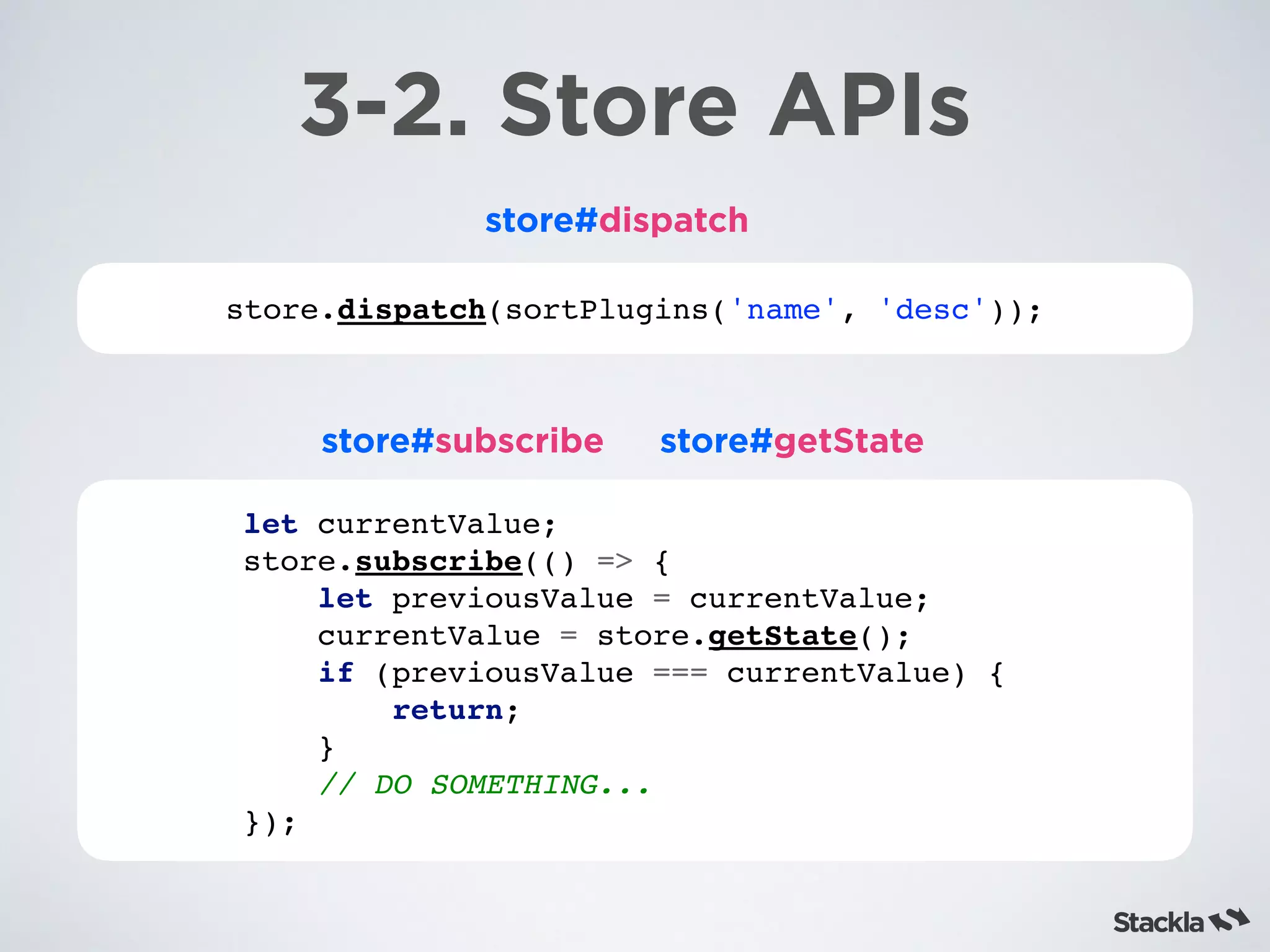

21. store.dispatch(sortPlugins('name', 'desc'));
3-2. Store APIs
store#dispatch
store#subscribe
let currentValue;
store.subscribe(() => {
let previousValue = currentValue;
currentValue = store.getState();
if (previousValue === currentValue) {
return;
}
// DO SOMETHING...
});
store#getState

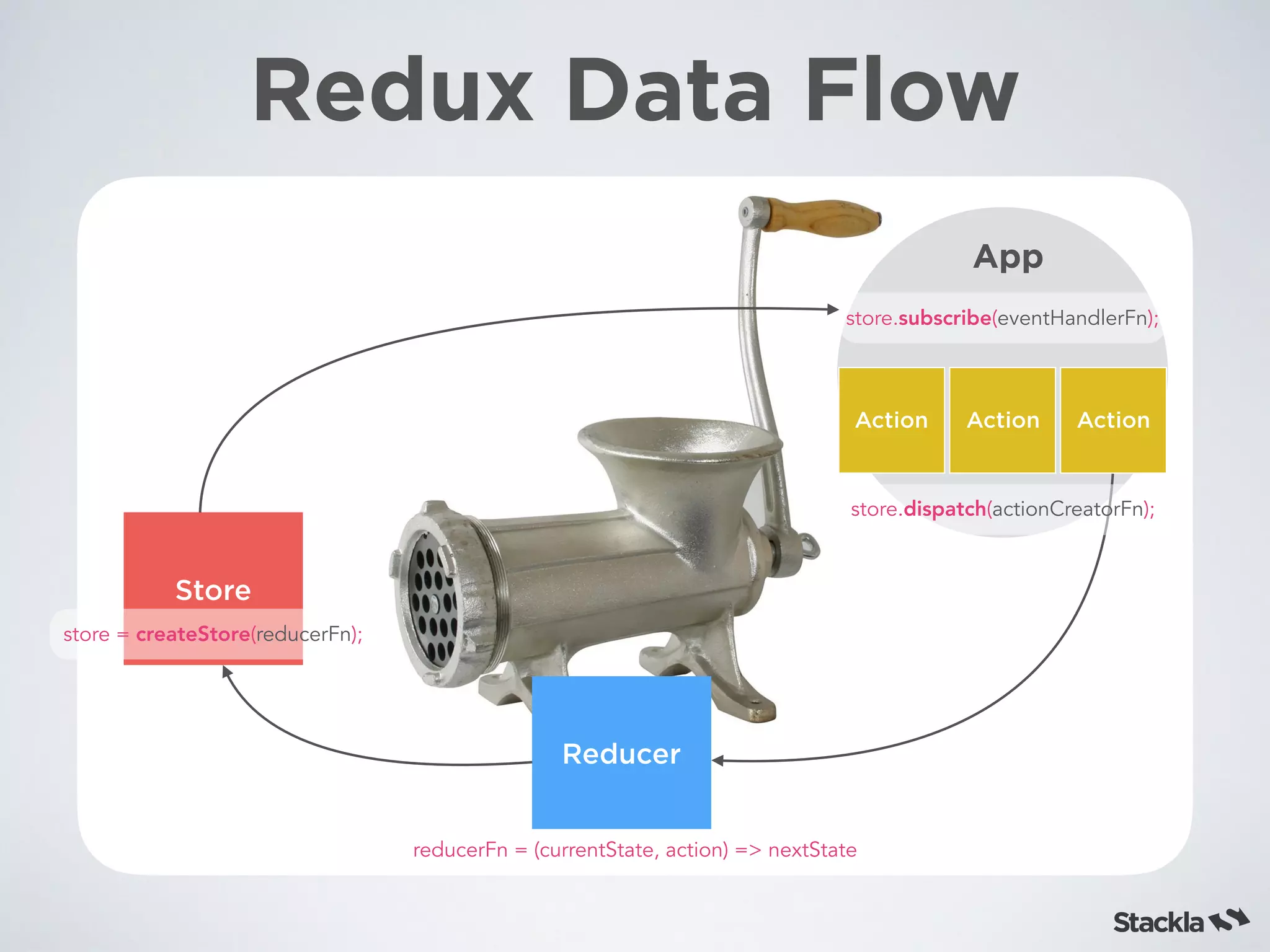

22. Redux Data Flow
Reducer
Store
ActionActionAction
store = createStore(reducerFn);
store.subscribe(eventHandlerFn);
App
store.dispatch(actionCreatorFn);
reducerFn = (currentState, action) => nextState

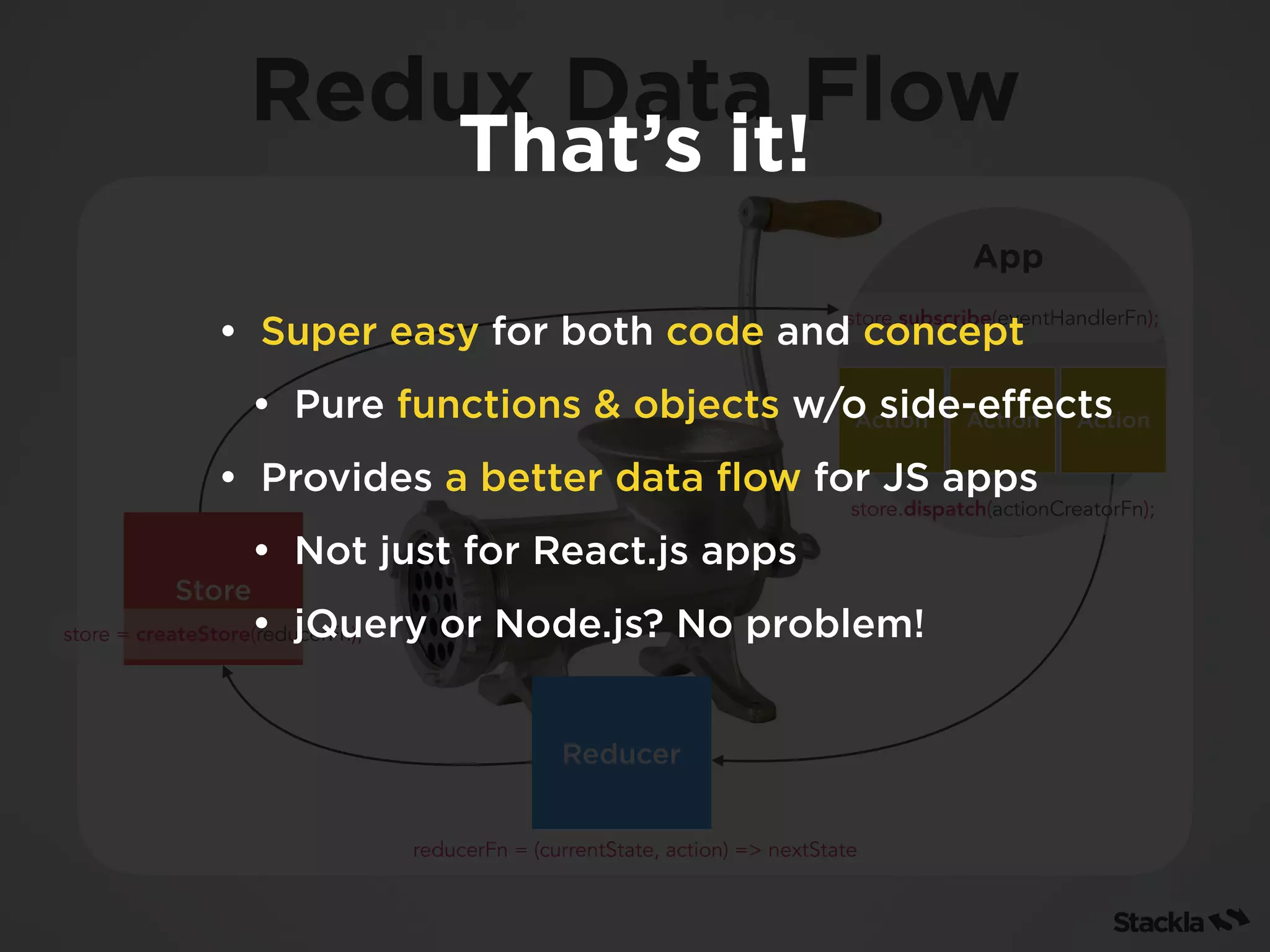

23. Redux Data Flow
Reducer
Store
ActionActionAction
store = createStore(reducerFn);
store.subscribe(eventHandlerFn);
App
store.dispatch(actionCreatorFn);
reducerFn = (currentState, action) => nextState

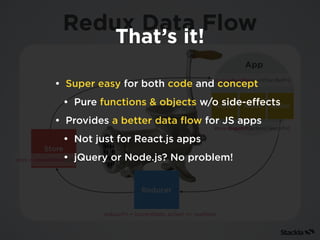

That’s it!
• Super easy for both code and concept
• Pure functions & objects w/o side-effects
• Provides a better data flow for JS apps
• Not just for React.js apps
• jQuery or Node.js? No problem!

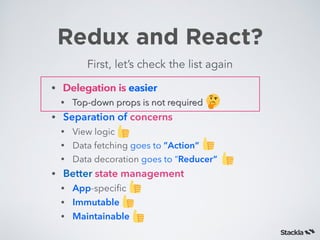

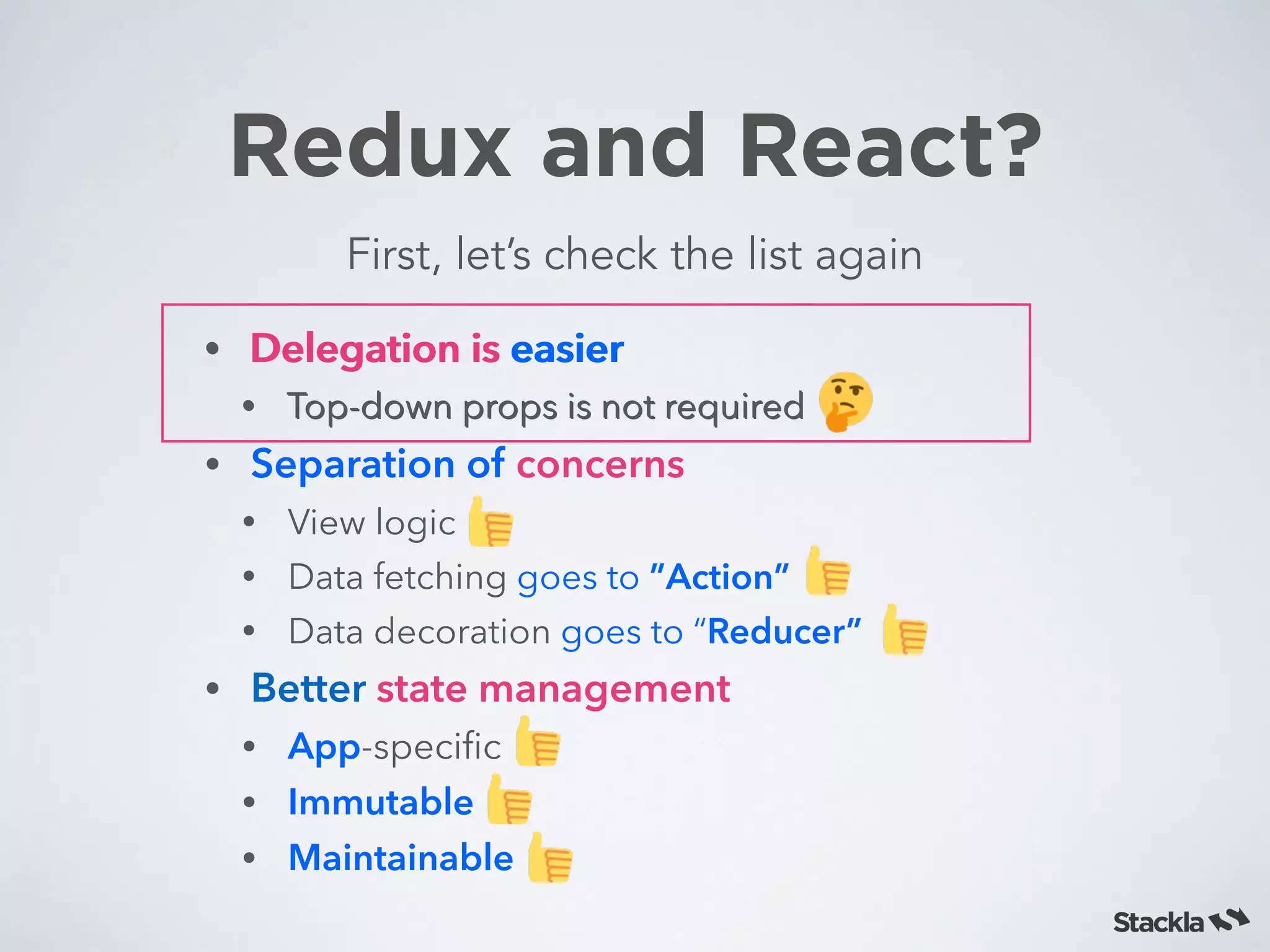

24. Redux and React?
First, let’s check the list again
• Delegation is easier
• Top-down props is not required
• Separation of concerns
• View logic
• Data fetching goes to ”Action”
• Data decoration goes to “Reducer”
• Better state management
• App-specific
• Immutable
• Maintainable
• Delegation is easier
• Top-down props is not required

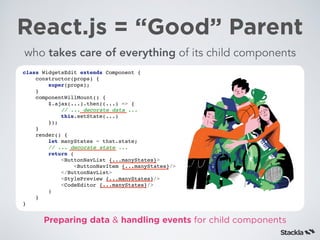

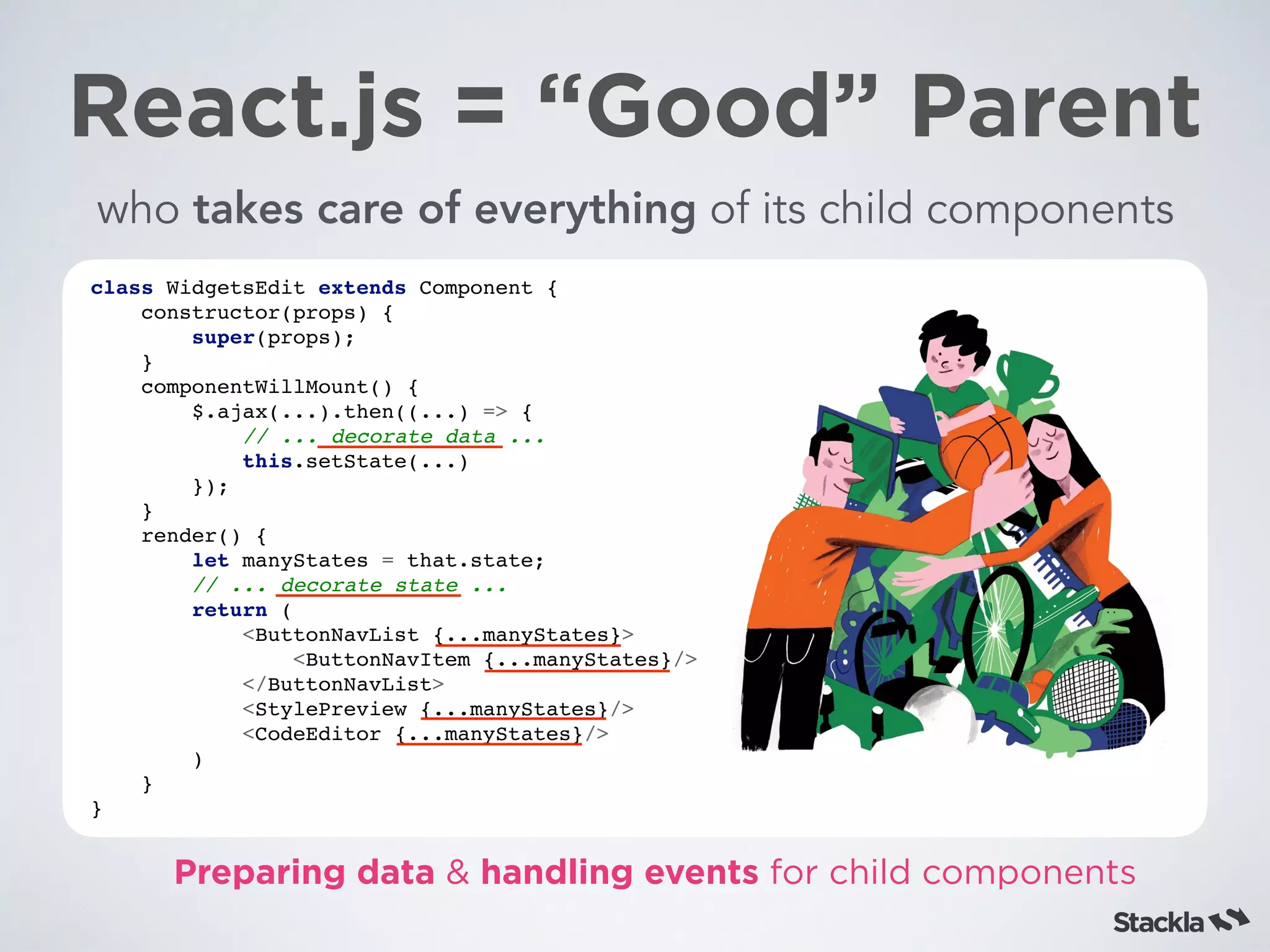

25. React.js = “Good” Parent
class WidgetsEdit extends Component {
constructor(props) {
super(props);
}
componentWillMount() {
$.ajax(...).then((...) => {
// ... decorate data ...
this.setState(...)
});
}
render() {
let manyStates = that.state;
// ... decorate state ...
return (
<ButtonNavList {...manyStates}>
<ButtonNavItem {...manyStates}/>
</ButtonNavList>
<StylePreview {...manyStates}/>
<CodeEditor {...manyStates}/>
)
}
}
who takes care of everything of its child components
Preparing data & handling events for child components

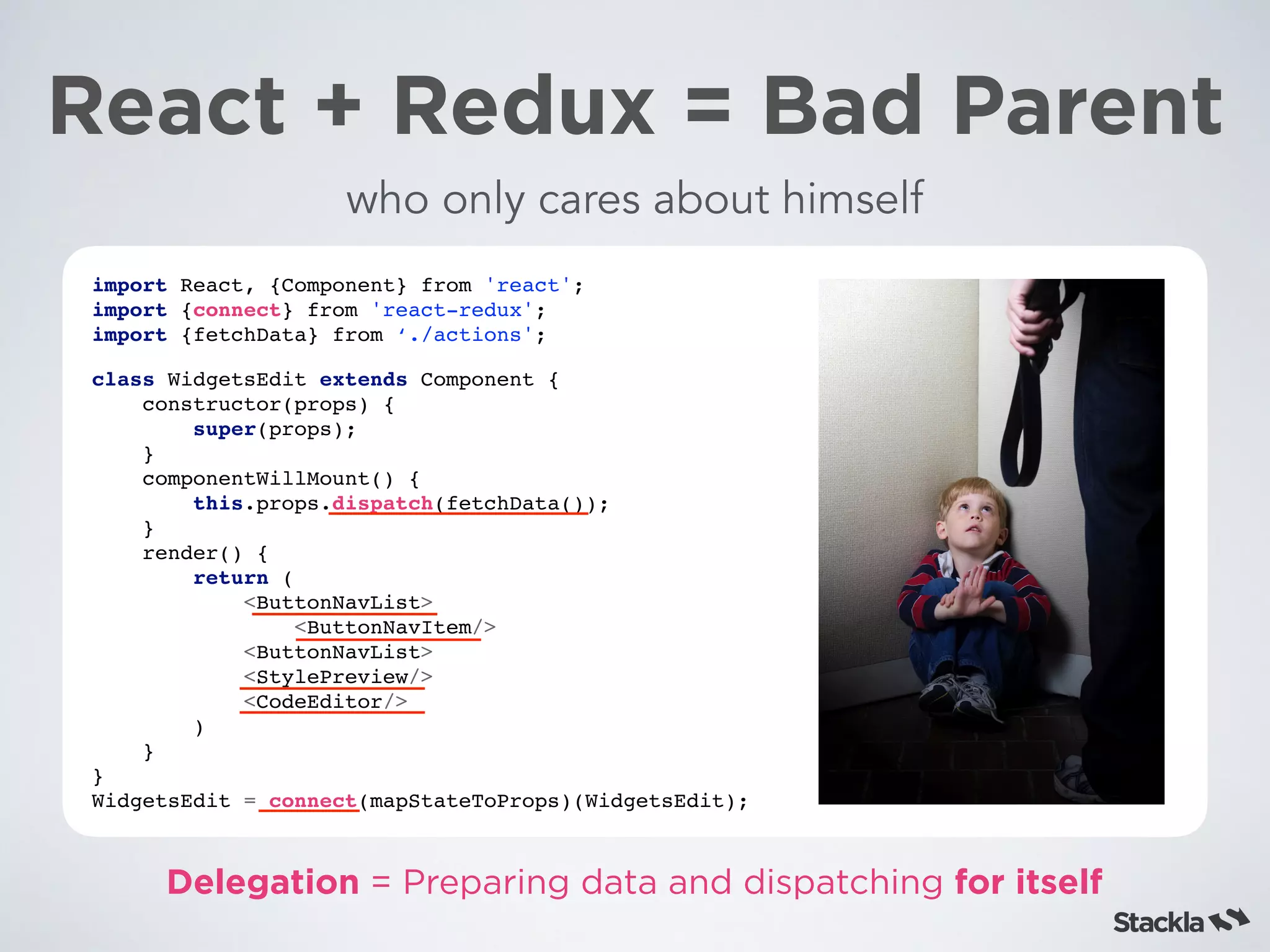

26. React + Redux = Bad Parent
import React, {Component} from 'react';
import {connect} from 'react-redux';
import {fetchData} from ‘./actions';
class WidgetsEdit extends Component {
constructor(props) {
super(props);
}
componentWillMount() {
this.props.dispatch(fetchData());
}
render() {
return (
<ButtonNavList>
<ButtonNavItem/>
<ButtonNavList>
<StylePreview/>
<CodeEditor/>
)
}
}
WidgetsEdit = connect(mapStateToProps)(WidgetsEdit);
who only cares about himself
Delegation = Preparing data and dispatching for itself

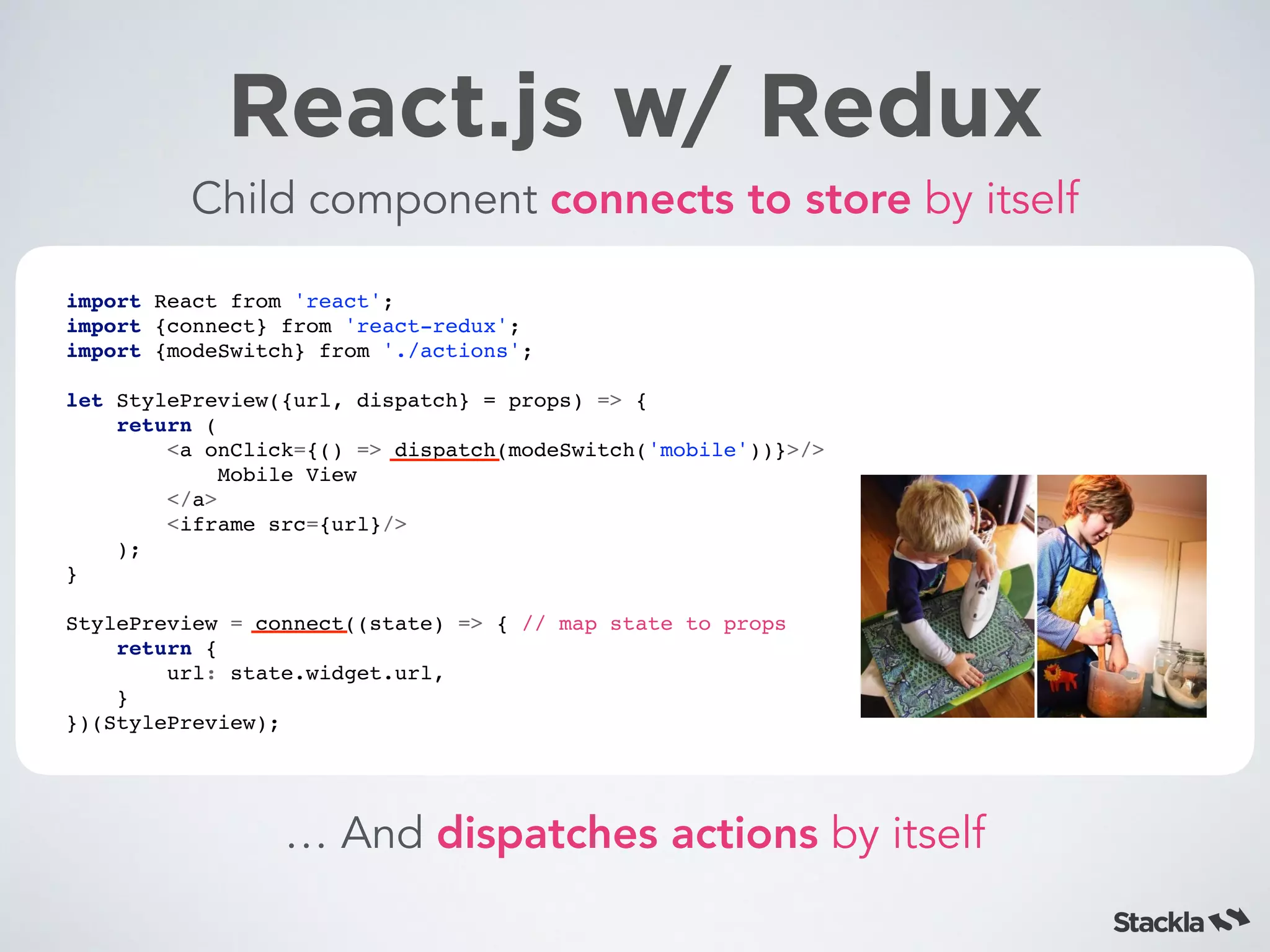

27. React.js w/ Redux
Child component connects to store by itself
import React from 'react';
import {connect} from 'react-redux';
import {modeSwitch} from './actions';
let StylePreview({url, dispatch} = props) => {
return (
<a onClick={() => dispatch(modeSwitch('mobile'))}>/>
Mobile View
</a>
<iframe src={url}/>
);
}
StylePreview = connect((state) => { // map state to props
return {
url: state.widget.url,
}
})(StylePreview);
… And dispatches actions by itself

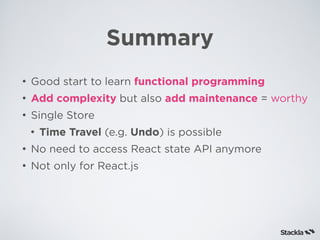

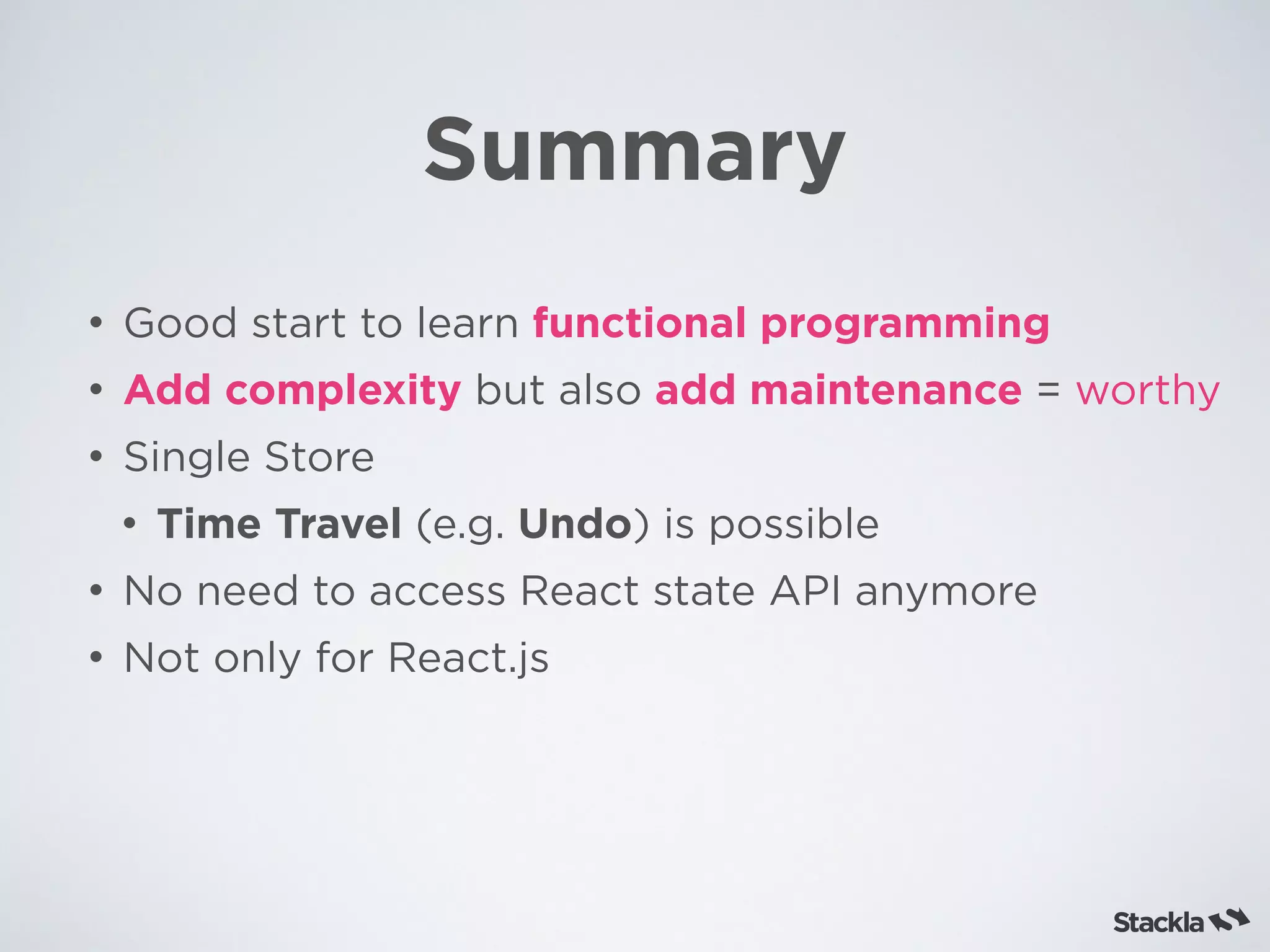

28. Summary
• Good start to learn functional programming
• Add complexity but also add maintenance = worthy
• Single Store
• Time Travel (e.g. Undo) is possible
• No need to access React state API anymore
• Not only for React.js

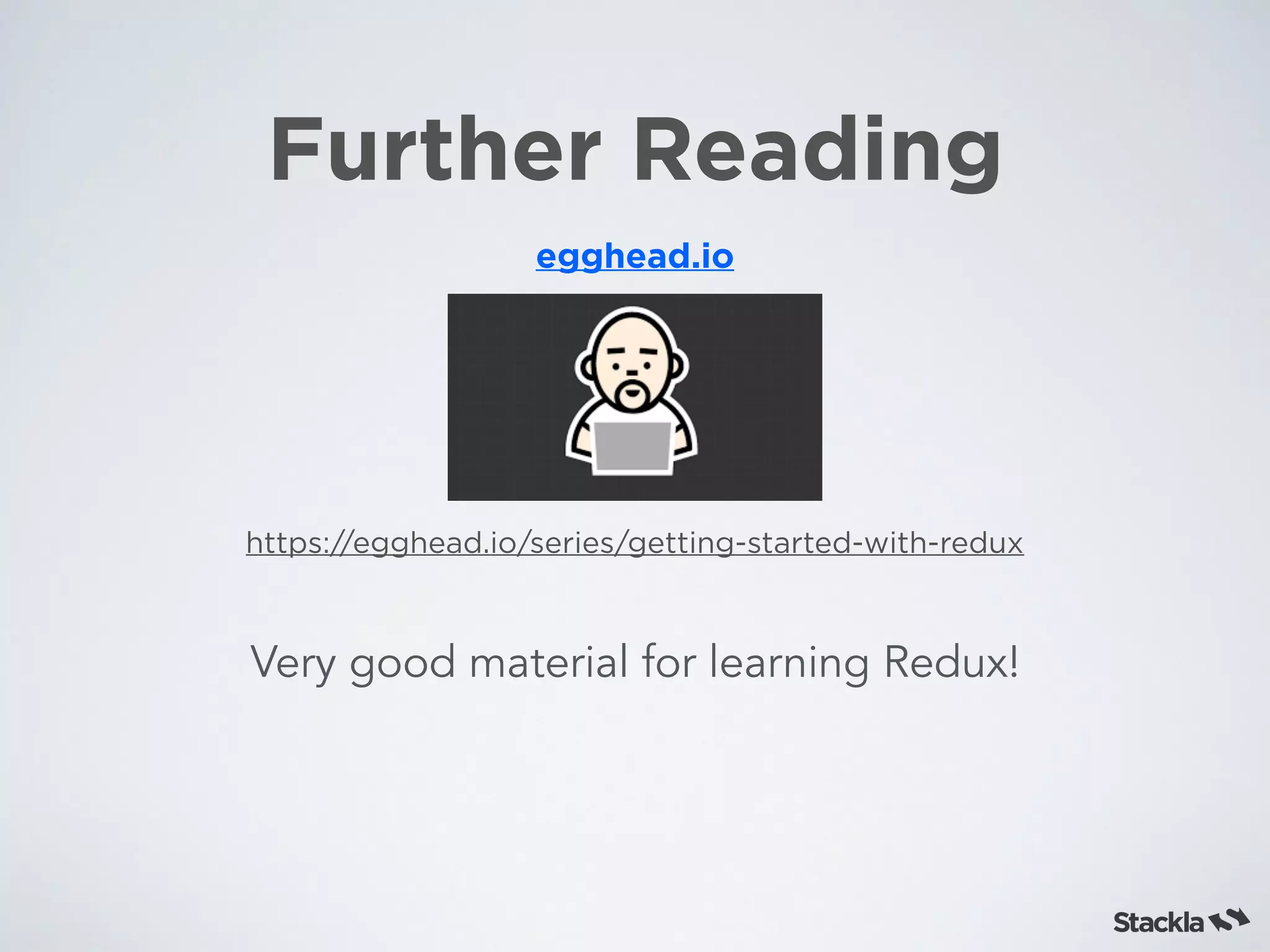

29. Further Reading
https://egghead.io/series/getting-started-with-redux
egghead.io
Very good material for learning Redux!

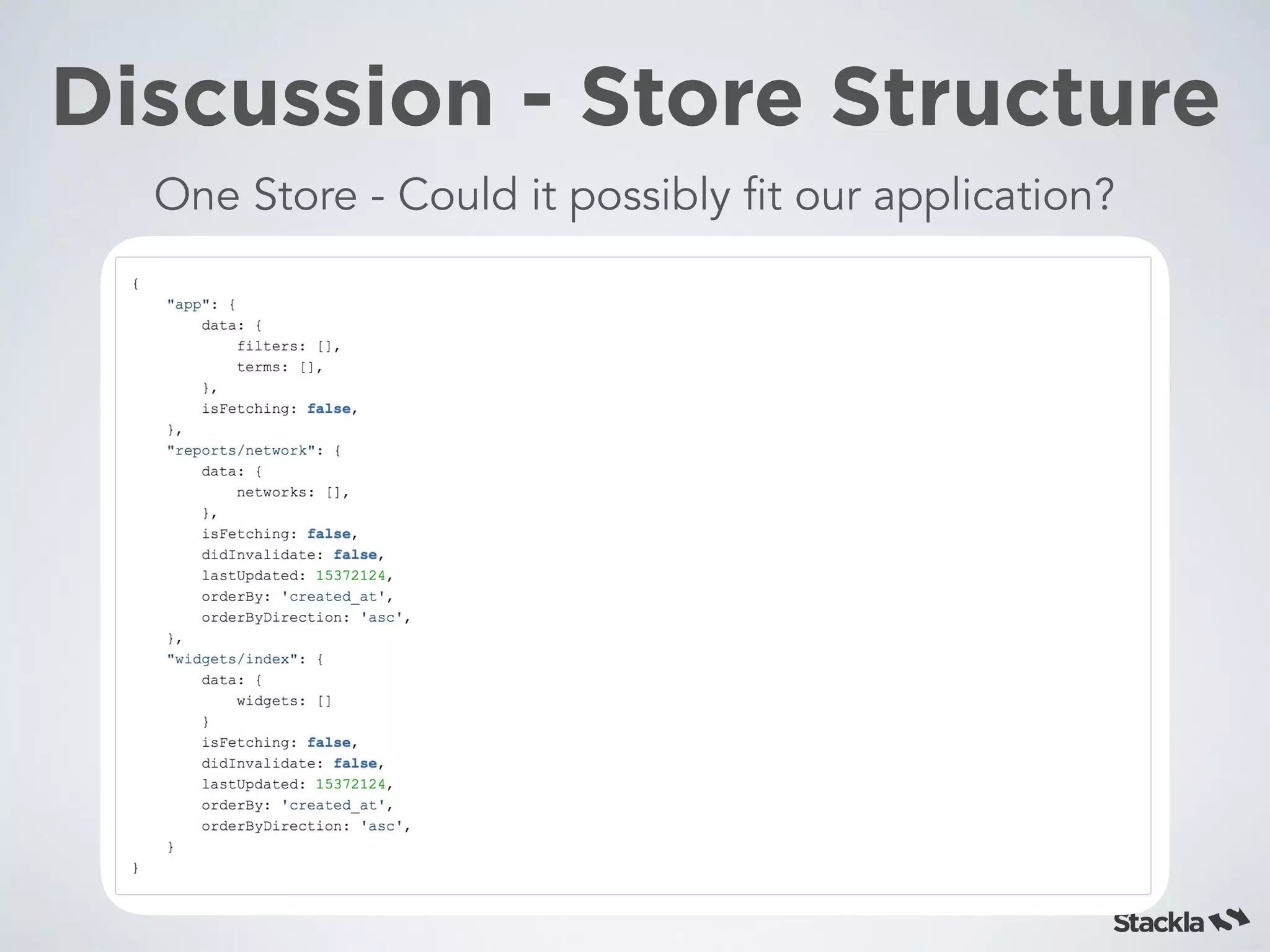

30. Discussion - Store Structure
One Store - Could it possibly fit our application?

31. THANK YOU!
Let’s Redux!!
