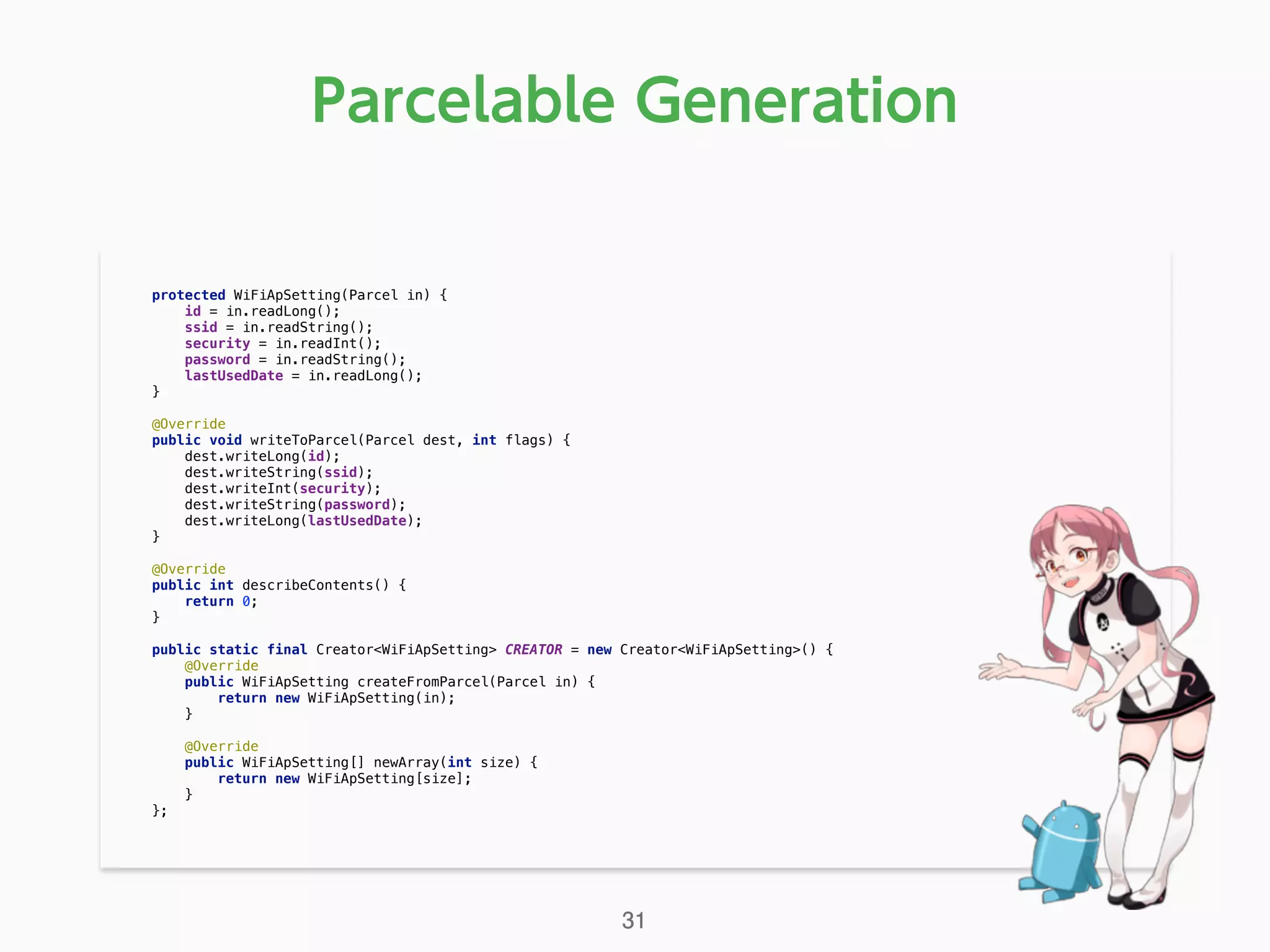

![Parcelable Generation
protected WiFiApSetting(Parcel in) {
id = in.readLong();
ssid = in.readString();
security = in.readInt();
password = in.readString();
lastUsedDate = in.readLong();
}
@Override
public void writeToParcel(Parcel dest, int flags) {
dest.writeLong(id);
dest.writeString(ssid);
dest.writeInt(security);
dest.writeString(password);
dest.writeLong(lastUsedDate);
}
@Override
public int describeContents() {
return 0;
}
public static final Creator<WiFiApSetting> CREATOR = new Creator<WiFiApSetting>() {
@Override
public WiFiApSetting createFromParcel(Parcel in) {
return new WiFiApSetting(in);
}
@Override
public WiFiApSetting[] newArray(int size) {
return new WiFiApSetting[size];
}
};
31](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-31-2048.jpg)
![dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
compile project(':wifiapmanager')
compile 'com.android.support:design:22.2.0'
compile 'com.android.support:recyclerview-v7:22.2.0'
compile 'com.android.support:cardview-v7:22.2.0'
compile 'com.jakewharton:butterknife:6.1.0'
compile 'com.github.bumptech.glide:glide:3.6.0'
compile 'de.greenrobot:eventbus:2.4.0'
compile 'io.realm:realm-android:0.80.3'
debugCompile 'com.squareup.leakcanary:leakcanary-android:1.3.1'
releaseCompile 'com.squareup.leakcanary:leakcanary-android-no-op:1.3.1'
}

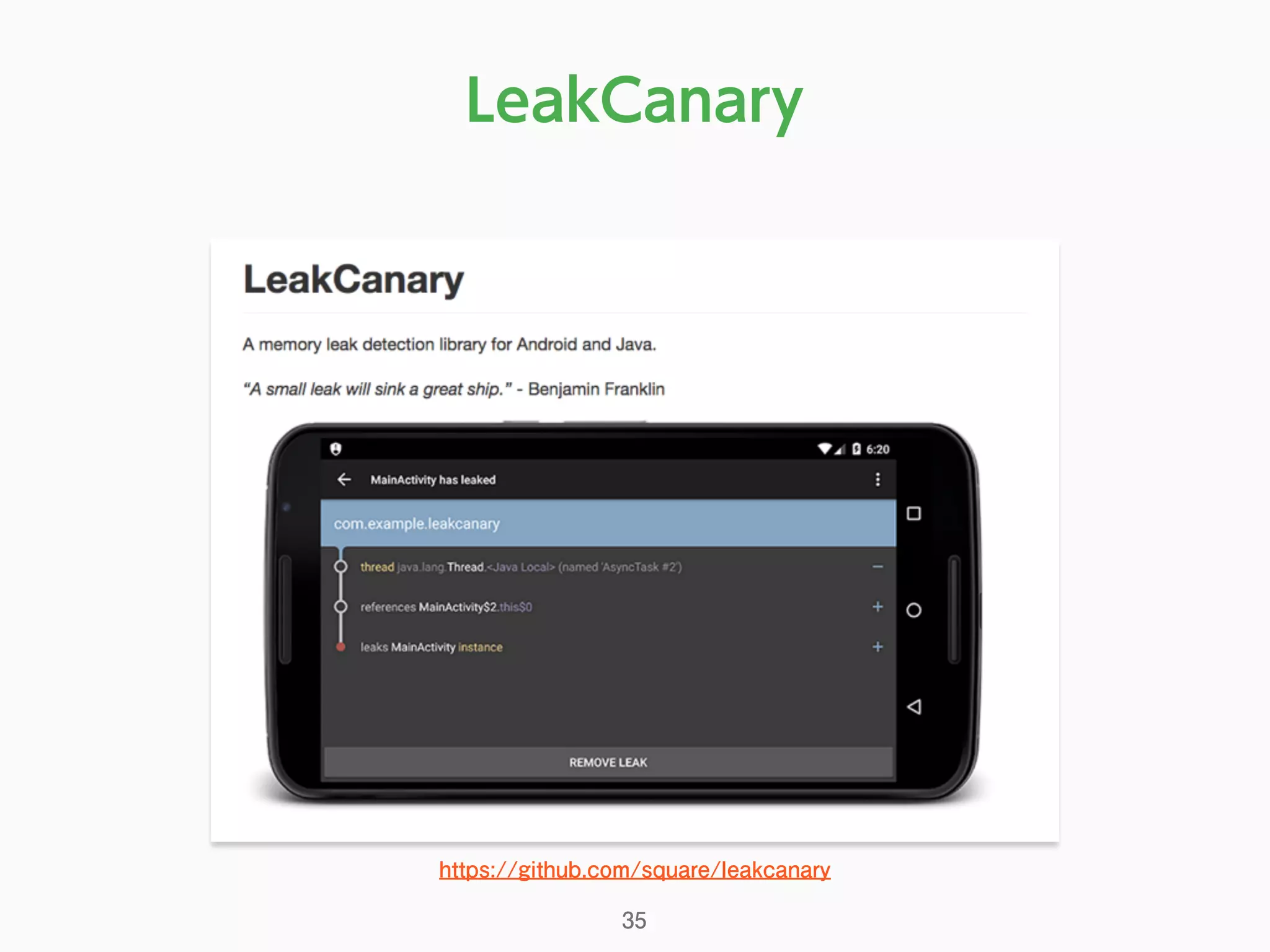

LeakCanary
build.gradle
36](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-36-2048.jpg)

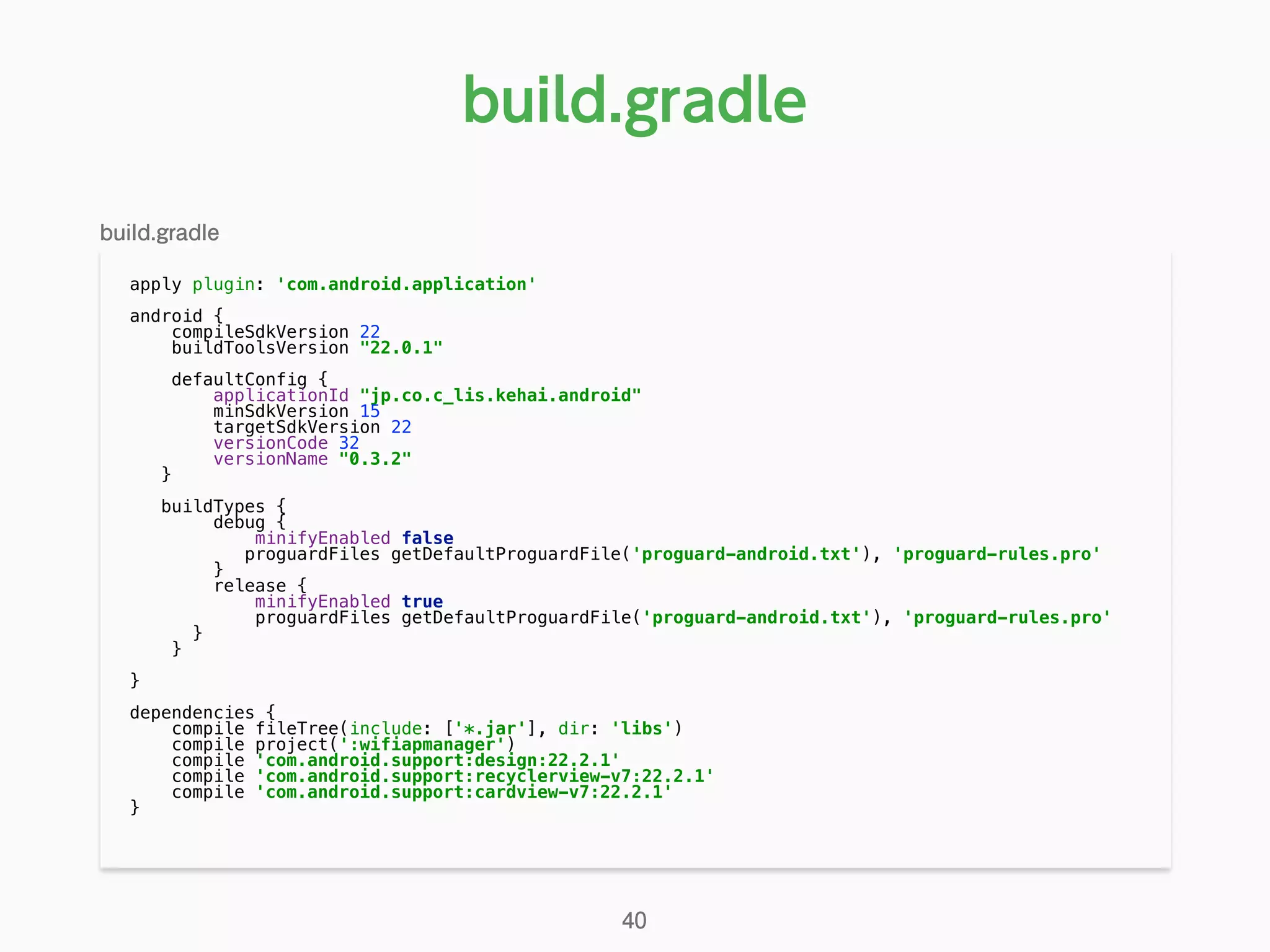

![apply plugin: 'com.android.application'
android {
compileSdkVersion 22
buildToolsVersion "22.0.1"
defaultConfig {
applicationId "jp.co.c_lis.kehai.android"
minSdkVersion 15
targetSdkVersion 22
versionCode 32
versionName "0.3.2"
}
buildTypes {
debug {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
}
release {
minifyEnabled true
proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
}
}
}
dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
compile project(':wifiapmanager')
compile 'com.android.support:design:22.2.1'
compile 'com.android.support:recyclerview-v7:22.2.1'
compile 'com.android.support:cardview-v7:22.2.1'
}
build.gradle
40
build.gradle](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-40-2048.jpg)

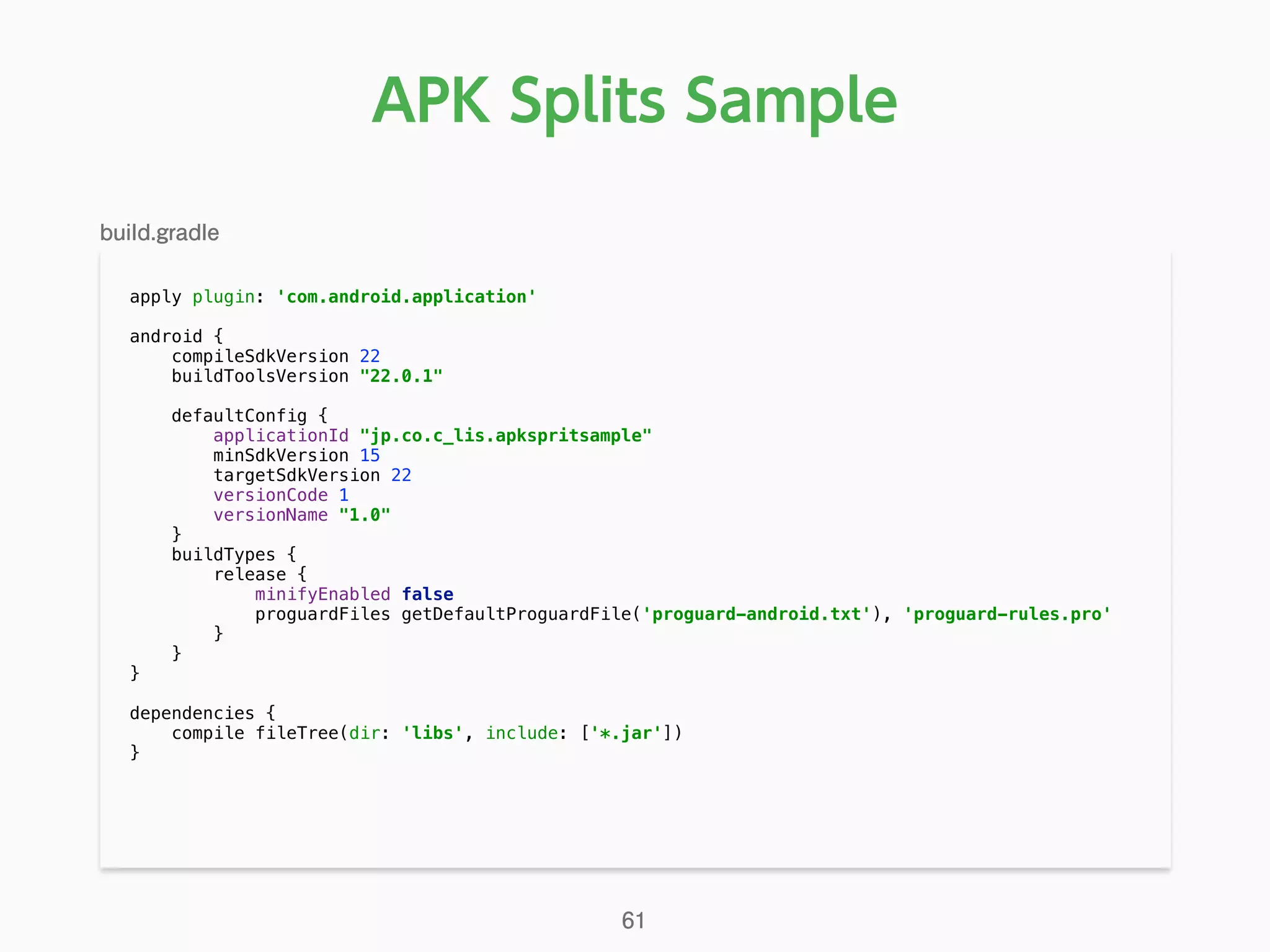

![APK Splits Sample
apply plugin: 'com.android.application'
android {
compileSdkVersion 22
buildToolsVersion "22.0.1"
defaultConfig {
applicationId "jp.co.c_lis.apkspritsample"
minSdkVersion 15
targetSdkVersion 22
versionCode 1
versionName "1.0"
}
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
}
}
}
dependencies {
compile fileTree(dir: 'libs', include: ['*.jar'])
}
build.gradle
61](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-61-2048.jpg)

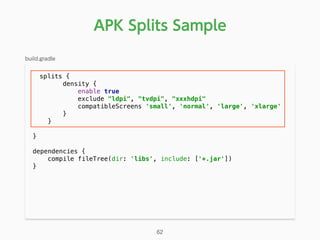

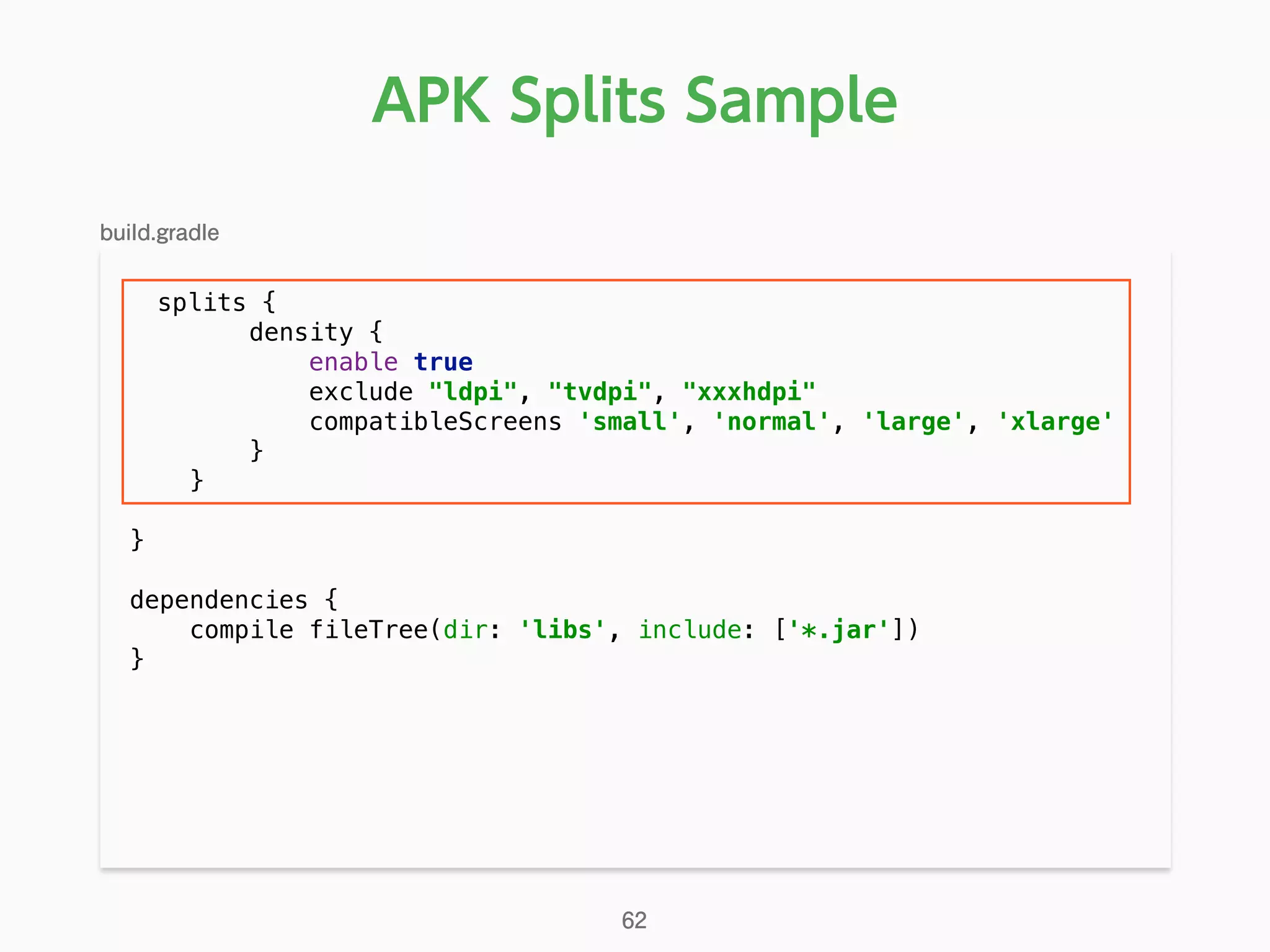

![APK Splits Sample
splits {
density {
enable true
exclude "ldpi", "tvdpi", "xxxhdpi"
compatibleScreens 'small', 'normal', 'large', 'xlarge'
}
}
}
dependencies {
compile fileTree(dir: 'libs', include: ['*.jar'])
}
build.gradle
62](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-62-2048.jpg)

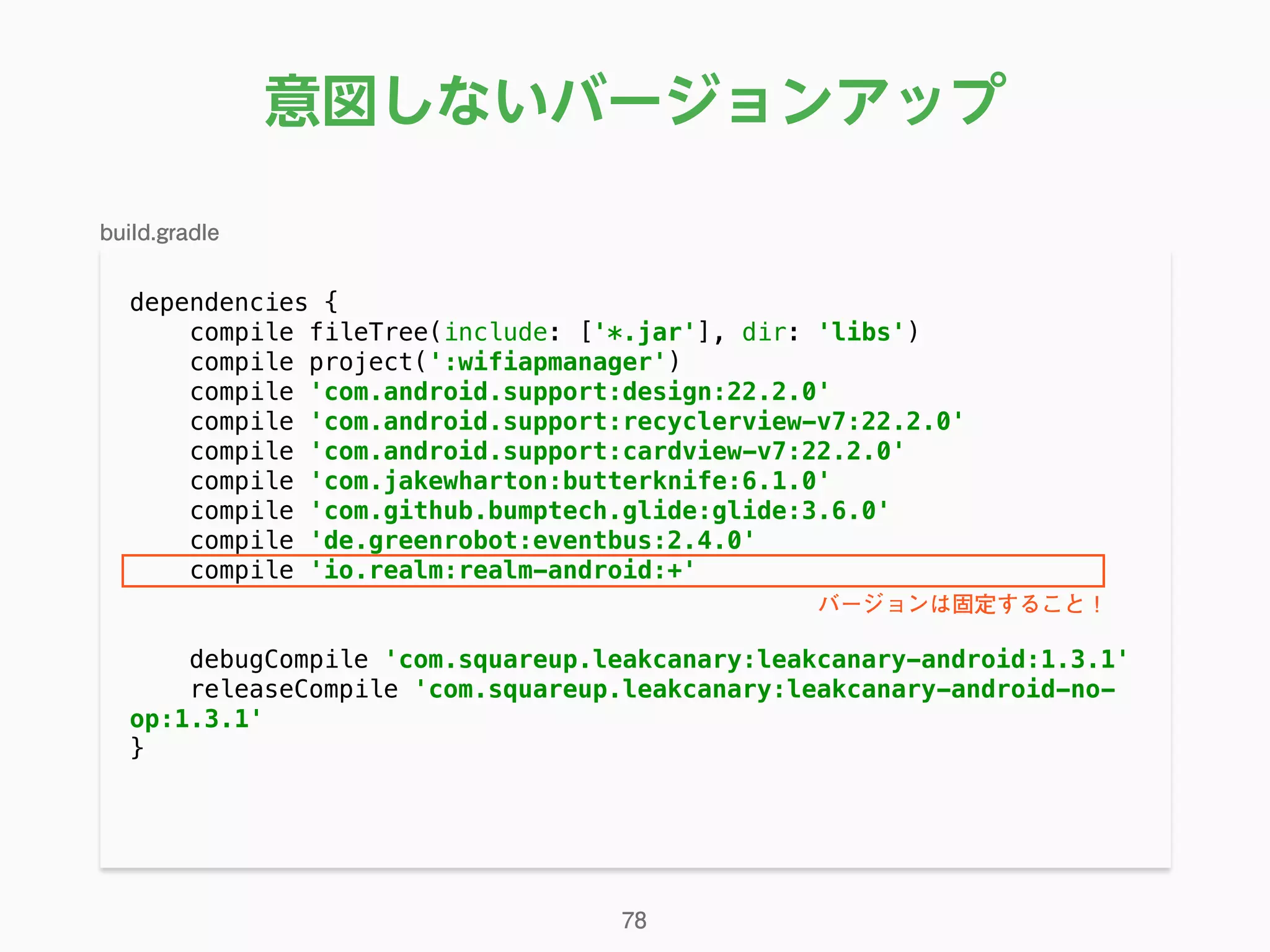

![意図しないバージョンアップ
dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
compile project(':wifiapmanager')
compile 'com.android.support:design:22.2.0'
compile 'com.android.support:recyclerview-v7:22.2.0'
compile 'com.android.support:cardview-v7:22.2.0'
compile 'com.jakewharton:butterknife:6.1.0'
compile 'com.github.bumptech.glide:glide:3.6.0'
compile 'de.greenrobot:eventbus:2.4.0'
compile 'io.realm:realm-android:+'
debugCompile 'com.squareup.leakcanary:leakcanary-android:1.3.1'
releaseCompile 'com.squareup.leakcanary:leakcanary-android-no-
op:1.3.1'
}
78
build.gradle
バージョンは固定すること！](https://image.slidesharecdn.com/20150720-150720061220-lva1-app6891/75/Android-Studio-78-2048.jpg)
More Related Content
Android Studioの魅力
- 1. C-LIS CO., LTD. Twitter: #abc2015s
- 2.
- 3. Android Studio とは 3 2013年5月 IntelliJIDEAベース 単体ソフトとして配布
- 4.

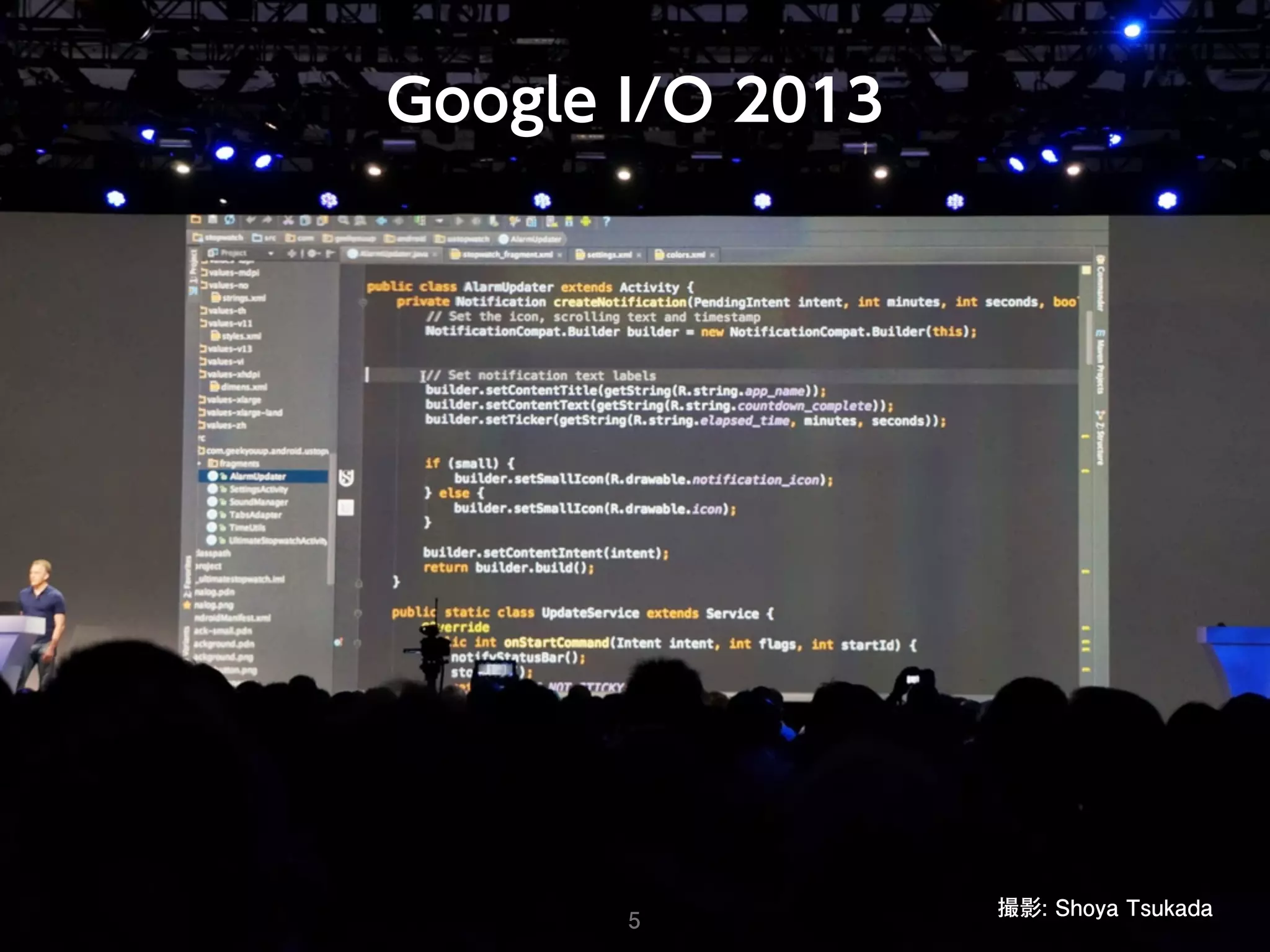

- 5. Google I/O 2013 撮影:Shoya Tsukada 5
- 6.

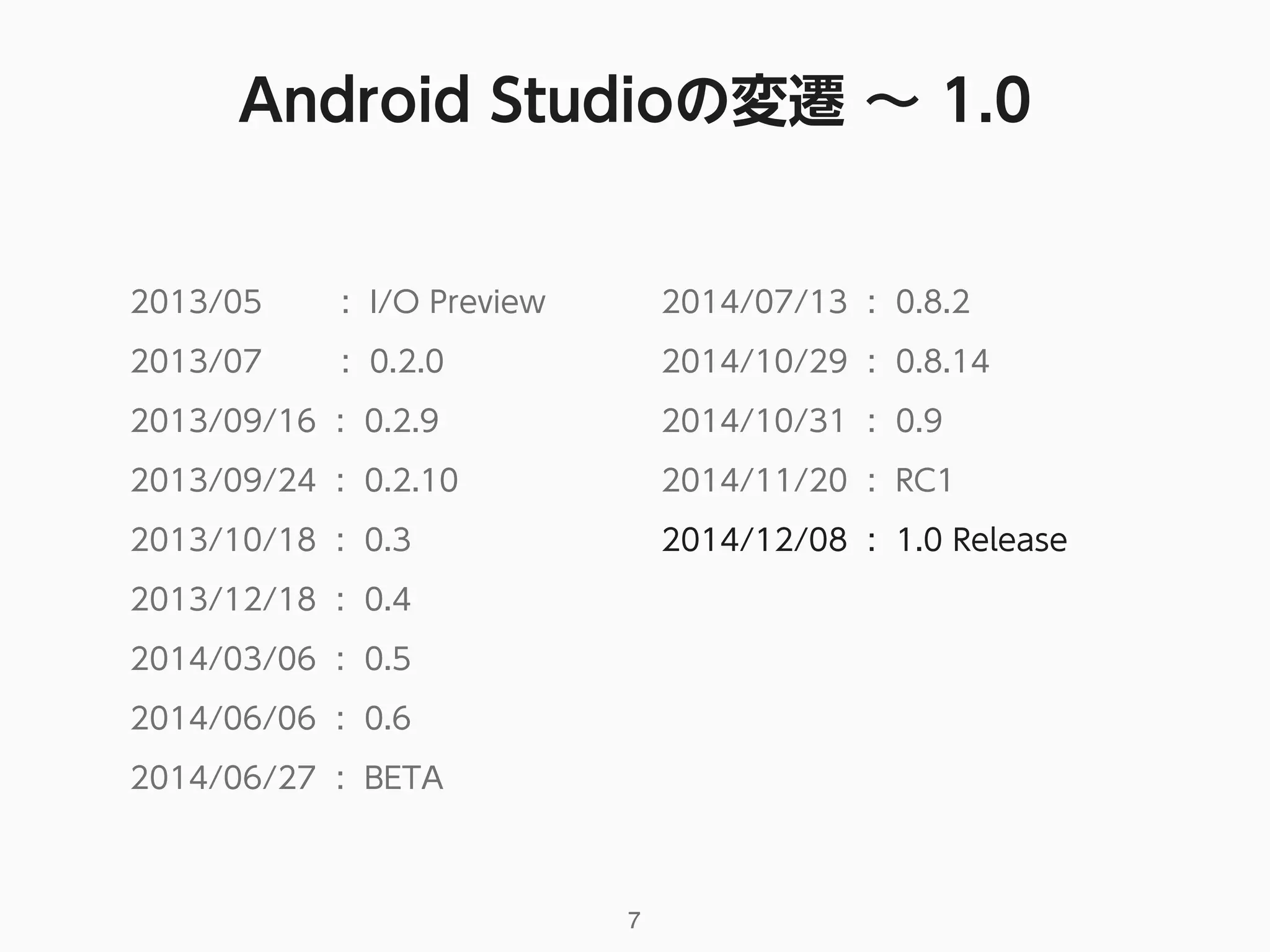

- 7. Android Studioの変遷 ∼1.0 7 2013/05 : I/O Preview 2013/07 : 0.2.0 2013/09/16 : 0.2.9 2013/09/24 : 0.2.10 2013/10/18 : 0.3 2013/12/18 : 0.4 2014/03/06 : 0.5 2014/06/06 : 0.6 2014/06/27 : BETA 2014/07/13 : 0.8.2 2014/10/29 : 0.8.14 2014/10/31 : 0.9 2014/11/20 : RC1 2014/12/08 : 1.0 Release
- 8.
- 9.
- 10.

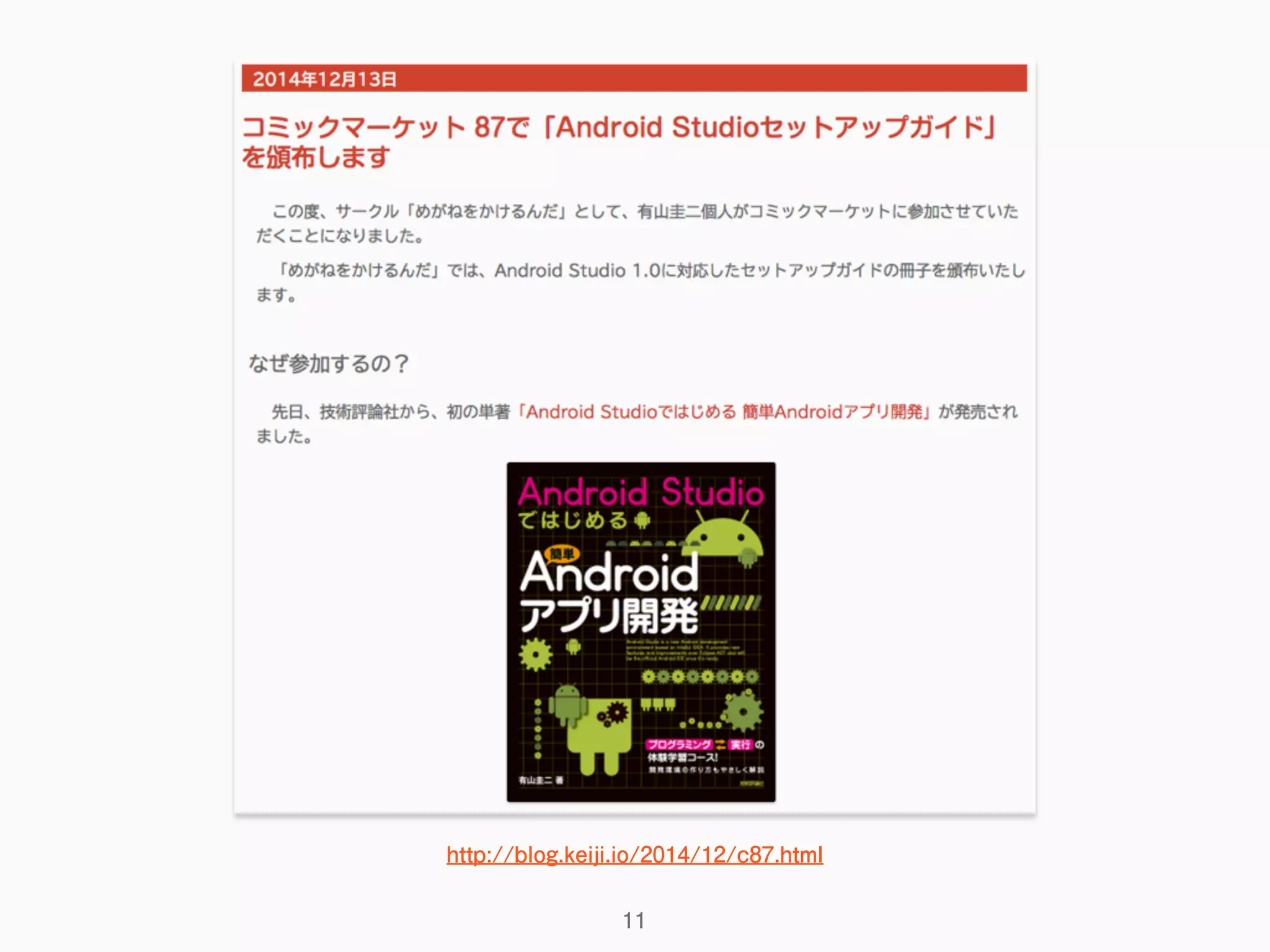

- 11.
- 12.
- 13.
- 14.
- 15.
- 16.

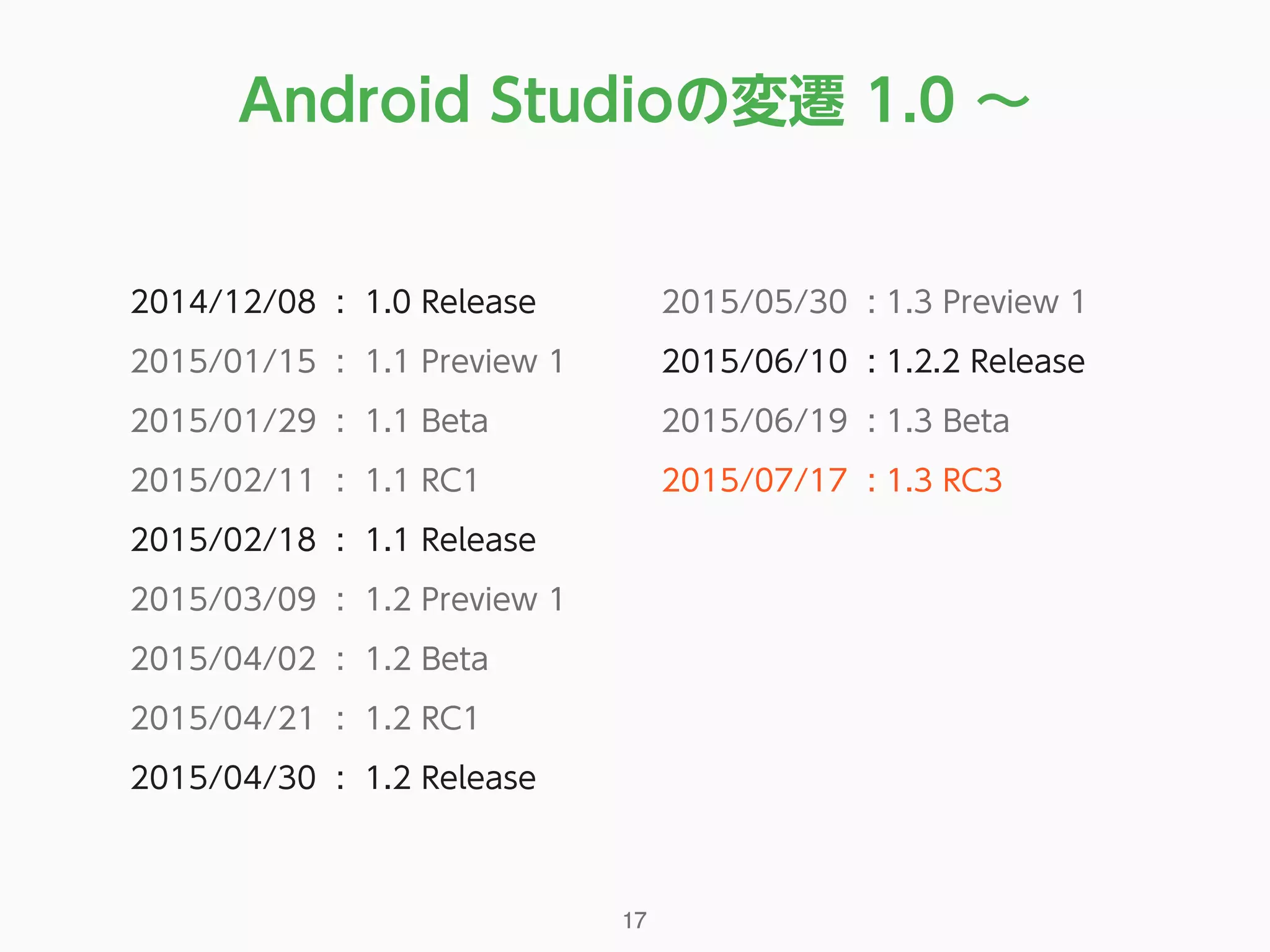

- 17. Android Studioの変遷 1.0∼ 17 2014/12/08 : 1.0 Release 2015/01/15 : 1.1 Preview 1 2015/01/29 : 1.1 Beta 2015/02/11 : 1.1 RC1 2015/02/18 : 1.1 Release 2015/03/09 : 1.2 Preview 1 2015/04/02 : 1.2 Beta 2015/04/21 : 1.2 RC1 2015/04/30 : 1.2 Release 2015/05/30 : 1.3 Preview 1 2015/06/10 : 1.2.2 Release 2015/06/19 : 1.3 Beta 2015/07/17 : 1.3 RC3
- 18. 2014/12/08 : 1.0Release 2015/01/15 : 1.1 Preview 1 2015/01/29 : 1.1 Beta 2015/02/11 : 1.1 RC1 2015/02/18 : 1.1 Release 2015/03/09 : 1.2 Preview 1 2015/04/02 : 1.2 Beta 2015/04/21 : 1.2 RC1 2015/04/30 : 1.2 Release 2015/05/30 : 1.3 Preview 1 2015/06/10 : 1.2.2 Release 2015/06/19 : 1.3 Beta 2015/07/17 : 1.3 RC3 Android Studio 1.3 RC3
- 19.
- 20.
- 21.
- 22.
- 23. 安定していない 23 チェコJetBrains社が開発しているIntelliJ IDEAの Community Editionがベースです AndroidStudioは、登場から２年が経ち、 Release版は十分、安定しています
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.

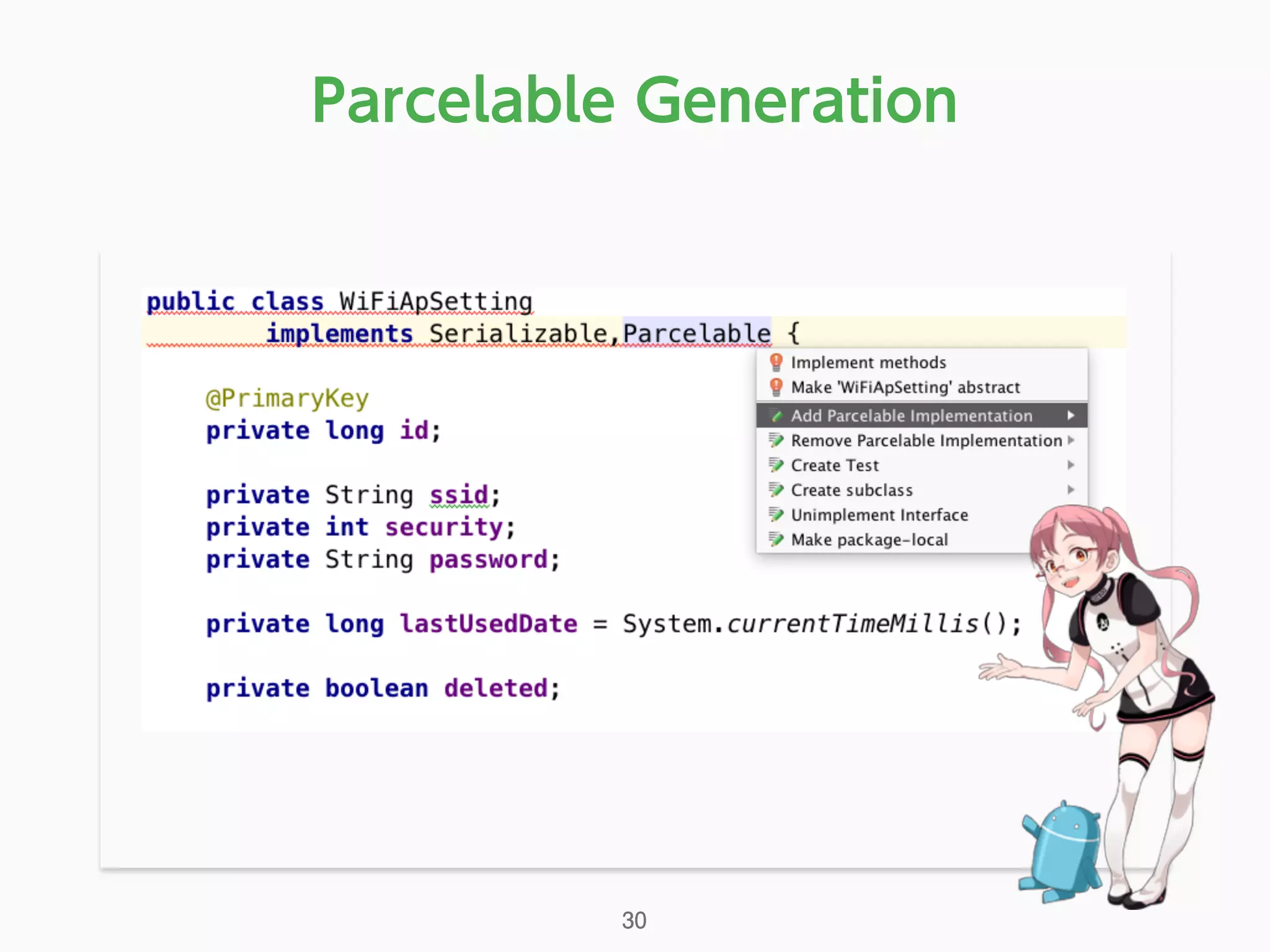

- 31. Parcelable Generation protected WiFiApSetting(Parcelin) { id = in.readLong(); ssid = in.readString(); security = in.readInt(); password = in.readString(); lastUsedDate = in.readLong(); } @Override public void writeToParcel(Parcel dest, int flags) { dest.writeLong(id); dest.writeString(ssid); dest.writeInt(security); dest.writeString(password); dest.writeLong(lastUsedDate); } @Override public int describeContents() { return 0; } public static final Creator<WiFiApSetting> CREATOR = new Creator<WiFiApSetting>() { @Override public WiFiApSetting createFromParcel(Parcel in) { return new WiFiApSetting(in); } @Override public WiFiApSetting[] newArray(int size) { return new WiFiApSetting[size]; } }; 31

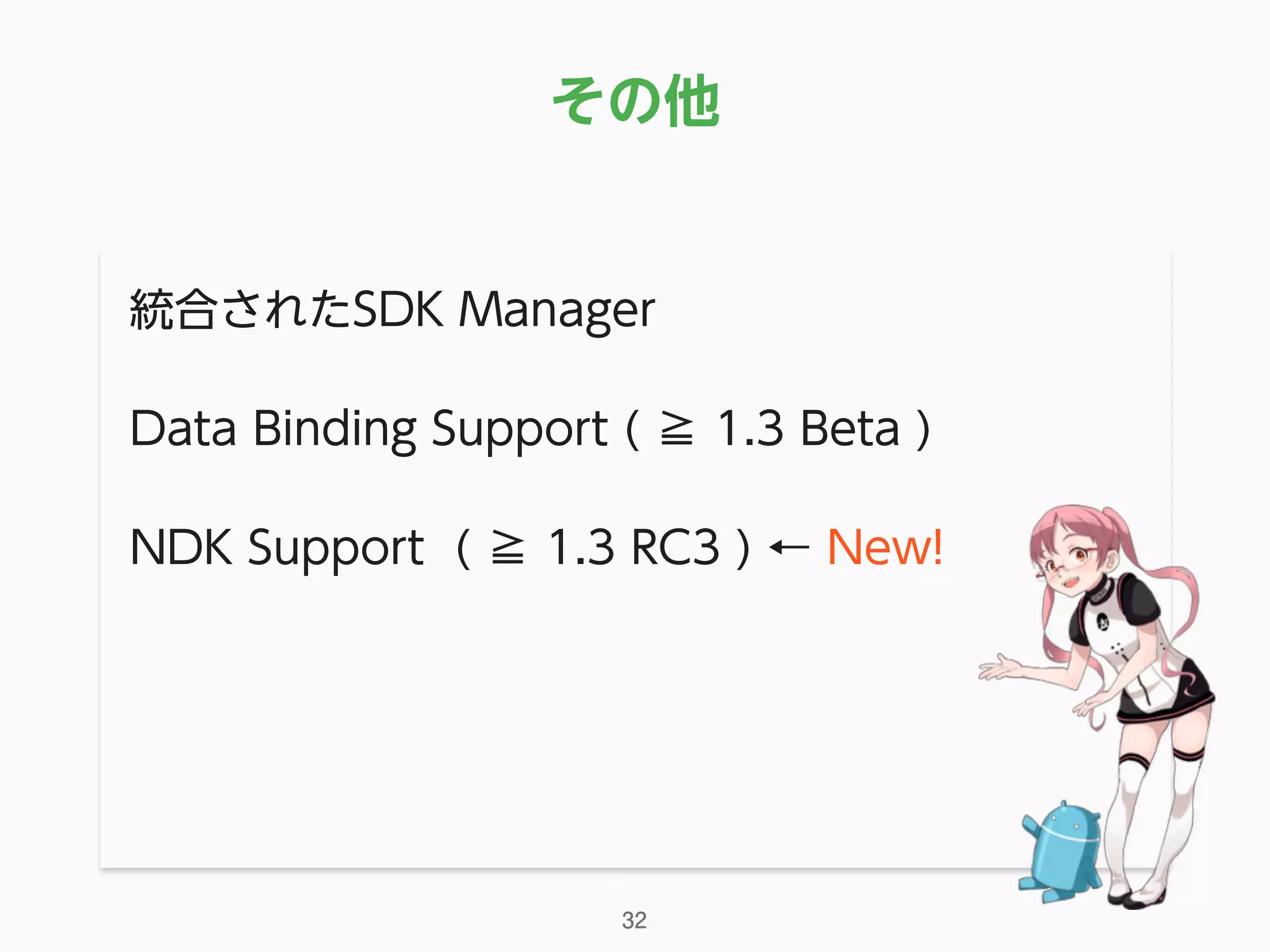

- 32. その他 統合されたSDK Manager Data BindingSupport ( ≧ 1.3 Beta ) NDK Support ( ≧ 1.3 RC3 ) ← New! 32

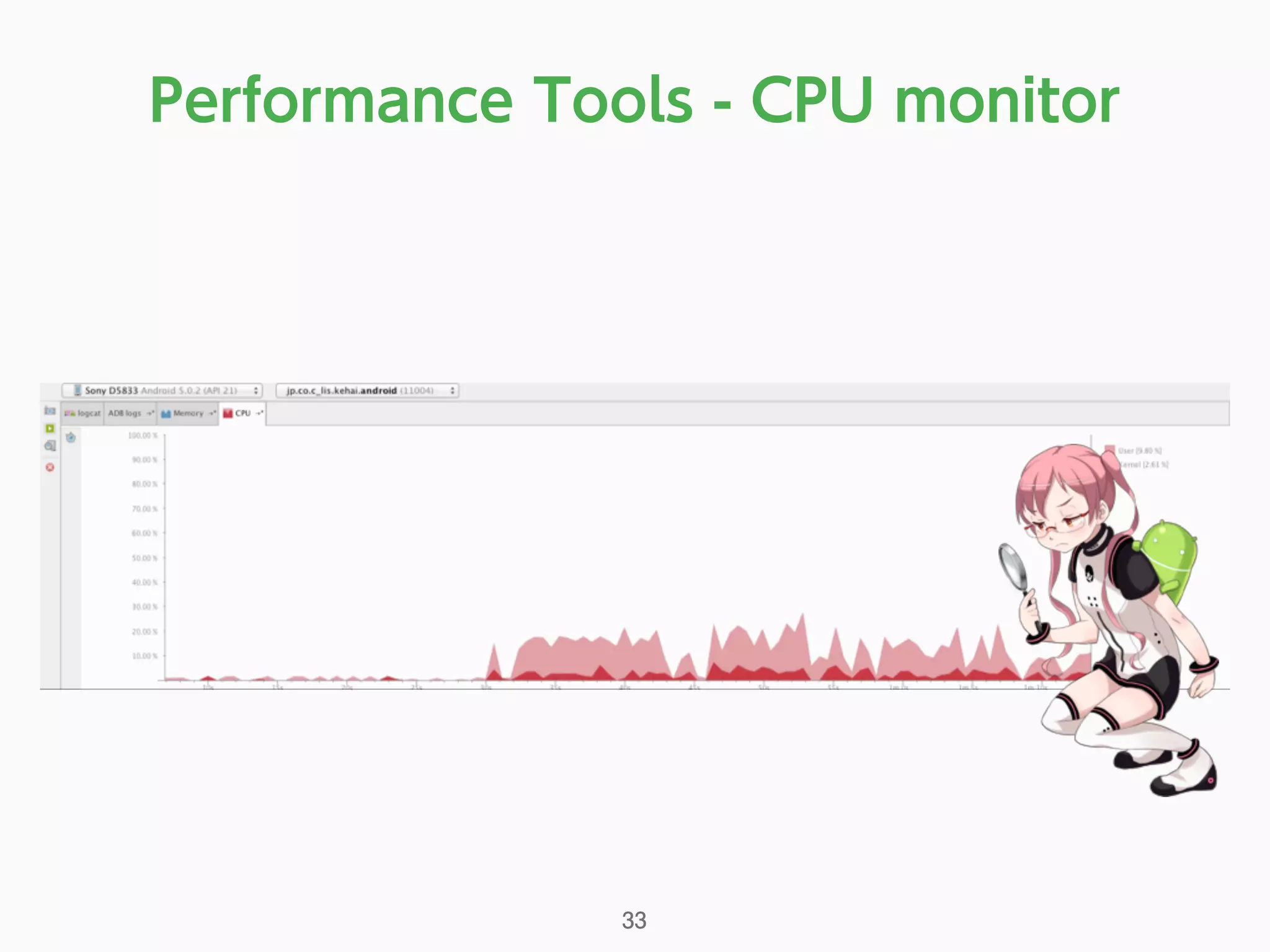

- 33. Performance Tools -CPU monitor 33

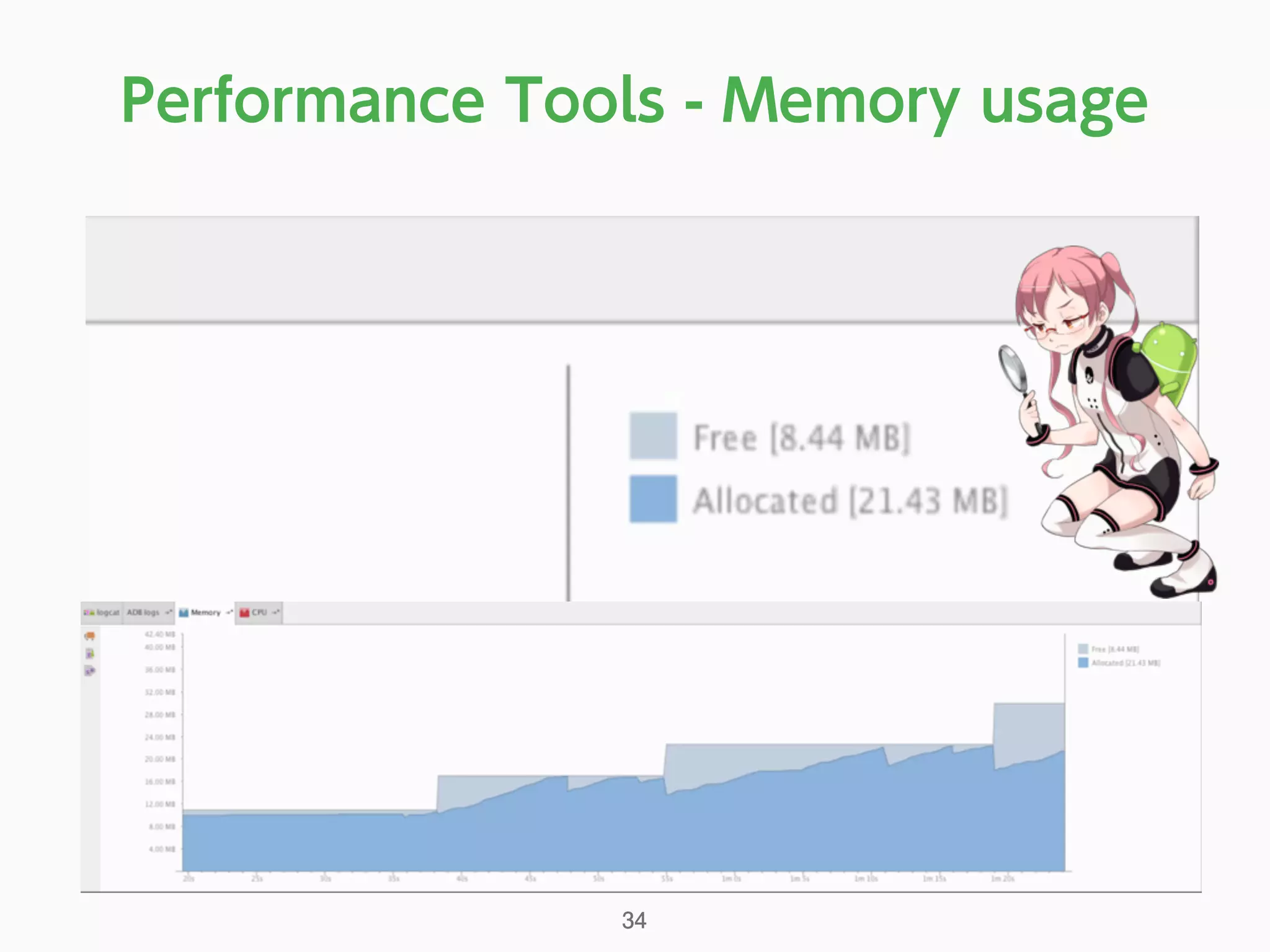

- 34. Performance Tools -Memory usage 34
- 35.

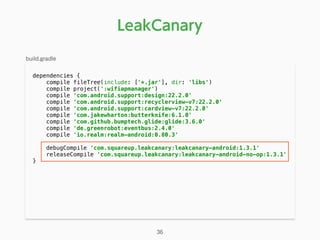

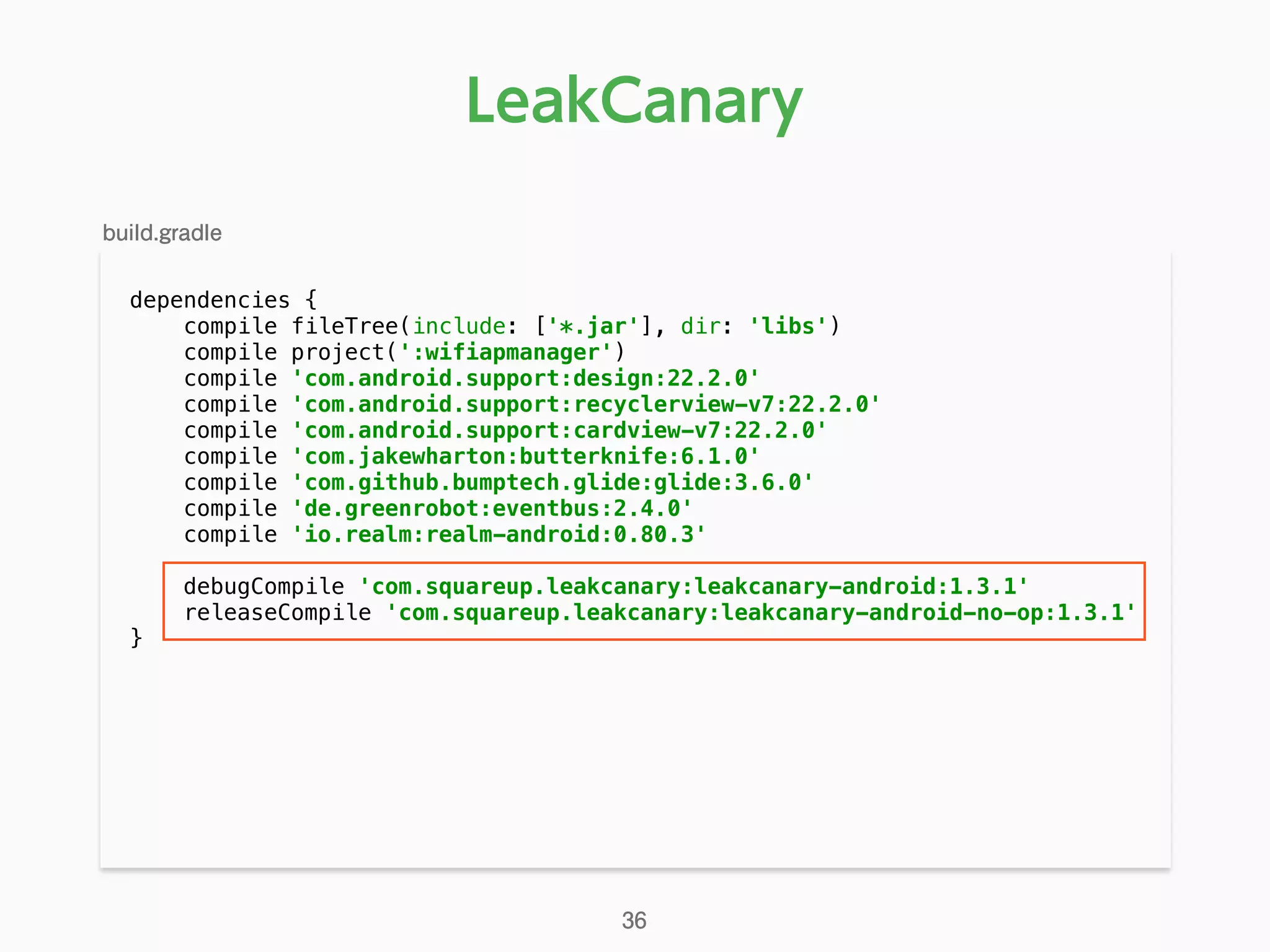

- 36. dependencies { compile fileTree(include:['*.jar'], dir: 'libs') compile project(':wifiapmanager') compile 'com.android.support:design:22.2.0' compile 'com.android.support:recyclerview-v7:22.2.0' compile 'com.android.support:cardview-v7:22.2.0' compile 'com.jakewharton:butterknife:6.1.0' compile 'com.github.bumptech.glide:glide:3.6.0' compile 'de.greenrobot:eventbus:2.4.0' compile 'io.realm:realm-android:0.80.3' debugCompile 'com.squareup.leakcanary:leakcanary-android:1.3.1' releaseCompile 'com.squareup.leakcanary:leakcanary-android-no-op:1.3.1' } LeakCanary build.gradle 36
- 37.

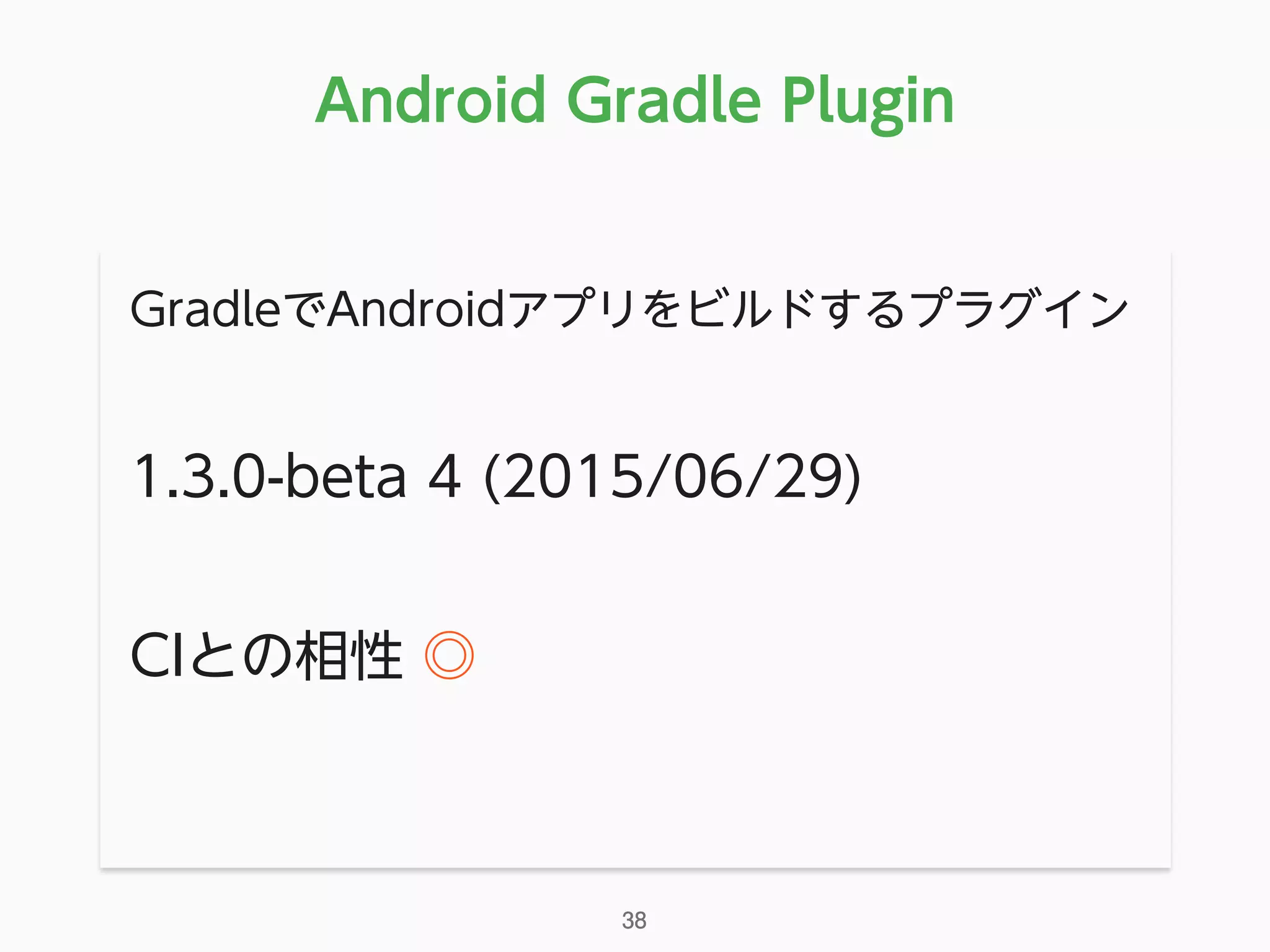

- 38. GradleでAndroidアプリをビルドするプラグイン 1.3.0-beta 4 (2015/06/29) CIとの相性◎ Android Gradle Plugin 38
- 39.
- 40. apply plugin: 'com.android.application' android{ compileSdkVersion 22 buildToolsVersion "22.0.1" defaultConfig { applicationId "jp.co.c_lis.kehai.android" minSdkVersion 15 targetSdkVersion 22 versionCode 32 versionName "0.3.2" } buildTypes { debug { minifyEnabled false proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } release { minifyEnabled true proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } } } dependencies { compile fileTree(include: ['*.jar'], dir: 'libs') compile project(':wifiapmanager') compile 'com.android.support:design:22.2.1' compile 'com.android.support:recyclerview-v7:22.2.1' compile 'com.android.support:cardview-v7:22.2.1' } build.gradle 40 build.gradle

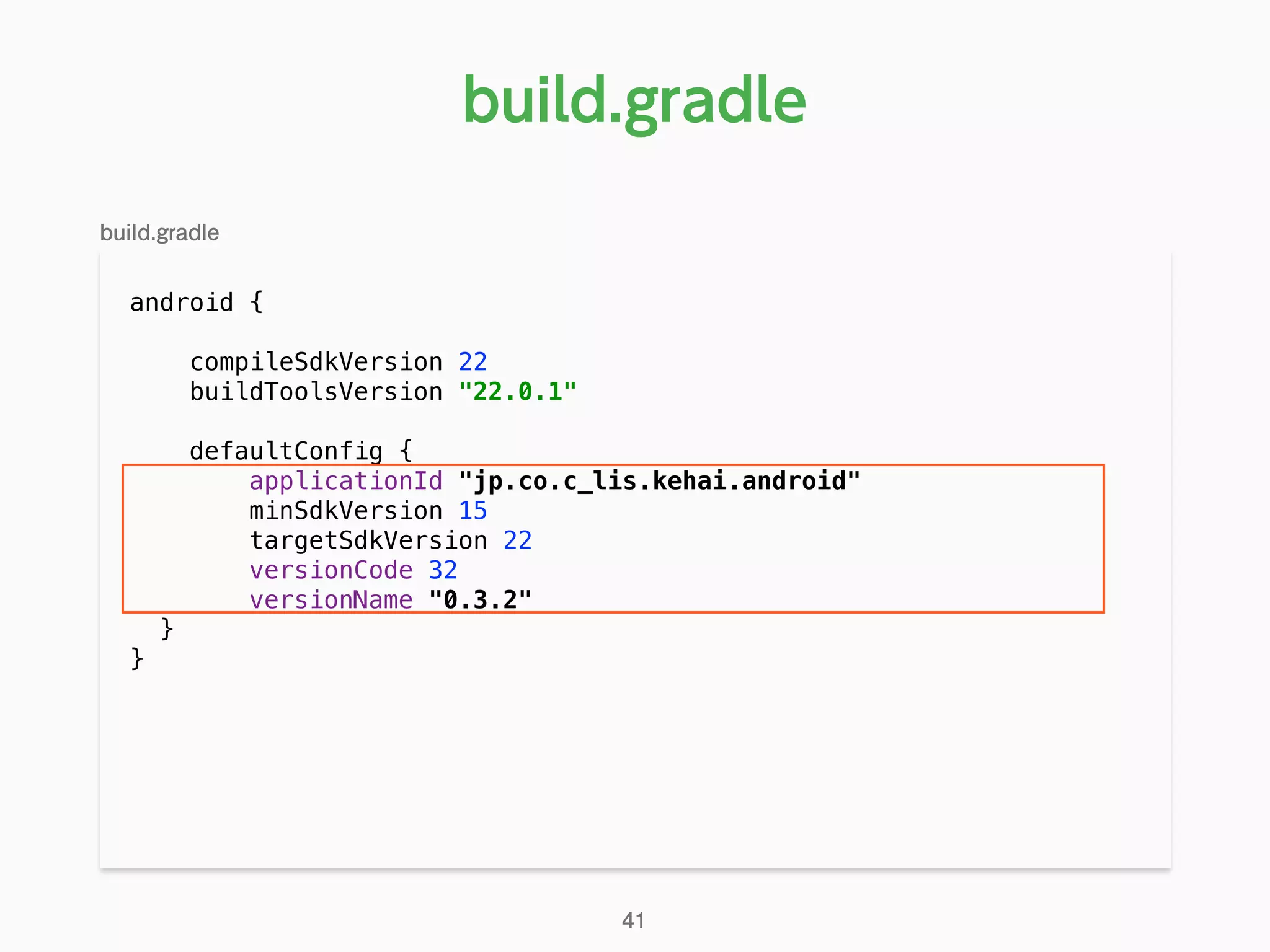

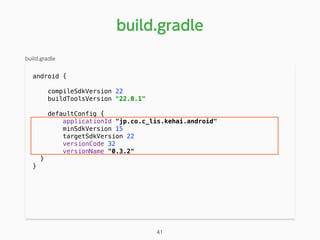

- 41. android { compileSdkVersion 22 buildToolsVersion"22.0.1" defaultConfig { applicationId "jp.co.c_lis.kehai.android" minSdkVersion 15 targetSdkVersion 22 versionCode 32 versionName "0.3.2" } } build.gradle 41 build.gradle

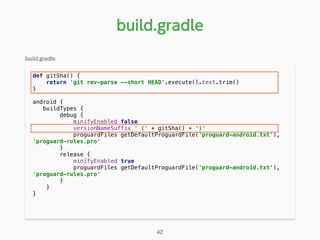

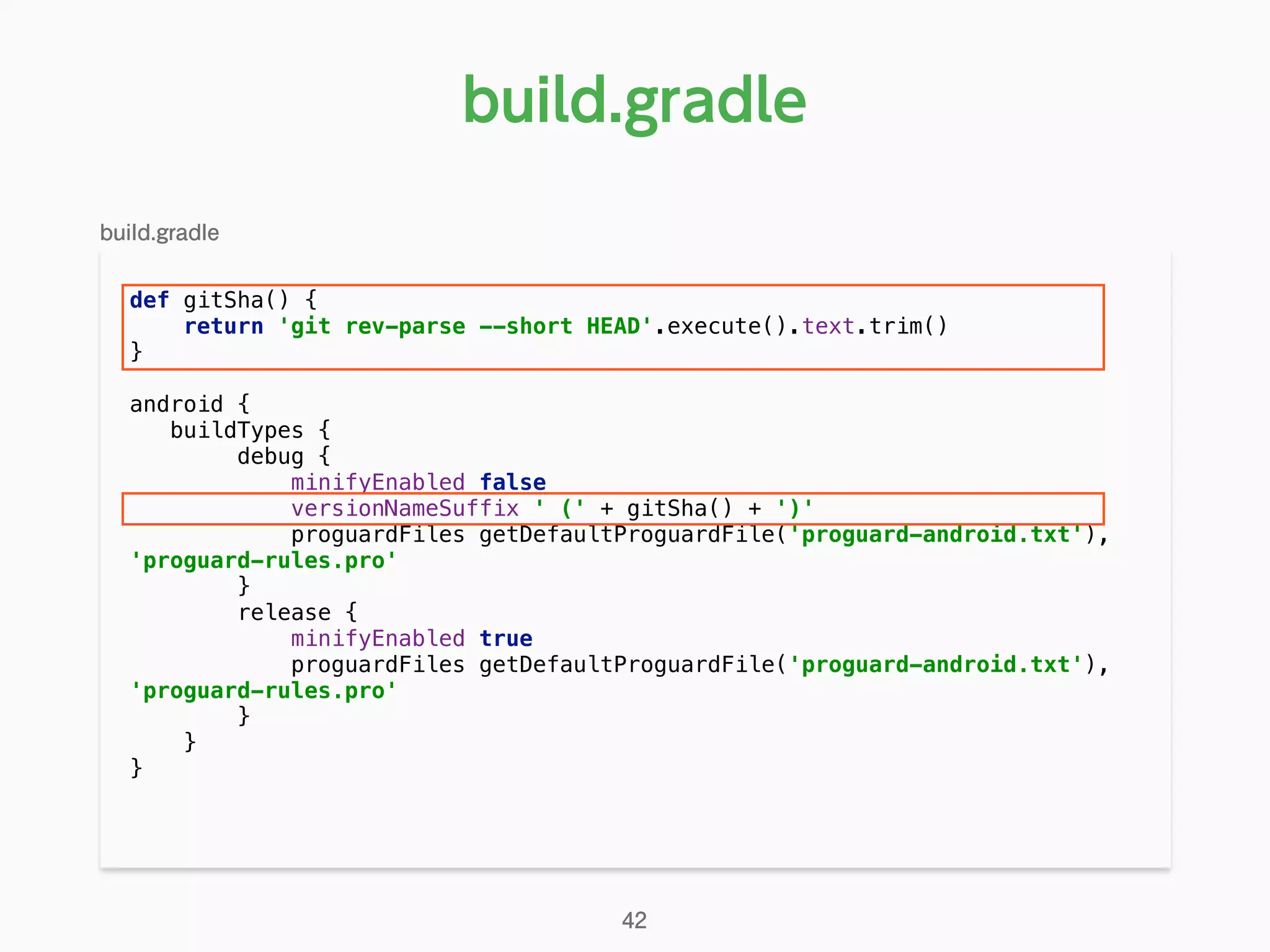

- 42. def gitSha() { return'git rev-parse --short HEAD'.execute().text.trim() } android { buildTypes { debug { minifyEnabled false versionNameSuffix ' (' + gitSha() + ')' proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } release { minifyEnabled true proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } } } build.gradle 42 build.gradle

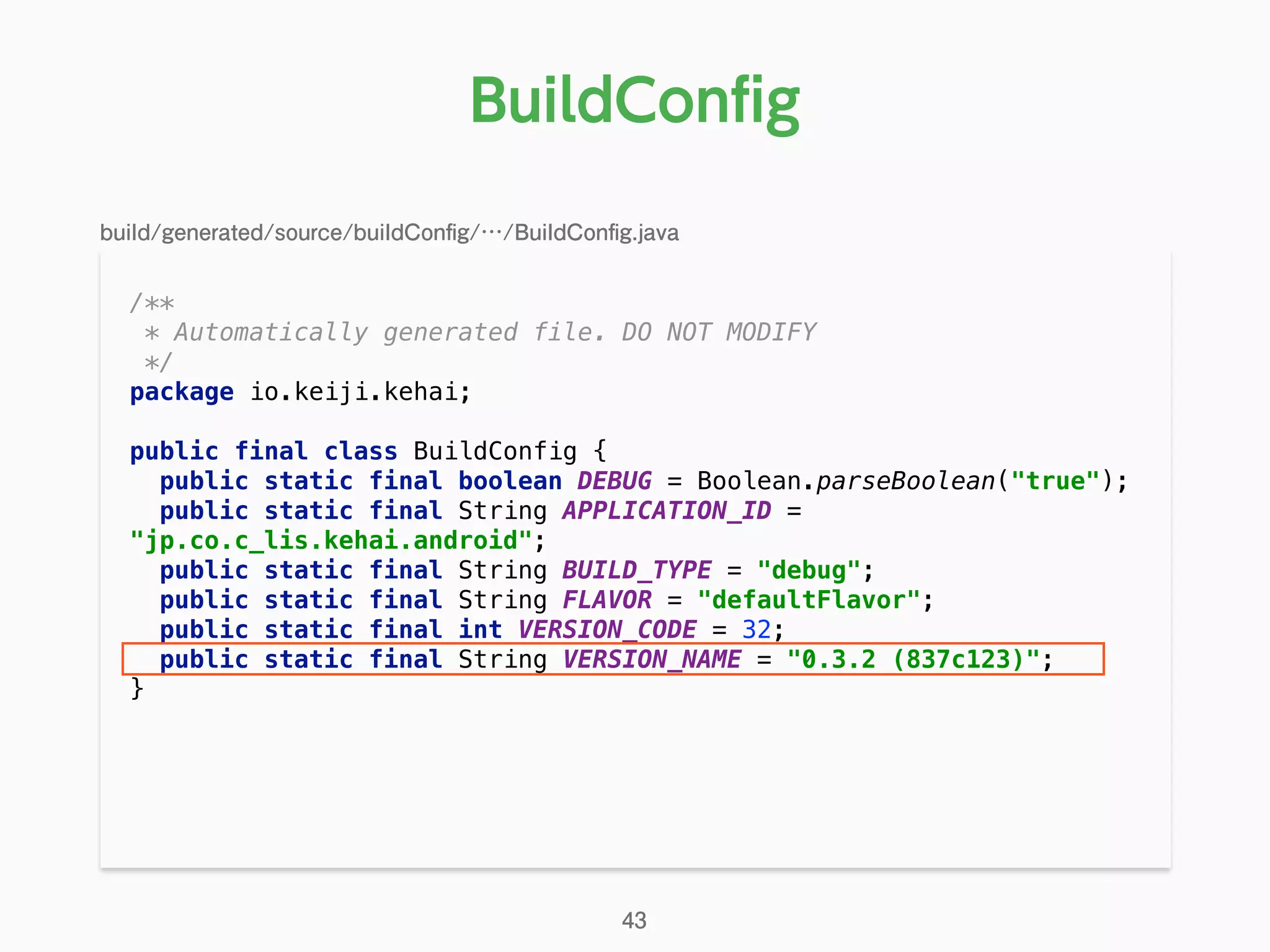

- 43. /** * Automatically generatedfile. DO NOT MODIFY */ package io.keiji.kehai; public final class BuildConfig { public static final boolean DEBUG = Boolean.parseBoolean("true"); public static final String APPLICATION_ID = "jp.co.c_lis.kehai.android"; public static final String BUILD_TYPE = "debug"; public static final String FLAVOR = "defaultFlavor"; public static final int VERSION_CODE = 32; public static final String VERSION_NAME = "0.3.2 (837c123)"; } BuildConfig 43 build/generated/source/buildConfig/…/BuildConfig.java

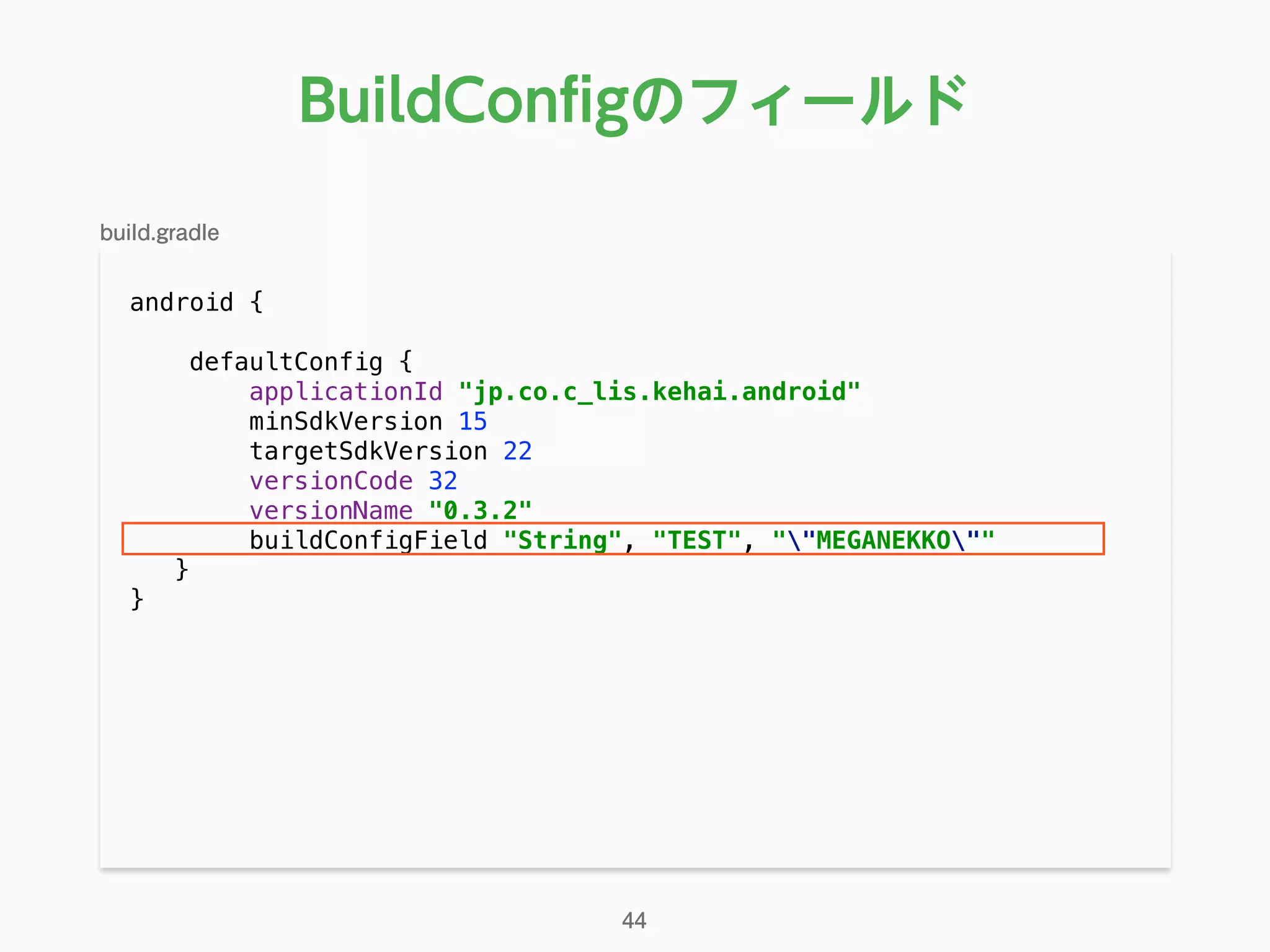

- 44. android { defaultConfig { applicationId"jp.co.c_lis.kehai.android" minSdkVersion 15 targetSdkVersion 22 versionCode 32 versionName "0.3.2" buildConfigField "String", "TEST", ""MEGANEKKO"" } } BuildConfigのフィールド 44 build.gradle

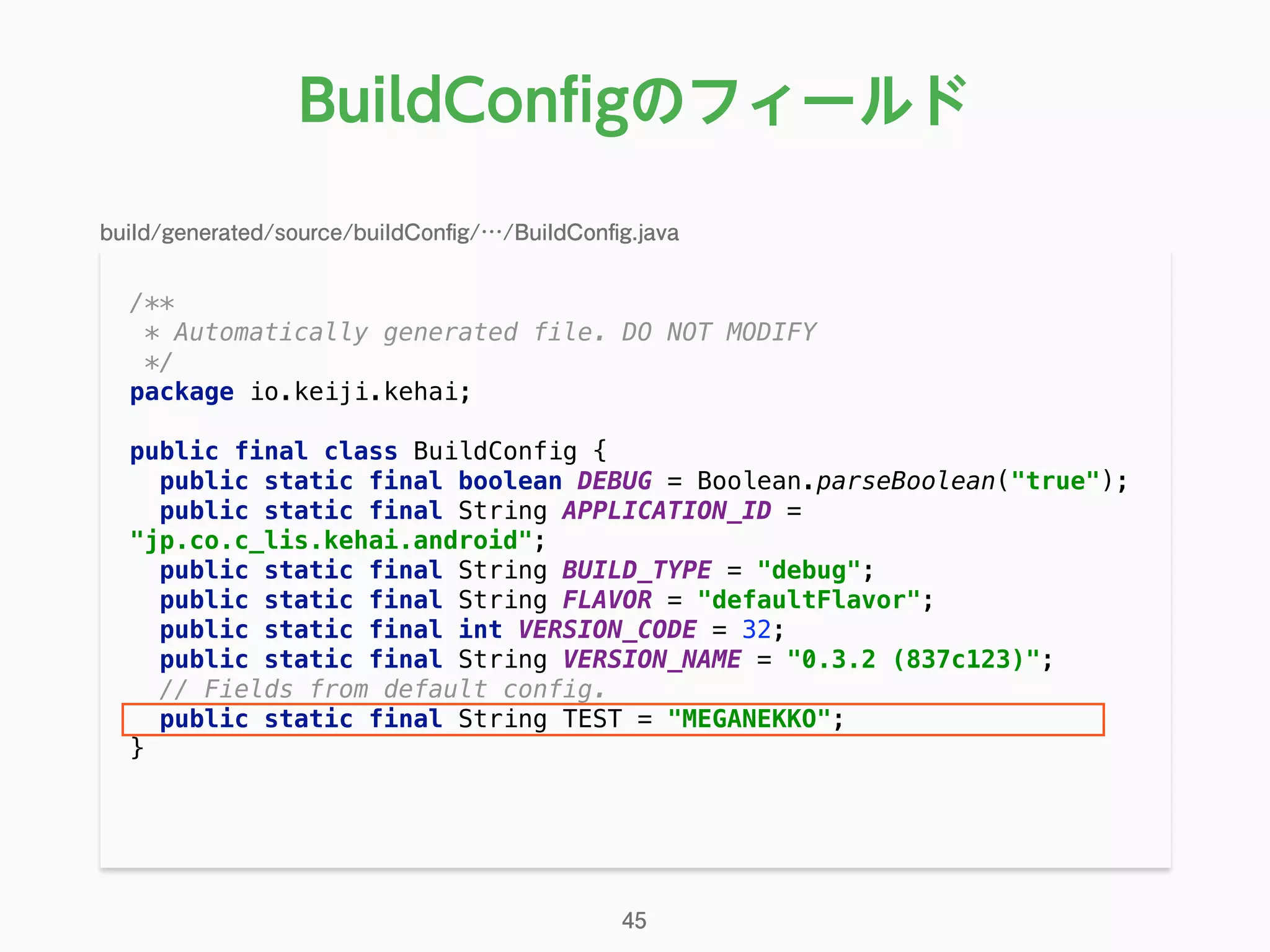

- 45. /** * Automatically generatedfile. DO NOT MODIFY */ package io.keiji.kehai; public final class BuildConfig { public static final boolean DEBUG = Boolean.parseBoolean("true"); public static final String APPLICATION_ID = "jp.co.c_lis.kehai.android"; public static final String BUILD_TYPE = "debug"; public static final String FLAVOR = "defaultFlavor"; public static final int VERSION_CODE = 32; public static final String VERSION_NAME = "0.3.2 (837c123)"; // Fields from default config. public static final String TEST = "MEGANEKKO"; } BuildConfigのフィールド 45 build/generated/source/buildConfig/…/BuildConfig.java

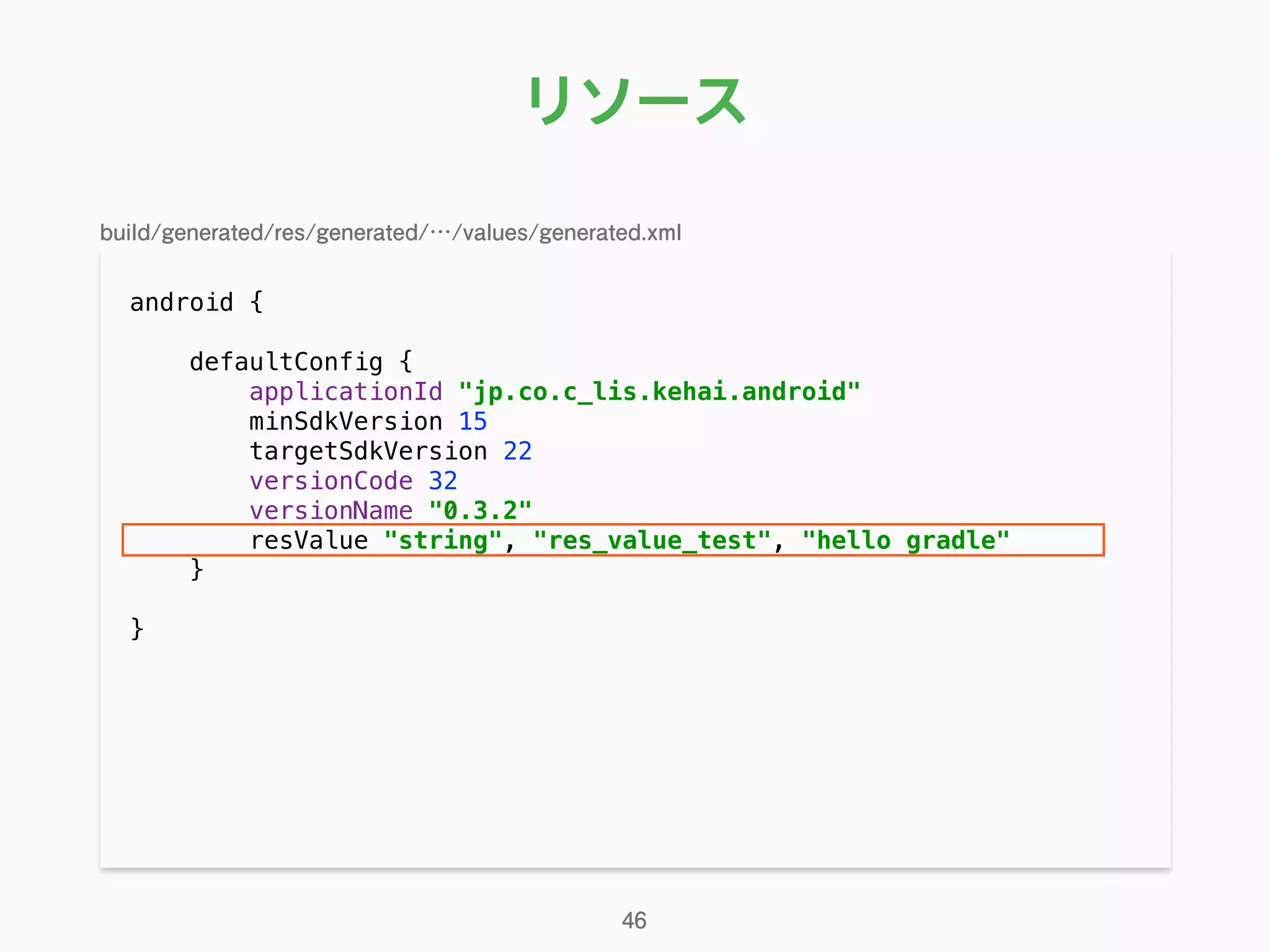

- 46. リソース android { defaultConfig { applicationId"jp.co.c_lis.kehai.android" minSdkVersion 15 targetSdkVersion 22 versionCode 32 versionName "0.3.2" resValue "string", "res_value_test", "hello gradle" } } 46 build/generated/res/generated/…/values/generated.xml

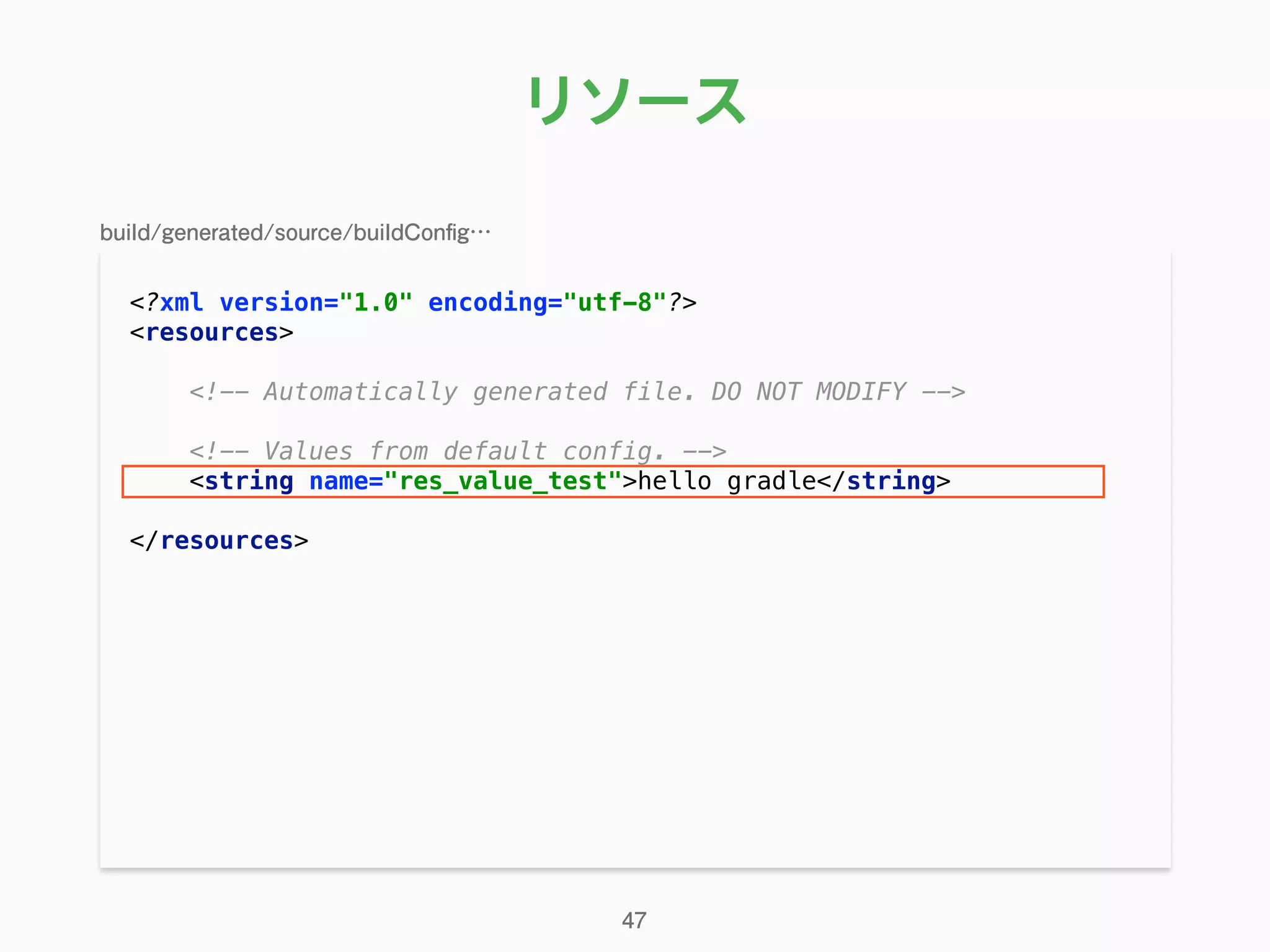

- 47. リソース <?xml version="1.0" encoding="utf-8"?> <resources> <!--Automatically generated file. DO NOT MODIFY --> <!-- Values from default config. --> <string name="res_value_test">hello gradle</string> </resources> 47 build/generated/source/buildConfig…
- 48.

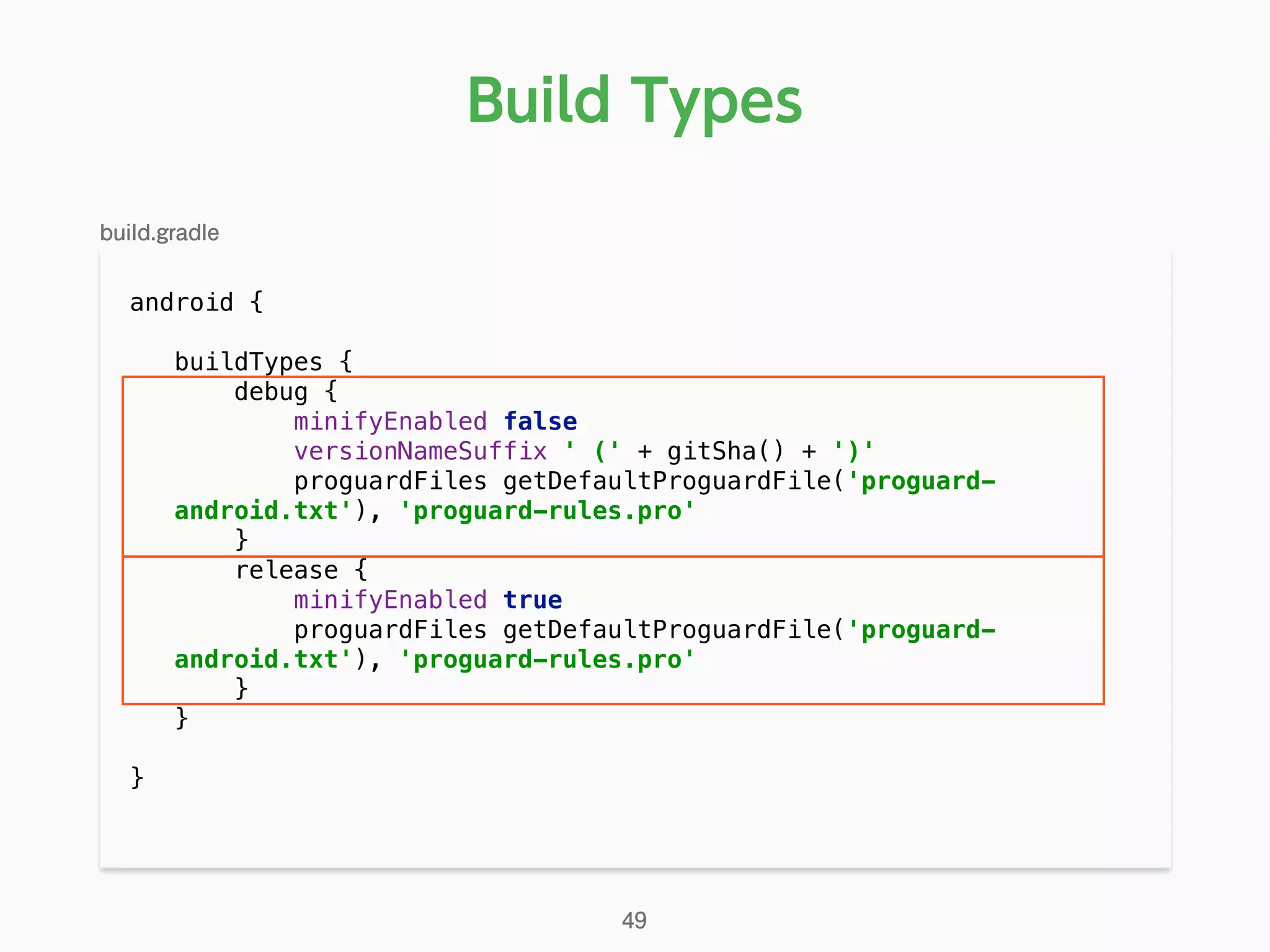

- 49. Build Types android { buildTypes{ debug { minifyEnabled false versionNameSuffix ' (' + gitSha() + ')' proguardFiles getDefaultProguardFile('proguard- android.txt'), 'proguard-rules.pro' } release { minifyEnabled true proguardFiles getDefaultProguardFile('proguard- android.txt'), 'proguard-rules.pro' } } } 49 build.gradle

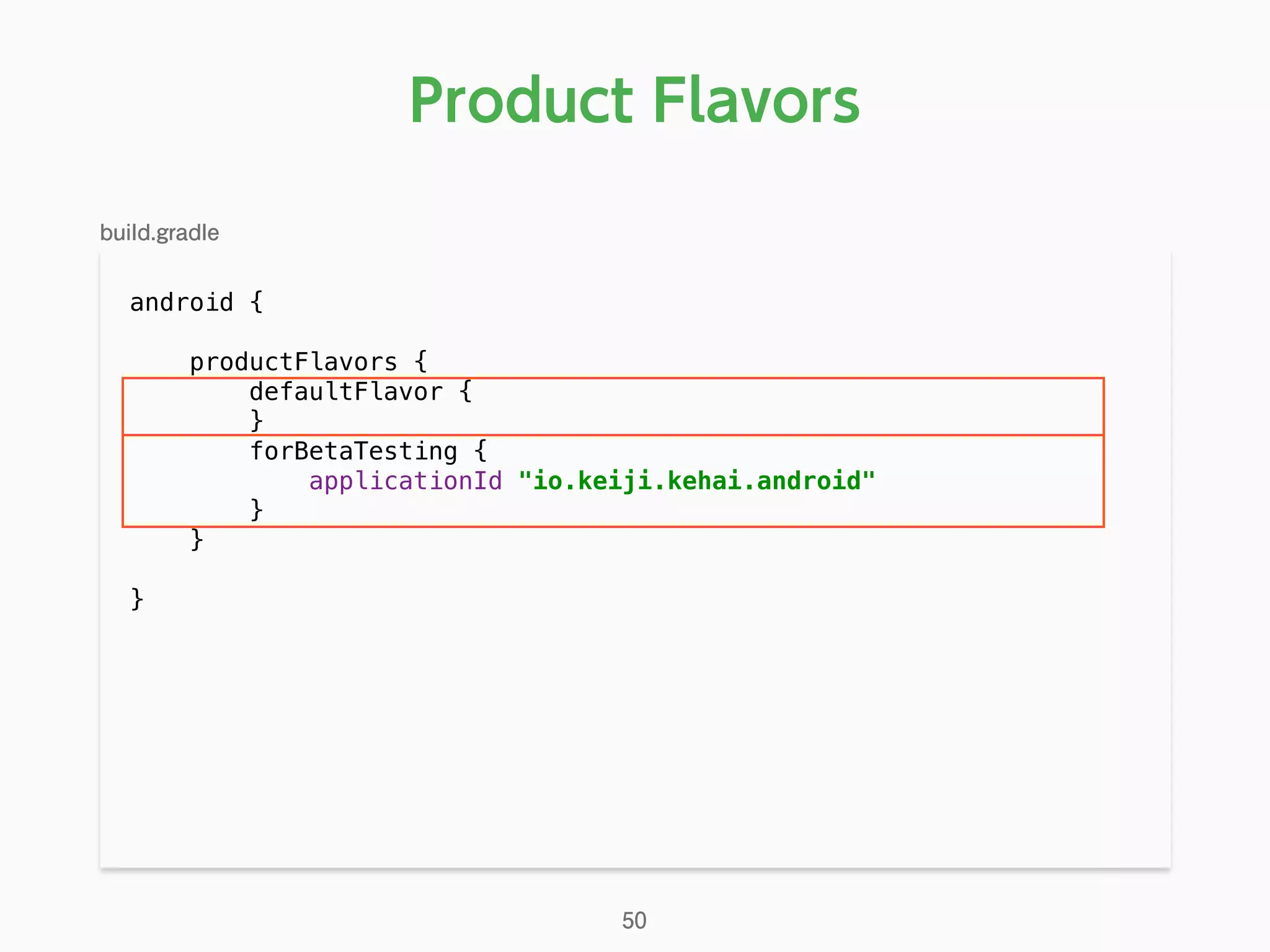

- 50. android { productFlavors { defaultFlavor{ } forBetaTesting { applicationId "io.keiji.kehai.android" } } } Product Flavors 50 build.gradle
- 51.

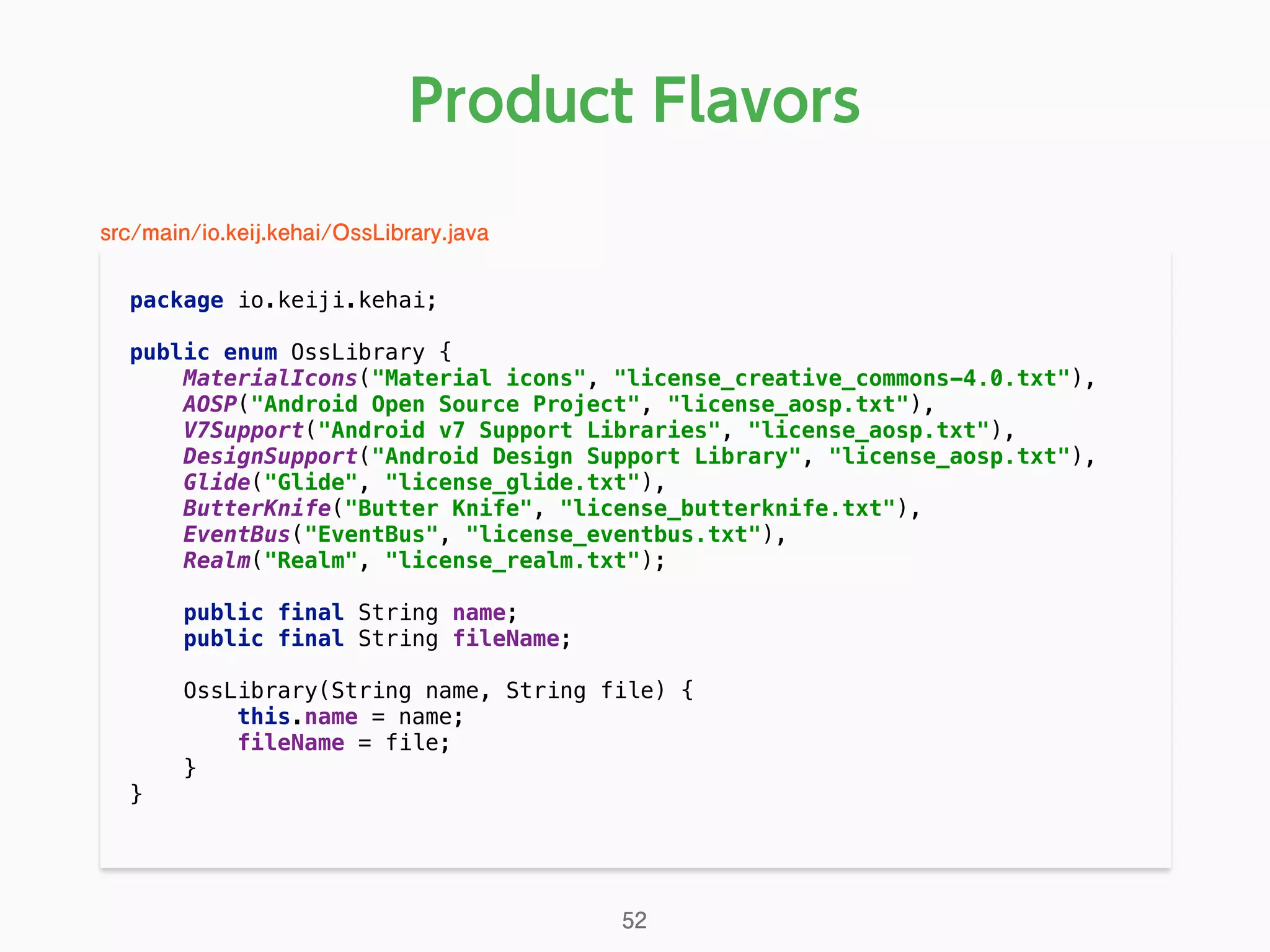

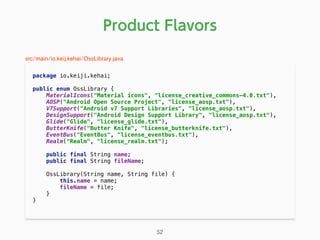

- 52. Product Flavors package io.keiji.kehai; publicenum OssLibrary { MaterialIcons("Material icons", "license_creative_commons-4.0.txt"), AOSP("Android Open Source Project", "license_aosp.txt"), V7Support("Android v7 Support Libraries", "license_aosp.txt"), DesignSupport("Android Design Support Library", "license_aosp.txt"), Glide("Glide", "license_glide.txt"), ButterKnife("Butter Knife", "license_butterknife.txt"), EventBus("EventBus", "license_eventbus.txt"), Realm("Realm", "license_realm.txt"); public final String name; public final String fileName; OssLibrary(String name, String file) { this.name = name; fileName = file; } } 52 src/main/io.keij.kehai/OssLibrary.java

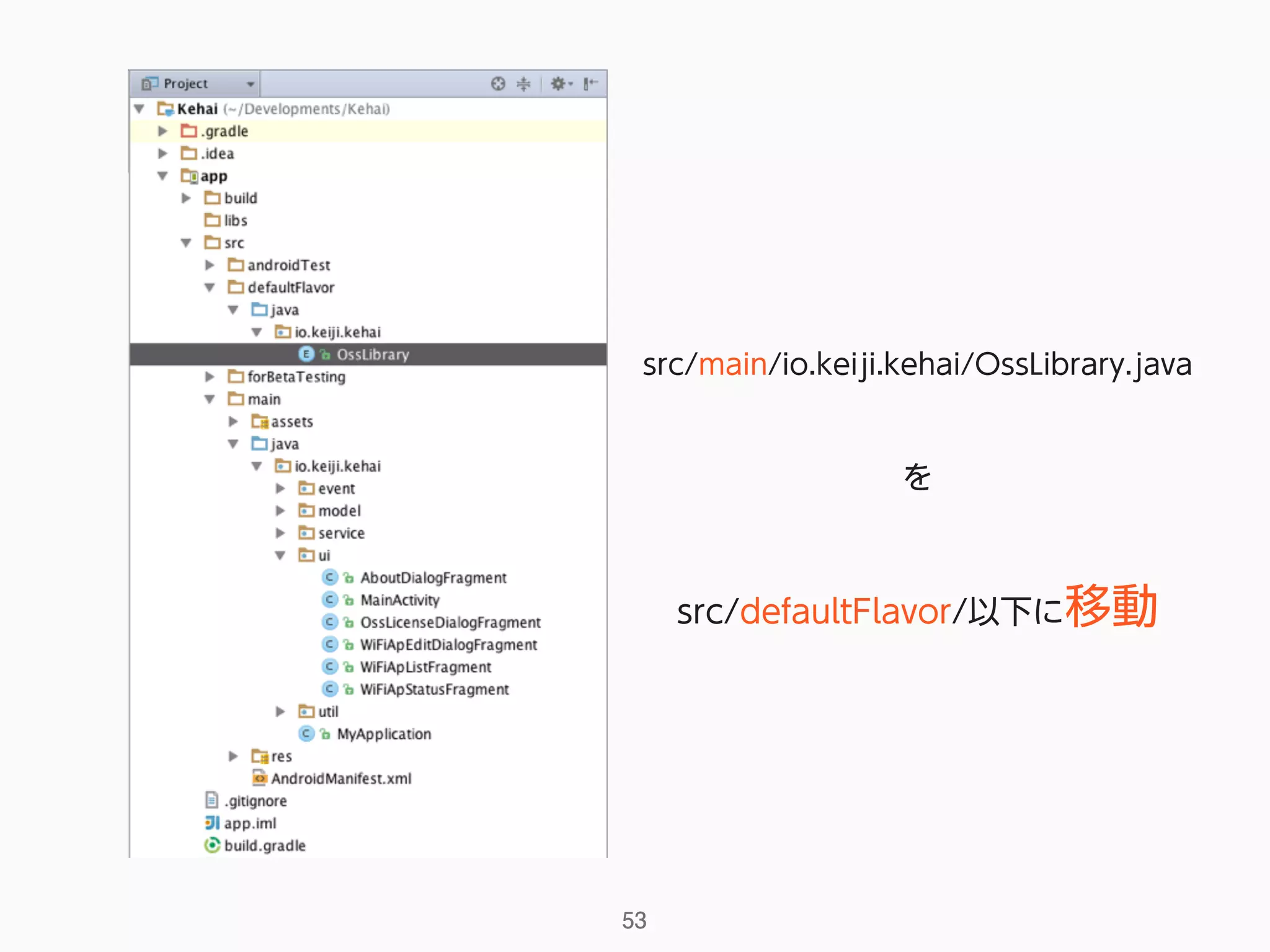

- 53.

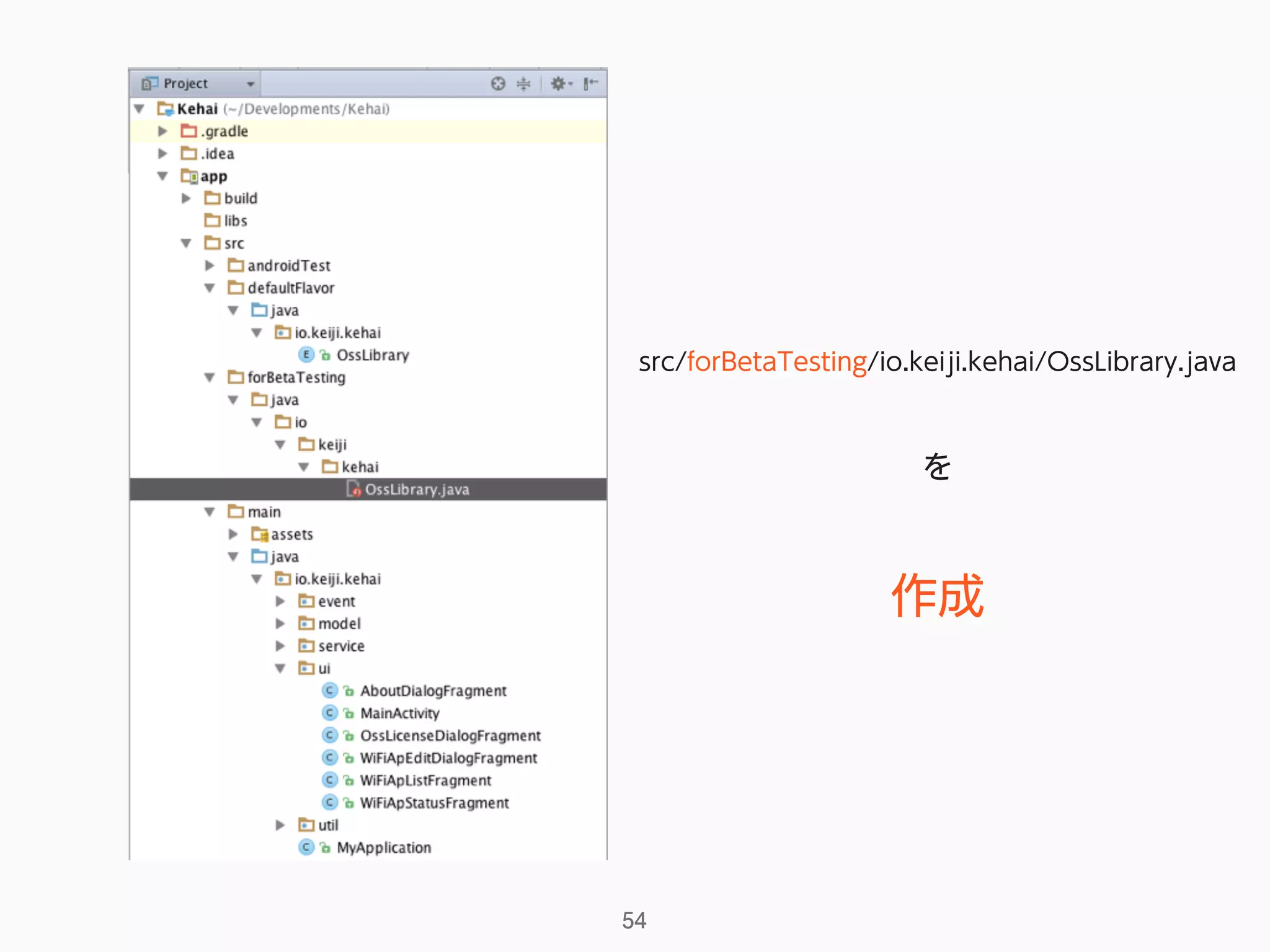

- 54.

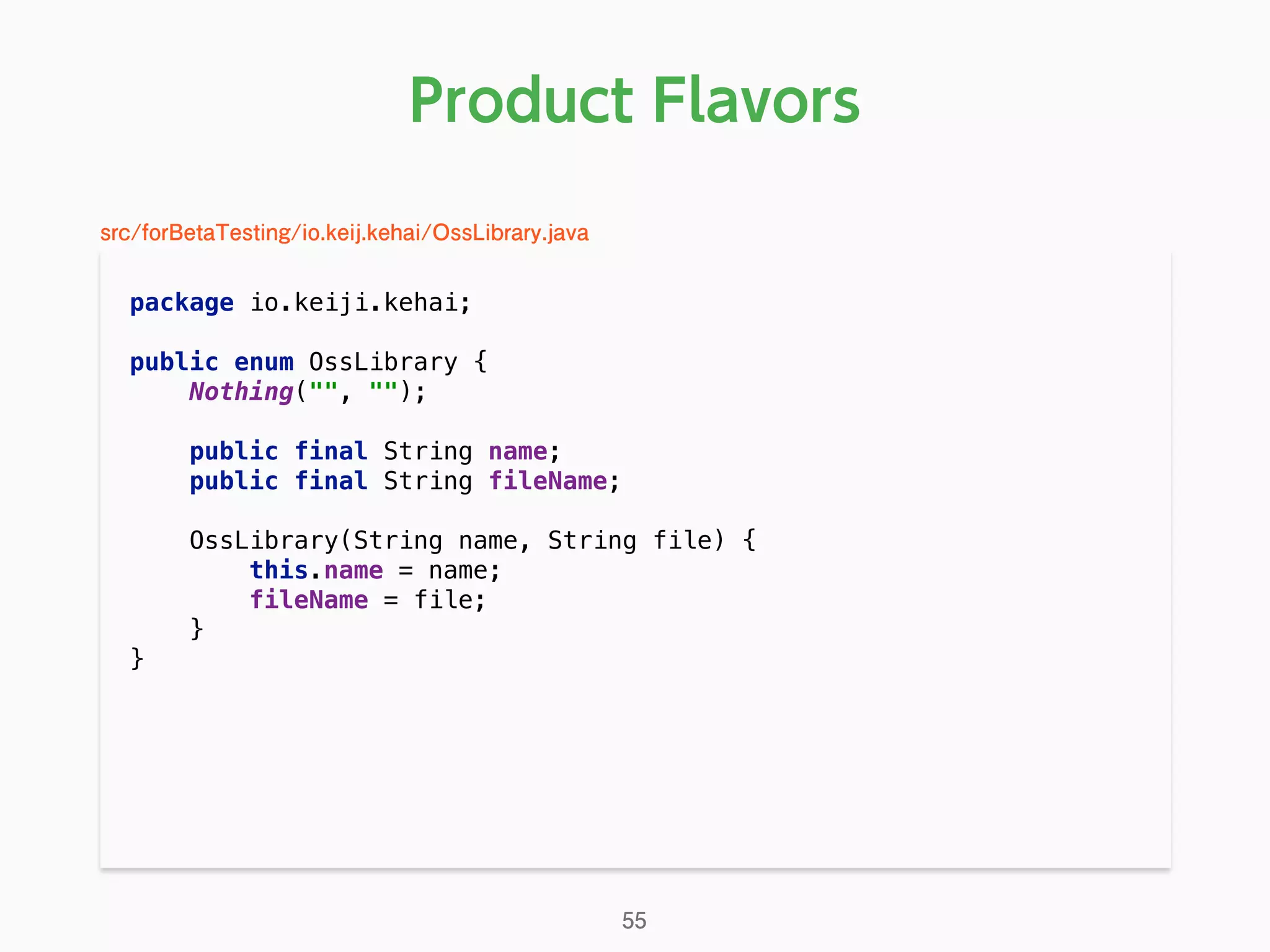

- 55. Product Flavors package io.keiji.kehai; publicenum OssLibrary { Nothing("", ""); public final String name; public final String fileName; OssLibrary(String name, String file) { this.name = name; fileName = file; } } 55 src/forBetaTesting/io.keij.kehai/OssLibrary.java
- 56.

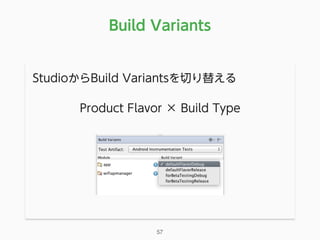

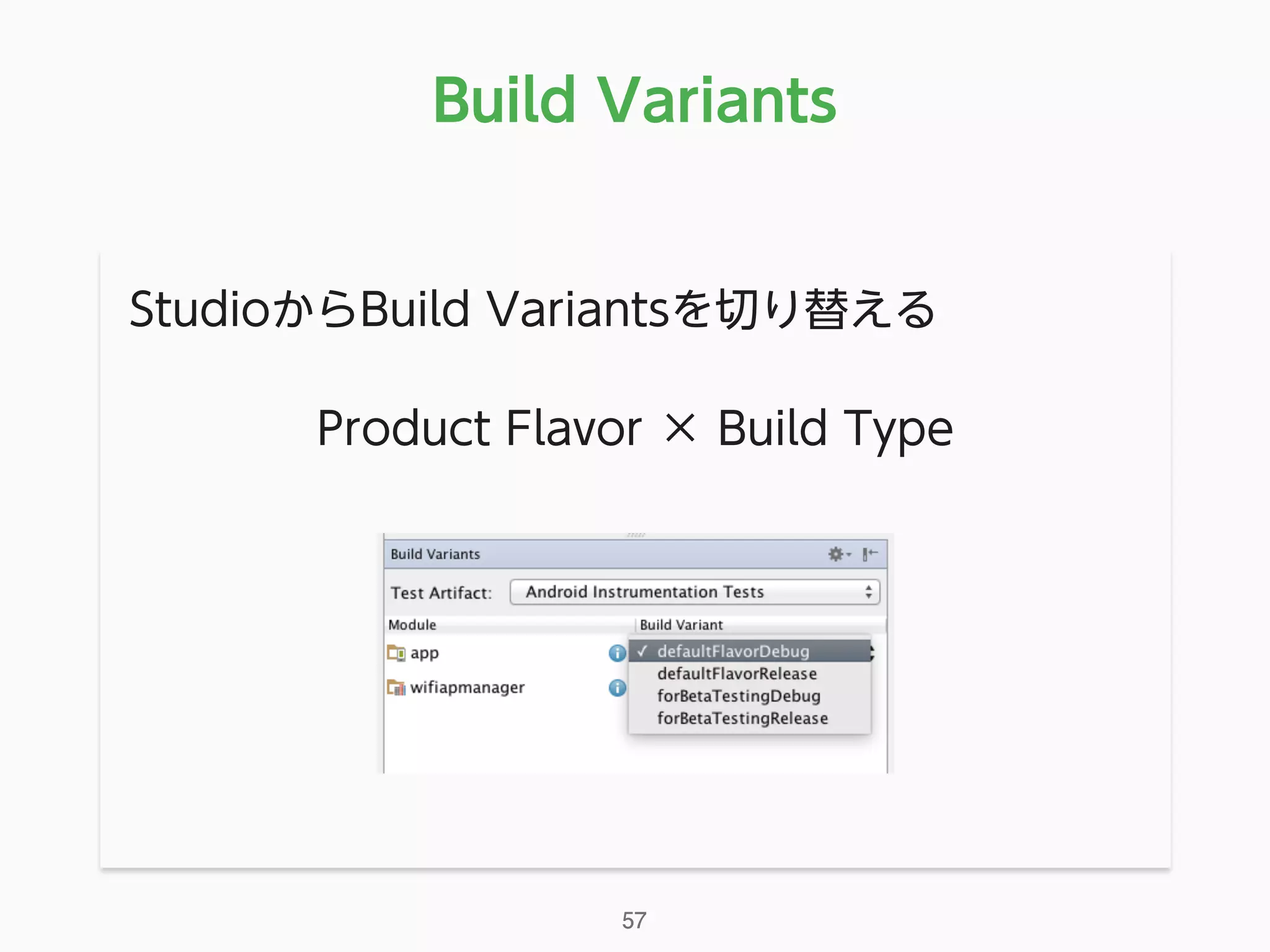

- 57. Build Variants StudioからBuild Variantsを切り替える ProductFlavor × Build Type 57
- 58.

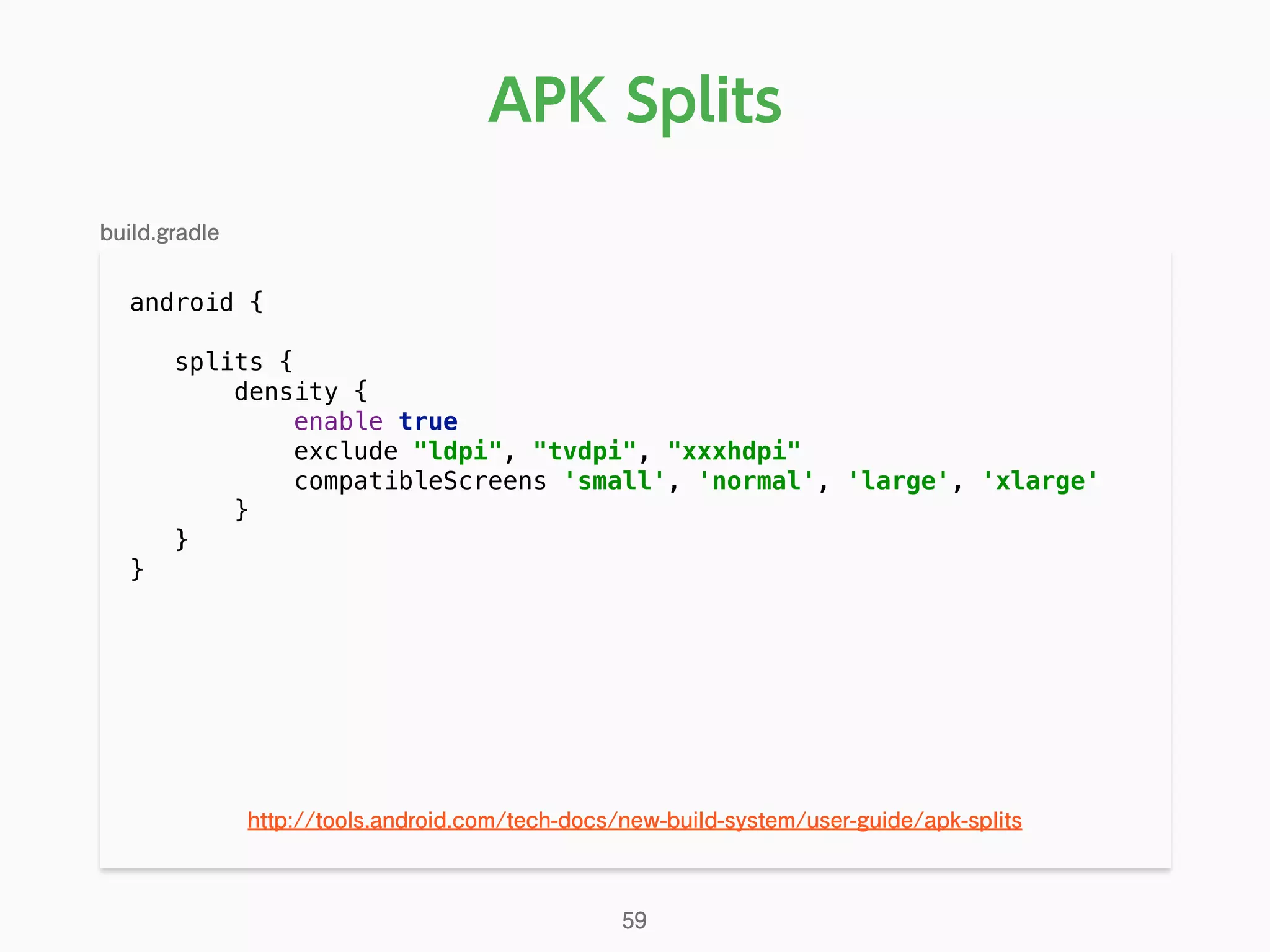

- 59. android { splits { density{ enable true exclude "ldpi", "tvdpi", "xxxhdpi" compatibleScreens 'small', 'normal', 'large', 'xlarge' } } } APK Splits 59 http://tools.android.com/tech-docs/new-build-system/user-guide/apk-splits build.gradle
- 60.
- 61. APK Splits Sample applyplugin: 'com.android.application' android { compileSdkVersion 22 buildToolsVersion "22.0.1" defaultConfig { applicationId "jp.co.c_lis.apkspritsample" minSdkVersion 15 targetSdkVersion 22 versionCode 1 versionName "1.0" } buildTypes { release { minifyEnabled false proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro' } } } dependencies { compile fileTree(dir: 'libs', include: ['*.jar']) } build.gradle 61
- 62. APK Splits Sample splits{ density { enable true exclude "ldpi", "tvdpi", "xxxhdpi" compatibleScreens 'small', 'normal', 'large', 'xlarge' } } } dependencies { compile fileTree(dir: 'libs', include: ['*.jar']) } build.gradle 62

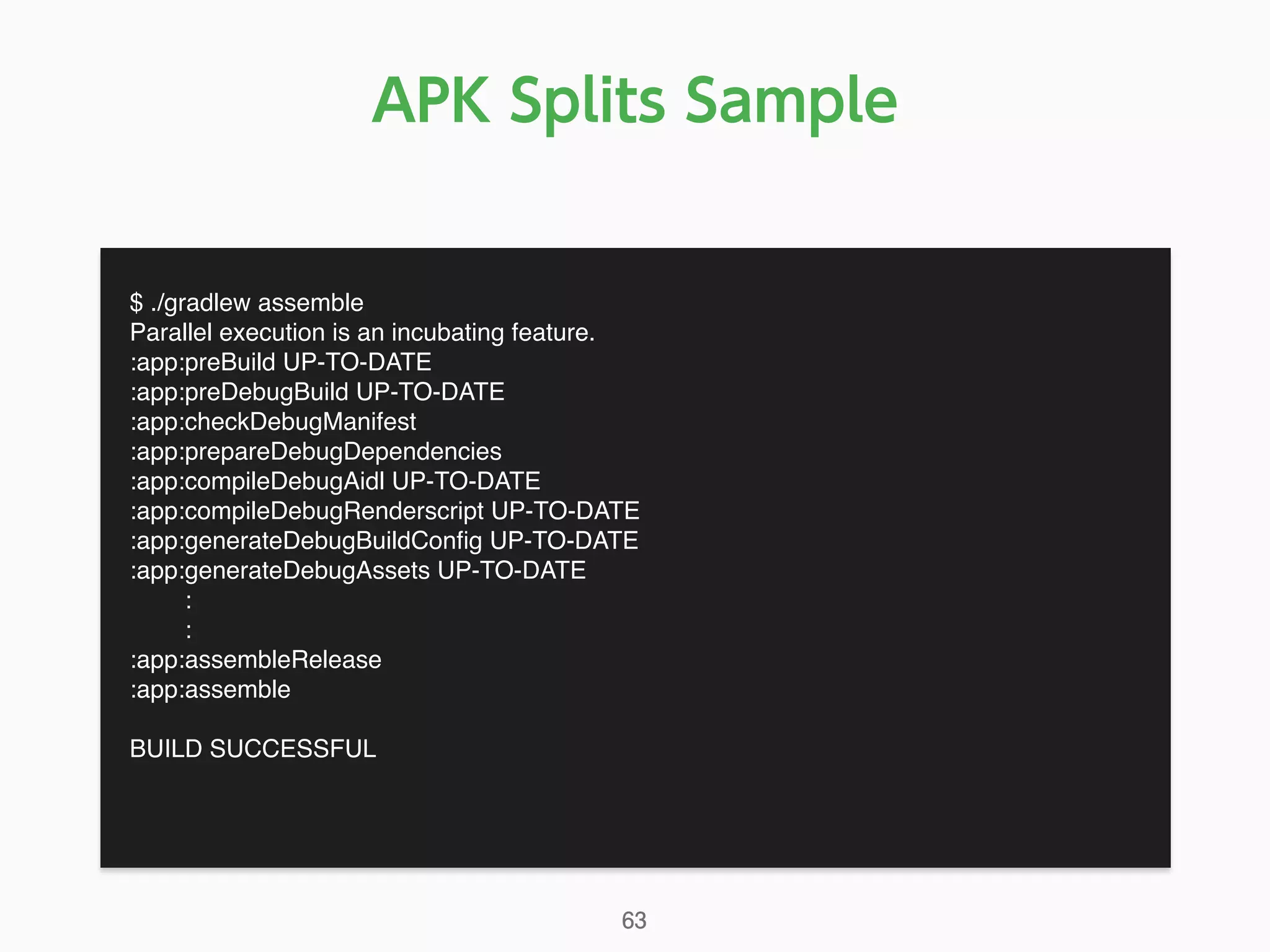

- 63. APK Splits Sample $./gradlew assemble Parallel execution is an incubating feature. :app:preBuild UP-TO-DATE :app:preDebugBuild UP-TO-DATE :app:checkDebugManifest :app:prepareDebugDependencies :app:compileDebugAidl UP-TO-DATE :app:compileDebugRenderscript UP-TO-DATE :app:generateDebugBuildConfig UP-TO-DATE :app:generateDebugAssets UP-TO-DATE : : :app:assembleRelease :app:assemble BUILD SUCCESSFUL 63
- 64.

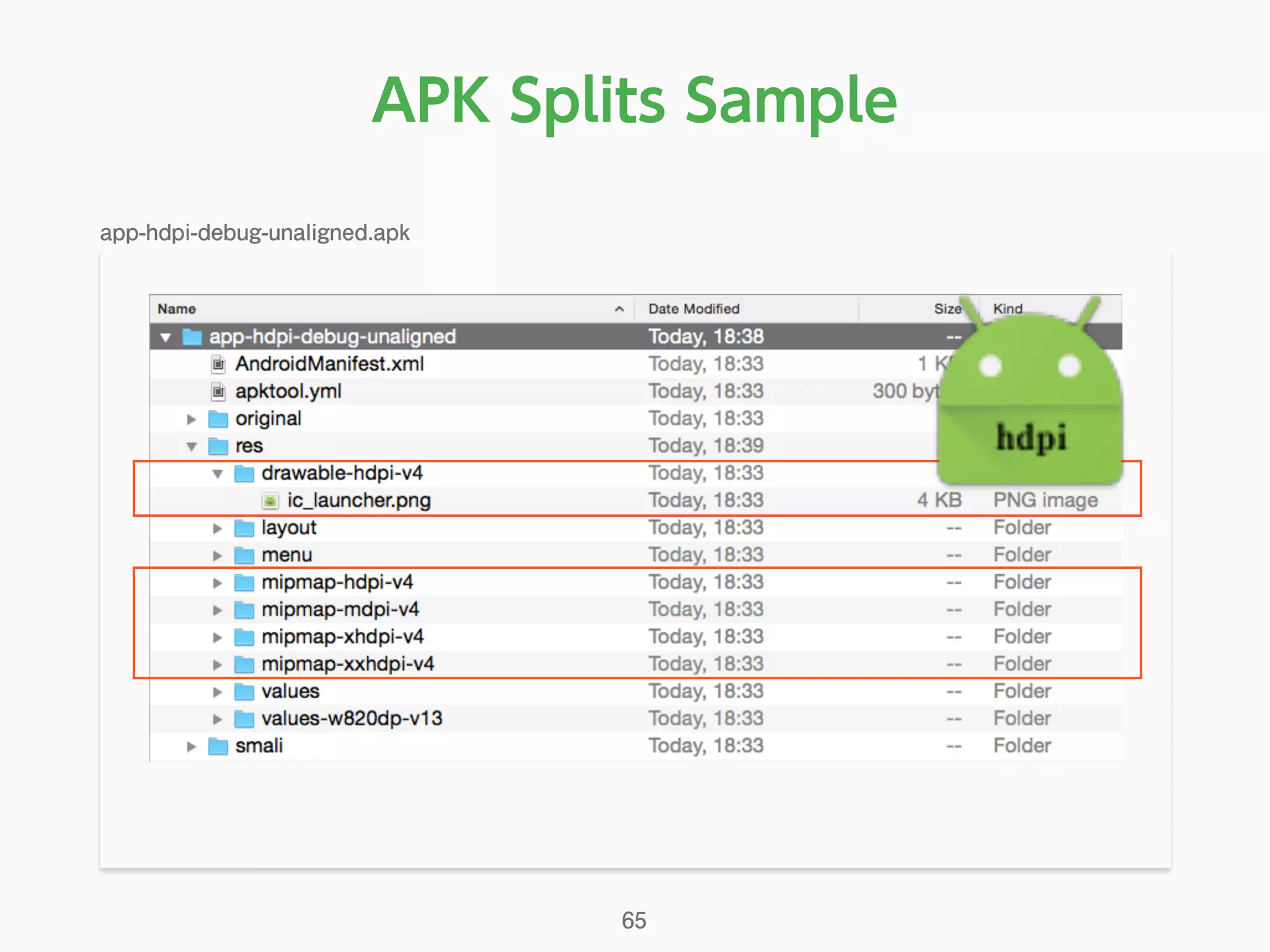

- 65.

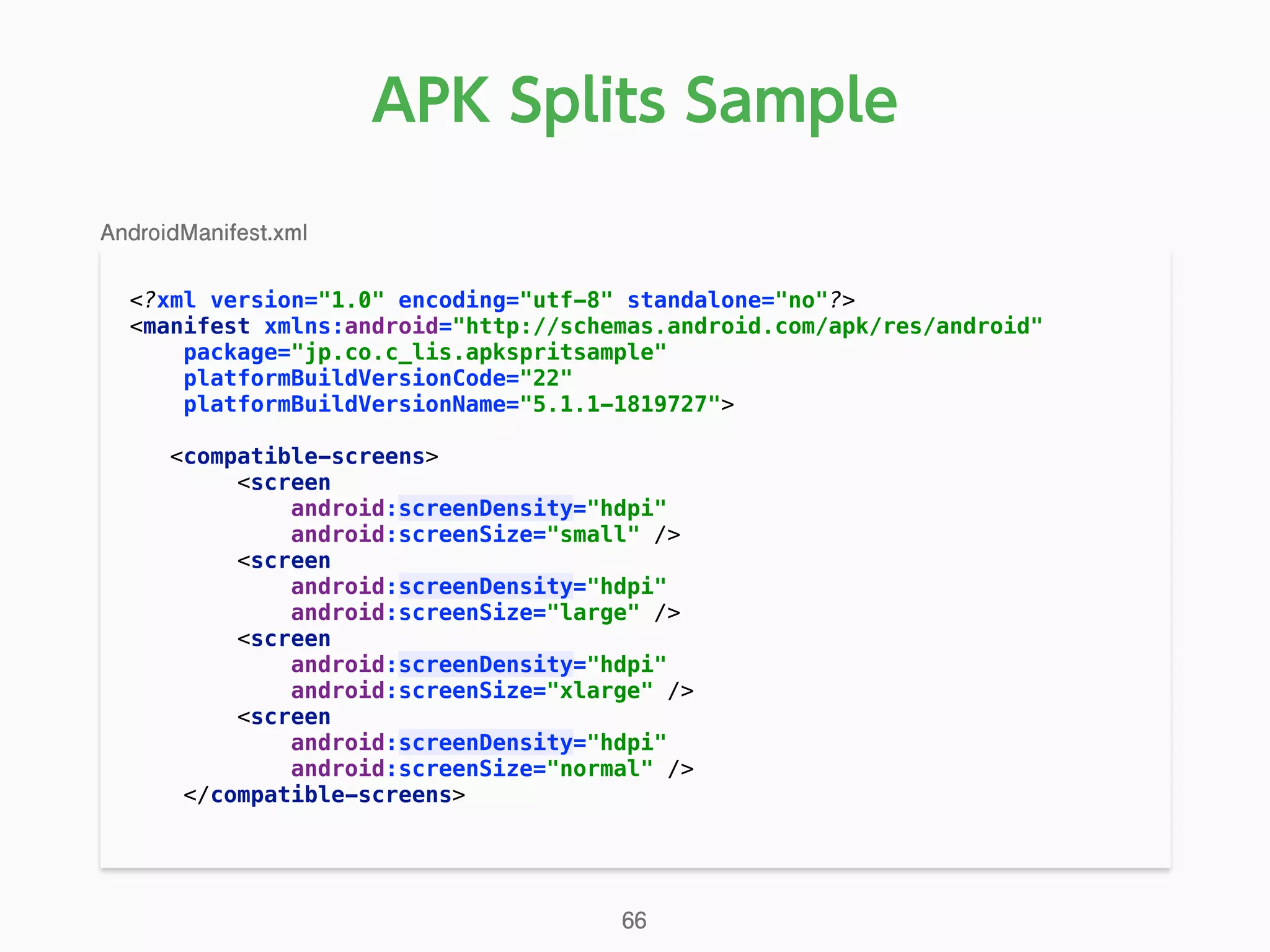

- 66. APK Splits Sample <?xmlversion="1.0" encoding="utf-8" standalone="no"?> <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="jp.co.c_lis.apkspritsample" platformBuildVersionCode="22" platformBuildVersionName="5.1.1-1819727"> <compatible-screens> <screen android:screenDensity="hdpi" android:screenSize="small" /> <screen android:screenDensity="hdpi" android:screenSize="large" /> <screen android:screenDensity="hdpi" android:screenSize="xlarge" /> <screen android:screenDensity="hdpi" android:screenSize="normal" /> </compatible-screens> AndroidManifest.xml 66
- 67.
- 68.

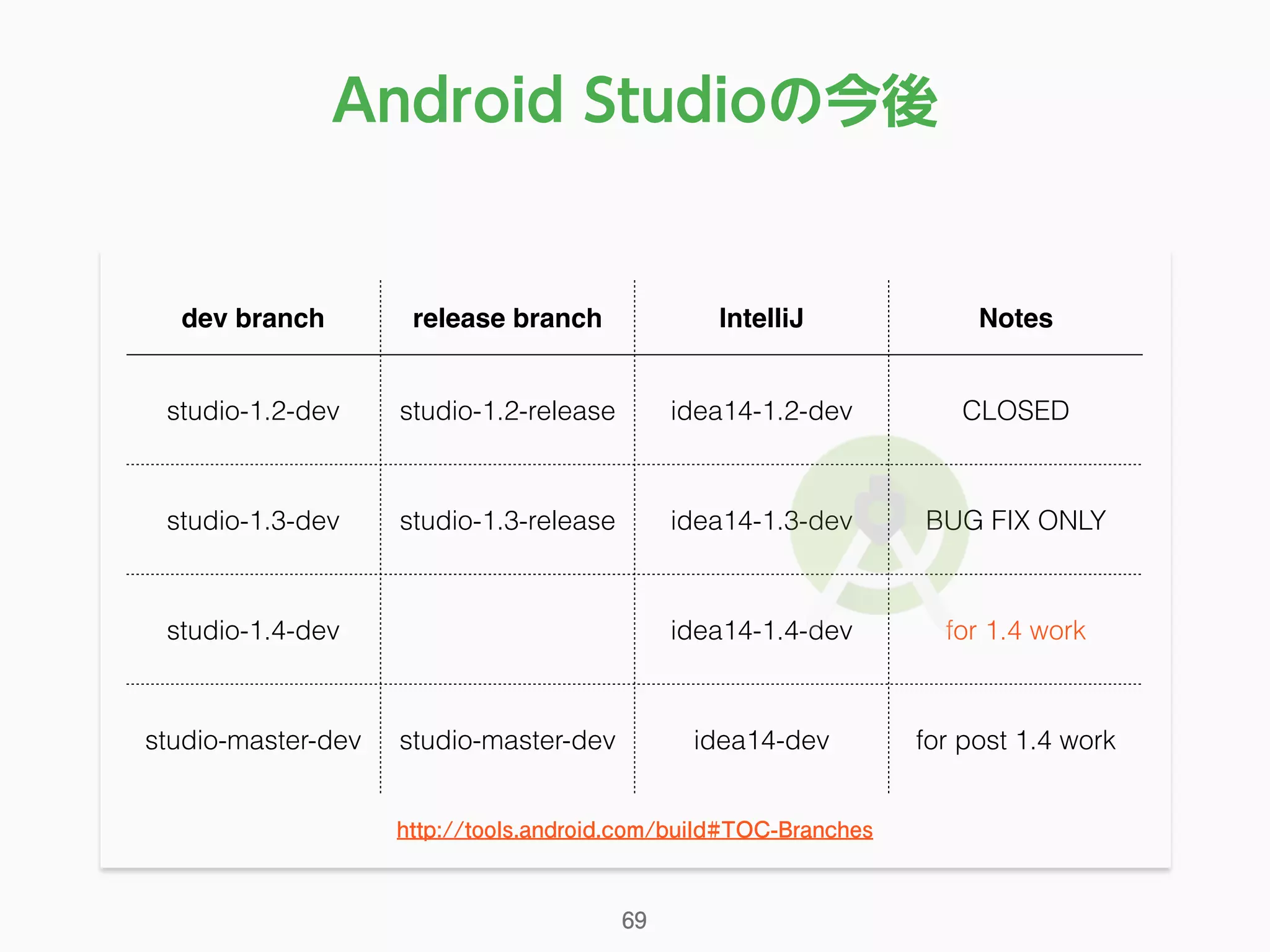

- 69. Android Studioの今後 dev branchrelease branch IntelliJ Notes studio-1.2-dev studio-1.2-release idea14-1.2-dev CLOSED studio-1.3-dev studio-1.3-release idea14-1.3-dev BUG FIX ONLY studio-1.4-dev idea14-1.4-dev for 1.4 work studio-master-dev studio-master-dev idea14-dev for post 1.4 work http://tools.android.com/build#TOC-Branches 69

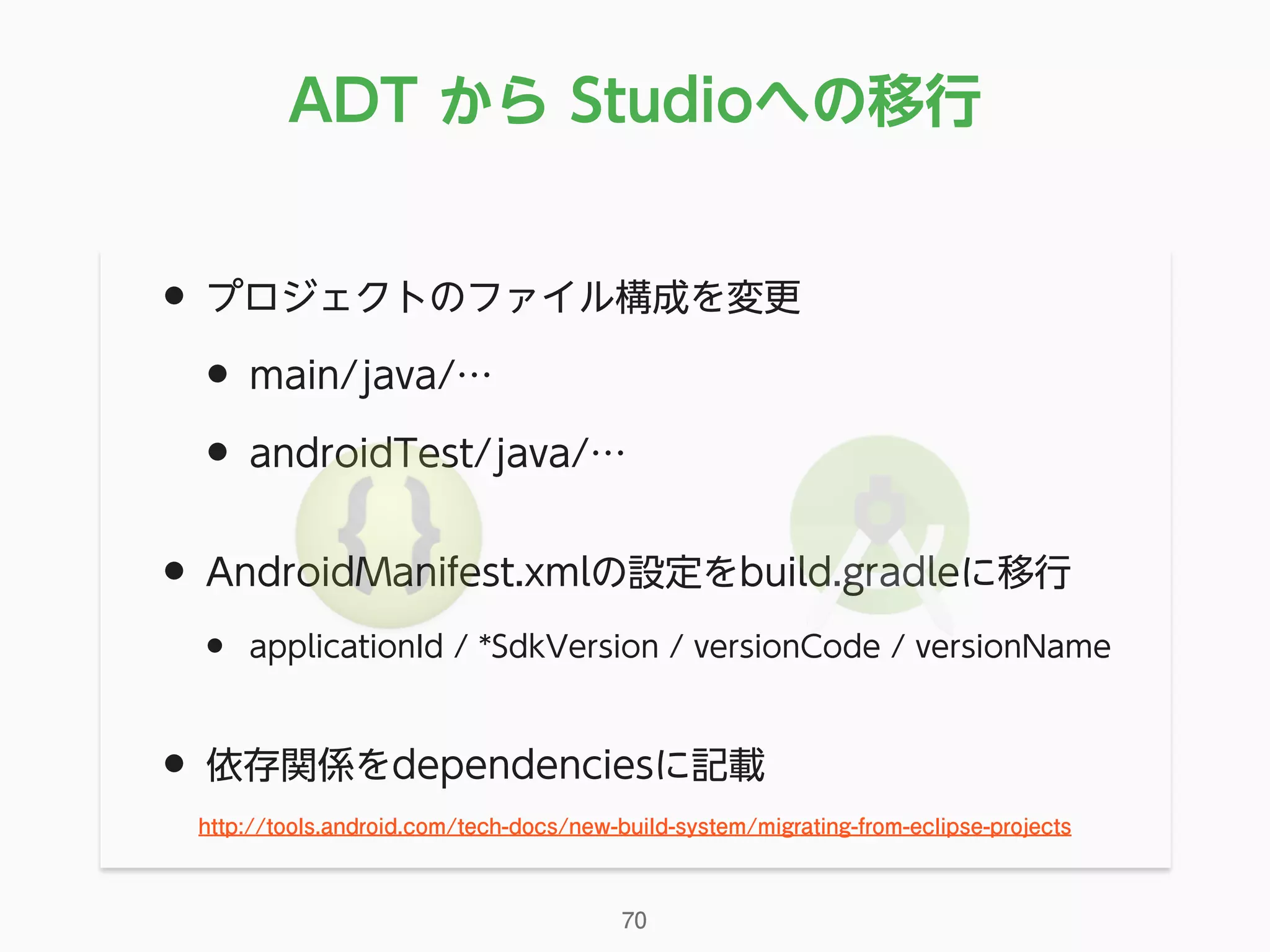

- 70. • プロジェクトのファイル構成を変更 • main/java/… •androidTest/java/… • AndroidManifest.xmlの設定をbuild.gradleに移行 • applicationId / *SdkVersion / versionCode / versionName • 依存関係をdependenciesに記載 ADT から Studioへの移行 70 http://tools.android.com/tech-docs/new-build-system/migrating-from-eclipse-projects

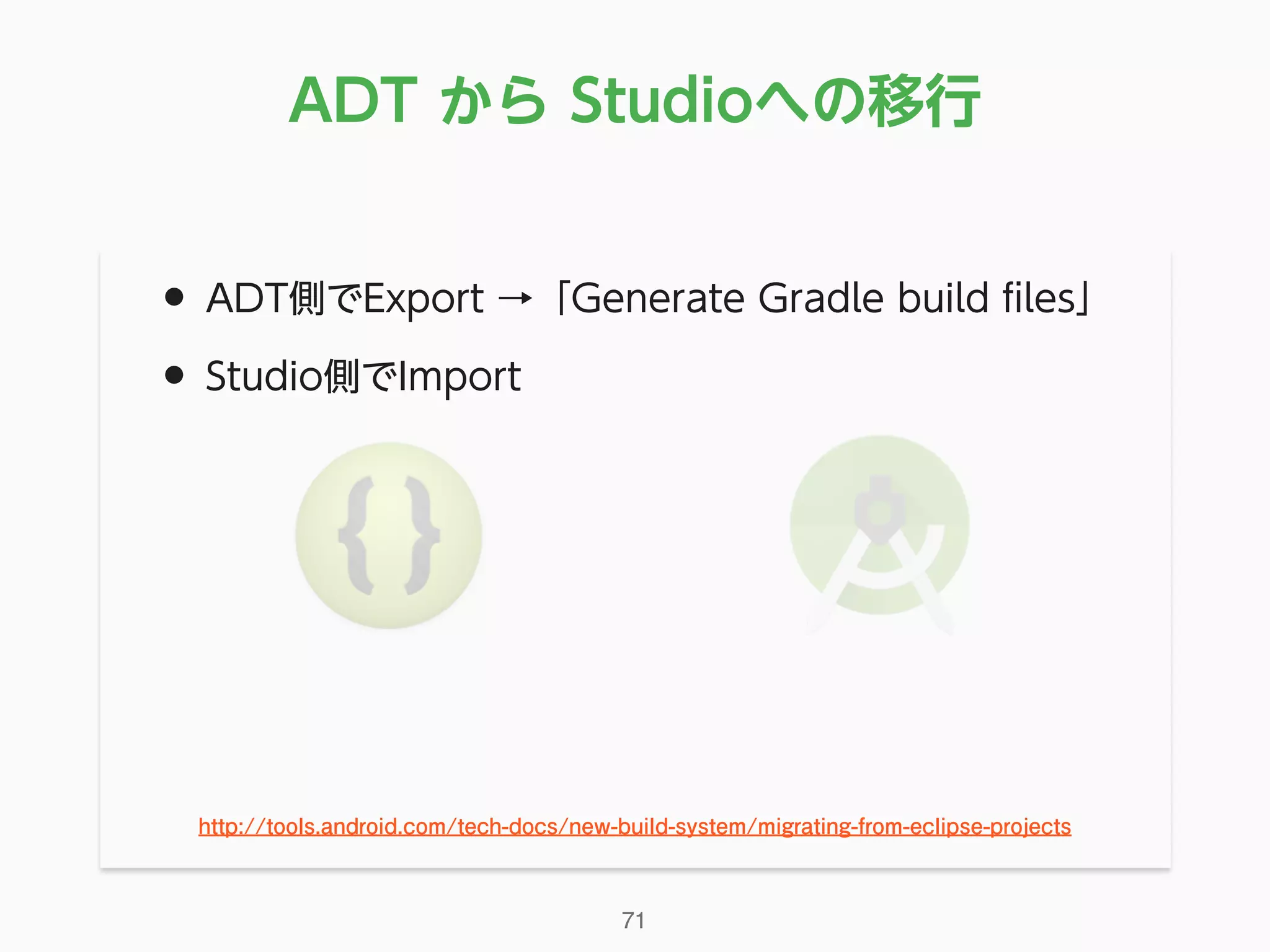

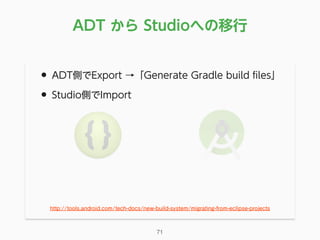

- 71. • ADT側でExport →「GenerateGradle build files」 • Studio側でImport ADT から Studioへの移行 71 http://tools.android.com/tech-docs/new-build-system/migrating-from-eclipse-projects
- 72. • ADT側でExport →「GenerateGradle build files • Studio側で http://tools.android.com/tech-docs/new-build-system/migrating-from-eclipse-projects ADT から Studioへの移行 72
- 73.
- 74. C-LIS CO., LTD. 各製品名・ブランド名、会社名などは、一般に各社の商標または登録商標です。 本資料中では、©、®、™を割愛しています。 本資料は、有限会社シーリスの著作物です。掲載されているイラストは、特に記載がない場合は根雪れいの著作物です。 本資料の全部、または一部について、著作者から文書による許諾を得ずに複製することは禁じられています。 TheAndroid robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
- 75.

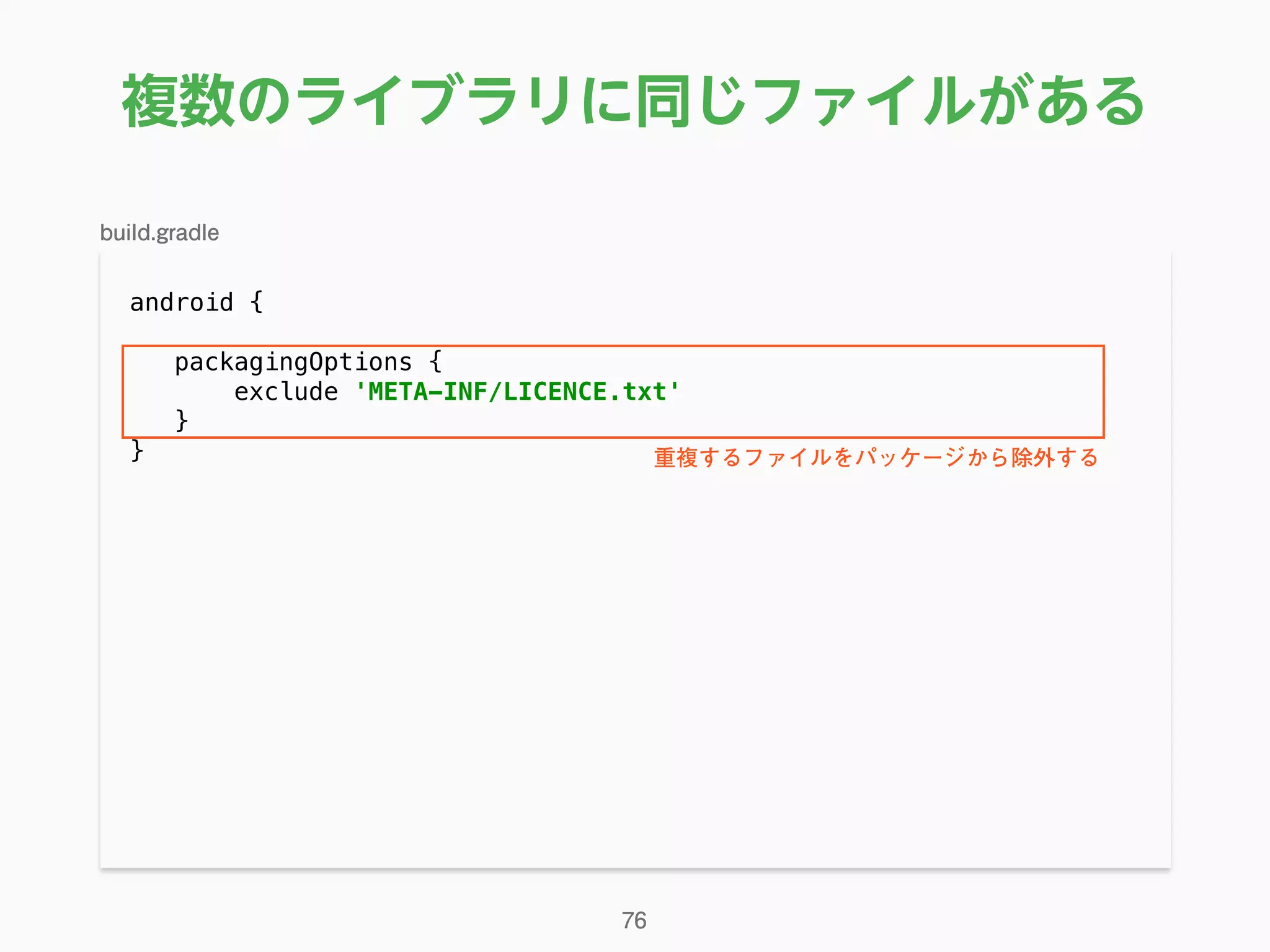

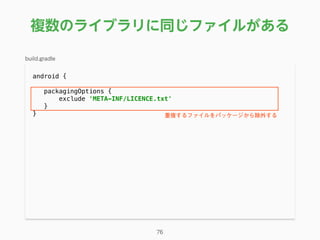

- 76. 複数のライブラリに同じファイルがある android { packagingOptions { exclude'META-INF/LICENCE.txt' } } 76 build.gradle 重複するファイルをパッケージから除外する

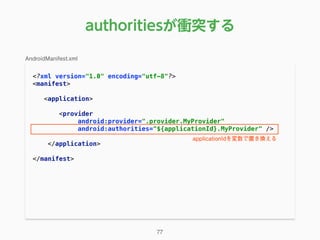

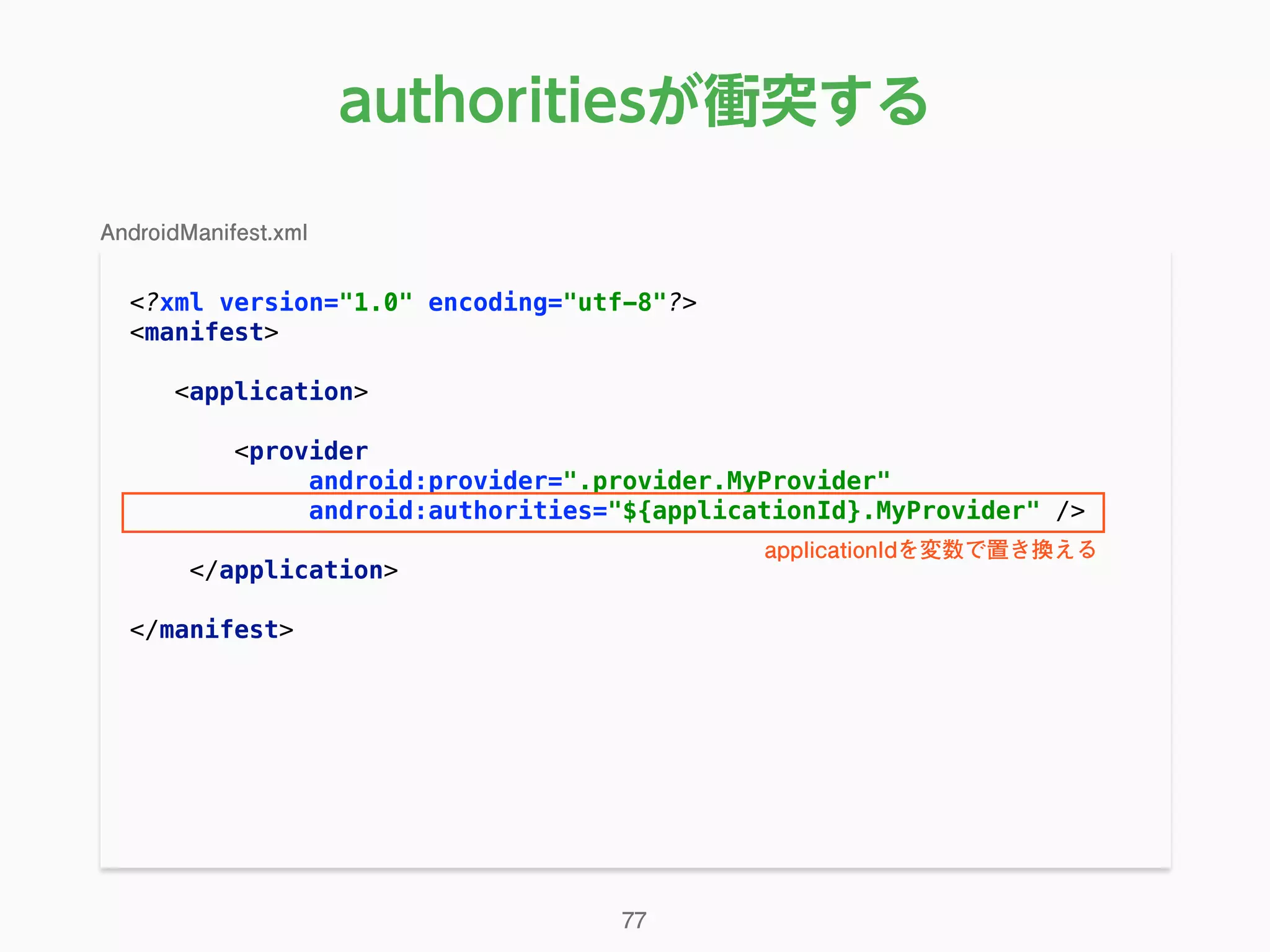

- 77. authoritiesが衝突する <?xml version="1.0" encoding="utf-8"?> <manifest> <application> <provider android:provider=".provider.MyProvider" android:authorities="${applicationId}.MyProvider"/> </application> </manifest> 77 AndroidManifest.xml applicationIdを変数で置き換える
- 78. 意図しないバージョンアップ dependencies { compile fileTree(include:['*.jar'], dir: 'libs') compile project(':wifiapmanager') compile 'com.android.support:design:22.2.0' compile 'com.android.support:recyclerview-v7:22.2.0' compile 'com.android.support:cardview-v7:22.2.0' compile 'com.jakewharton:butterknife:6.1.0' compile 'com.github.bumptech.glide:glide:3.6.0' compile 'de.greenrobot:eventbus:2.4.0' compile 'io.realm:realm-android:+' debugCompile 'com.squareup.leakcanary:leakcanary-android:1.3.1' releaseCompile 'com.squareup.leakcanary:leakcanary-android-no- op:1.3.1' } 78 build.gradle バージョンは固定すること！
