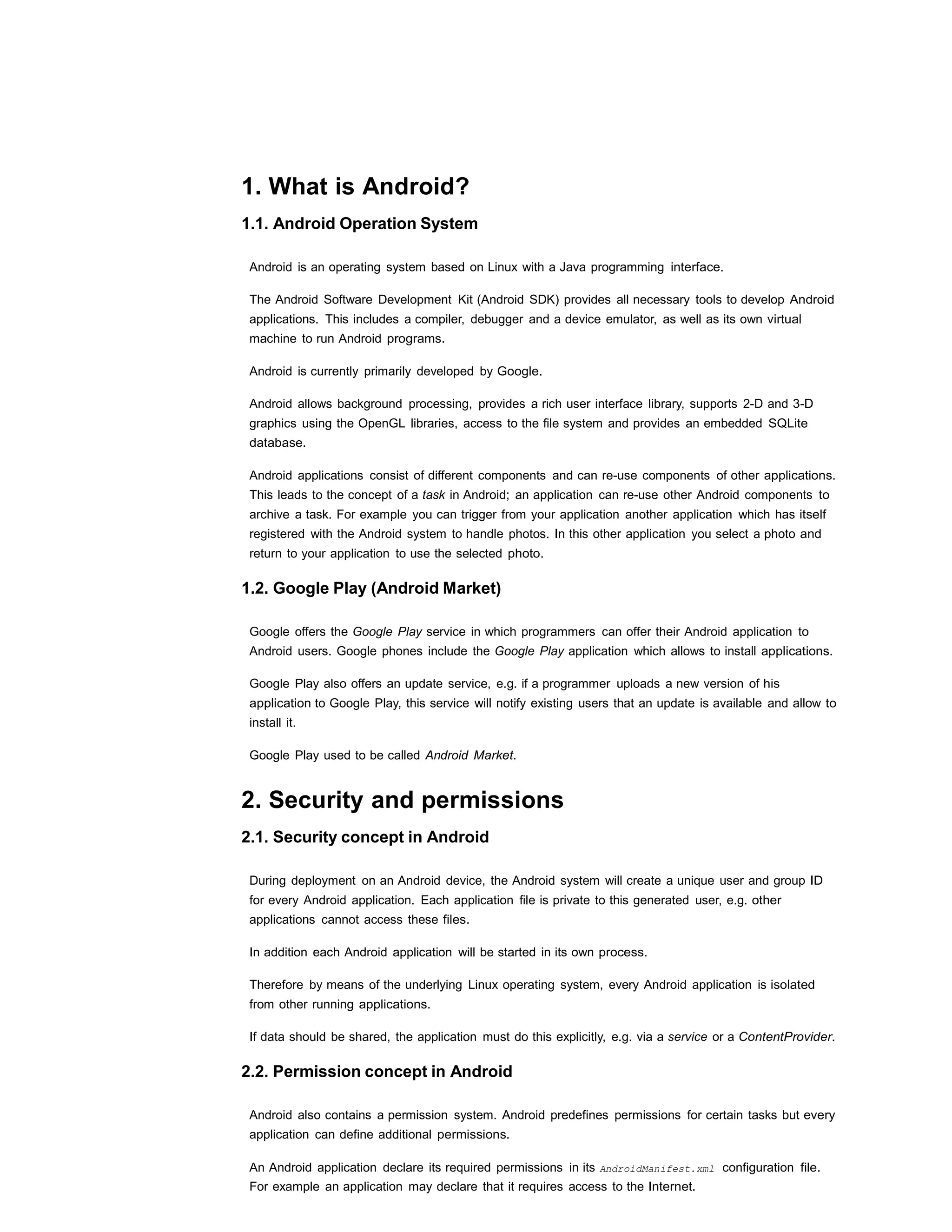

1. What is Android?
1.1. Android Operation System
Android is an operating system based on Linux with a Java programming interface.
The Android Software Development Kit (Android SDK) provides all necessary tools to develop Android
applications. This includes a compiler, debugger and a device emulator, as well as its own virtual
machine to run Android programs.
Android is currently primarily developed by Google.
Android allows background processing, provides a rich user interface library, supports 2-D and 3-D
graphics using the OpenGL libraries, access to the file system and provides an embedded SQLite
database.
Android applications consist of different components and can re-use components of other applications.
This leads to the concept of a task in Android; an application can re-use other Android components to
archive a task. For example you can trigger from your application another application which has itself
registered with the Android system to handle photos. In this other application you select a photo and
return to your application to use the selected photo.
1.2. Google Play (Android Market)
Google offers the Google Play service in which programmers can offer their Android application to
Android users. Google phones include the Google Play application which allows to install applications.
Google Play also offers an update service, e.g. if a programmer uploads a new version of his
application to Google Play, this service will notify existing users that an update is available and allow to
install it.
Google Play used to be called Android Market.
2. Security and permissions
2.1. Security concept in Android
During deployment on an Android device, the Android system will create a unique user and group ID
for every Android application. Each application file is private to this generated user, e.g. other
applications cannot access these files.
In addition each Android application will be started in its own process.
Therefore by means of the underlying Linux operating system, every Android application is isolated
from other running applications.
If data should be shared, the application must do this explicitly, e.g. via a service or a ContentProvider.
2.2. Permission concept in Android
Android also contains a permission system. Android predefines permissions for certain tasks but every
application can define additional permissions.
An Android application declare its required permissions in its AndroidManifest.xml configuration file.
For example an application may declare that it requires access to the Internet.

Permissions have different levels. Some permissions are automatically granted by the Android system,
In most cases the requested permissions will be presented to the user before installation of the
application. The user needs to decide if these permissions are given to the application.
If the user denies a permission required by the application, this application cannot be installed. The
check of the permission is only performed during installation, permissions cannot be denied or granted
after the installation.
Not all users pay attention to the required permissions during installation. But some users do and they
write negative reviews on Google Play.

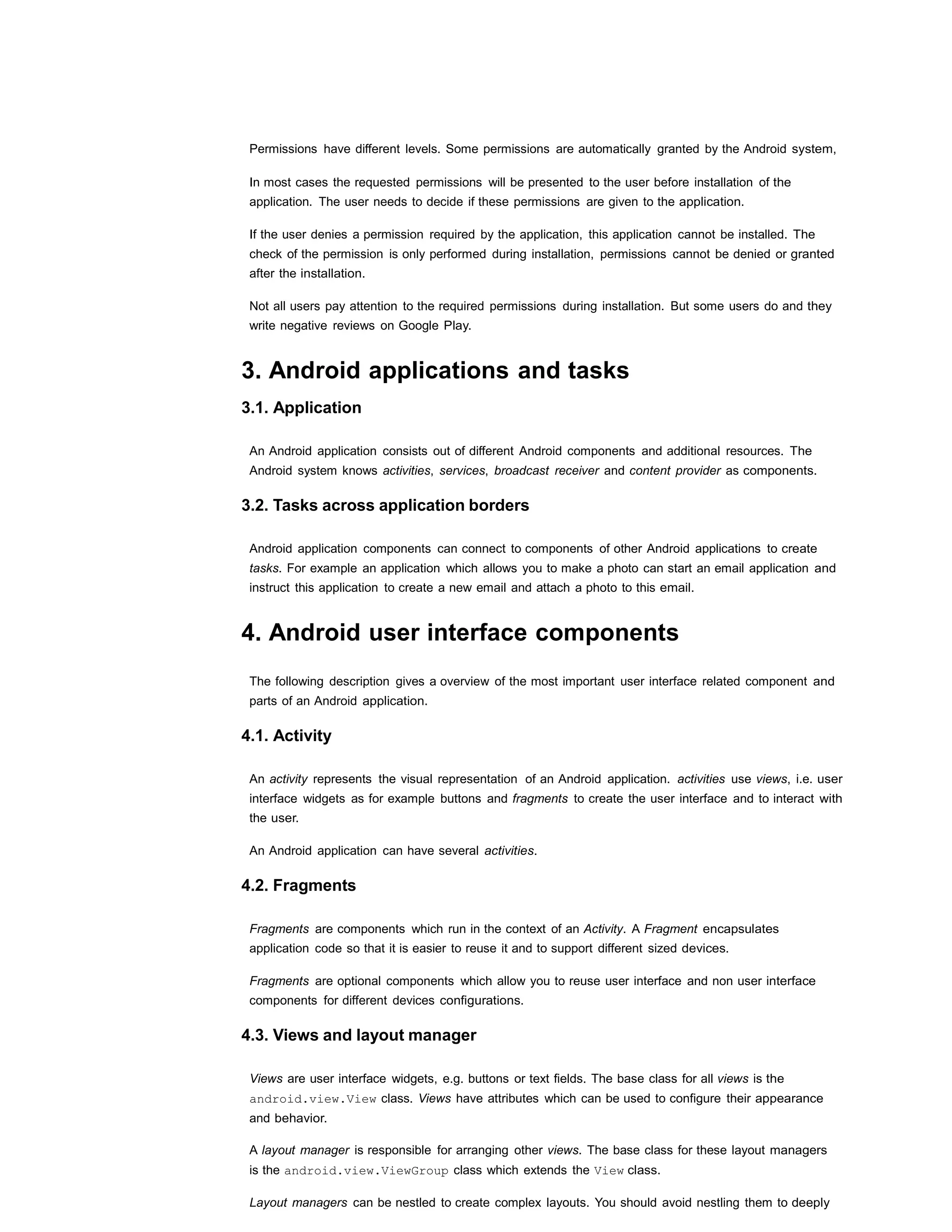

3. Android applications and tasks
3.1. Application
An Android application consists out of different Android components and additional resources. The
Android system knows activities, services, broadcast receiver and content provider as components.
3.2. Tasks across application borders
Android application components can connect to components of other Android applications to create
tasks. For example an application which allows you to make a photo can start an email application and
instruct this application to create a new email and attach a photo to this email.
4. Android user interface components
The following description gives a overview of the most important user interface related component and
parts of an Android application.
4.1. Activity
An activity represents the visual representation of an Android application. activities use views, i.e. user
interface widgets as for example buttons and fragments to create the user interface and to interact with
the user.
An Android application can have several activities.
4.2. Fragments
Fragments are components which run in the context of an Activity. A Fragment encapsulates
application code so that it is easier to reuse it and to support different sized devices.
Fragments are optional components which allow you to reuse user interface and non user interface
components for different devices configurations.
4.3. Views and layout manager
Views are user interface widgets, e.g. buttons or text fields. The base class for all views is the
android.view.View class. Views have attributes which can be used to configure their appearance
and behavior.
A layout manager is responsible for arranging other views. The base class for these layout managers
is the android.view.ViewGroup class which extends the View class.
Layout managers can be nestled to create complex layouts. You should avoid nestling them to deeply

4.4. Device configuration specific layouts
The user interface for Activities is typcally defined via XML files (layout files). It is possible to define
defined layout file for different device configuration, e.g. based on the available width of the actual
device running the application.
Fragments are designed to support such a setup.

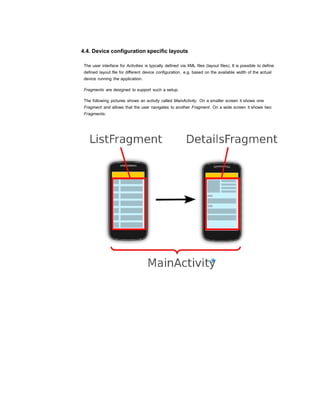

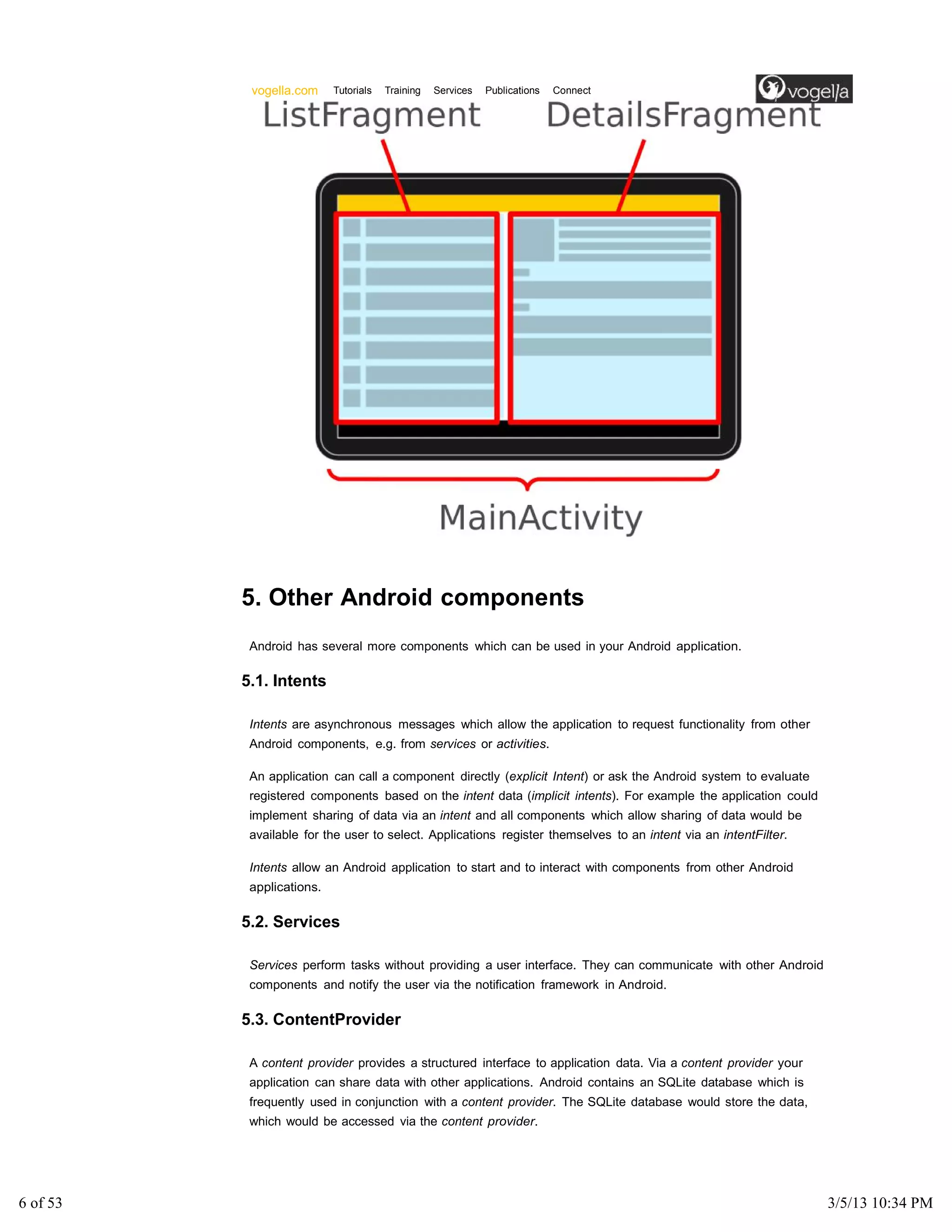

The following pictures shows an activity called MainActivity. On a smaller screen it shows one
Fragment and allows that the user navigates to another Fragment. On a wide screen it shows two
Fragments.

vogella.com Tutorials Training Services Publications Connect
5. Other Android components
Android has several more components which can be used in your Android application.
5.1. Intents
Intents are asynchronous messages which allow the application to request functionality from other
Android components, e.g. from services or activities.
An application can call a component directly (explicit Intent) or ask the Android system to evaluate
registered components based on the intent data (implicit intents). For example the application could
implement sharing of data via an intent and all components which allow sharing of data would be
available for the user to select. Applications register themselves to an intent via an intentFilter.
Intents allow an Android application to start and to interact with components from other Android
applications.
5.2. Services
Services perform tasks without providing a user interface. They can communicate with other Android
components and notify the user via the notification framework in Android.
5.3. ContentProvider
A content provider provides a structured interface to application data. Via a content provider your
application can share data with other applications. Android contains an SQLite database which is
frequently used in conjunction with a content provider. The SQLite database would store the data,
which would be accessed via the content provider.
6 of 53 3/5/13 10:34 PM

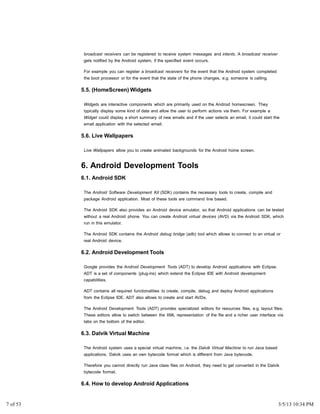

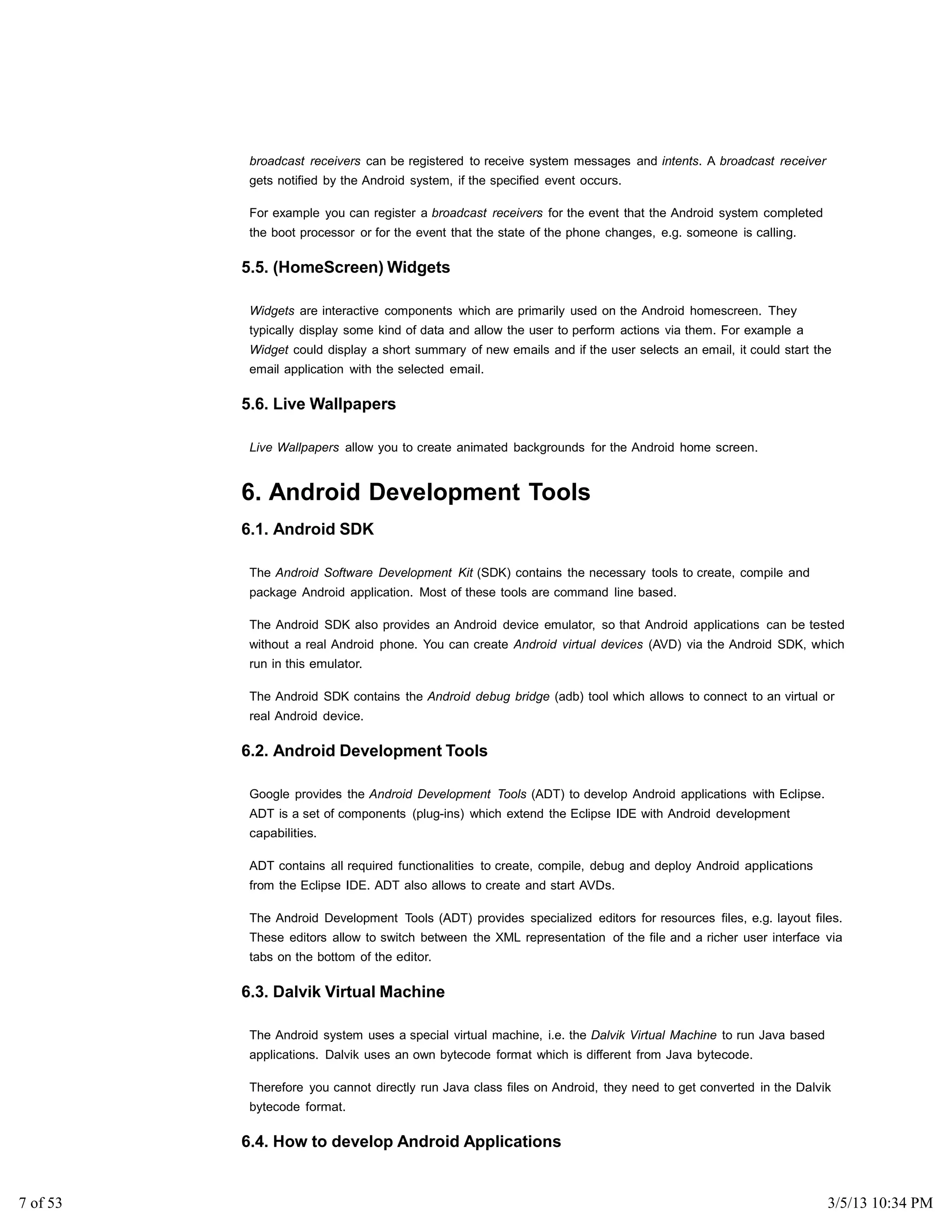

broadcast receivers can be registered to receive system messages and intents. A broadcast receiver
gets notified by the Android system, if the specified event occurs.
For example you can register a broadcast receivers for the event that the Android system completed
the boot processor or for the event that the state of the phone changes, e.g. someone is calling.
5.5. (HomeScreen)Widgets
Widgets are interactive components which are primarily used on the Android homescreen. They
typically display some kind of data and allow the user to perform actions via them. For example a
Widget could display a short summary of new emails and if the user selects an email, it could start the
email application with the selected email.
5.6. Live Wallpapers
Live Wallpapers allow you to create animated backgrounds for the Android home screen.
6. Android Development Tools
6.1. Android SDK
The Android Software Development Kit (SDK) contains the necessary tools to create, compile and
package Android application. Most of these tools are command line based.
The Android SDK also provides an Android device emulator, so that Android applications can be tested
without a real Android phone. You can create Android virtual devices (AVD) via the Android SDK, which
run in this emulator.
The Android SDK contains the Android debug bridge (adb) tool which allows to connect to an virtual or
real Android device.
6.2. Android Development Tools
Google provides the Android Development Tools (ADT) to develop Android applications with Eclipse.
ADT is a set of components (plug-ins) which extend the Eclipse IDE with Android development
capabilities.
ADT contains all required functionalities to create, compile, debug and deploy Android applications
from the Eclipse IDE. ADT also allows to create and start AVDs.
The Android Development Tools (ADT) provides specialized editors for resources files, e.g. layout files.
These editors allow to switch between the XML representation of the file and a richer user interface via
tabs on the bottom of the editor.
6.3. Dalvik Virtual Machine
The Android system uses a special virtual machine, i.e. the Dalvik Virtual Machine to run Java based
applications. Dalvik uses an own bytecode format which is different from Java bytecode.
Therefore you cannot directly run Java class files on Android, they need to get converted in the Dalvik
bytecode format.
6.4. How to develop Android Applications
7 of 53 3/5/13 10:34 PM

converted to Java class files by the Java compiler.
The Android SDK contains a tool called dx which converts Java class files into a .dex (Dalvik
Executable) file. All class files of one application are placed in one compressed .dex file. During this
conversion process redundant information in the class files are optimized in the .dex file. For example if
the same String is found in different class files, the .dex file contains only once reference of this String.
These dex files are therefore much smaller in size than the corresponding class files.
The .dex file and the resources of an Android project, e.g. the images and XML files, are packed into
an .apk (Android Package) file. The program aapt (Android Asset Packaging Tool) performs this
packaging.
The resulting .apk file contains all necessary data to run the Android application and can be deployed
to an Android device via the adb tool.
The Android Development Tools (ADT) performs these steps transparently to the user.
If you use the ADT tooling you press a button the whole Android application (.apk file) will be created
and deployed.

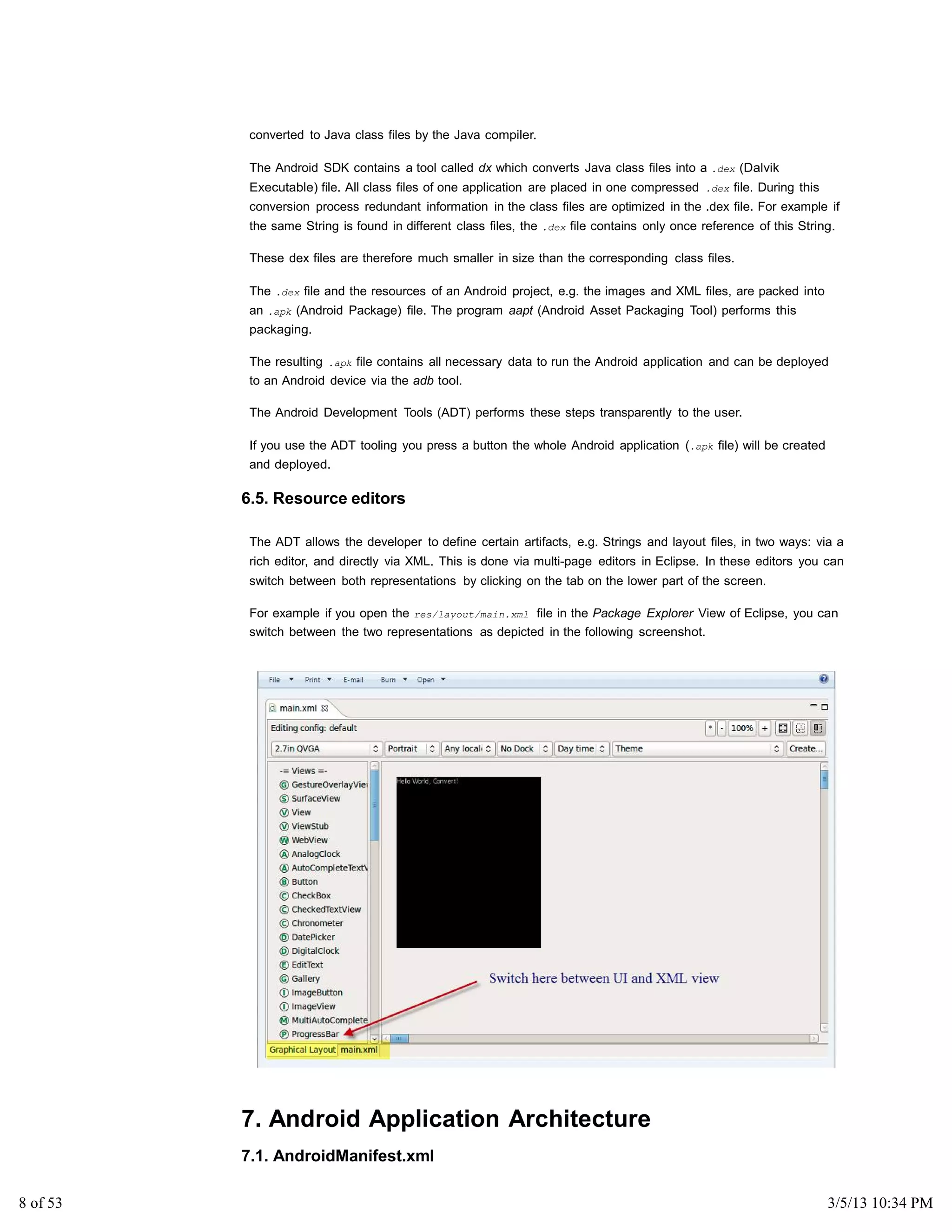

6.5. Resource editors
The ADT allows the developer to define certain artifacts, e.g. Strings and layout files, in two ways: via a
rich editor, and directly via XML. This is done via multi-page editors in Eclipse. In these editors you can
switch between both representations by clicking on the tab on the lower part of the screen.
For example if you open the res/layout/main.xml file in the Package Explorer View of Eclipse, you can
switch between the two representations as depicted in the following screenshot.
7. Android Application Architecture

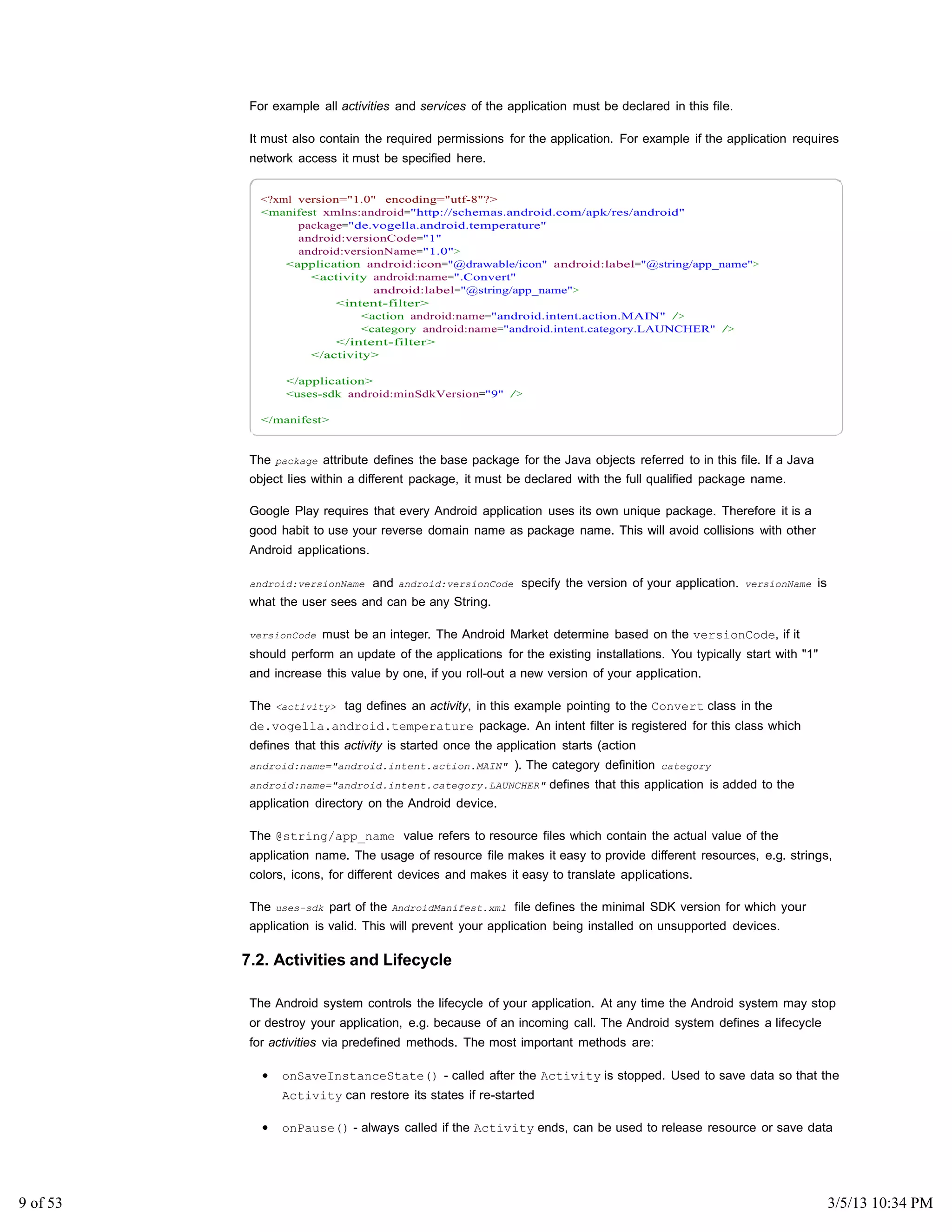

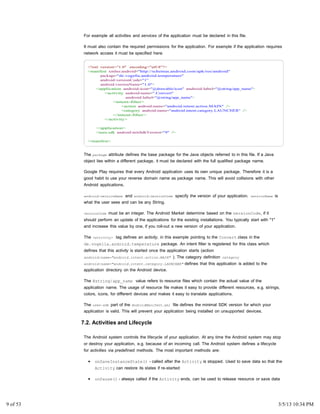

7.1. AndroidManifest.xml
8 of 53 3/5/13 10:34 PM

For example all activities and services of the application must be declared in this file.
It must also contain the required permissions for the application. For example if the application requires
network access it must be specified here.
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="de.vogella.android.temperature"
android:versionCode="1"
android:versionName="1.0">
<application android:icon="@drawable/icon" android:label="@string/app_name">
<activity android:name=".Convert"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
<uses-sdk android:minSdkVersion="9" />
</manifest>
The package attribute defines the base package for the Java objects referred to in this file. If a Java
object lies within a different package, it must be declared with the full qualified package name.
Google Play requires that every Android application uses its own unique package. Therefore it is a
good habit to use your reverse domain name as package name. This will avoid collisions with other
Android applications.
android:versionName and android:versionCode specify the version of your application. versionName is
what the user sees and can be any String.
versionCode must be an integer. The Android Market determine based on the versionCode, if it
should perform an update of the applications for the existing installations. You typically start with "1"
and increase this value by one, if you roll-out a new version of your application.
The <activity> tag defines an activity, in this example pointing to the Convert class in the
de.vogella.android.temperature package. An intent filter is registered for this class which
defines that this activity is started once the application starts (action
android:name="android.intent.action.MAIN" ). The category definition category
android:name="android.intent.category.LAUNCHER" defines that this application is added to the
application directory on the Android device.
The @string/app_name value refers to resource files which contain the actual value of the
application name. The usage of resource file makes it easy to provide different resources, e.g. strings,
colors, icons, for different devices and makes it easy to translate applications.
The uses-sdk part of the AndroidManifest.xml file defines the minimal SDK version for which your
application is valid. This will prevent your application being installed on unsupported devices.
7.2. Activities and Lifecycle
The Android system controls the lifecycle of your application. At any time the Android system may stop
or destroy your application, e.g. because of an incoming call. The Android system defines a lifecycle
for activities via predefined methods. The most important methods are:
onSaveInstanceState() - called after the Activity is stopped. Used to save data so that the
Activity can restore its states if re-started
onPause() - always called if the Activity ends, can be used to release resource or save data
9 of 53 3/5/13 10:34 PM

10 of
53
3/5/13 10:34 PM

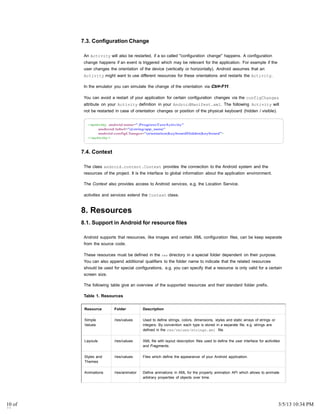

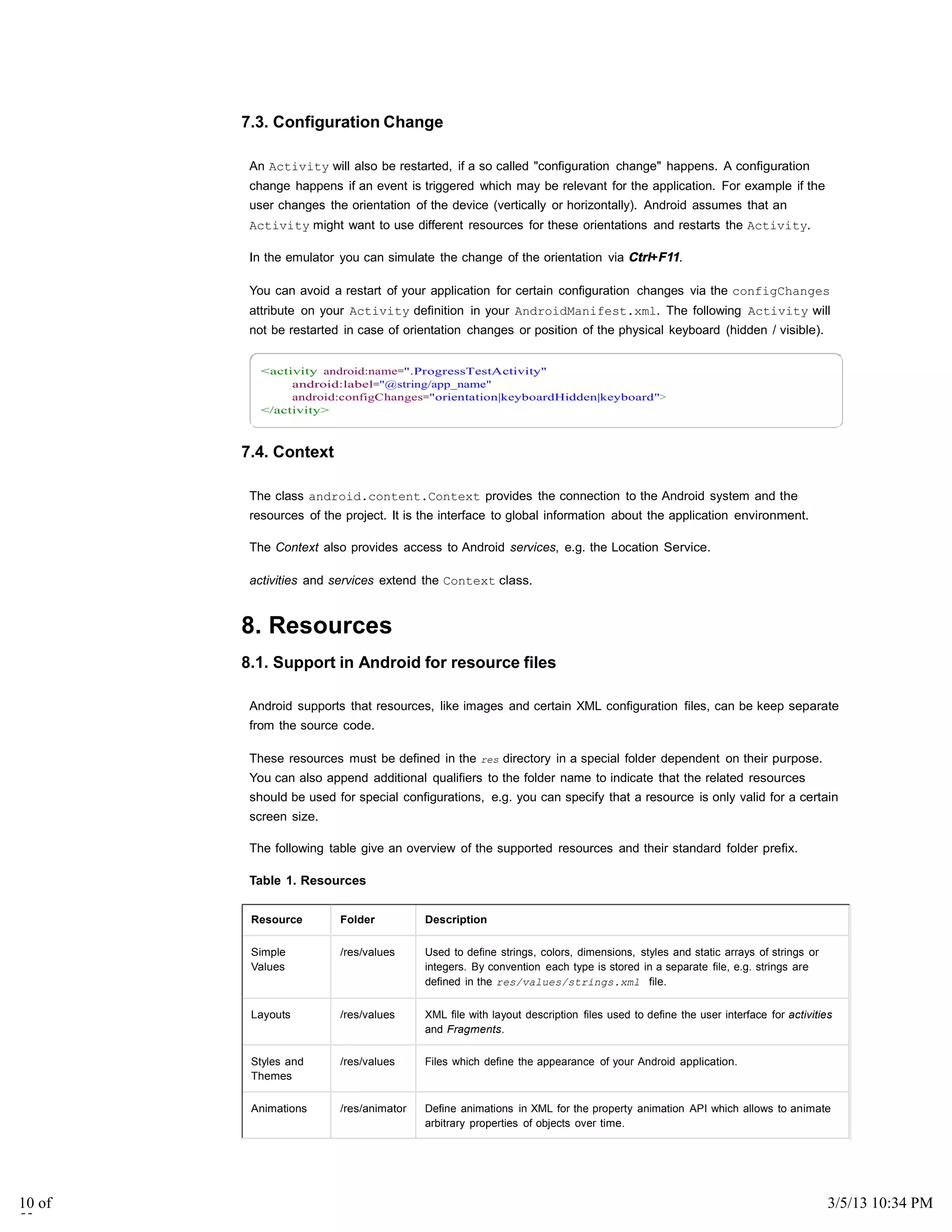

7.3. Configuration Change
An Activity will also be restarted, if a so called "configuration change" happens. A configuration
change happens if an event is triggered which may be relevant for the application. For example if the
user changes the orientation of the device (vertically or horizontally). Android assumes that an
Activity might want to use different resources for these orientations and restarts the Activity.
In the emulator you can simulate the change of the orientation via Ctrl+F11.
You can avoid a restart of your application for certain configuration changes via the configChanges
attribute on your Activity definition in your AndroidManifest.xml. The following Activity will
not be restarted in case of orientation changes or position of the physical keyboard (hidden / visible).
<activity android:name=".ProgressTestActivity"
android:label="@string/app_name"
android:configChanges="orientation|keyboardHidden|keyboard">
</activity>
7.4. Context
The class android.content.Context provides the connection to the Android system and the
resources of the project. It is the interface to global information about the application environment.
The Context also provides access to Android services, e.g. the Location Service.
activities and services extend the Context class.
8. Resources
8.1. Support in Android for resource files
Android supports that resources, like images and certain XML configuration files, can be keep separate
from the source code.
These resources must be defined in the res directory in a special folder dependent on their purpose.
You can also append additional qualifiers to the folder name to indicate that the related resources
should be used for special configurations, e.g. you can specify that a resource is only valid for a certain
screen size.
The following table give an overview of the supported resources and their standard folder prefix.
Table 1. Resources
Resource Folder Description
Simple
Values
/res/values Used to define strings, colors, dimensions, styles and static arrays of strings or
integers. By convention each type is stored in a separate file, e.g. strings are
defined in the res/values/strings.xml file.
Layouts /res/values XML file with layout description files used to define the user interface for activities
and Fragments.
Styles and
Themes
/res/values Files which define the appearance of your Android application.
Animations /res/animator Define animations in XML for the property animation API which allows to animate
arbitrary properties of objects over time.

11 of
53
3/5/13 10:34 PM
Menus /res/menu Define the properties of entries for a menu.

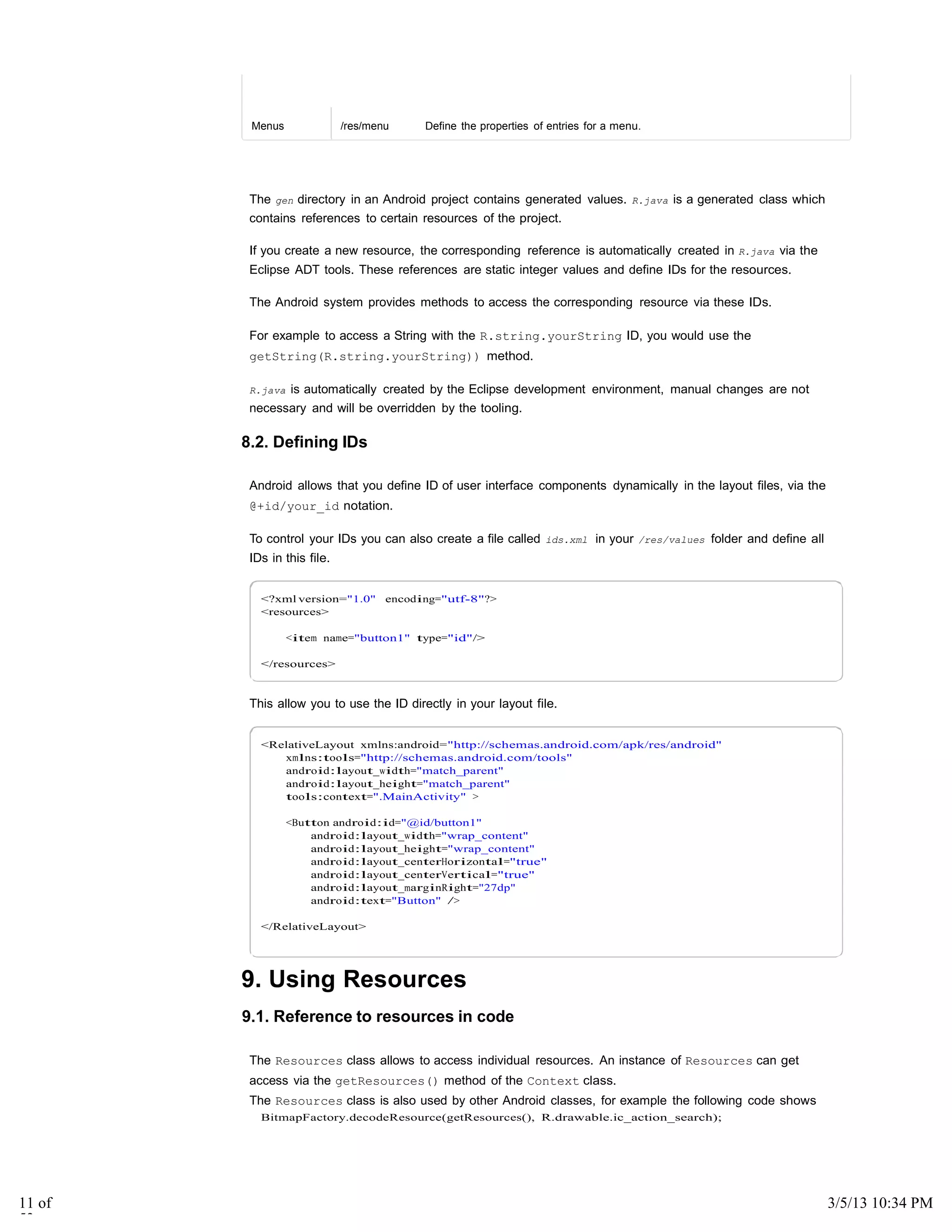

The gen directory in an Android project contains generated values. R.java is a generated class which
contains references to certain resources of the project.
If you create a new resource, the corresponding reference is automatically created in R.java via the
Eclipse ADT tools. These references are static integer values and define IDs for the resources.
The Android system provides methods to access the corresponding resource via these IDs.
For example to access a String with the R.string.yourString ID, you would use the
getString(R.string.yourString)) method.
R.java is automatically created by the Eclipse development environment, manual changes are not
necessary and will be overridden by the tooling.
8.2. Defining IDs
Android allows that you define ID of user interface components dynamically in the layout files, via the
@+id/your_id notation.
To control your IDs you can also create a file called ids.xml in your /res/values folder and define all
IDs in this file.
<resources>
<item name="button1" type="id"/>
</resources>
This allow you to use the ID directly in your layout file.
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity" >
<Button android:id="@id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerHorizontal="true"
android:layout_centerVertical="true"
android:layout_marginRight="27dp"
android:text="Button" />
</RelativeLayout>
9. Using Resources
9.1. Reference to resources in code
The Resources class allows to access individual resources. An instance of Resources can get
access via the getResources() method of the Context class.
The Resources class is also used by other Android classes, for example the following code shows
BitmapFactory.decodeResource(getResources(), R.drawable.ic_action_search);

12 of
53
3/5/13 10:34 PM

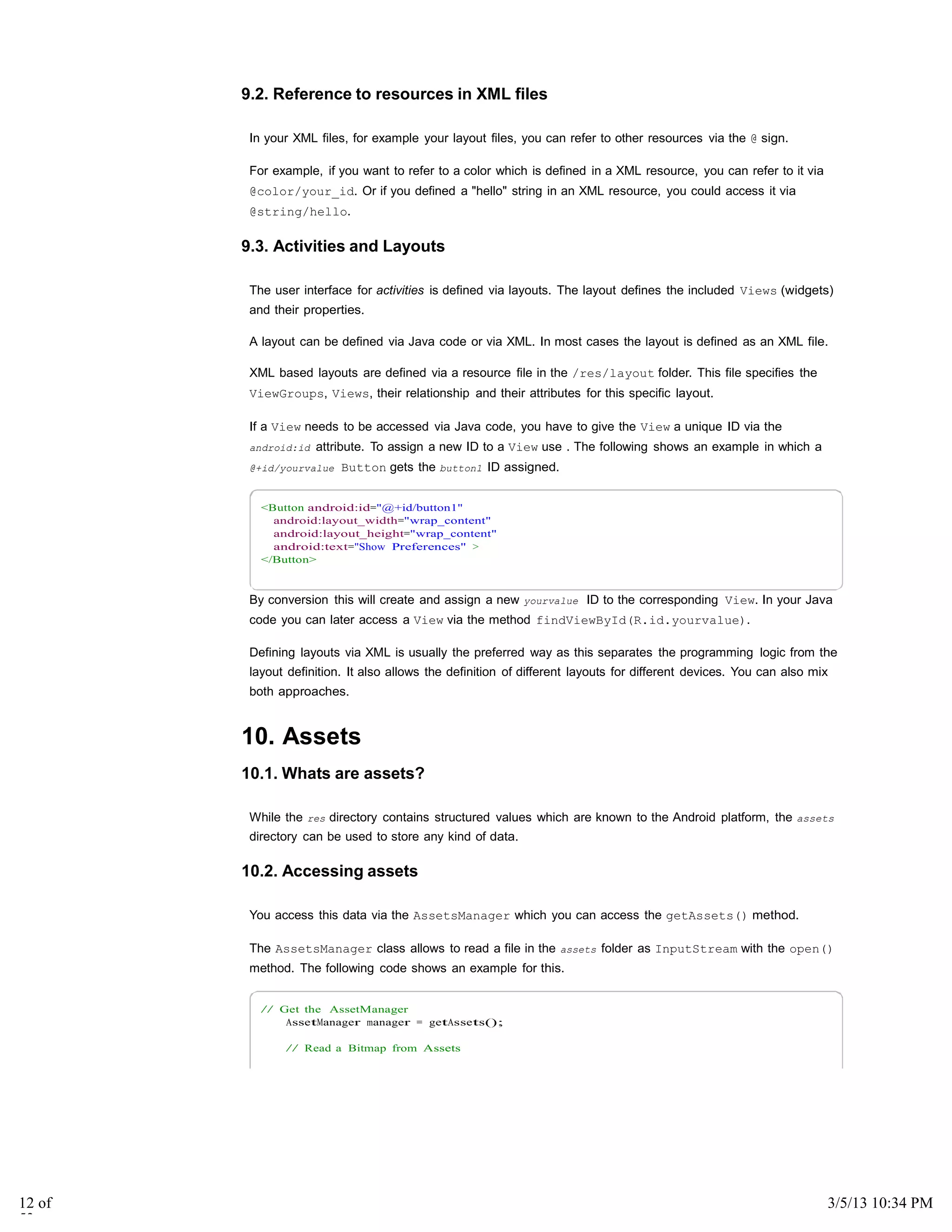

9.2. Reference to resources in XML files
In your XML files, for example your layout files, you can refer to other resources via the @ sign.
For example, if you want to refer to a color which is defined in a XML resource, you can refer to it via
@color/your_id. Or if you defined a "hello" string in an XML resource, you could access it via
@string/hello.
9.3. Activities and Layouts
The user interface for activities is defined via layouts. The layout defines the included Views (widgets)
and their properties.
A layout can be defined via Java code or via XML. In most cases the layout is defined as an XML file.
XML based layouts are defined via a resource file in the /res/layout folder. This file specifies the
ViewGroups, Views, their relationship and their attributes for this specific layout.
If a View needs to be accessed via Java code, you have to give the View a unique ID via the
android:id attribute. To assign a new ID to a View use . The following shows an example in which a
@+id/yourvalue Button gets the button1 ID assigned.
<Button android:id="@+id/button1"
android:text="Show Preferences" >
</Button>
By conversion this will create and assign a new yourvalue ID to the corresponding View. In your Java
code you can later access a View via the method findViewById(R.id.yourvalue).
Defining layouts via XML is usually the preferred way as this separates the programming logic from the
layout definition. It also allows the definition of different layouts for different devices. You can also mix
both approaches.
10. Assets
10.1. Whats are assets?
While the res directory contains structured values which are known to the Android platform, the assets
directory can be used to store any kind of data.
10.2. Accessing assets
You access this data via the AssetsManager which you can access the getAssets() method.
The AssetsManager class allows to read a file in the assets folder as InputStream with the open()
method. The following code shows an example for this.
// Get the AssetManager
AssetManager manager = getAssets();
// Read a Bitmap from Assets

13 of
53
3/5/13 10:34 PM
open = manager.open("logo.png");
Bitmap bitmap = BitmapFactory.decodeStream(open);
// Assign the bitmap to an ImageViewin this layout
ImageView view = (ImageView) findViewById(R.id.imageView1);
view.setImageBitmap(bitmap);
} ccaattcchh (IOException e) {
e.printStackTrace();
} ffiinnaallllyy {
iiff (open != null) {
ttrryy {
open.close();
} ccaattcchh (IOException e) {
e.printStackTrace();
}
}
}

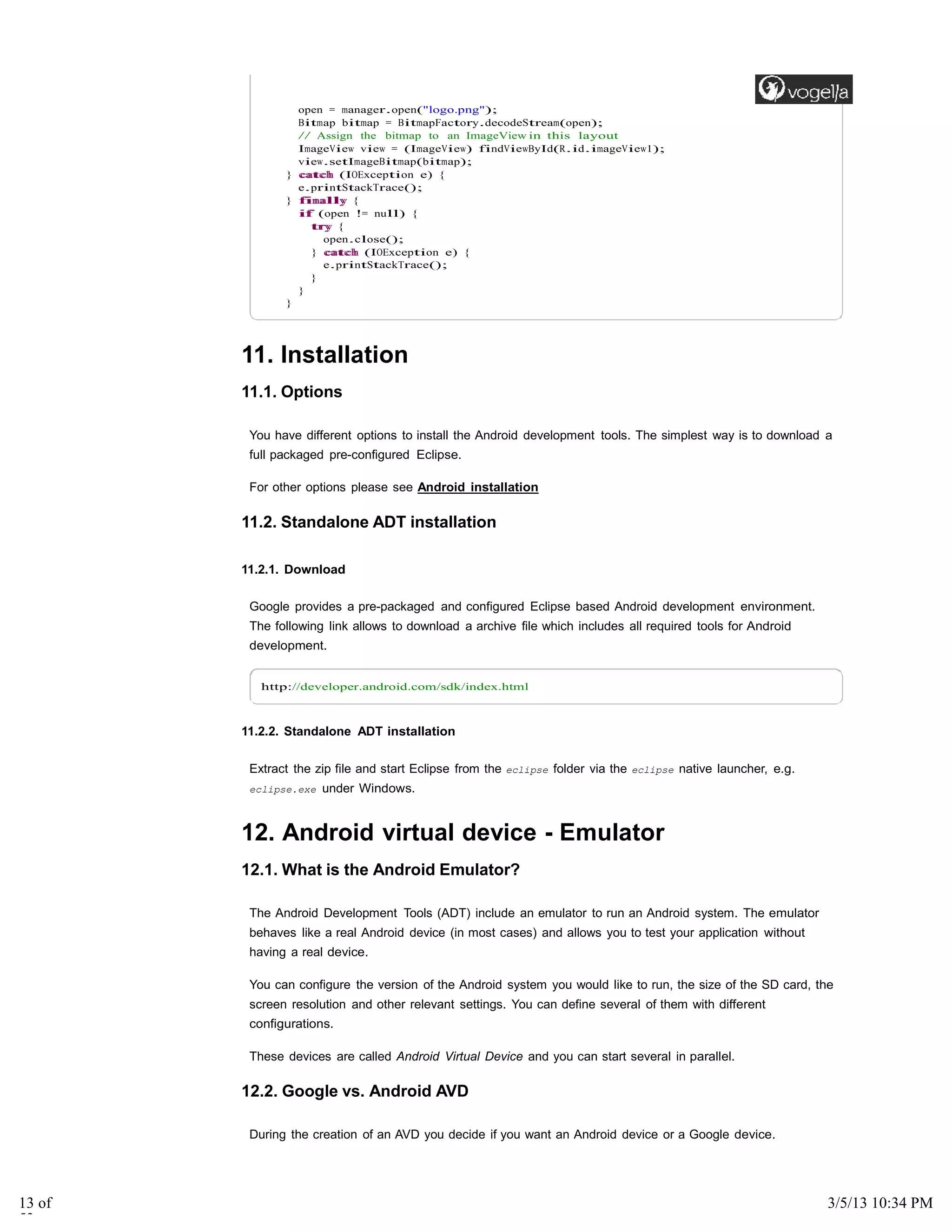

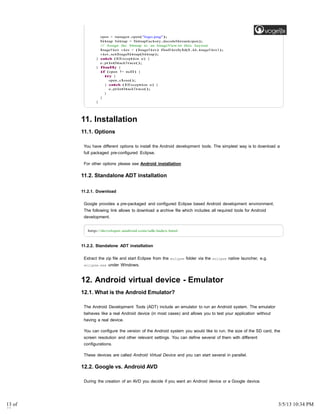

11. Installation
11.1. Options
You have different options to install the Android development tools. The simplest way is to download a
full packaged pre-configured Eclipse.
For other options please see Android installation
11.2. Standalone ADT installation
11.2.1. Download
Google provides a pre-packaged and configured Eclipse based Android development environment.
The following link allows to download a archive file which includes all required tools for Android
development.
http://developer.android.com/sdk/index.html
11.2.2. Standalone ADT installation
Extract the zip file and start Eclipse from the eclipse folder via the eclipse native launcher, e.g.
eclipse.exe under Windows.
12. Android virtual device - Emulator
12.1. What is the Android Emulator?
The Android Development Tools (ADT) include an emulator to run an Android system. The emulator
behaves like a real Android device (in most cases) and allows you to test your application without
having a real device.
You can configure the version of the Android system you would like to run, the size of the SD card, the
screen resolution and other relevant settings. You can define several of them with different
configurations.
These devices are called Android Virtual Device and you can start several in parallel.
12.2. Google vs. Android AVD
During the creation of an AVD you decide if you want an Android device or a Google device.

14 of
53
created for the Google API's will also contain several Google applications, most notable the Google
Maps application.
If you want to use functionality which is only provided via the Google API's, e.g. Google Maps you must
run this application on an AVD with Google API's.
12.3. Emulator Shortcuts
3/5/13 10:34 PM
The following shortcuts are useful for working with the emulator.
Alt+Enter Maximizes the emulator. Nice for demos.
Ctrl+F11 changes the orientation of the emulator.
F8 Turns network on / off.
12.4. Parameter

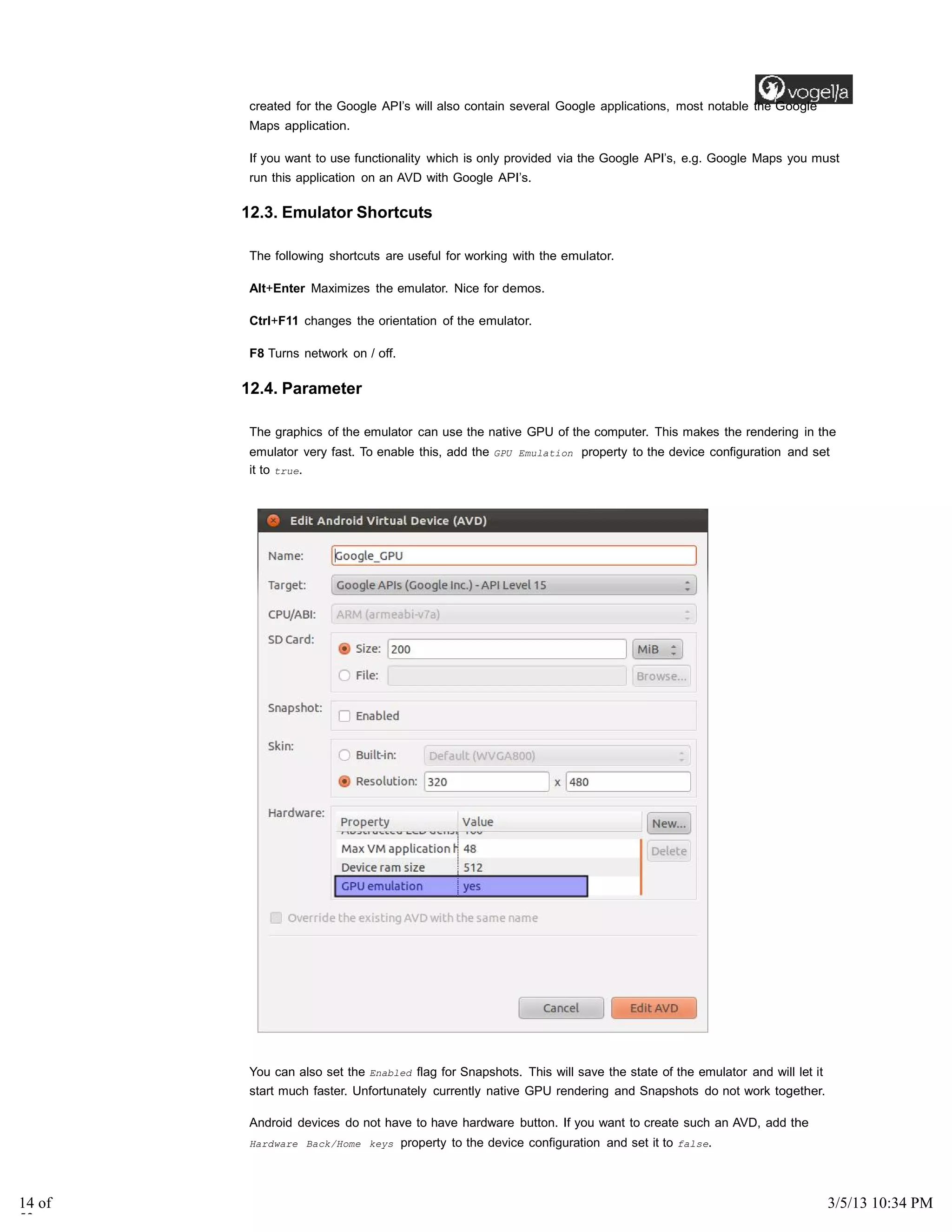

The graphics of the emulator can use the native GPU of the computer. This makes the rendering in the
emulator very fast. To enable this, add the GPU Emulation property to the device configuration and set
it to true.
You can also set the Enabled flag for Snapshots. This will save the state of the emulator and will let it
start much faster. Unfortunately currently native GPU rendering and Snapshots do not work together.
Android devices do not have to have hardware button. If you want to create such an AVD, add the
Hardware Back/Home keys property to the device configuration and set it to false.

15 of
53
3/5/13 10:34 PM

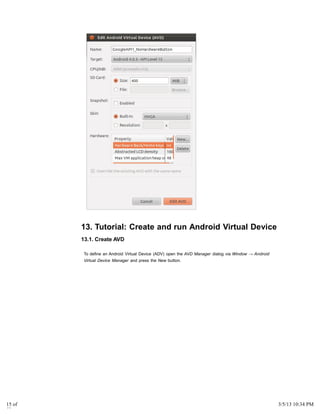

13. Tutorial: Create and run Android Virtual Device
13.1. Create AVD

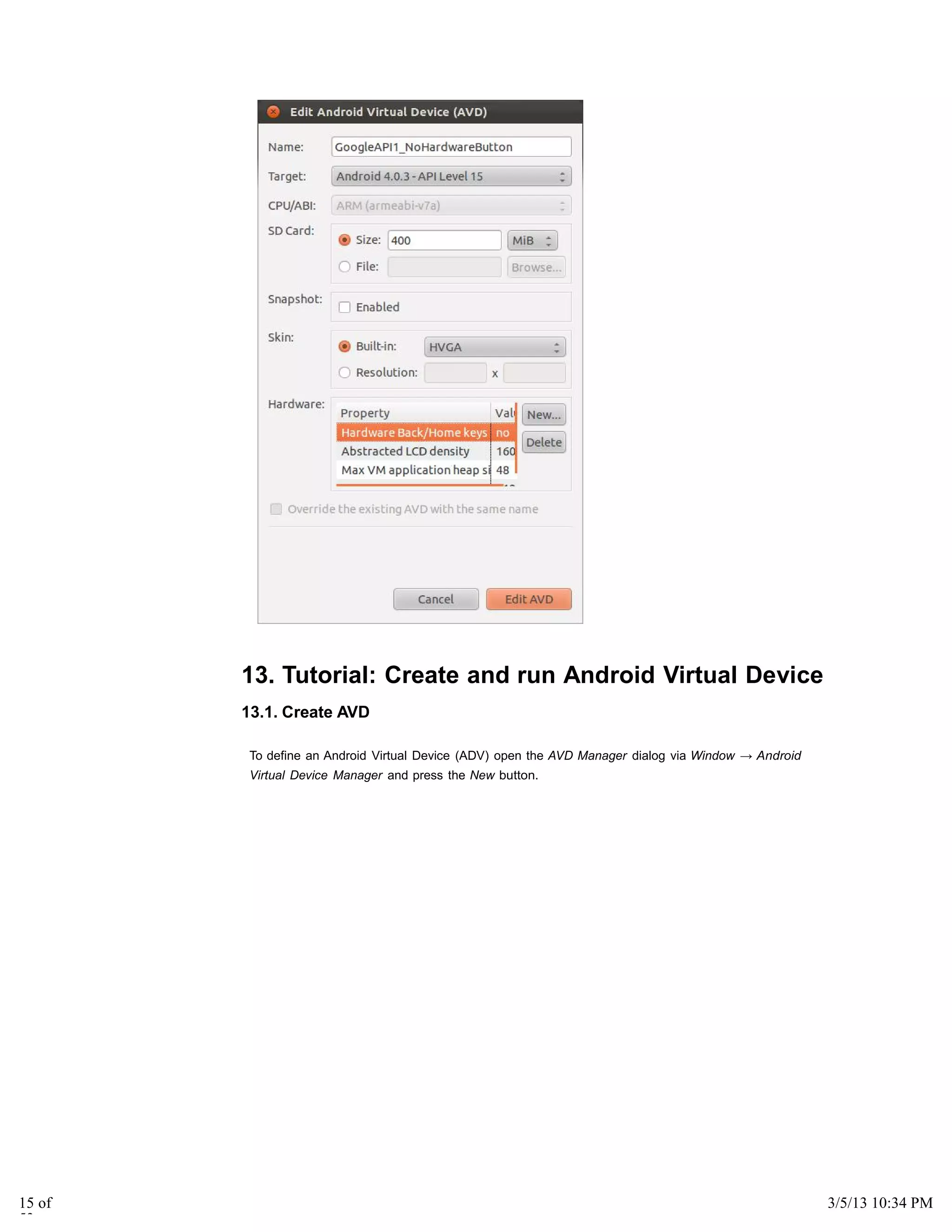

To define an Android Virtual Device (ADV) open the AVD Manager dialog via Window → Android
Virtual Device Manager and press the New button.

vogella.com Tutorials Training Services Publications Connect

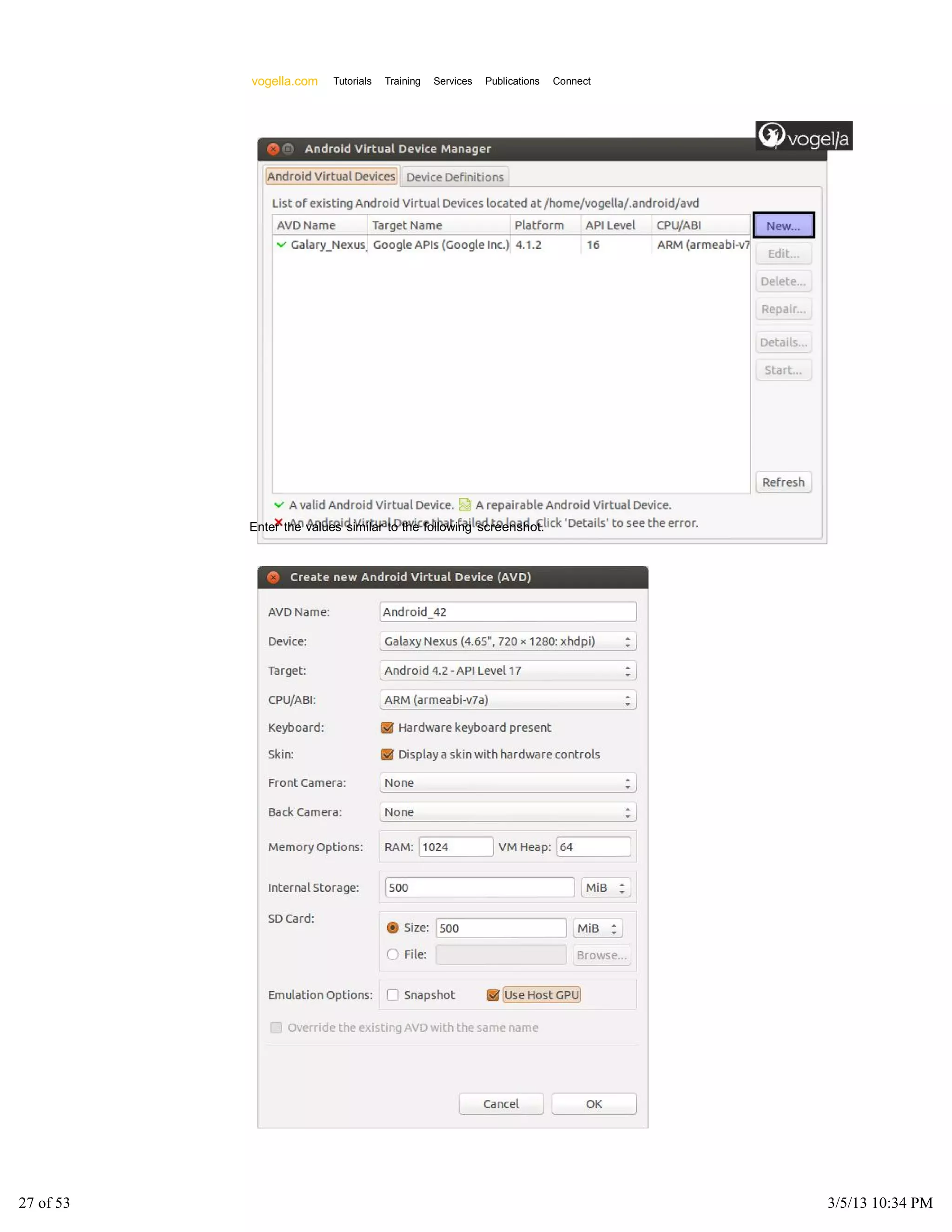

Enter the values similar to the following screenshot.
27 of 53 3/5/13 10:34 PM

unit of your computer and this makes rendering on the AVD much faster.
Afterwards press the OK button. This will create the AVD configuration and display it under the list of
available virtual devices.

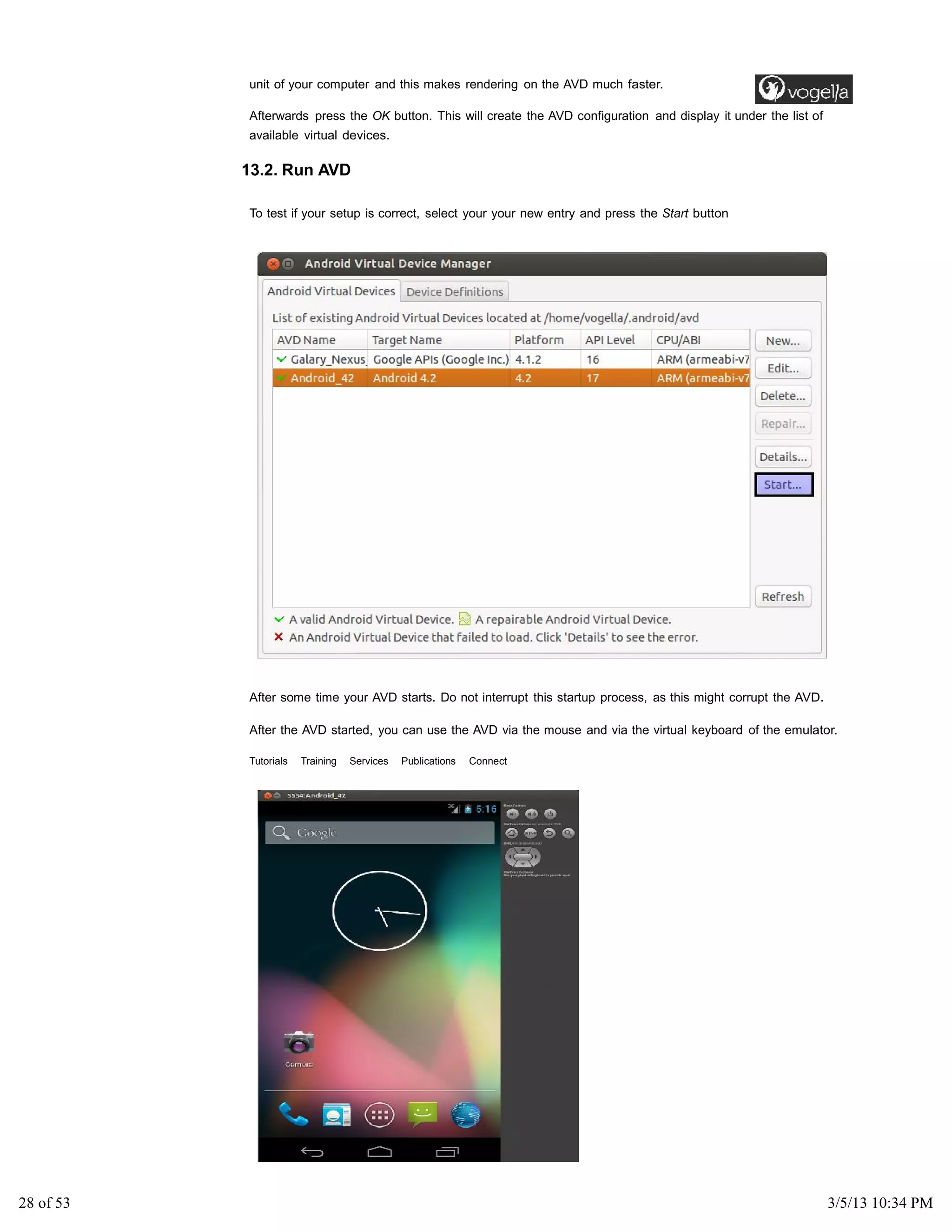

13.2. Run AVD
To test if your setup is correct, select your your new entry and press the Start button
After some time your AVD starts. Do not interrupt this startup process, as this might corrupt the AVD.
After the AVD started, you can use the AVD via the mouse and via the virtual keyboard of the emulator.
Tutorials Training Services Publications Connect
28 of 53 3/5/13 10:34 PM

13.3. Stopping the emulator
During development you don't stop the AVD, you just re-deploy your application.
14. Solving Android development problems
Things are not always working as they should. You find a list of typical Android development problems
and their solution under the following link: Solutions for common Android development problems .
15. Conventions and API level
15.1. API version
The tutorials of this document have been developed and tested with Android 4.2, API Level 17. Please
use this version for all tutorials in this tutorial. Higher versions of the API level should also work.
Connect
15.2. Android project and package name
The base package for the projects is always the same as the project name, e.g. if you are asked to
create a project called de.vogella.android.example.test, then the corresponding package name is
de.vogella.android.example.test.
The application name, which must be entered on the Android project generation wizard, will not be
predefined. Choose a name you like.
16. Tutorial: create and run Android project
In this section you create a simple Android project and run it.
You create an Android application with the data from the following table. The process of creating the
Android application is described and depicted below the table.
Table 2. New Android project
Property Value
Application Name Test App
Project Name com.vogella.android.first
Package name com.vogella.android.first
Template BlankActivity
Activity MainActivity
Layout activity_main
To create a new Android project select File → New → Other → Android → Android Project from the
menu. Enter the fitting data from the table above in the first wizard page.
29 of 53 3/5/13 10:34 PM

Press the Next button and ensure that you have selected to create a launcher icon and an activity.

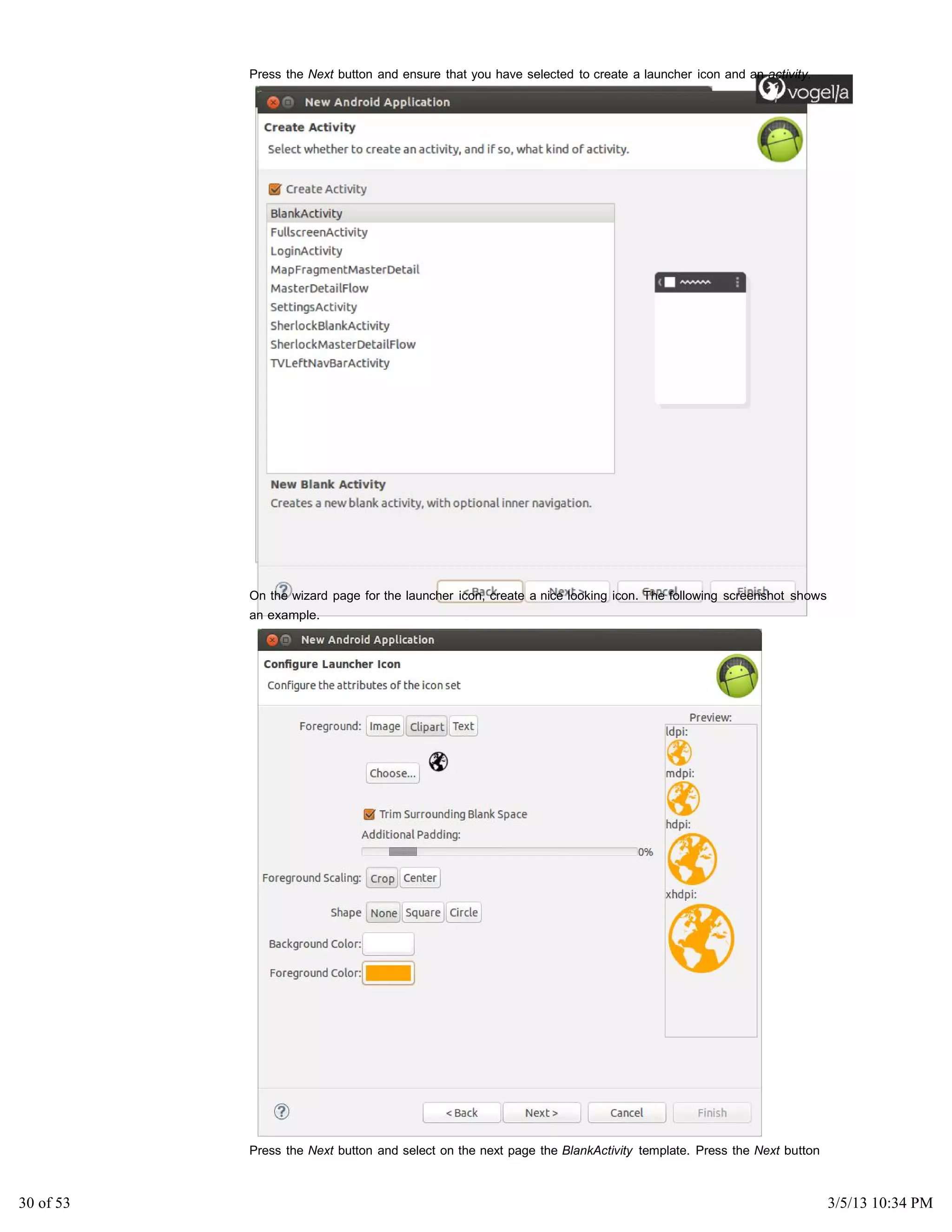

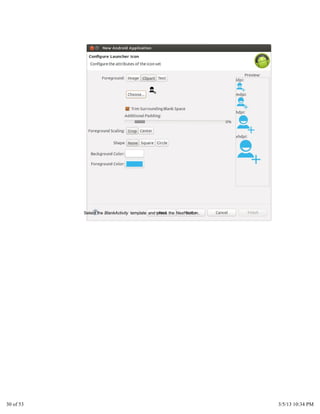

On the wizard page for the launcher icon, create a nice looking icon. The following screenshot shows
an example.

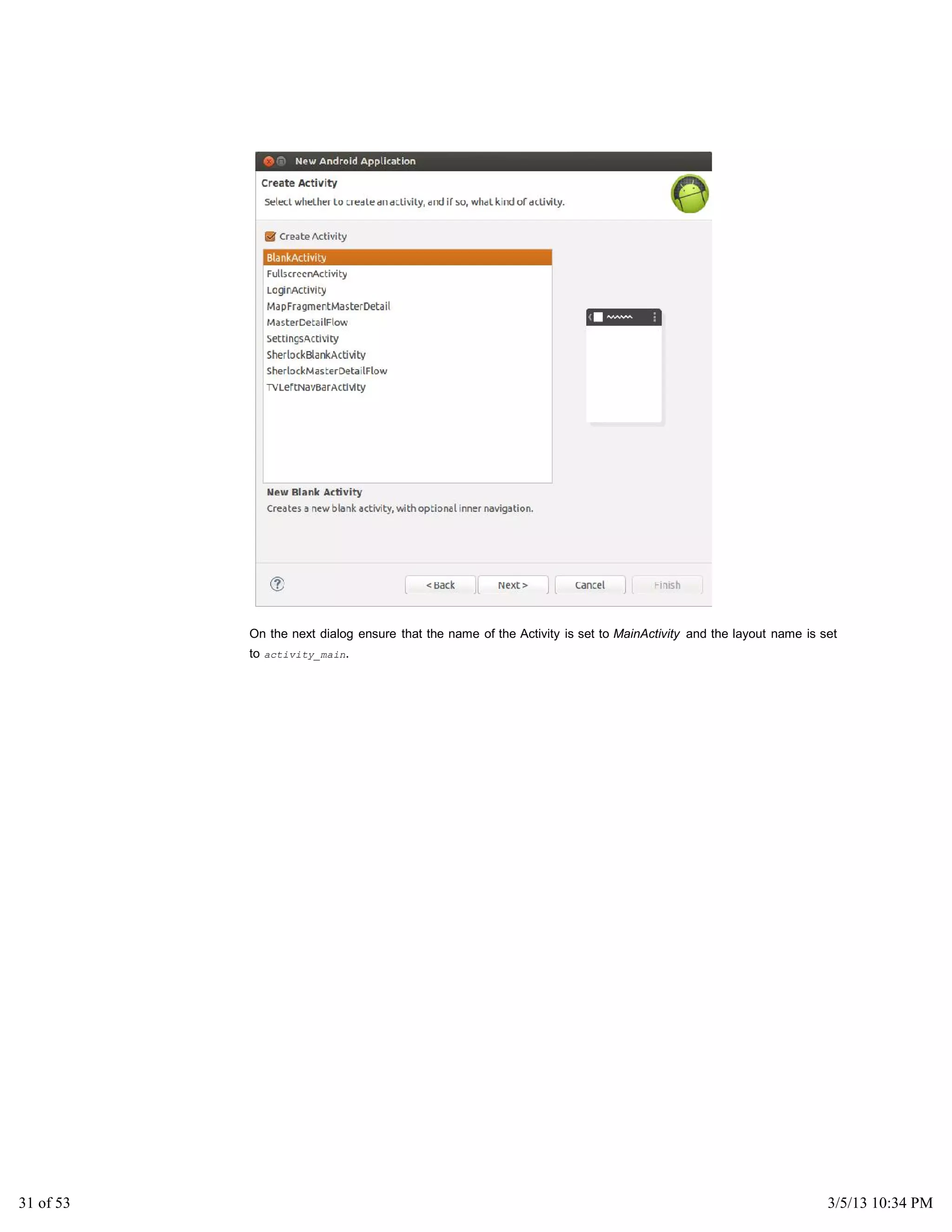

Press the Next button and select on the next page the BlankActivity template. Press the Next button
30 of 53 3/5/13 10:34 PM

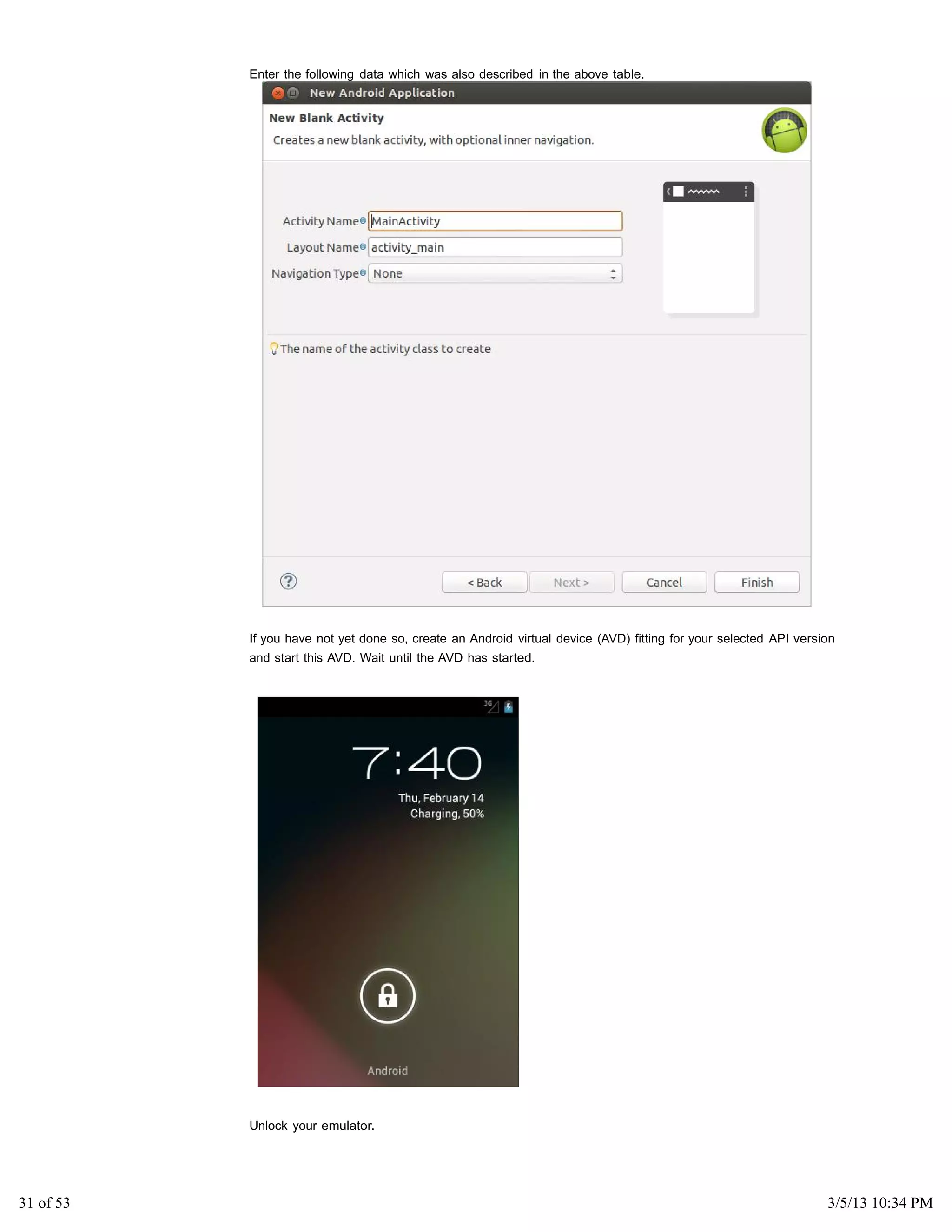

Enter the following data which was also described in the above table.
If you have not yet done so, create an Android virtual device (AVD) fitting for your selected API version
and start this AVD. Wait until the AVD has started.
Unlock your emulator.

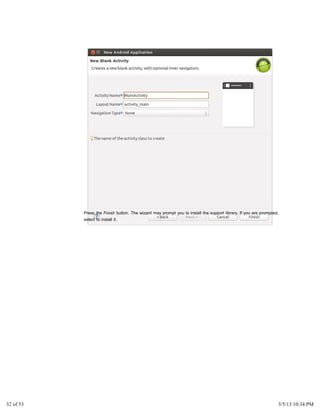

31 of 53 3/5/13 10:34 PM

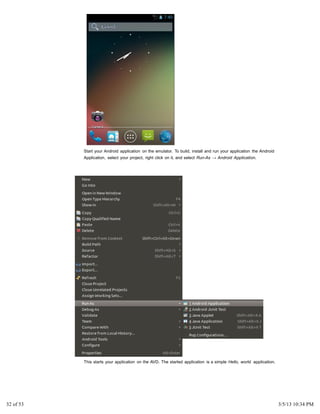

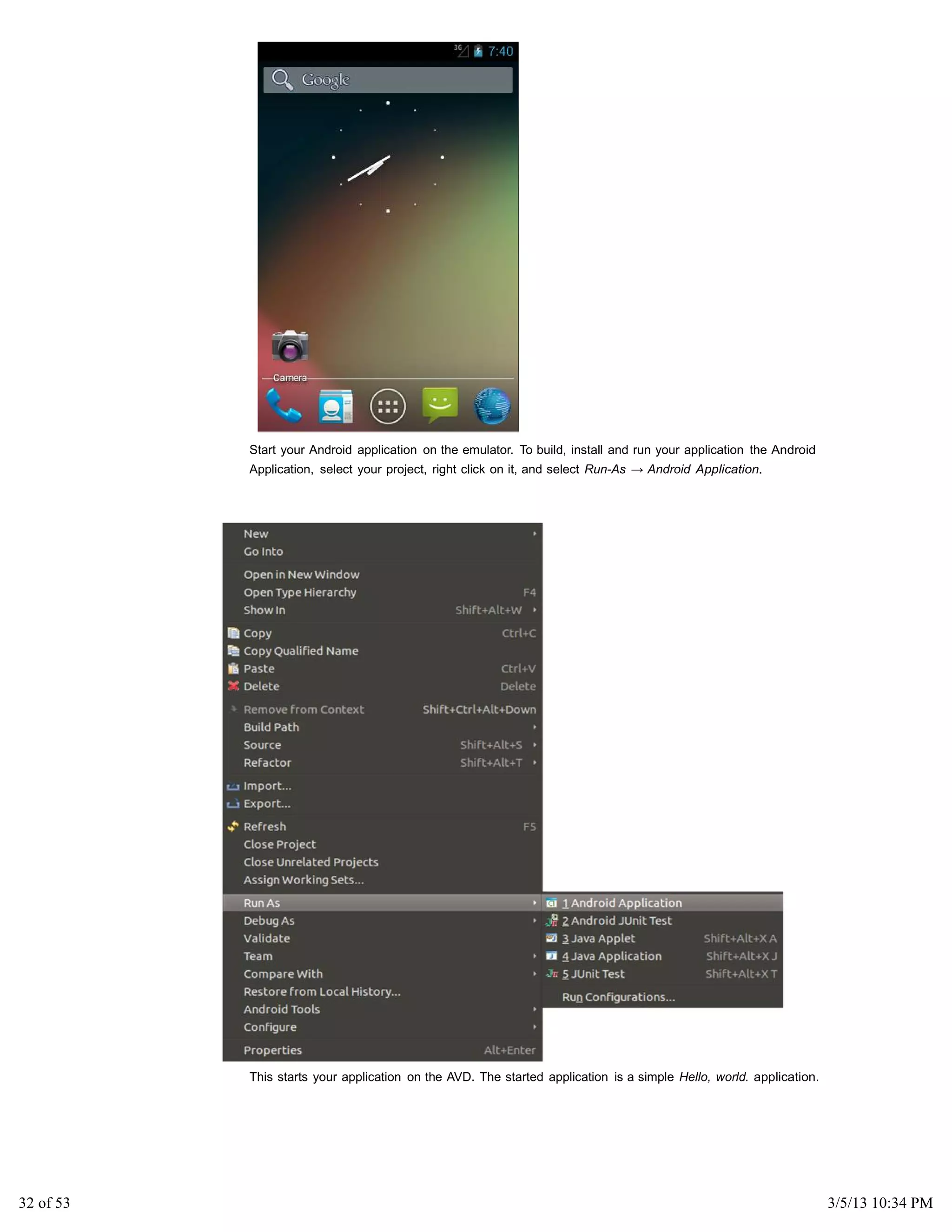

Start your Android application on the emulator. To build, install and run your application the Android
Application, select your project, right click on it, and select Run-As → Android Application.
This starts your application on the AVD. The started application is a simple Hello, world. application.
32 of 53 3/5/13 10:34 PM

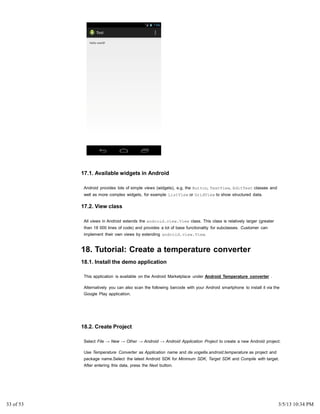

17.1. Available widgets in Android
Android provides lots of simple views (widgets), e.g. the Button, TextView, EditText classes and
well as more complex widgets, for example ListView or GridView to show structured data.
17.2. View class
All views in Android extends the android.view.View class. This class is relatively larger (greater
than 18 000 lines of code) and provides a lot of base functionality for subclasses. Customer can
implement their own views by extending android.view.View.
18. Tutorial: Create a temperature converter
18.1. Install the demo application
This application is available on the Android Marketplace under Android Temperature converter .
Alternatively you can also scan the following barcode with your Android smartphone to install it via the
Google Play application.
18.2. Create Project
Select File → New → Other → Android → Android Application Project to create a new Android project.
Use Temperature Converter as Application name and de.vogella.android.temperature as project and
package name.Select the latest Android SDK for Minimum SDK, Target SDK and Compile with target.
After entering this data, press the Next button.
33 of 53 3/5/13 10:34 PM

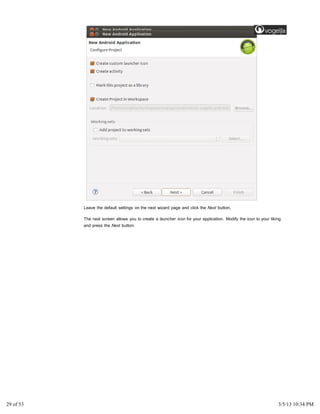

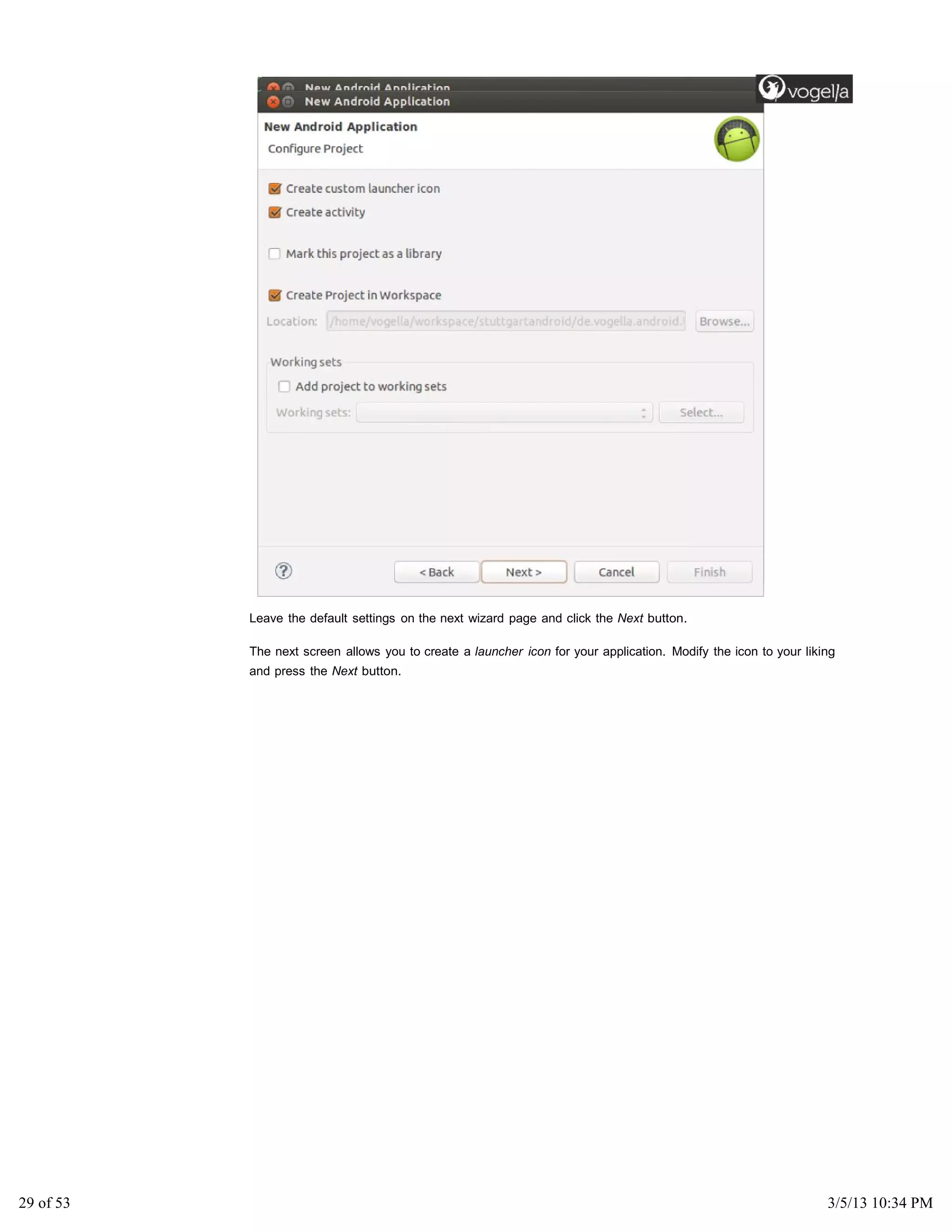

Leave the default settings on the next wizard page and click the Next button.
The next screen allows you to create a launcher icon for your application. Modify the icon to your liking
and press the Next button.
29 of 53 3/5/13 10:34 PM

Select the BlankActivity template and press the Next button.
30 of 53 3/5/13 10:34 PM

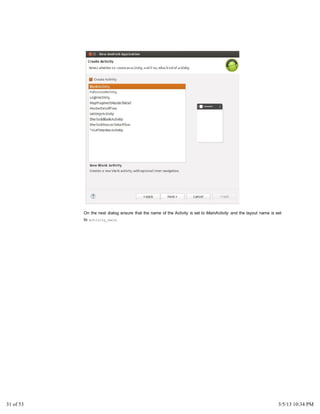

On the next dialog ensure that the name of the Activity is set to MainActivity and the layout name is set
to activity_main.
31 of 53 3/5/13 10:34 PM

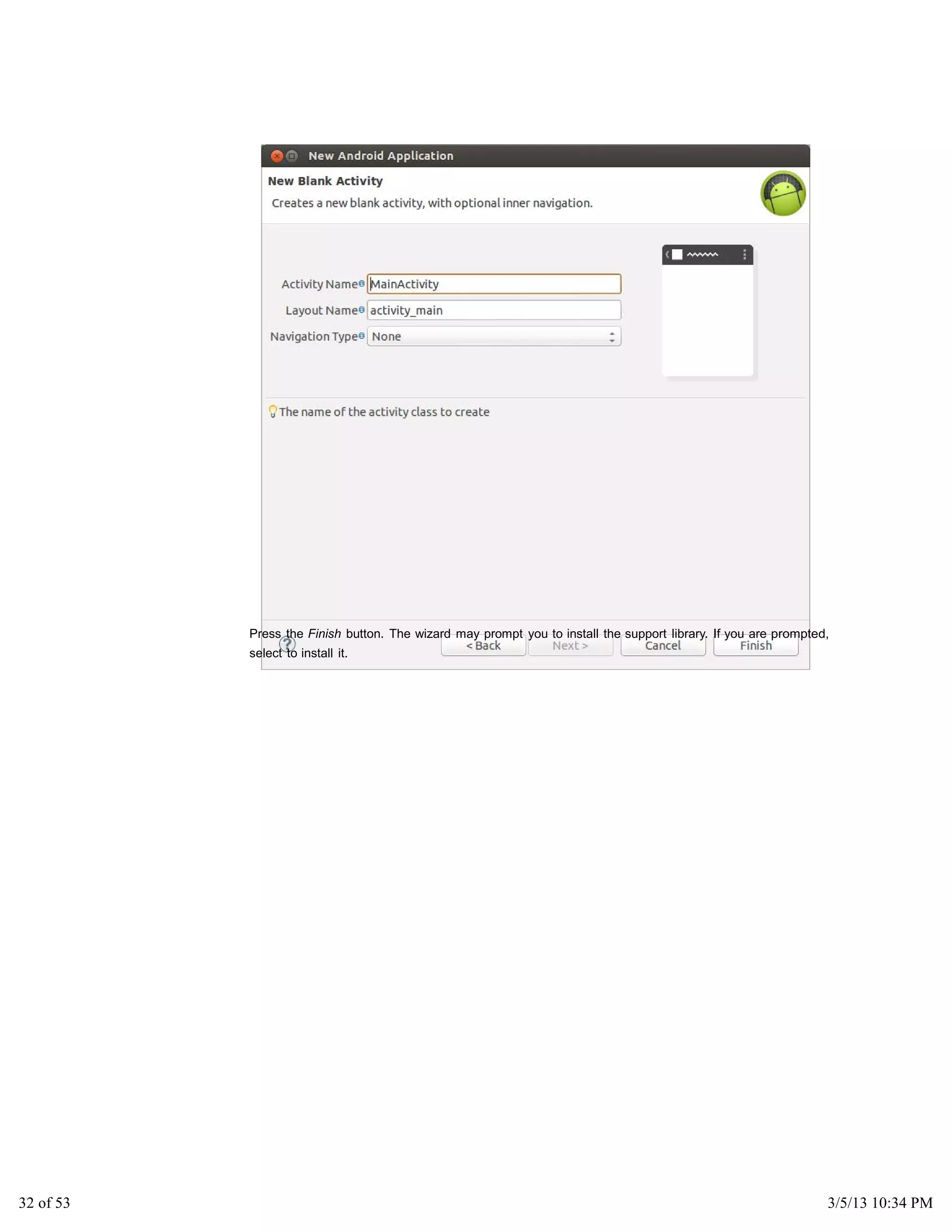

Press the Finish button. The wizard may prompt you to install the support library. If you are prompted,
select to install it.
32 of 53 3/5/13 10:34 PM

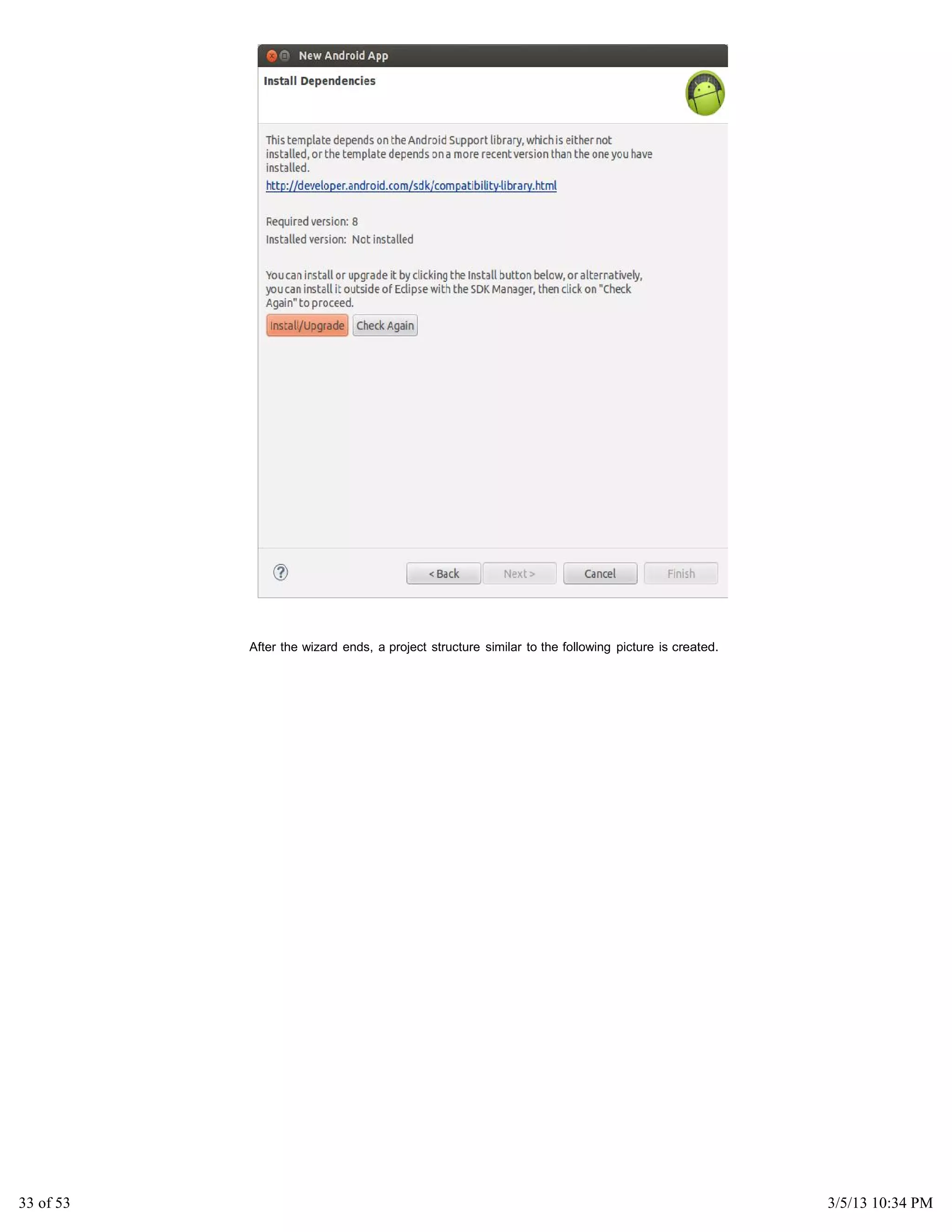

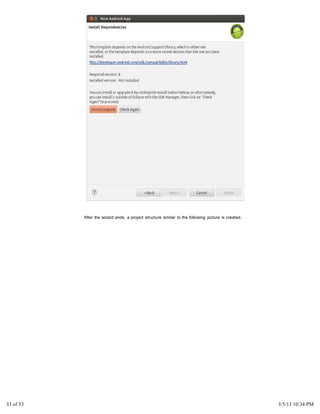

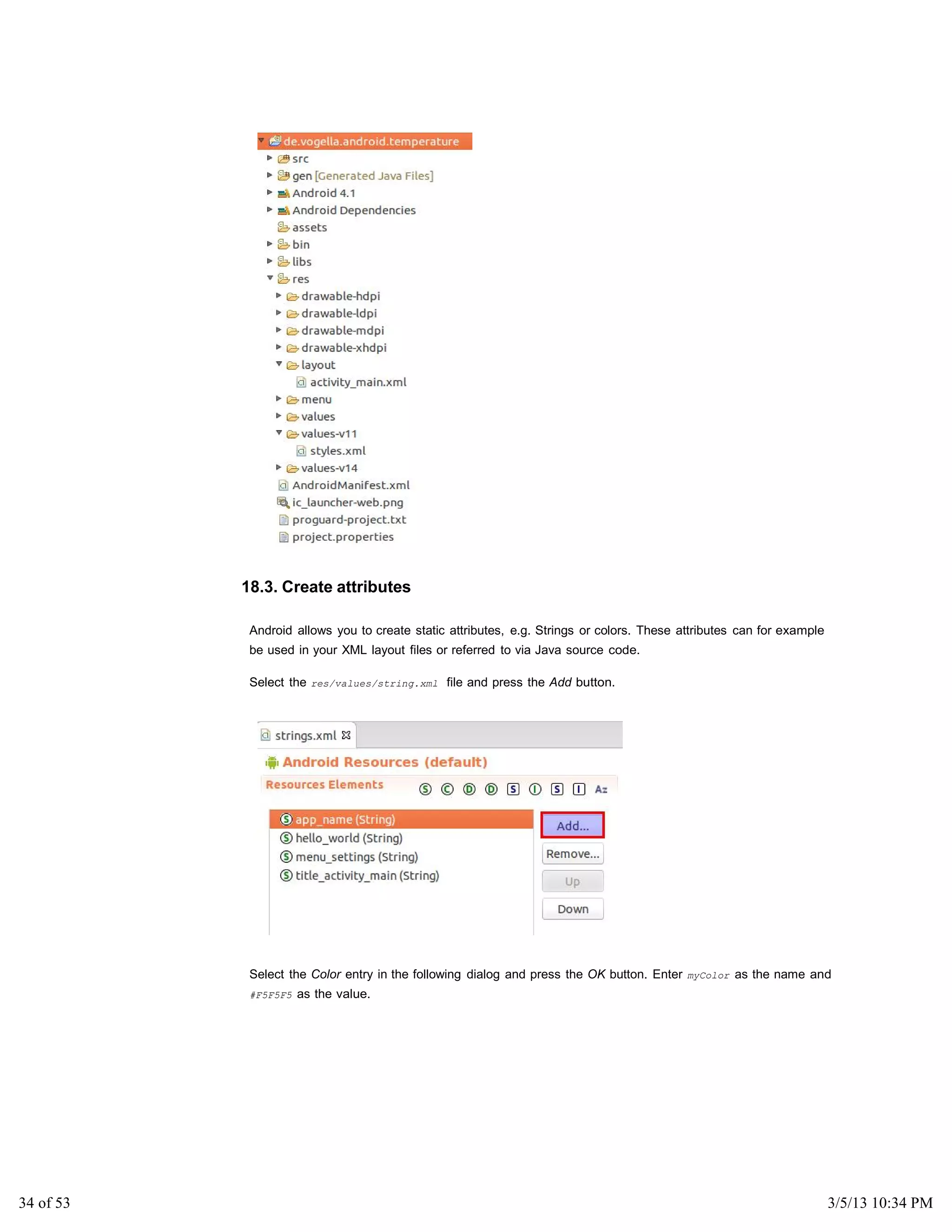

After the wizard ends, a project structure similar to the following picture is created.
33 of 53 3/5/13 10:34 PM

18.3. Create attributes
Android allows you to create static attributes, e.g. Strings or colors. These attributes can for example
be used in your XML layout files or referred to via Java source code.
Select the res/values/string.xml file and press the Add button.
Select the Color entry in the following dialog and press the OK button. Enter myColor as the name and
#F5F5F5 as the value.
34 of 53 3/5/13 10:34 PM

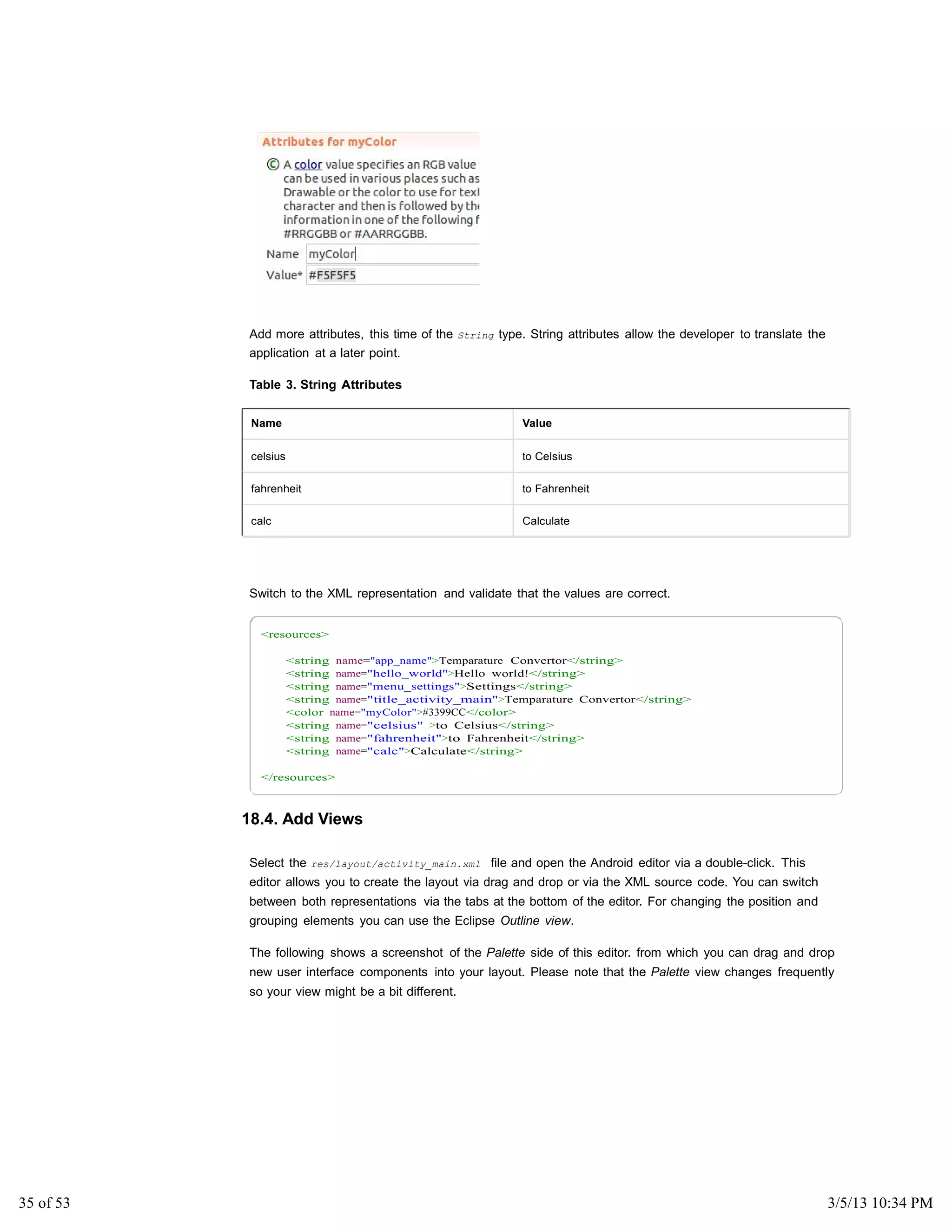

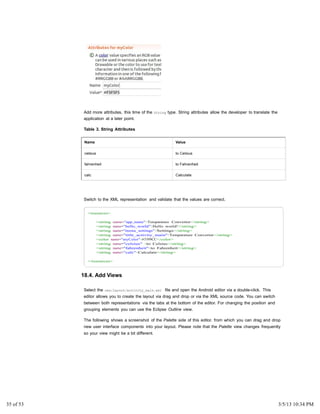

Add more attributes, this time of the String type. String attributes allow the developer to translate the
application at a later point.
Table 3. String Attributes
Name Value
celsius to Celsius
fahrenheit to Fahrenheit
calc Calculate
Switch to the XML representation and validate that the values are correct.
<resources>
<string name="app_name">Temparature Convertor</string>
<string name="hello_world">Hello world!</string>
<string name="menu_settings">Settings</string>
<string name="title_activity_main">Temparature Convertor</string>
<color name="myColor">#3399CC</color>
<string name="celsius" >to Celsius</string>
<string name="fahrenheit">to Fahrenheit</string>
<string name="calc">Calculate</string>
</resources>
18.4. Add Views
Select the res/layout/activity_main.xml file and open the Android editor via a double-click. This
editor allows you to create the layout via drag and drop or via the XML source code. You can switch
between both representations via the tabs at the bottom of the editor. For changing the position and
grouping elements you can use the Eclipse Outline view.
The following shows a screenshot of the Palette side of this editor. from which you can drag and drop
new user interface components into your layout. Please note that the Palette view changes frequently
so your view might be a bit different.
35 of 53 3/5/13 10:34 PM

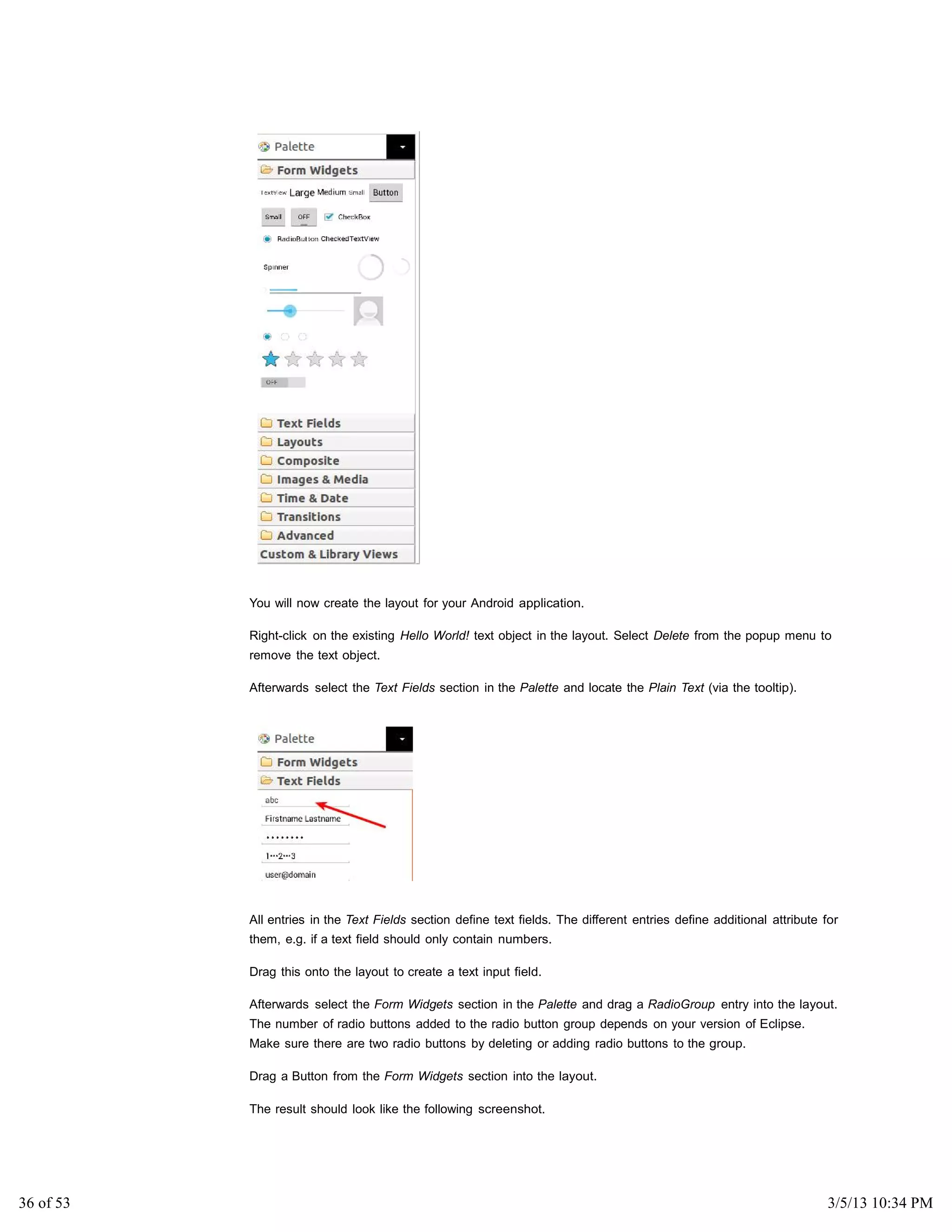

You will now create the layout for your Android application.
Right-click on the existing Hello World! text object in the layout. Select Delete from the popup menu to
remove the text object.
Afterwards select the Text Fields section in the Palette and locate the Plain Text (via the tooltip).
All entries in the Text Fields section define text fields. The different entries define additional attribute for
them, e.g. if a text field should only contain numbers.
Drag this onto the layout to create a text input field.
Afterwards select the Form Widgets section in the Palette and drag a RadioGroup entry into the layout.
The number of radio buttons added to the radio button group depends on your version of Eclipse.
Make sure there are two radio buttons by deleting or adding radio buttons to the group.
Drag a Button from the Form Widgets section into the layout.
The result should look like the following screenshot.
36 of 53 3/5/13 10:34 PM

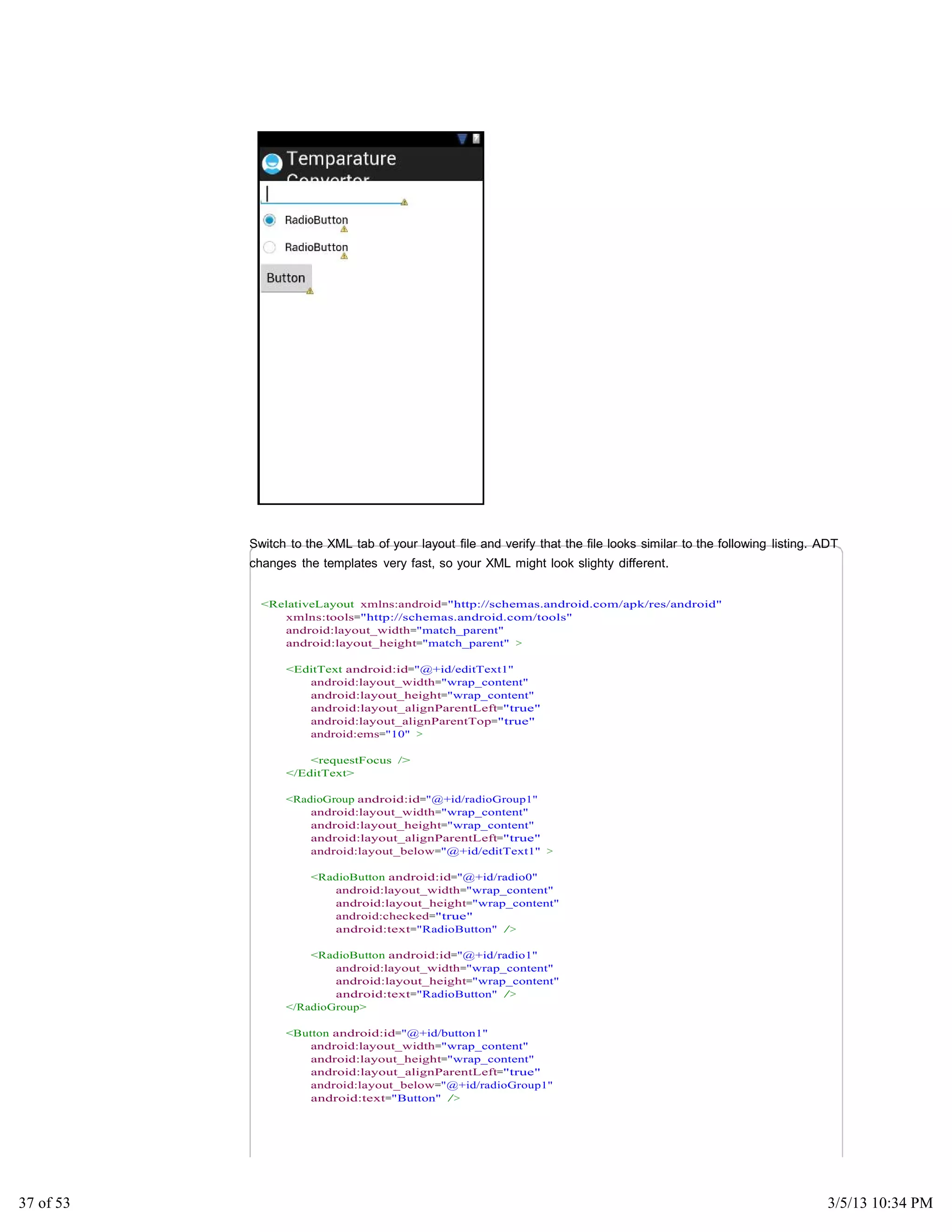

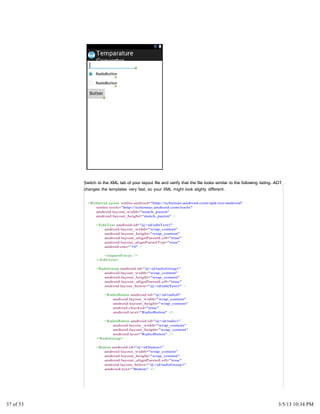

Switch to the XML tab of your layout file and verify that the file looks similar to the following listing. ADT
changes the templates very fast, so your XML might look slighty different.
android:layout_height="match_parent" >
<EditText android:id="@+id/editText1"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:ems="10" >
<requestFocus />
</EditText>
<RadioGroup android:id="@+id/radioGroup1"
android:layout_below="@+id/editText1" >
<RadioButton android:id="@+id/radio0"
android:checked="true"
android:text="RadioButton" />
android:text="RadioButton" />
</RadioGroup>
<Button android:id="@+id/button1"
android:layout_below="@+id/radioGroup1"
android:text="Button" />
37 of 53 3/5/13 10:34 PM

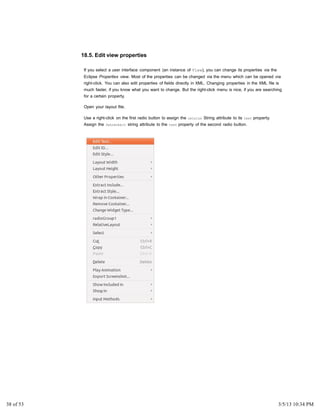

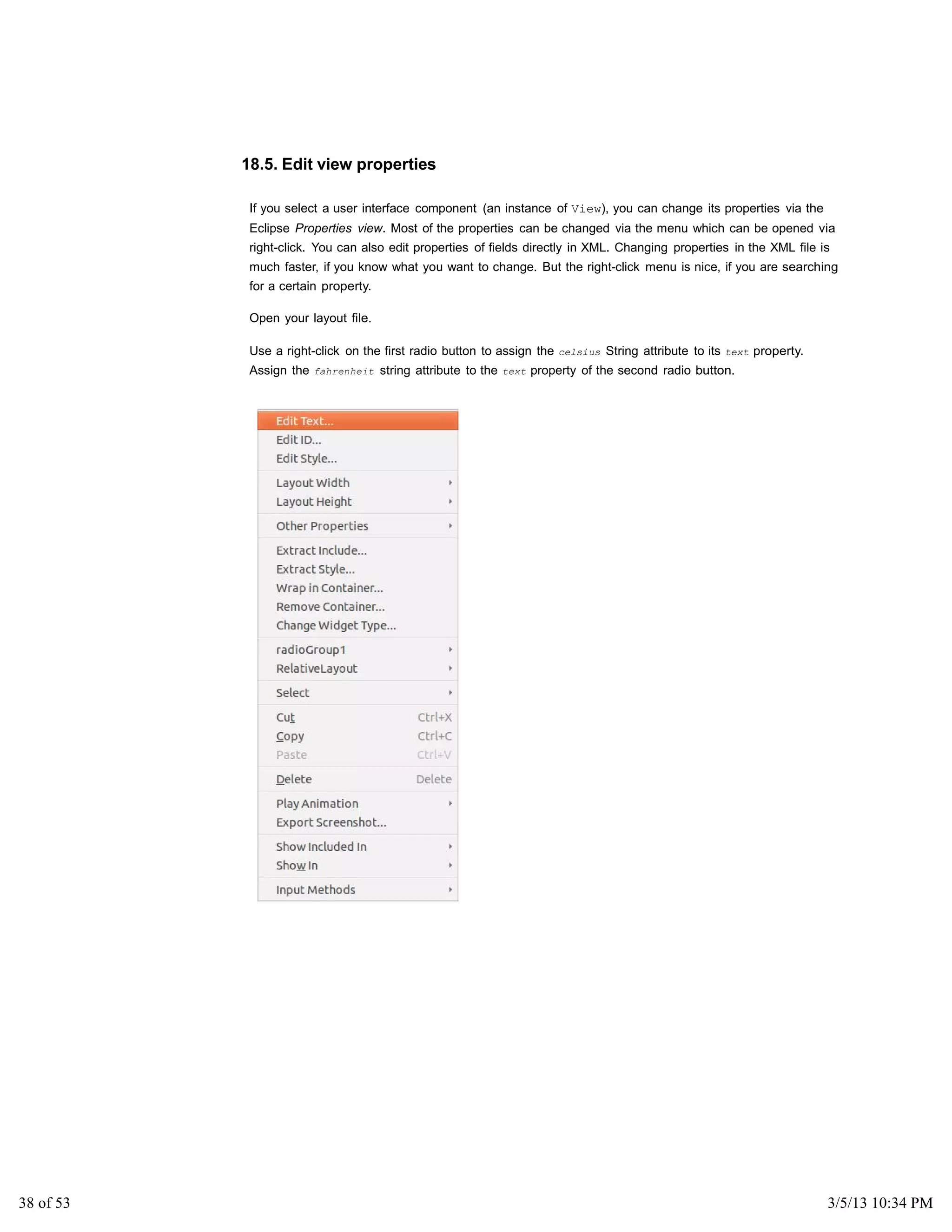

18.5. Edit view properties
If you select a user interface component (an instance of View), you can change its properties via the
Eclipse Properties view. Most of the properties can be changed via the menu which can be opened via
right-click. You can also edit properties of fields directly in XML. Changing properties in the XML file is
much faster, if you know what you want to change. But the right-click menu is nice, if you are searching
for a certain property.
Open your layout file.
Use a right-click on the first radio button to assign the celsius String attribute to its text property.
Assign the fahrenheit string attribute to the text property of the second radio button.
38 of 53 3/5/13 10:34 PM

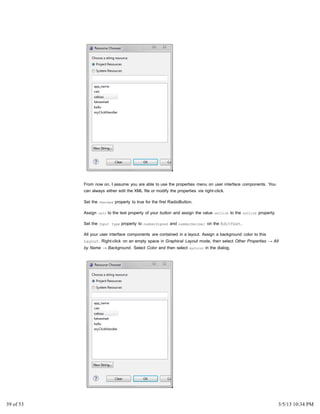

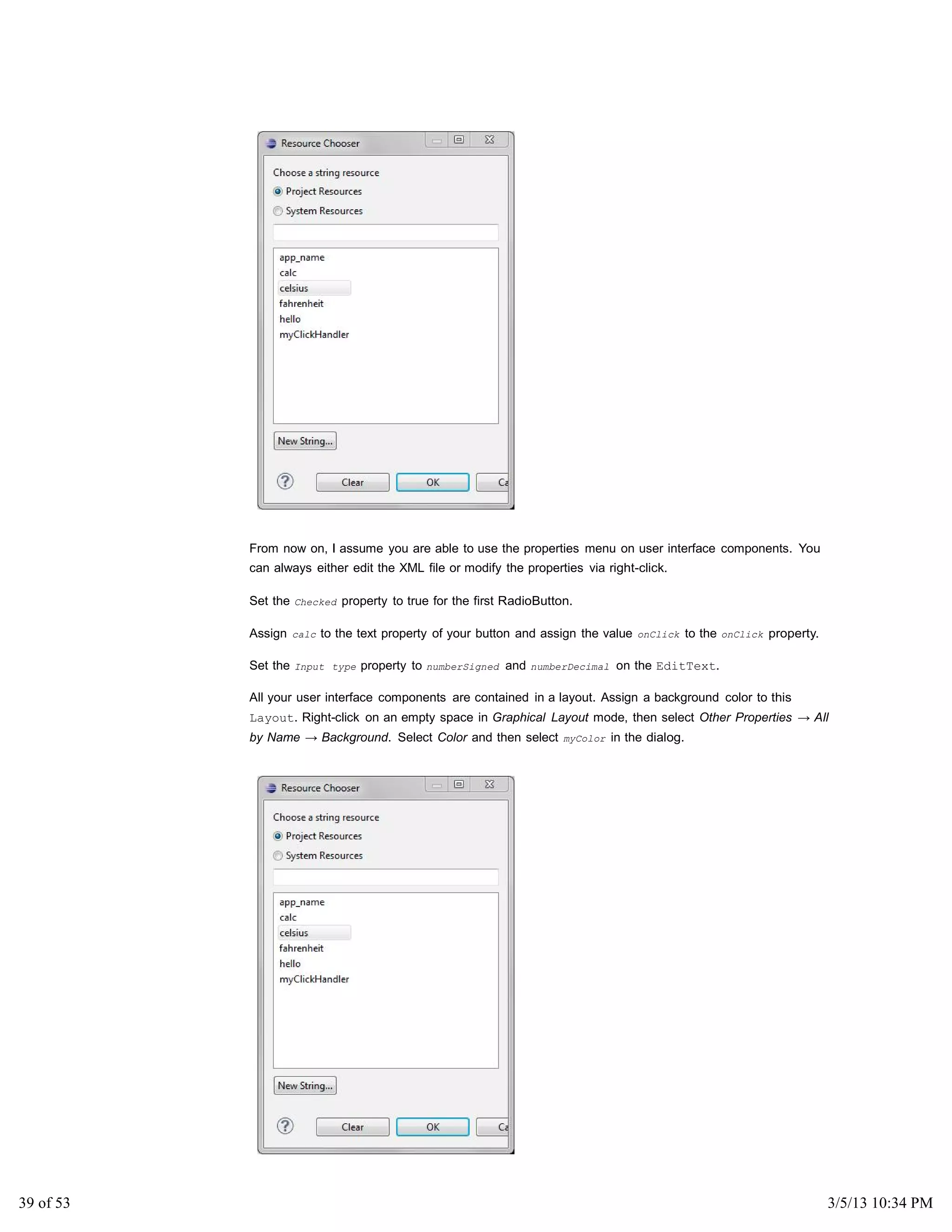

From now on, I assume you are able to use the properties menu on user interface components. You
can always either edit the XML file or modify the properties via right-click.
Set the Checked property to true for the first RadioButton.
Assign calc to the text property of your button and assign the value onClick to the onClick property.
Set the Input type property to numberSigned and numberDecimal on the EditText.
All your user interface components are contained in a layout. Assign a background color to this
Layout. Right-click on an empty space in Graphical Layout mode, then select Other Properties → All
by Name → Background. Select Color and then select myColor in the dialog.
39 of 53 3/5/13 10:34 PM

difference.

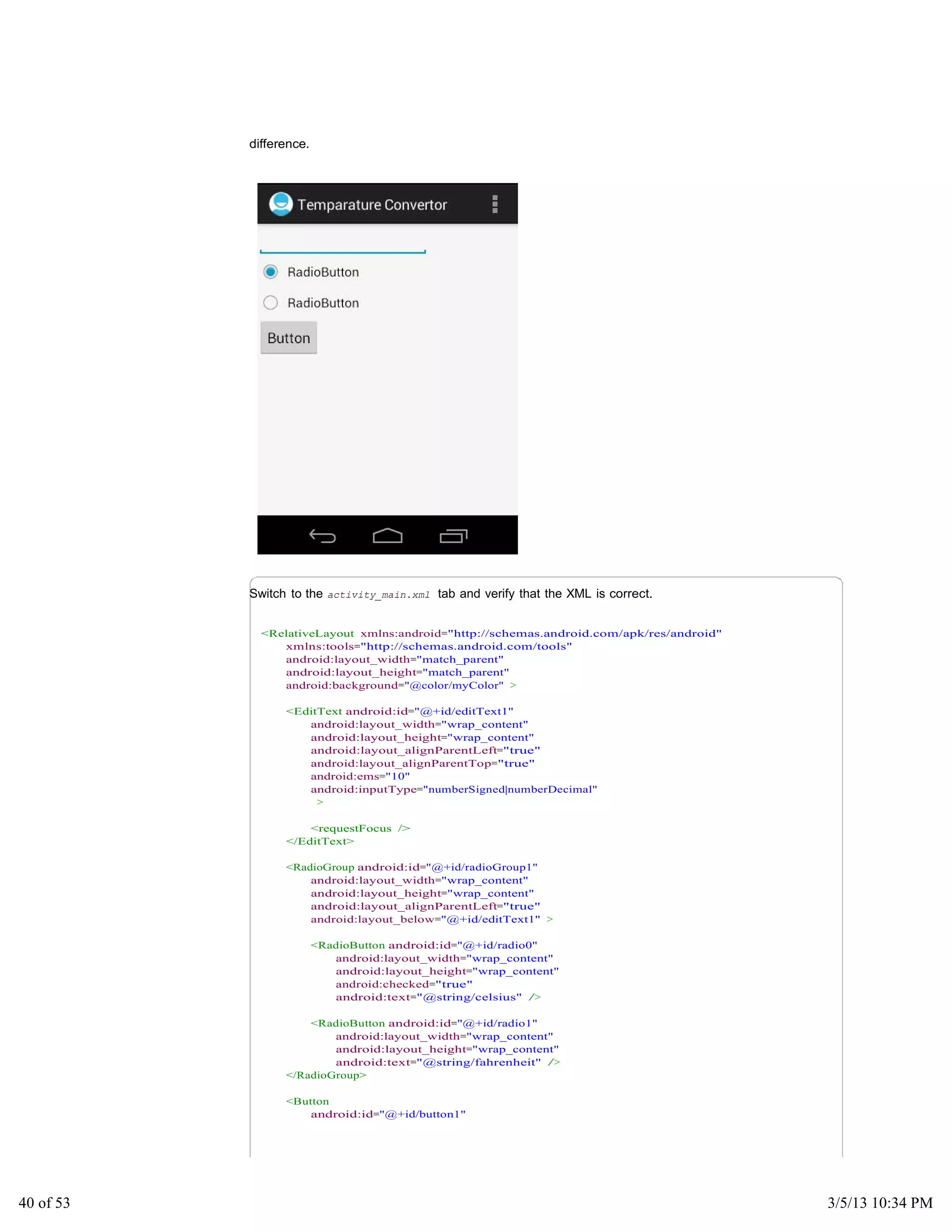

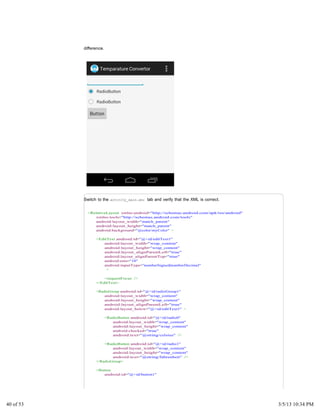

Switch to the activity_main.xml tab and verify that the XML is correct.
android:background="@color/myColor" >
<EditText android:id="@+id/editText1"
android:layout_alignParentTop="true"
android:ems="10"
android:inputType="numberSigned|numberDecimal"
>
<requestFocus />
</EditText>
<RadioGroup android:id="@+id/radioGroup1"
android:layout_below="@+id/editText1" >
android:checked="true"
android:text="@string/celsius" />
android:text="@string/fahrenheit" />
</RadioGroup>
<Button
android:id="@+id/button1"
40 of 53 3/5/13 10:34 PM

android:layout_below="@+id/radioGroup1"
android:onClick="onClick"
android:text="@string/calc" />
</RelativeLayout>

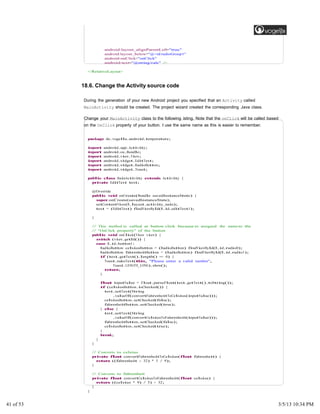

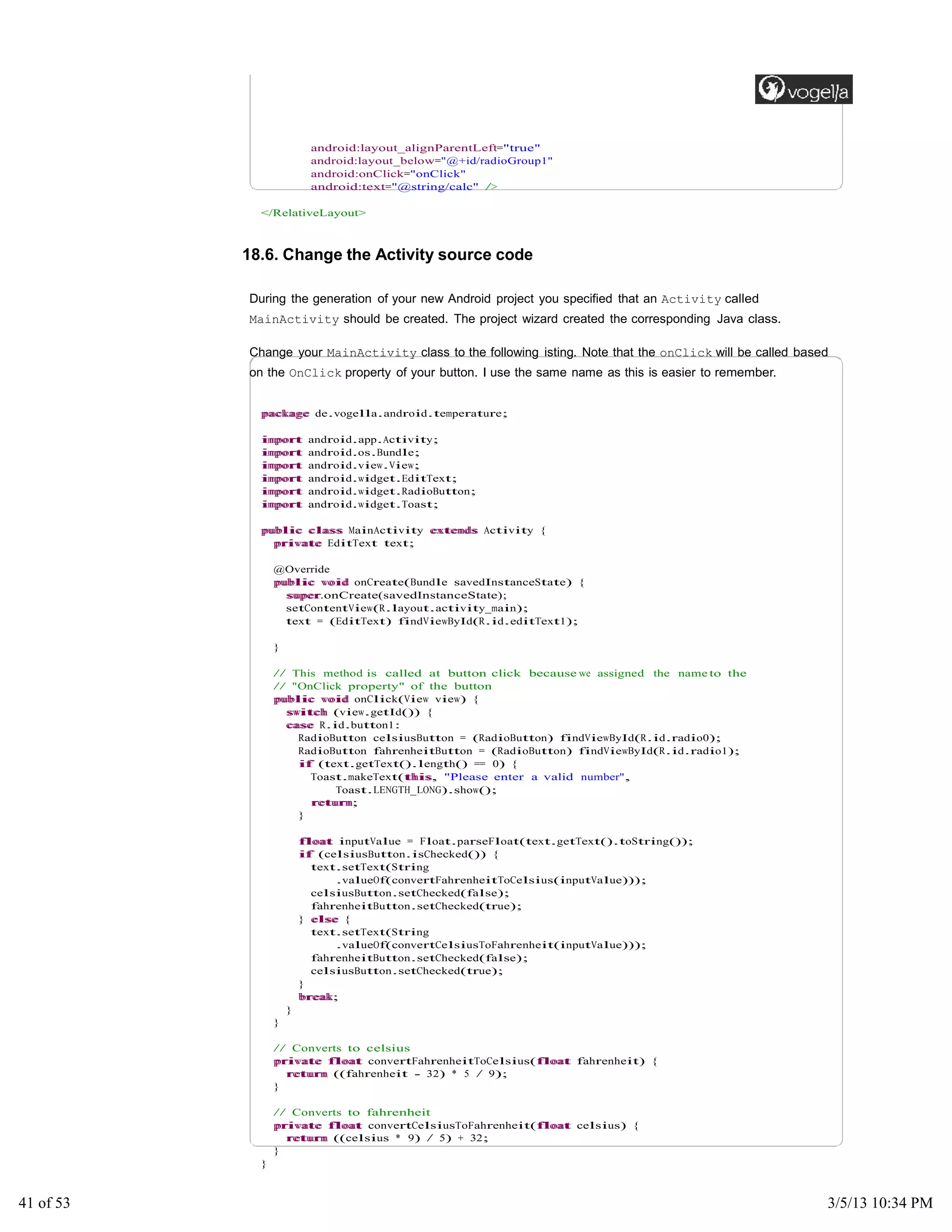

18.6. Change the Activity source code
During the generation of your new Android project you specified that an Activity called
MainActivity should be created. The project wizard created the corresponding Java class.
Change your MainActivity class to the following isting. Note that the onClick will be called based
on the OnClick property of your button. I use the same name as this is easier to remember.
ppaacckkaaggee de.vogella.android.temperature;
iimmppoorrtt android.app.Activity;
iimmppoorrtt android.os.Bundle;
iimmppoorrtt android.view.View;
iimmppoorrtt android.widget.EditText;
iimmppoorrtt android.widget.RadioButton;
iimmppoorrtt android.widget.Toast;
ppuubblliicc ccllaassss MainActivity eexxtteennddss Activity {
pprriivvaattee EditText text;
@Override
ppuubblliicc vvooiidd onCreate(Bundle savedInstanceState) {
ssuuppeerr.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
text = (EditText) findViewById(R.id.editText1);
}
// This method is called at button click because we assigned the name to the
// "OnClick property" of the button
ppuubblliicc vvooiidd onClick(View view) {
sswwiittcchh (view.getId()) {
ccaassee R.id.button1:
RadioButton celsiusButton = (RadioButton) findViewById(R.id.radio0);
RadioButton fahrenheitButton = (RadioButton) findViewById(R.id.radio1);
iiff (text.getText().length() == 0) {
Toast.makeText(tthhiiss, "Please enter a valid number",
Toast.LENGTH_LONG).show();
rreettuurrnn;
}
ffllooaatt inputValue = Float.parseFloat(text.getText().toString());
iiff (celsiusButton.isChecked()) {
text.setText(String
.valueOf(convertFahrenheitToCelsius(inputValue)));
celsiusButton.setChecked(false);
fahrenheitButton.setChecked(true);
} eellssee {
text.setText(String
.valueOf(convertCelsiusToFahrenheit(inputValue)));
fahrenheitButton.setChecked(false);
celsiusButton.setChecked(true);
}
bbrreeaakk;
}
}
// Converts to celsius
pprriivvaattee ffllooaatt convertFahrenheitToCelsius(ffllooaatt fahrenheit) {
rreettuurrnn ((fahrenheit - 32) * 5 / 9);
}
// Converts to fahrenheit
pprriivvaattee ffllooaatt convertCelsiusToFahrenheit(ffllooaatt celsius) {
rreettuurrnn ((celsius * 9) / 5) + 32;
}
}
41 of 53 3/5/13 10:34 PM

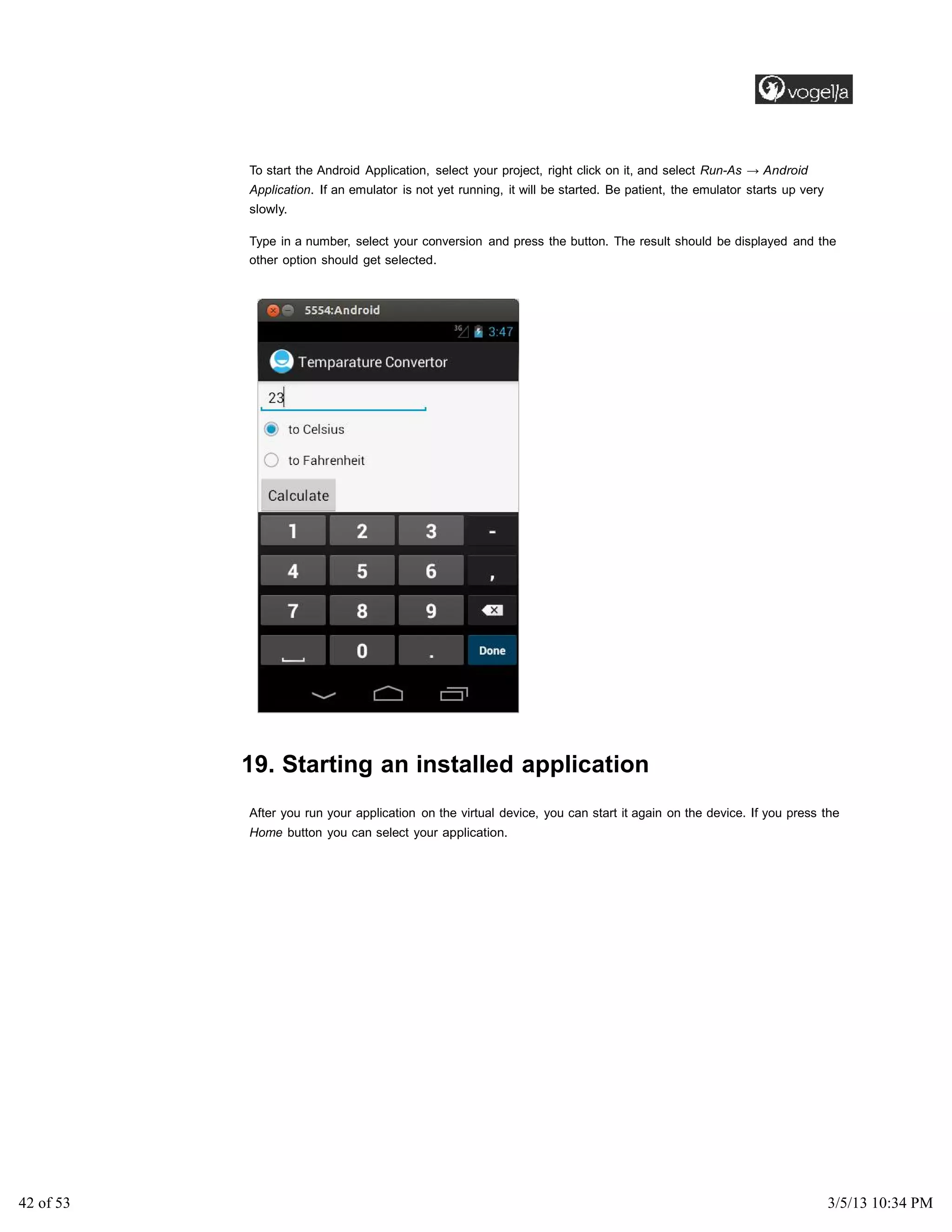

To start the Android Application, select your project, right click on it, and select Run-As → Android
Application. If an emulator is not yet running, it will be started. Be patient, the emulator starts up very
slowly.
Type in a number, select your conversion and press the button. The result should be displayed and the
other option should get selected.
19. Starting an installed application

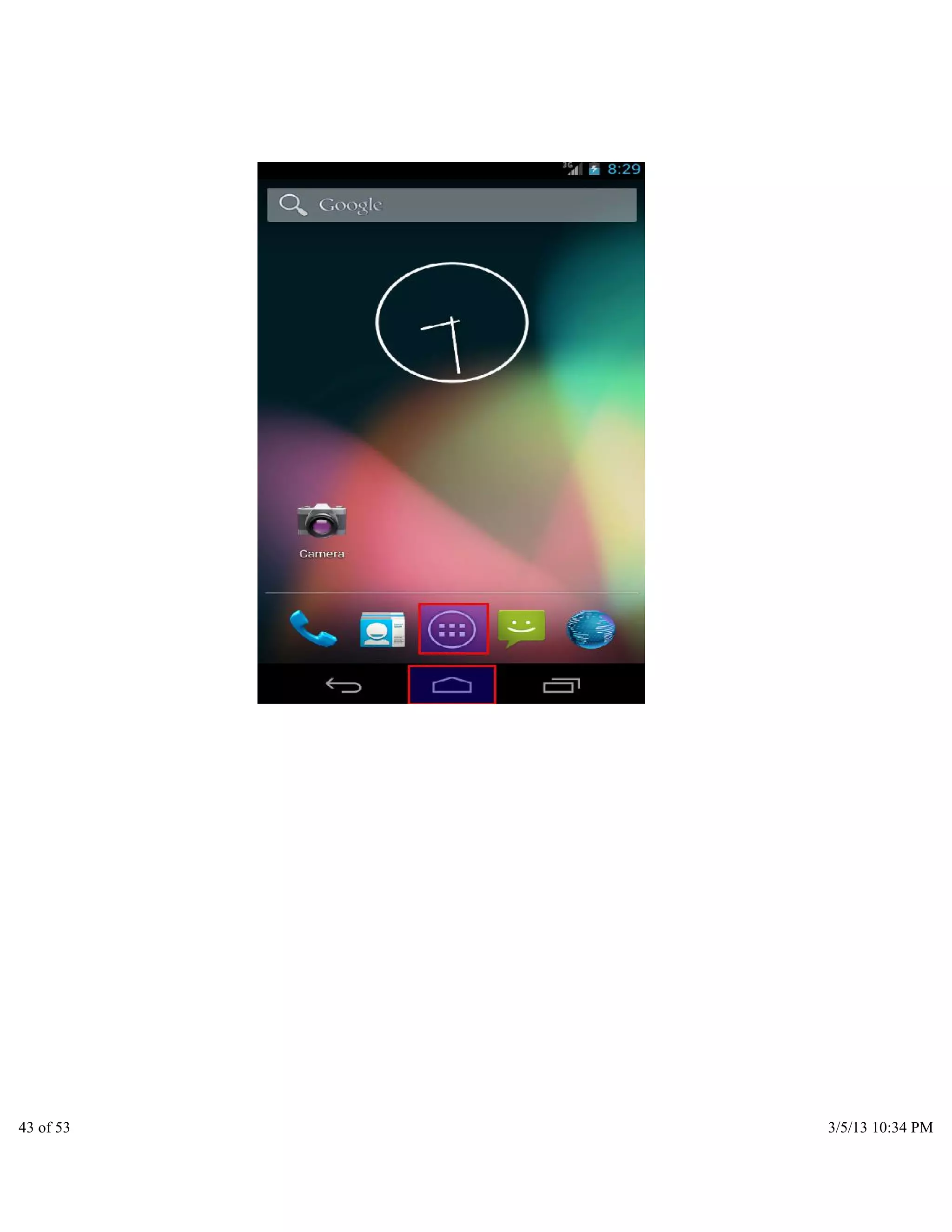

After you run your application on the virtual device, you can start it again on the device. If you press the
Home button you can select your application.
42 of 53 3/5/13 10:34 PM

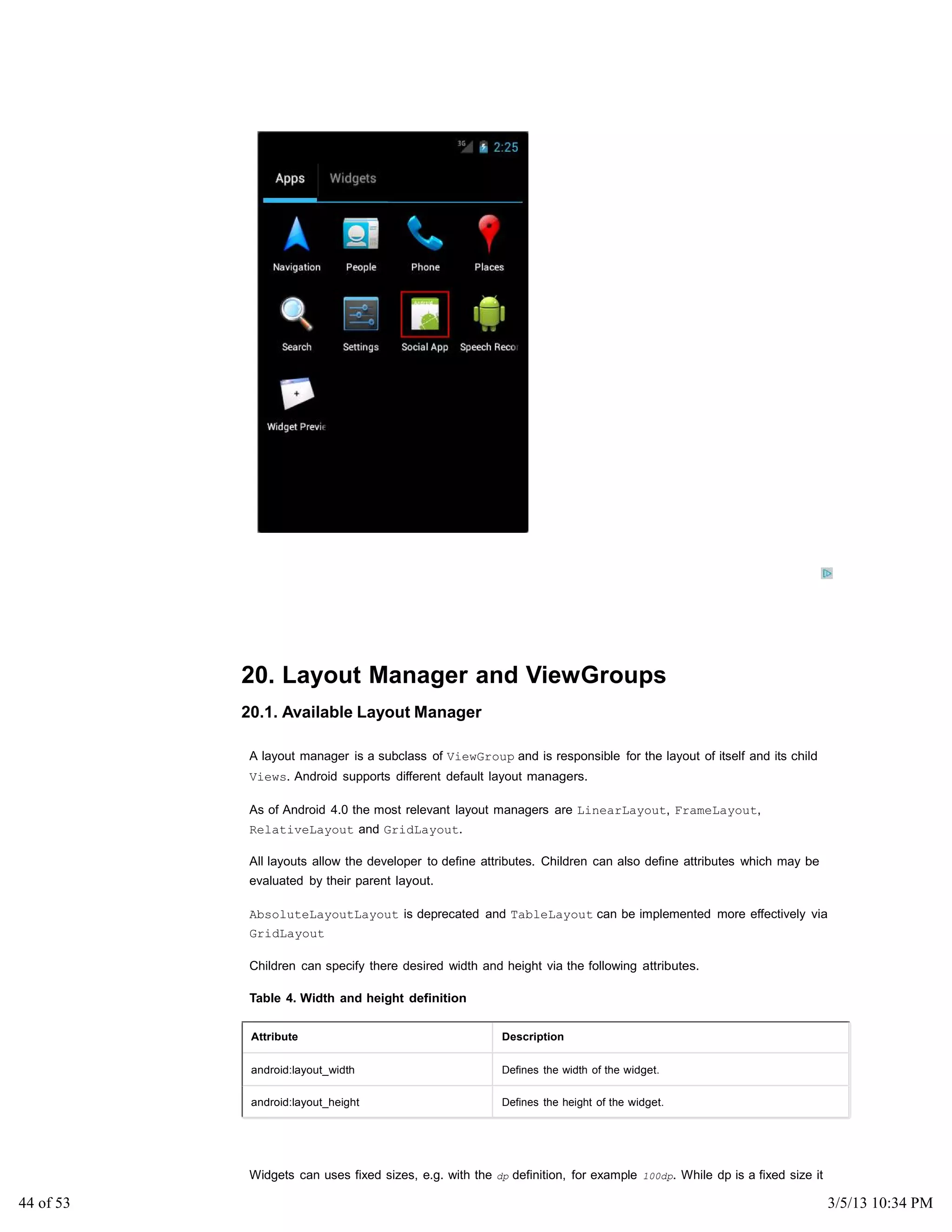

20. Layout Manager and ViewGroups
20.1. Available Layout Manager
A layout manager is a subclass of ViewGroup and is responsible for the layout of itself and its child
Views. Android supports different default layout managers.
As of Android 4.0 the most relevant layout managers are LinearLayout, FrameLayout,
RelativeLayout and GridLayout.
All layouts allow the developer to define attributes. Children can also define attributes which may be
evaluated by their parent layout.
AbsoluteLayoutLayout is deprecated and TableLayout can be implemented more effectively via
GridLayout
Children can specify there desired width and height via the following attributes.
Table 4. Width and height definition
Attribute Description
android:layout_width Defines the width of the widget.
android:layout_height Defines the height of the widget.
Widgets can uses fixed sizes, e.g. with the dp definition, for example 100dp. While dp is a fixed size it
44 of 53 3/5/13 10:34 PM

The match_parent value tells the to maximize the widget in its parent. The wrap_content value tells the
layout to allocate the minimum amount so that widget is rendered correctly.
20.2. FrameLayout
FrameLayout is a layout manager which draws all child elements on top of each other. Which allows
to create nice visual effects.
The following screenshot shows the Gmail application which uses FrameLayout to display several
button on top of another layout.

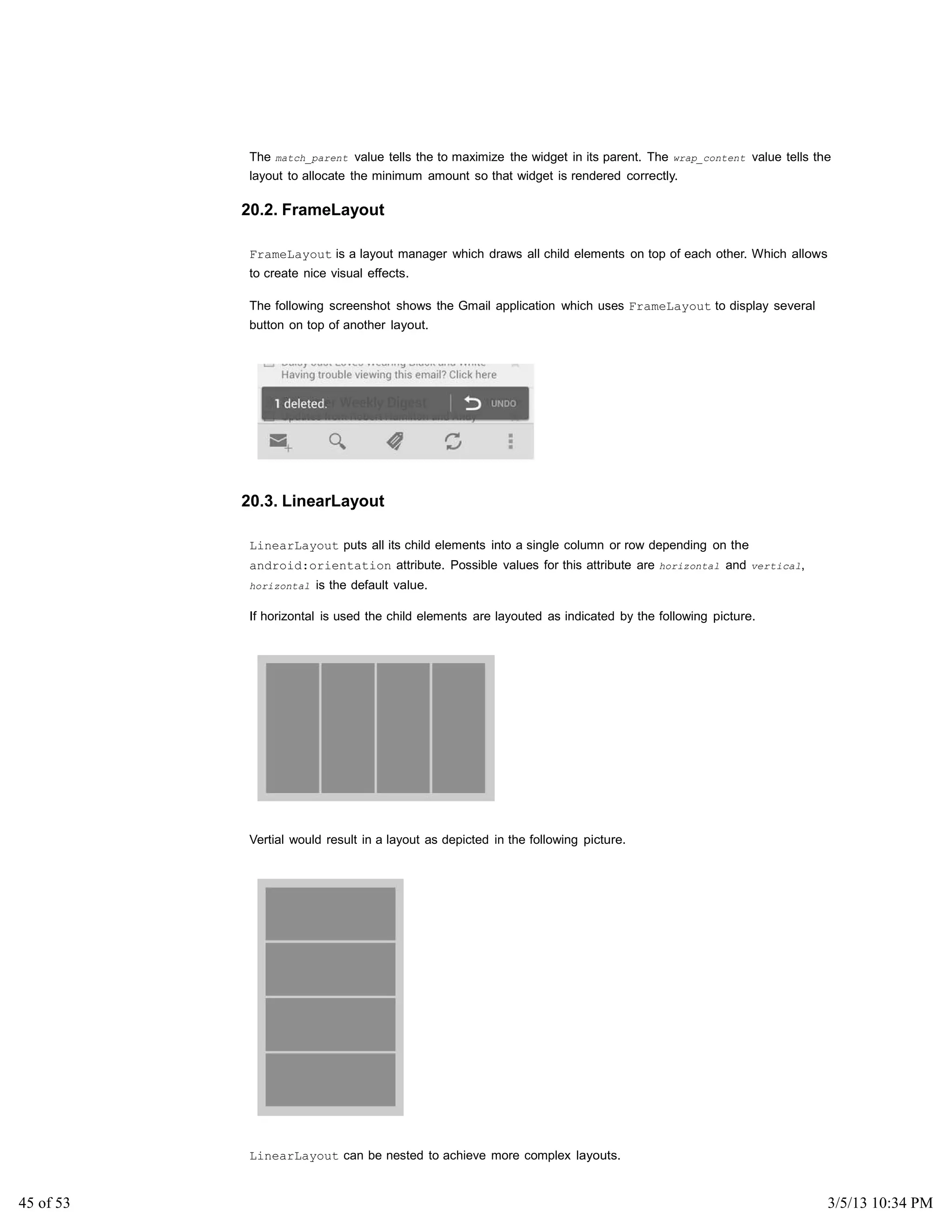

20.3. LinearLayout
LinearLayout puts all its child elements into a single column or row depending on the
android:orientation attribute. Possible values for this attribute are horizontal and vertical,
horizontal is the default value.
If horizontal is used the child elements are layouted as indicated by the following picture.
Vertial would result in a layout as depicted in the following picture.
LinearLayout can be nested to achieve more complex layouts.
45 of 53 3/5/13 10:34 PM

layout parameter. This value specifies how much of the extra space in the layout is allocated to the
View. If for example you have two widgets and the first one defines a layout_weight of 1 and the
second of 2, the first will get 1/3 of the available space and the other one 2/3. You can also set the
layout_width to zero to have always a certain ratio.

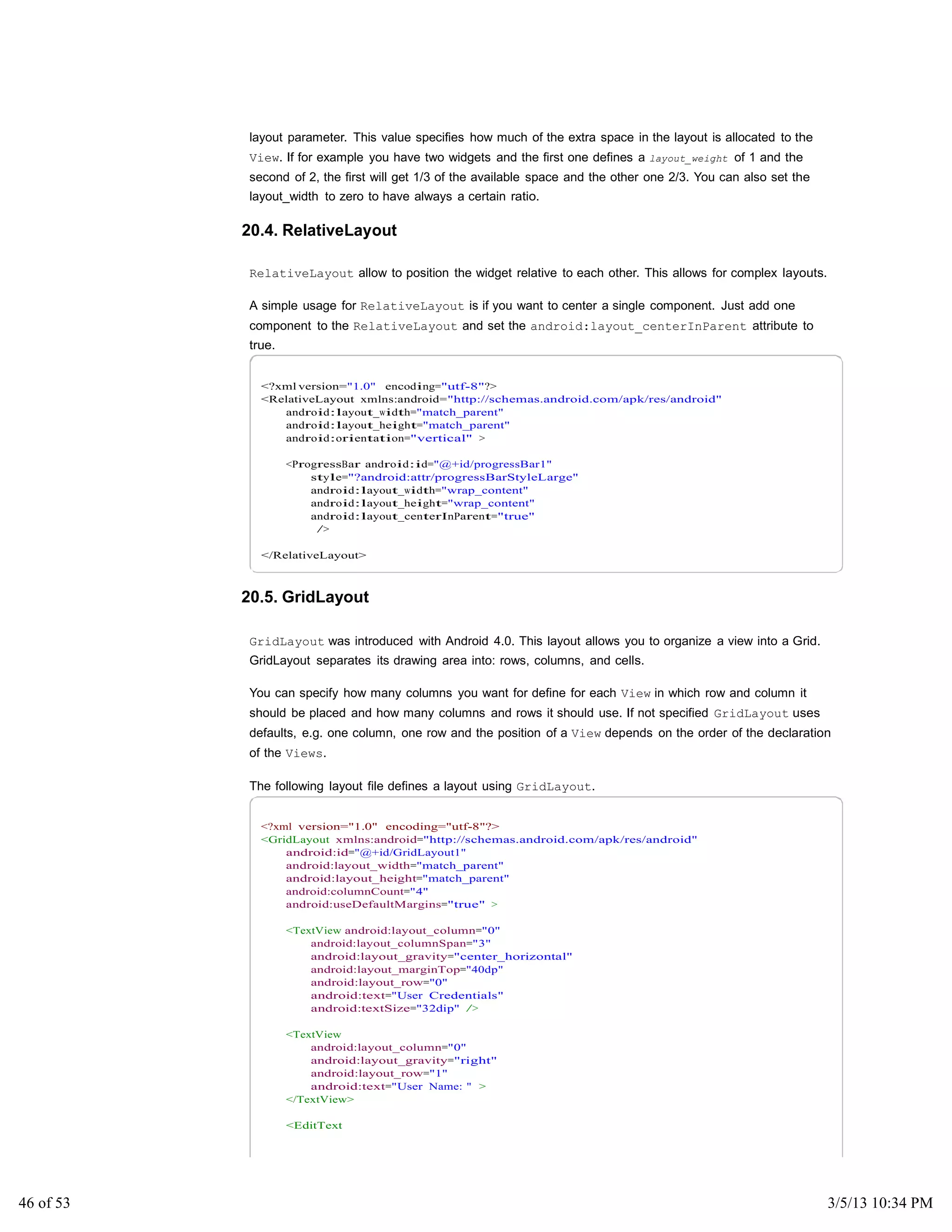

20.4. RelativeLayout
RelativeLayout allow to position the widget relative to each other. This allows for complex layouts.
A simple usage for RelativeLayout is if you want to center a single component. Just add one
component to the RelativeLayout and set the android:layout_centerInParent attribute to
true.
android:orientation="vertical" >
<ProgressBar android:id="@+id/progressBar1"
style="?android:attr/progressBarStyleLarge"
android:layout_centerInParent="true"
/>
</RelativeLayout>
20.5. GridLayout
GridLayout was introduced with Android 4.0. This layout allows you to organize a view into a Grid.
GridLayout separates its drawing area into: rows, columns, and cells.
You can specify how many columns you want for define for each View in which row and column it
should be placed and how many columns and rows it should use. If not specified GridLayout uses
defaults, e.g. one column, one row and the position of a View depends on the order of the declaration
of the Views.
The following layout file defines a layout using GridLayout.
<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/GridLayout1"
android:columnCount="4"
android:useDefaultMargins="true" >
<TextView android:layout_column="0"
android:layout_columnSpan="3"
android:layout_gravity="center_horizontal"
android:layout_marginTop="40dp"
android:layout_row="0"
android:text="User Credentials"
android:textSize="32dip" />
<TextView
android:layout_column="0"
android:layout_gravity="right"
android:text="User Name: " >
</TextView>
<EditText
46 of 53 3/5/13 10:34 PM

android:layout_columnSpan="2" android:layout_row="1"
android:ems="10" />
<TextView
android:layout_gravity="right"
android:text="Password: " >
</TextView>
<EditText
android:id="@+id/input1"
android:layout_columnSpan="2"
android:ems="8" />
<Button
android:id="@+id/button1"
android:text="Login" />
</GridLayout>

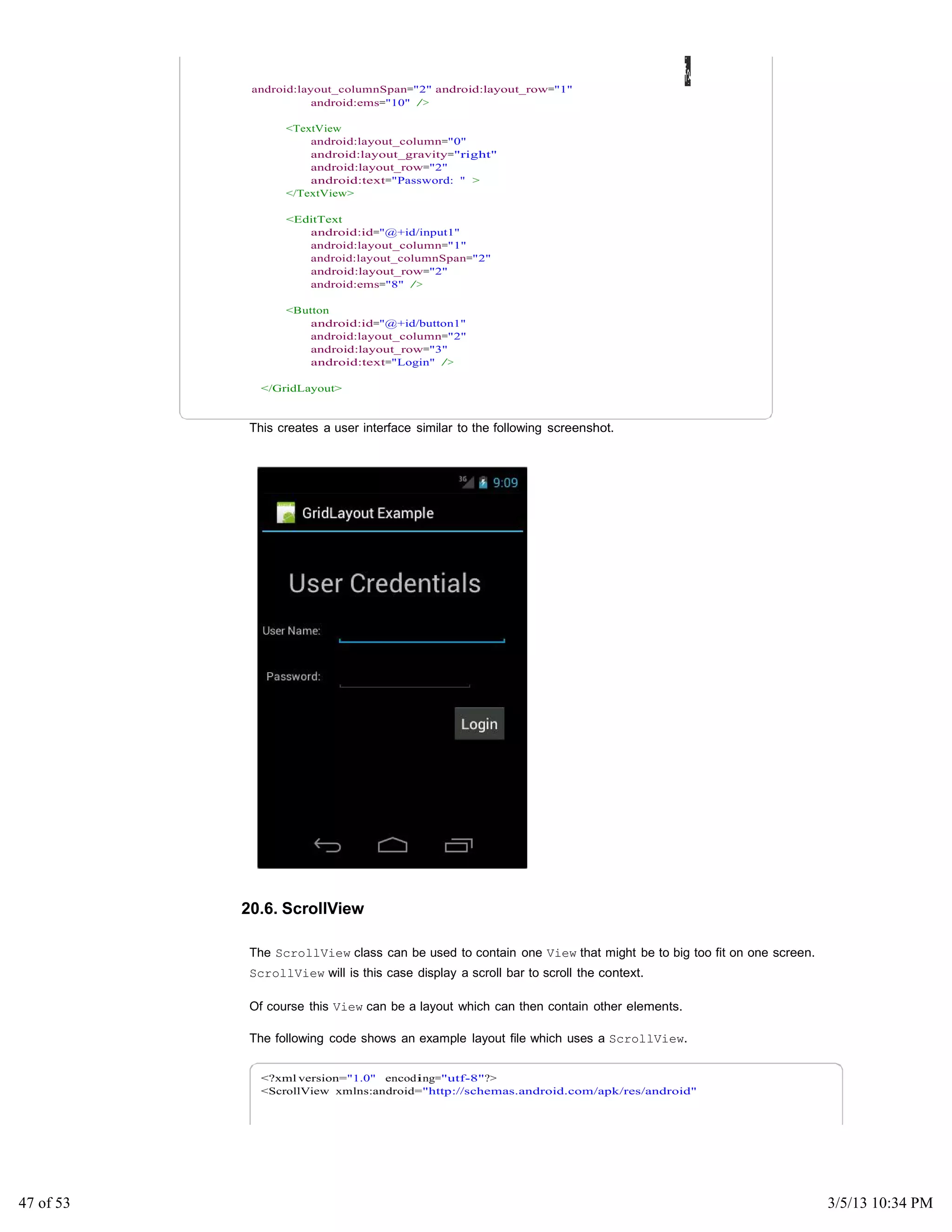

This creates a user interface similar to the following screenshot.
20.6. ScrollView
The ScrollView class can be used to contain one View that might be to big too fit on one screen.
ScrollView will is this case display a scroll bar to scroll the context.
Of course this View can be a layout which can then contain other elements.
The following code shows an example layout file which uses a ScrollView.
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
47 of 53 3/5/13 10:34 PM

android:fillViewport="true"
<TextView android:id="@+id/TextView01"
android:paddingLeft="8dip"
android:paddingRight="8dip"
android:paddingTop="8dip"
android:text="This is a header"
android:textAppearance="?android:attr/textAppearanceLarge" >
</TextView>
</ScrollView>

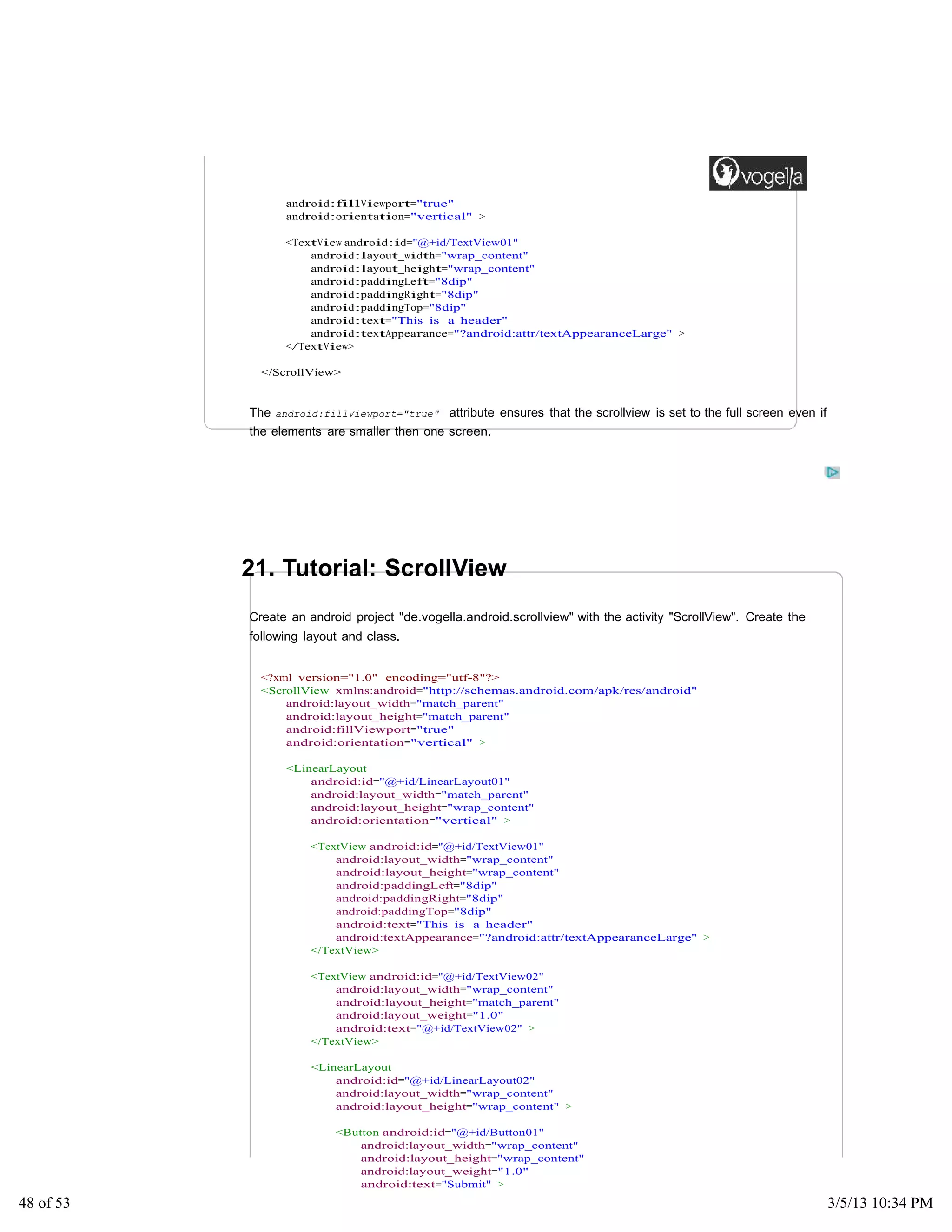

The android:fillViewport="true" attribute ensures that the scrollview is set to the full screen even if
the elements are smaller then one screen.

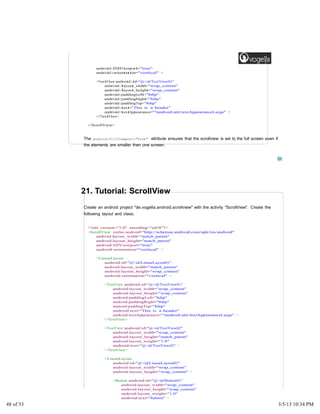

21. Tutorial: ScrollView
Create an android project "de.vogella.android.scrollview" with the activity "ScrollView". Create the
following layout and class.
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
android:fillViewport="true"
<LinearLayout
android:id="@+id/LinearLayout01"
android:paddingLeft="8dip"
android:paddingRight="8dip"
android:paddingTop="8dip"
android:text="This is a header"
android:textAppearance="?android:attr/textAppearanceLarge" >
</TextView>
android:layout_weight="1.0"
android:text="@+id/TextView02" >
</TextView>
<LinearLayout
android:id="@+id/LinearLayout02"
android:layout_height="wrap_content" >
<Button android:id="@+id/Button01"
android:text="Submit" >
48 of 53 3/5/13 10:34 PM

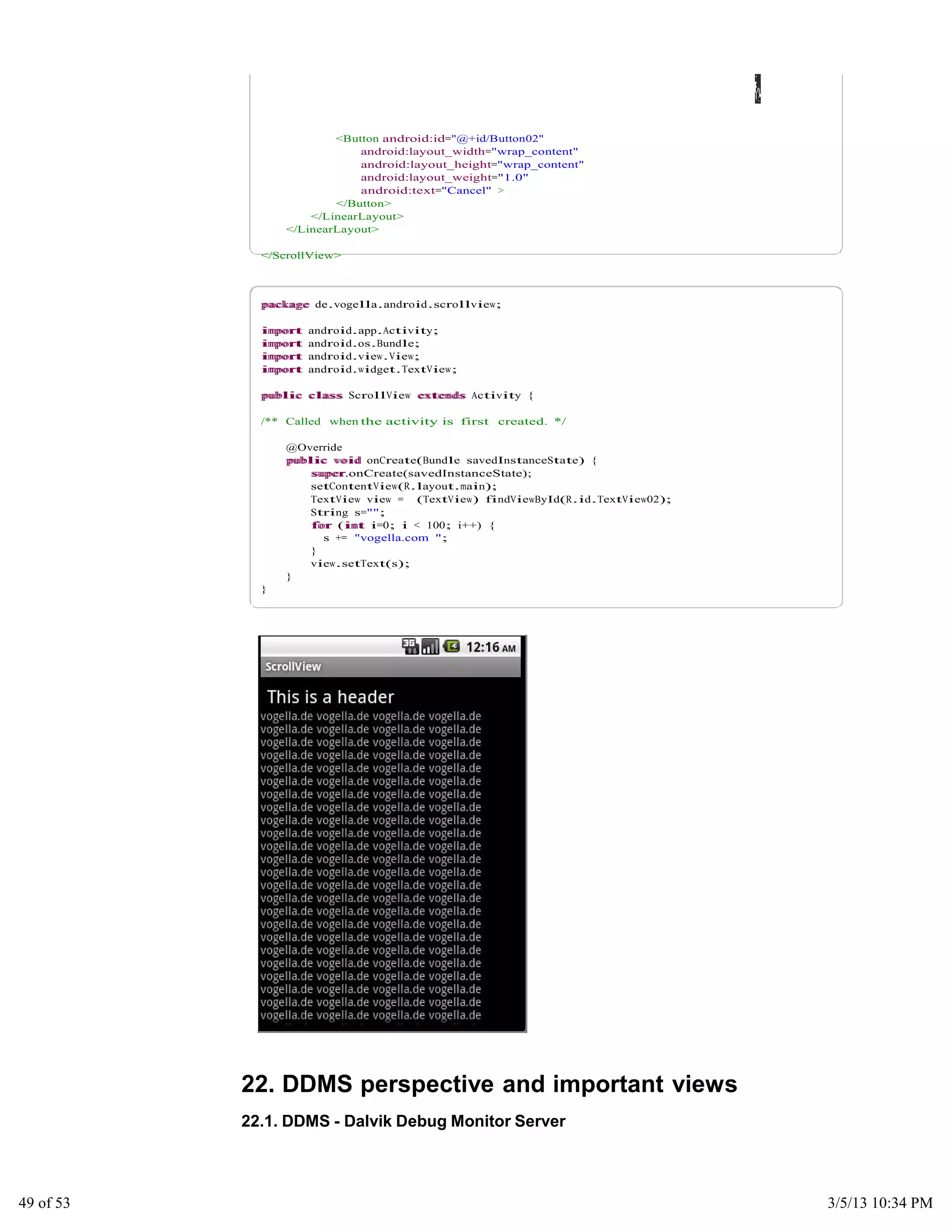

<Button android:id="@+id/Button02"
android:text="Cancel" >
</Button>
</LinearLayout>
</LinearLayout>
</ScrollView>
ppaacckkaaggee de.vogella.android.scrollview;
iimmppoorrtt android.app.Activity;
iimmppoorrtt android.os.Bundle;
iimmppoorrtt android.view.View;
iimmppoorrtt android.widget.TextView;
ppuubblliicc ccllaassss ScrollView eexxtteennddss Activity {
/** Called when the activity is first created. */
@Override
ppuubblliicc vvooiidd onCreate(Bundle savedInstanceState) {
ssuuppeerr.onCreate(savedInstanceState);
setContentView(R.layout.main);
TextView view = (TextView) findViewById(R.id.TextView02);
String s="";
ffoorr (iinntt i=0; i < 100; i++) {
s += "vogella.com ";
}
view.setText(s);
}
}
22. DDMS perspective and important views
22.1. DDMS - Dalvik Debug Monitor Server
49 of 53 3/5/13 10:34 PM

application program. Select Window → Open Perspective → Other → DDMS to open this perspective.
It includes several Views which can also be used independently and allows for example the application
to place calls and send SMS to the device. It also allows the application to set the current geo position
and allows you to perform a performance trace of your application.

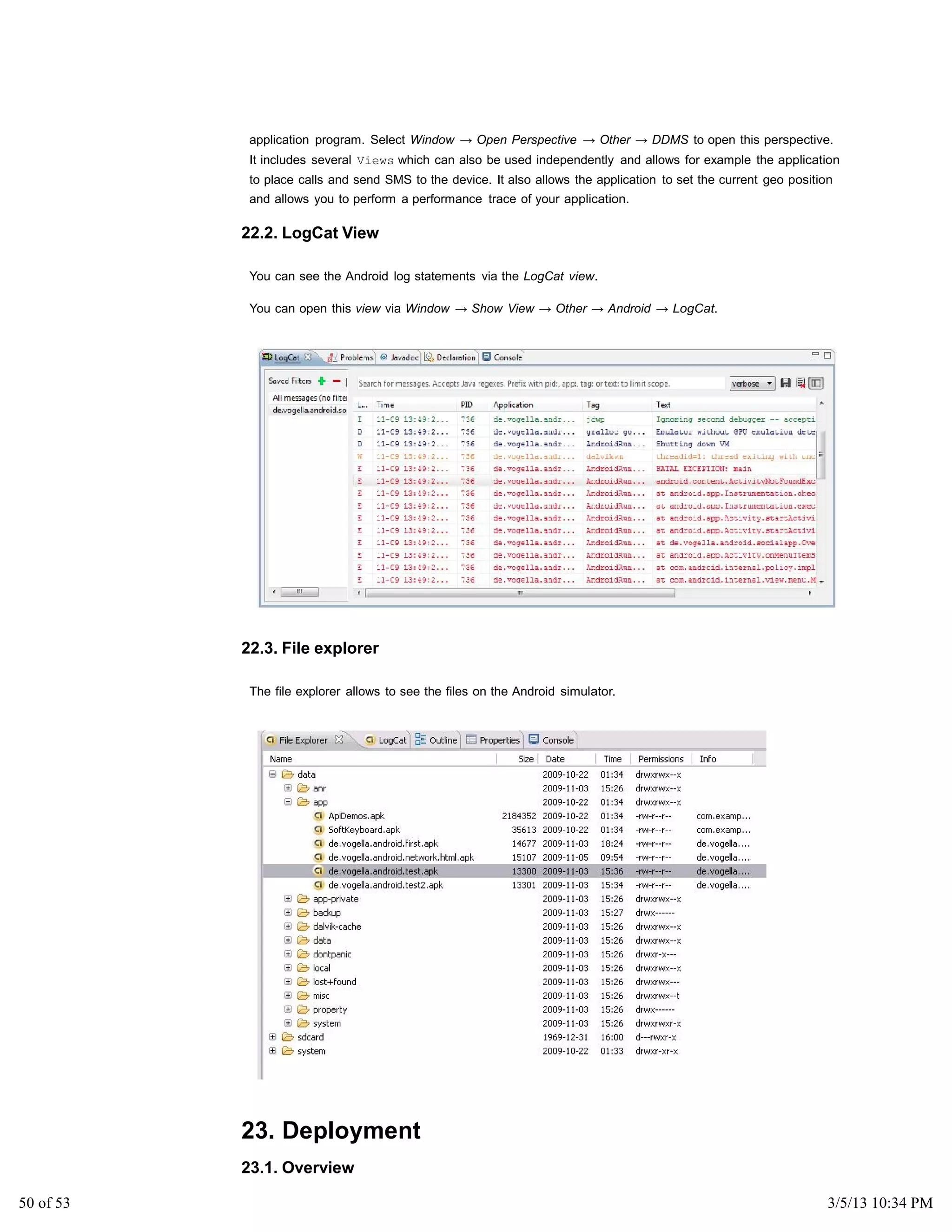

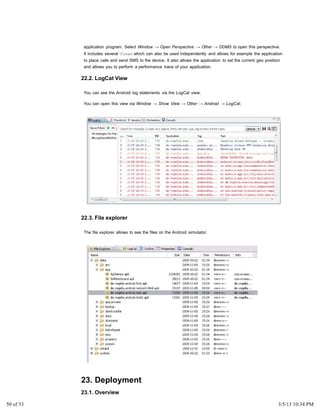

22.2. LogCat View
You can see the Android log statements via the LogCat view.
You can open this view via Window → Show View → Other → Android → LogCat.
22.3. File explorer
The file explorer allows to see the files on the Android simulator.
23. Deployment
23.1. Overview
50 of 53 3/5/13 10:34 PM

USB, email yourself the application or use one of the many Android markets to install the application.
The following describes the most common ones.

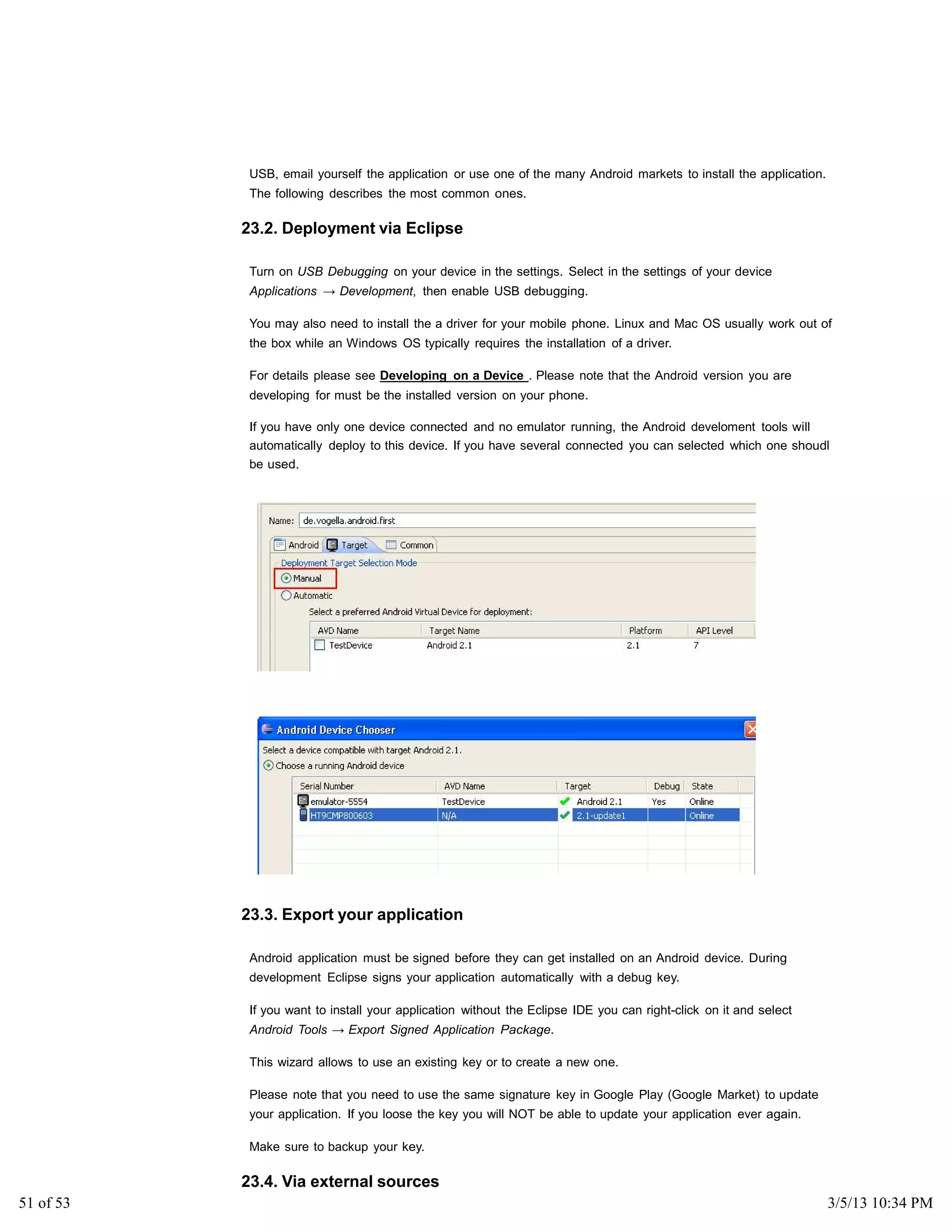

23.2. Deployment via Eclipse
Turn on USB Debugging on your device in the settings. Select in the settings of your device
Applications → Development, then enable USB debugging.
You may also need to install the a driver for your mobile phone. Linux and Mac OS usually work out of
the box while an Windows OS typically requires the installation of a driver.
For details please see Developing on a Device . Please note that the Android version you are
developing for must be the installed version on your phone.
If you have only one device connected and no emulator running, the Android develoment tools will
automatically deploy to this device. If you have several connected you can selected which one shoudl
be used.
23.3. Export your application
Android application must be signed before they can get installed on an Android device. During
development Eclipse signs your application automatically with a debug key.
If you want to install your application without the Eclipse IDE you can right-click on it and select
Android Tools → Export Signed Application Package.
This wizard allows to use an existing key or to create a new one.
Please note that you need to use the same signature key in Google Play (Google Market) to update
your application. If you loose the key you will NOT be able to update your application ever again.
Make sure to backup your key.
23.4. Via external sources
51 of 53 3/5/13 10:34 PM

an email attachment or on a webpage. Android will prompt you if you want to install this application.
This requires a setting on the Android device which allows the installation of non-market application.
Typically this setting can be found under the "Security" settings.

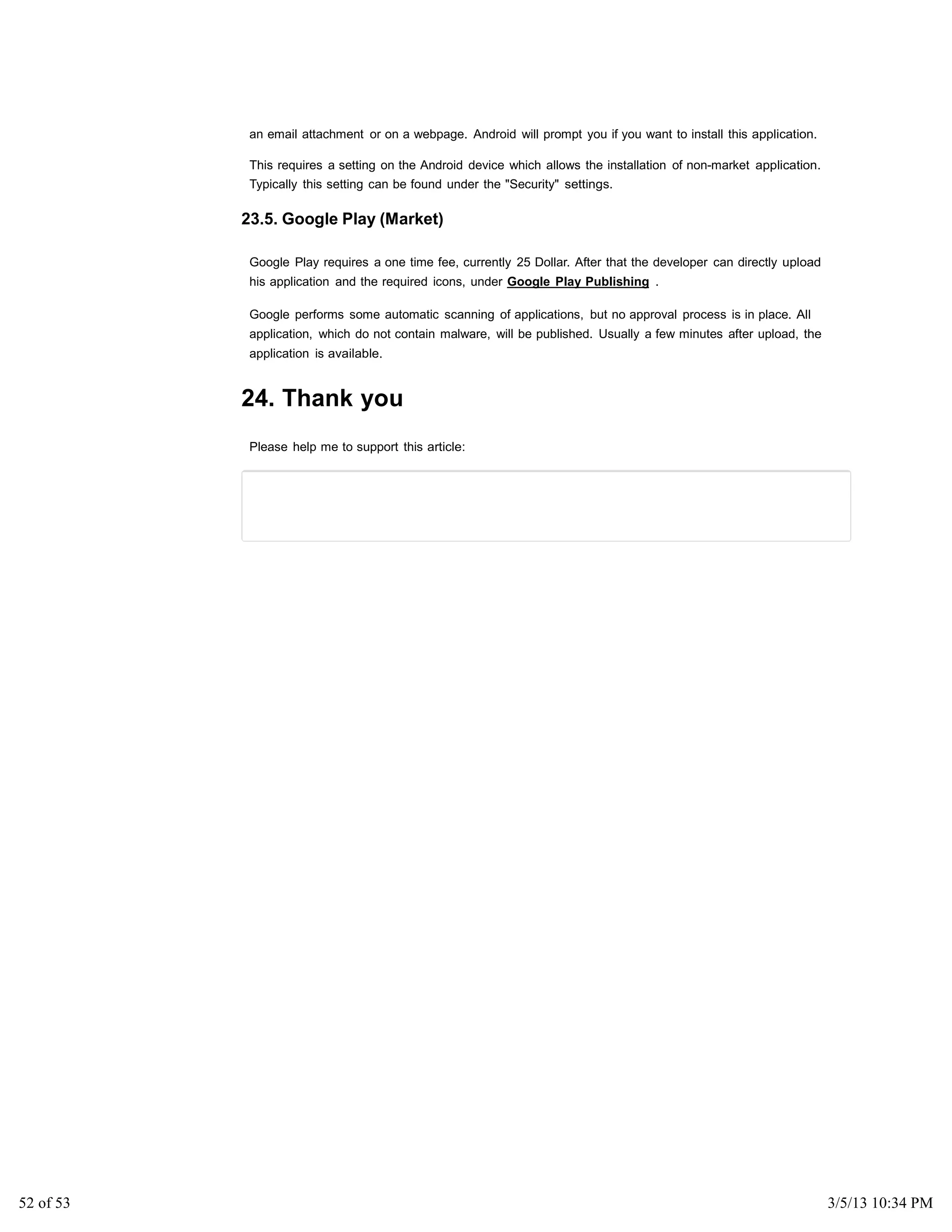

23.5. Google Play (Market)
Google Play requires a one time fee, currently 25 Dollar. After that the developer can directly upload
his application and the required icons, under Google Play Publishing .
Google performs some automatic scanning of applications, but no approval process is in place. All
application, which do not contain malware, will be published. Usually a few minutes after upload, the
application is available.
24. Thank you
Please help me to support this article:
52 of 53 3/5/13 10:34 PM

What is Android? A Concise Guide to its OS, Components, and Development

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (19)

Similar to What is Android? A Concise Guide to its OS, Components, and Development

Similar to What is Android? A Concise Guide to its OS, Components, and Development (20)

Recently uploaded

Recently uploaded (20)

What is Android? A Concise Guide to its OS, Components, and Development
