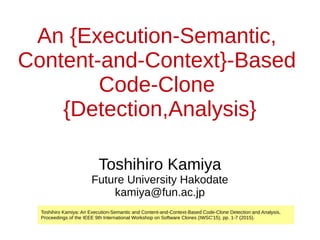

Toshihiro Kamiya: An Execution-Semantic and Content-and-Context-Based Code-Clone Detection and Analysis, Proceedings of the 9th IEEE International Workshop on Software Clones (IWSC'15), pp. 1-7 (2015).

1. An {Execution-Semantic,
Content-and-Context}-Based
Code-Clone
{Detection,Analysis}
Toshihiro Kamiya
Future University Hakodate
kamiya@fun.ac.jp
Toshihiro Kamiya: An Execution-Semantic and Content-and-Context-Based Code-Clone Detection and Analysis,
Proceedings of the 9th IEEE International Workshop on Software Clones (IWSC'15), pp. 1-7 (2015).

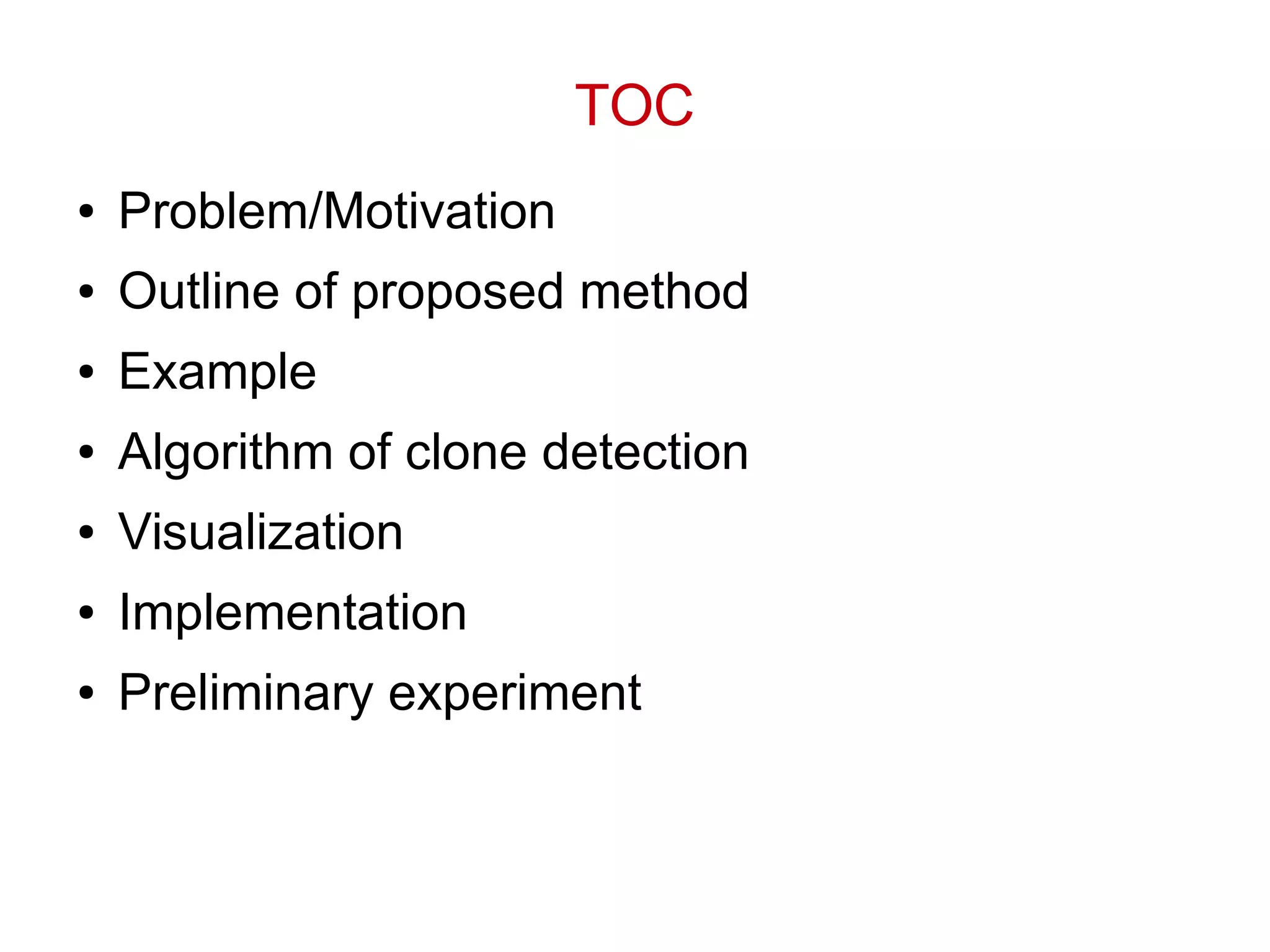

2. TOC
● Problem/Motivation
● Outline of proposed method
● Example
● Algorithm of clone detection
● Visualization
● Implementation
● Preliminary experiment

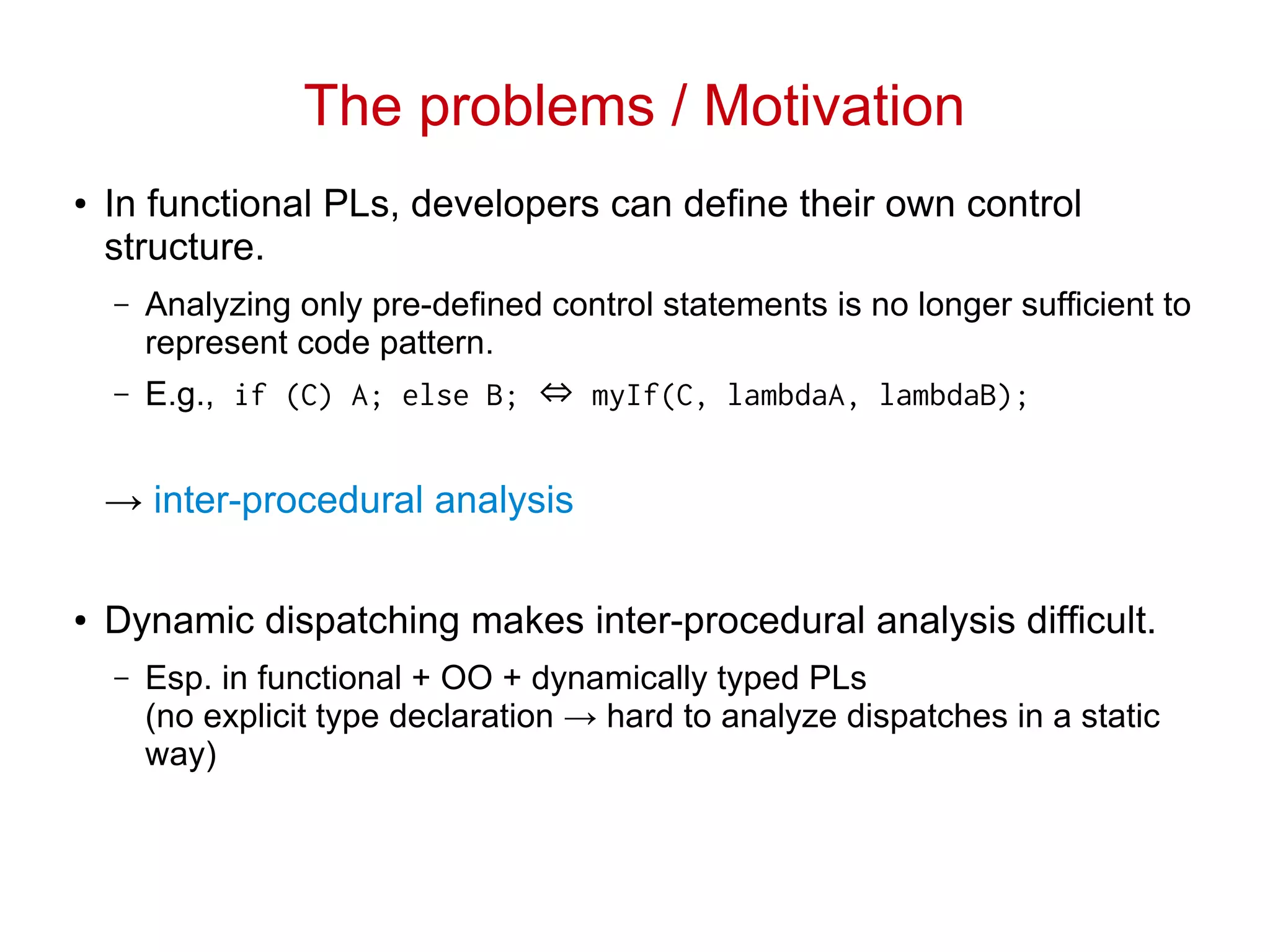

3. The problems / Motivation
● In functional PLs, developers can define their own control
structure.
– Analyzing only pre-defined control statements is no longer sufficient to
represent code pattern.
– E.g., if (C) A; else B; ⇔ myIf(C, lambdaA, lambdaB);
→ inter-procedural analysis
● Dynamic dispatching makes inter-procedural analysis difficult.
– Esp. in functional + OO + dynamically typed PLs
(no explicit type declaration → hard to analyze dispatches in a static
way)

4. Idea
Detect clones from an execution trace !
● Dispatches and control structures have been
expanded (resolved).
● Detected clones are inter-procedural, type 3
clones.

5. Outline of proposed method
● Execution trace
→ Call tree
→ Contents and Context (for each node)
●
main()
os.listdir()
print_extensions
_w_for_stmt()
print_extensions
_w_map_func()
os.path.
splitext() print str.join()get_extensions() print
map()
lambda() at line 8
os.path.
splitext()
contents
context
Clone detection
Clone analysis
Contents
Context

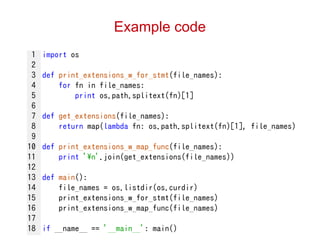

6. Example code

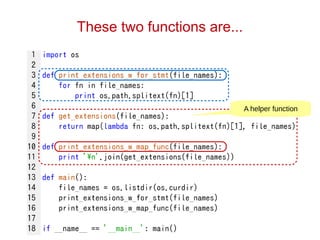

7. These two functions are...
A helper function

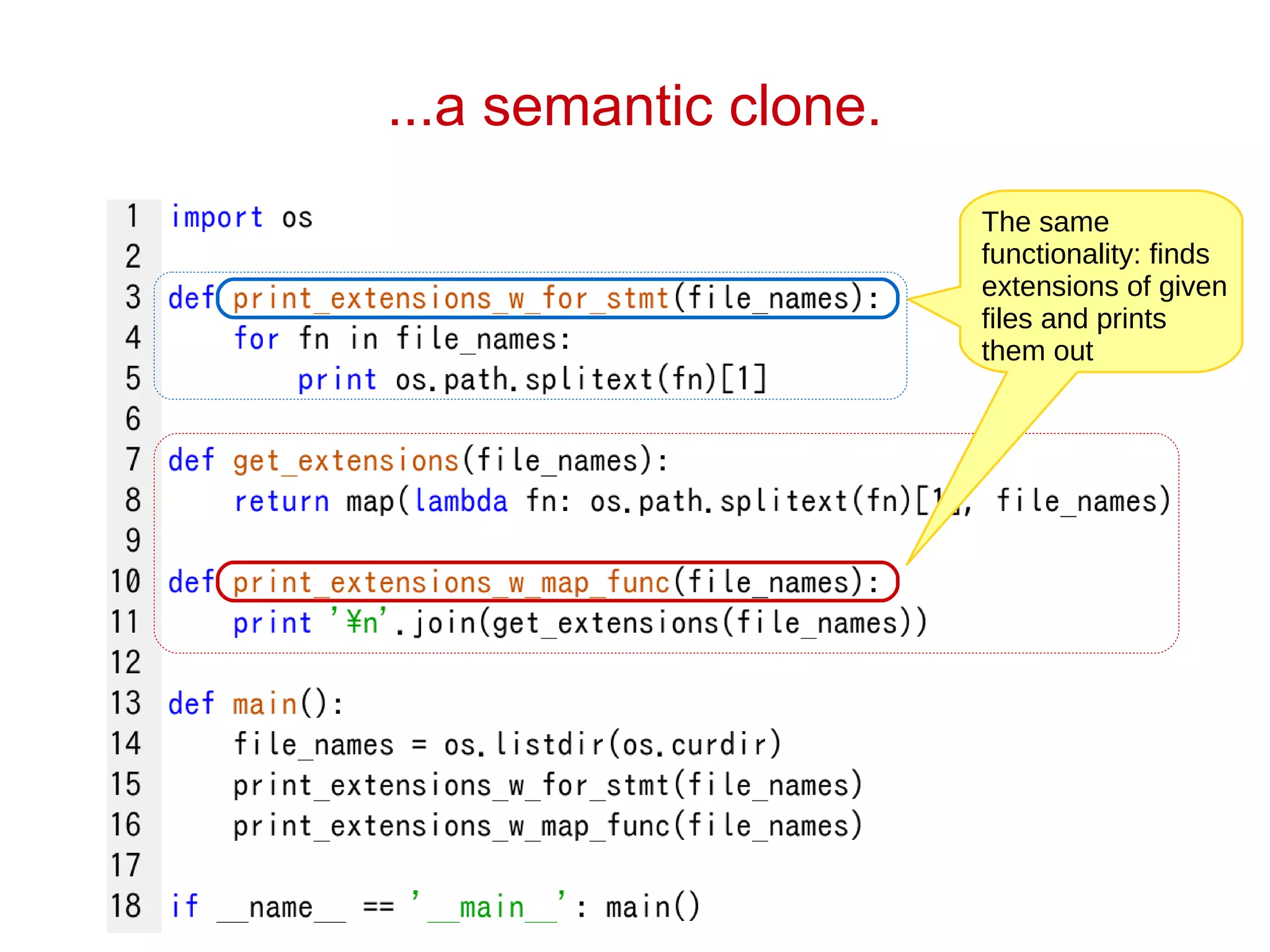

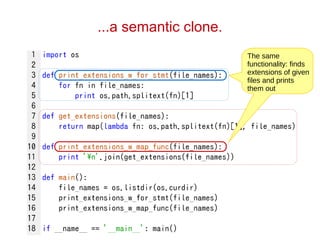

8. ...a semantic clone.
The same
functionality: finds
extensions of given
files and prints
them out

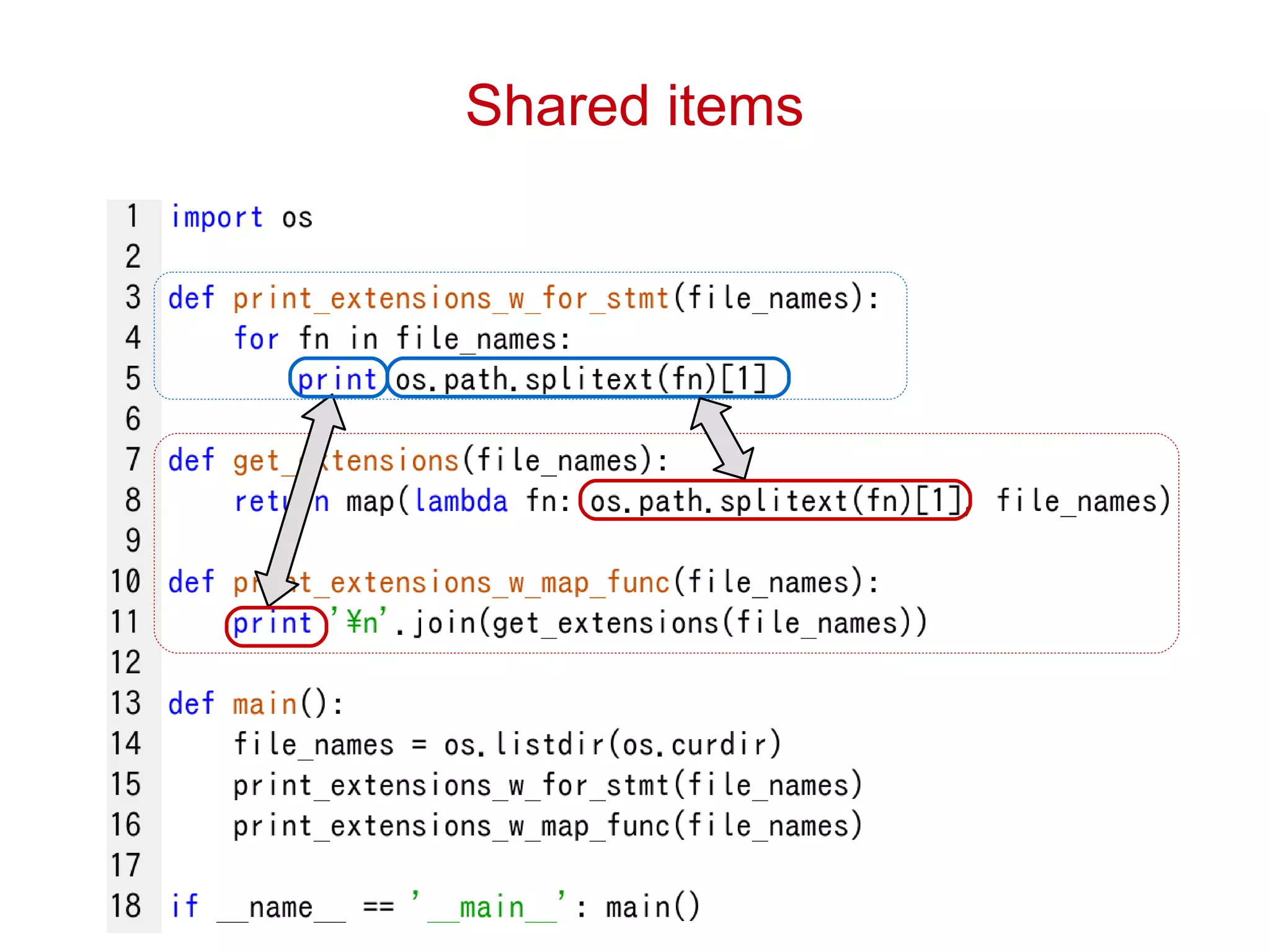

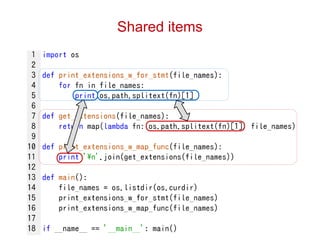

9. Shared items

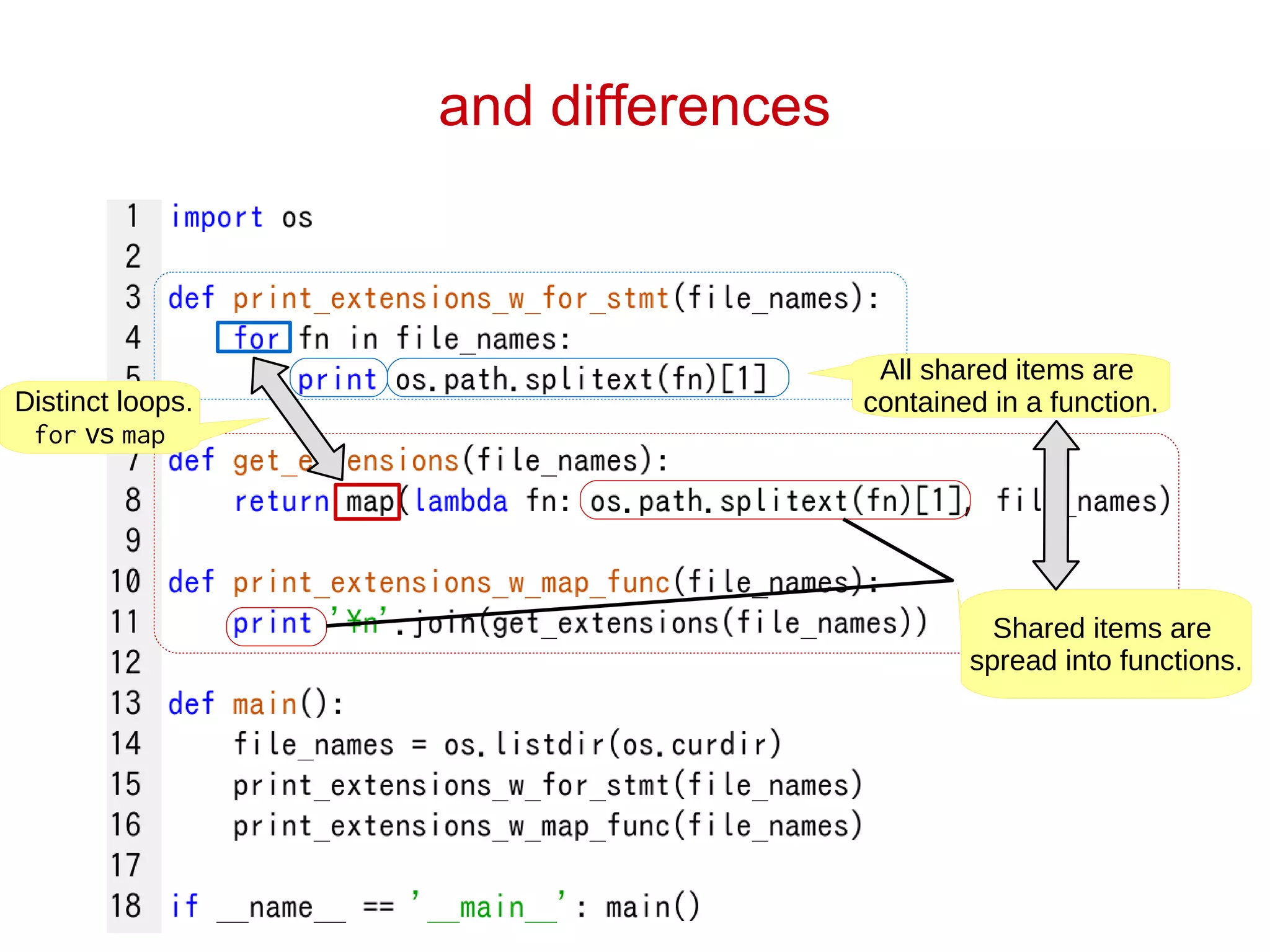

10. and differences
Distinct loops.
for vs map
All shared items are
contained in a function.
Shared items are
spread into functions.

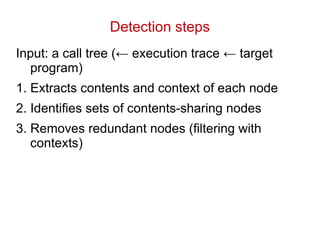

11. Detection steps
Input: a call tree (← execution trace ← target
program)
1. Extracts contents and context of each node
2. Identifies sets of contents-sharing nodes
3. Removes redundant nodes (filtering with
contexts)

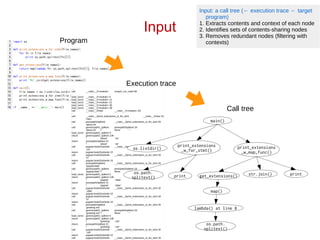

12. Input
…
call __main__//<module> runpy//_run_code 69
:
load_const __main__//<module> 0
load_const __main__//<module> 12
load_const __main__//<module> 21
load_const __main__//<module> 30
load_const __main__//<module> 39
call __main__//main __main__//<module> 63
:
call __main__//print_extensions_w_for_stmt __main__//main 24
: <list>
call posixpath//splitext __main__//print_extensions_w_for_stmt 25
: 'about.txt'
call genericpath//_splitext posixpath//splitext 18
: 'about.txt' '/' None '.'
load_const genericpath//_splitext 0
return genericpath//_splitext 139
: * 'about' '.txt'
return posixpath//splitext 21
: * 'about' '.txt'
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 32
: '.txt'
return pygoat.hook/Out/write 15
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 33
: 'n'
return pygoat.hook/Out/write 15
call posixpath//splitext __main__//print_extensions_w_for_stmt 25
: 'pygoat.data'
call genericpath//_splitext posixpath//splitext 18
: 'pygoat.data' '/' None '.'
load_const genericpath//_splitext 0
return genericpath//_splitext 139
: * 'pygoat' '.data'
return posixpath//splitext 21
: * 'pygoat' '.data'
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 32
: '.data'
return pygoat.hook/Out/write 15
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 33
: 'n'
return pygoat.hook/Out/write 15
call posixpath//splitext __main__//print_extensions_w_for_stmt 25
: 'greeting.md'
call genericpath//_splitext posixpath//splitext 18
: 'greeting.md' '/' None '.'
load_const genericpath//_splitext 0
return genericpath//_splitext 139
: * 'greeting' '.md'
return posixpath//splitext 21
: * 'greeting' '.md'
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 32
: '.md'
return pygoat.hook/Out/write 15
call pygoat.hook/Out/write __main__//print_extensions_w_for_stmt 33
Program
Execution trace
main()
os.listdir()
print_extensions
_w_for_stmt()
print_extensions
_w_map_func()
os.path.
splitext() print str.join()get_extensions() print
map()
lambda() at line 8
os.path.
splitext()
Call tree
Input: a call tree (← execution trace ← target
program)
1. Extracts contents and context of each node
2. Identifies sets of contents-sharing nodes
3. Removes redundant nodes (filtering with
contexts)

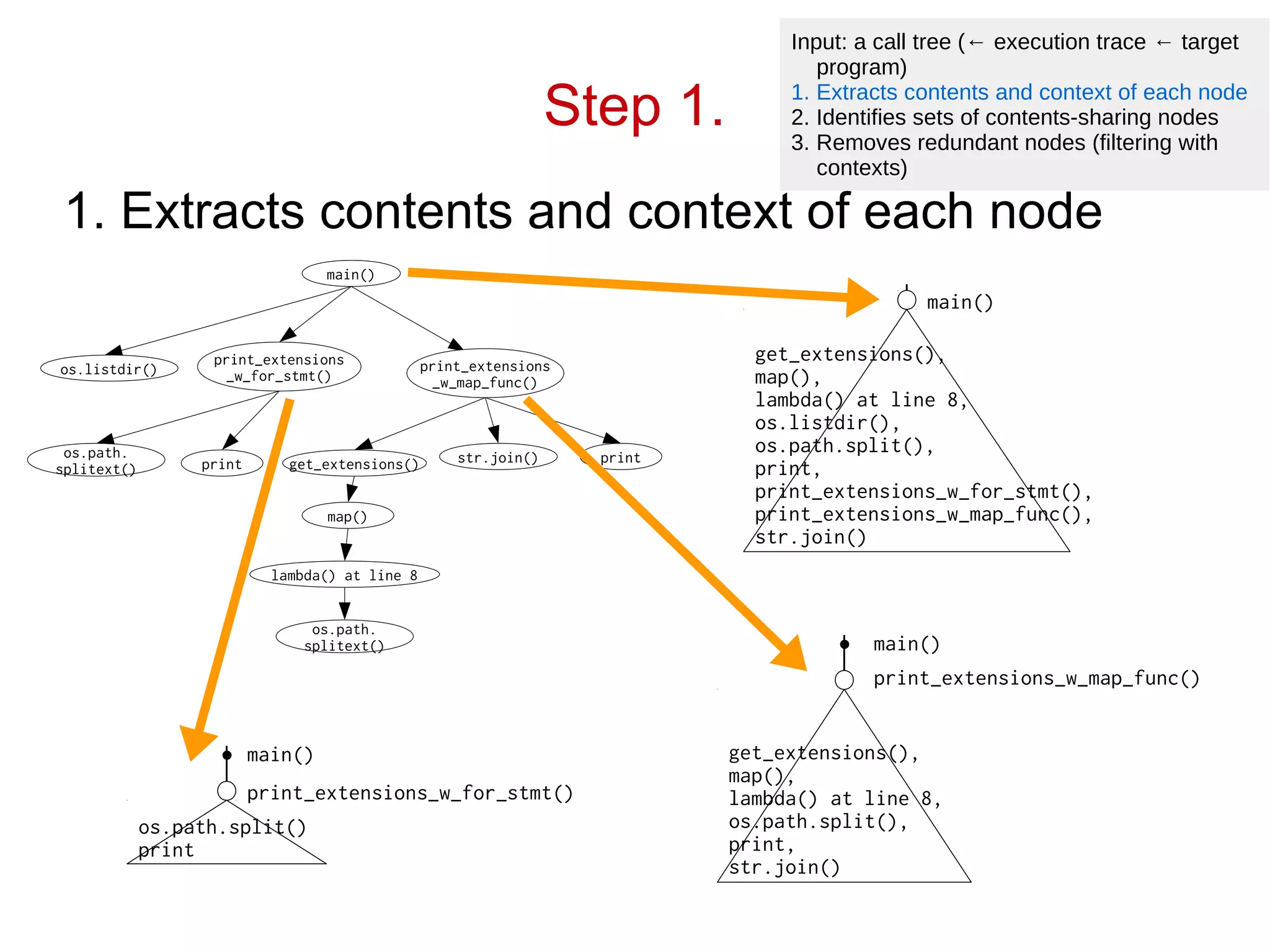

13. Step 1.
1. Extracts contents and context of each node
main()
os.listdir()
print_extensions
_w_for_stmt()
print_extensions
_w_map_func()
os.path.
splitext() print str.join()get_extensions() print
map()
lambda() at line 8
os.path.
splitext()
main()
get_extensions(),
map(),
lambda() at line 8,
os.listdir(),
os.path.split(),
print,
print_extensions_w_for_stmt(),
print_extensions_w_map_func(),
str.join()
print_extensions_w_for_stmt()
main()
os.path.split()
print
print_extensions_w_map_func()
main()
get_extensions(),
map(),
lambda() at line 8,
os.path.split(),
print,
str.join()
Input: a call tree (← execution trace ← target
program)
1. Extracts contents and context of each node
2. Identifies sets of contents-sharing nodes
3. Removes redundant nodes (filtering with
contexts)

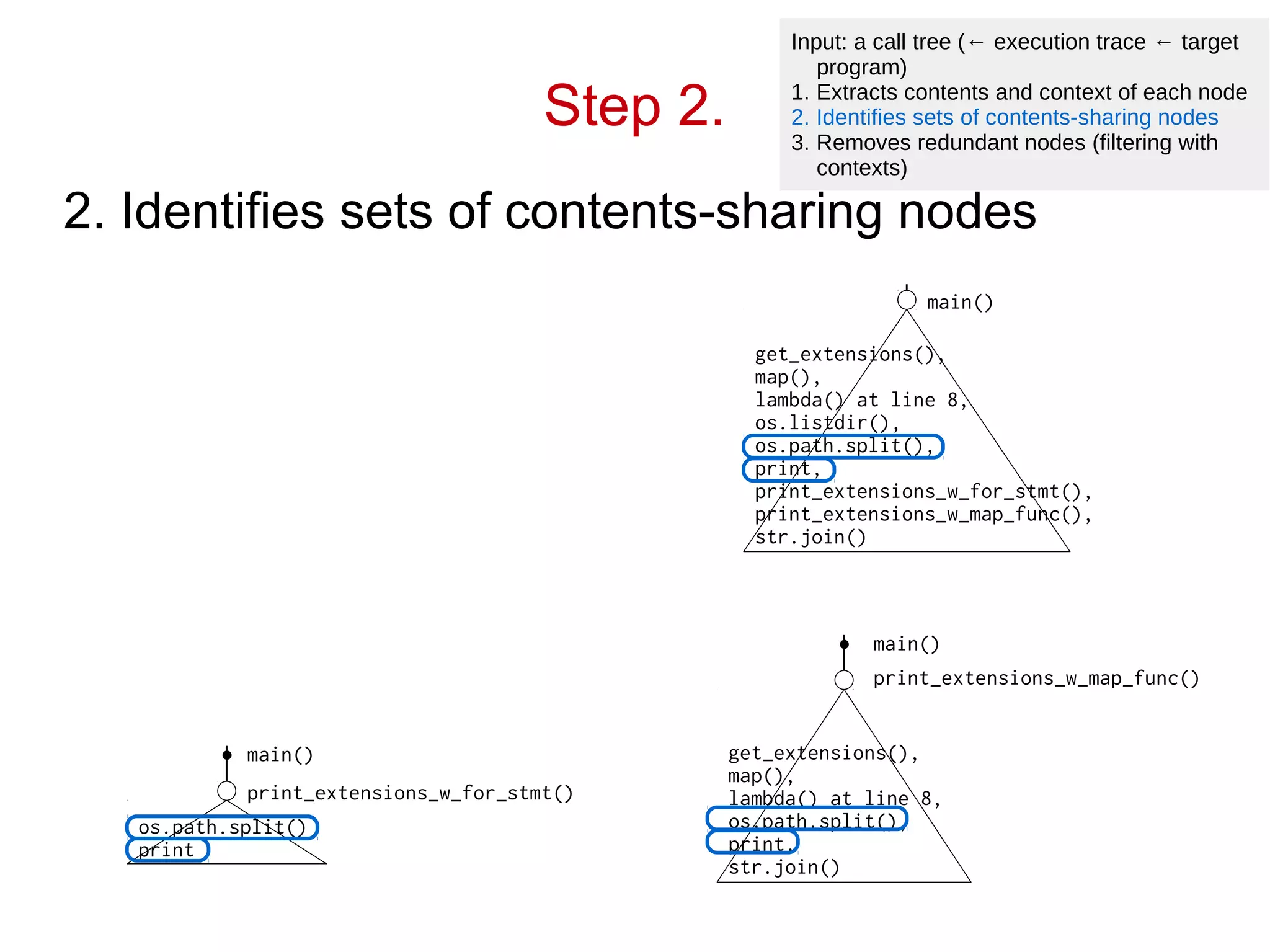

14. Step 2.
2. Identifies sets of contents-sharing nodes
main()
get_extensions(),
map(),
lambda() at line 8,
os.listdir(),
os.path.split(),
print,
print_extensions_w_for_stmt(),
print_extensions_w_map_func(),
str.join()
print_extensions_w_for_stmt()
main()
os.path.split()
print
print_extensions_w_map_func()
main()
get_extensions(),
map(),
lambda() at line 8,
os.path.split(),
print,
str.join()
Input: a call tree (← execution trace ← target
program)
1. Extracts contents and context of each node
2. Identifies sets of contents-sharing nodes
3. Removes redundant nodes (filtering with
contexts)

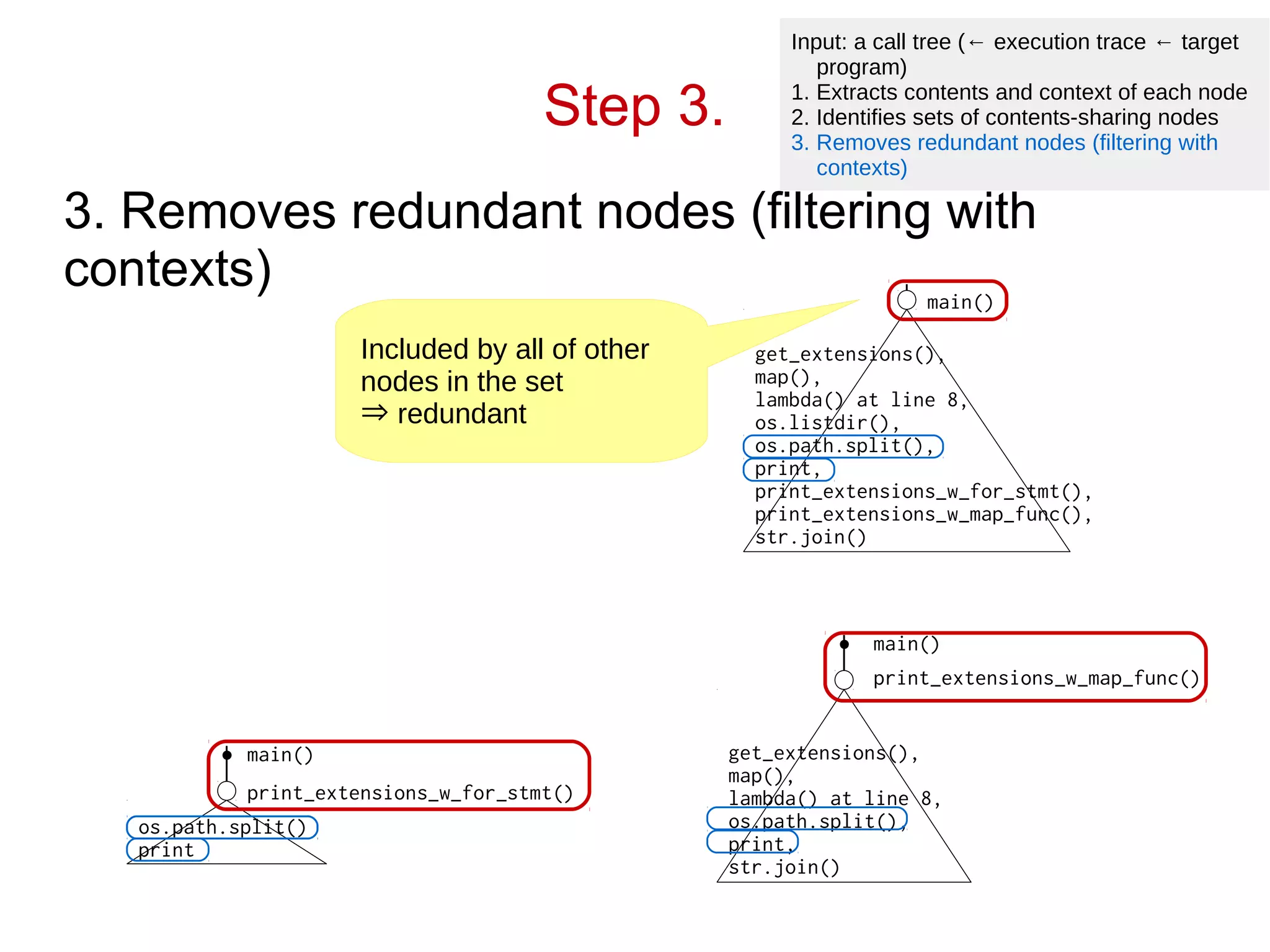

15. Step 3.
3. Removes redundant nodes (filtering with
contexts) main()
get_extensions(),
map(),
lambda() at line 8,
os.listdir(),
os.path.split(),
print,
print_extensions_w_for_stmt(),
print_extensions_w_map_func(),
str.join()
print_extensions_w_for_stmt()
main()
os.path.split()
print
print_extensions_w_map_func()
main()
get_extensions(),
map(),
lambda() at line 8,
os.path.split(),
print,
str.join()
Included by all of other
nodes in the set
⇒ redundant
Input: a call tree (← execution trace ← target
program)
1. Extracts contents and context of each node
2. Identifies sets of contents-sharing nodes
3. Removes redundant nodes (filtering with
contexts)

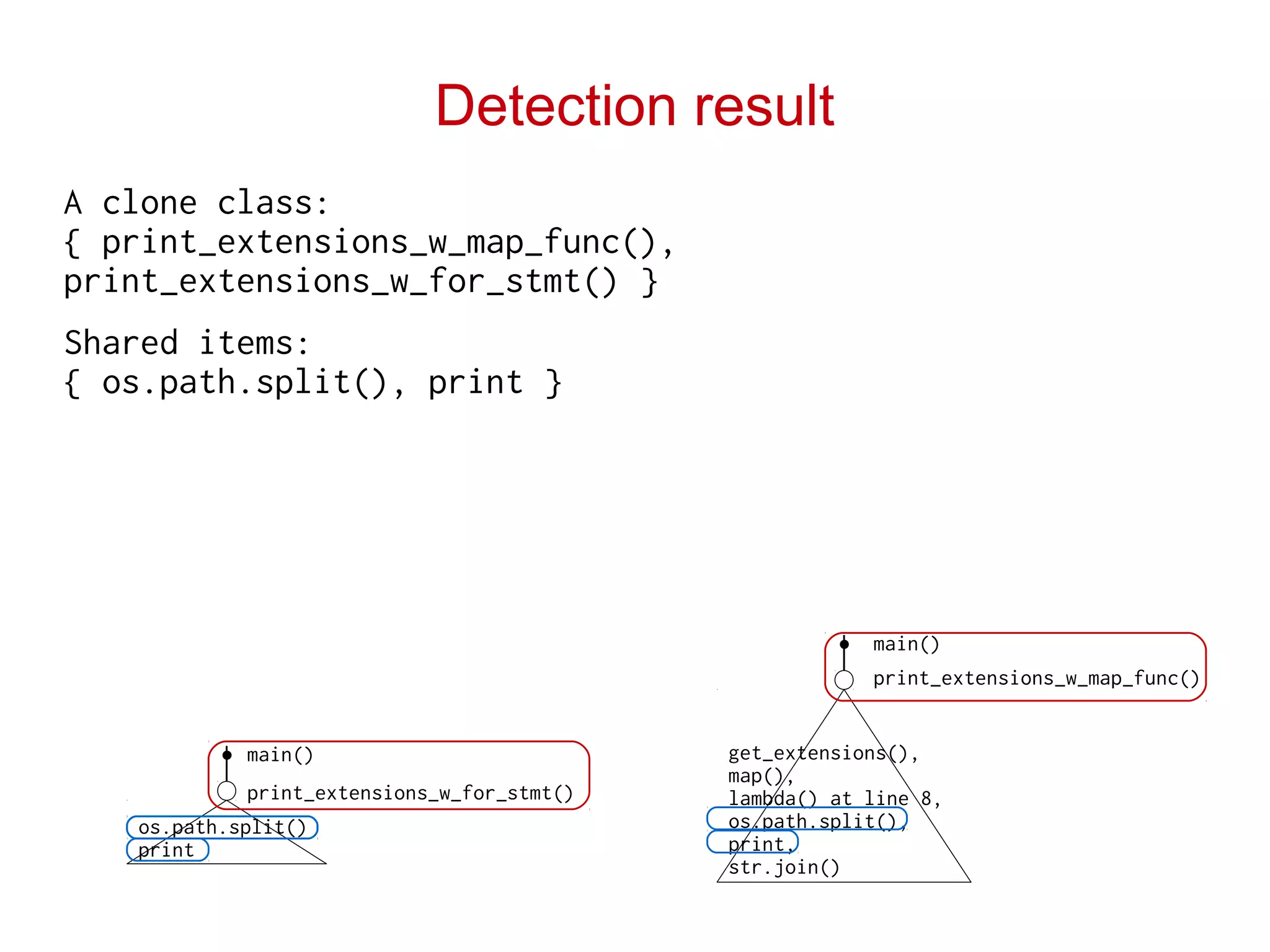

16. Detection result
A clone class:
{ print_extensions_w_map_func(),
print_extensions_w_for_stmt() }
Shared items:
{ os.path.split(), print }
print_extensions_w_for_stmt()
main()
os.path.split()
print
print_extensions_w_map_func()
main()
get_extensions(),
map(),
lambda() at line 8,
os.path.split(),
print,
str.join()

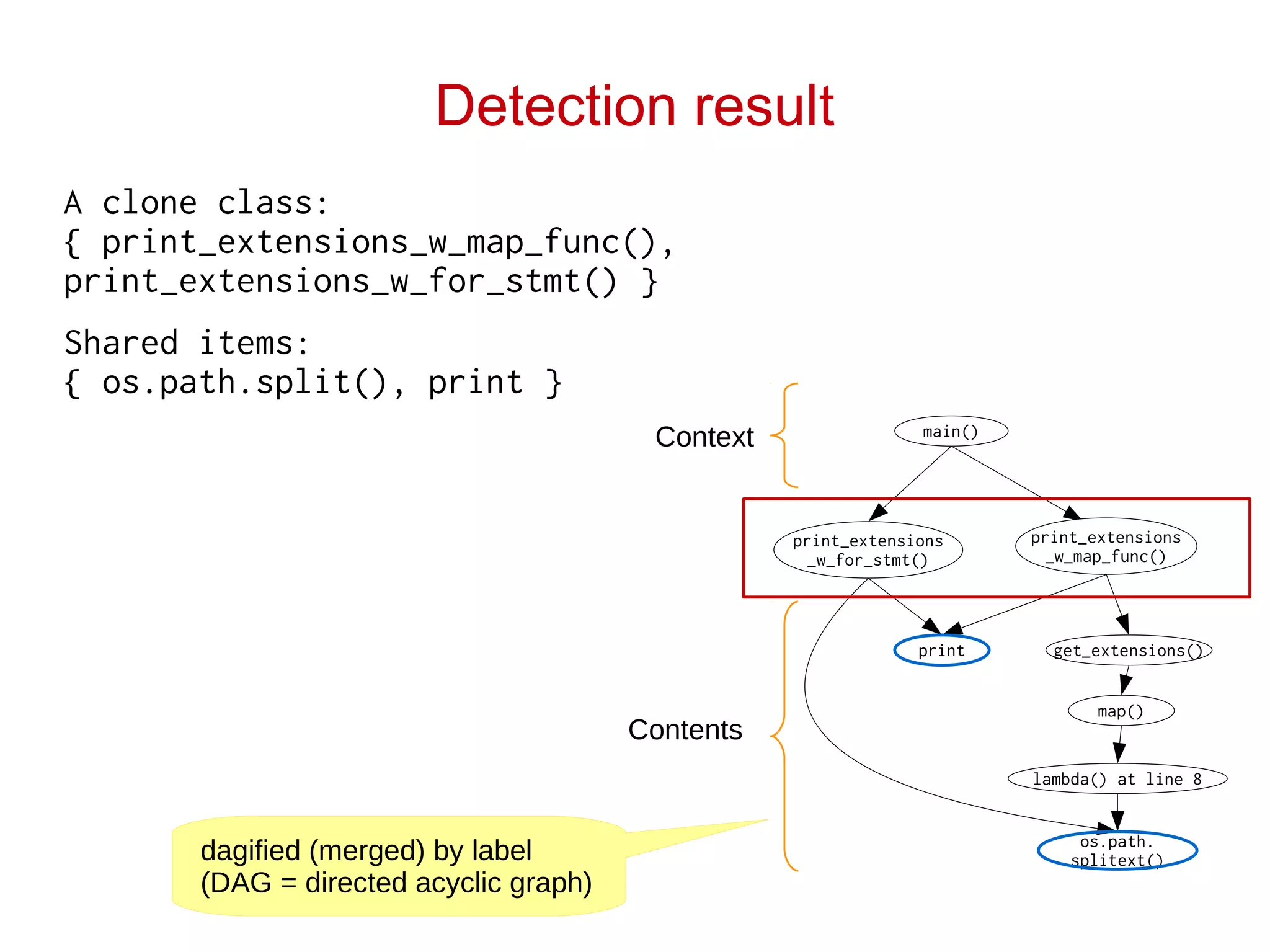

17. Detection result
A clone class:
{ print_extensions_w_map_func(),
print_extensions_w_for_stmt() }
Shared items:
{ os.path.split(), print }
dagified (merged) by label
(DAG = directed acyclic graph)
Context
Contents
main()
print_extensions
_w_for_stmt()
print_extensions
_w_map_func()
get_extensions()print
map()
lambda() at line 8
os.path.
splitext()

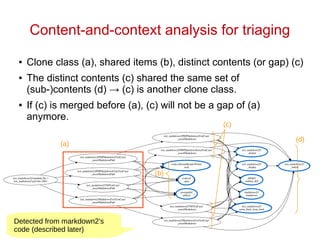

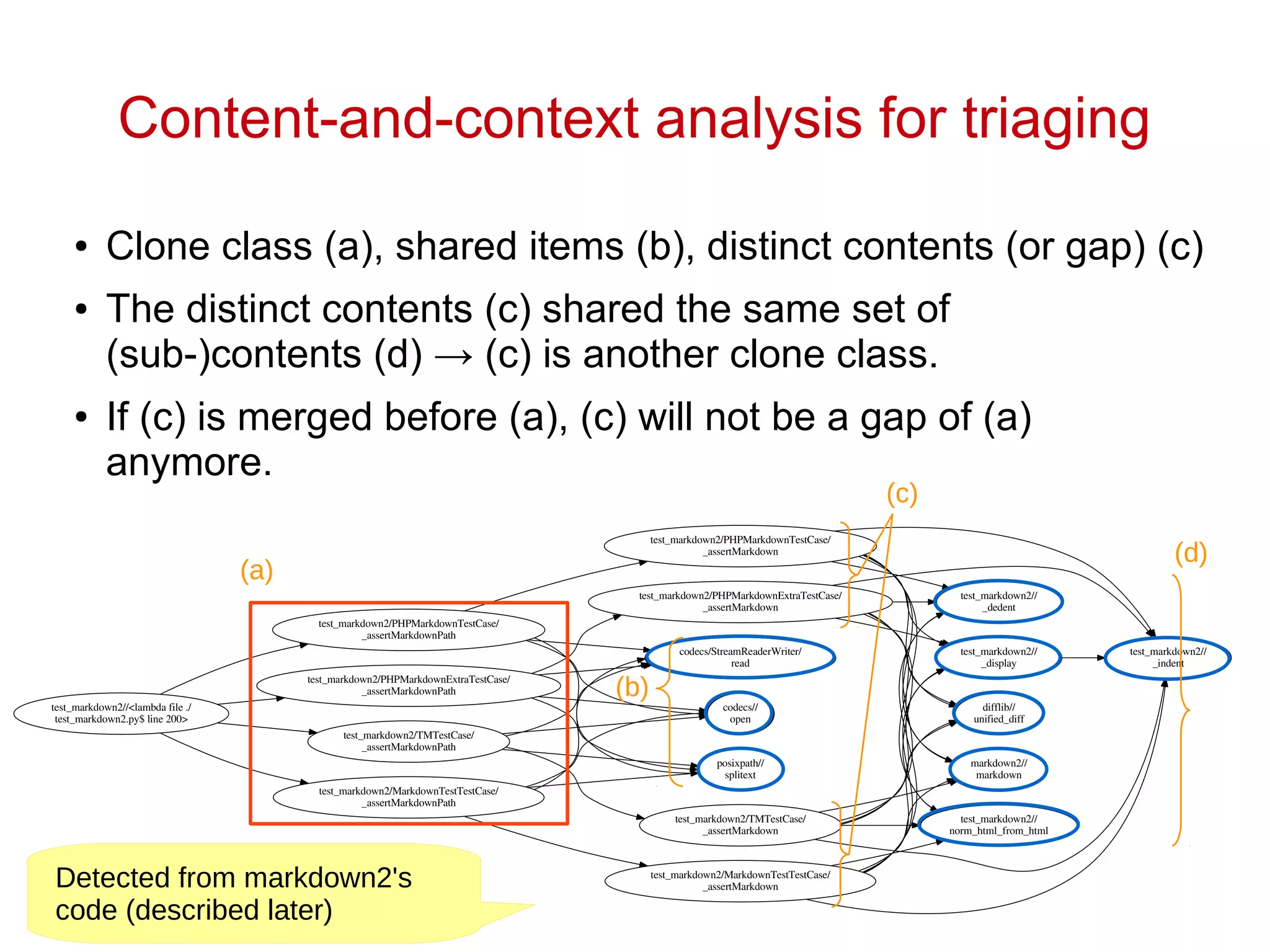

18. Content-and-context analysis for triaging
● Clone class (a), shared items (b), distinct contents (or gap) (c)
● The distinct contents (c) shared the same set of
(sub-)contents (d) → (c) is another clone class.
● If (c) is merged before (a), (c) will not be a gap of (a)
anymore.
(a)
(b)
(c)
(d)
Detected from markdown2's
code (described later)

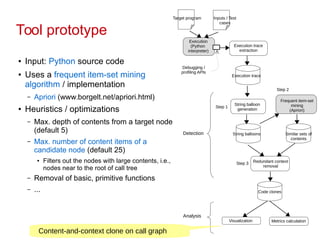

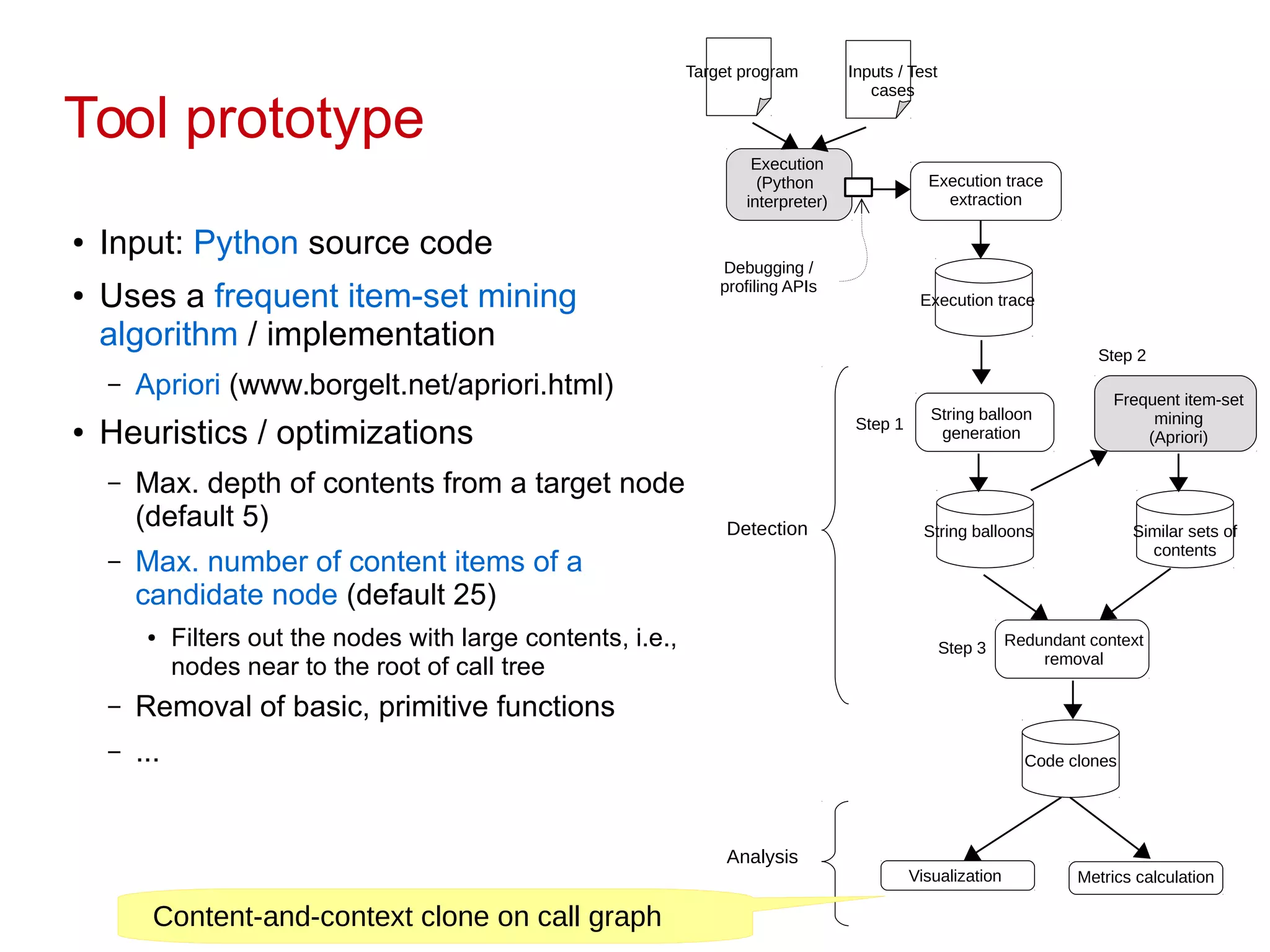

19. Tool prototype
Target program Inputs / Test
cases
Execution
(Python
interpreter)
Execution trace
Debugging /
profiling APIs
Execution trace
extraction
String balloon
generation
String balloons
Frequent item-set
mining
(Apriori)
Similar sets of
contents
Redundant context
removal
Code clones
Step 1
Step 2
Step 3
Detection
Visualization Metrics calculation
Analysis
● Input: Python source code
● Uses a frequent item-set mining
algorithm / implementation
– Apriori (www.borgelt.net/apriori.html)
● Heuristics / optimizations
– Max. depth of contents from a target node
(default 5)
– Max. number of content items of a
candidate node (default 25)
● Filters out the nodes with large contents, i.e.,
nodes near to the root of call tree
– Removal of basic, primitive functions
– ...
Content-and-context clone on call graph

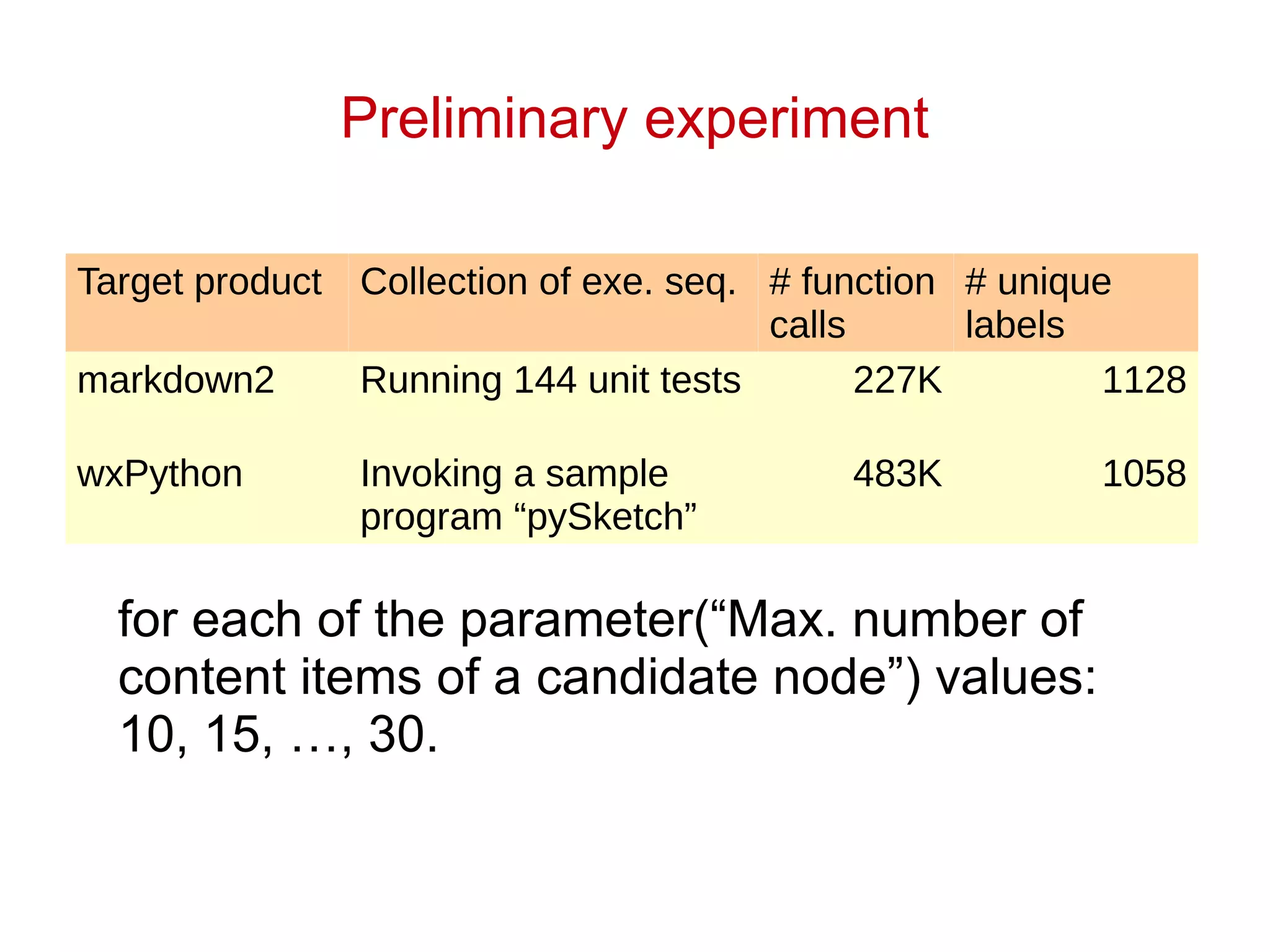

20. Preliminary experiment
for each of the parameter(“Max. number of
content items of a candidate node”) values:
10, 15, …, 30.
Target product Collection of exe. seq. # function
calls
# unique
labels
markdown2 Running 144 unit tests 227K 1128
wxPython Invoking a sample
program “pySketch”
483K 1058

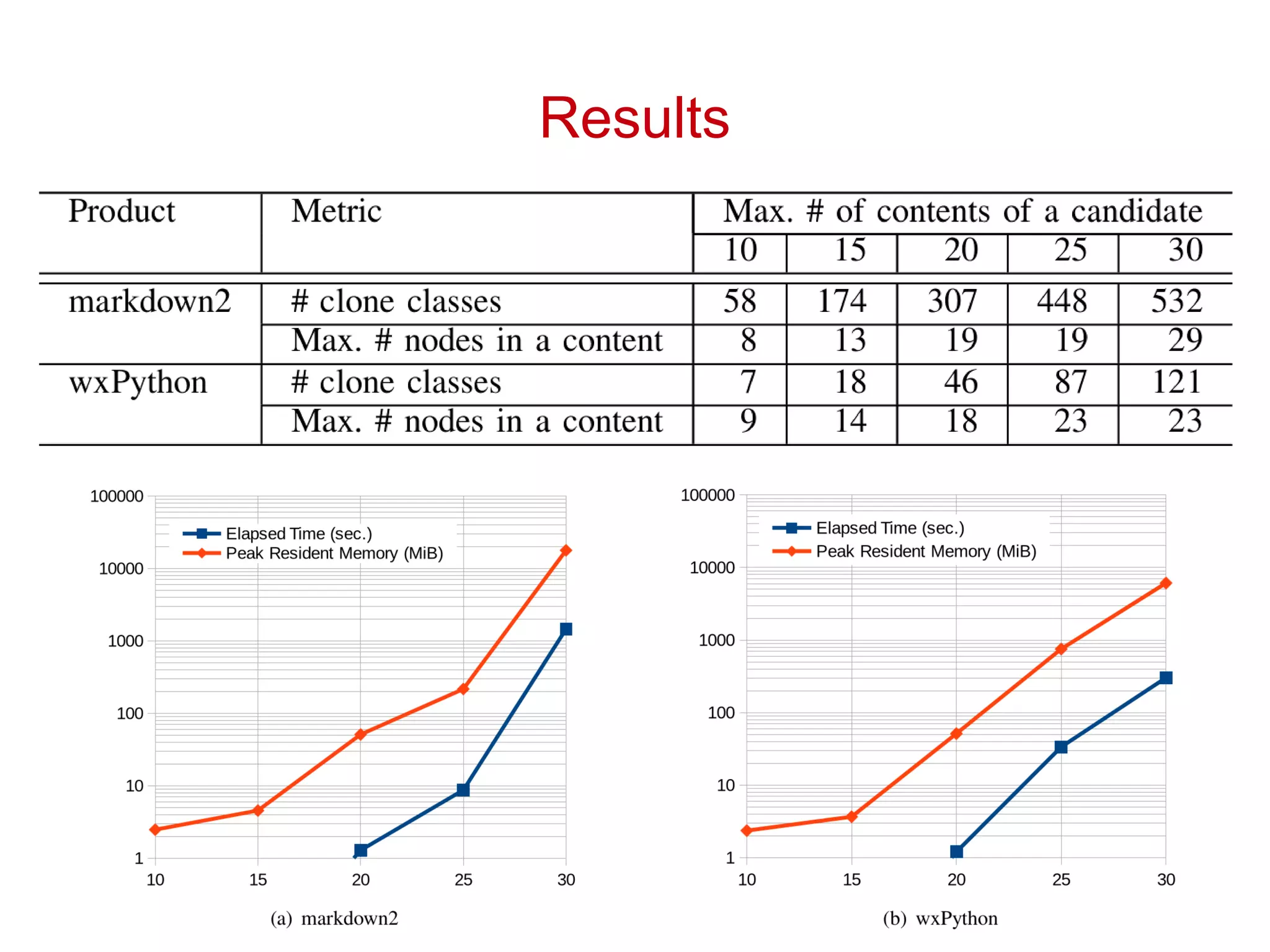

21. Results

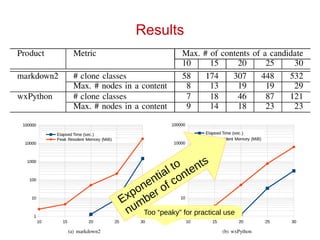

22. Results
Exponential to
number of contents
Too “peaky” for practical use

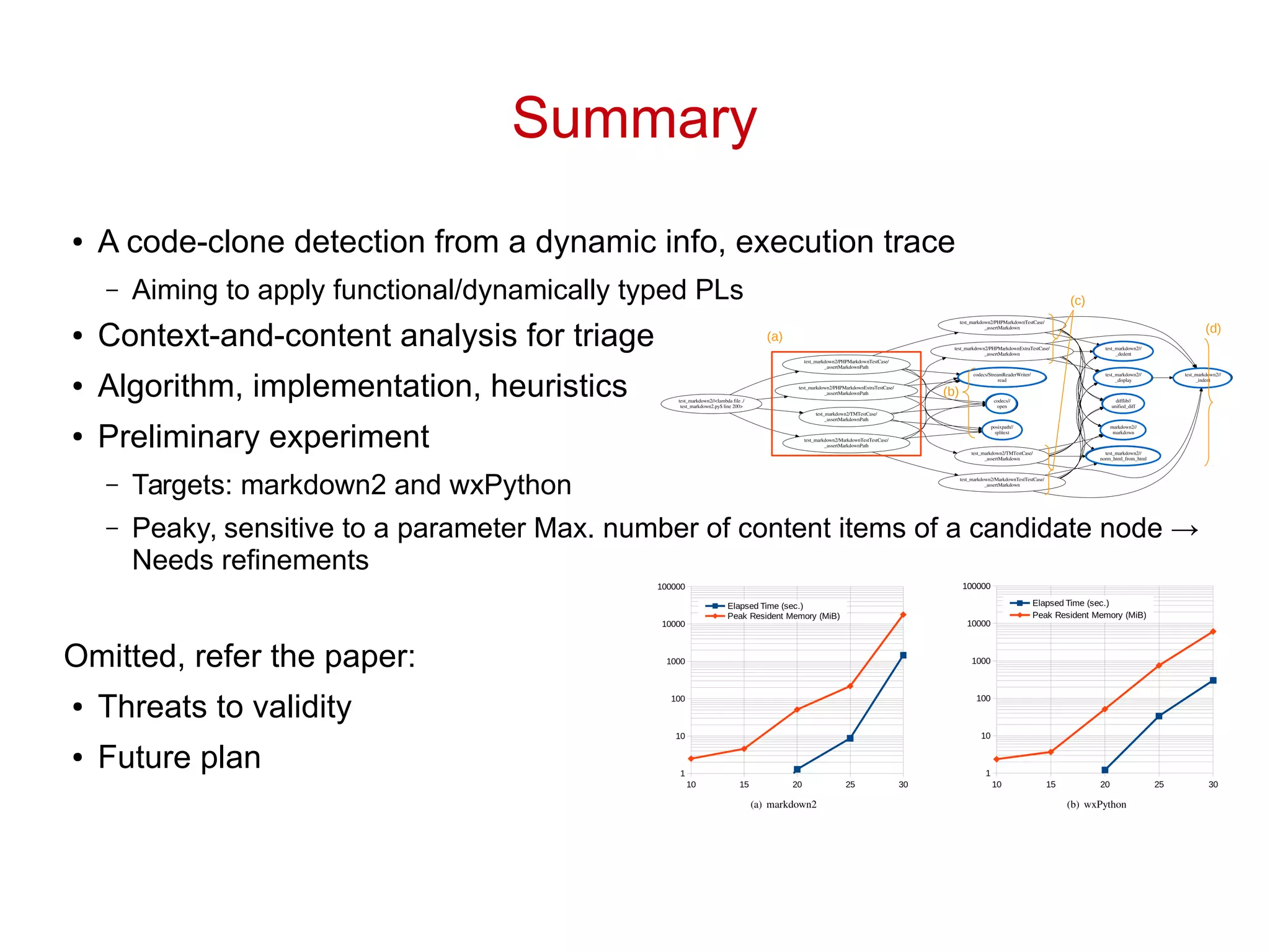

23. Summary
● A code-clone detection from a dynamic info, execution trace
– Aiming to apply functional/dynamically typed PLs
● Context-and-content analysis for triage
● Algorithm, implementation, heuristics
● Preliminary experiment
– Targets: markdown2 and wxPython
– Peaky, sensitive to a parameter Max. number of content items of a candidate node →
Needs refinements
Omitted, refer the paper:
● Threats to validity
● Future plan
(a)
(b)
(c)
(d)
