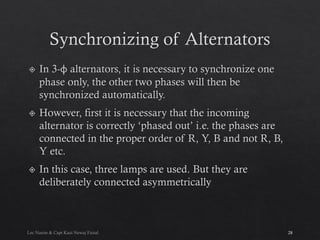

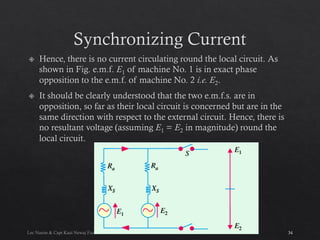

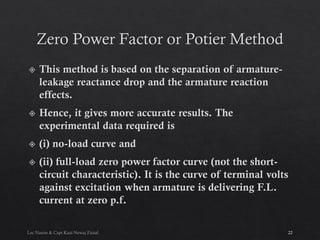

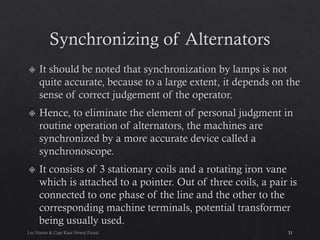

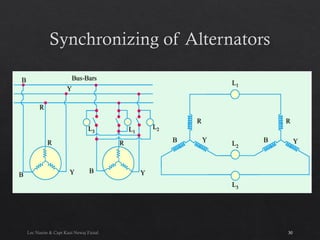

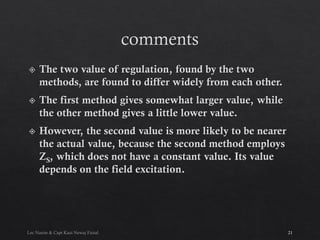

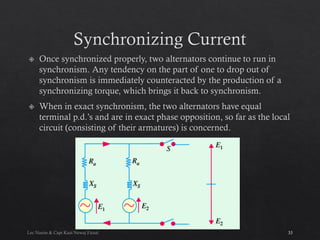

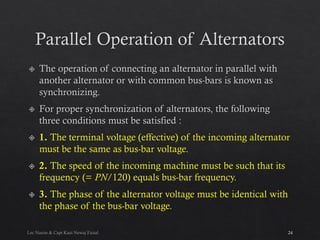

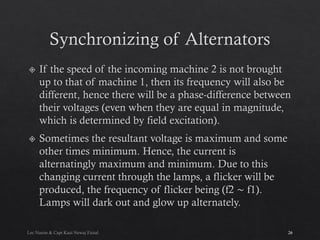

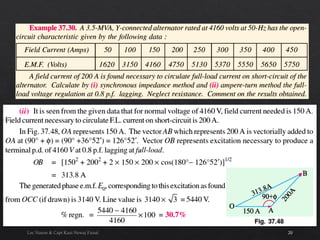

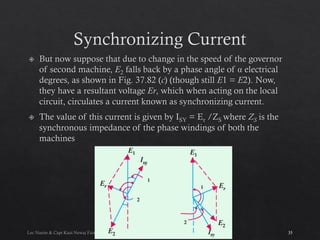

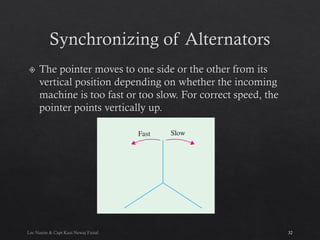

Alternator / Synchronous Generator 2
The document discusses how the voltage generated by a single-phase alternator depends on the field current and the number of turns in the field coils. It notes that when the number of turns is unknown, it is common to consider the alternator's performance in terms of the field current alone. The voltage generated is directly proportional to the field current based on a proportionality constant that depends on the alternator's design.
Alternator / Synchronous Generator 2
- 2.
- 3.
- 4.
- 5.

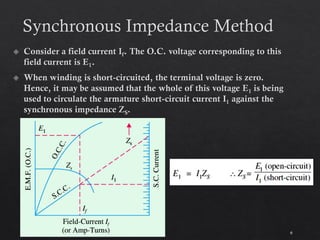

- 6.
- 7.
- 8.
- 9. Lec Nasim &Capt Kazi Newaj Faisal 9 It will be assumed that alternator is a single phase one. Now, for same field current,

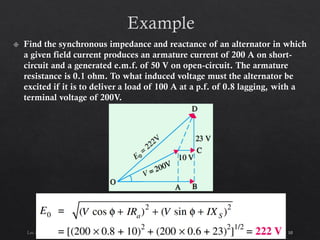

- 10.

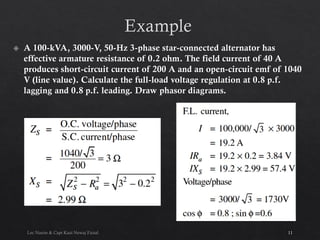

- 11.

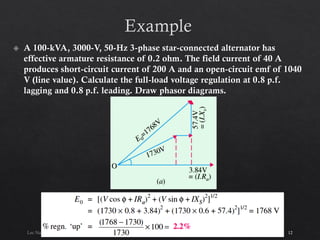

- 12.
- 13.

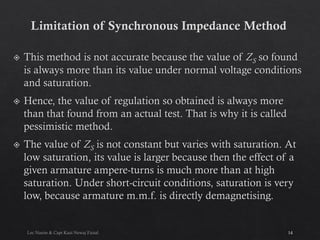

- 14.

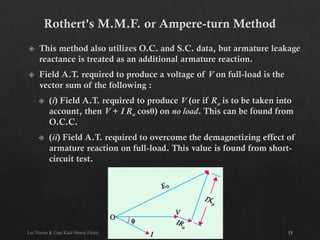

- 15.

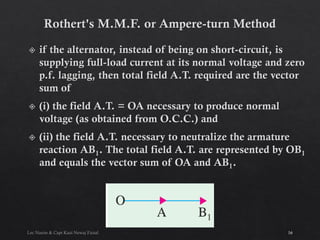

- 16.
- 17.

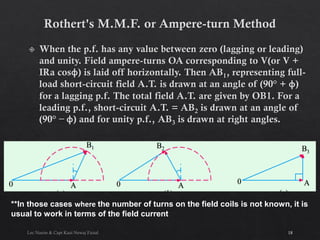

- 18. 18 **In those caseswhere the number of turns on the field coils is not known, it is usual to work in terms of the field current
