MIDE-Disk on Module (DOM) are flash storage modules that can directly connect to a computer motherboard through an IDE connector, functioning like a hard disk drive. There are two main types: 40-pin IDE DOM for larger drives and 44-pin for smaller drives. DOM offers advantages over HDDs like lower power consumption, higher performance, and greater durability from shock and temperature variations. They are often used in embedded systems, industrial automation, POS devices, and other applications.

1. 21 gliphs
13 followers
6 following
franklintom289

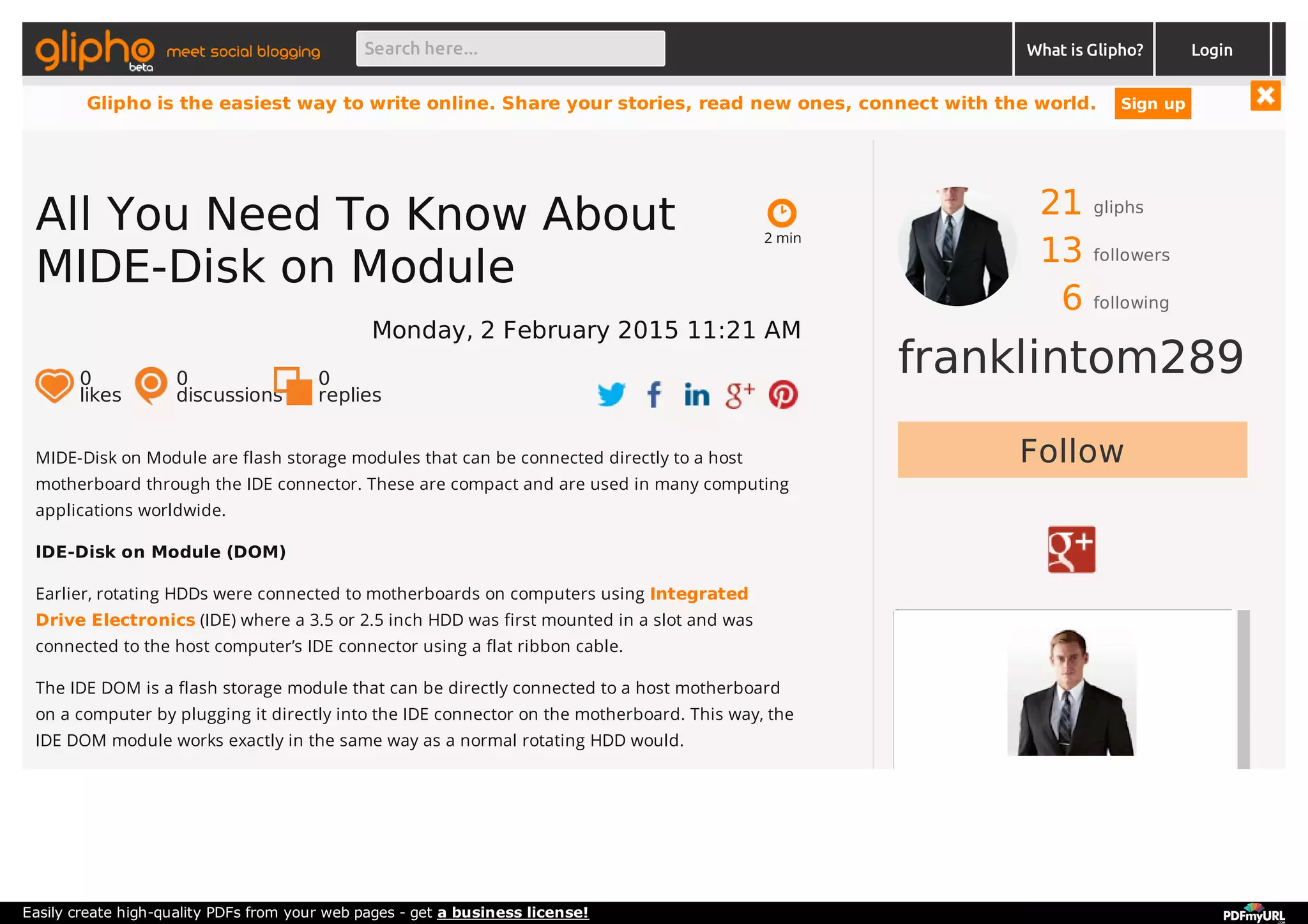

FollowMIDE-Disk on Module are flash storage modules that can be connected directly to a host
motherboard through the IDE connector. These are compact and are used in many computing
applications worldwide.
IDE-Disk on Module (DOM)
Earlier, rotating HDDs were connected to motherboards on computers using Integrated
Drive Electronics (IDE) where a 3.5 or 2.5 inch HDD was first mounted in a slot and was
connected to the host computer’s IDE connector using a flat ribbon cable.
The IDE DOM is a flash storage module that can be directly connected to a host motherboard
on a computer by plugging it directly into the IDE connector on the motherboard. This way, the
IDE DOM module works exactly in the same way as a normal rotating HDD would.
2 min
All You Need To Know About
MIDE-Disk on Module
Monday, 2 February 2015 11:21 AM
0
likes
0
discussions
0
replies
meet social blogging Search here... What is Glipho? Login
Glipho is the easiest way to write online. Share your stories, read new ones, connect with the world. Sign up
Easily create high-quality PDFs from your web pages - get a business license!

2. Tom Franklin
Follow
© 2015 Glipho About us The Glipho Team Terms
Privacy Acceptable Use
From www.xstra.eu

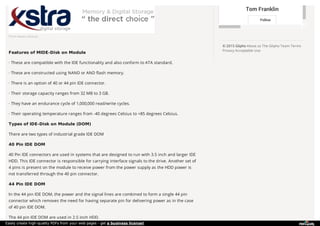

Features of MIDE-Disk on Module
· These are compatible with the IDE functionality and also conform to ATA standard.
· These are constructed using NAND or AND flash memory.
· There is an option of 40 or 44 pin IDE connector.
· Their storage capacity ranges from 32 MB to 3 GB.
· They have an endurance cycle of 1,000,000 read/write cycles.
· Their operating temperature ranges from -40 degrees Celsius to +85 degrees Celsius.
Types of IDE-Disk on Module (DOM)
There are two types of industrial grade IDE DOM
40 Pin IDE DOM
40 Pin IDE connectors are used in systems that are designed to run with 3.5 inch and larger IDE
HDD. This IDE connector is responsible for carrying interface signals to the drive. Another set of
4 pins is present on the module to receive power from the power supply as the HDD power is
not transferred through the 40 pin connector.
44 Pin IDE DOM
In the 44 pin IDE DOM, the power and the signal lines are combined to form a single 44 pin
connector which removes the need for having separate pin for delivering power as in the case
of 40 pin IDE DOM.
The 44 pin IDE DOM are used in 2.5 inch HDD.
Easily create high-quality PDFs from your web pages - get a business license!

3. Reply to this gliph

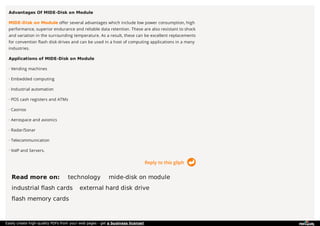

Advantages Of MIDE-Disk on Module
MIDE-Disk on Module offer several advantages which include low power consumption, high
performance, superior endurance and reliable data retention. These are also resistant to shock
and variation in the surrounding temperature. As a result, these can be excellent replacements
for convention flash disk drives and can be used in a host of computing applications in a many
industries.
Applications of MIDE-Disk on Module
· Vending machines
· Embedded computing
· Industrial automation
· POS cash registers and ATMs
· Casinos
· Aerospace and avionics
· Radar/Sonar
· Telecommunication
· VoIP and Servers.
