1. Algorithm and Data Structures
as the basic of IT Problem Solving
Christian A – Mei 2014
Training Material

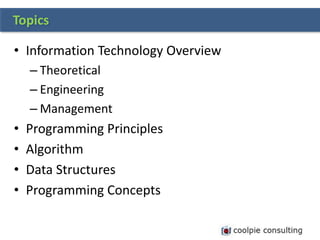

2. • Information Technology Overview
– Theoretical
– Engineering
– Management
• Programming Principles
• Algorithm
• Data Structures
• Programming Concepts
Topics

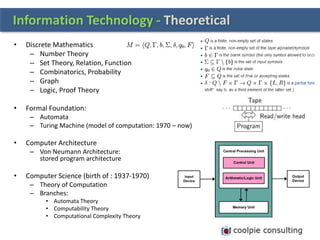

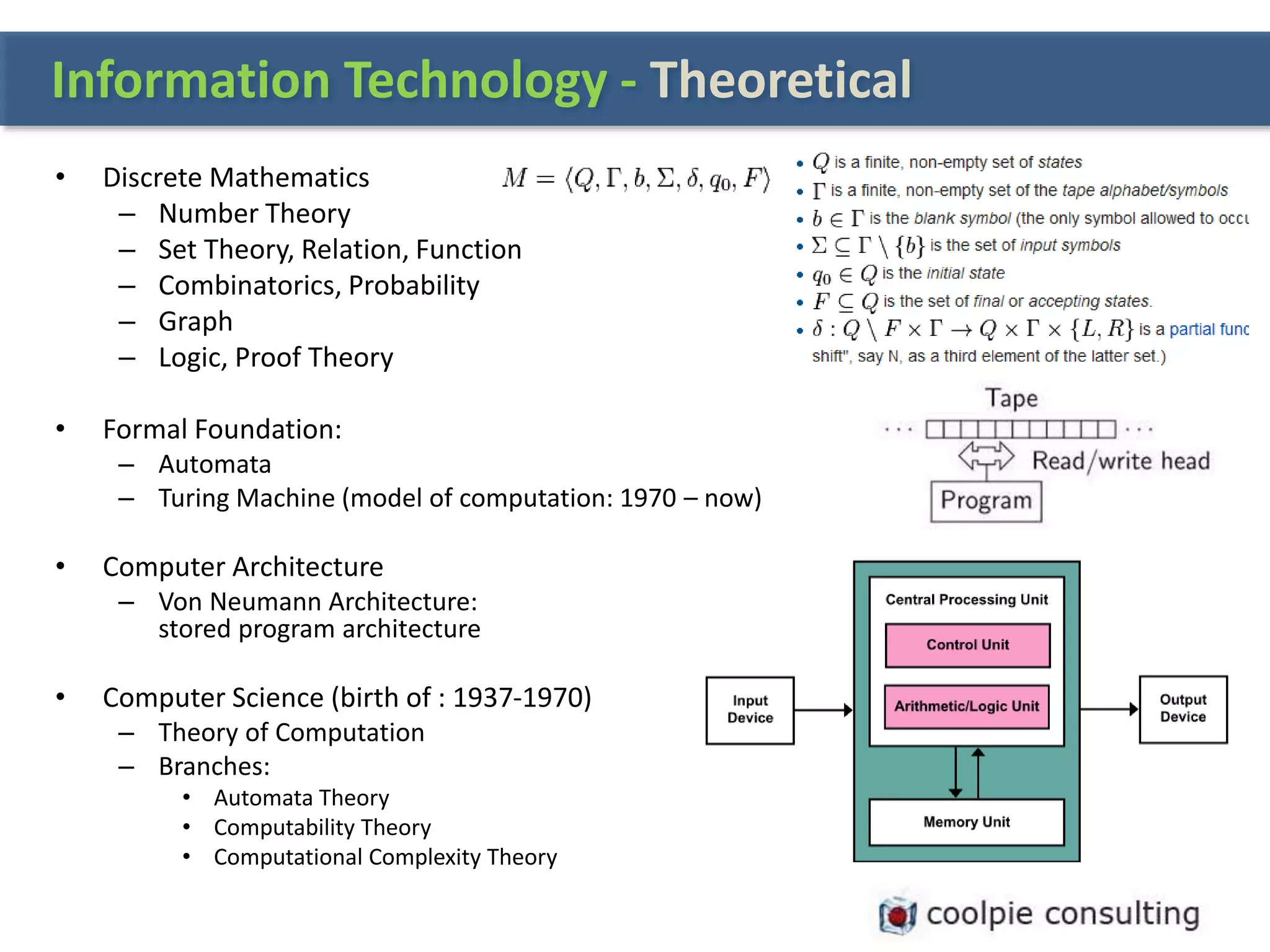

3. • Discrete Mathematics
– Number Theory
– Set Theory, Relation, Function
– Combinatorics, Probability
– Graph
– Logic, Proof Theory
• Formal Foundation:
– Automata
– Turing Machine (model of computation: 1970 – now)
• Computer Architecture
– Von Neumann Architecture:
stored program architecture
• Computer Science (birth of : 1937-1970)
– Theory of Computation
– Branches:
• Automata Theory
• Computability Theory
• Computational Complexity Theory
Information Technology - Theoretical

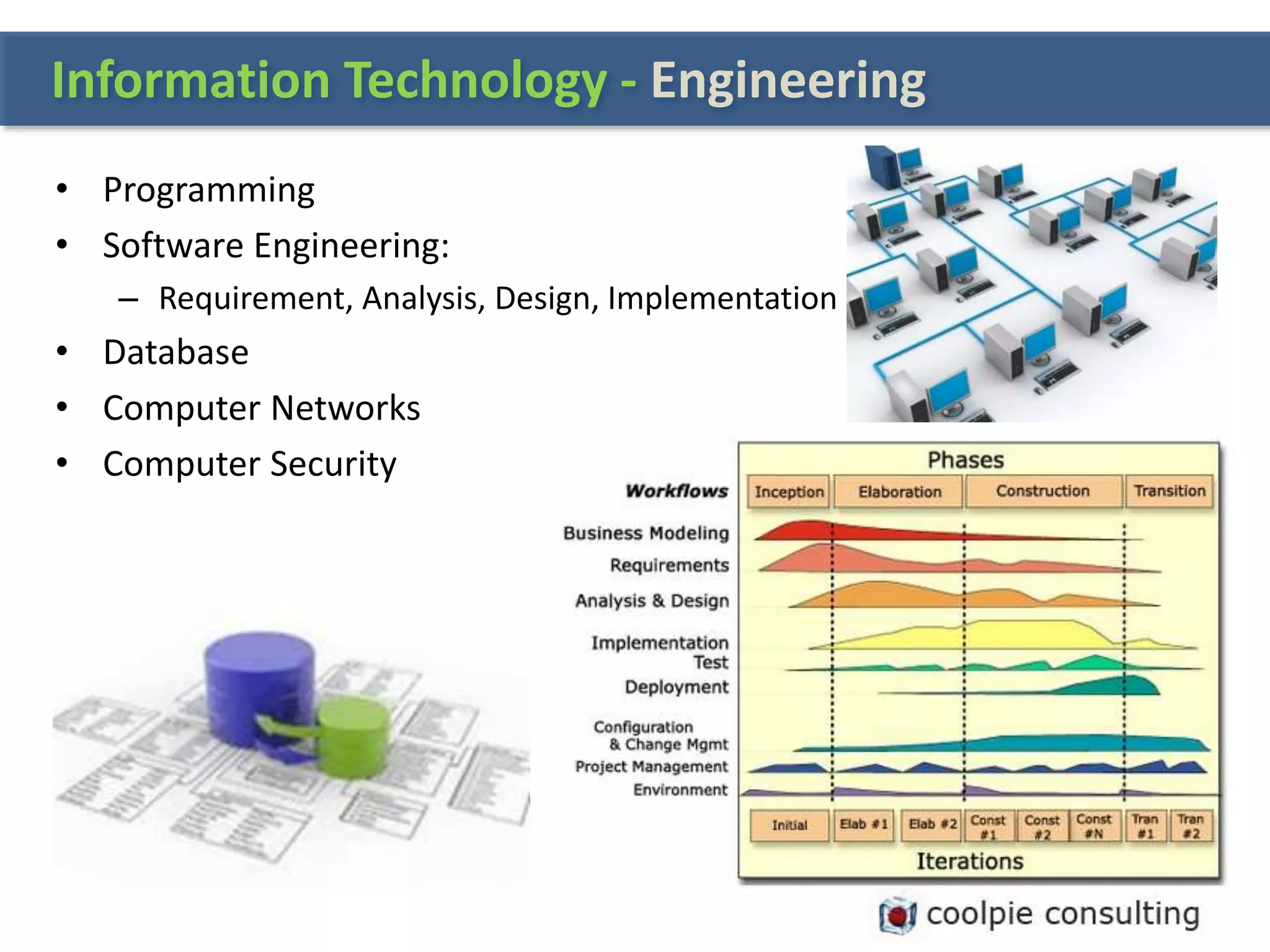

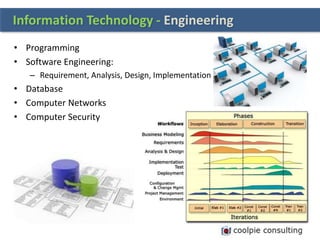

4. • Programming
• Software Engineering:
– Requirement, Analysis, Design, Implementation
• Database
• Computer Networks
• Computer Security
Information Technology - Engineering

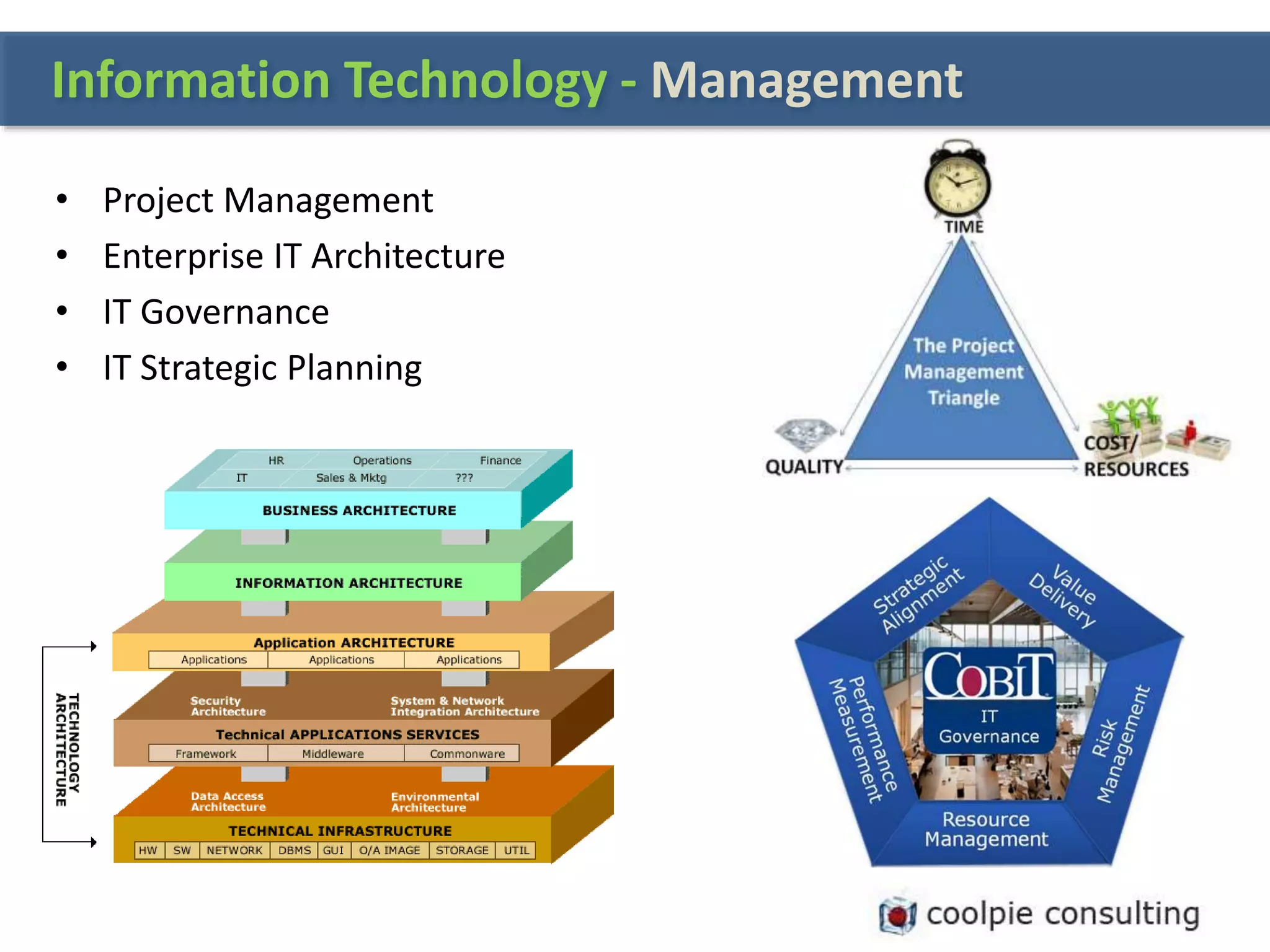

5. • Project Management
• Enterprise IT Architecture
• IT Governance
• IT Strategic Planning
• R
Information Technology - Management

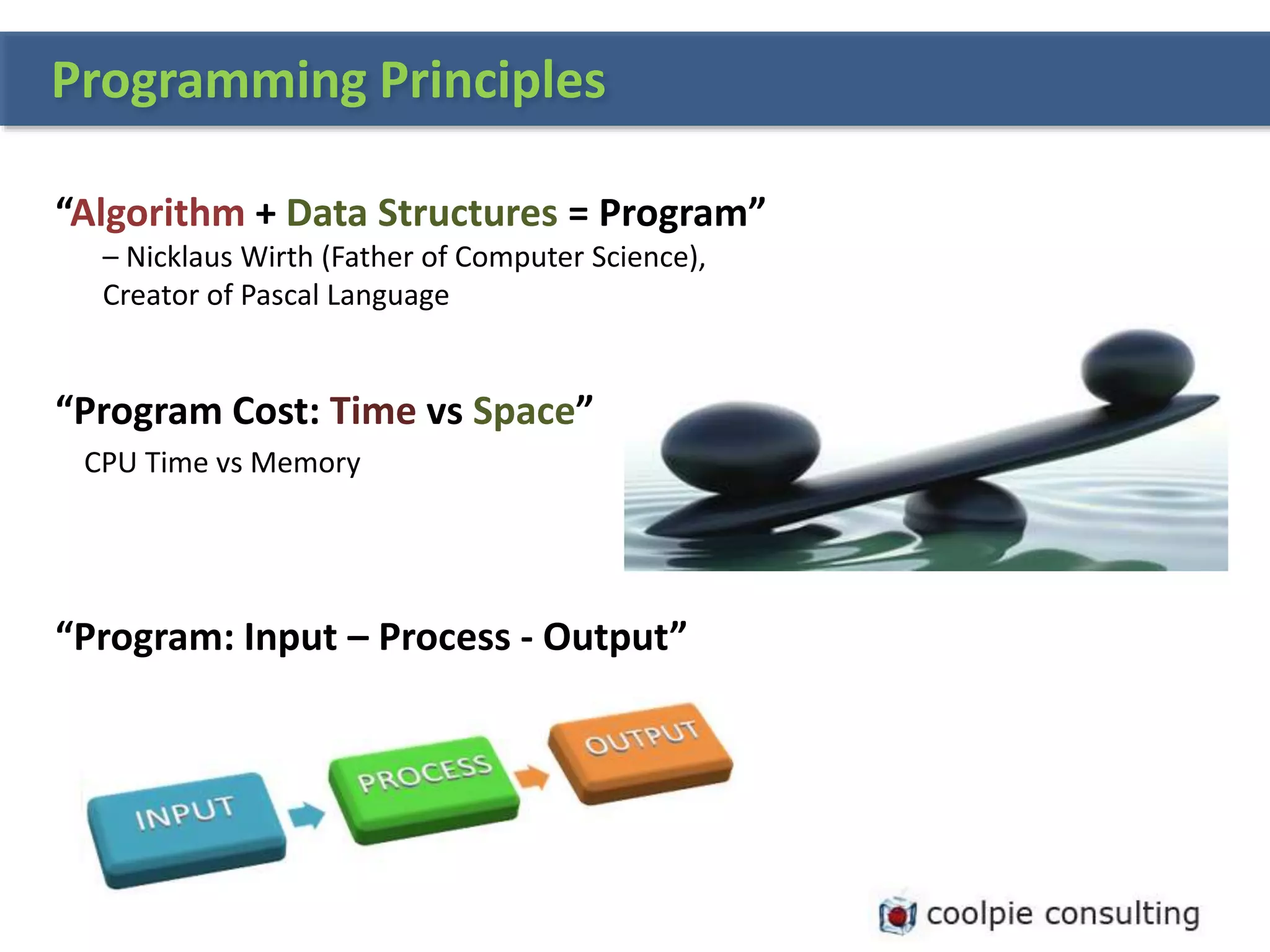

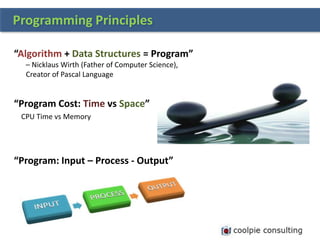

6. “Algorithm + Data Structures = Program”
– Nicklaus Wirth (Father of Computer Science),
Creator of Pascal Language
“Program Cost: Time vs Space”
CPU Time vs Memory
“Program: Input – Process - Output”
Programming Principles

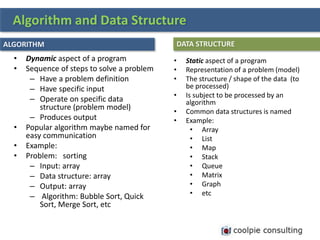

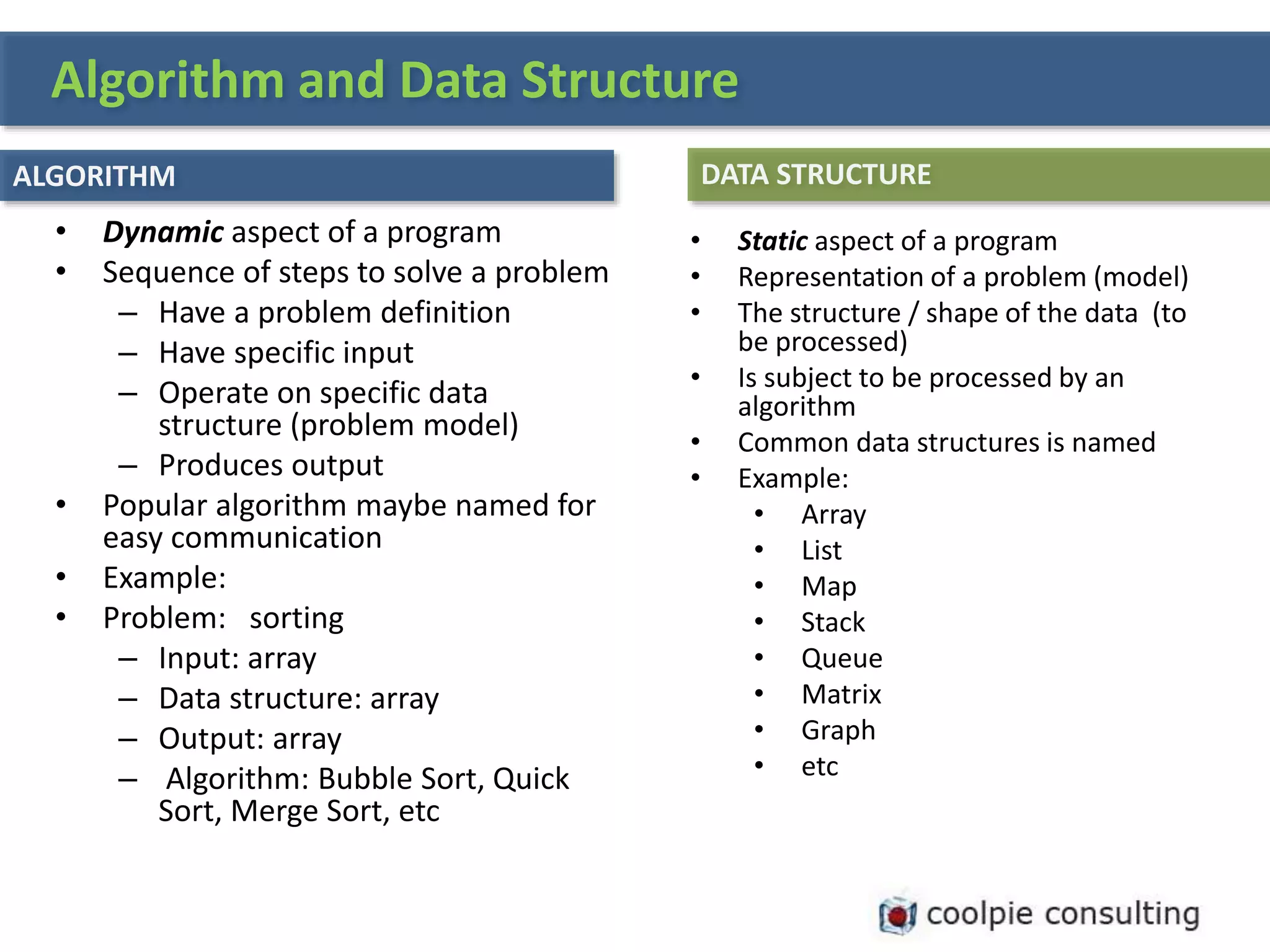

7. • Dynamic aspect of a program
• Sequence of steps to solve a problem
– Have a problem definition
– Have specific input
– Operate on specific data
structure (problem model)
– Produces output
• Popular algorithm maybe named for
easy communication
• Example:
• Problem: sorting
– Input: array
– Data structure: array
– Output: array
– Algorithm: Bubble Sort, Quick
Sort, Merge Sort, etc
Algorithm and Data Structure
• Static aspect of a program
• Representation of a problem (model)
• The structure / shape of the data (to
be processed)
• Is subject to be processed by an
algorithm
• Common data structures is named
• Example:
• Array
• List
• Map
• Stack
• Queue
• Matrix
• Graph
• etc
ALGORITHM DATA STRUCTURE

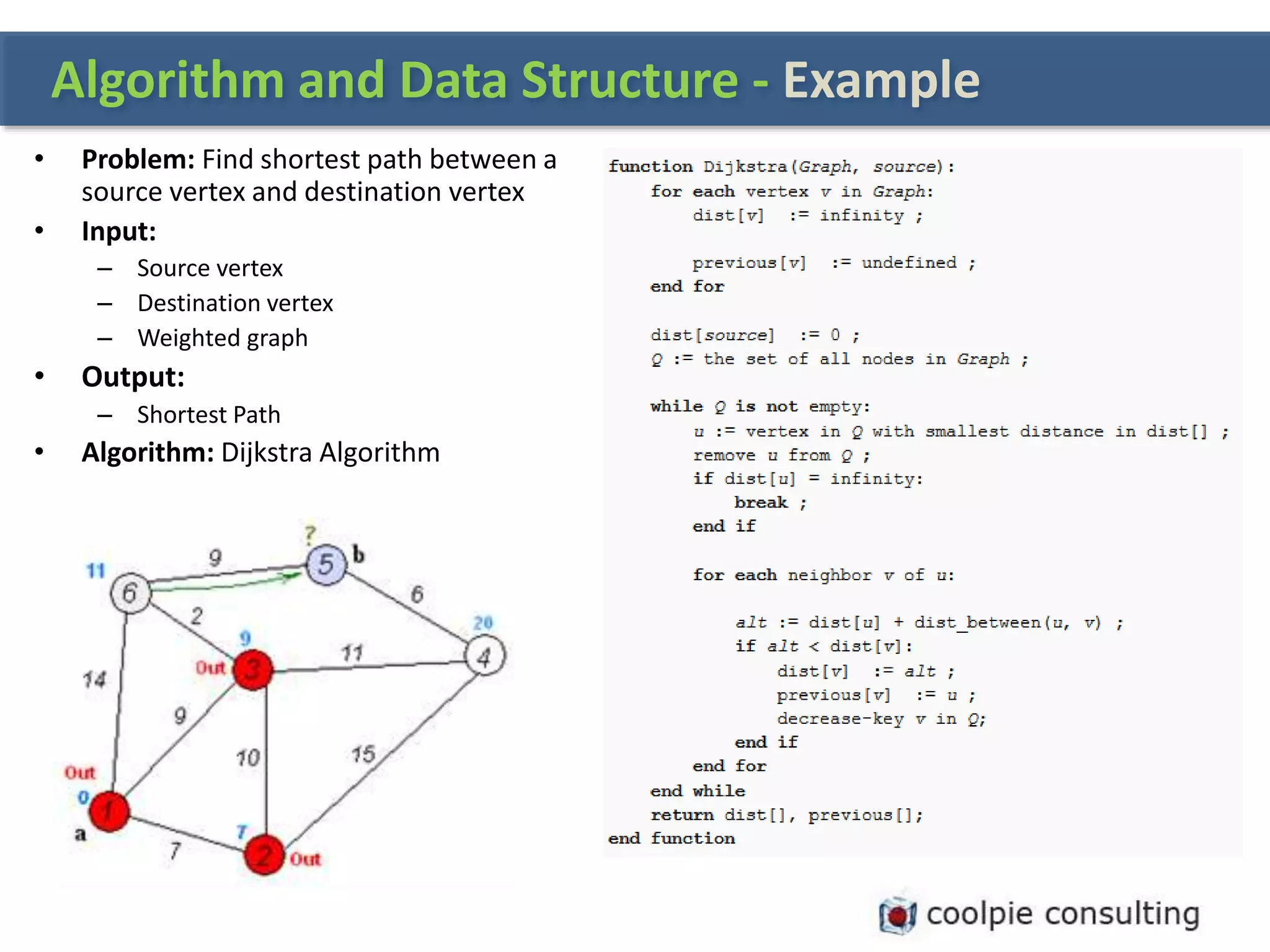

8. Algorithm and Data Structure - Example
• Problem: Find shortest path between a
source vertex and destination vertex
• Input:
– Source vertex
– Destination vertex
– Weighted graph
• Output:
– Shortest Path
• Algorithm: Dijkstra Algorithm

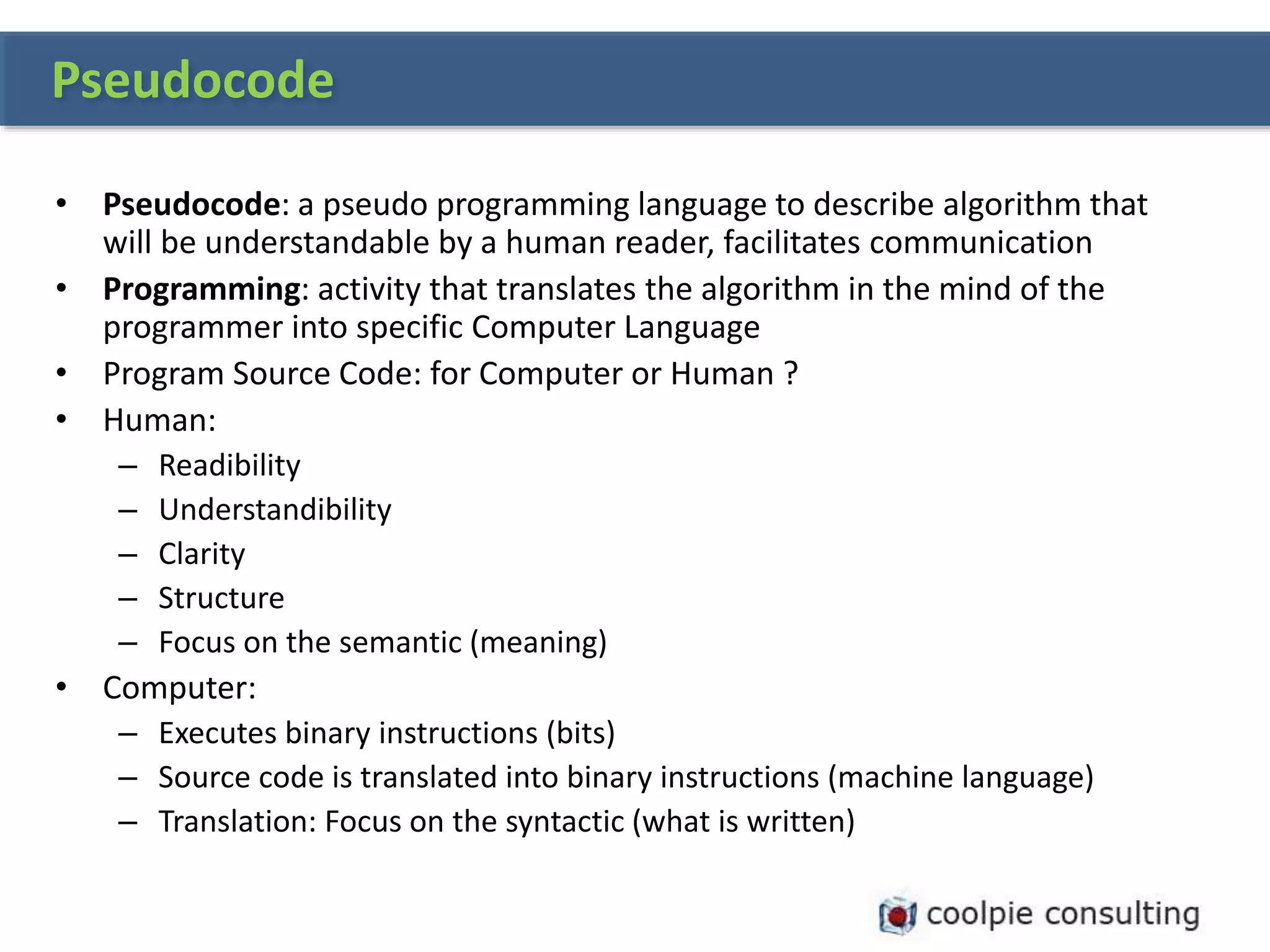

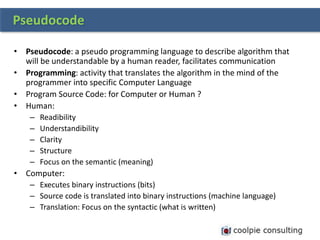

9. • Pseudocode: a pseudo programming language to describe algorithm that
will be understandable by a human reader, facilitates communication
• Programming: activity that translates the algorithm in the mind of the
programmer into specific Computer Language
• Program Source Code: for Computer or Human ?
• Human:
– Readibility
– Understandibility
– Clarity
– Structure
– Focus on the semantic (meaning)
• Computer:
– Executes binary instructions (bits)
– Source code is translated into binary instructions (machine language)
– Translation: Focus on the syntactic (what is written)
Pseudocode

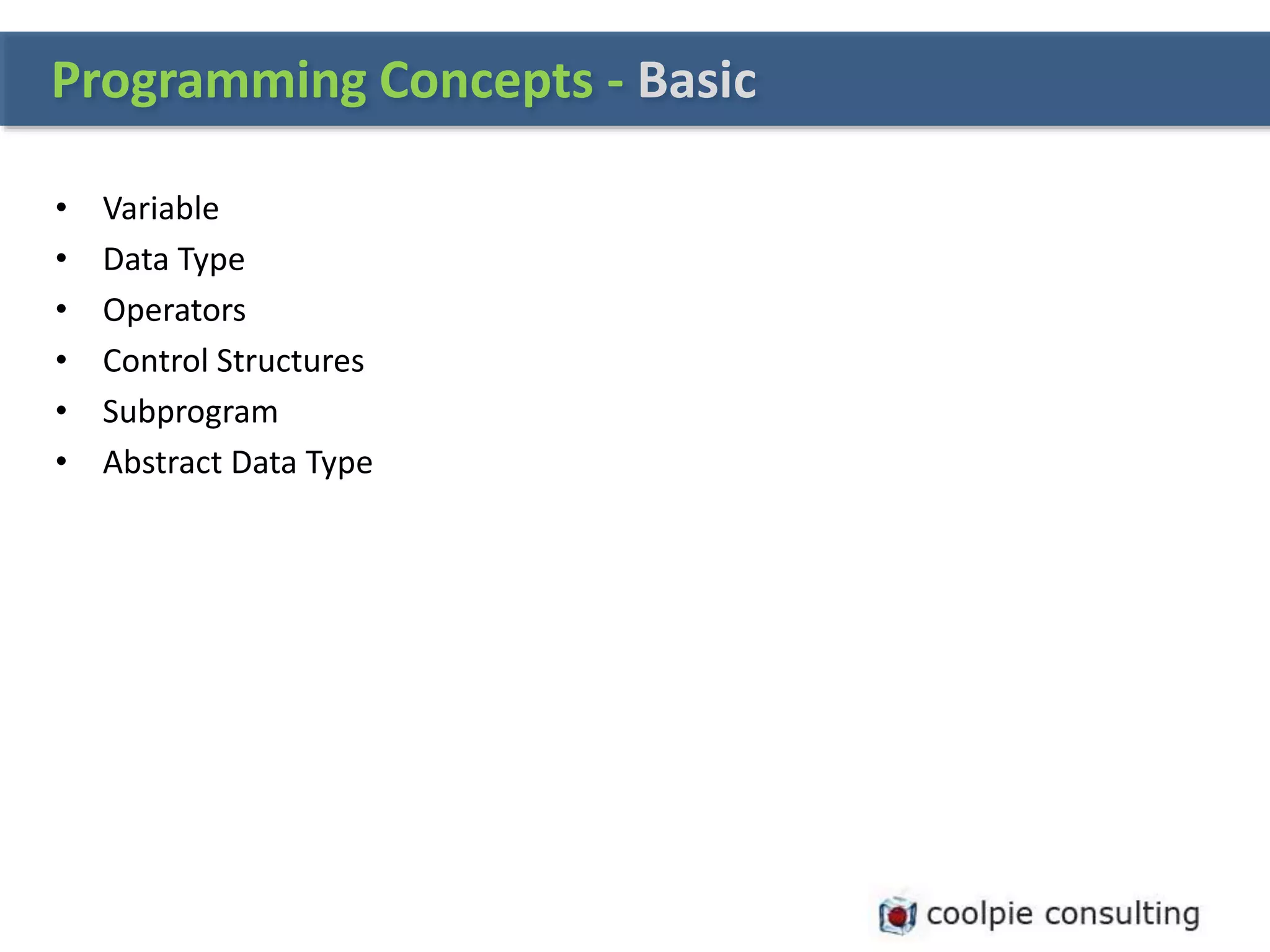

10. • Variable
• Data Type
• Operators
• Control Structures
• Subprogram
• Abstract Data Type
Programming Concepts - Basic

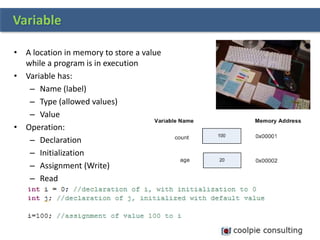

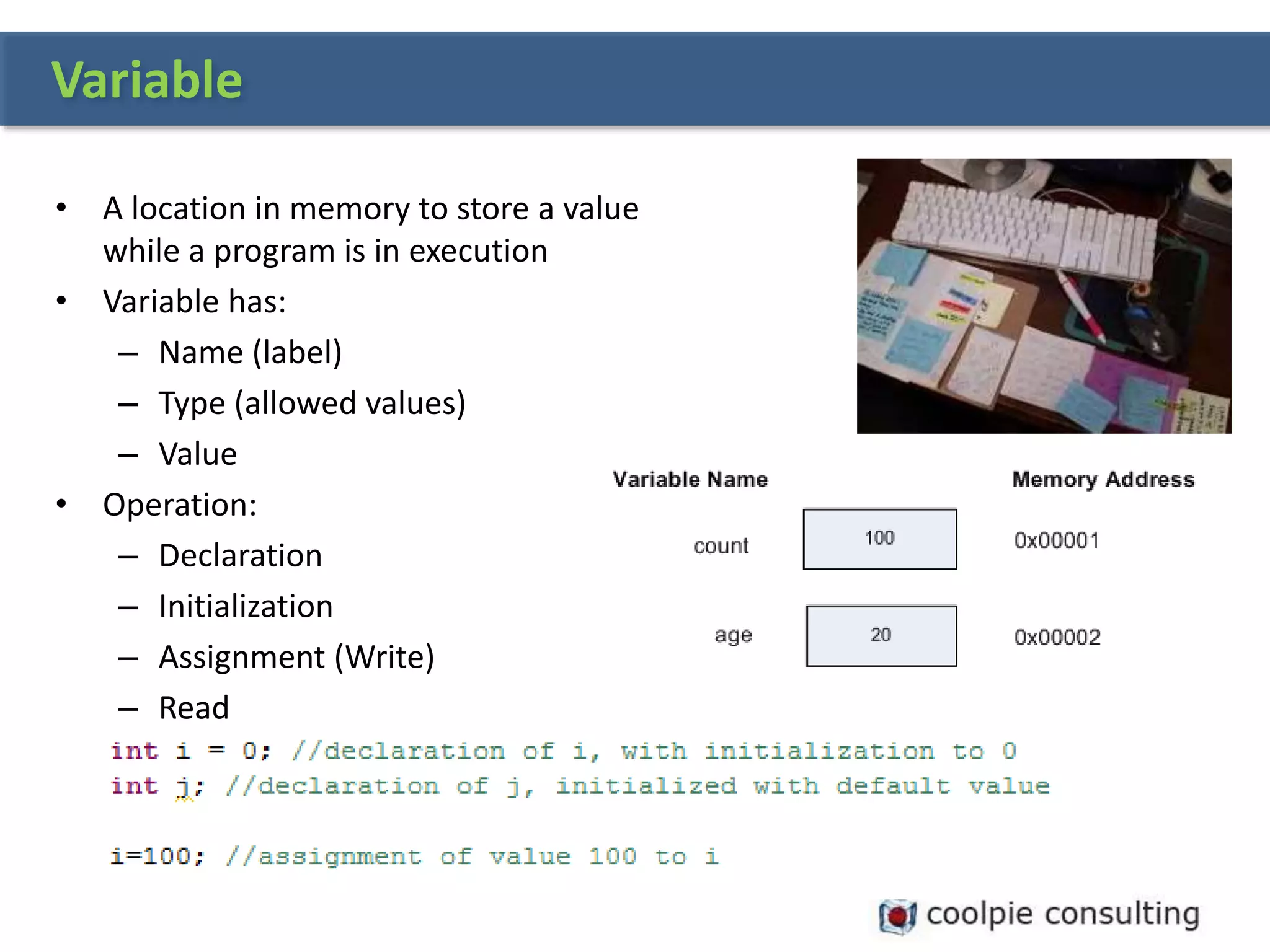

11. • A location in memory to store a value
while a program is in execution
• Variable has:
– Name (label)
– Type (allowed values)
– Value
• Operation:
– Declaration
– Initialization
– Assignment (Write)
– Read
Variable

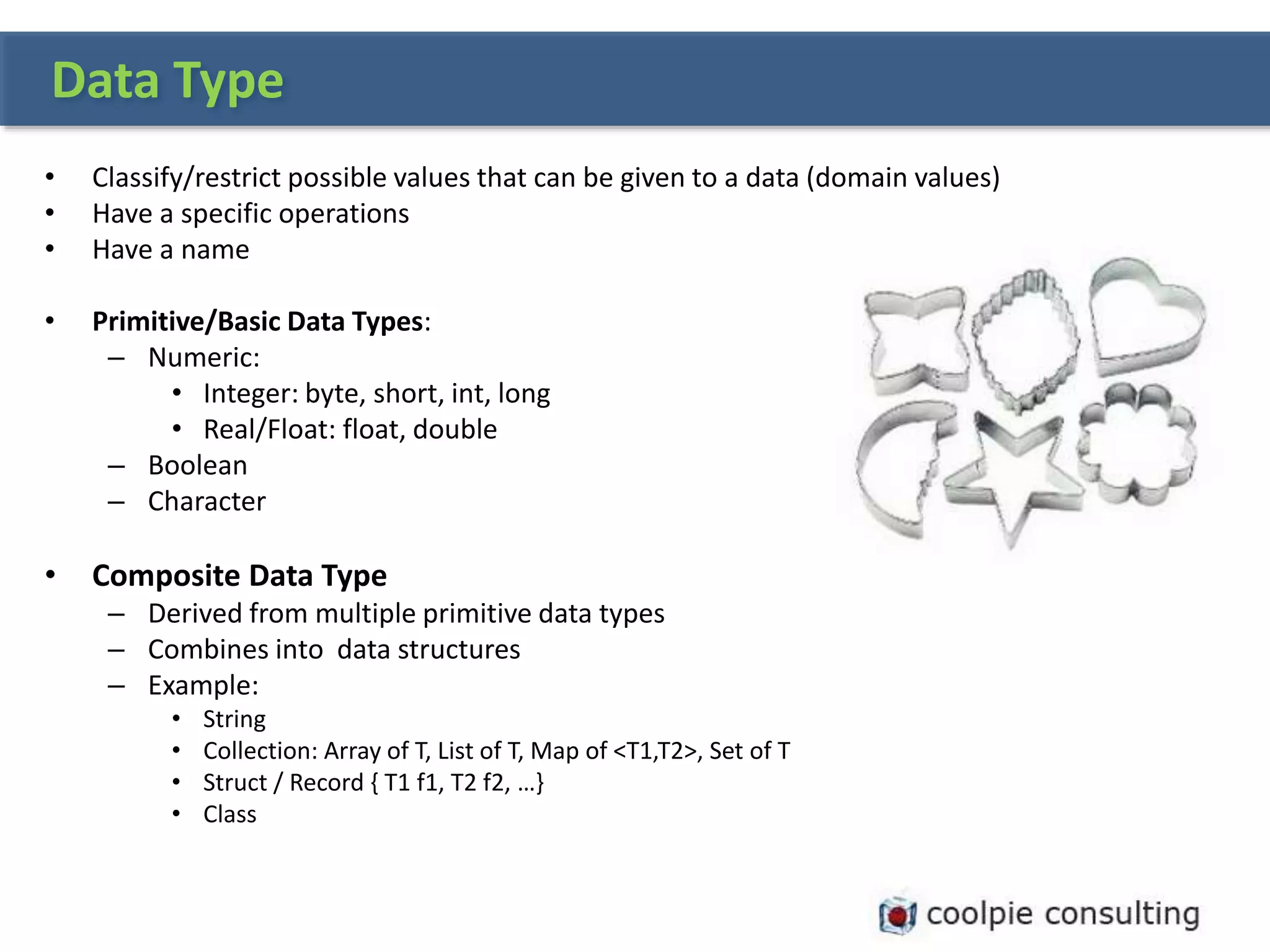

12. • Classify/restrict possible values that can be given to a data (domain values)
• Have a specific operations
• Have a name
• Primitive/Basic Data Types:
– Numeric:
• Integer: byte, short, int, long
• Real/Float: float, double
– Boolean
– Character
• Composite Data Type
– Derived from multiple primitive data types
– Combines into data structures
– Example:
• String
• Collection: Array of T, List of T, Map of <T1,T2>, Set of T
• Struct / Record { T1 f1, T2 f2, …}
• Class
Data Type

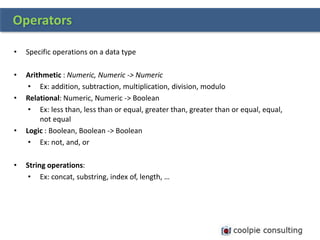

13. • Specific operations on a data type
• Arithmetic : Numeric, Numeric -> Numeric
• Ex: addition, subtraction, multiplication, division, modulo
• Relational: Numeric, Numeric -> Boolean
• Ex: less than, less than or equal, greater than, greater than or equal, equal,
not equal
• Logic : Boolean, Boolean -> Boolean
• Ex: not, and, or
• String operations:
• Ex: concat, substring, index of, length, …
Operators

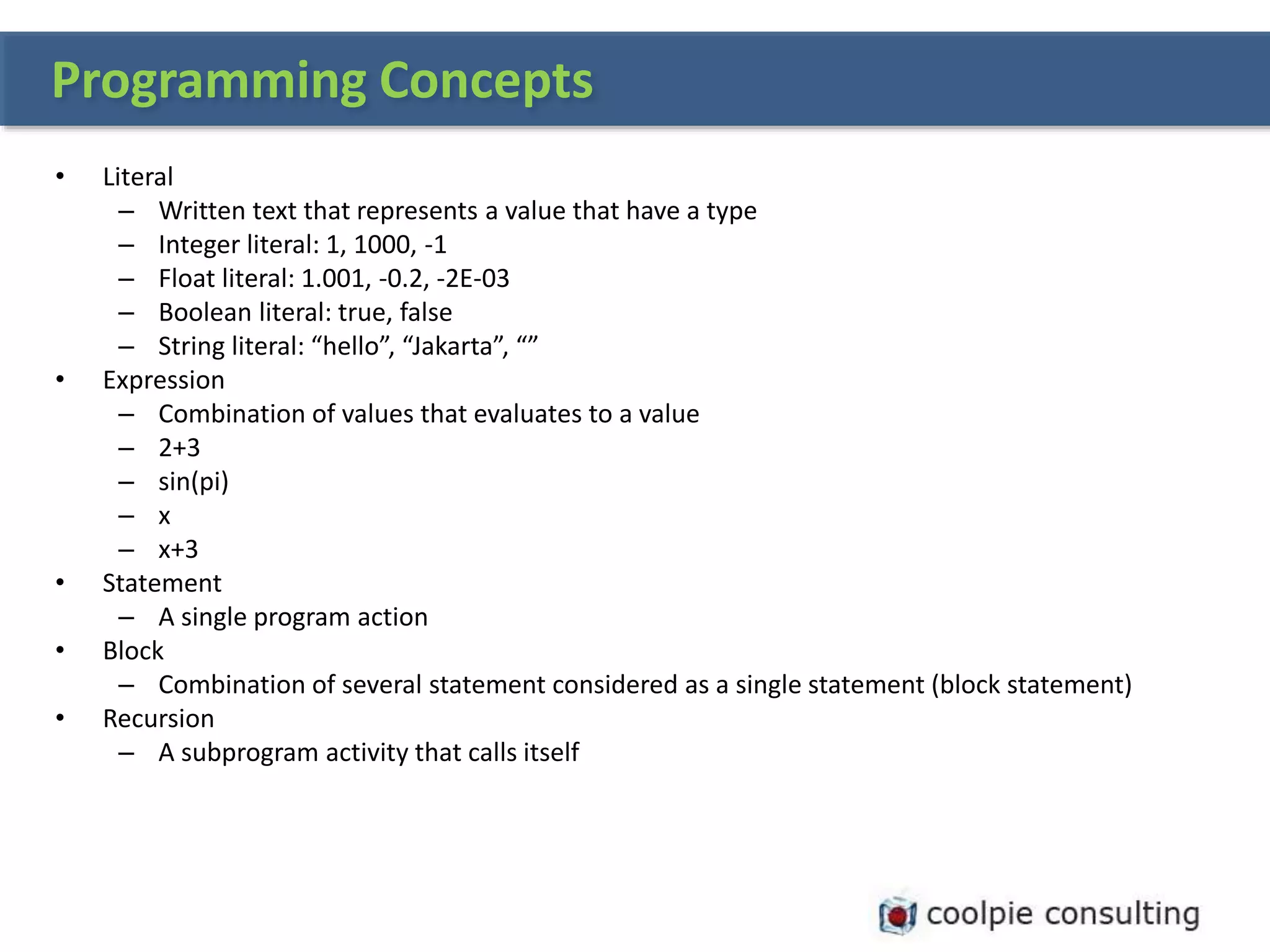

14. • Literal
– Written text that represents a value that have a type
– Integer literal: 1, 1000, -1
– Float literal: 1.001, -0.2, -2E-03
– Boolean literal: true, false
– String literal: “hello”, “Jakarta”, “”
• Expression
– Combination of values that evaluates to a value
– 2+3
– sin(pi)
– x
– x+3
• Statement
– A single program action
• Block
– Combination of several statement considered as a single statement (block statement)
• Recursion
– A subprogram activity that calls itself
Programming Concepts

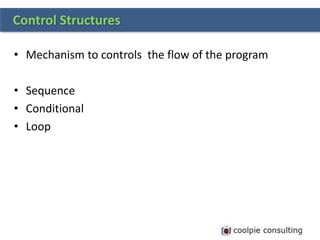

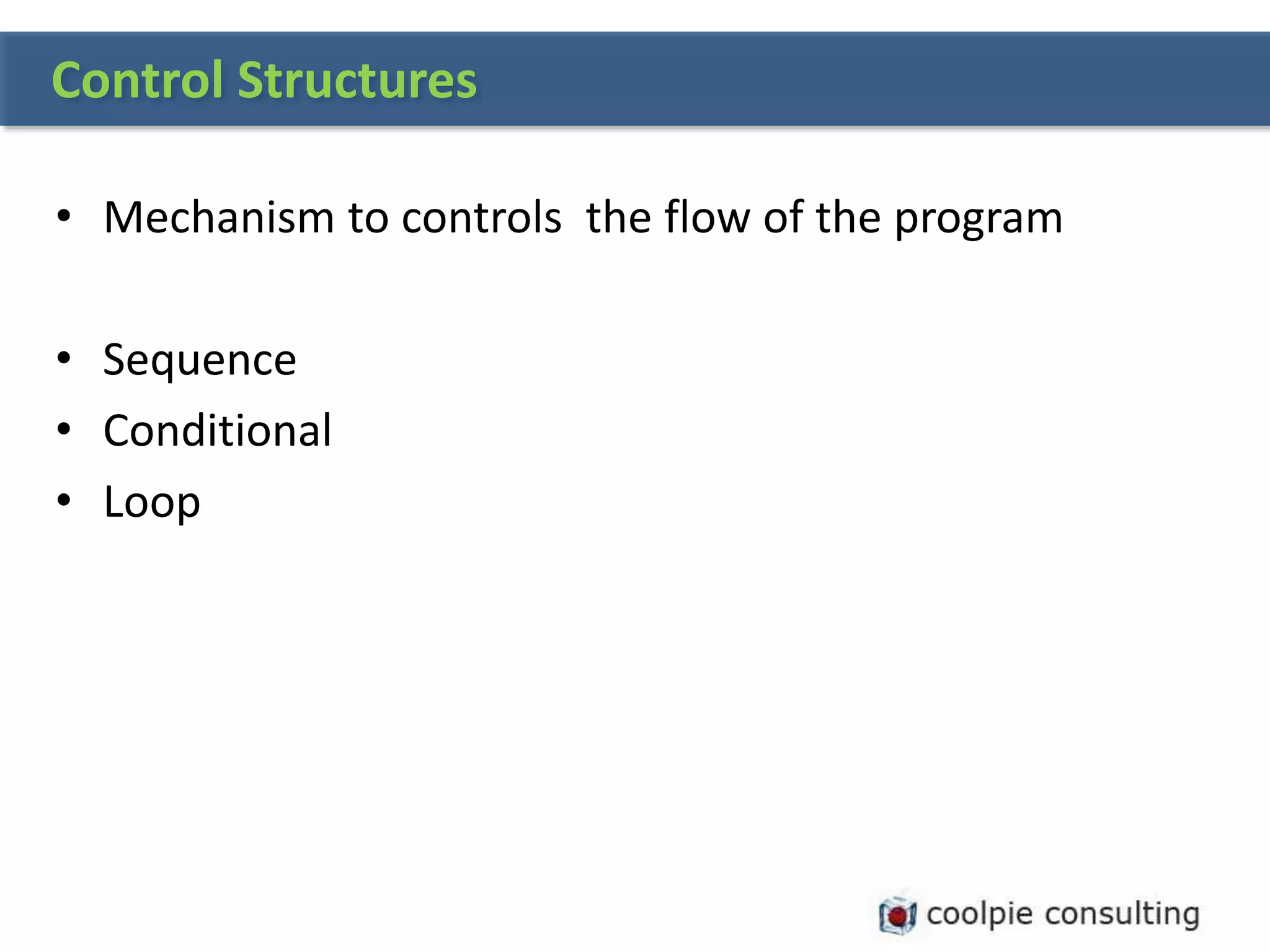

15. • Mechanism to controls the flow of the program
• Sequence
• Conditional
• Loop
Control Structures

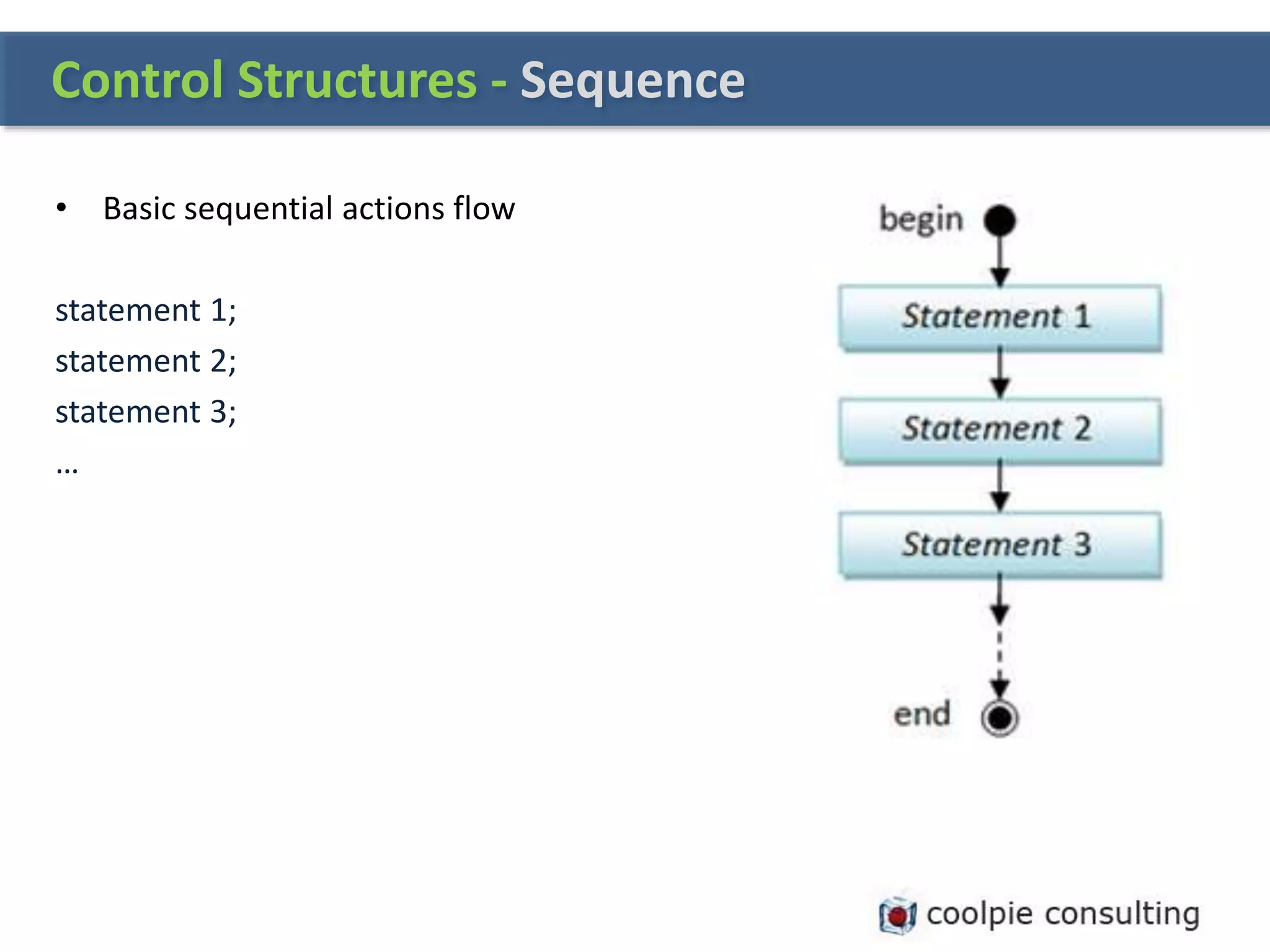

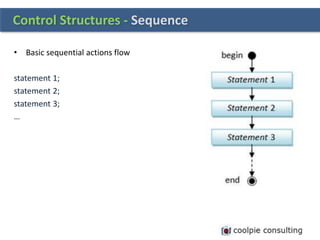

16. • Basic sequential actions flow
statement 1;
statement 2;
statement 3;
…
Control Structures - Sequence

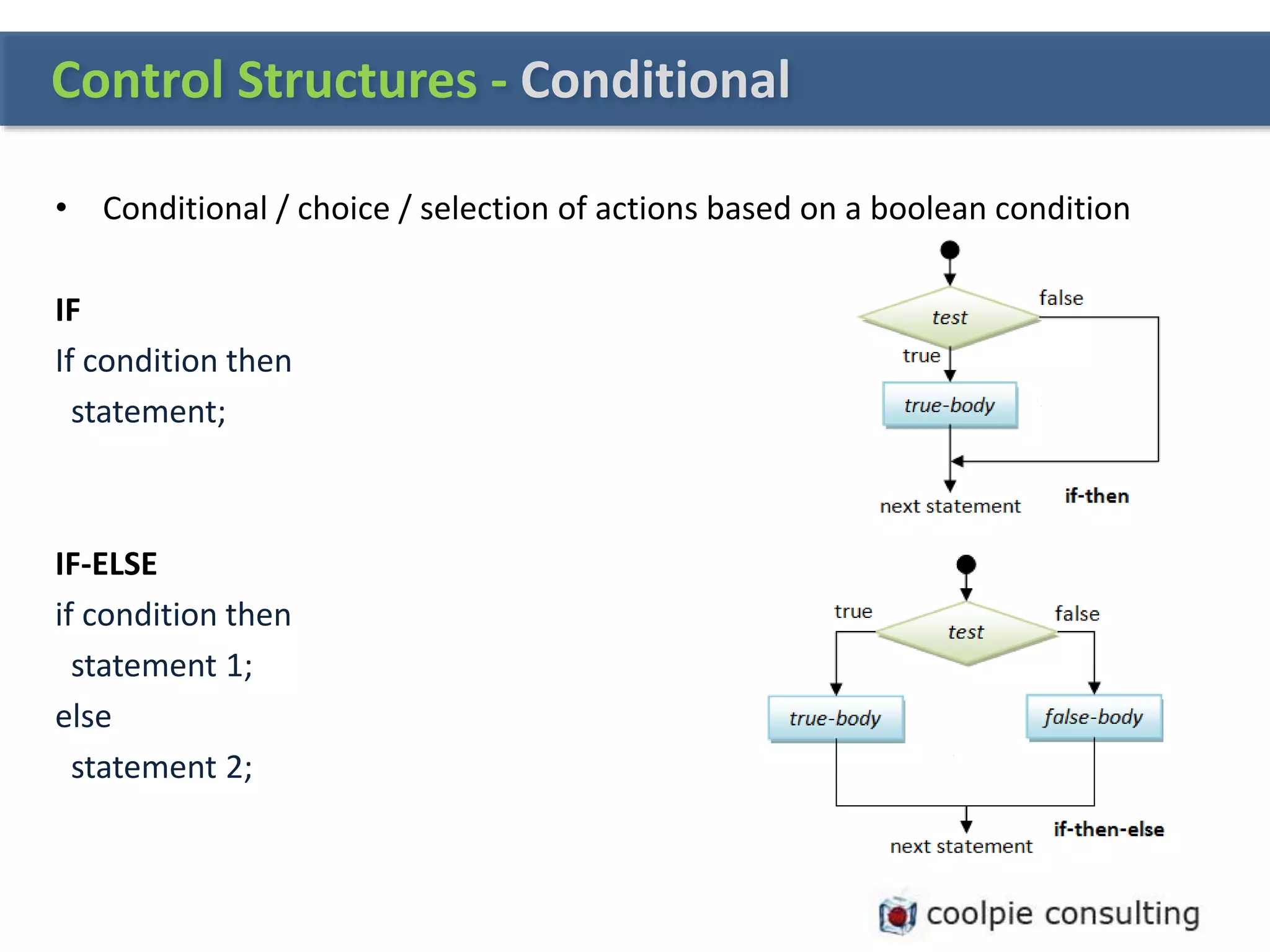

17. • Conditional / choice / selection of actions based on a boolean condition
IF
If condition then
statement;
IF-ELSE
if condition then
statement 1;
else
statement 2;
Control Structures - Conditional

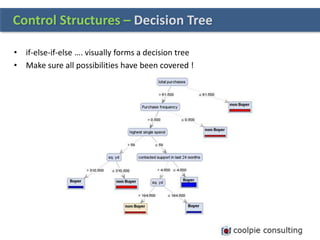

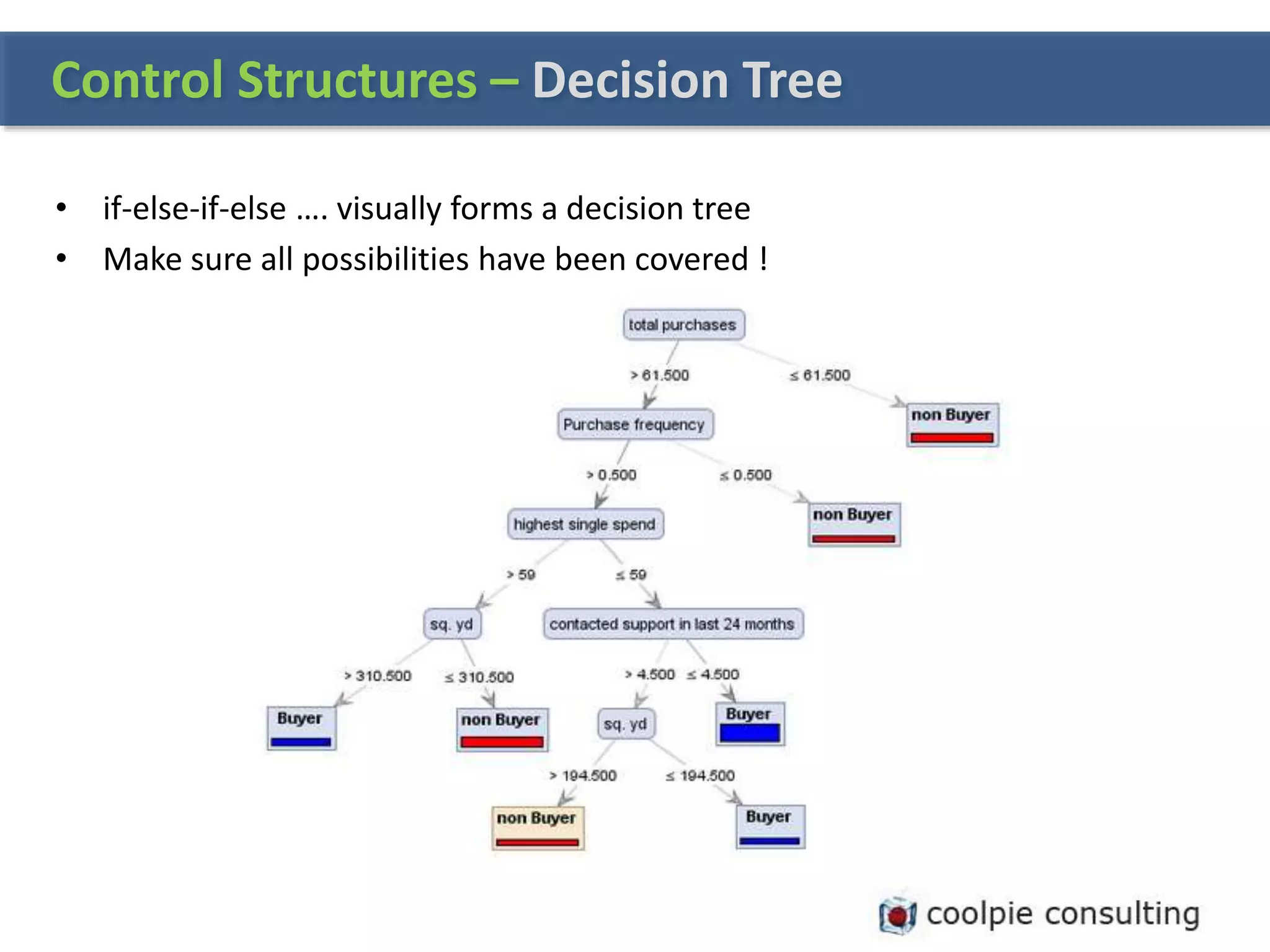

18. • if-else-if-else …. visually forms a decision tree
• Make sure all possibilities have been covered !
Control Structures – Decision Tree

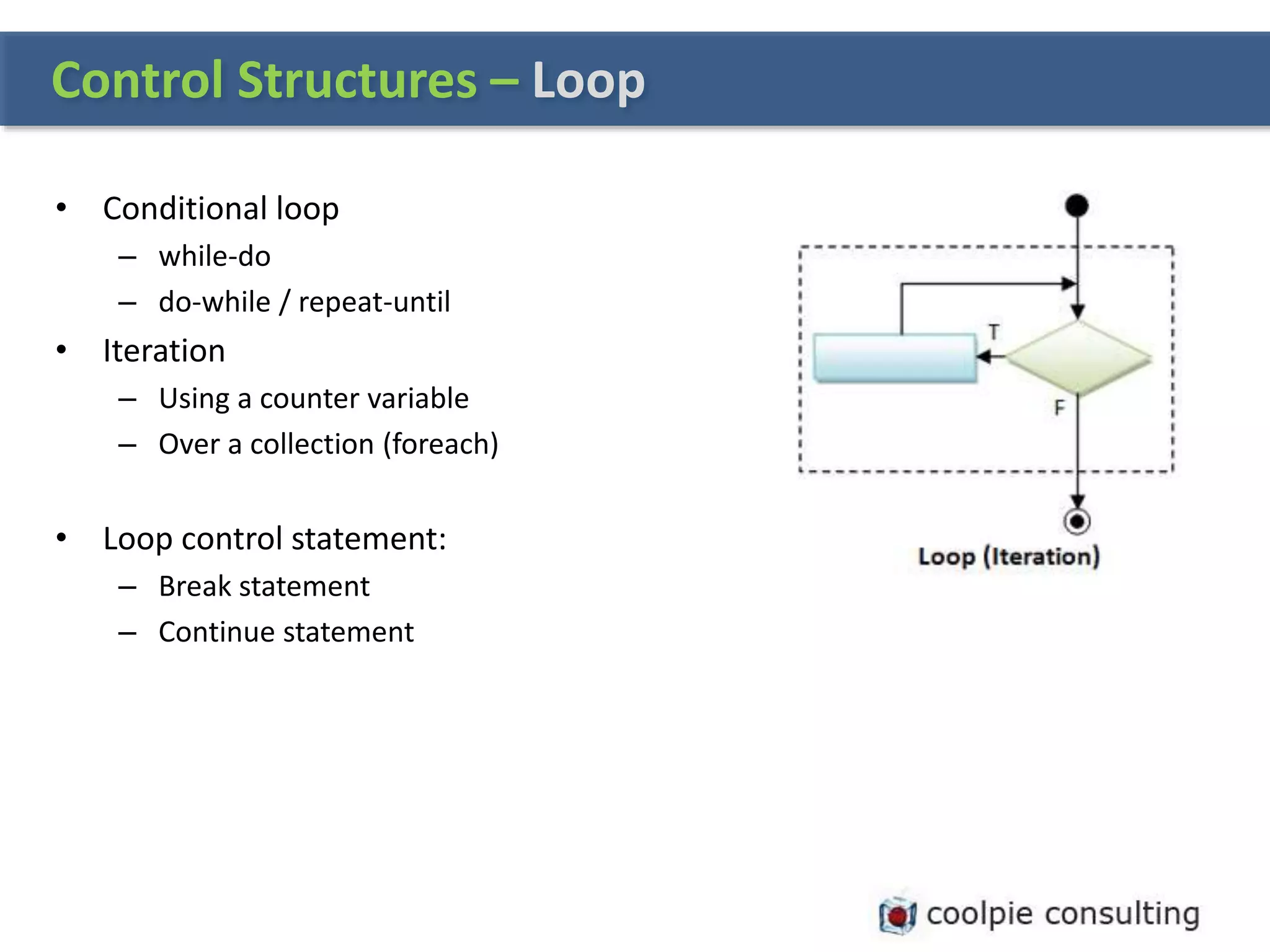

19. • Conditional loop
– while-do
– do-while / repeat-until
• Iteration
– Using a counter variable
– Over a collection (foreach)
• Loop control statement:
– Break statement
– Continue statement
Control Structures – Loop

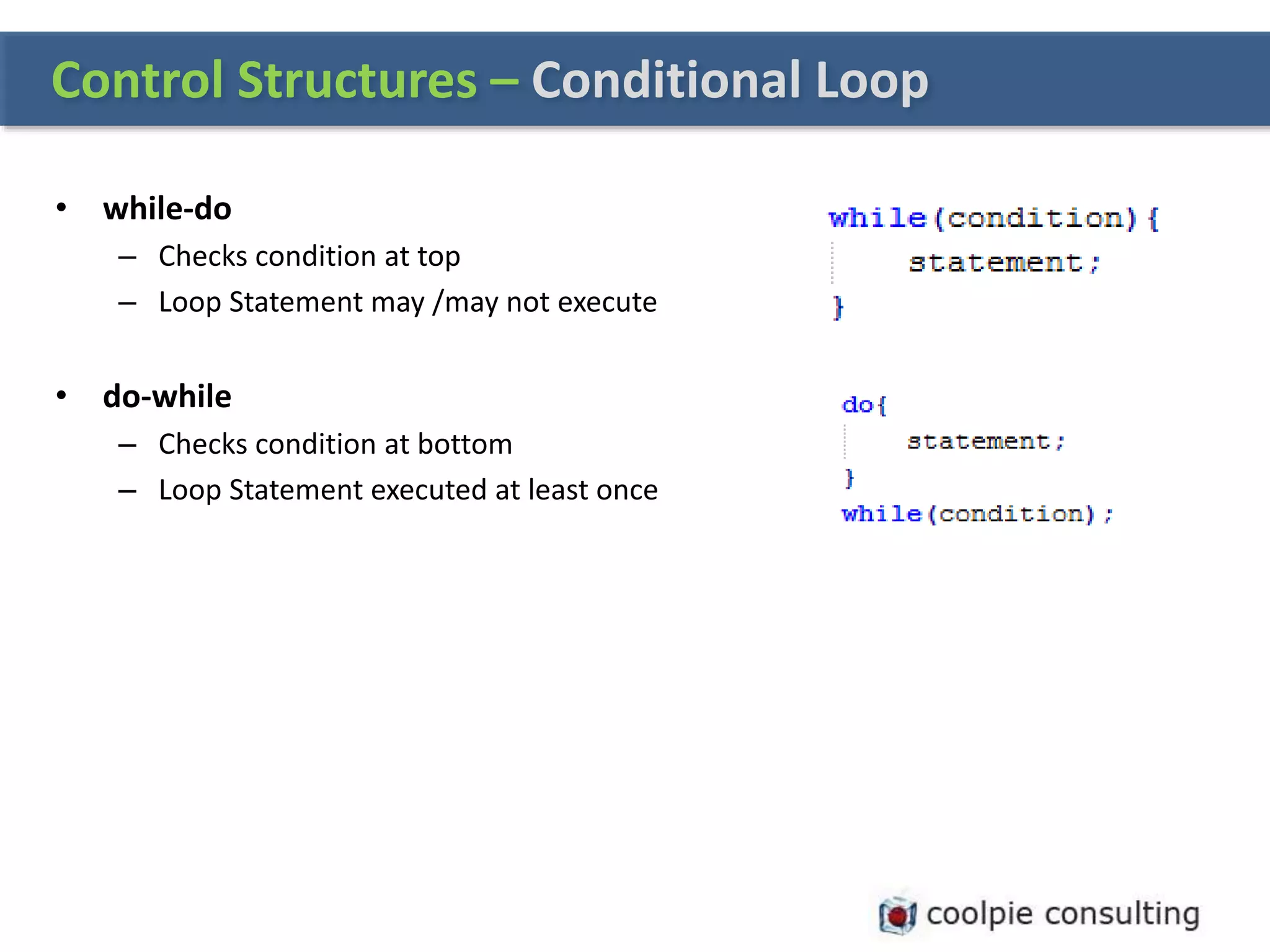

20. • while-do
– Checks condition at top
– Loop Statement may /may not execute
• do-while
– Checks condition at bottom
– Loop Statement executed at least once
Control Structures – Conditional Loop

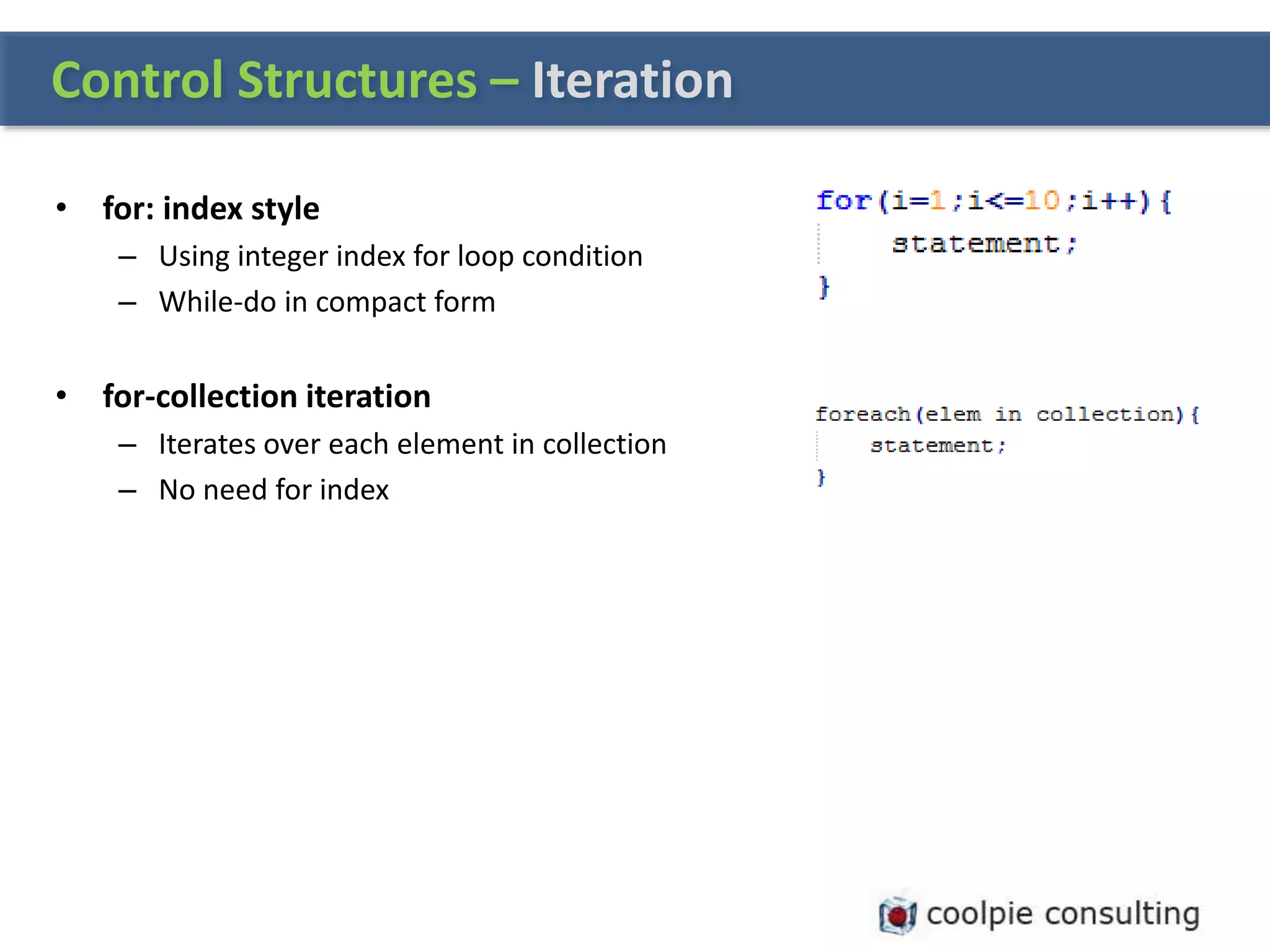

21. • for: index style
– Using integer index for loop condition
– While-do in compact form
• for-collection iteration
– Iterates over each element in collection
– No need for index
Control Structures – Iteration

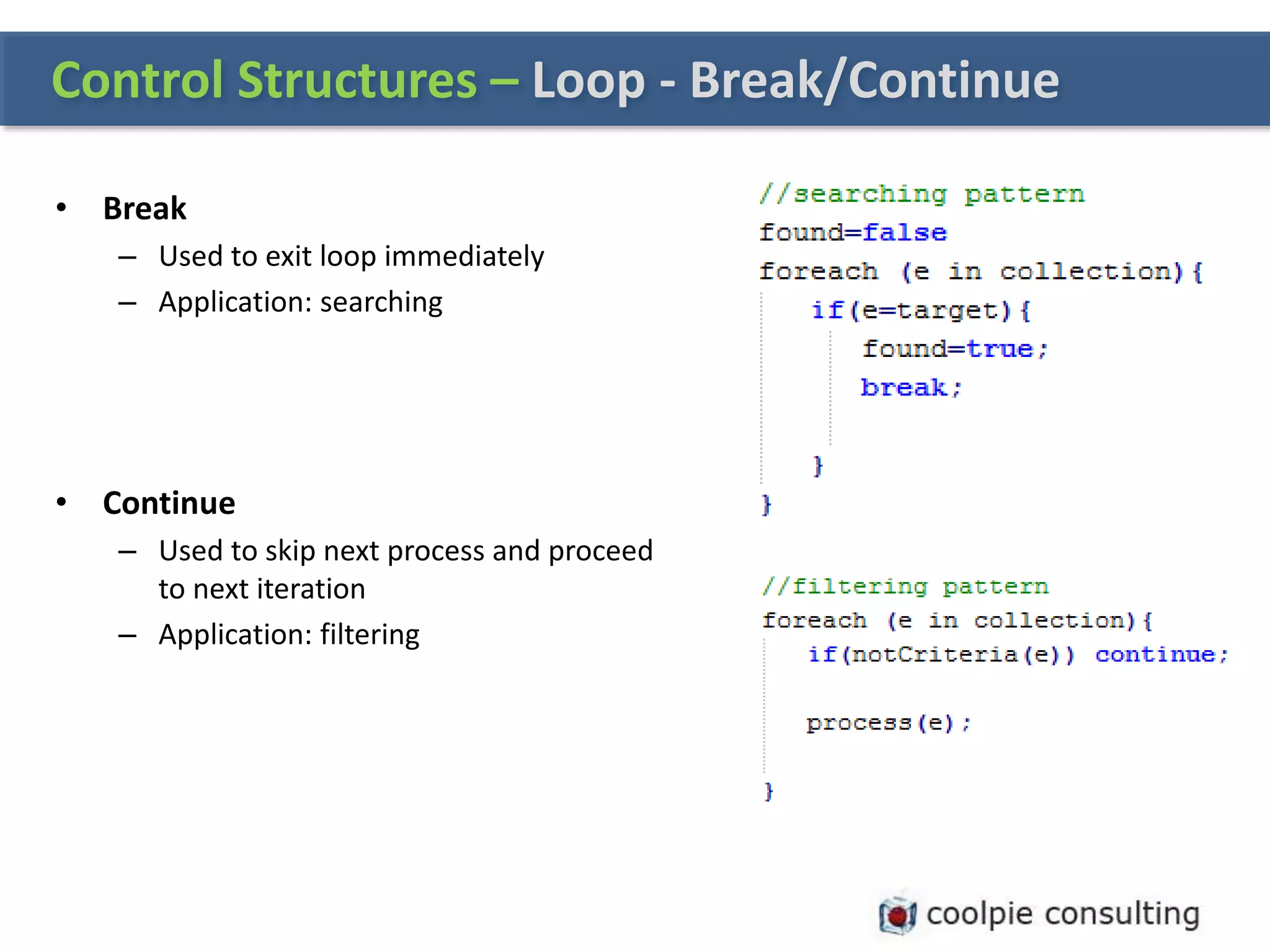

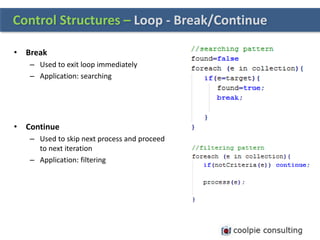

22. • Break
– Used to exit loop immediately
– Application: searching
• Continue
– Used to skip next process and proceed
to next iteration
– Application: filtering
Control Structures – Loop - Break/Continue

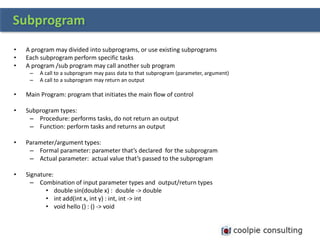

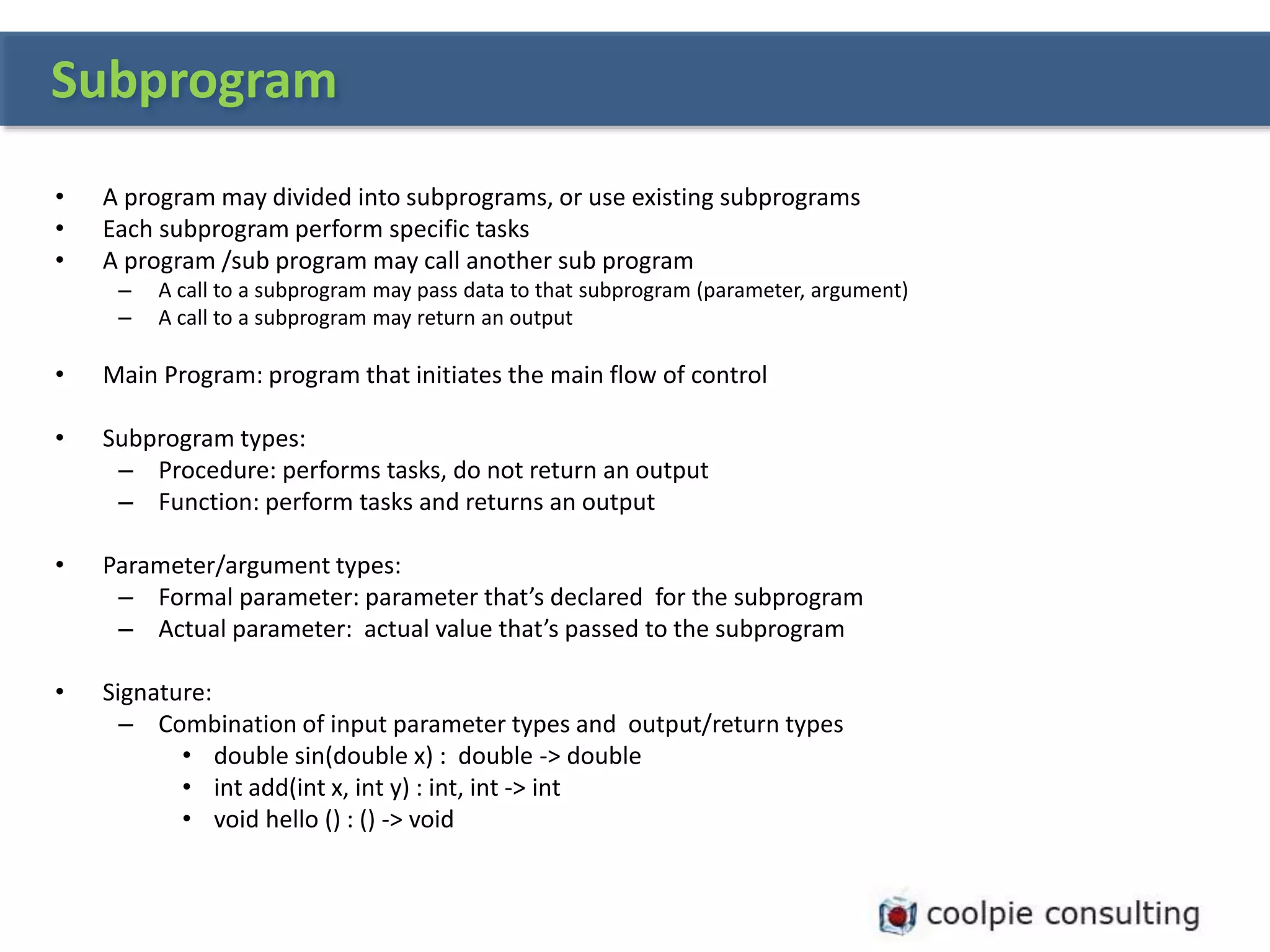

23. • A program may divided into subprograms, or use existing subprograms
• Each subprogram perform specific tasks
• A program /sub program may call another sub program
– A call to a subprogram may pass data to that subprogram (parameter, argument)
– A call to a subprogram may return an output
• Main Program: program that initiates the main flow of control
• Subprogram types:
– Procedure: performs tasks, do not return an output
– Function: perform tasks and returns an output
• Parameter/argument types:
– Formal parameter: parameter that’s declared for the subprogram
– Actual parameter: actual value that’s passed to the subprogram
• Signature:
– Combination of input parameter types and output/return types
• double sin(double x) : double -> double
• int add(int x, int y) : int, int -> int
• void hello () : () -> void
Subprogram

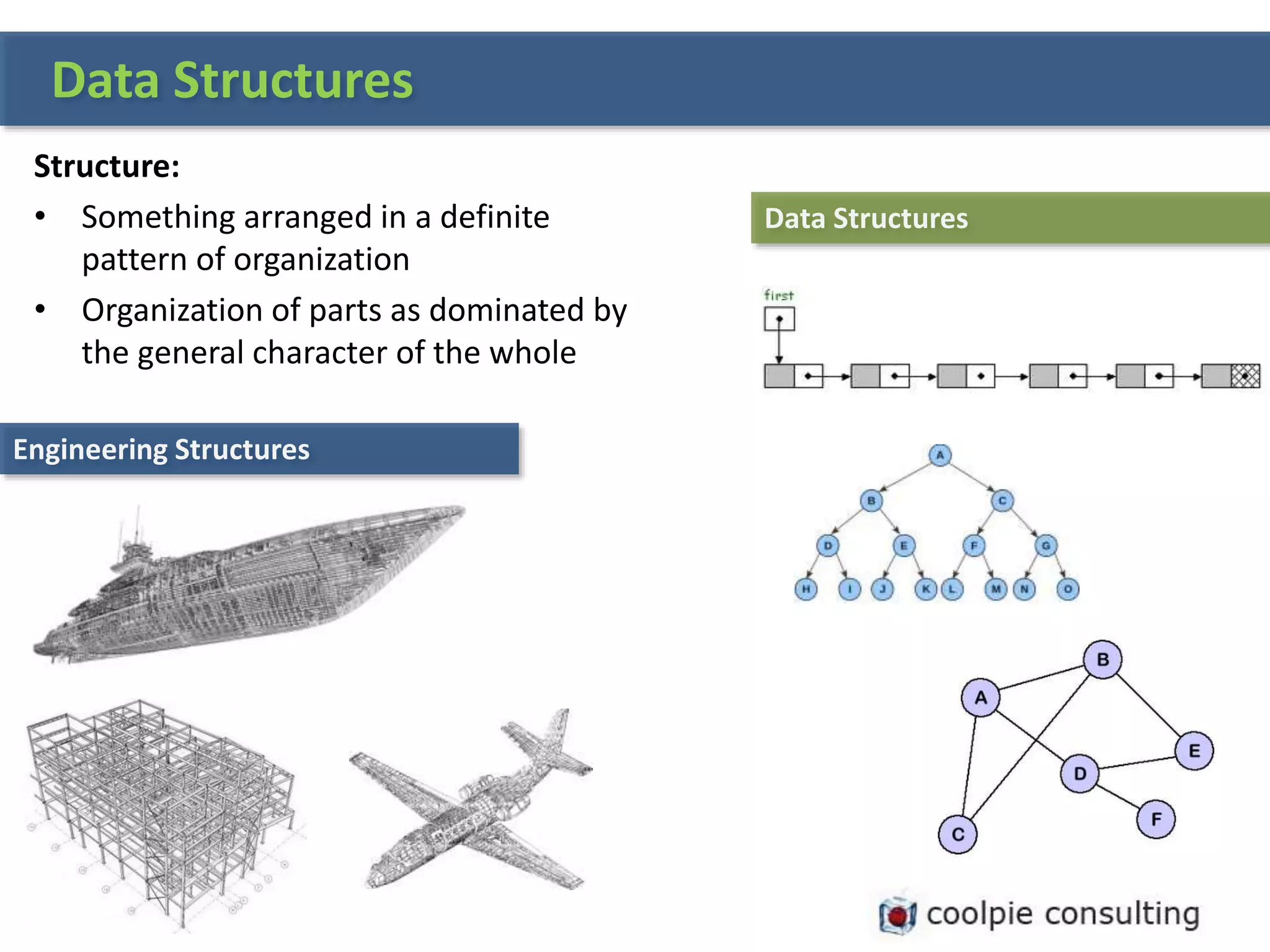

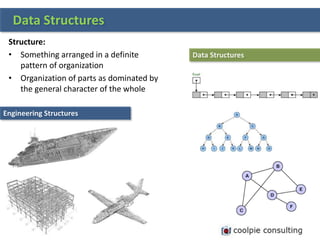

24. Data Structures
Engineering Structures
Data Structures
Structure:
• Something arranged in a definite
pattern of organization
• Organization of parts as dominated by
the general character of the whole

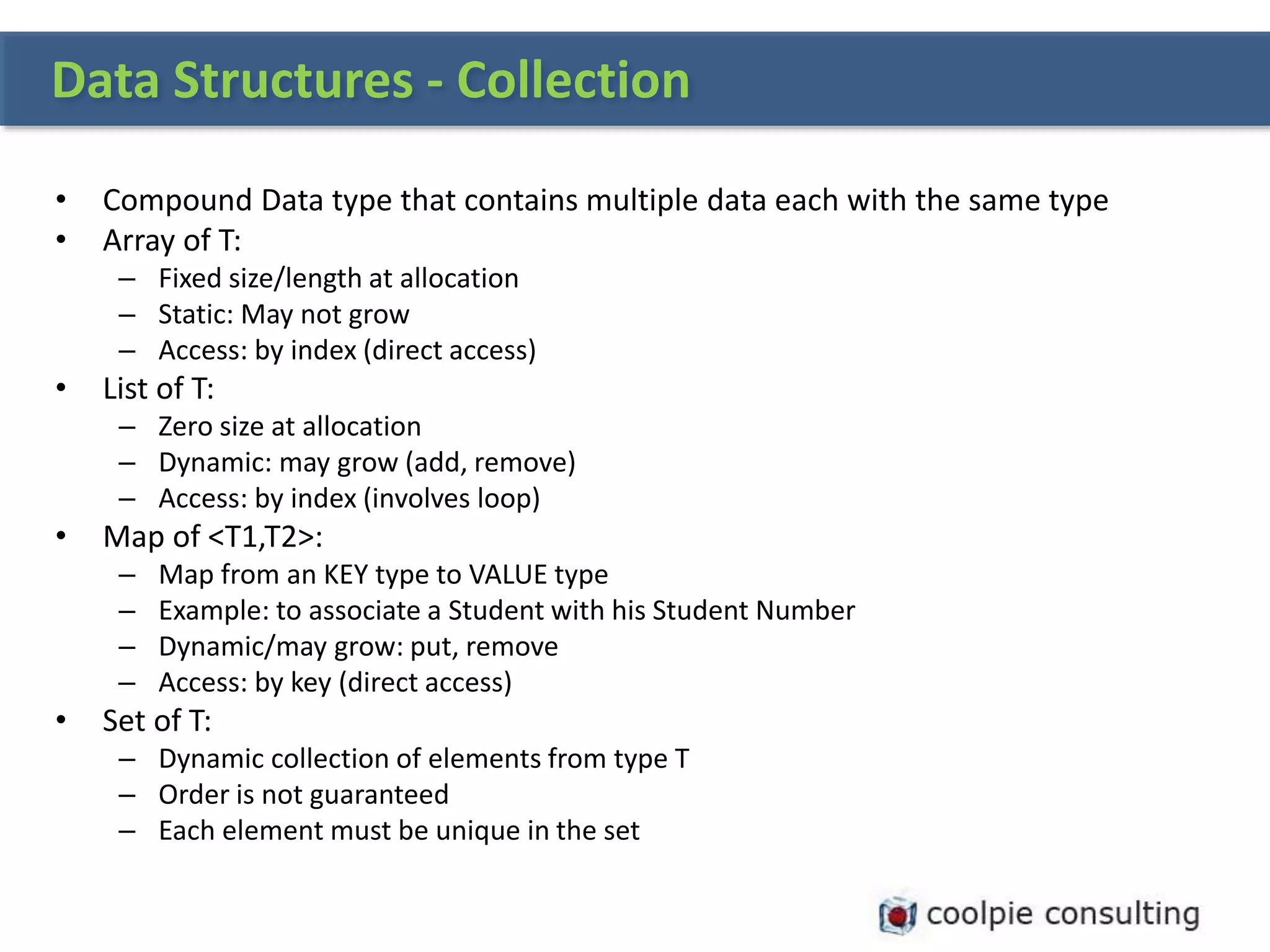

25. • Compound Data type that contains multiple data each with the same type
• Array of T:
– Fixed size/length at allocation
– Static: May not grow
– Access: by index (direct access)
• List of T:
– Zero size at allocation
– Dynamic: may grow (add, remove)
– Access: by index (involves loop)
• Map of <T1,T2>:
– Map from an KEY type to VALUE type
– Example: to associate a Student with his Student Number
– Dynamic/may grow: put, remove
– Access: by key (direct access)
• Set of T:
– Dynamic collection of elements from type T
– Order is not guaranteed
– Each element must be unique in the set
Data Structures - Collection

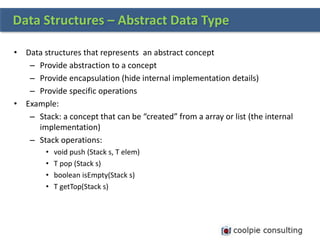

26. • Data structures that represents an abstract concept
– Provide abstraction to a concept
– Provide encapsulation (hide internal implementation details)
– Provide specific operations
• Example:
– Stack: a concept that can be “created” from a array or list (the internal
implementation)
– Stack operations:
• void push (Stack s, T elem)
• T pop (Stack s)
• boolean isEmpty(Stack s)
• T getTop(Stack s)
Data Structures – Abstract Data Type

27. Tanya Jawab
Christian A
Email: coolpie at gmail.com
Q & A
