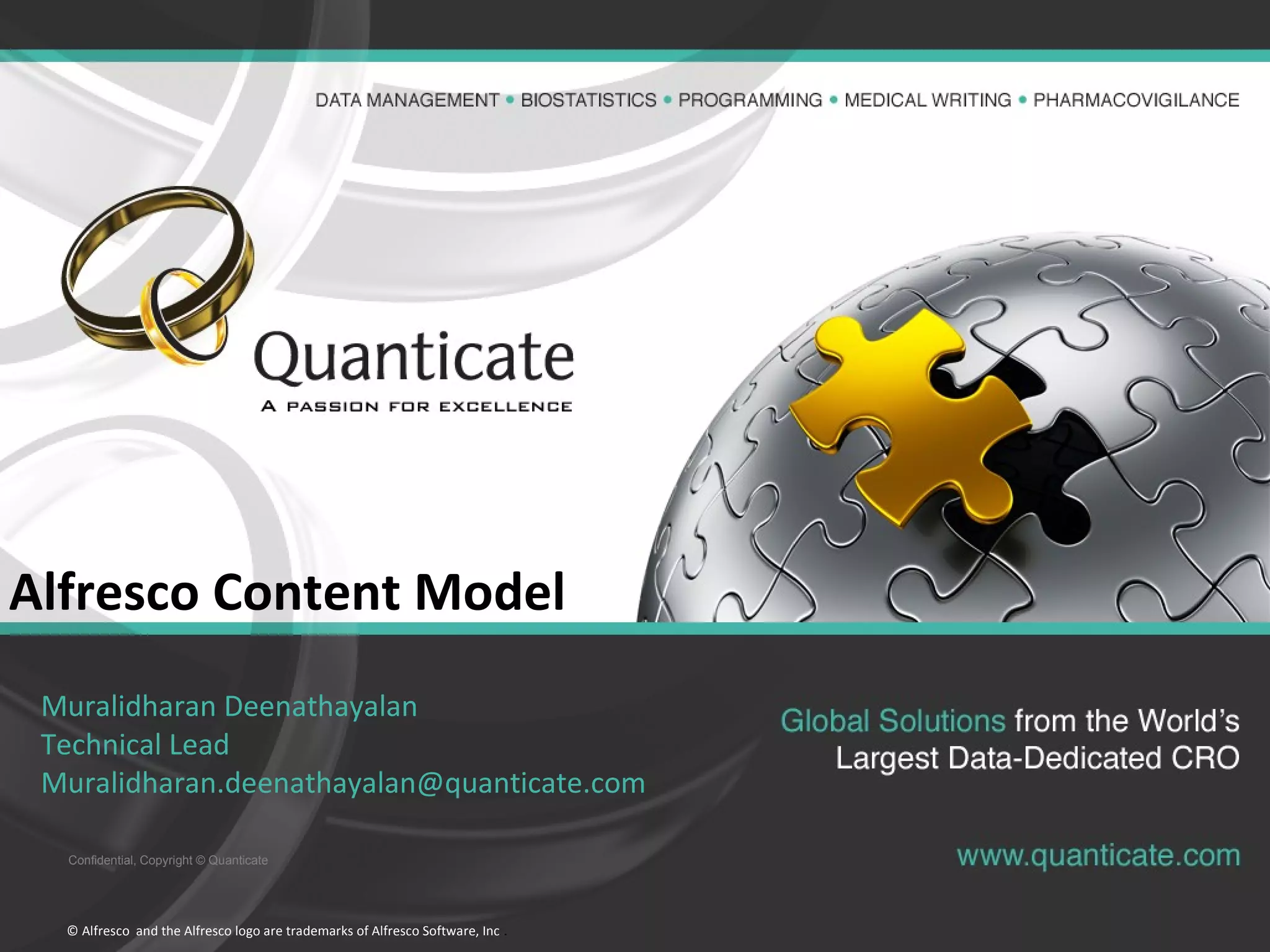

Alfresco Content Model
Muralidharan Deenathayalan
Technical Lead
Muralidharan.deenathayalan@quanticate.com
© Alfresco and the Alfresco logo are trademarks of Alfresco Software, Inc .

2. Confidential, Copyright © Quanticate

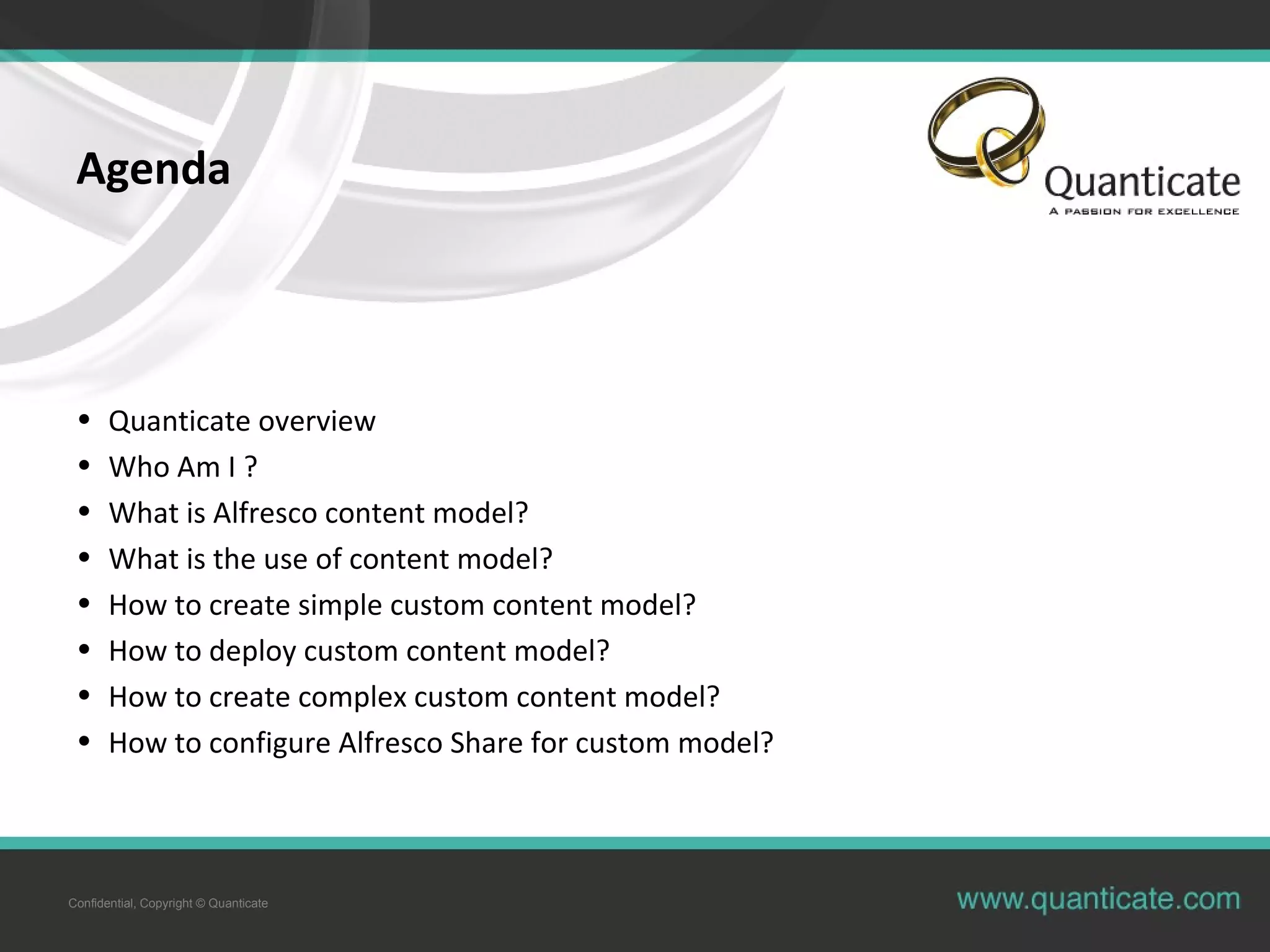

Agenda
• Quanticate overview
• Who Am I ?
• What is Alfresco content model?
• What is the use of content model?
• How to create simple custom content model?
• How to deploy custom content model?
• How to create complex custom content model?
• How to configure Alfresco Share for custom model?

3. Confidential, Copyright © Quanticate
Quanticate Overview
• 12+ years of success journey in CRO industry
• What we do
 Biostatistics Services
 Clinical Programming Services
 Clinical Data Management
 Medical Writing Services
 Pharmacovigilance Services
 Clinical Trial Technology
 Centralized Clinical Data Sciences
 QuantiCliQ - Clinical Intelligence from Quanticate
• 200+ employees
• Awards
 5 Category Winner in 2014 CRO Leadership Awards
 Innovation in the 2013 CRO Leadership Awards

4. Confidential, Copyright © Quanticate
Quanticate Overview
Quanticate Branches
 Hitchin, Hertfordshire, UK (HQ)
 Manchester, UK
 Canterbury, UK
 Edinburgh, UK
 Durham, North Carolina, US (US HQ)
 Warsaw, Poland
 Bloemfontein, South Africa
 Bangalore, India (2 Offices)

5. Confidential, Copyright © Quanticate
Who Am I ?
• 7+ years of experience in Microsoft technologies like Asp.net, C#, SQL server and SharePoint
• 2+ years of experience in open source technologies like Java, Alfresco and Apache Cassandra
• Csharpcorner MVP
• Frequent blogger
• Knowledge sharing in Alfresco Forums

6. Confidential, Copyright © Quanticate
What is Content Model?
• In RDBMS world it is similar to Database & tables.
• A content model describes the data being stored in the repository.
• A content model is a collection of related content types and aspects for a node.
• Each content model defines the following
 One or more types
 One or more aspects
 One or more properties
 Relationships / Associations

7. Confidential, Copyright © Quanticate
What is the use of Content Model?
• It defines how a node in the content repository is constrained.
• Structured way of storing data into Repository

8. Confidential, Copyright © Quanticate
Simple Custom Content Model
• Things to be consider before creating content model
 Custom namespace
 Property name
 Aspect name
 Associations
 Constraints
 Type name
 Indexing

9. Confidential, Copyright © Quanticate
Simple Custom Content Model
– Code Snippet
<aspects>
<aspect name="quanticate:projectSite">
<title>Quanticate Project Site</title>
<properties>
<property name="quanticate:projectName">
<title>Project Name</title>
<type>d:text</type>
<mandatory>true</mandatory>
<multiple>false</multiple>
</property>
<property name="quanticate:projectStartDate">
<title>Start Date</title>
<type>d:date</type>
<mandatory>true</mandatory>
<multiple>false</multiple>
</property>
</properties>
</aspect>
</aspects>

10. Confidential, Copyright © Quanticate
Simple Custom Content Model - Demo

11. Confidential, Copyright © Quanticate
Deploying Custom Content Model
• There are two approaches to deploying a content model into the content repository:
 Bootstrap
 The bootstrap approach to deploying a content model involves modifying Alfresco content repository XML
configuration files to register the content model.
 Dynamic
 Placing the content model xml files under Company Home/Data Dictionary/Models.

12. Confidential, Copyright © Quanticate
Deploying Custom Content Model
- Code Snippet
<!-- Bootstrap Custom Models -->
<bean id=“<bean-id>"
parent="dictionaryModelBootstrap" >
<property name="models">
<list>
<value>alfresco/module/<modulename>/model/quanticate-model.xml</value>
</list>
</property>
</bean>

13. Confidential, Copyright © Quanticate
Configure share for custom model
• Use Alfresco Share custom configuration xml file
<!-- Document Library config section -->
<config evaluator="string-compare" condition="DocumentLibrary">
……..
………
<aspects>
<visible>
<aspect name="quanticate:projectSite" />
</visible>
………
</aspects>

14. Confidential, Copyright © Quanticate
Deploying Custom Content Model - Demo

15. Confidential, Copyright © Quanticate
Complex Custom Content Model
• Things to be consider before creating content model
 Custom namespace
 Property name
 Aspect name
 Associations
 Constraints
 Type name
 Indexing

16. Confidential, Copyright © Quanticate
Complex Custom Content Model
– Code Snippet
<type name="quanticate:site">
<title>Quanticate Site</title>
<parent>st:site</parent>
<properties>
<property name="quanticate:siteType">
<title>Site Type</title>
<type>d:text</type>
<default>Research Site</default>
<constraints>
<constraint name="quanticate:siteTypeConstraint" type="LIST">
<parameter name="allowedValues">
<list>
<value>Research Site</value>
<value>Demo Site</value>
<value>Production Site</value>
</list>
</parameter>
</constraint>
</constraints>
……

17. Confidential, Copyright © Quanticate
Complex Custom Content Model
– Code Snippet
<associations>
<association name="quanticate:projectOwner">
<title>Project Owner</title>
<source>
<mandatory>false</mandatory>
<many>false</many>
</source>
<target>
<class>cm:person</class>
<mandatory>false</mandatory>
<many>false</many>
</target>
</association>
</associations>
</types>

18. Confidential, Copyright © Quanticate
Configure share for custom model
• Use Alfresco Share custom configuration xml file
<config evaluator="node-type" condition="quanticate:site">
<forms>
<form>
<field-visibility>
<show id="cm:name" /> …….
<show id="quanticate:siteType"/>
</field-visibility>
<appearance> …… </appearance>
……
</field>
</form>
</forms>
</config>

19. Confidential, Copyright © Quanticate
Configure share for custom model-Demo

20. Confidential, Copyright © Quanticate
Q & A

21. Confidential, Copyright © Quanticate
Alfresco Forum
https://forums.alfresco.com/users/muralidharand
Coding-Freaks.Net
www.codingfreaks.net
Quanticate OPDev Twitter
https://twitter.com/quanticateopdev
Twitter
www.Twitter.com/muralidharand
