This document provides an overview of Apache Airavata, an open source software framework for executing and managing computational jobs and workflows across different computing resources. It discusses Apache Airavata's architectural goals of being distributed, scalable, fault tolerant, secure, and component-based. The key components of Apache Airavata's architecture are described, including how it supports multiple gateways and job monitoring. The document also outlines some of Apache Airavata's security features and how new computational resources and clients can integrate with it.

1. Apache AiravataBy Shameera Rathnayaka

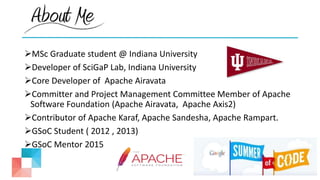

2. About me
MSc Graduate student @ Indiana University
Developer of SciGaP Lab, Indiana University
Core Developer of Apache Airavata
Committer and Project Management Committee Member of Apache
Software Foundation (Apache Airavata, Apache Axis2)
Contributor of Apache Karaf, Apache Sandesha, Apache Rampart.
GSoC Student ( 2012 , 2013)
GSoC Mentor 2015

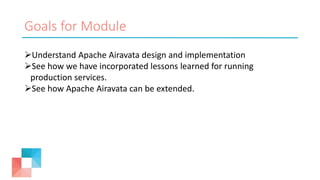

3. Goals for Module
Understand Apache Airavata design and implementation
See how we have incorporated lessons learned for running
production services.
See how Apache Airavata can be extended.

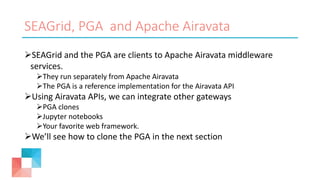

4. SEAGrid, PGA and Apache Airavata
SEAGrid and the PGA are clients to Apache Airavata middleware
services.
They run separately from Apache Airavata
The PGA is a reference implementation for the Airavata API
Using Airavata APIs, we can integrate other gateways
PGA clones
Jupyter notebooks
Your favorite web framework.
We’ll see how to clone the PGA in the next section

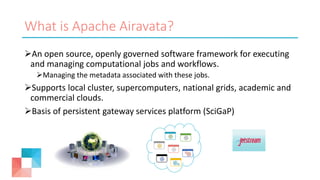

5. What is Apache Airavata?
An open source, openly governed software framework for executing
and managing computational jobs and workflows.
Managing the metadata associated with these jobs.
Supports local cluster, supercomputers, national grids, academic and
commercial clouds.
Basis of persistent gateway services platform (SciGaP)

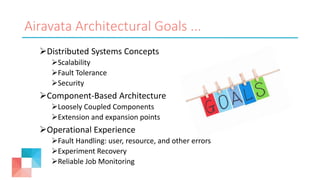

6. Airavata Architectural Goals ...
Distributed Systems Concepts
Scalability
Fault Tolerance
Security
Component-Based Architecture
Loosely Coupled Components
Extension and expansion points
Operational Experience
Fault Handling: user, resource, and other errors
Experiment Recovery
Reliable Job Monitoring

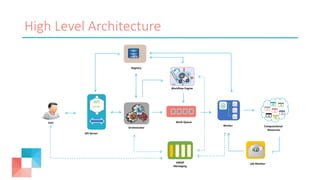

7. High Level Architecture
AMQP
Messaging
API
server
Work Queue
Worker
Orchestrator Computational
Resources
Job Monitor
Registry
Workflow Engine
API Server
User

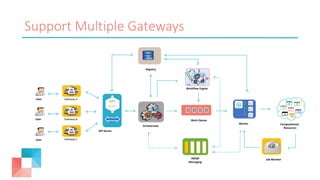

8. Support Multiple Gateways
AMQP
Messaging
API
server
Work Queue
Worker
Orchestrator
Computational
Resources
Job Monitor
Registry
Workflow Engine
API Server
Gateway B
Gateway C
Gateway AUser
User
User

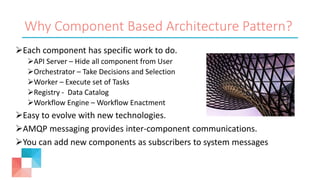

9. Why Component Based Architecture Pattern?
Each component has specific work to do.
API Server – Hide all component from User
Orchestrator – Take Decisions and Selection
Worker – Execute set of Tasks
Registry - Data Catalog
Workflow Engine – Workflow Enactment
Easy to evolve with new technologies.
AMQP messaging provides inter-component communications.
You can add new components as subscribers to system messages

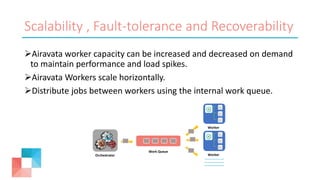

10. Scalability , Fault-tolerance and Recoverability
Airavata worker capacity can be increased and decreased on demand
to maintain performance and load spikes.
Airavata Workers scale horizontally.
Distribute jobs between workers using the internal work queue.
Worker
Worker
Work Queue
Orchestrator

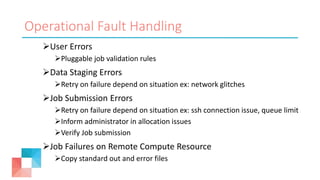

11. Operational Fault Handling
User Errors
Pluggable job validation rules
Data Staging Errors
Retry on failure depend on situation ex: network glitches
Job Submission Errors
Retry on failure depend on situation ex: ssh connection issue, queue limit
Inform administrator in allocation issues
Verify Job submission
Job Failures on Remote Compute Resource
Copy standard out and error files

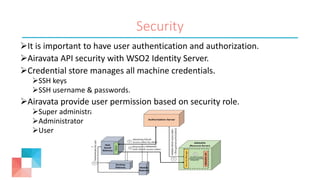

12. Security
It is important to have user authentication and authorization.
Airavata API security with WSO2 Identity Server.
Credential store manages all machine credentials.
SSH keys
SSH username & passwords.
Airavata provide user permission based on security role.
Super administrator
Administrator
User

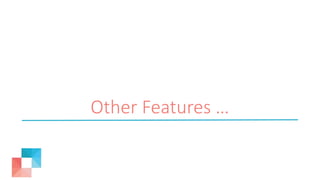

13. Other Features …

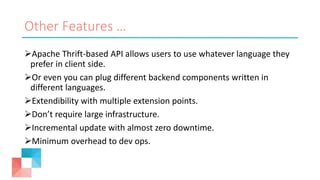

14. Other Features …
Apache Thrift-based API allows users to use whatever language they
prefer in client side.
Or even you can plug different backend components written in
different languages.
Extendibility with multiple extension points.
Don’t require large infrastructure.
Incremental update with almost zero downtime.
Minimum overhead to dev ops.

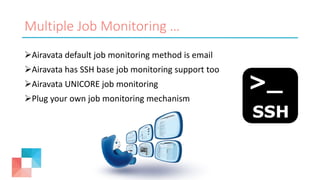

15. Multiple Job Monitoring …
Airavata default job monitoring method is email
Airavata has SSH base job monitoring support too
Airavata UNICORE job monitoring
Plug your own job monitoring mechanism

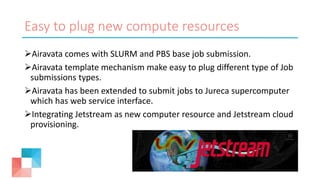

16. Easy to plug new compute resources
Airavata comes with SLURM and PBS base job submission.
Airavata template mechanism make easy to plug different type of Job
submissions types.
Airavata has been extended to submit jobs to Jureca supercomputer
which has web service interface.
Integrating Jetstream as new computer resource and Jetstream cloud
provisioning.

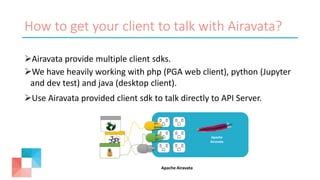

17. How to get your client to talk with Airavata?
Airavata provide multiple client sdks.
We have heavily working with php (PGA web client), python (Jupyter
and dev test) and java (desktop client).
Use Airavata provided client sdk to talk directly to API Server.
Apache
Airavata
Apache Airavata

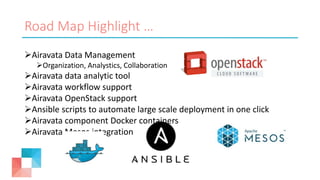

18. Road Map Highlight …
Airavata Data Management
Organization, Analystics, Collaboration
Airavata data analytic tool
Airavata workflow support
Airavata OpenStack support
Ansible scripts to automate large scale deployment in one click
Airavata component Docker containers
Airavata Mesos integration

19. Questions ?
syodage@indiana.edu

20. Additional Resources

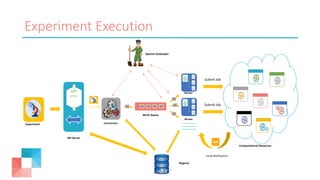

21. Experiment Execution
Worker
Worker
Computational Resources
Email Notification
Submit Job
Submit Job
API
server
Experiment
API Server
Registry
Apache Zookeeper
Work Queue
Orchestrator

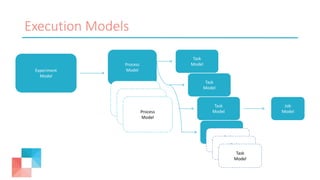

22. Execution Models
Experiment
Model
Process
Model
Task
Model
Job
Model
Task
Model
Task
Model
Task
Model
Process
ModelProcess
ModelProcess
Model
Task
ModelTask
ModelTask
Model

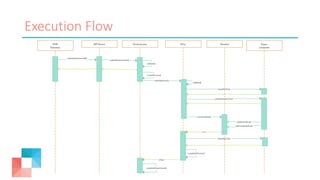

23. Execution Flow
