The document discusses building AI applications on edge devices, addressing key considerations like latency, autonomy, connectivity, security, and privacy. It covers hardware and software choices for project requirements, including object recognition and response times, highlighting various architectures and optimization techniques. The conclusion emphasizes validating use cases, performance, and the need for a continuous integration pipeline in the context of rapidly evolving technology.

1. AI auf Edge Geräten
Dominik Helleberg Building IoT / 03.04.2019

2. AI or Machine Learning?
3

3. If it is written in Python, it's probably
Machine Learning.
If it is written in PowerPoint, it's
probably AI.
4 https://twitter.com/matvelloso/status/1065778379612282885?lang=de

4. Scenario
5

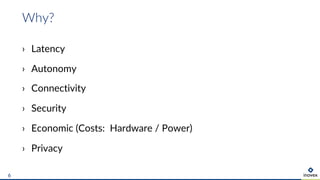

5. Why?
6
› Latency
› Autonomy
› Connectivity
› Security
› Economic (Costs: Hardware / Power)
› Privacy

6. Privacy

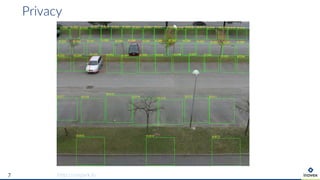

7 http://cnrpark.it/

7. Privacy
8
{

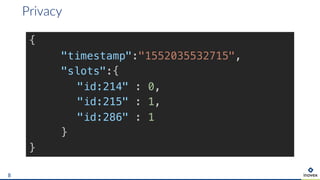

"timestamp":"1552035532715",
"slots":{
"id:214" : 0,
"id:215" : 1,
"id:286" : 1
}
}

8. Examples
9

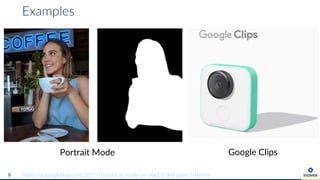

Google Clips
https://ai.googleblog.com/2017/10/portrait-mode-on-pixel-2-and-pixel-2-xl.html
Portrait Mode

9. Examples
10
ARCore
https://ai.googleblog.com/2019/03/real-time-ar-self-expression-with.html
Alexa
HikVision
Face Detection

10. Examples
11

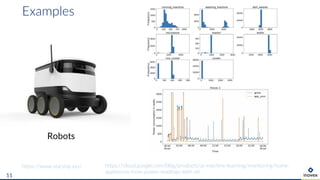

https://www.starship.xyz/
Robots
https://cloud.google.com/blog/products/ai-machine-learning/monitoring-home-
appliances-from-power-readings-with-ml

11. The Challenge
12

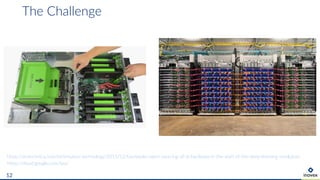

https://arstechnica.com/information-technology/2015/12/facebooks-open-sourcing-of-ai-hardware-is-the-start-of-the-deep-learning-revolution
https://cloud.google.com/tpu/

12. The Challenge
13

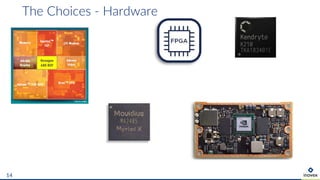

13. The Choices - Hardware
14

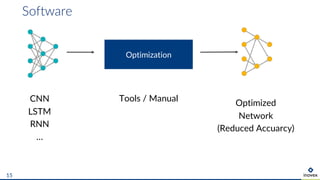

14. Software
15
CNN
LSTM
RNN
…
Optimization
Tools / Manual
Optimized
Network
(Reduced Accuarcy)

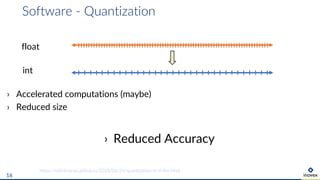

15. Software - Quantization
16
float
int
› Accelerated computations (maybe)
› Reduced size
https://sahnimanas.github.io/2018/06/24/quantization-in-tf-lite.html
› Reduced Accuracy

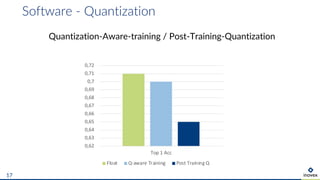

16. Software - Quantization
17
Quantization-Aware-training / Post-Training-Quantization
0,62
0,63
0,64
0,65
0,66
0,67
0,68
0,69
0,7
0,71
0,72
Top 1 Acc
Float Q-aware Training Post Training Q

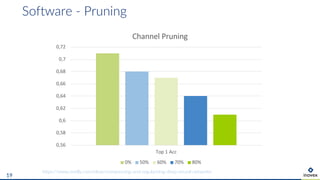

17. Software - Pruning
18
https://www.oreilly.com/ideas/compressing-and-regularizing-deep-neural-networks

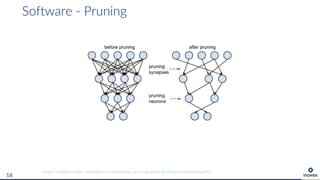

18. Software - Pruning
19
https://www.oreilly.com/ideas/compressing-and-regularizing-deep-neural-networks
0,56
0,58
0,6
0,62
0,64
0,66
0,68
0,7
0,72
Top 1 Acc
Channel Pruning
0% 50% 60% 70% 80%

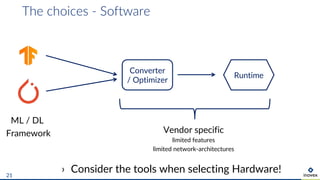

19. The choices - Software
21
Converter
/ Optimizer
ML / DL
Framework
Runtime
› Consider the tools when selecting Hardware!
Vendor specific
limited features
limited network-architectures

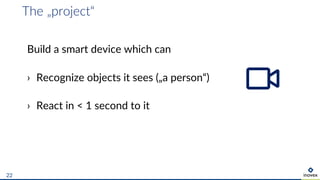

20. The „project“
22
Build a smart device which can
› Recognize objects it sees („a person“)
› React in < 1 second to it

21. The „project“
23
Recognize objects it sees -> Image Classification
Choose network architecture:
› LeNet
› VGG
› GoogleNet
› Inception
› ResNet
› SqueezeNet
› NasNet
› AlexNet
› MobileNet
› …
› Try to stick to existing nets!
› MobileNetV1

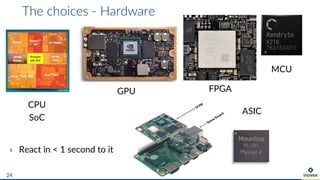

22. The choices - Hardware
24
CPU
SoC
GPU
ASIC
MCU
FPGA
› React in < 1 second to it

23. The choices - Hardware
25
› How to compare?
› GOPS / TOPS
› GFLOPS / TFLOPS
› Inference / Sec
› Inference / Watt
= =

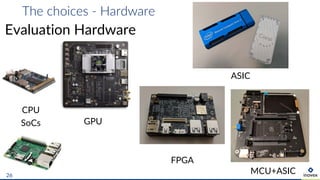

24. The choices - Hardware
26
Evaluation Hardware
GPU
FPGA
MCU+ASIC
ASIC
CPU
SoCs

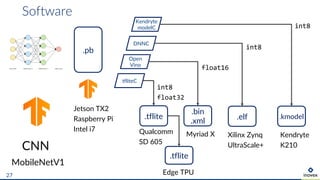

25. Software
27
CNN
MobileNetV1
.pb
Jetson TX2
Raspberry Pi
Intel i7
.tflite
tfliteC
Qualcomm
SD 605
int8
float32
Open
Vino
.bin
.xml
Myriad X
float16
DNNC
.elf
Xilinx Zynq
UltraScale+
int8
Kendryte
modelC
.kmodel
Kendryte
K210
int8
Edge TPU
.tflite

26. The „project“
28
0
100
200
300
400
500
600
700
800
MobileNetV1 in ms
Performance
RasPi Jetson TX2 Myriad-X Zynq ZU3EG Edge TPU K210 MCU

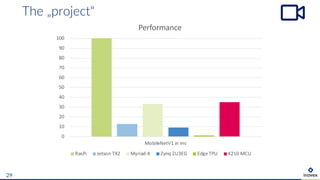

27. The „project“
29
0
10
20
30
40
50
60
70
80
90
100
MobileNetV1 in ms
Performance
RasPi Jetson TX2 Myriad-X Zynq ZU3EG Edge TPU K210 MCU

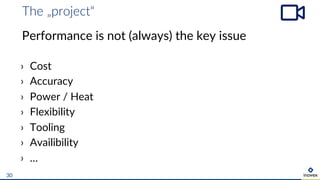

28. The „project“
30
Performance is not (always) the key issue
› Cost
› Accuracy
› Power / Heat
› Flexibility
› Tooling
› Availibility
› …

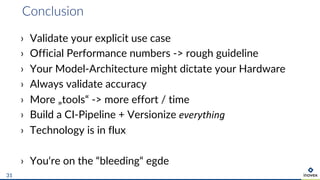

29. Conclusion
31
› Validate your explicit use case
› Official Performance numbers -> rough guideline
› Your Model-Architecture might dictate your Hardware
› Always validate accuracy
› More „tools“ -> more effort / time
› Build a CI-Pipeline + Versionize everything
› Technology is in flux
› You‘re on the “bleeding“ egde

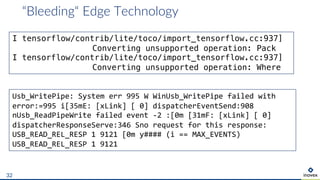

30. “Bleeding“ Edge Technology
32
I tensorflow/contrib/lite/toco/import_tensorflow.cc:937]
Converting unsupported operation: Pack
I tensorflow/contrib/lite/toco/import_tensorflow.cc:937]
Converting unsupported operation: Where
Usb_WritePipe: System err 995 W WinUsb_WritePipe failed with
error:=995 i[35mE: [xLink] [ 0] dispatcherEventSend:908
nUsb_ReadPipeWrite failed event -2 :[0m [31mF: [xLink] [ 0]
dispatcherResponseServe:346 Sno request for this response:
USB_READ_REL_RESP 1 9121 [0m y#### (i == MAX_EVENTS)
USB_READ_REL_RESP 1 9121

31. “Bleeding“ Edge Technology
33

32. The „project“
34
DEMO
