Agile User Stories and Goal Modeling. Samedi Heng, Manuel Kolp, Yves Wautelet. M. Kolp - LSINF 1210: Information Systems and Project Management, 2017-2018, UCLouvain

1. Agile User Stories and Goal Modeling
Samedi Heng, Manuel Kolp, Yves Wautelet
M. Kolp - LSINF 1210: Information Systems and Project Management, 2017-2018

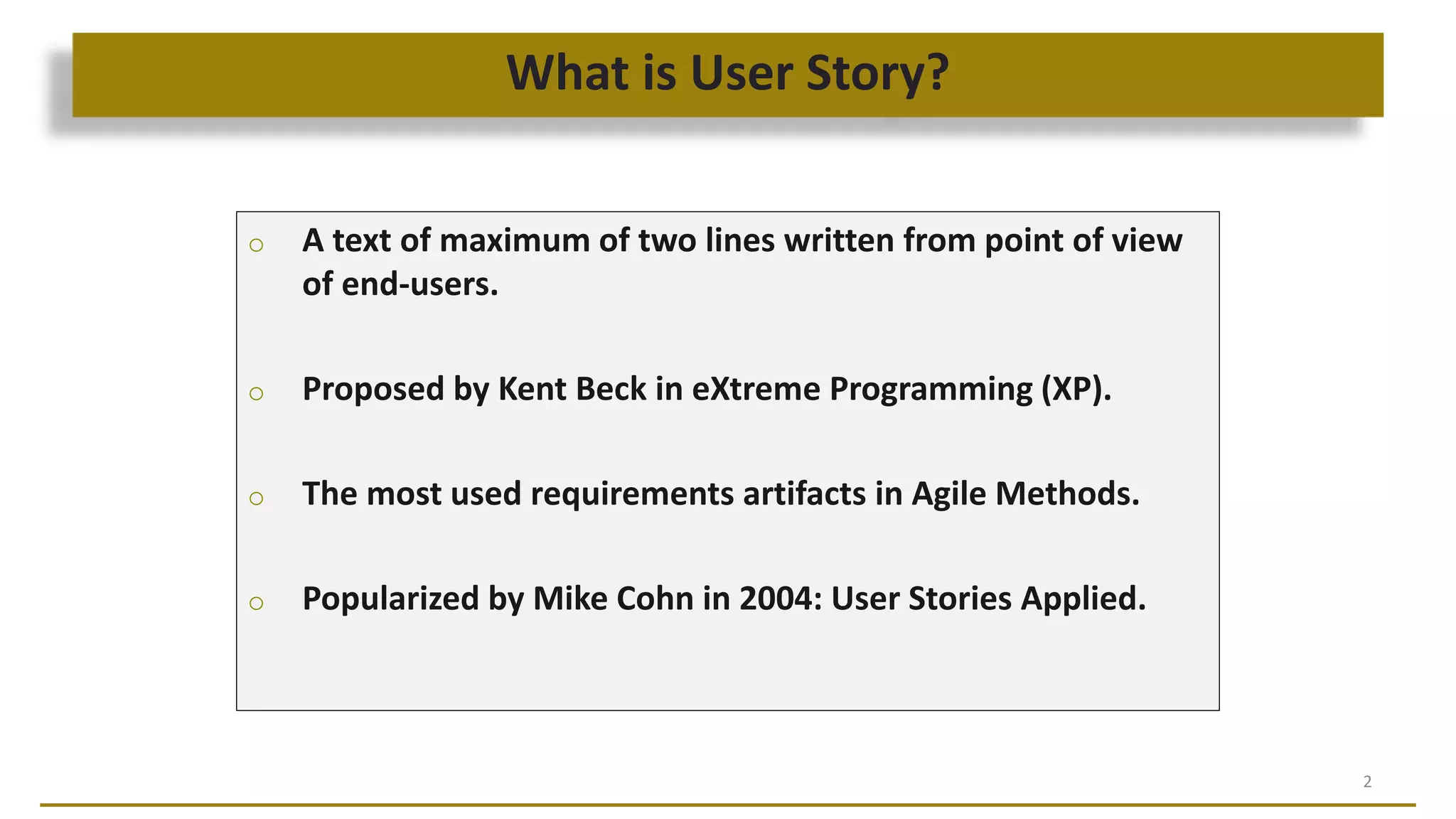

2. What is User Story?
2
o A text of maximum of two lines written from point of view
of end-users.
o Proposed by Kent Beck in eXtreme Programming (XP).
o The most used requirements artifacts in Agile Methods.
o Popularized by Mike Cohn in 2004: User Stories Applied.

3. What is User Story?
3
o The 3C:
 Card
 Conversation
 Confirmation (~Acceptance Test)

4. What is User Story?
4
o The 3C:
 Card
 Conversation
 Confirmation (~Acceptance Test)

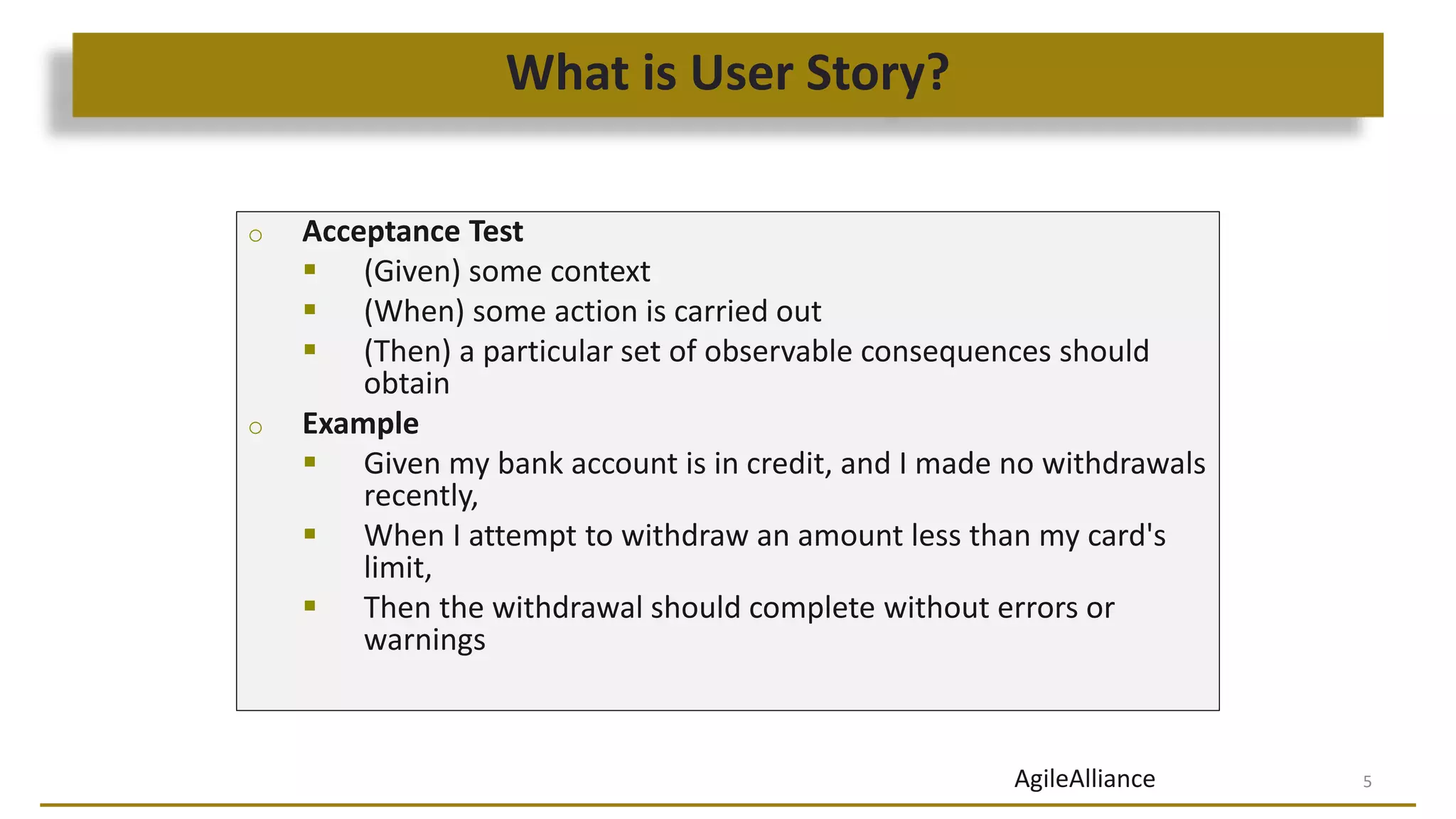

5. What is User Story?
5
o Acceptance Test
 (Given) some context
 (When) some action is carried out
 (Then) a particular set of observable consequences should
obtain
o Example
 Given my bank account is in credit, and I made no withdrawals
recently,
 When I attempt to withdraw an amount less than my card's
limit,
 Then the withdrawal should complete without errors or
warnings
AgileAlliance

6. What is User Story?
6
o The 3C:
 Card
 Conversation
 Confirmation
https://elearning.industriallogic.com/gh/submit?Action=PageAction&album=composingUserStories&path
=composingUserStories/userStories/promise&devLanguage=None

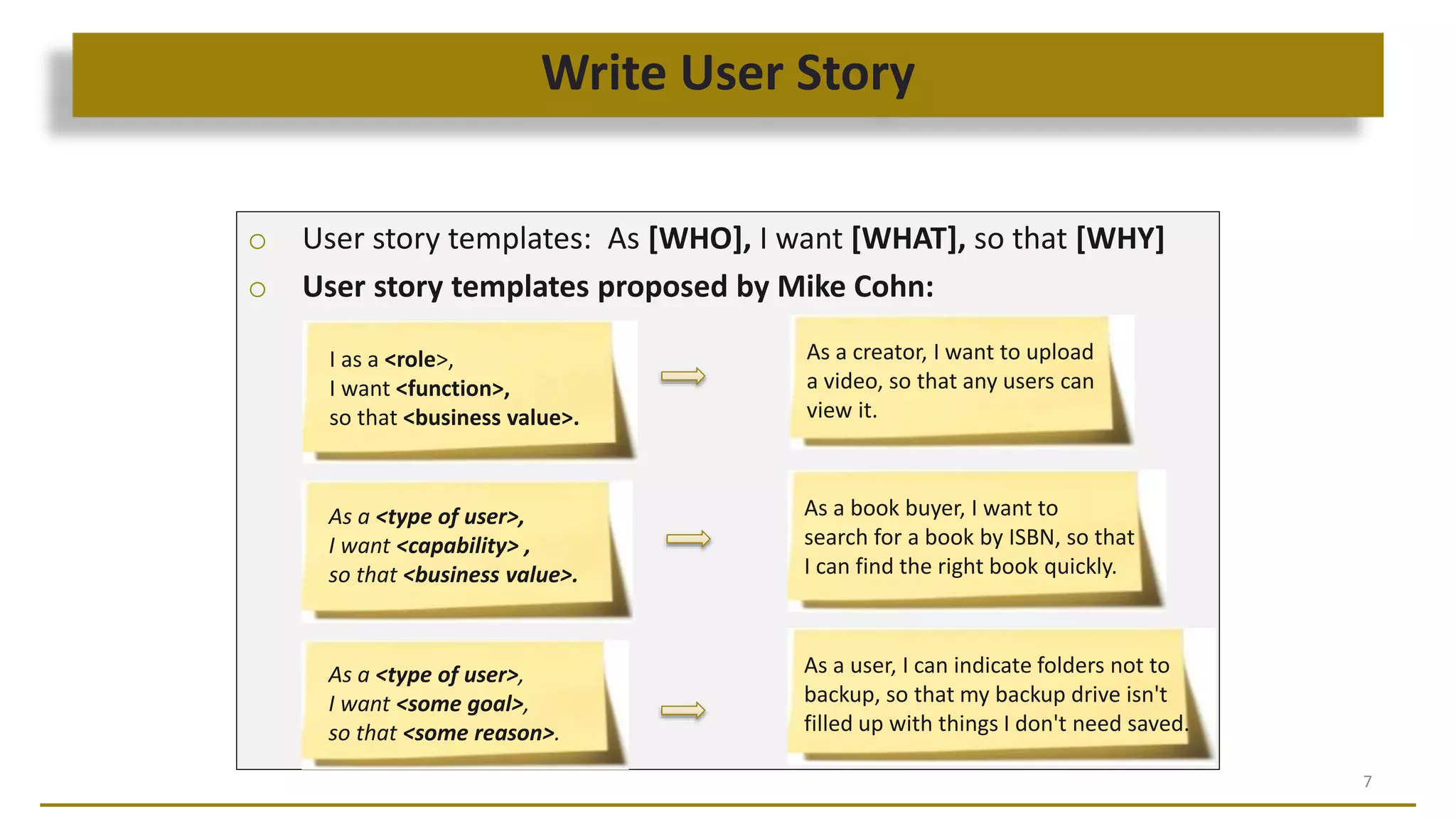

7. Write User Story
7
o User story templates: As [WHO], I want [WHAT], so that [WHY]
o User story templates proposed by Mike Cohn:
I as a <role>,
I want <function>,
so that <business value>.
As a creator, I want to upload
a video, so that any users can
view it.
As a <type of user>,
I want <capability> ,
so that <business value>.
As a book buyer, I want to
search for a book by ISBN, so that
I can find the right book quickly.
As a <type of user>,
I want <some goal>,
so that <some reason>.
As a user, I can indicate folders not to
backup, so that my backup drive isn't
filled up with things I don't need saved.

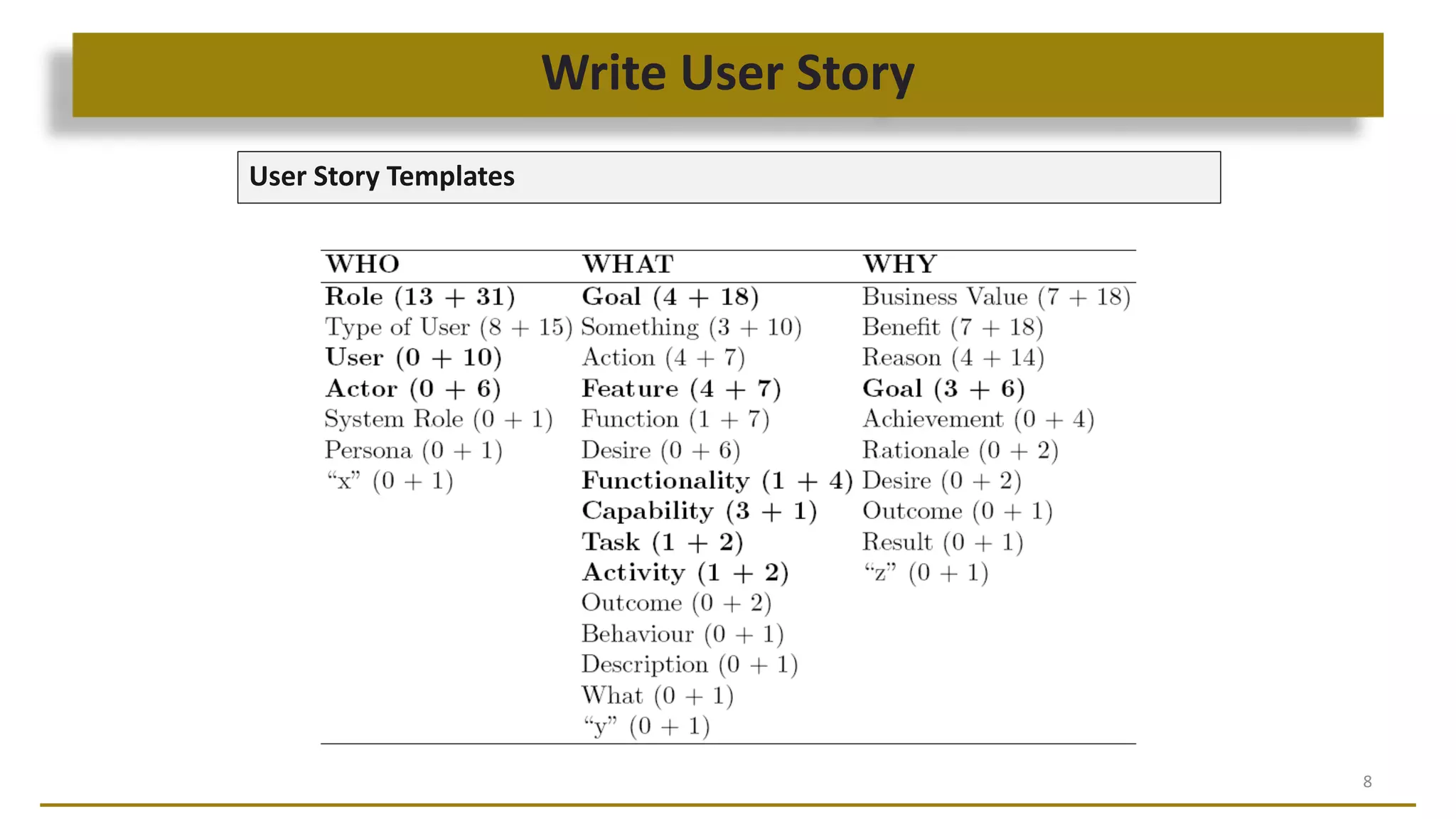

8. Write User Story
8
User Story Templates

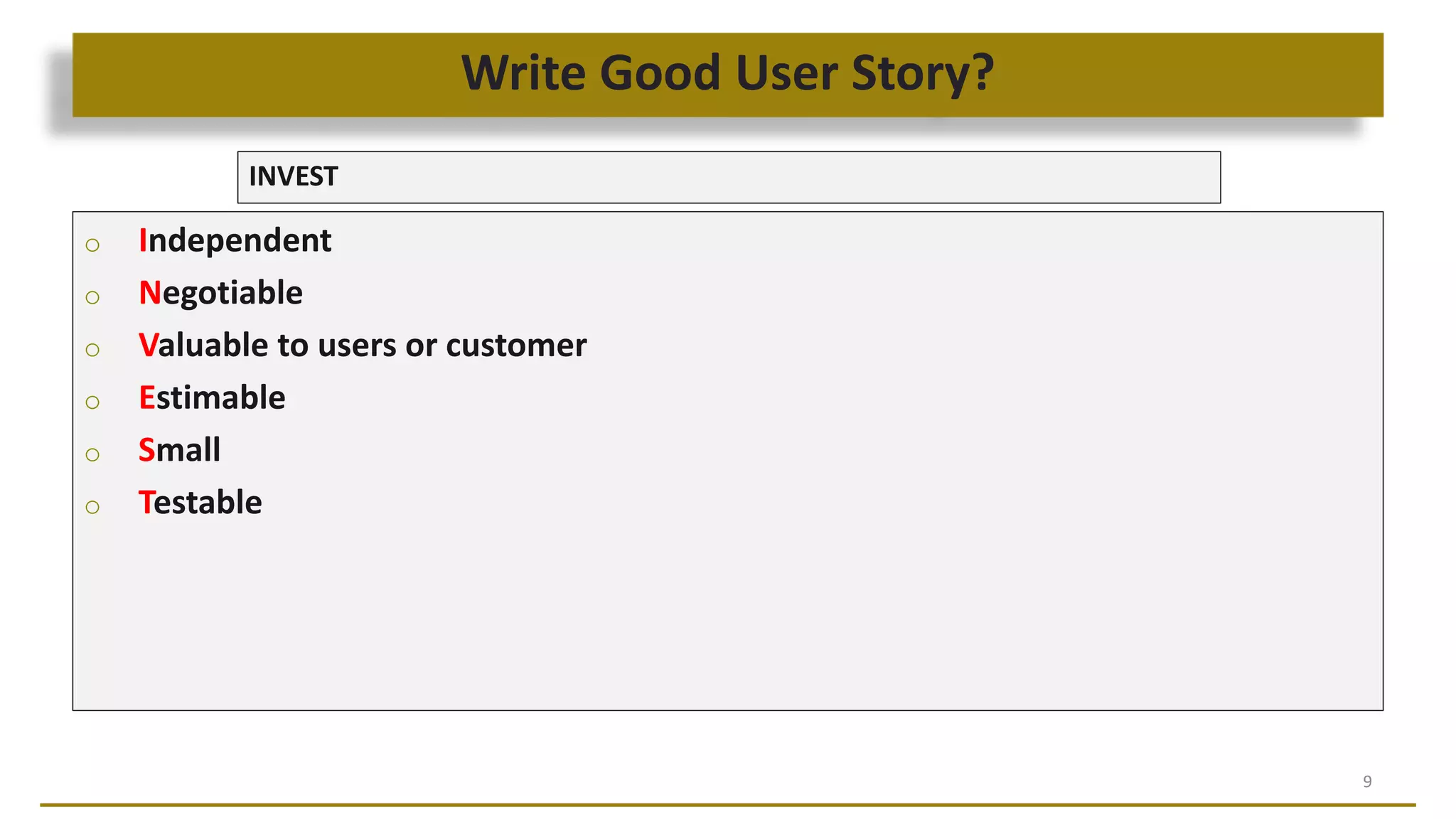

9. Write Good User Story?
9
INVEST
o Independent
o Negotiable
o Valuable to users or customer
o Estimable
o Small
o Testable

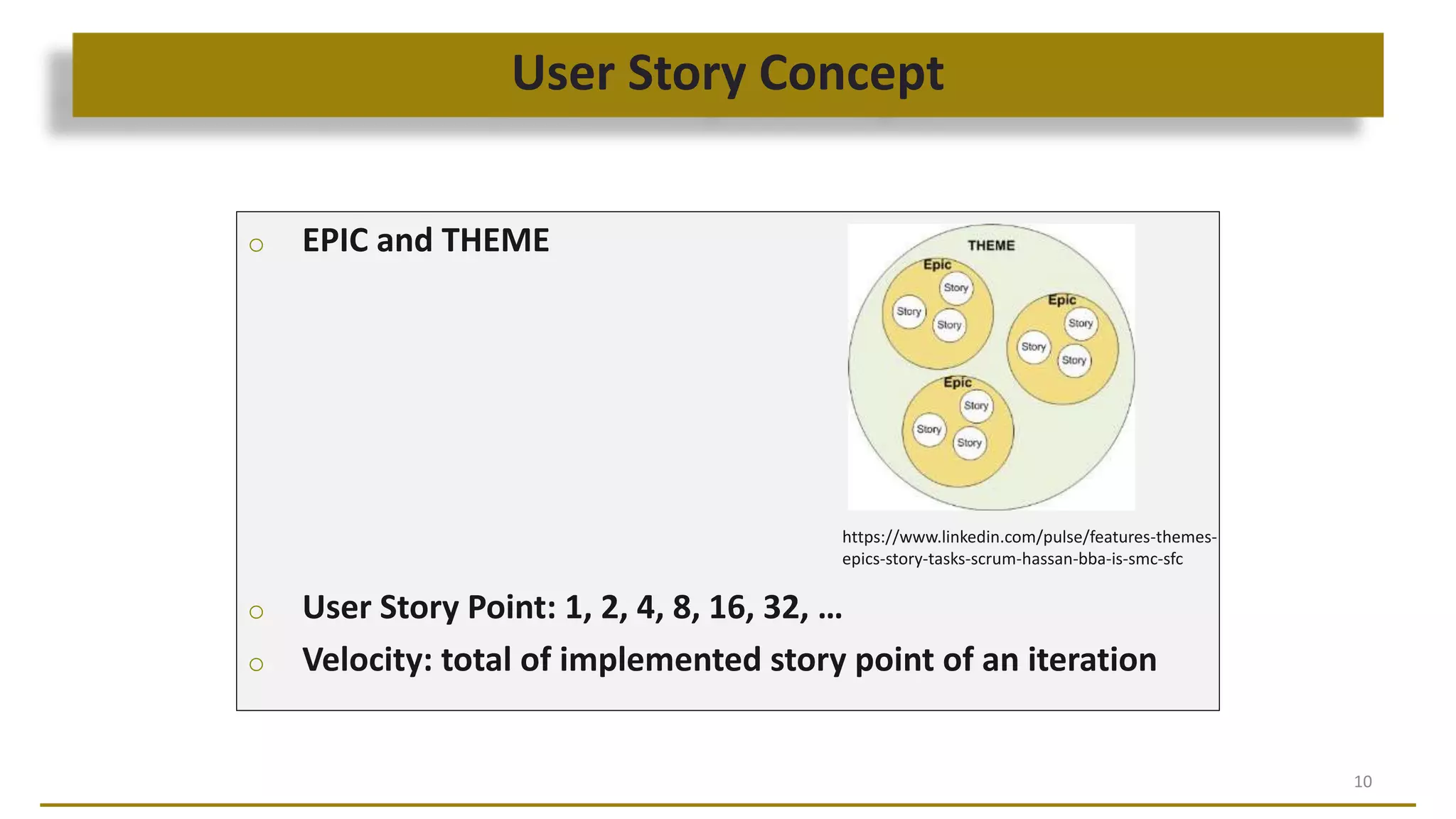

10. User Story Concept
10
o EPIC and THEME
o User Story Point: 1, 2, 4, 8, 16, 32, …
o Velocity: total of implemented story point of an iteration
https://www.linkedin.com/pulse/features-themes-
epics-story-tasks-scrum-hassan-bba-is-smc-sfc

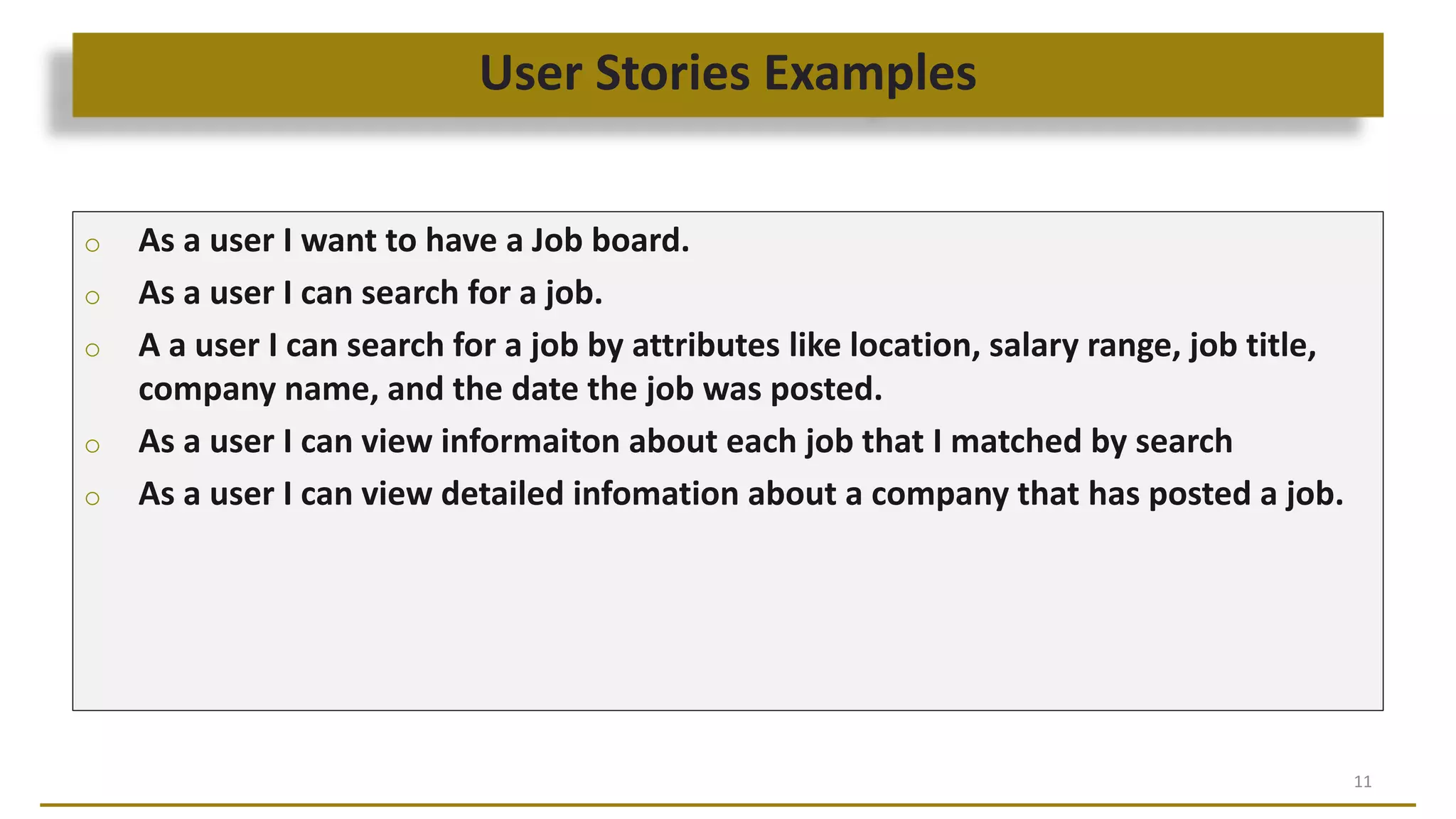

11. User Stories Examples
11
o As a user I want to have a Job board.
o As a user I can search for a job.
o A a user I can search for a job by attributes like location, salary range, job title,
company name, and the date the job was posted.
o As a user I can view informaiton about each job that I matched by search
o As a user I can view detailed infomation about a company that has posted a job.

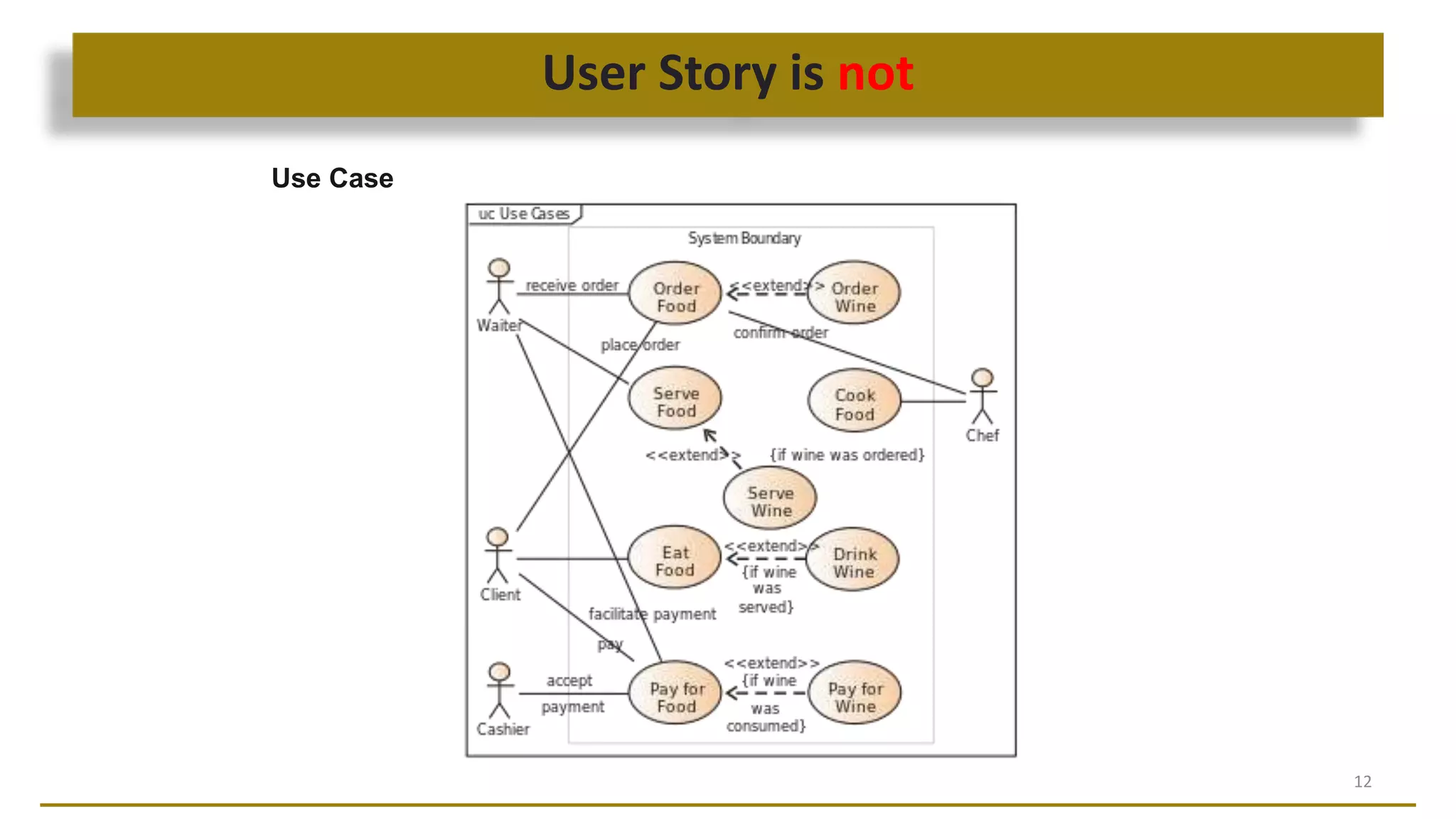

12. User Story is not
12
Use Case

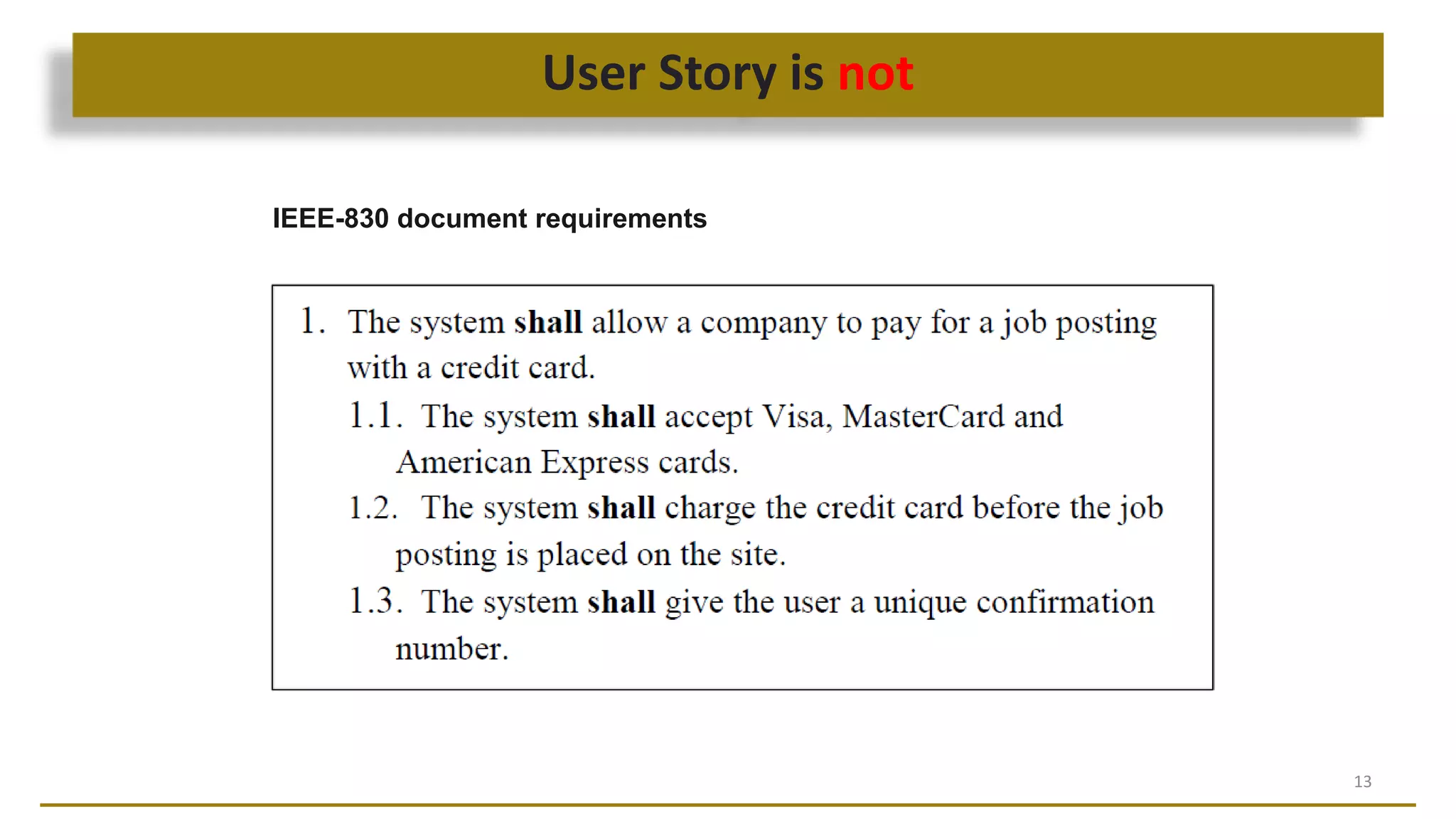

13. User Story is not
13
IEEE-830 document requirements

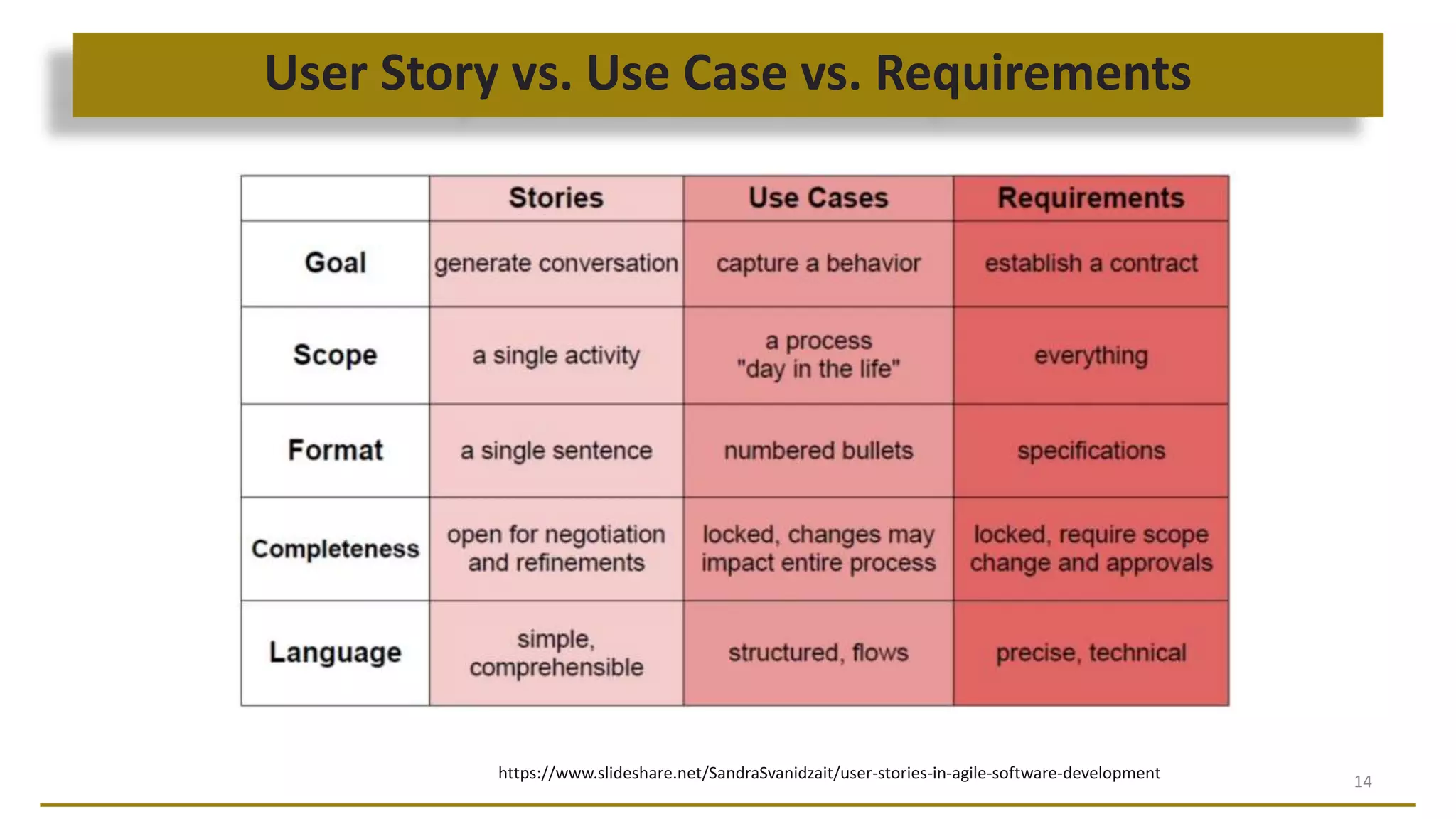

14. User Story vs. Use Case vs. Requirements
14https://www.slideshare.net/SandraSvanidzait/user-stories-in-agile-software-development

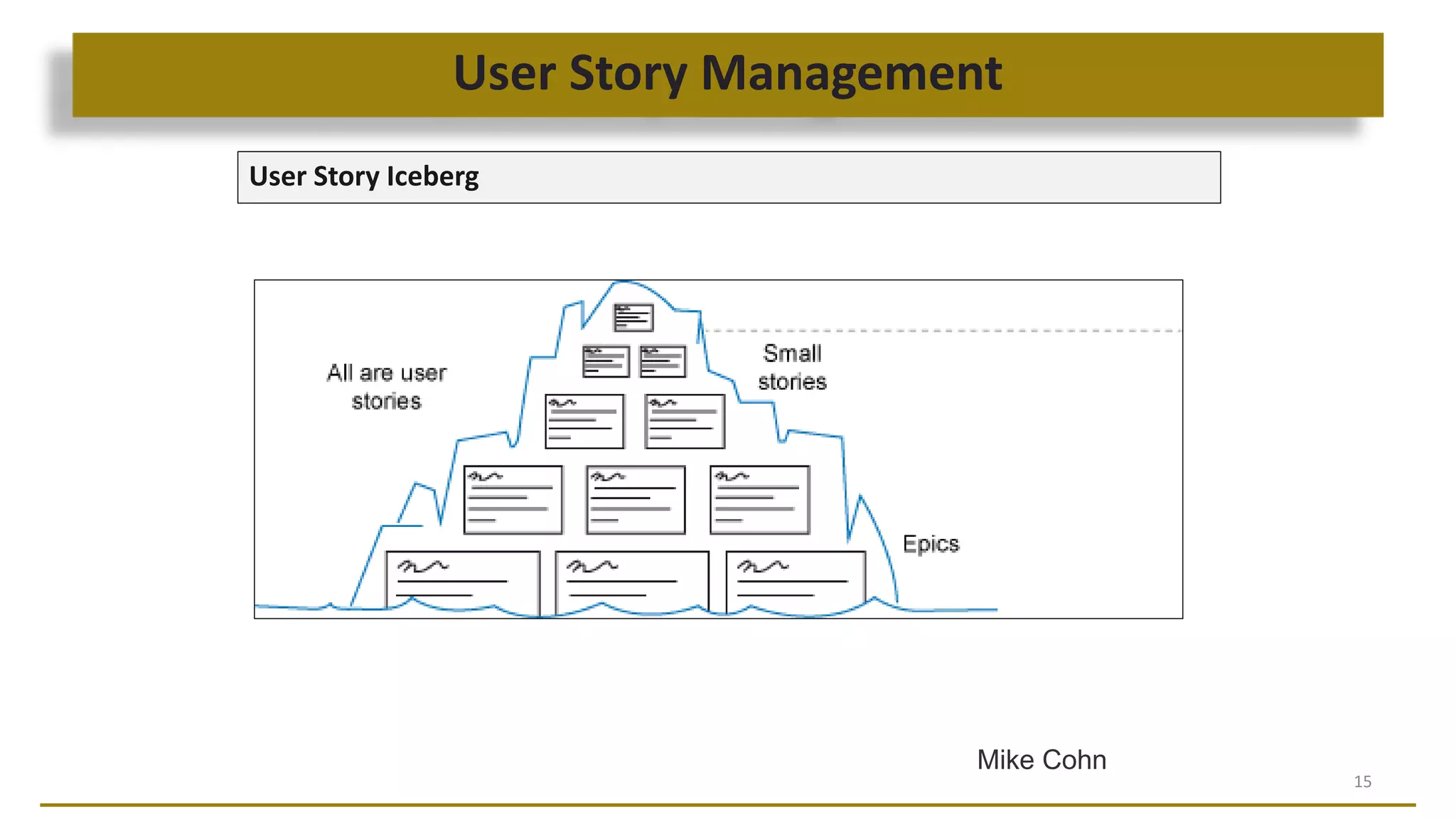

15. User Story Management
15
User Story Iceberg
Mike Cohn

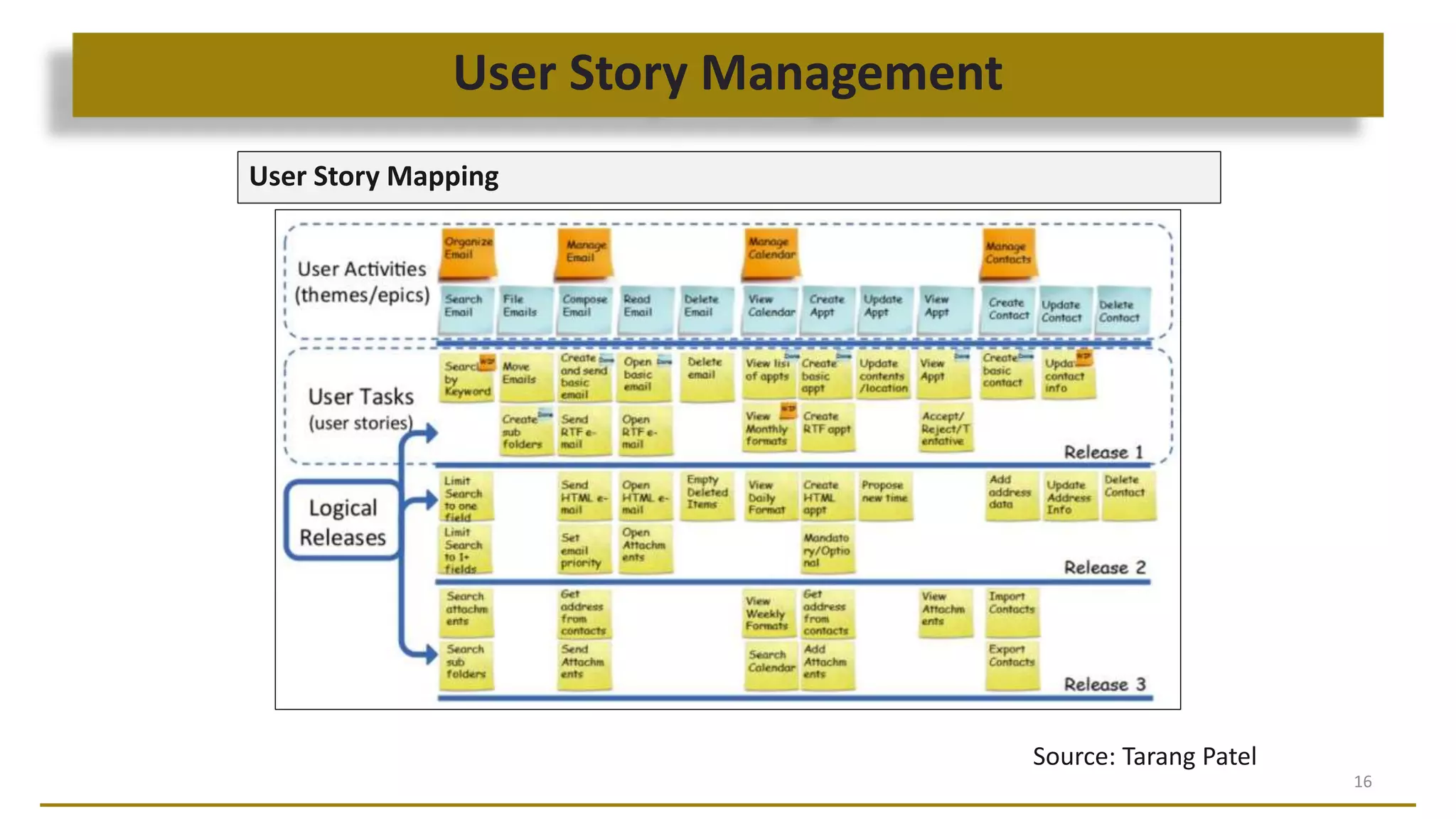

16. User Story Management
16
User Story Mapping
Source: Tarang Patel

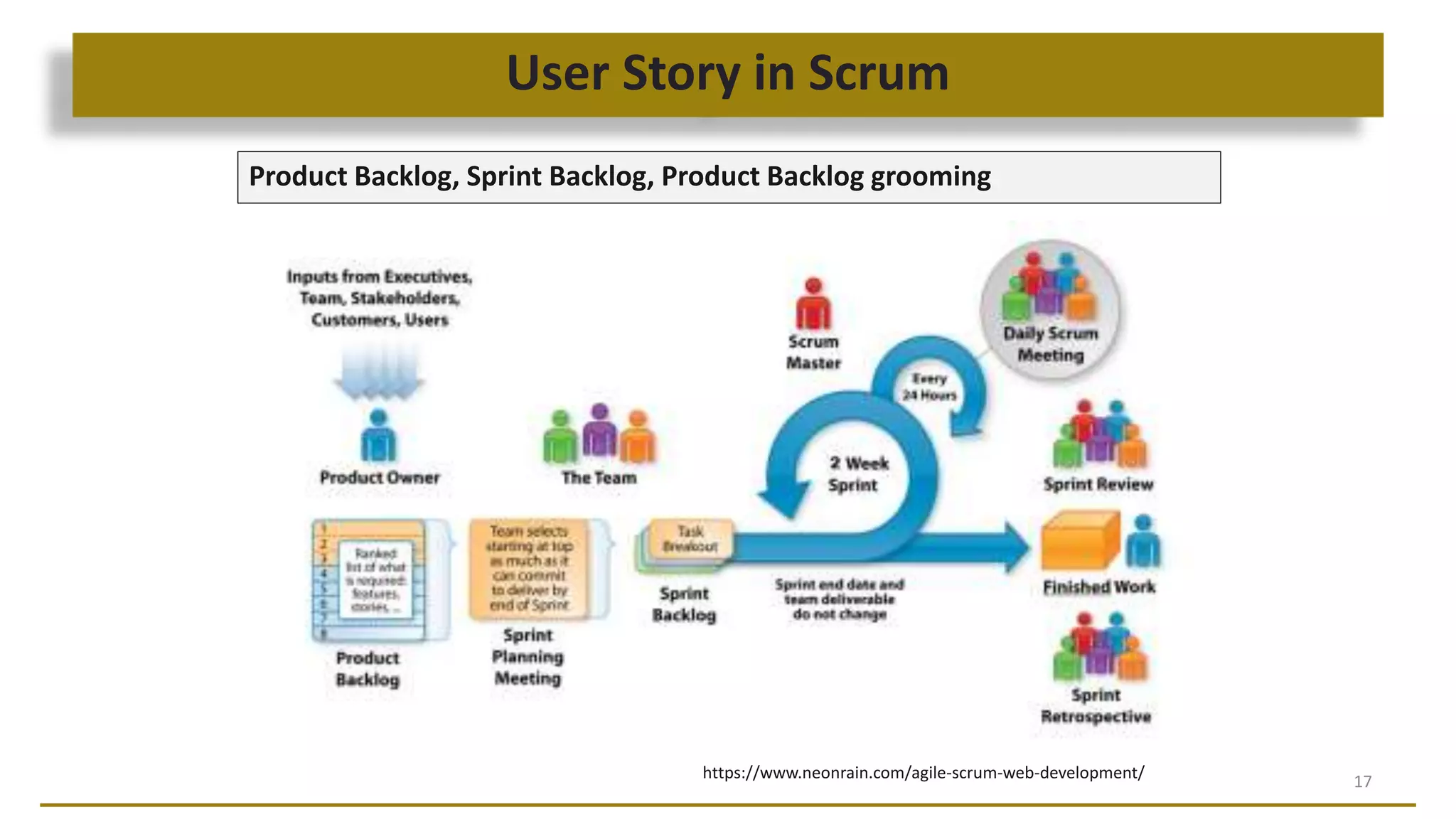

17. User Story in Scrum
17
Product Backlog, Sprint Backlog, Product Backlog grooming
https://www.neonrain.com/agile-scrum-web-development/

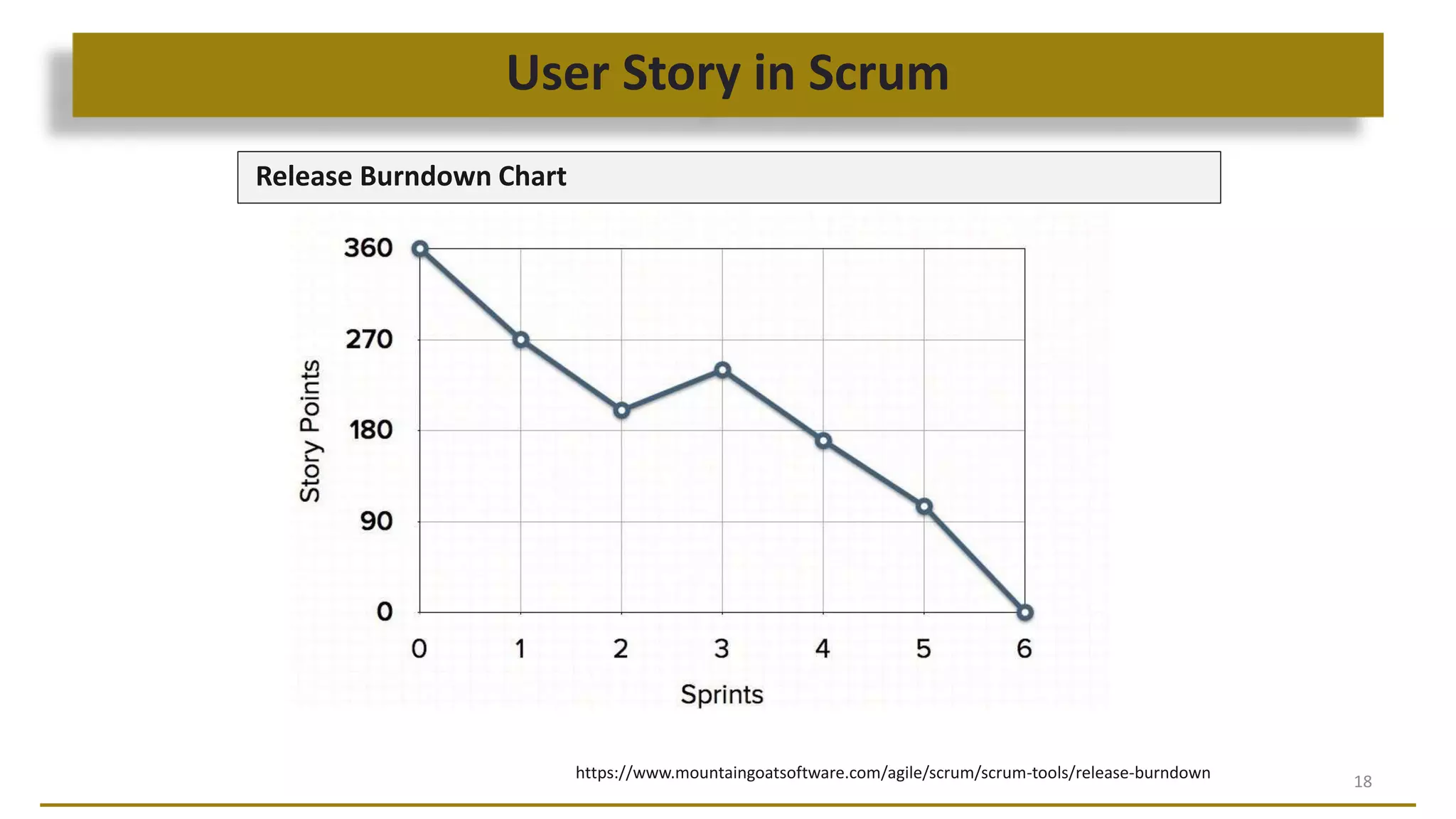

18. User Story in Scrum
18
Release Burndown Chart
https://www.mountaingoatsoftware.com/agile/scrum/scrum-tools/release-burndown

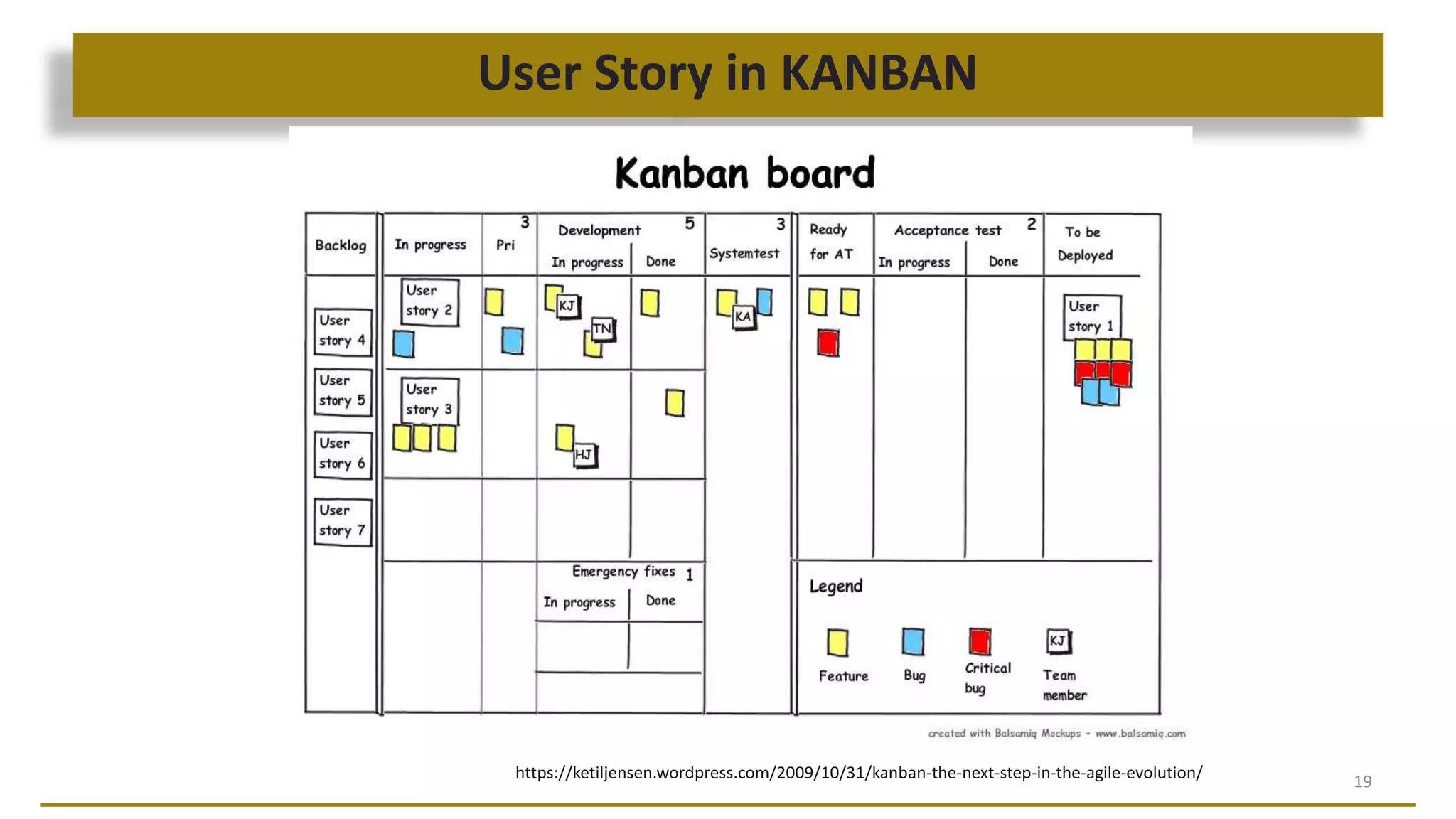

19. User Story in KANBAN
19https://ketiljensen.wordpress.com/2009/10/31/kanban-the-next-step-in-the-agile-evolution/

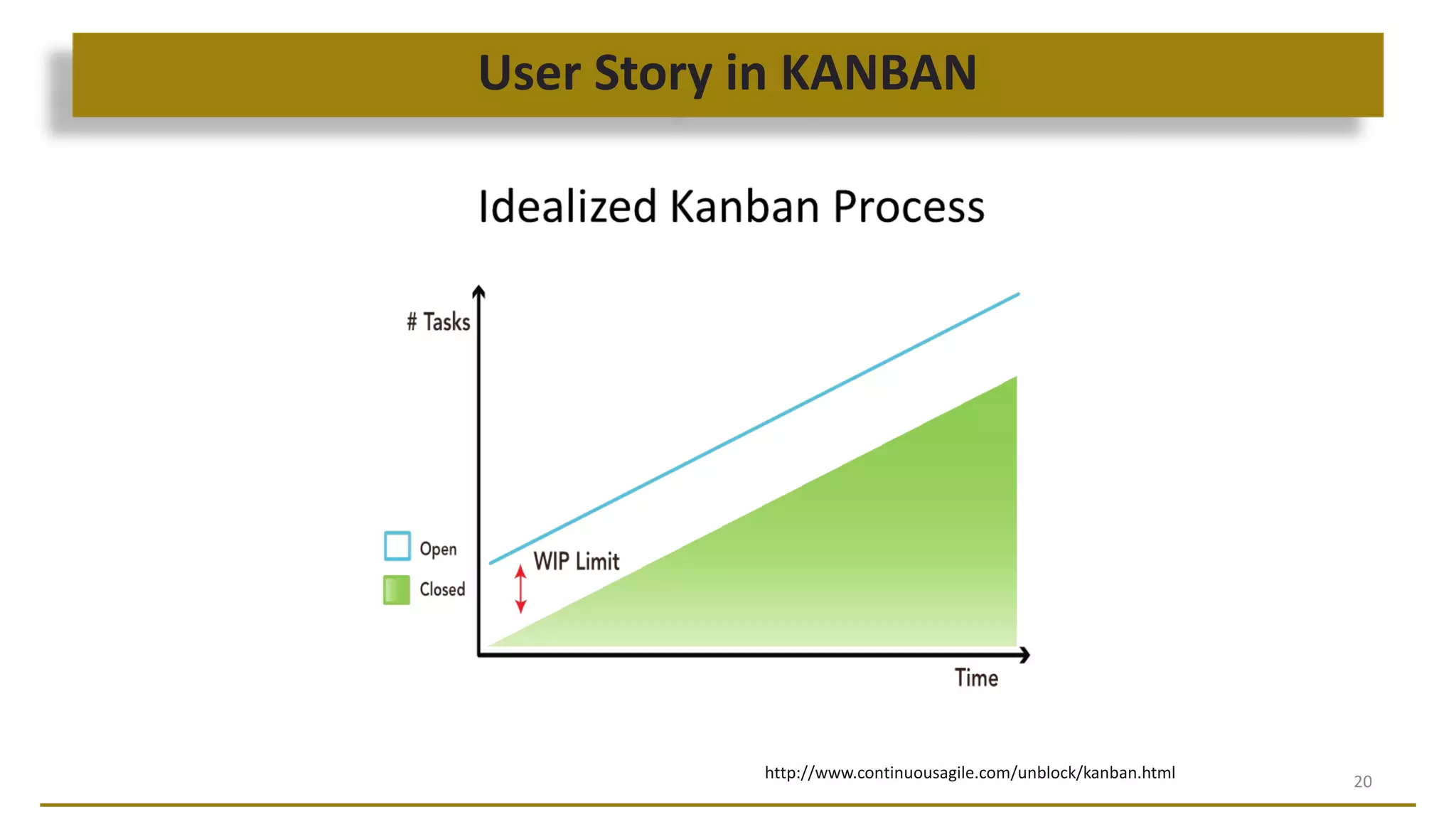

20. User Story in KANBAN
20http://www.continuousagile.com/unblock/kanban.html

21. Goal-Oriented for Modeling User Stories
21
http://modernux.se/docs/userstorymapping/

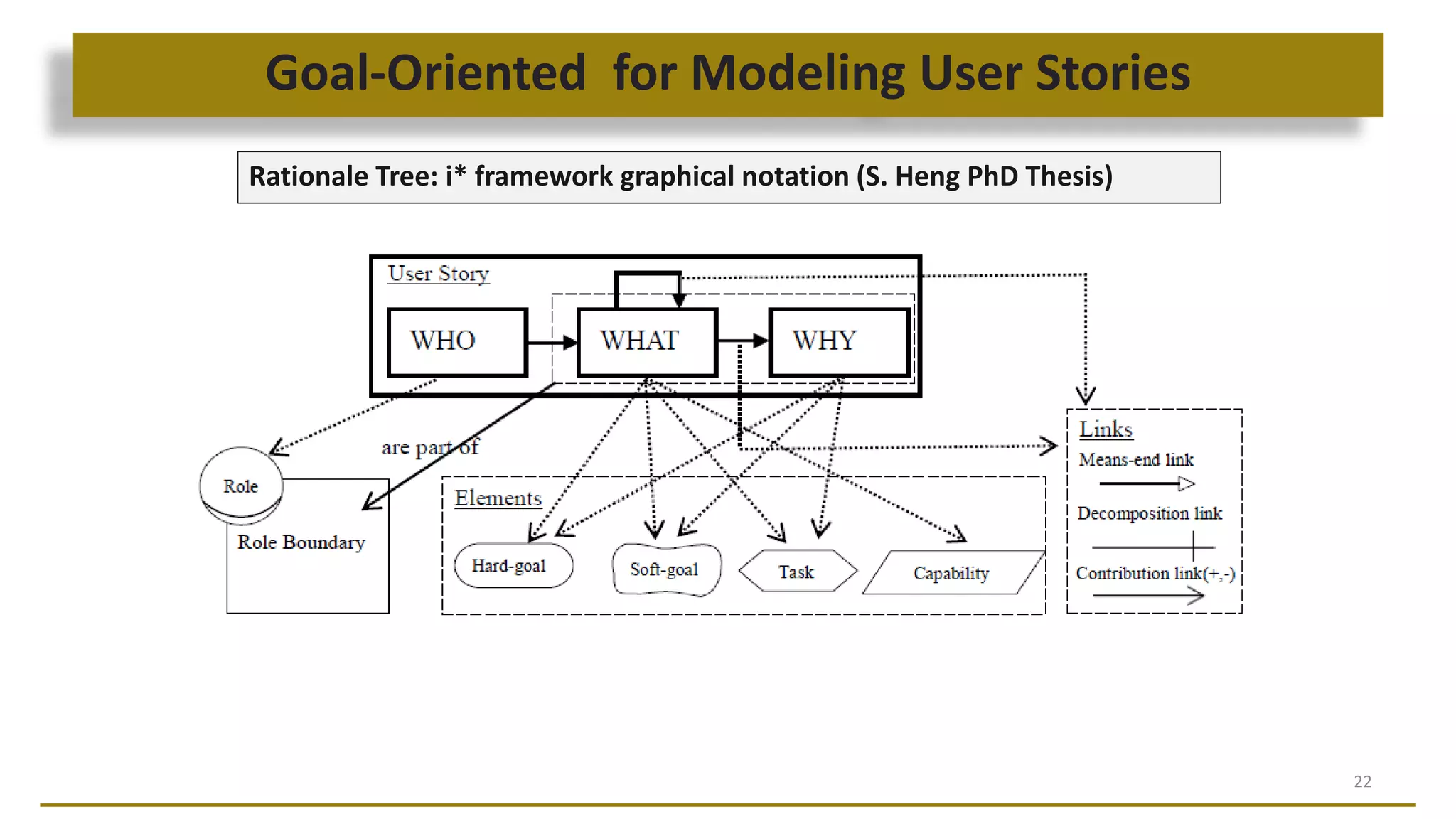

22. Goal-Oriented for Modeling User Stories
22
Rationale Tree: i* framework graphical notation (S. Heng PhD Thesis)

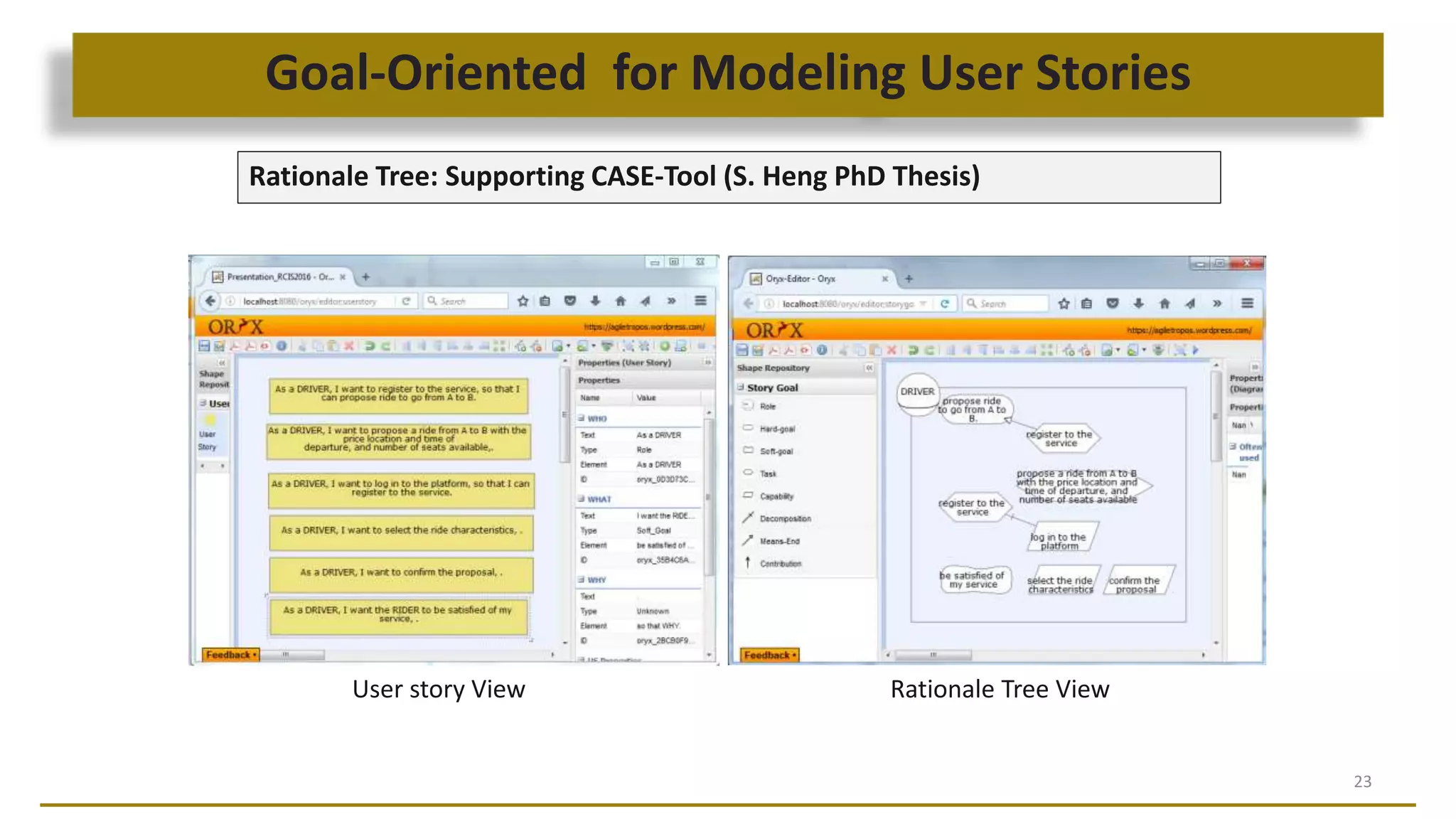

23. Goal-Oriented for Modeling User Stories
23
Rationale Tree: Supporting CASE-Tool (S. Heng PhD Thesis)
User story View Rationale Tree View

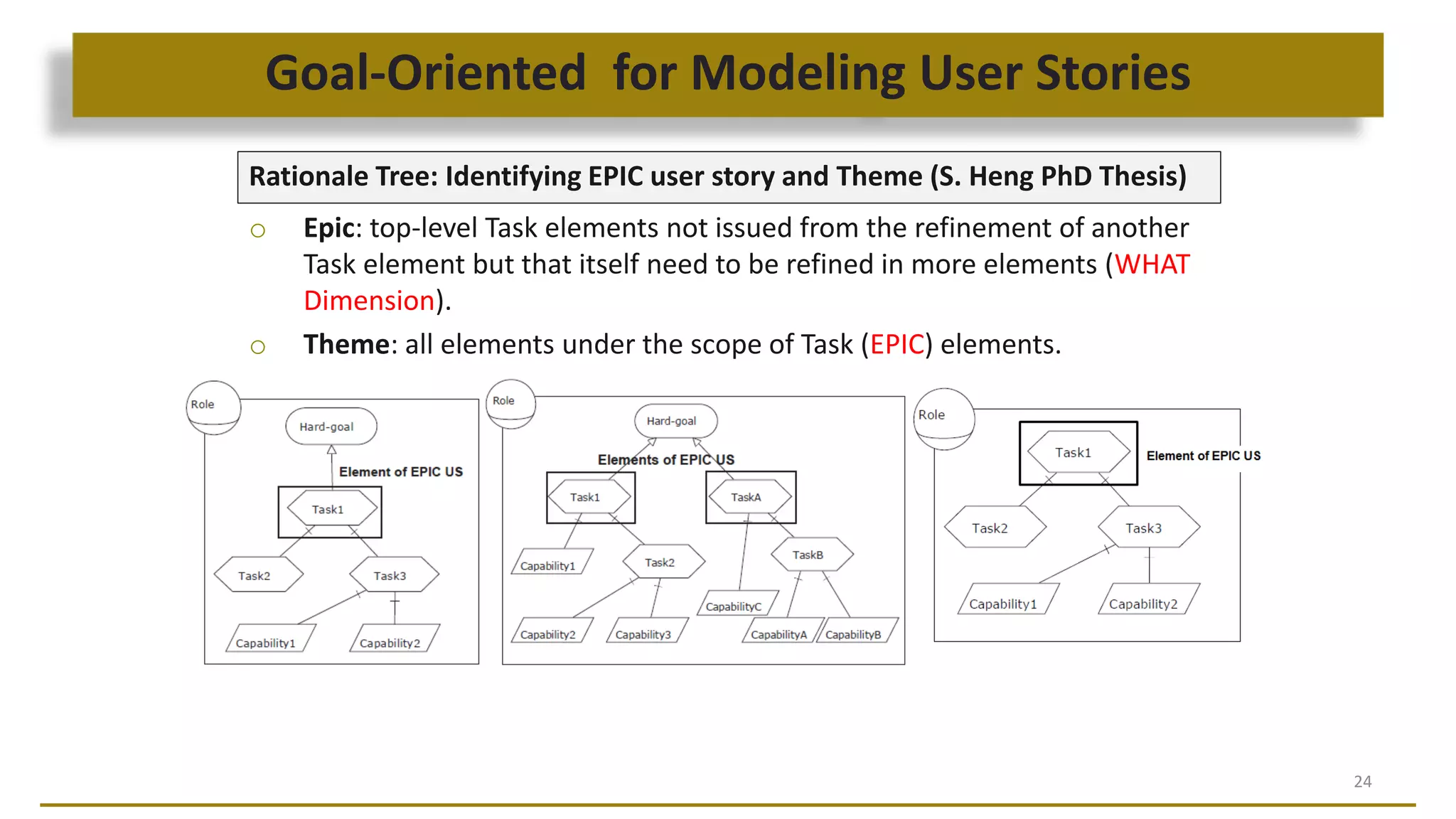

24. Goal-Oriented for Modeling User Stories
24
Rationale Tree: Identifying EPIC user story and Theme (S. Heng PhD Thesis)
o Epic: top-level Task elements not issued from the refinement of another
Task element but that itself need to be refined in more elements (WHAT
Dimension).
o Theme: all elements under the scope of Task (EPIC) elements.
