Brief RE refresher with some more advanced topics - non-greedy quantifiers, character properties, nested group ordering, recursive expressions

1. Regular Expressions
Redux

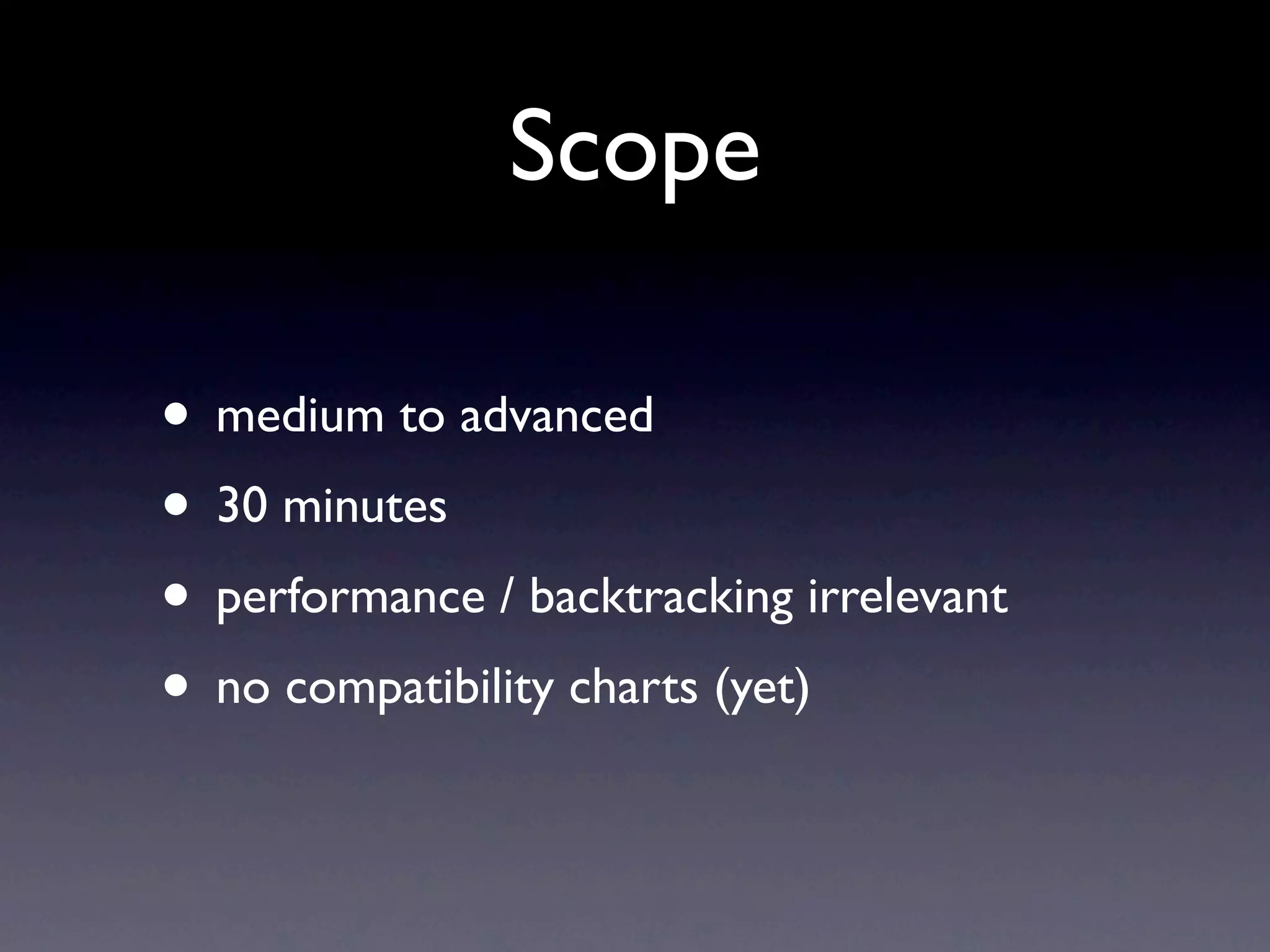

2. Scope
• medium to advanced
• 30 minutes
• performance / backtracking irrelevant
• no compatibility charts (yet)

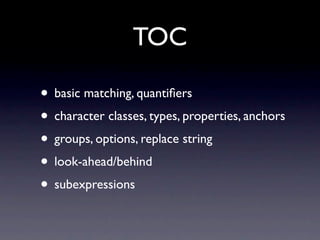

3. TOC
• basic matching, quantifiers
• character classes, types, properties, anchors
• groups, options, replace string
• look-ahead/behind
• subexpressions

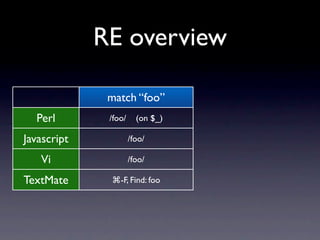

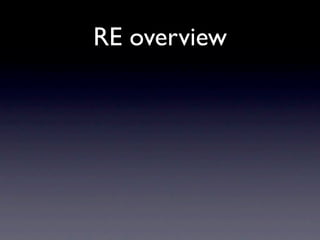

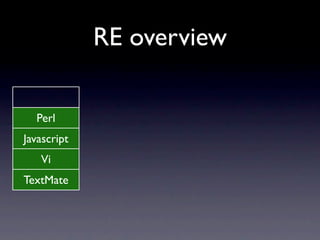

4. RE overview

5. RE overview
match “foo” replace with “bar”
Perl /foo/ (on $_) s/foo/bar/ (on $_)
Javascript /foo/ “foolish”.replace(/foo/, “bar”)
Vi /foo/ :s/foo/bar/
TextMate ⌘-F, Find: foo ⌘-F Find: foo, Replace: bar

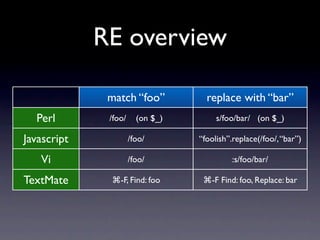

6. RE overview
match “foo” replace with “bar”
Perl /foo/ (on $_) s/foo/bar/ (on $_)
Javascript /foo/ “foolish”.replace(/foo/, “bar”)
Vi /foo/ :s/foo/bar/
TextMate ⌘-F, Find: foo ⌘-F Find: foo, Replace: bar

7. RE overview
match “foo” replace with “bar”
Perl /foo/ (on $_) s/foo/bar/ (on $_)
Javascript /foo/ “foolish”.replace(/foo/, “bar”)
Vi /foo/ :s/foo/bar/
TextMate ⌘-F, Find: foo ⌘-F Find: foo, Replace: bar

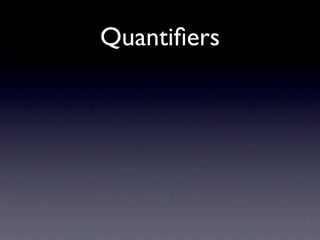

8. Quantifiers

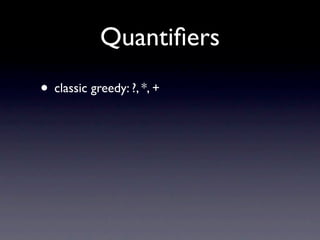

9. Quantifiers
• classic greedy: ?, *, +

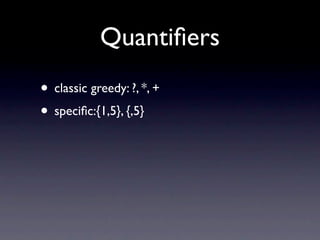

10. Quantifiers
• classic greedy: ?, *, +
• specific:{1,5}, {,5}

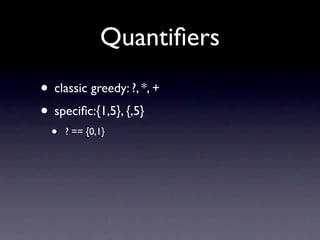

11. Quantifiers
• classic greedy: ?, *, +
• specific:{1,5}, {,5}
• ? == {0,1}

12. Quantifiers
• classic greedy: ?, *, +
• specific:{1,5}, {,5}
• ? == {0,1}
• * == {0,}

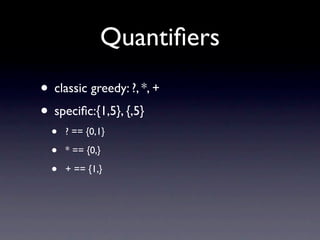

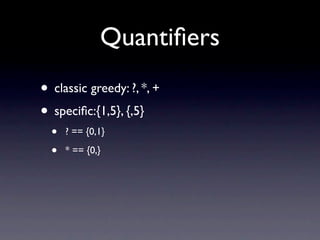

13. Quantifiers
• classic greedy: ?, *, +
• specific:{1,5}, {,5}
• ? == {0,1}
• * == {0,}
• + == {1,}

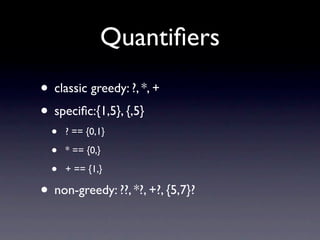

14. Quantifiers
• classic greedy: ?, *, +
• specific:{1,5}, {,5}
• ? == {0,1}
• * == {0,}
• + == {1,}
• non-greedy: ??, *?, +?, {5,7}?

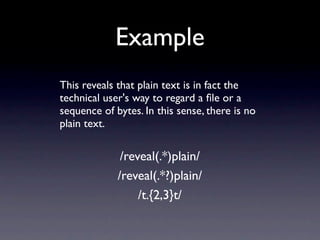

15. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/reveal(.*)plain/
/reveal(.*?)plain/
/t.{2,3}t/

16. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/reveal(.*)plain/
/reveal(.*?)plain/
/t.{2,3}t/

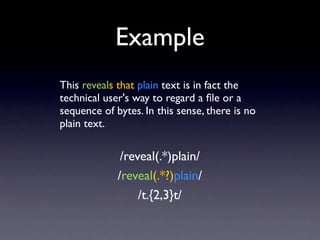

17. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/reveal(.*)plain/
/reveal(.*?)plain/
/t.{2,3}t/

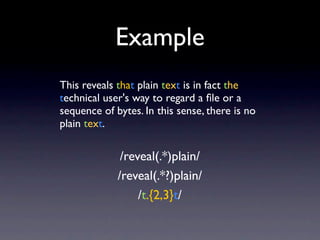

18. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/reveal(.*)plain/
/reveal(.*?)plain/
/t.{2,3}t/

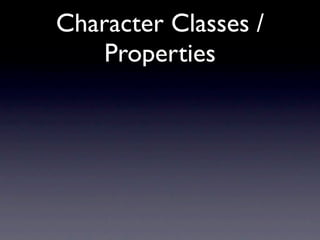

19. Character Classes /
Properties

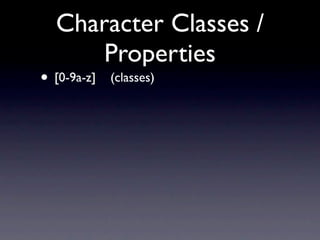

20. Character Classes /
Properties
• [0-9a-z] (classes)

21. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.

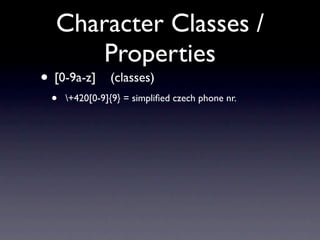

22. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.
• don’t: [A-z0-]

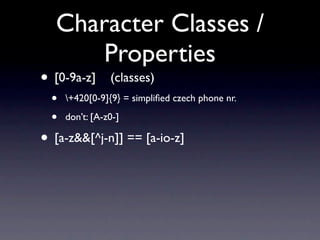

23. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.
• don’t: [A-z0-]
• [a-z&&[^j-n]] == [a-io-z]

24. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.
• don’t: [A-z0-]
• [a-z&&[^j-n]] == [a-io-z]
• p{Upper} (properties)

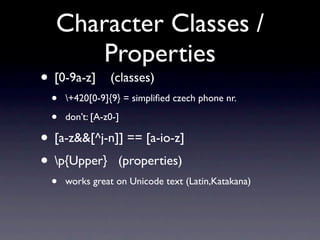

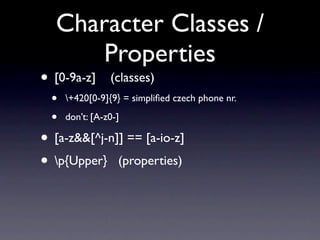

25. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.
• don’t: [A-z0-]
• [a-z&&[^j-n]] == [a-io-z]
• p{Upper} (properties)
• works great on Unicode text (Latin,Katakana)

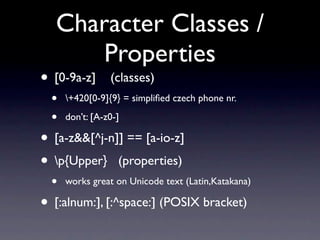

26. Character Classes /
Properties
• [0-9a-z] (classes)
• +420[0-9]{9} = simplified czech phone nr.
• don’t: [A-z0-]
• [a-z&&[^j-n]] == [a-io-z]
• p{Upper} (properties)
• works great on Unicode text (Latin,Katakana)
• [:alnum:], [:^space:] (POSIX bracket)

27. Character Types

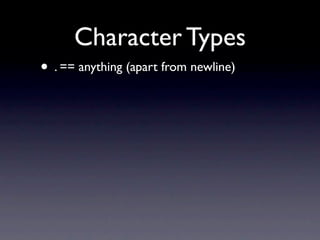

28. Character Types
• . == anything (apart from newline)

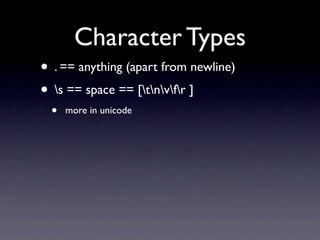

29. Character Types
• . == anything (apart from newline)
• s == space == [tnvfr ]
• more in unicode

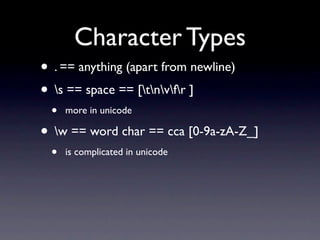

30. Character Types
• . == anything (apart from newline)
• s == space == [tnvfr ]
• more in unicode
• w == word char == cca [0-9a-zA-Z_]
• is complicated in unicode

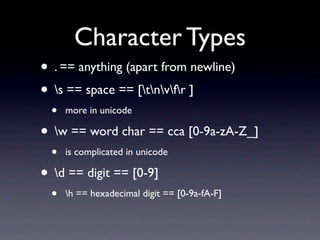

31. Character Types
• . == anything (apart from newline)
• s == space == [tnvfr ]
• more in unicode
• w == word char == cca [0-9a-zA-Z_]
• is complicated in unicode
• d == digit == [0-9]
• h == hexadecimal digit == [0-9a-fA-F]

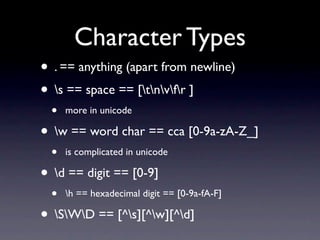

32. Character Types
• . == anything (apart from newline)
• s == space == [tnvfr ]
• more in unicode
• w == word char == cca [0-9a-zA-Z_]
• is complicated in unicode
• d == digit == [0-9]
• h == hexadecimal digit == [0-9a-fA-F]
• SWD == [^s][^w][^d]

33. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/b[w&&[^aA]]+b/
/W{2,}w+b/

34. Example
This reveals that plain text is in fact the
technical user's way to regard a file or a
sequence of bytes. In this sense, there is no
plain text.
/b[w&&[^aA]]+b/
/W{2,}w+b/

35. Anchors

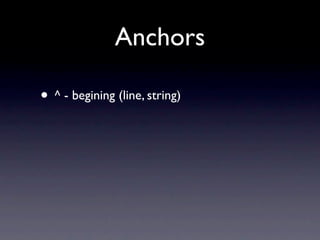

36. Anchors
• ^ - begining (line, string)

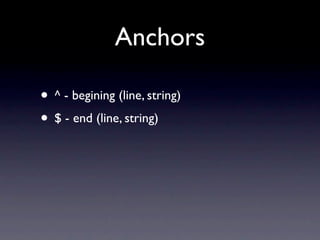

37. Anchors
• ^ - begining (line, string)
• $ - end (line, string)

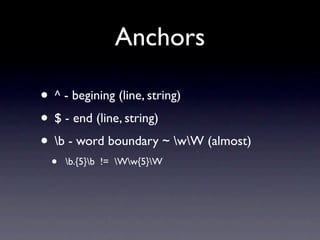

38. Anchors
• ^ - begining (line, string)
• $ - end (line, string)
• b - word boundary ~ wW (almost)
• b.{5}b != Ww{5}W

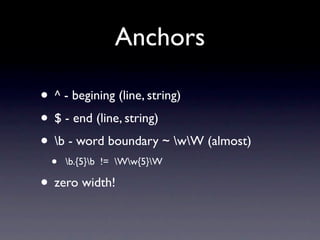

39. Anchors
• ^ - begining (line, string)
• $ - end (line, string)
• b - word boundary ~ wW (almost)
• b.{5}b != Ww{5}W
• zero width!

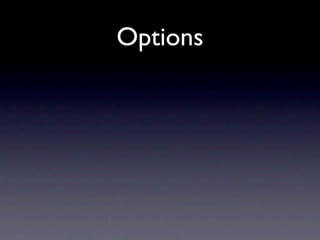

40. Options

41. Options
• /foo/imsx
• i - case insensitive
• m - multiline (^,$ represent start of string/file)
• s - single line (. matches newlines)
• x - extended!
• g - global

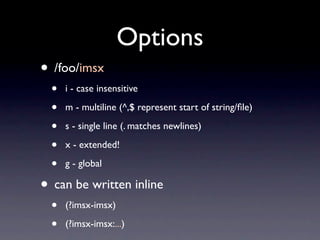

42. Options
• /foo/imsx
• i - case insensitive
• m - multiline (^,$ represent start of string/file)
• s - single line (. matches newlines)
• x - extended!
• g - global
• can be written inline
• (?imsx-imsx)
• (?imsx-imsx:...)

43. Options
• /foo/imsx
• i - case insensitive
• m - multiline (^,$ represent start of string/file)
• s - single line (. matches newlines)
• x - extended!
• g - global (?x-i)
#this is cool
• can be written inline (
foo #my important value
• | #don't forget the alternative
(?imsx-imsx)
bar
• ) # result equals to (foo|bar)
(?imsx-imsx:...)

44. Groups/Replacing

45. Groups/Replacing
• (...) - matched group

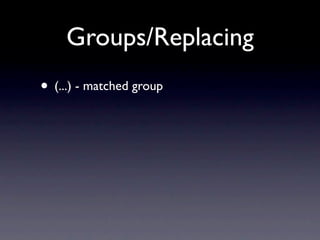

46. Groups/Replacing
• (...) - matched group
• $1 - $9
• alternatively 1 - 9 (not recommended)

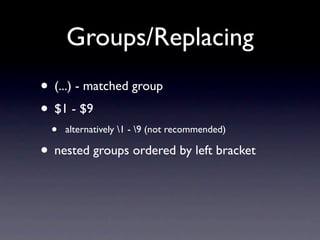

47. Groups/Replacing
• (...) - matched group
• $1 - $9
• alternatively 1 - 9 (not recommended)
• nested groups ordered by left bracket

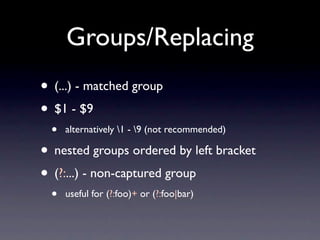

48. Groups/Replacing
• (...) - matched group
• $1 - $9
• alternatively 1 - 9 (not recommended)
• nested groups ordered by left bracket
• (?:...) - non-captured group
• useful for (?:foo)+ or (?:foo|bar)

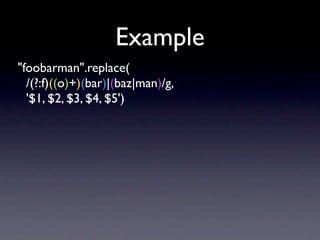

49. Example
quot;foobarmanquot;.replace(
/(?:f)((o)+)(bar)|(baz|man)/g,
'$1, $2, $3, $4, $5')

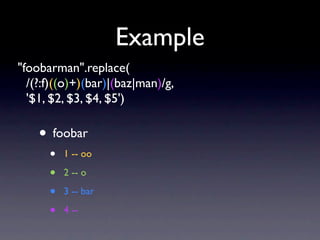

50. Example
quot;foobarmanquot;.replace(
/(?:f)((o)+)(bar)|(baz|man)/g,
'$1, $2, $3, $4, $5')
• foobar
• 1 -- oo
• 2 -- o
• 3 -- bar
• 4 --

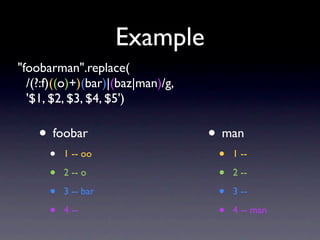

51. Example
quot;foobarmanquot;.replace(
/(?:f)((o)+)(bar)|(baz|man)/g,
'$1, $2, $3, $4, $5')
• foobar • man
• •
1 -- oo 1 --
• •
2 -- o 2 --
• •
3 -- bar 3 --
• •
4 -- 4 -- man

52. Look-ahead/behind
• defines custom zero-width anchors

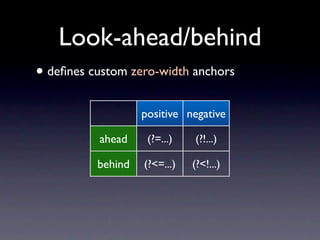

53. Look-ahead/behind
• defines custom zero-width anchors
positive negative
ahead (?=...) (?!...)
behind (?<=...) (?<!...)

54. Example
zdenek@gooddata.com
/.*?@gooddata/
zdenek@gooddata.com
/.*?(?=@gooddata)/

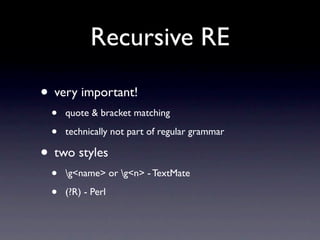

55. Recursive RE
• very important!
• quote & bracket matching
• technically not part of regular grammar
• two styles
• g<name> or g<n> - TextMate
• (?R) - Perl

56. Example
(?x:
( # match the initial opening parenthesis
# Now make a named group 'balanced' which
# matches a balanced substring.
(?<balanced>
[^()] # A balanced substring is either something
# that is not a parenthesis:
| # …or a parenthesised string:
( # A parenthesised string begins with an opening parenthesis
g<balanced>* # …followed by a sequence of balanced substrings
) # …and ends with a closing parenthesis
)* # Look for a sequence of balanced substrings
) # Finally, the outer closing parenthesis
)

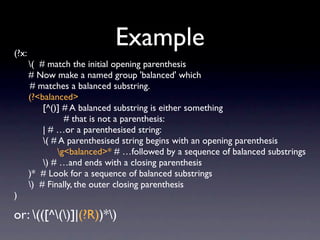

57. Example
(?x:
( # match the initial opening parenthesis
# Now make a named group 'balanced' which
# matches a balanced substring.
(?<balanced>
[^()] # A balanced substring is either something
# that is not a parenthesis:
| # …or a parenthesised string:
( # A parenthesised string begins with an opening parenthesis
g<balanced>* # …followed by a sequence of balanced substrings
) # …and ends with a closing parenthesis
)* # Look for a sequence of balanced substrings
) # Finally, the outer closing parenthesis
)
or: (([^()]|(?R))*)
