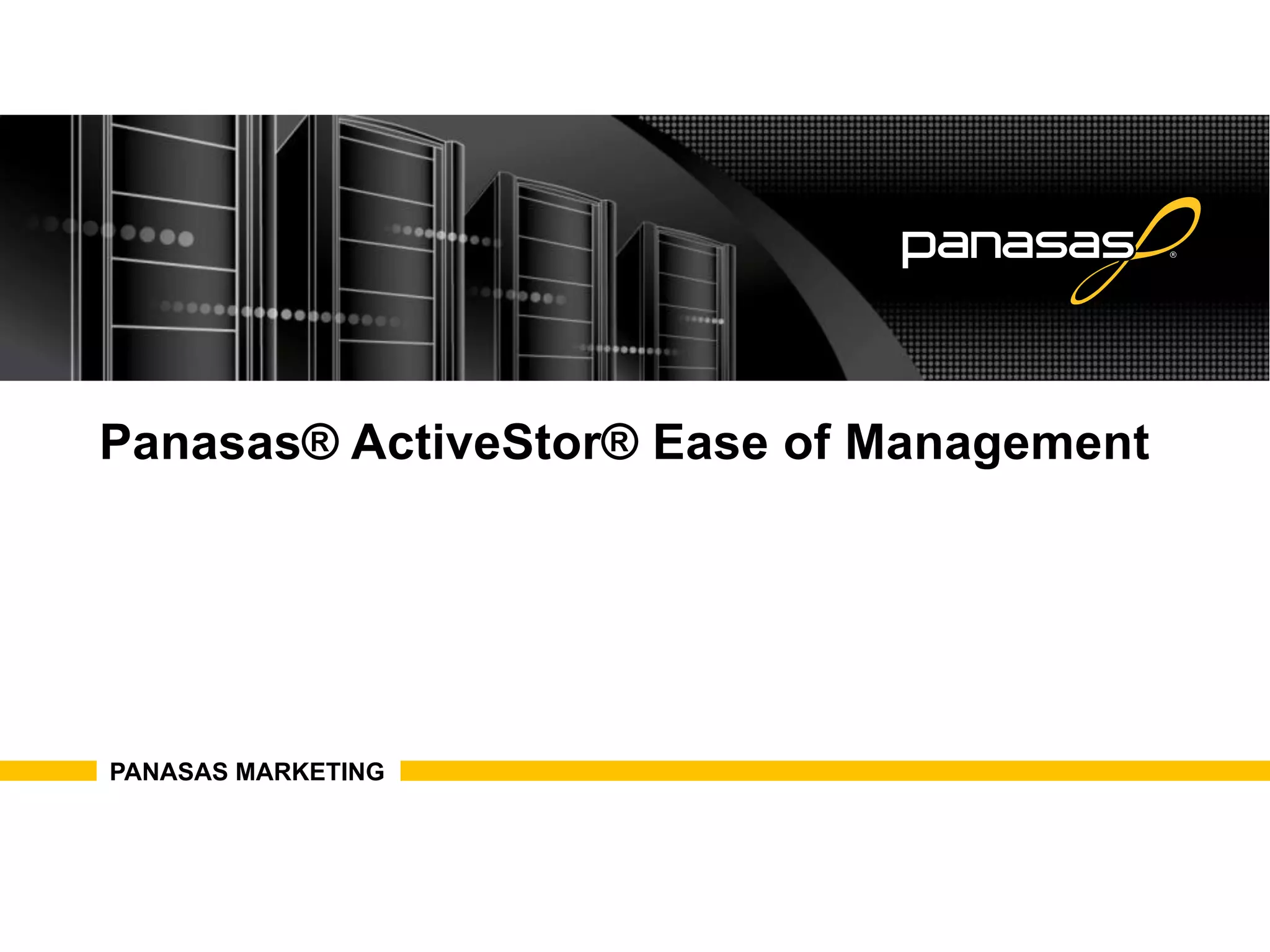

1. Panasas® ActiveStor® Ease of Management
PANASAS MARKETING

2. 2
PANASAS OVERVIEW
§ Scale-out NAS Solutions for Enterprise and Research
• ActiveStor appliances in 5th generation
• Shipping Since 2004, with 19 patents issued (more pending)
§ Panasas Management
• Storage-focused executive management team
• Highly experienced technical team
− Dr. Garth Gibson, Founder & Chief Scientist, Author of “Berkeley RAID Paper”
§ VC Funded
• Mohr Davidow, Samsung Ventures, Intel Capital, Focus Ventures,
Centennial Ventures
Industry Recognition
Faye Pairman,
Panasas CEO
Cloud Project of
the Year
Public Sector
Storage Project
of the Year

3. 3
Life
Sciences
Genomic
Sequencing
Computa1onal
Chemistry
Molecular
Modeling
Energy
Seismic
Processing
Reservoir
Simula1on
Interpreta1on
Finance
Por=olio
Op1miza1on
Credit
Analysis
Risk
Analysis
Manufacturing
EDA
Simula1on
Fluid
Dynamics
(CFD)
Acous1c
Analysis
Op1cal
Correc1on
Structural
Mechanics
University
Materials
Science
Life
Sciences
Climate
Modeling
High
Energy
Physics
Private
Clouds
Government
Weather
Forecas1ng
Defense
Intelligence
BIG DATA: DESIGN & DISCOVER
Media
Digital
Post-­‐Produc1on
Rendering
Satellite
Imaging
Digital
Ac1ve
Archives

4. 4
MANAGEMENT CHALLENGES AT SCALE
§ IT Requirements:
• Speed of deployment
• Ease of use
• Ease of management
§ Scaling Traditional NAS Systems:
• Increased scalability means increased complexity
• Greater management effort required
• Additional costs incurred
§ True Scale-out NAS Solutions:
• Providing a single, global namespace to eliminate the need for multiple
storage islands
• Require the same level of effort to manage hundreds of storage nodes as
is required to manage a single node

5. 5
PANASAS ACTIVESTOR PLATFORM
§ Powered by PanFS storage operating system
§ 122.4TB per shelf à scales to 12PB
§ 1.5GB/s per shelf à scales to 150GB/s
ActiveStor Appliance
§ Metadata access
§ System management
Director
Blade
§ Parallel data access
§ Advanced caching
Storage
Blade
§ Single global namespace
§ Single system to manage
§ Seamless scaling with no downtime
§ Pay as you grow
§ Linear performance scaling
Panasas Architecture
CPUs = RAID ENGINES
COMPUTE CLIENTS
PANASAS DIRECTFLOW
PARALLEL + SCALABLE
PANASAS ACTIVESTOR

6. 6
EFFICIENT LINEAR SCALABILITY
§ Performance does not drop off as
performance modules are added
• Seamless linear scaling by adding
storage and director blades
• No performance “brick wall” or need
for islands of storage
§ Effective scaling for multiple protocols
(DirectFlow, NFS, and CIFS)
§ Network resources and bandwidth
scale with the system
Efficient Scaling = Outstanding TCO at Scale
Performance scaling independently verified by ESG:
http://performance.panasas.com/wp-esg-web.html

7. 7
EASY TO DEPLOY, USE AND MANAGE
§ Easy to Deploy
• <10 min. to set up (ESG Lab Test)
• Automatic recognition of new
storage makes scaling a breeze
§ Easy to Use
• Compute nodes see a single,
unified name space
• Files are automatically load
balanced for maximum
performance
§ Easy to Manage
• Single management view via
PanActive Manager GUI (or CLI)
• Snapshots and user quotas
reduce administrator time
• SNMP for integration into third
party management tools
§ Single Point of
Management
§ Simple out-of-box
experience
§ Seamlessly deploy
new blades
§ Capacity & load
balancing
§ Snapshots
§ 1-touch reporting
capabilities
§ Scriptable CLI
PanActive Manager
• Single Point of
Management
• Capacity & load
balancing
• Simple out-of-box
experience
• Snapshots
• Seamlessly deploy
new blades
• 1-touch reporting
capabilities
• Scriptable CLI

8. 8
NEW: ACTIVESTOR 16 WITH PANFS 6.0
§ ActiveStor 16: Platform for PanFS 6.0
• 50% higher density, leveraging HGST UltraStar®
He6 6TB drives
• Faster director blade speeds RAID rebuilds
• Flash sized for RAID 6+
§ PanFS 6.0: RAID 6+ Triple Parity Protection
• Per-file, distributed RAID 6+ overcomes limitations
of traditional RAID
• Reliability increases with scale, not decreases
• Extended File System Availability ensures business
continuity when other systems would be down
• Quickly restore specific files for disaster recovery,
not whole file system
ActiveStor 16
HGST UltraStar® He6
6TB Drive

9. 9
ACTIVESTOR 16 PLATFORM
§ 50% Increase in Density
• Hitachi HGST He6 Helium-filled 6TB drive
technology
• 240GB SSD optimized for RAID 6+
• 122.4TB per 4U shelf
§ Linear Scalability
• Field proven to 12PB and 150GB/s in a single,
global namespace
− 100 shelves, 2000 HDDs, 1000 SSDs
§ Improved Director Blade Performance
• 19% faster CPU (2.53GHz quad-core)
• 4x more cache: 48GB memory
• Improves metadata, small file and RAID rebuild
performance
§ Strong at Both Throughput and IOPS
• Ideal for large file, small file, and mixed workloads
• >13,000 random 4KB file read IOPS per shelf
• 1.5 GB/sec per shelf
ActiveStor 16
Storage Blade
240GB
SSD
8GB
Cache
6TB
HDD x2
CPU

10. 10
SUMMARY
§ IT staff in technical research and enterprise environments need
easily-managed high-performance storage that is scalable and
reliable
§ Selecting scale-out storage usually requires compromises
• High performance computing file systems deliver performance but
compromise on reliability, availability, and ease of management
• Enterprise NAS systems deliver high reliability and availability but
compromise performance
§ Panasas ActiveStor delivers a no-compromise solution

11. 11
PANASAS ACTIVESTOR
§ Easy Management
• Minimal management effort at scale
• Set up or grow capacity in under 10 minutes
• Single, global namespace
§ High Parallel Performance
• Direct data access eliminates
traditional NAS bottlenecks
• Capacity and performance scale
linearly to 12PB and 150GB/s
• Flash accelerated hybrid architecture
§ Enterprise-Grade Reliability
• Triple parity protection with RAID 6+
• Reliability increases with scale
• Extended File System Availability
“No Compromise” Hybrid Scale-Out NAS
ActiveStor 16

12. 12
