Accessibility with OutSystems
| Accessibility with OutSystems Bruno Marcelino Front End Software Engineer | OutSystems R&D @ in brunoap.marcelino@outsystems.com /bmarcelino /bmarcelin_o @bmarcelino
| Accessibility with OutSystems What is Web?
| Accessibility with OutSystems “The power of the Web is in its universality. Access by everyone regardless of disability is an essential aspect.” Tim Berners-Lee, Director of the W3C (World Wide Web Consortium) and inventor of the World Wide Web
| Accessibility with OutSystems The impact of disability is different on the Web, because the Web removes some of the barriers.
| Accessibility with OutSystems Accessibility is essential for developers and organizations
| Accessibility with OutSystems What is Accessibility?
| Accessibility with OutSystems Accessibility is when applications, tools, and technologies are developed and designed to be used by everyone.
| Accessibility with OutSystems Friends and Family
| Accessibility with OutSystems 1/5 people have disability The world population is almost 7.7 billion and people with disabilities represents one in five people
| Accessibility with OutSystems Education and Government

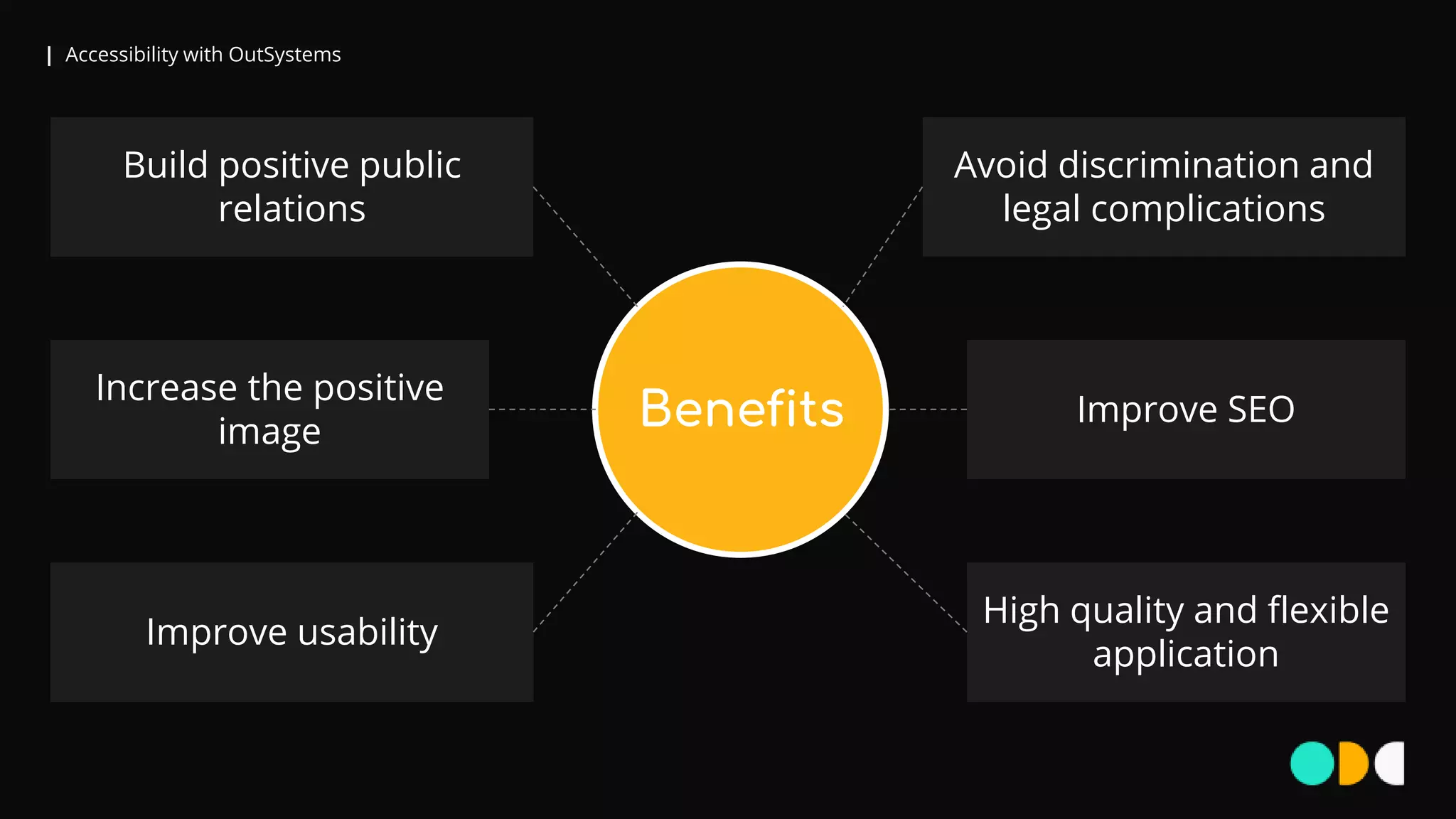

| Accessibility with OutSystems Increase the positive image High quality and flexible application Improve SEO Improve usability Build positive public relations Avoid discrimination and legal complications Benefits
| Accessibility with OutSystems Why should you consider accessibility?

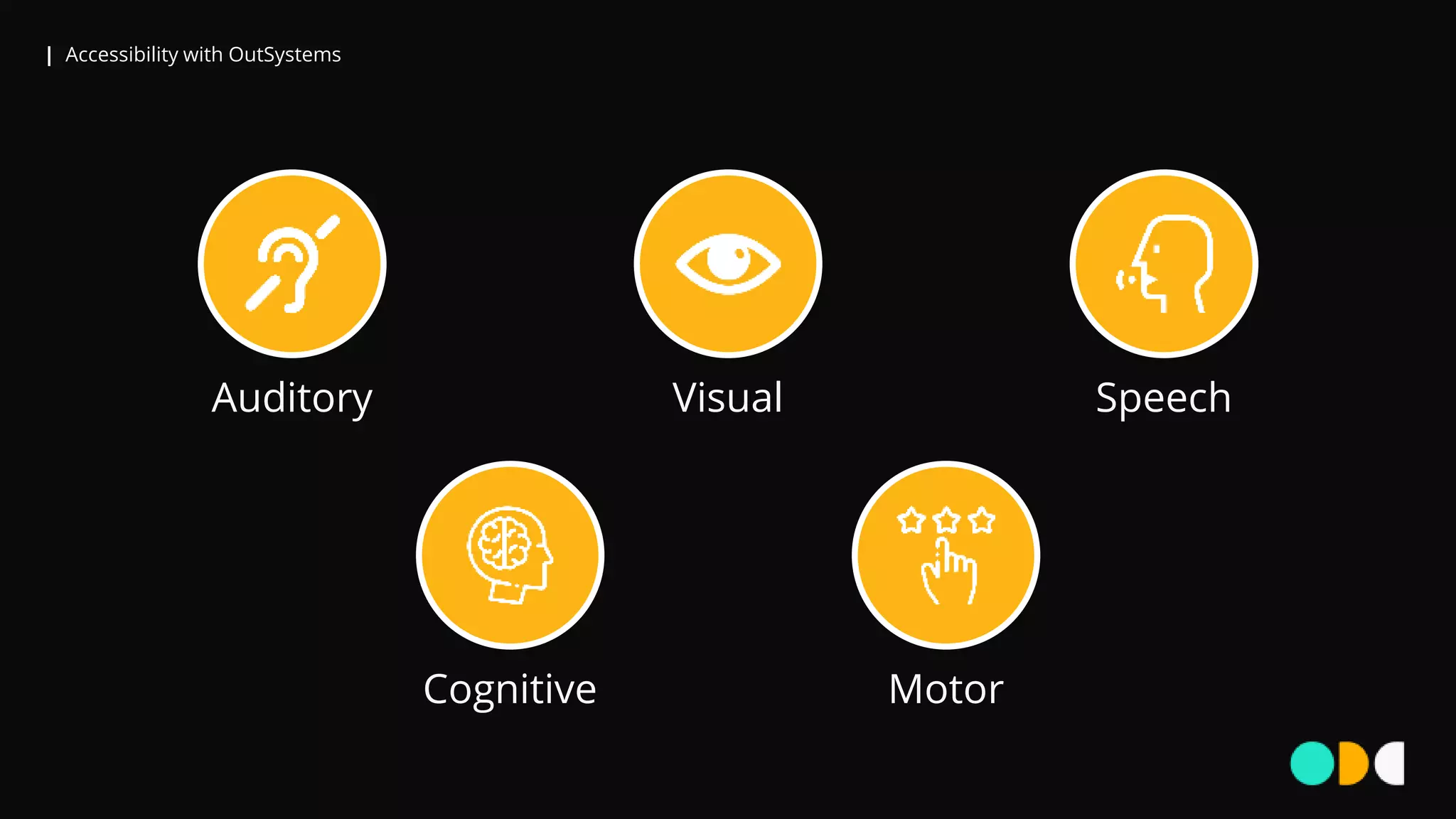

| Accessibility with OutSystems Auditory Cognitive Visual Motor Speech
| Accessibility with OutSystems Making it accessible, benefits all of us!
| Accessibility with OutSystems Slow internet connection Senior Temporary impairments
| Accessibility with OutSystems A simple story that happened to me!
| Accessibility with OutSystems How do we make an accessible app?

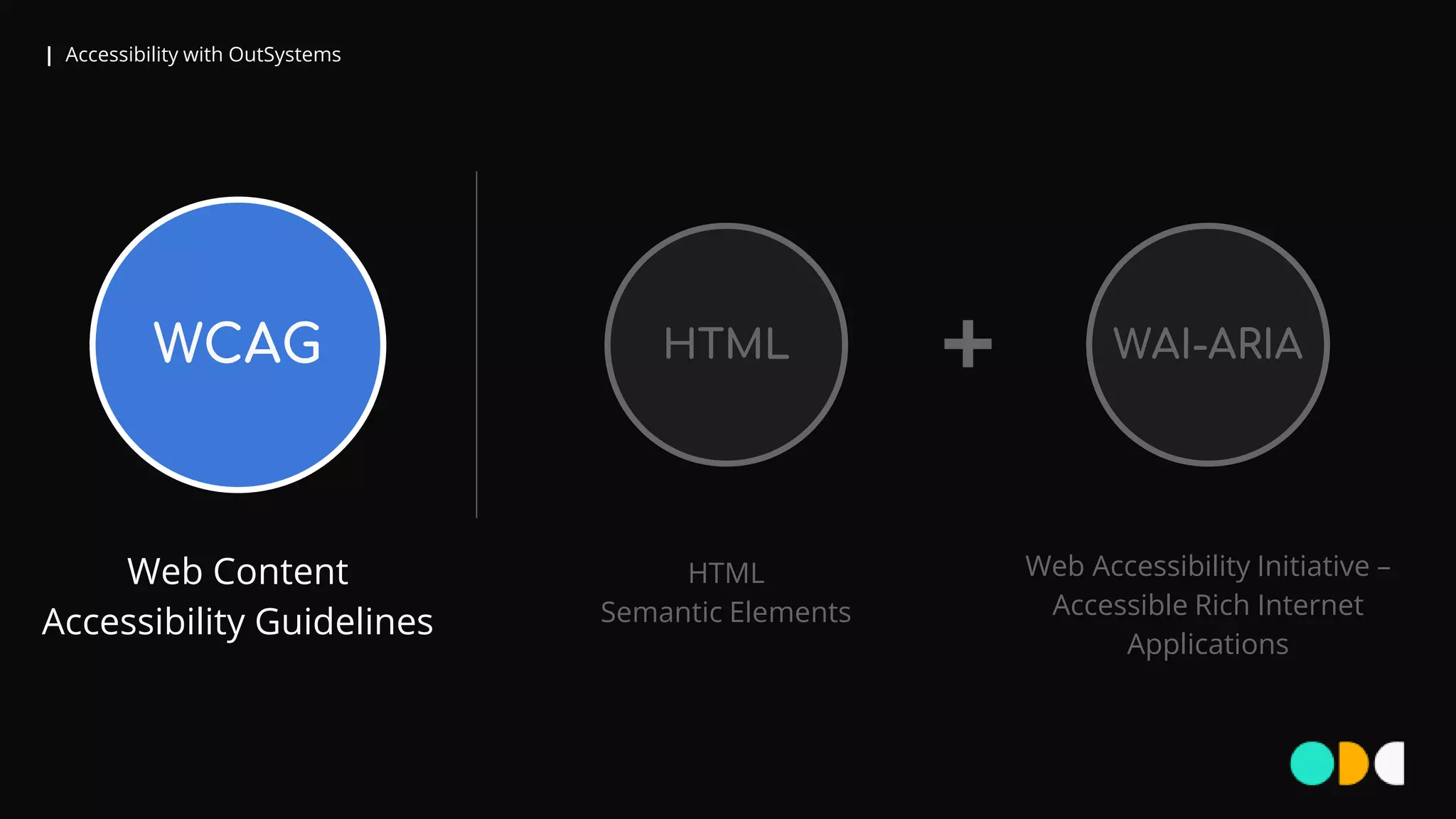

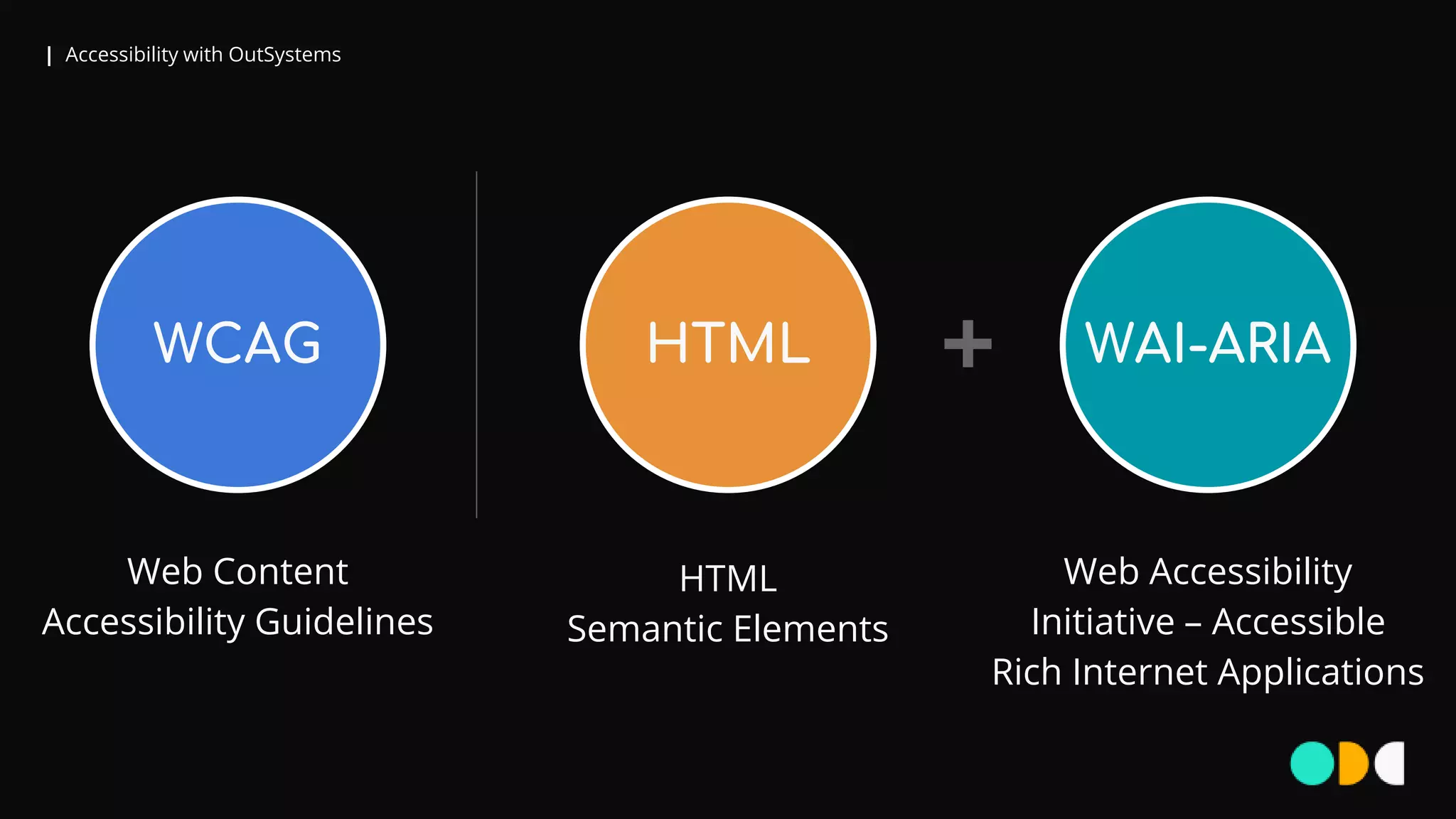

| Accessibility with OutSystems Web Content Accessibility Guidelines WCAG HTML Semantic Elements HTML WAI-ARIA Web Accessibility Initiative – Accessible Rich Internet Applications +
| Accessibility with OutSystems WAI-ARIA Web Accessibility Initiative – Accessible Rich Internet Applications Web Content Accessibility Guidelines WCAG HTML Semantic Elements HTML +

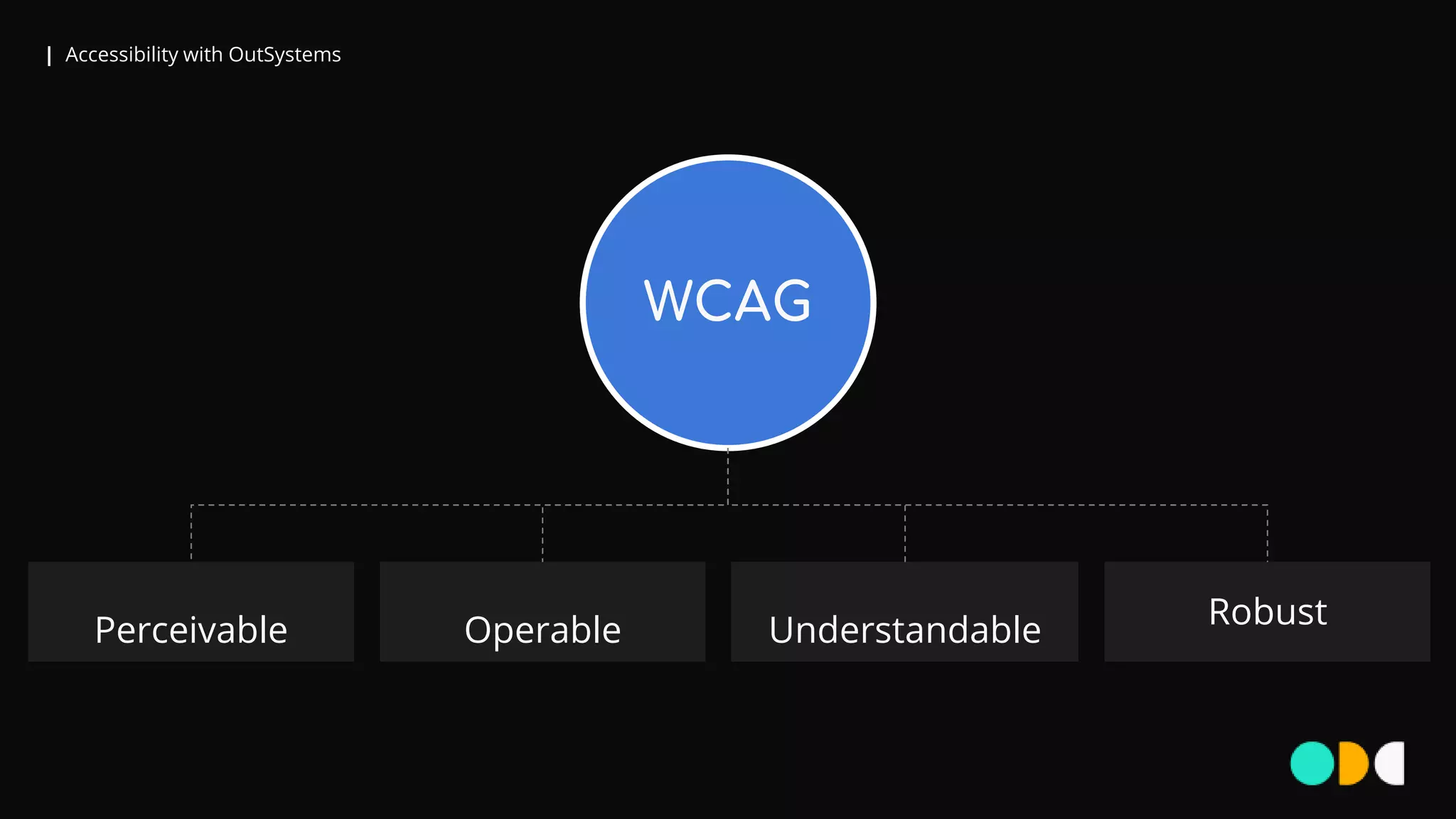

| Accessibility with OutSystems Robust UnderstandableOperable WCAG Perceivable

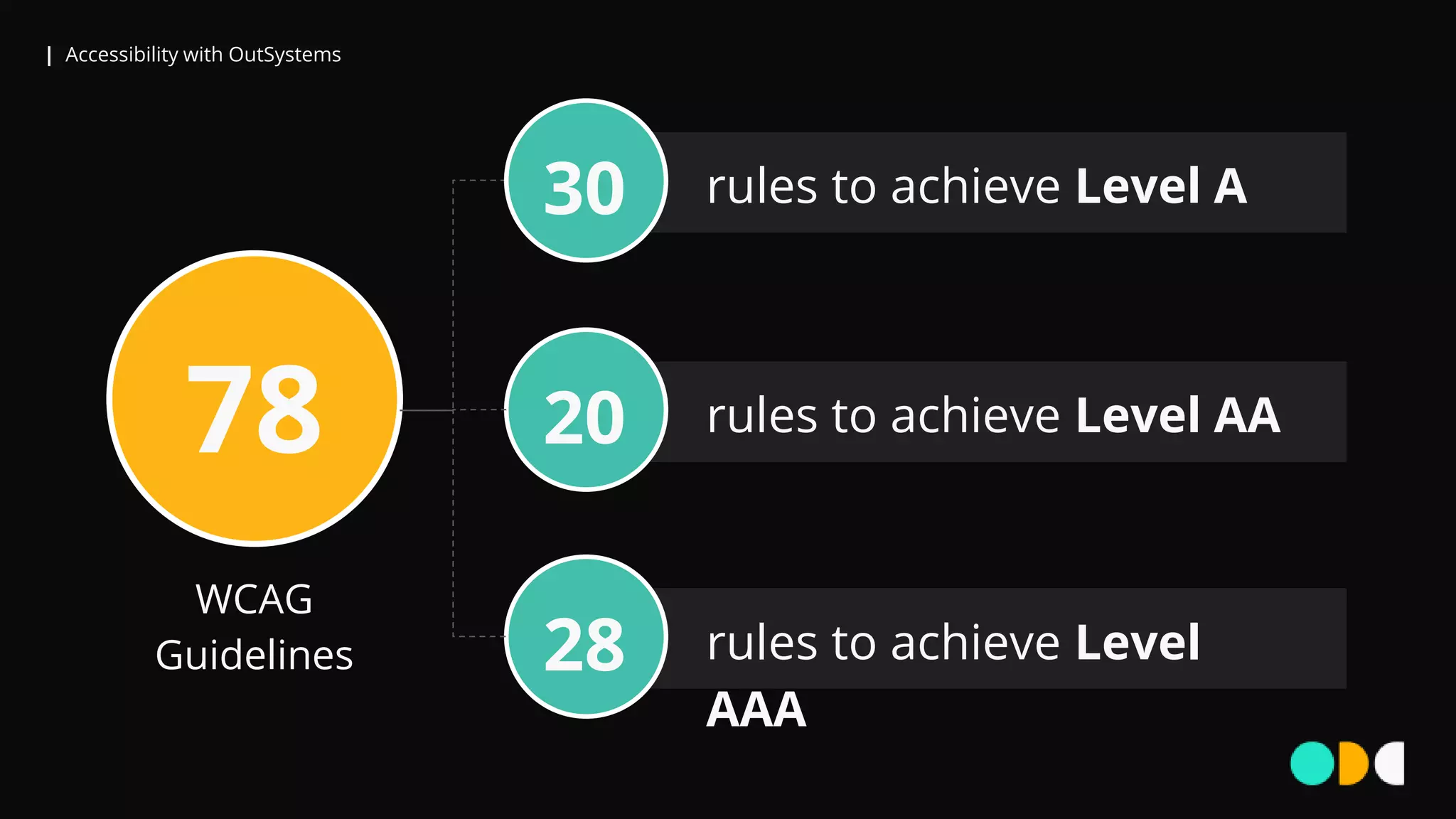

| Accessibility with OutSystems rules to achieve Level A 78 30 rules to achieve Level AA20 rules to achieve Level AAA 28 WCAG Guidelines

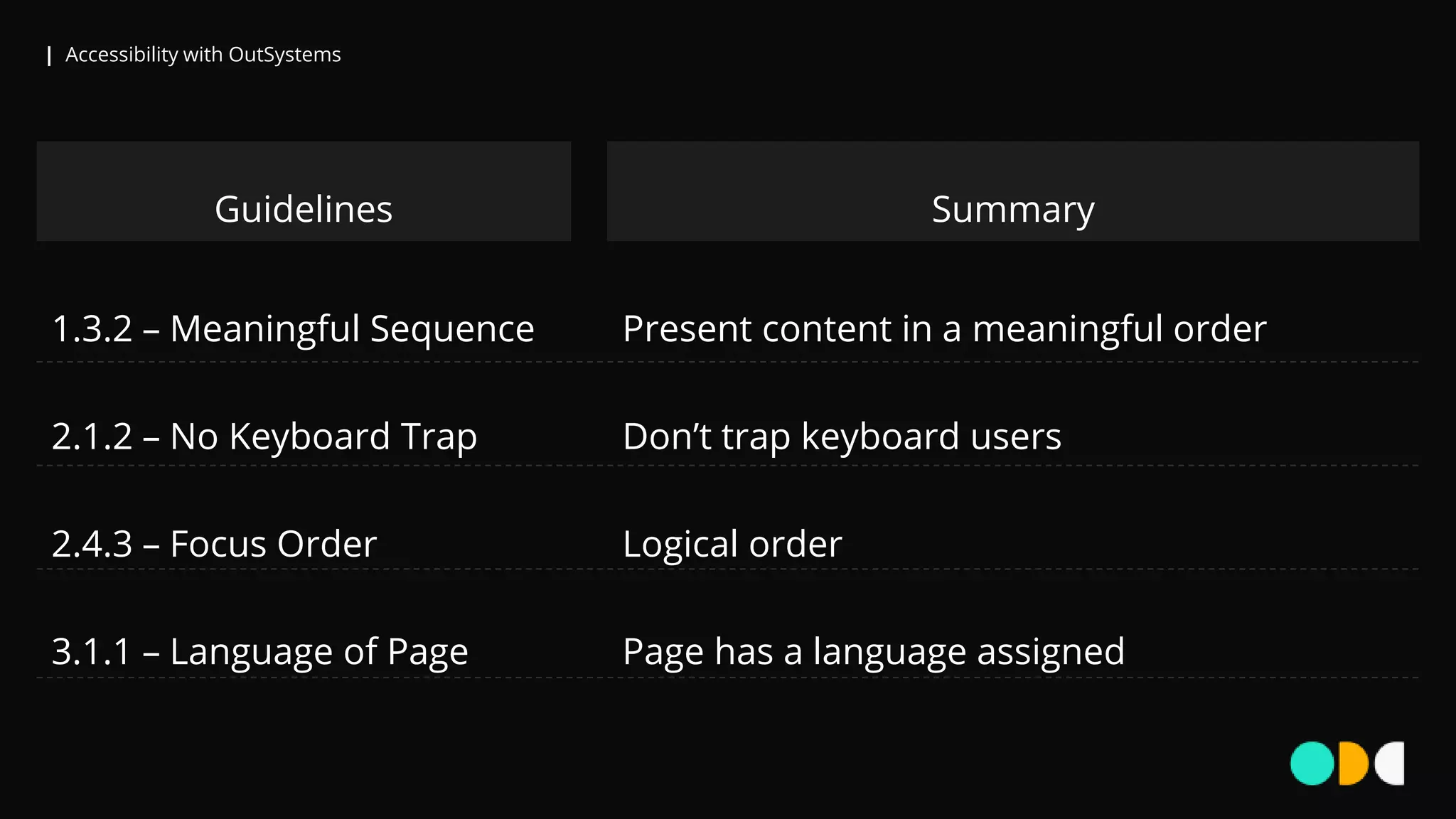

| Accessibility with OutSystems SummaryGuidelines 1.3.2 – Meaningful Sequence 2.1.2 – No Keyboard Trap 2.4.3 – Focus Order 3.1.1 – Language of Page Present content in a meaningful order Don’t trap keyboard users Logical order Page has a language assigned
| Accessibility with OutSystems Are there guidelines for mobile?

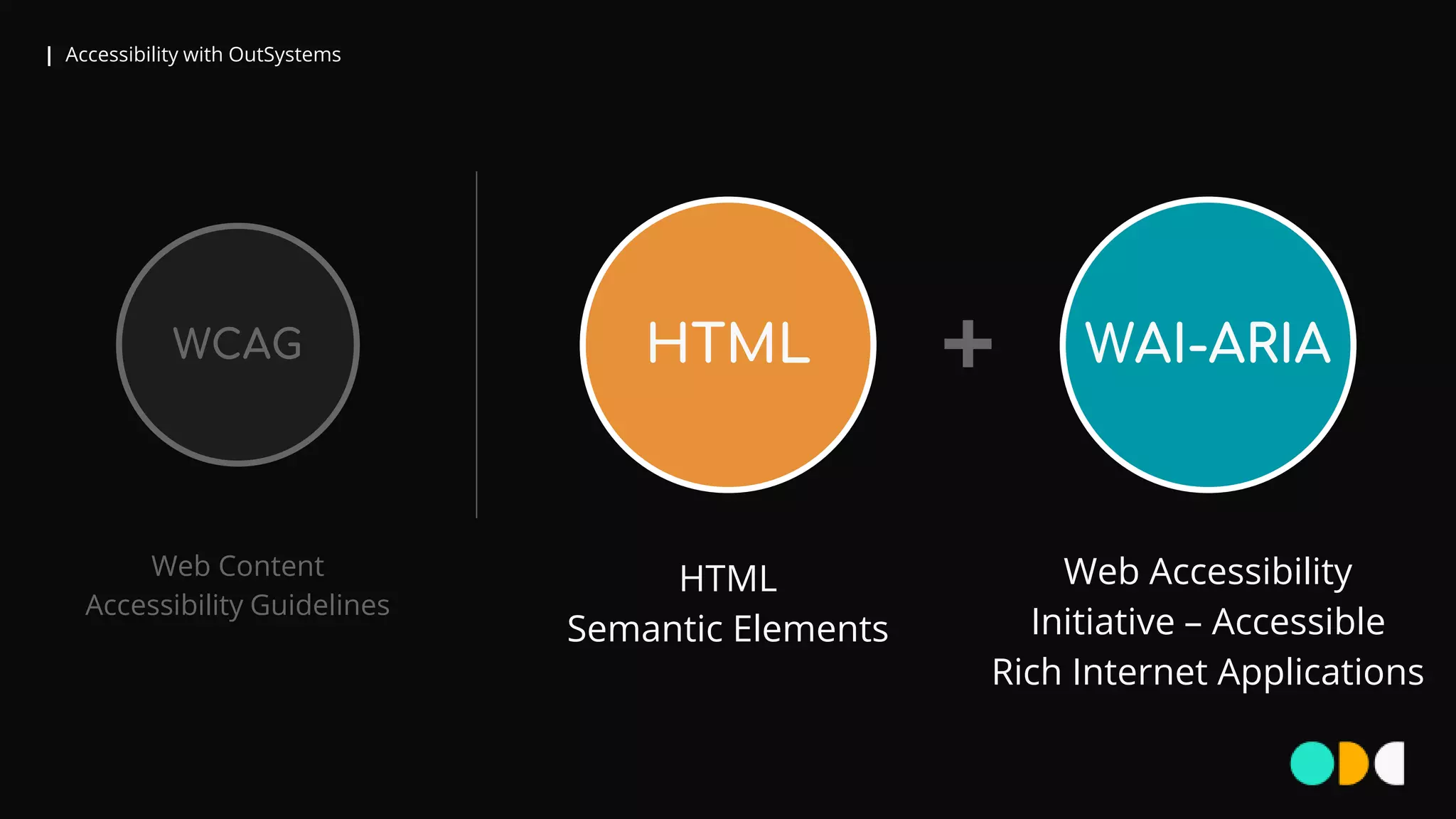

| Accessibility with OutSystems HTML Semantic Elements HTML WAI-ARIA Web Accessibility Initiative – Accessible Rich Internet Applications Web Content Accessibility Guidelines WCAG +

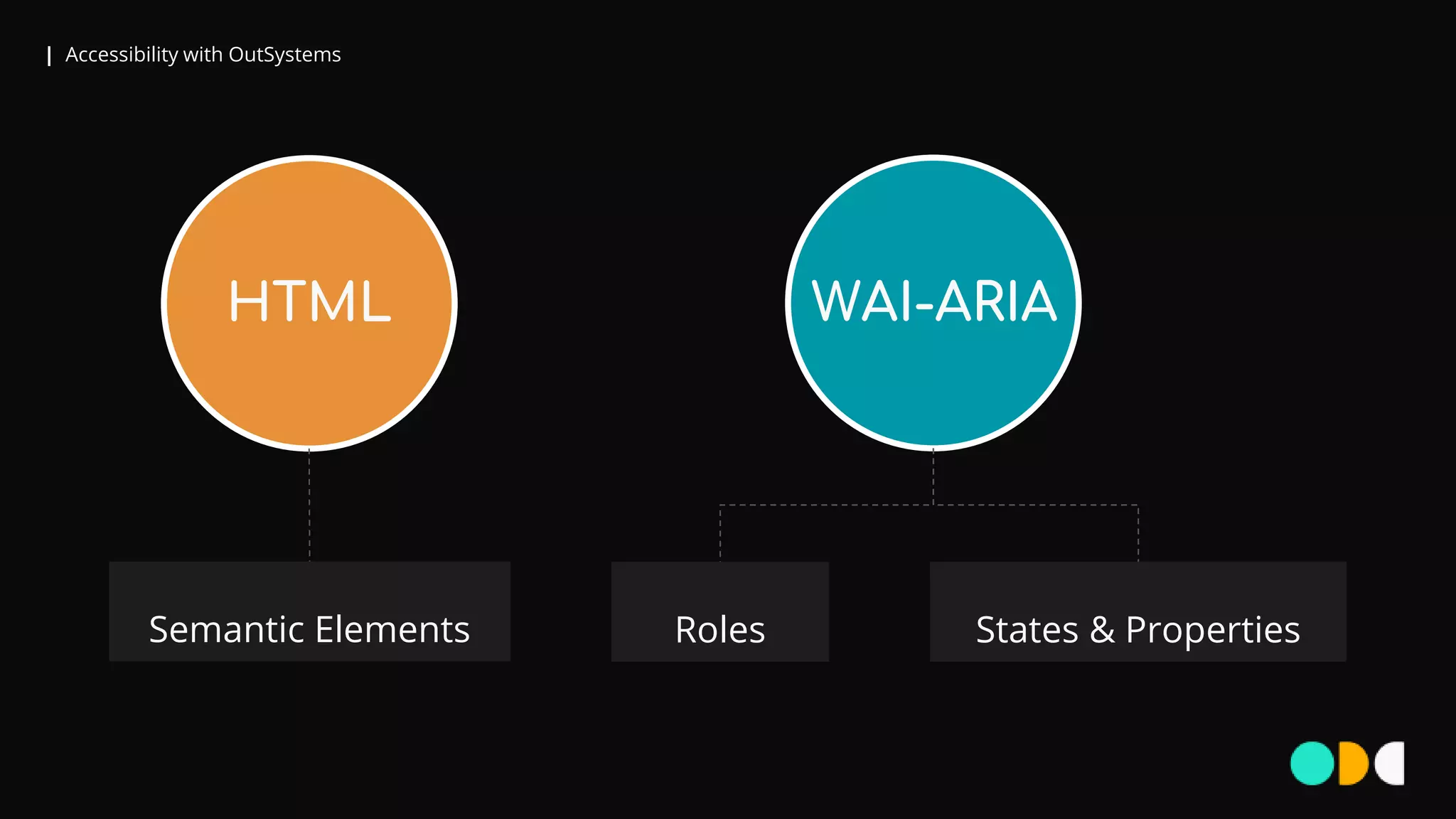

| Accessibility with OutSystems States & Properties WAI-ARIA Roles HTML Semantic Elements

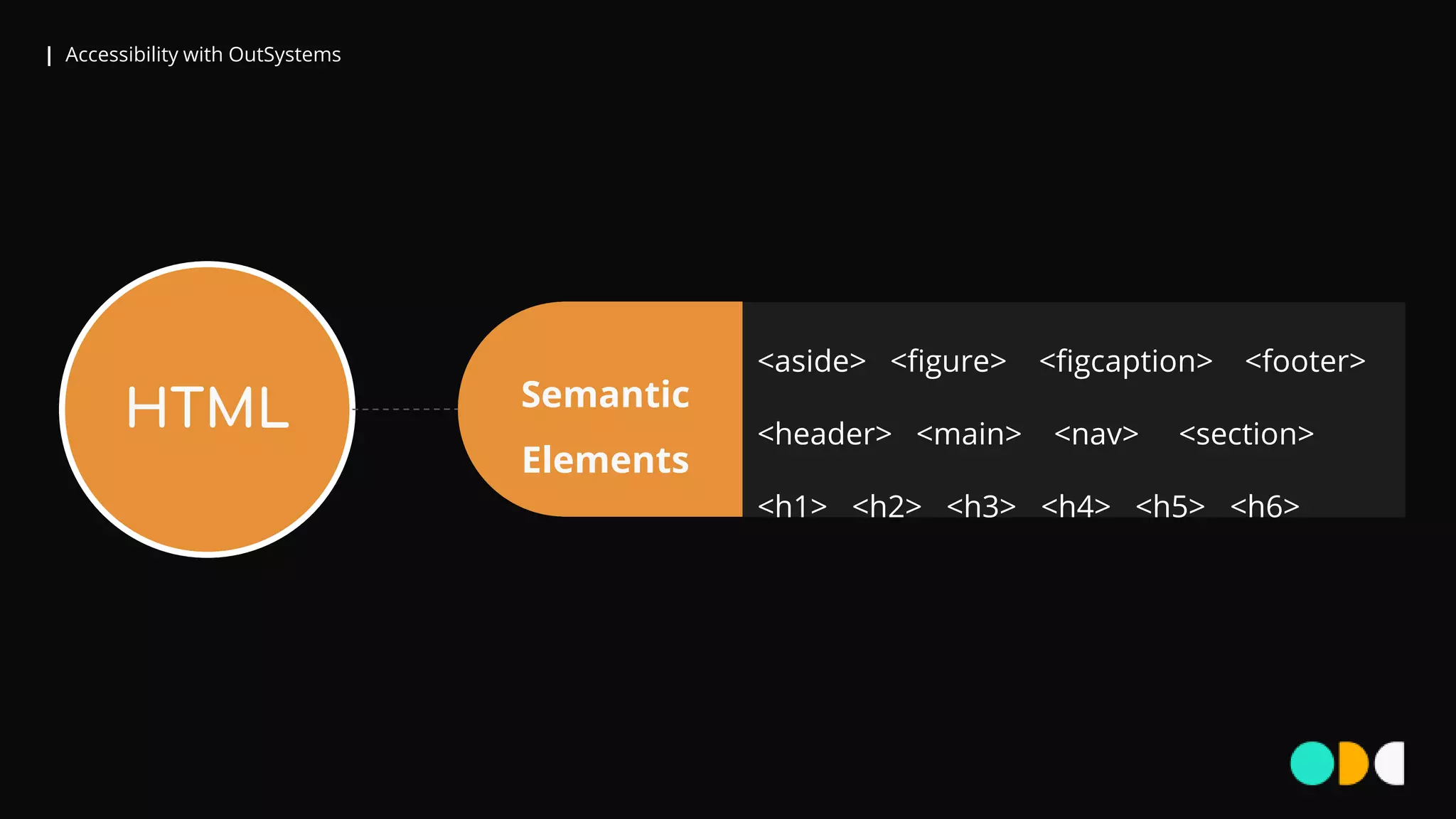

| Accessibility with OutSystems Semantic Elements HTML <aside> <figure> <figcaption> <footer> <header> <main> <nav> <section> <h1> <h2> <h3> <h4> <h5> <h6>

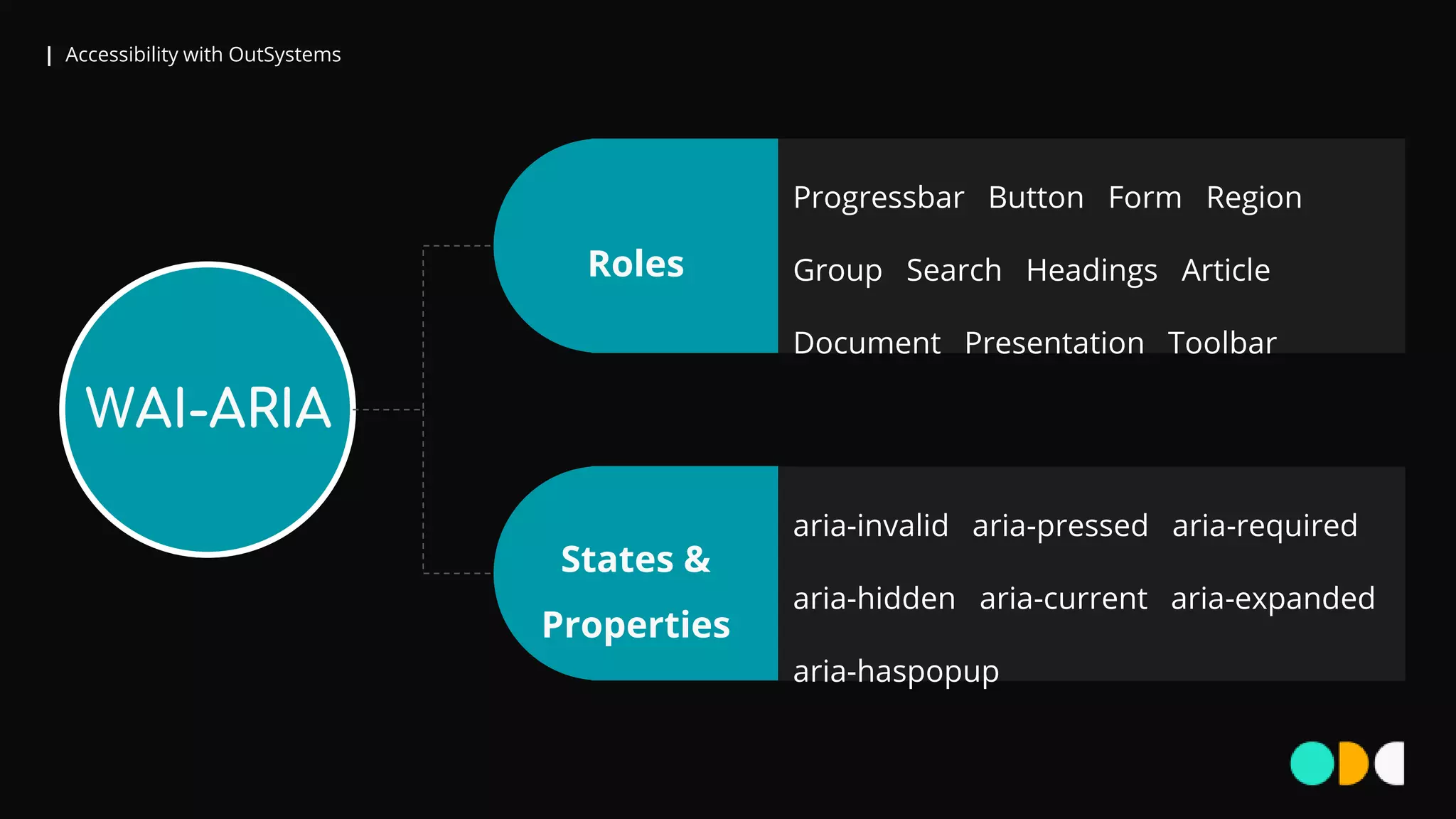

| Accessibility with OutSystems Roles States & Properties WAI-ARIA Progressbar Button Form Region Group Search Headings Article Document Presentation Toolbar aria-invalid aria-pressed aria-required aria-hidden aria-current aria-expanded aria-haspopup

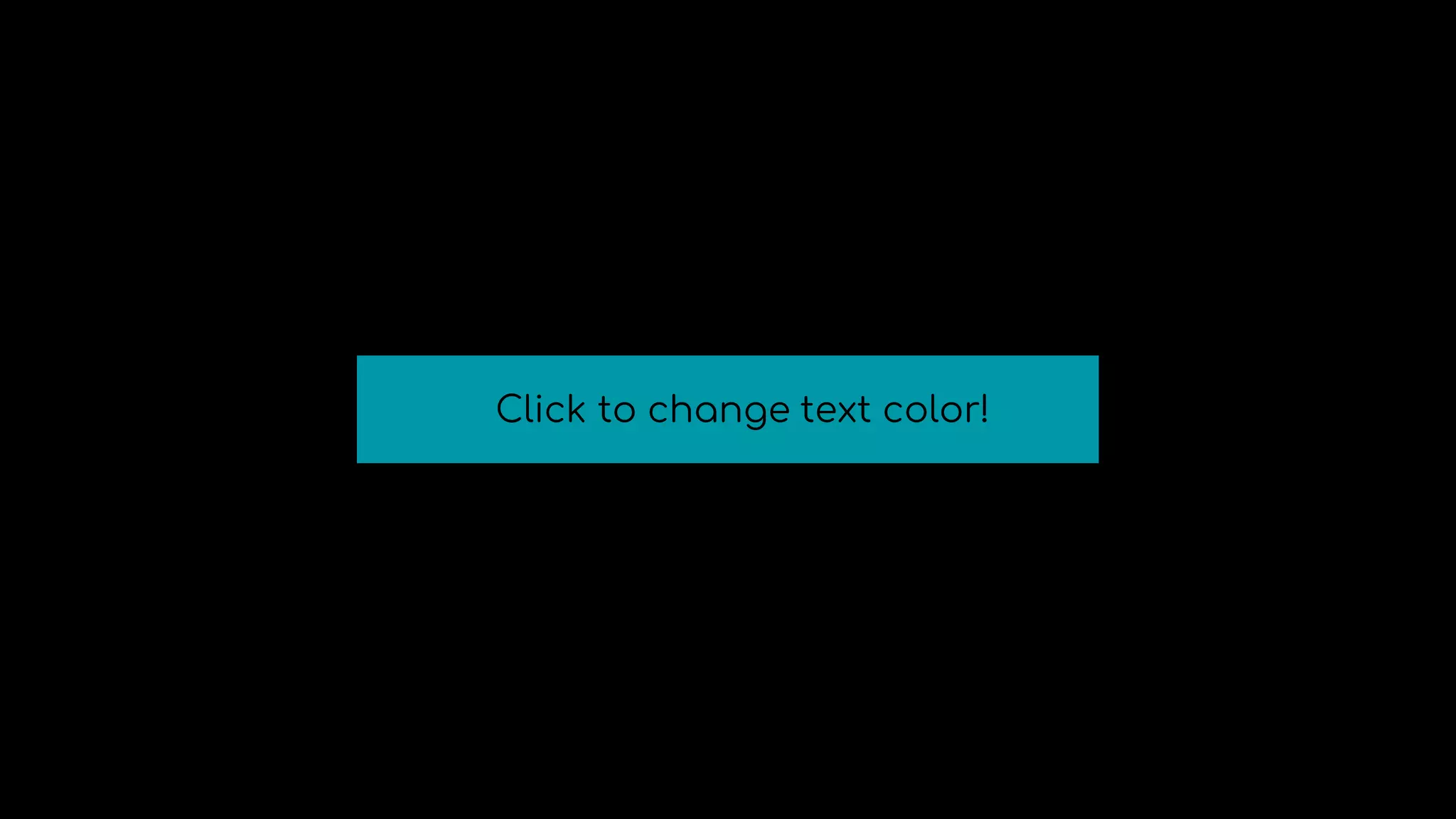

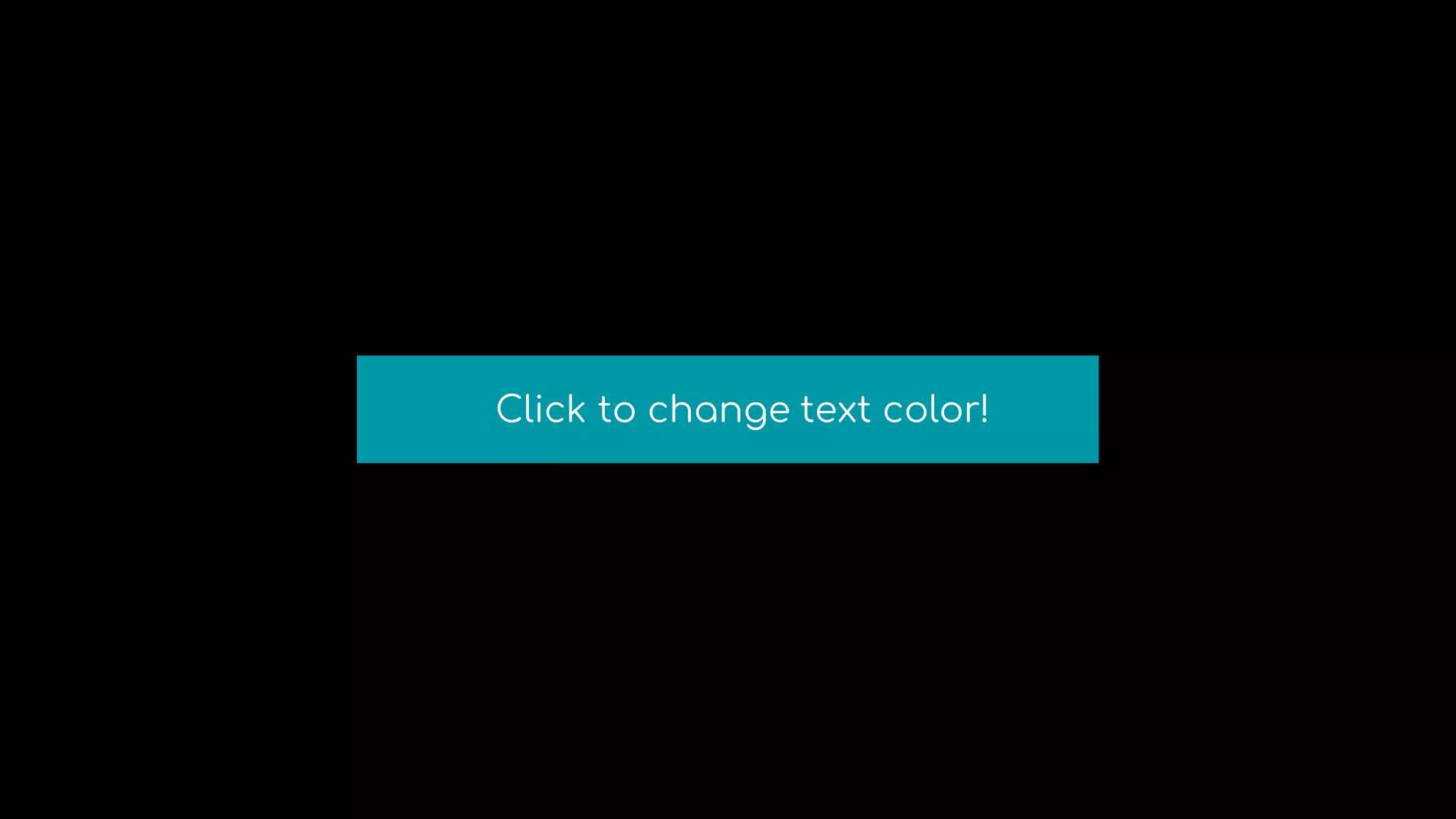

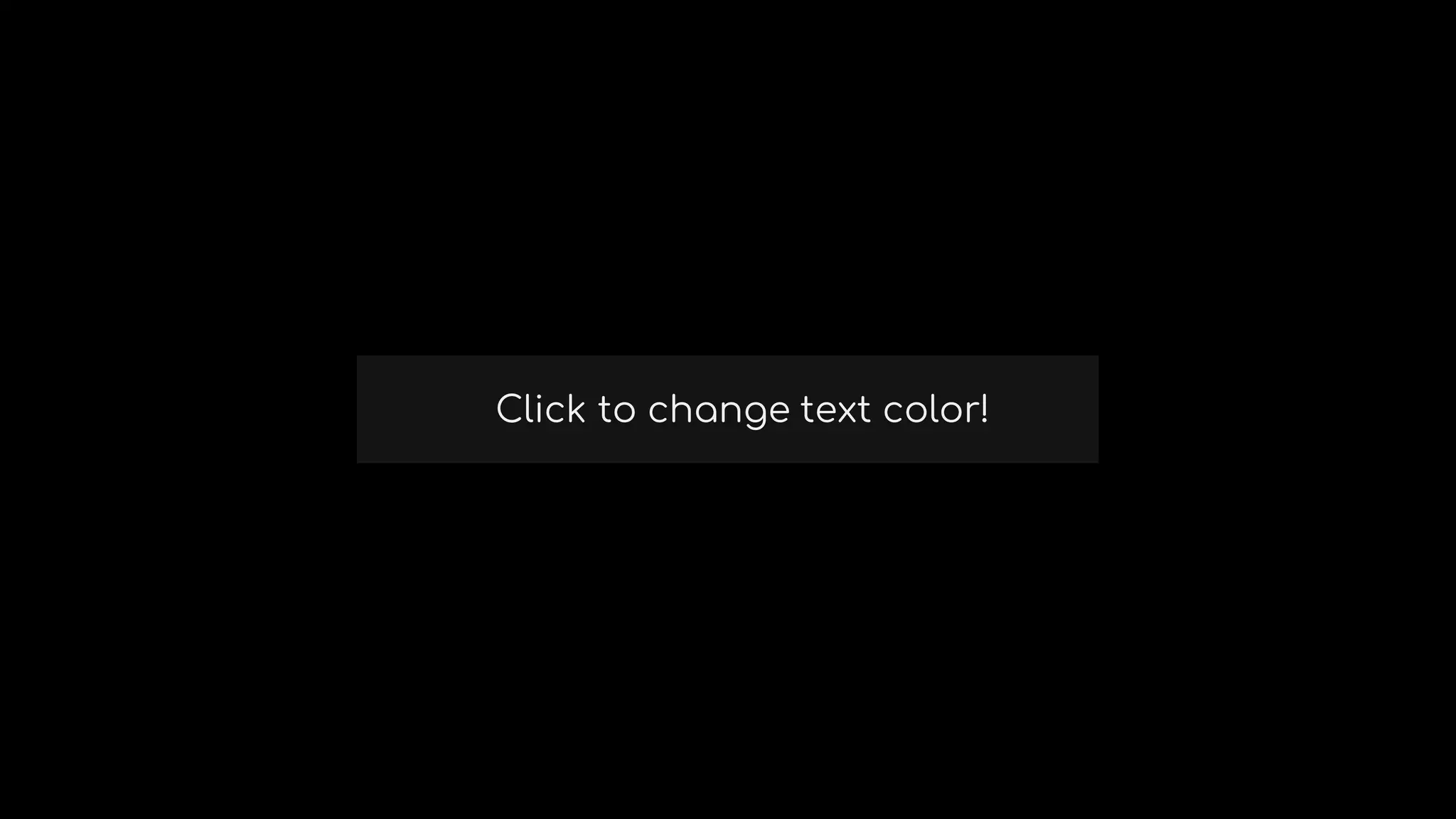

| Accessibility with OutSystems Click to change text color!
| Accessibility with OutSystems Click to change text color!
| Accessibility with OutSystems Click to change text color!

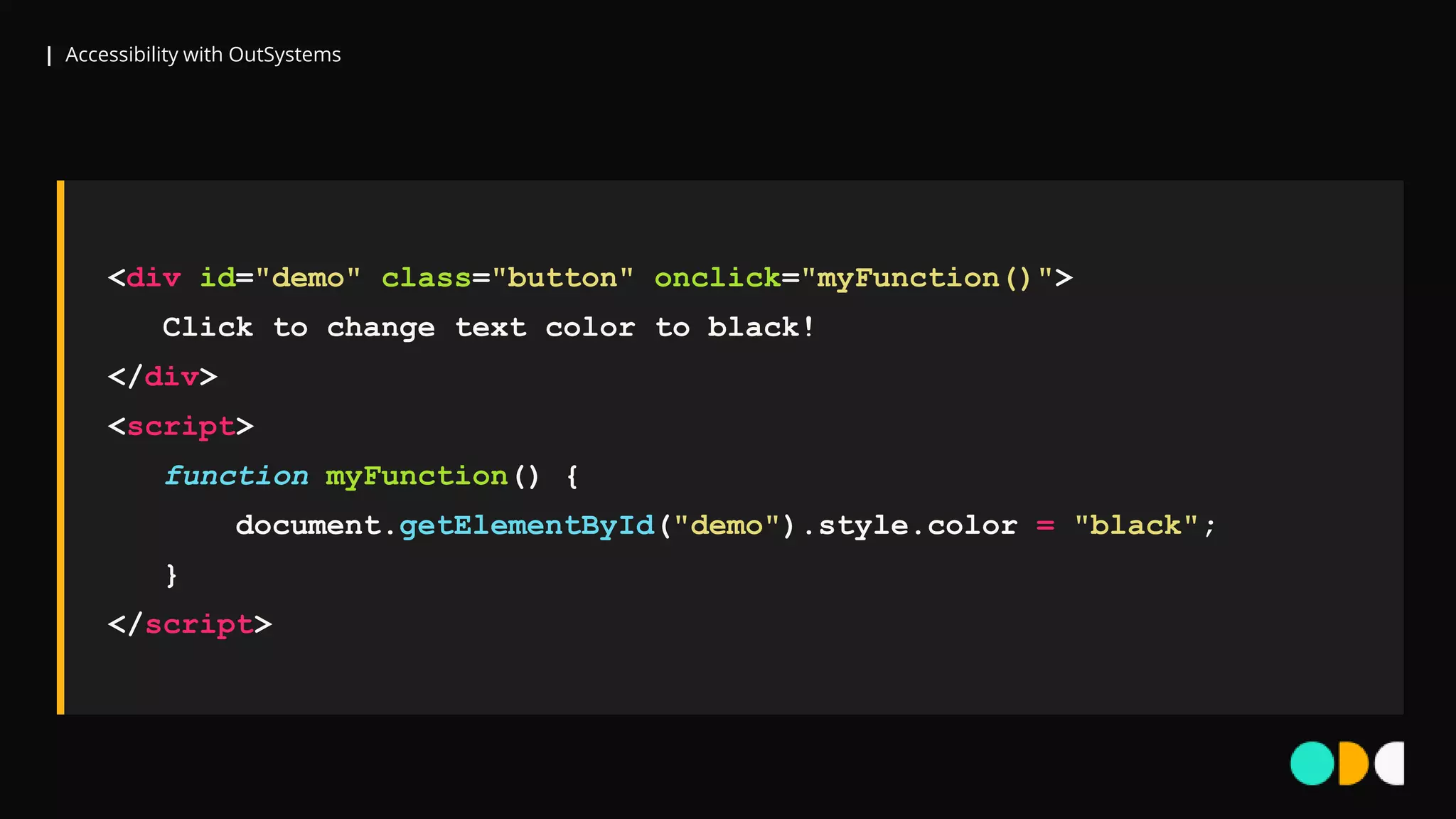

| Accessibility with OutSystems <div id="demo" class="button" onclick="myFunction()"> Click to change text color to black! </div> <script> function myFunction() { document.getElementById("demo").style.color = "black"; } </script>

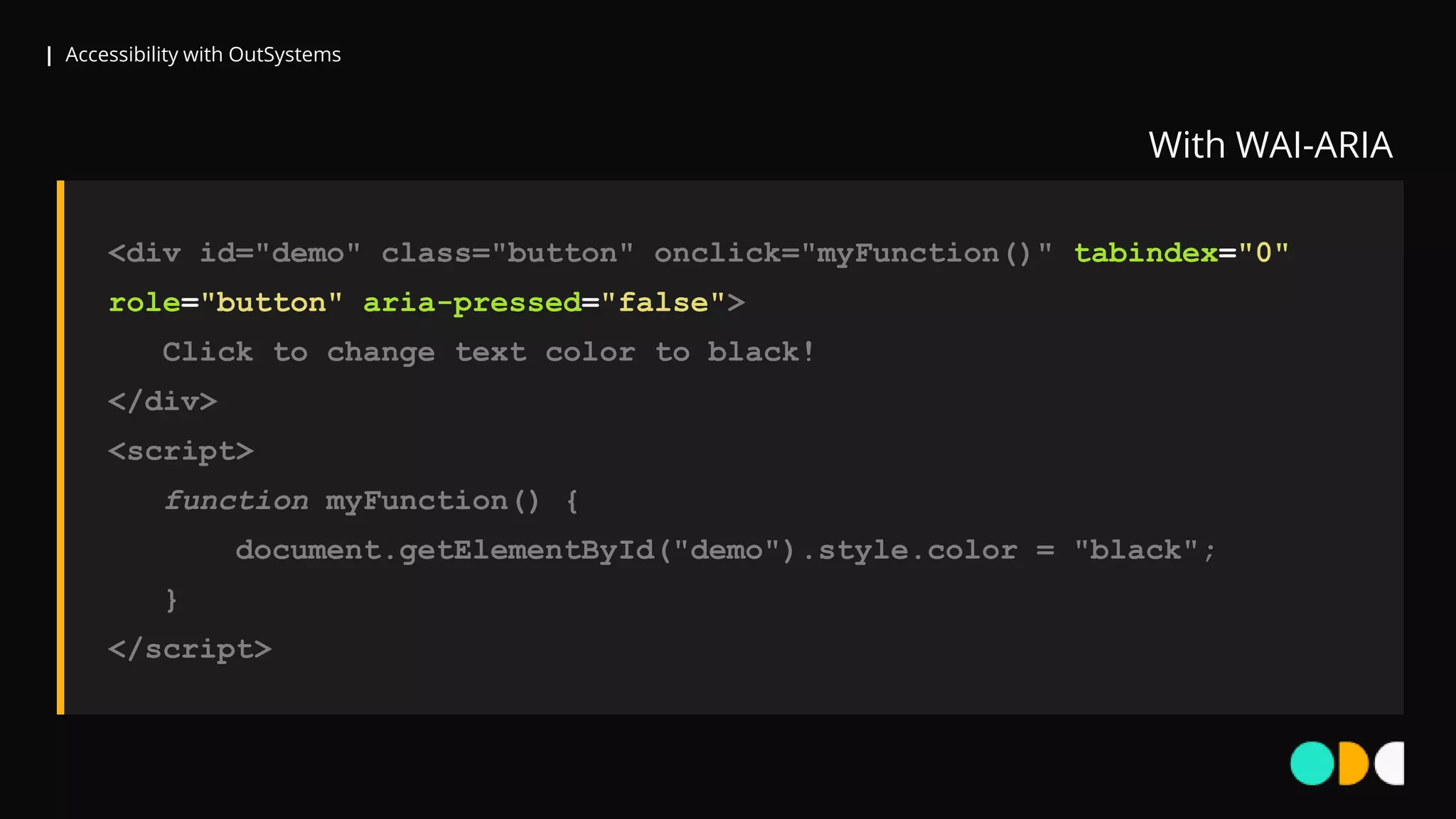

| Accessibility with OutSystems <div id="demo" class="button" onclick="myFunction()" tabindex="0" role="button" aria-pressed="false"> Click to change text color to black! </div> <script> function myFunction() { document.getElementById("demo").style.color = "black"; } </script> With WAI-ARIA

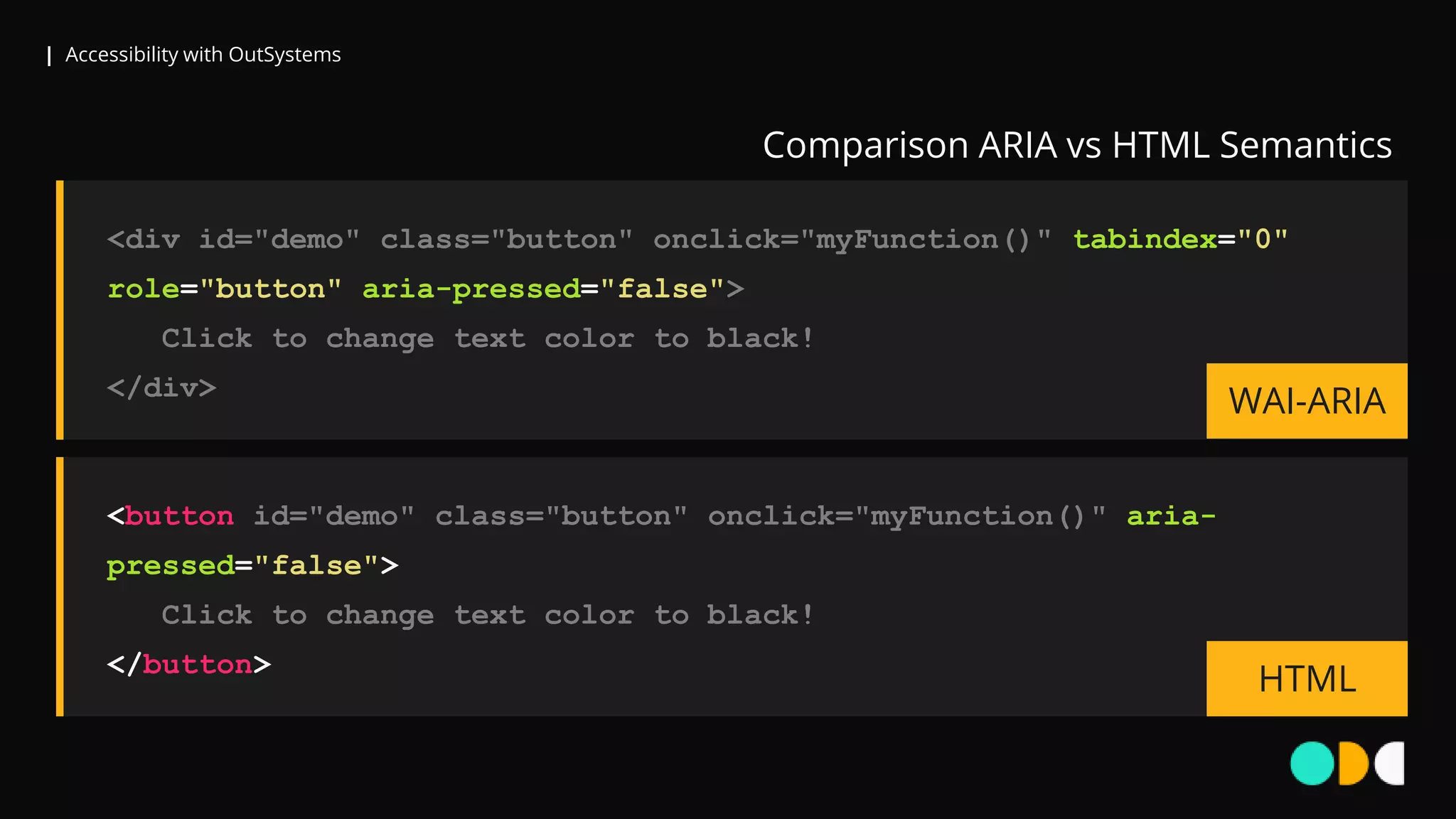

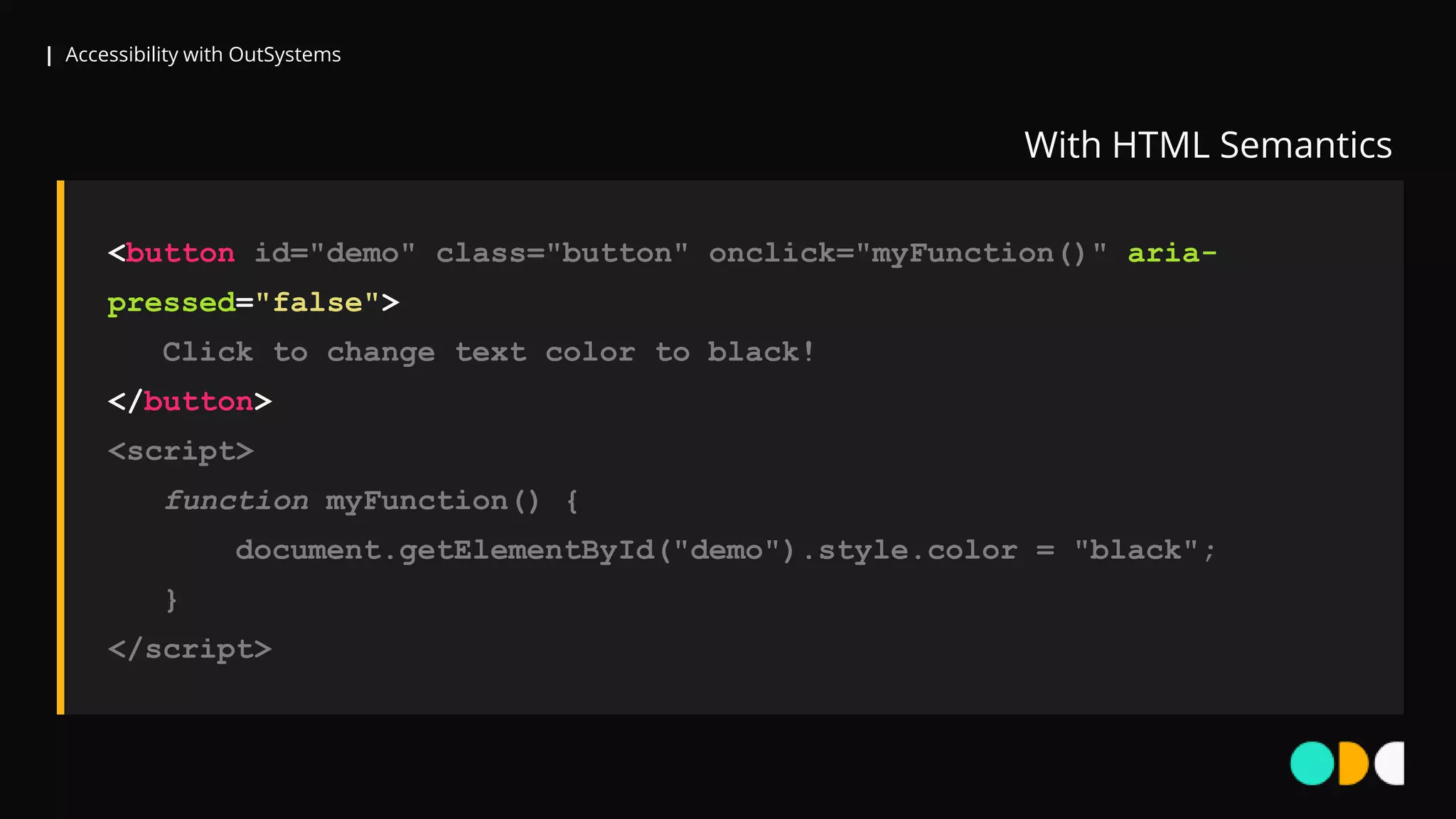

| Accessibility with OutSystems <button id="demo" class="button" onclick="myFunction()" aria- pressed="false"> Click to change text color to black! </button> <script> function myFunction() { document.getElementById("demo").style.color = "black"; } </script> With HTML Semantics
| Accessibility with OutSystems <button id="demo" class="button" onclick="myFunction()" aria- pressed="false"> Click to change text color to black! </button> HTML <div id="demo" class="button" onclick="myFunction()" tabindex="0" role="button" aria-pressed="false"> Click to change text color to black! </div> WAI-ARIA Comparison ARIA vs HTML Semantics

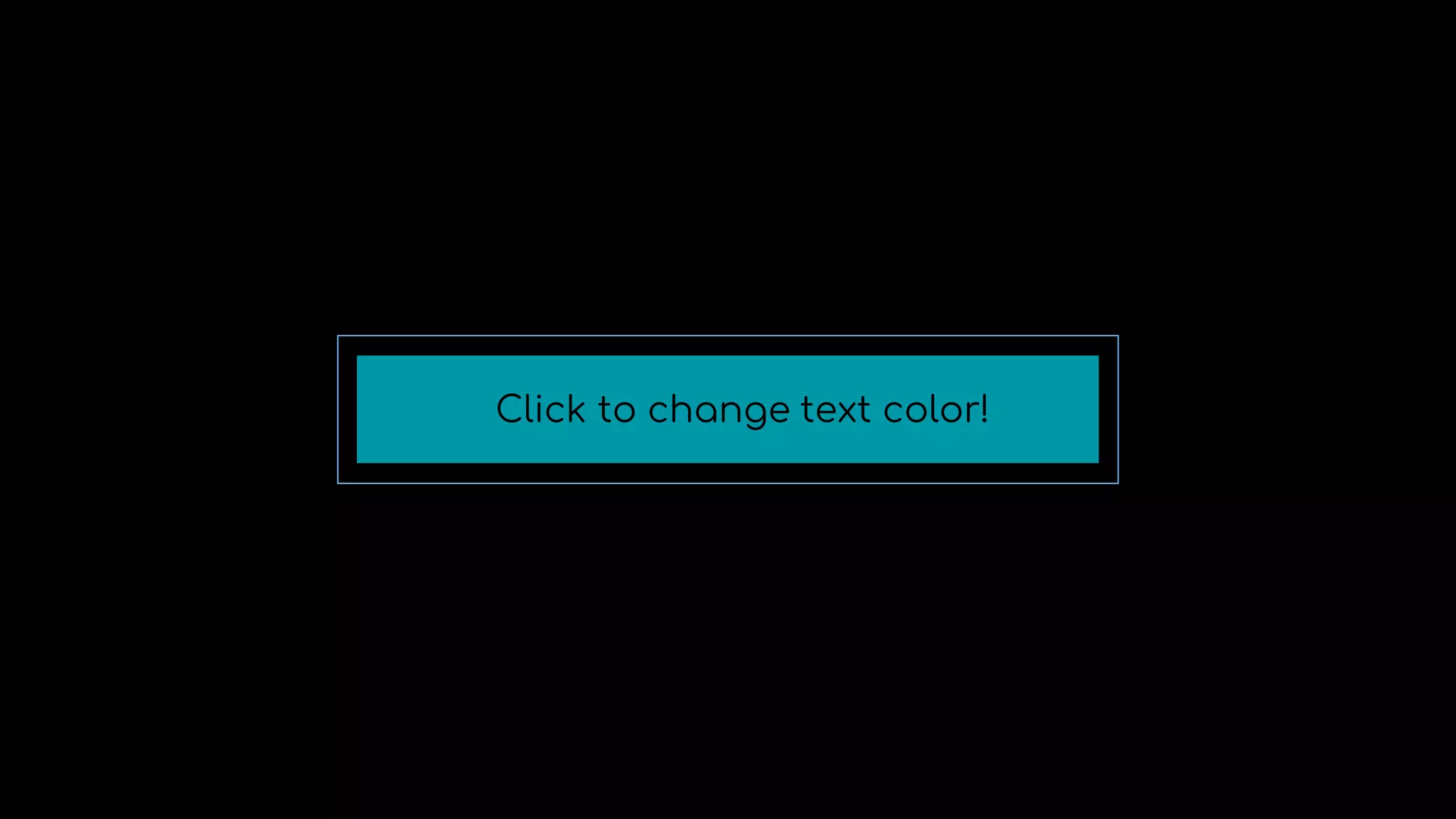

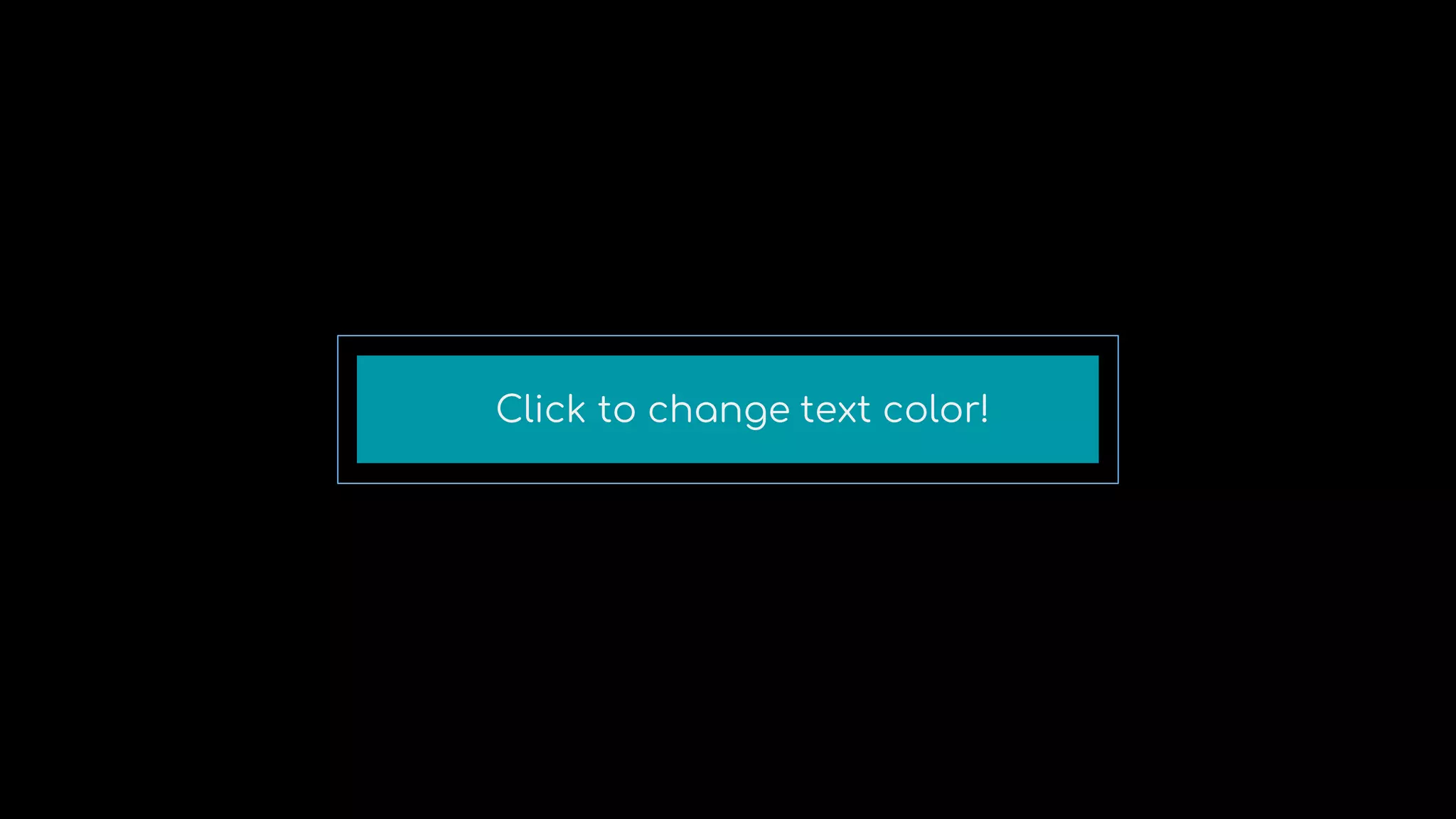

| Accessibility with OutSystems Click to change text color!
| Accessibility with OutSystems Click to change text color!
| Accessibility with OutSystems Click to change text color!
| Accessibility with OutSystems OutSystems UI
| Accessibility with OutSystems Templates UI Patterns
| Accessibility with OutSystems Templates UI Patterns

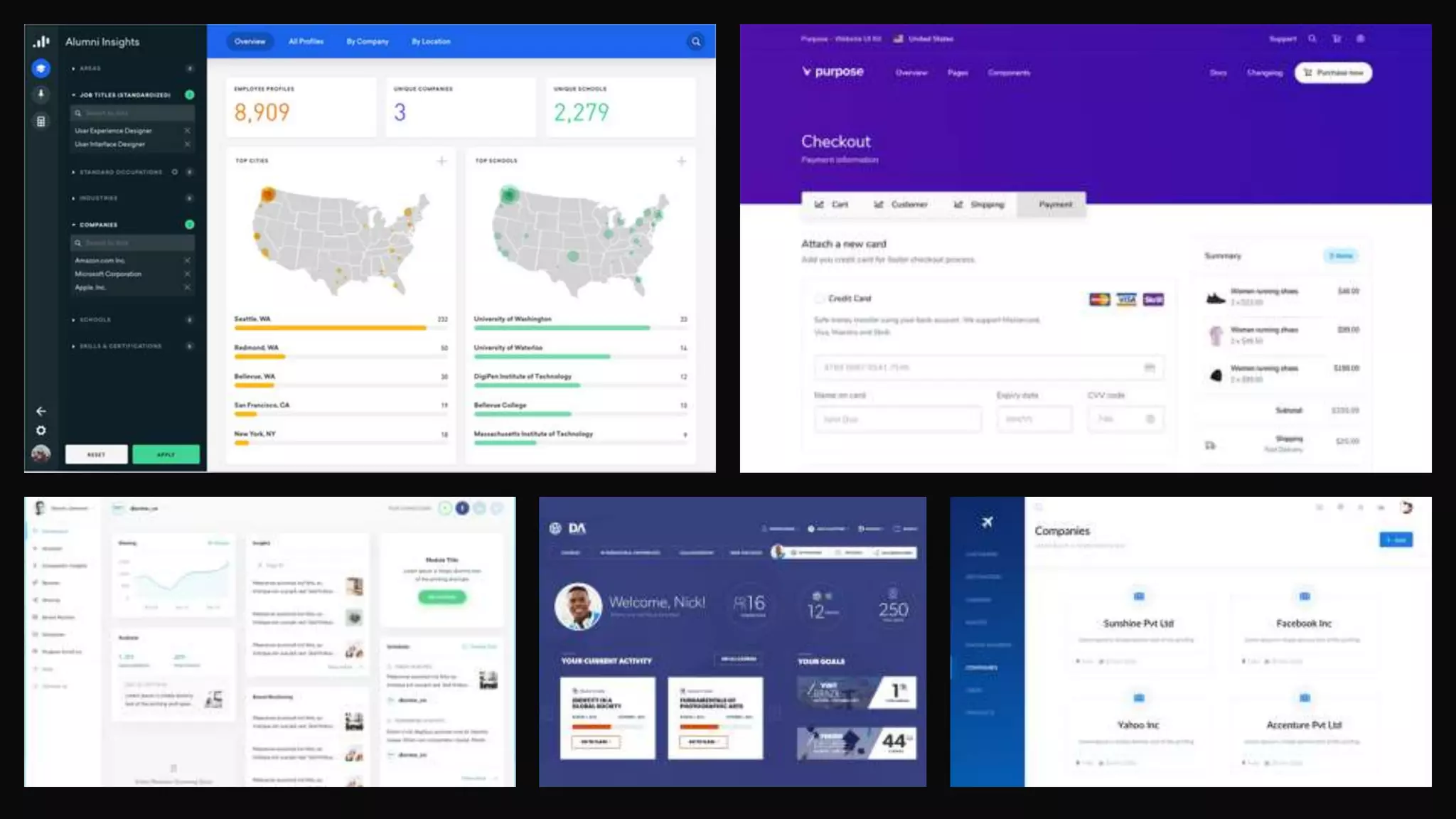

| Accessibility with OutSystems

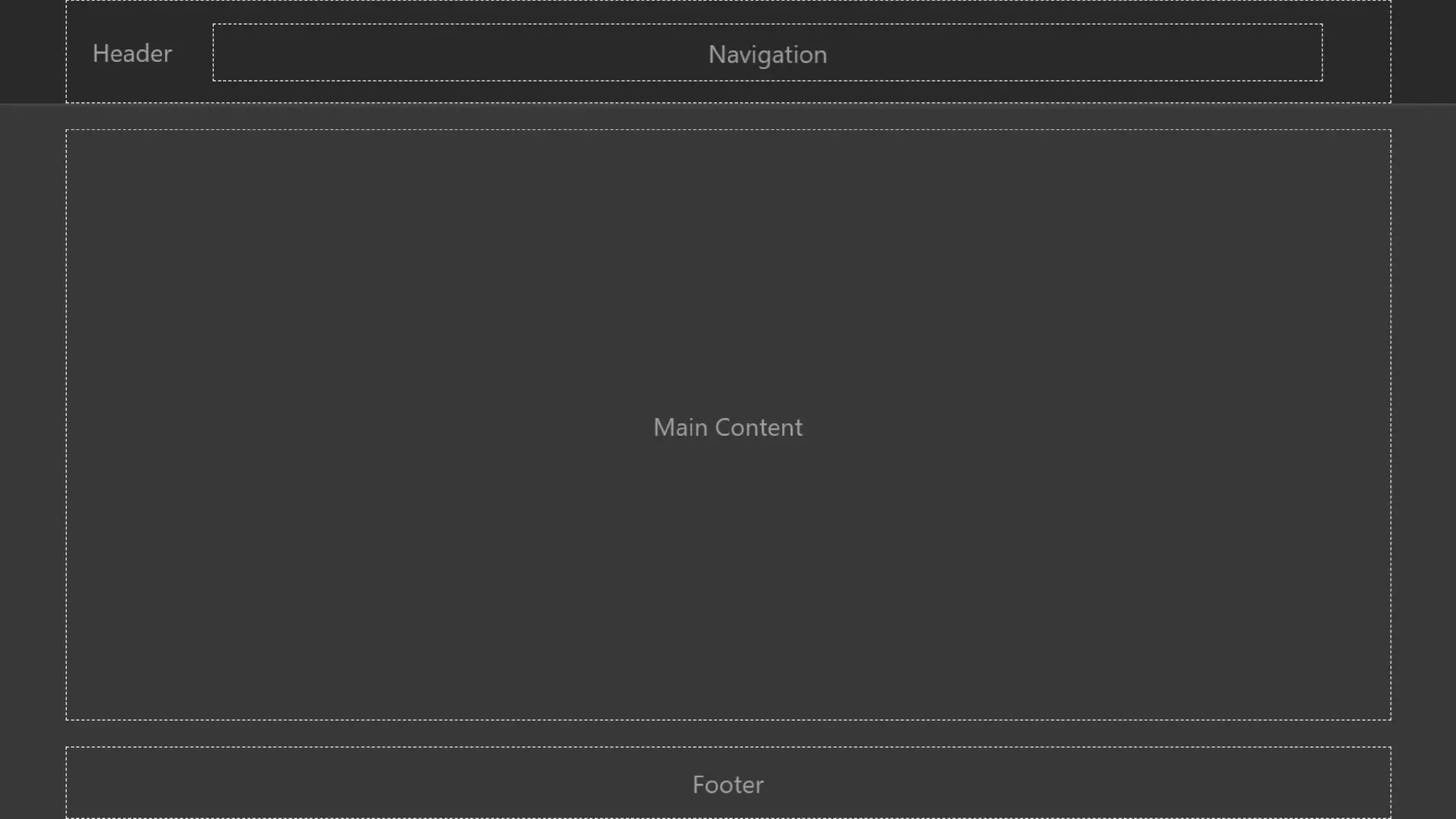

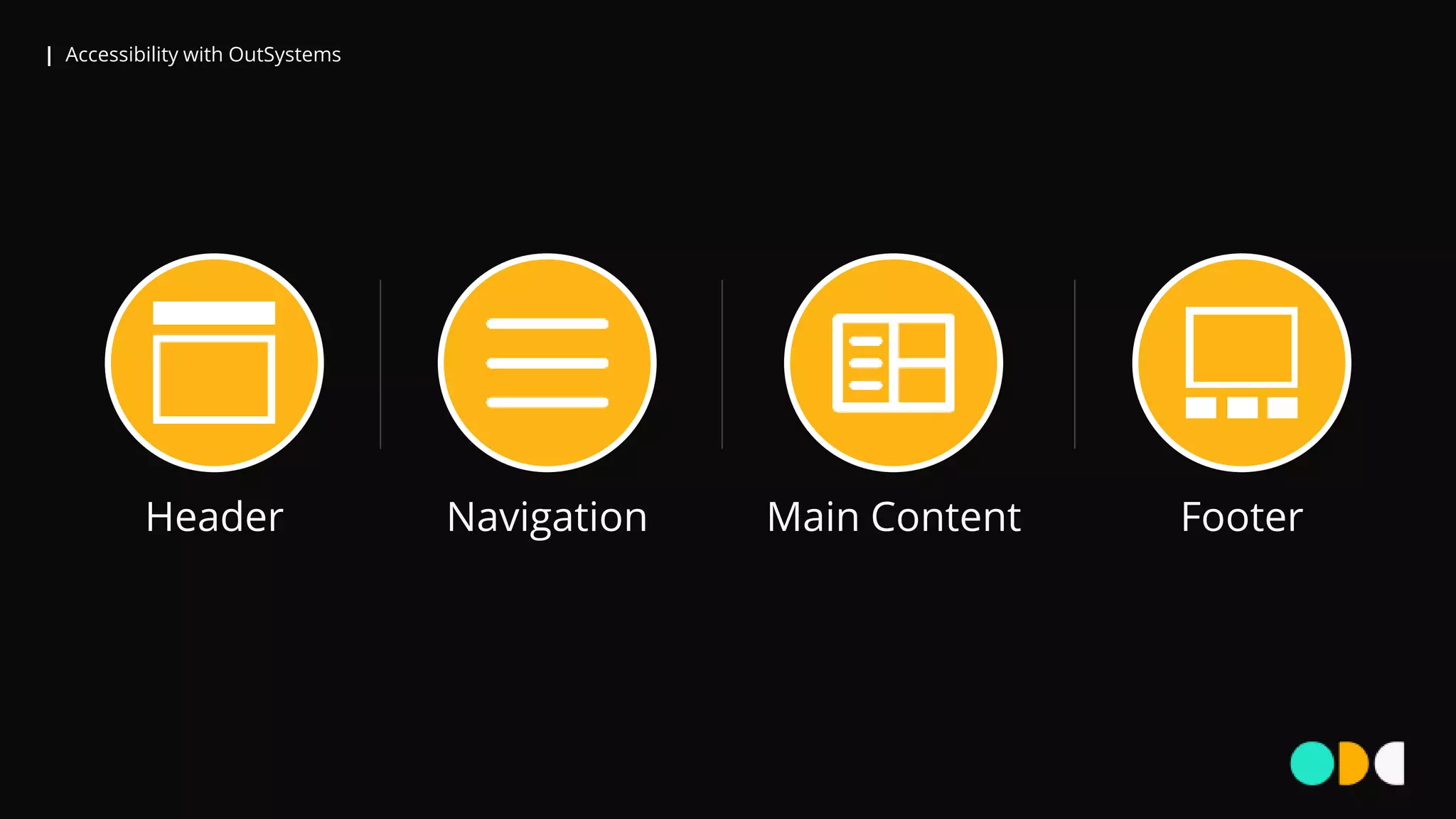

| Accessibility with OutSystems Header Navigation Main Content Footer
| Accessibility with OutSystems

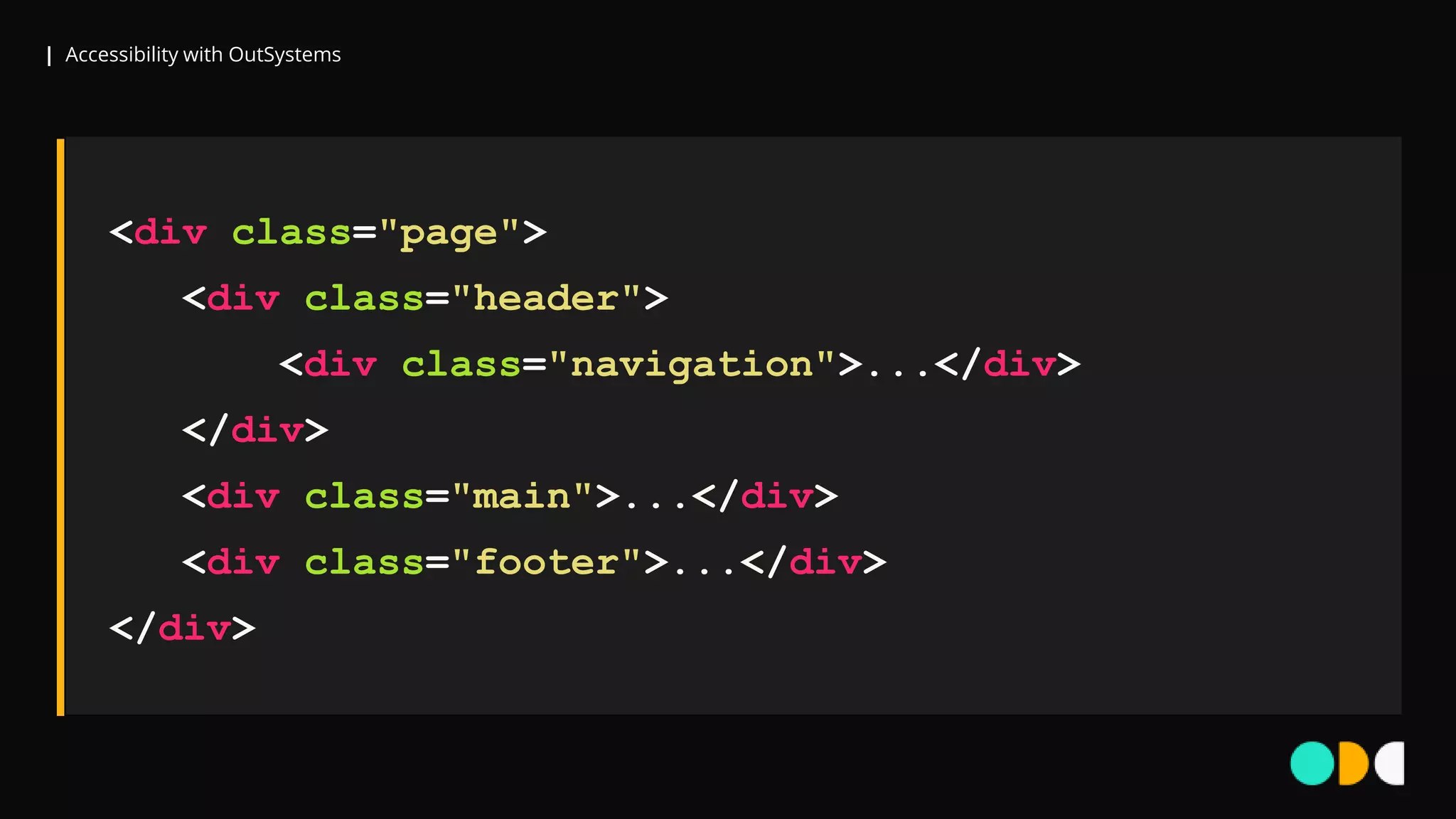

| Accessibility with OutSystems <div class="page"> <div class="header"> <div class="navigation">...</div> </div> <div class="main">...</div> <div class="footer">...</div> </div>
| Accessibility with OutSystems

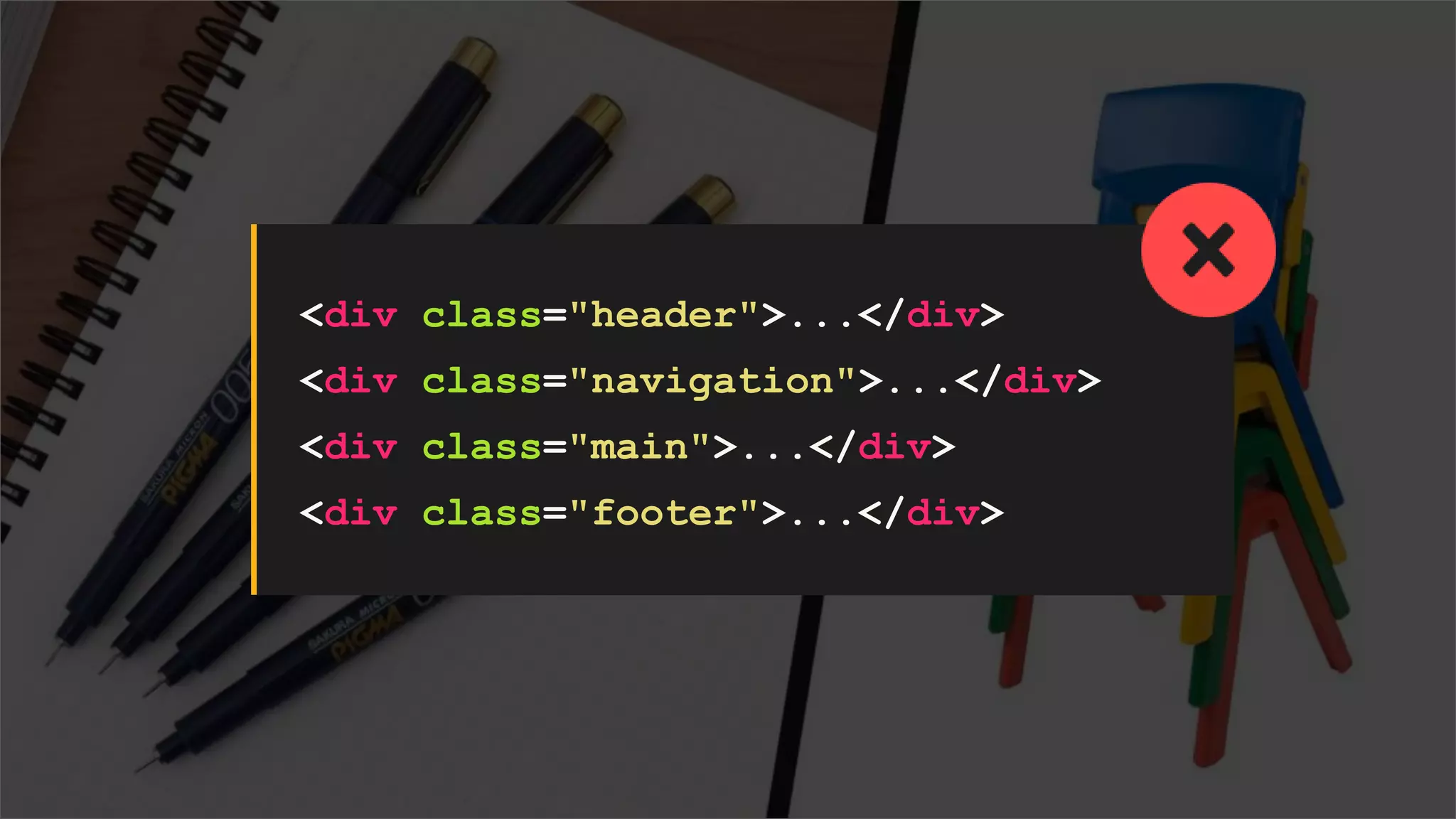

| Accessibility with OutSystems <div class="header">...</div> <div class="navigation">...</div> <div class="main">...</div> <div class="footer">...</div>
| Accessibility with OutSystems +

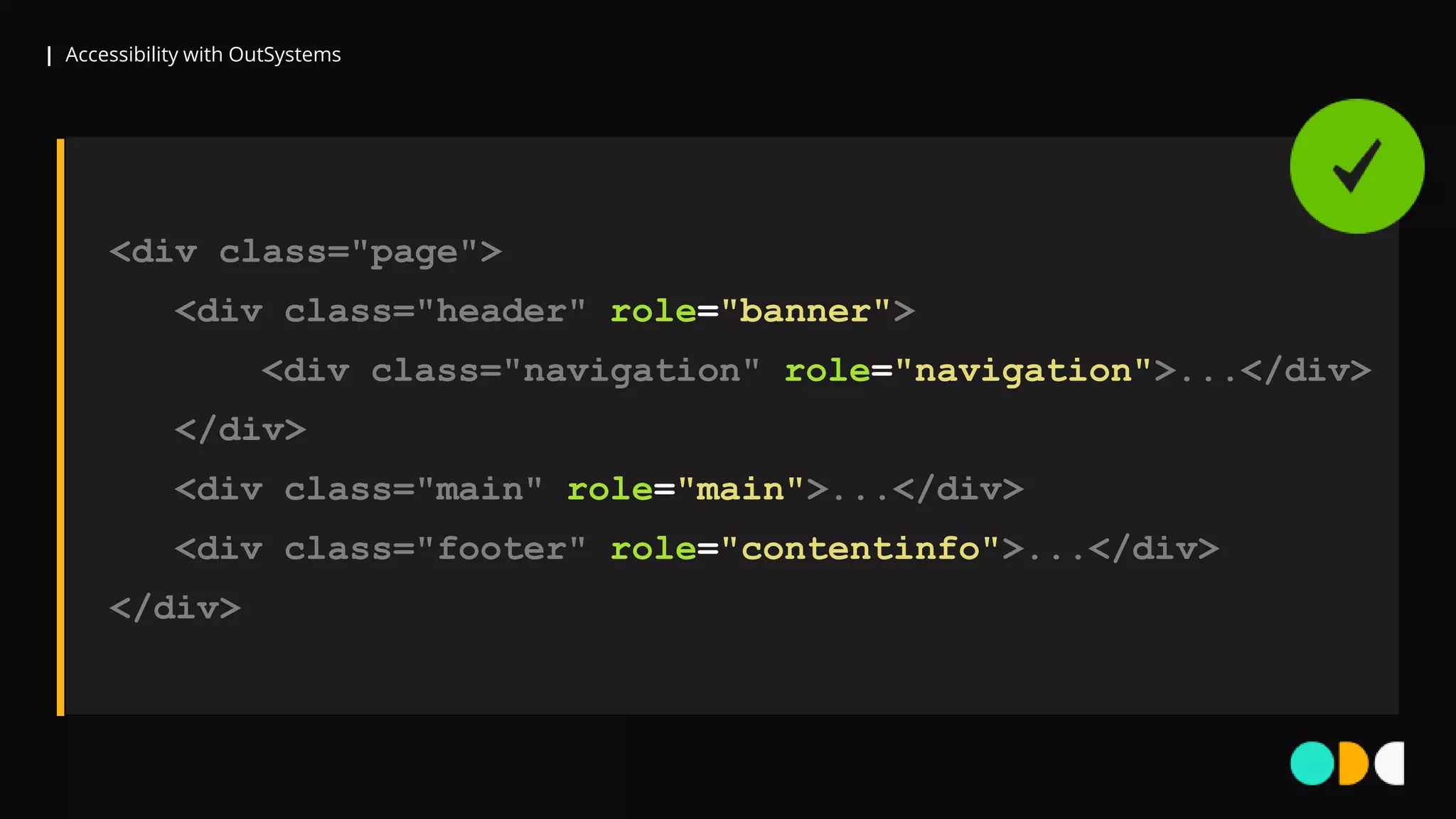

| Accessibility with OutSystems <div class="page"> <div class="header" role="banner"> <div class="navigation" role="navigation">...</div> </div> <div class="main" role="main">...</div> <div class="footer" role="contentinfo">...</div> </div>

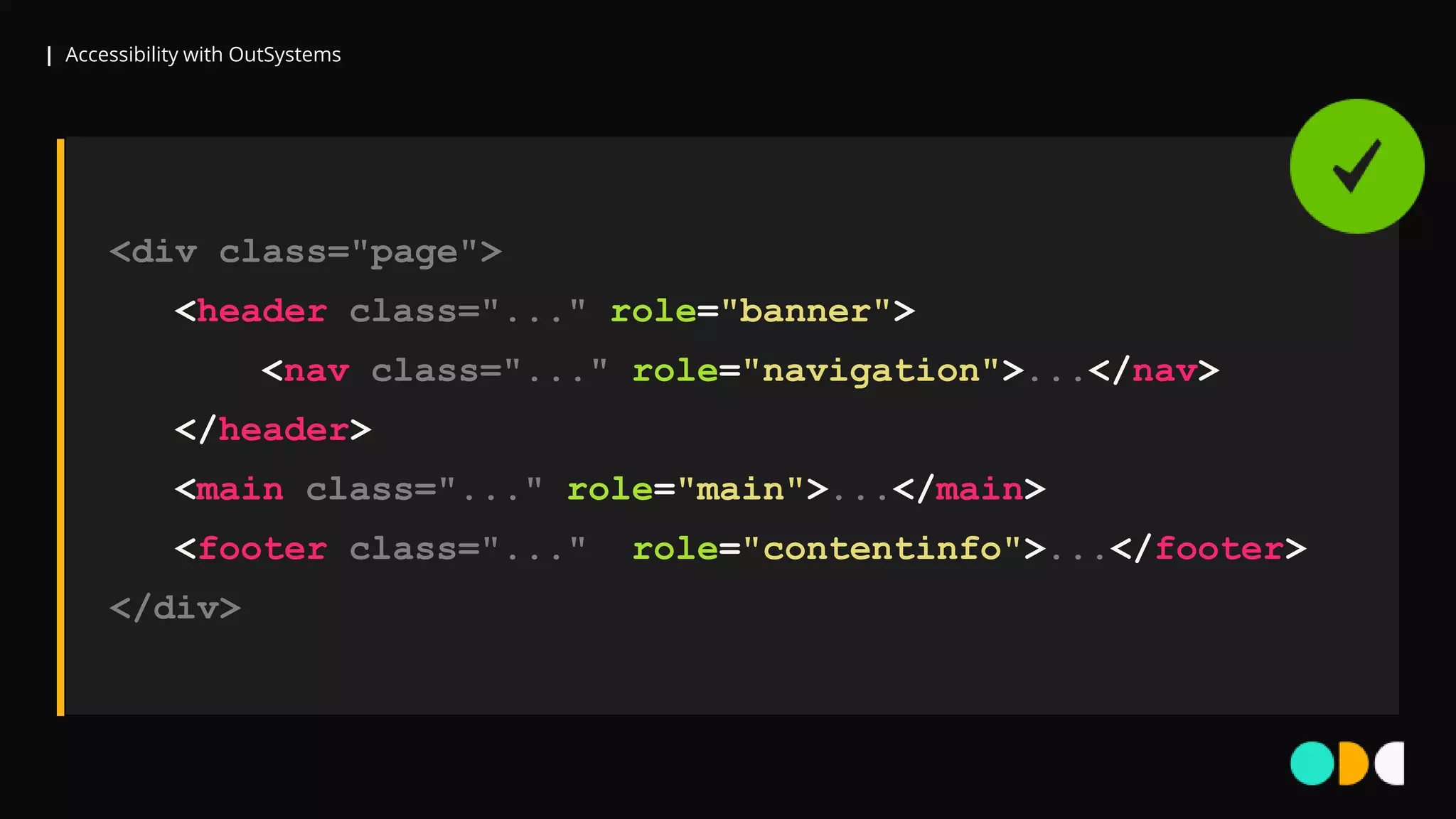

| Accessibility with OutSystems <div class="page"> <header class="..." role="banner"> <nav class="..." role="navigation">...</nav> </header> <main class="..." role="main">...</main> <footer class="..." role="contentinfo">...</footer> </div>

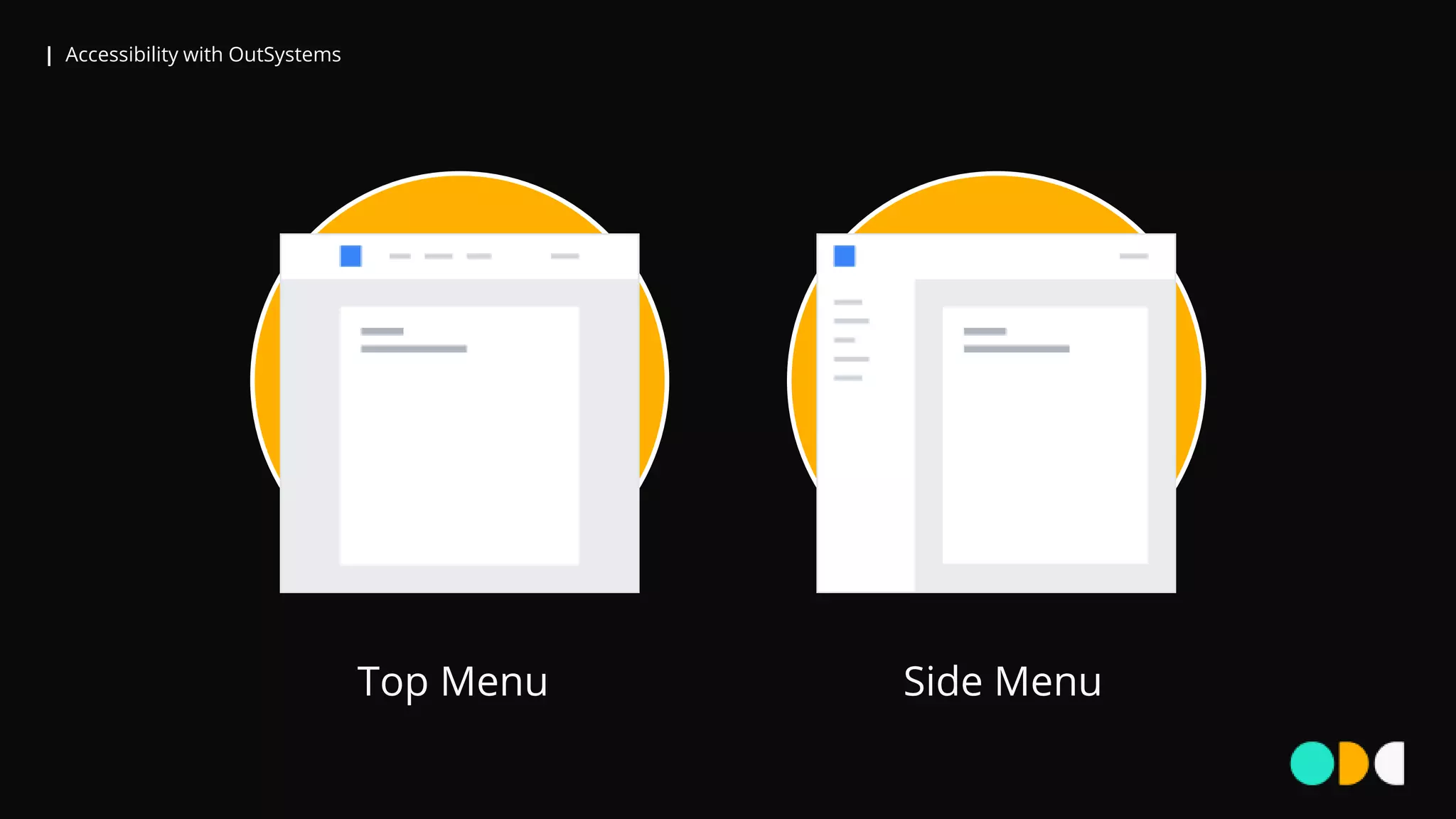

| Accessibility with OutSystems Top Menu Side Menu

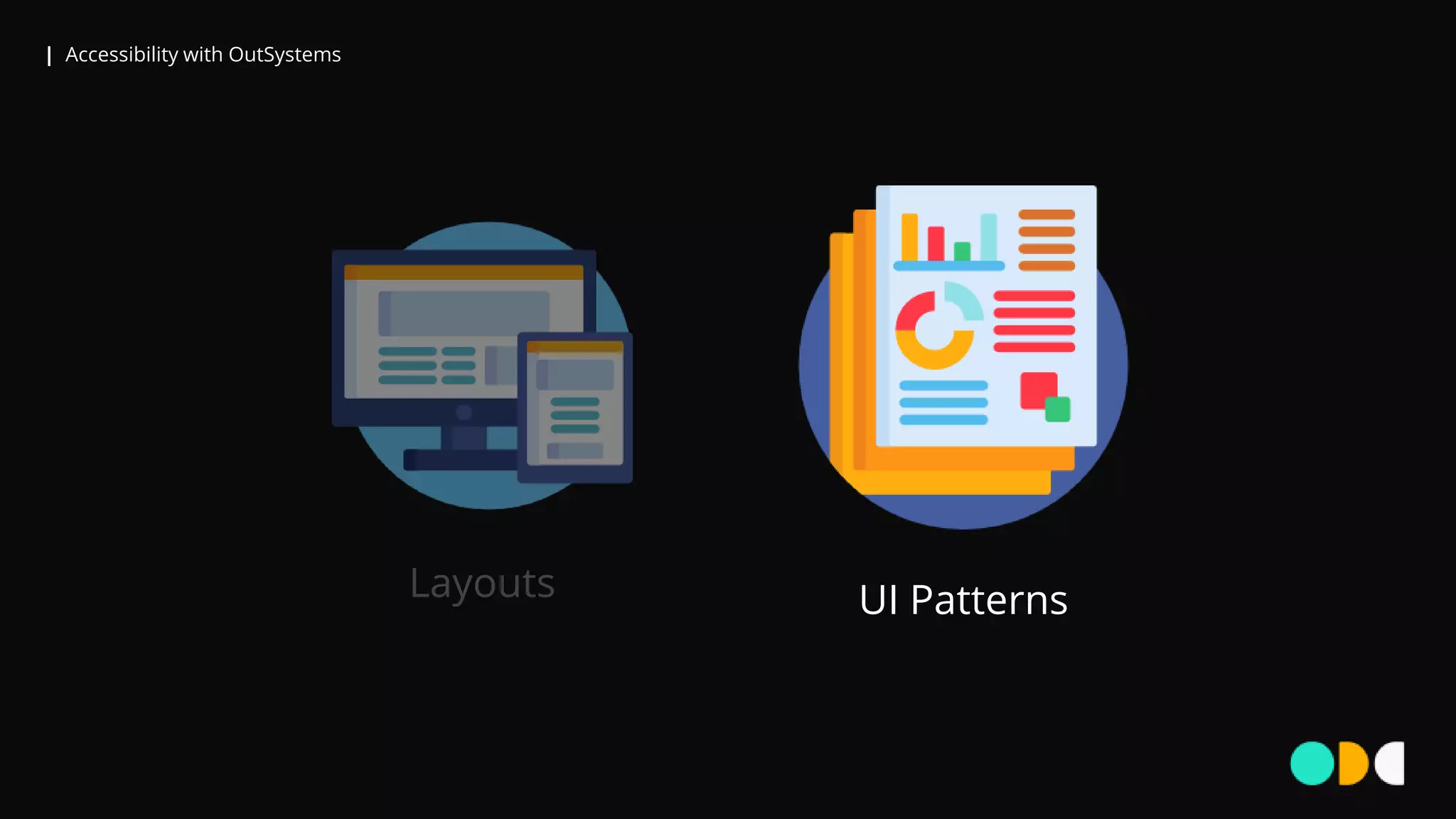

| Accessibility with OutSystems UI PatternsLayouts

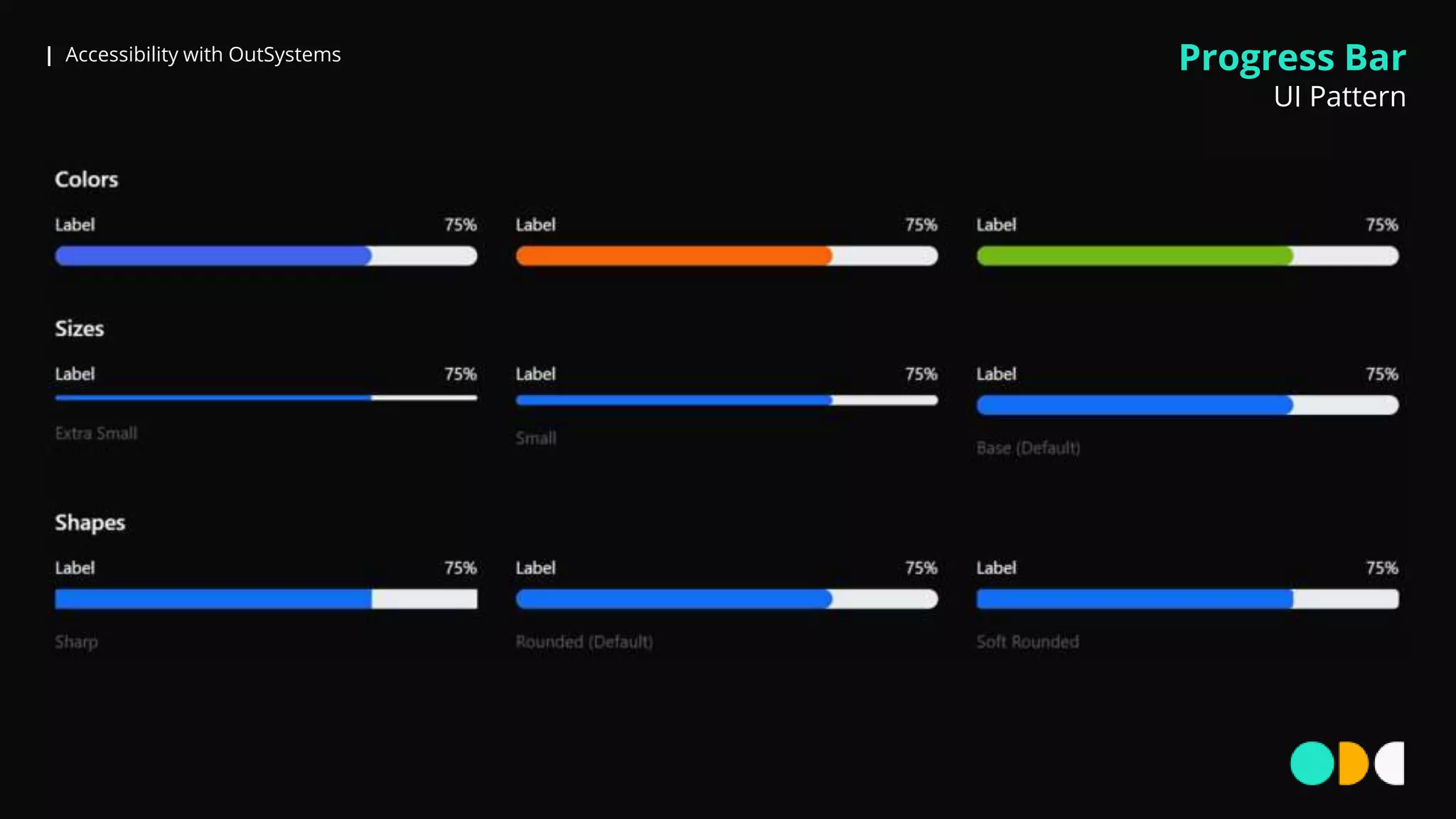

| Accessibility with OutSystems Progress Bar UI Pattern

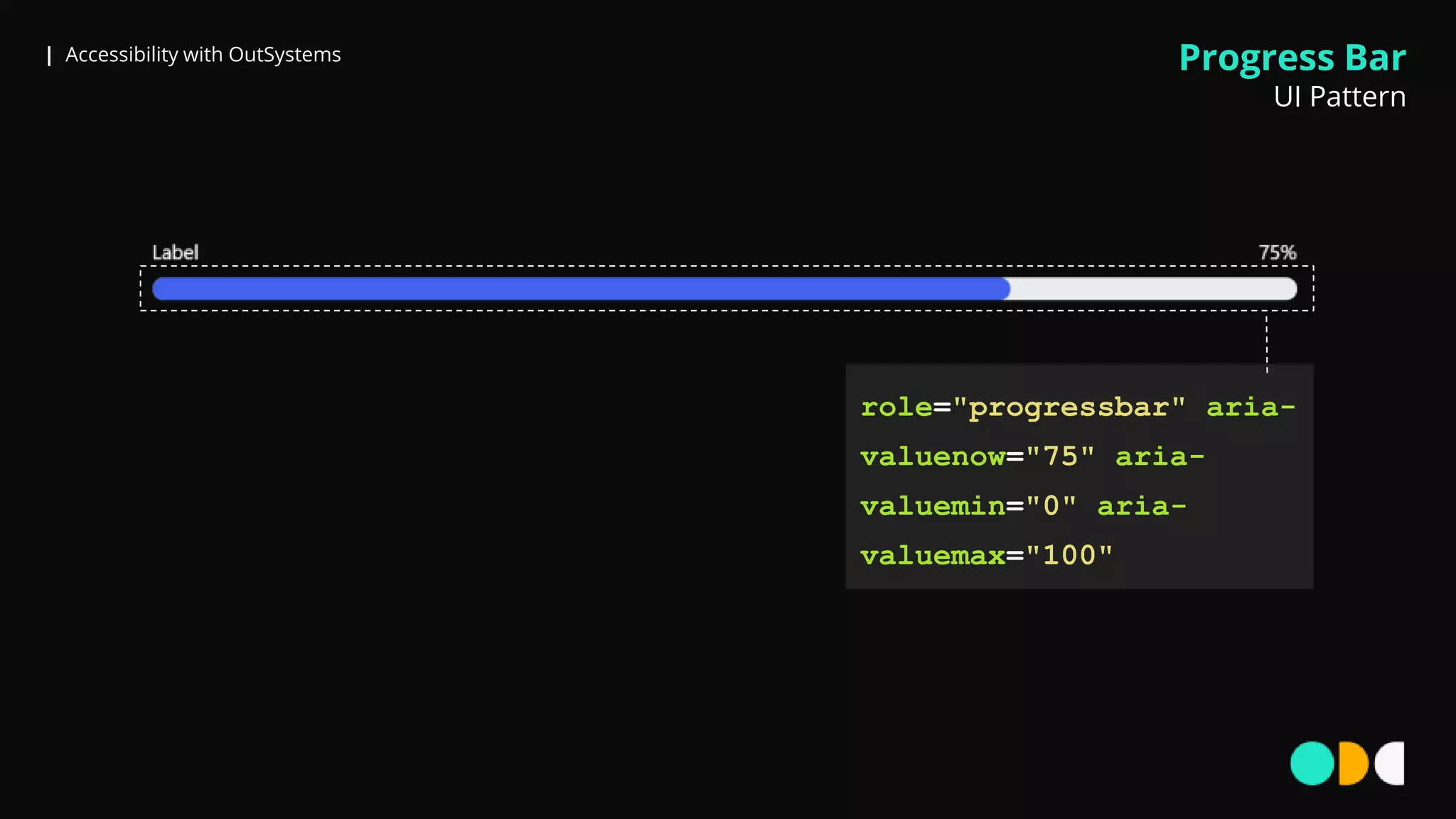

| Accessibility with OutSystems role="progressbar" aria- valuenow="75" aria- valuemin="0" aria- valuemax="100" Progress Bar UI Pattern

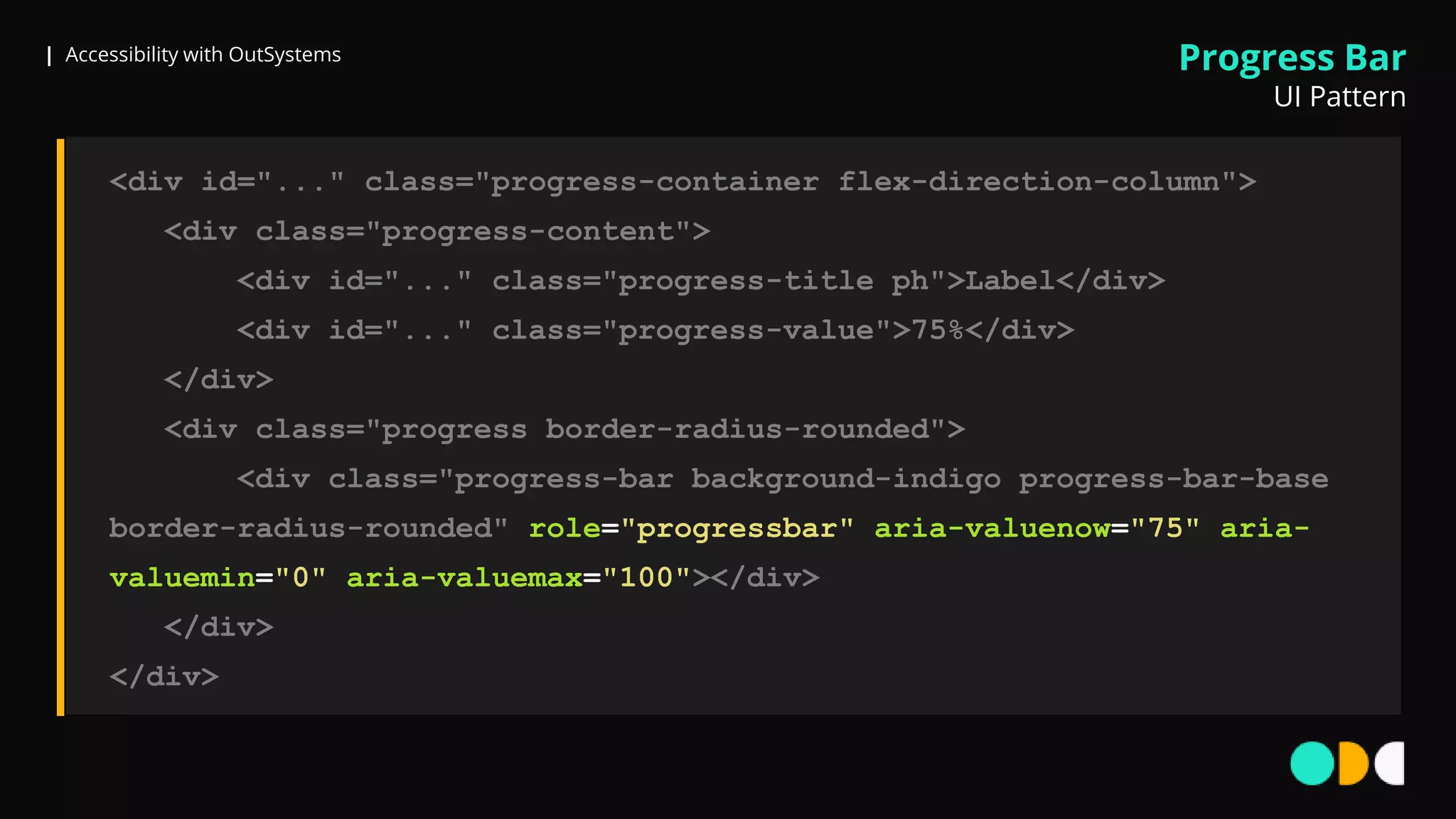

| Accessibility with OutSystems <div id="..." class="progress-container flex-direction-column"> <div class="progress-content"> <div id="..." class="progress-title ph">Label</div> <div id="..." class="progress-value">75%</div> </div> <div class="progress border-radius-rounded"> <div class="progress-bar background-indigo progress-bar-base border-radius-rounded" role="progressbar" aria-valuenow="75" aria- valuemin="0" aria-valuemax="100"></div> </div> </div> Progress Bar UI Pattern

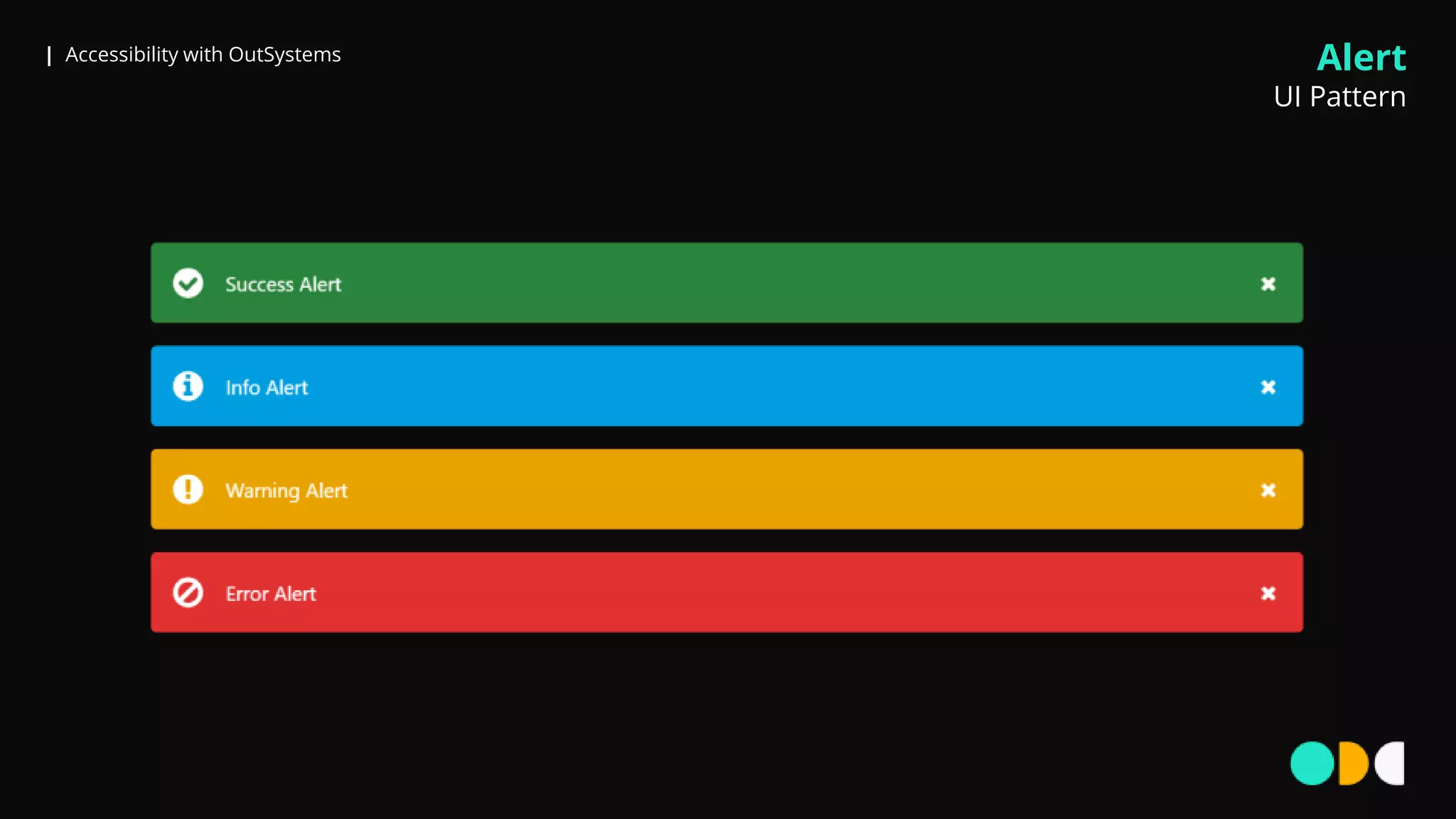

| Accessibility with OutSystems Alert UI Pattern

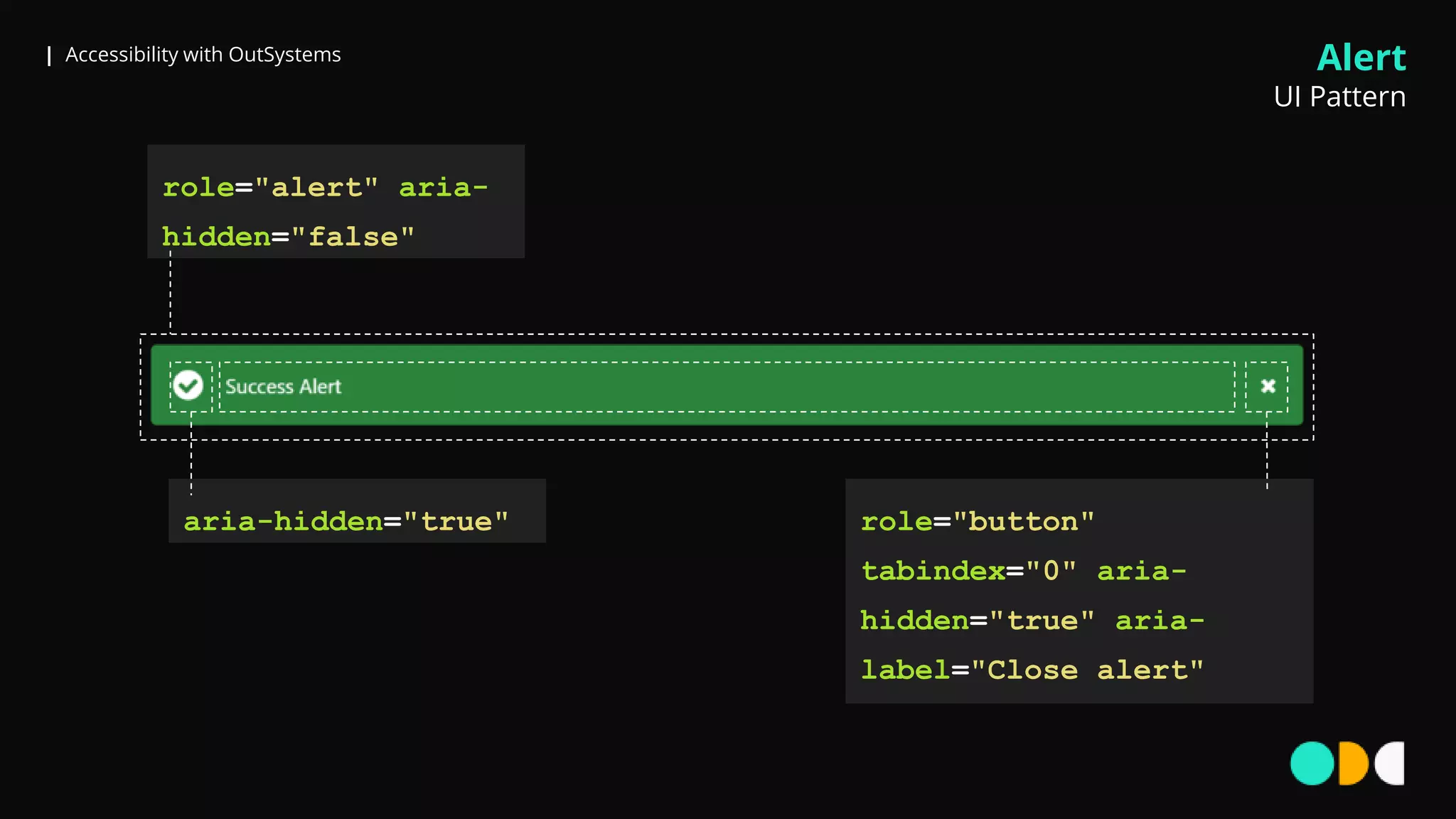

| Accessibility with OutSystems role="alert" aria- hidden="false" aria-hidden="true" role="button" tabindex="0" aria- hidden="true" aria- label="Close alert" Alert UI Pattern

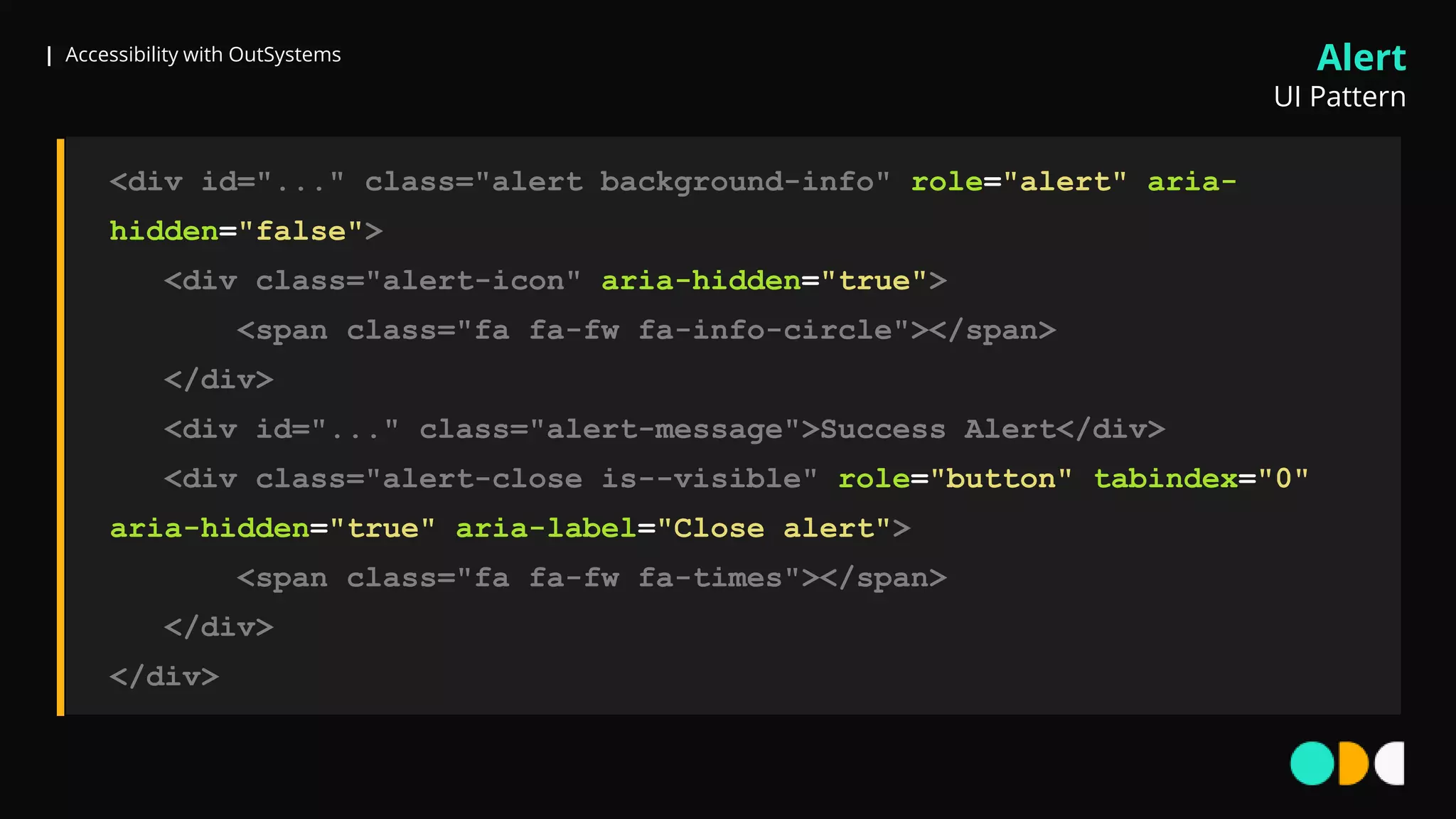

| Accessibility with OutSystems <div id="..." class="alert background-info" role="alert" aria- hidden="false"> <div class="alert-icon" aria-hidden="true"> <span class="fa fa-fw fa-info-circle"></span> </div> <div id="..." class="alert-message">Success Alert</div> <div class="alert-close is--visible" role="button" tabindex="0" aria-hidden="true" aria-label="Close alert"> <span class="fa fa-fw fa-times"></span> </div> </div> Alert UI Pattern

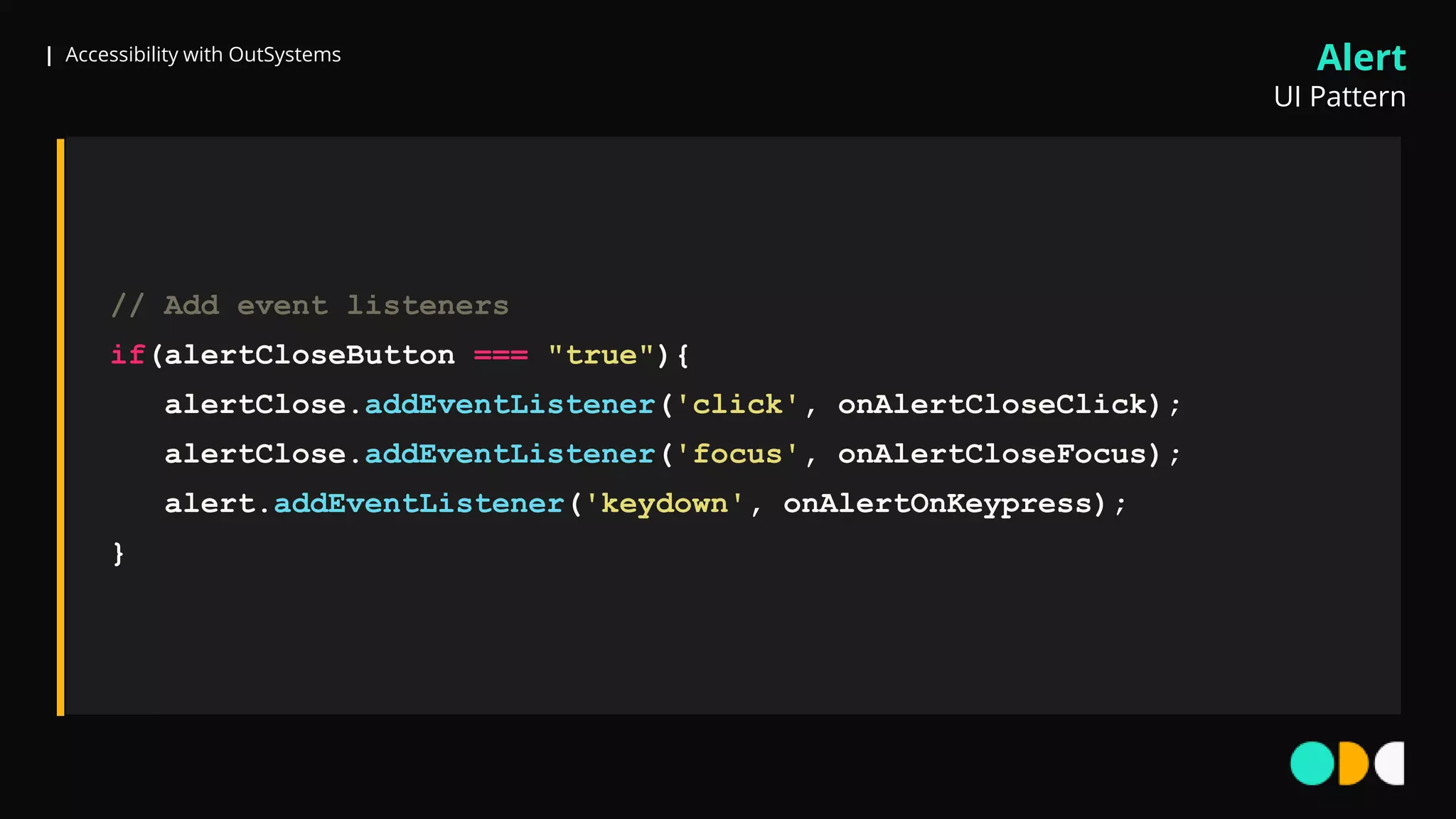

| Accessibility with OutSystems // Add event listeners if(alertCloseButton === "true"){ alertClose.addEventListener('click', onAlertCloseClick); alertClose.addEventListener('focus', onAlertCloseFocus); alert.addEventListener('keydown', onAlertOnKeypress); } Alert UI Pattern

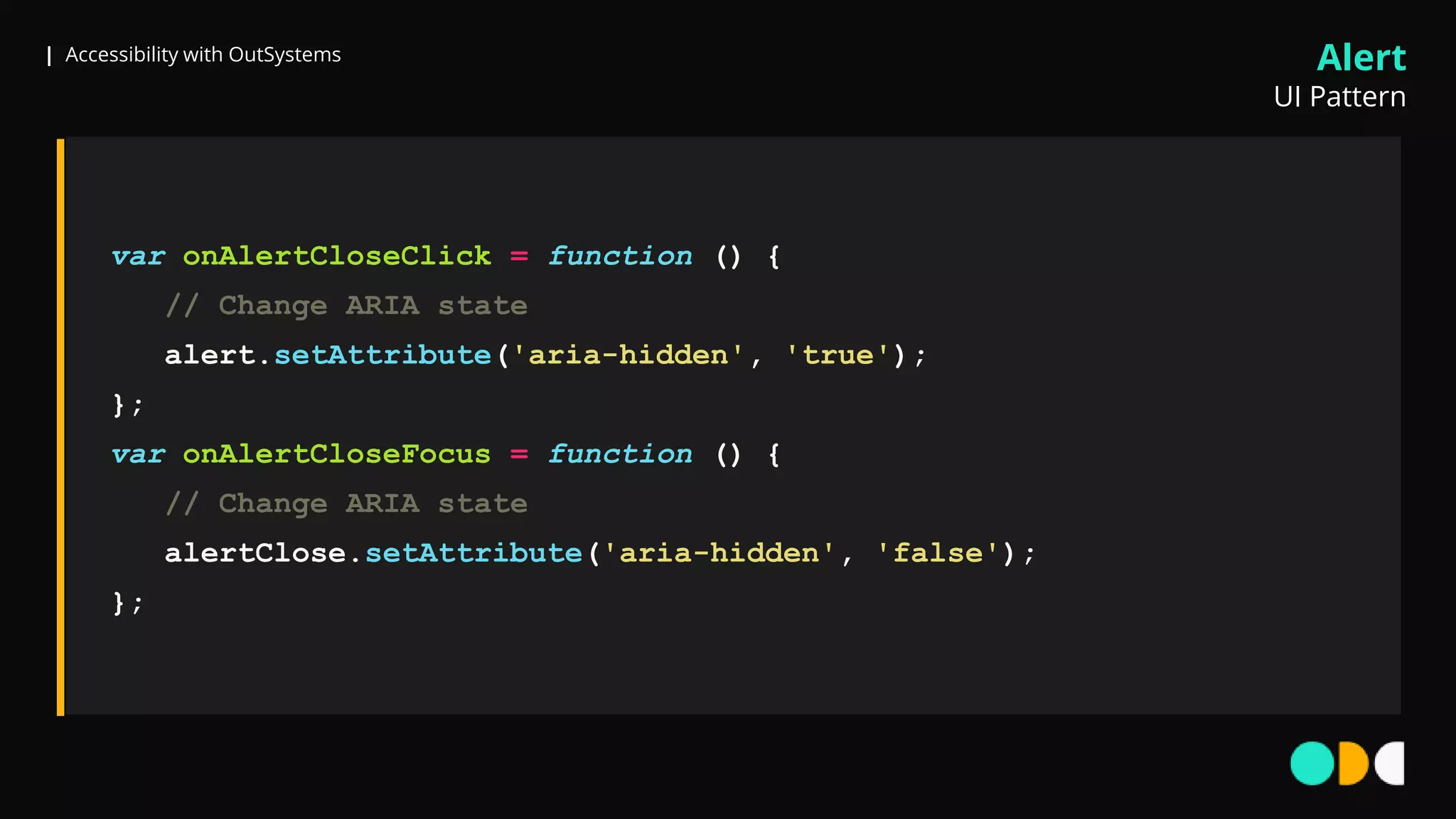

| Accessibility with OutSystems var onAlertCloseClick = function () { // Change ARIA state alert.setAttribute('aria-hidden', 'true'); }; var onAlertCloseFocus = function () { // Change ARIA state alertClose.setAttribute('aria-hidden', 'false'); }; Alert UI Pattern

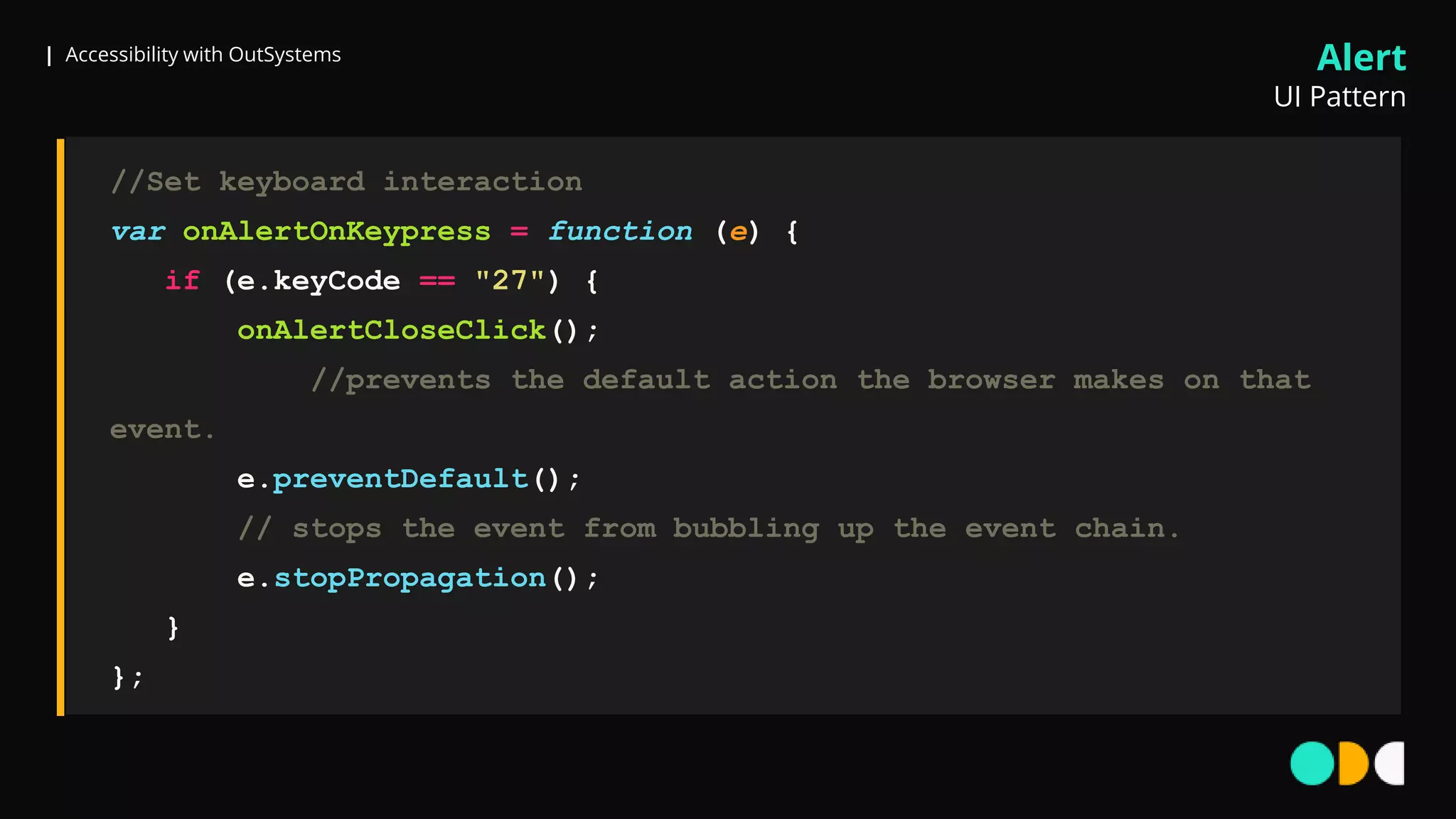

| Accessibility with OutSystems //Set keyboard interaction var onAlertOnKeypress = function (e) { if (e.keyCode == "27") { onAlertCloseClick(); //prevents the default action the browser makes on that event. e.preventDefault(); // stops the event from bubbling up the event chain. e.stopPropagation(); } }; Alert UI Pattern

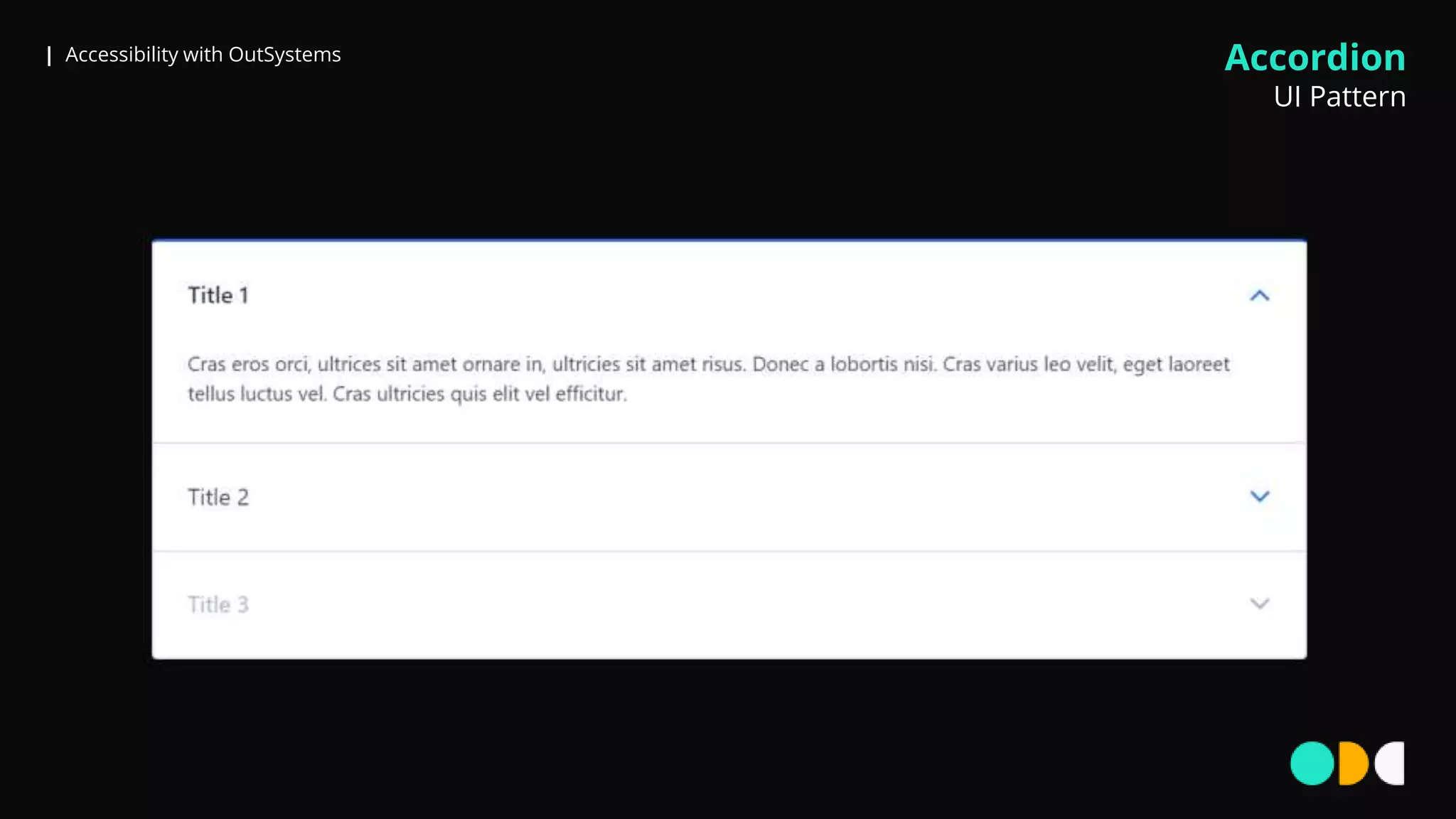

| Accessibility with OutSystems Accordion UI Pattern

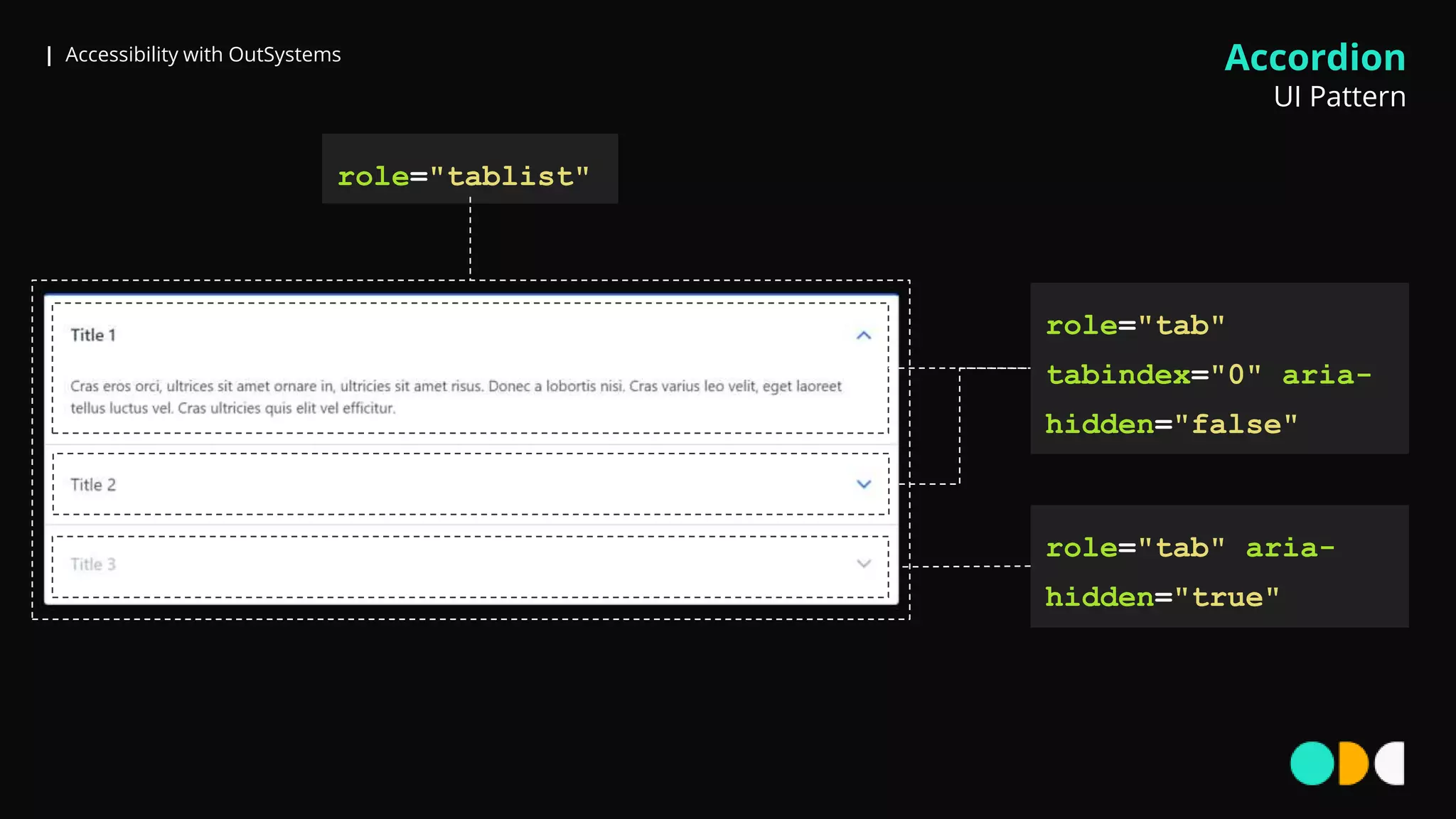

| Accessibility with OutSystems Accordion UI Pattern role="tablist" role="tab" tabindex="0" aria- hidden="false" role="tab" aria- hidden="true"
| Accessibility with OutSystems Accordion UI Pattern role="tabpanel" tabindex="0"
| Accessibility with OutSystems Accordion UI Pattern aria-expanded="false" aria-expanded="true"

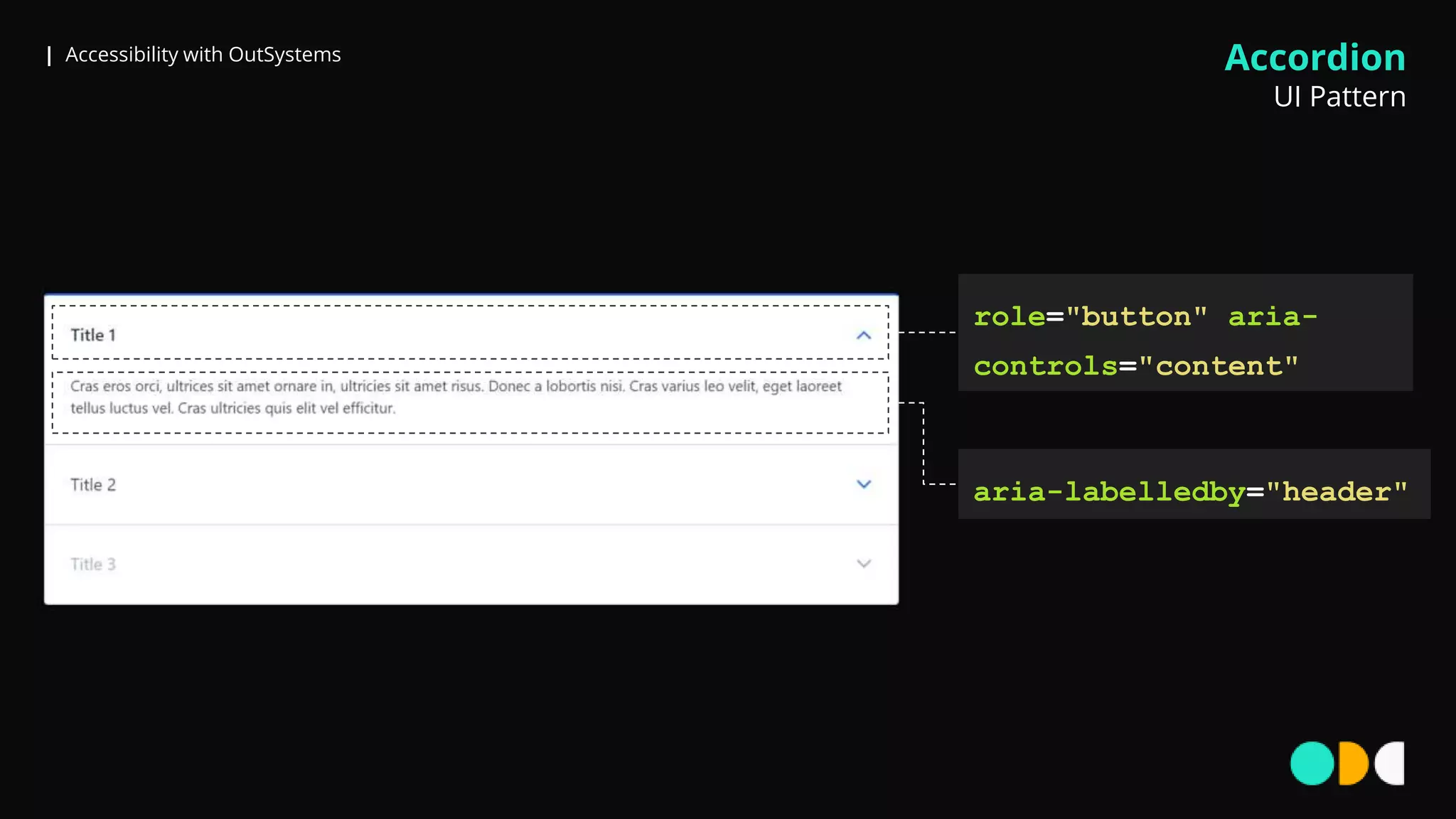

| Accessibility with OutSystems Accordion UI Pattern aria-labelledby="header" role="button" aria- controls="content"

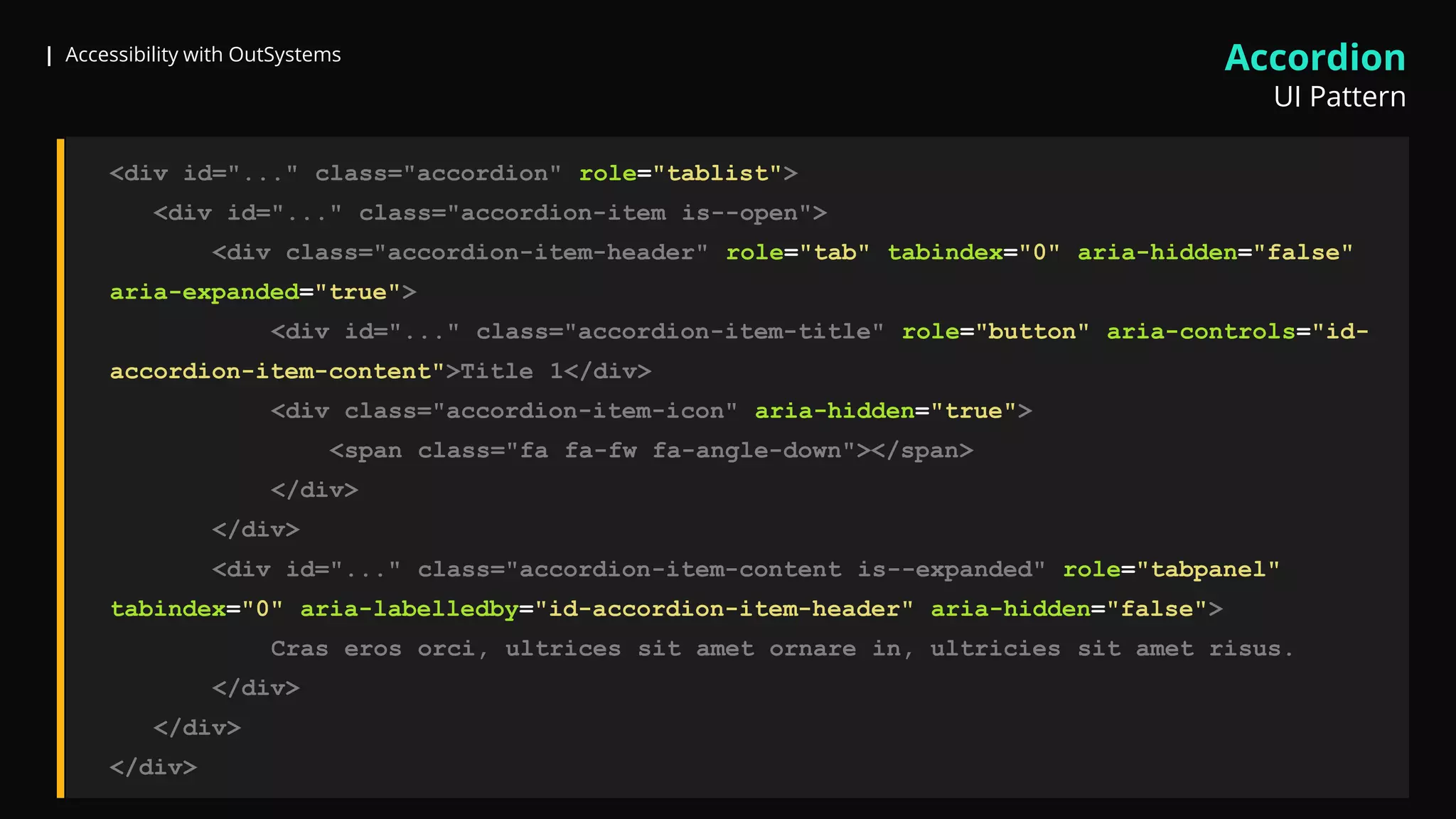

| Accessibility with OutSystems <div id="..." class="accordion" role="tablist"> <div id="..." class="accordion-item is--open"> <div class="accordion-item-header" role="tab" tabindex="0" aria-hidden="false" aria-expanded="true"> <div id="..." class="accordion-item-title" role="button" aria-controls="id- accordion-item-content">Title 1</div> <div class="accordion-item-icon" aria-hidden="true"> <span class="fa fa-fw fa-angle-down"></span> </div> </div> <div id="..." class="accordion-item-content is--expanded" role="tabpanel" tabindex="0" aria-labelledby="id-accordion-item-header" aria-hidden="false"> Cras eros orci, ultrices sit amet ornare in, ultricies sit amet risus. </div> </div> </div> Accordion UI Pattern

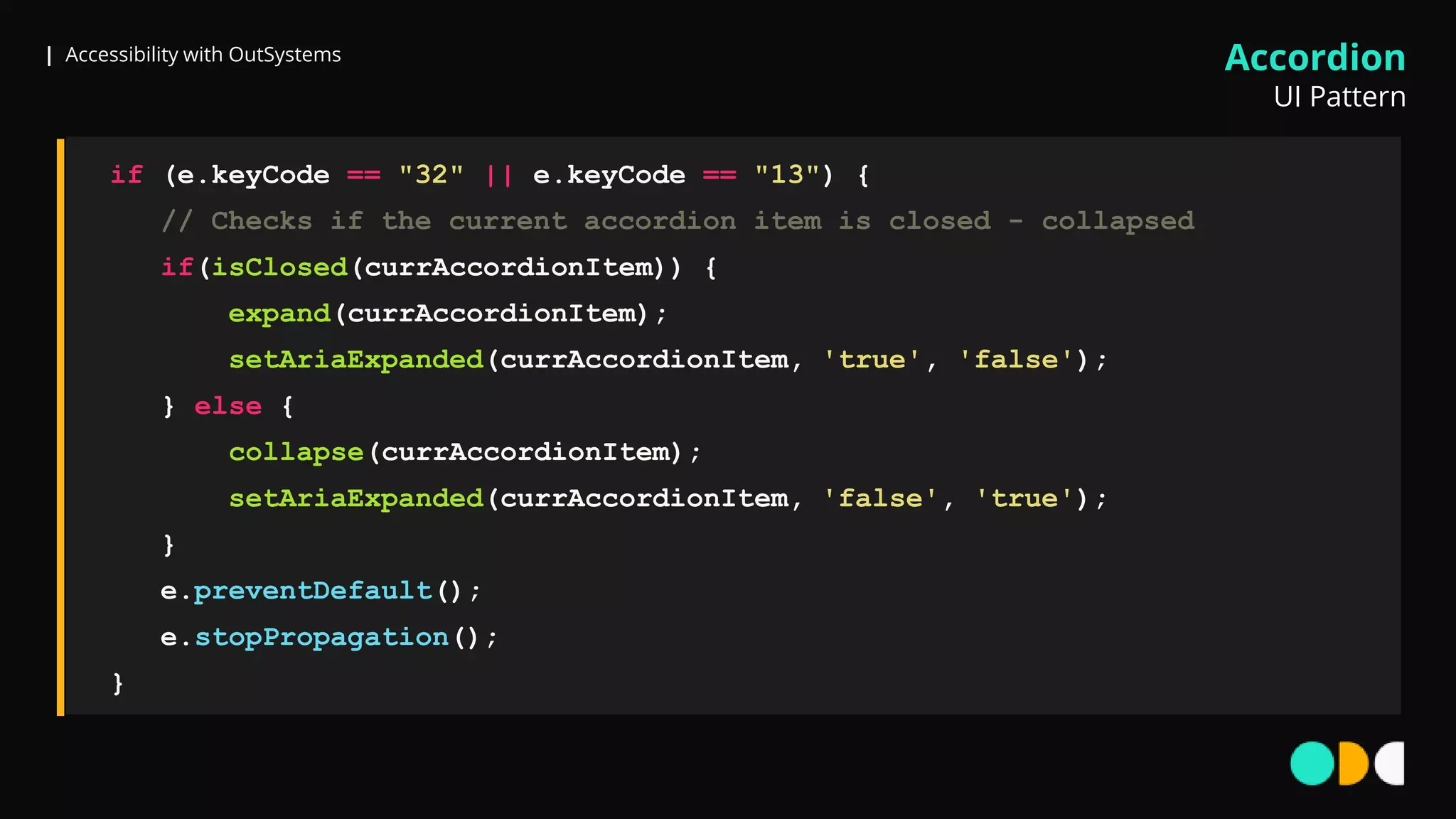

| Accessibility with OutSystems if (e.keyCode == "32" || e.keyCode == "13") { // Checks if the current accordion item is closed - collapsed if(isClosed(currAccordionItem)) { expand(currAccordionItem); setAriaExpanded(currAccordionItem, 'true', 'false'); } else { collapse(currAccordionItem); setAriaExpanded(currAccordionItem, 'false', 'true'); } e.preventDefault(); e.stopPropagation(); } Accordion UI Pattern

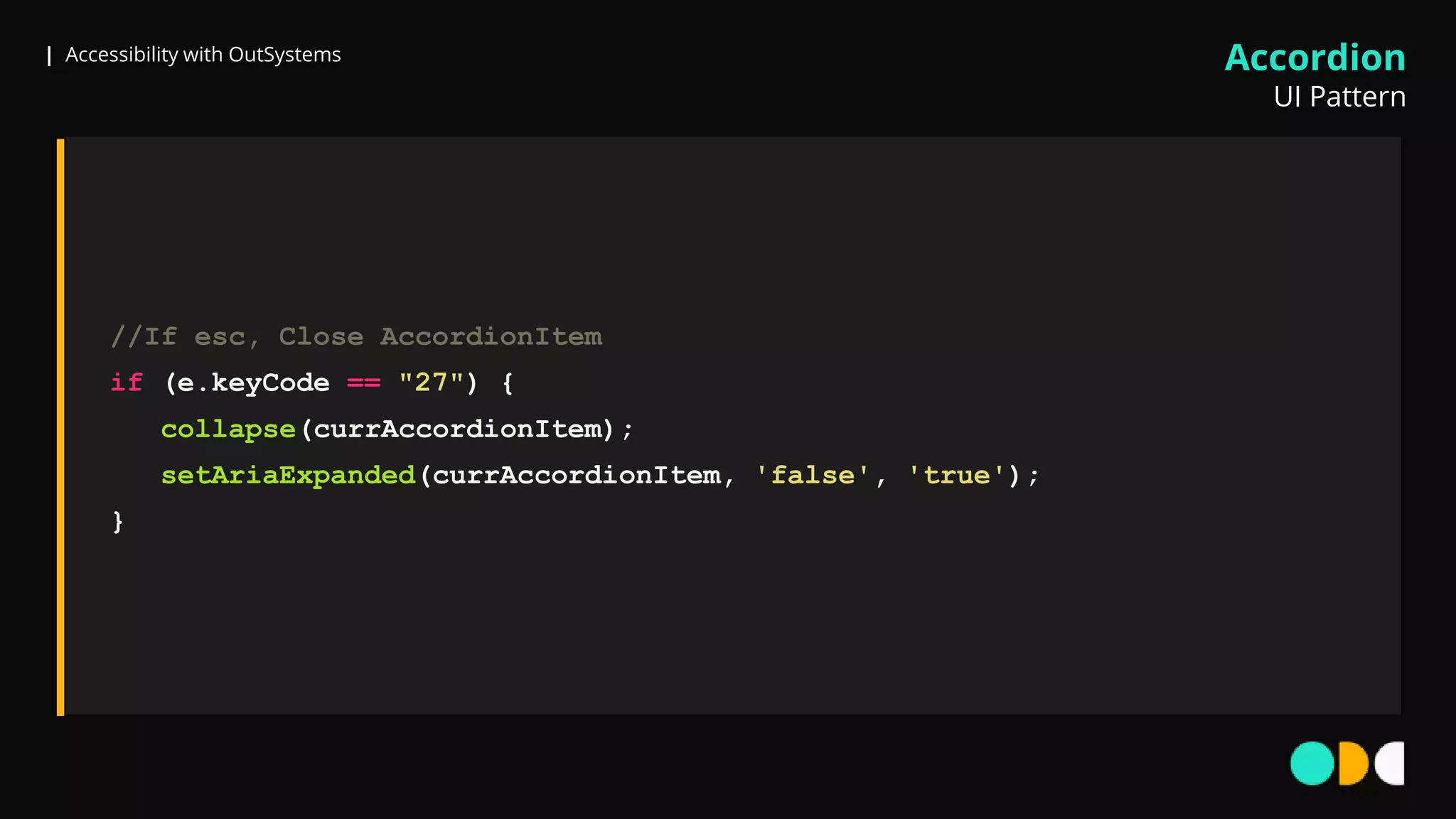

| Accessibility with OutSystems //If esc, Close AccordionItem if (e.keyCode == "27") { collapse(currAccordionItem); setAriaExpanded(currAccordionItem, 'false', 'true'); } Accordion UI Pattern
| Accessibility with OutSystems Accessibility by default without roadblocks
| Accessibility with OutSystems Make it accessible with OutSystems
| Accessibility with OutSystems Animations

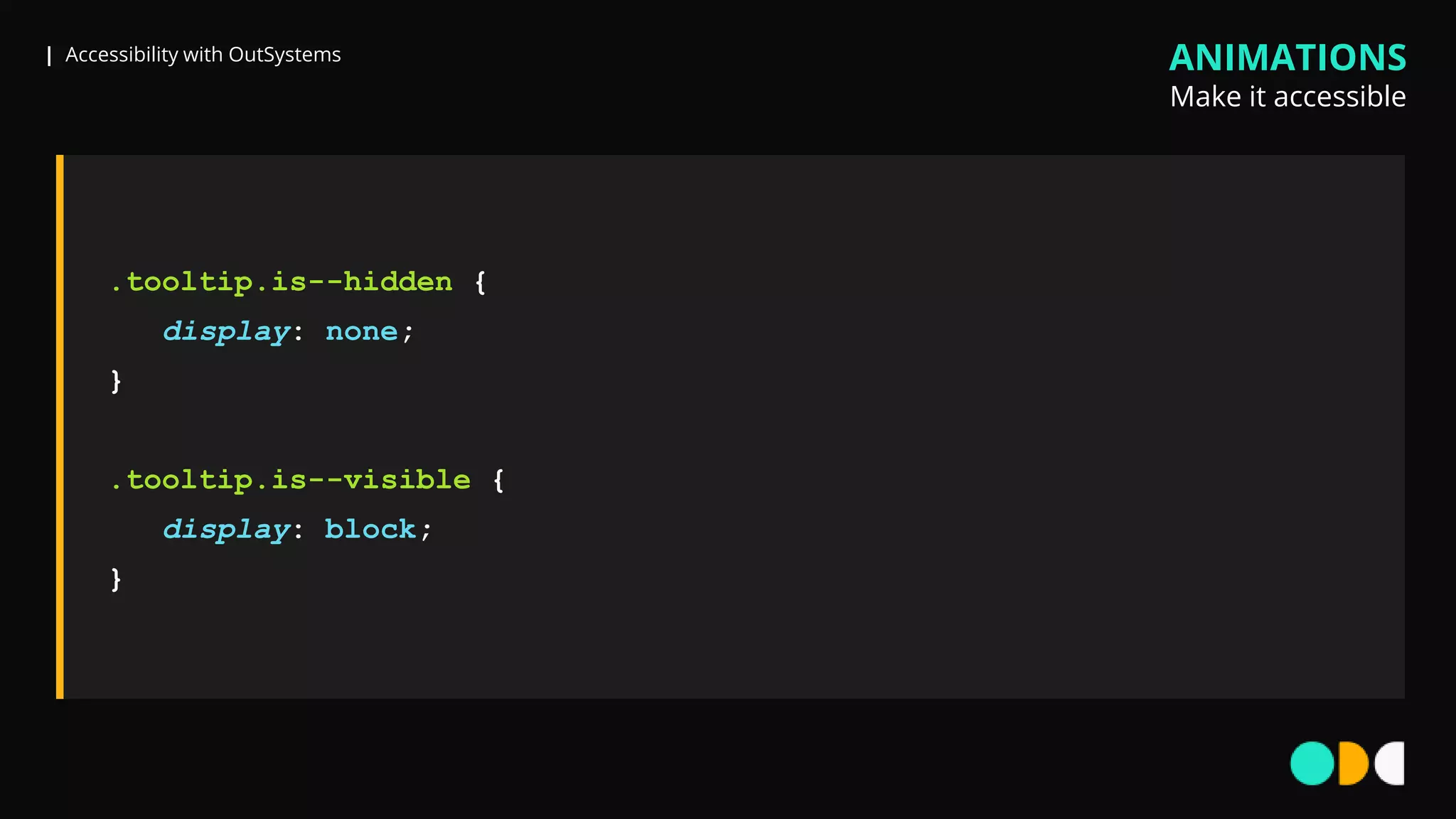

| Accessibility with OutSystems .tooltip.is--hidden { display: none; } .tooltip.is--visible { display: block; } ANIMATIONS Make it accessible
| Accessibility with OutSystems ANIMATIONS Make it accessible

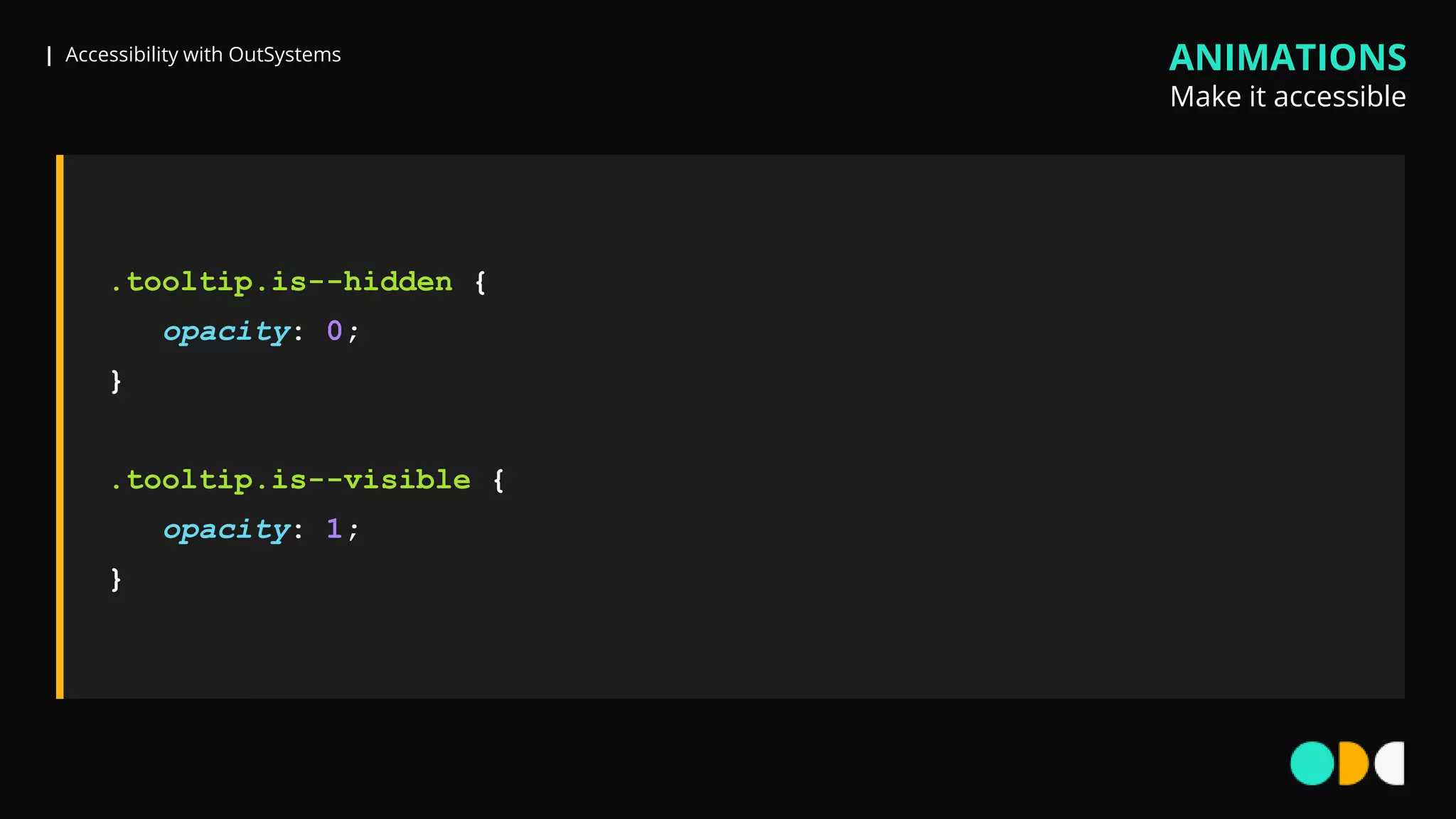

| Accessibility with OutSystems .tooltip.is--hidden { opacity: 0; } .tooltip.is--visible { opacity: 1; } ANIMATIONS Make it accessible
| Accessibility with OutSystems ANIMATIONS Make it accessible
| Accessibility with OutSystems 2.1.2 – No Keyboard Trap (Level A) ANIMATIONS Make it accessible
| Accessibility with OutSystems ANIMATIONS Make it accessible

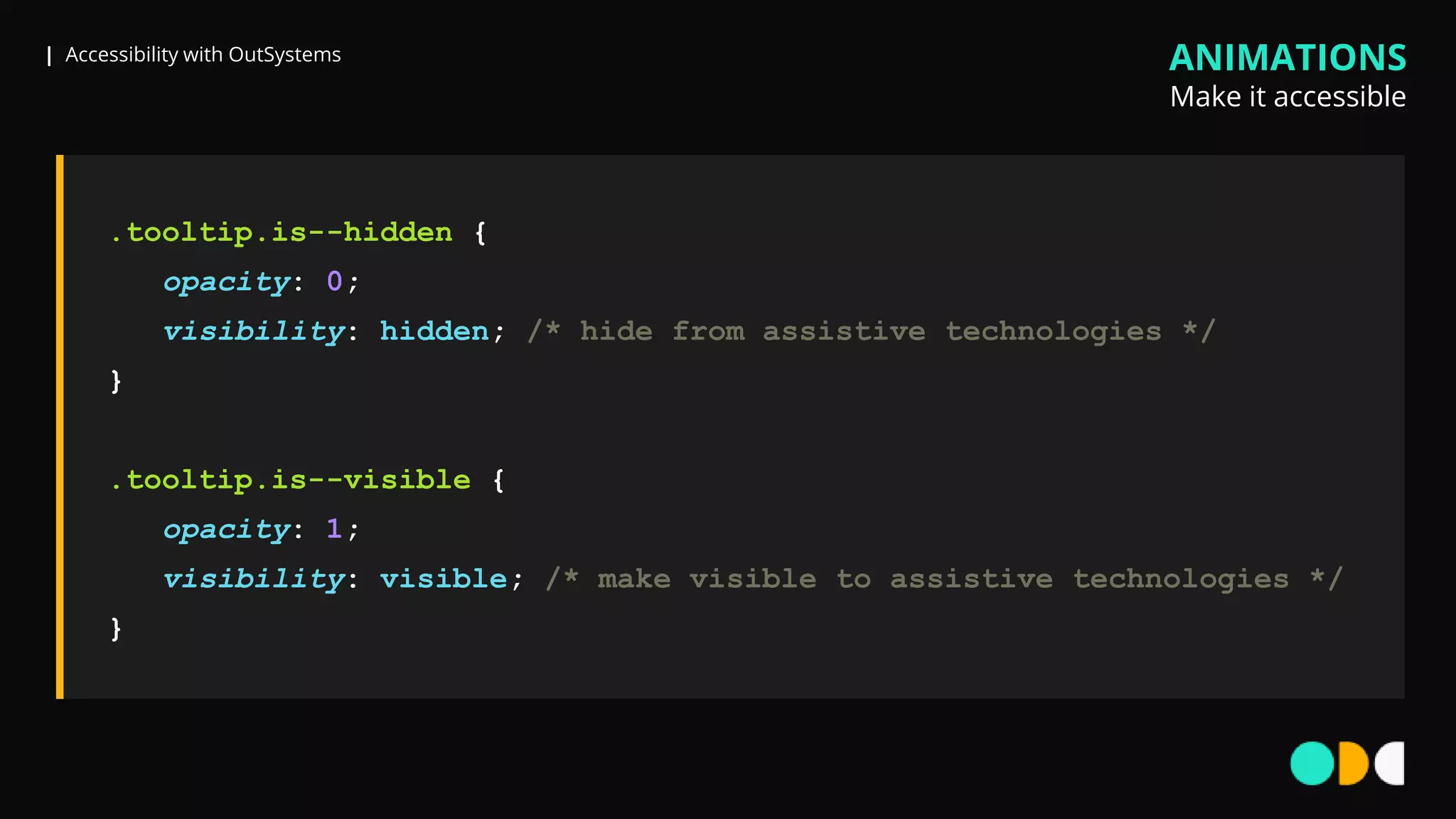

| Accessibility with OutSystems .tooltip.is--hidden { opacity: 0; visibility: hidden; /* hide from assistive technologies */ } .tooltip.is--visible { opacity: 1; visibility: visible; /* make visible to assistive technologies */ } ANIMATIONS Make it accessible
| Accessibility with OutSystems Images
| Accessibility with OutSystems IMAGES Make it accessible <img src="sample_image3.png" alt=""title="" width="150" height="150"> <img src="sample_image3.png" width="150" height="150">
| Accessibility with OutSystems 1.1 – Text Alternatives (Level A) IMAGES Make it accessible

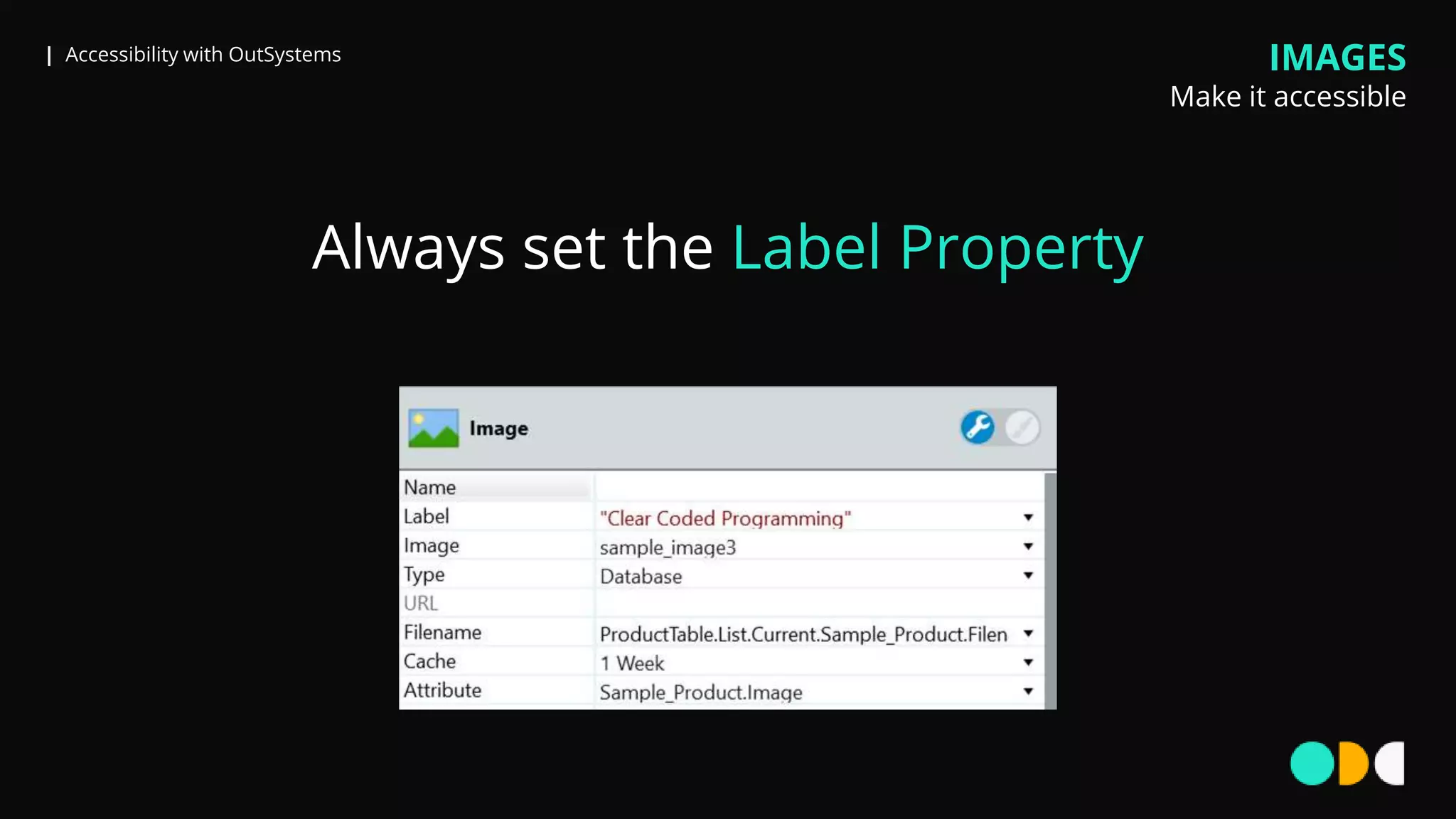

| Accessibility with OutSystems IMAGES Make it accessible Always set the Label Property

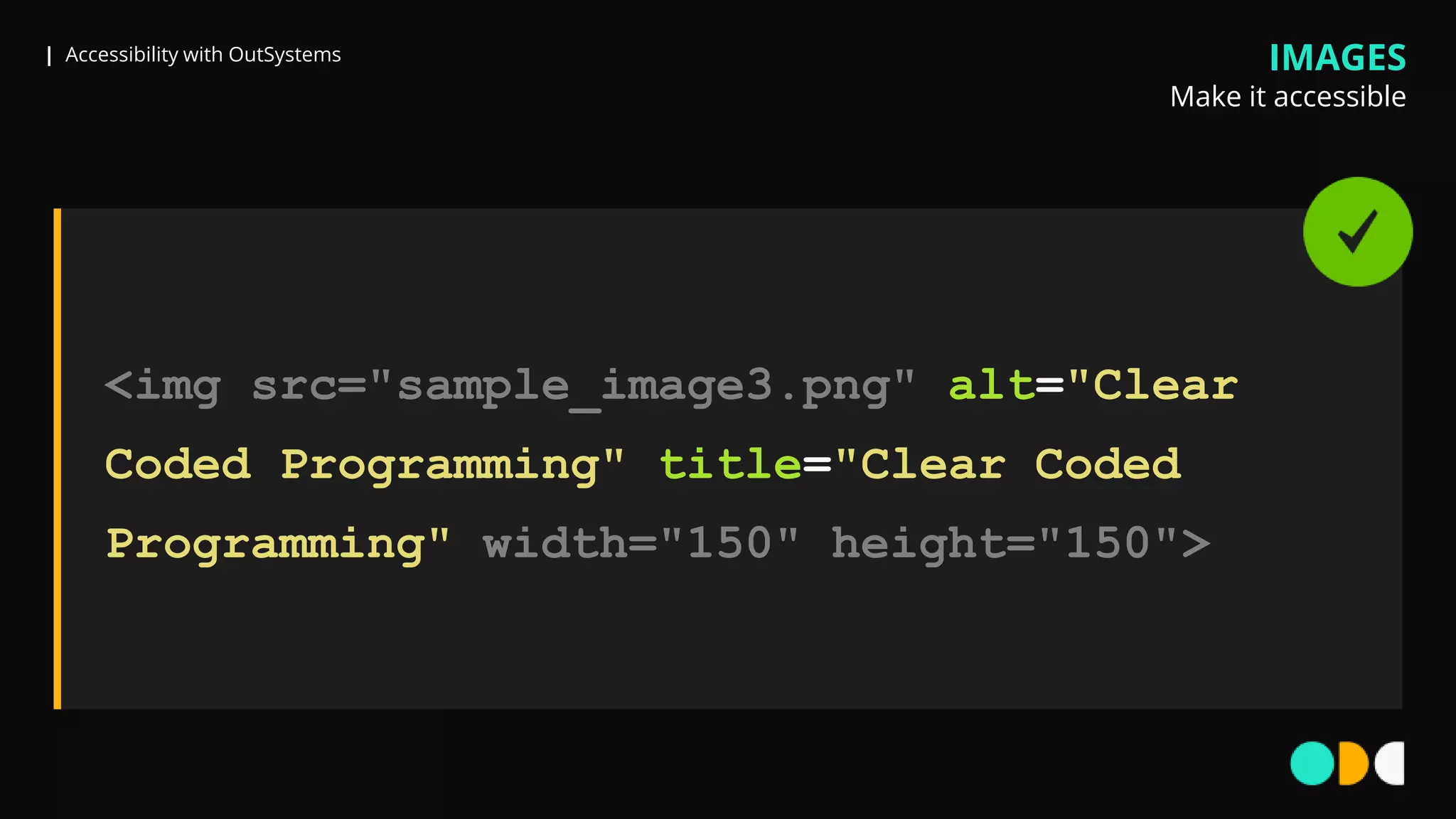

| Accessibility with OutSystems IMAGES Make it accessible <img src="sample_image3.png" alt="Clear Coded Programming" title="Clear Coded Programming" width="150" height="150">
| Accessibility with OutSystems Outline

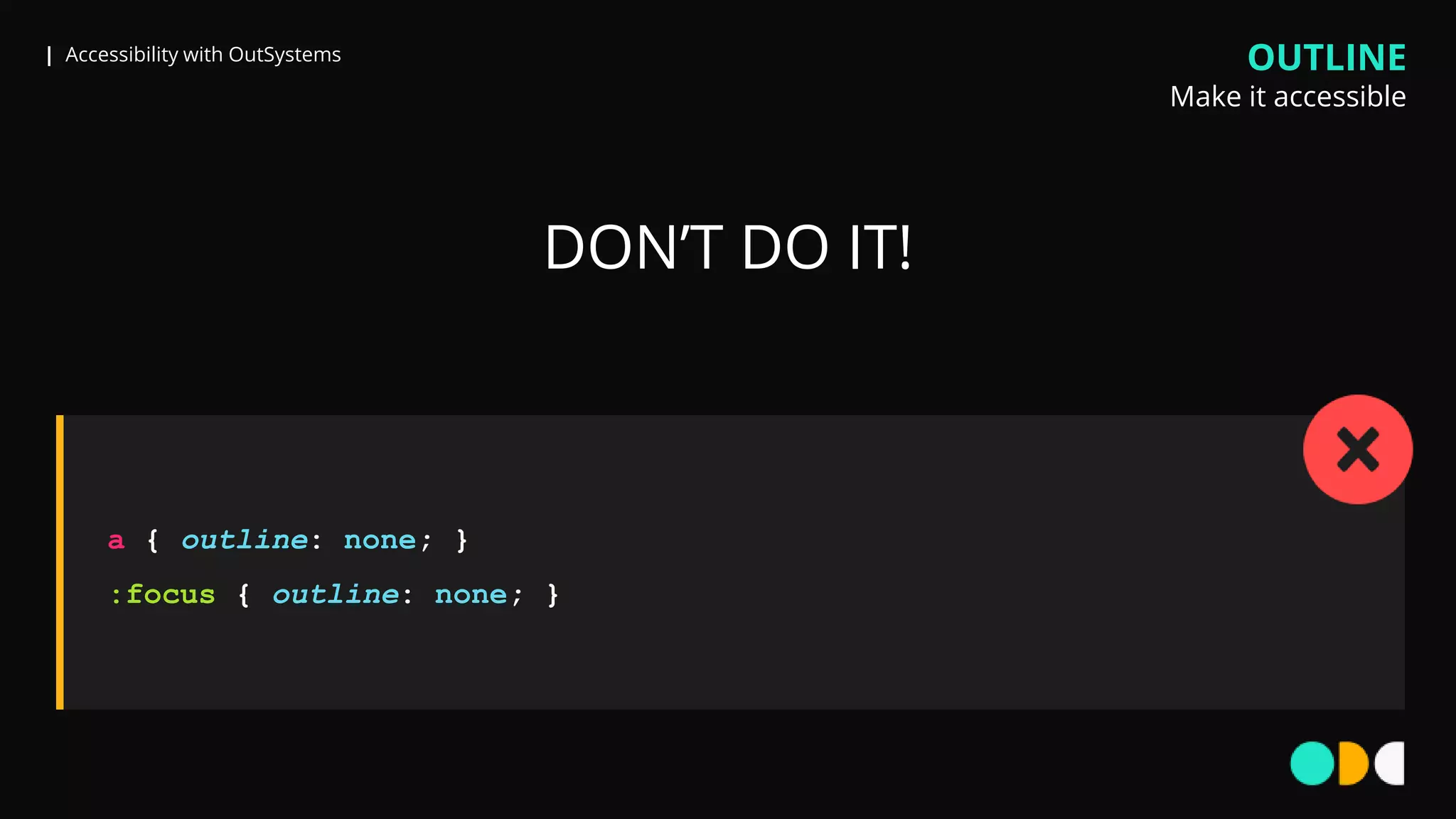

| Accessibility with OutSystems a { outline: none; } :focus { outline: none; } DON’T DO IT! OUTLINE Make it accessible

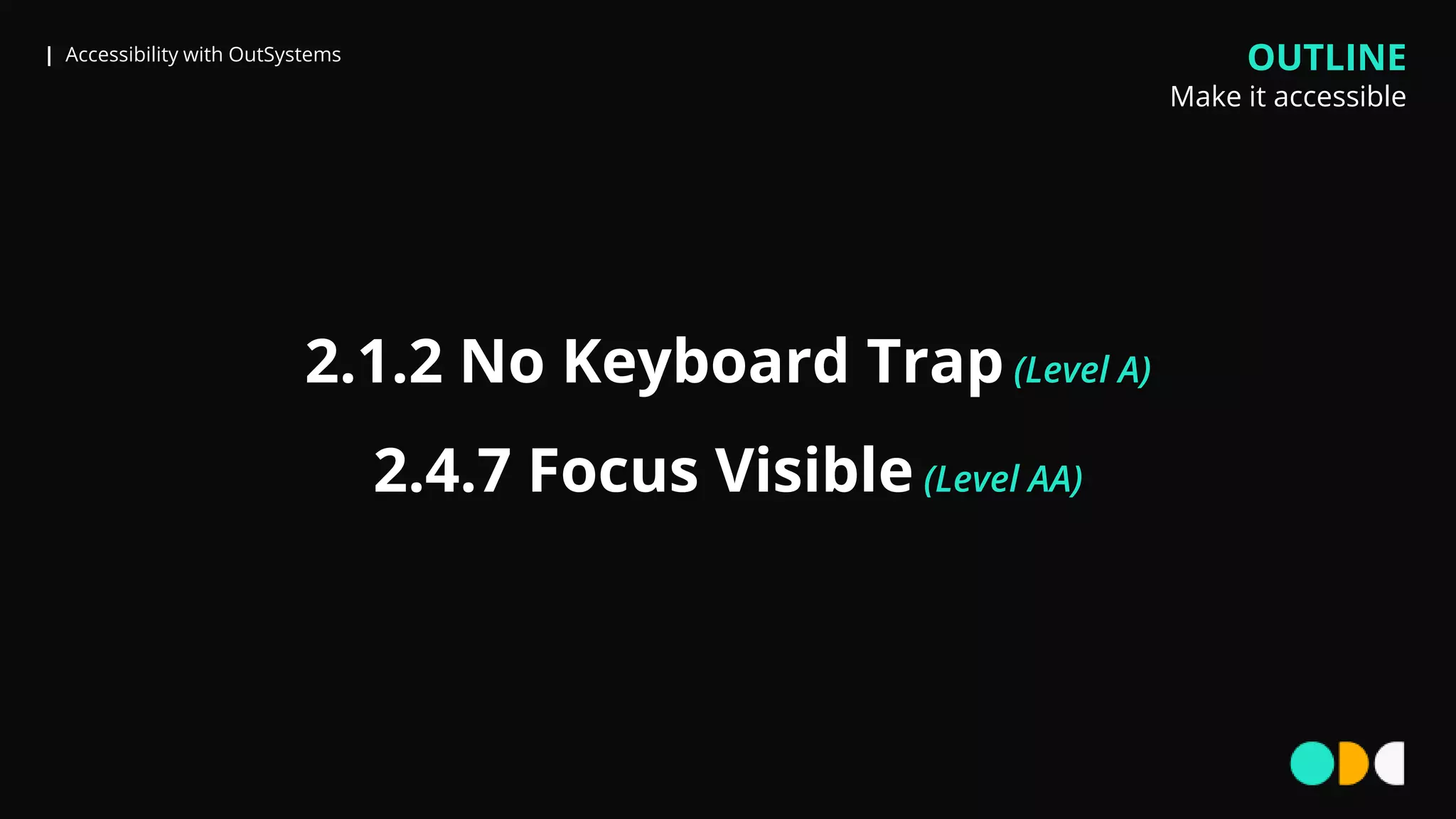

| Accessibility with OutSystems 2.1.2 No Keyboard Trap (Level A) 2.4.7 Focus Visible (Level AA) OUTLINE Make it accessible

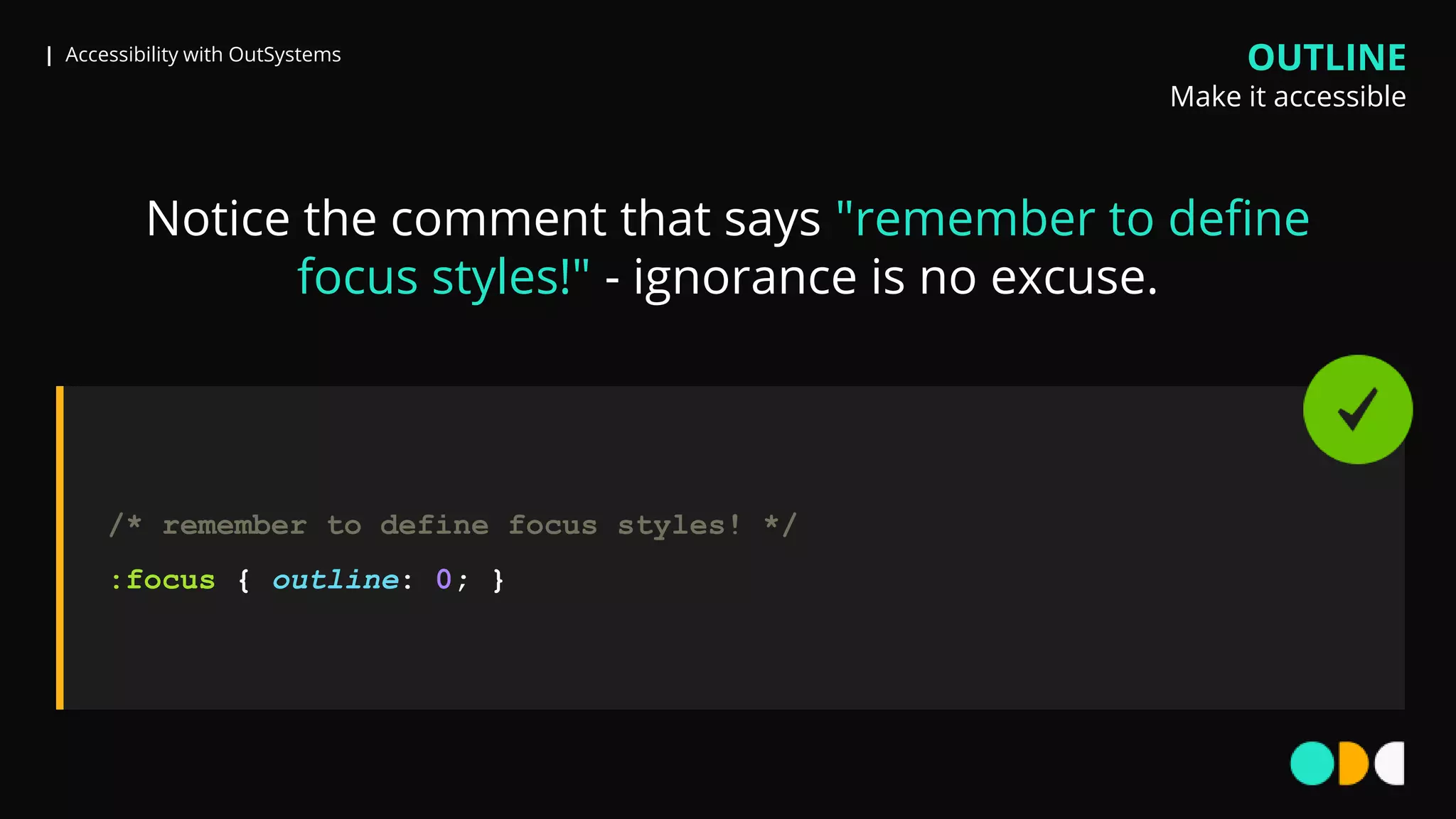

| Accessibility with OutSystems Notice the comment that says "remember to define focus styles!" - ignorance is no excuse. OUTLINE Make it accessible /* remember to define focus styles! */ :focus { outline: 0; }

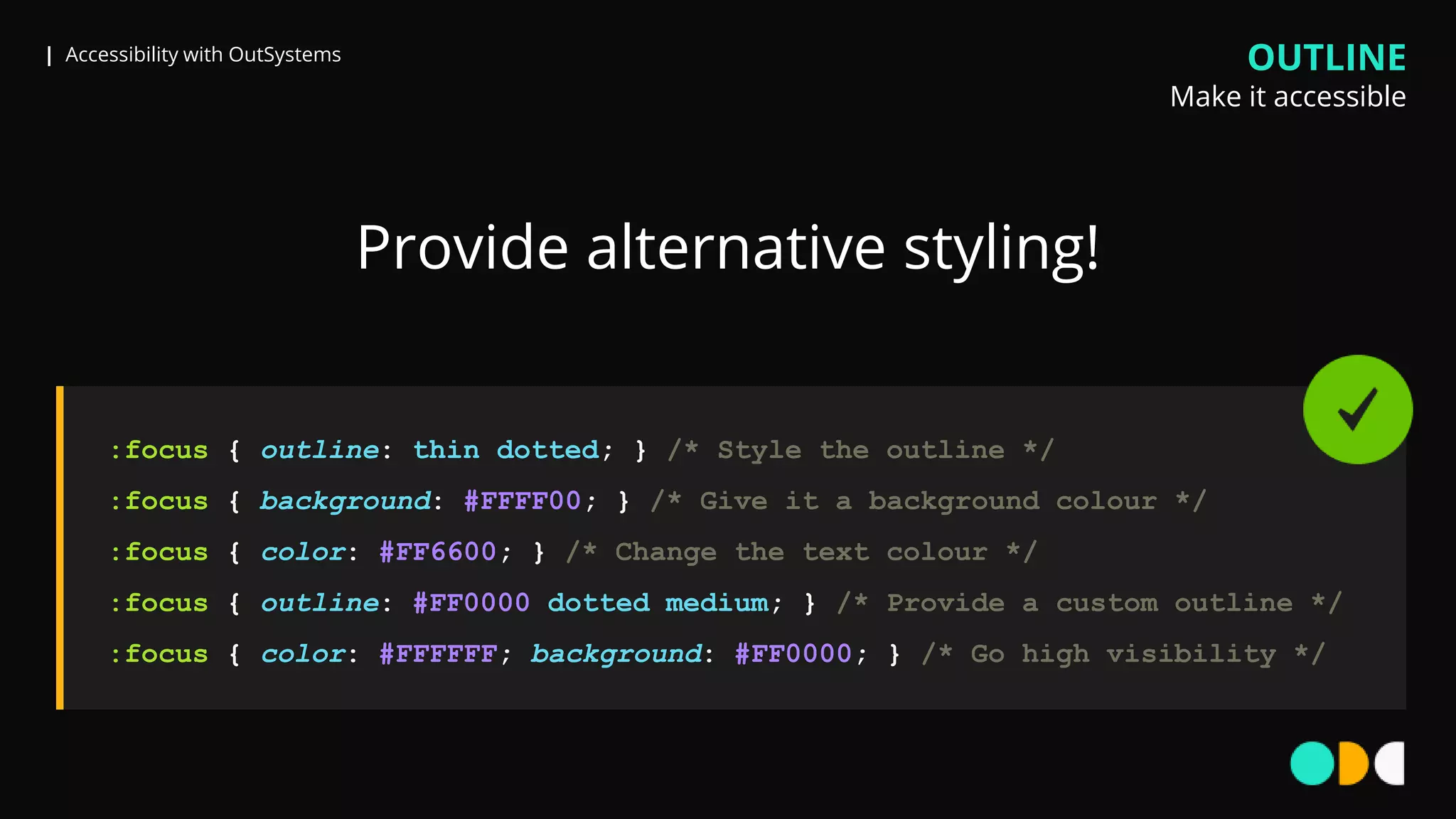

| Accessibility with OutSystems :focus { outline: thin dotted; } /* Style the outline */ :focus { background: #FFFF00; } /* Give it a background colour */ :focus { color: #FF6600; } /* Change the text colour */ :focus { outline: #FF0000 dotted medium; } /* Provide a custom outline */ :focus { color: #FFFFFF; background: #FF0000; } /* Go high visibility */ Provide alternative styling! OUTLINE Make it accessible

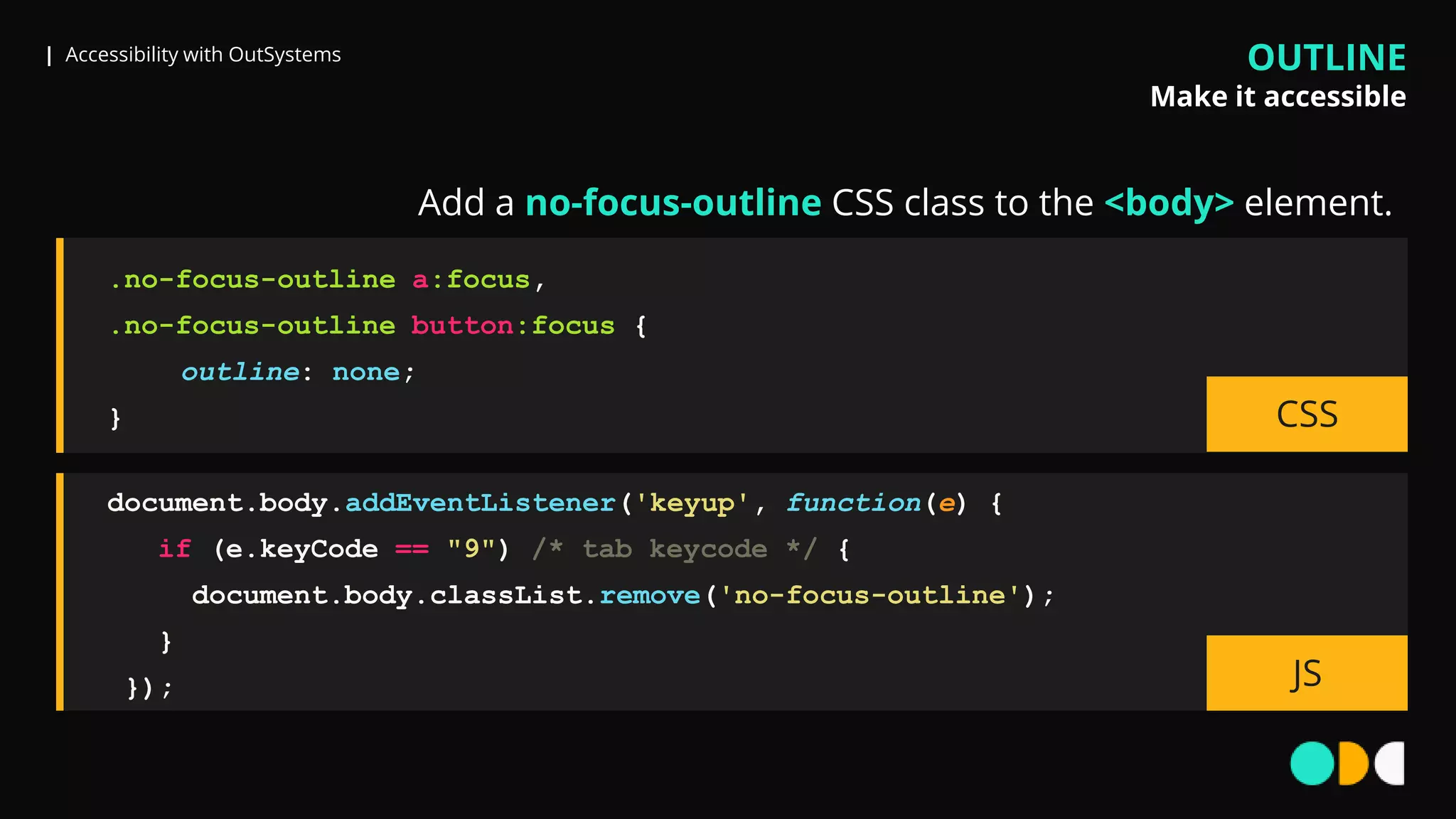

| Accessibility with OutSystems document.body.addEventListener('keyup', function(e) { if (e.keyCode == "9") /* tab keycode */ { document.body.classList.remove('no-focus-outline'); } }); JS .no-focus-outline a:focus, .no-focus-outline button:focus { outline: none; } CSS Add a no-focus-outline CSS class to the <body> element. OUTLINE Make it accessible
| Accessibility with OutSystems Containers & Placeholders

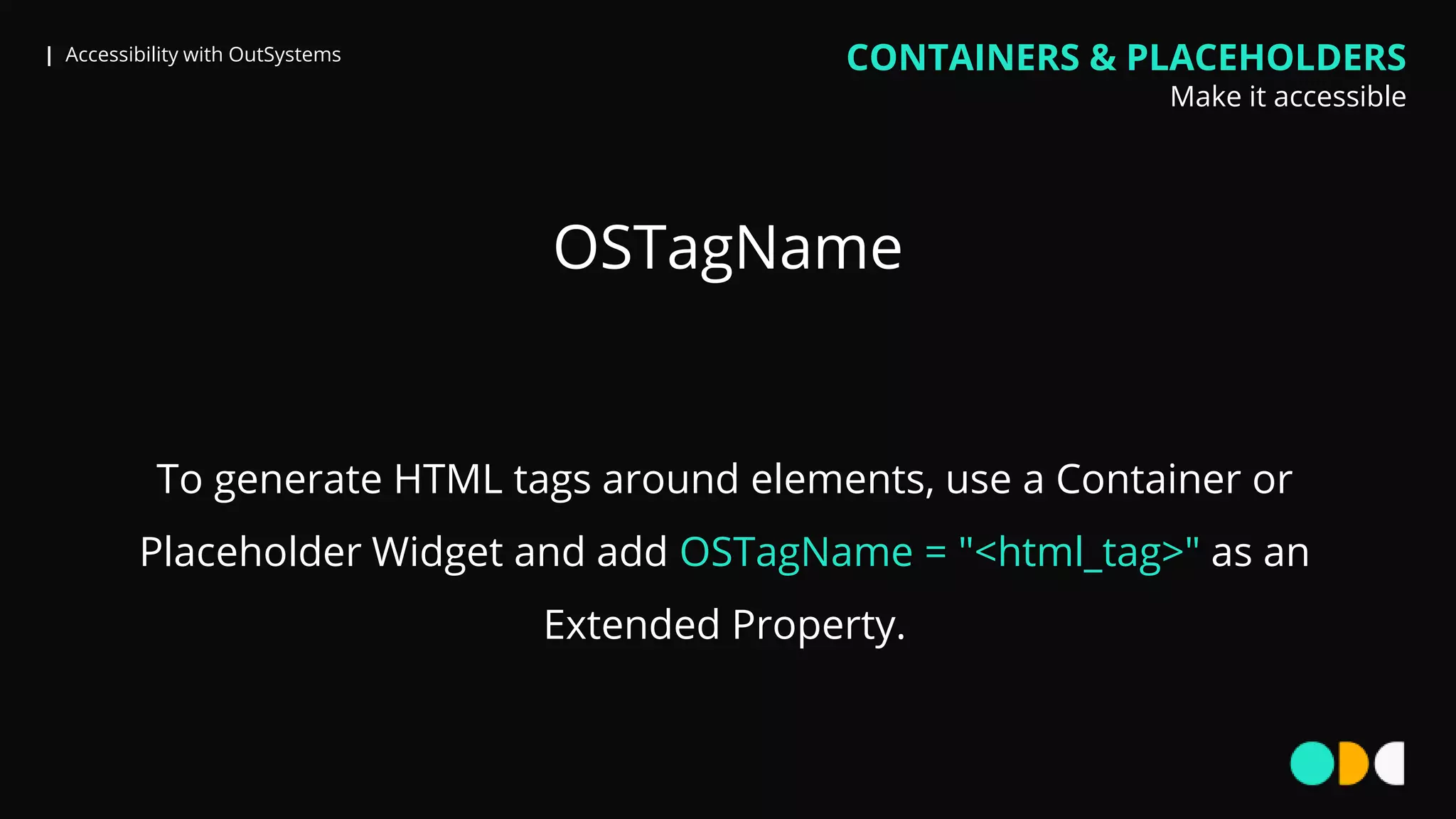

| Accessibility with OutSystems OSTagName CONTAINERS & PLACEHOLDERS Make it accessible To generate HTML tags around elements, use a Container or Placeholder Widget and add OSTagName = "<html_tag>" as an Extended Property.

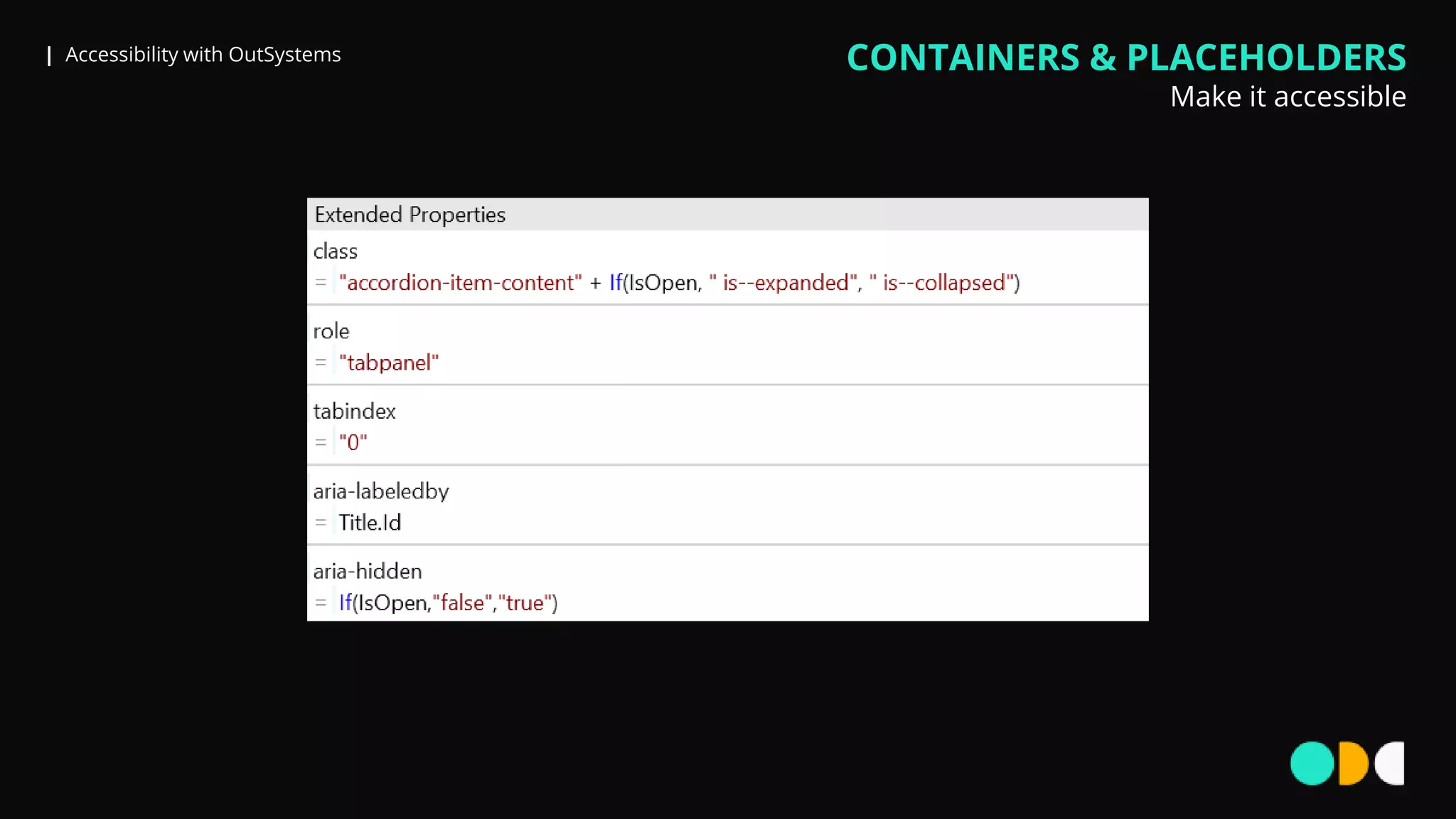

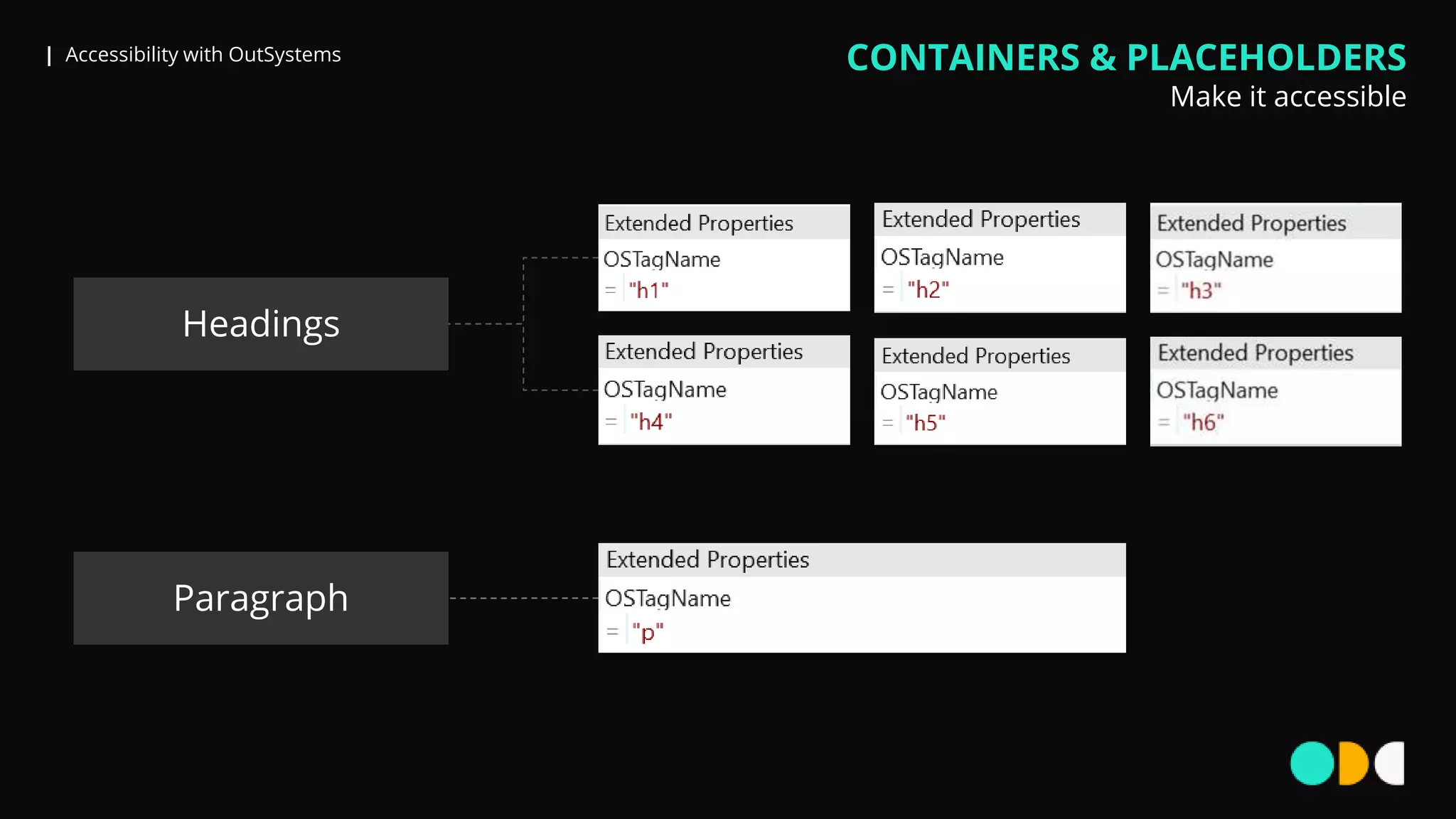

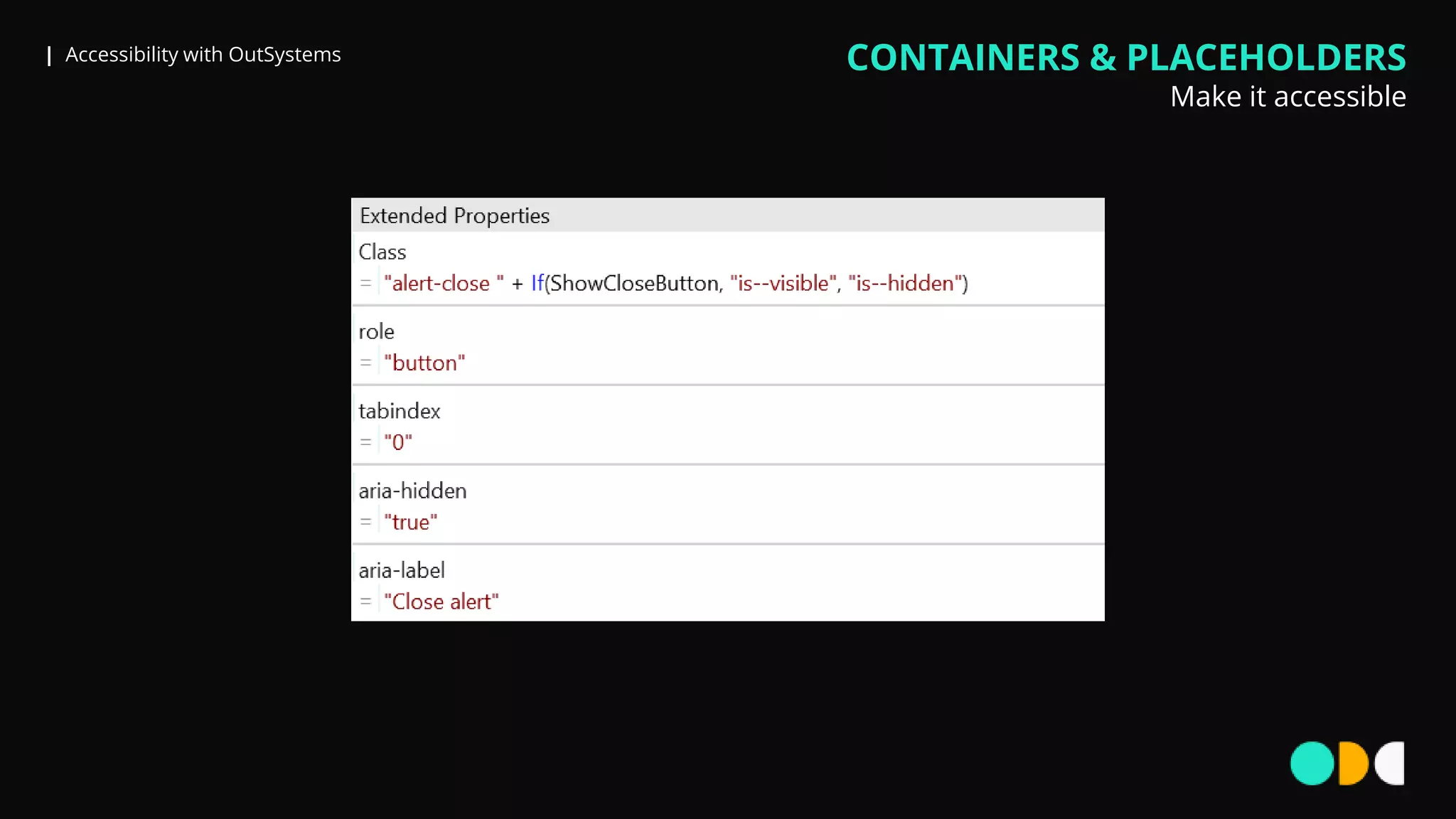

| Accessibility with OutSystems CONTAINERS & PLACEHOLDERS Make it accessible Headings Paragraph
| Accessibility with OutSystems CONTAINERS & PLACEHOLDERS Make it accessible Section Article
| Accessibility with OutSystems CONTAINERS & PLACEHOLDERS Make it accessible
| Accessibility with OutSystems CONTAINERS & PLACEHOLDERS Make it accessible
| Accessibility with OutSystems Screen Template

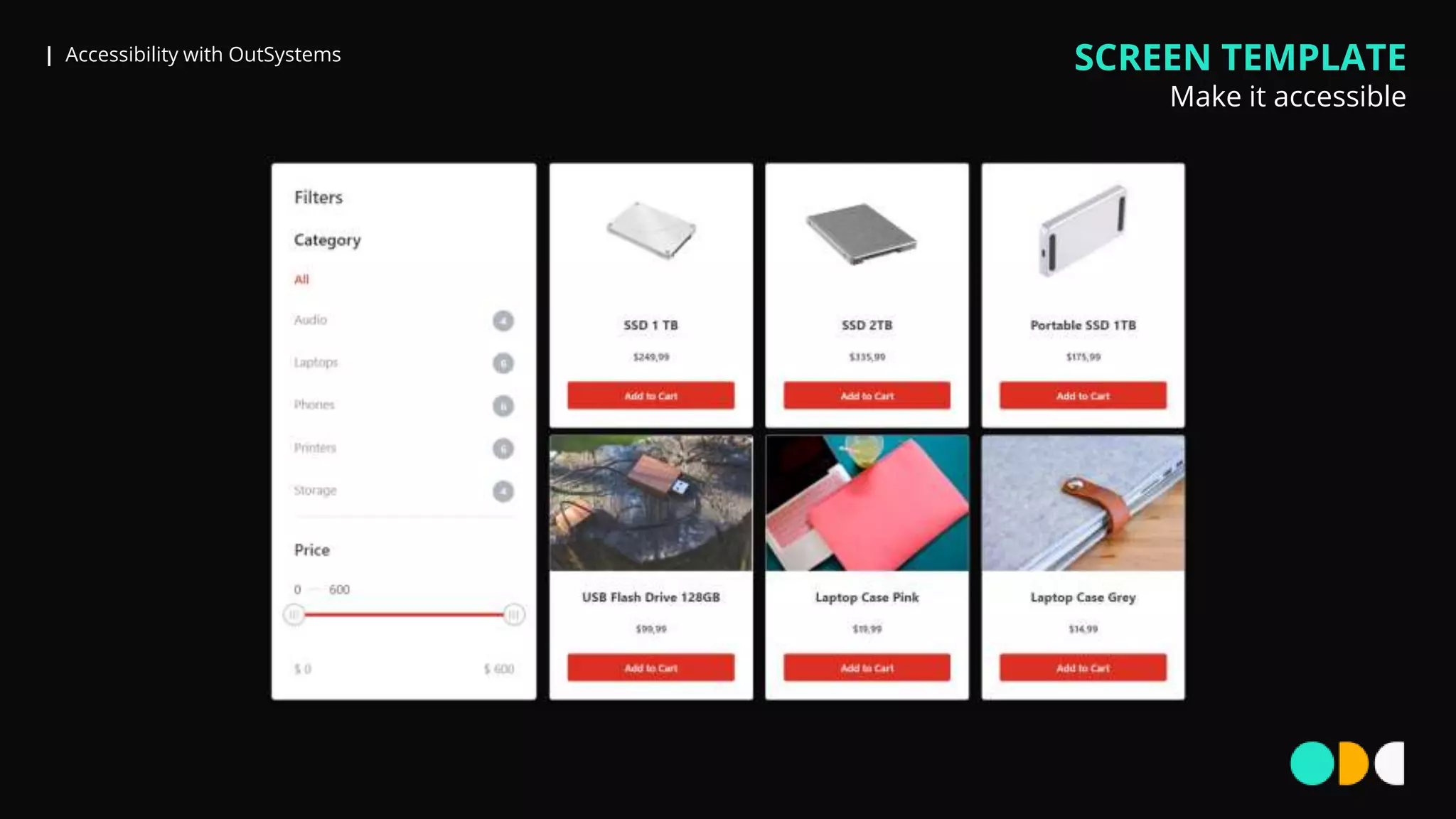

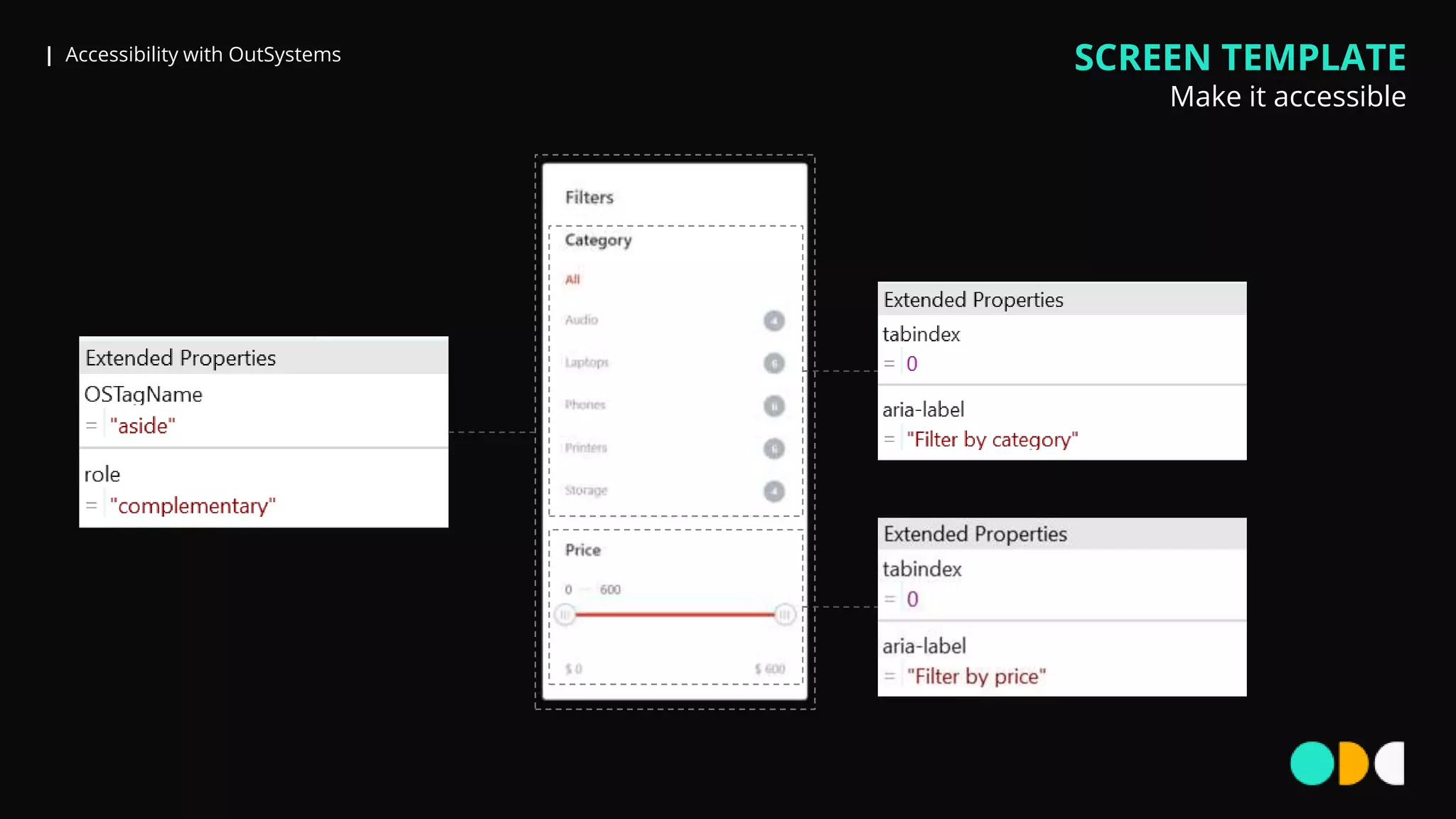

| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible

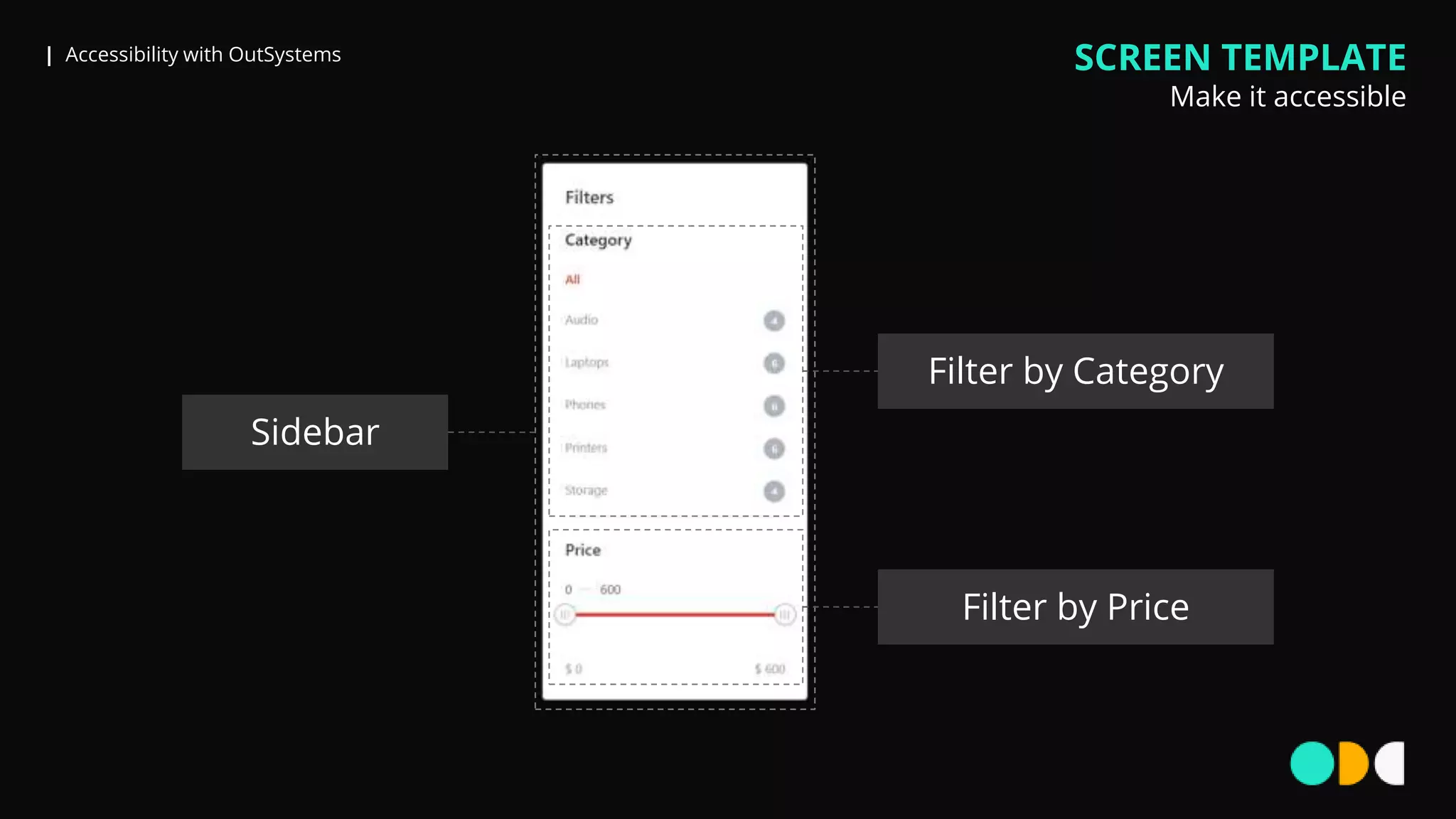

| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible Filter by Category Sidebar Filter by Price
| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible
| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible

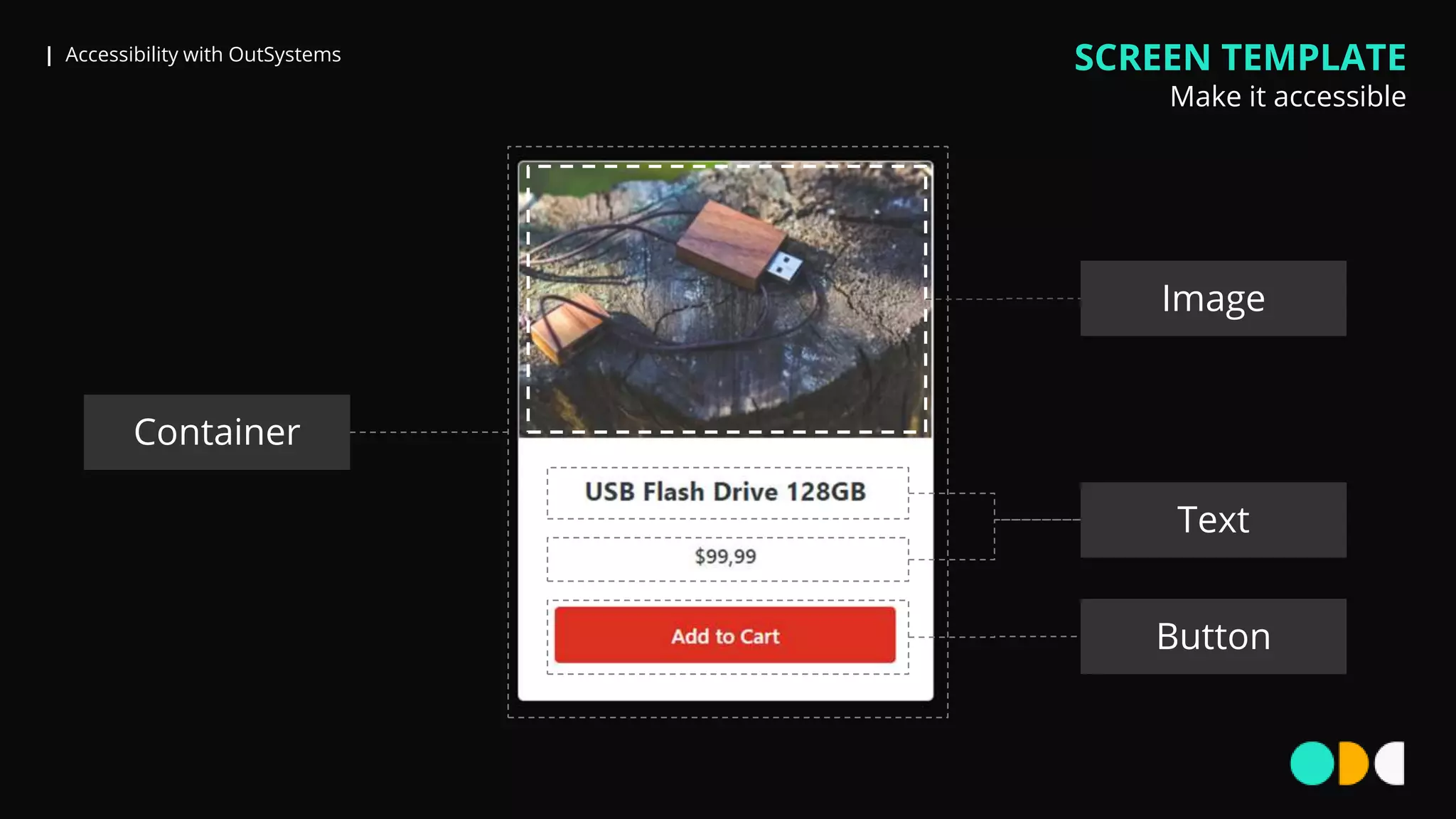

| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible Container Button Image Text

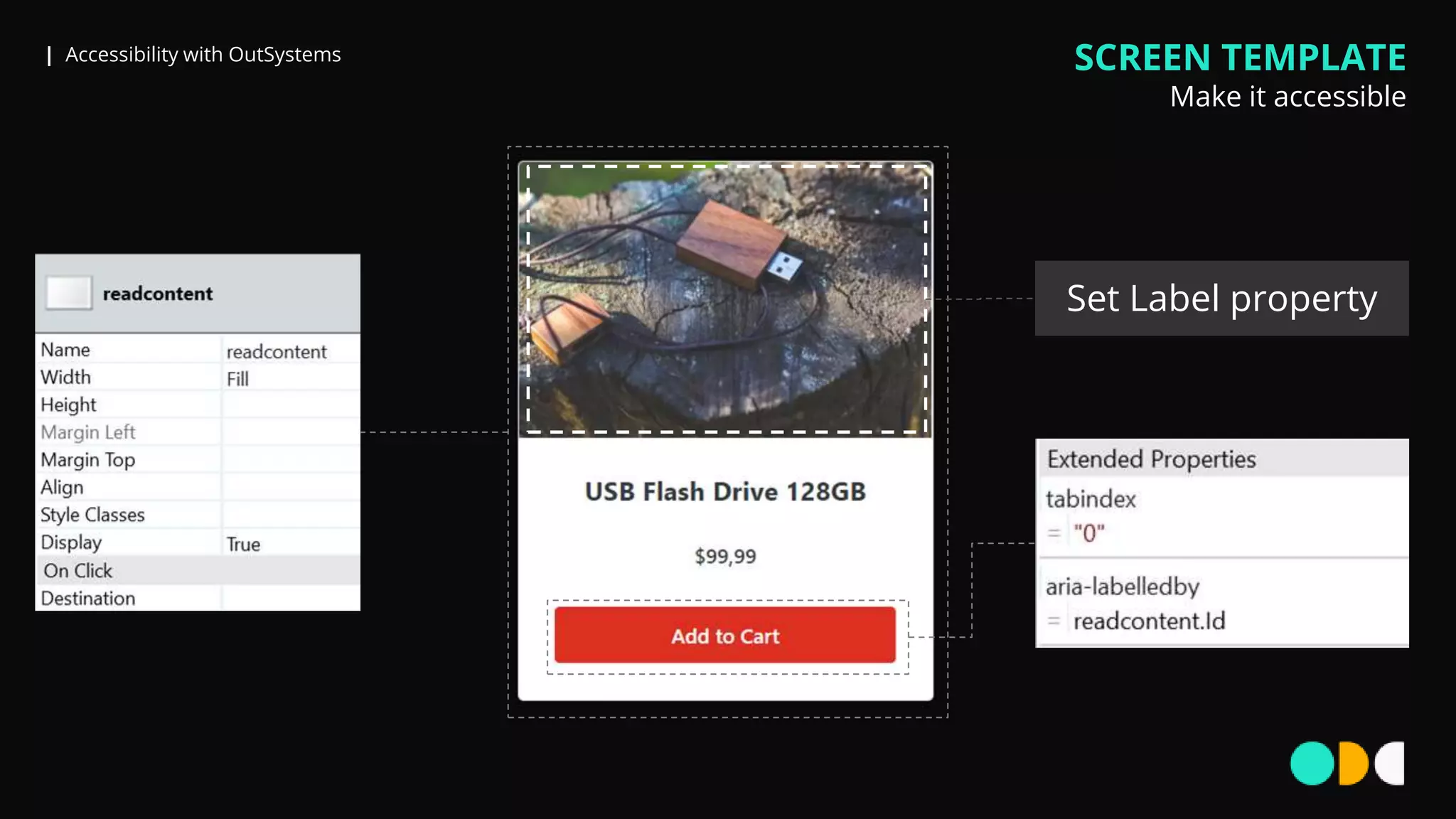

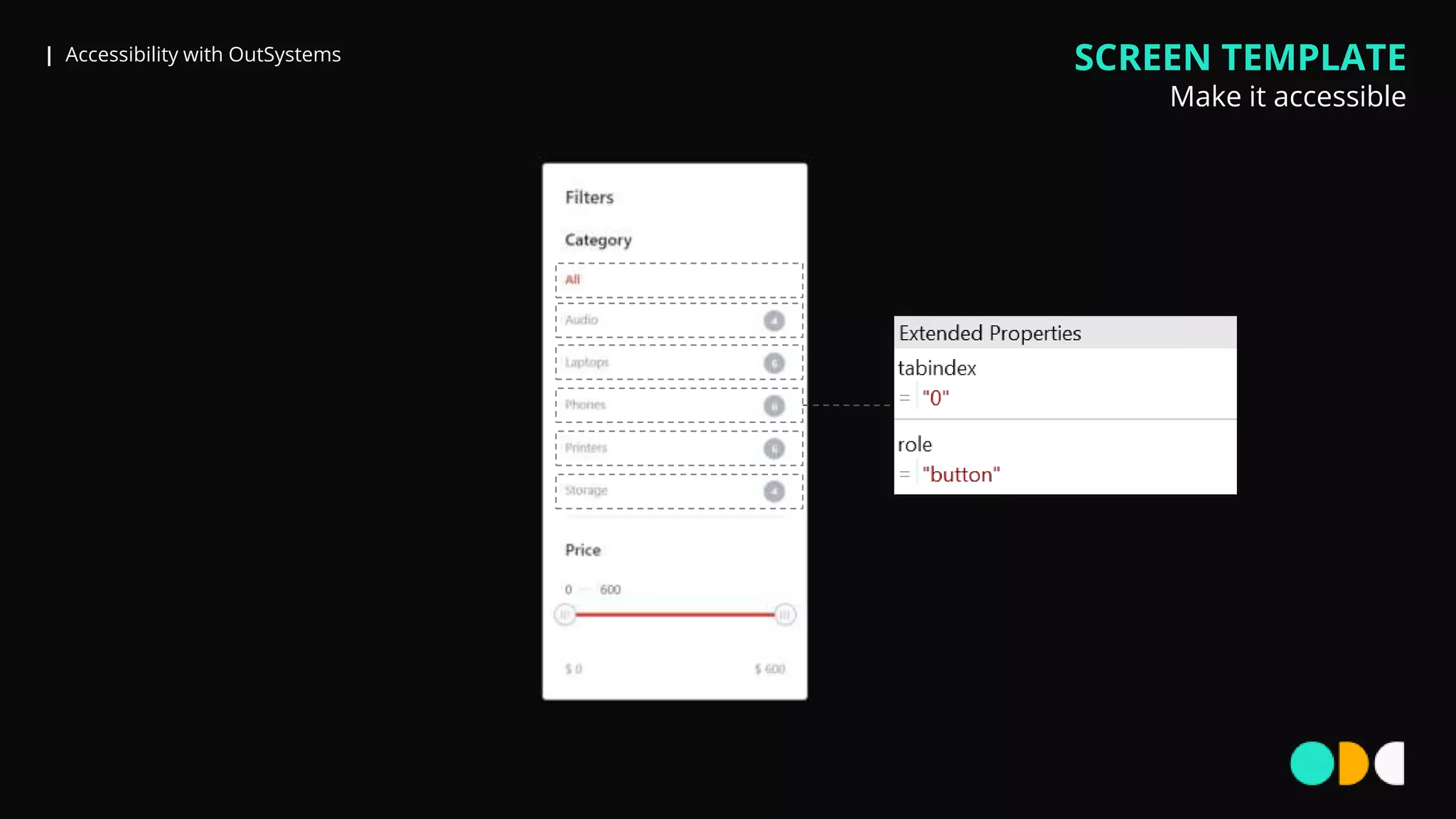

| Accessibility with OutSystems SCREEN TEMPLATE Make it accessible Set Label property

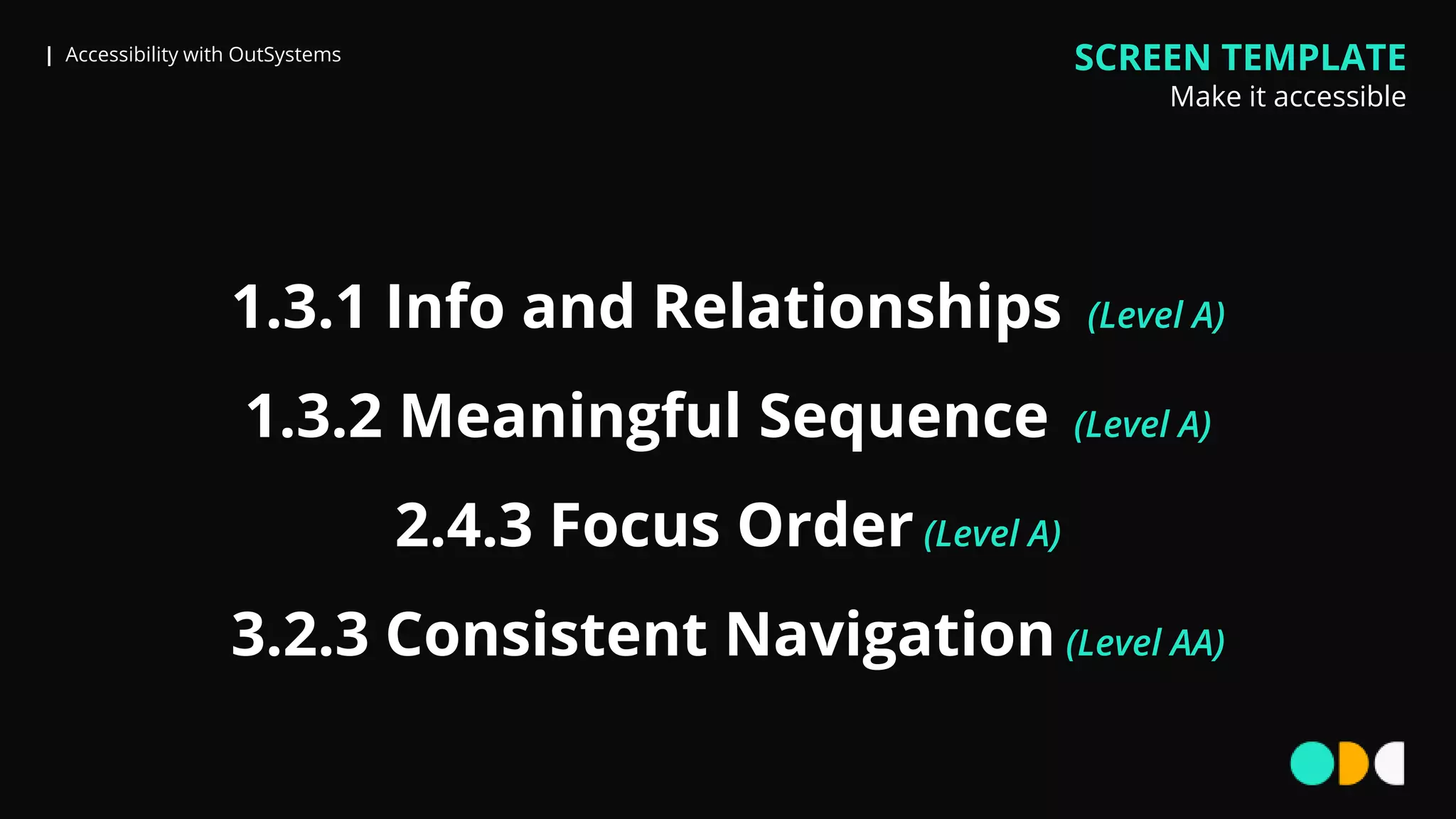

| Accessibility with OutSystems 1.3.1 Info and Relationships (Level A) 1.3.2 Meaningful Sequence (Level A) 2.4.3 Focus Order (Level A) 3.2.3 Consistent Navigation (Level AA) SCREEN TEMPLATE Make it accessible
| Accessibility with OutSystems Accessibility enables people to access your applications, without any limitations!
| Accessibility with OutSystems Accessibility contributes to building a better society!
