Tenants: A Look Behind the Scenes
This document discusses multi-tenancy in OutSystems, which allows a single application to provide isolated resources for each customer. It describes how to set the multi-tenant property, create tenants and user providers, and ensure entities, timers, and site properties are partitioned correctly for each tenant. The tenant ID attribute is used to filter data queries for each tenant.
In this document
Powered by AI
An overview of multi-tenancy in applications, presented by José Costa, an OutSystems MVP.
Multi-tenancy allows a single server to service multiple customers with isolated resources. Focused on application areas.
Guidelines on how to develop, create, and use multi-tenant applications, including user creation and tenant data management.
Discussion on how data is accessed and partitioned among different tenants, including properties and timers.
Details about TenantId in entities, user provider settings, and how to create user providers effectively.
Methods for creating and managing user providers, utilizing the UserManager role for user administration.
Functionality of tenant switch for runtime context changes and transitioning from single-tenant to multi-tenant structures.
Common issues faced in multi-tenancy applications, including database separation and data visibility, ending with a thank you.
More Related Content
Similar to Tenants: A Look Behind the Scenes
More from OutSystems
Tenants: A Look Behind the Scenes
- 1. | Tenants: ALook Behind The Scenes Tenants: A Look Behind The Scenes
- 2. | Tenants: ALook Behind The Scenes| Tenants: A Look Behind The Scenes José Costa OutSystems MVP, Senior Trainer | ITUp @ in jose.costa@itup.pt /josecccosta

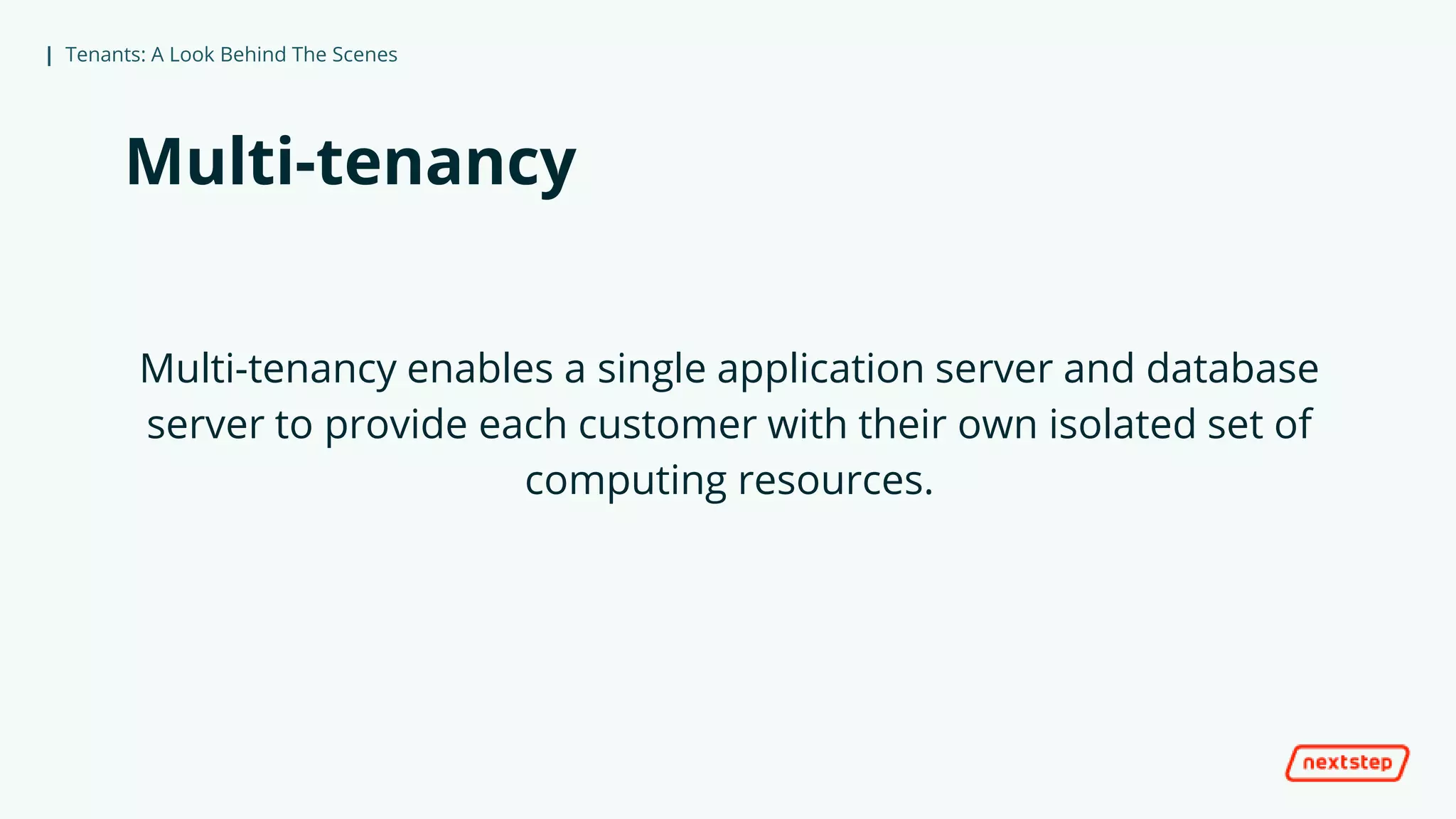

- 3. | Tenants: ALook Behind The Scenes Multi-tenancy Multi-tenancy enables a single application server and database server to provide each customer with their own isolated set of computing resources.

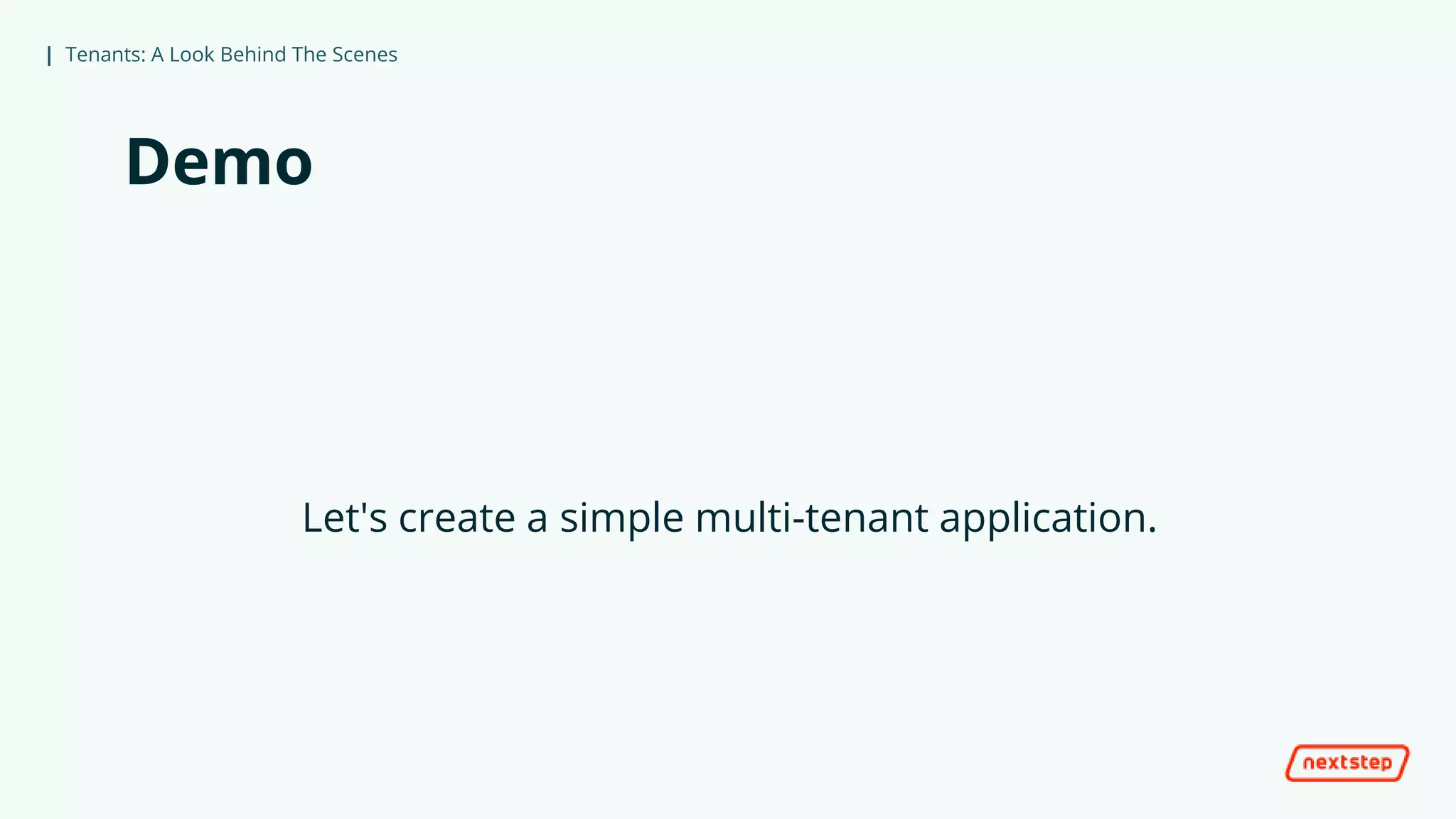

- 4. | Tenants: ALook Behind The Scenes Demo Let's create a simple multi-tenant application.

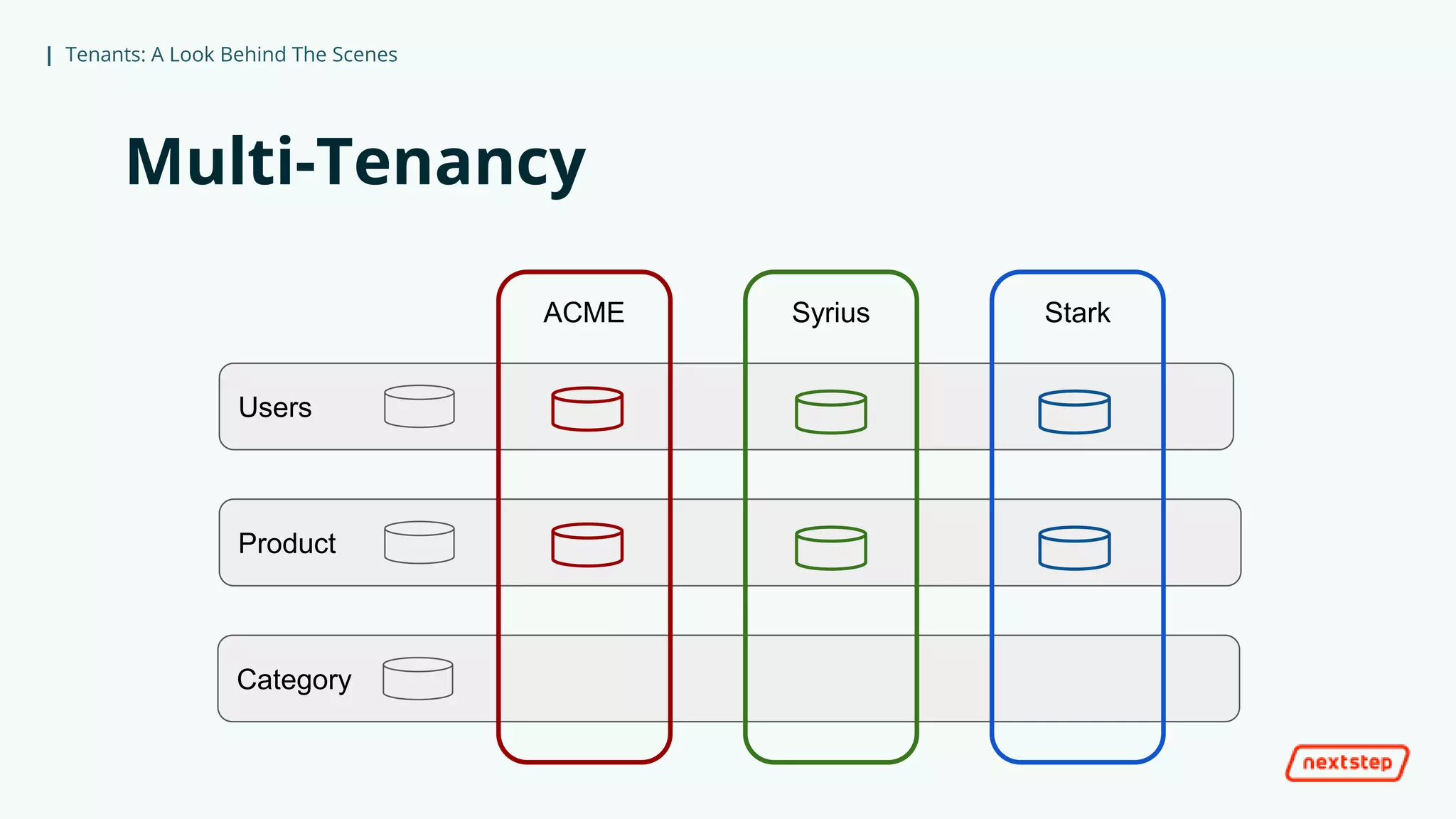

- 5. | Tenants: ALook Behind The Scenes Product Category Multi-Tenancy Users ACME Syrius Stark

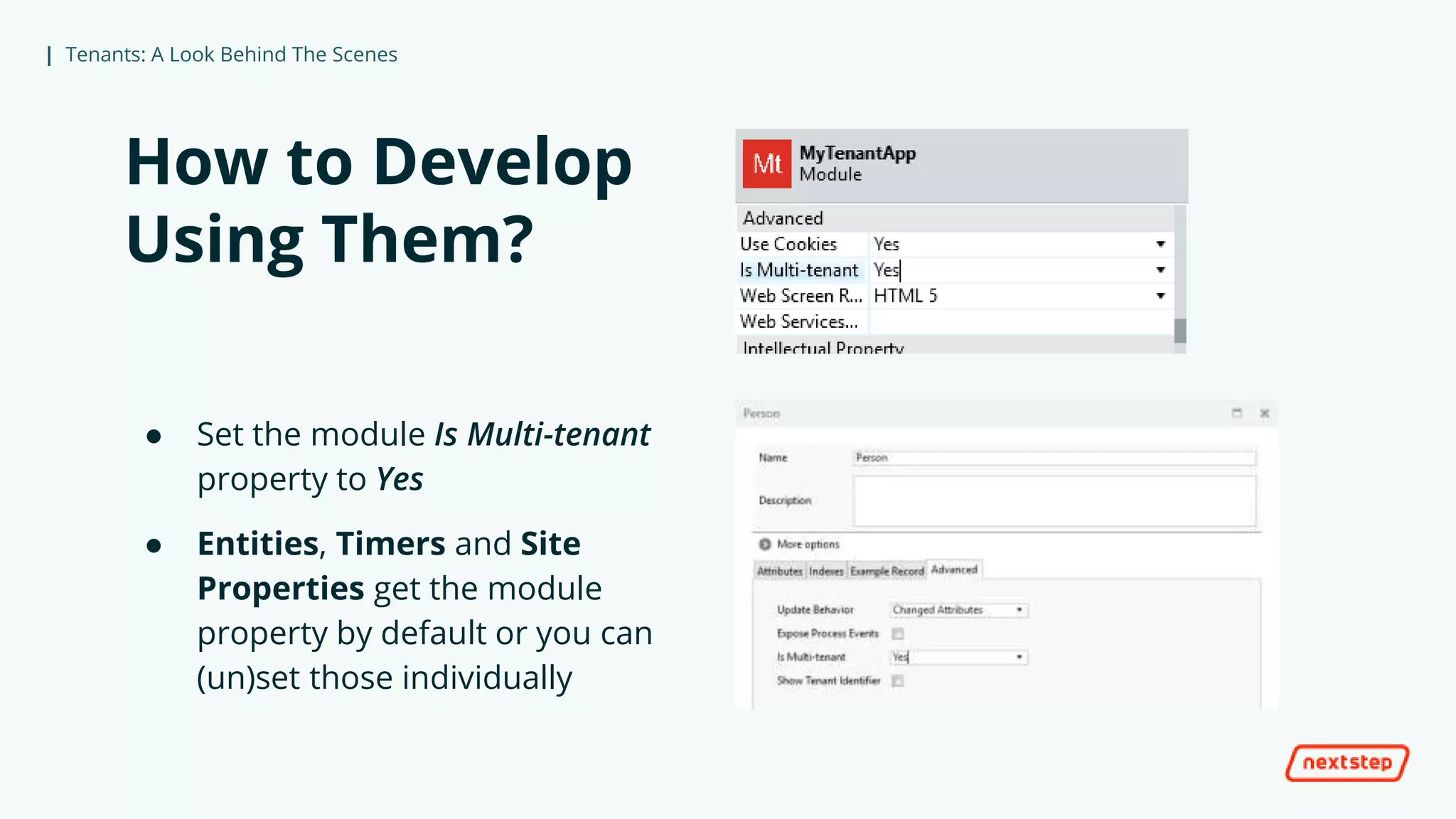

- 6. | Tenants: ALook Behind The Scenes How to Develop Using Them? ● Set the module Is Multi-tenant property to Yes ● Entities, Timers and Site Properties get the module property by default or you can (un)set those individually

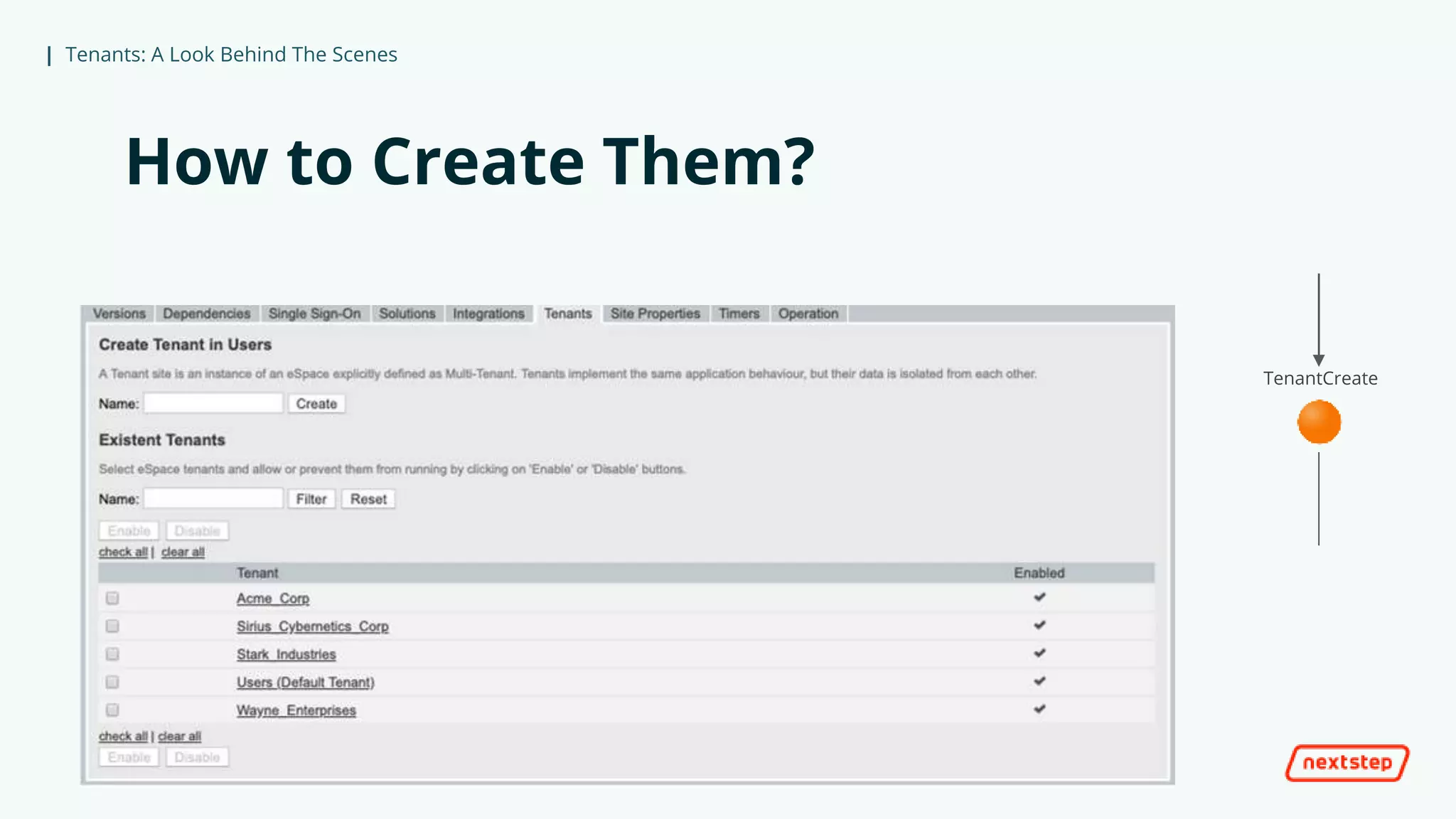

- 7. | Tenants: ALook Behind The Scenes How to Create Them? TenantCreate

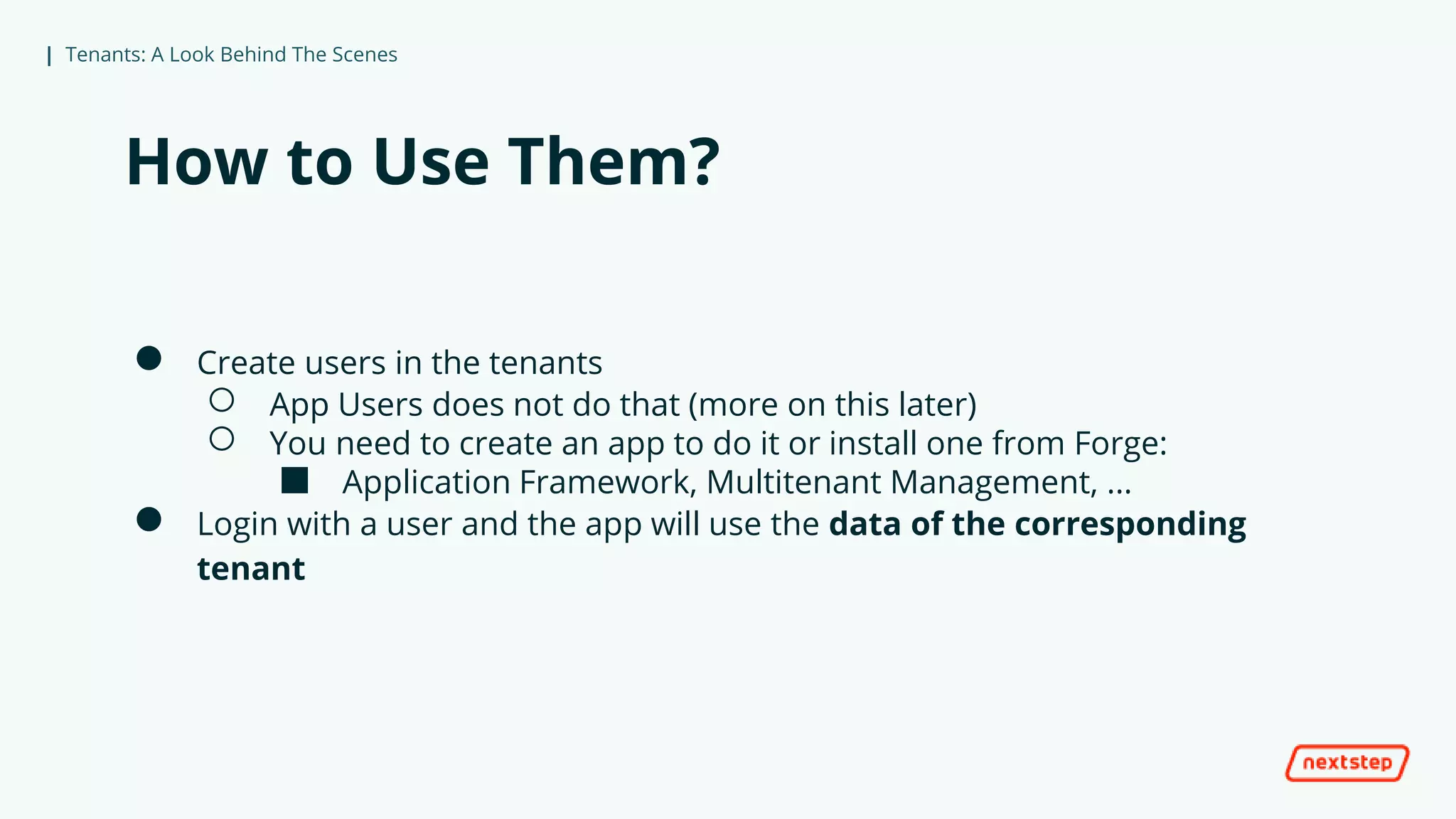

- 8. | Tenants: ALook Behind The Scenes How to Use Them? ● Create users in the tenants ○ App Users does not do that (more on this later) ○ You need to create an app to do it or install one from Forge: ■ Application Framework, Multitenant Management, ... ● Login with a user and the app will use the data of the corresponding tenant

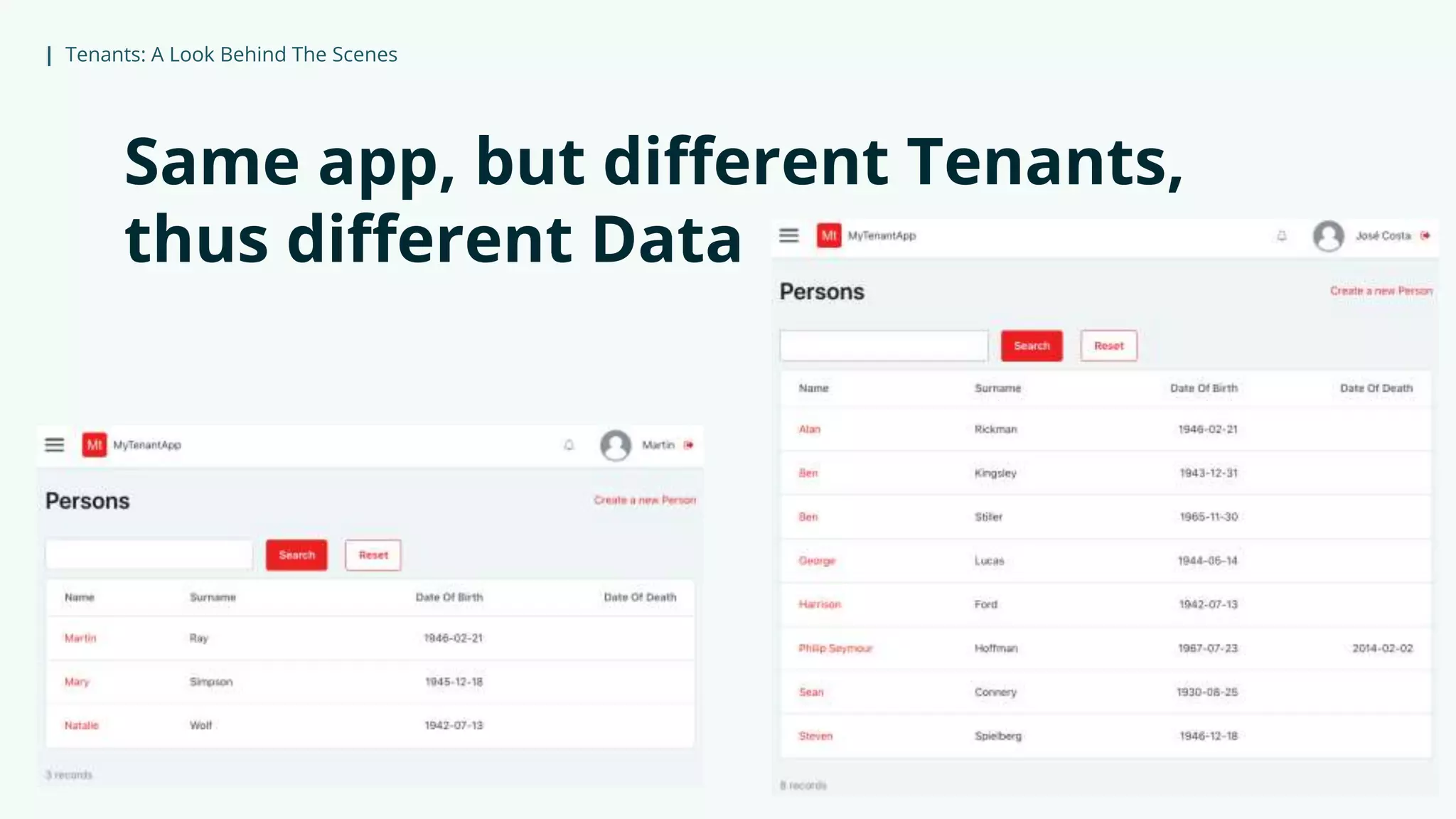

- 9. | Tenants: ALook Behind The Scenes Same app, but different Tenants, thus different Data

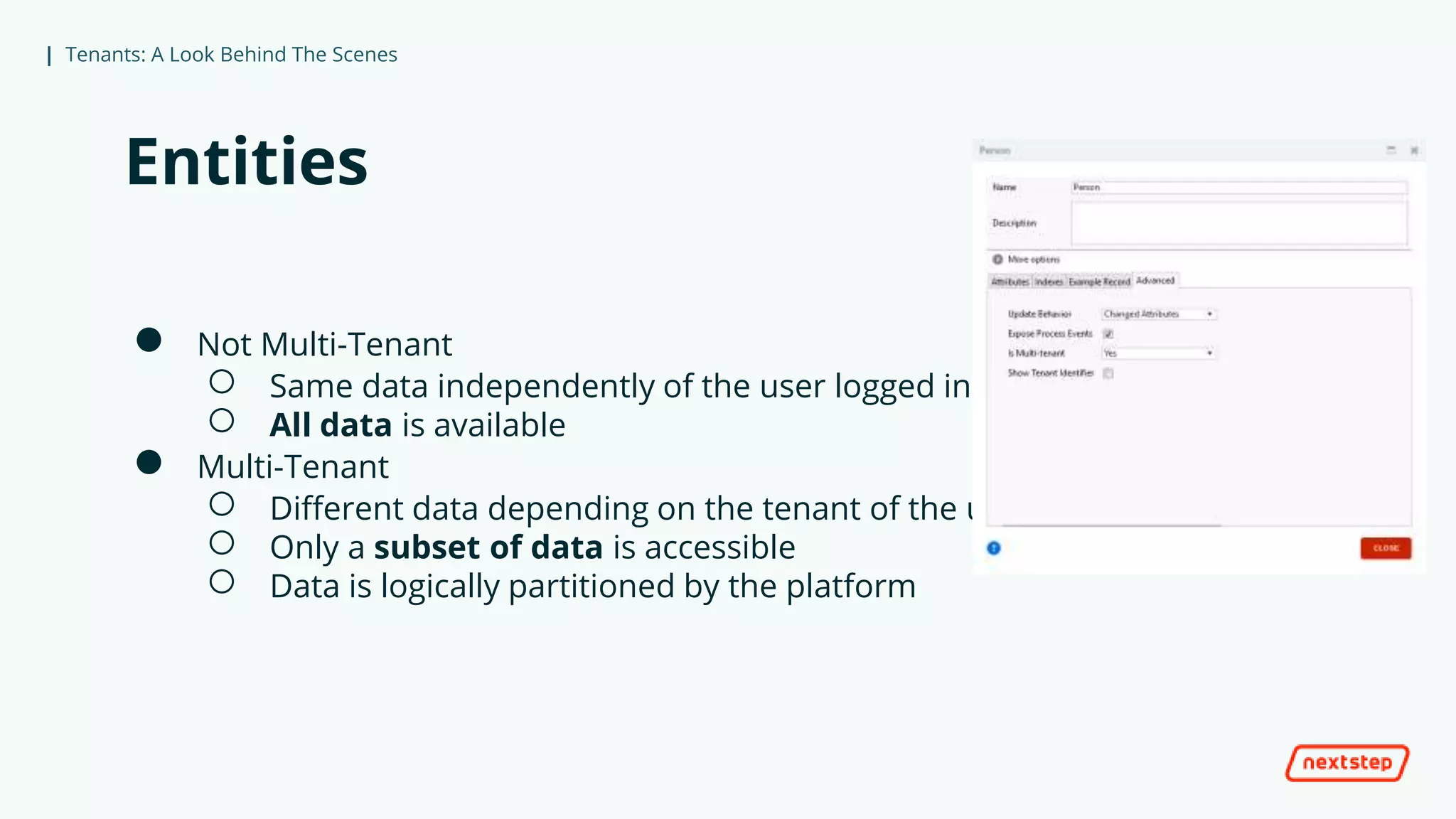

- 10. | Tenants: ALook Behind The Scenes Entities ● Not Multi-Tenant ○ Same data independently of the user logged in ○ All data is available ● Multi-Tenant ○ Different data depending on the tenant of the user that logged in ○ Only a subset of data is accessible ○ Data is logically partitioned by the platform

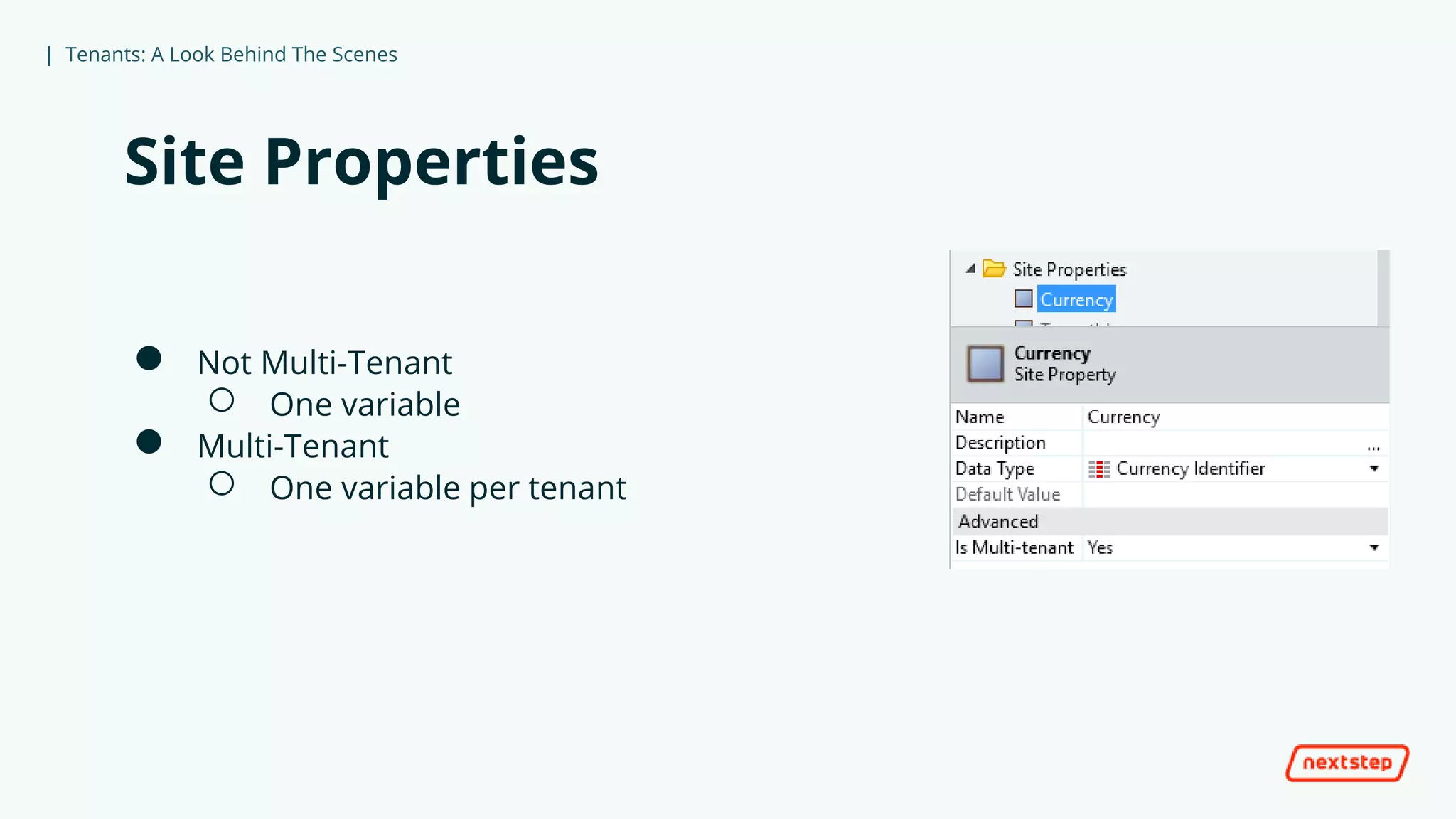

- 11. | Tenants: ALook Behind The Scenes Site Properties ● Not Multi-Tenant ○ One variable ● Multi-Tenant ○ One variable per tenant

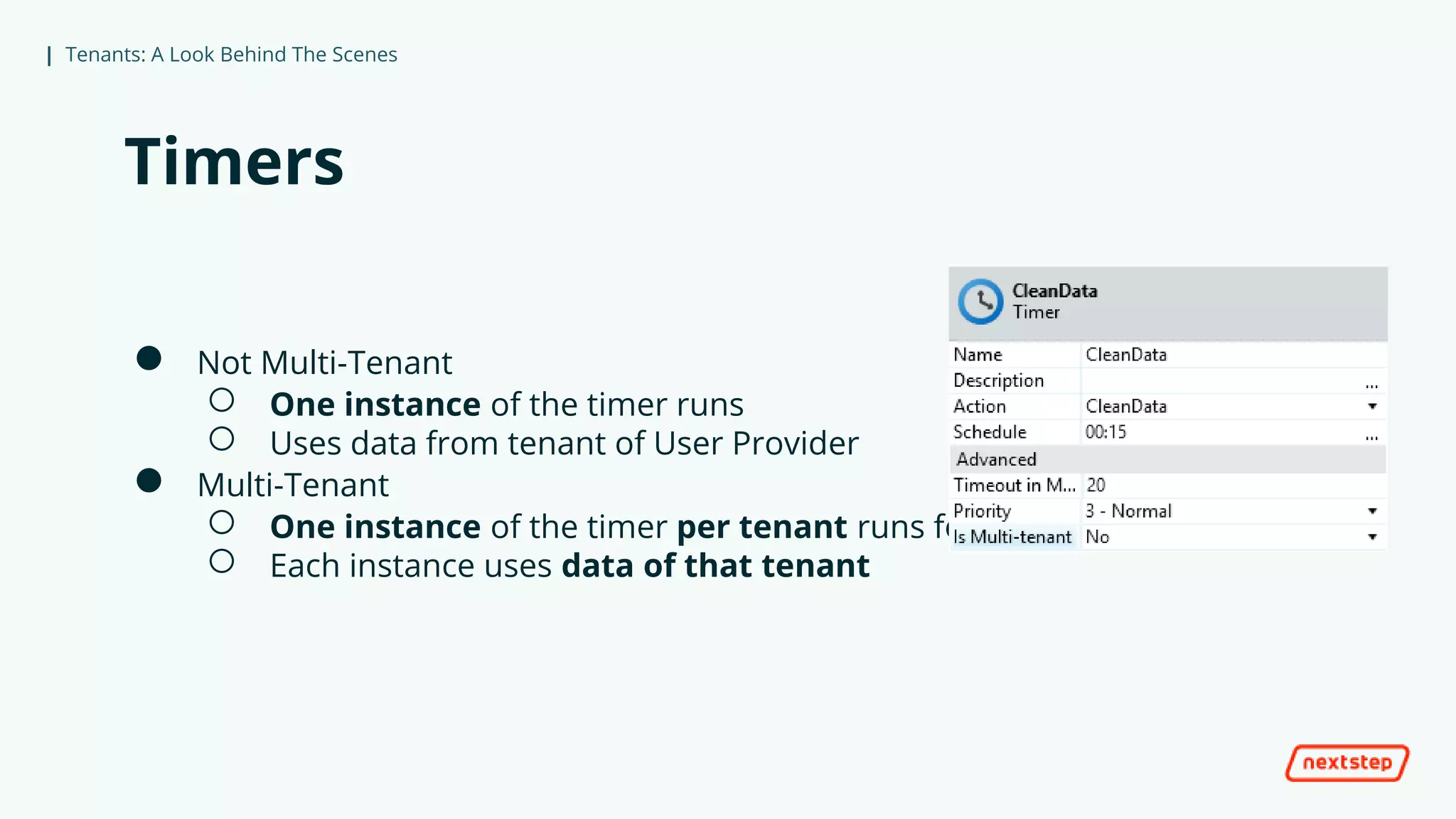

- 12. | Tenants: ALook Behind The Scenes Timers ● Not Multi-Tenant ○ One instance of the timer runs ○ Uses data from tenant of User Provider ● Multi-Tenant ○ One instance of the timer per tenant runs for that tenant ○ Each instance uses data of that tenant

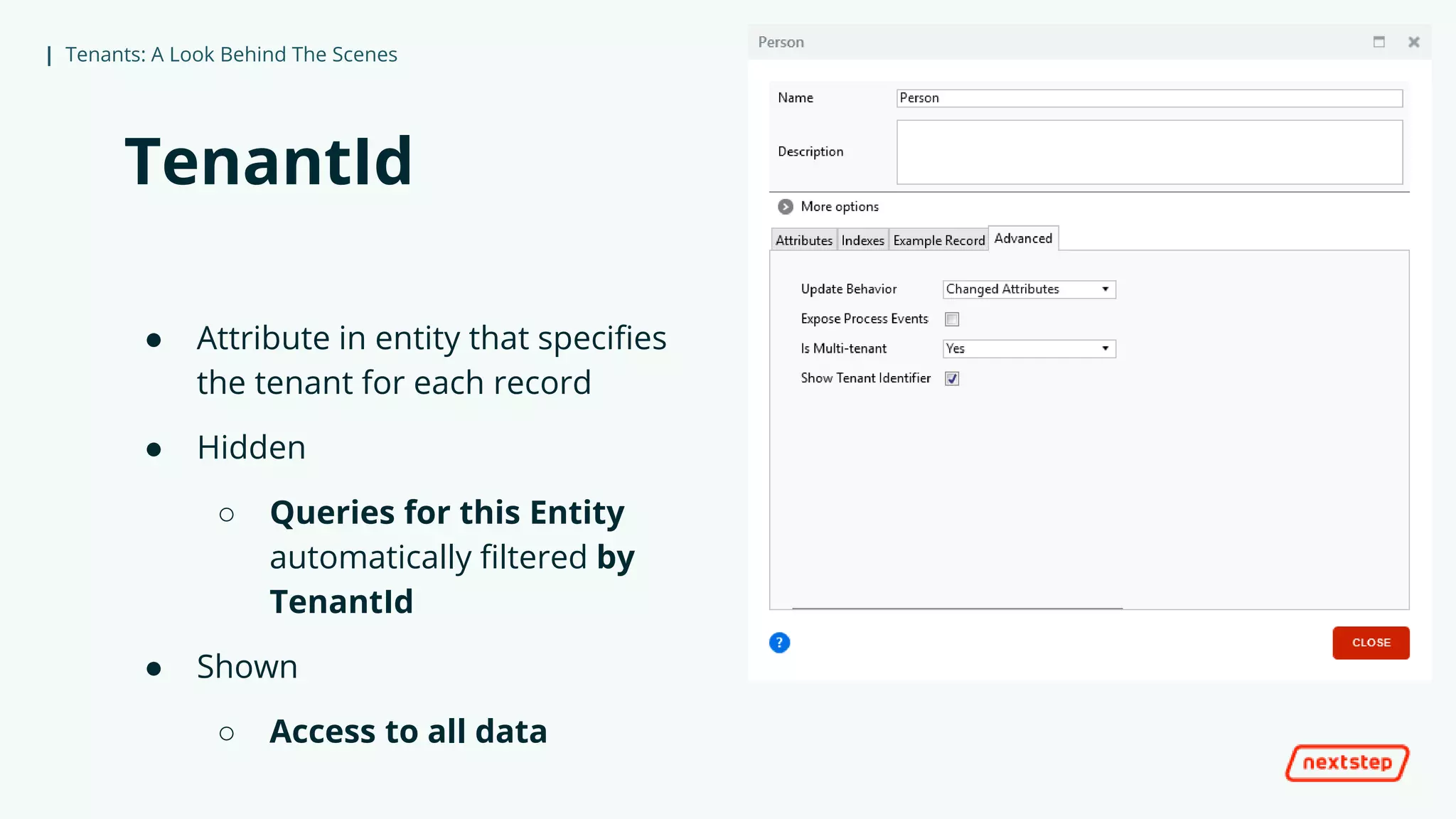

- 13. | Tenants: ALook Behind The Scenes TenantId ● Attribute in entity that specifies the tenant for each record ● Hidden ○ Queries for this Entity automatically filtered by TenantId ● Shown ○ Access to all data

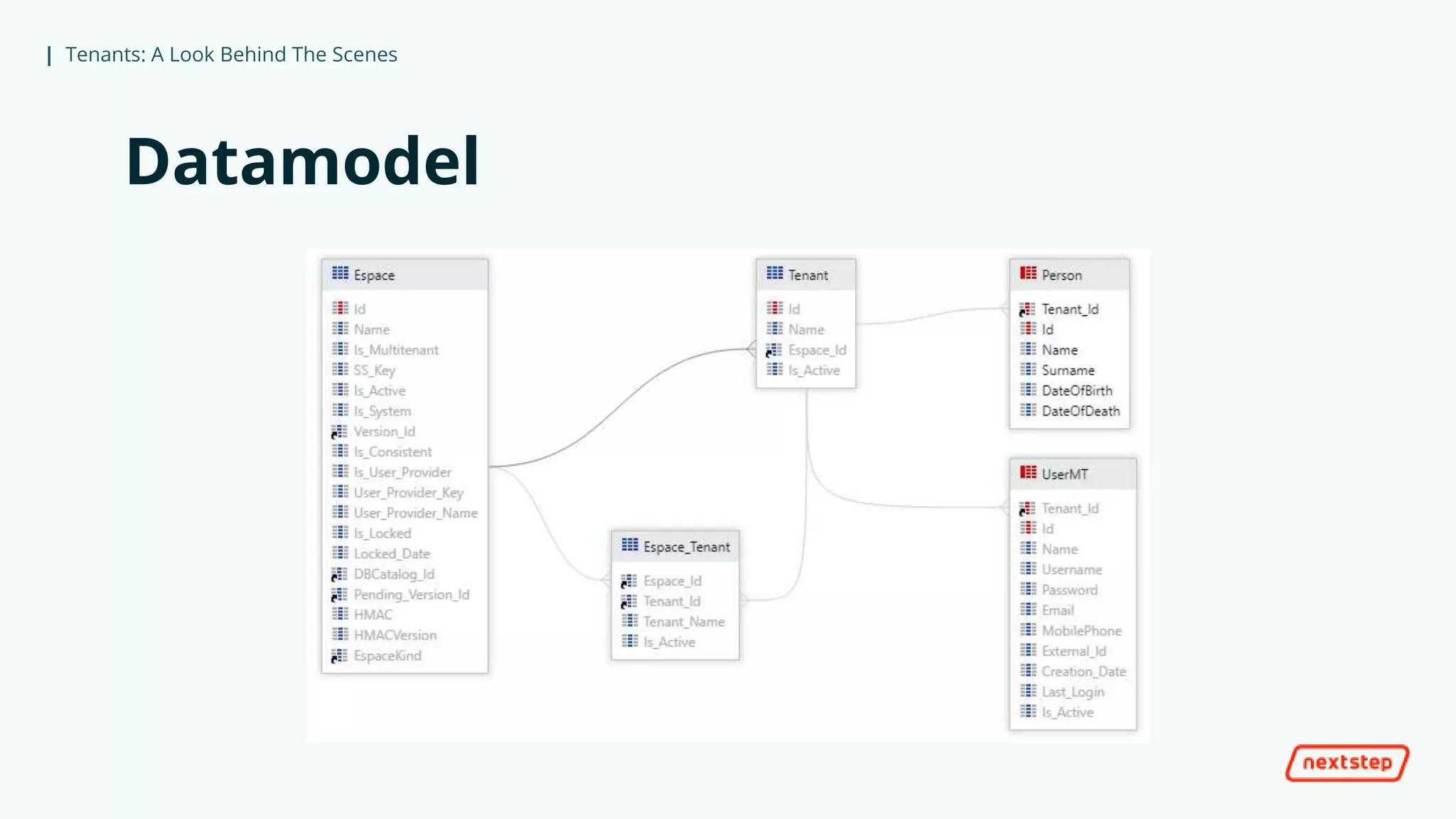

- 14. | Tenants: ALook Behind The Scenes Datamodel

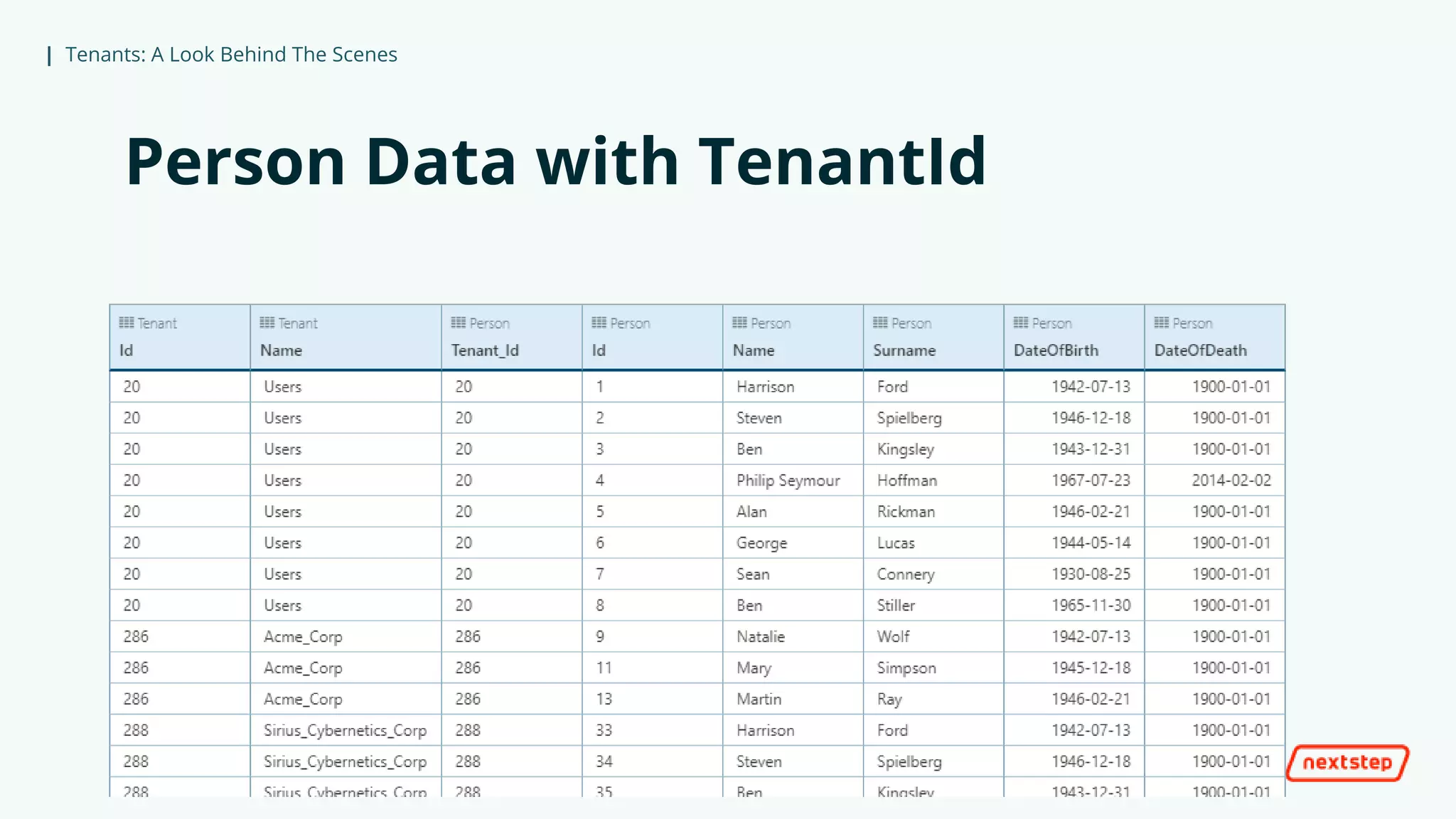

- 15. | Tenants: ALook Behind The Scenes Person Data with TenantId

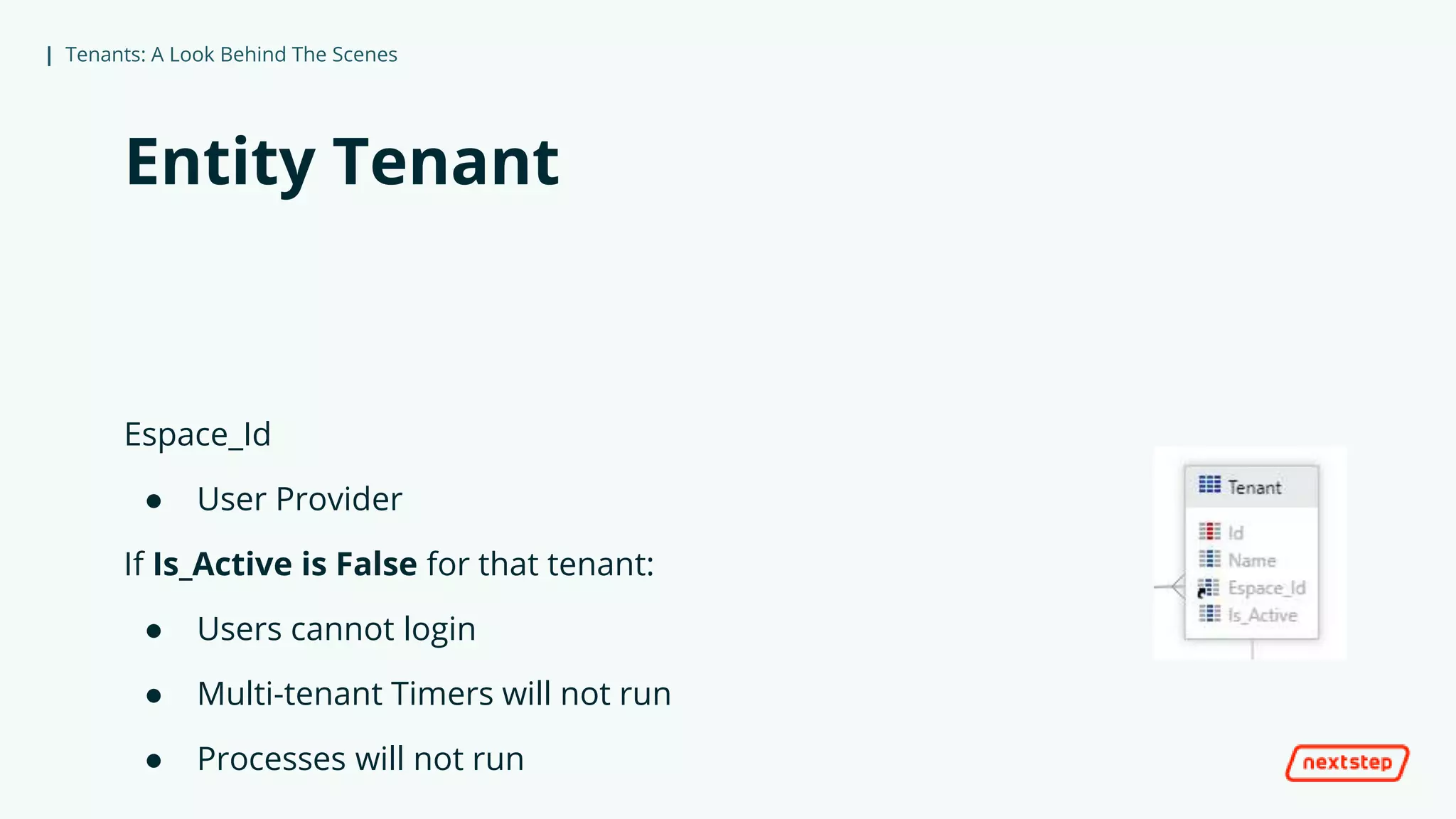

- 16. | Tenants: ALook Behind The Scenes Entity Tenant Espace_Id ● User Provider If Is_Active is False for that tenant: ● Users cannot login ● Multi-tenant Timers will not run ● Processes will not run

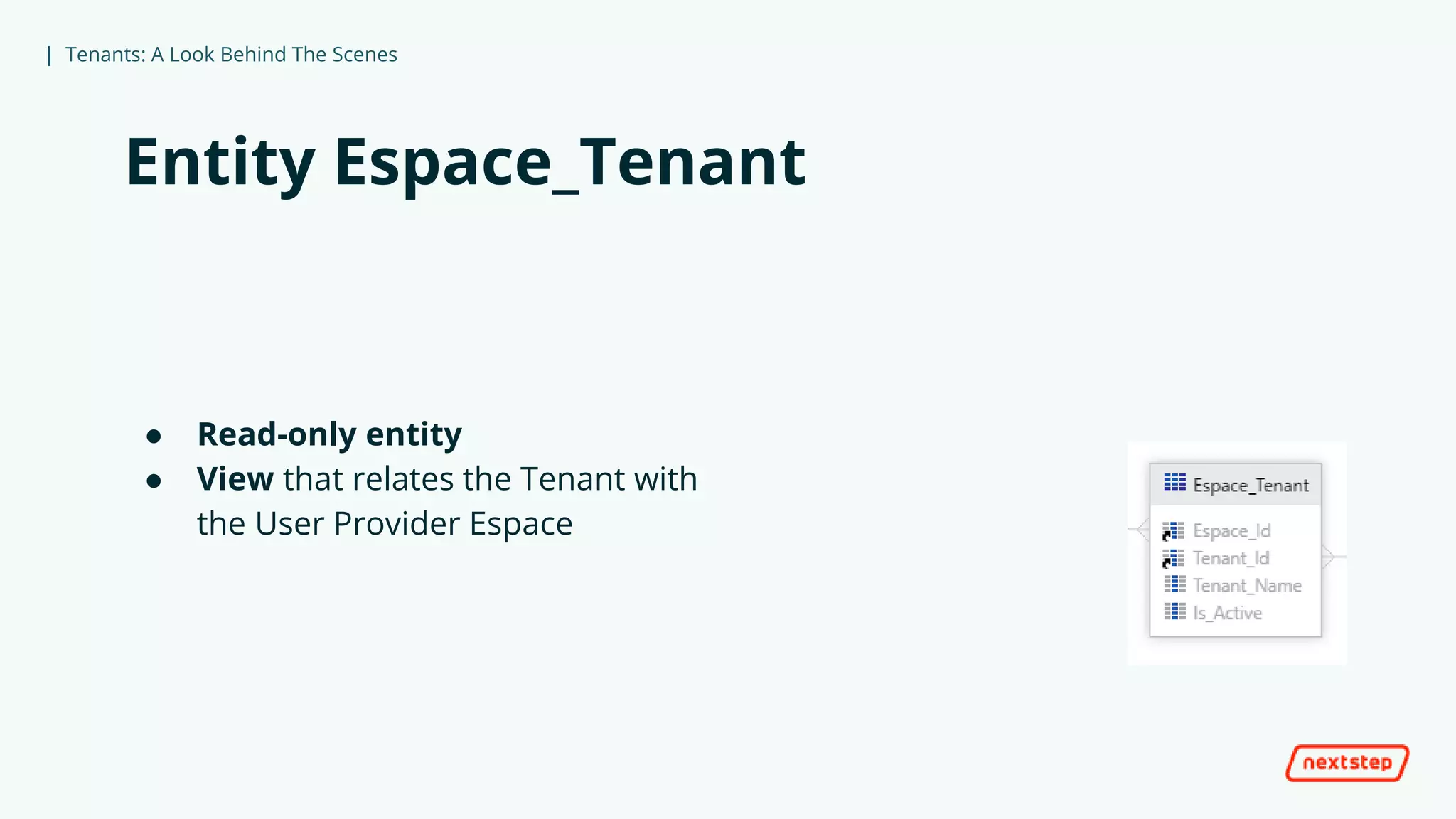

- 17. | Tenants: ALook Behind The Scenes Entity Espace_Tenant ● Read-only entity ● View that relates the Tenant with the User Provider Espace

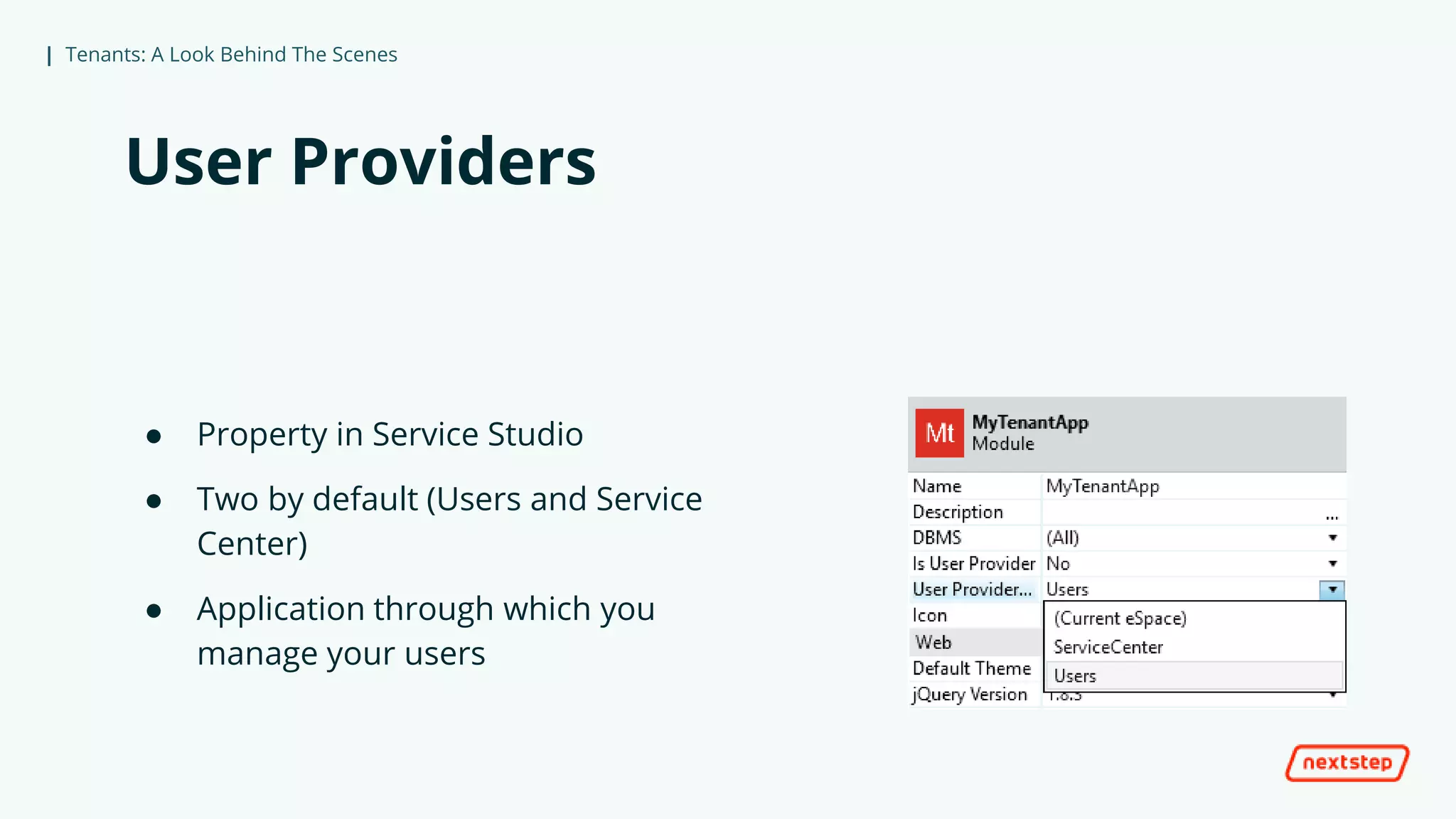

- 18. | Tenants: ALook Behind The Scenes User Providers ● Property in Service Studio ● Two by default (Users and Service Center) ● Application through which you manage your users

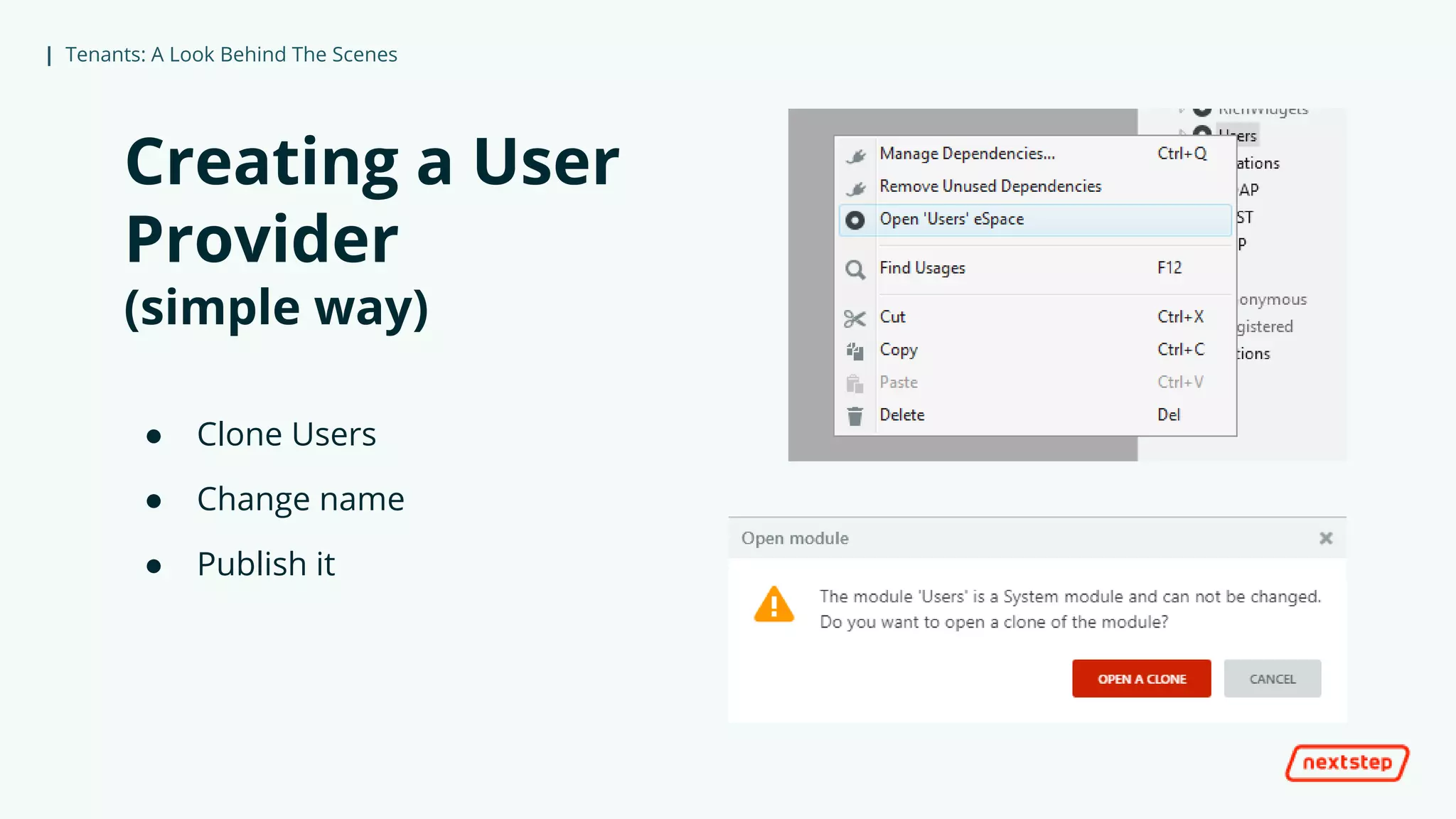

- 19. | Tenants: ALook Behind The Scenes Creating a User Provider (simple way) ● Clone Users ● Change name ● Publish it

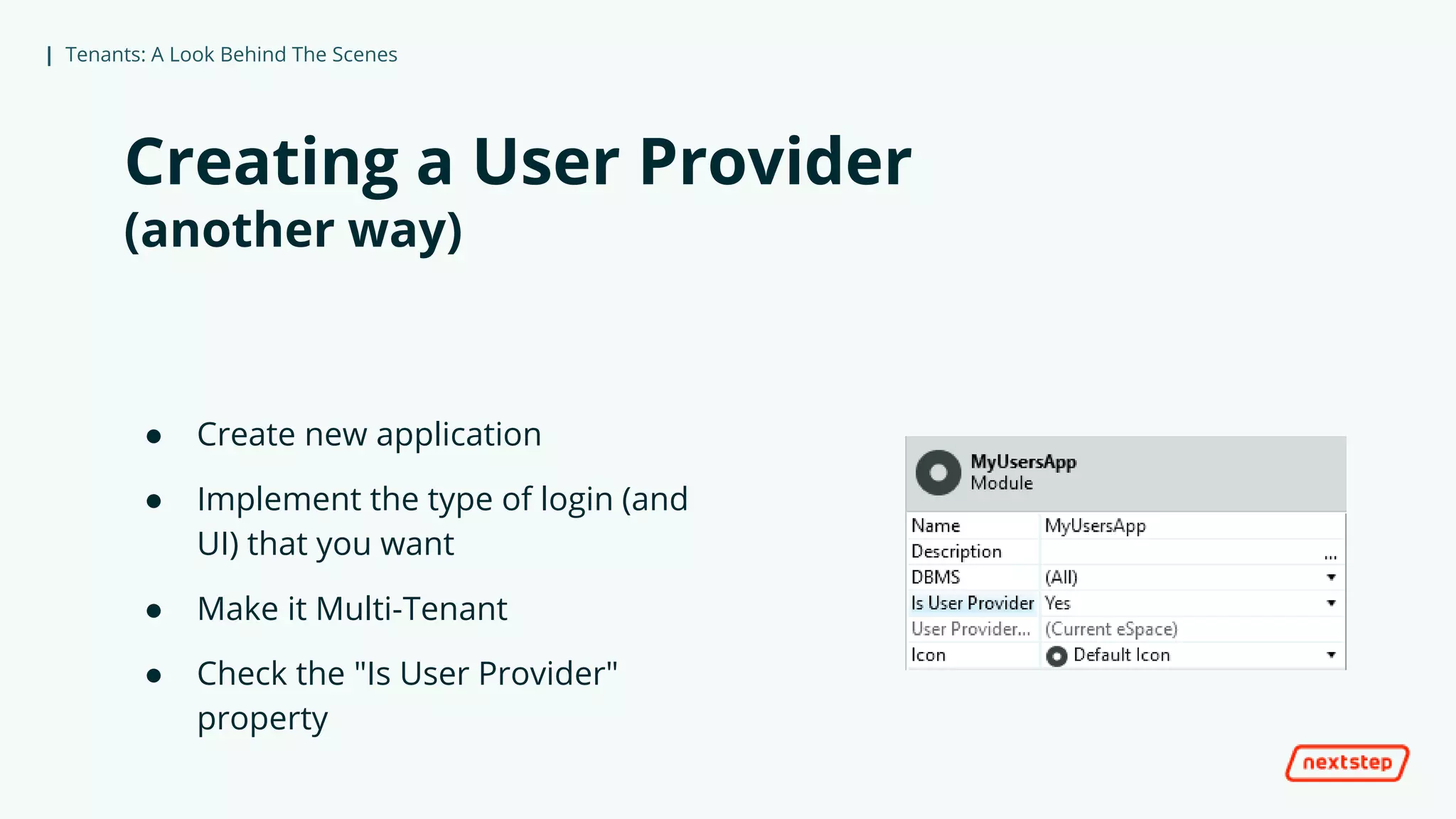

- 20. | Tenants: ALook Behind The Scenes Creating a User Provider (another way) ● Create new application ● Implement the type of login (and UI) that you want ● Make it Multi-Tenant ● Check the "Is User Provider" property

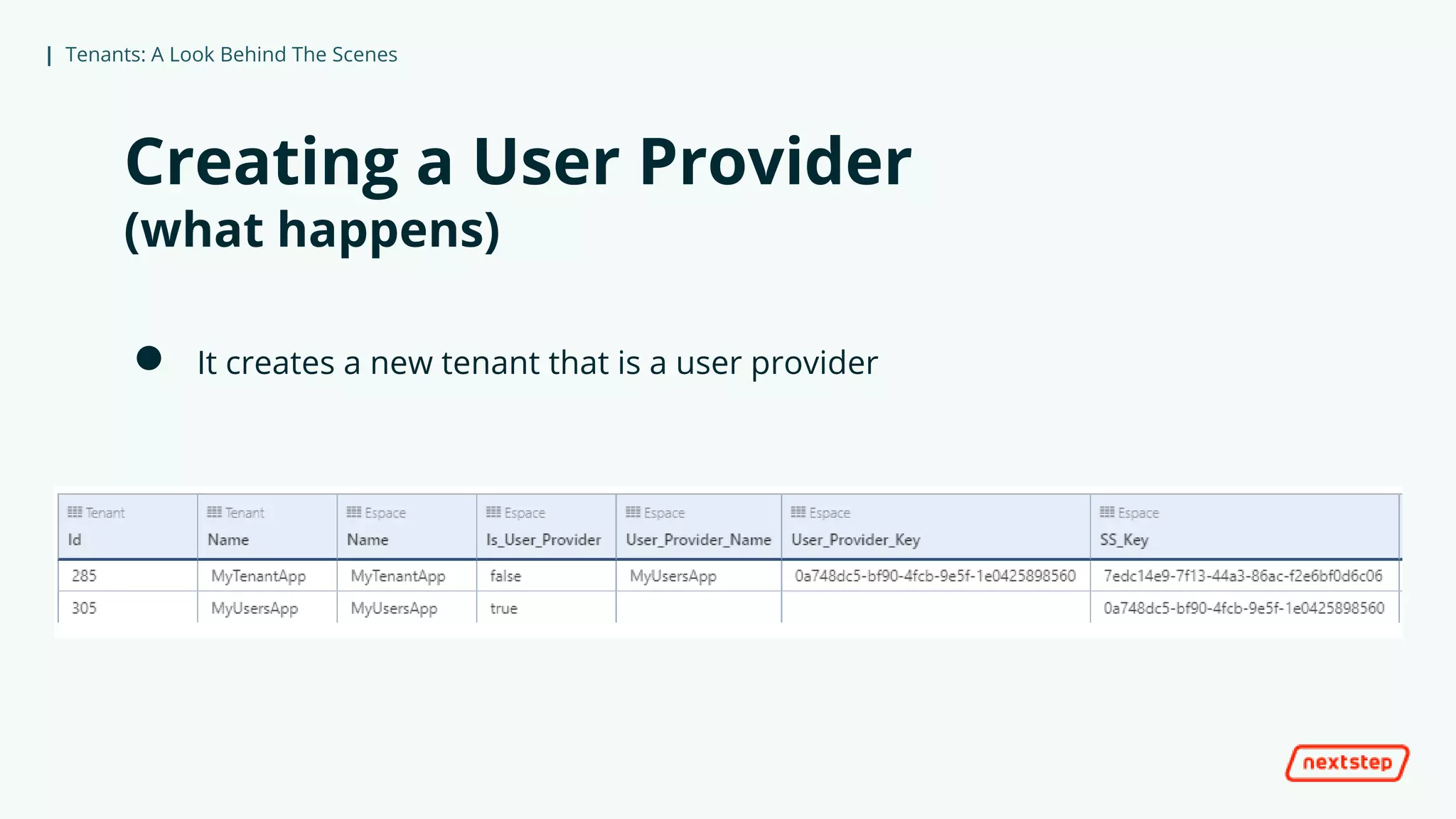

- 21. | Tenants: ALook Behind The Scenes Creating a User Provider (what happens) ● It creates a new tenant that is a user provider

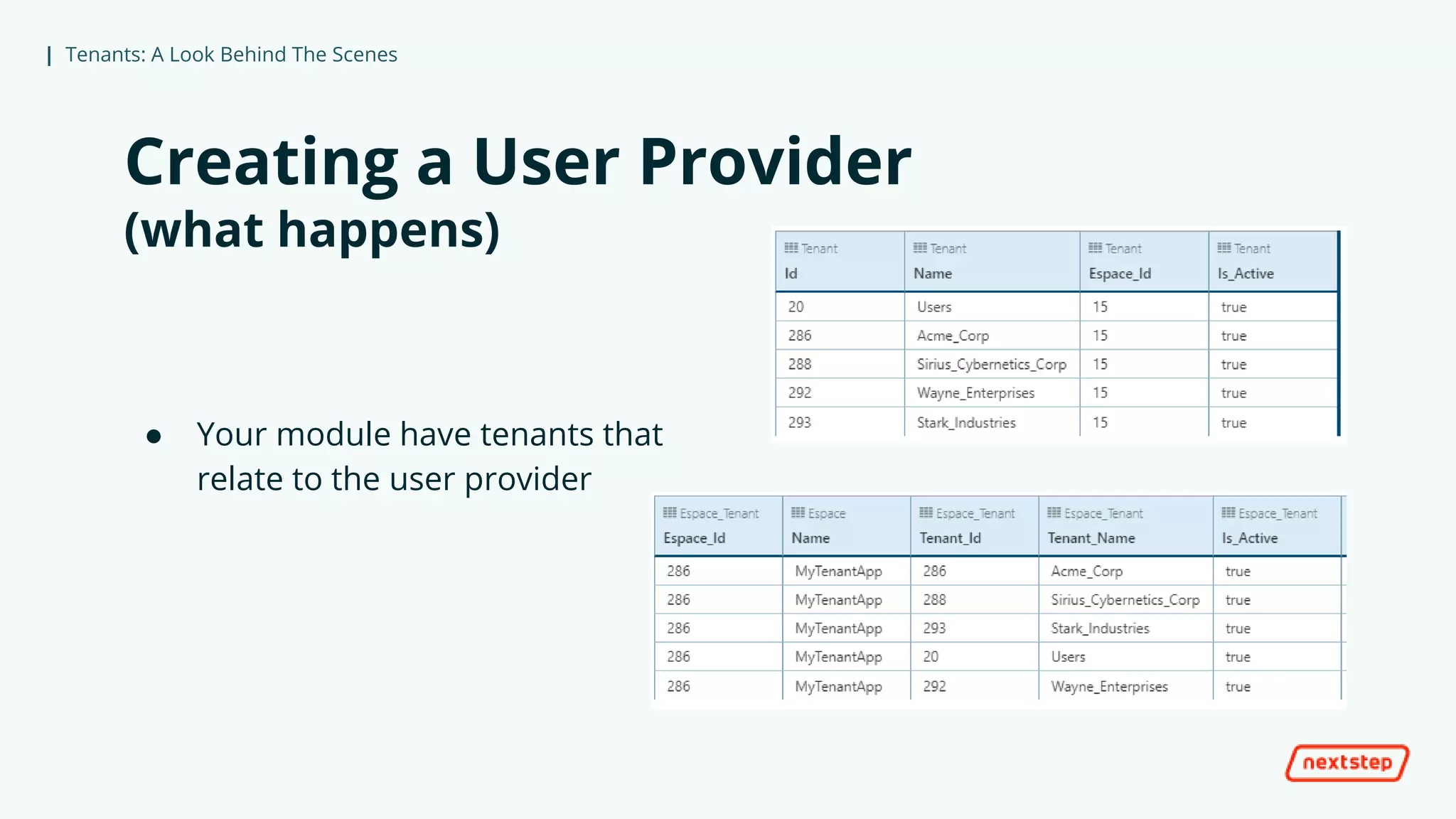

- 22. | Tenants: ALook Behind The Scenes Creating a User Provider (what happens) ● Your module have tenants that relate to the user provider

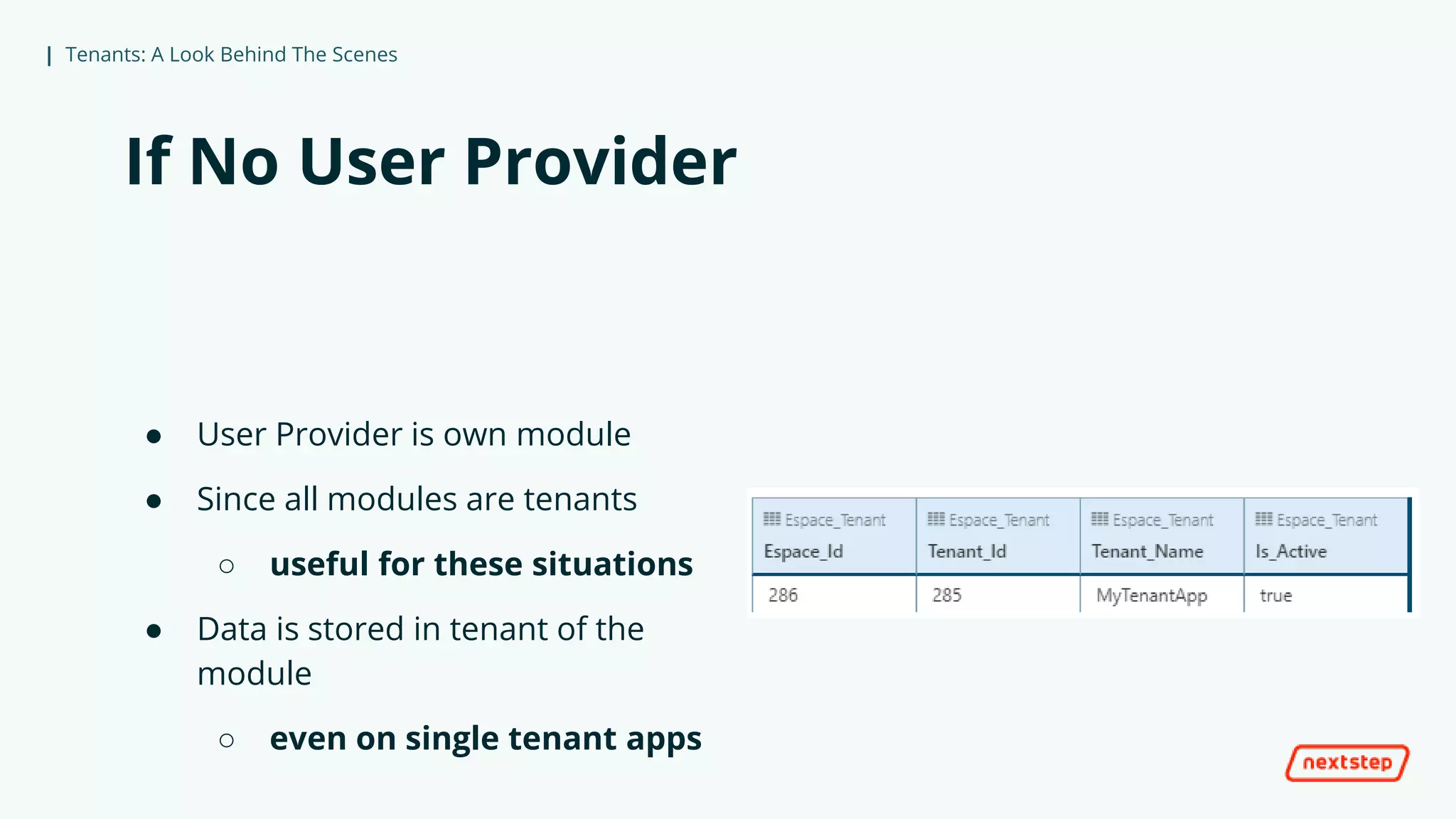

- 23. | Tenants: ALook Behind The Scenes If No User Provider ● User Provider is own module ● Since all modules are tenants ○ useful for these situations ● Data is stored in tenant of the module ○ even on single tenant apps

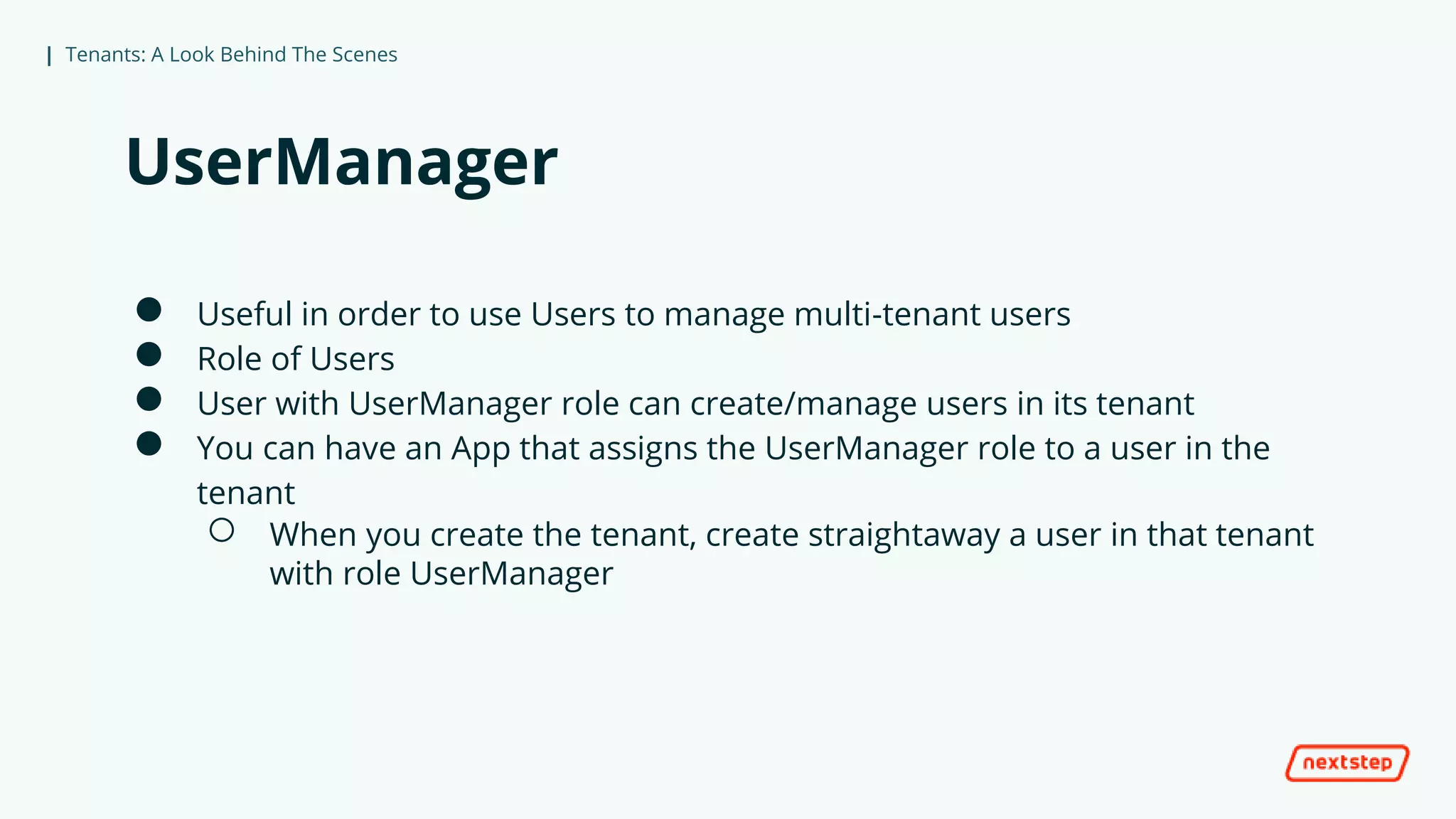

- 24. | Tenants: ALook Behind The Scenes UserManager ● Useful in order to use Users to manage multi-tenant users ● Role of Users ● User with UserManager role can create/manage users in its tenant ● You can have an App that assigns the UserManager role to a user in the tenant ○ When you create the tenant, create straightaway a user in that tenant with role UserManager

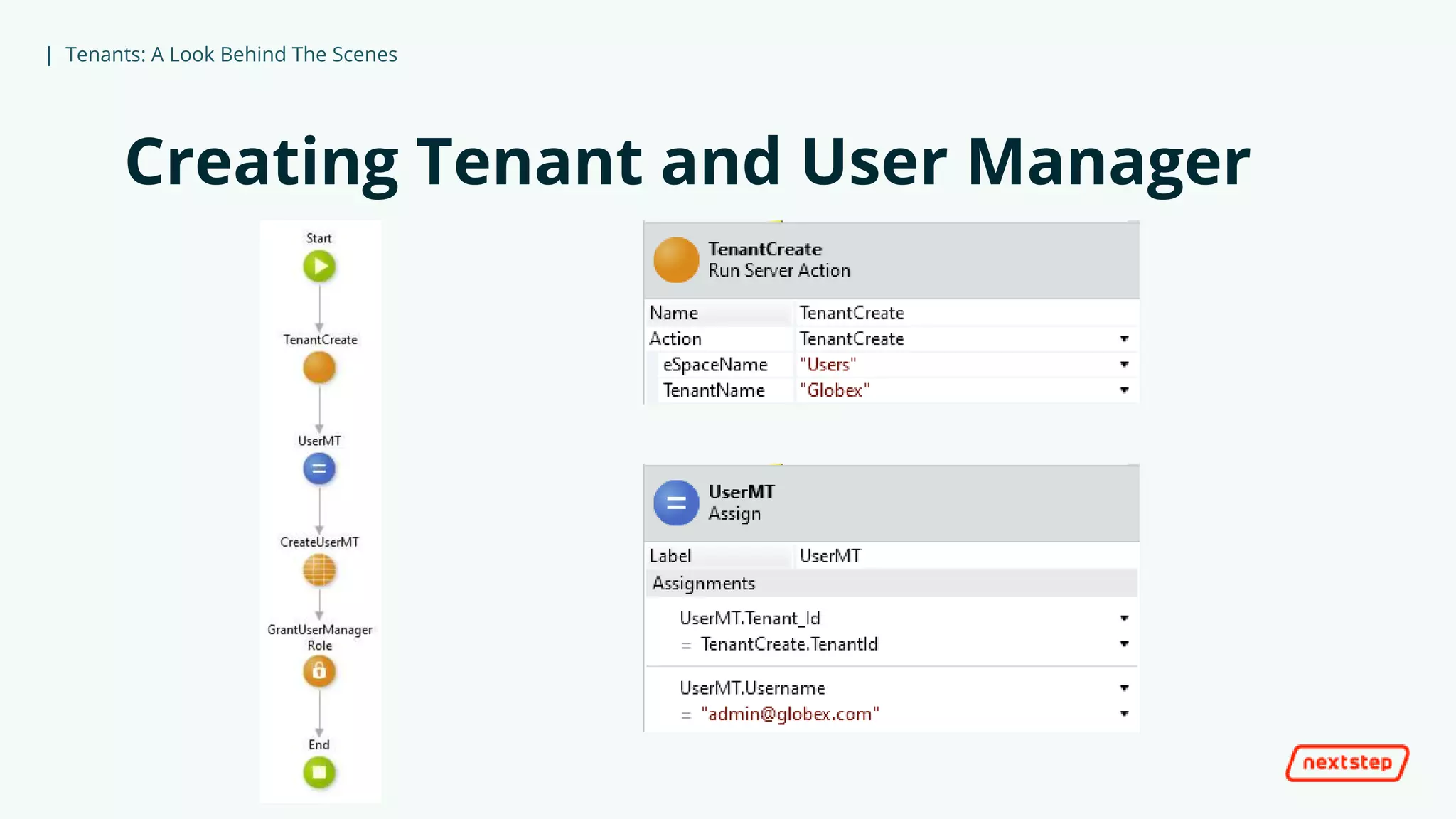

- 25. | Tenants: ALook Behind The Scenes Creating Tenant and User Manager

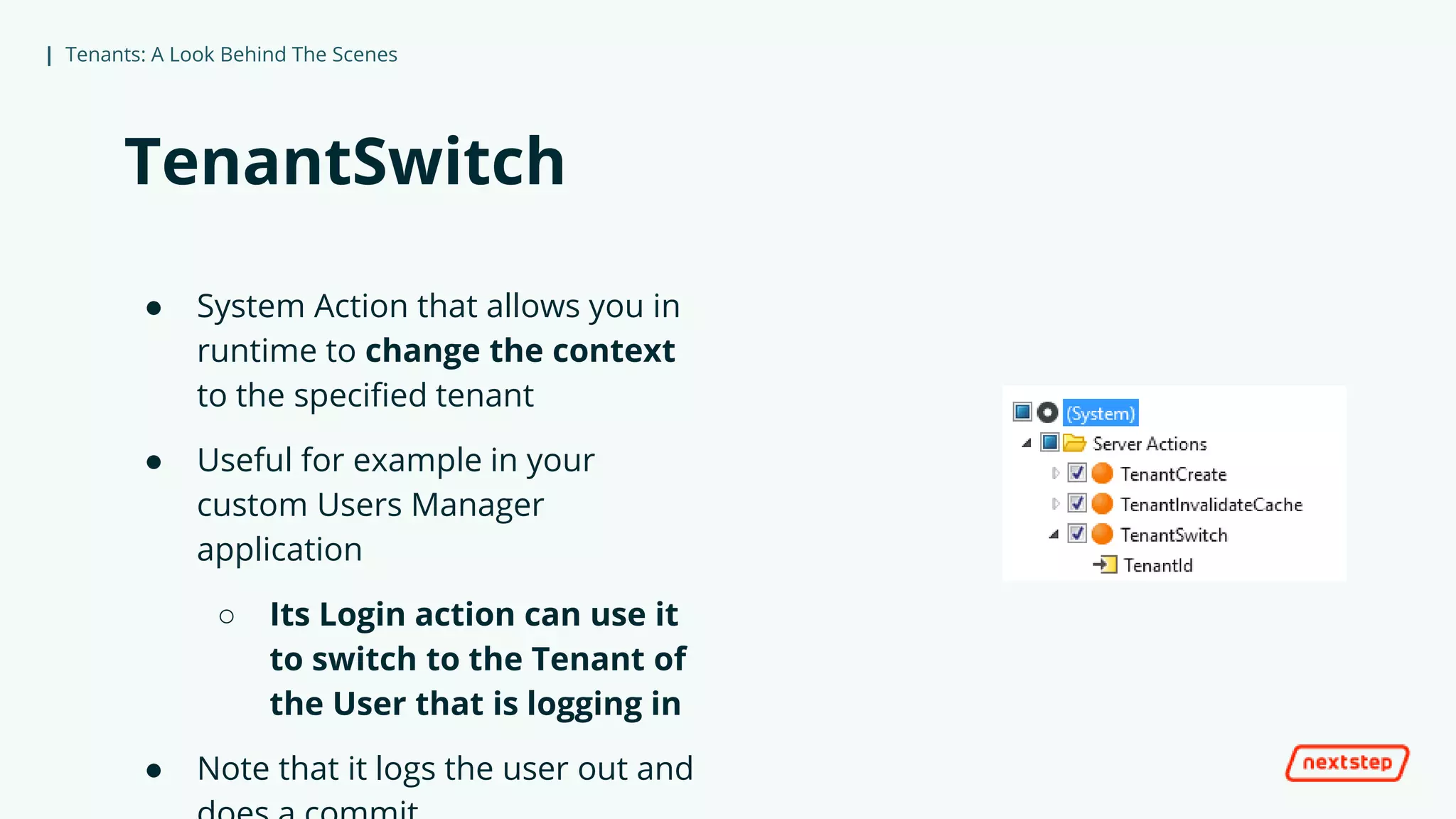

- 26. | Tenants: ALook Behind The Scenes TenantSwitch ● System Action that allows you in runtime to change the context to the specified tenant ● Useful for example in your custom Users Manager application ○ Its Login action can use it to switch to the Tenant of the User that is logging in ● Note that it logs the user out and

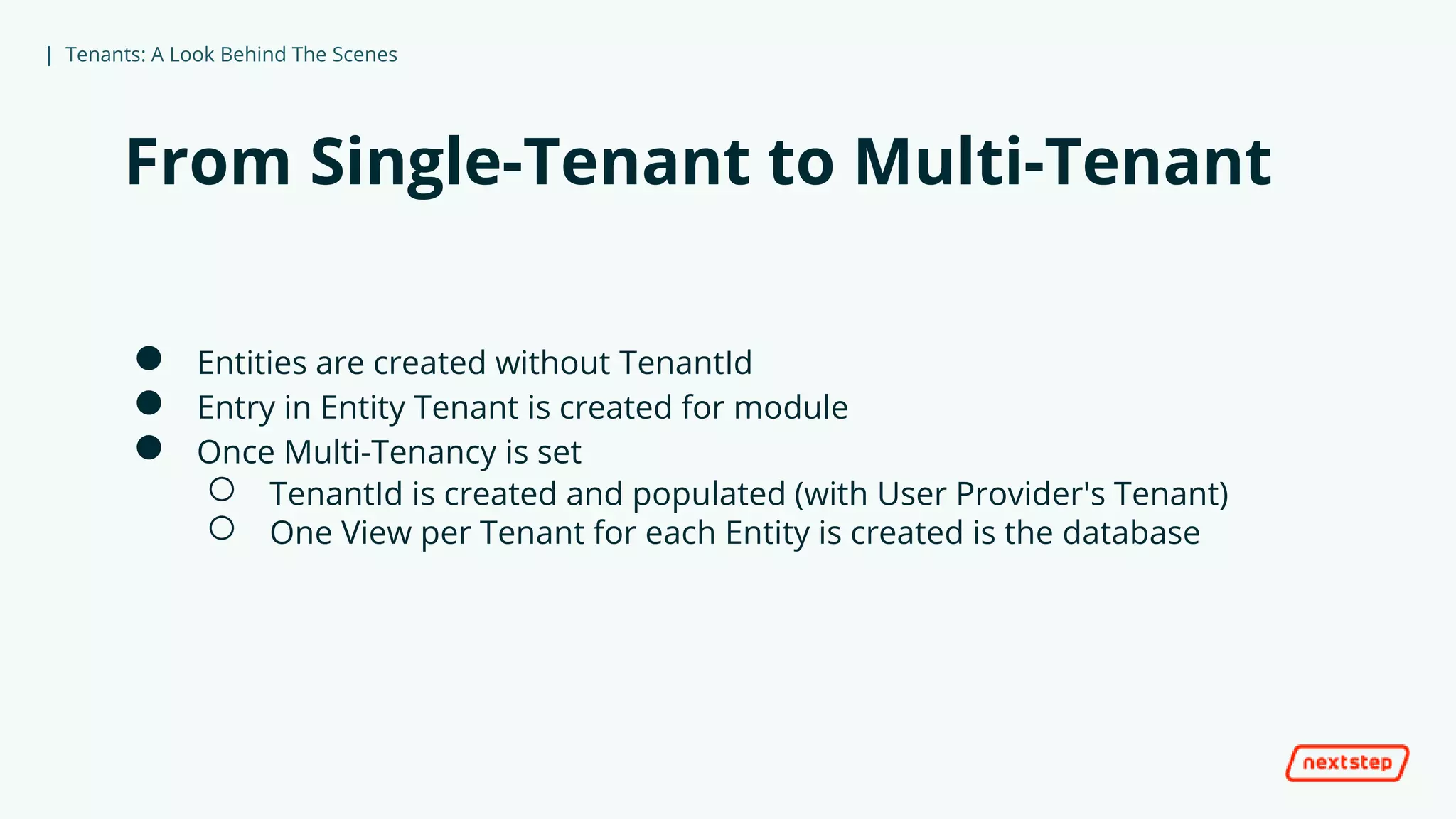

- 27. | Tenants: ALook Behind The Scenes From Single-Tenant to Multi-Tenant ● Entities are created without TenantId ● Entry in Entity Tenant is created for module ● Once Multi-Tenancy is set ○ TenantId is created and populated (with User Provider's Tenant) ○ One View per Tenant for each Entity is created is the database

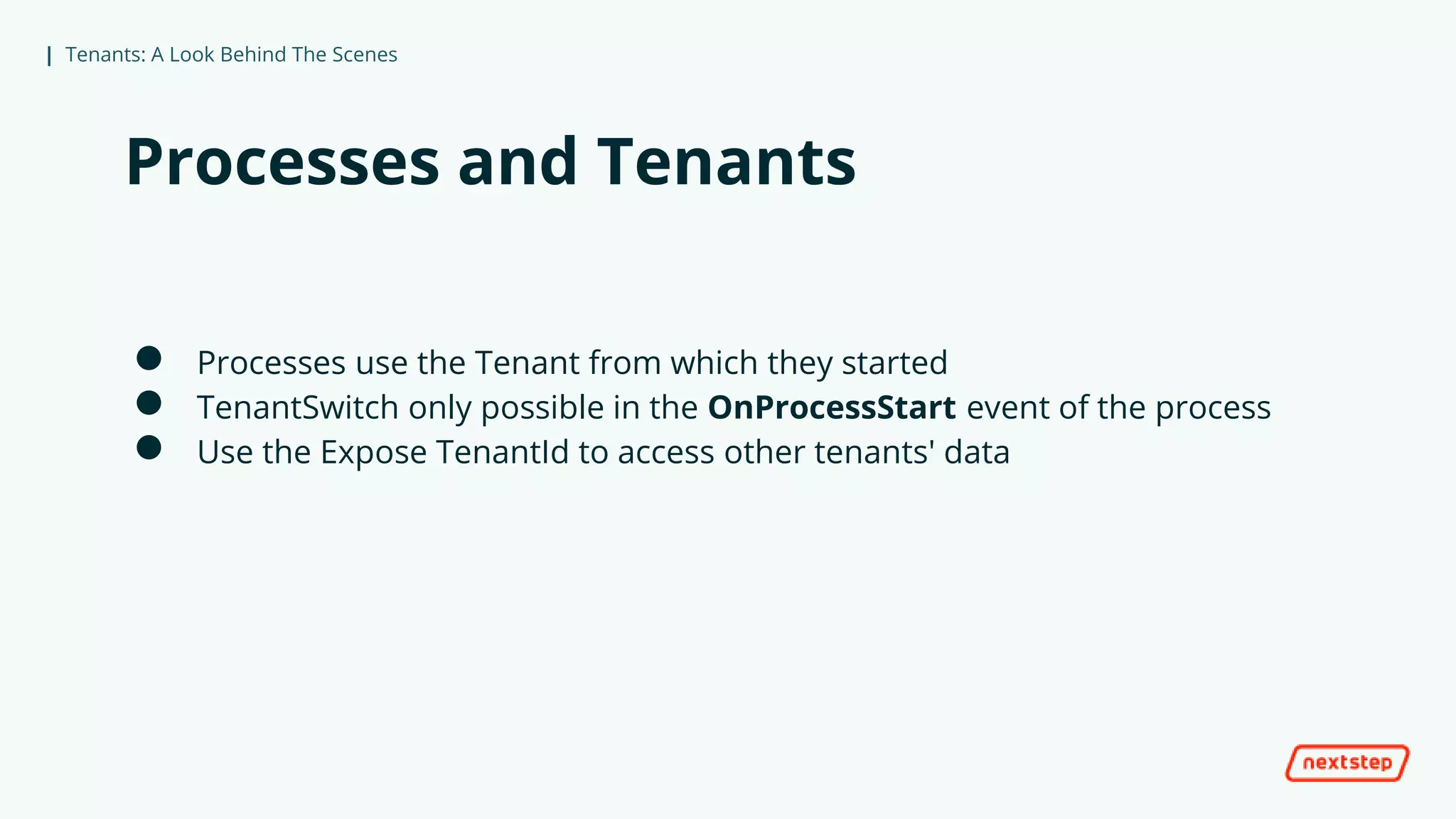

- 28. | Tenants: ALook Behind The Scenes Processes and Tenants ● Processes use the Tenant from which they started ● TenantSwitch only possible in the OnProcessStart event of the process ● Use the Expose TenantId to access other tenants' data

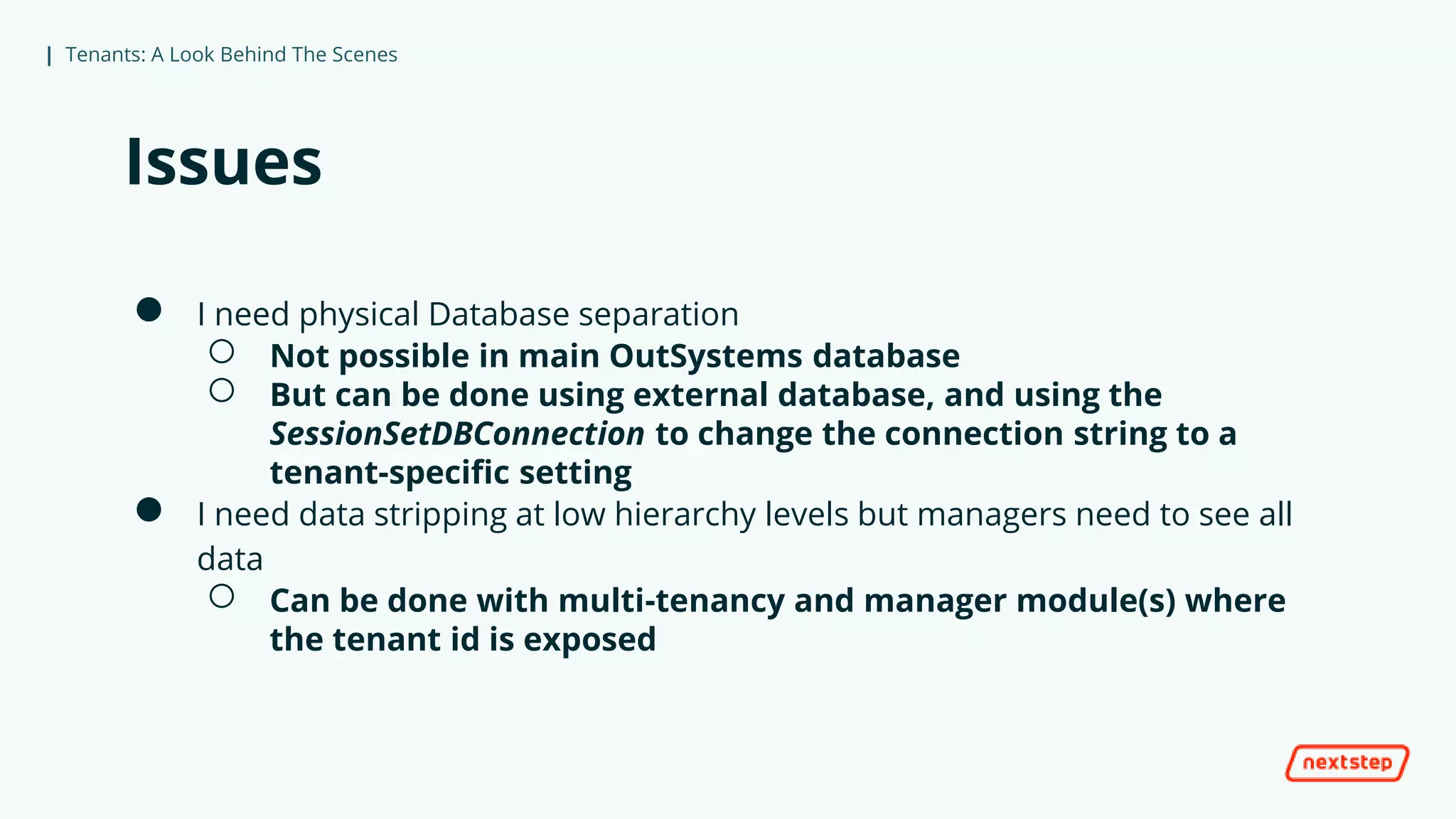

- 29. | Tenants: ALook Behind The Scenes Issues ● I need physical Database separation ○ Not possible in main OutSystems database ○ But can be done using external database, and using the SessionSetDBConnection to change the connection string to a tenant-specific setting ● I need data stripping at low hierarchy levels but managers need to see all data ○ Can be done with multi-tenancy and manager module(s) where the tenant id is exposed
- 30. | Tenants: ALook Behind The Scenes Thank You! @ injose.costa@itup.pt /josecccosta
Editor's Notes
- #4 To customers, it appears that they have their own application, when in fact they are using the same app as others but with some customization. So, same physical resources and application runtime, but isolated data
- #11 logically partitioned by the platform, as if the other tenants' data doesn't exist at all
- #16 This is a join of the Tenant with Person. Notice that if I do not expose the TenantId I also have to specify in Service Studio the Tenant that I want to use...
- #17 TenantSwitch will also not work for that tenant.
- #19 A User Provider is a Tenant
- #27 TenantSwitch does a CommitTransaction
