Orange Labs uses model-driven software development tools to optimize resources, minimize defects, and maintain a flexible architecture. Their initial goals were to reduce costs through preliminary design work, improve quality by sharing a common model, and maintain flexibility. They have evolved their process to use Maven, Jonas, and Enterprise Architect with Acceleo code generation instead of their previous tools. Feedback indicates benefits of increased accessibility and reduced licensing costs, though a complete Eclipse UML modeler would be preferable.

1. Open-source Model Driven
software development toolset
Lesson learned from Orange Labs
Orange Labs
Samuel Liard, Research & Development
July 10 2009
unrestricted

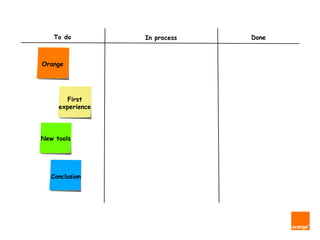

2. To do In process Done
Orange
First
experience
New tools
Conclusion

3. To do In process Done
Orange
First
experience
New tools
Conclusion

4. Orange
Serving nearly 182 million customers on 5 continents, our group is a leading
telecommunications operators in the world. With an organization that
relies on proximity to markets and a global vision of our business -
fixed, mobile and internet - our group is now an integrated operator and
internationally.
 1er ADSL operator, with 12,7 million customers in Europe
 European leader in the voice over IP, with more than 6,5
million customers
 number 1 in Europe and number 2 in the world
for television over ADSL, with 2,1 million customers
 3e mobile operator in Europe
 A world leader on Business Telecommunications services
 First historic operator to deploy FTTH ("fiber to the home") in
France and Slovakia

5. Orange Labs in world

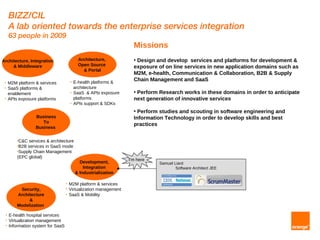

6. BIZZ/CIL
A lab oriented towards the enterprise services integration
63 people in 2009
Missions
Architecture, Integration Architecture, • Design and develop services and platforms for development &
& Middleware Open Source exposure of on line services in new application domains such as
& Portal
M2M, e-health, Communication & Collaboration, B2B & Supply
• E-health platforms &
Chain Management and SaaS
• M2M platform & services
• SaaS platforms & architecture
enablement • SaaS & APIs exposure • Perform Research works in these domains in order to anticipate
• APIs exposure platforms platforms next generation of innovative services
• APIs support & SDKs
• Perform studies and scouting in software engineering and
Business Information Technology in order to develop skills and best
To
practices
Business
•C&C services & architecture
•B2B services in SaaS mode
•Supply Chain Management
(EPC global)
I'm here
Development, Samuel Liard
Integration Software Architect JEE
& Industrialization
• M2M platform & services
Security, • Virtualization management
Architecture • SaaS & Mobility
&
Modelization
• E-health hospital services
• Virtualization management
• Information system for SaaS

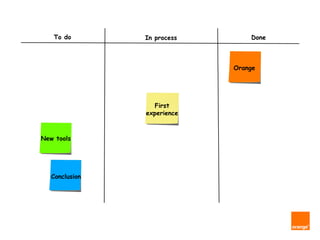

7. To do In process Done
Orange
First
experience
New tools
Conclusion

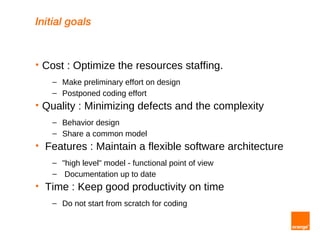

8. Initial goals
 Cost : Optimize the resources staffing.
– Make preliminary effort on design
– Postponed coding effort
 Quality : Minimizing defects and the complexity
– Behavior design
– Share a common model
 Features : Maintain a flexible software architecture
– "high level" model - functional point of view
– Documentation up to date
 Time : Keep good productivity on time
– Do not start from scratch for coding

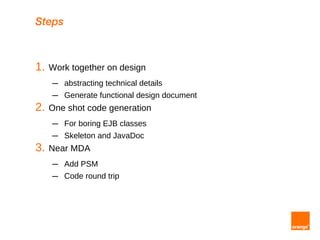

9. Steps
1. Work together on design
– abstracting technical details
– Generate functional design document
2. One shot code generation
– For boring EJB classes
– Skeleton and JavaDoc
3. Near MDA
– Add PSM
– Code round trip

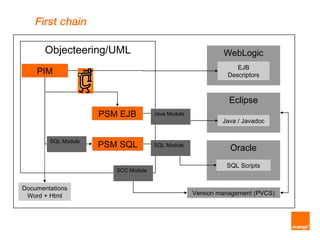

10. First chain
Objecteering/UML WebLogic
EJB
PIM Descriptors
Eclipse
PSM EJB Java Module
Java / Javadoc
SQL Module
PSM SQL SQL Module
Oracle
SQL Scripts
SCC Module
Documentations
Word + Html Version management (PVCS)

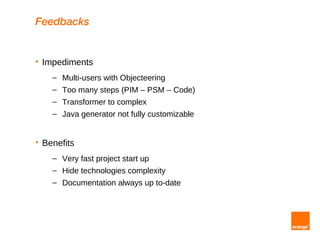

11. Feedbacks
 Impediments
– Multi-users with Objecteering
– Too many steps (PIM – PSM – Code)
– Transformer to complex
– Java generator not fully customizable
 Benefits
– Very fast project start up
– Hide technologies complexity
– Documentation always up to-date

12. To do In process Done
Orange
First
experience
New tools
Conclusion

13. New group choice
 Maven enterprise repository
 Jonas selected
 Objecteering dereferenced
 Enterprise Architect selected

14. Software factory evolution
hudson
checkstyle

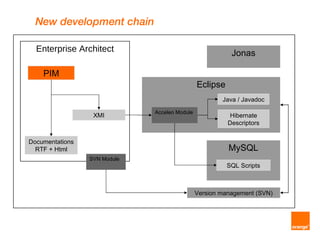

15. New development chain
Enterprise Architect Jonas
PIM
Eclipse
Java / Javadoc
Acceleo Module
XMI Hibernate
Descriptors
Documentations
RTF + Html MySQL
SVN Module
SQL Scripts
Version management (SVN)

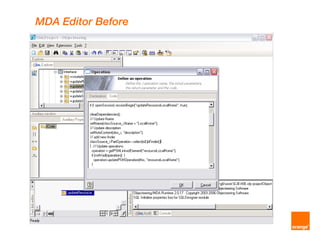

16. MDA Editor Before

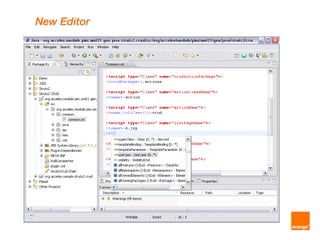

17. New Editor

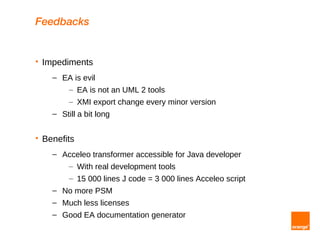

18. Feedbacks
 Impediments
– EA is evil
– EA is not an UML 2 tools
– XMI export change every minor version
– Still a bit long
 Benefits
– Acceleo transformer accessible for Java developer
– With real development tools
– 15 000 lines J code = 3 000 lines Acceleo script
– No more PSM
– Much less licenses
– Good EA documentation generator

19. To do In process Done
Orange
First
experience
New tools
Conclusion

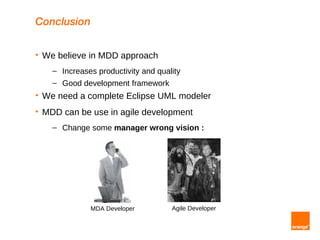

20. Conclusion
 We believe in MDD approach
– Increases productivity and quality
– Good development framework
 We need a complete Eclipse UML modeler
 MDD can be use in agile development
– Change some manager wrong vision :
MDA Developer Agile Developer

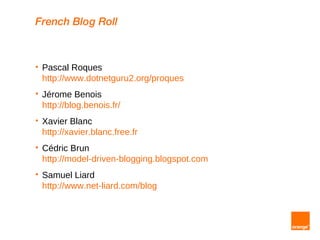

21. French Blog Roll
 Pascal Roques
http://www.dotnetguru2.org/proques
 Jérome Benois
http://blog.benois.fr/
 Xavier Blanc
http://xavier.blanc.free.fr
 Cédric Brun
http://model-driven-blogging.blogspot.com
 Samuel Liard
http://www.net-liard.com/blog

22. thank you
unrestricted
