1) Abdominal aortic aneurysm (AAA) is a dilatation of the abdominal aorta that can lead to rupture if left untreated. 2) AAA is often asymptomatic but can be diagnosed through ultrasound screening, which is recommended for men over 65. Left untreated, risk of rupture increases with aneurysm size. 3) Treatment options include open surgical repair or endovascular stent grafting, with the latter being less invasive and associated with faster recovery times. However, endovascular repair carries long-term risks of complications like endoleaks that require monitoring.

1. ABDOMINAL AORTIC ANEYRSUM
AN EXPANDING PROBLEM ??

2. Do you people know one of the greatest minds
in the history died due to AAA

3. • Albert Einstein was diagnosed
with abdominal aortic
aneurysm
• He refused for any intervention
and died bcz of ruptured AAA

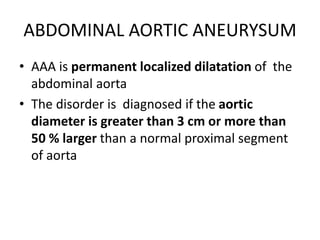

4. ABDOMINAL AORTIC ANEURYSUM
• AAA is permanent localized dilatation of the
abdominal aorta
• The disorder is diagnosed if the aortic
diameter is greater than 3 cm or more than
50 % larger than a normal proximal segment
of aorta

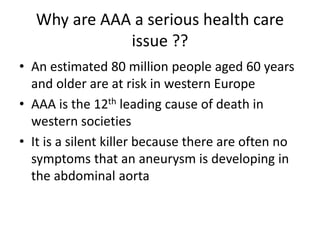

5. Why are AAA a serious health care
issue ??
• An estimated 80 million people aged 60 years
and older are at risk in western Europe
• AAA is the 12th leading cause of death in
western societies
• It is a silent killer because there are often no
symptoms that an aneurysm is developing in
the abdominal aorta

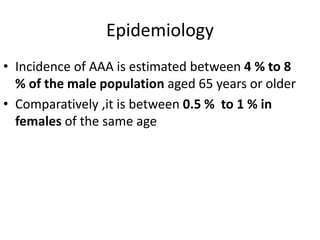

6. Epidemiology
• Incidence of AAA is estimated between 4 % to 8
% of the male population aged 65 years or older
• Comparatively ,it is between 0.5 % to 1 % in
females of the same age

7. Pathophysiology of AAA
Pathological changes in the aortic wall ;
Inflammatory process in aortic wall
Causing breakdown of elastin & collagen
Decrease tensile strength
Leading to aortic wall expansion

8. Pathophysiology of a AAA - Risk factors
Main risk factors
 Male gender
 Smoking history
 Hypertension
 Family history
 Increasing age
 Atherosclerosis
 Infection / inflammation
 connective tissue disorder
 vasculitis

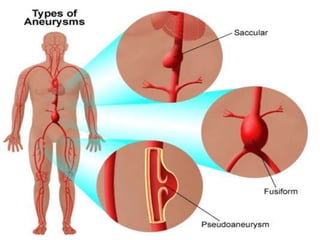

9. Types of AAA
Morphological classification
True aneurysm
Fusiform aneurysm
Saccular aneurysm
Pseudo aneurysm

11. Why is early diagnosis of AAA so
important ?
• The operative mortality of treating ruptured
aneurysm is 80 %
• For elective AAA cases , the operative mortality rate
is drastically reduced , approximately only 2-7% of
cases result in death

12. If untreated ,the AAA may rupture
• Risk of rupture for untreated aneurysm within 5 yrs
5-5.9 cm -----25%
6-7cm----------35%
> 7% -----------75%
• When the aneurysm diameter reaches 5 cm, the risk of
rupture is generally considered to be higher than the
operative risk

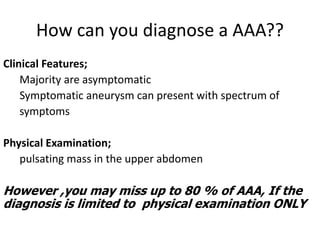

13. How can you diagnose a AAA??
Clinical Features;
Majority are asymptomatic
Symptomatic aneurysm can present with spectrum of
symptoms
Physical Examination;
pulsating mass in the upper abdomen
However ,you may miss up to 80 % of AAA, If the
diagnosis is limited to physical examination ONLY

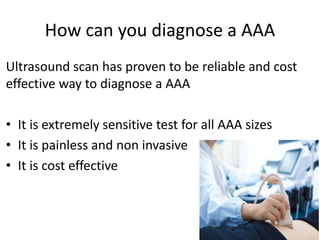

14. How can you diagnose a AAA
Ultrasound scan has proven to be reliable and cost
effective way to diagnose a AAA
• It is extremely sensitive test for all AAA sizes
• It is painless and non invasive
• It is cost effective

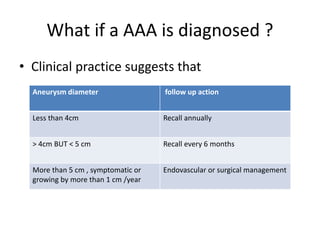

15. What if a AAA is diagnosed ?
• Clinical practice suggests that
Aneurysm diameter follow up action
Less than 4cm Recall annually
> 4cm BUT < 5 cm Recall every 6 months
More than 5 cm , symptomatic or
growing by more than 1 cm /year
Endovascular or surgical management

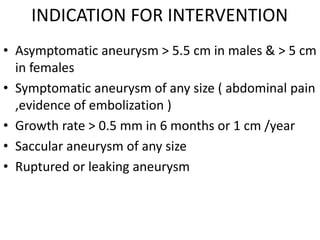

16. INDICATION FOR INTERVENTION
• Asymptomatic aneurysm > 5.5 cm in males & > 5 cm
in females
• Symptomatic aneurysm of any size ( abdominal pain
,evidence of embolization )
• Growth rate > 0.5 mm in 6 months or 1 cm /year
• Saccular aneurysm of any size
• Ruptured or leaking aneurysm

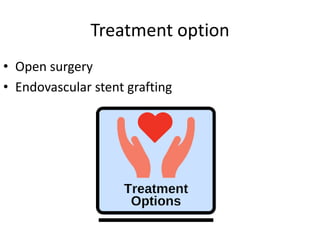

17. Treatment option
• Open surgery
• Endovascular stent grafting

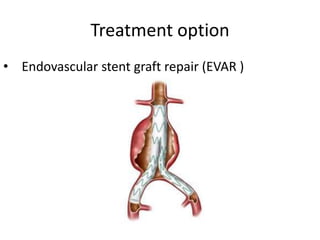

18. Treatment option
• Endovascular stent graft repair (EVAR )

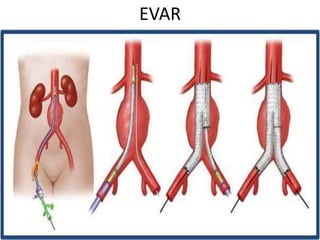

19. EVAR

20. Open surgical repair
Advantages;
• Aneurysm opened , graft proximal and distally
anastomosed , Aorta wrapped and closed
around graft
• Established procedure with more than 40 yrs
of clinical experience .
• Excludes aneurysm and prevents sac growth
• Proven long term results

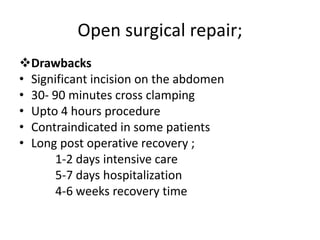

21. Open surgical repair;
Drawbacks
• Significant incision on the abdomen
• 30- 90 minutes cross clamping
• Upto 4 hours procedure
• Contraindicated in some patients
• Long post operative recovery ;
1-2 days intensive care
5-7 days hospitalization
4-6 weeks recovery time

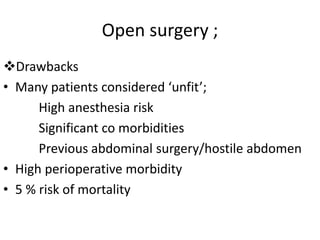

22. Open surgery ;
Drawbacks
• Many patients considered ‘unfit’;
High anesthesia risk
Significant co morbidities
Previous abdominal surgery/hostile abdomen
• High perioperative morbidity
• 5 % risk of mortality

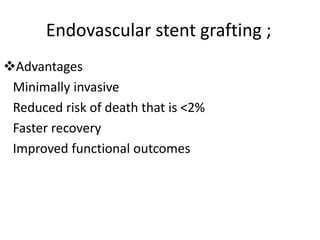

23. Endovascular stent grafting ;
Advantages
Minimally invasive
Reduced risk of death that is <2%
Faster recovery
Improved functional outcomes

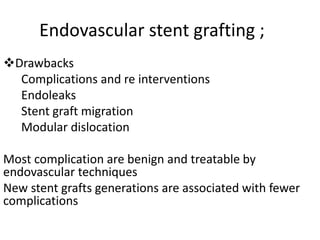

24. Endovascular stent grafting ;
Drawbacks
Complications and re interventions
Endoleaks
Stent graft migration
Modular dislocation
Most complication are benign and treatable by
endovascular techniques
New stent grafts generations are associated with fewer
complications

25. ENDOLEAKS associated with Evar

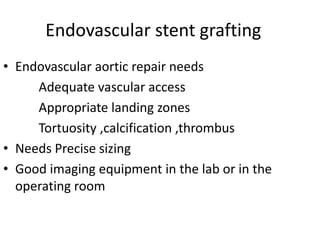

26. Endovascular stent grafting
• Endovascular aortic repair needs
Adequate vascular access
Appropriate landing zones
Tortuosity ,calcification ,thrombus
• Needs Precise sizing
• Good imaging equipment in the lab or in the
operating room

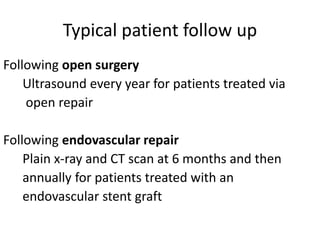

27. Typical patient follow up
Following open surgery
Ultrasound every year for patients treated via
open repair
Following endovascular repair
Plain x-ray and CT scan at 6 months and then
annually for patients treated with an
endovascular stent graft

28. Which treatment for which patients
Case by case basis
• Endovascular stent grafting
should be proposed to all patients who are 70 yrs or older and
having an anatomy compatible with stent graft repair
• Open surgery should be proposed to all patients fit for open repair
or those who refuse EVAR and are fit for open repair
• In patients with comorbidities who are unsuitable for open
surgery, endovascular stent graft repair may be but balanced
against life expectancy

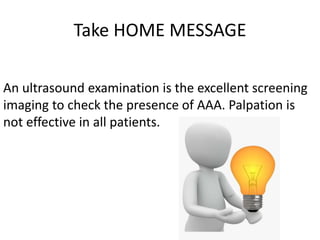

29. Take HOME MESSAGE
An ultrasound examination is the excellent screening
imaging to check the presence of AAA. Palpation is
not effective in all patients.
